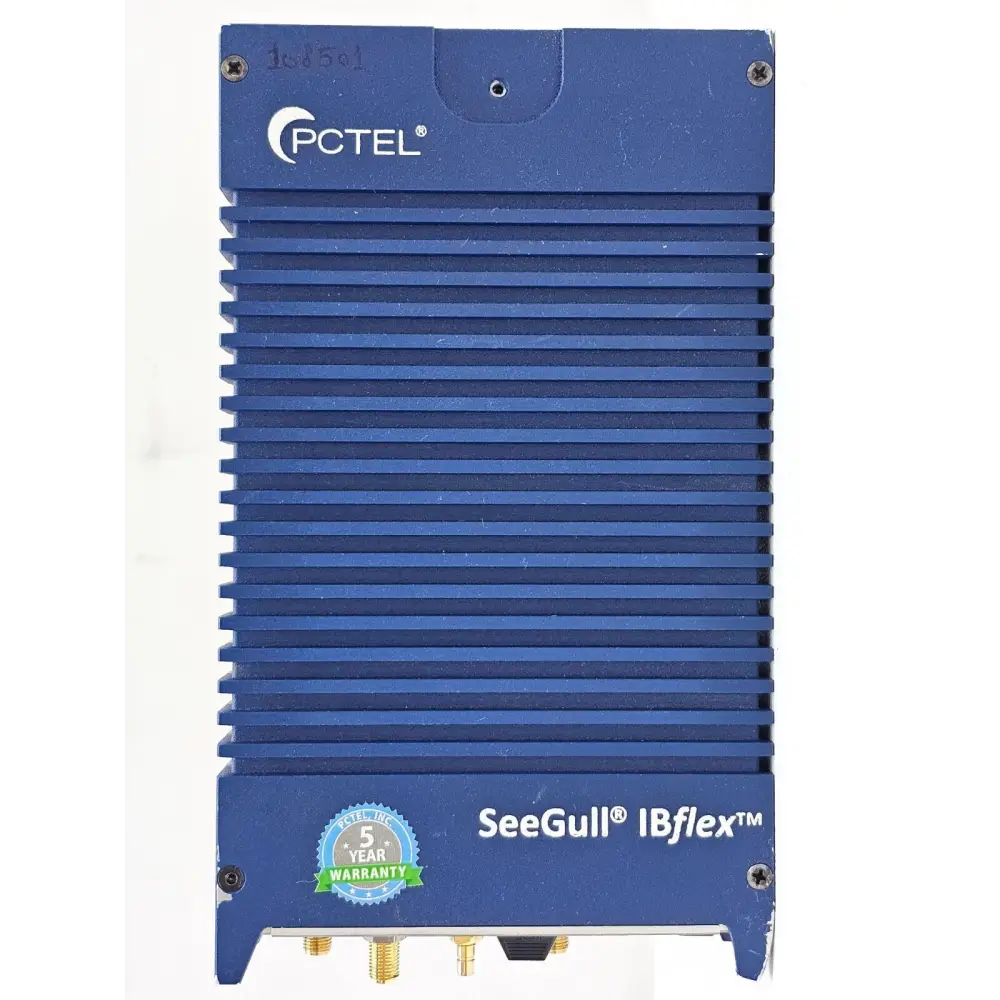

PCTel SeeGull IBflex 570 MHz - 3.8 GHz Scanning Receiver 08900 OP635 LTE 2x2/4x2

Condition: Used

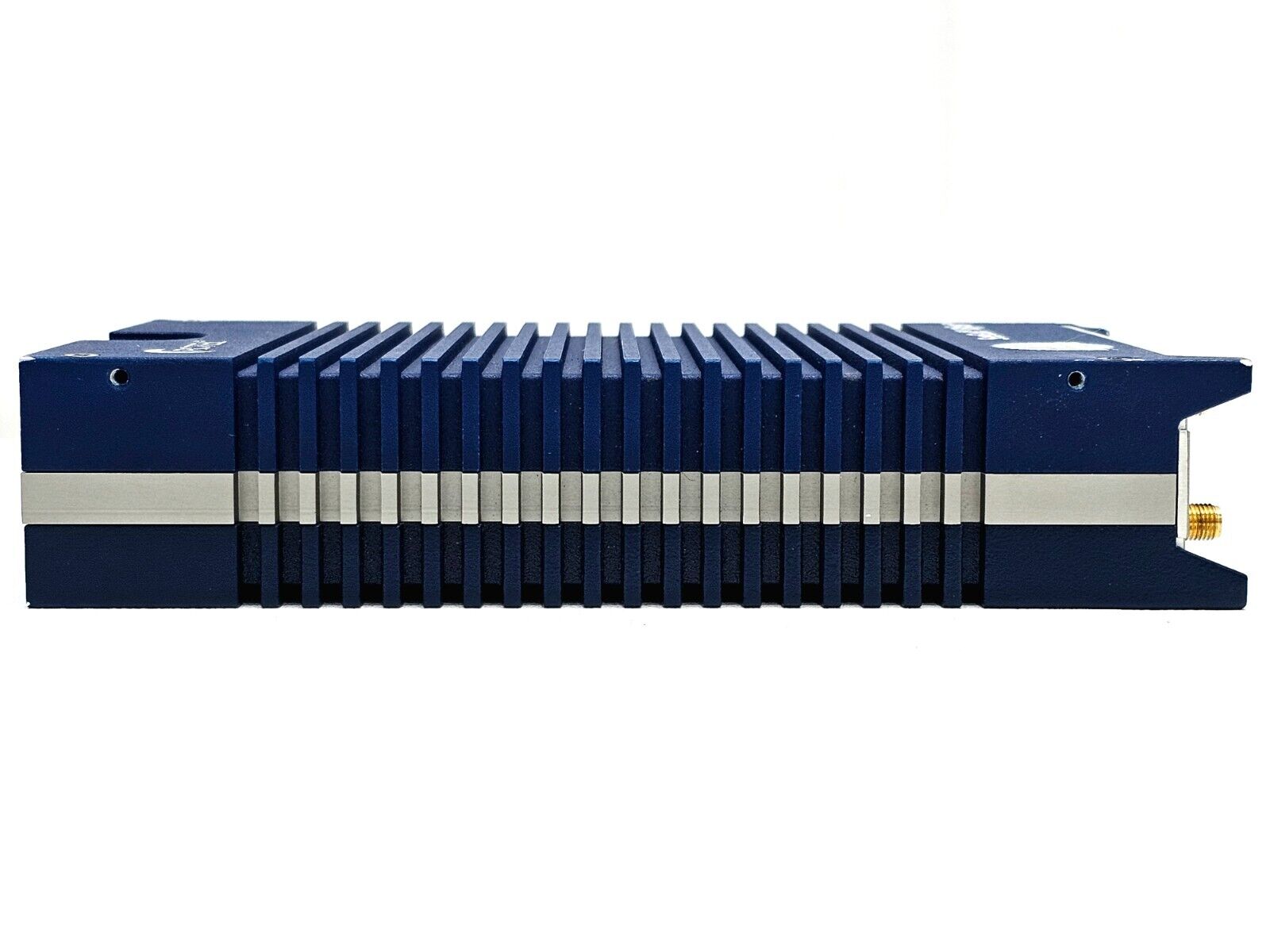

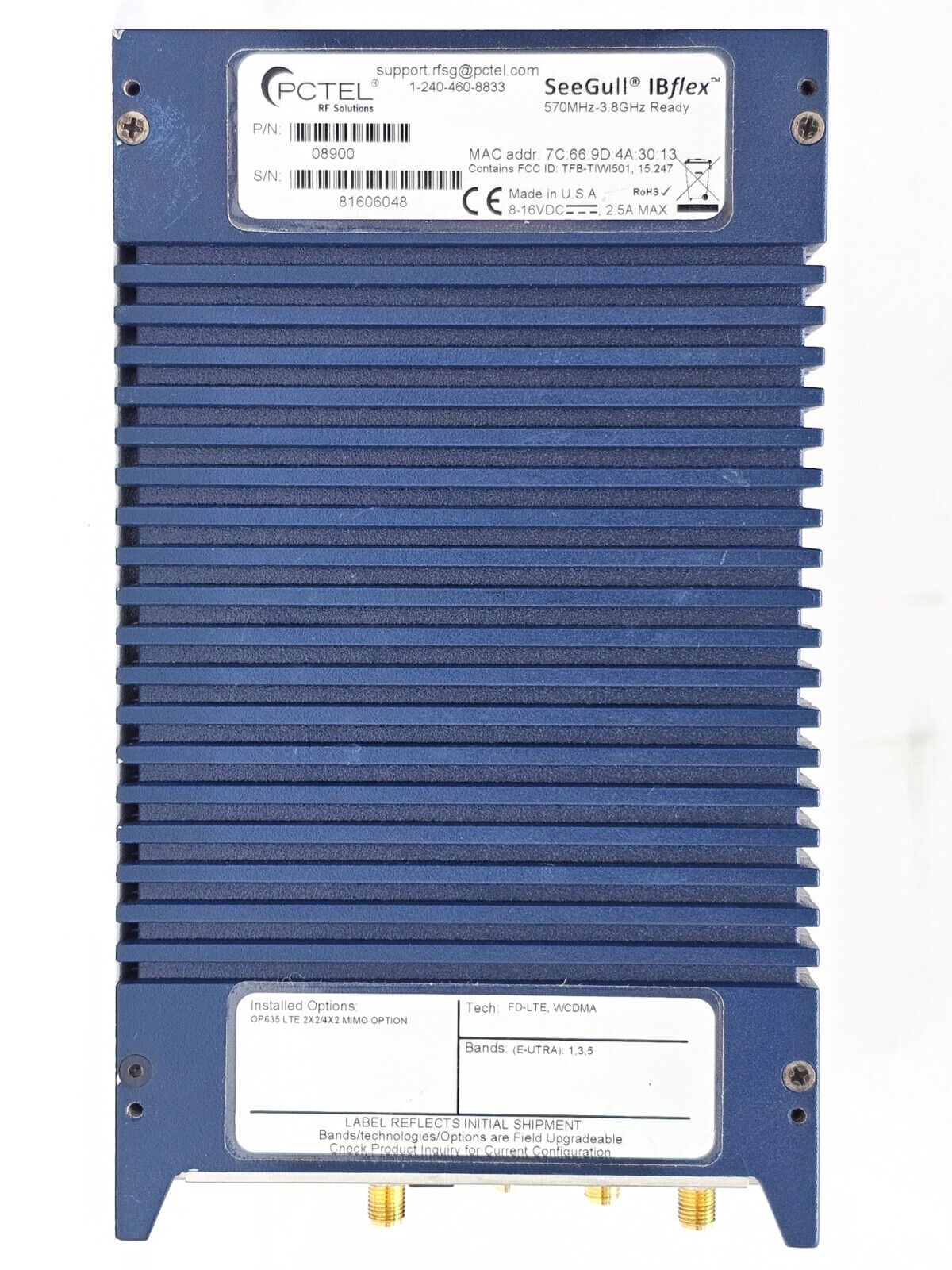

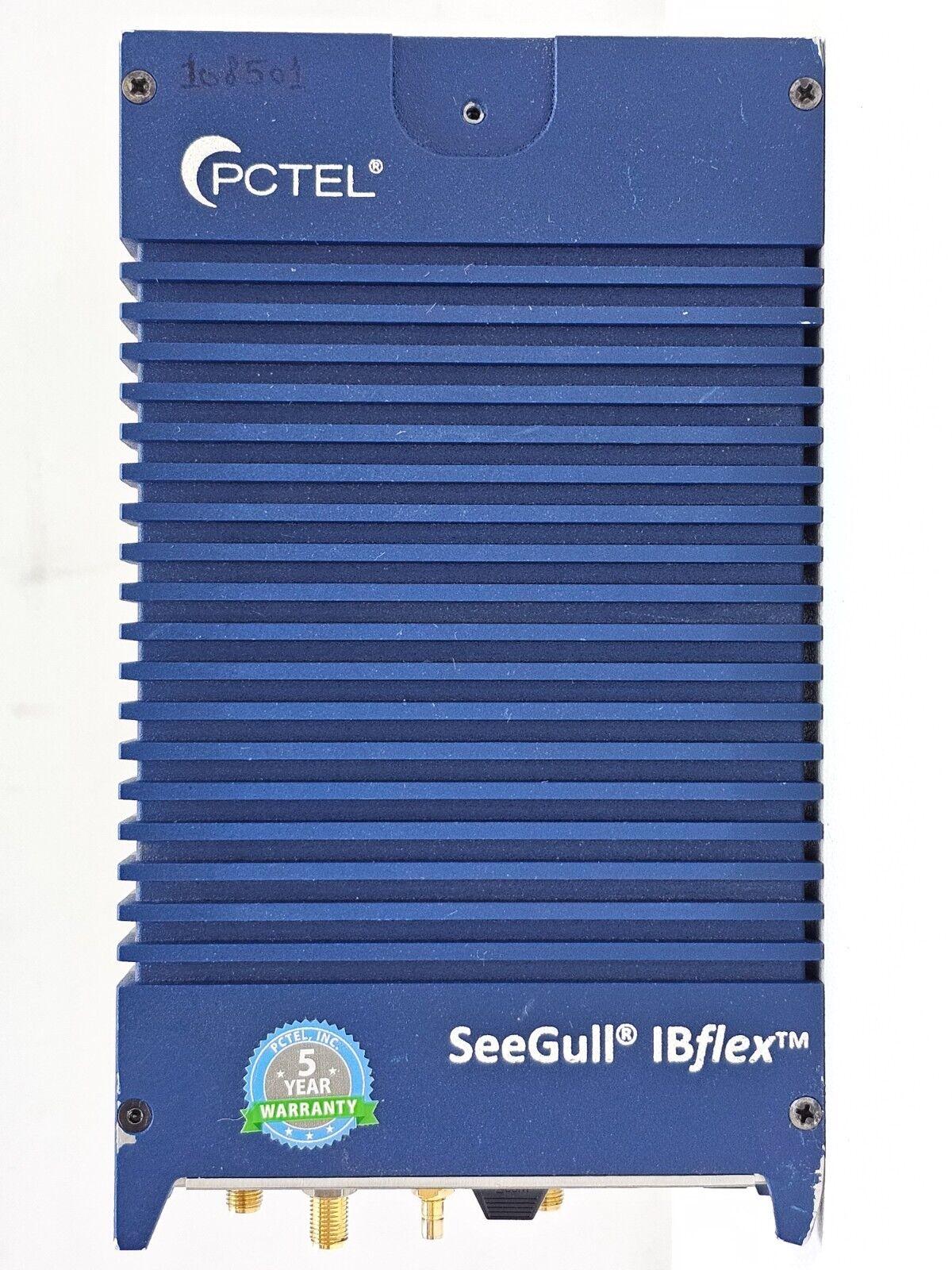

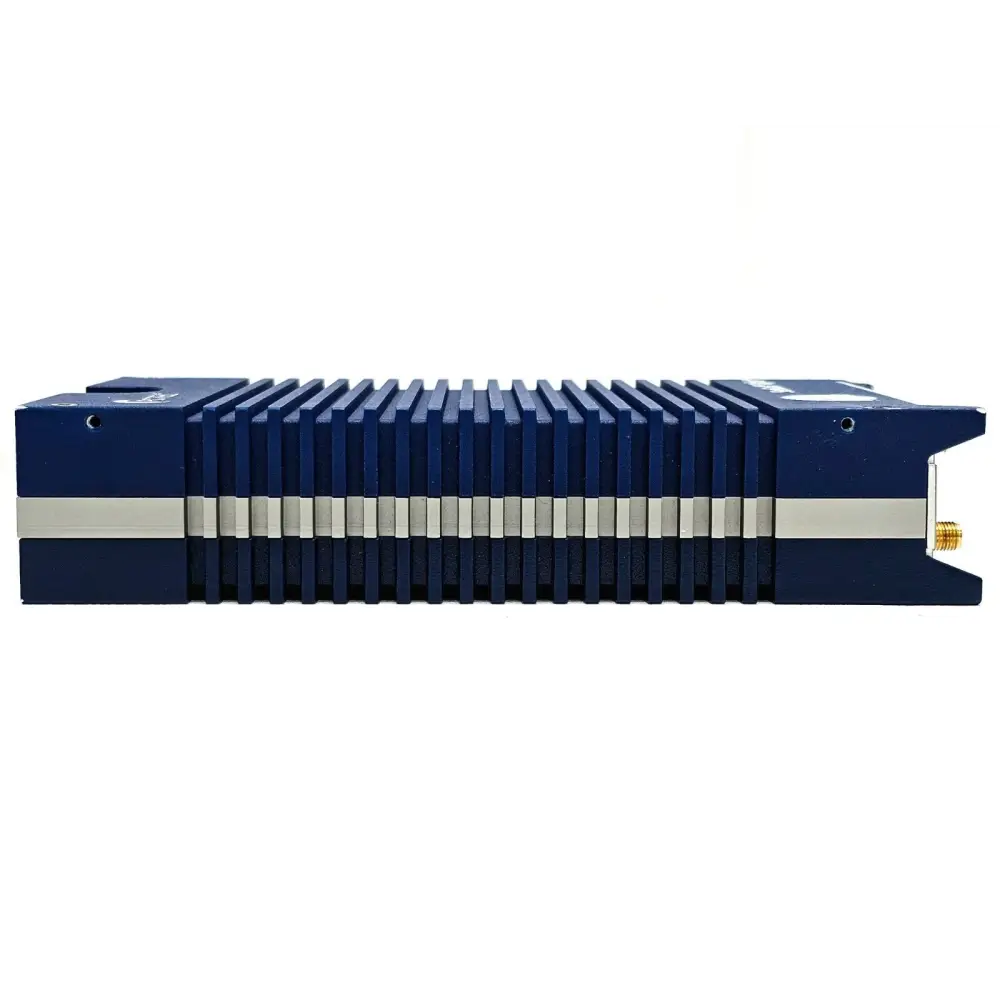

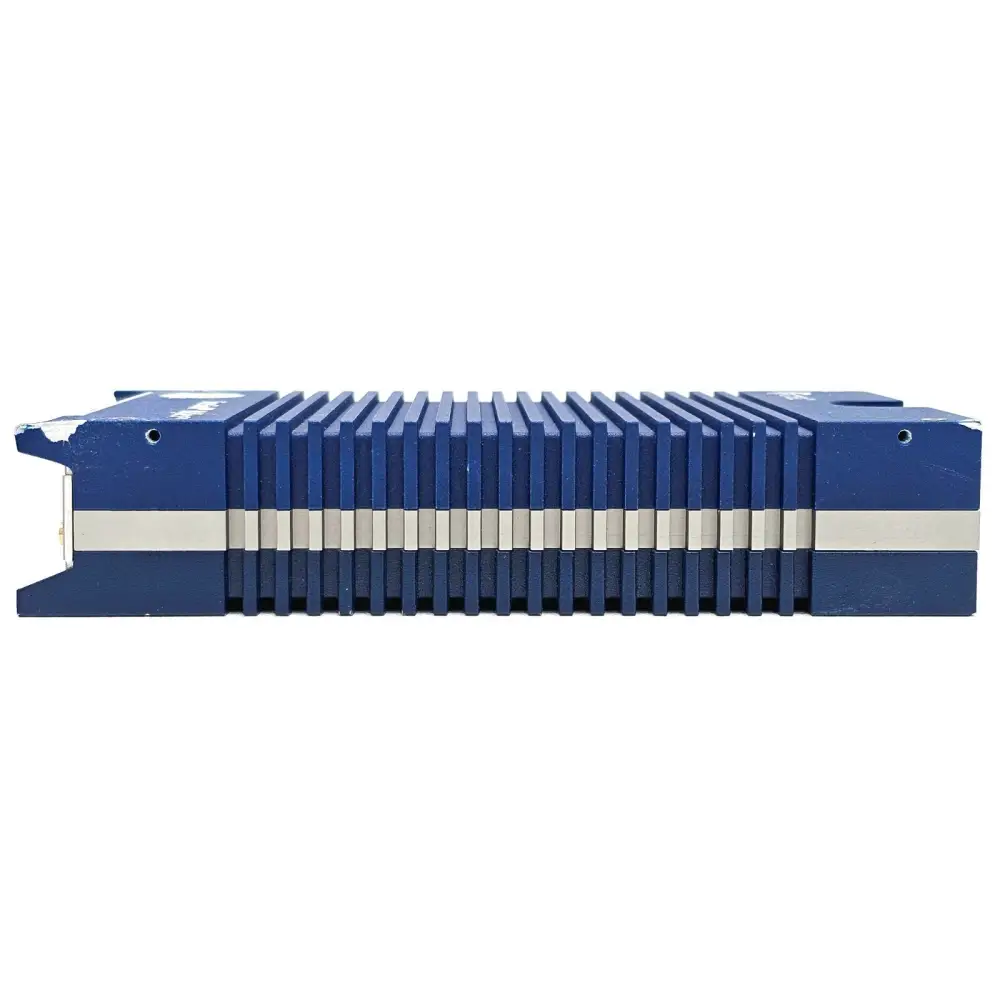

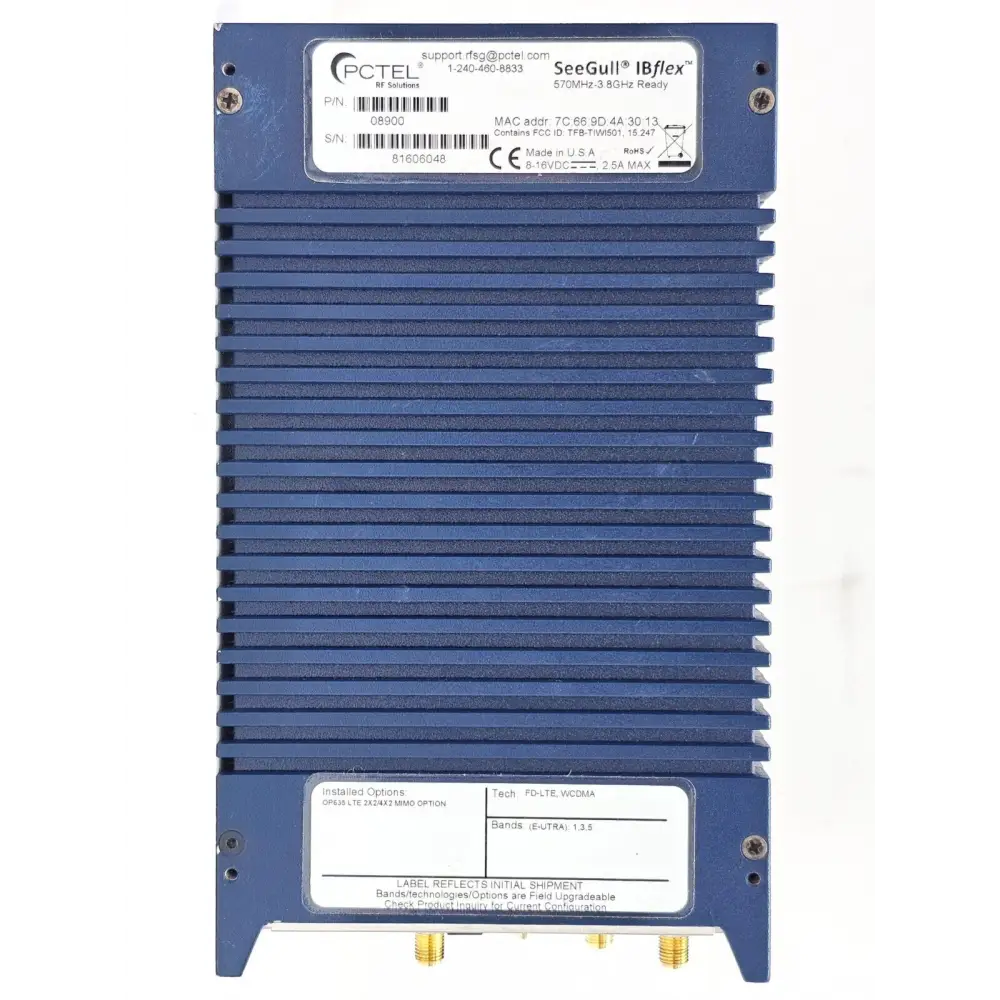

This PCTEL SeeGull IBflex scanning receiver (model 08900, ESN 0000-0000-8160-6048) has been tested and confirmed in excellent working condition. It carries 14 active licensed options including LTE Blind Scan, LTE Enhanced Signal Scan 2Rx MIMO, WCDMA Blind Scan, WCDMA Pilot, WCDMA Extended Dynamic Range, Dual RF Port, GPS Navigation, Ethernet Interface, SD Card Recording, and Absolute Time Stamp. Software Release Version 3.5.0.0 is installed with a perpetual, active licence. Calibration date: 15 July 2020.

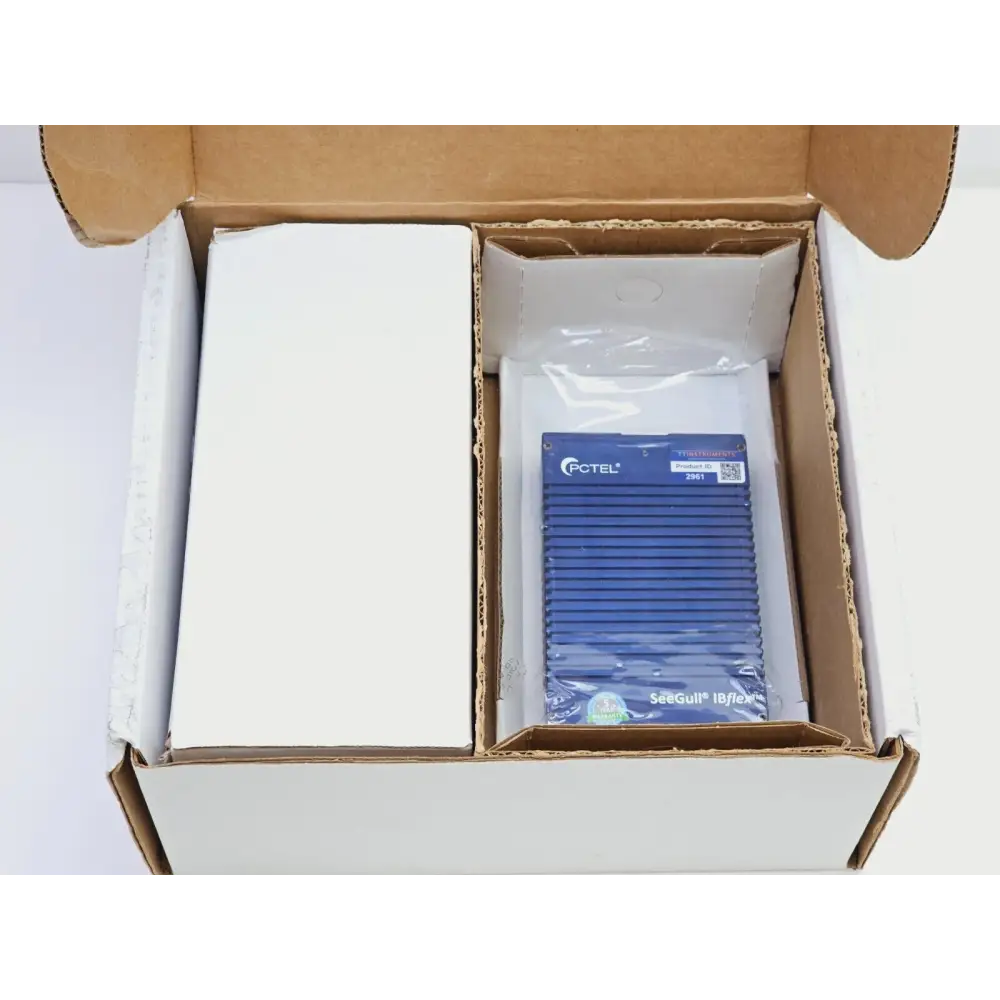

Included in the sale:
• IBflex 570 MHz – 3.8 GHz scanning receiver (08900)

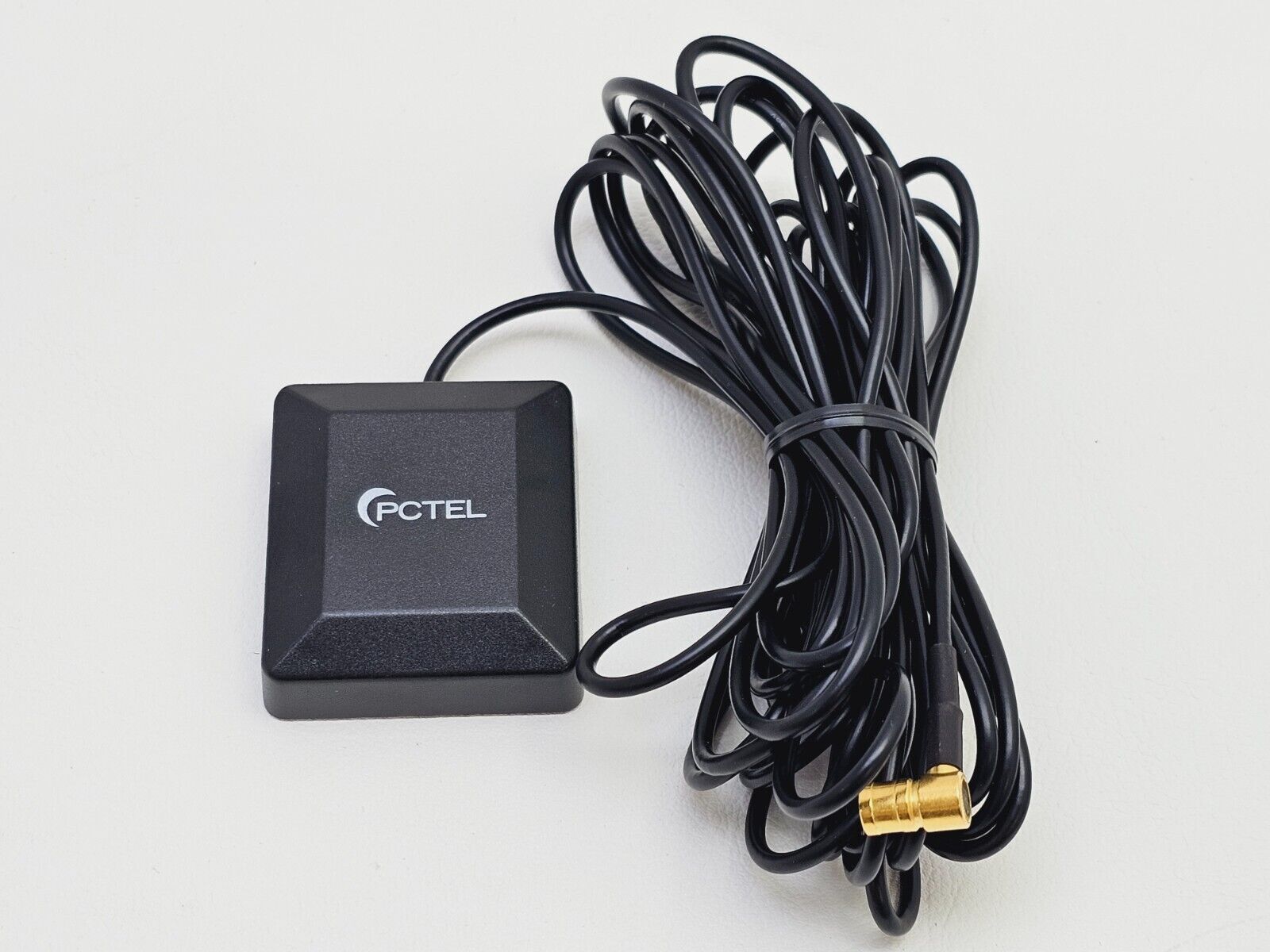

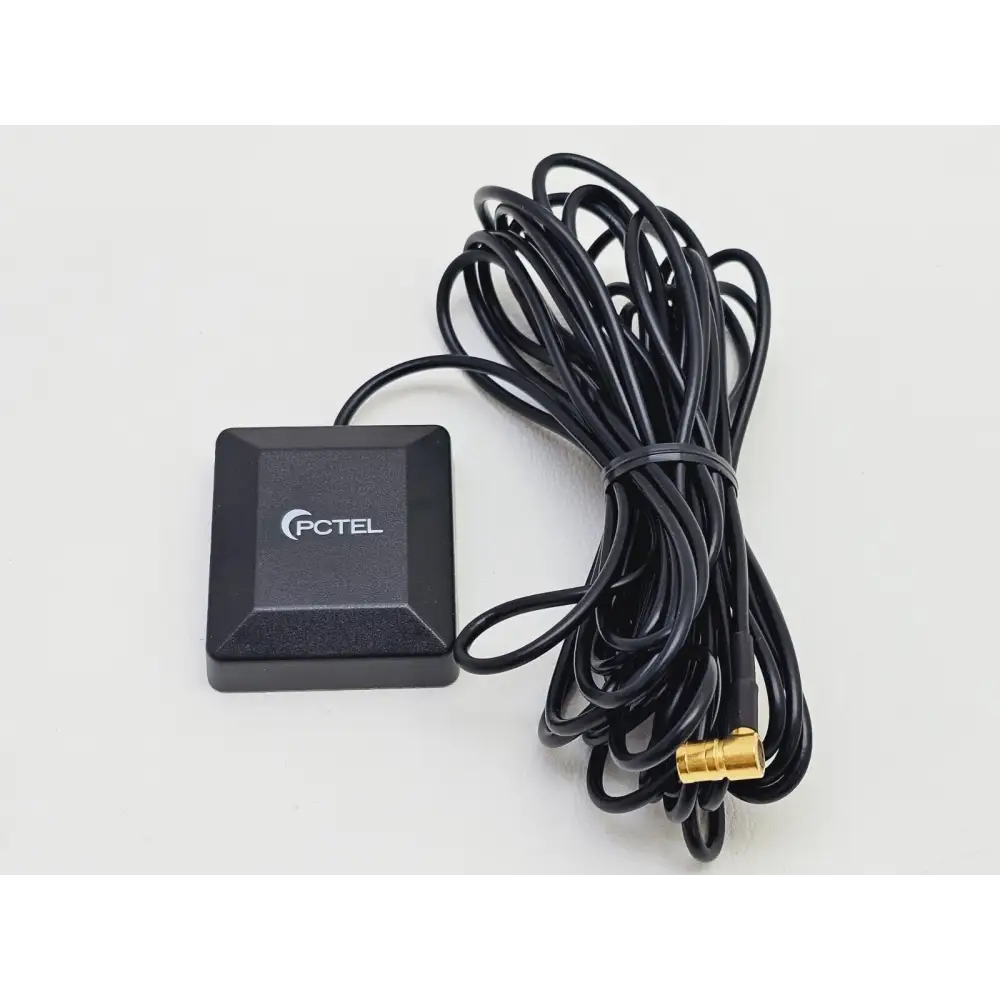

• 1x GPS receiver

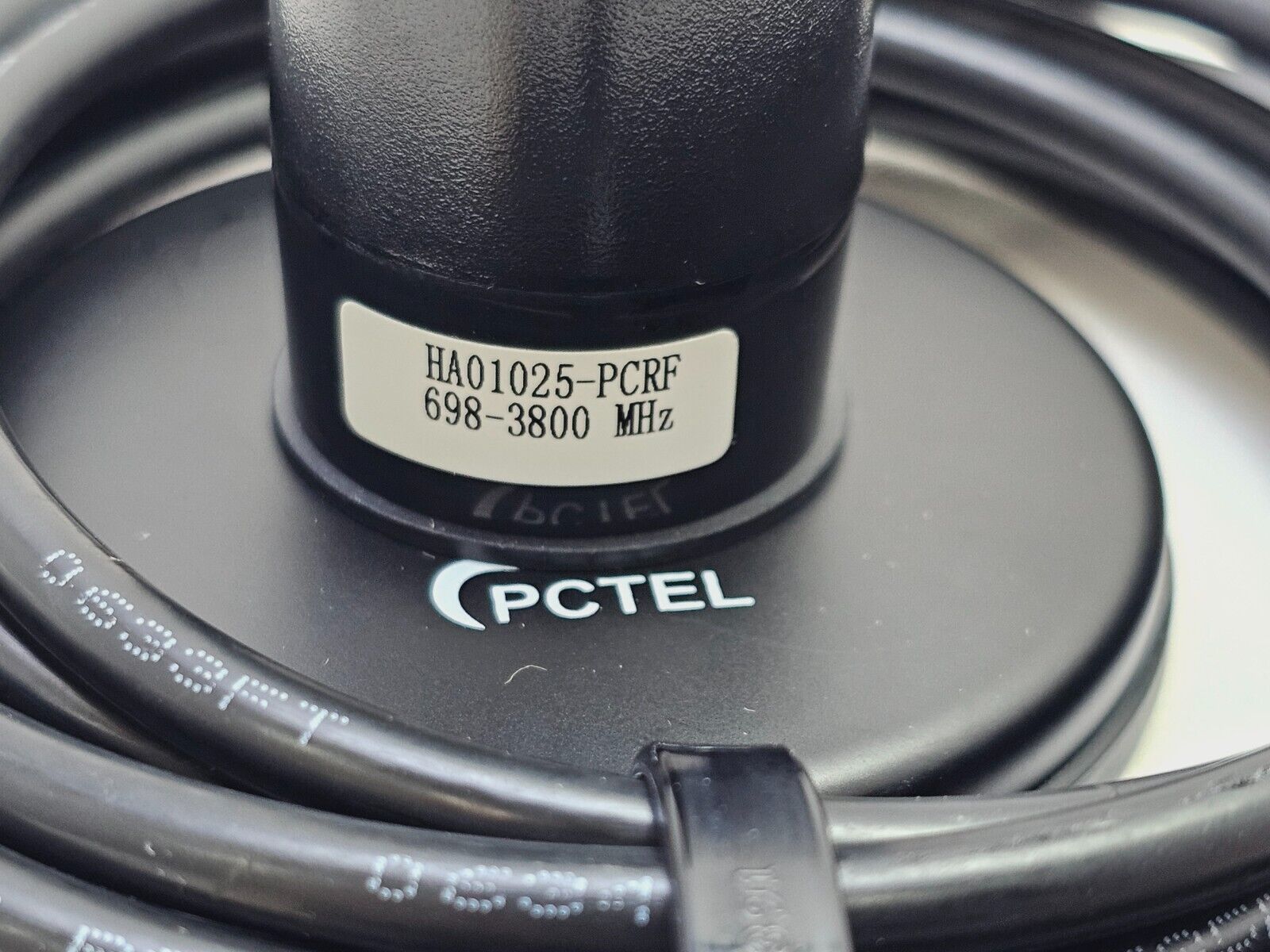

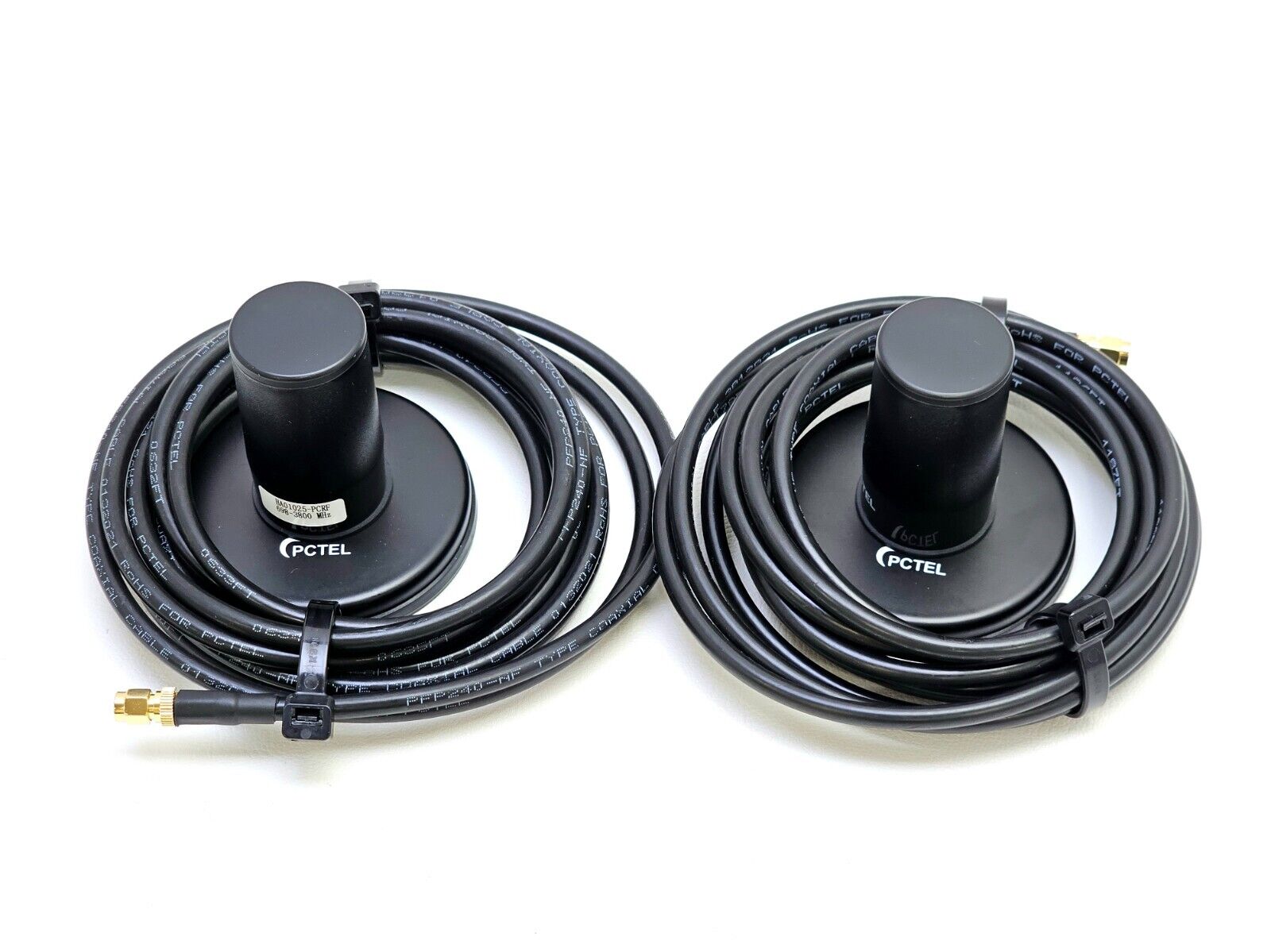

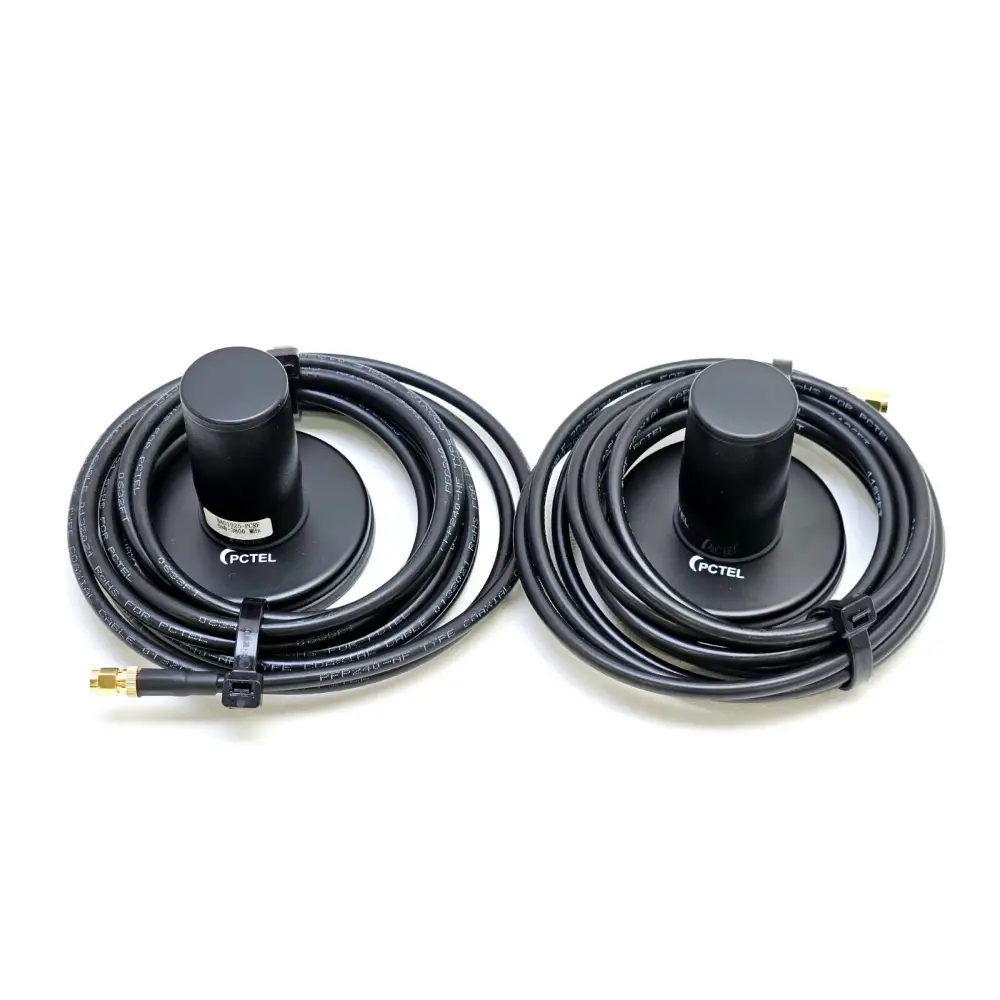

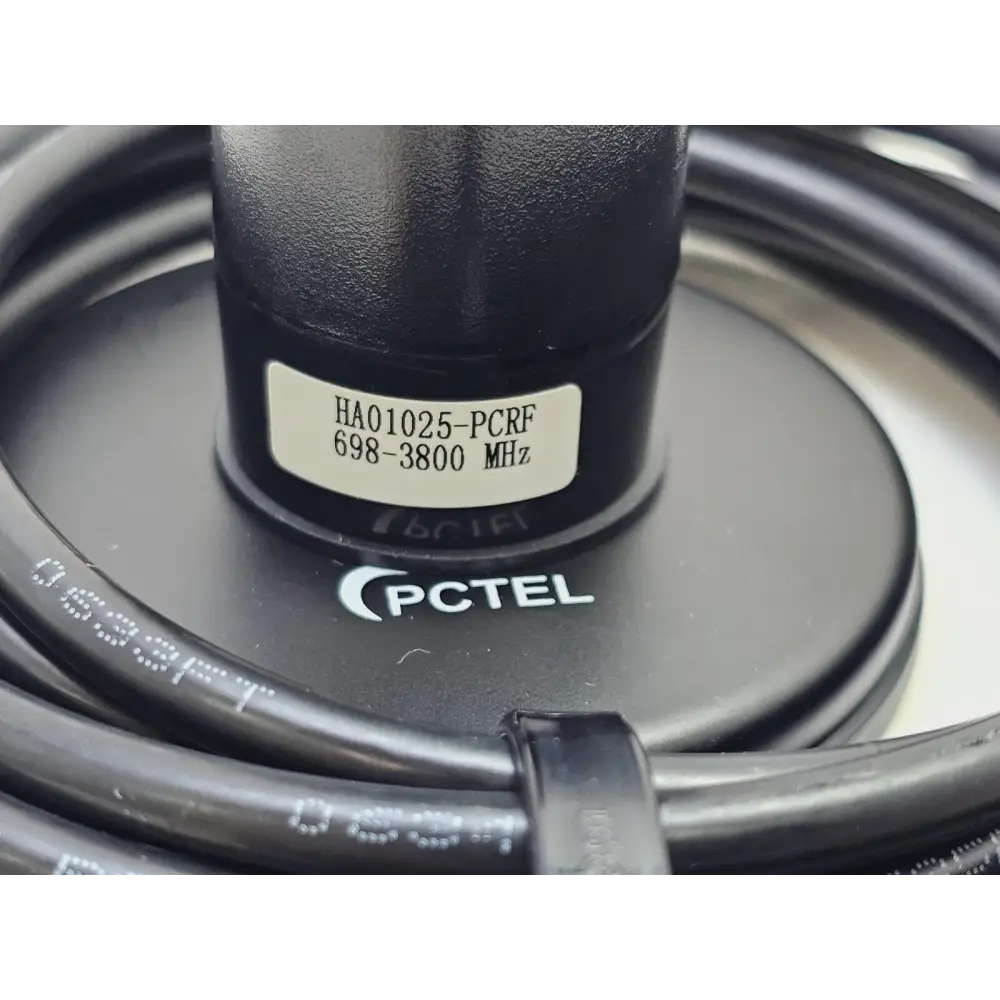

• 2x PCTel 698–3800 MHz antennas

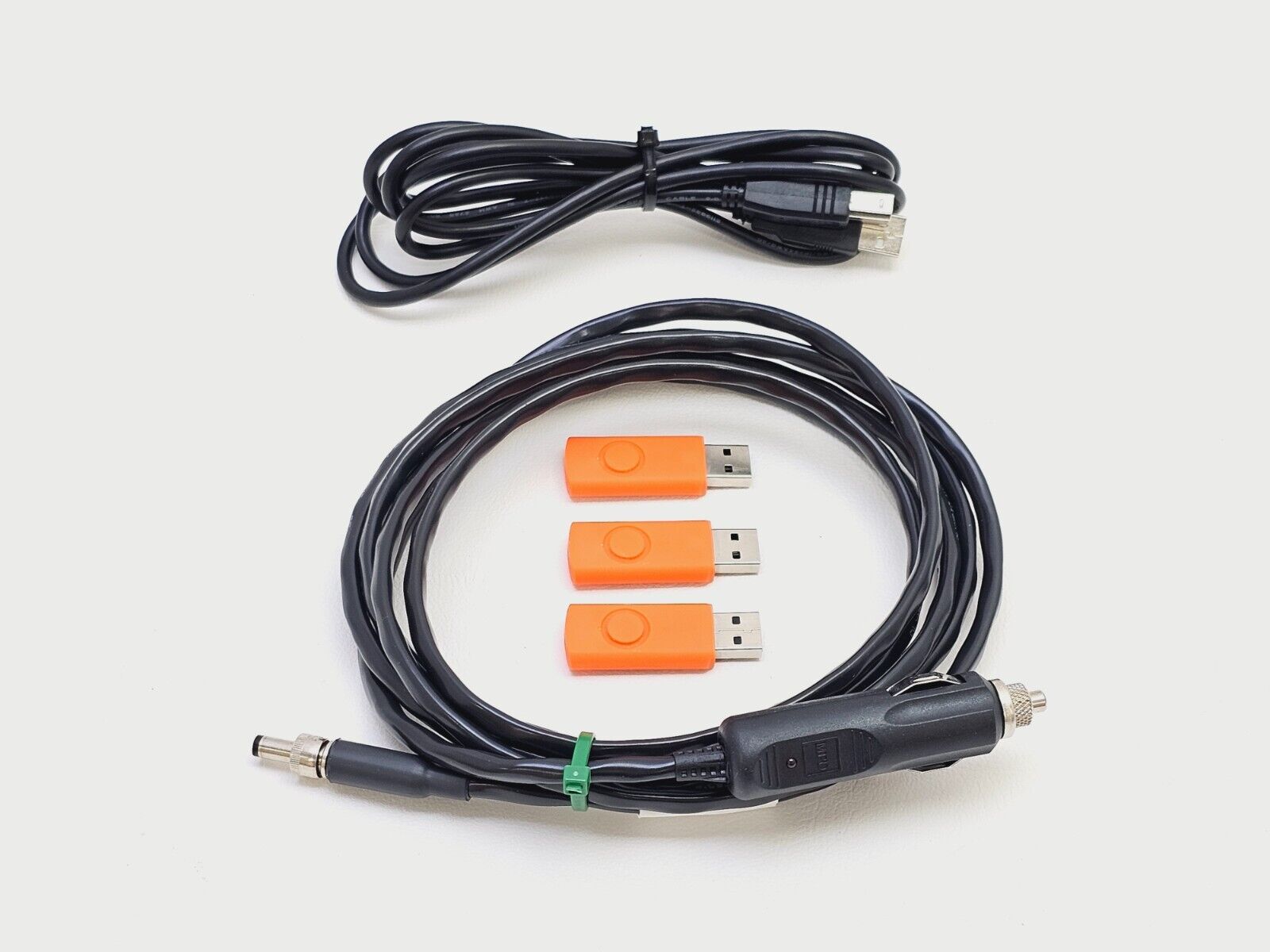

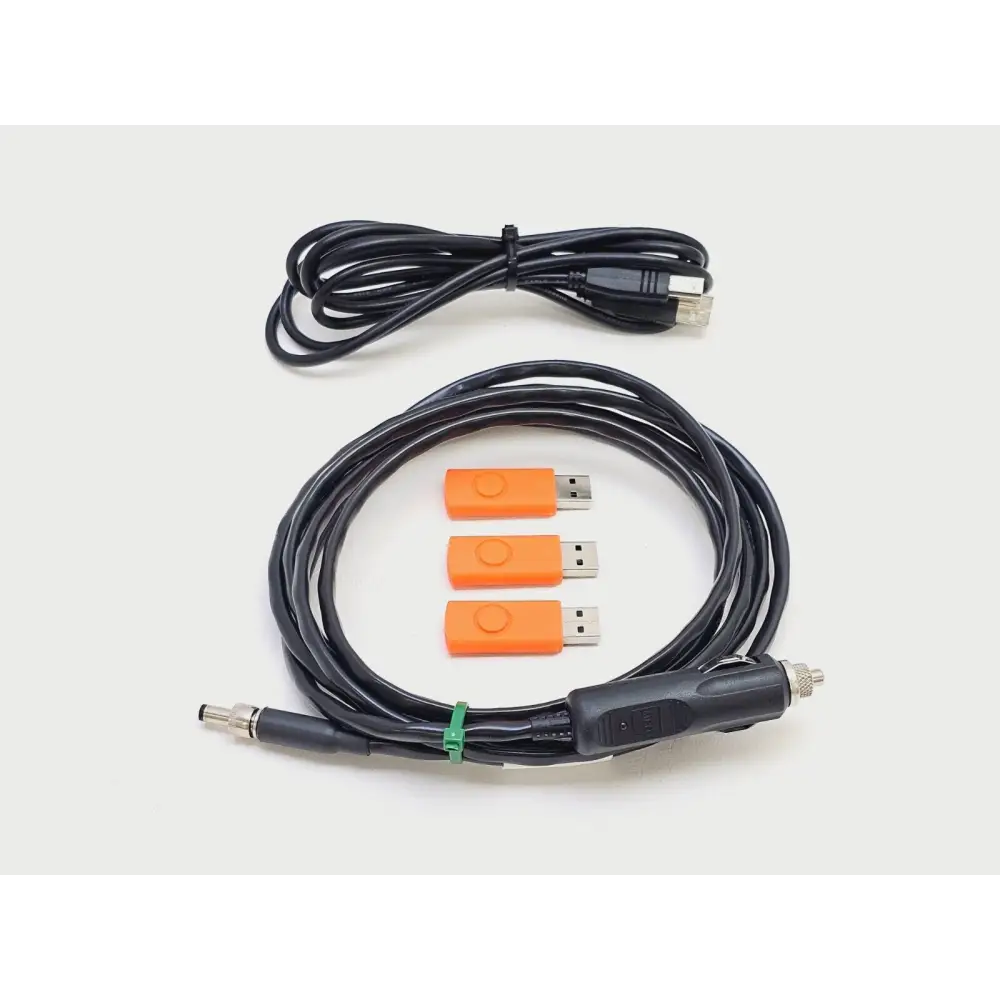

• USB data cable
• Power adapter / in-car charger

Active installed options:
• 570 MHz–3800 MHz Capability
• Dual RF Port
• Recording to SD Card
• GPS Navigation
• Absolute Time Stamp
• Ethernet Interface
• WCDMA Blind Scan
• WCDMA Support
• WCDMA Pilot
• WCDMA Extended Dynamic Range
• LTE Blind Scan
• LTE Support
• LTE Enhanced Signal Scan
• LTE Enhanced Signal 2Rx MIMO

The PCTEL SeeGull IBflex is a portable, software-defined scanning receiver designed for in-building and outdoor network testing. It combines portability and measurement accuracy with the ability to test multiple radio technologies and frequency bands simultaneously. The IBflex is used to deploy and verify 5G New Radio networks in sub-6 GHz spectrum, verify public safety network coverage, optimise dense small cell deployments, and improve the reliability of IoT systems. Its low power consumption and hot-swap battery system make it well suited to extended walk testing or interference hunting sessions. While its design is optimised for indoor walk tests, the IBflex is fully capable of outdoor and drive test applications without compromise to performance or accuracy.

The SeeGull IBflex is a software-defined receiver capable of supporting multiple protocols and any licensed cellular band. The 08900 hardware configuration supports frequencies from 10 MHz to 6 GHz (active frequency range subject to licensed options installed). Technologies can be measured simultaneously including LTE FDD, TD-LTE, NB-IoT, UMTS/WCDMA/HSPA(+), GSM, CDMA, EV-DO, TD-SCDMA, P25, DMR, TETRA, and Wi-Fi.

Key Features:
• LTE 2x2 and 4x2 MIMO measurements
• LTE Enhanced Signal Scan
• WCDMA Blind Scan for automatic channel detection
• Dual polarisation and beamforming measurement capability
• Hot-swap battery system for continuous operation

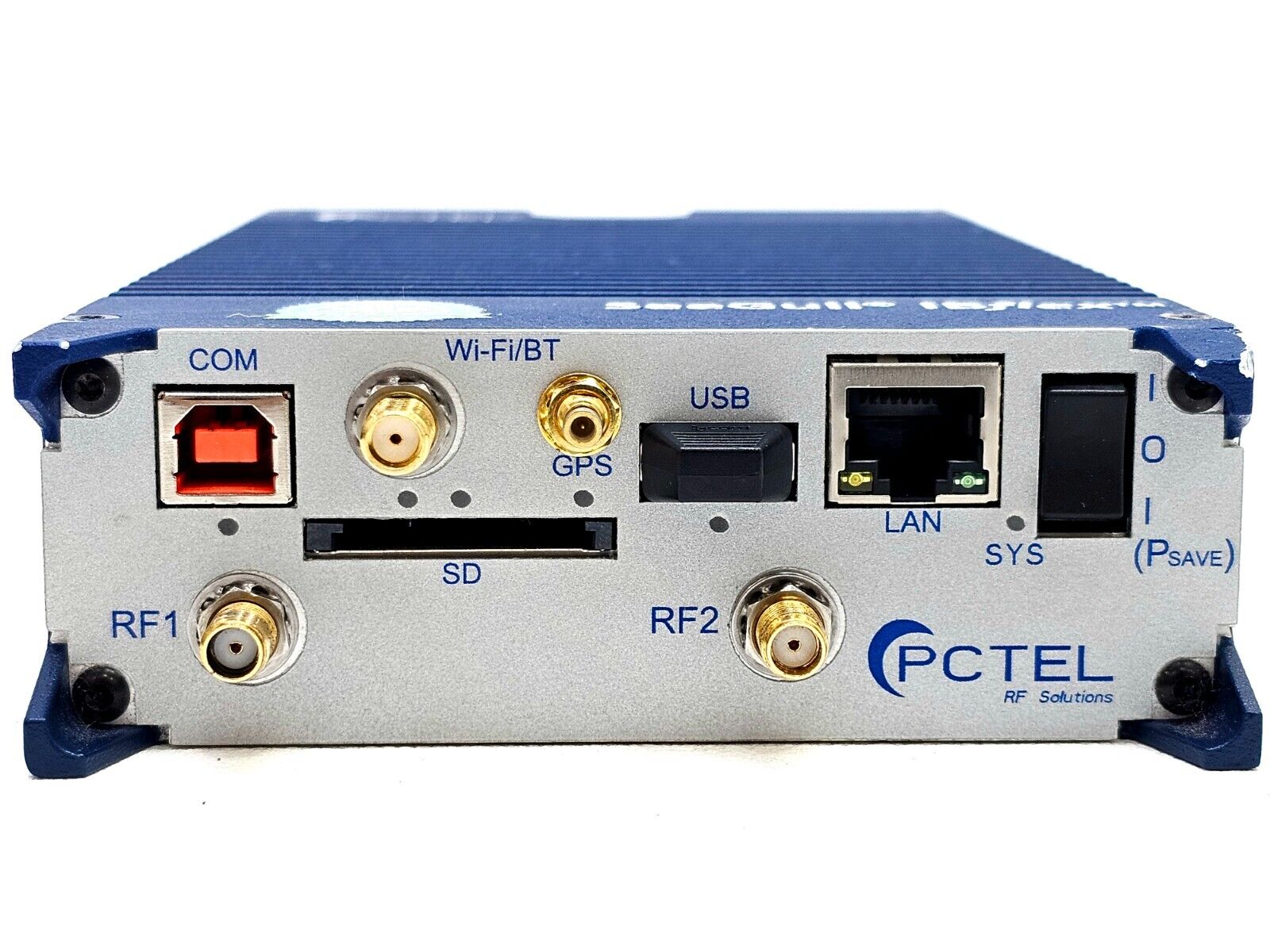

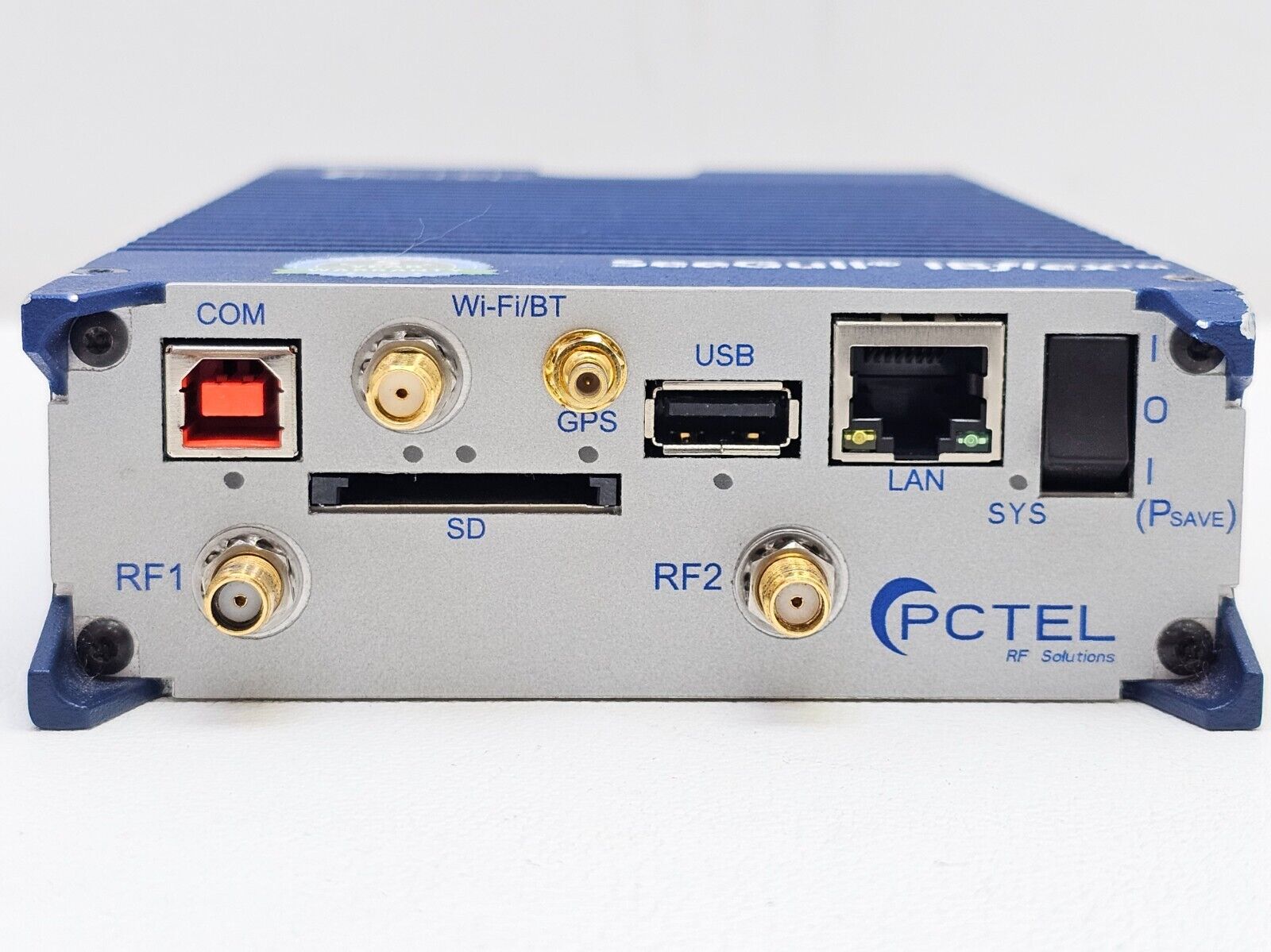

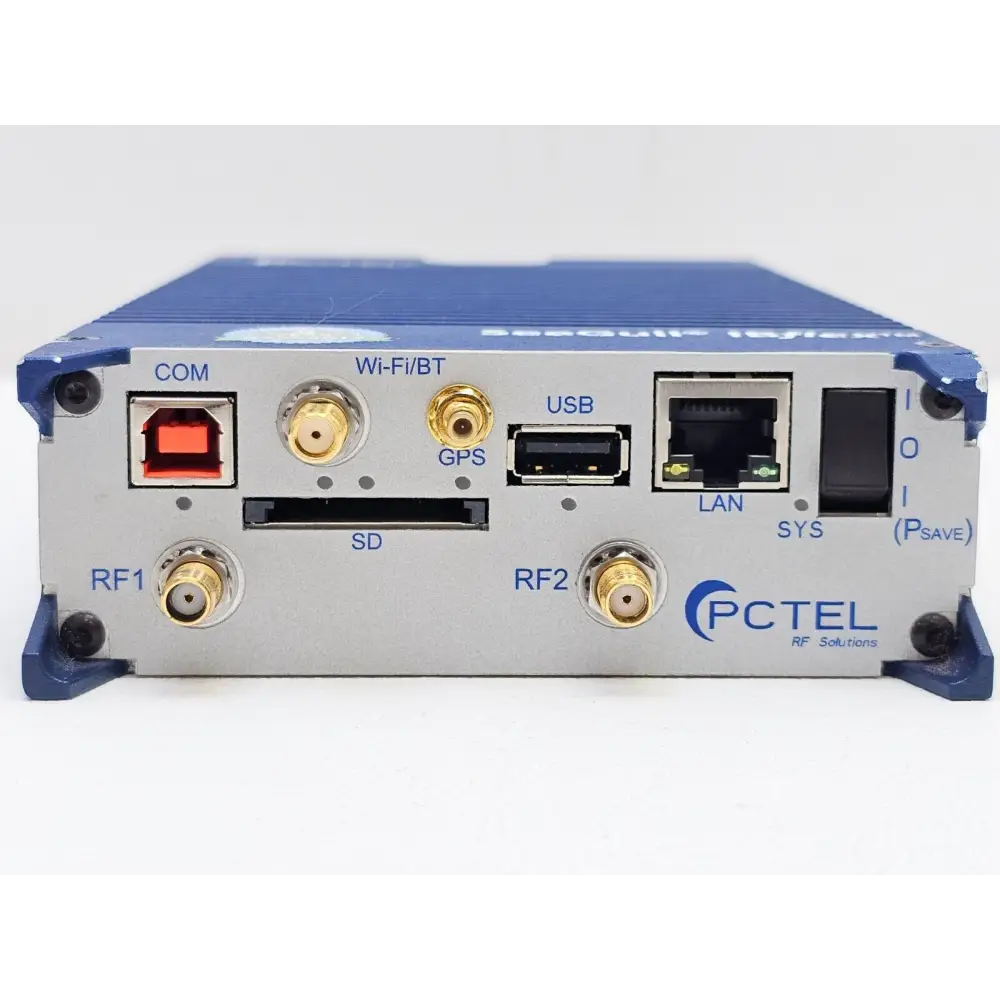

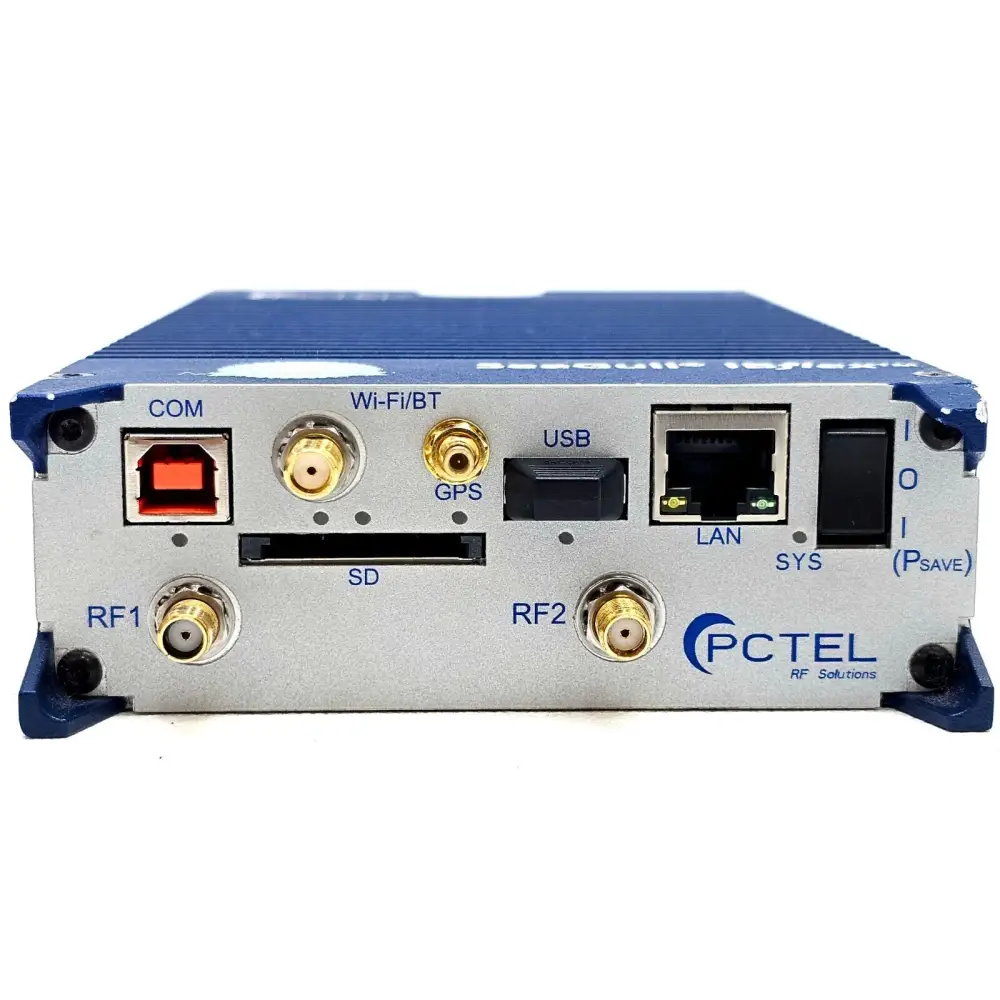

• Interfaces: USB, AOA (Android Open Accessory), Ethernet
• SD card recording for standalone data logging
• GPS with absolute time-stamp support
• Compatible with Windows laptop and Android tablet via SeeHawk Touch software
• Bluetooth connectivity option available
• Field-upgradeable via PCTEL Upgrade Assistant software

Supported Technologies:
LTE FDD, TD-LTE, NB-IoT, UMTS (WCDMA/HSPA+), GSM, CDMA, EV-DO, TD-SCDMA, 5G NR (sub-6 GHz), Wi-Fi (2.4 GHz and 5 GHz), P25, DMR, TETRA

Key Specifications:
Frequency Range (hardware): 10 MHz – 6 GHz
Active Frequency Range (this unit): 570 MHz – 3.8 GHz
Interfaces: USB, AOA, Ethernet
Data Storage: SD card (internal recording option)
GPS: Integrated GPS navigation option
Software: SeeGullMaster / SeeHawk Collect / SeeHawk Touch
API Version: 2.5.0.0
Licence Type: Perpetual

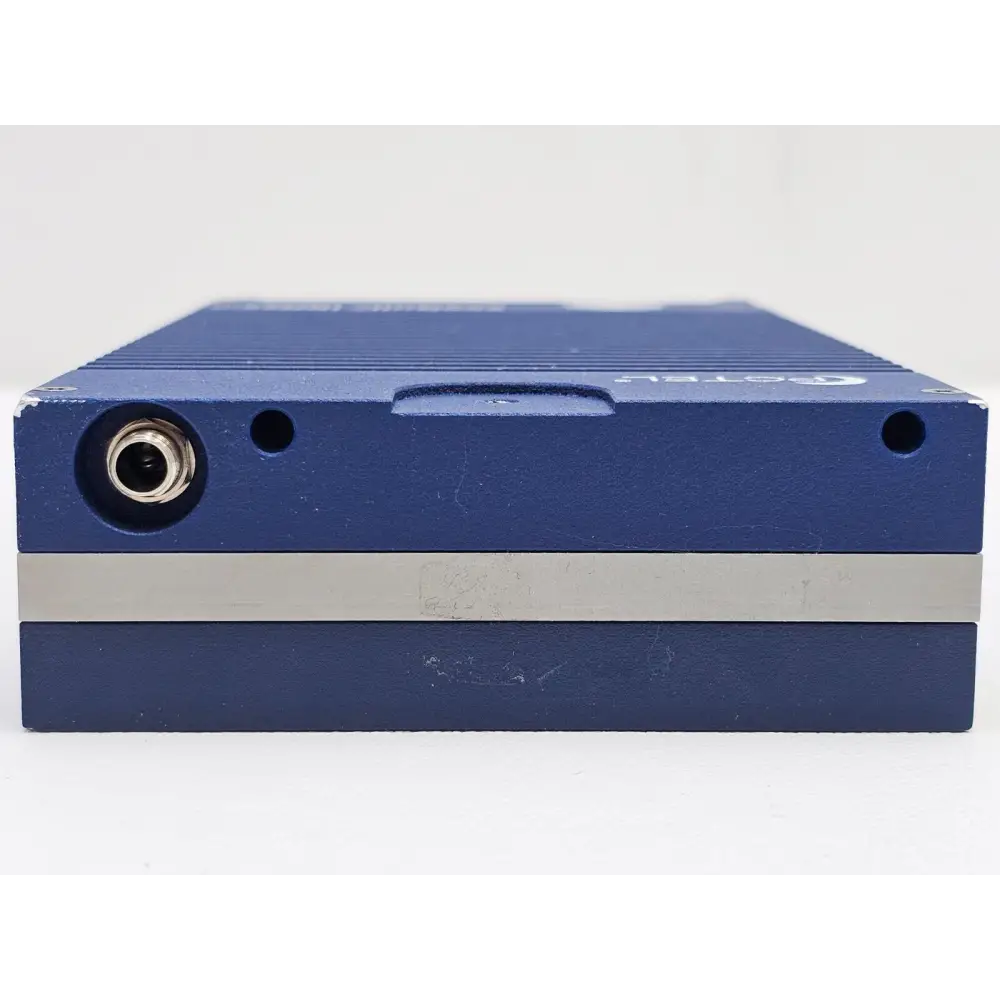

Power: AC/DC adapter or 12 V vehicle power
Connectivity: USB (PC/laptop), Bluetooth (Android tablet), Ethernet
OS Compatibility: Windows (laptop), Android (tablet)
