Condition: Used

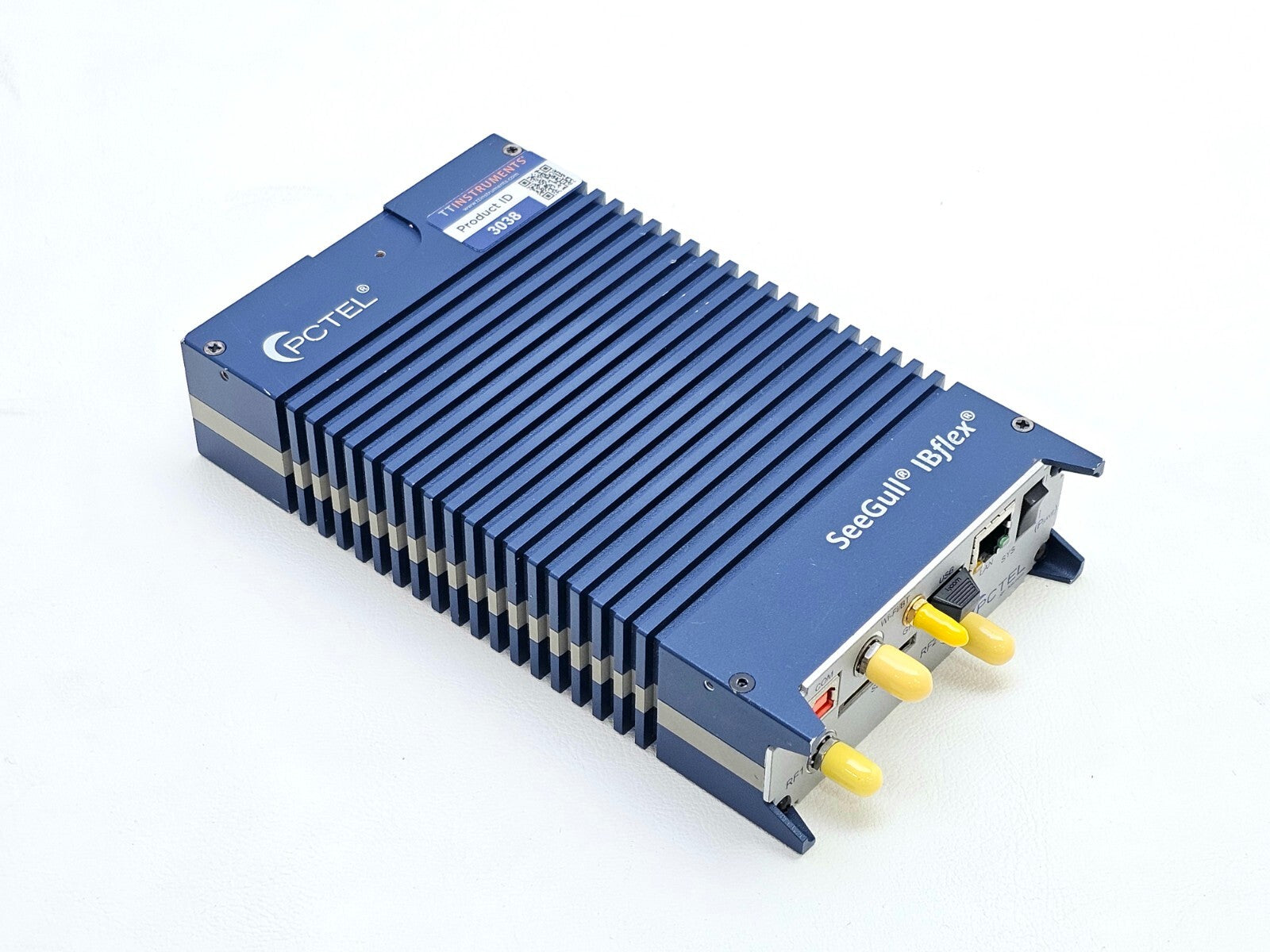

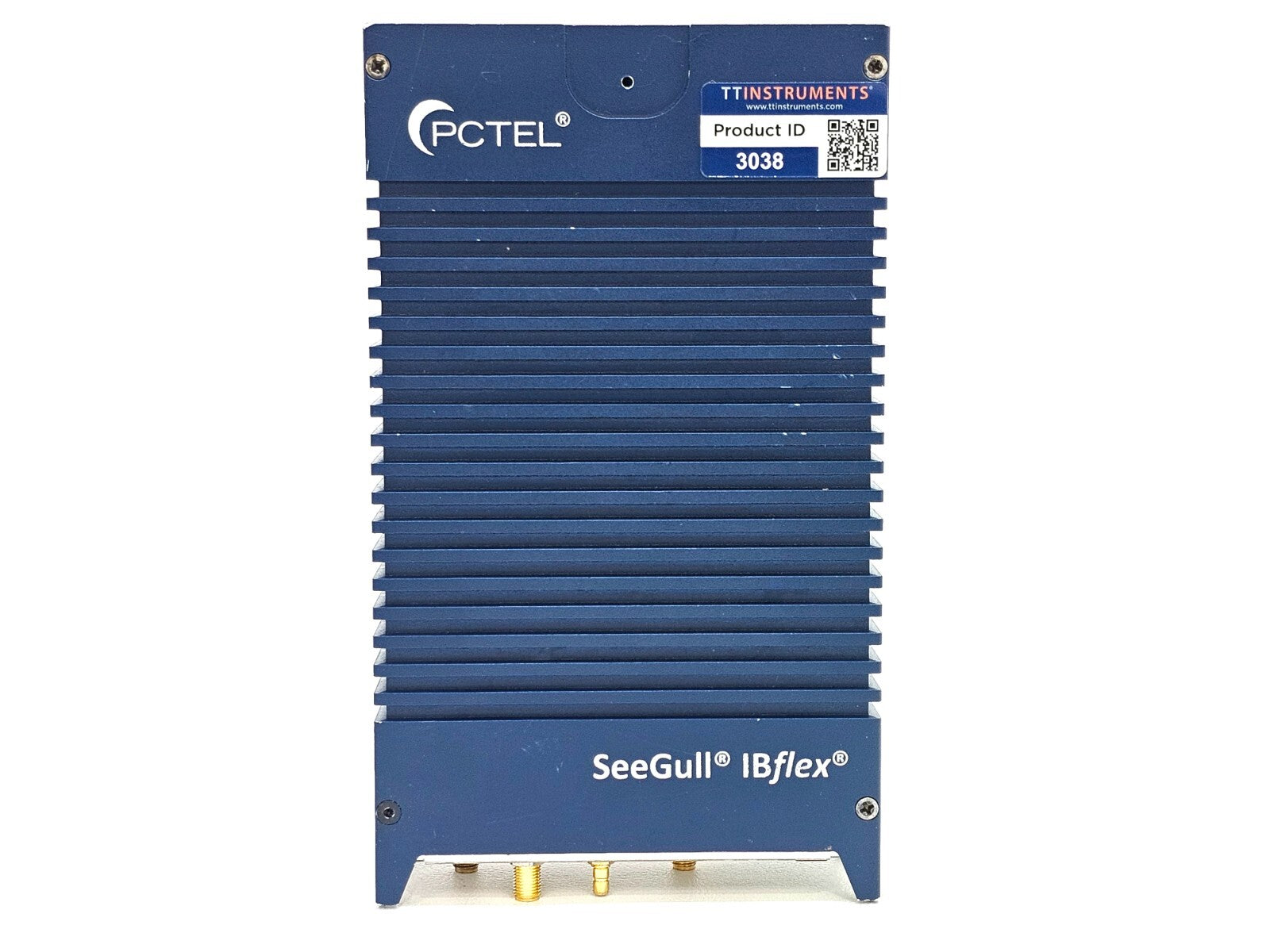

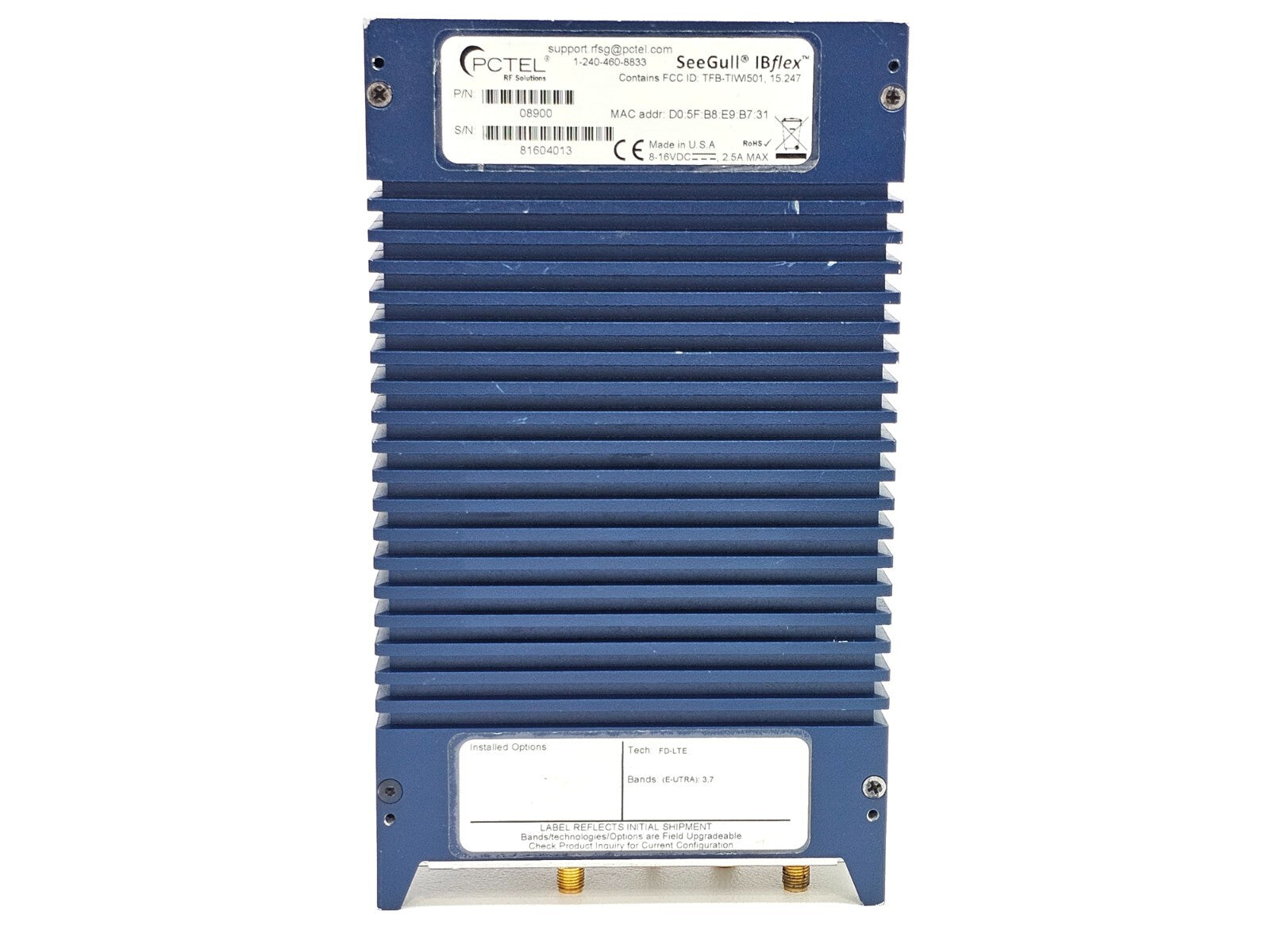

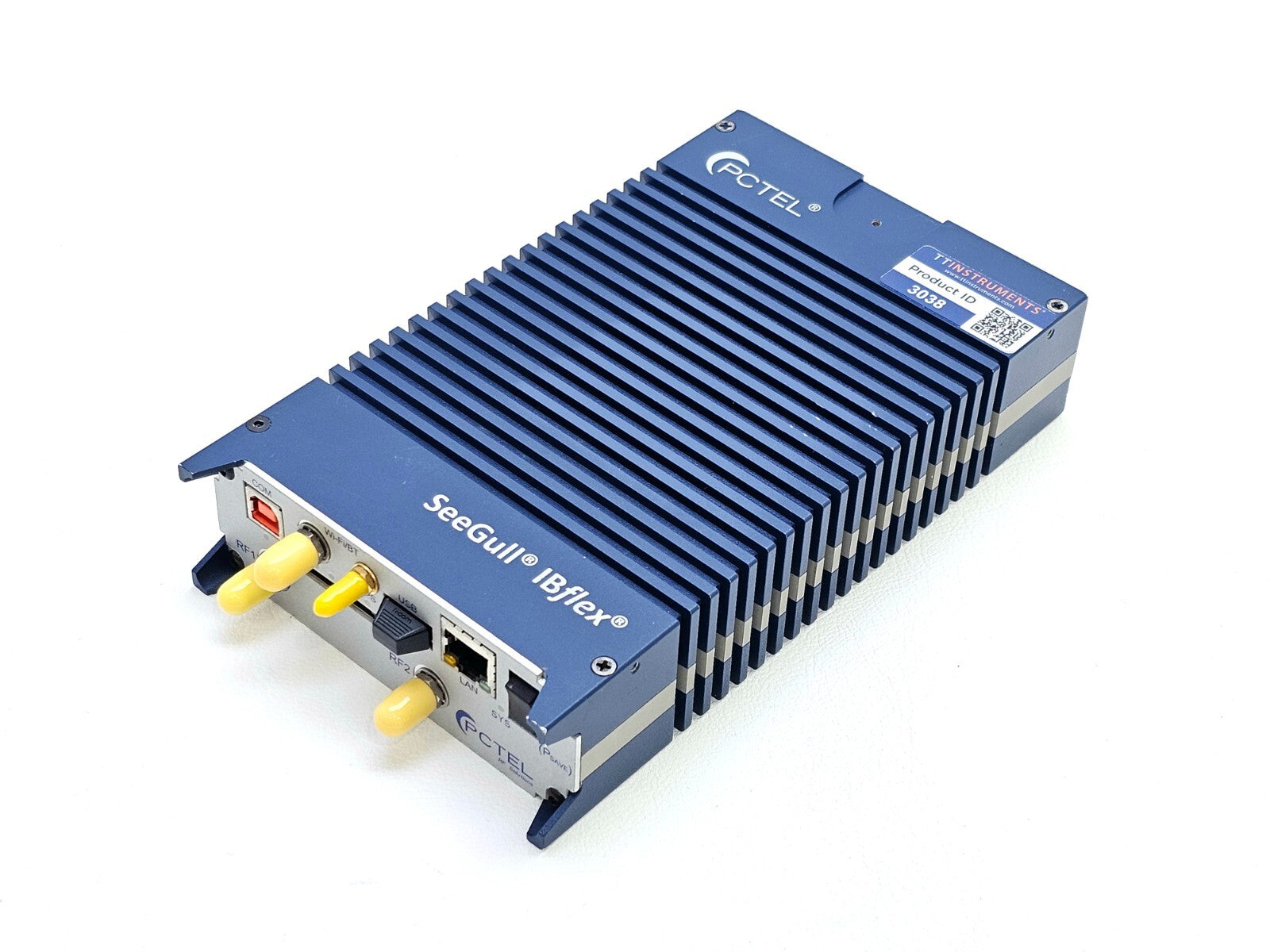

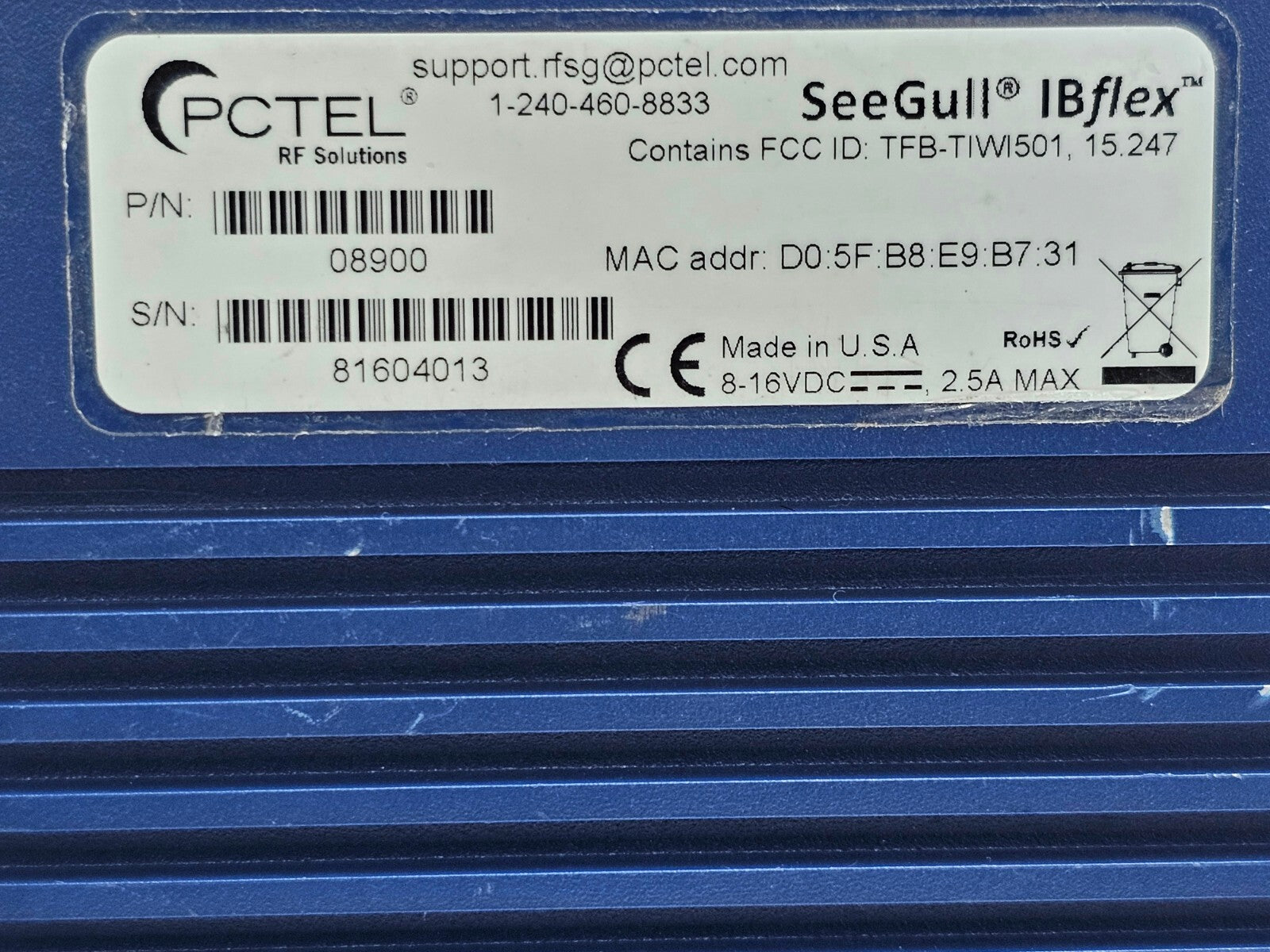

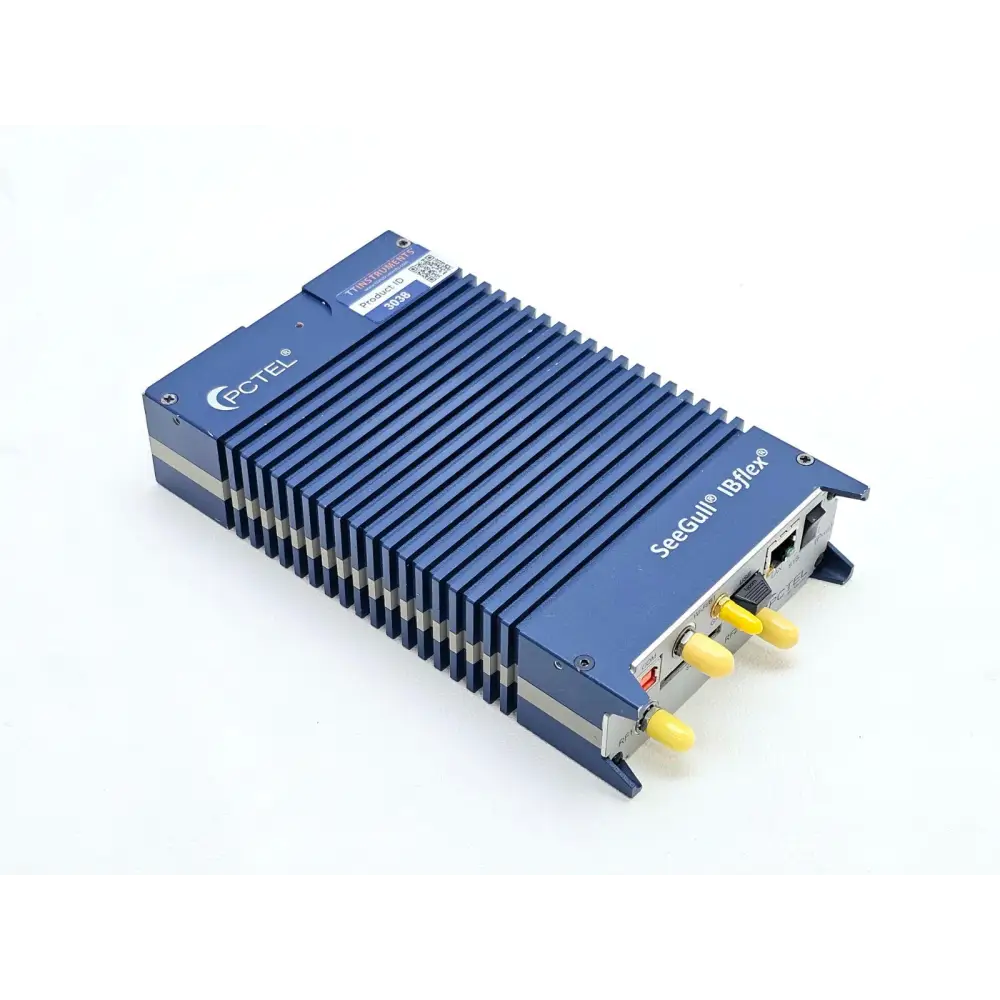

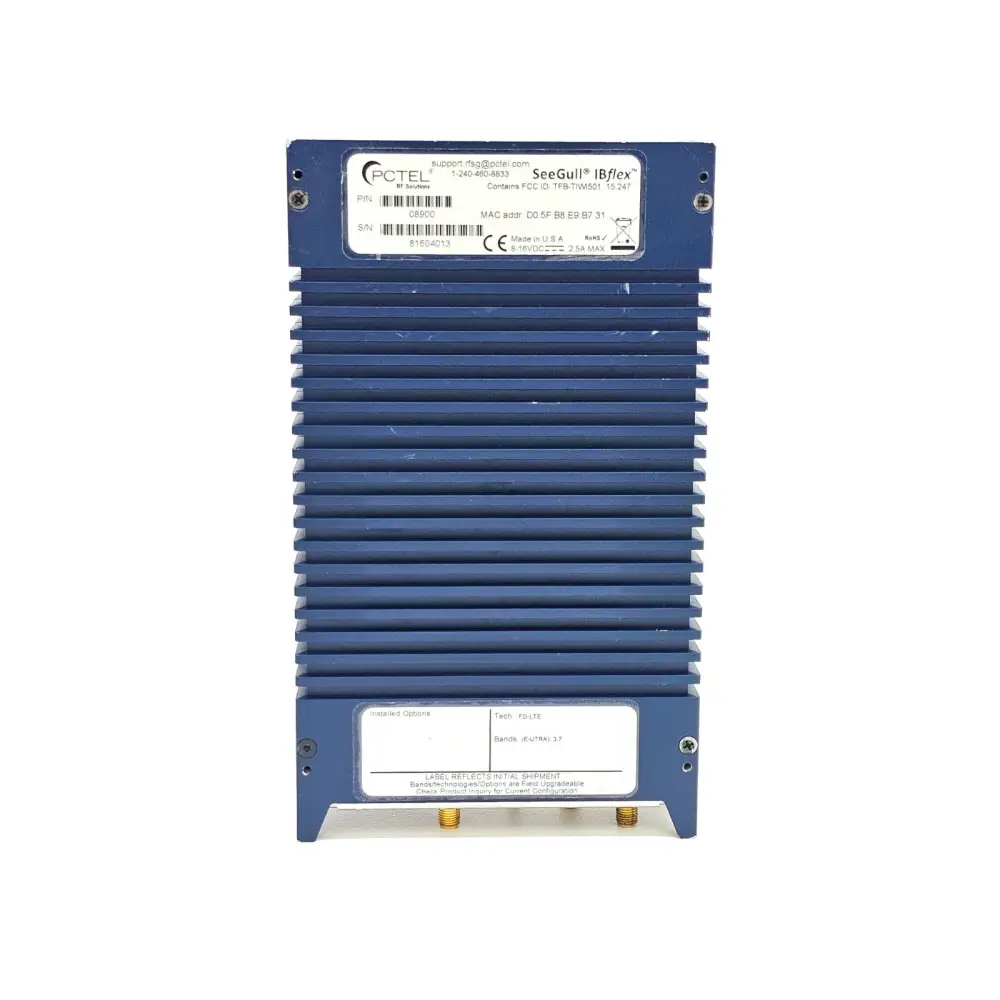

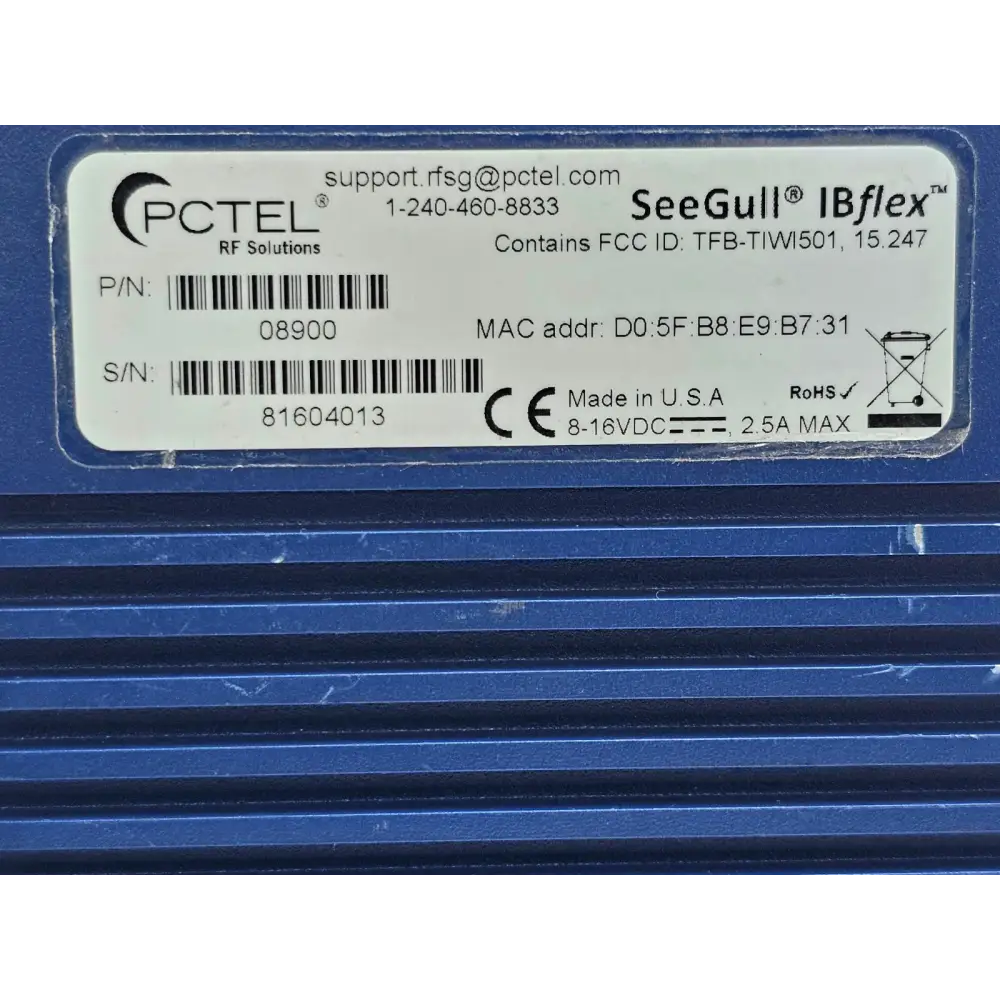

PCTEL SeeGull IBflex scanning receiver, model 08900, operating across 570 MHz to 3.8 GHz. Tested and in excellent working condition. Carries a perpetual, active licence (calibrated April 2016, calibration version 17) with 8 installed option licences across WCDMA and LTE protocol groups.

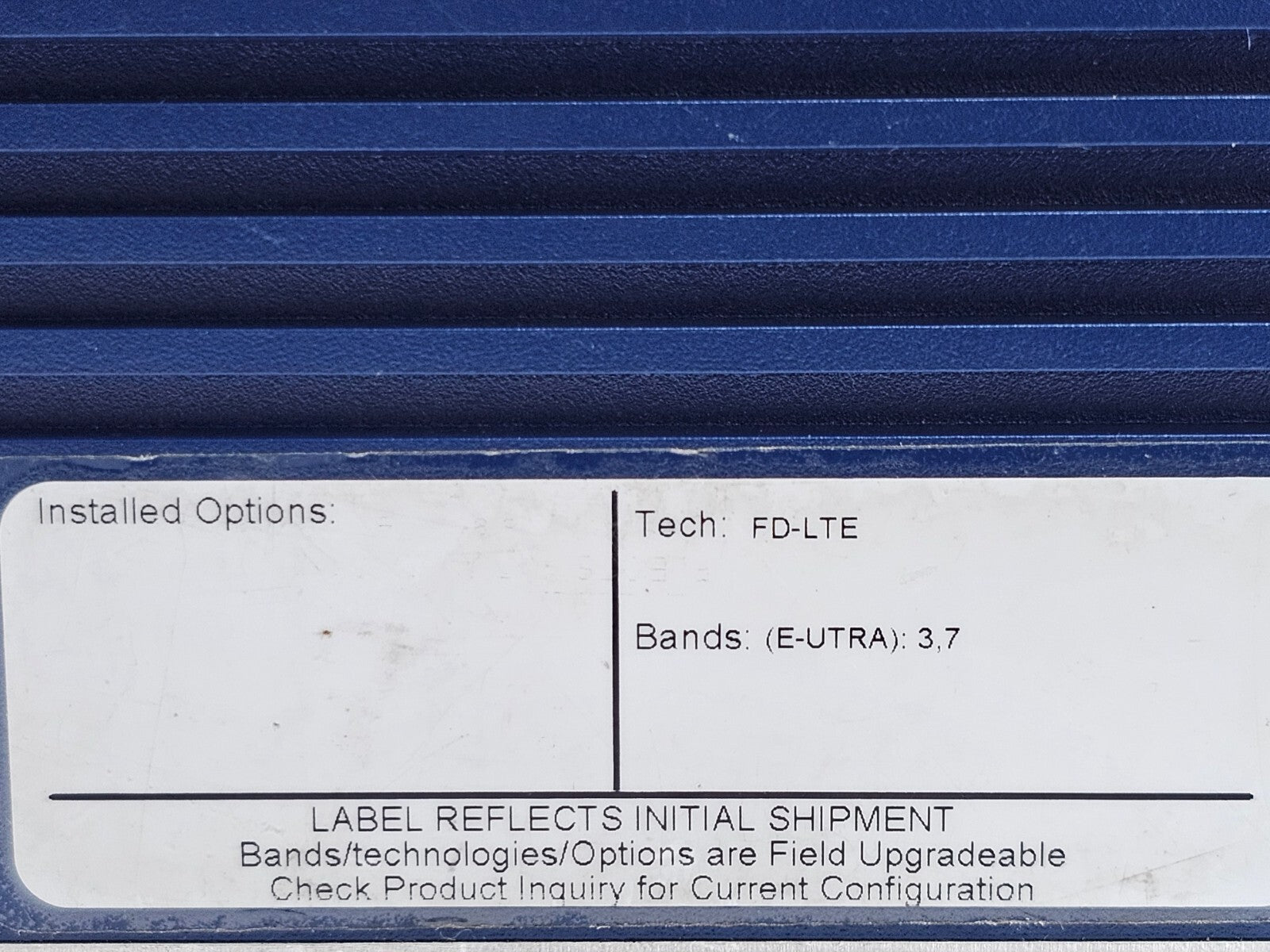

Installed options active on this unit:
• 570 MHz – 3800 MHz Capability (7030-0000)
• Dual RF Port (000F-0000)
• GPS Navigation (0001-0000)
• Absolute Time Stamp (0005-0000)
• Ethernet Interface (000C-0000)

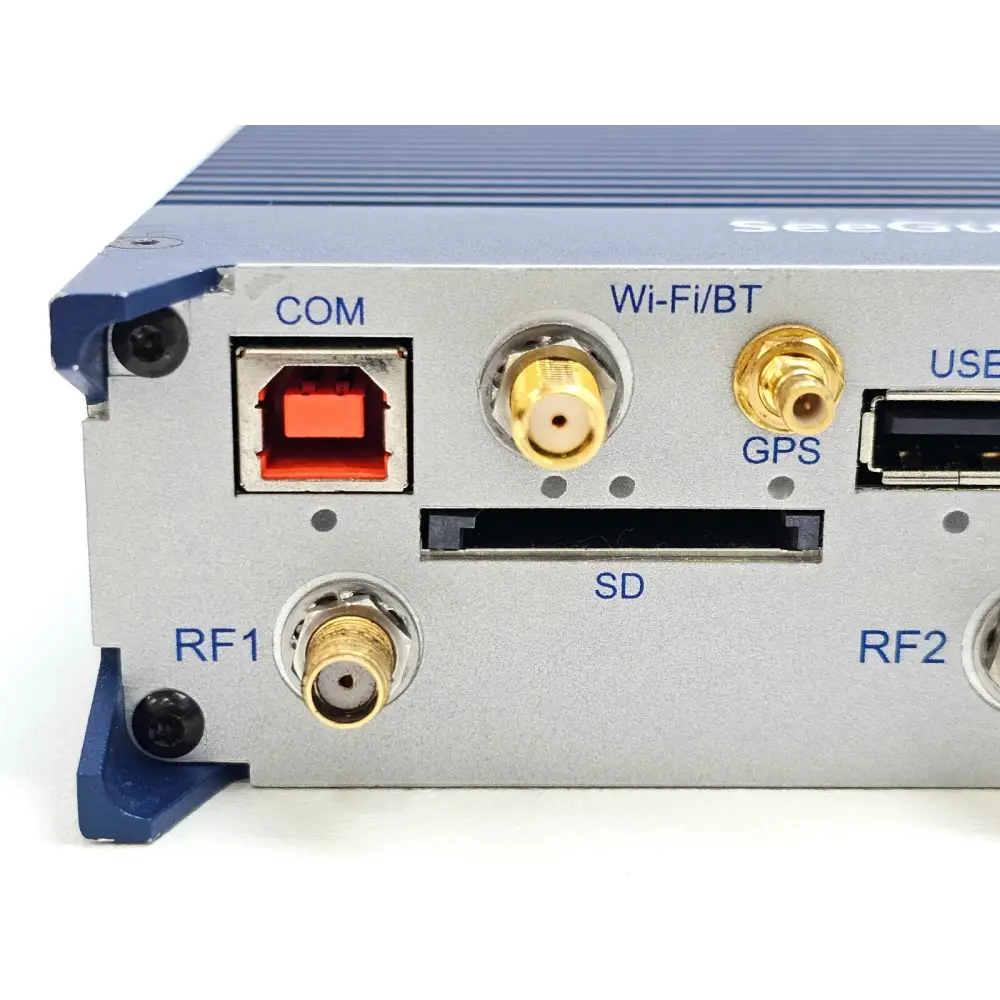

• Recording to SD Card (000A-0000)
• WCDMA Blind Scan (000B-0004)
• WCDMA Support (0001-0004)
• WCDMA Pilot (0003-0004)
• WCDMA Extended Dynamic Range (0008-0004)
• LTE Blind Scan (000B-000A)
• LTE Support (0001-000A)
• LTE Enhanced Signal Scan (000C-000A)
• LTE Enhanced Signal 2Rx MIMO (002C-000A)
• TDLTE Enhanced Signal 2Rx MIMO (002C-000B)

Licence details:
• Licence Type: Perpetual
• Licence State: Active
• Calibration Date: 8 April 2016
• Calibration Version: 17

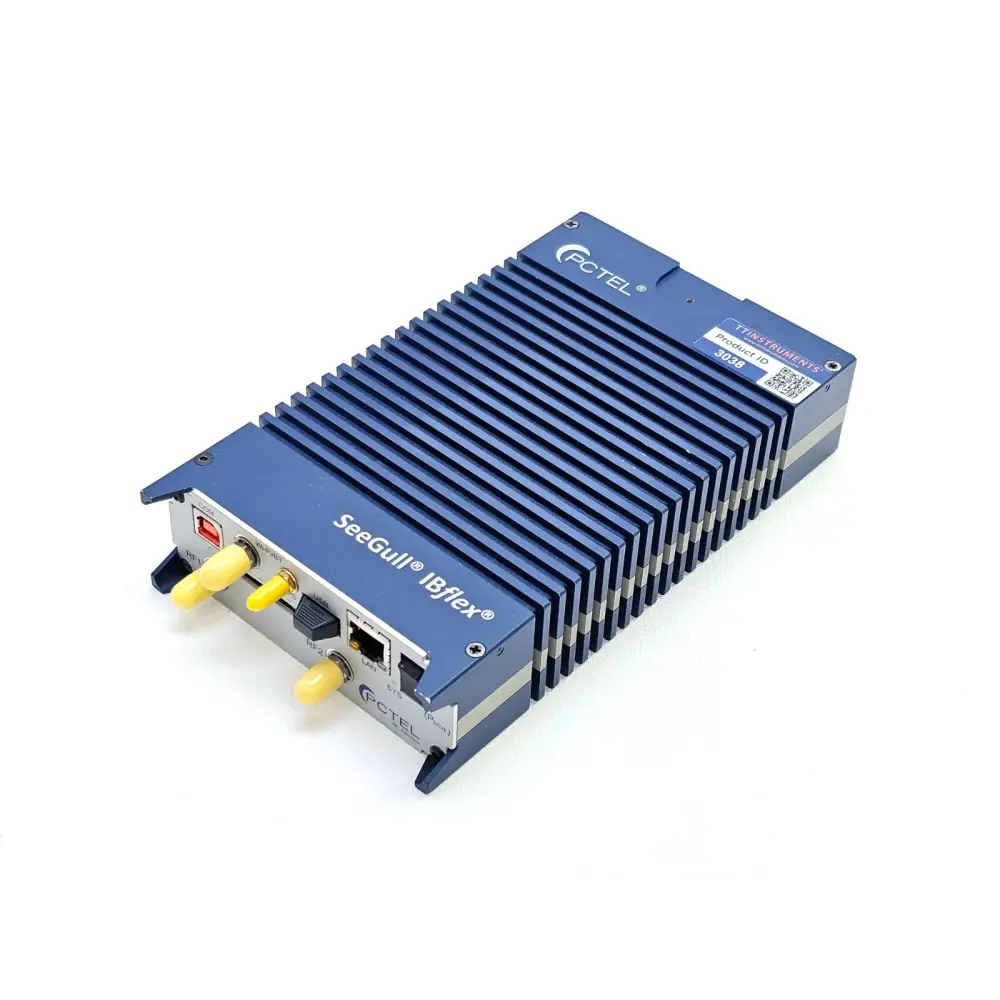

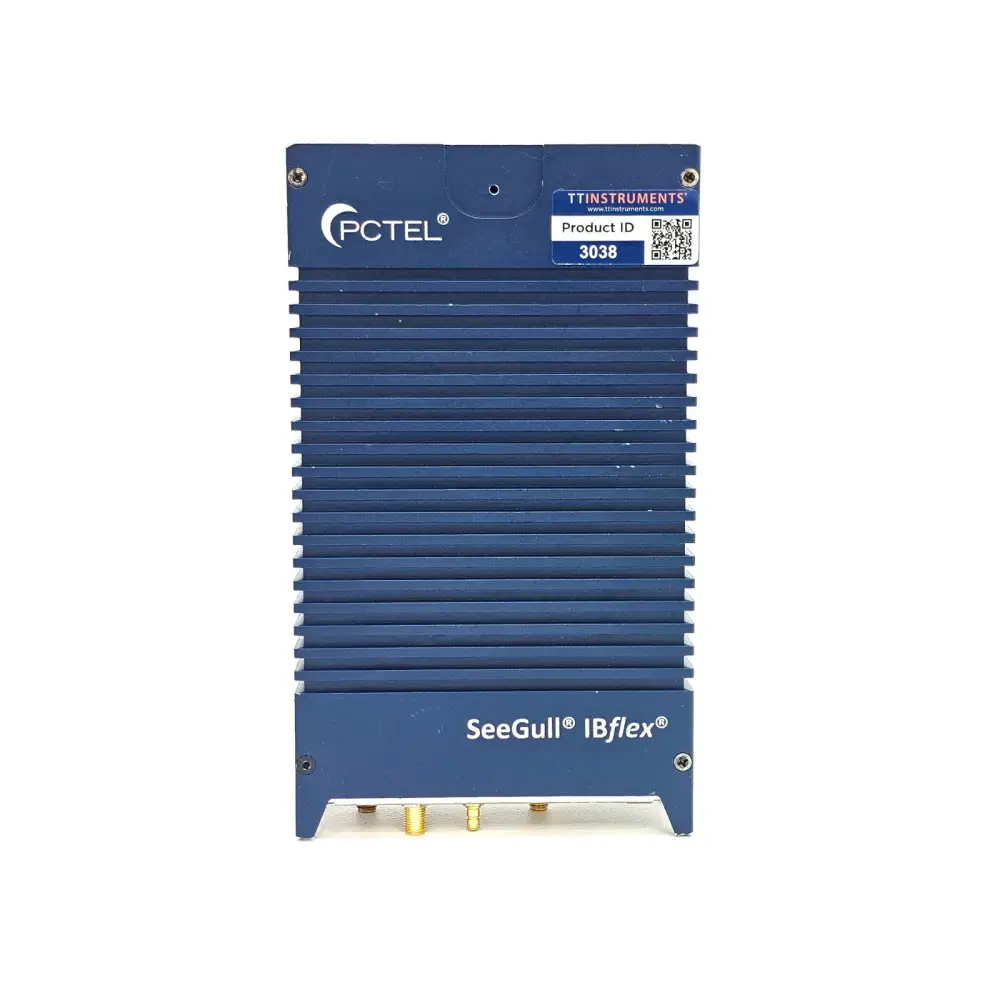

The PCTEL SeeGull IBflex is a software-defined, portable scanning receiver designed for in-building walk tests, drive tests, and site-specific mobile network measurements. It combines a lightweight, compact form factor with the capability to test multiple wireless technologies and bands simultaneously, making it a versatile tool for network engineers, RF planners, and telecom operators.

The IBflex is used to deploy and optimise cellular networks, verify coverage and signal quality, identify interference, conduct small cell and in-building DAS surveys, and improve the reliability of IoT systems. While optimised for indoor walk testing, the scanner is equally capable for outdoor and vehicle-based drive test applications.

General Description:
The IBflex scanning receiver is a software-defined receiver capable of supporting multiple protocols and any supported cellular band. Hardware configurations 08900-E and 08900L-E support frequencies from 10 MHz to 6 GHz (licensed frequency range dependent on installed options). The 08900 base configuration covers 570 MHz to 3.8 GHz.

Supported Technologies (option-dependent):
LTE FDD, TD-LTE, NB-IoT, UMTS/WCDMA/HSPA(+), GSM, CDMA, EV-DO, TD-SCDMA, P25, Wi-Fi (2.4 GHz and 5 GHz), DMR, TETRA

Key Specifications:
Frequency Range: 570 MHz – 3.8 GHz (08900 configuration; hardware supports 10 MHz – 6 GHz)
Power Measurement Accuracy: ±1 dB (across basic RF input power range)
Dynamic Range: -120 to -20 dBm @ 30 kHz RSSI
LTE/5G NR Scan Rate: Up to 11,050 channels/sec (maximum, contiguous)
NB-IoT/UMTS/GSM Scan Rate: Up to 4,250 channels/sec (maximum, contiguous)
CDMA/EV-DO Scan Rate: Up to 8,500 channels/sec (maximum, contiguous)

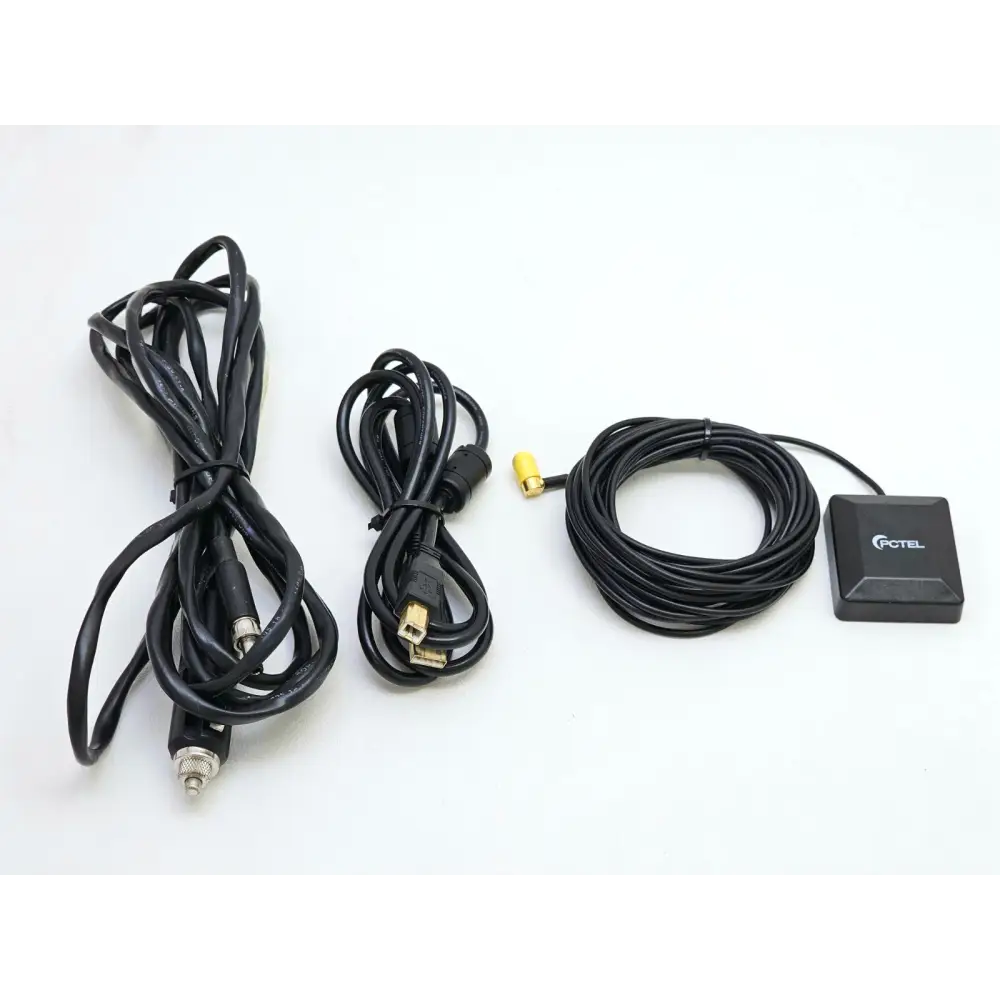

GPS: 56-channel internal receiver
GPS Position Accuracy: ±2.5 metres
GPS Cold Start Acquisition: <30 seconds
GPS Sensitivity (tracking): >-150 dBm

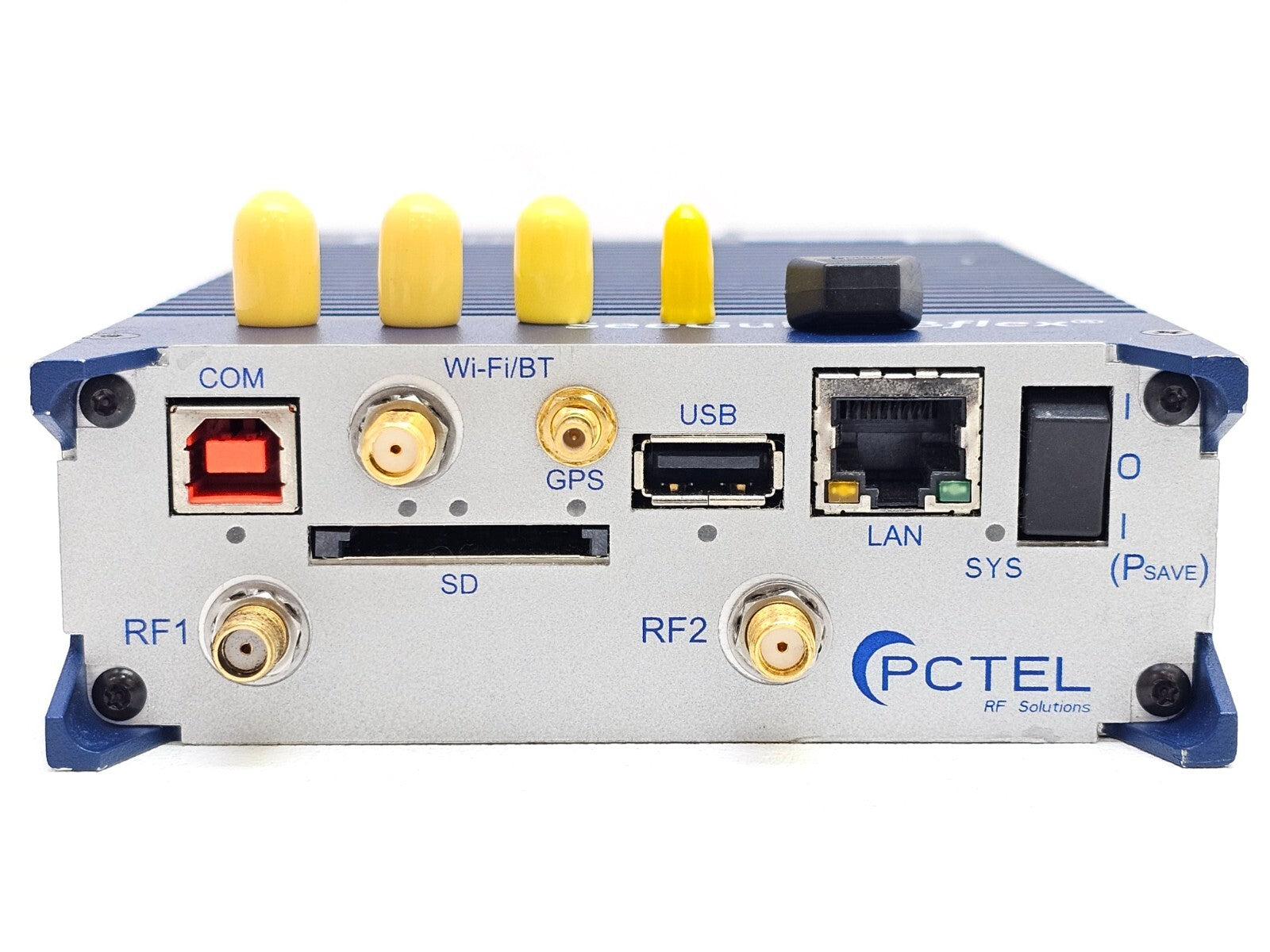

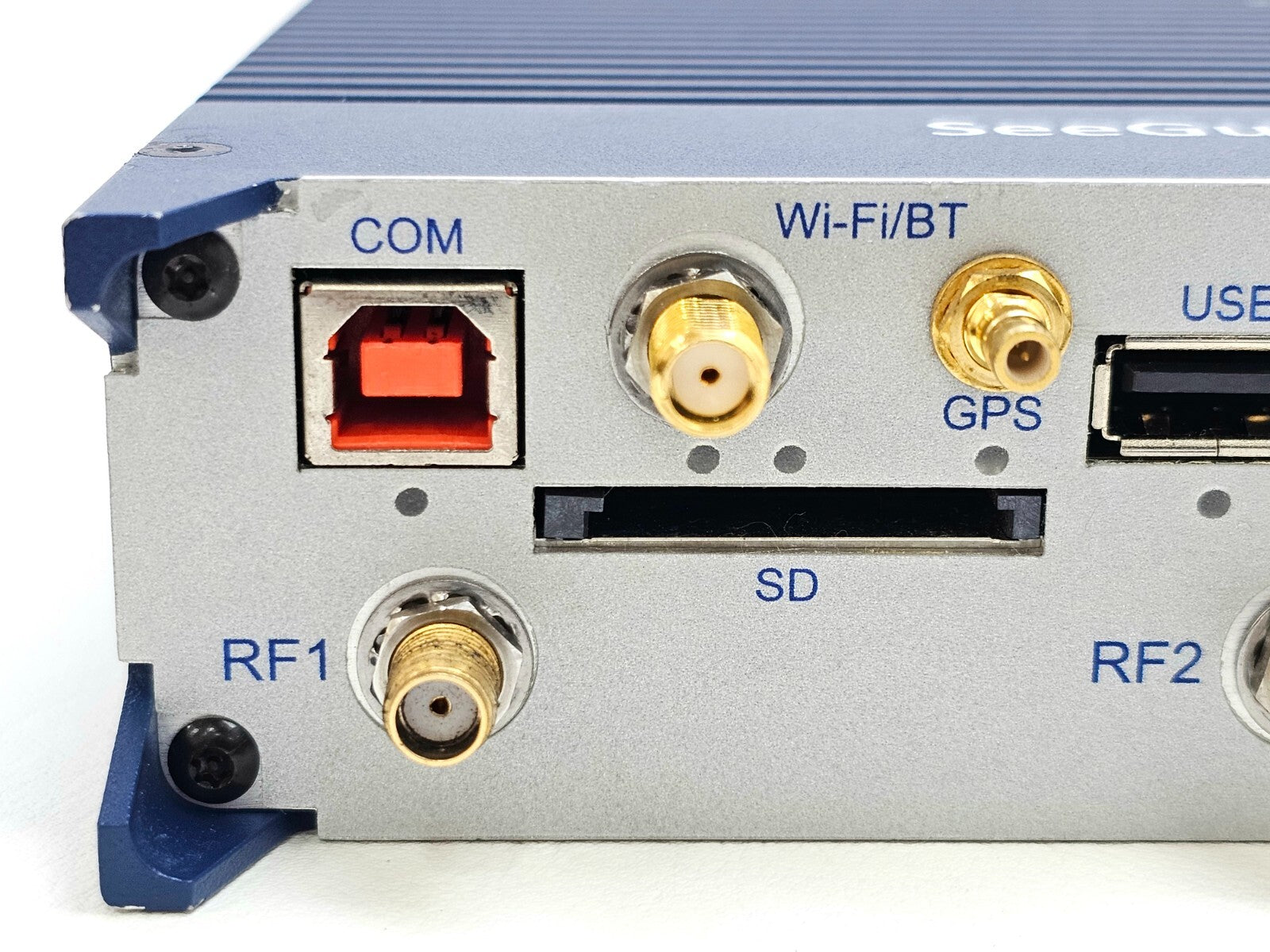

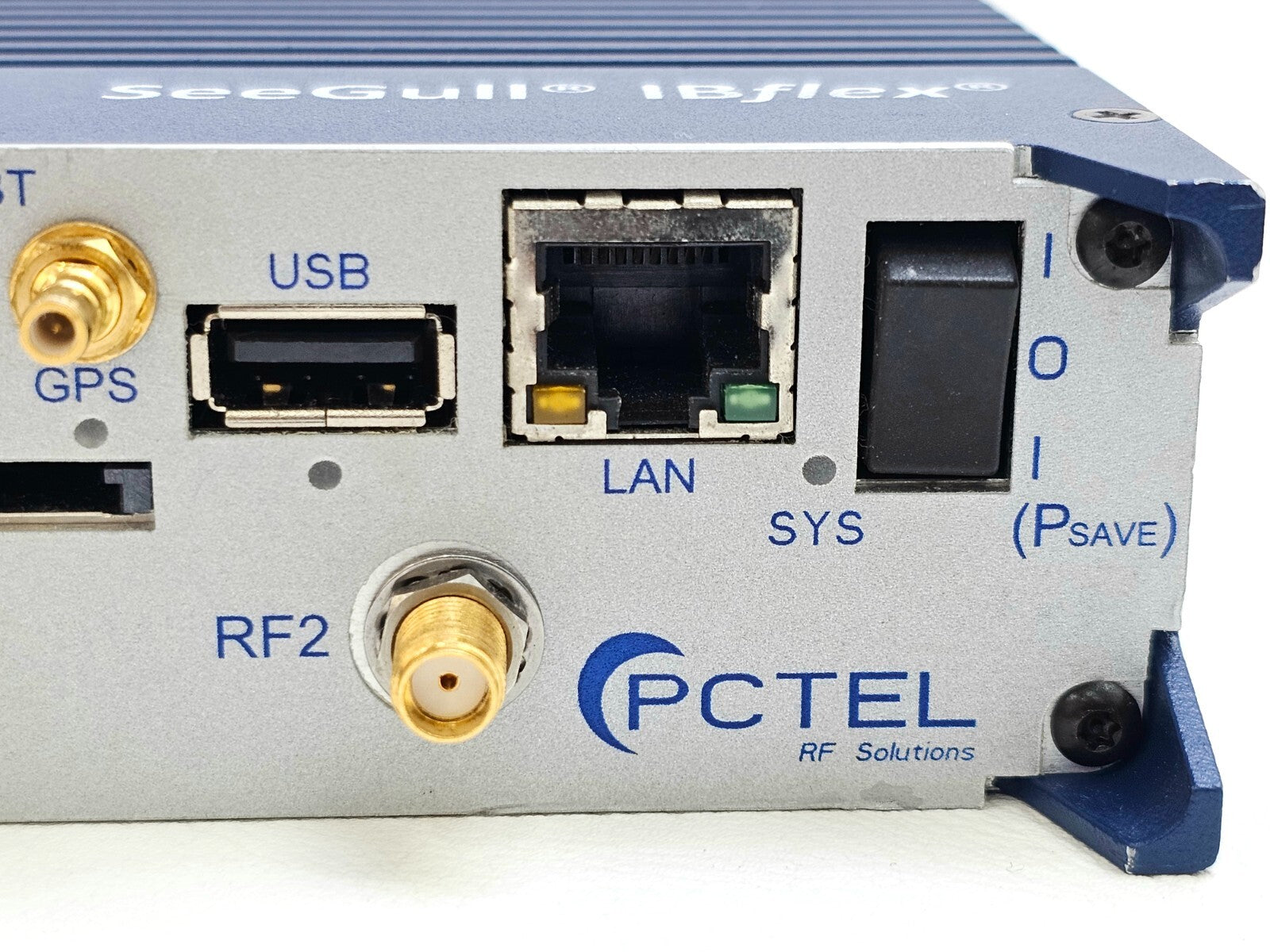

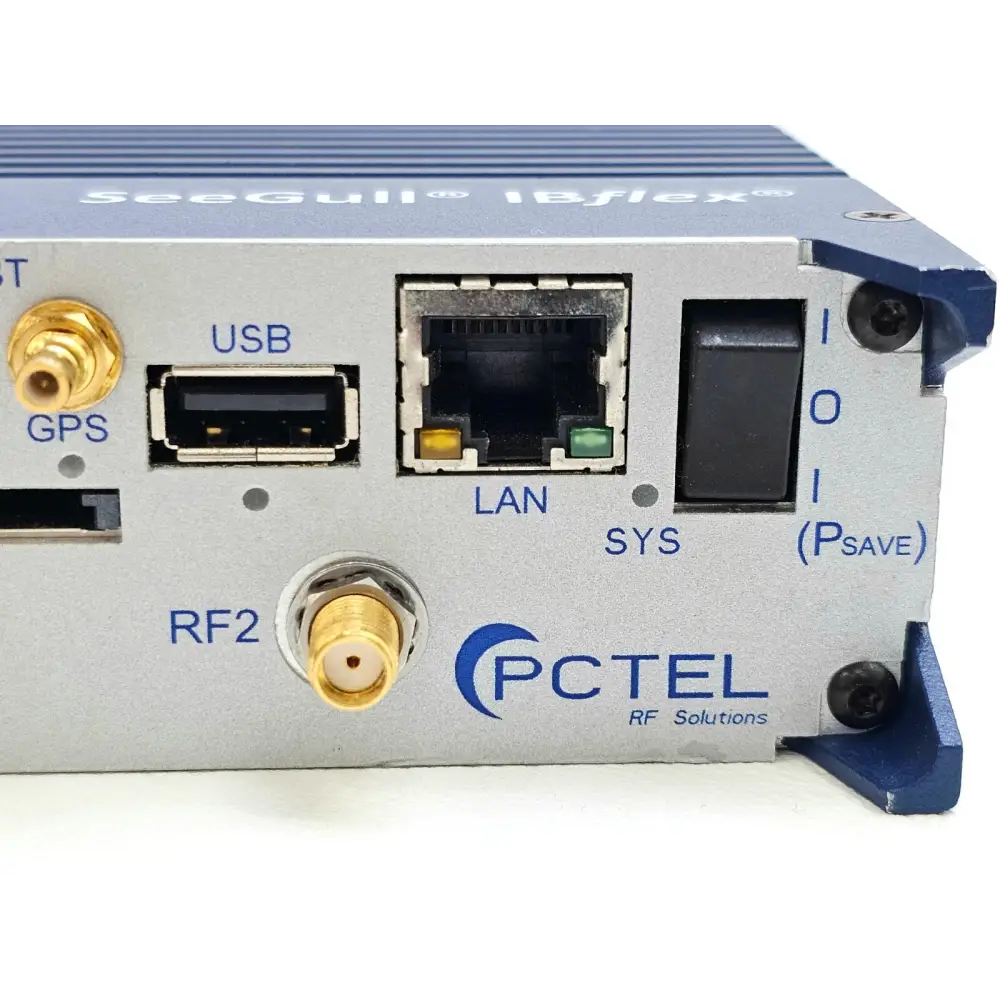

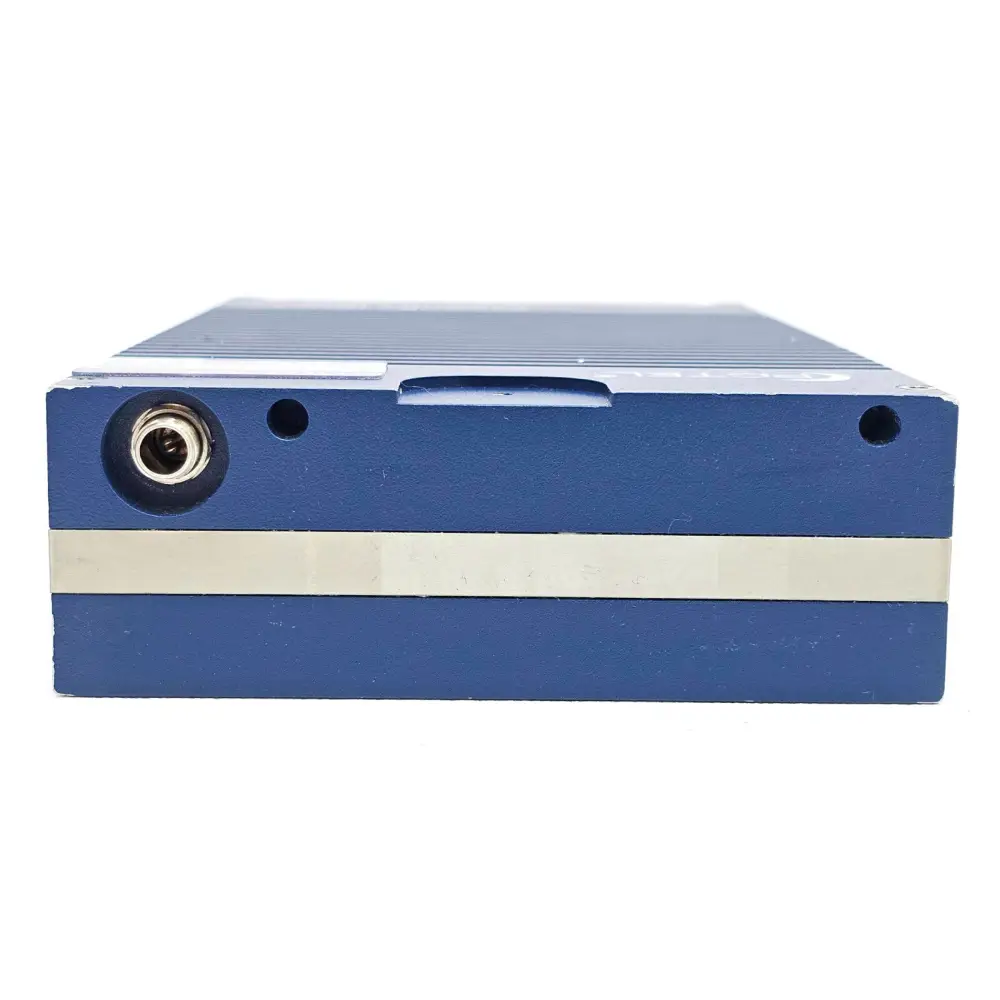

Connectivity: USB, Ethernet, Bluetooth (option)
Data Storage: SD card recording (option)
Power: Hot-swap battery system; AC/DC adapter or 9–17 VDC vehicle power
Operating System Compatibility: Windows PC / Android tablet (via SeeHawk Collect or SeeGull Assistant software)
Form Factor: Compact, lightweight, portable — suitable for side-pack or backpack carry
Calibration Interval: Recalibration recommended every 2 years

Key Features:
- Simultaneous multi-technology, multi-band scanning
- Blind Scan capability for automatic channel detection
- LTE MIMO (2x2 and 4x2) measurements
- Enhanced Power Scan (EPS) from 5 kHz to 20 MHz in 2.5 kHz increments
- Spectrum analysis >90 dB range
- GPS-synchronised absolute timestamping
- Field-upgradeable software-defined architecture
- Compatible with PCTEL SeeHawk Collect and SeeGull Assistant software platforms

PCTEL SeeGull IBflex Hardware Reference Manual Rev M (official manual covering setup, options, specs, and maintenance): Download PDF

PCTEL SeeGull IBflex Hardware Reference Manual Rev T (latest revision hosted on CDN): Download PDF

PCTEL SeeGull IBflex Scanning Receiver Brochure (product overview, features, and specifications): Download PDF

PCTEL SeeGull IBflex Scanning Receiver Brochure (Avalon Test Equipment hosted version): Download PDF
