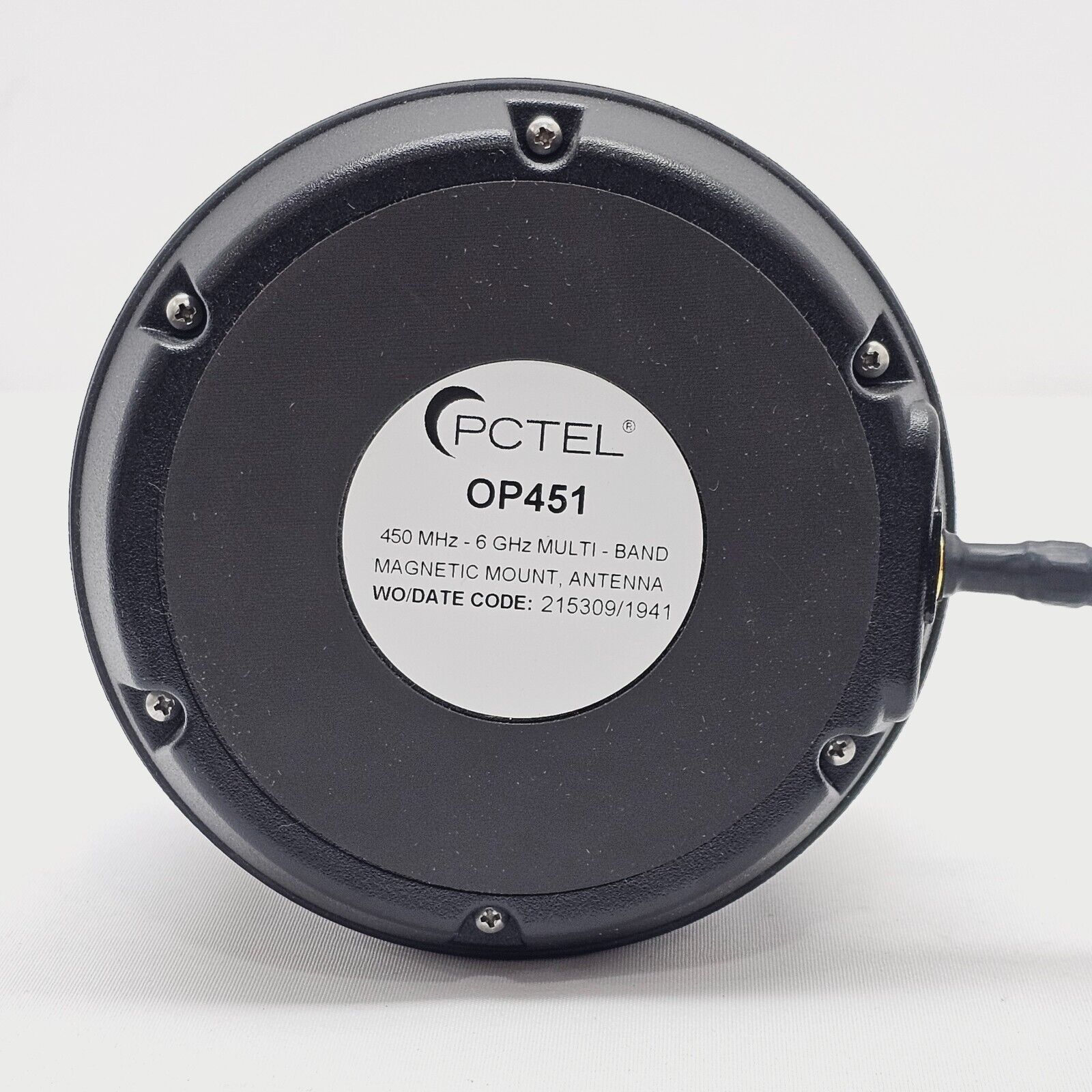

The PCTEL OP451 is a vertically polarised, omni-directional, high-performance outdoor antenna designed for mobile and fixed wireless network testing with PCTEL SeeGull scanning receivers. It provides wide-band coverage across full-spectrum TETRA/UHF and sub-6 GHz frequencies with no tuning required and excellent VSWR performance throughout its operating range. The magnetic mount base allows quick installation on any ferrous metal surface, a surface with a grounding plate, or an optional permanent mount adapter.
Frequency Range: 450 MHz – 6 GHz
VSWR: < 2.0:1
Nominal Impedance: 50 Ω
Polarisation: Vertical
Antenna Dimensions: 3.38" H x 1.43" OD (86 mm H x 36 mm OD)
Cable Length: 12 feet (3.7 m)
Mount Type: Magnetic (extra-strength magnetic mount included)
Connector: Male SMA
Application: Mobile/fixed drive test with PCTEL scanning receivers
Compatibility: PCTEL SeeGull IBflex, EXflex, MXflex, HBflex scanning receivers
Note: Specifications subject to change without notice. Please refer to the PCTEL manufacturer website and official datasheet for the most current specifications.
