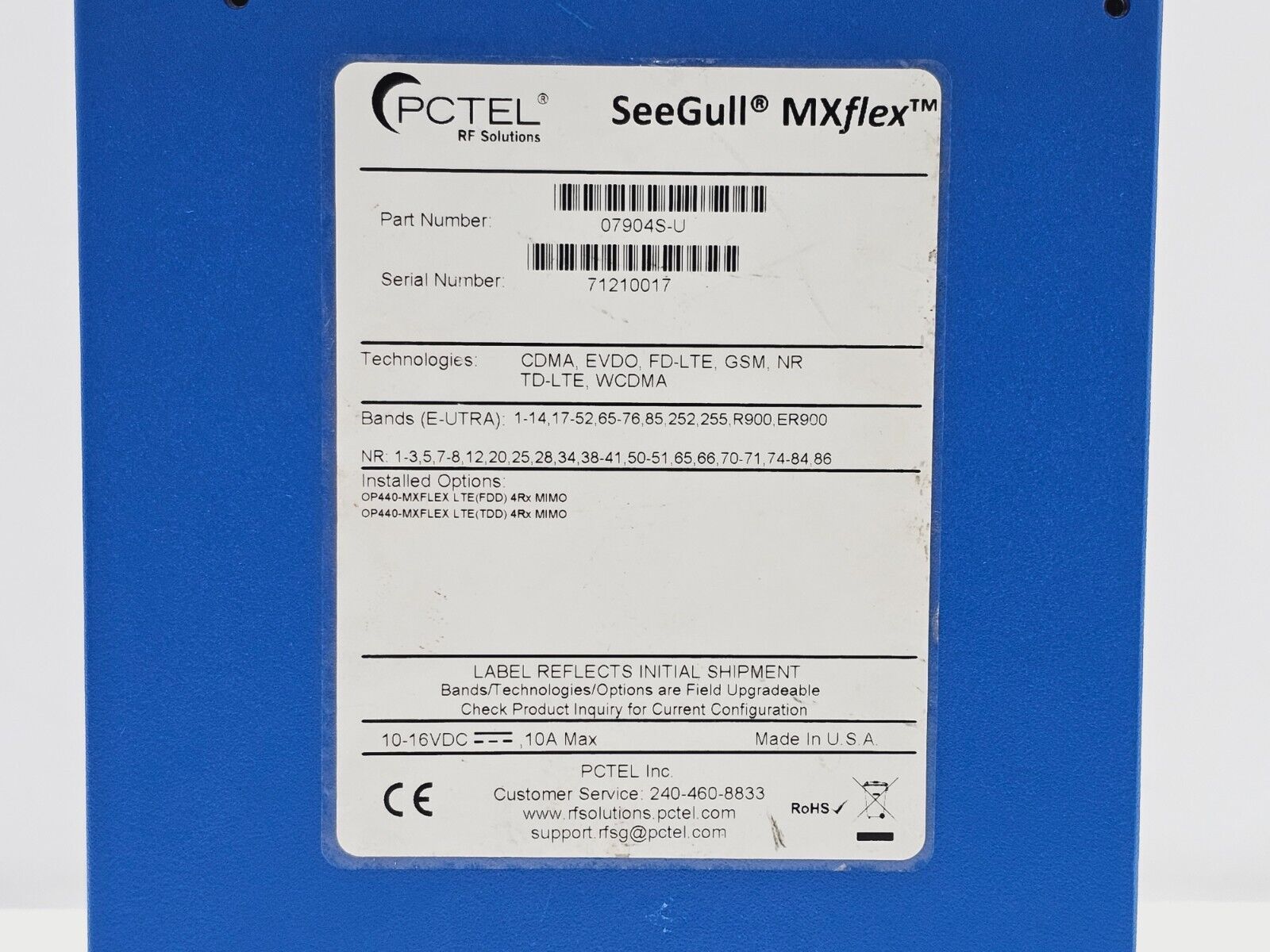

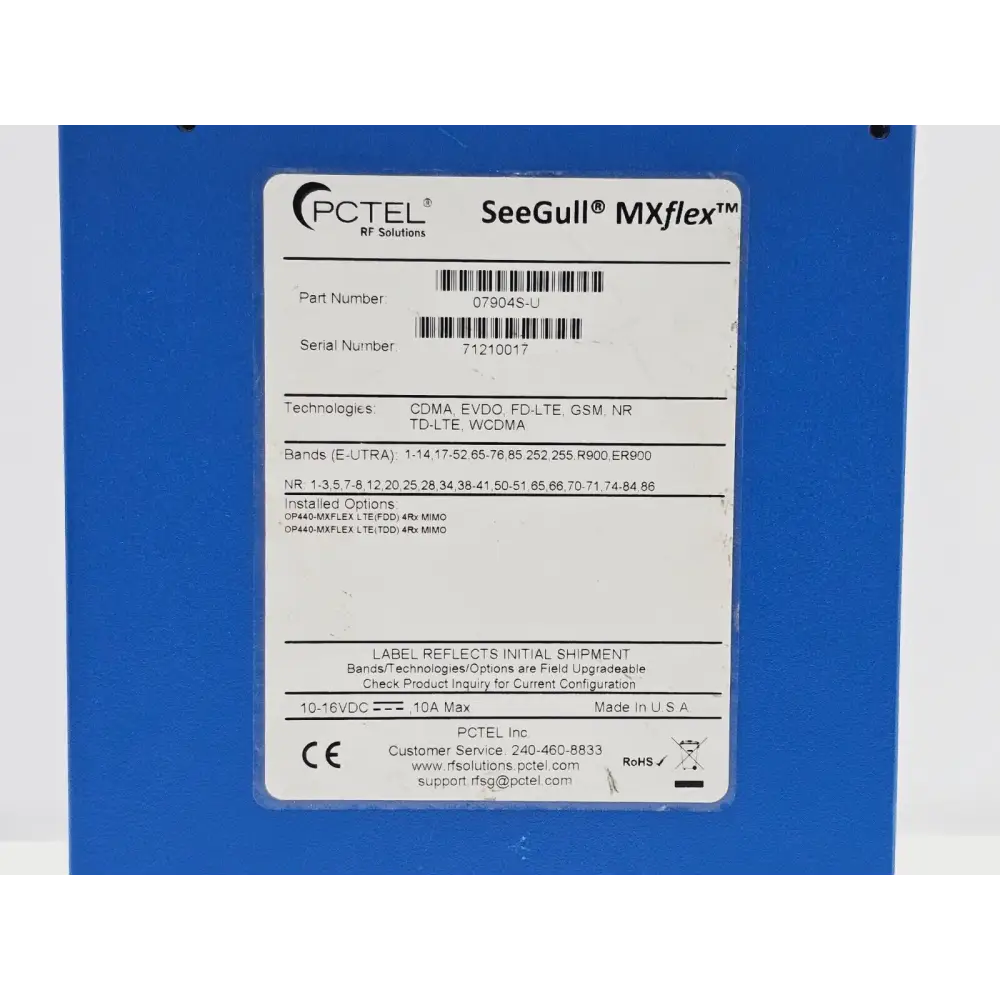

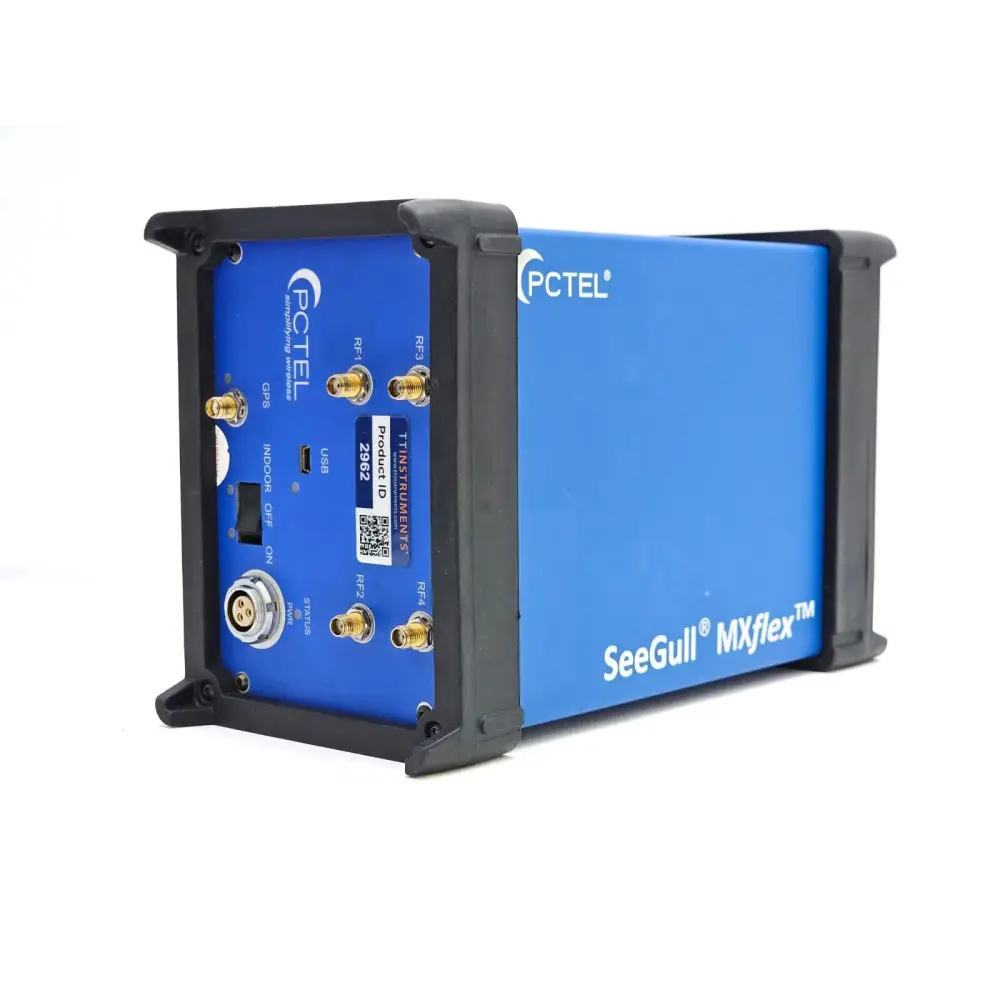

PCTEL MXflex 30 MHz - 6 GHz Scanning Receiver 07904S-U LTE FDD TDD 4Rx MIMO

Condition: Used

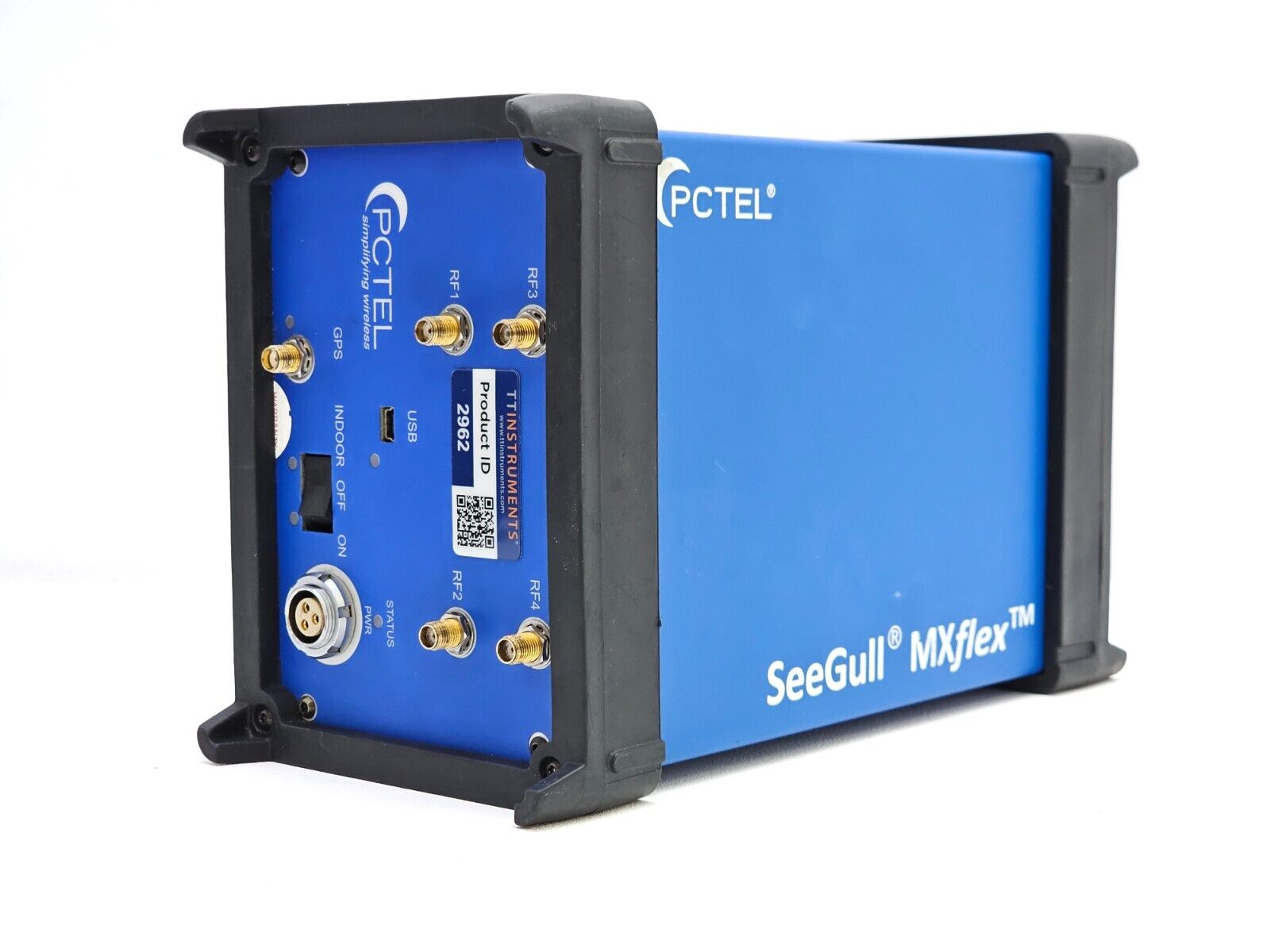

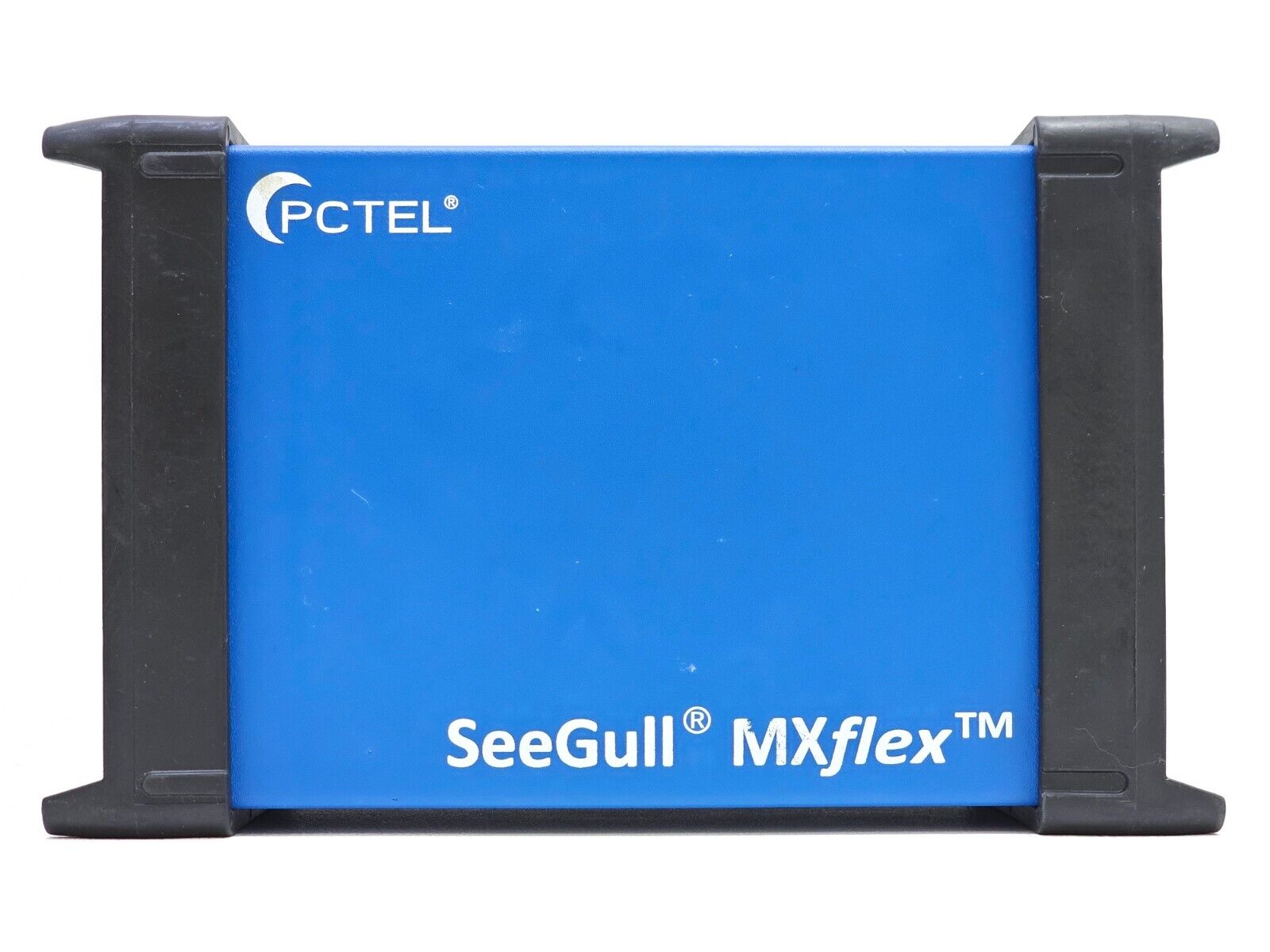

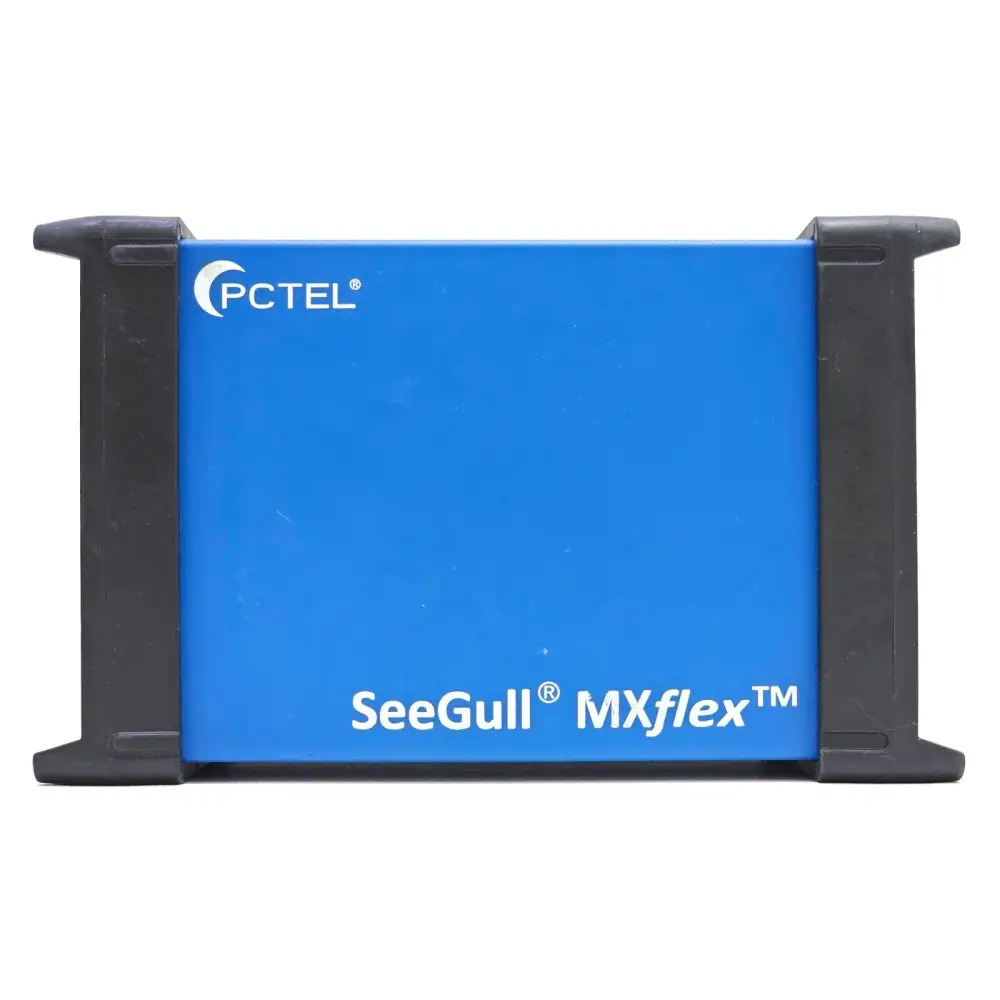

This PCTEL SeeGull MXflex 07904S-U scanning receiver is in excellent working condition and carries an extensive range of installed software options spanning 2G through 5G NR, including LTE FDD and TD-LTE 4Rx MIMO, New Radio support with MIB decoding and Blind Scan, and full 30 MHz – 6 GHz frequency capability.

Included in the sale:
• SeeGull MXflex receiver (with installed options as listed)

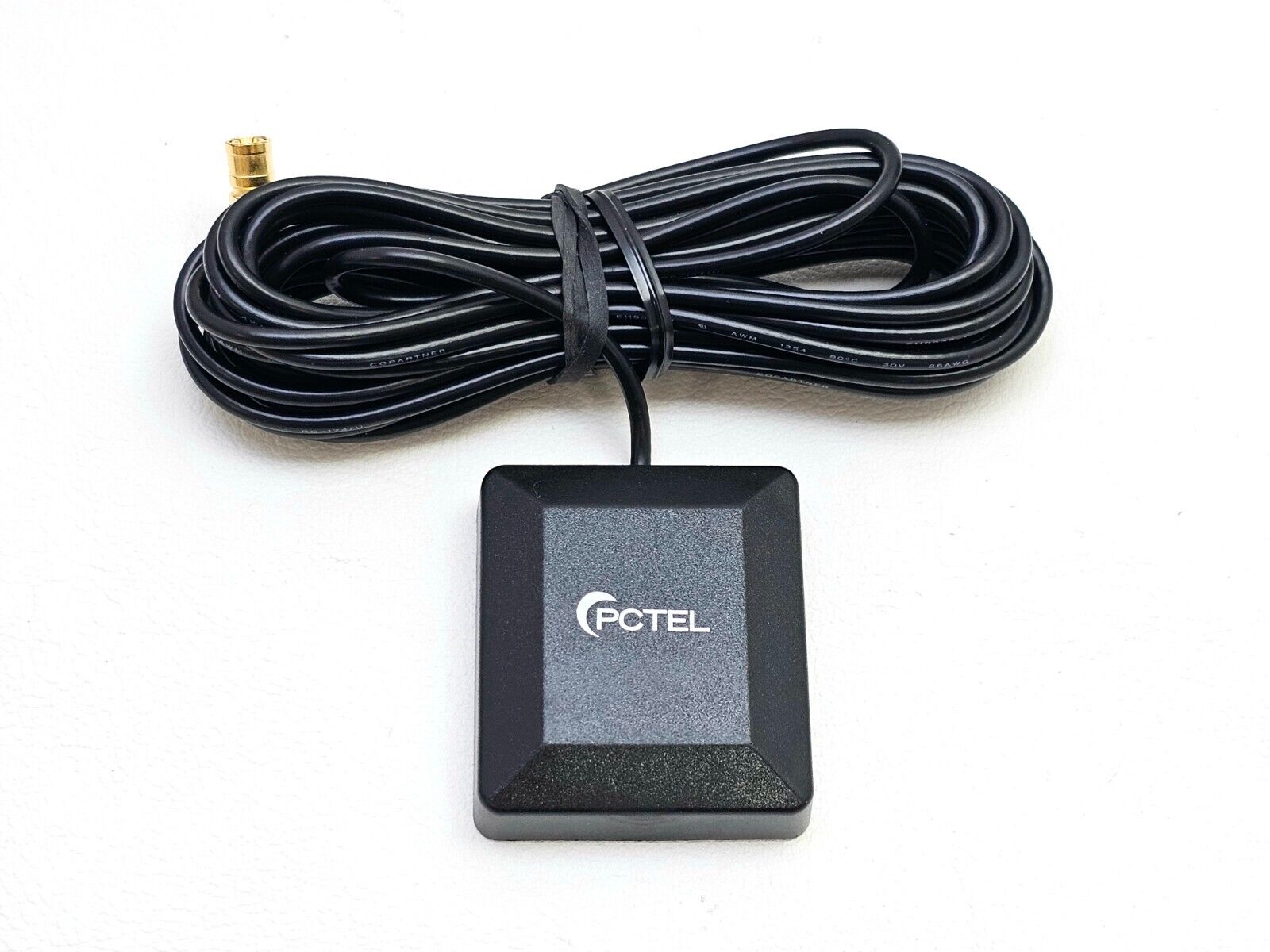

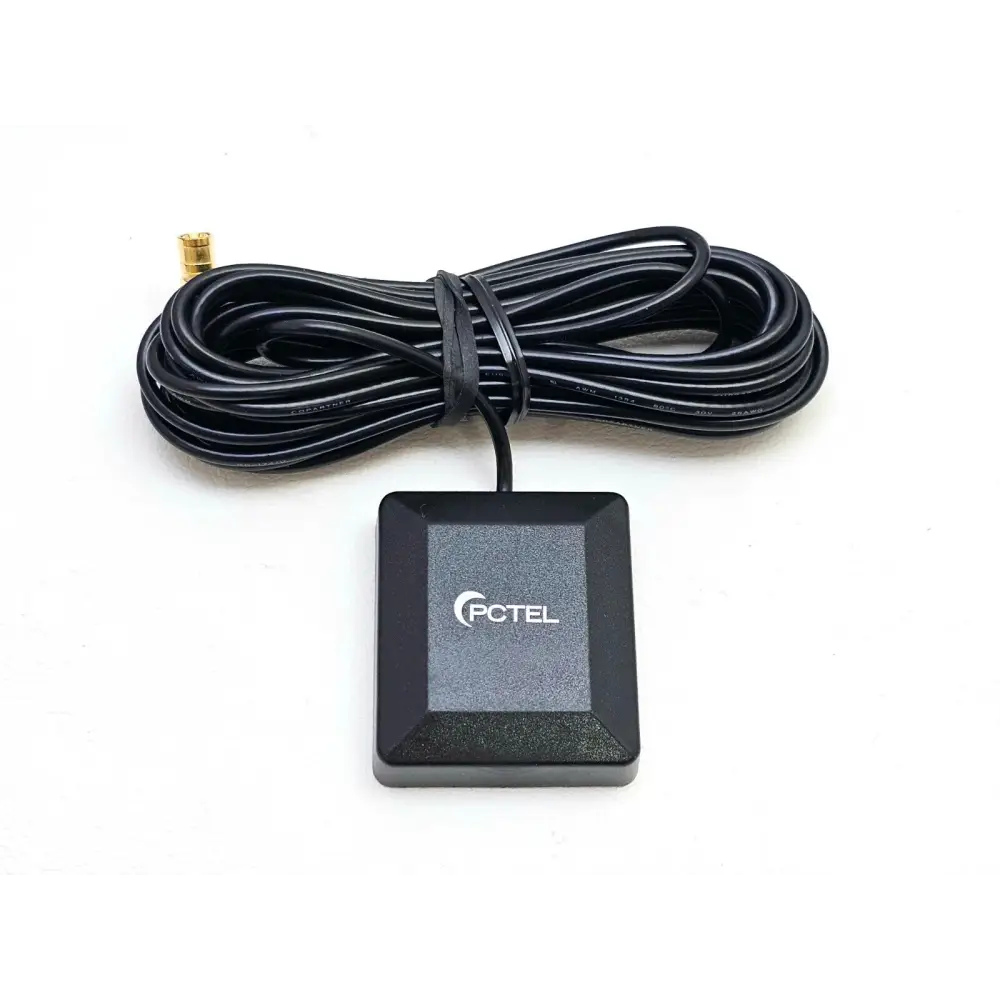

• GPS receiver

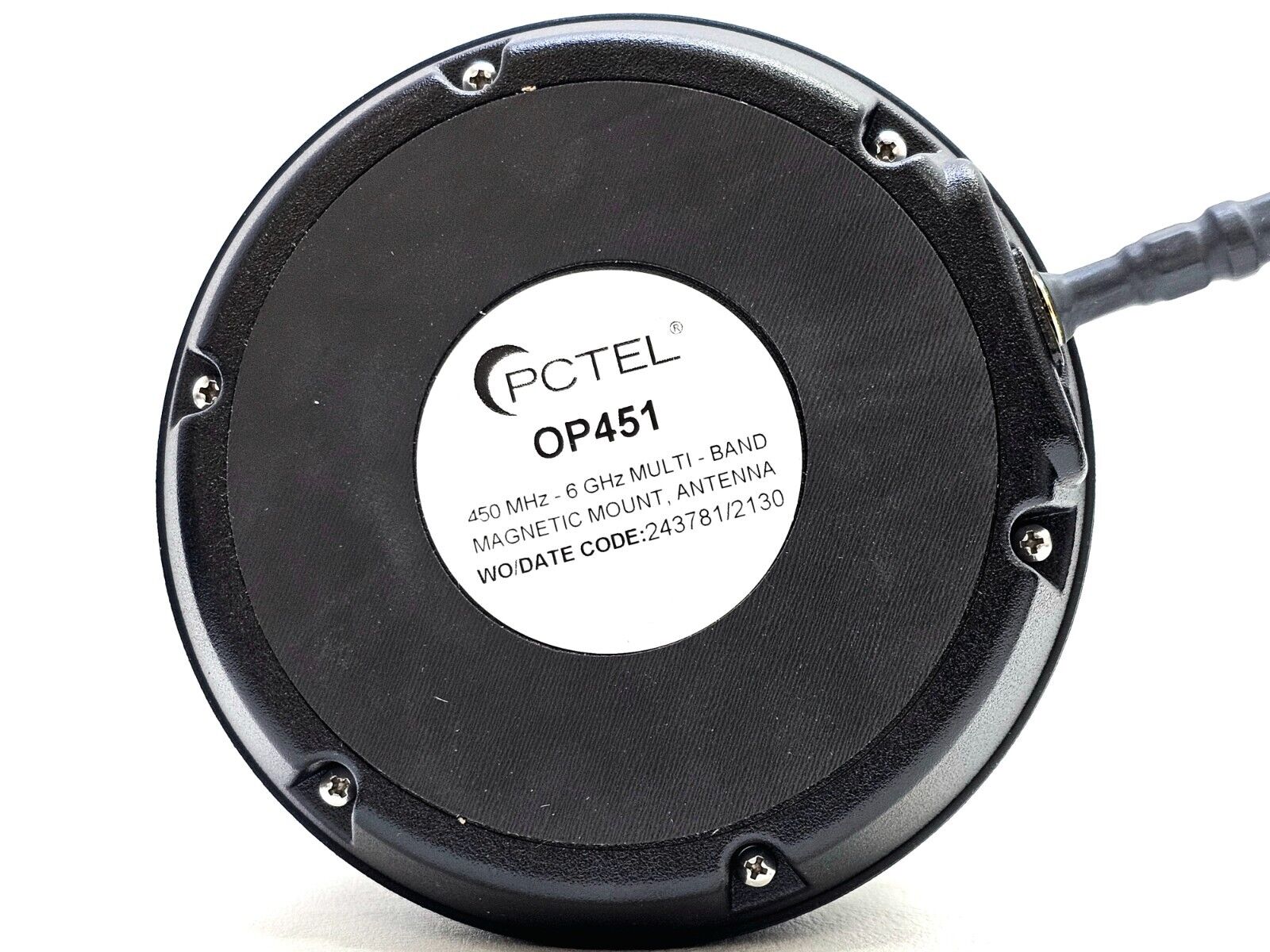

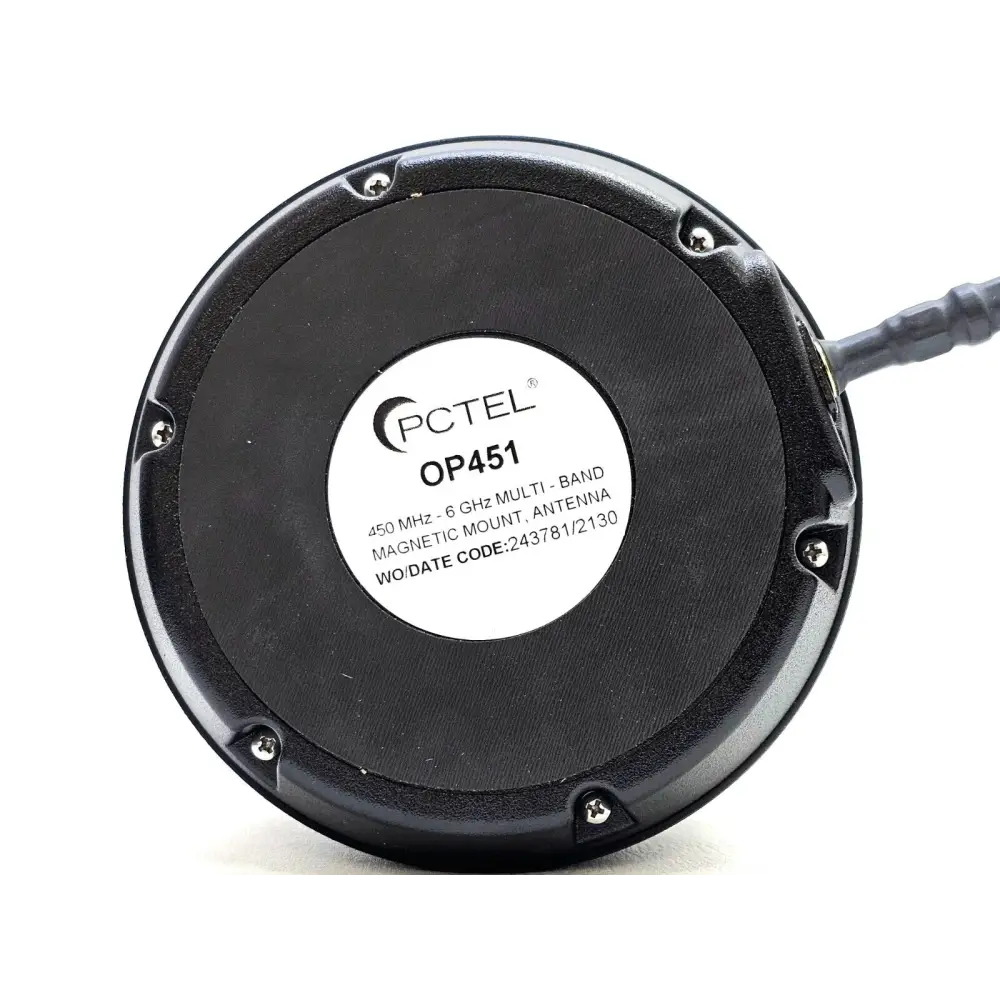

• 4x OP451 — 450 MHz to 6 GHz magnetic mount multi-band antennas

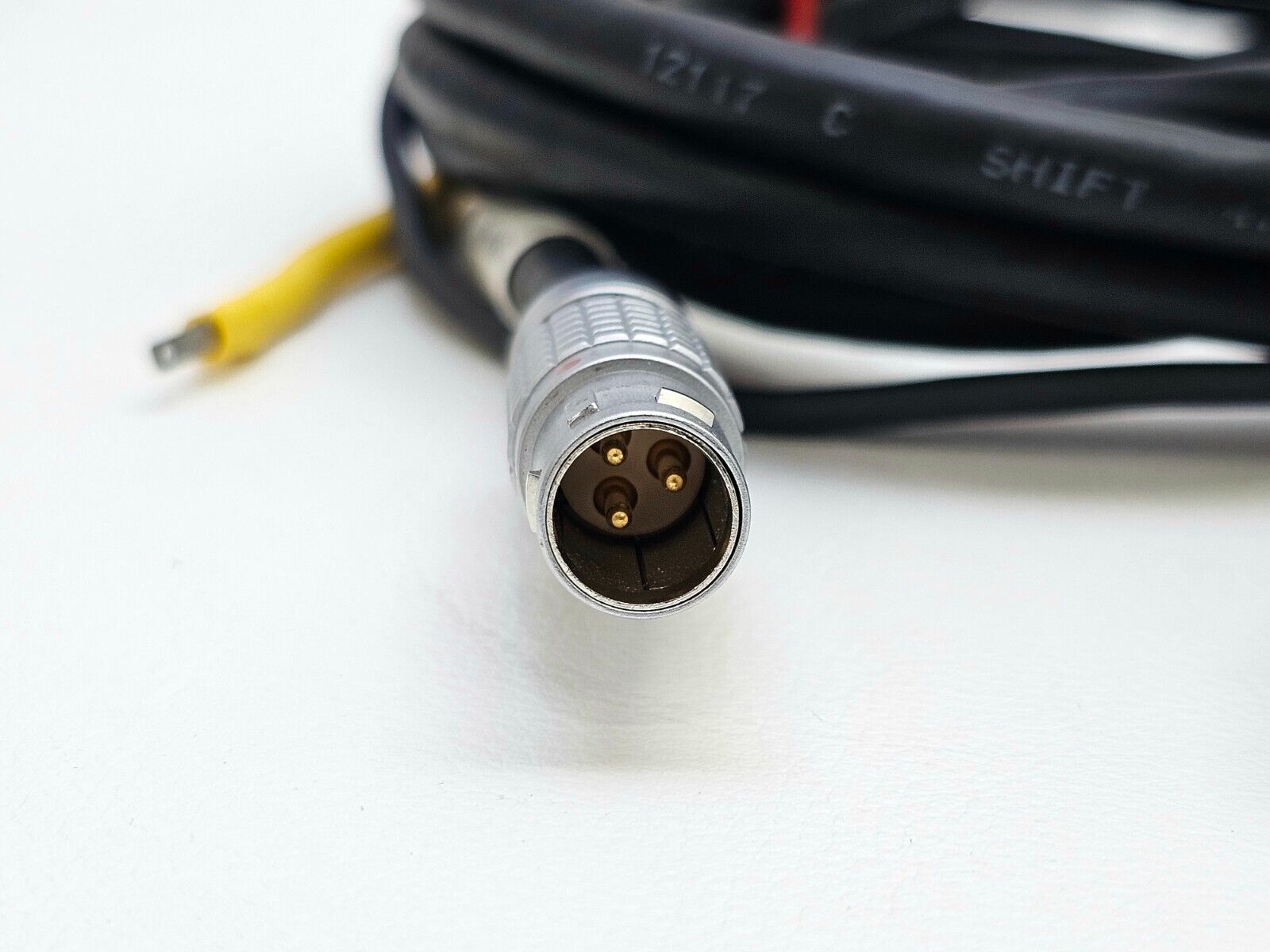

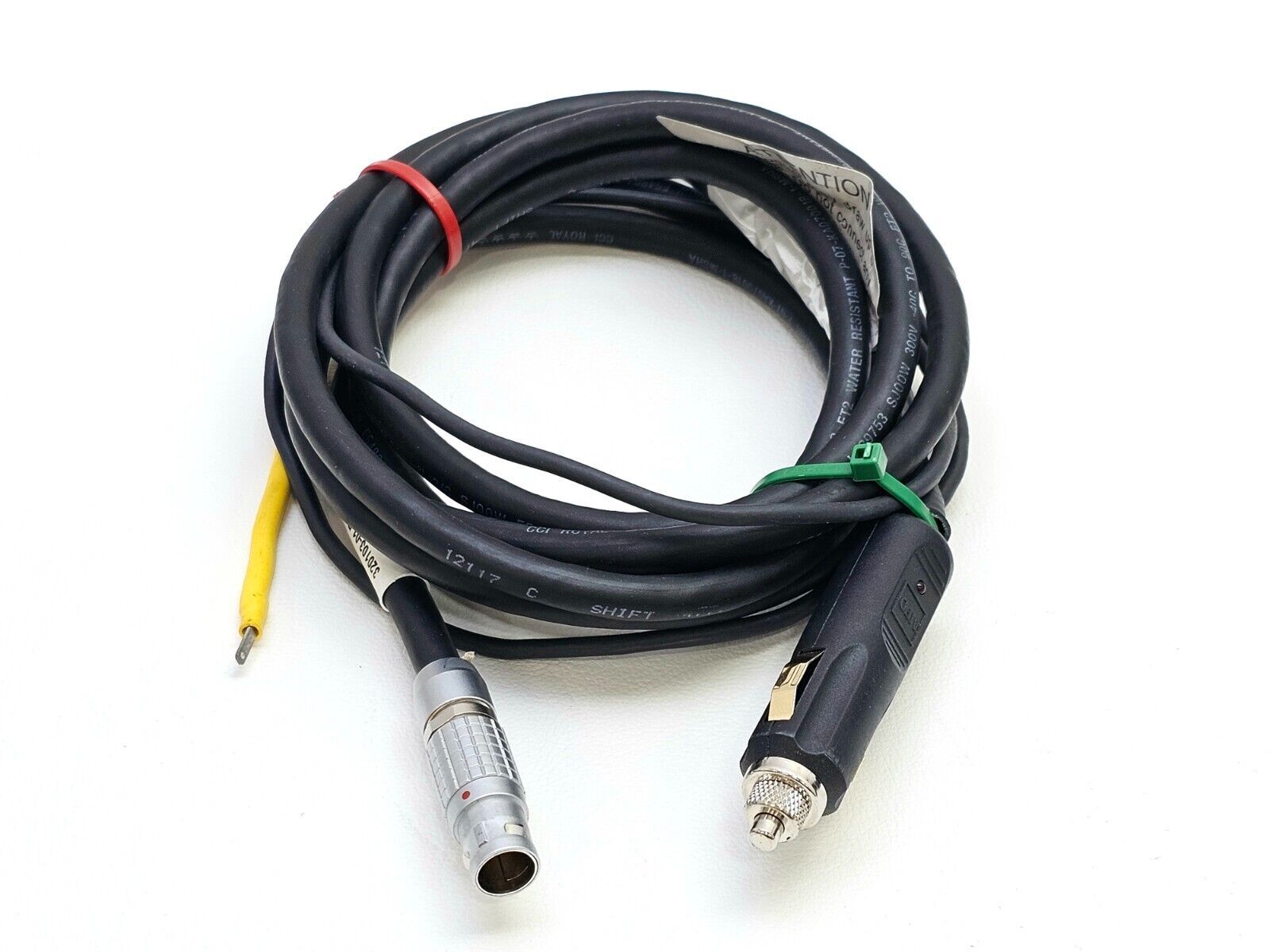

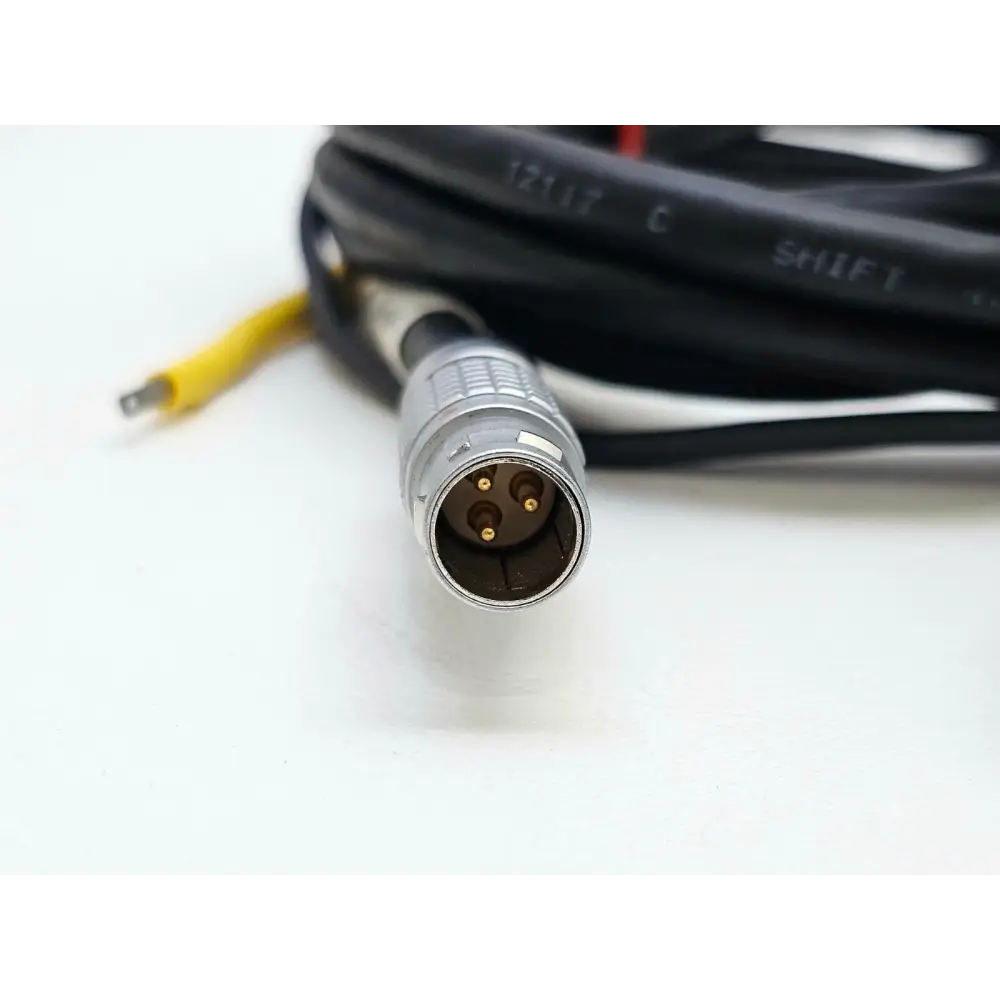

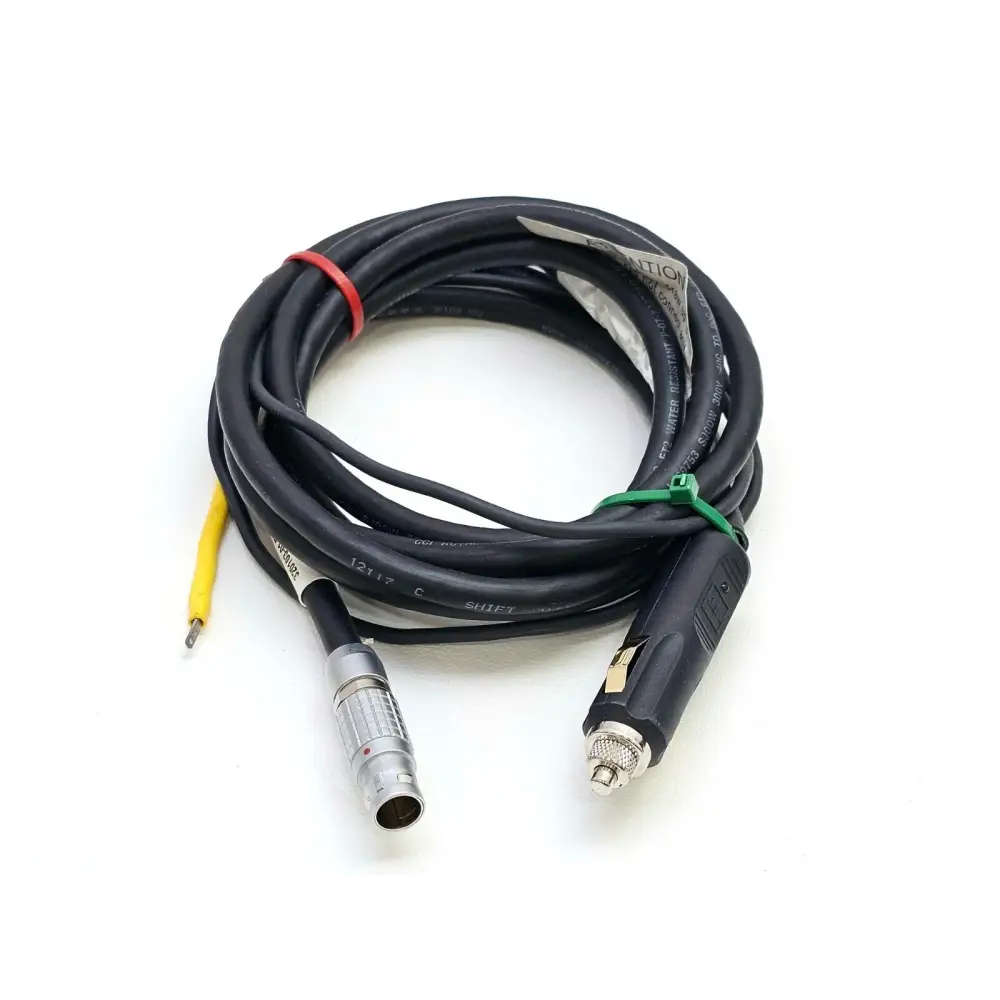

• In-car charger

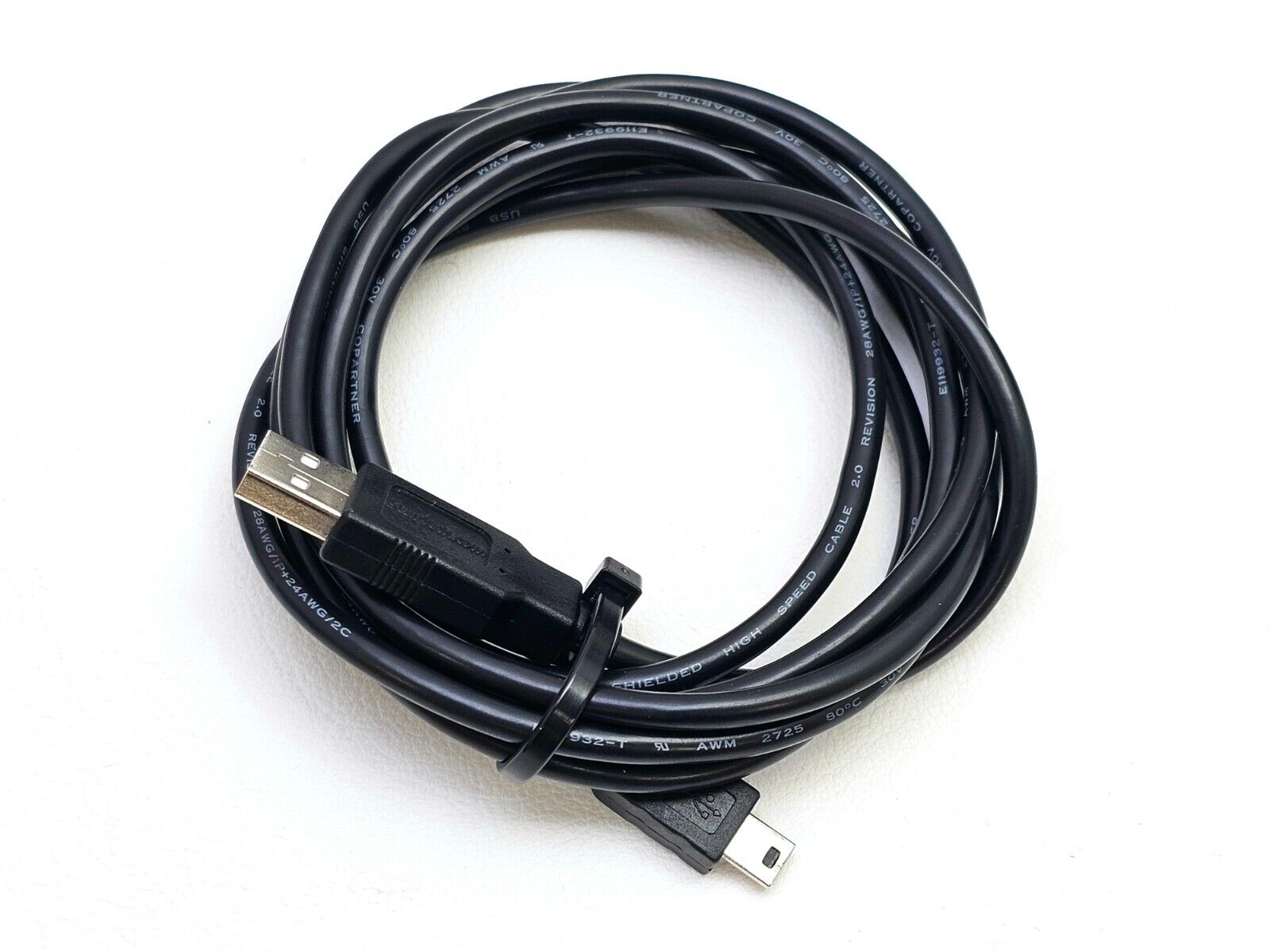

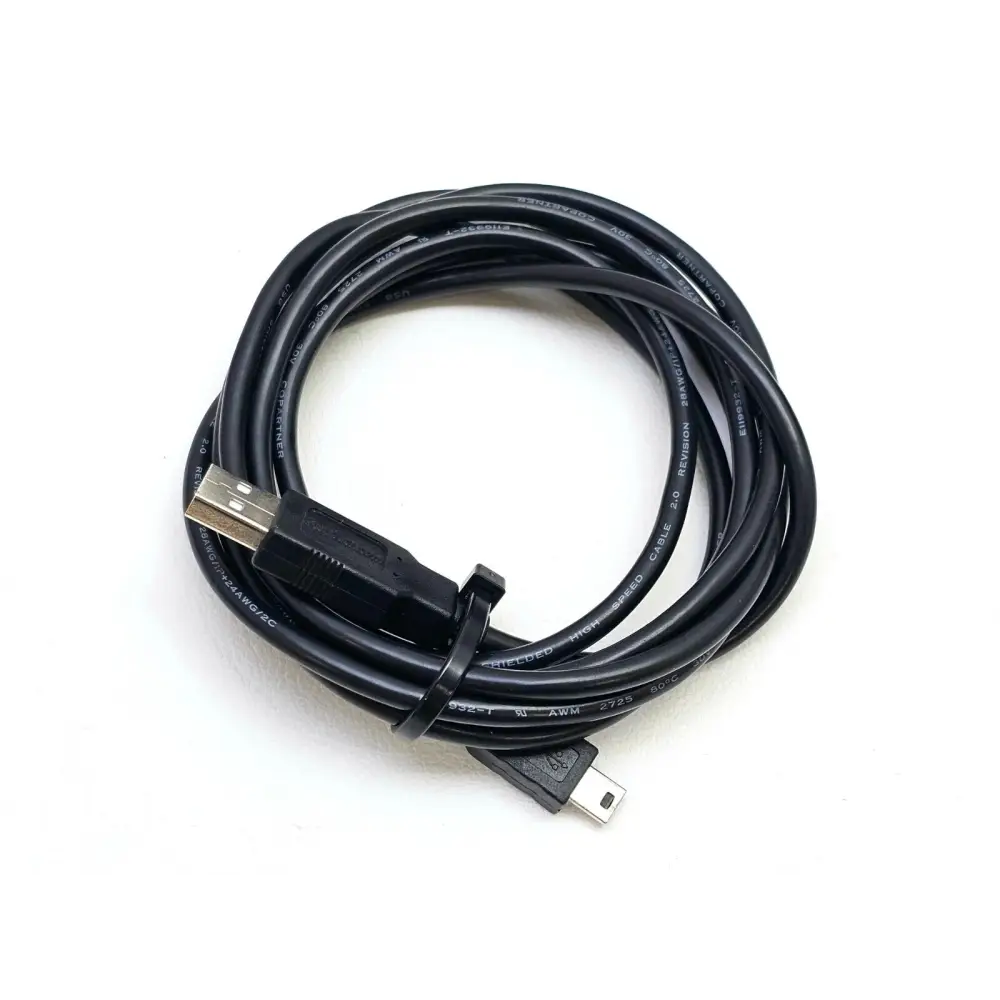

• USB cable

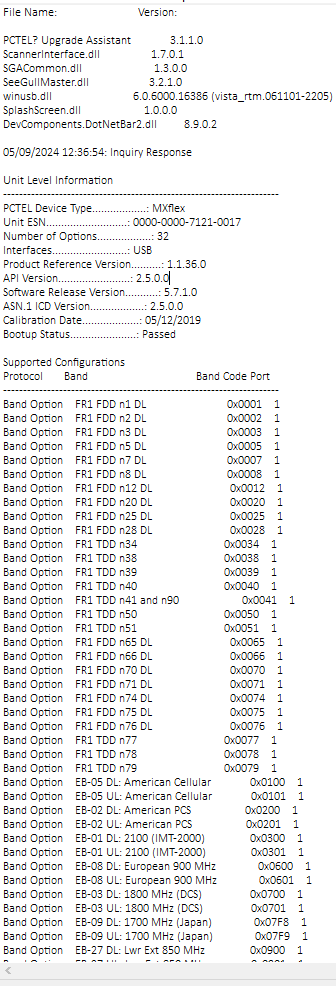

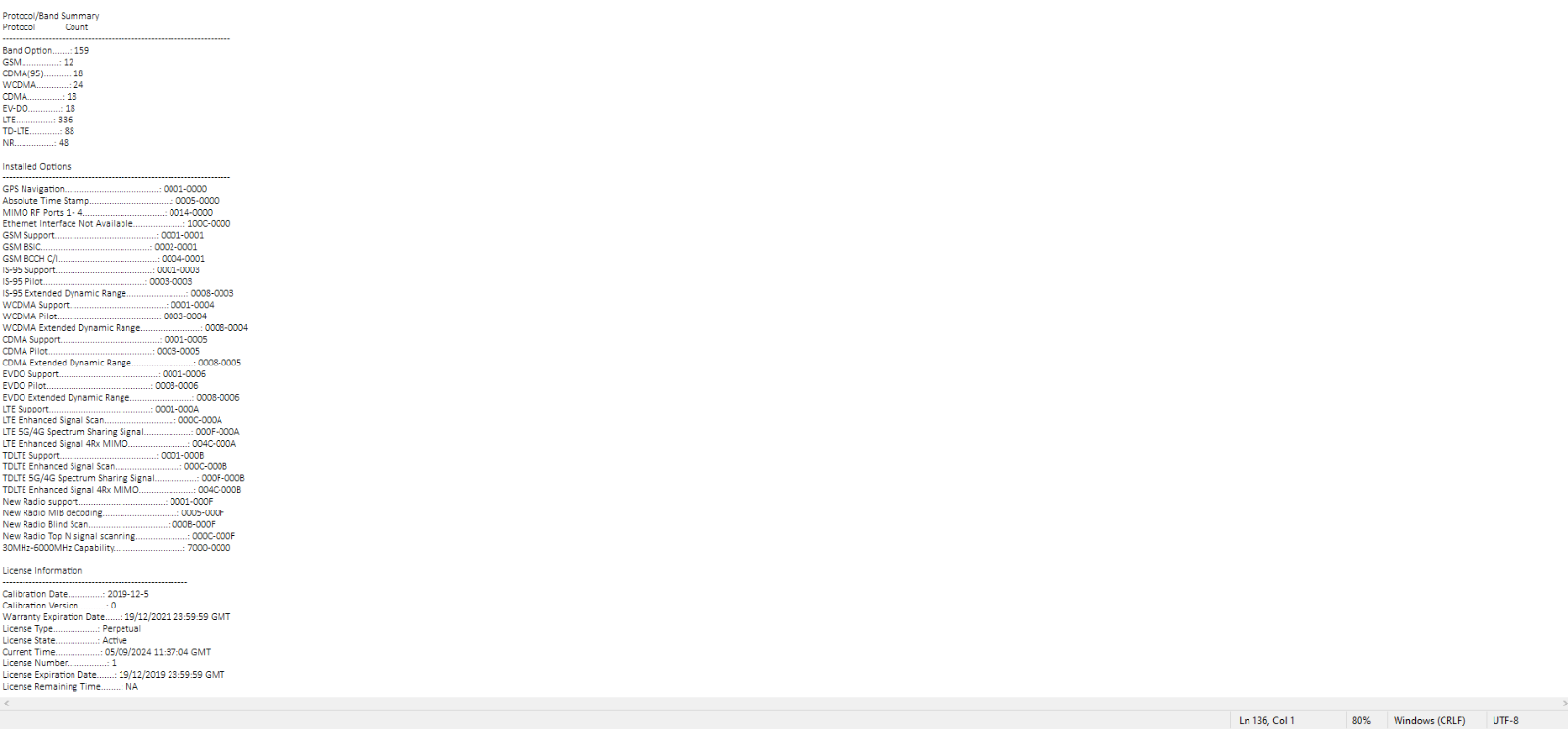

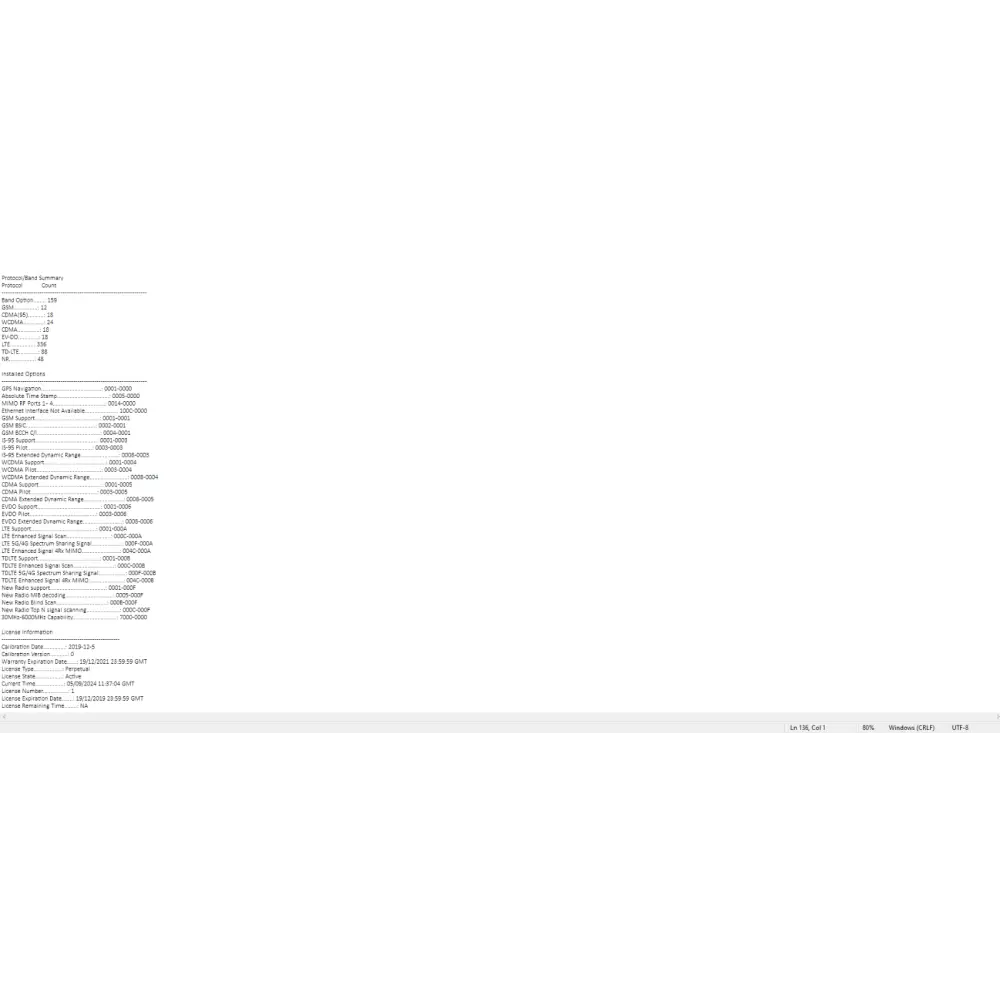

Active installed options include:
• GPS Navigation (0001-0000)
• Absolute Time Stamp (0005-0000)
• MIMO RF Ports 1–4 (0014-0000)
• GSM Support, BSIC, and BCCH C/I (0001-0001, 0002-0001, 0004-0001)
• IS-95 Support, Pilot, and Extended Dynamic Range (0001-0003, 0003-0003, 0008-0003)
• WCDMA Support, Pilot, and Extended Dynamic Range (0001-0004, 0003-0004, 0008-0004)
• CDMA Support, Pilot, and Extended Dynamic Range (0001-0005, 0003-0005, 0008-0005)
• EVDO Support, Pilot, and Extended Dynamic Range (0001-0006, 0003-0006, 0008-0006)
• LTE Support, Enhanced Signal Scan, 5G/4G Spectrum Sharing Signal, Enhanced Signal 4Rx MIMO (0001-000A, 000C-000A, 000F-000A, 004C-000A)
• TD-LTE Support, Enhanced Signal Scan, 5G/4G Spectrum Sharing Signal, Enhanced Signal 4Rx MIMO (0001-000B, 000C-000B, 000F-000B, 004C-000B)
• New Radio Support, MIB Decoding, Blind Scan, Top N Signal Scanning (0001-000F, 0005-000F, 000B-000F, 000C-000F)
• 30 MHz – 6000 MHz Capability (7000-0000)

The PCTEL SeeGull MXflex is a professional scanning receiver designed for benchmarking and co-managing multiple wireless network technologies across the sub-6 GHz spectrum. It combines the broad technology and frequency band support of the PCTEL flex line with the concurrent measurement capability of the SeeGull MX platform, making it one of the most capable single-box drive test solutions available.

The MXflex is engineered for RF network engineers working on coverage benchmarking, drive testing, walk testing, baseline testing, integration testing, and optimisation testing across 2G, 3G, 4G, and 5G networks. Its Automatic Channel Detection (Blind Scan) feature identifies every active channel across all bands and technologies with minimal setup.

General Specifications:
Frequency Range: 30 MHz – 6 GHz

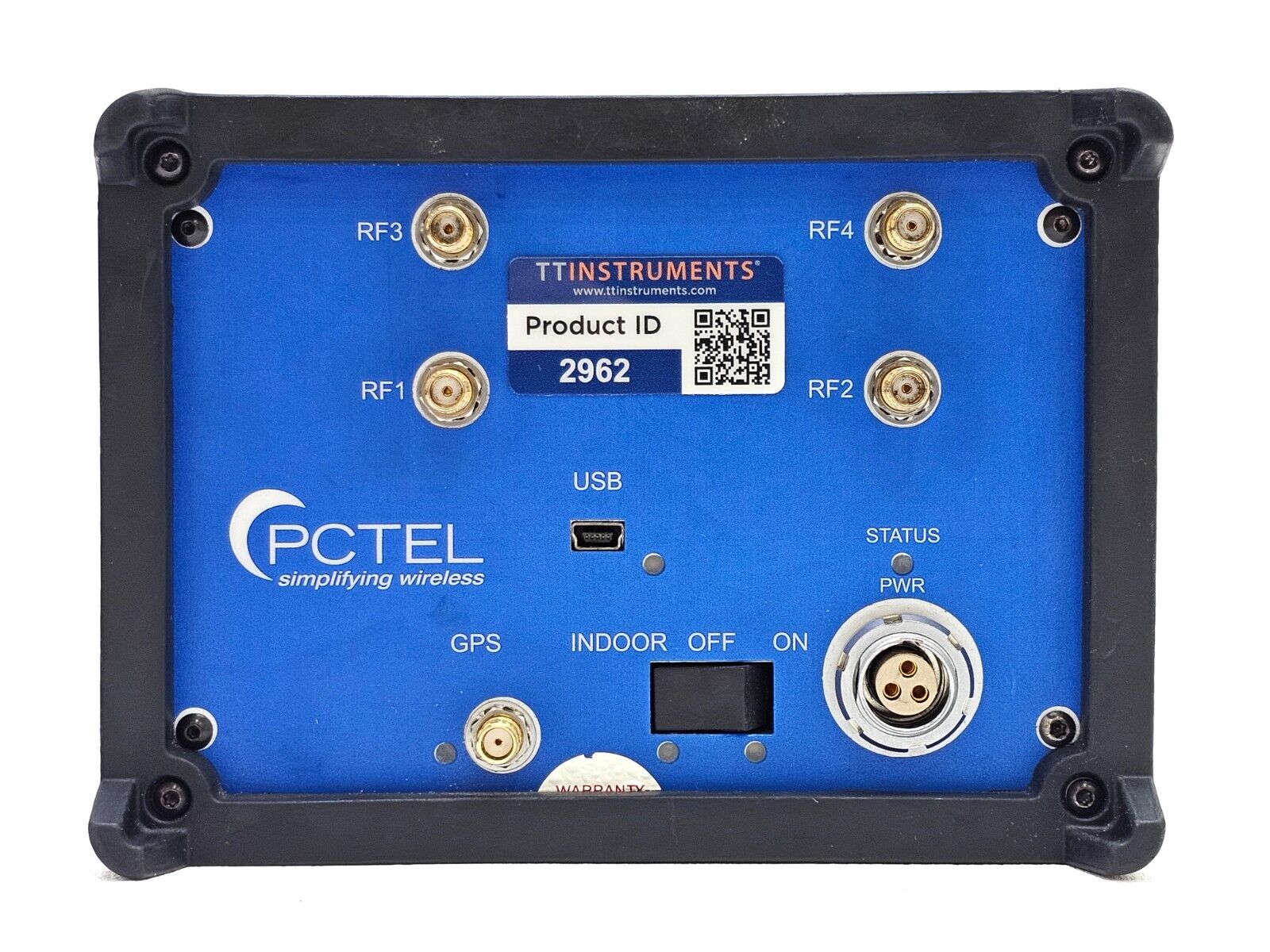

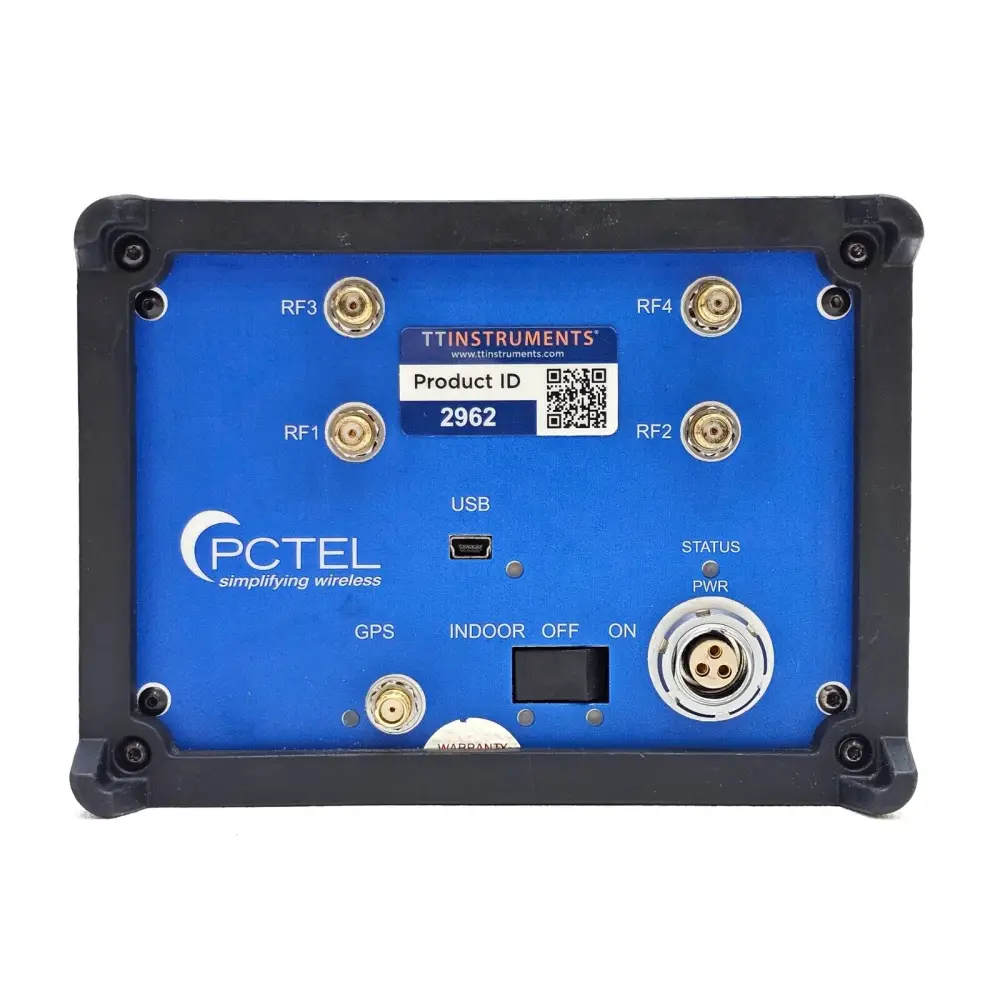

RF Ports: 4 (MIMO-capable)
MIMO Support: 4x4, 4x2, and 2x2 LTE MIMO
Concurrent Technologies: Up to 8 simultaneously
Interface: USB
Power Input: 9–17 V DC (vehicle or AC/DC adapter)

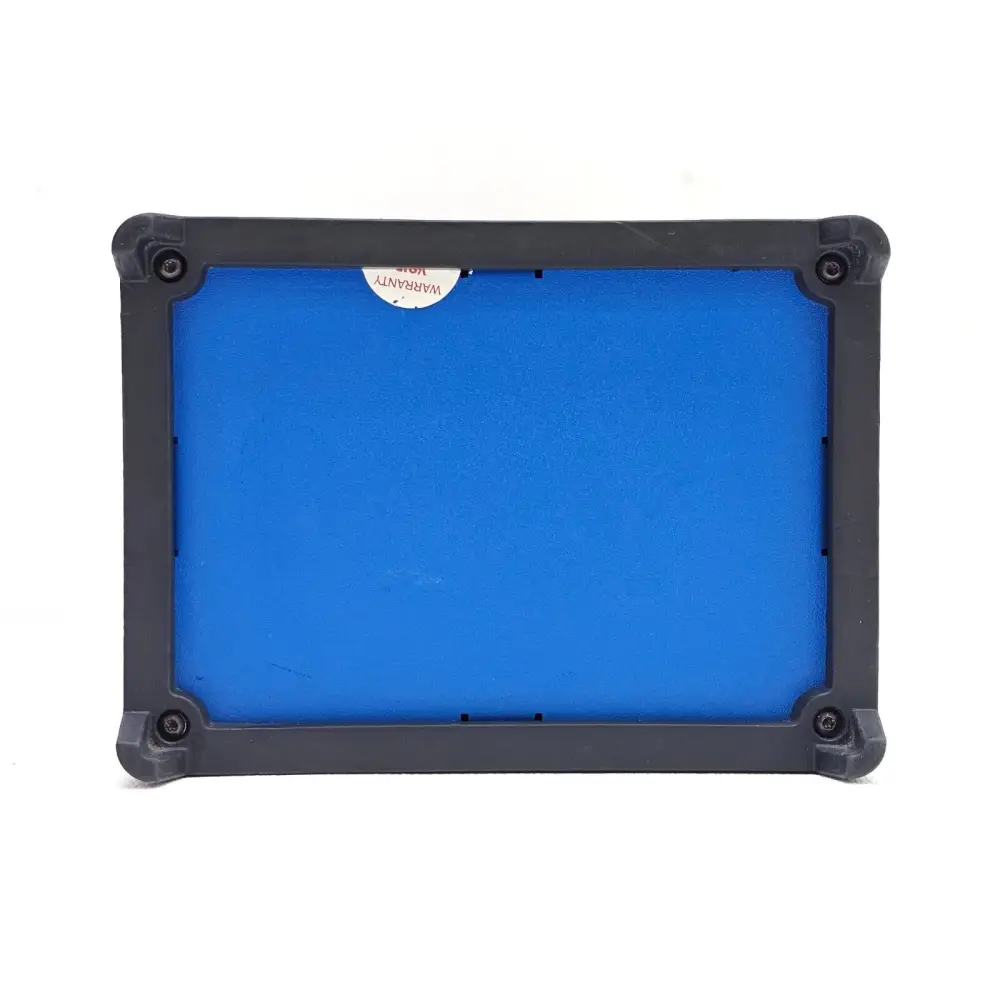

Form Factor: Compact rackmount/enclosure-compatible chassis with 4-40 mounting holes
Calibration Interval: Biennial recalibration recommended

Supported Technologies:
5G NR (FR1, sub-6 GHz)
LTE FDD (FD-LTE)
TD-LTE
NB-IoT
UMTS / WCDMA
GSM
CDMA (IS-95)
EV-DO
Custom Channel Power Measurements (e.g. TETRA, P25)

Key Software Features (option-dependent):
Automatic Blind Scan and Mobile Blind Scan
5G NR MIB decoding
5G/4G Spectrum Sharing Signal detection
LTE Enhanced Signal Scan
Top N signal scanning
Absolute Time Stamp
GPS Navigation
Extended Dynamic Range (WCDMA, CDMA, EV-DO)

Applications:
Drive testing and walk testing
Multi-operator network benchmarking
Coverage, interference, and MIMO capacity analysis
In-building and macro network lifecycle testing
5G NR rollout and 4G-to-5G transition optimisation

Compatible Software Platforms: PCTEL SeeHawk and third-party drive test platforms supporting multiple operating systems.

PCTEL SeeGull MXflex Scanning Receiver Brochure — product overview, features and specifications (hosted by Avalon Test Equipment): Download PDF

PCTEL 5G New Radio Test & Measurement Solutions Brochure — covers MXflex 5G NR capabilities and specifications: Download PDF

PCTEL SeeGull MXflex Hardware Reference Manual (28 pages) — available via ManualsLib: Download PDF
