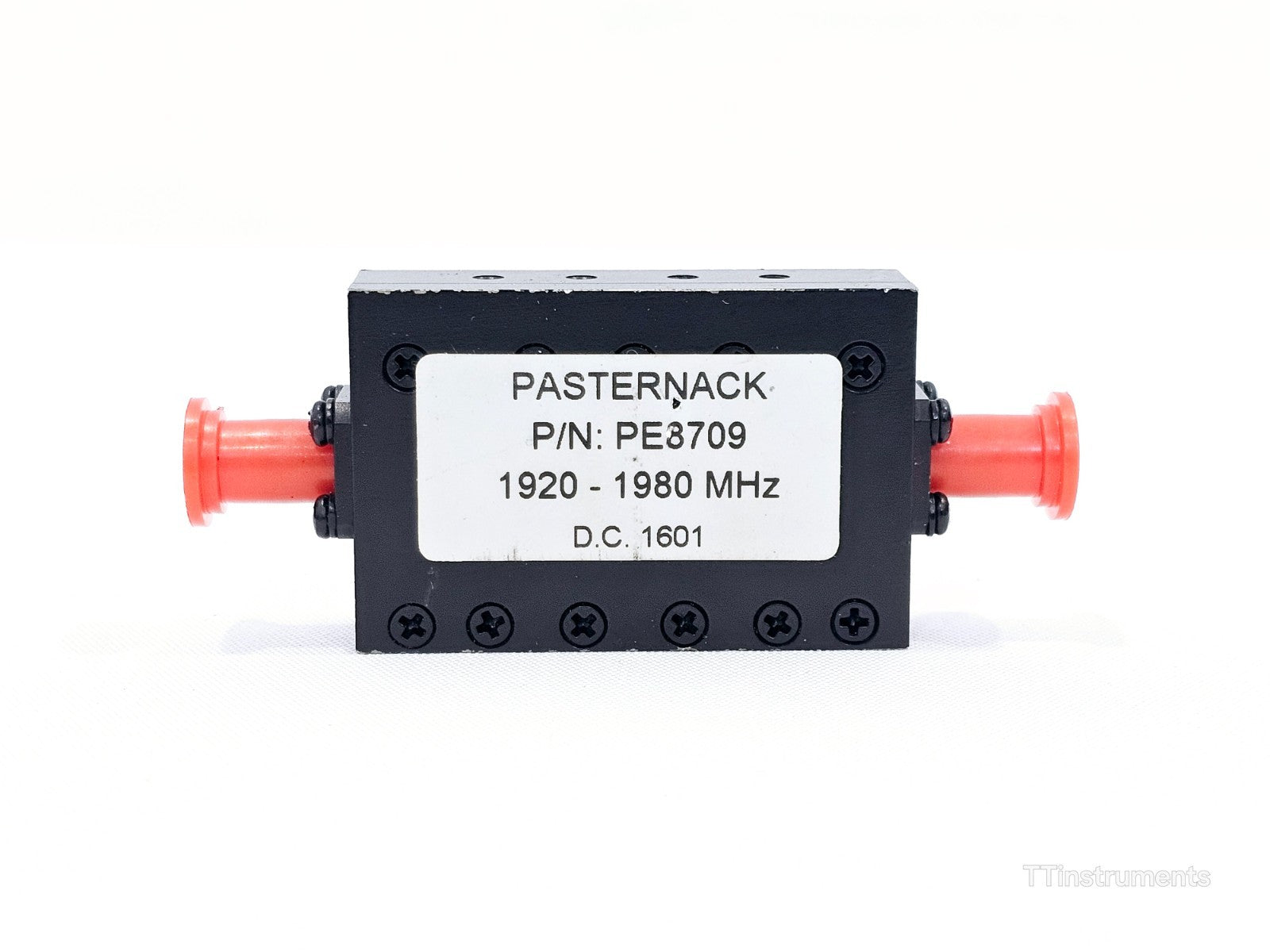

Pasternack PE8709 bandpass filter front view showing label with P/N, 1920–1980 MHz range and D.C. 1601 date code

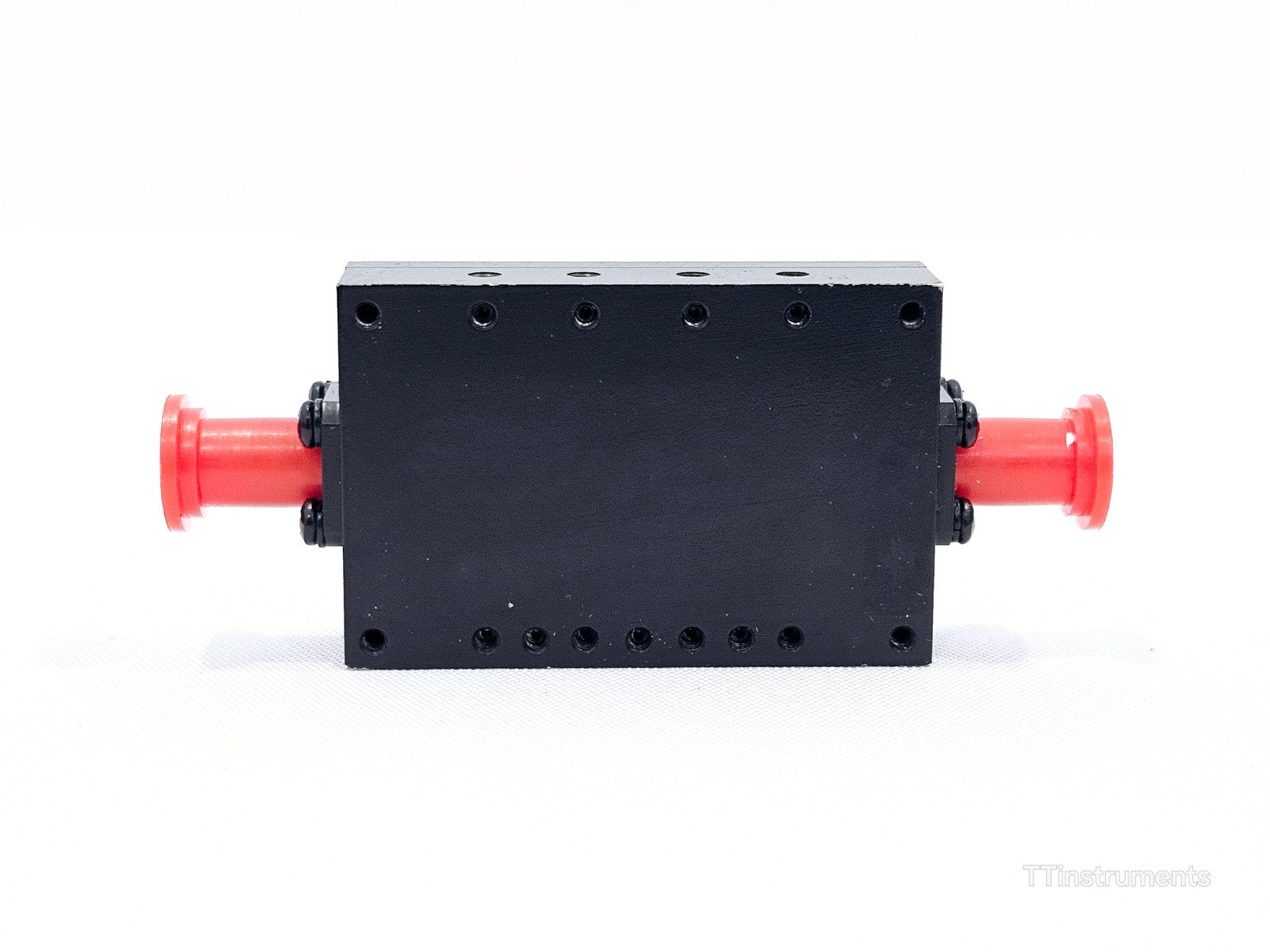

Pasternack PE8709 bandpass filter rear view showing black anodised housing with red SMA dust caps on both ports

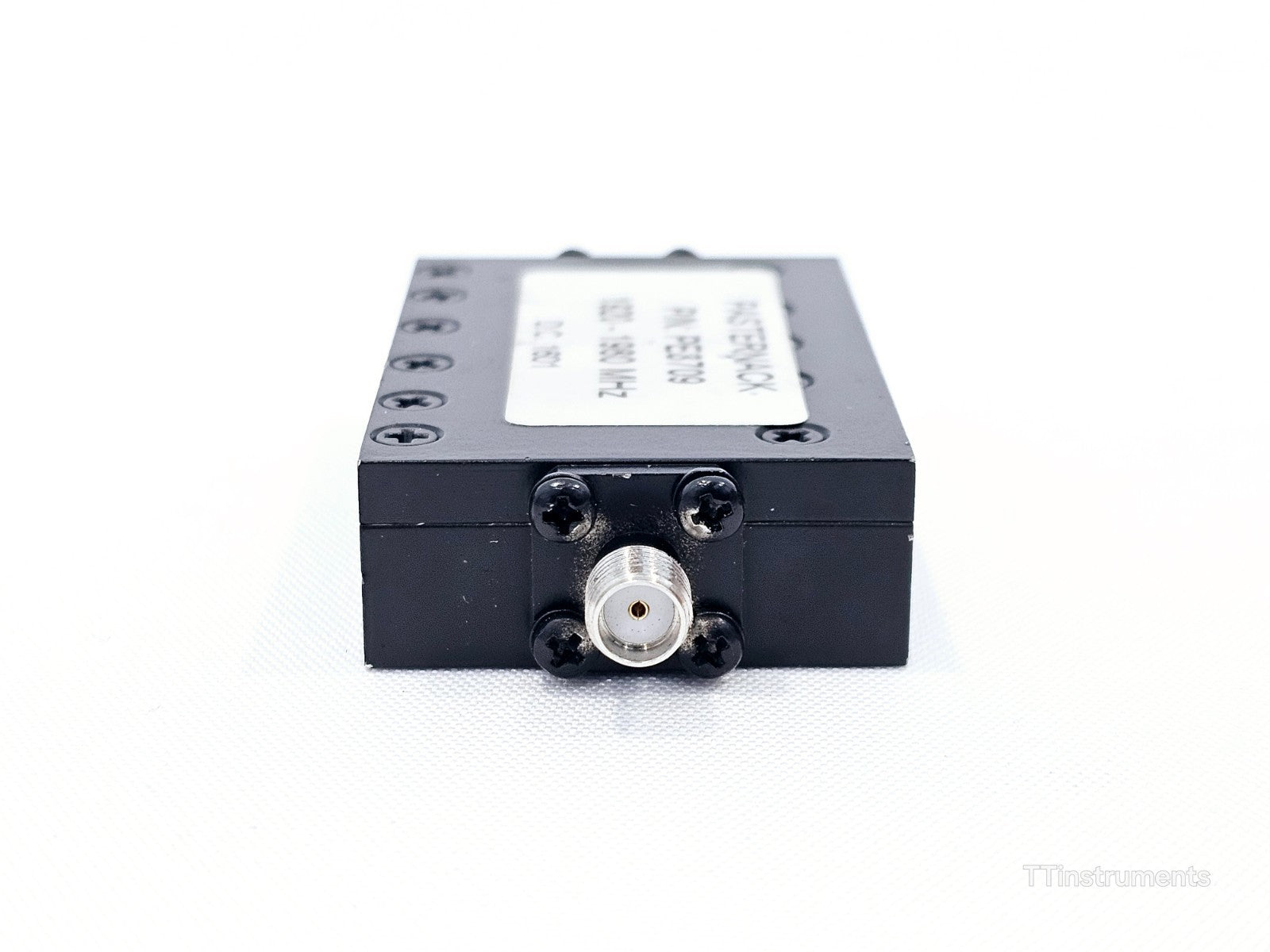

Pasternack PE8709 UMTS bandpass filter side view showing single SMA female port and product label

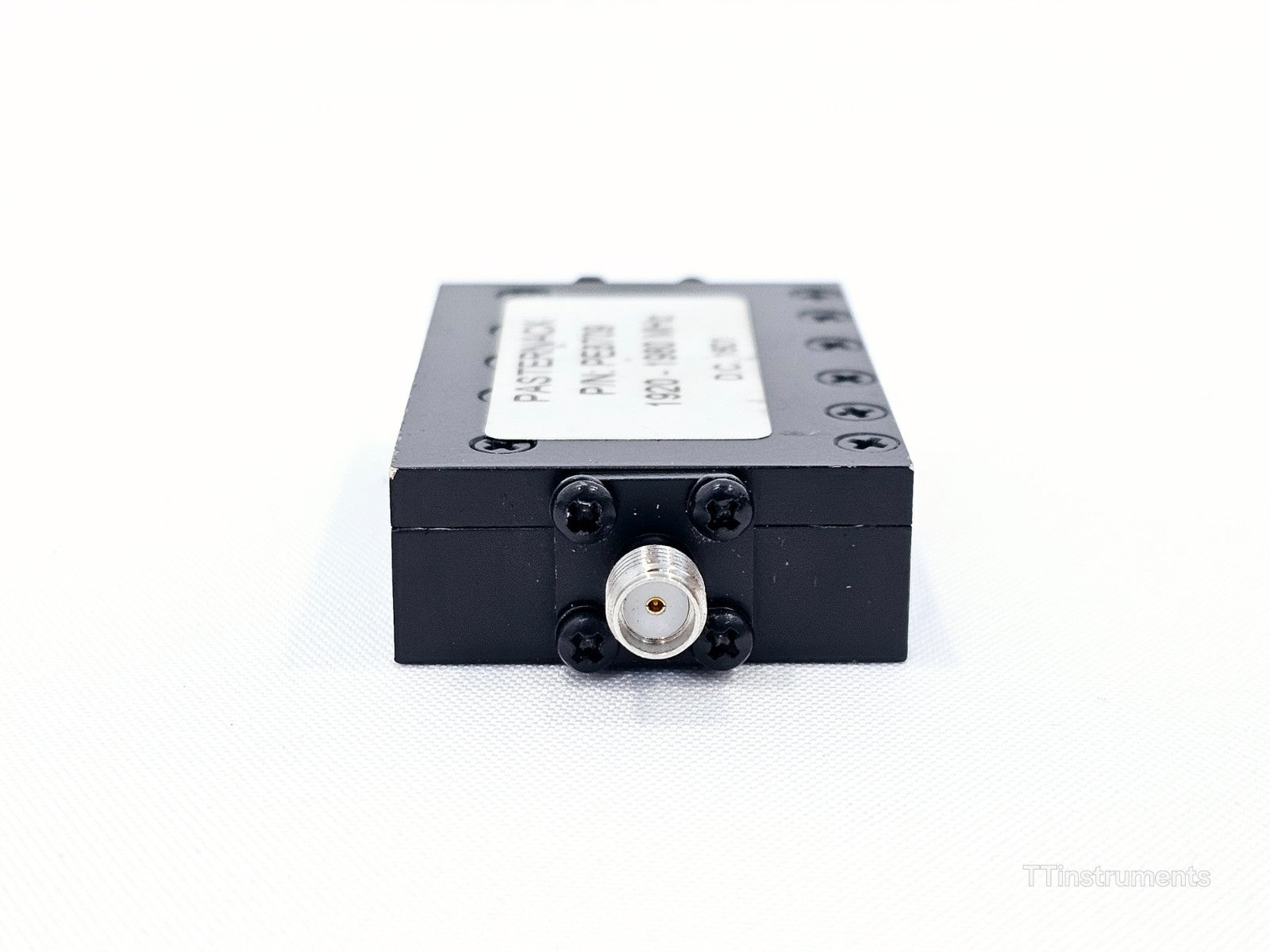

Pasternack PE8709 bandpass filter opposite side view showing SMA female connector and black housing detail

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Pasternack PE8709 4 Section Bandpass Filter 1920-1980 MHz 60 MHz Passband

Name: Pasternack PE8709 4 Section Bandpass Filter 1920-1980 MHz 60 MHz Passband
Brand: Pasternack
SKU: 3989 7D04 ER88
Price: 63.75 GBP
Availability: InStock

The Pasternack PE8709 is a 4-section combline bandpass filter covering the UMTS uplink band from 1920 to 1980 MHz with a 60 MHz passband and SMA female connectors.
• Tight band definition — only 1.5 dB insertion loss across the 60 MHz passband
• Handles up to 5 Watts input power — suitable for active RF systems
• Field-replaceable SMA female connectors — easy integration into existing setups

Manufacturer

Pasternack

Model

PE8709

Condition

Used

In stock

SKU

3989 7D04

£63.75

RF & Microwave
RF Components

Make an Offer

Pasternack PE8709 4 Section Bandpass Filter 1920-1980 MHz 60 MHz Passband

£63.75

Condition: Used

Pasternack PE8709 UMTS 4-section combline bandpass filter. All units are in very good condition with visible minor cosmetic marks to the anodised housing. Date code D.C. 1601 is visible on the label. SMA female connectors are present and protected with red plastic dust caps.

Each unit includes:
• Pasternack PE8709 bandpass filter
• Red SMA dust caps fitted to both connectors

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Product Overview

Condition: Used

Each unit includes:
• Pasternack PE8709 bandpass filter
• Red SMA dust caps fitted to both connectors

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Manufacturer's Description

The Pasternack PE8709 is a 4-section bandpass filter designed for UMTS (Universal Mobile Telecommunications System) applications. It is part of Pasternack's extensive range of fixed-frequency RF bandpass filters built using a combline design, which provides excellent stopband rejection and stable long-term performance.

The filter passes the UMTS uplink band (1920–1980 MHz) and is intended for use in cellular infrastructure, signal analysis, receiver front-end filtering, and interference rejection applications requiring tight band definition.

Pasternack RF filters are manufactured at an ISO 9001-registered facility and are RoHS compliant.

Technical Specifications:
Filter Type: Bandpass
Design: Combline
Number of Sections: 4
Frequency Range: 1.92 GHz to 1.98 GHz (1920–1980 MHz)
Passband Bandwidth: 60 MHz
Insertion Loss (typical): 1.5 dB
Maximum Input Power: 5 Watts
Connector Type: SMA Female
Connector Style: Field Replaceable
Impedance: 50 Ohms
Application: UMTS uplink band filtering
Package Style: Connectorised
RoHS Compliant: Yes

Resources

Pasternack PE8709 product datasheet — technical specifications and performance data: Download PDF
