Pasternack PE8709 4 Section Bandpass Filter 1920-1980 MHz 60 MHz Passband

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Pasternack PE8709 4 Section Bandpass Filter 1920-1980 MHz 60 MHz Passband

Name: Pasternack PE8709 4 Section Bandpass Filter 1920-1980 MHz 60 MHz Passband
Brand: Pasternack
SKU: 3990 4E03 ER88
Price: 34.0 GBP
Availability: InStock

The Pasternack PE8709 is a 4-section UMTS bandpass filter operating from 1920 to 1980 MHz with a 60 MHz passband and SMA female connectors.

• Tight 60 MHz UMTS uplink passband — ideal for isolating 3G cellular transmit frequencies
• Low insertion loss of just 1.5 dB with up to 5 W power handling
• Compact connectorised combline design with female SMA ports on all three sides

Manufacturer

Pasternack

Model

PE8709

Condition

Used

In stock

SKU

3990 4E03

£34.00

Connectors & cables
RF & Microwave
RF Components

Make an Offer

Pasternack PE8709 4 Section Bandpass Filter 1920-1980 MHz 60 MHz Passband

£34.00

Condition: Used

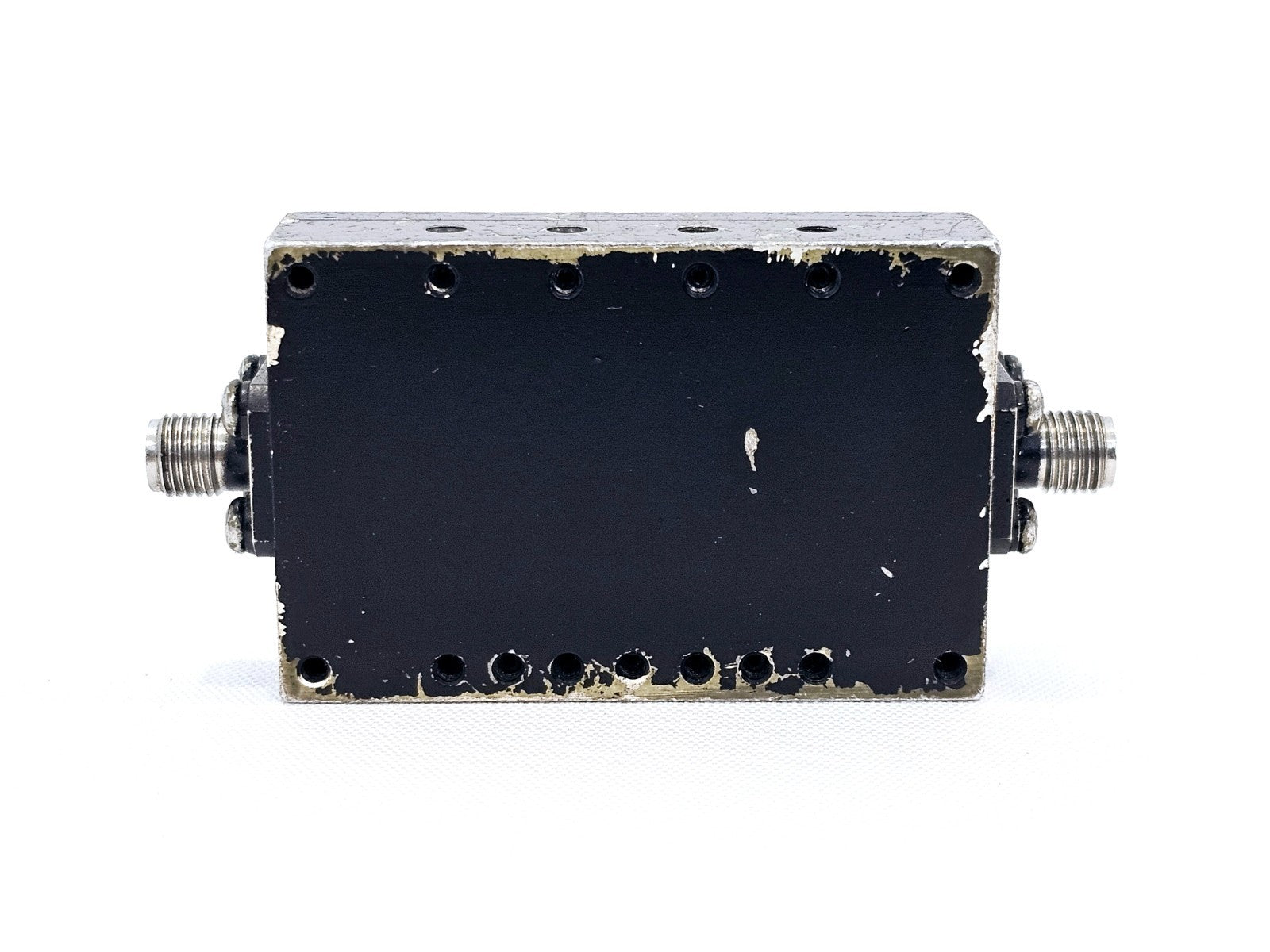

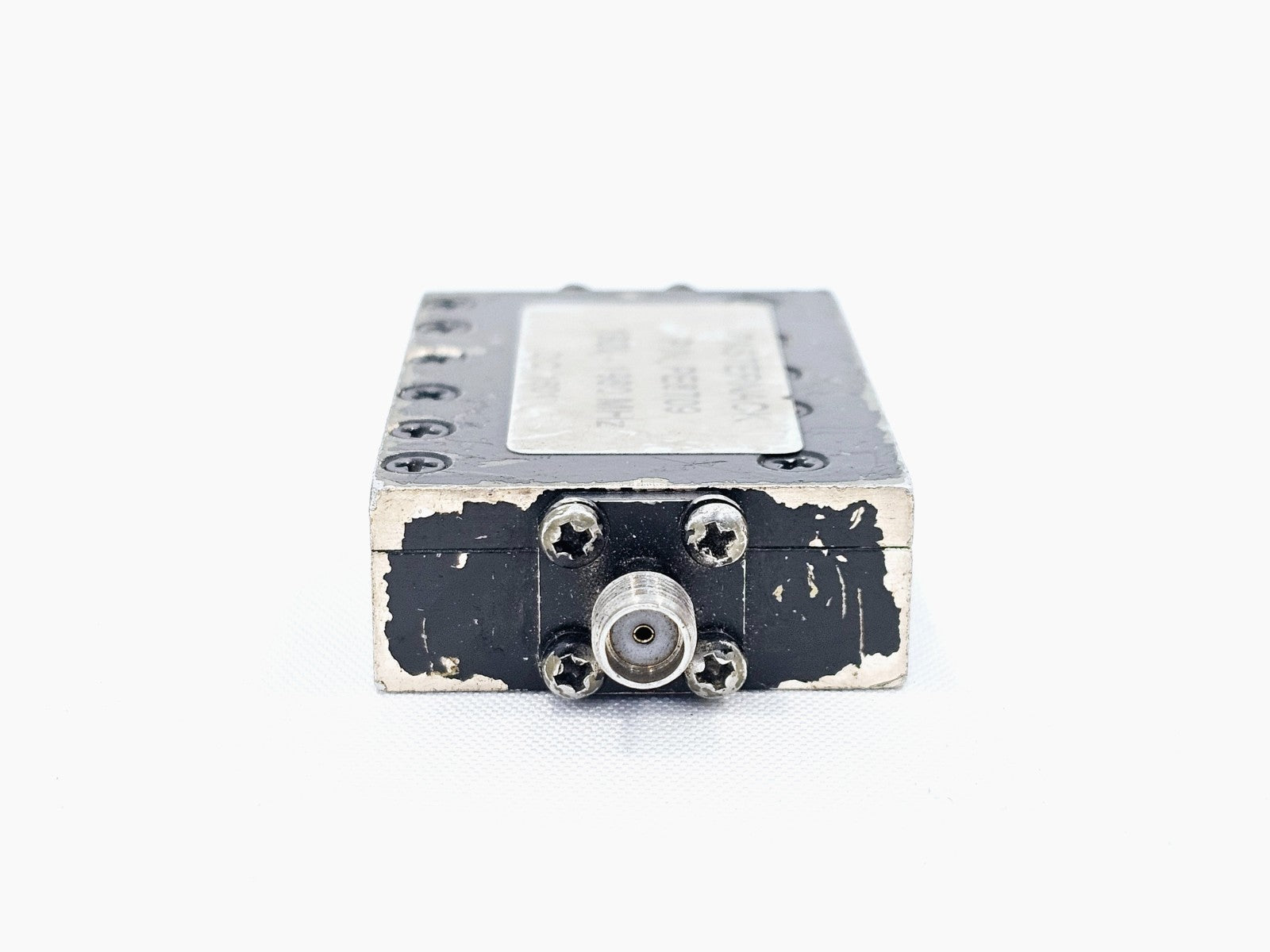

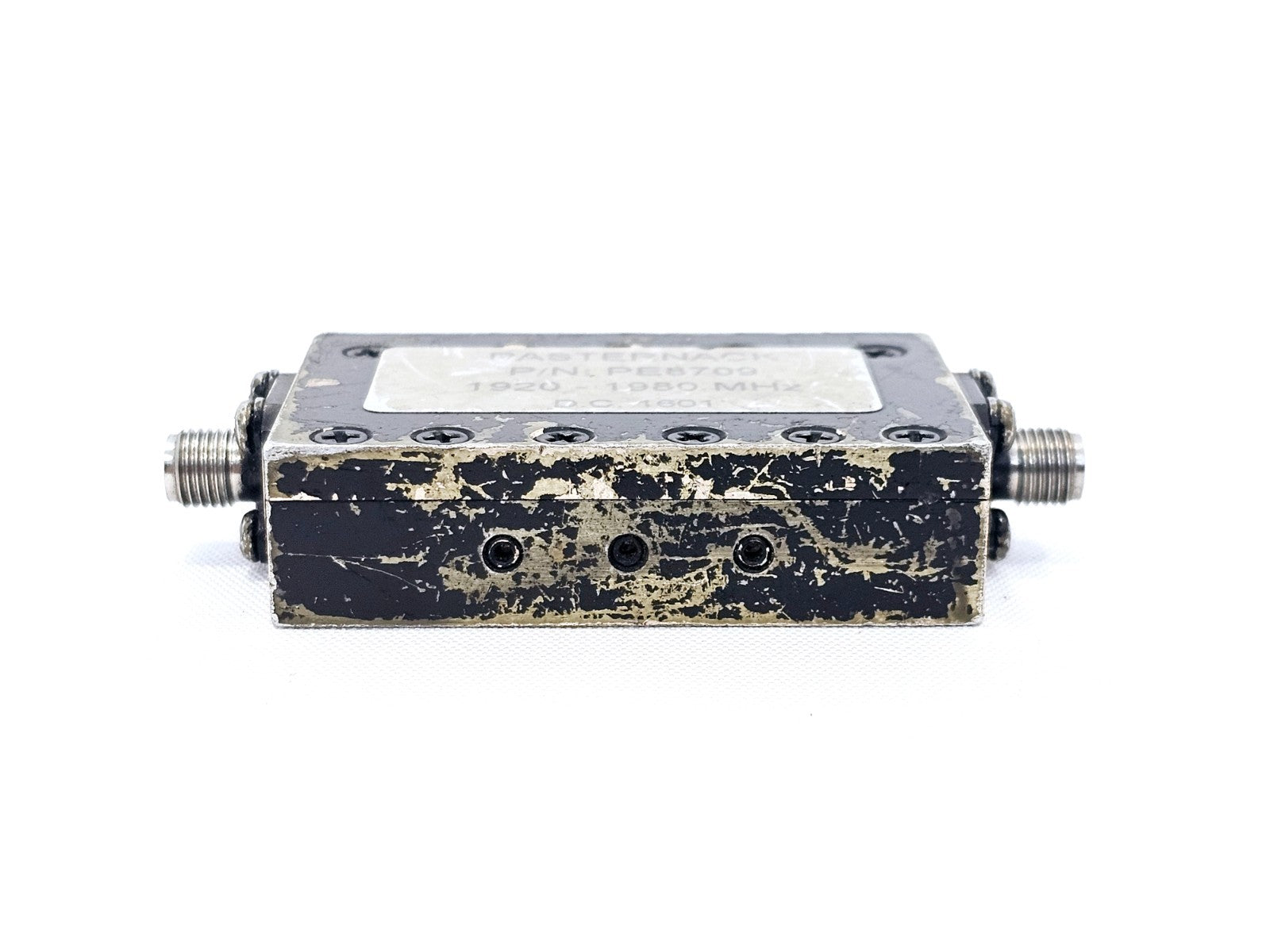

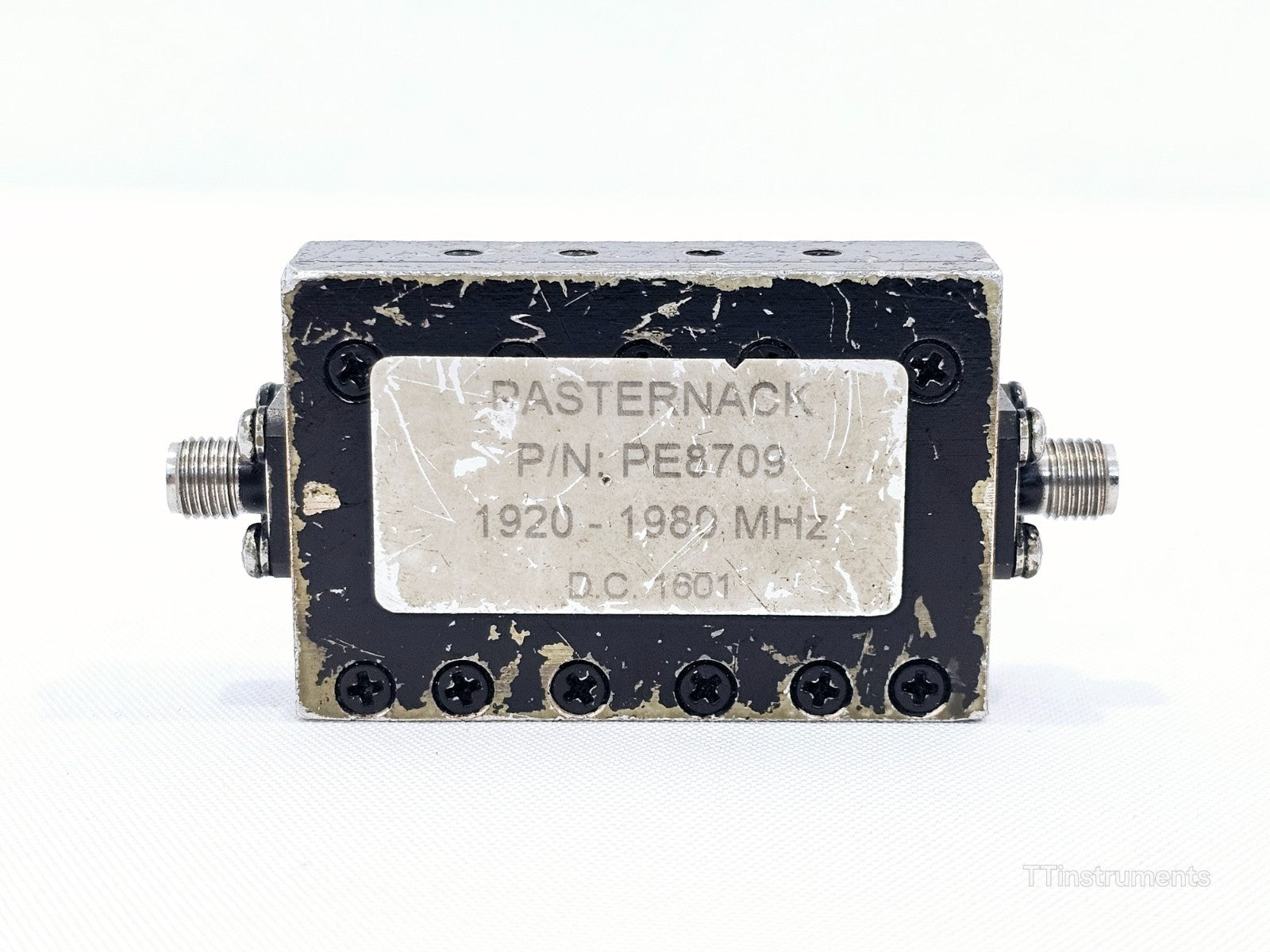

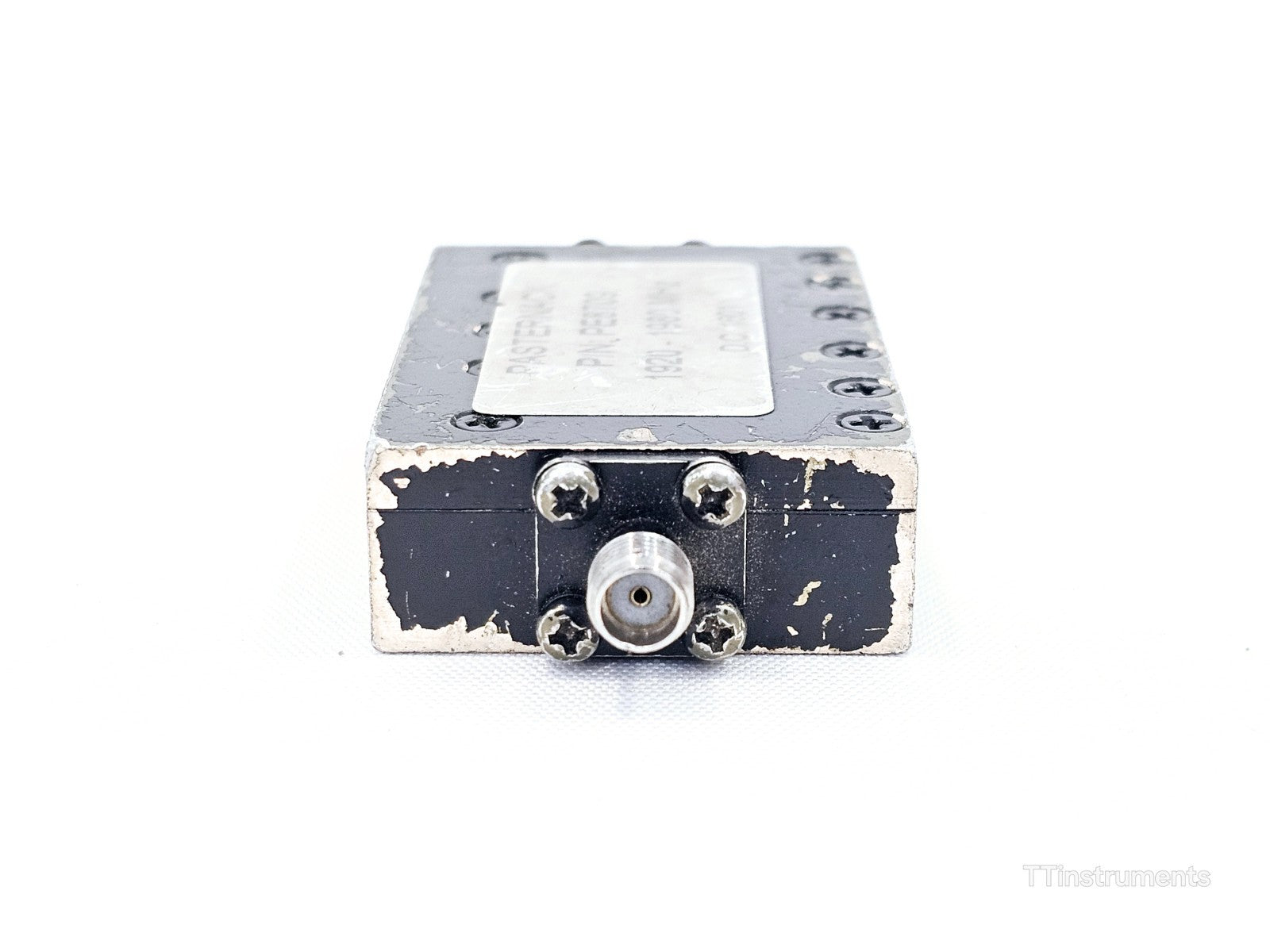

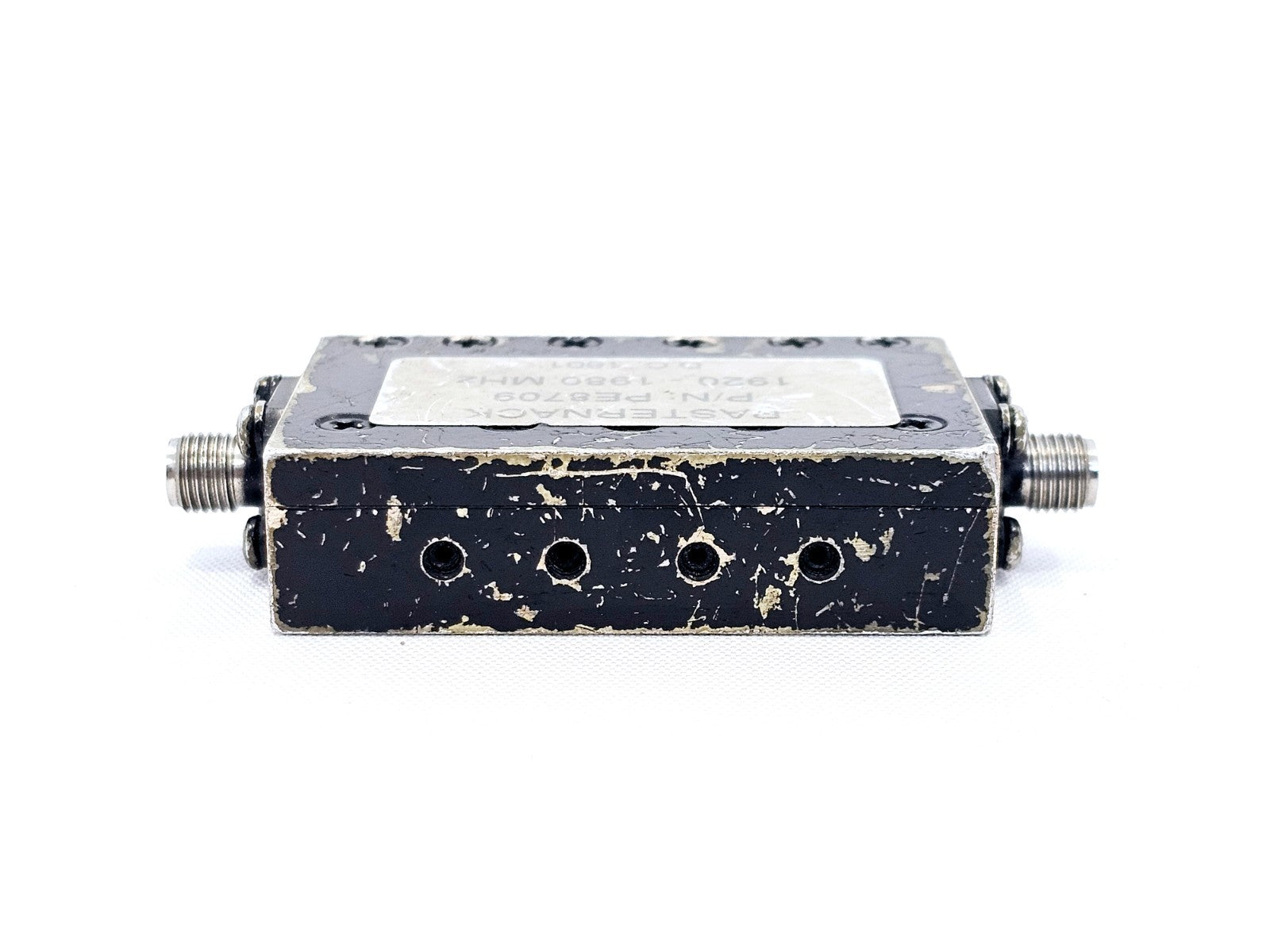

This is a Pasternack PE8709 4-section bandpass filter covering the UMTS uplink band from 1920 to 1980 MHz. The unit is date-coded D.C. 1601 (manufactured January 2016) and shows cosmetic wear to the black anodised housing including paint loss and surface scratches, consistent with prior field or bench use. The filter itself is fully intact with all three SMA female connectors undamaged.

What is included:
• 1x Pasternack PE8709 4-section bandpass filter (unit only)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Product Overview

Condition: Used

What is included:
• 1x Pasternack PE8709 4-section bandpass filter (unit only)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Manufacturer's Description

The Pasternack PE8709 is a 4-section bandpass filter designed for UMTS (Universal Mobile Telecommunications System) applications. It is part of Pasternack's extensive range of fixed-frequency RF bandpass filters built using a combline design, which provides excellent stopband rejection and stable long-term performance.

The filter passes the UMTS uplink band (1920–1980 MHz) and is intended for use in cellular infrastructure, signal analysis, receiver front-end filtering, and interference rejection applications requiring tight band definition.

Pasternack RF filters are manufactured at an ISO 9001-registered facility and are RoHS compliant.

Technical Specifications:
Filter Type: Bandpass
Design: Combline
Number of Sections: 4
Frequency Range: 1.92 GHz to 1.98 GHz (1920–1980 MHz)
Passband Bandwidth: 60 MHz
Insertion Loss (typical): 1.5 dB
Maximum Input Power: 5 Watts
Connector Type: SMA Female
Connector Style: Field Replaceable
Impedance: 50 Ohms
Application: UMTS uplink band filtering
Package Style: Connectorised
RoHS Compliant: Yes

Resources

Pasternack PE8709 product datasheet — technical specifications and performance data: Download PDF
