Condition: Used

The Pasternack PE6039 is a used 50-watt RF load/termination featuring a Type N female connector, 50 Ohm impedance, and operation from DC to 18 GHz. The square-body black anodized aluminium heatsink ensures adequate thermal management. The body is constructed from passivated stainless steel and the unit is RoHS compliant with a maximum VSWR of 1.45:1.

Typically includes:
• PE6039 RF load/termination unit

The Pasternack PE6039 is a medium-to-high power RF termination (also referred to as an RF load or dummy load) manufactured by Pasternack Enterprises, Inc. It is designed for use in RF, microwave, and millimeter wave systems where unused ports must be properly terminated to prevent signal reflections that could damage connected equipment or degrade signal integrity.

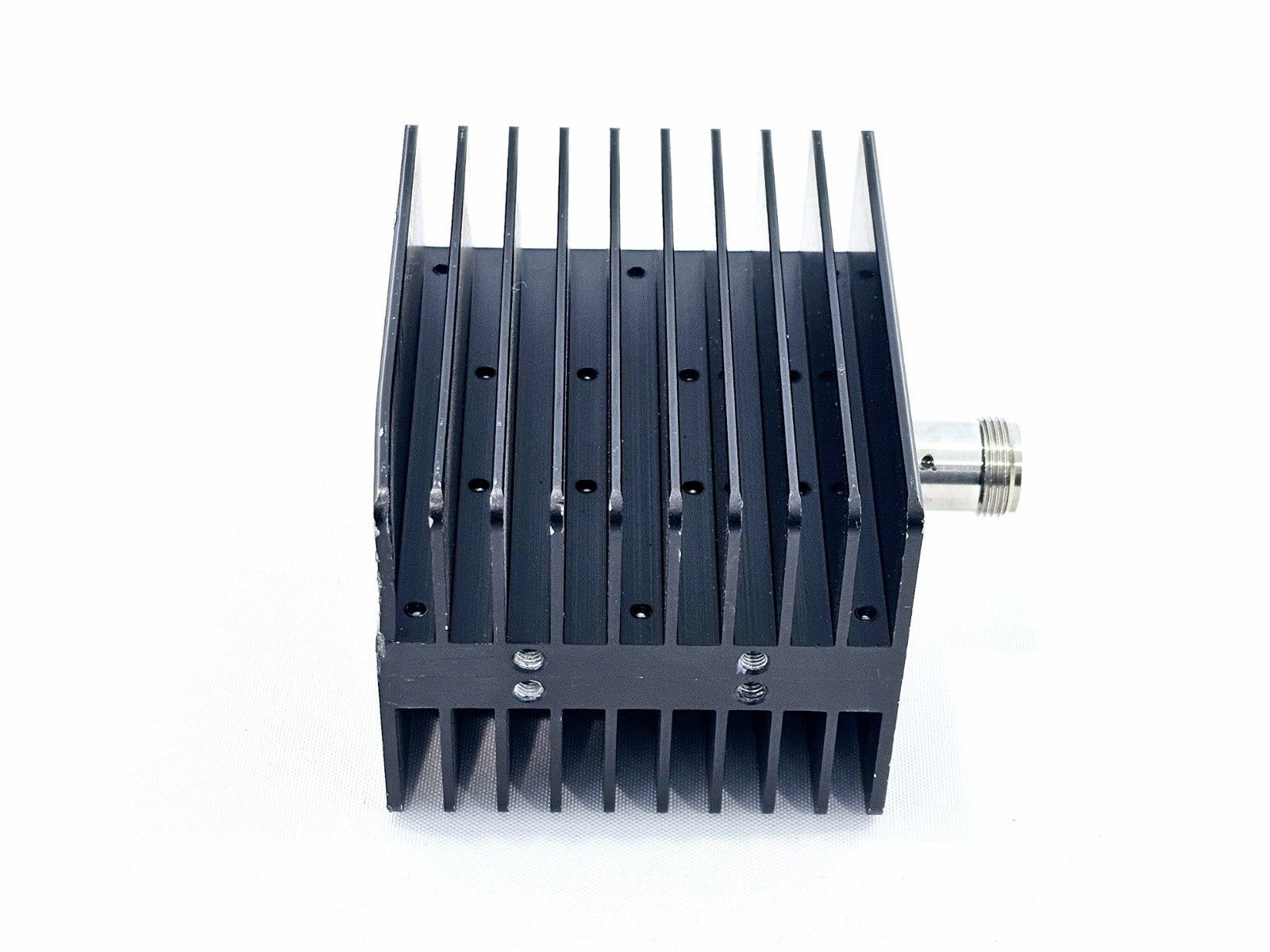

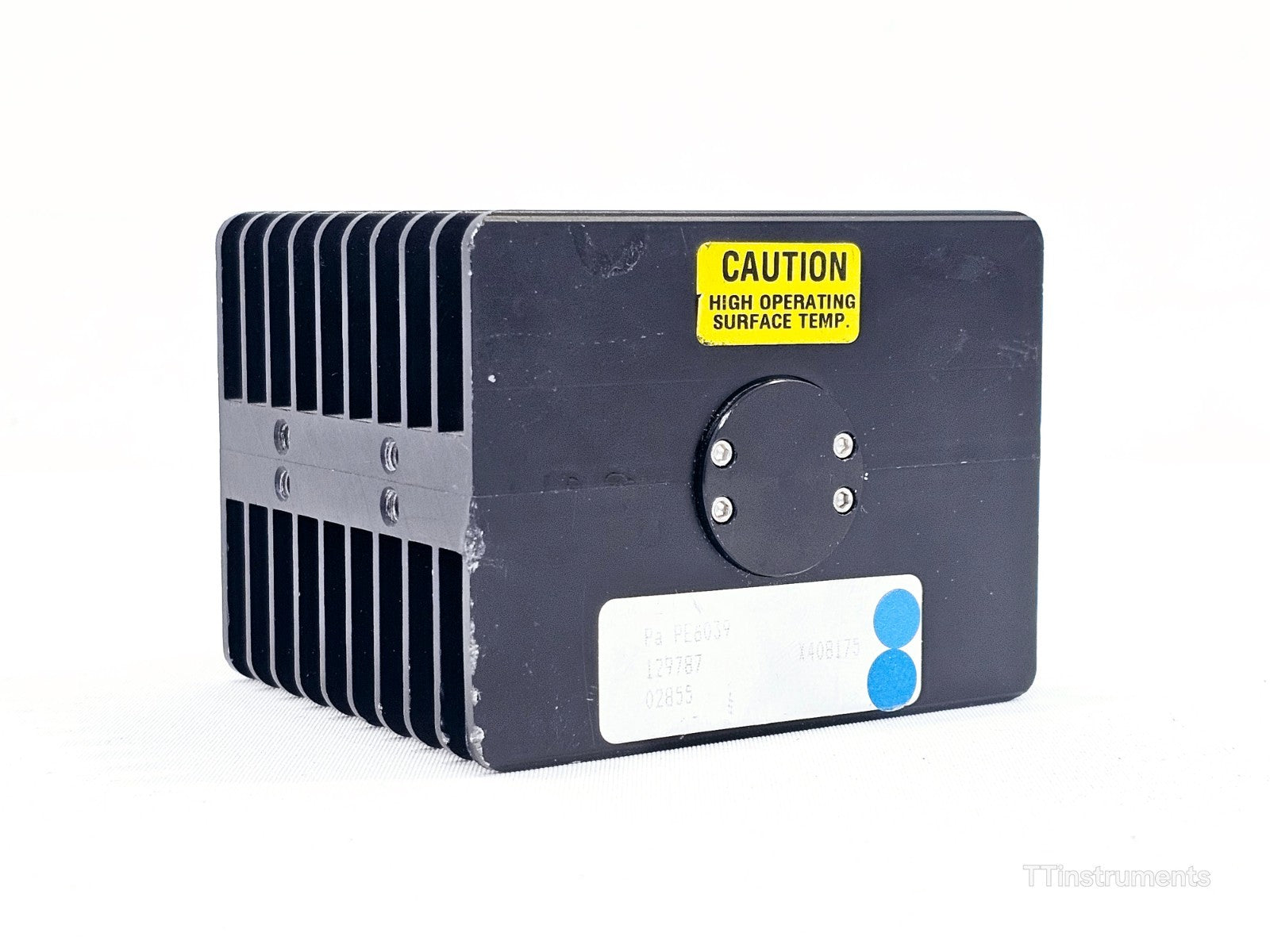

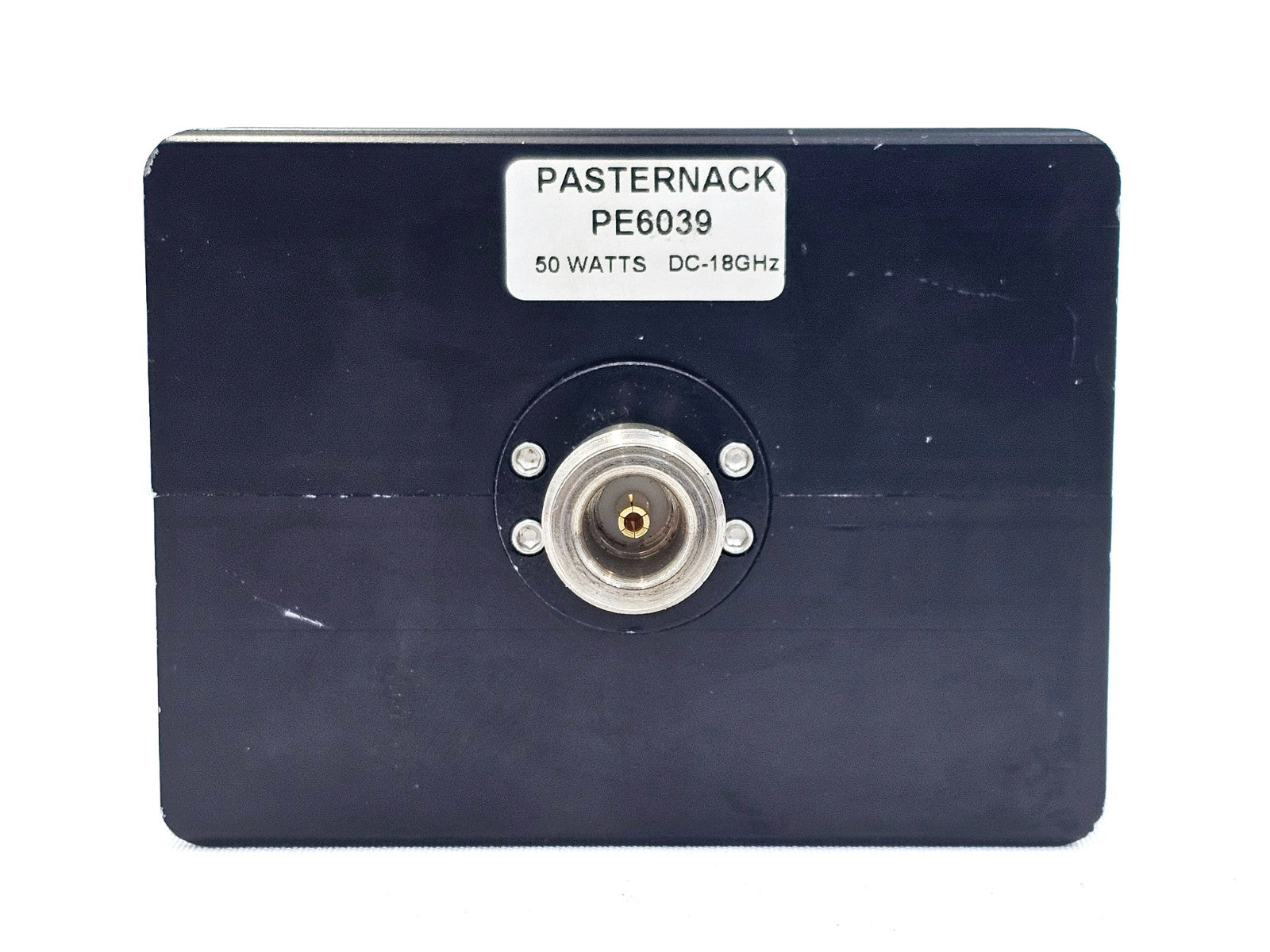

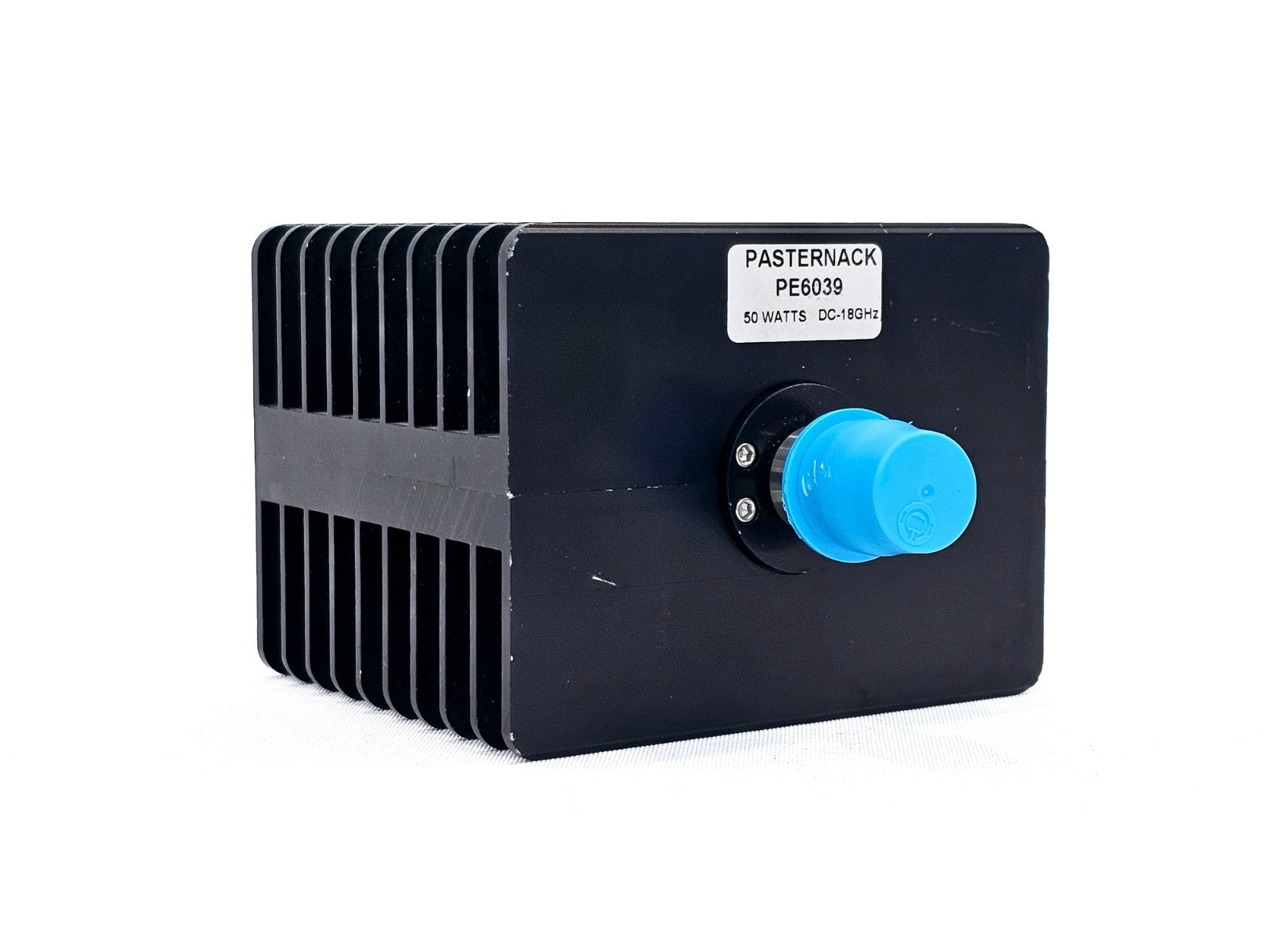

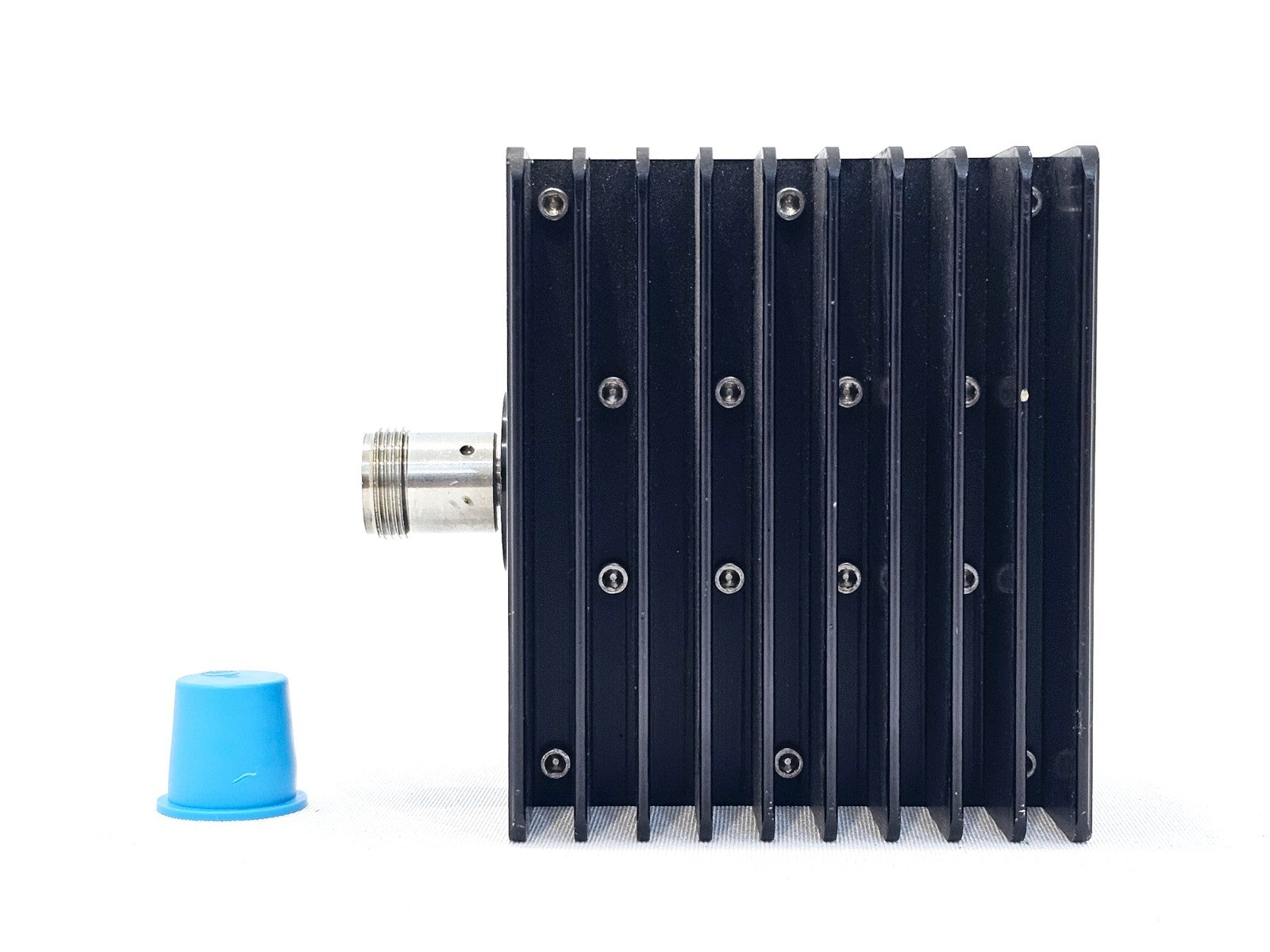

The PE6039 features a Type N female coaxial interface and a square-profile black anodized aluminium heatsink body, which provides effective passive heat dissipation across the full operating frequency range. The body is constructed from passivated stainless steel with no chain.

Typical applications include wireless communications, satellite communications (SatCom), radar systems, test and measurement, and commercial and military communication platforms. RF terminations such as the PE6039 are commonly used to terminate unused ports on couplers, circulators, power dividers, and switches.

Electrical Specifications:
Termination Type: RF Load / Dummy Load
Minimum Frequency: DC
Maximum Frequency: 18 GHz
Impedance: 50 Ohm
Maximum Input Power (CW): 50 Watts
Maximum VSWR: 1.45:1

Mechanical Specifications:
Connector Series: Type N
Connector Gender: Female
Body Style: Square
Body Material: Passivated Stainless Steel
Heatsink Material: Black Anodized Aluminium
Chain: None

Compliance:
RoHS: Compliant

For full and current specifications, please refer to the Pasternack website at www.pasternack.com.
