Condition: For parts or not working

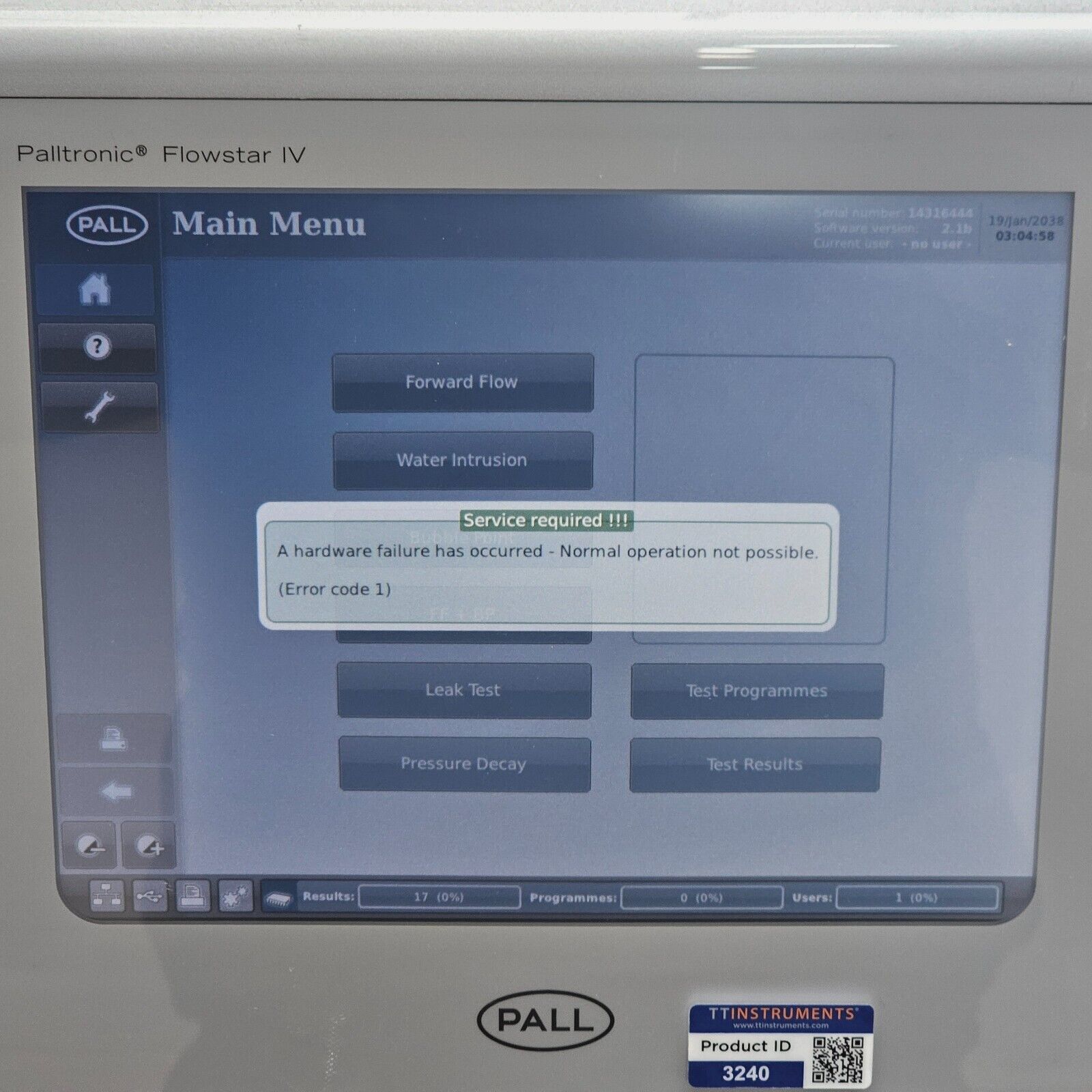

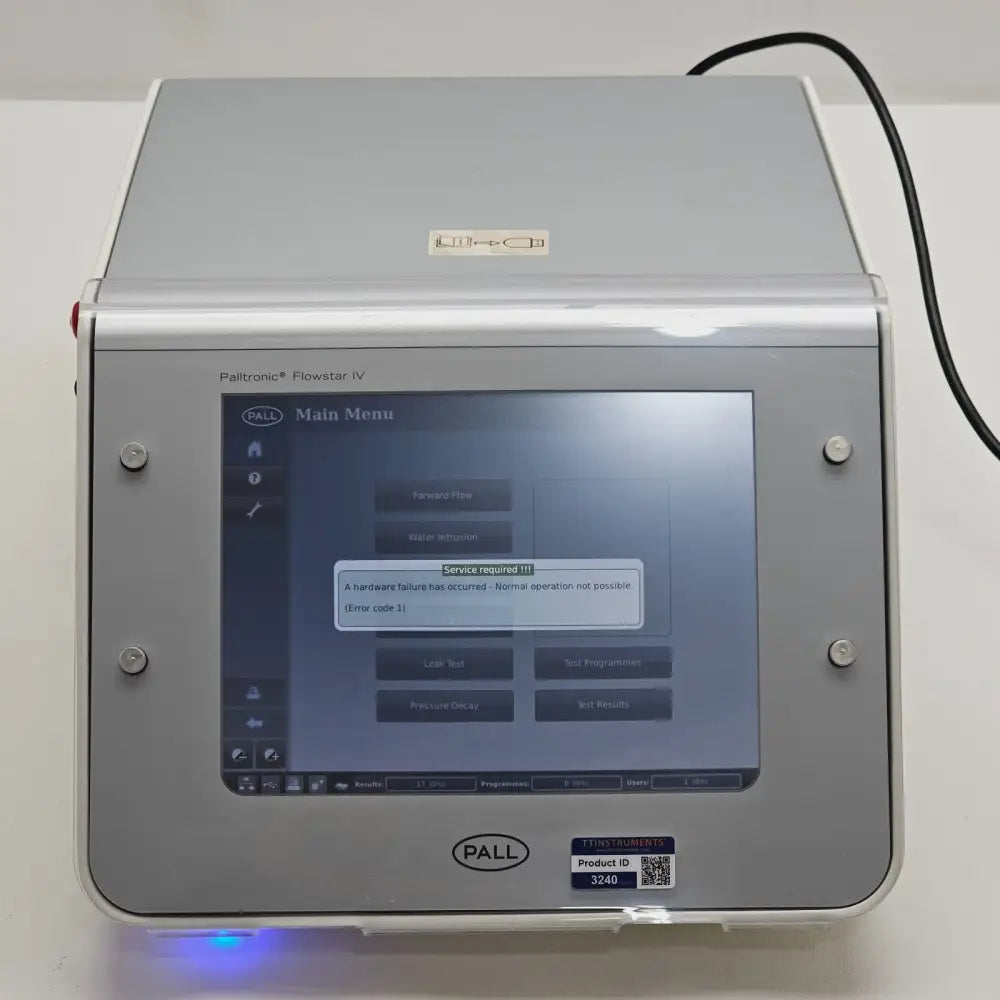

This PALL Palltronic Flowstar IV FFS04R filter integrity test instrument is the wireless (FFS04R) variant of the Flowstar IV range, equipped with an internal WLAN adapter and full networking capability. The unit currently displays an on-screen error message indicating a hardware error or service required condition and is sold for parts or repair purposes only.

Included with this unit:
• Instrument only — no accessories included

The Pall Palltronic Flowstar IV (FFS04R) is an advanced filter integrity test instrument designed for use in pharmaceutical manufacturing, bioprocessing, and cleanroom environments. The FFS04R is the wireless variant of the Flowstar IV range, incorporating an internal WLAN adapter alongside full Ethernet, USB, and serial connectivity.

The instrument utilises Pall's patented volume-dosed flow measurement technology, enabling faster and more accurate integrity testing by directly calibrating the flow measurement loop, eliminating the need to calculate flow from volume determination and pressure decay. Test times can be reduced by more than 50% compared to conventional methods without risk of false-pass results.

Test Methods Supported:
Forward Flow (FF)
Bubble Point (BP)
Combined Forward Flow and Bubble Point (FF/BP)
Water Intrusion Test (WIT)
Leak Test
Pressure Decay Test

Measuring Range:
Forward Flow Test: 0.1 – 1000 mL/min
Water Intrusion Test: 0.02 – 50 mL/min
Bubble Point Test: 400 – 6500 mbar (0.725 – 94.2 psi)

Accuracy:
Forward Flow Test: ±3% of measurement or ±0.05 mL/min (whichever is greater)
Water Intrusion Test: ±3% of measurement or ±0.02 mL/min (whichever is greater)
Pressure Measurement: ±0.33% of full scale
Flow Measurement Calibration Limit: ±3%

Resolution:
Forward Flow Test: 0.1 mL/min (0.01 mL/min for flow <10 mL/min)
Water Intrusion Test: 0.01 mL/min
Bubble Point Test: 50 mbar (0.7 psi)

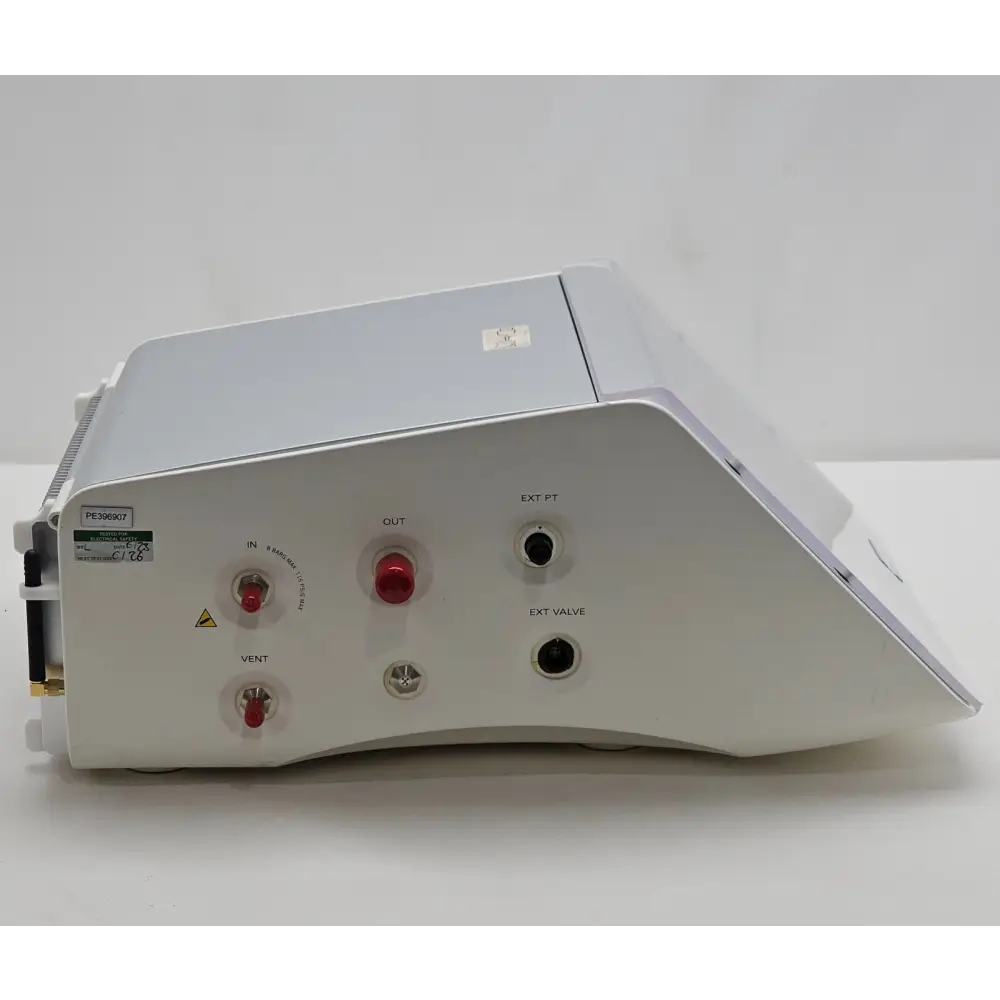

Pneumatic Specifications:
Maximum Gas Supply Pressure: 8000 mbar (116 psi)
Minimum Gas Supply Pressure: 4000 mbar (58 psi)

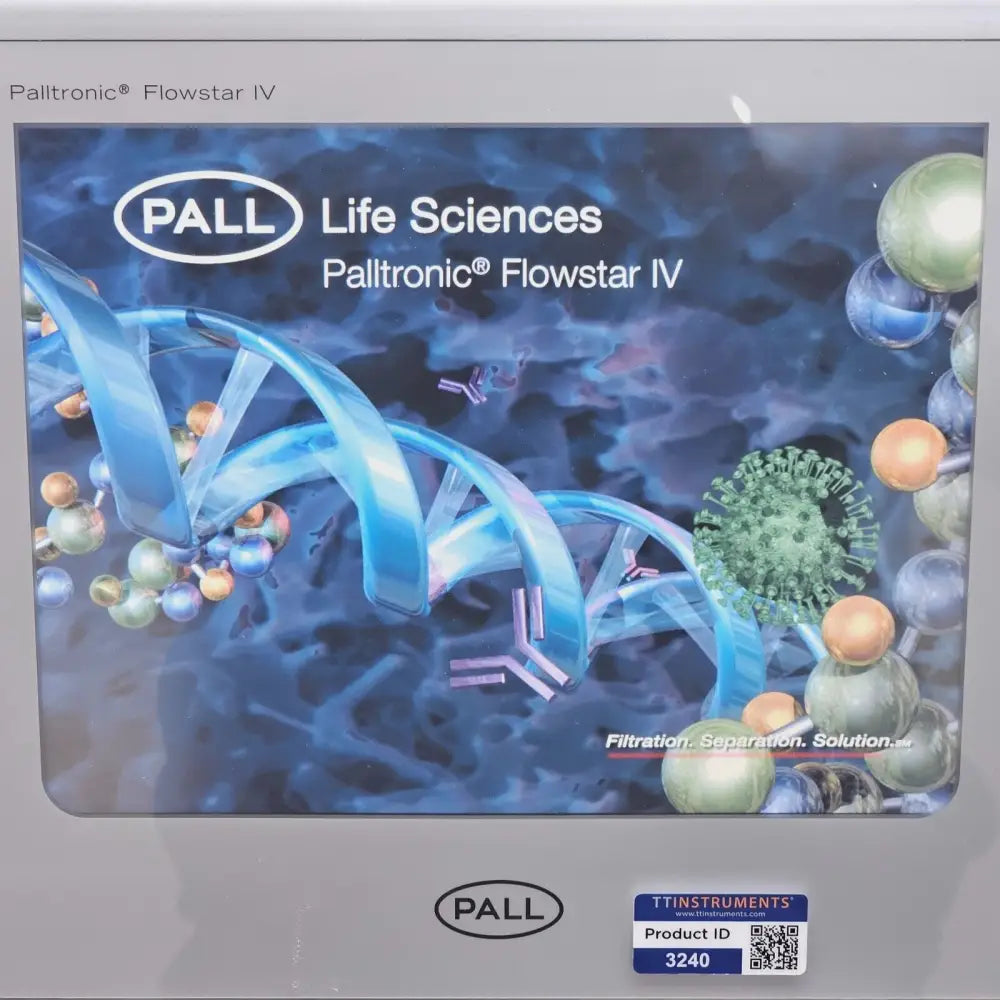

Touchscreen:
Size: 26.4 cm (10.4 in.) diagonal, 1024 x 768 pixels
Features: Colour, illuminated background, adjustable contrast

Electrical:
Voltage: 100 – 240 V AC (auto-adjusting)
Frequency: 50 Hz / 60 Hz
Power: Typically 150 W
Fuse: 3.15 A slow blow

Dimensions (W x H x D): 348 mm x 205 mm x 483 mm (13.7 in. x 8.1 in. x 19 in.)

Ingress Protection: IP54 (splash and dust proof)
Operating System: Linux

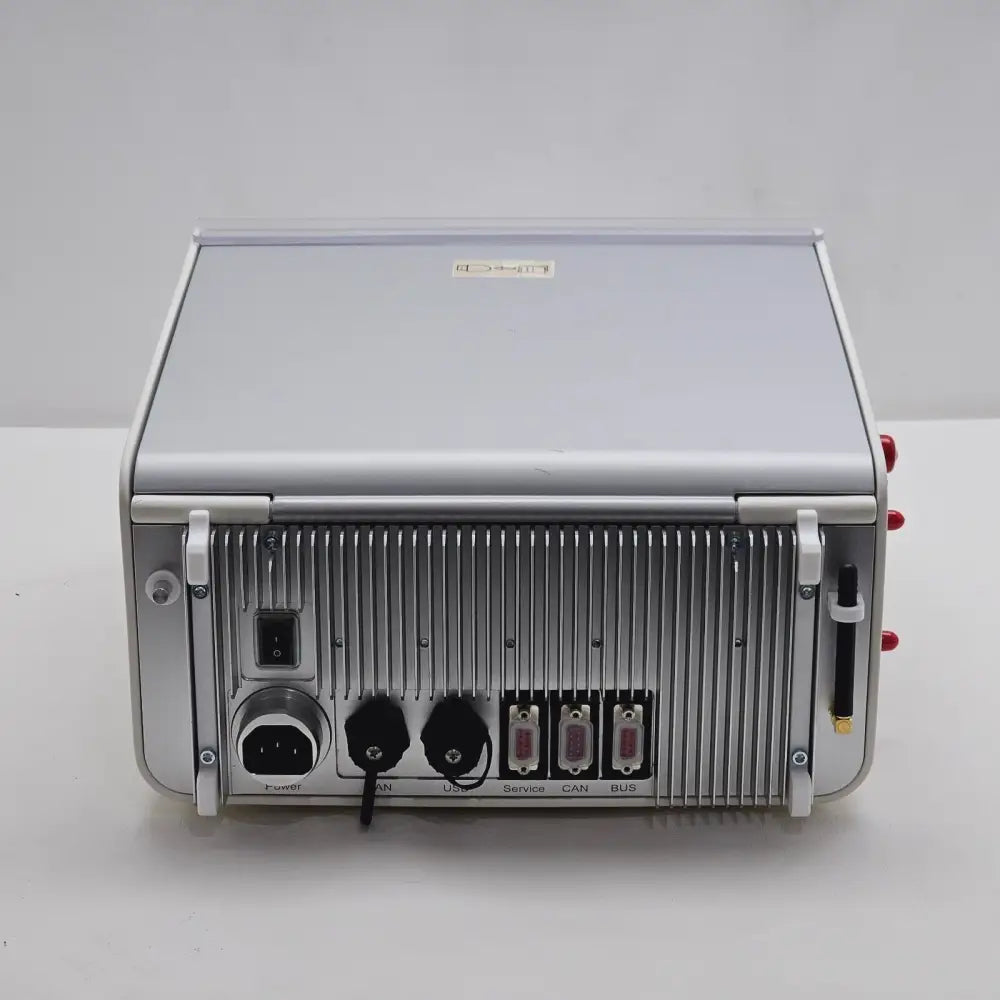

FFS04R-Specific Features (Wireless Model):
Internal WLAN adapter (WLAN SSID and WPA-PSK configurable)

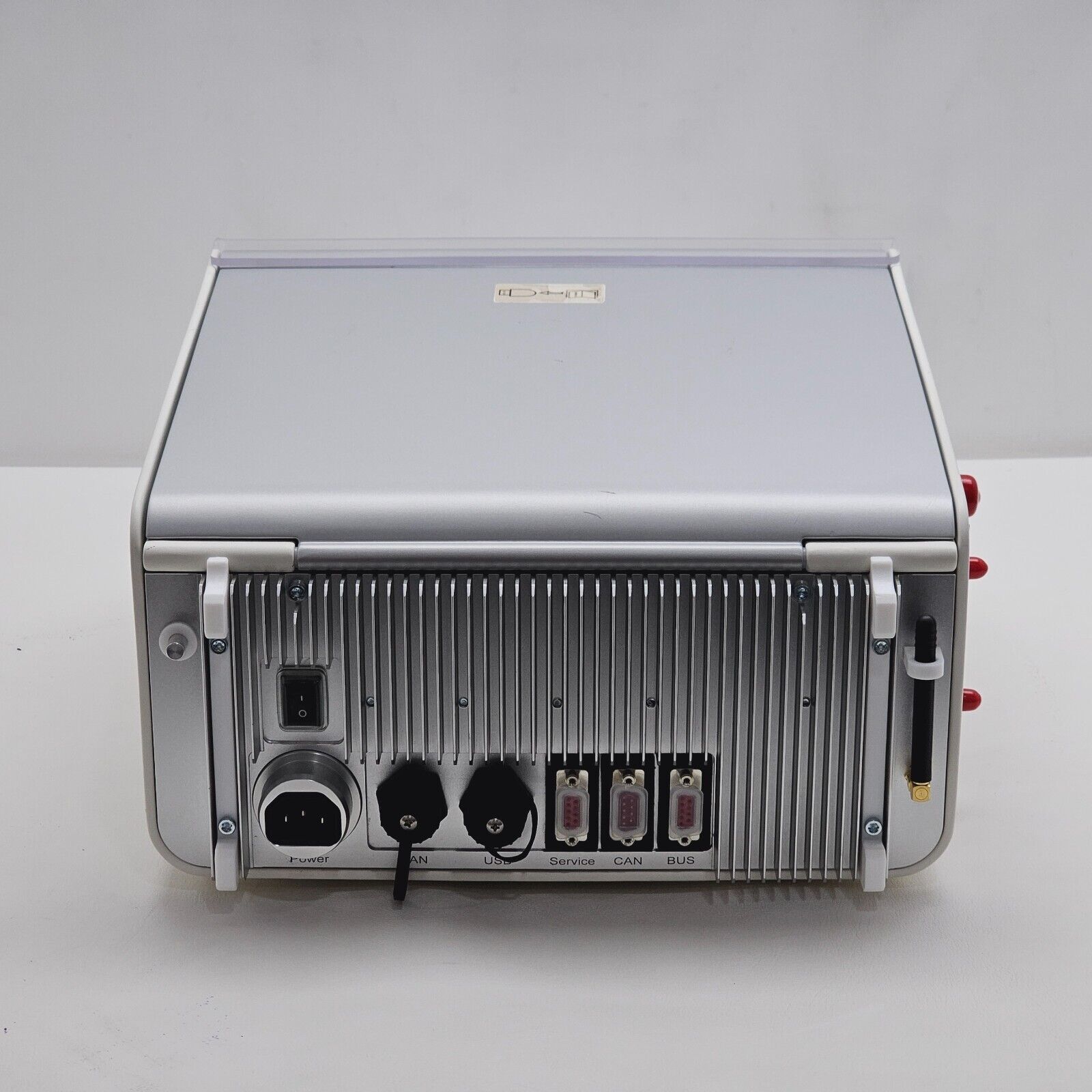

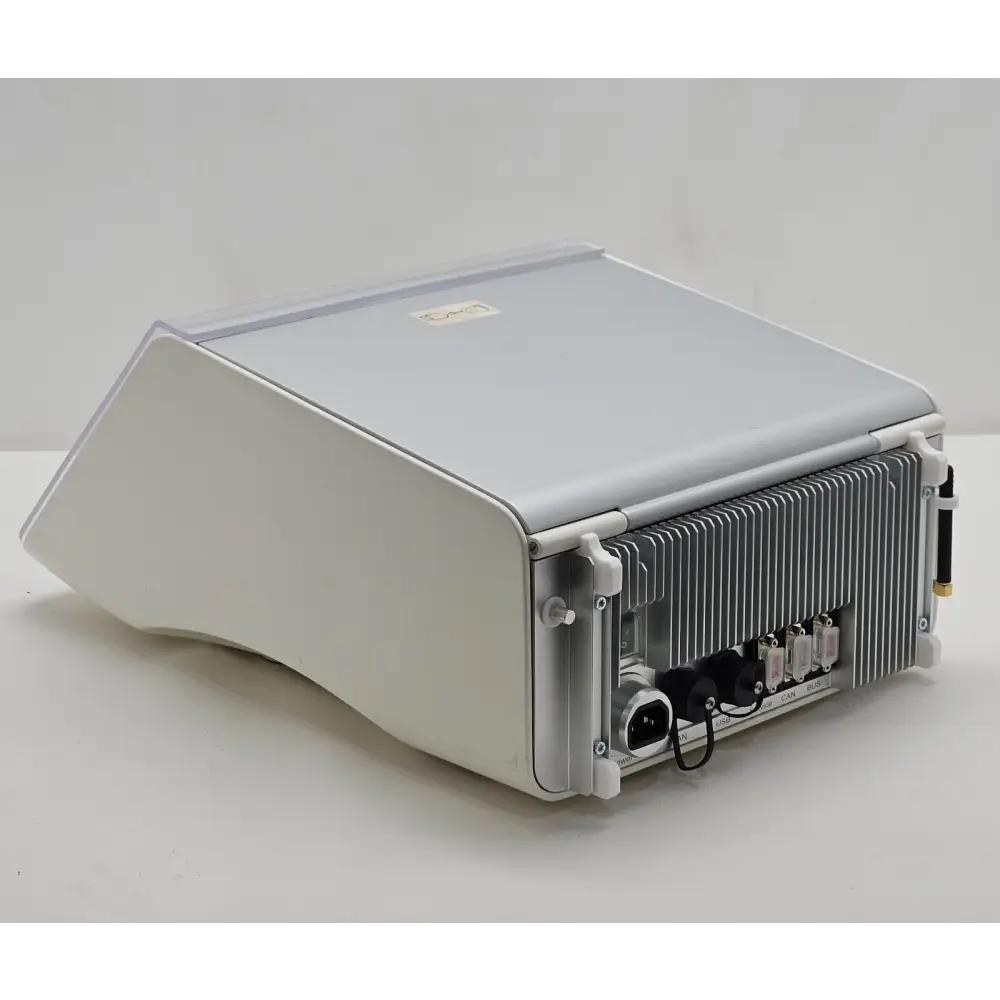

Ethernet port (RJ45) for network integration
PDF and result printing to network printer or network drive
Login-based access control with electronic signatures (21 CFR Part 11 compliant)
User lists with individual log-ins
Configurable test parameters and main menu
Fieldbus adapter and OPC server for automation
Three access levels: Operator, Supervisor, and Administrator
Data Management Software (DMS) compatible for centralised result storage

Regulatory Compliance:
Developed in accordance with GAMP (Good Automated Manufacturing Practices) guidelines
Compliant with 21 CFR Part 11 for electronic records and signatures
Calibration traceable to national standards; calibration recommended annually
Full service recommended every three years

Pall Palltronic Flowstar IV Filter Integrity Test Instrument Brochure (USD2555 / USD2555a): Download PDF

Palltronic Flowstar IV Integrity Test Instrument – Feature Comparison Chart (USD2658): Download PDF
