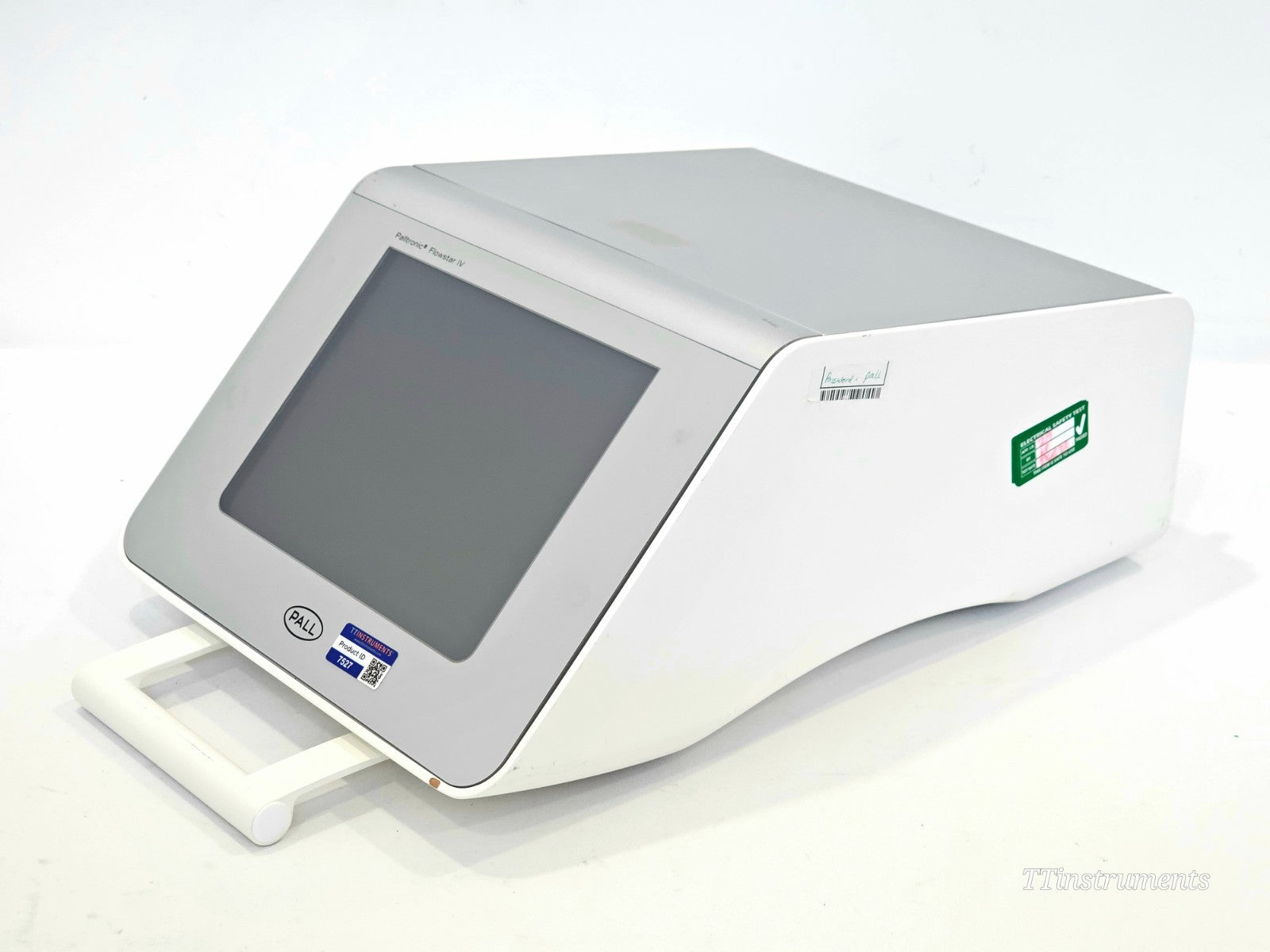

Pall Palltronic Flowstar IV FFS04 S filter integrity test instrument, front view showing 10.4-inch colour touchscreen

Pall FFS04 S Palltronic Flowstar IV front panel with touchscreen display and main menu interface

Pall Palltronic Flowstar IV FFS04 S left side view showing pneumatic connections and pressure ports

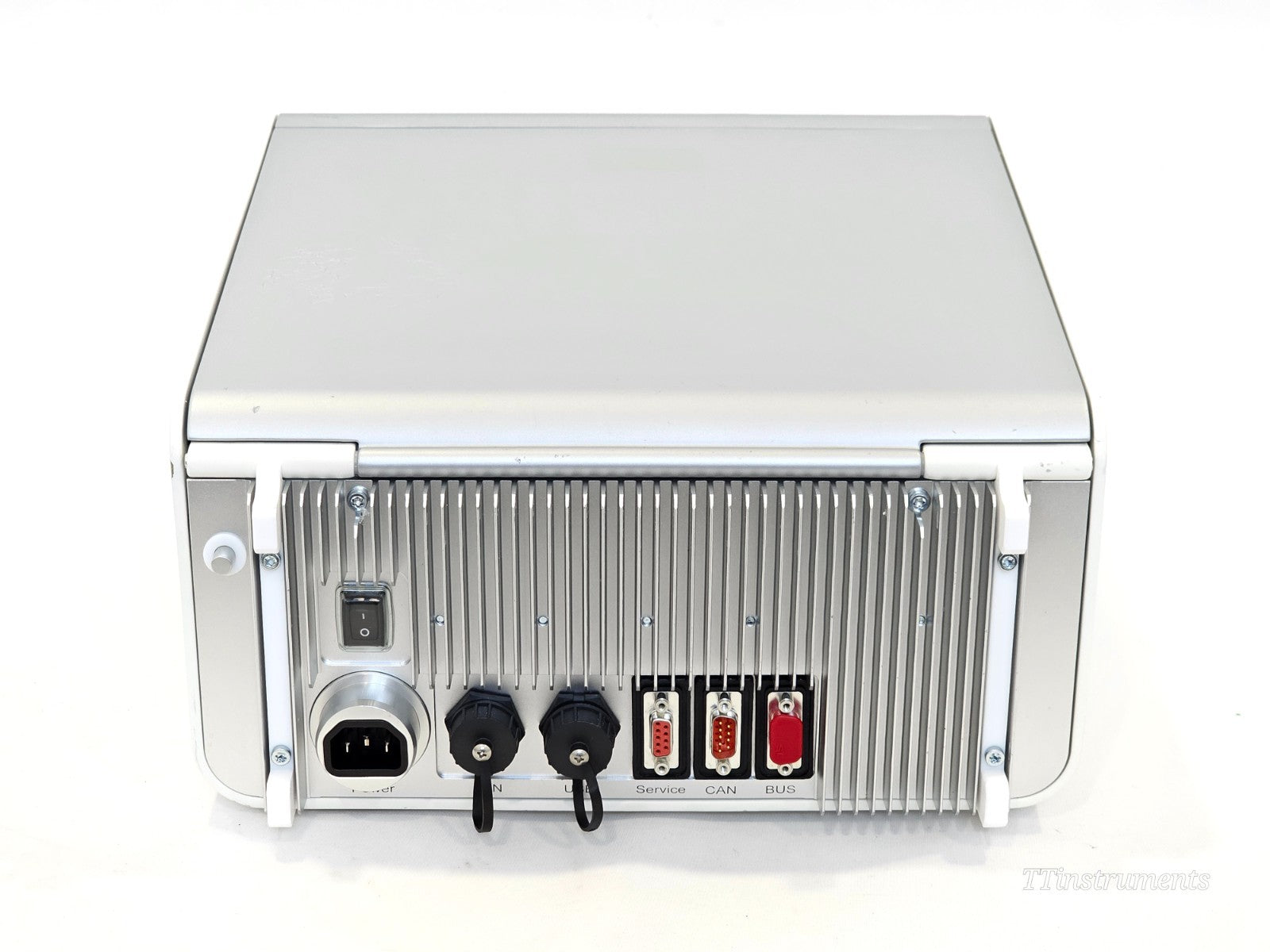

Pall Palltronic Flowstar IV FFS04 S rear panel connectivity including Ethernet RJ45 and USB ports

Pall FFS04 S Flowstar IV filter integrity tester, three-quarter angle view showing compact IP54 enclosure

Pall Palltronic Flowstar IV FFS04 S top view showing instrument housing and port layout

Pall Palltronic Flowstar IV FFS04 S touchscreen displaying forward flow test parameters

Pall FFS04 S Flowstar IV integrity tester right-side view showing instrument body and label

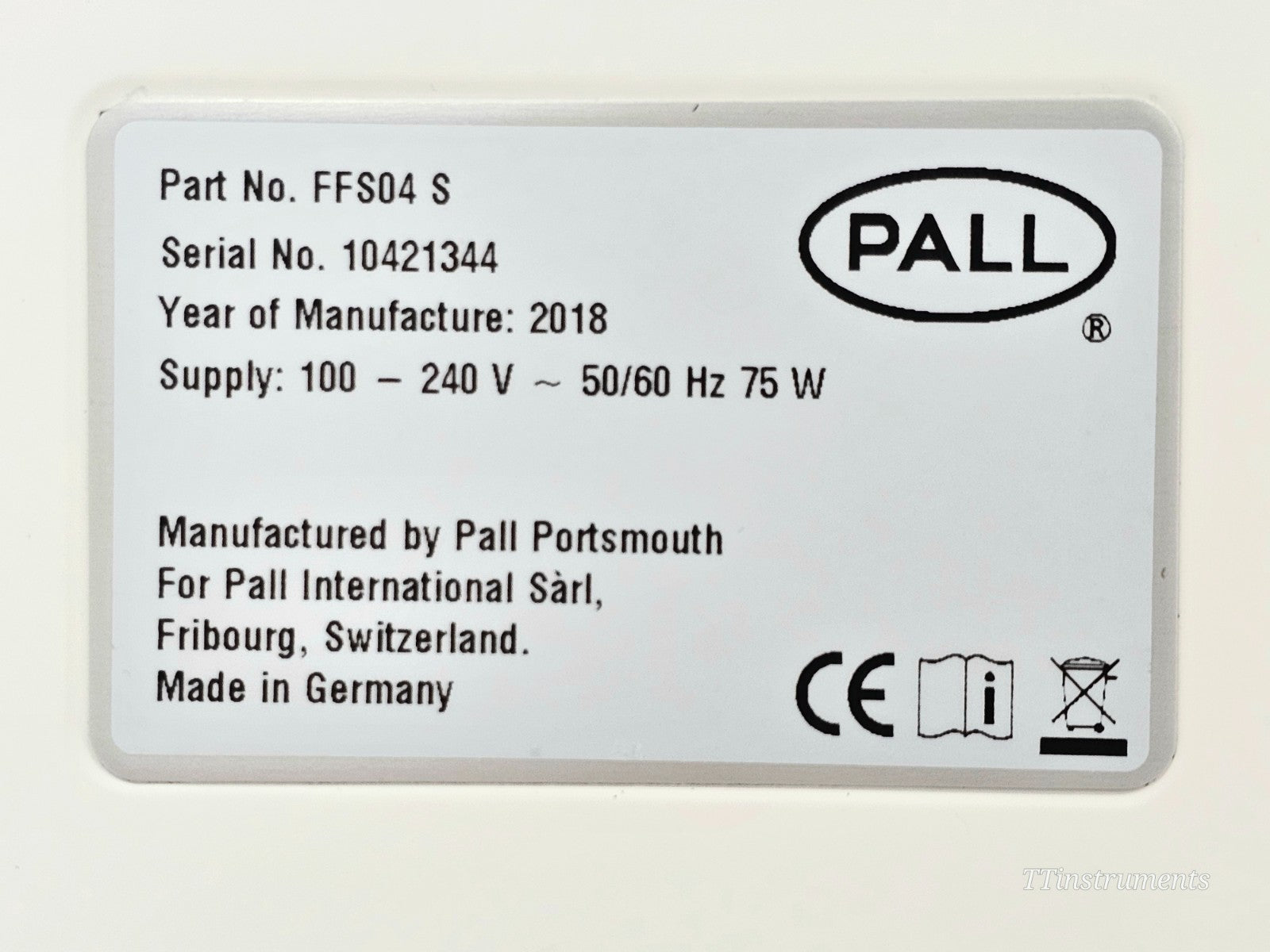

Pall Palltronic Flowstar IV FFS04 S instrument serial number and calibration label detail

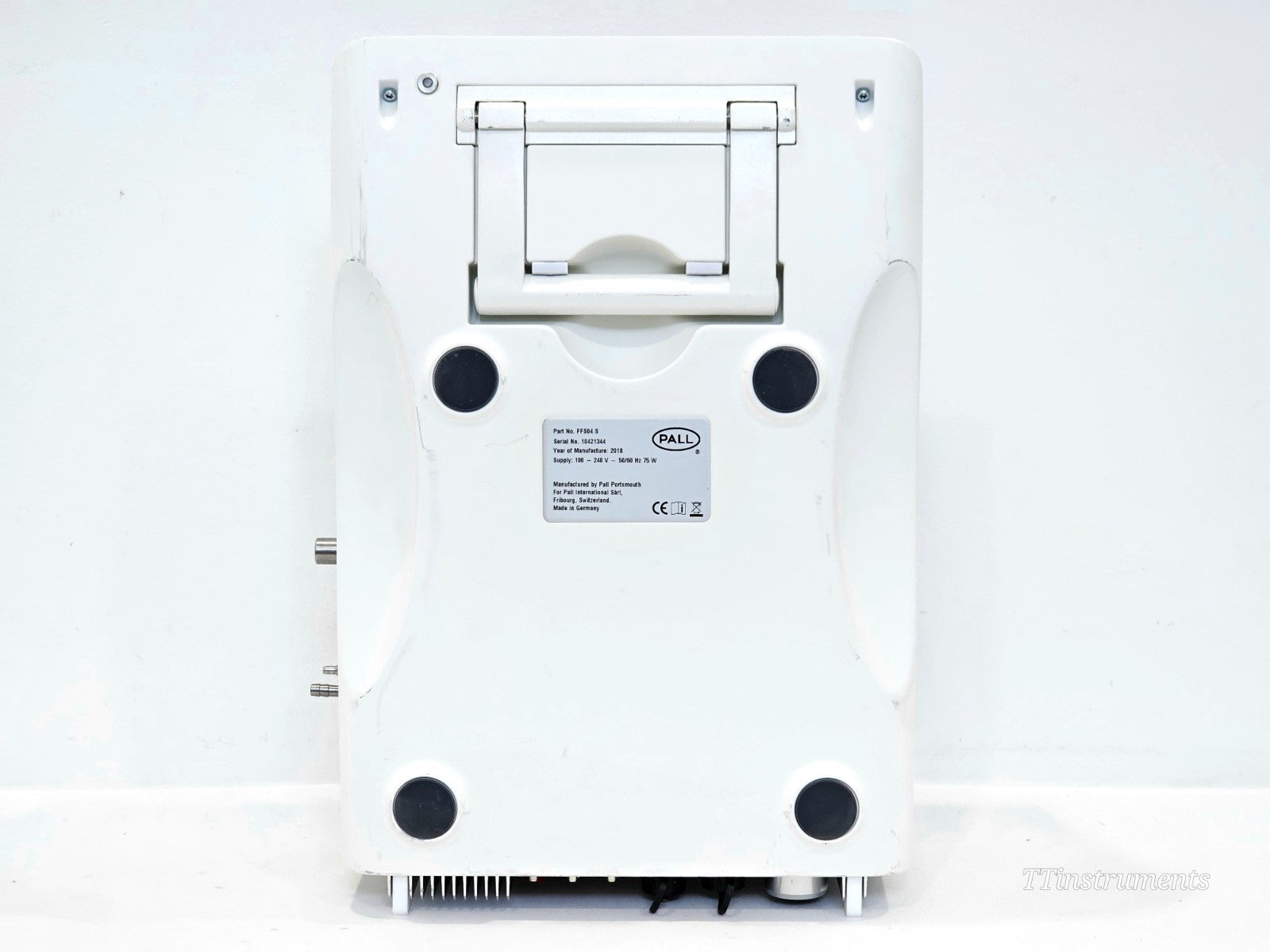

Pall Palltronic Flowstar IV FFS04 S base and underside showing instrument construction and feet

Pall FFS04 S Palltronic Flowstar IV touchscreen showing bubble point or water intrusion test screen

Pall Palltronic Flowstar IV FFS04 S internal thermal printer slot and USB port detail

Pall Palltronic Flowstar IV FFS04 S pressure supply inlet and outlet pneumatic fittings close-up

Pall FFS04 S Palltronic Flowstar IV filter integrity tester angled view highlighting touchscreen and body

Pall Palltronic Flowstar IV FFS04 S instrument overview on bench, showing full unit in used condition

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Pall FFS04 S Palltronic Flowstar IV Filter Integrity Test Instrument

Name: Pall FFS04 S Palltronic Flowstar IV Filter Integrity Test Instrument
Brand: PALL
SKU: 7527 4C03 EN01
Price: 2205.75 GBP
Availability: OutOfStock

The Pall Palltronic Flowstar IV (FFS04 S) is a pharmaceutical-grade filter integrity test instrument performing forward flow, bubble point, water intrusion, leak, and pressure decay tests on gas and liquid filters using volume-dosed flow measurement technology.

• 10.4-inch colour touchscreen with IP54 splash/dust-proof enclosure — designed for laboratory, cleanroom, and production environments
• Volume-dosed direct flow measurement delivers forward flow testing across 0.1–1,000 mL/min with ±3% accuracy
• Full 21 CFR Part 11 compliance with login-based access control, electronic signatures, and USB/Ethernet connectivity

Manufacturer

PALL

Model

FFS04 S

Condition

Used

In stock

SKU

7527 4C03

£2,205.75

General Lab Equipment
Laboratory
Medical and Lab

Make an Offer

Condition: Used

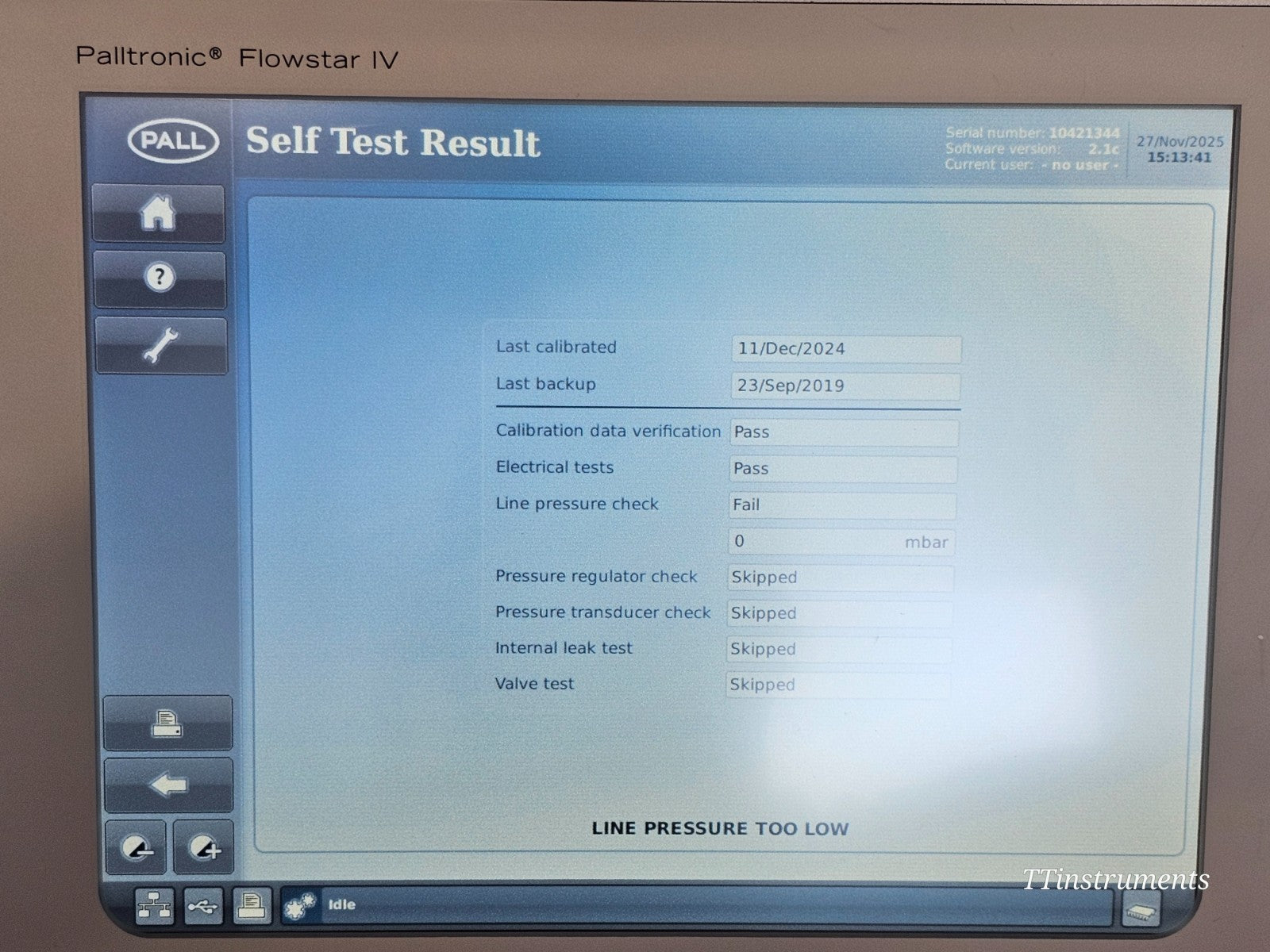

Pall Palltronic Flowstar IV FFS04 S filter integrity test instrument in used condition. Powers on and passes internal calibration data verification and electrical tests. Last calibrated December 2024. Note: a line pressure test was not performed as the required equipment was not available.

Included in the sale:
• Pall Palltronic Flowstar IV FFS04 S filter integrity test instrument — main unit only

The Palltronic Flowstar IV is Pall Corporation's fourth-generation filter integrity test instrument, developed for demanding pharmaceutical production, laboratory, and cleanroom environments. It employs a patented volume-dosed flow measurement method, meaning the flow measurement loop is directly calibrated and the upstream filter assembly volume does not need to be measured, significantly reducing test times. Forward Flow and Water Intrusion Tests are maintained at constant pressure throughout the entire test duration, ensuring reliable and reproducible results. The instrument is developed in accordance with GAMP (Good Automated Manufacturing Practices) guidelines and is classified as software category 3 / hardware category 1 under GAMP 5.

The FFS04 S is the Standard version of the Flowstar IV range, offering full networking, login-based access control, electronic signatures, Ethernet connectivity, OPC server support for automation, and PDF printing to network drives — features not present in the Basic (FFS04 B) variant.

Test Methods Supported:
Forward Flow Test (FF)
Bubble Point Test (BP)
Combined Forward Flow and Bubble Point Test (FF/BP)
Water Intrusion Test (WIT)
Leak Test (LT)
Pressure Decay Test (PD)

Measuring Range — Forward Flow: 0.1–1,000 mL/min
Measuring Range — Water Intrusion: 0.02–50 mL/min
Measuring Range — Bubble Point: 400–6,500 mbar (0.725–94.2 psi)
Accuracy — Forward Flow: ±3% of measurement or ±0.05 mL/min (whichever is greater)
Accuracy — Water Intrusion: ±3% of measurement or ±0.02 mL/min (whichever is greater)
Display: 10.4-inch (264 mm) colour touchscreen
Enclosure Rating: IP54 (splash and dust proof)
Dimensions (W x H x D): 348 mm x 205 mm x 483 mm (13.7 x 8.1 x 19 in.)
Operating System: Linux

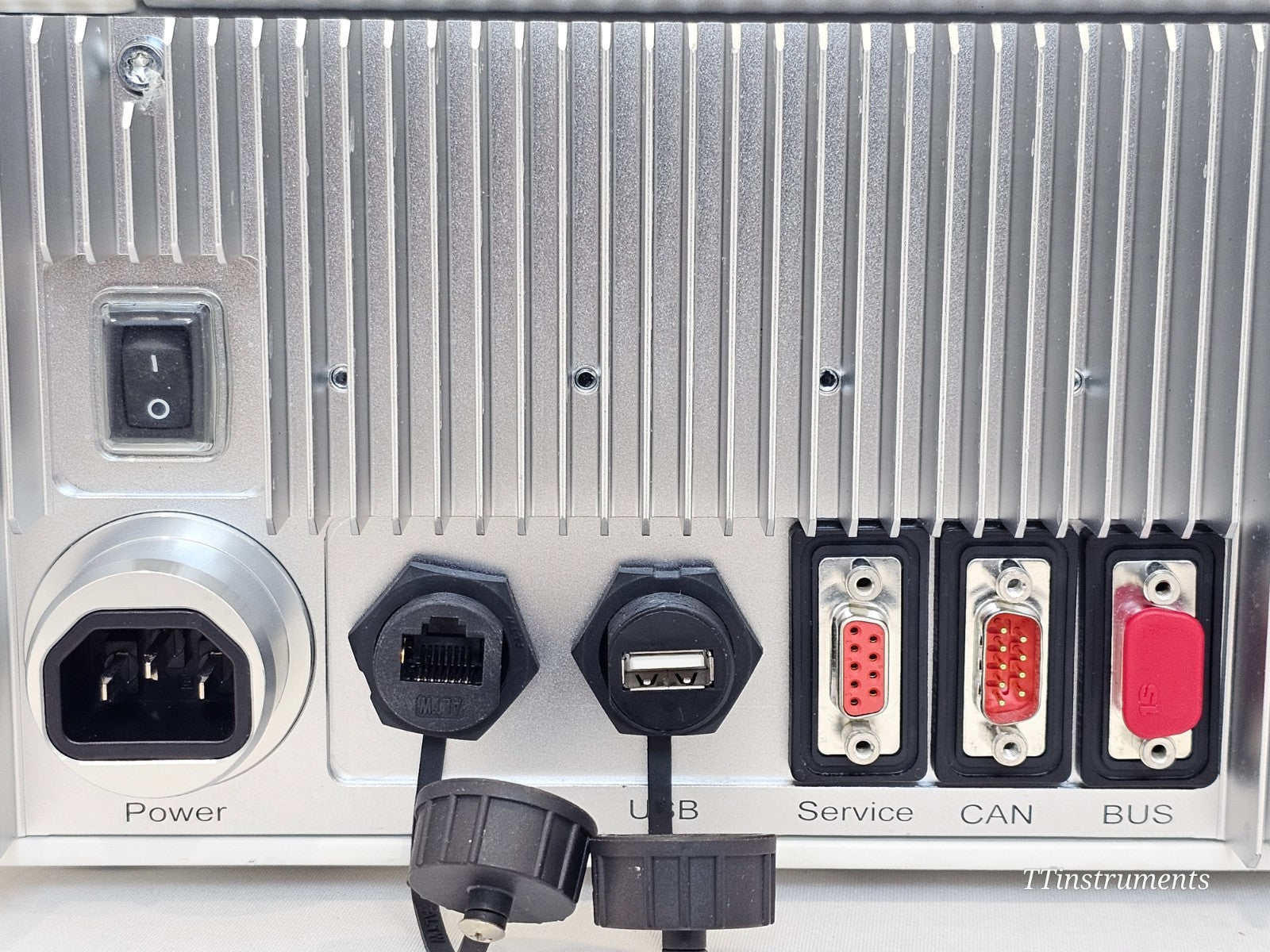

Connectivity: USB, Ethernet (RJ45), RS232/Serial (optional), PROFIBUS (optional)

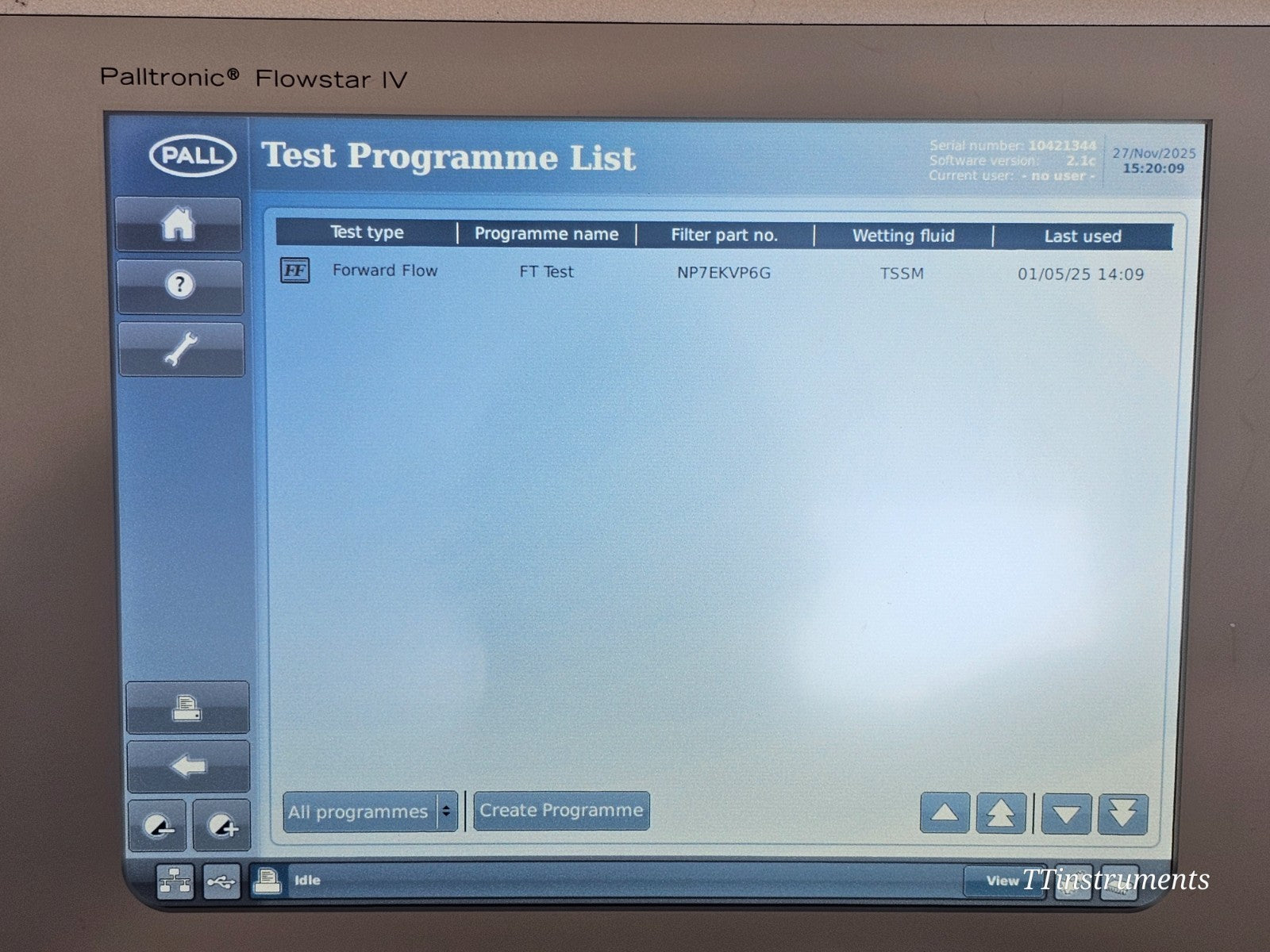

Test Program Storage: Up to 500 password-protected test programs
Access Levels: Operator, Supervisor, Administrator
Regulatory Compliance: 21 CFR Part 11, GAMP 5
Languages: English, English (US), German, French, Spanish, Italian, Portuguese, Japanese, Chinese
Pressure Units: mbar, psi, kPa, kp/cm²

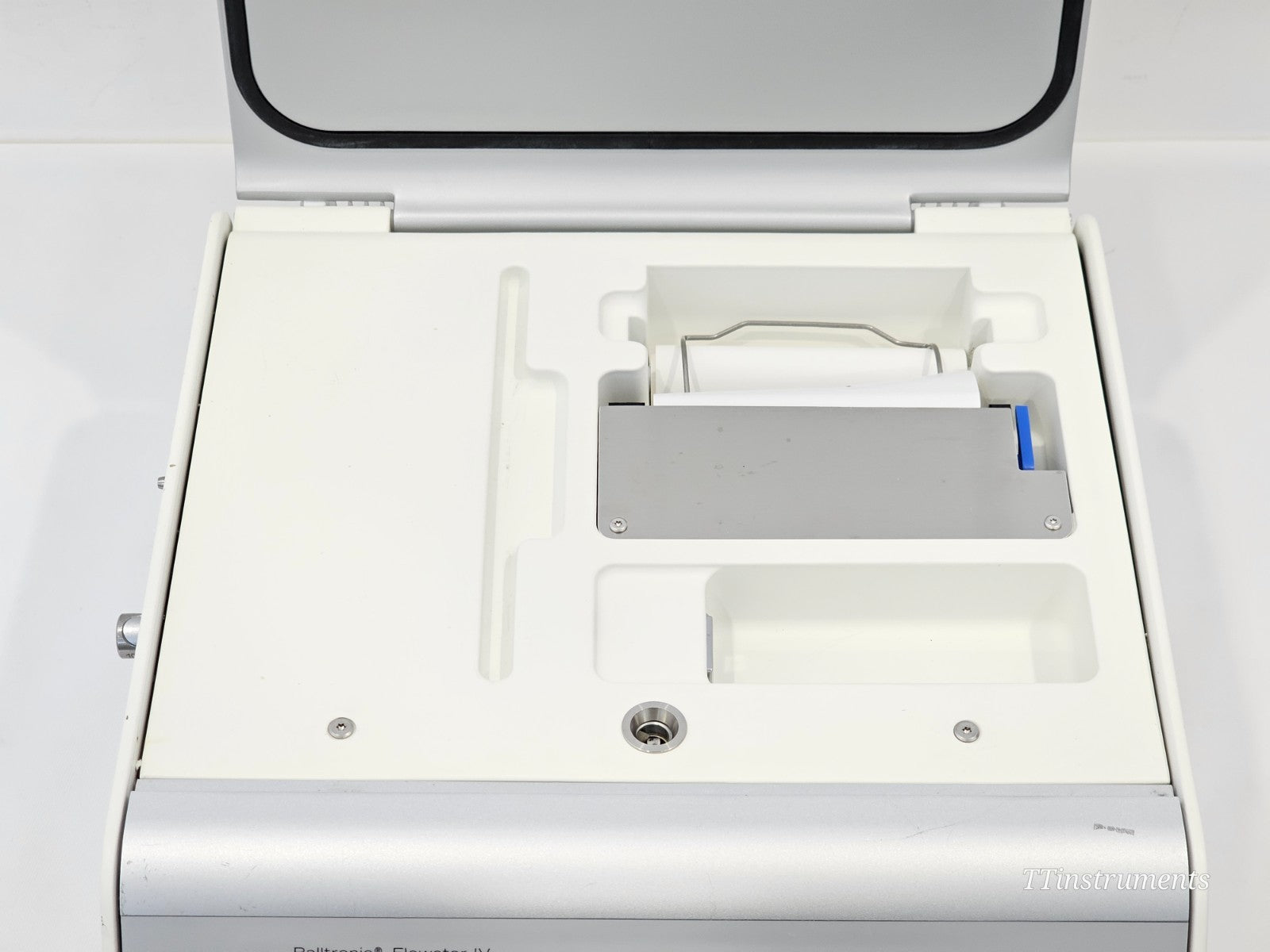

Internal Printer: Thermal (particle-minimising for cleanroom use)
Cooling: Fanless design (no air disturbance in cleanroom)
Calibration: Annual calibration recommended; full service recommended every 3 years

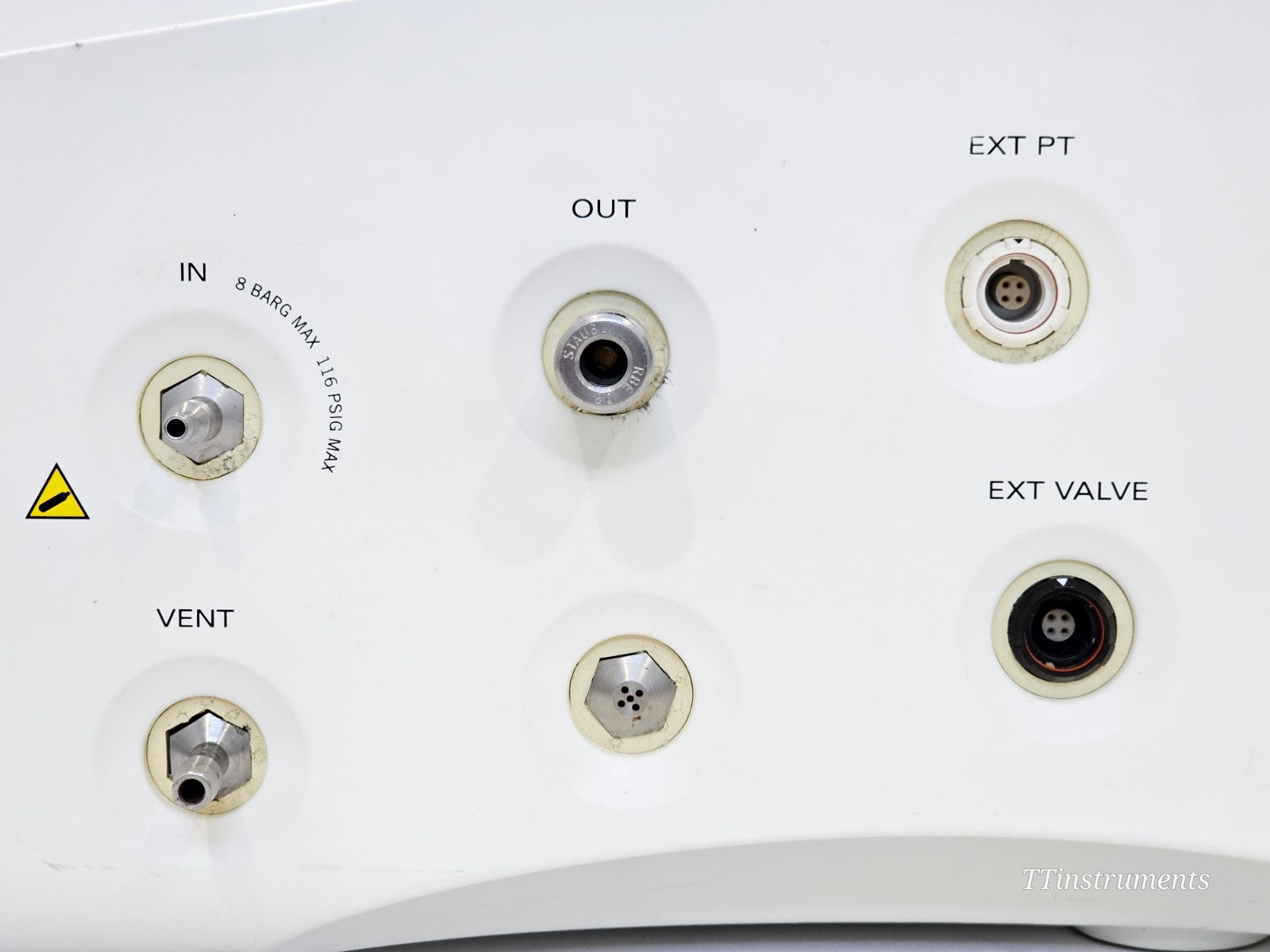

External Connections (left side): Pressure supply inlet, pressure outlet (to filter), external pressure transducer, vent, internal vent, external vent valve

Product Overview

Condition: Used

Included in the sale:
• Pall Palltronic Flowstar IV FFS04 S filter integrity test instrument — main unit only

Manufacturer's Description

Test Methods Supported:
Forward Flow Test (FF)
Bubble Point Test (BP)
Combined Forward Flow and Bubble Point Test (FF/BP)
Water Intrusion Test (WIT)
Leak Test (LT)
Pressure Decay Test (PD)

Resources

Pall Palltronic Flowstar IV Instructions for Use (USD2594) — FFS04S and FFS04R official IFU (hosted on pall.com): Download PDF

Pall Palltronic Flowstar IV Product Brochure (USD2555) — hosted on g-eitan.com: Download PDF

Pall Palltronic Flowstar IV Feature Comparison Chart (USD2658) — hosted on pall.net.cn: Download PDF
