Condition: For parts or not working

This DGH Technology Pachmate DGH 55 ultrasonic pachymeter is listed for parts or not working and is sold with no returns. The unit powers on and functions correctly with the calibrator, but cannot detect the probe. Supplied with its calibration box and carry case.

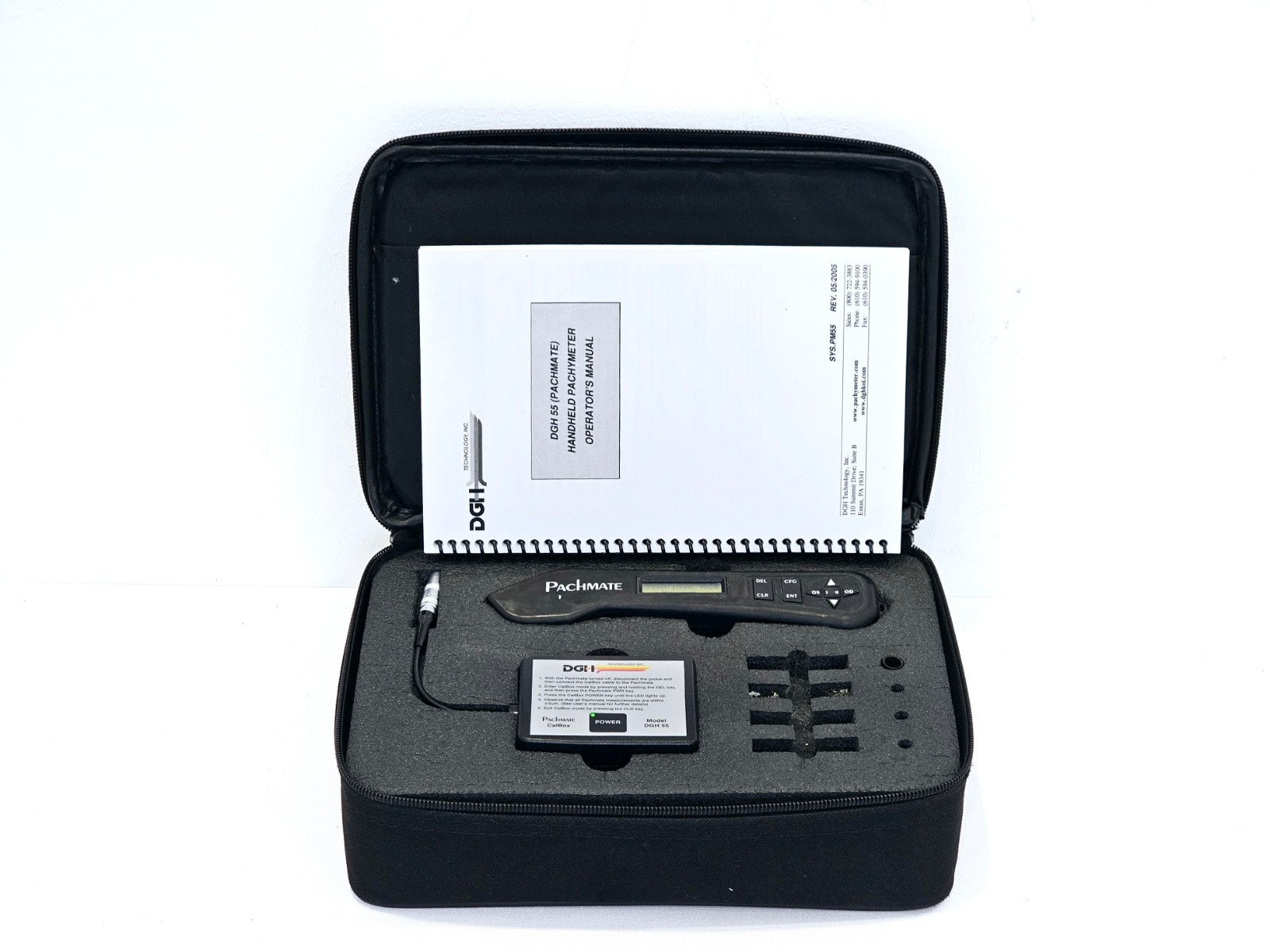

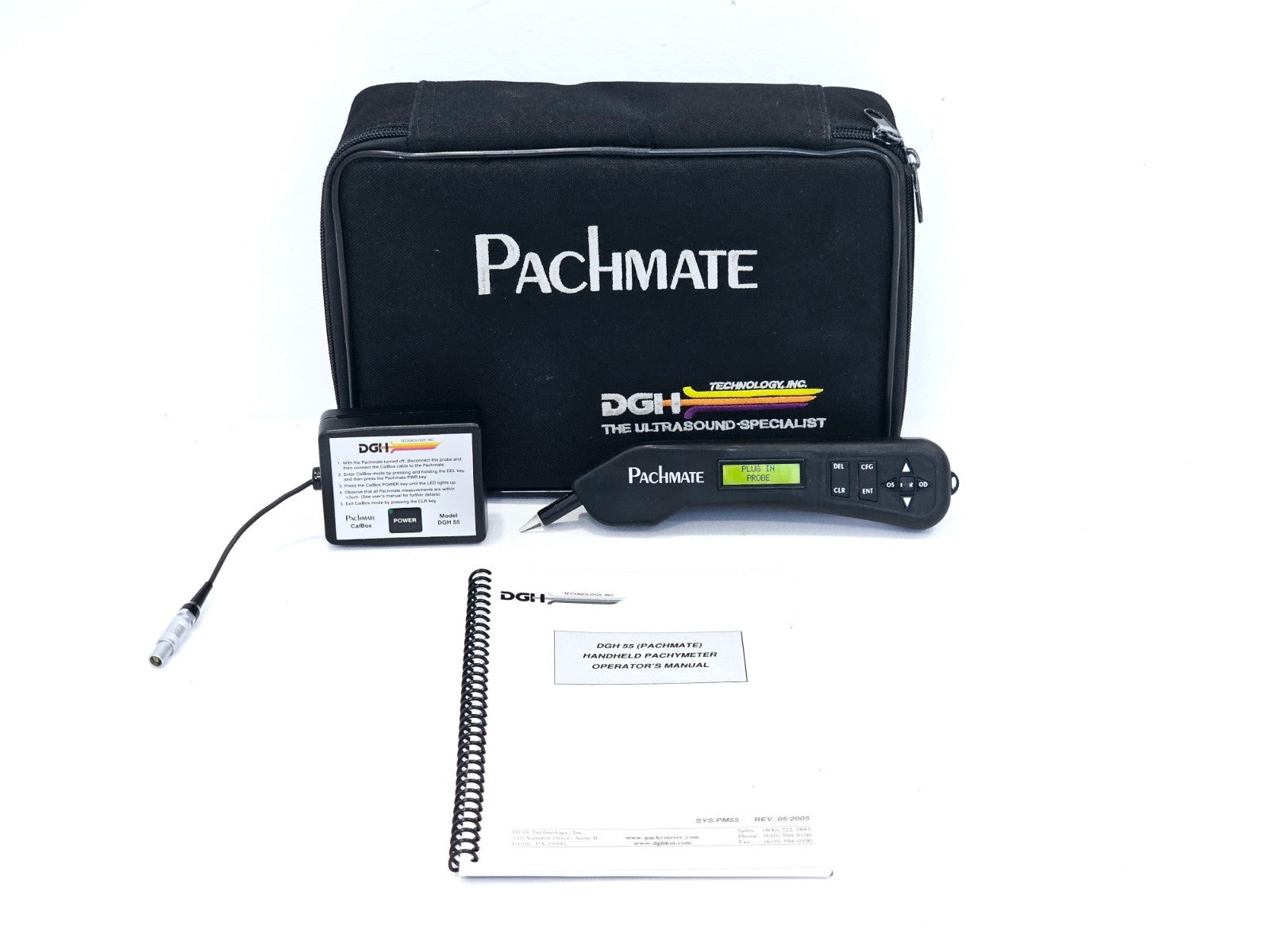

Included with this unit:

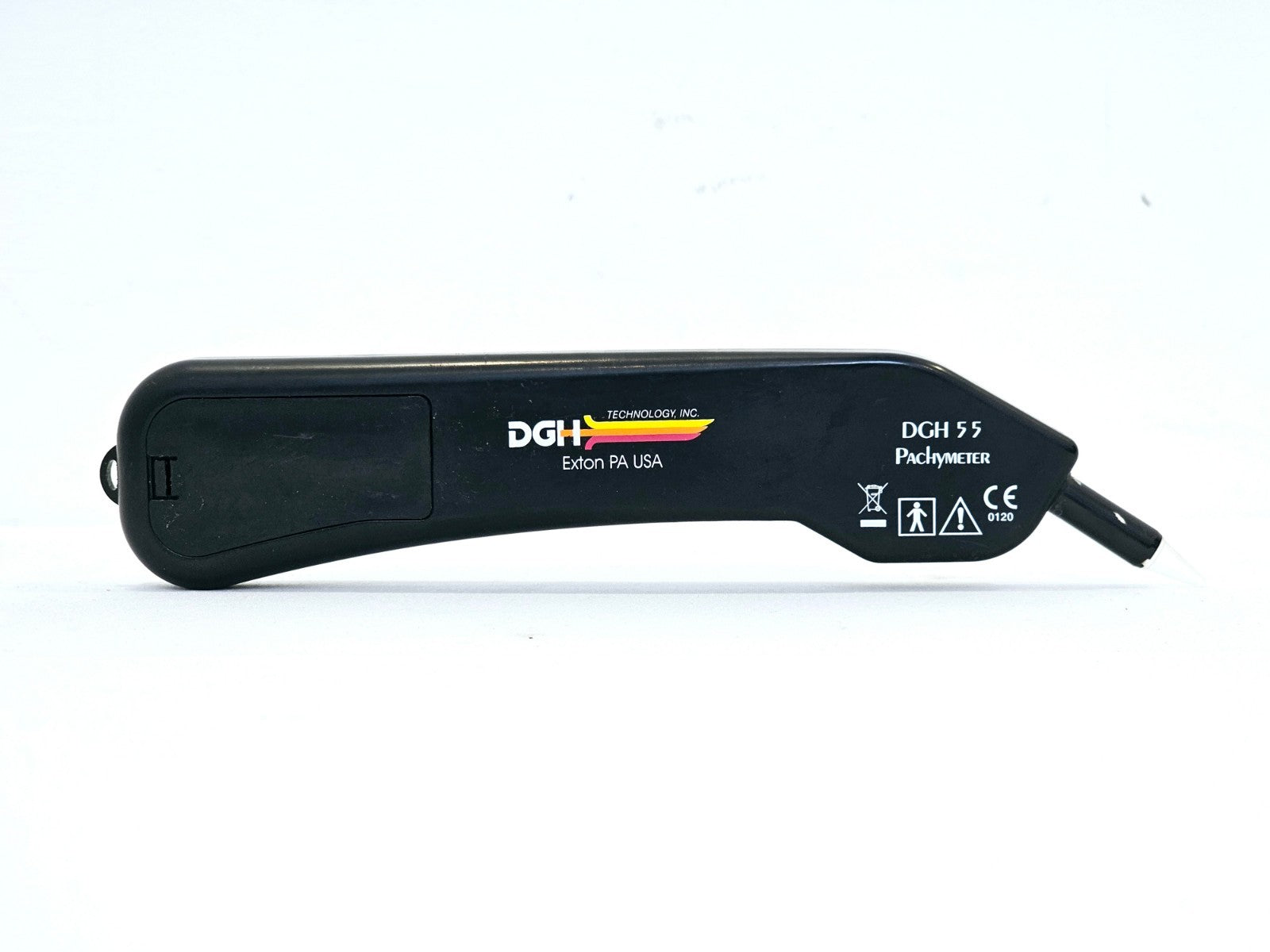

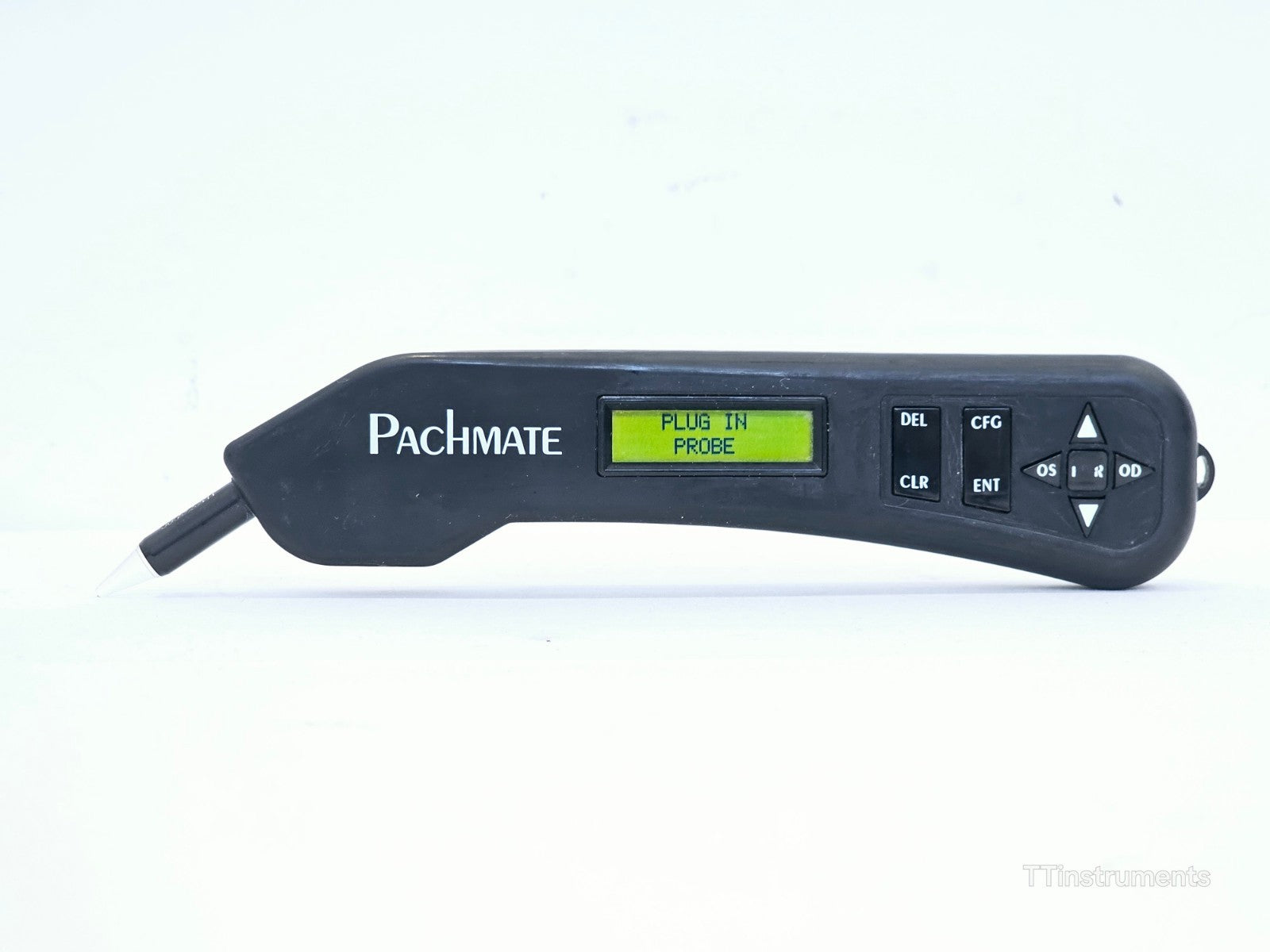

• Pachmate DGH 55 handheld pachymeter unit

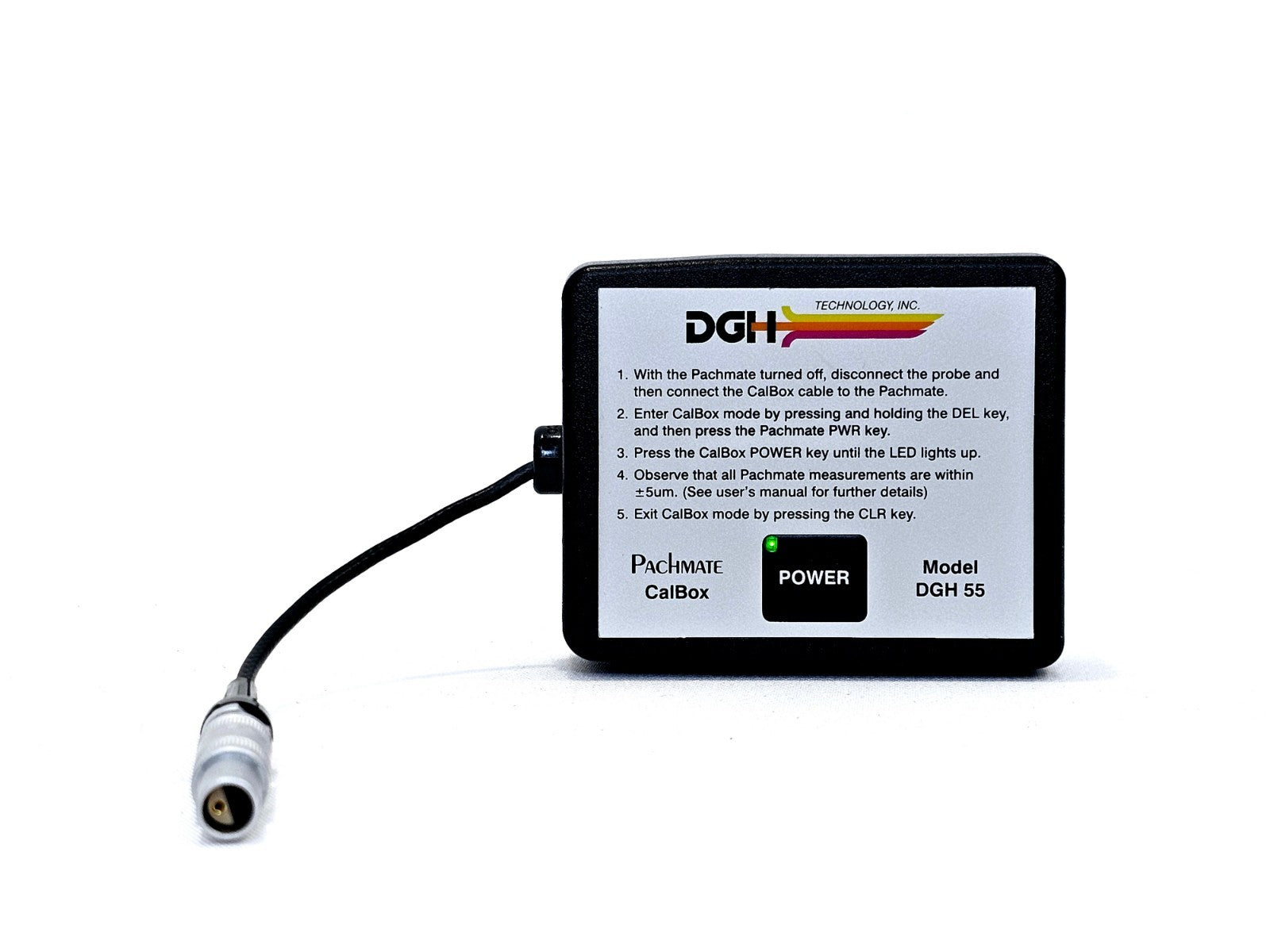

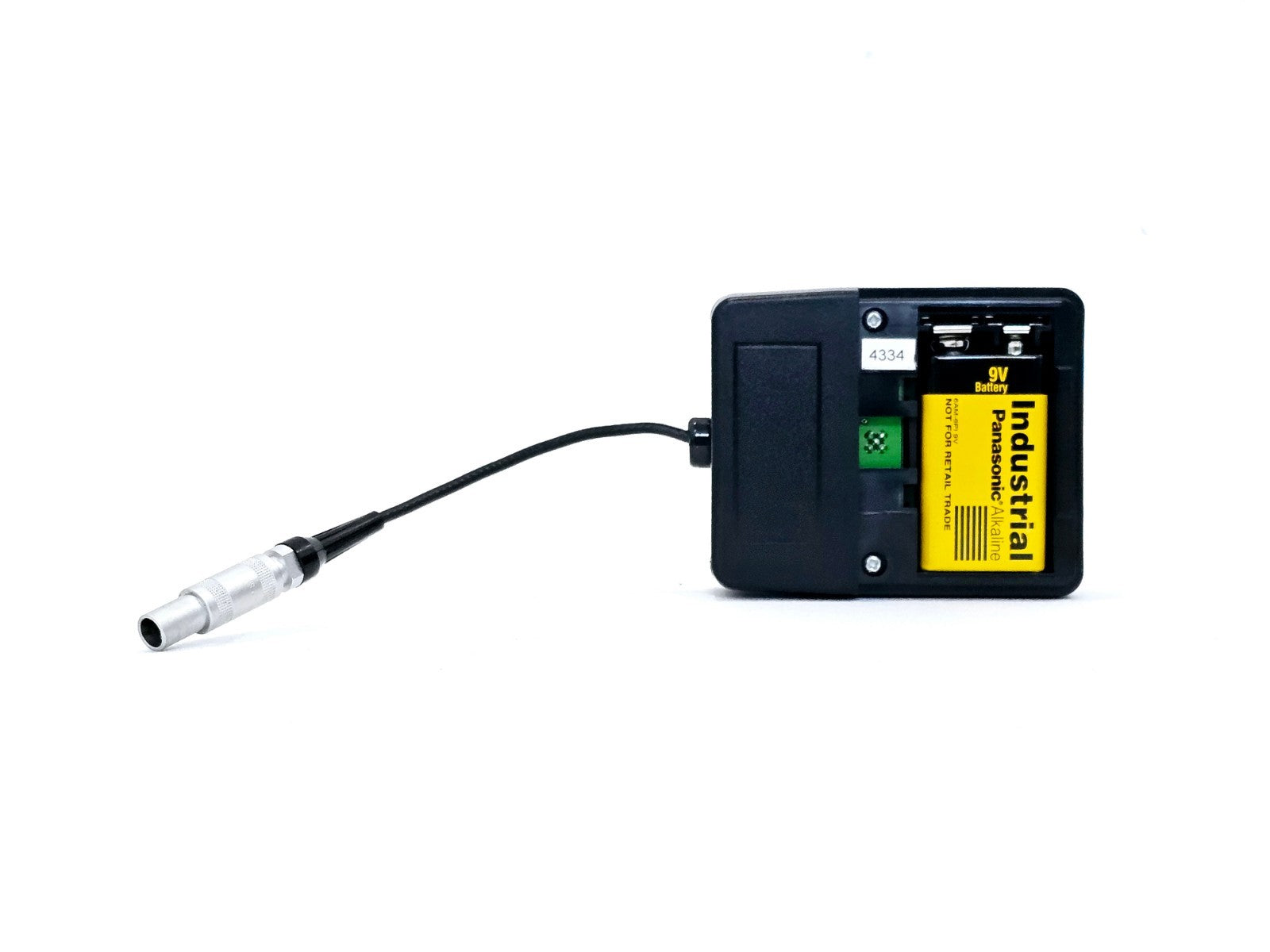

• Calibrator (CalBox)
• Carry case

The DGH Technology Pachmate (DGH 55) is a handheld ultrasonic pachymeter designed for accurate, reliable corneal thickness measurement. It is one of the world's most compact portable pachymeters, widely used in optometry, ophthalmology, glaucoma screening, LASIK pre-operative assessment, and monitoring of corneal edema. The device uses pulse-echo ultrasound technology and a proven measurement algorithm to deliver fast, reproducible results in a fraction of a second.

The detachable probe features an adjustable angle to aid in proper applanation and can be removed for easy cleaning and replacement. Audible feedback confirms valid measurements and the completion of each measurement group. The Pachmate can be permanently configured to meet operator requirements, and an IOP correction calculation feature is available for glaucoma screening workflows.

Product Specifications:
Measurement Range: 200 microns to 1100 microns (standard)
Accuracy: ±5 microns
Resolution: 1 micron
Internal Clock Accuracy: ±0.002%
Display: 16 x 2 character LCD
Measurement Storage: Up to 25 bilateral measurements
Measurement Modes: Continuous Averaging and Mapping
Dimensions: 6.92" (175 mm) L x 1.69" (43 mm) W x 0.83" (21 mm) D
Weight: 3.6 oz (112 g)
Power Requirement: Two (2) AAA batteries
Manufacturer: DGH Technology, Inc. (USA)

DGH 55 Pachmate Operator's Manual (English, Rev 2) — official PDF from DGH Technology: Download PDF

DGH 55B Pachmate 2 Operator's Manual (English, Rev 3) — official PDF from DGH Technology: Download PDF
