Condition: For parts or not working

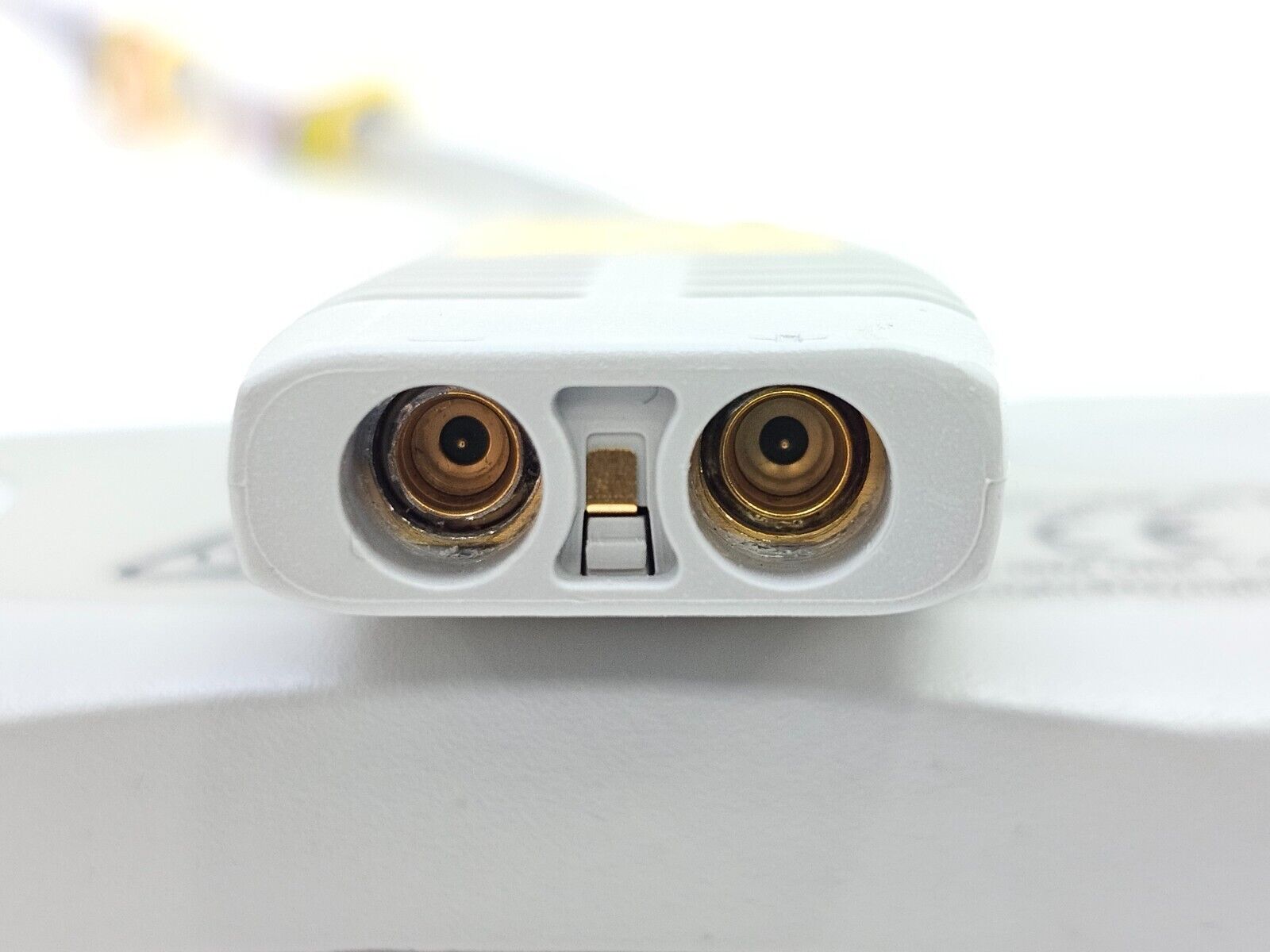

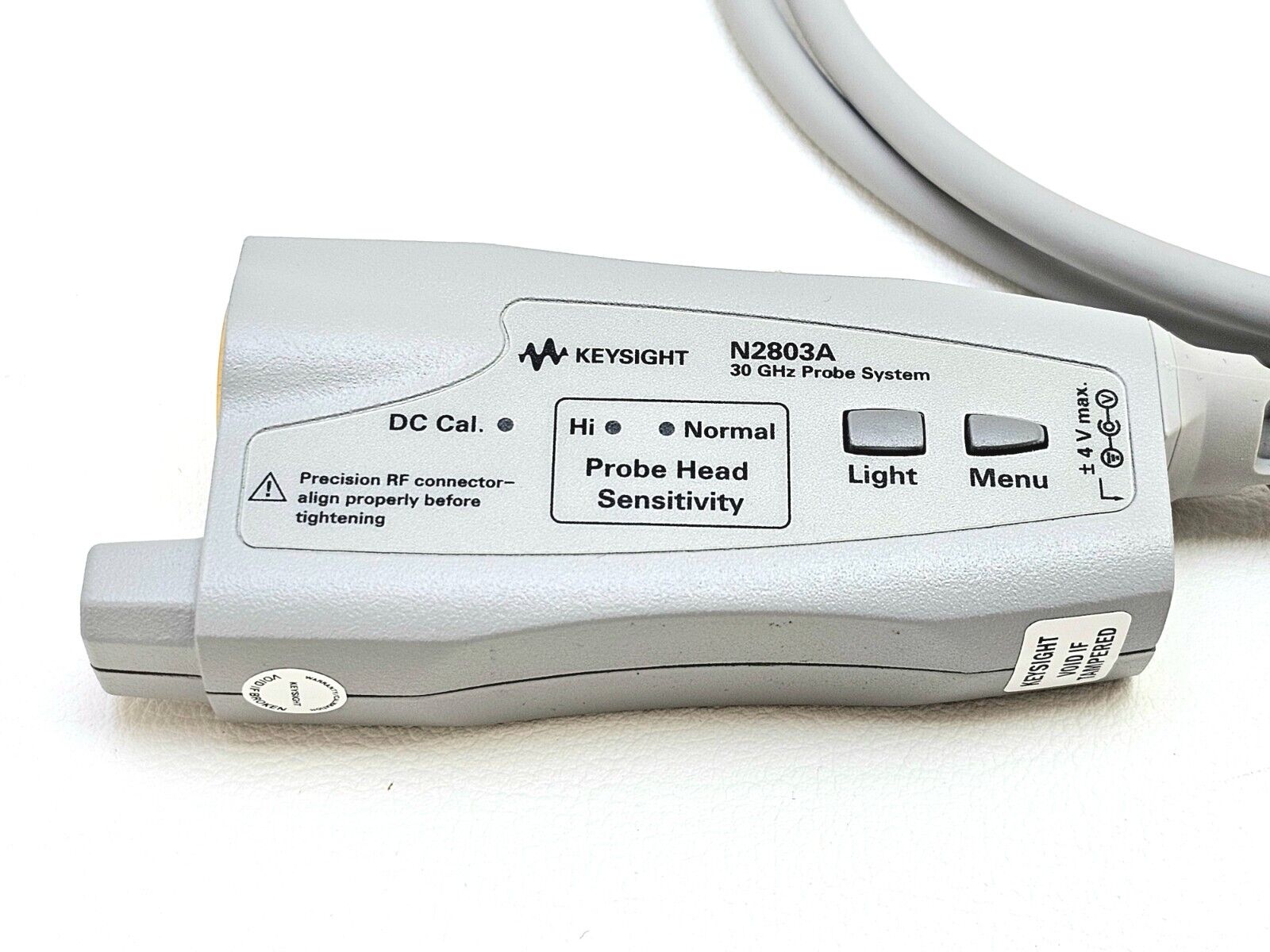

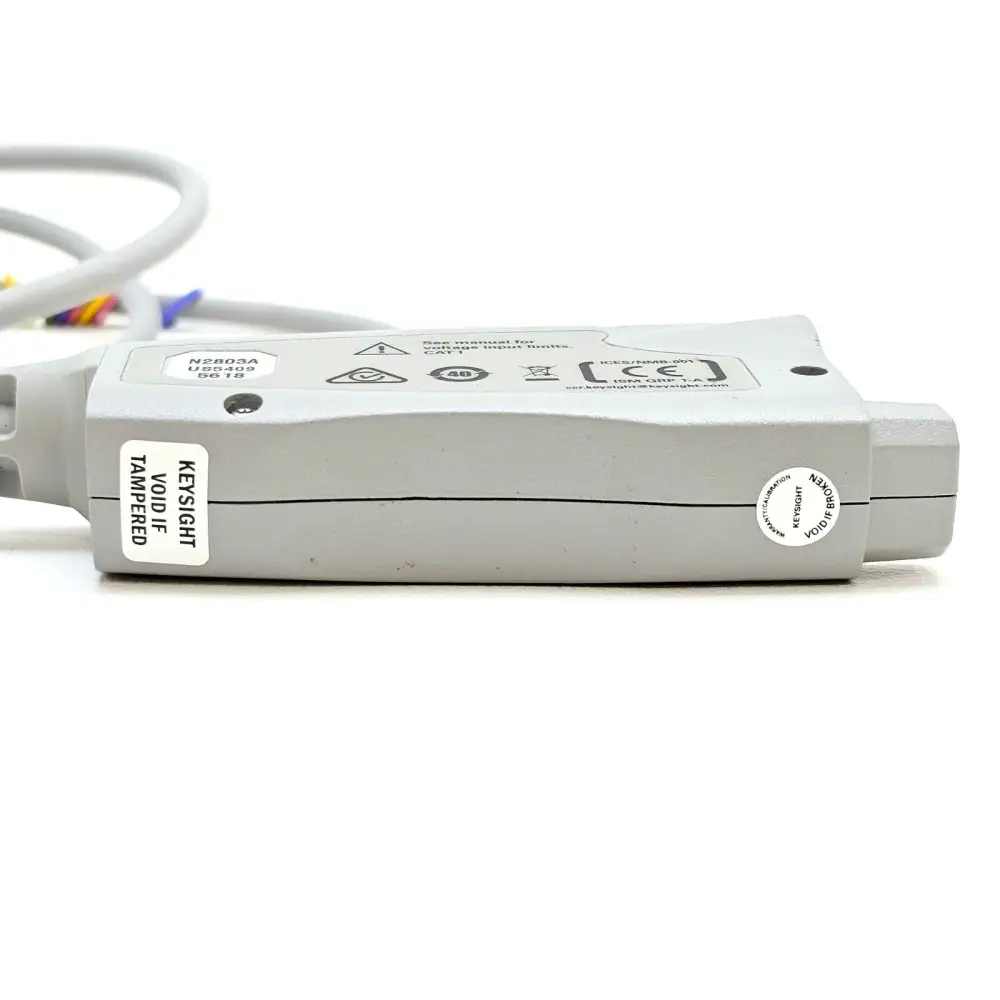

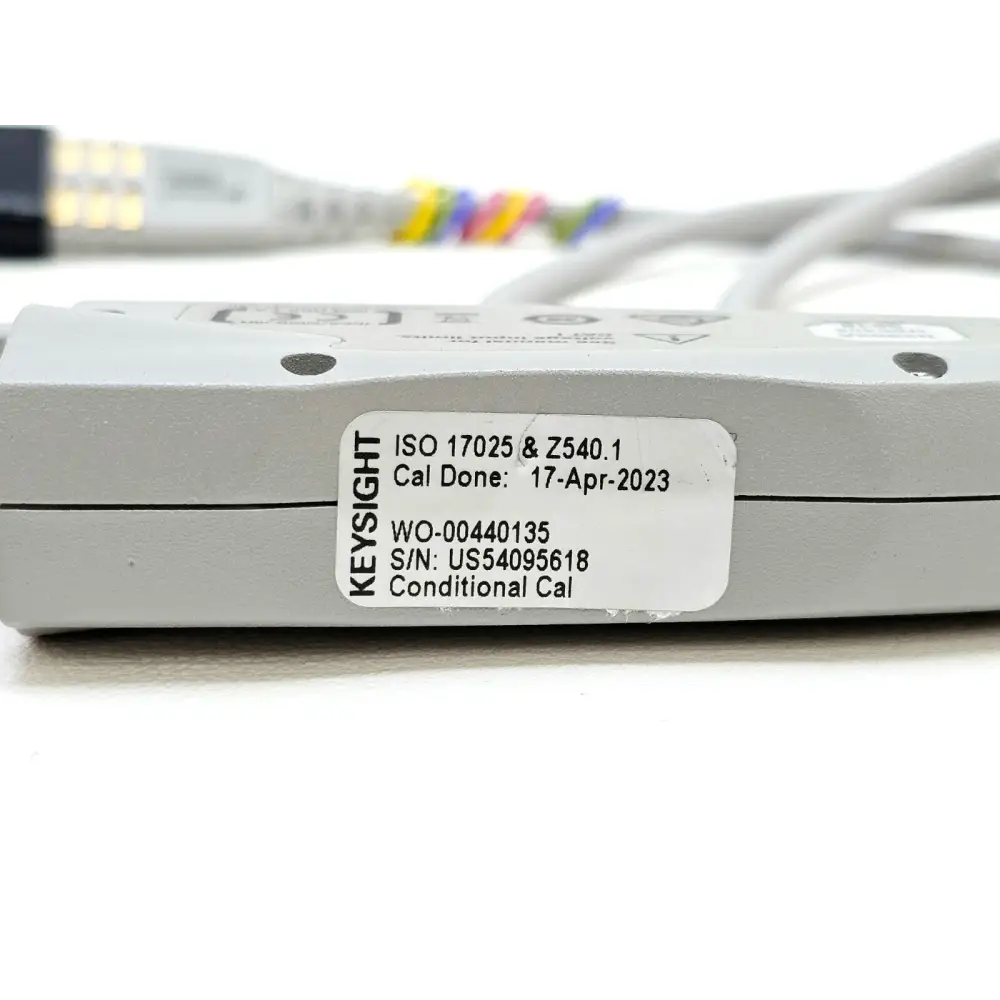

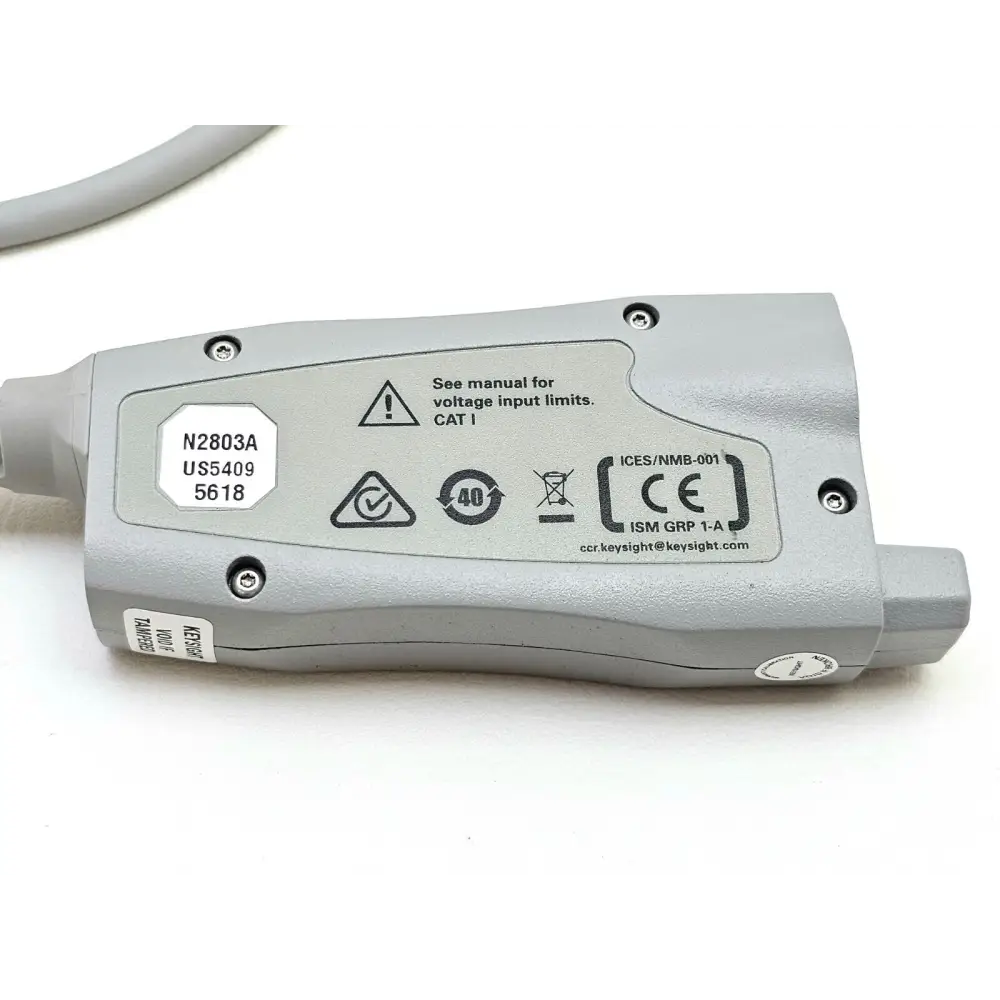

The Keysight Agilent N2803A is a 30 GHz InfiniiMax III Series probe amplifier. This unit is listed for parts or repair purposes as it is out of specification and is not verified as performing to its warranted parameters.

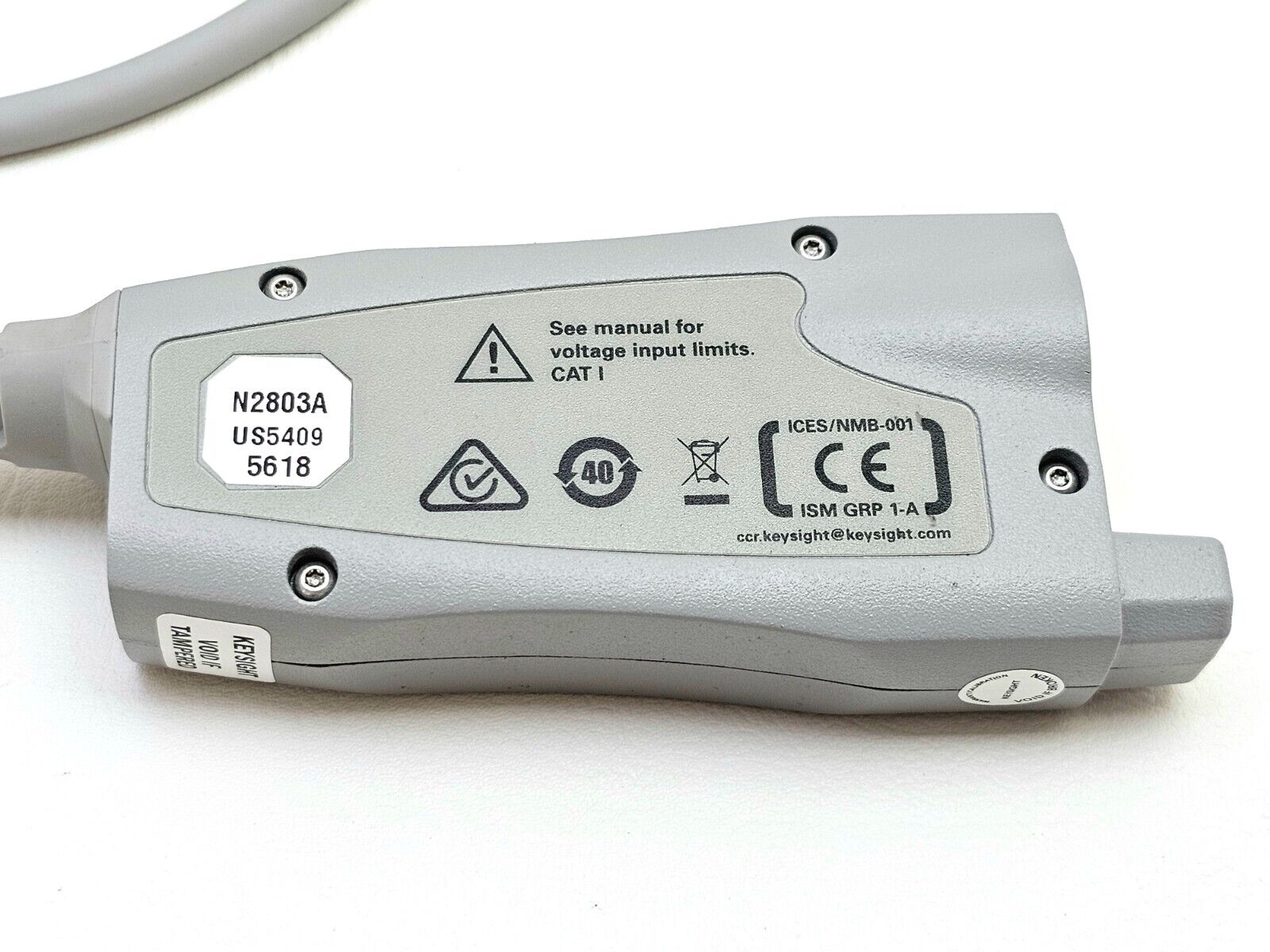

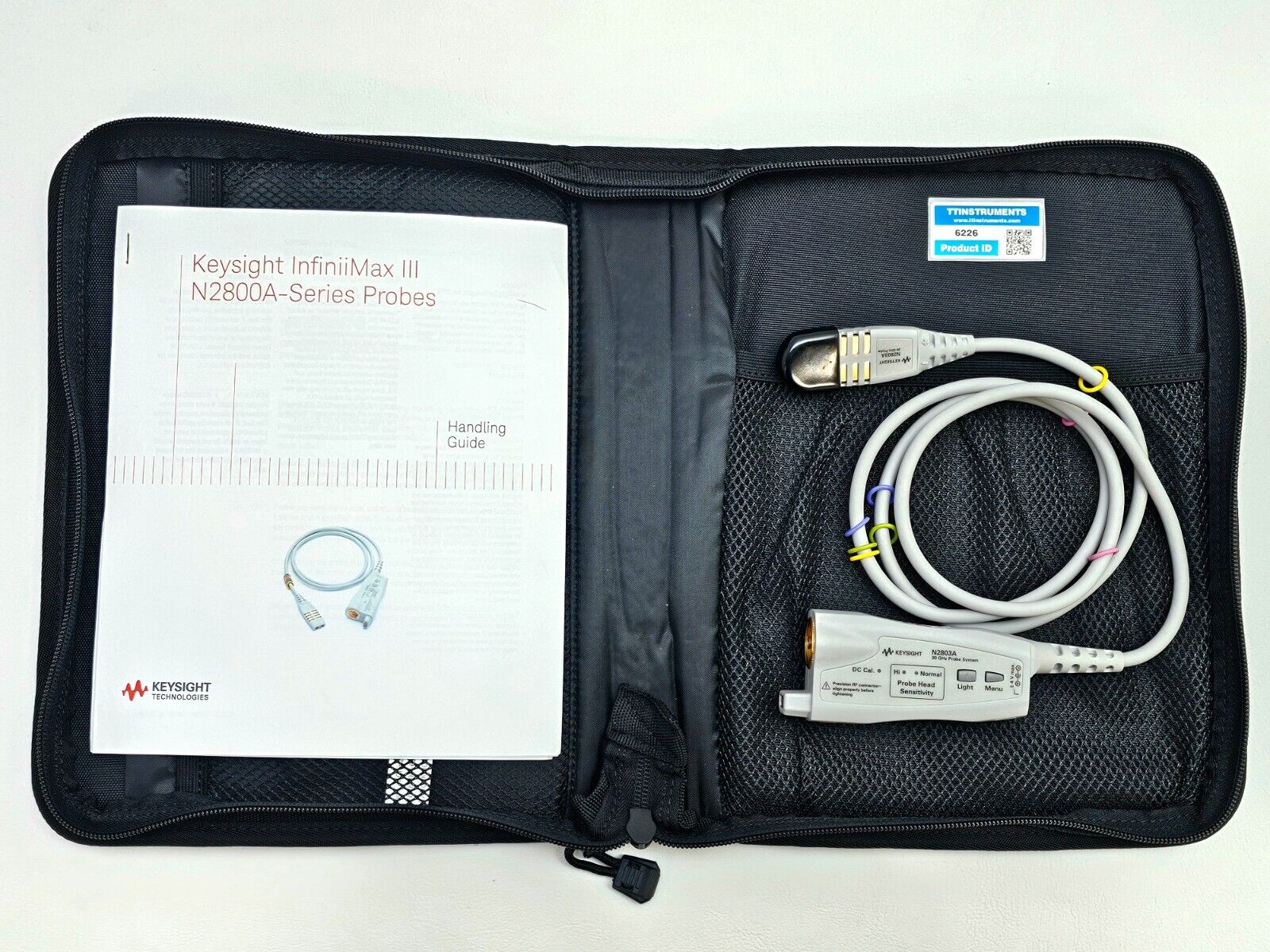

What is typically included:

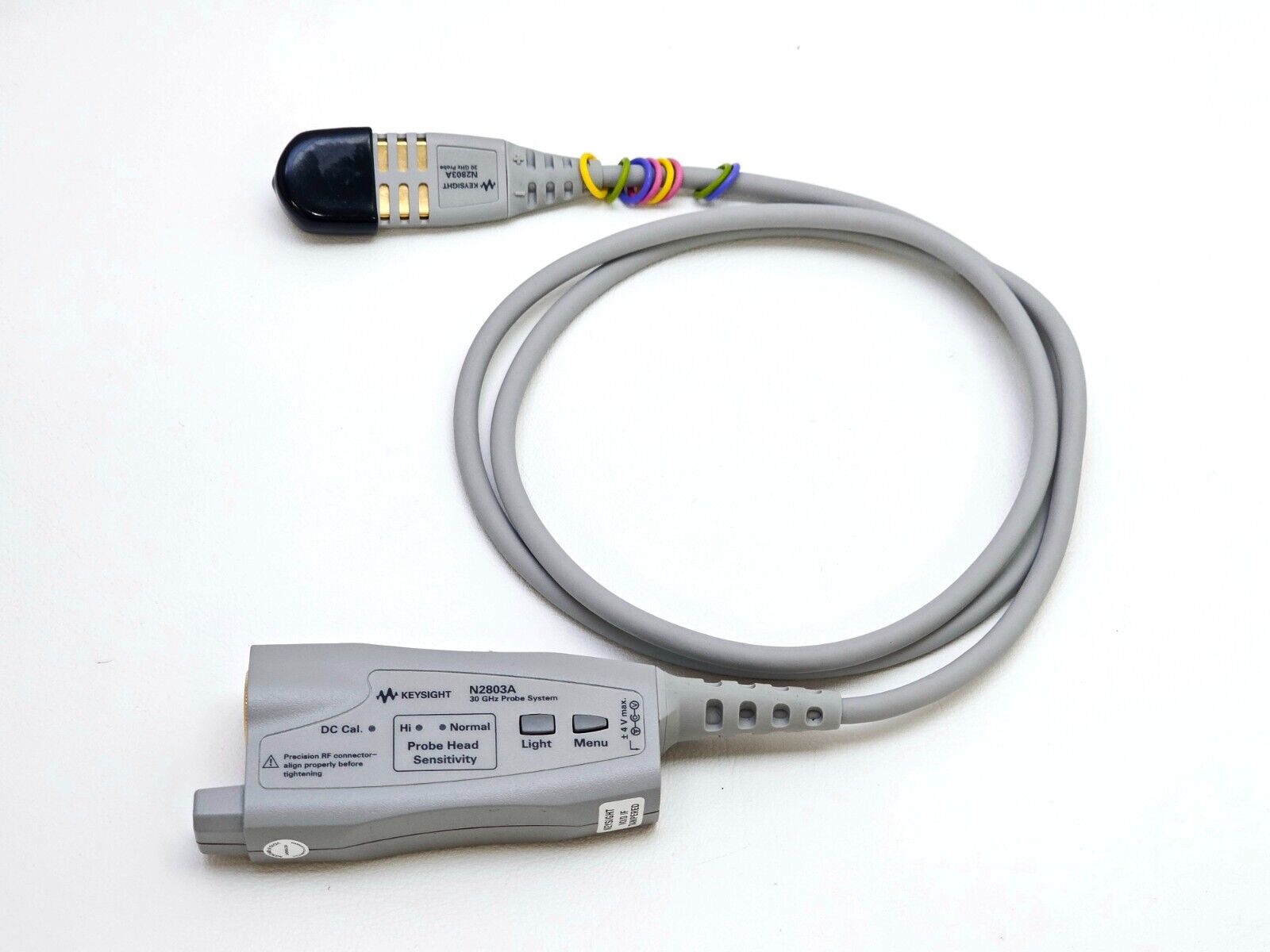

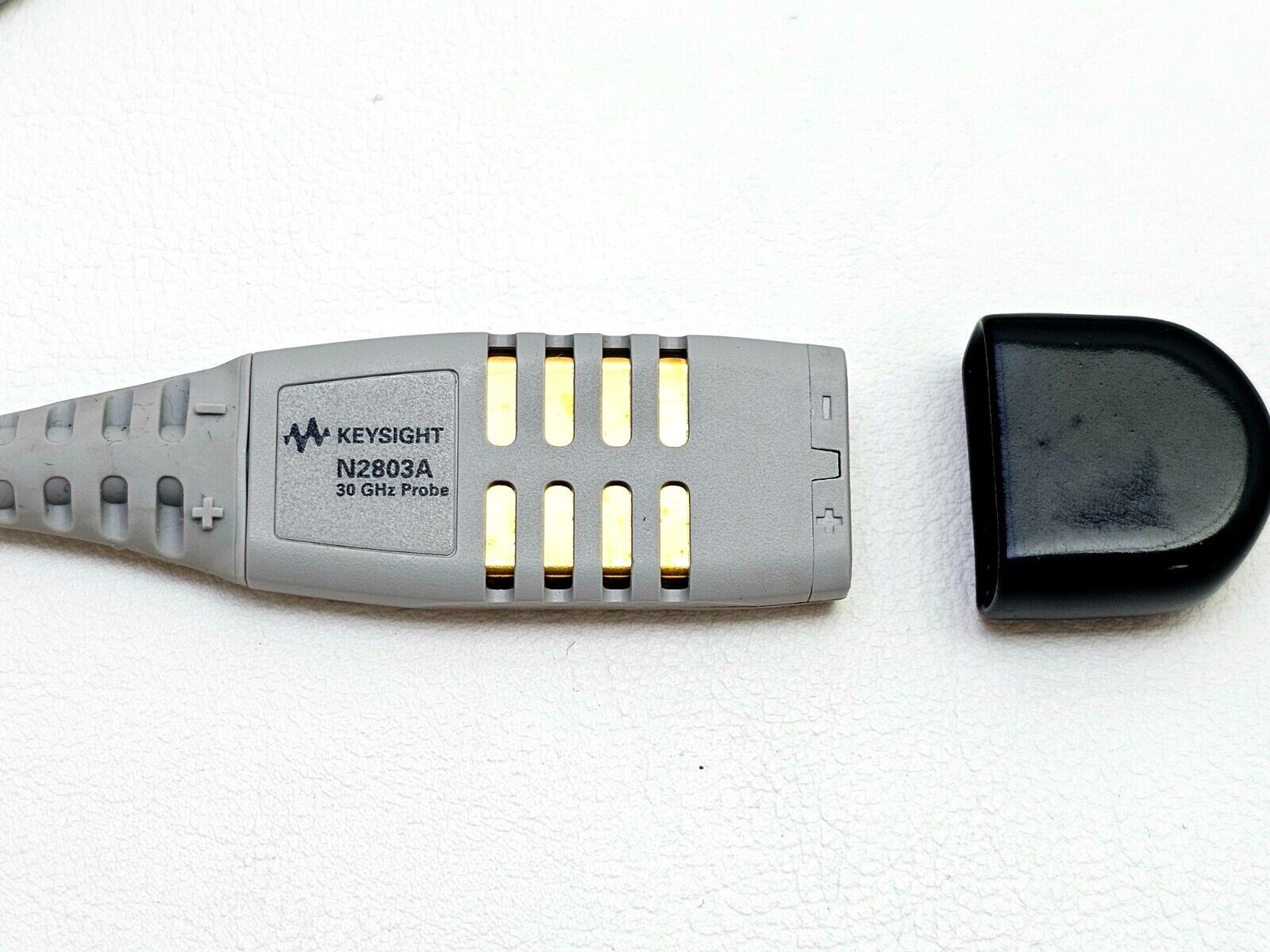

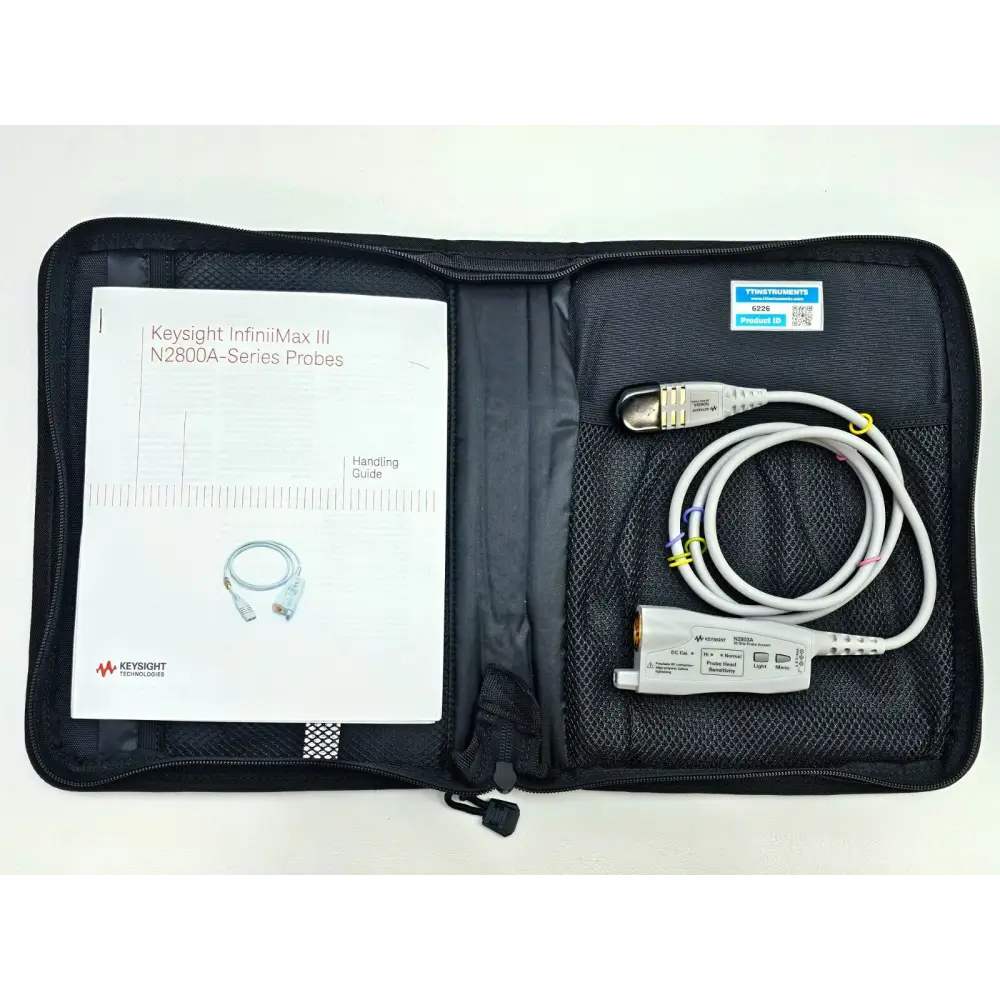

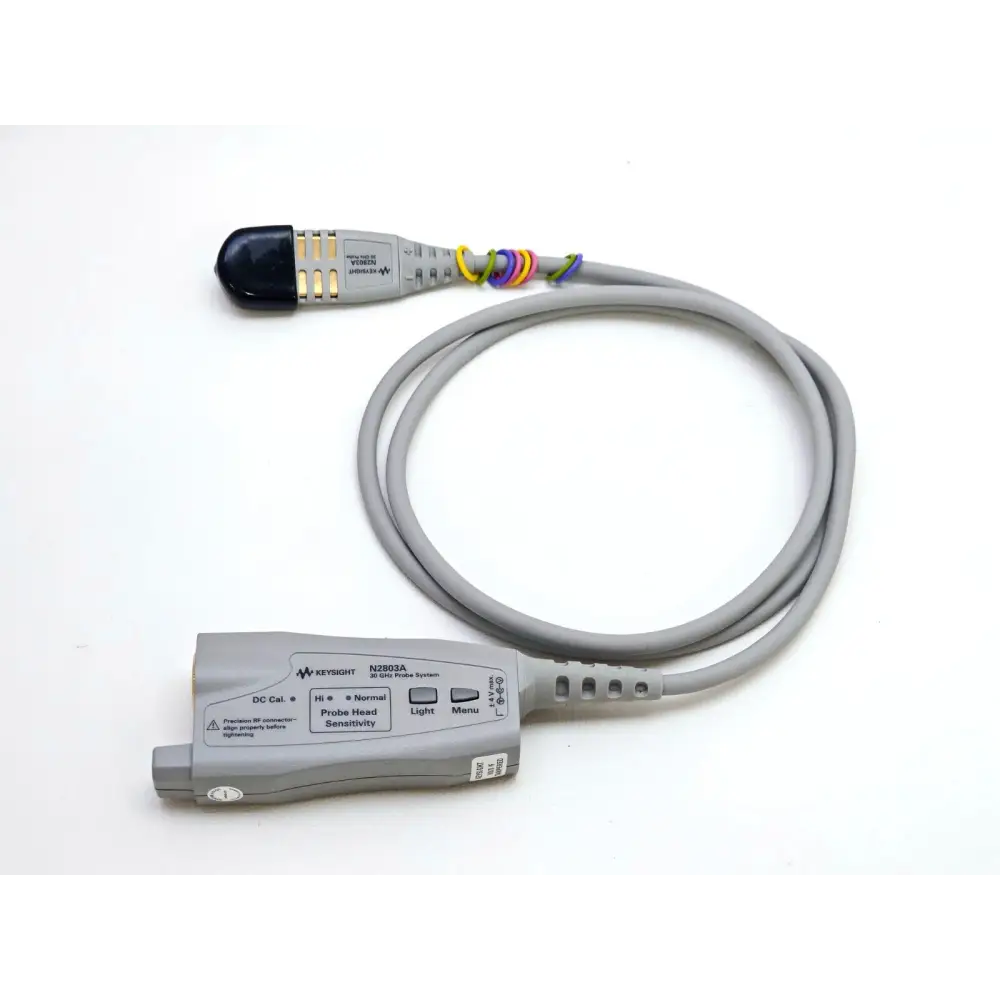

• N2803A probe amplifier unit

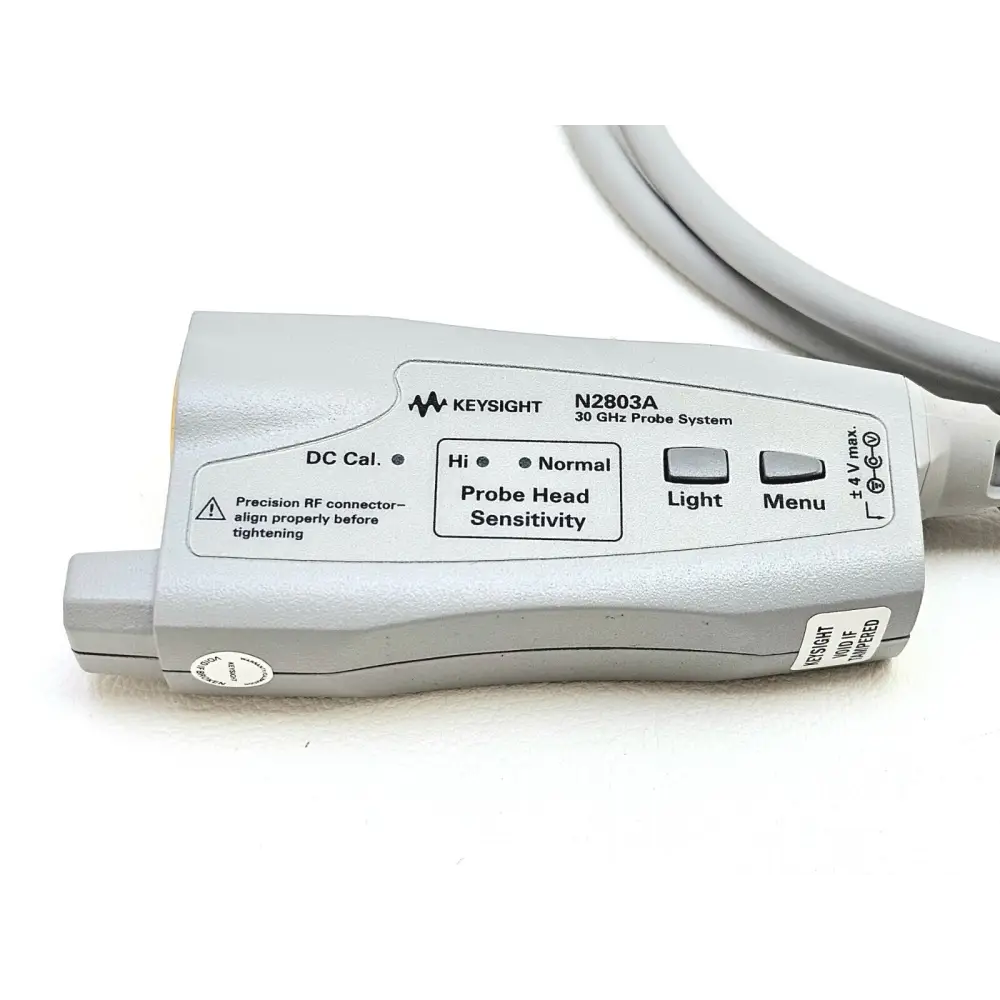

The Keysight (formerly Agilent) N2803A is the top-of-range model in the InfiniiMax III Series probe amplifier family, delivering 30 GHz of bandwidth. The InfiniiMax III probing system provides extremely low signal loading and high bandwidth to achieve a new level of signal fidelity and accuracy when used with compatible Infiniium oscilloscopes. A proprietary 200 GHz fT indium phosphide (InP) IC process with backside ground vias and novel thick film technology underpins the performance of the InfiniiMax III probe system. The N2803A supports both differential and single-ended measurement modes and is compatible with the full range of InfiniiMax III probe heads, including ZIF, browser (N5445A), and solder-in types. It is not compatible with InfiniiMax I or II probe heads.

Key Specifications:

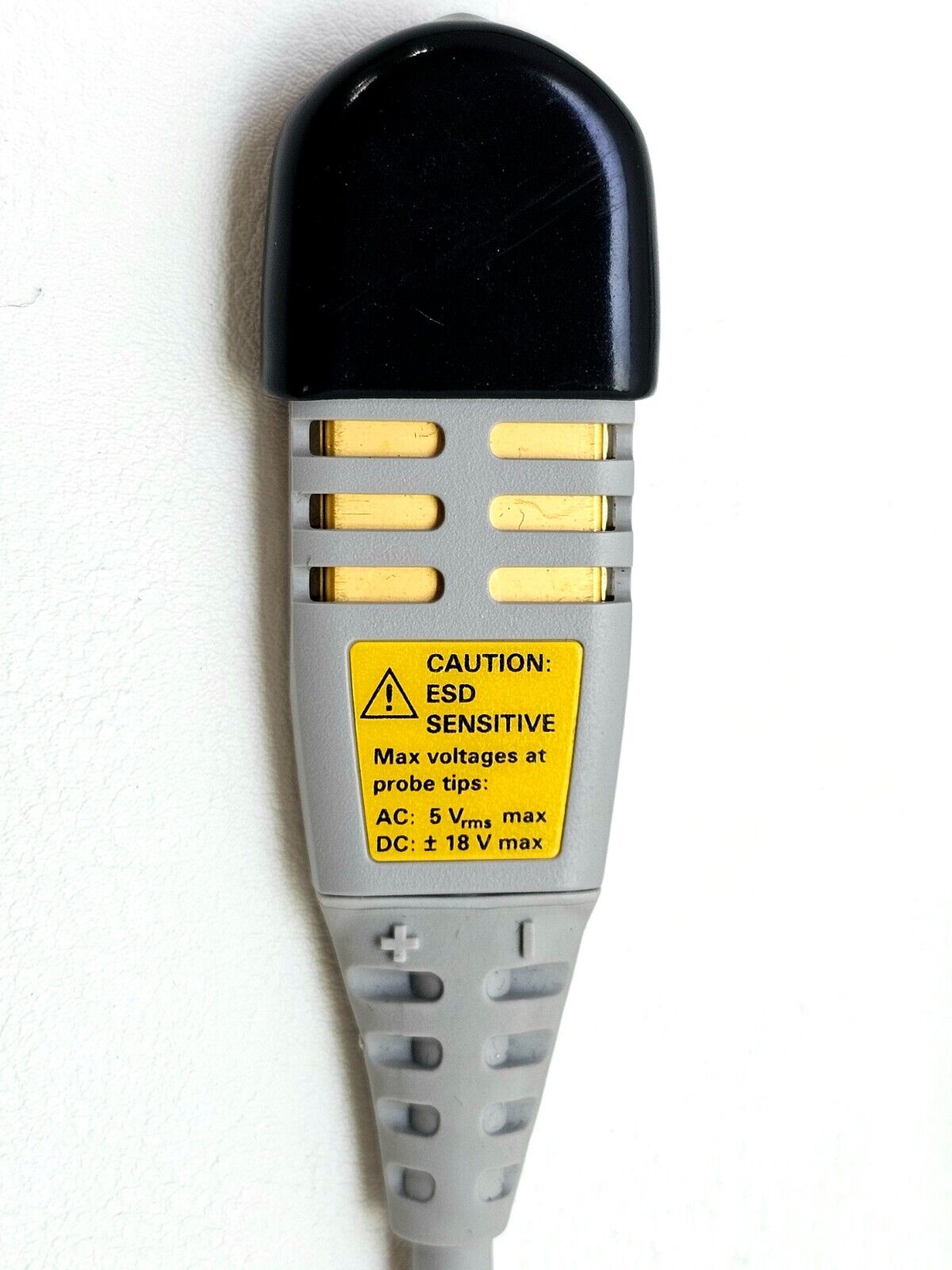

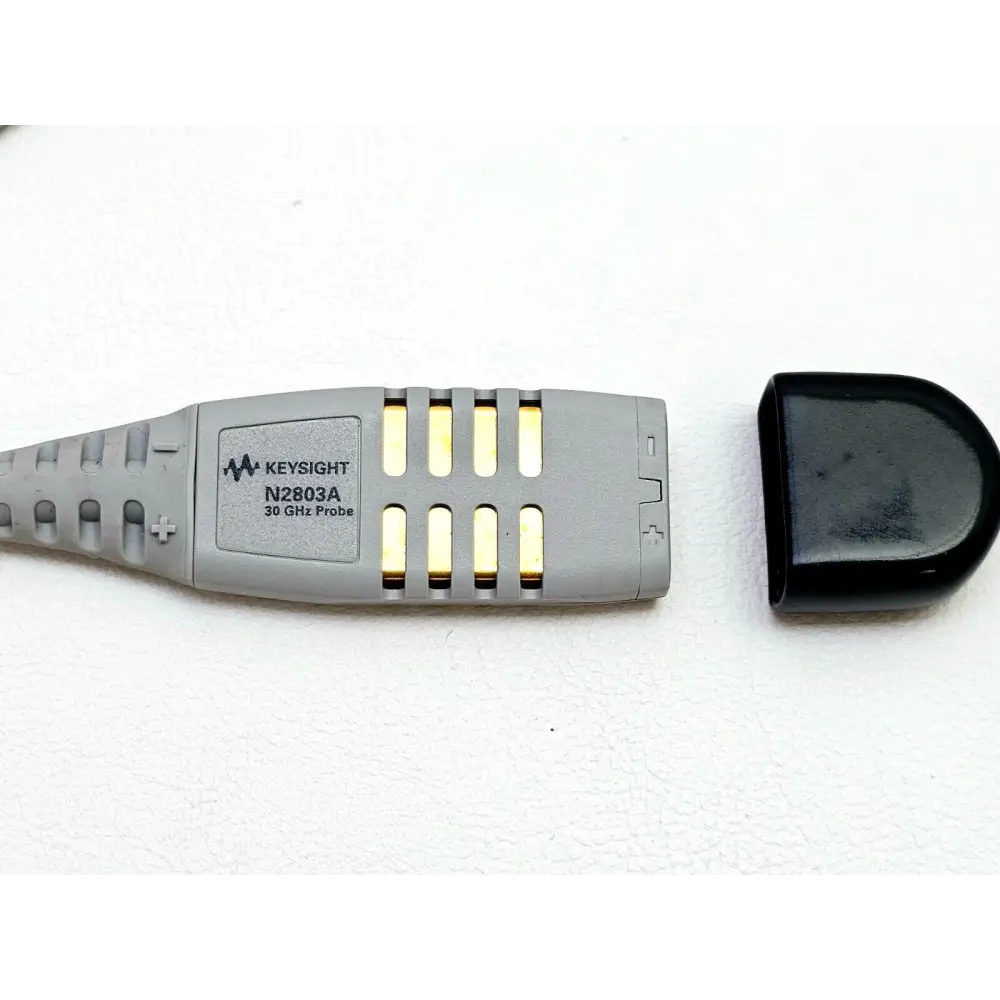

Model: N2803A
Product Family: InfiniiMax III Series Probe Amplifier
Bandwidth: 30 GHz
Rise Time (10–90%): 14.3 ps (amplifier only)
DC Attenuation Ratio: 6:1 (3:1 with 200 Ω ZIF tip)
Input Voltage Range: 1.6 Vpp (0.8 Vpp with 200 Ω ZIF tip)
Input Common Mode Range: ±12 V at DC to 250 Hz; ±2.5 V at >250 Hz
Offset Range: ±16 V (single-ended probing)
DC Input Resistance (Rdiff): 100 kΩ ±2%
DC Input Resistance (Rse): 50 kΩ ±2%
Input Resistance >10 kHz (Rdiff): 1 kΩ
Input Resistance >10 kHz (Rse): 500 Ω
Input Capacitance: Cdiff = 32 fF, Cse = 48 fF (with ZIF probe head)
Warranted System Bandwidth (with N5445A browser head): 28 GHz
Warranted System Bandwidth (with N5439A/N5440A ZIF head): 26 GHz

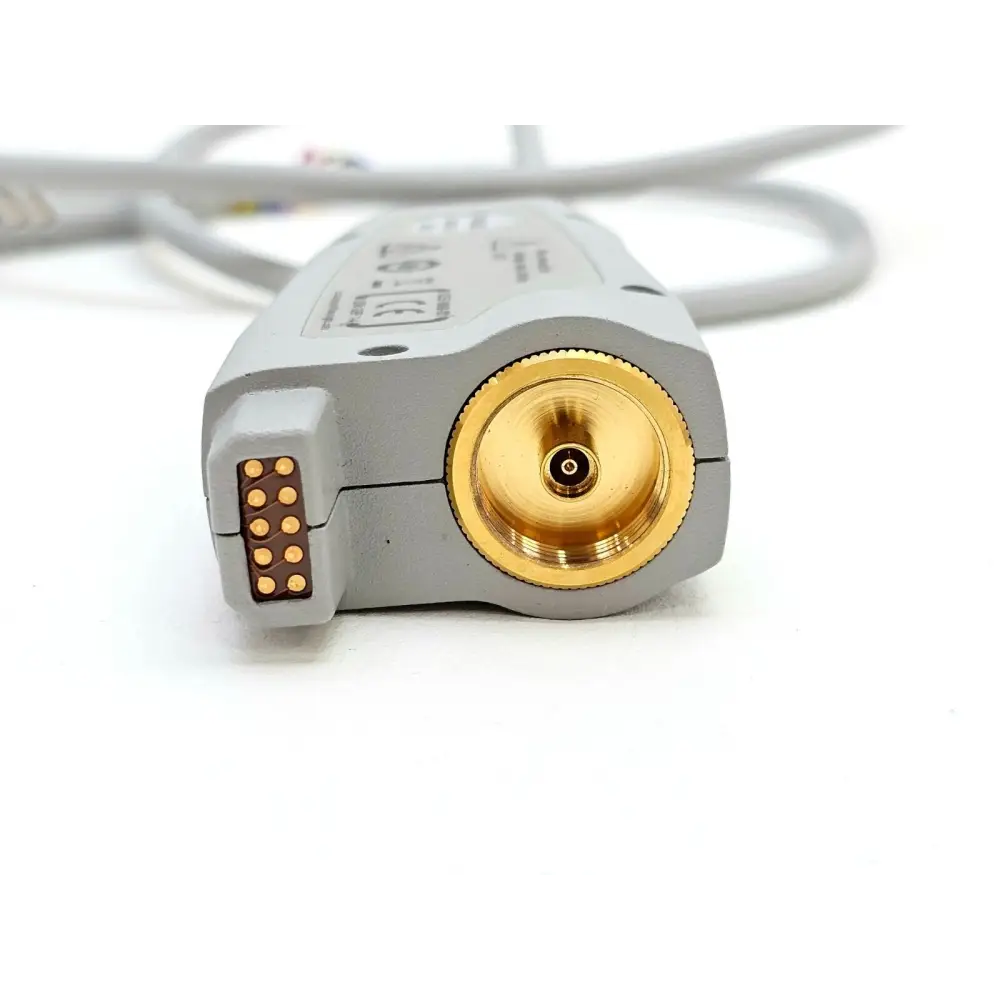

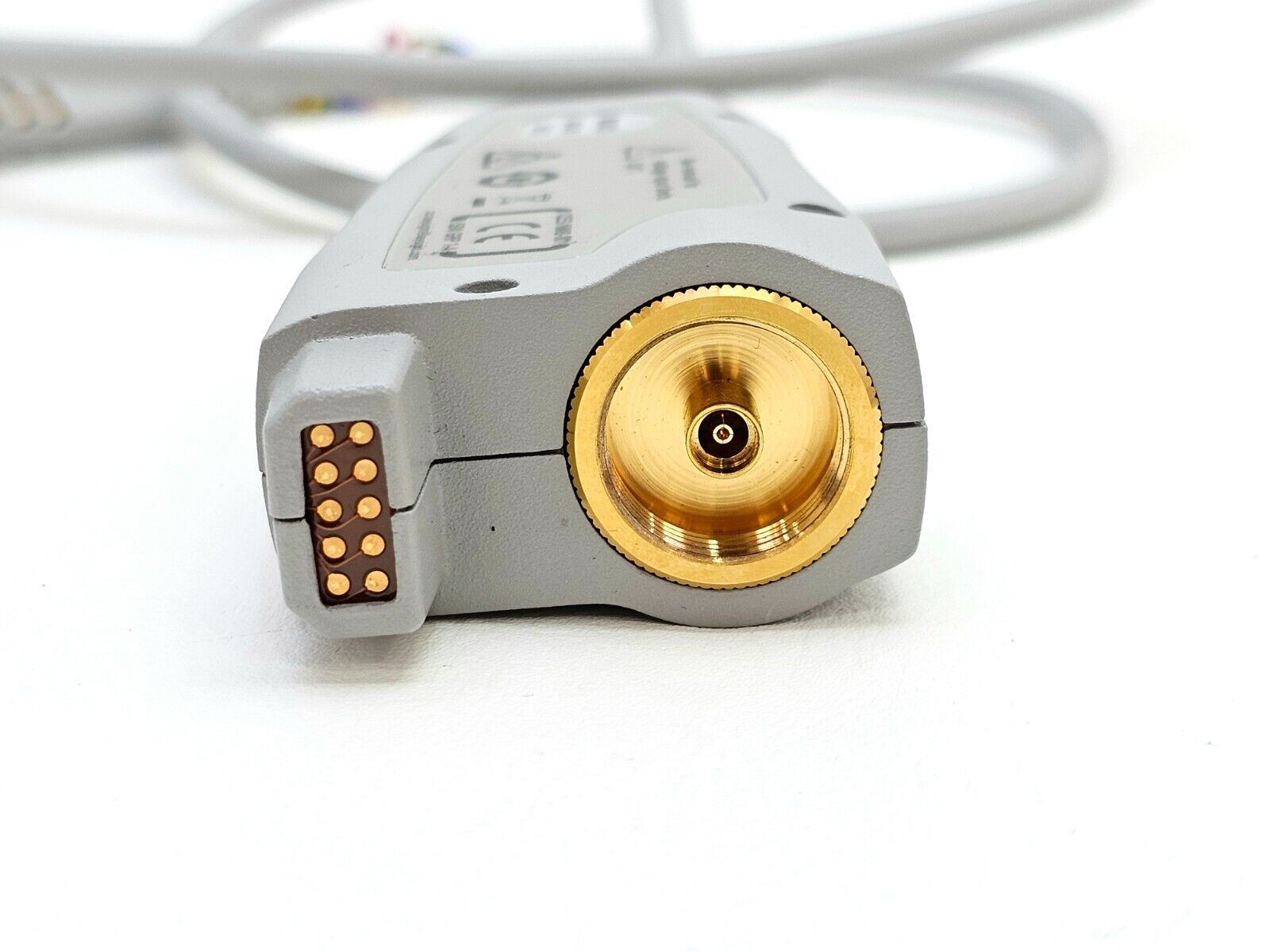

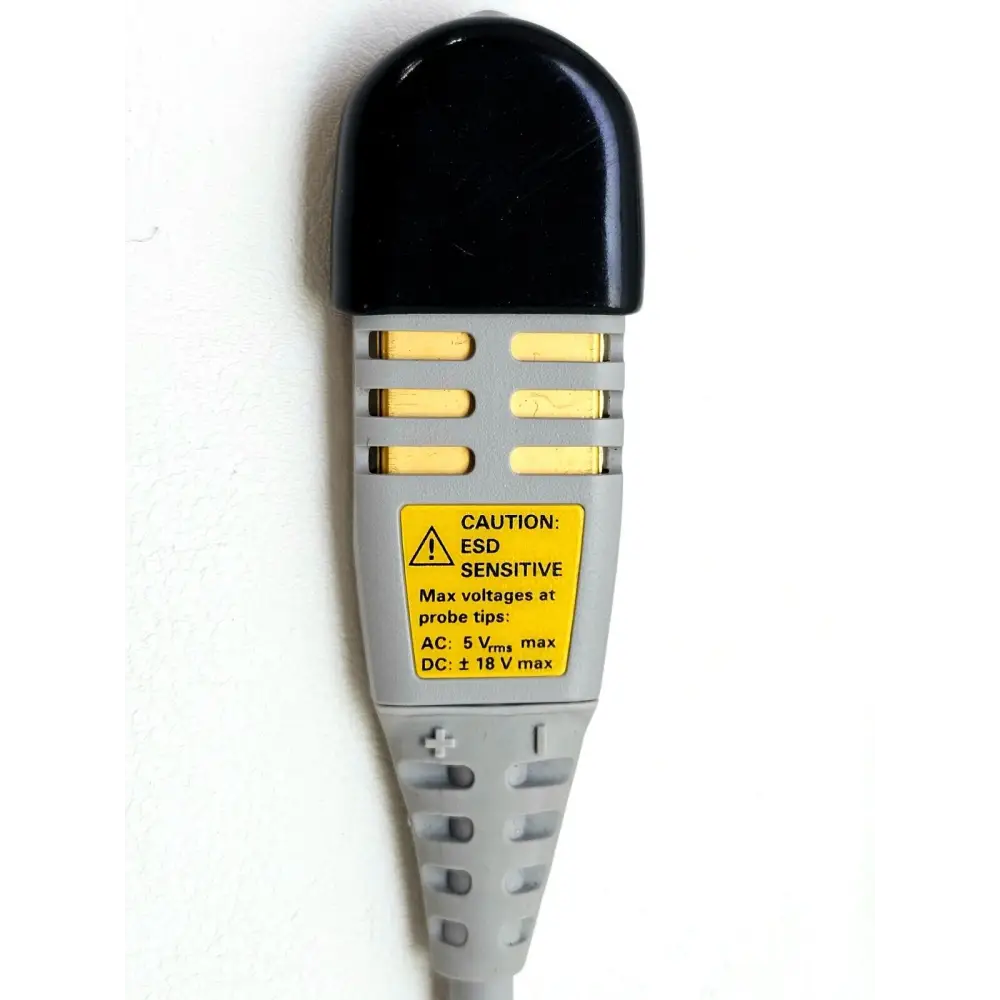

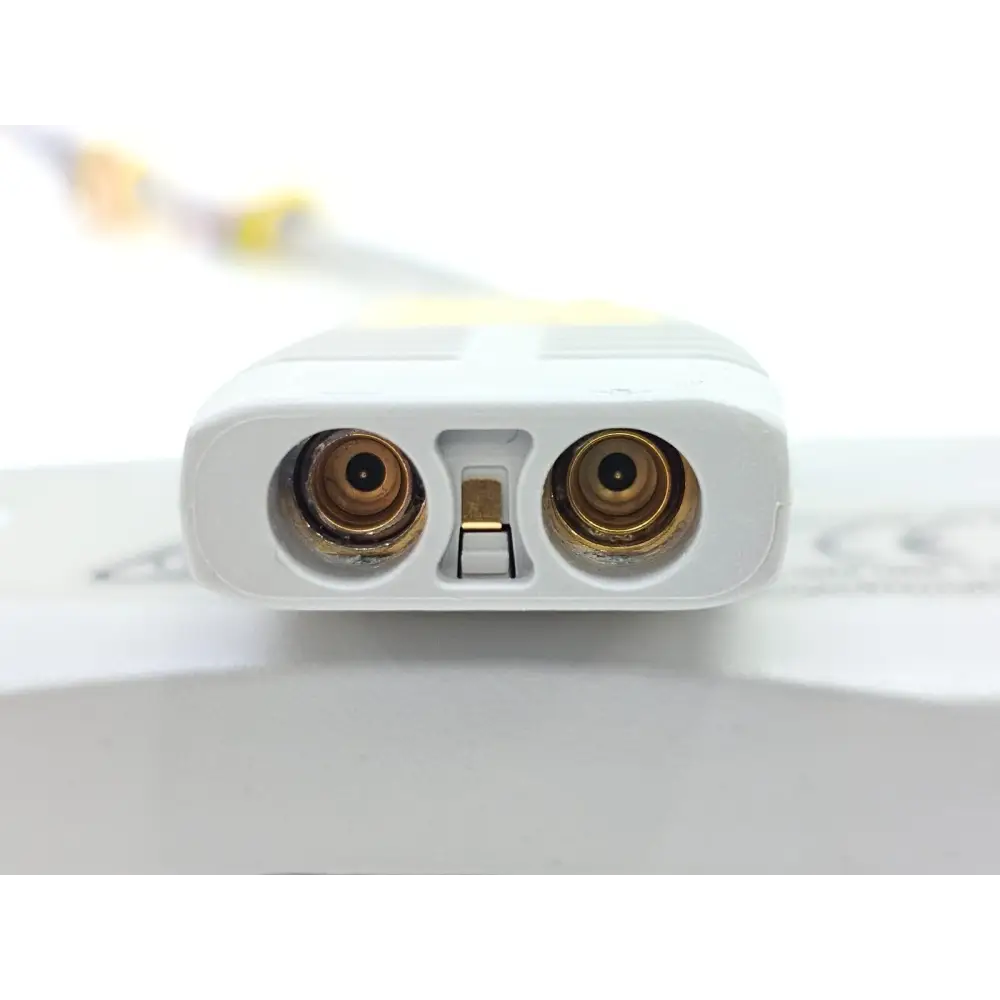

Probe Interface: AutoProbe I
Compatible Oscilloscopes: Infiniium 90000X/Q/Z Series (28 GHz to 63 GHz models); Infiniium 86100C DCA-J (with N5477A adapter)
Measurement Modes: Differential (D), Single-ended (SE)
IC Technology: 200 GHz fT InP (indium phosphide) with backside ground vias
Probe Head Compatibility: InfiniiMax III probe heads only (not compatible with InfiniiMax I or II heads)

Typical Applications:
- High-speed serial data analysis (PCI Express, USB 3.x, DDR, 10/25/100 Gbps Ethernet)
- Differential signal integrity measurements
- High-density IC and PCB probing
- Eye diagram and jitter analysis on multi-gigabit interfaces

Keysight InfiniiMax III/III+ Probing System Data Sheet (includes N2803A specifications): Download PDF

Keysight Infiniium Oscilloscope Probes and Accessories Data Sheet (includes N2803A): Download PDF

Agilent InfiniiMax III Probing System Data Sheet (legacy, includes N2803A): Download PDF

InfiniiMax III N2800A Series Probe Handling Guide — User Manual (Keysight): Download PDF
