Out of Spec. Viavi JDSU OSA-110M 1250-1650nm OSA Optical Spectrum Analyzer

Condition: For parts or not working

This Viavi JDSU OSA-110M (2304/91.02) Compact Full-Band Optical Spectrum Analyzer Module is listed as out of specification — either wavelength or absolute power measurements fall outside the manufacturer's defined thresholds. The deviation may be correctible through professional calibration. Compatible with the MTS 6000A / V2 platform (sold separately).

Included in the sale:

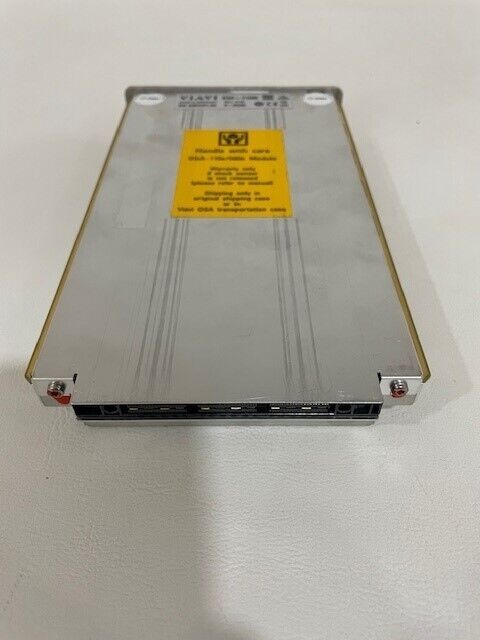

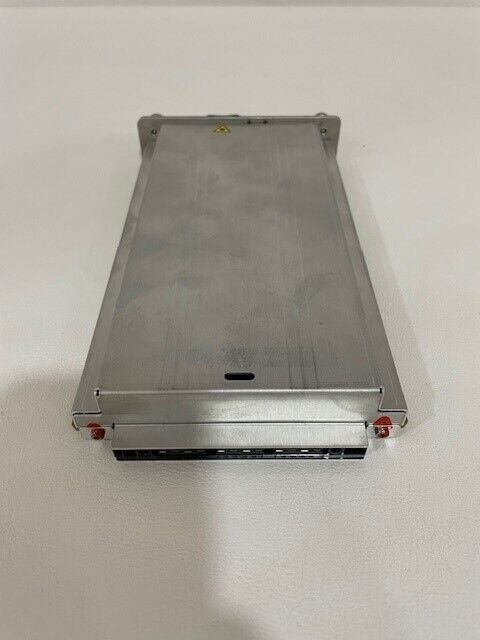

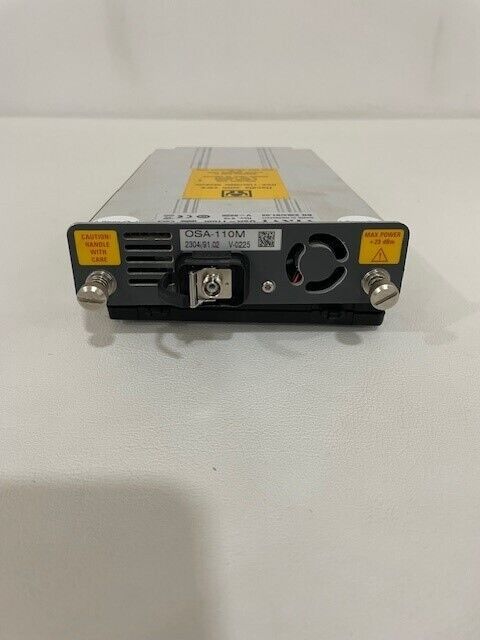

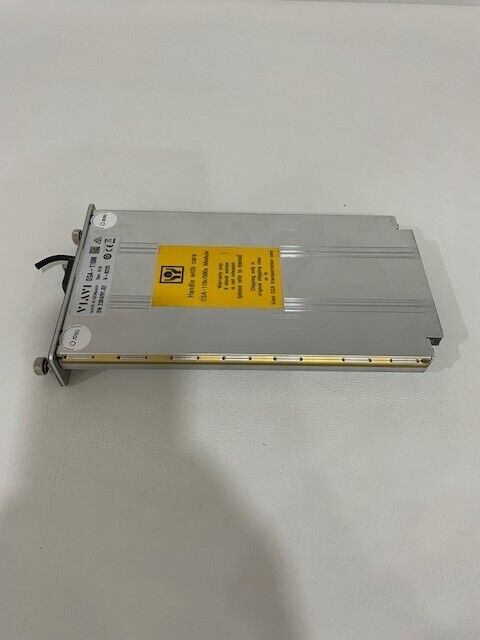

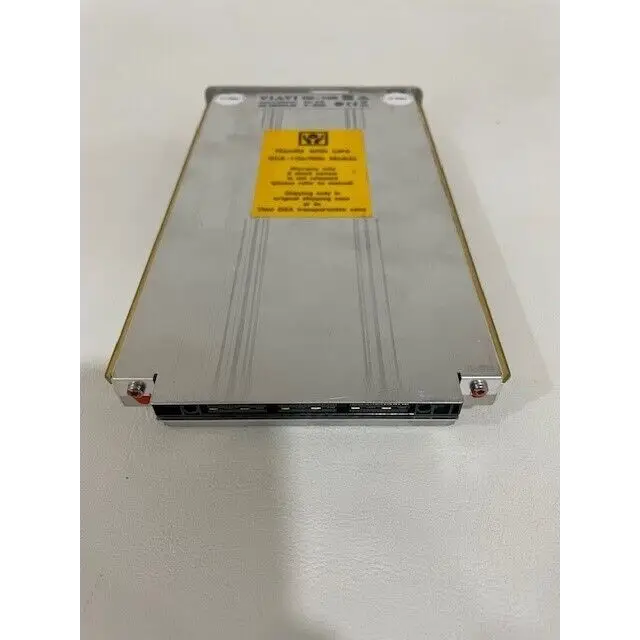

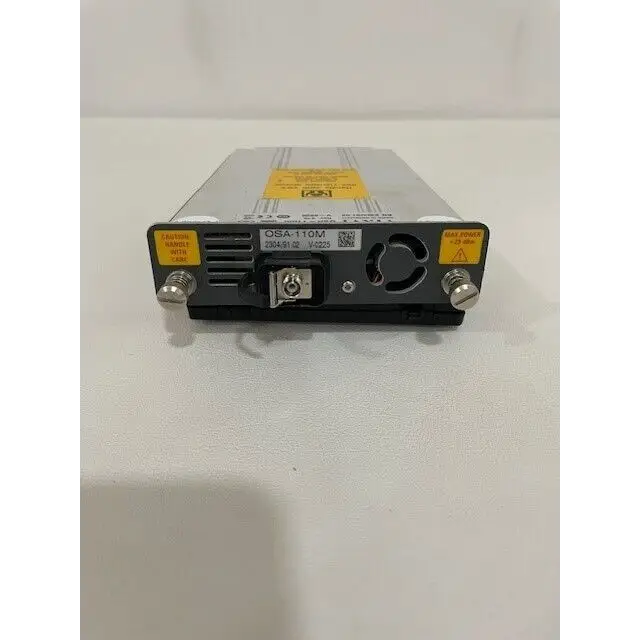

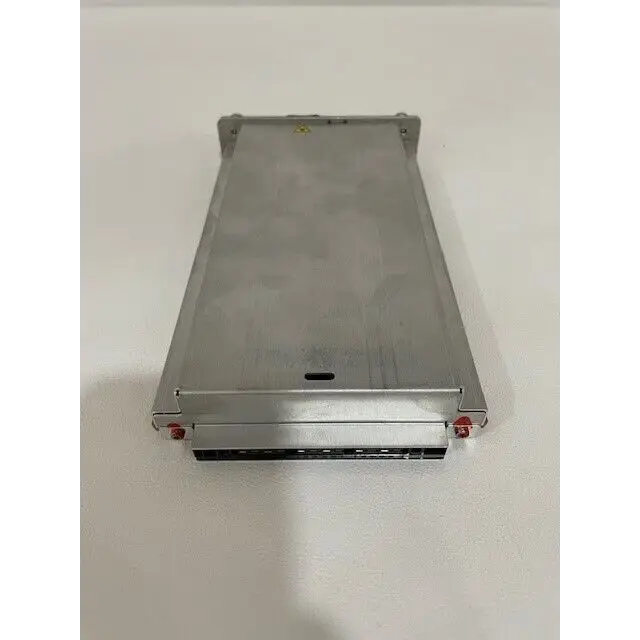

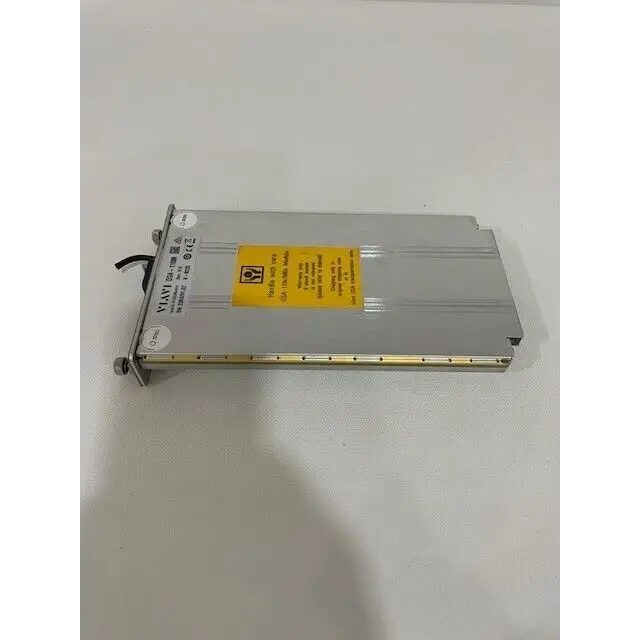

• OSA-110M PC Compact Full-Band (2304/91.02) Optical Spectrum Analyzer Module

The Viavi Solutions (formerly JDSU) OSA-110M is a compact, single-slot, full-band optical spectrum analyzer module for use with the T-BERD/MTS-6000, T-BERD/MTS-6000A, and T-BERD/MTS-8000 field test platforms. It is designed to deliver lab-grade optical spectral analysis in a portable, field-ready form factor — the smallest full-band OSA solution on the market when housed in its host platform.

The OSA-110M is suitable for all CWDM and DWDM network types, supporting channel spacings down to 33 GHz. It provides high optical resolution across the complete 1250–1650 nm band, making it ideal for testing power levels, wavelength accuracy, OSNR, and spectral drift during network provisioning, maintenance, and upgrades. The module also supports 40G and 100G interface testing, including 40GBase-LR4 and 100GBase-LR4/ER4 according to IEEE 802.3 standards.

The T-BERD/MTS-8000 platform also allows the OSA-110M to be combined with OTDR, CD/PMD, and BER tester modules, providing one of the widest multi-layer optical test portfolios available for field engineers.

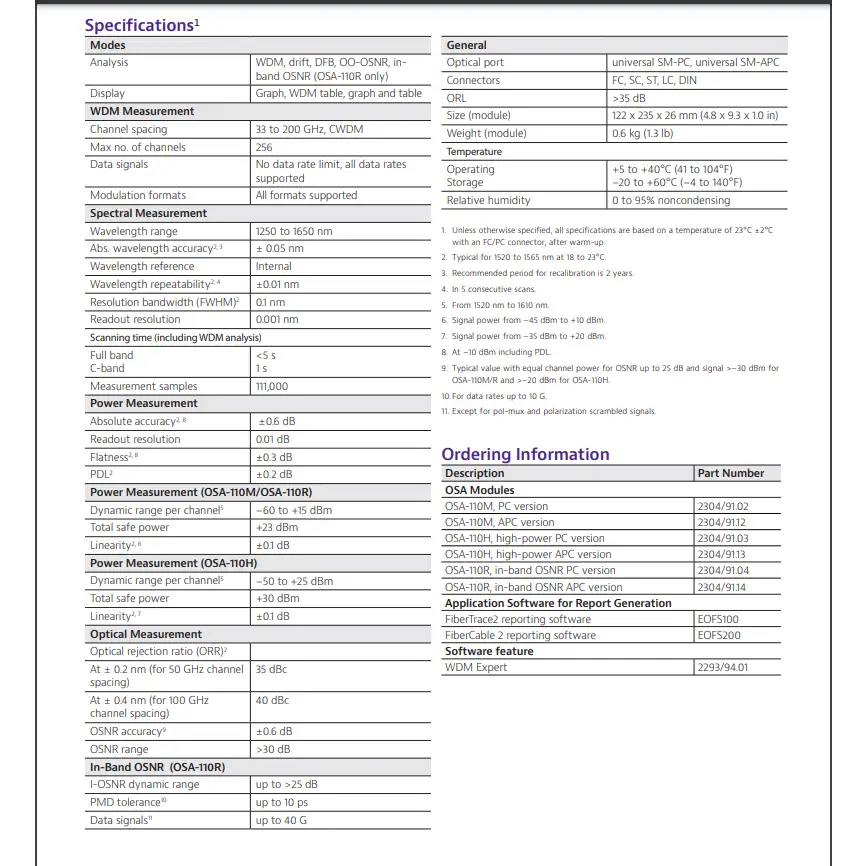

Key Specifications:
Measurement Range: 1250 nm to 1650 nm (full-band)
Wavelength Accuracy: ±0.05 nm (built-in wavelength calibration)
Minimum Channel Spacing: 33 GHz (DWDM)
Fibre Type: Singlemode
Optical Port: Universal SM-PC (2304/91.02 variant)
Platform Compatibility: T-BERD/MTS-6000, T-BERD/MTS-6000A, T-BERD/MTS-8000
Form Factor: Single-slot plug-in module
Minimum Input Power (OSA-110M): > –40 dBm
Network Types Supported: CWDM, DWDM, ROADM (with compatible variant)
High-Speed Testing: 40G/100G interfaces (IEEE 802.3)
Pass/Fail Analysis: Automatic one-touch

Typical Applications:
- Deploying and maintaining DWDM metro and core networks
- Installing and maintaining CWDM systems in CATV, access, and mobile backhaul
- Verifying high-speed 40/100G interfaces
- Provisioning and troubleshooting ROADM networks

Viavi OSA-110M/110H/110R Compact Full-Band OSAs Datasheet (T-BERD/MTS-6000A and -8000 Platforms): Download PDF

Viavi OSA-110 Compact Full-Band OSAs Datasheet (OneAdvisor 800 / current series): Download PDF

Viavi T-BERD/MTS-6000A V2 Platform User Manual (PDF): Download PDF

Viavi OSA-110 Full-Band Optical Spectrum Analyzer Datasheet (via Laser Components): Download PDF
