Condition: For parts or not working

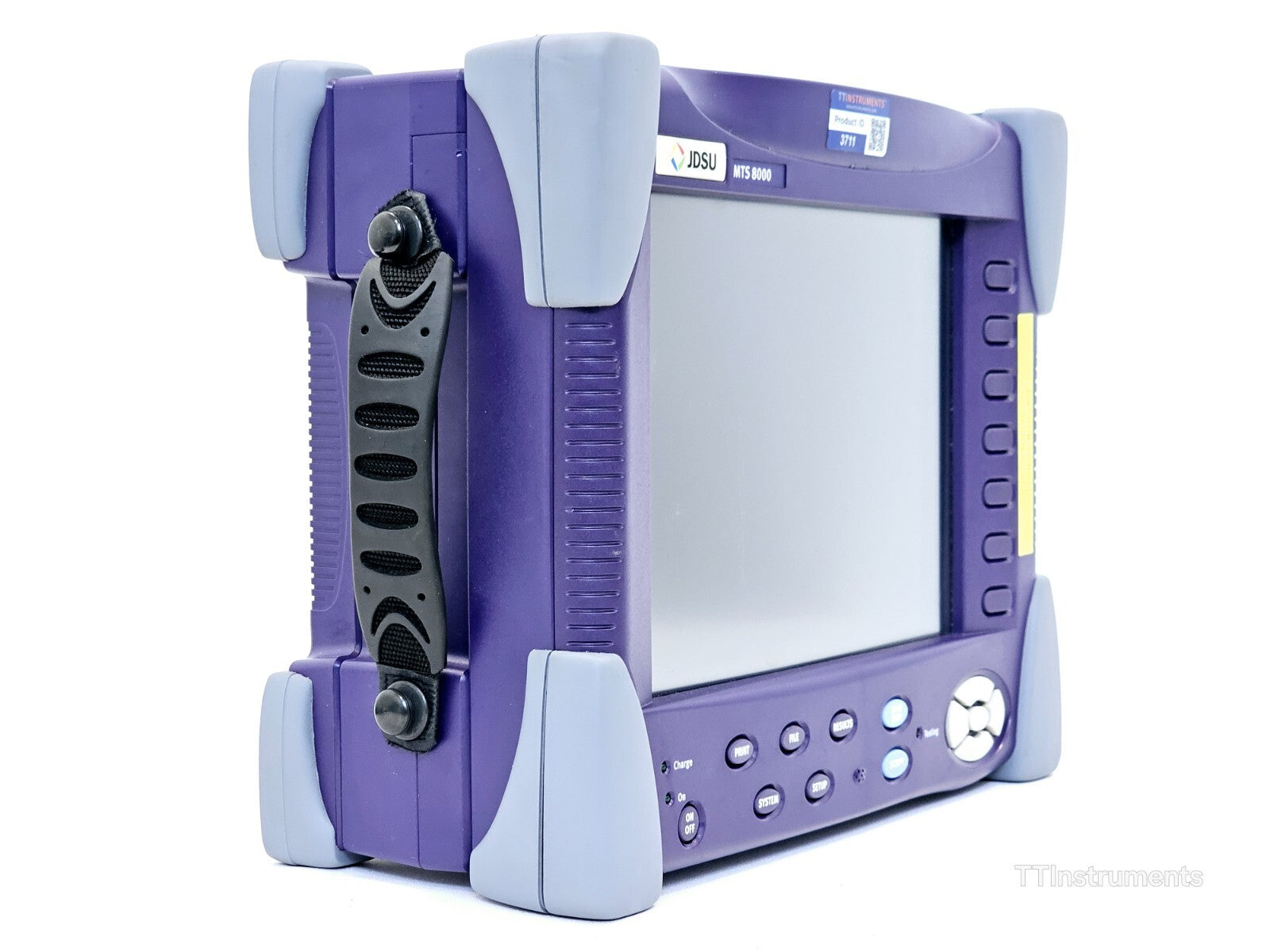

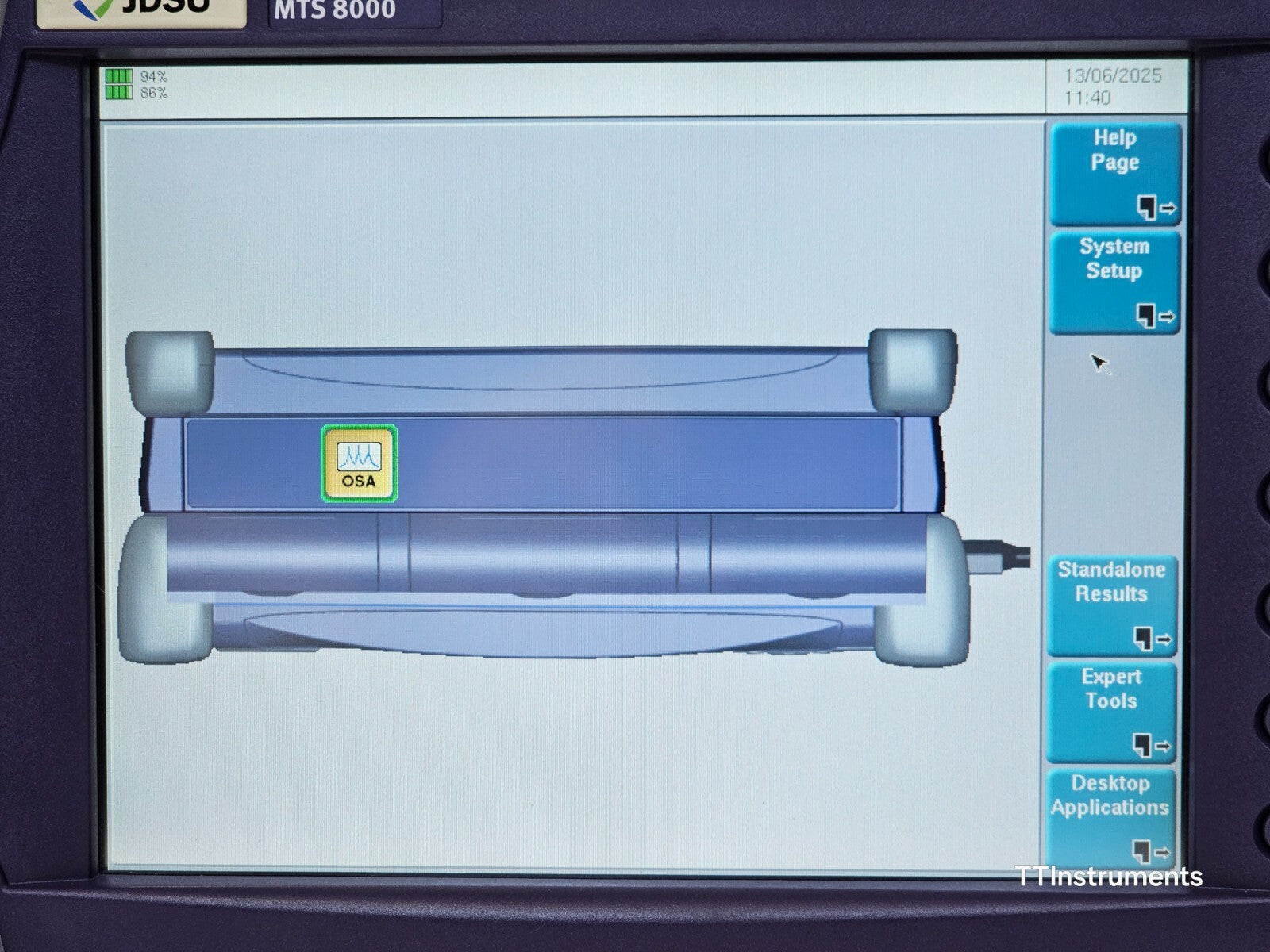

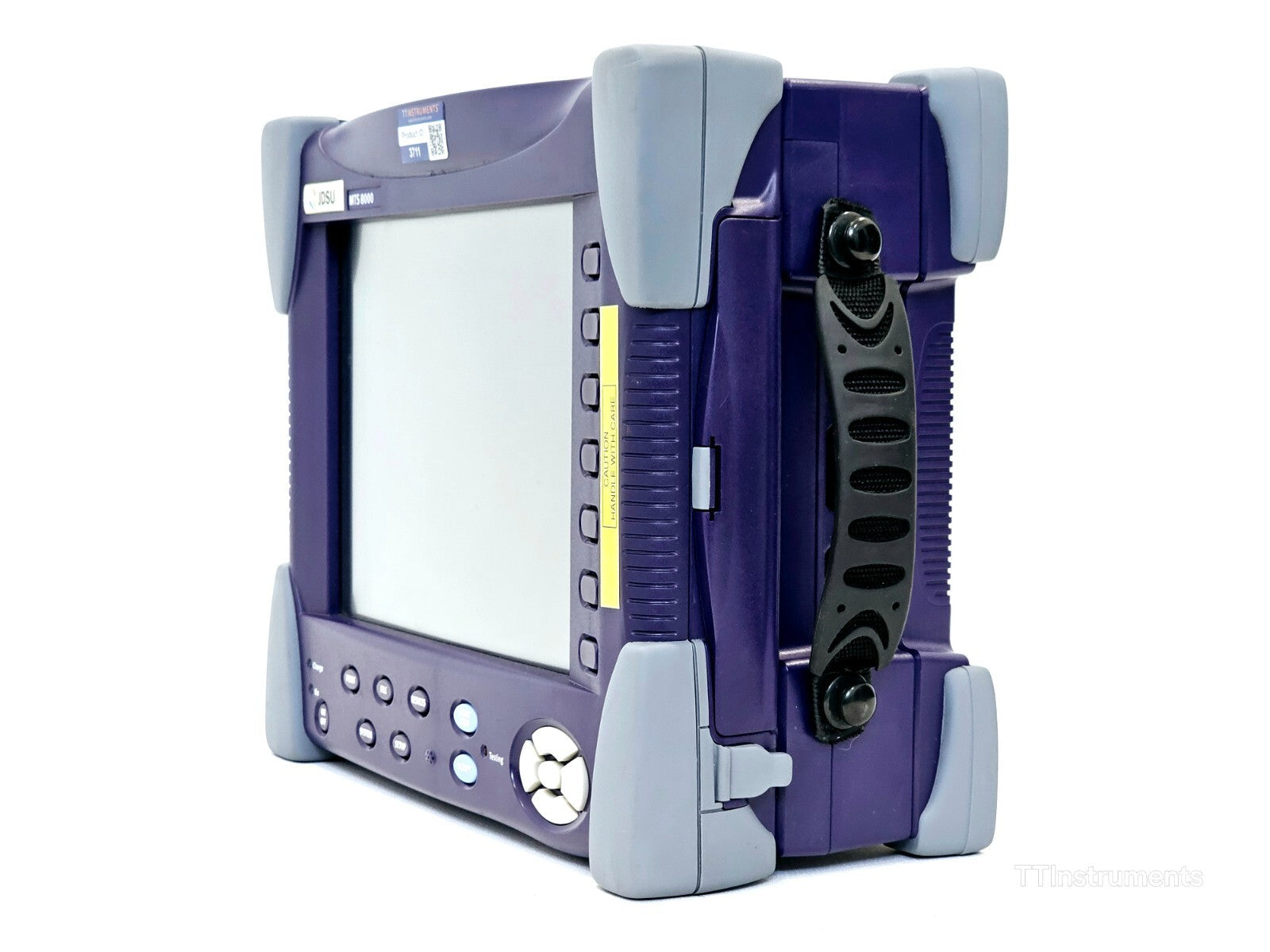

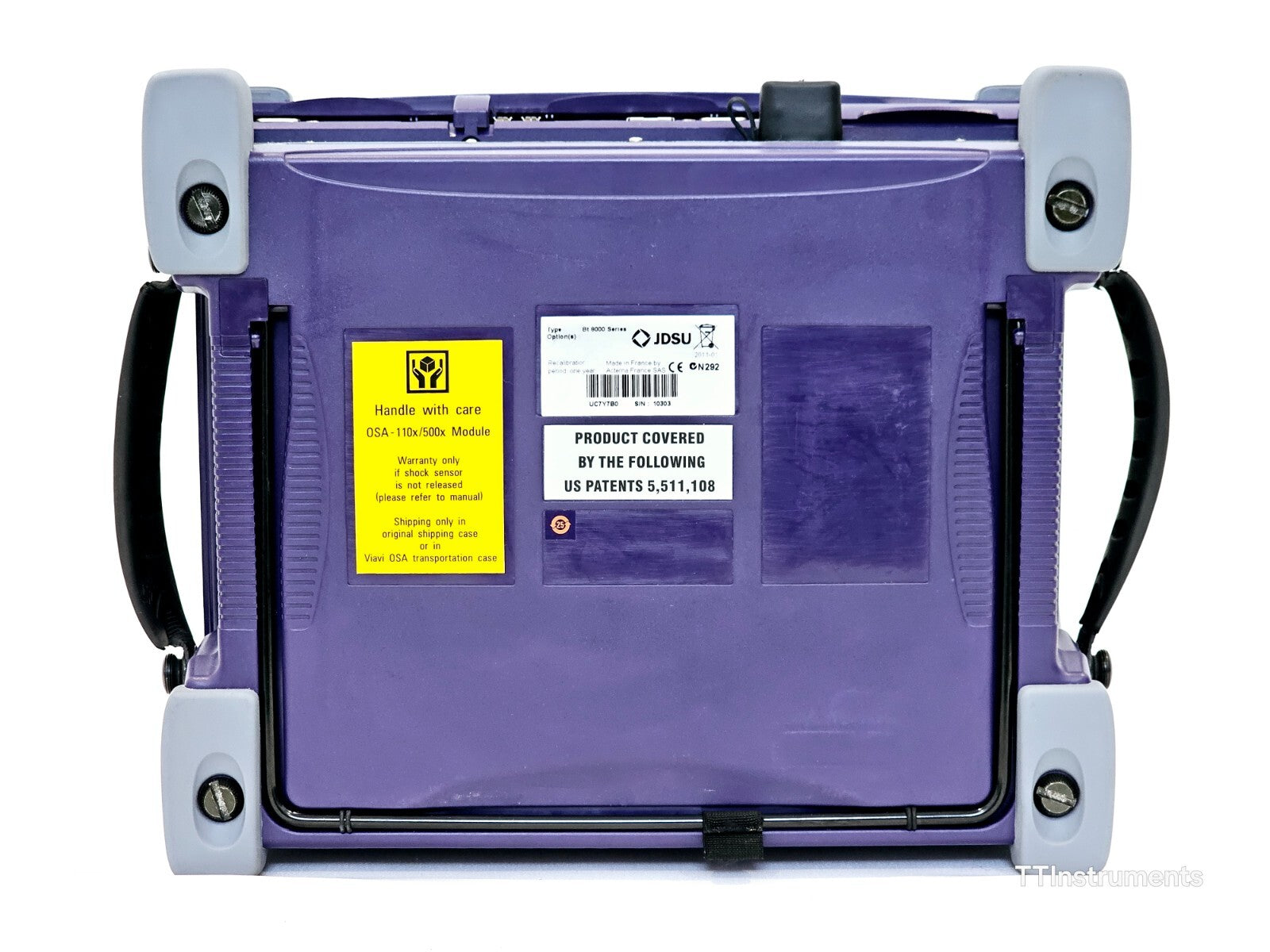

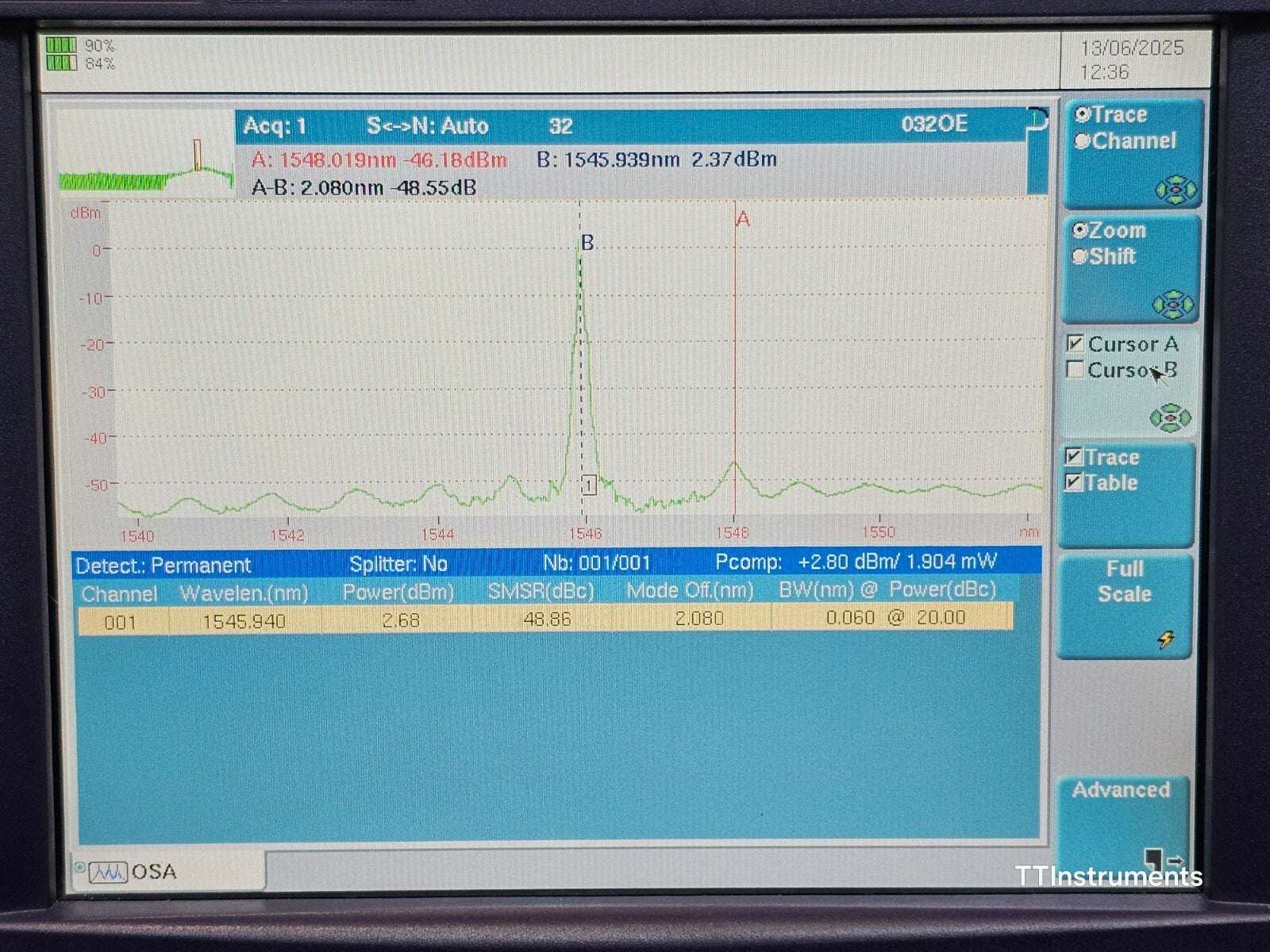

This Viavi JDSU MTS 8000 mainframe with OSA-500 module (part number 2281/91.51) has been listed for parts as the wavelength measurement is out of specification. It may be suitable for spares, repair, or component harvesting by a qualified engineer.

Included with this unit:

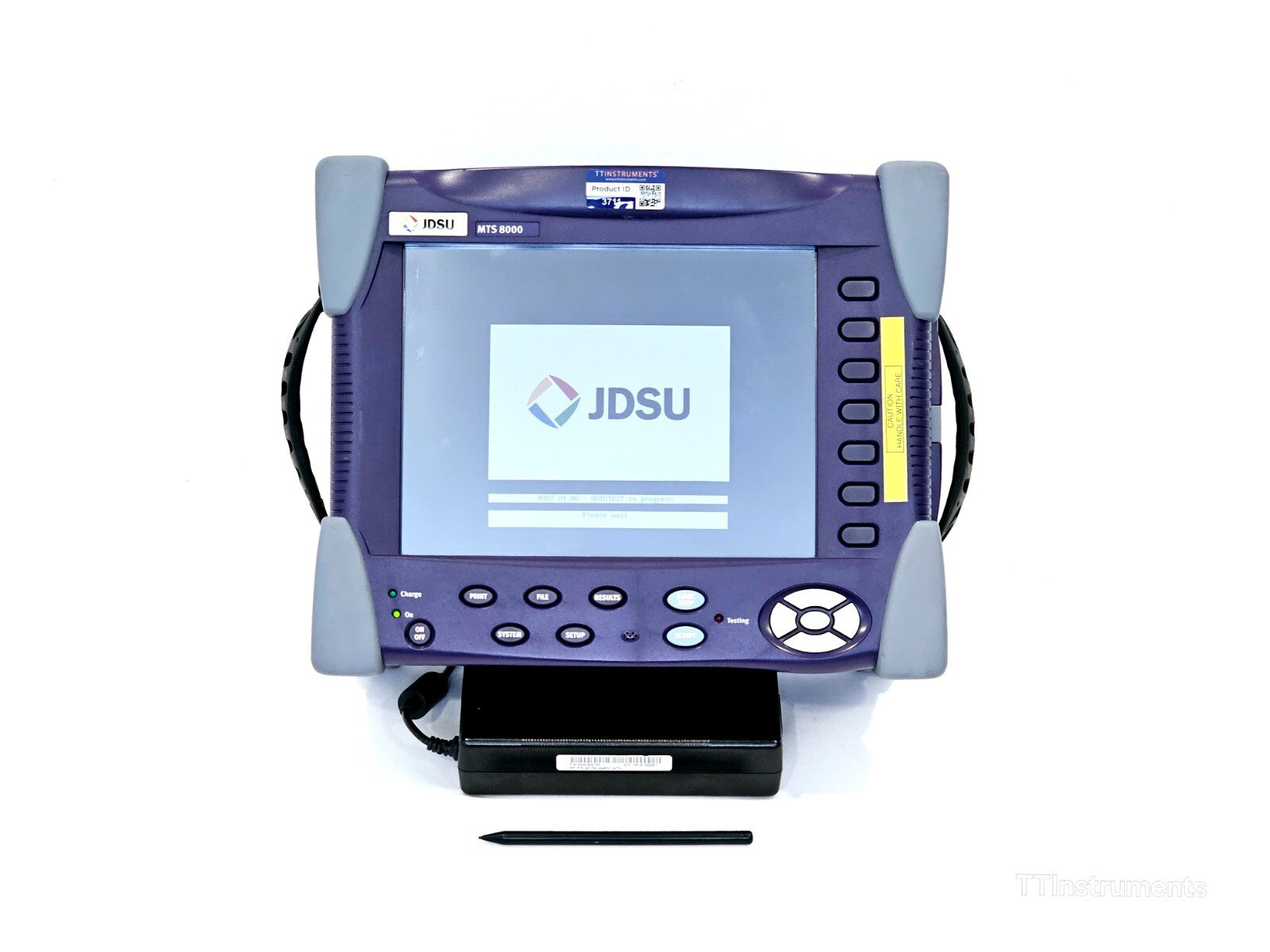

• Viavi MTS 8000 mainframe

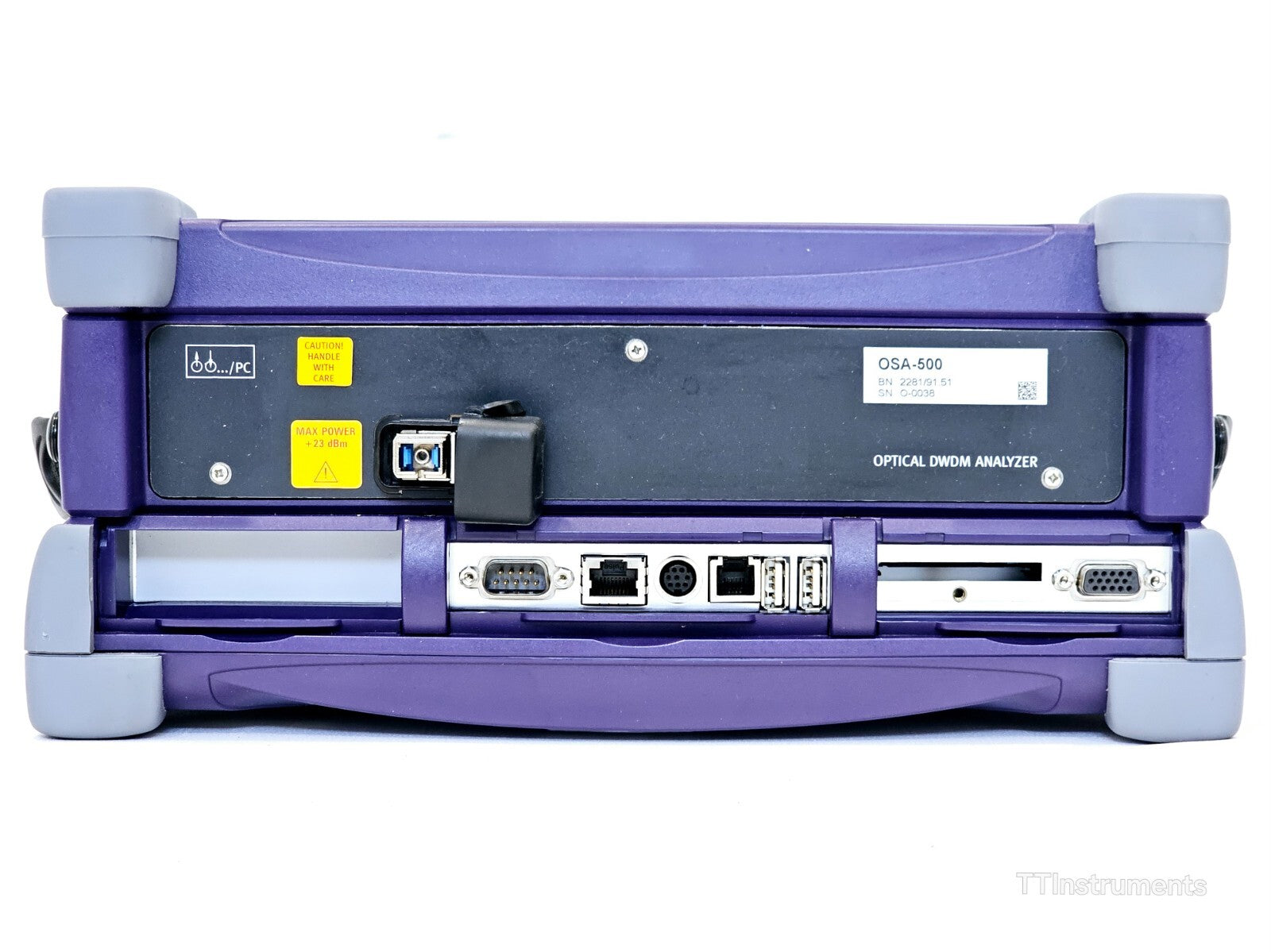

• OSA-500 2281/91.51 optical DWDM analyser module

The Viavi (formerly JDSU) MTS 8000 is a scalable, field-portable multitest platform supporting physical, optical, and Transport/Ethernet testing for high-speed networks up to 40G and 100G. It accepts a range of hot-swappable modules, including the OSA-500 series optical spectrum analysers.

The OSA-500 (part number 2281/91.51) is an ultra-high performance, full-band optical spectrum analyser module for the MTS-8000 and T-BERD 8000 platforms. It is designed to improve optical-filter dynamic range for testing the highest DWDM system OSNR values.

Key Features:
• Full-band wavelength coverage from 1250 nm to 1650 nm, suitable for all DWDM and CWDM (Metro) networks
• Industry-leading optical resolution bandwidth of 0.038 nm — ideal for ultra-dense DWDM networks with channel spacing down to 25 GHz
• Internal online wavelength calibration with a physical constant reference guaranteeing 0.010 nm wavelength accuracy over the instrument's lifetime without external recalibration
• High filter selectivity with lab-grade optical performance in a field-modular design
• Auto-Test mode automatically identifies WDM channels, selects wavelength range, and provides auto-scaling and system qualification
• Built-in pass/fail test functions based on pre-defined alarms for fast system qualification
• Supports accurate measurement of signals at high data rates and advanced modulation formats (10 Gbps and above)
• Graphical and tabular display formats for installation, verification, and troubleshooting of multi-channel DWDM systems
• Built-in optical component test applications for laser diodes, LEDs, and optical amplifiers
• Software option available for PMD testing based on the fixed analyser method

Typical Applications:
• DWDM and CWDM system testing during installation, maintenance, and network upgrades
• Automated DWDM passive and active component testing
• System verification against customer pre-defined limits
• In-depth statistical analysis and automatic storage of measurement data

Technical Specifications (OSA-500 / 2281/91.51):
Model: OSA-500
Part Number: 2281/91.51
Wavelength Range: 1250 nm to 1650 nm
Optical Resolution Bandwidth: 0.038 nm
Wavelength Accuracy: 0.010 nm (internal self-calibrating reference)
OSNR Measurement: Yes — high optical-filter dynamic range for maximum DWDM OSNR testing
Compatible Platform: Viavi/JDSU MTS-8000, T-BERD 8000, MTS-6000, T-BERD 6000
Form Factor: Field-modular plug-in OSA module
Display: Graphical and tabular result formats via MTS 8000 mainframe touch screen
Connectivity: USB, Ethernet, Bluetooth, WiFi (platform dependent)
PMD Option: Available (2281/91.11 PMD test kit)
Application Software: EOFS100 optical fibre trace software for post-analysis

VIAVI High-Performance Full-Band OSAs Datasheet (OSA-500 series) — official product data sheet: Download PDF

JDSU MTS/T-BERD 8000 OSA-180/OSA-500 Optical Spectrum Analyser Specifications Sheet: Download PDF

JDSU OSA-161 Datasheet — MTS/T-BERD 8000 Platform Optical Spectrum Analyser Modules: Download PDF

JDSU MTS-8000 Platform Datasheet — portable optical network tester overview: Download PDF

Viavi OSA-500 Module Datasheet via Laser Components (PDF): Download PDF
