Out of Spec. Anritsu MG3694C 40 GHz Signal Generator Opt. 2B, 15B Restricted Use

Condition: For parts or not working

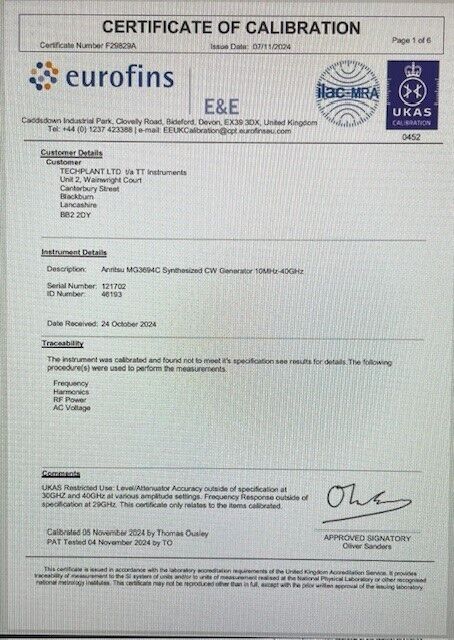

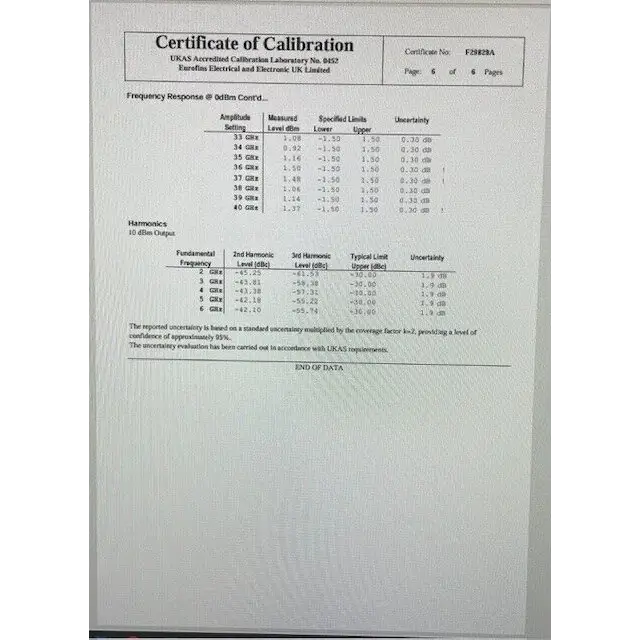

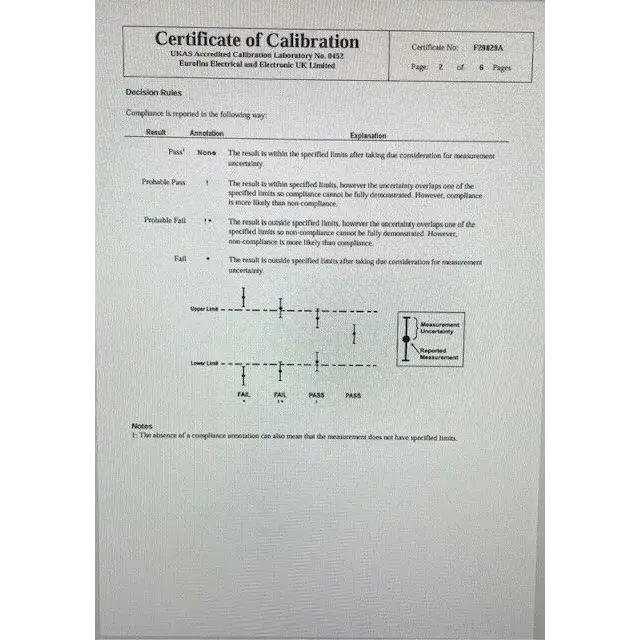

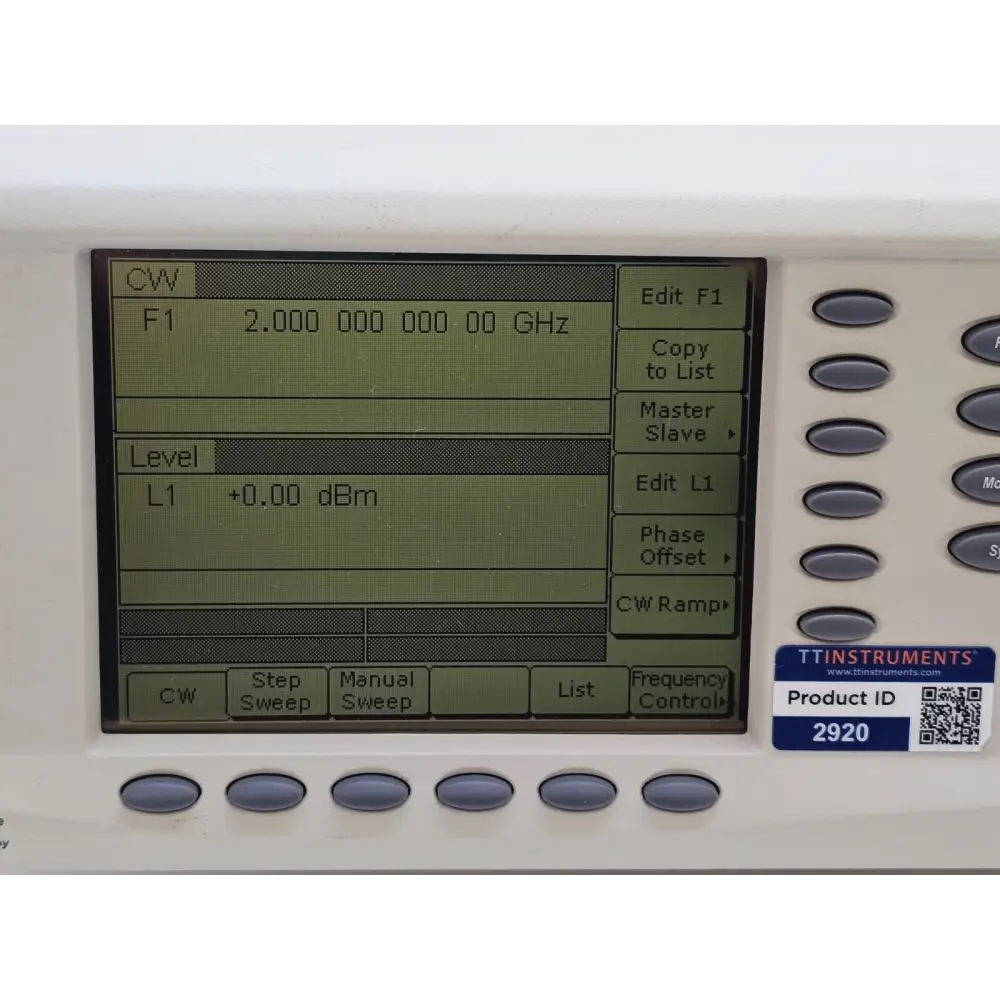

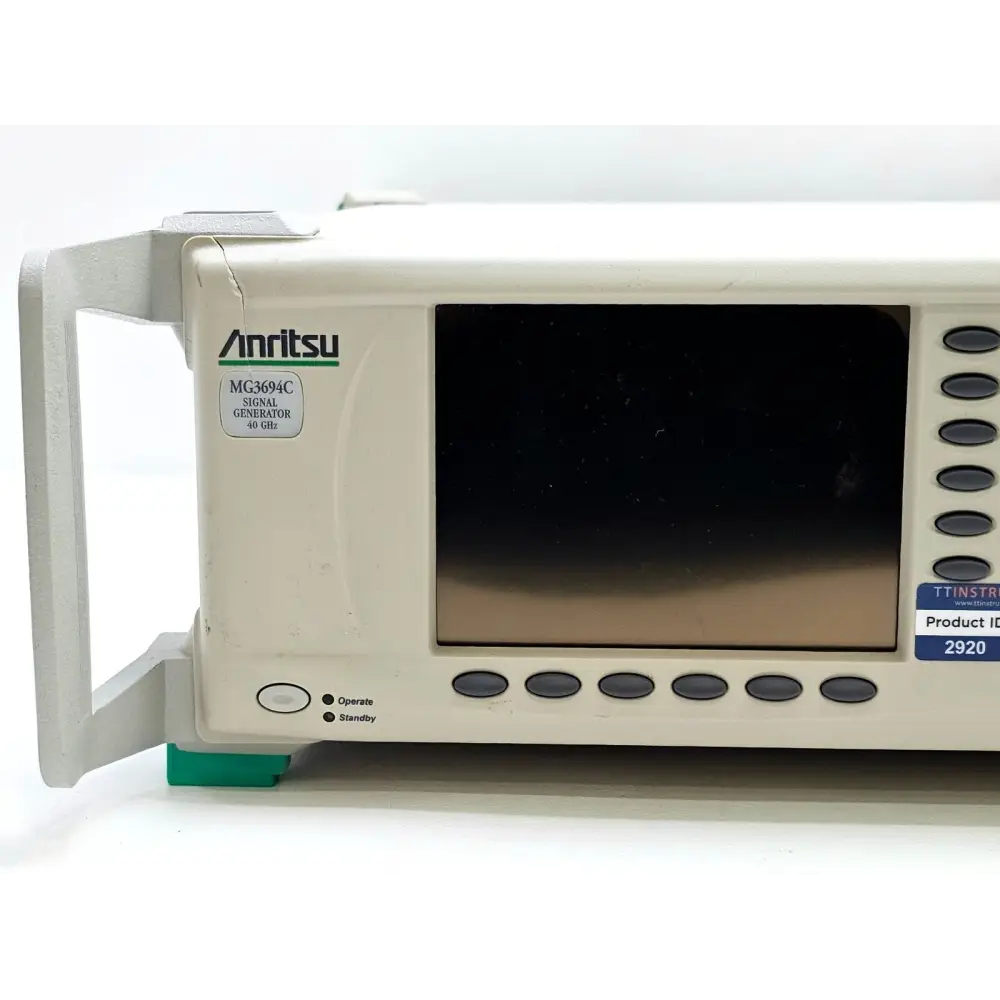

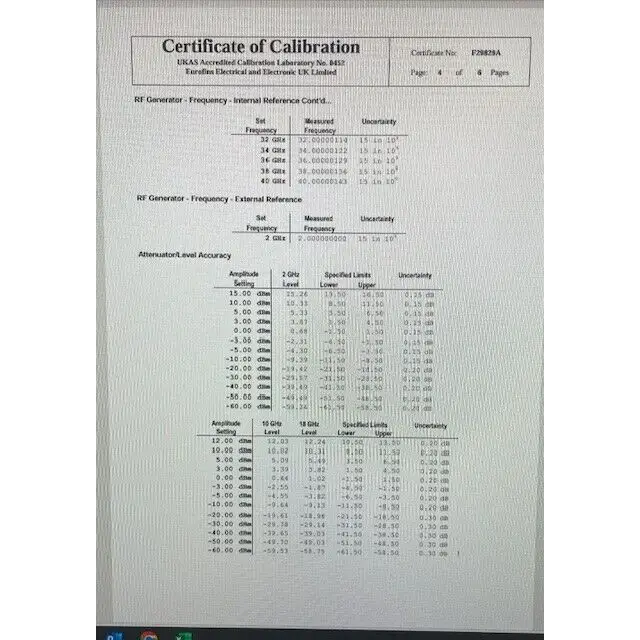

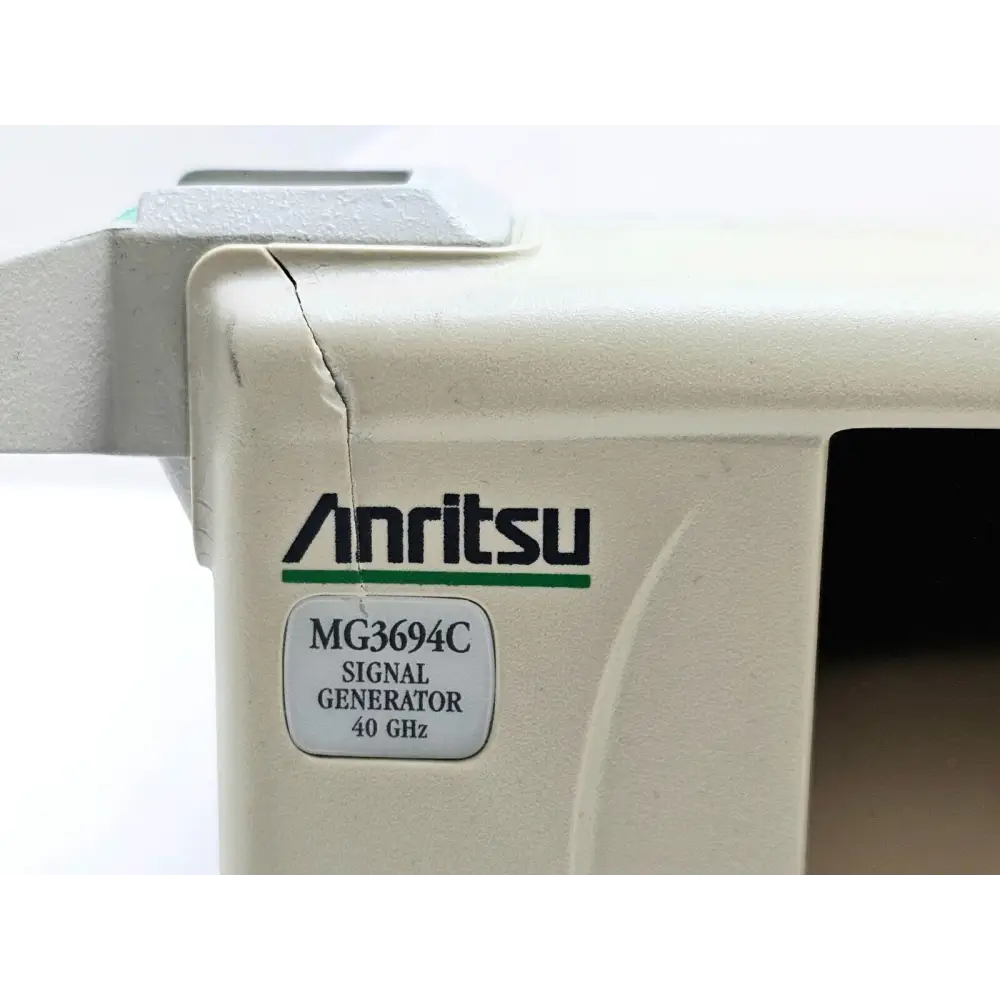

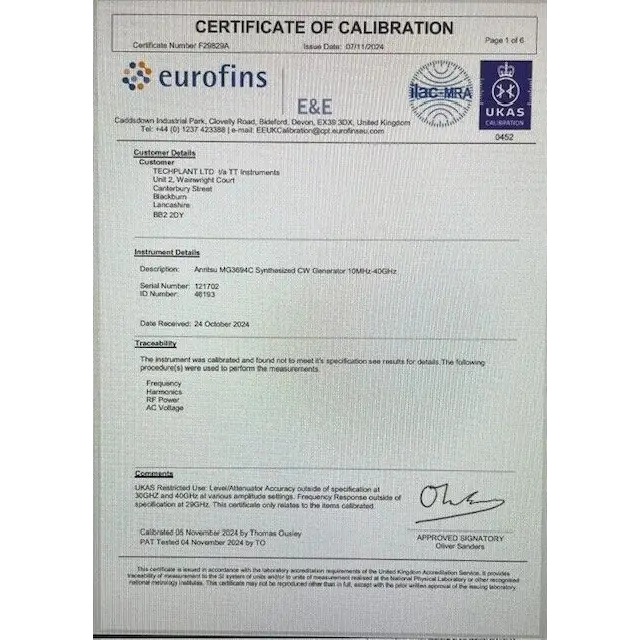

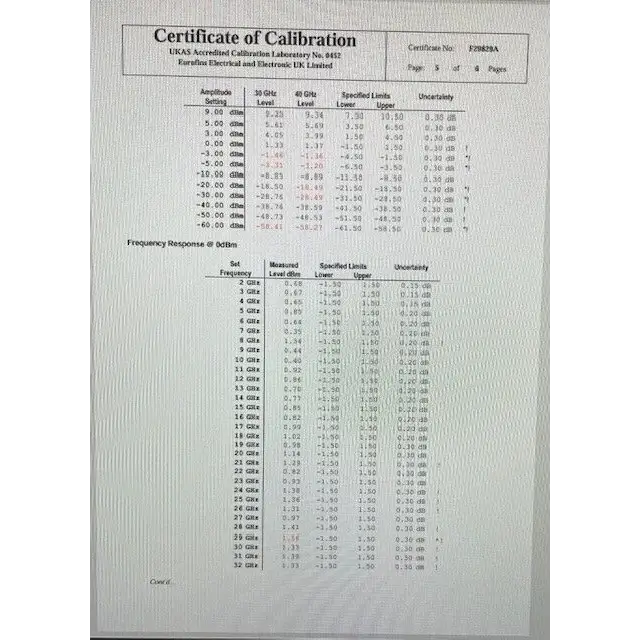

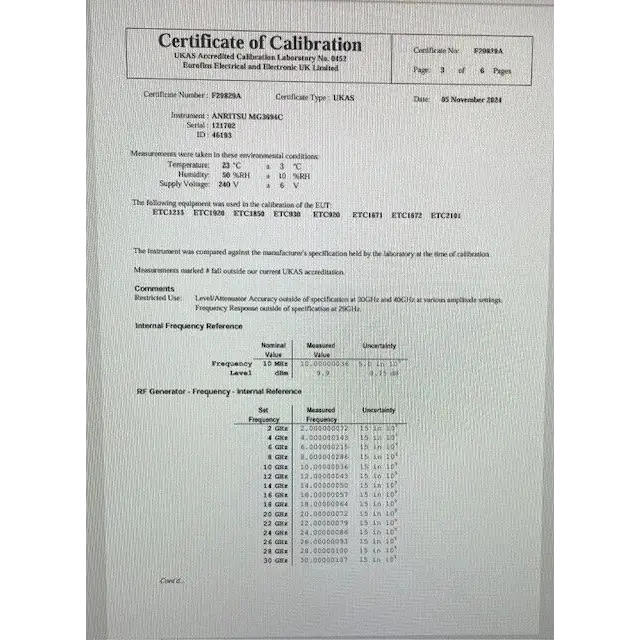

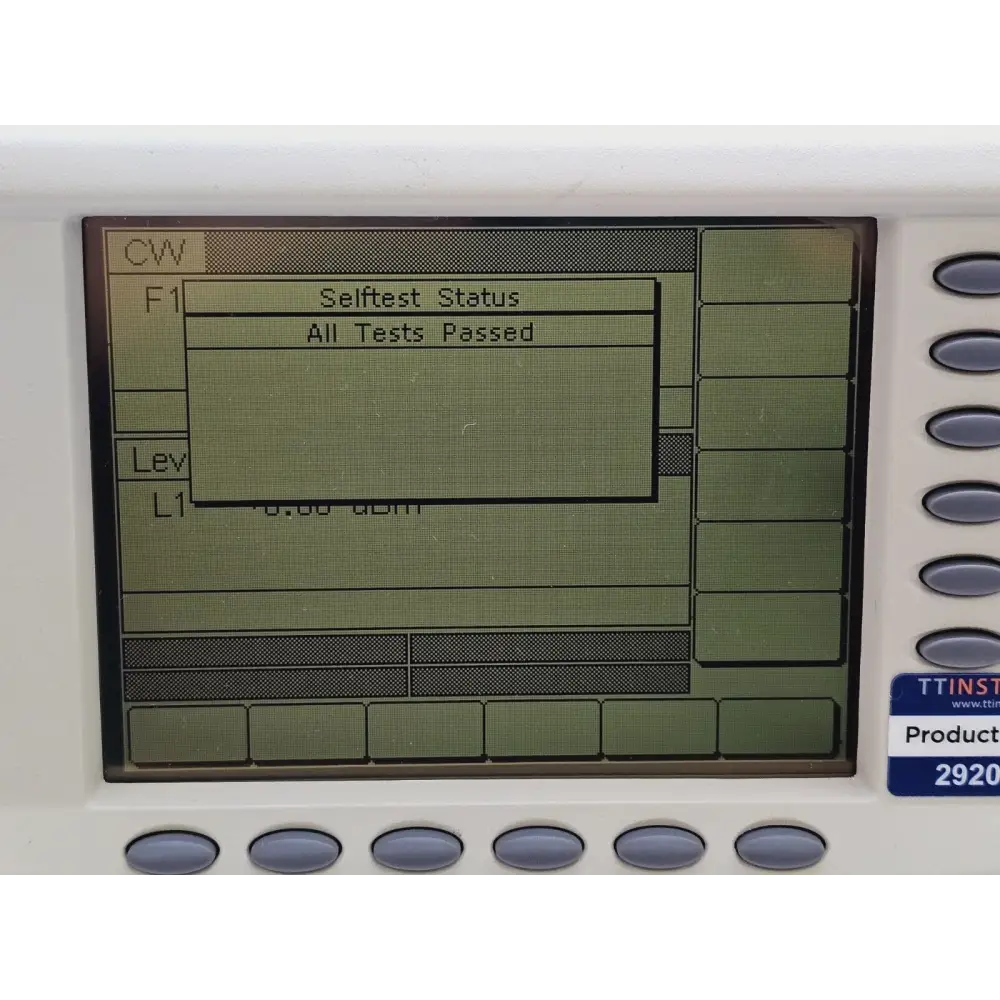

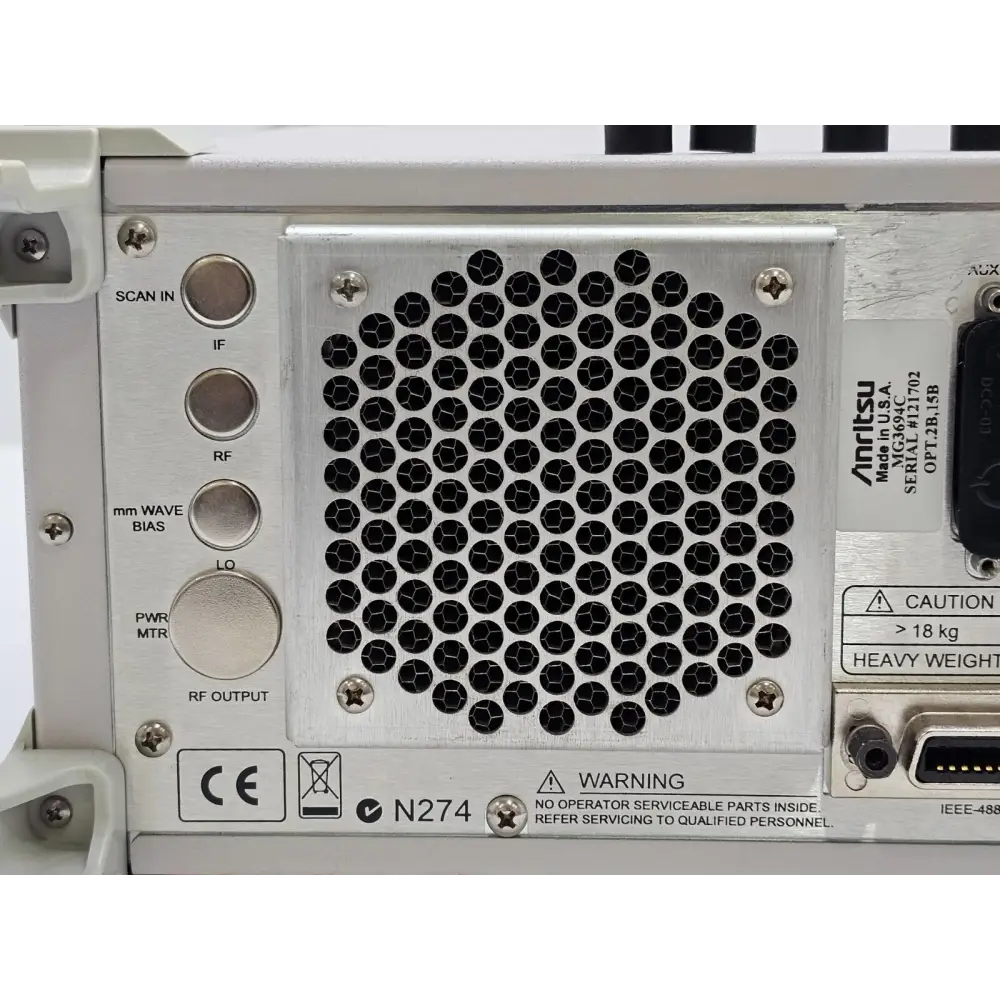

This Anritsu MG3694C 40 GHz signal generator is offered for parts or repair. Calibration has failed — attenuator/level accuracy and frequency response are outside of specification (refer to the calibration certificate for detail of out-of-spec parameters). The instrument self-test passes. A crack is present on the top-left side of the front fascia. Active options fitted are Option 2B (Mechanical Step Attenuator) and Option 15B (High Power Output).

What is included (as described):
• Anritsu MG3694C signal generator unit with Options 2B and 15B fitted

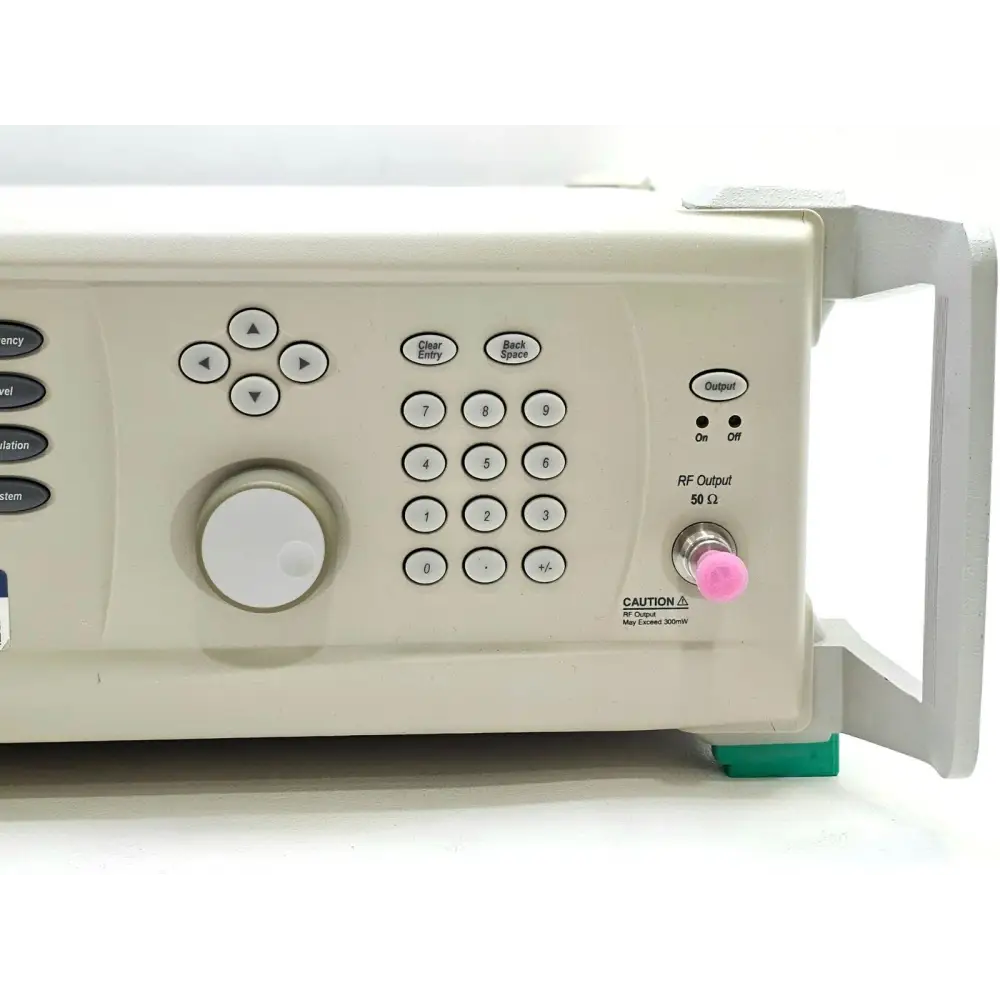

The Anritsu MG3694C is a microprocessor-based, synthesised signal generator with high-resolution phase-lock capability, forming part of the MG3690C broadband series. It generates both discrete CW frequencies and broad (full range) and narrow-band step sweeps across a standard frequency range of 2 GHz to 40 GHz, with options available to extend the low end of the range down to 0.1 Hz. The instrument is operable via intuitive front panel controls or remotely via GPIB (IEEE-488) or Ethernet connectivity, and preserves full backward compatibility with earlier MG3690A/B and 68C/69B series signal generators.

The MG3690C series is widely used in the design and manufacture of high-frequency systems, testing of microwave components, radar signal simulation, and the development and maintenance of communications systems.

Key Specifications:
Frequency Range (Standard): 2.0 GHz to 40.0 GHz
Frequency Range (with Option 4 or 5): 0.01 GHz to 40.0 GHz
Frequency Range (with Option 22): 0.1 Hz to 10 MHz (DDS band)
Output Power (with Options 2 and 15): -120 dBm to +25 dBm
Amplitude Accuracy: ±1 dB (up to 40 GHz)
Phase Noise at 10 GHz (with Option 3): -115 dBc/Hz at 100 kHz offset
SSB Phase Noise Levels: Standard / Ultra Low Phase Noise (Option 3) / Premium Phase Noise (Option 3X)
Option 2B: Mechanical step attenuator (10 dB/step)
Option 15B: High Power Output
Modulation (Option 28): AM, FM, Phase, Pulse

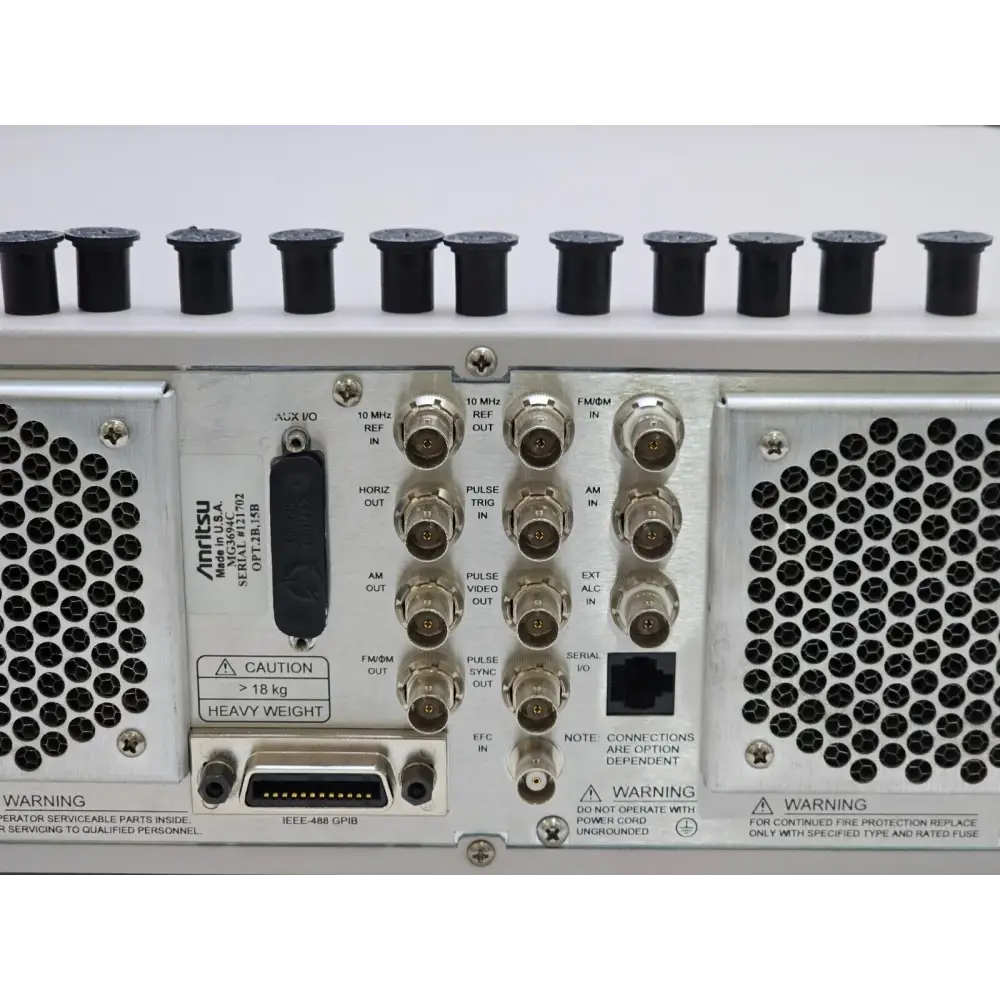

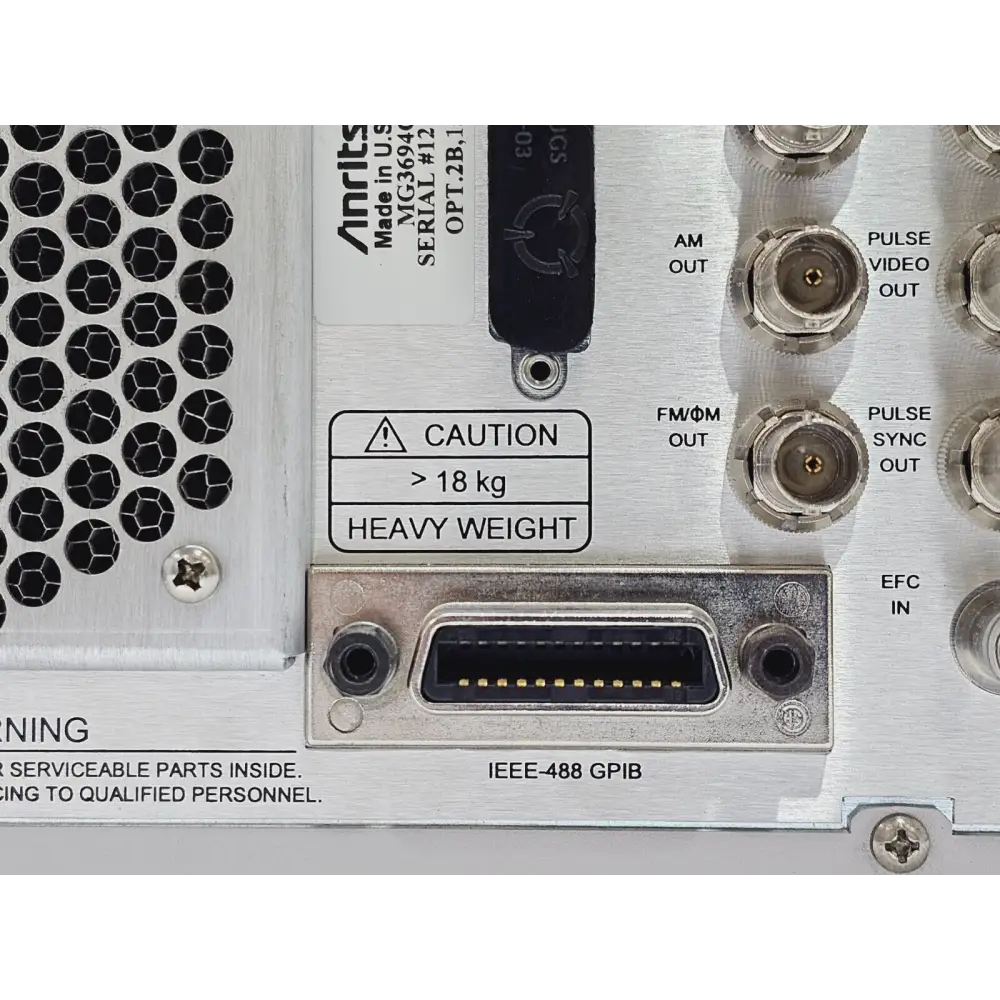

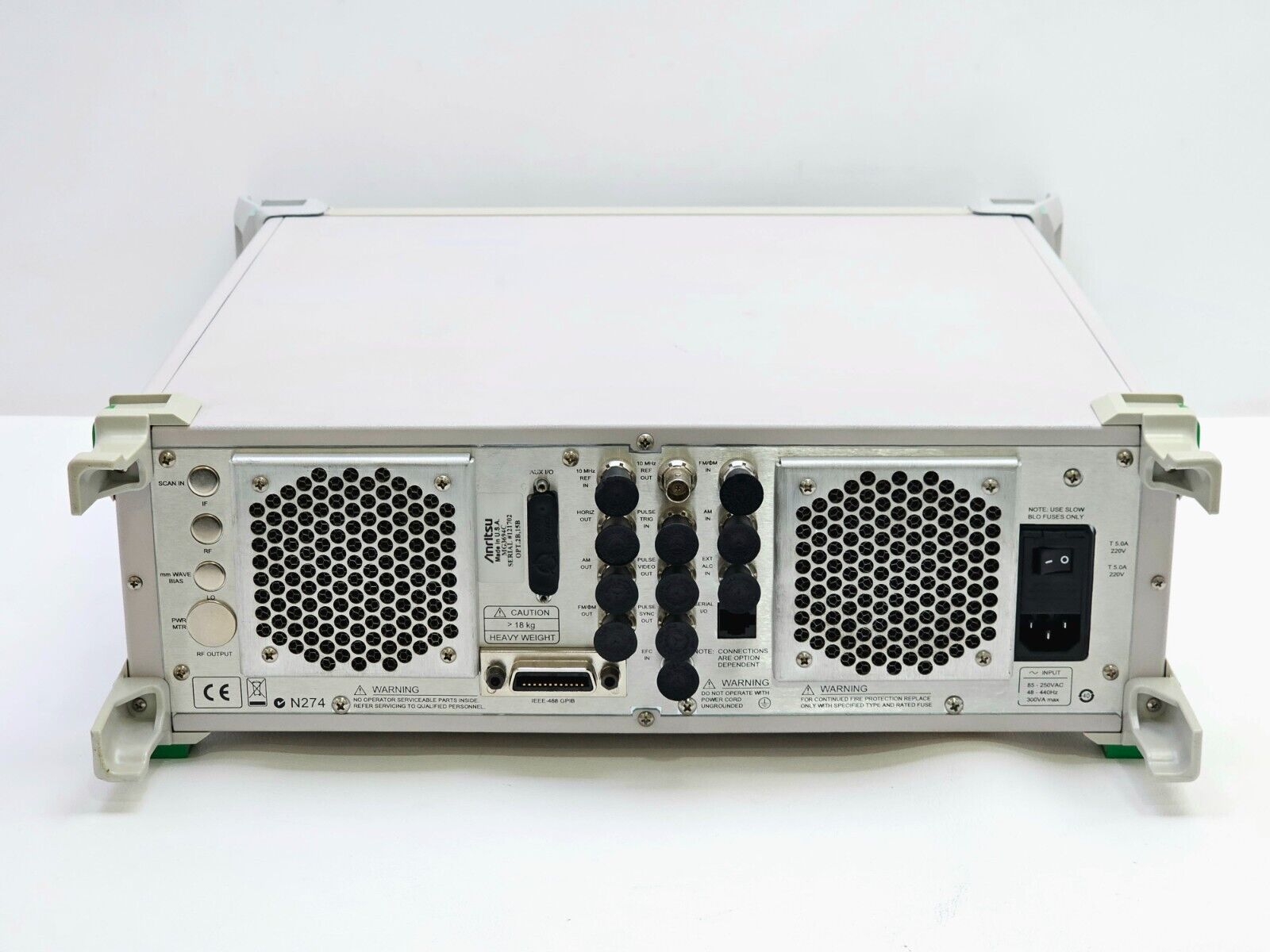

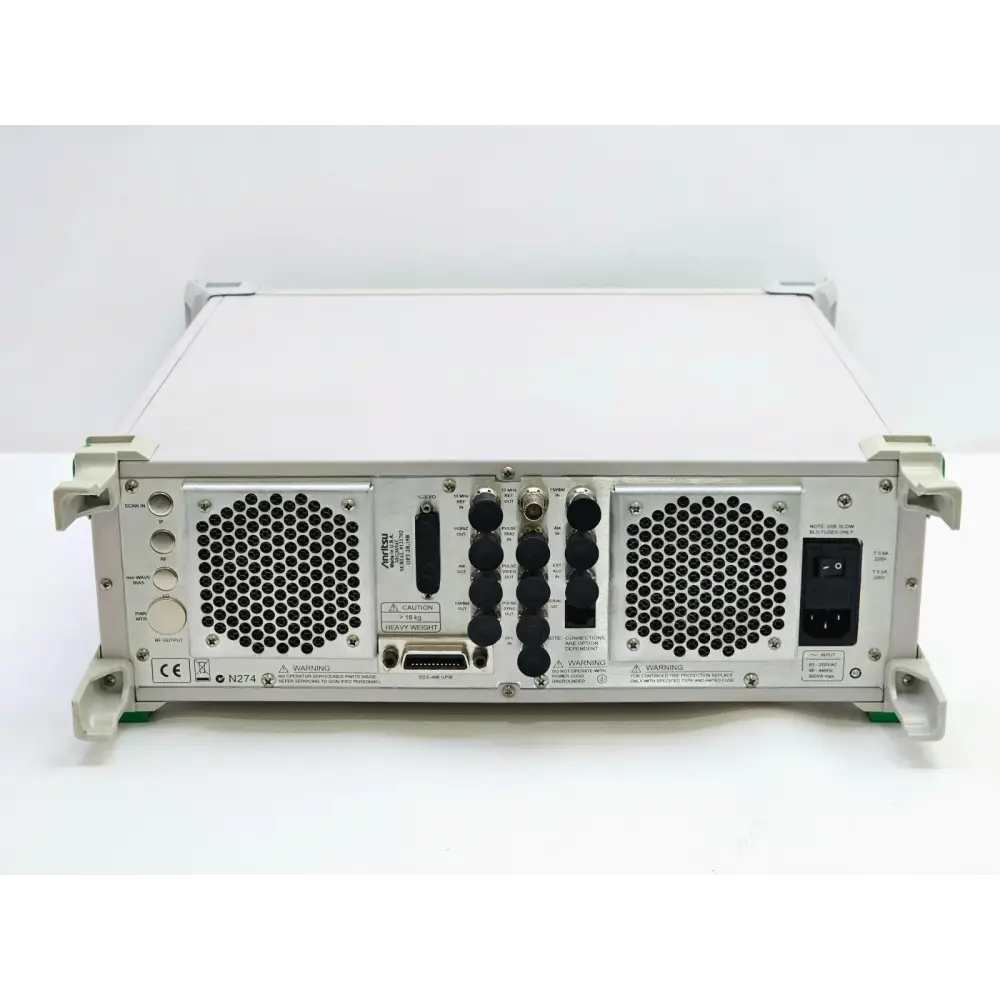

Interfaces: Ethernet (10/100 BASE-T, RJ-45), IEEE-488 GPIB

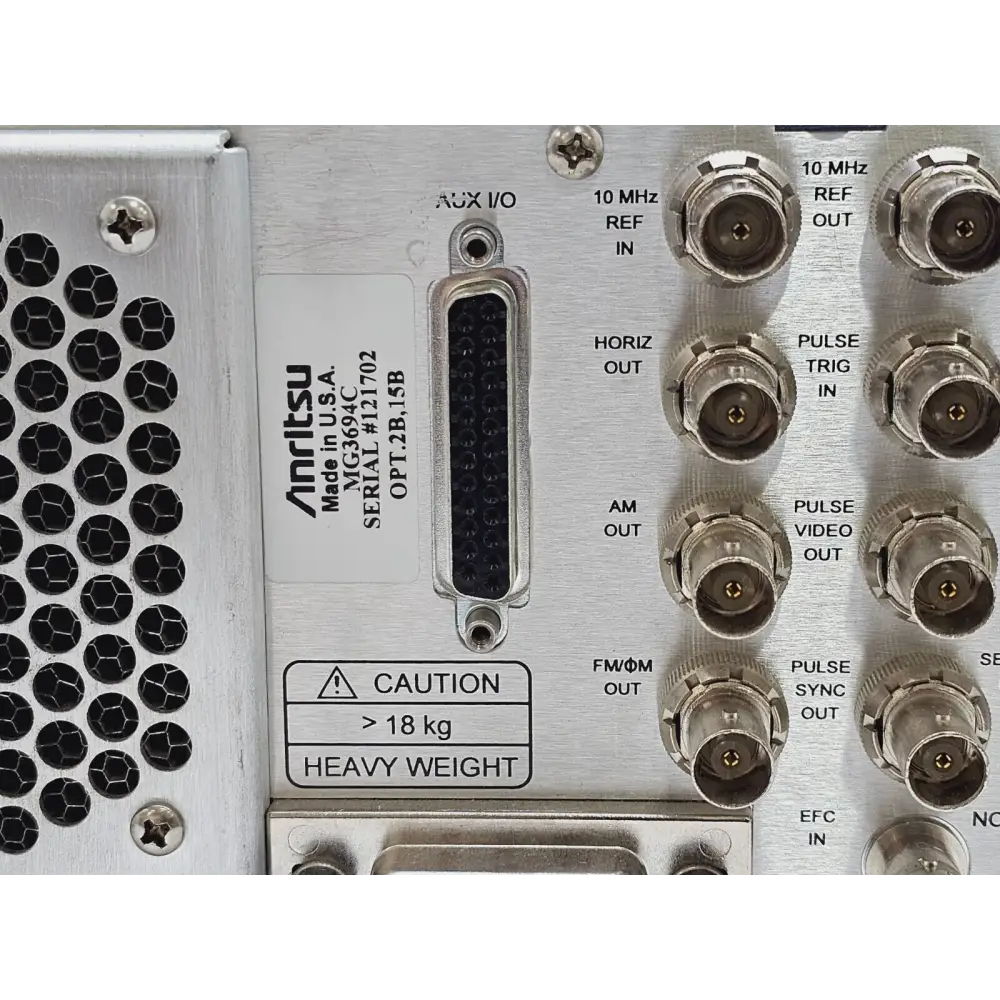

10 MHz Reference Input: 0 to +20 dBm, BNC rear panel, 50 Ω
10 MHz Reference Output: 1 Vp-p into 50 Ω, AC coupled

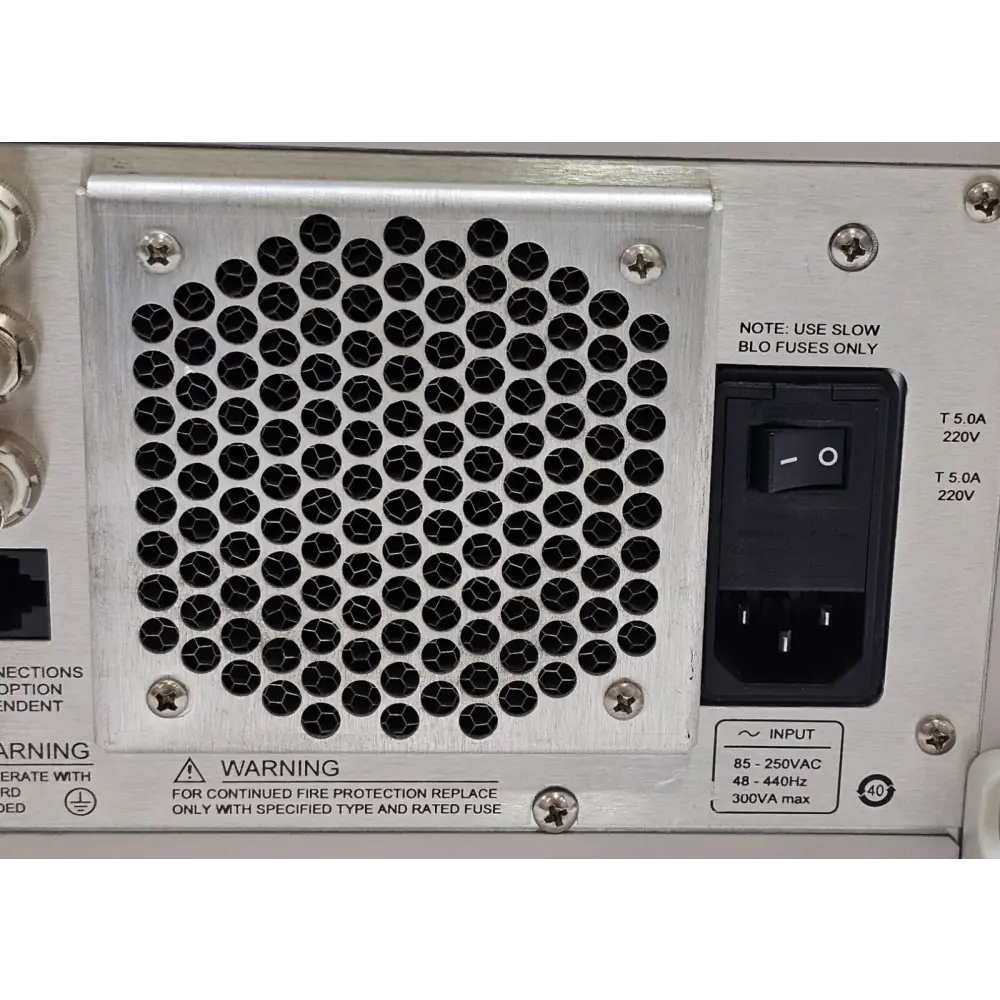

Power Supply: 85 Vac to 264 Vac, 48 Hz to 440 Hz, 250 VA maximum
Operating Temperature: 0 °C to +50 °C
Dimensions: 429 x 133 x 450 mm
Weight: 18 kg

The MG3694C supports CW, step sweep, list sweep, and analog sweep (option 6) operating modes. All functions are fully controllable locally or via GPIB/Ethernet remote interface. GPIB emulation of Anritsu 6600, 6700, and 6XX00-series signal sources is supported.

Anritsu MG3690C Series Technical Data Sheet (P/N 11410-00515) — full specifications and options: Download PDF

Anritsu MG369xC Series Operation Manual (P/N 10370-10373K) — front panel operation and installation: Download PDF

Anritsu MG369xC Series GPIB Programming Manual (P/N 10370-10374F): Download PDF

Anritsu MG369xC Series SCPI Programming Manual (P/N 10370-10375E): Download PDF
