Condition: Used

Optomed SmartScope M5 WiFi handheld fundus camera, tested and confirmed fully functional with a new battery installed. Supplied complete with EY4 retinal module, ES2 anterior segment module, cradle, slit lamp adapter, and trial software, all housed in the original aluminium carry case.

Included in the sale:

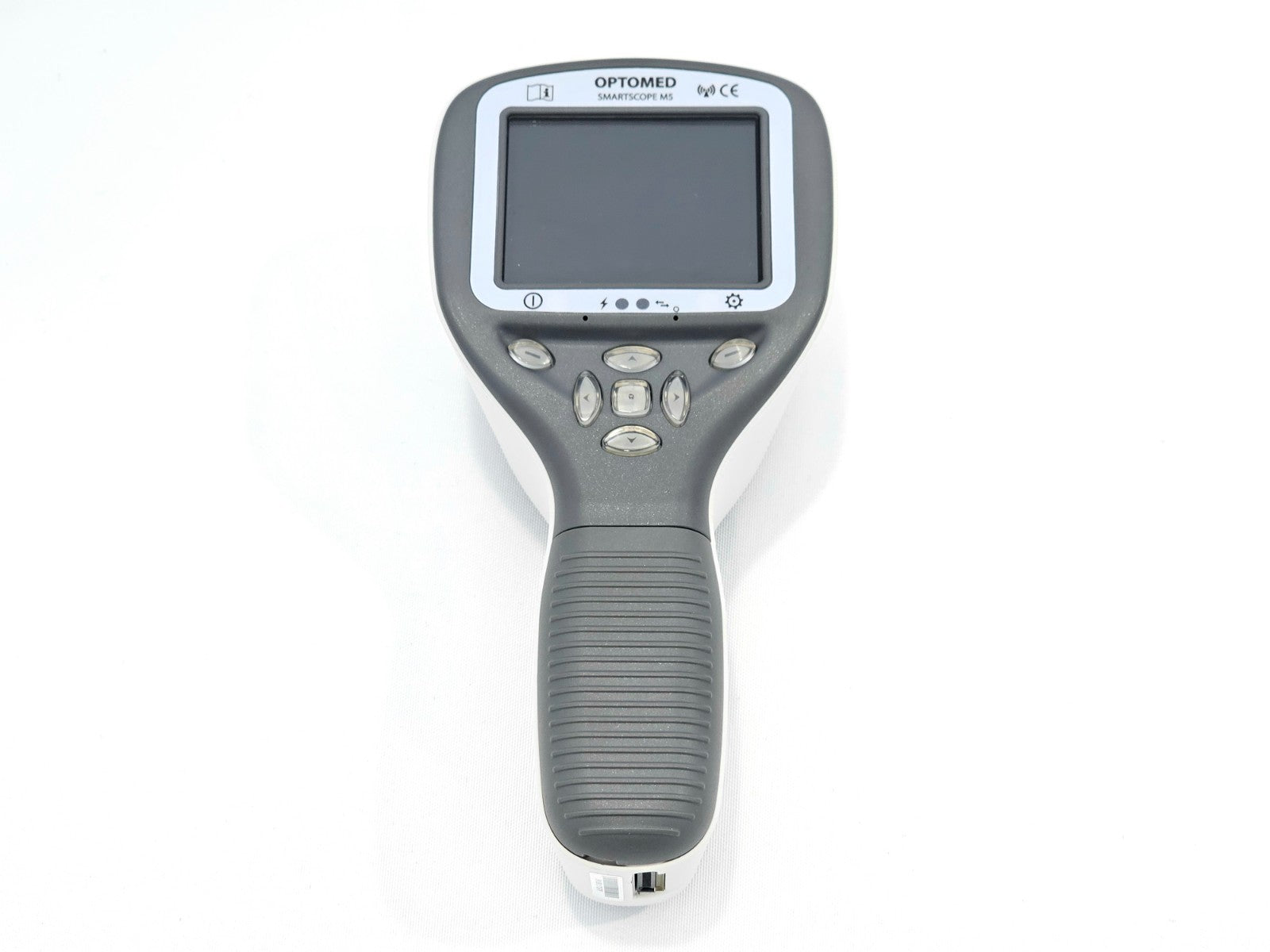

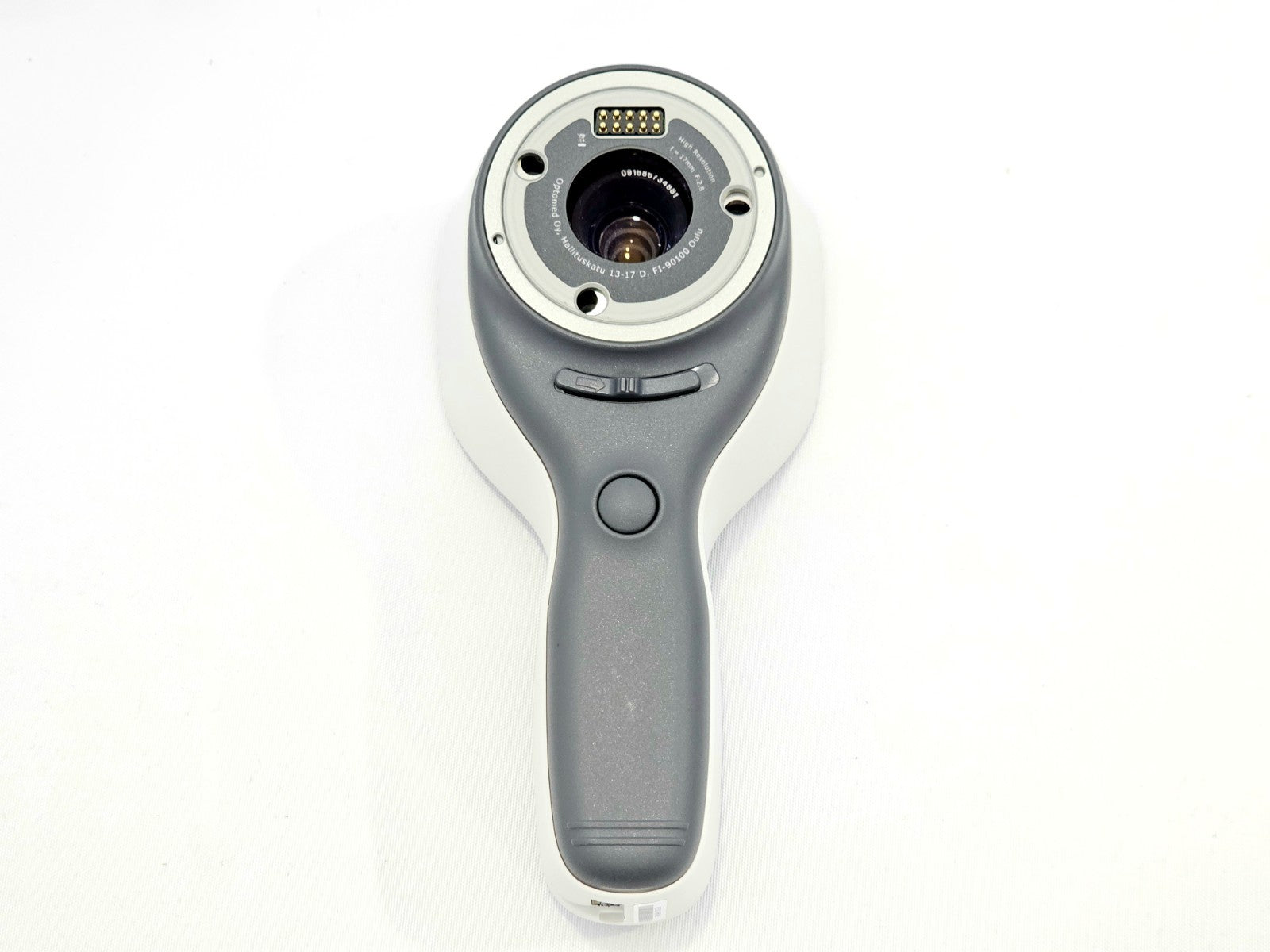

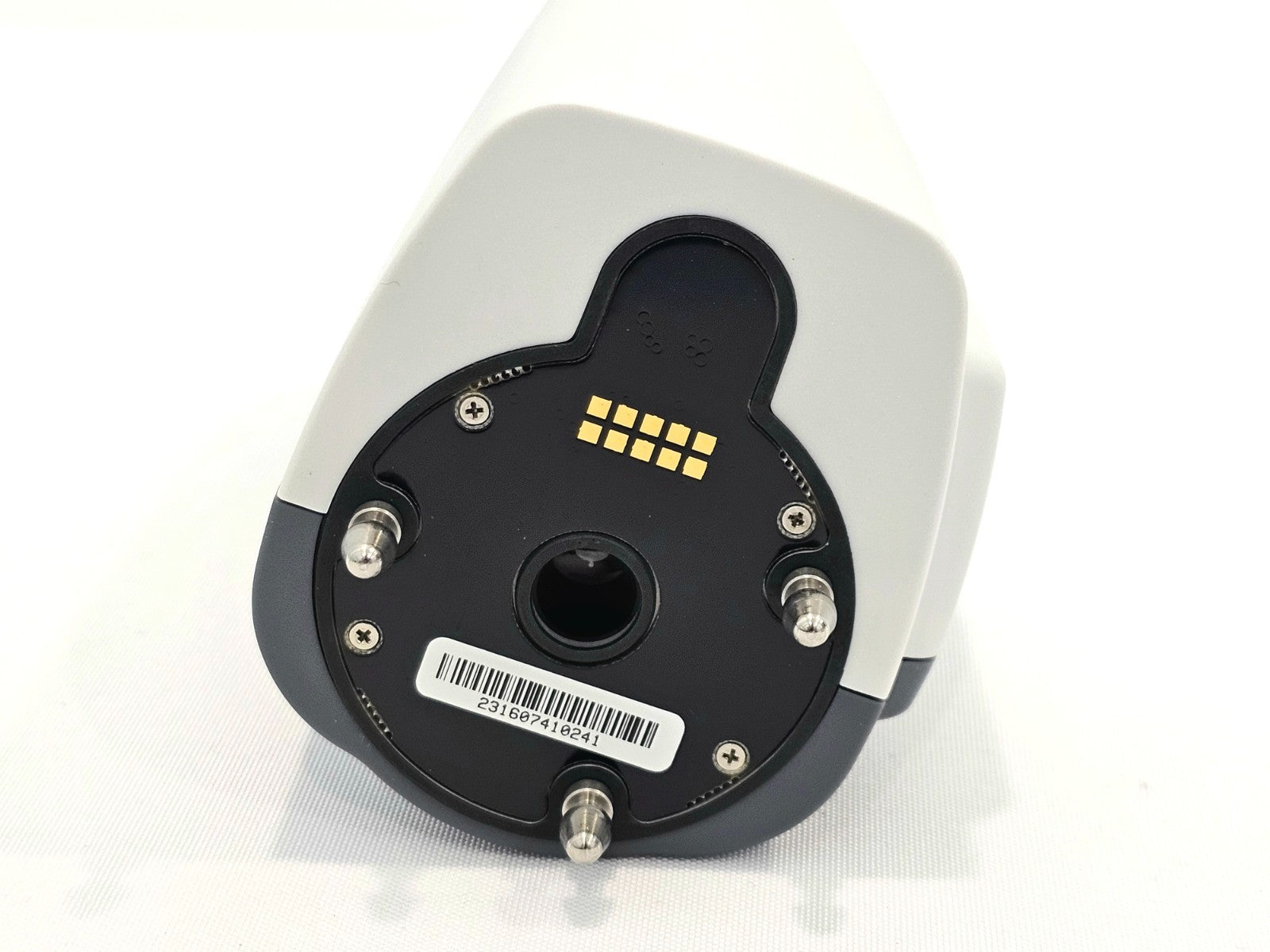

• Optomed SmartScope M5 Handheld Fundus Camera with WiFi
• Optomed SmartScope EY4 Retinal Module

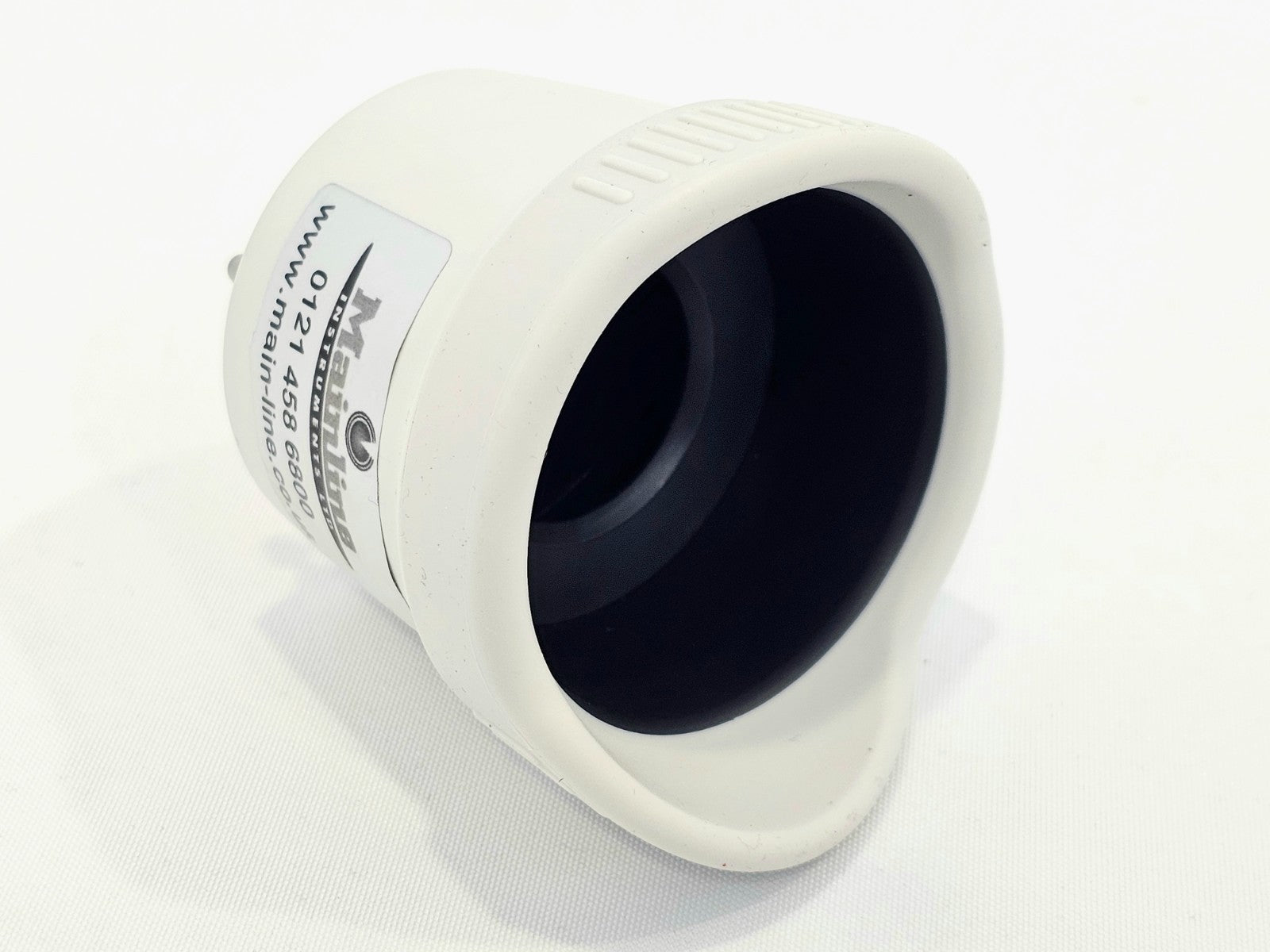

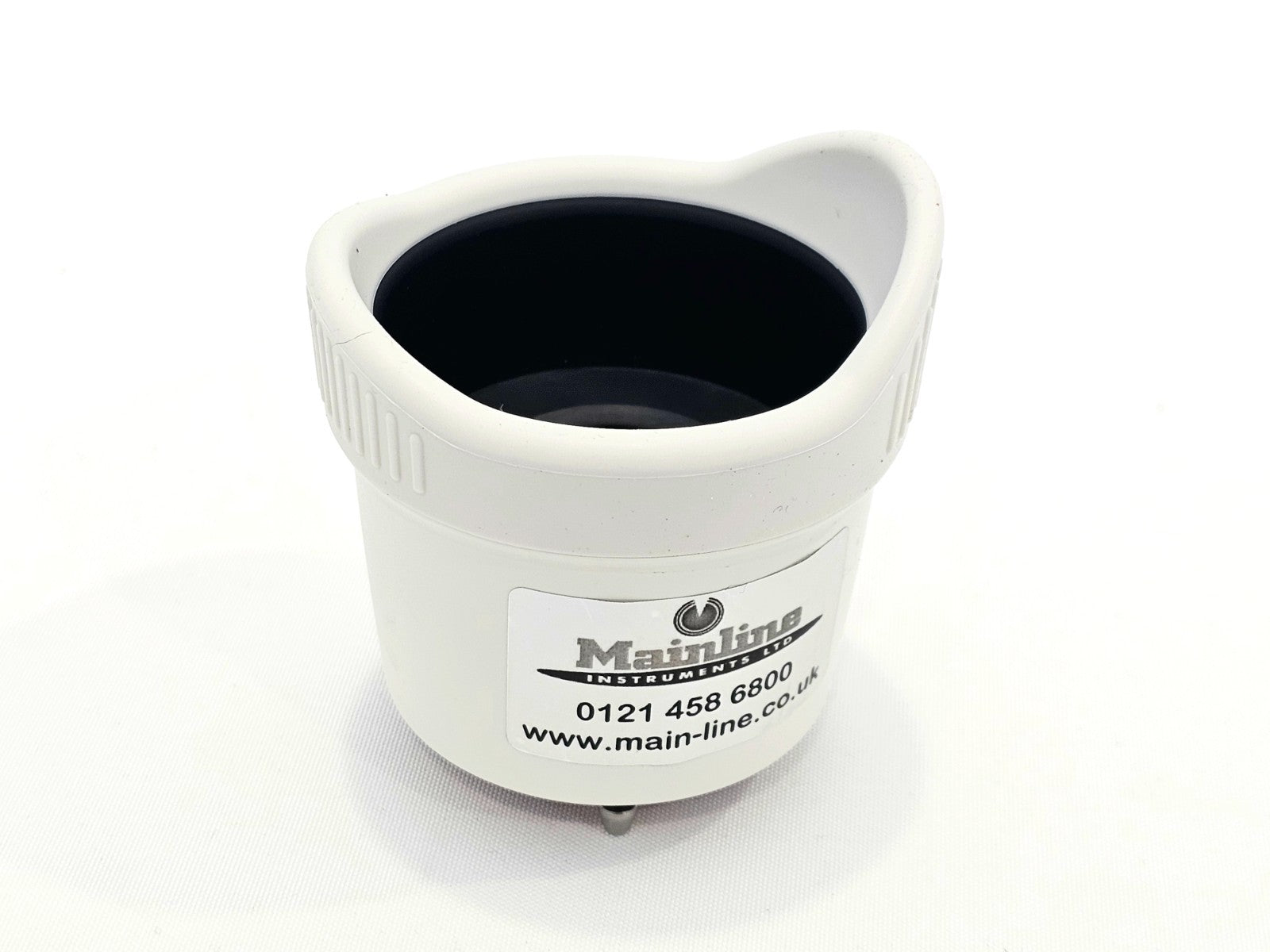

• Optomed SmartScope ES2 Anterior Segment Module

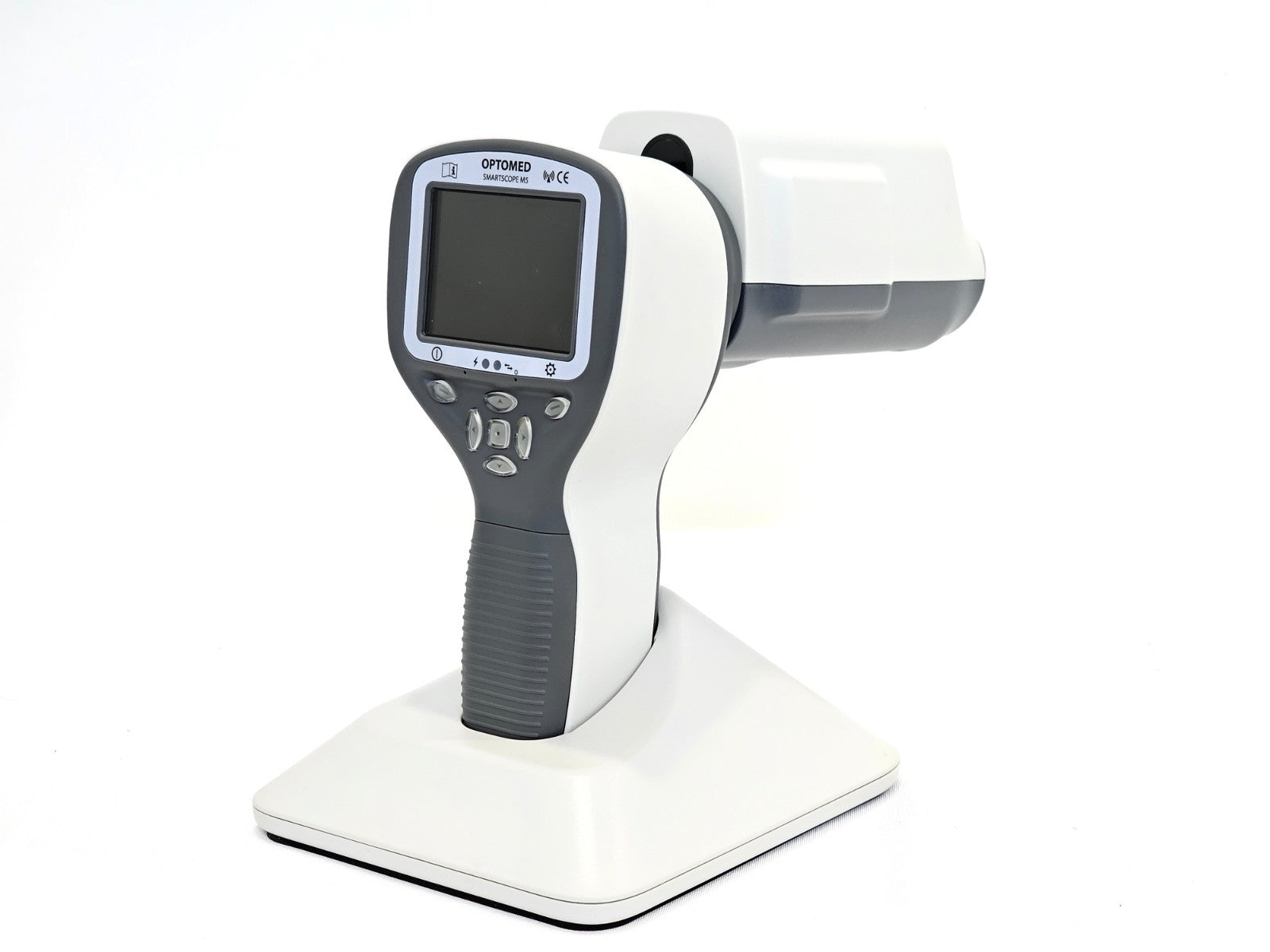

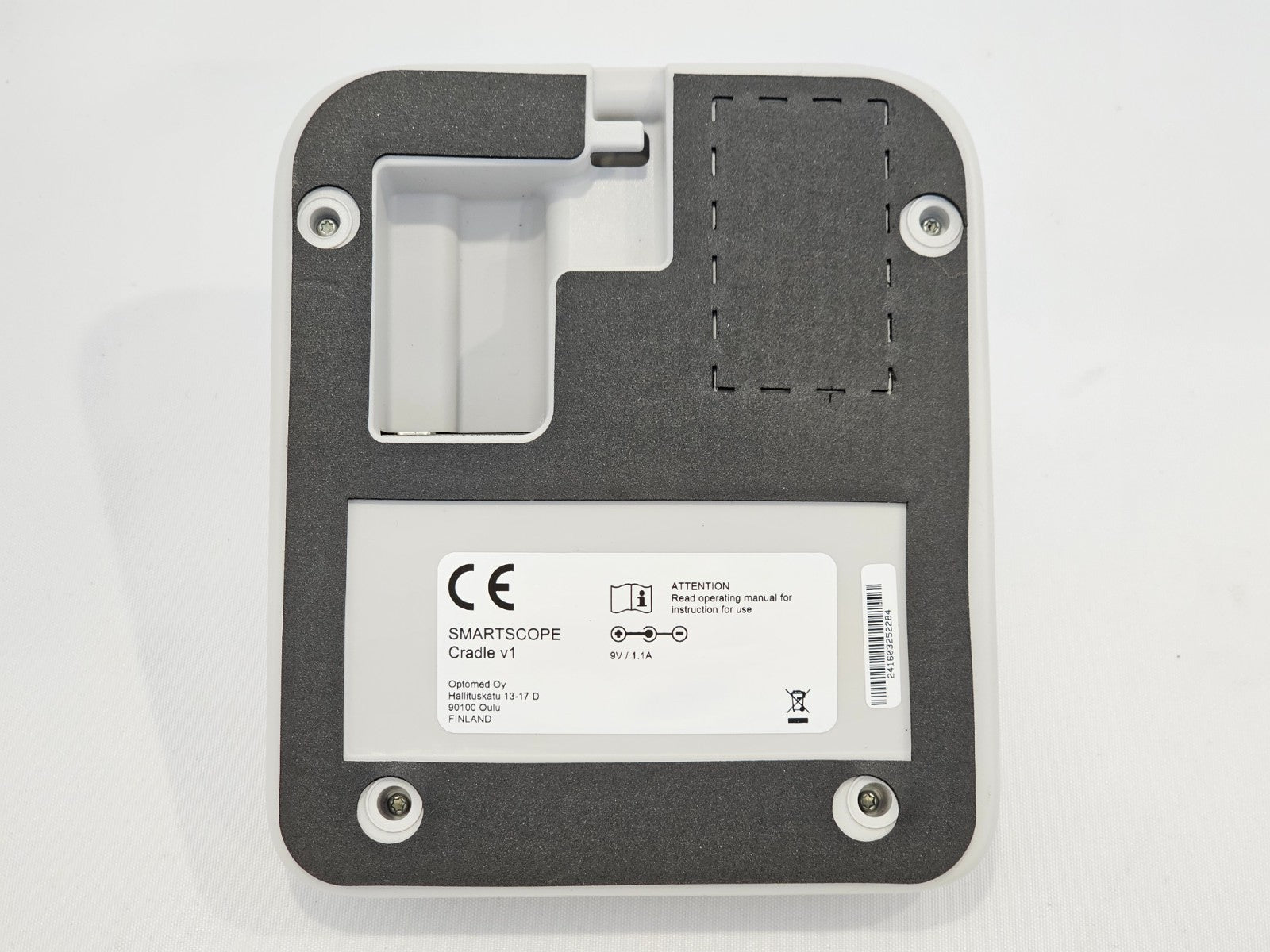

• Optomed SmartScope Cradle v1
• Power Supply
• New Battery

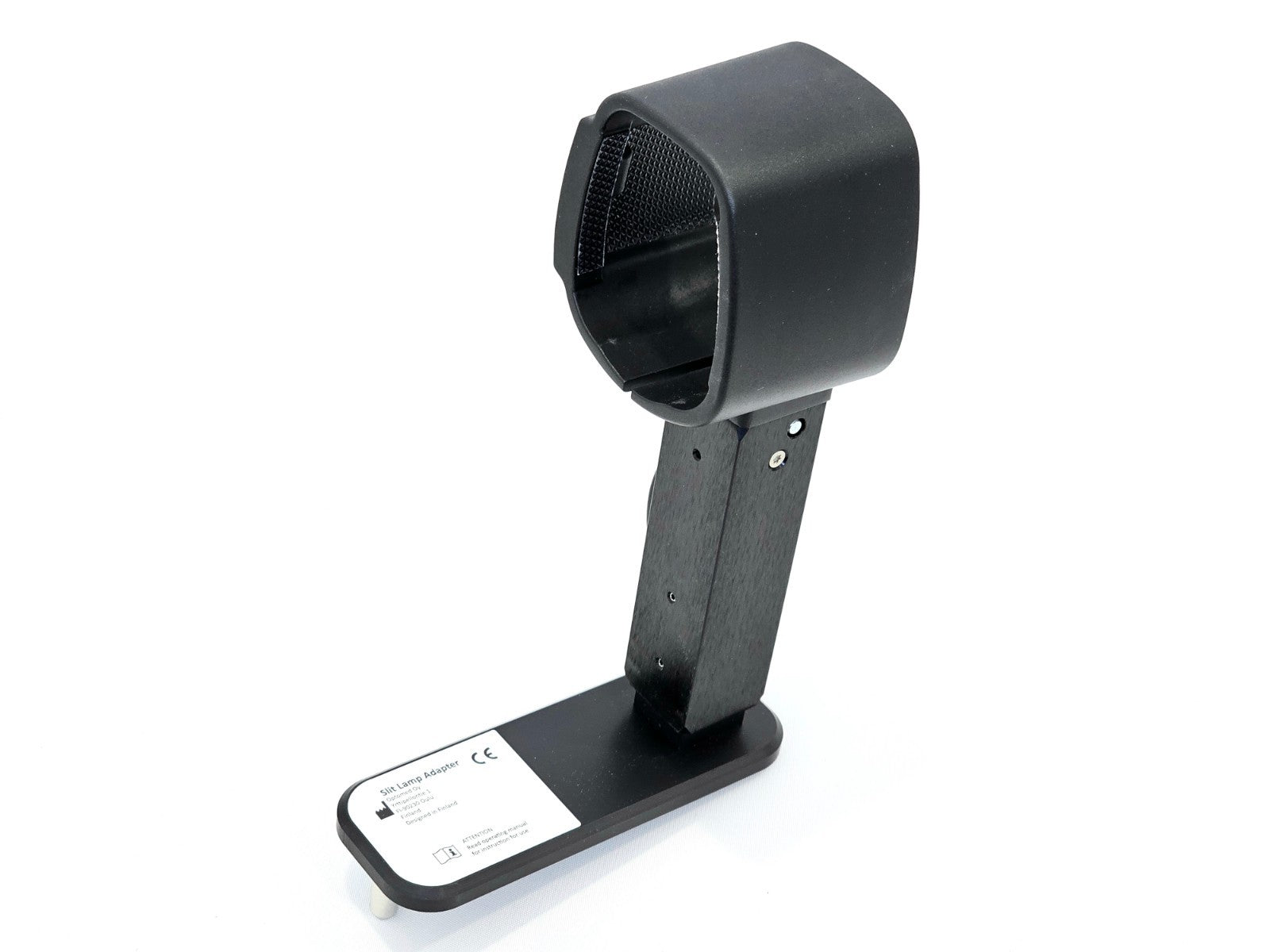

• Optomed Slit Lamp Adapter
• USB Cable with Trial Software and Manuals

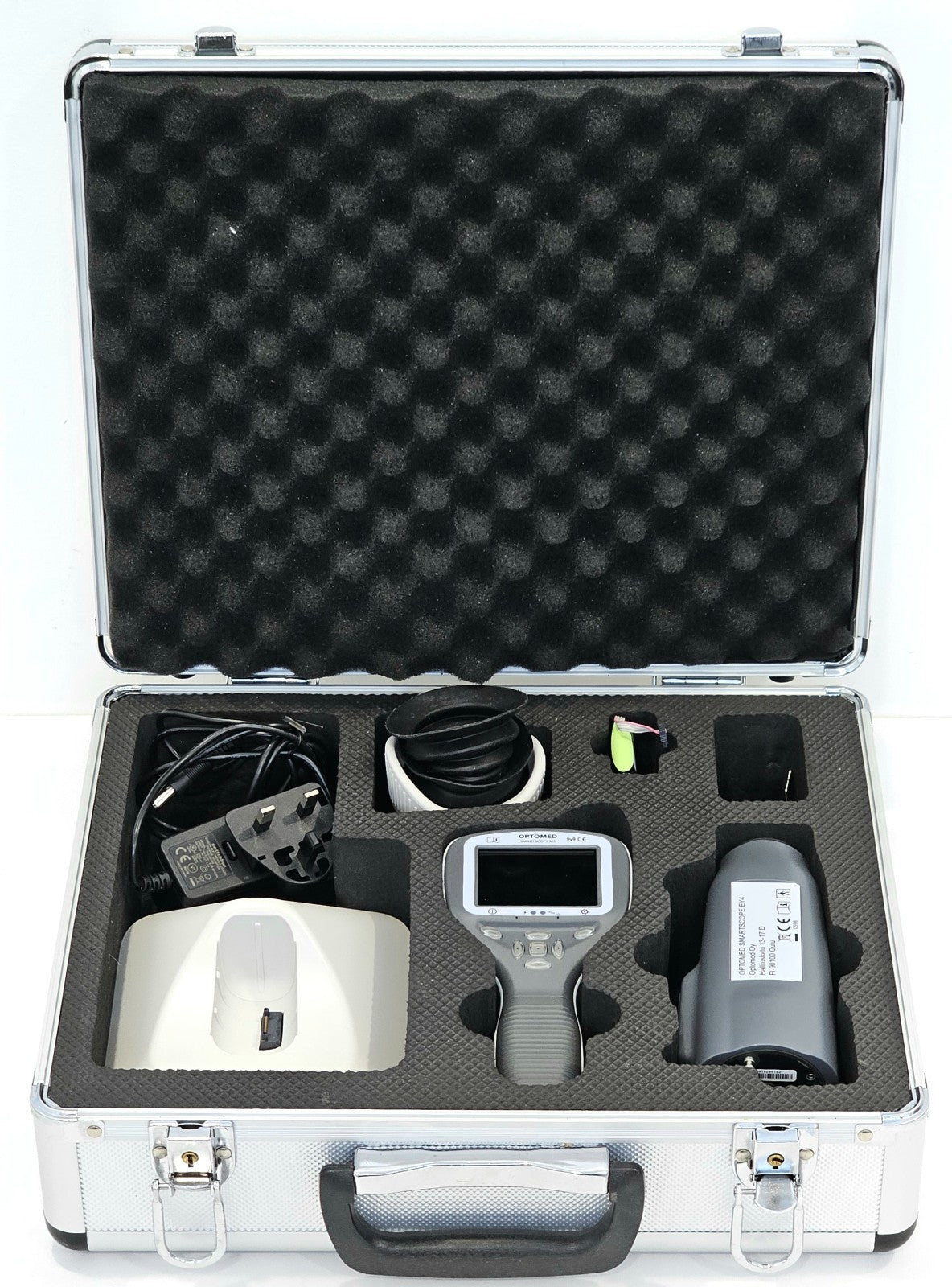

• Aluminium Carry Case
• All other pictured accessories

The Optomed SmartScope PRO (M5) is a handheld, battery-operated non-mydriatic digital fundus camera manufactured in Finland by Optomed Oy. It is a modular medical imaging platform enabling both retinal fundus photography and anterior segment imaging with a single portable device, meeting the international ISO 10940 fundus camera standard.

The EY4 retinal module enables non-mydriatic fundus screening for early detection of diabetic retinopathy, glaucoma, and age-related macular degeneration (AMD). The ES2 anterior segment module provides high-resolution imaging of the eye surface and surrounding areas, with cobalt blue LEDs for fluorescent imaging. The device can also be integrated into a slit lamp via an optional adapter for added stability.

Clinical applications include ophthalmology, optometry, diabetology, neurology, paediatrics, primary care, and ROP (retinopathy of prematurity) screening. Its compact, lightweight form factor makes it suitable for mobile clinics, bedside imaging, field use, and telemedicine workflows.

Smartscope M5 — Camera Body:
Type: Non-mydriatic digital fundus camera
Camera Sensor Resolution: 5 Mpix
Type of Photography: Colour, Red-free, IR
Image and Video Format: JPEG, DICOM; MPEG-4/MPEG-1

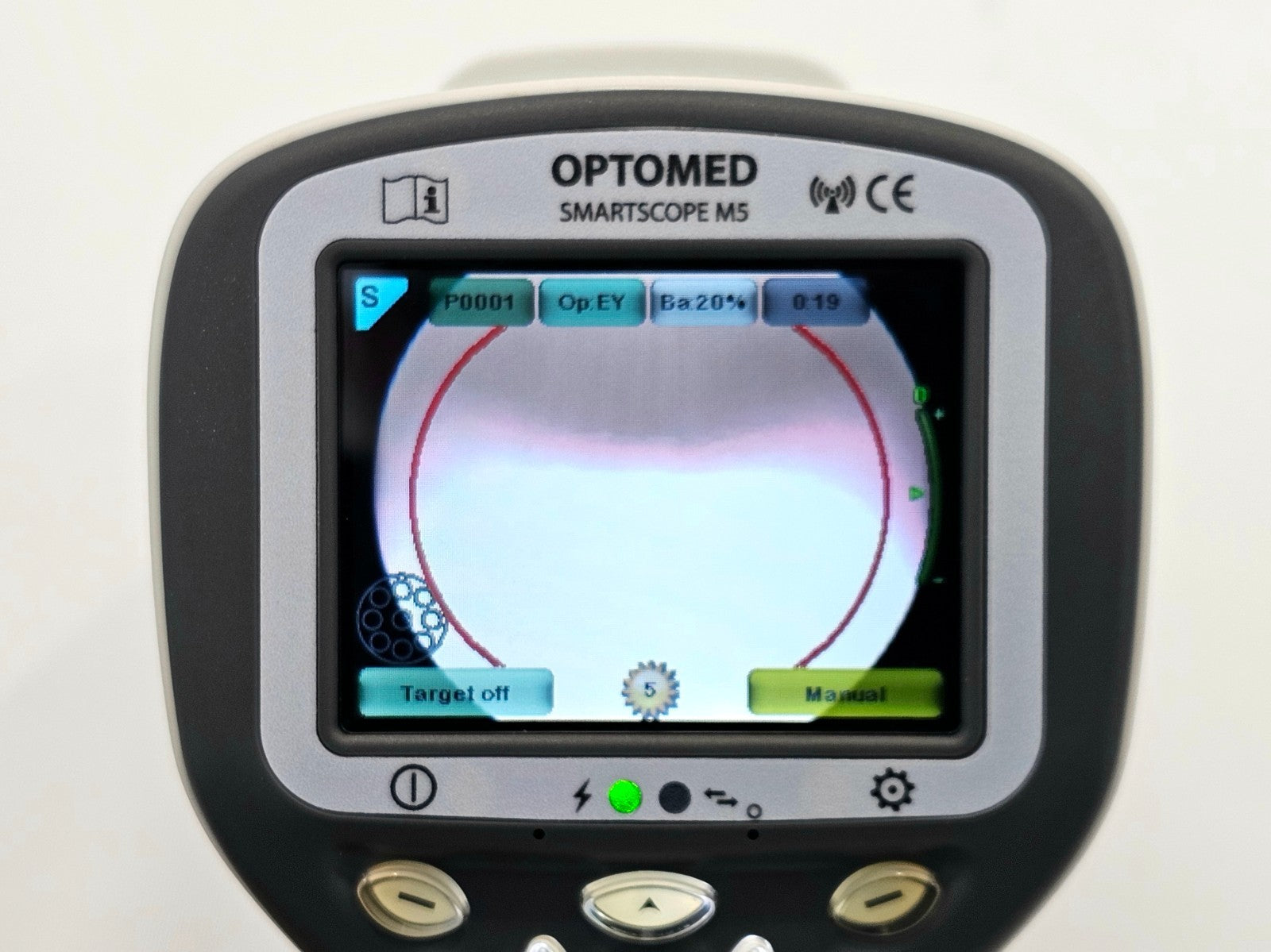

Display: 2.4" TFT-LCD
Memory: 4 GB (internal)
Power Supply: Rechargeable Ni-MH Battery
Connectivity: WiFi, USB
Image Viewer and Archive: Optomed Workstation software with DICOM
Dimensions (W x H x D): 82.30 x 166.50 x 66.50 mm
Weight: 400 g
Compatible OS: Microsoft Windows 8.1, Windows 10, Windows 11

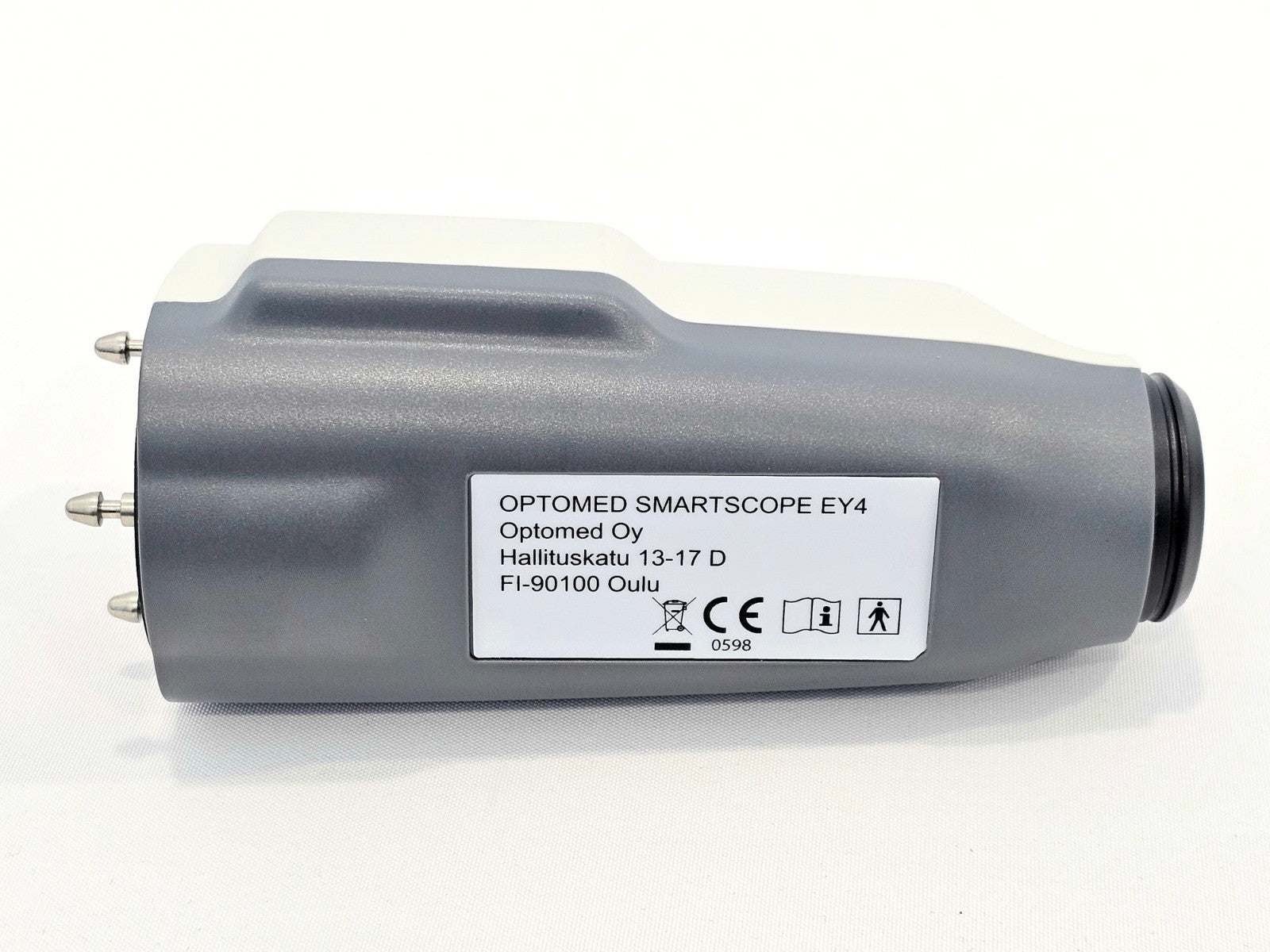

Smartscope EY4 — Retinal Module:
Field of View: 40 degrees
Optical Resolution: >60 lp/mm (ISO 10940:2009)
Fixation Targets: 9 internal fixation targets for peripheral imaging (total FOV up to 70 x 52 degrees)
Focus Range: Autofocus, -20D to +20D
Minimum Pupil Size: 3.5 mm
Dimensions (W x H x D): 67 x 73 x 160 mm
Weight: 300 g

Smartscope ES2 — Anterior Segment Module:
Light Source: White and cobalt blue LEDs
Focus: Auto/manual focus
Zoom: 6x digital zoom
Image Resolution: 2560 x 1920 pixels
Dimensions (H x D): 79 x 70 mm
Weight: 92 g

Optical Safety Classification: Group 2 (ISO 15004-2:2007)
Regulatory: Medical Device Regulation MDR 2017/745

Optomed SmartScope PRO & FA User's Manual (Instructions for Use) — official Optomed PDF, latest revision: Download PDF

Optomed SmartScope PRO & FA User's Manual — official Optomed PDF, revision 17: Download PDF

Optomed SmartScope PRO Ophthalmology Set Brochure — technical specifications and product overview PDF: Download PDF

Optomed SmartScope PRO Product Brochure — handheld fundus camera overview PDF: Download PDF

Optomed SmartScope M5 Brochure — full module specifications including EY, ES and SK modules: Download PDF

Optomed SmartScope PRO User Manual — mirror copy hosted by Eurotech Optical, revision 17: Download PDF
