Condition: Used

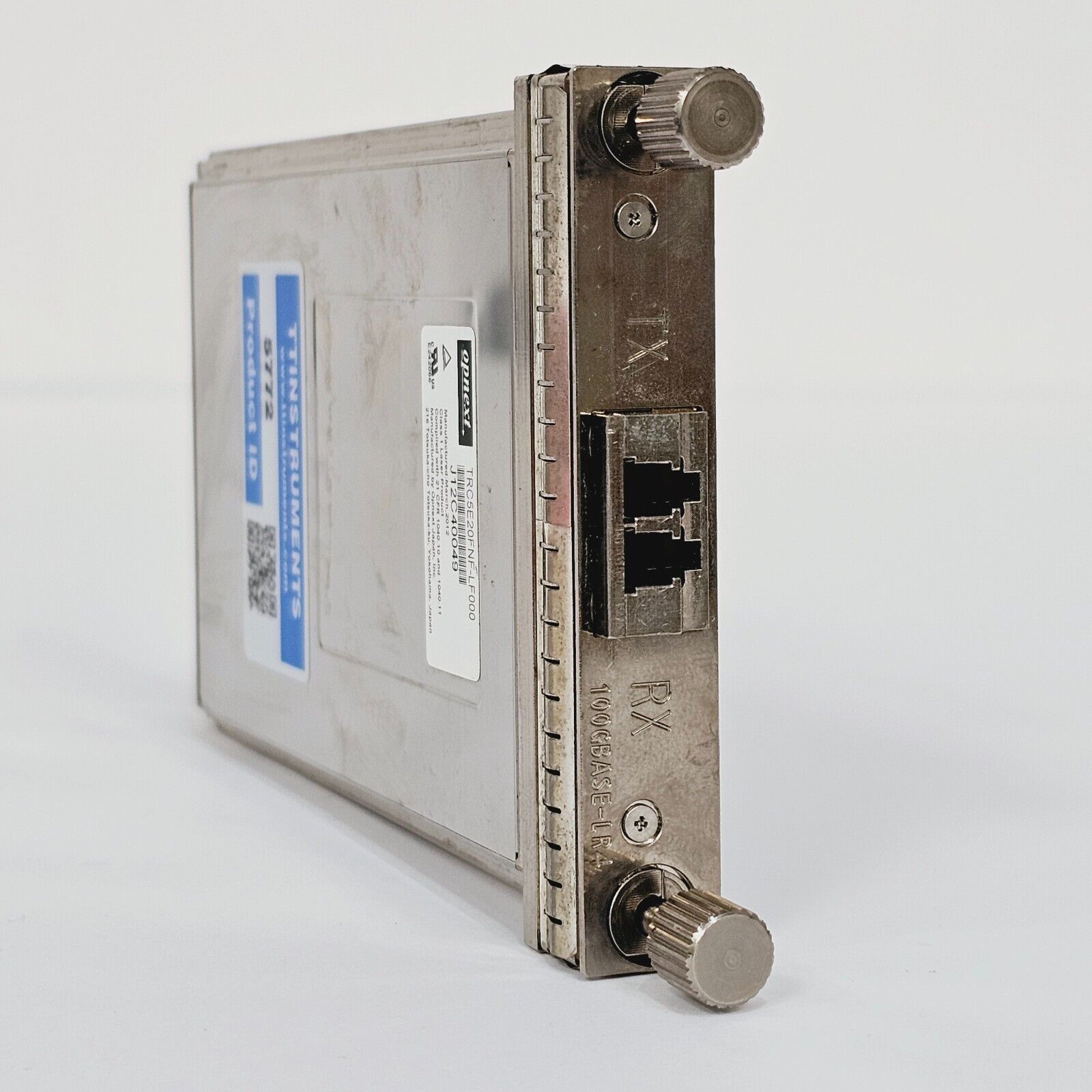

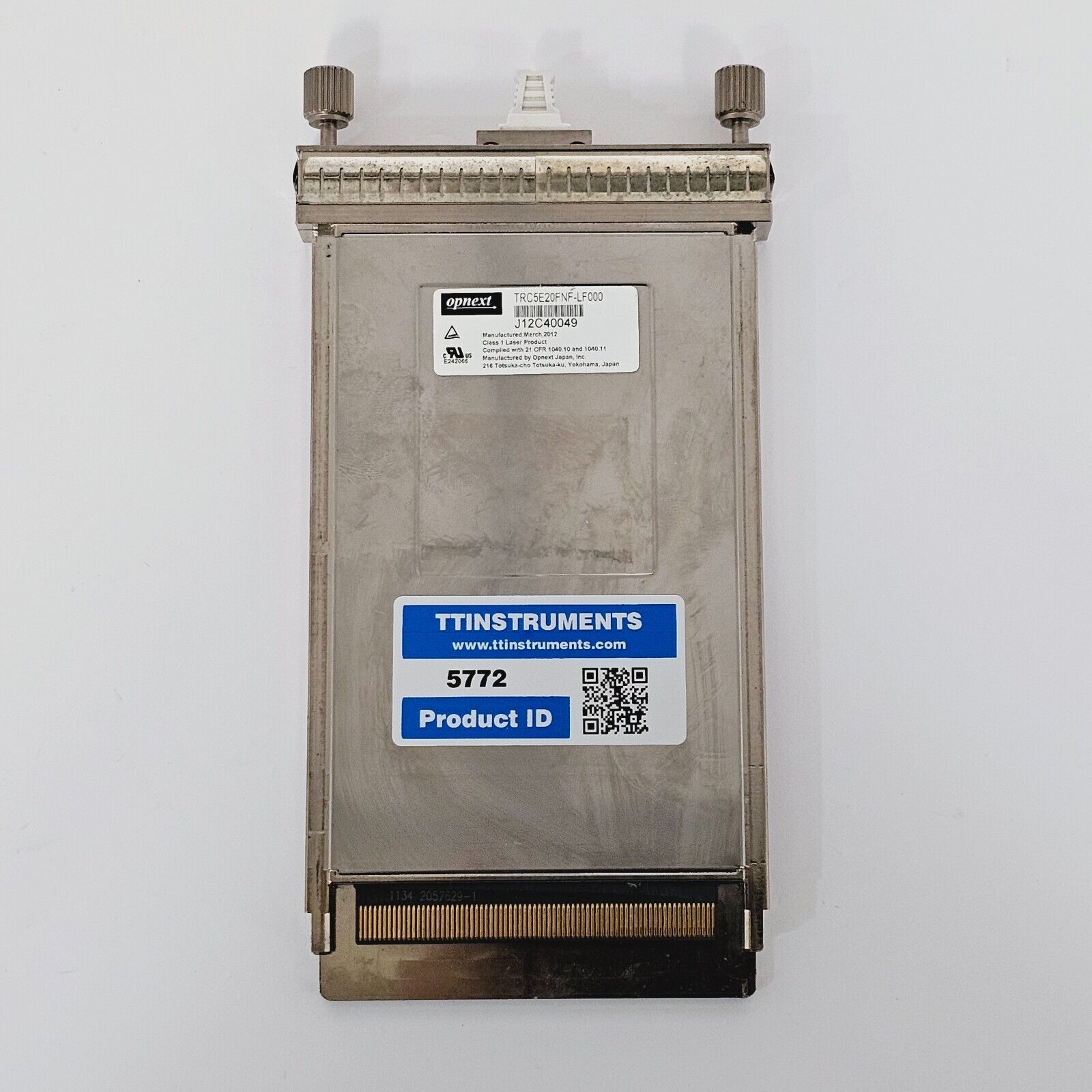

The Opnext TRC5E20FNF-LF000 is a used CFP dual-rate optical transceiver module providing simultaneous support for 100GBASE-LR4 Ethernet and OTN OTU4 applications. Manufactured by Opnext (formerly part of Hitachi), it is designed for deployment in high-speed switching, routing, and optical transport network equipment.

Typically included:
• Opnext TRC5E20FNF-LF000 CFP transceiver module

The Opnext TRC5E20FNF-LF000 is a CFP (C Form-Factor Pluggable) optical transceiver module conforming to the CFP MSA standard. It is a hot-swappable dual-rate module supporting both 100GBASE-LR4 (IEEE 802.3ba) and OTU4 (ITU-T) transmission standards. The module uses four EA-DFB (Electro-absorption modulated Distributed Feedback) laser transmitters operating at LAN-WDM wavelengths around 1310nm (nominally 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm), multiplexing four parallel lanes into a single optical channel for 100Gbps transmission over single-mode fibre (SMF). It transmits and receives via four parallel wavelengths at 25 Gbps per lane for 100GbE operation and at 28 Gbps per lane for OTU4 operation. The module is designed for use in 100G Ethernet core and metro networking, data centre interconnect, ISP backbone infrastructure, and Optical Transport Network (OTN) applications.

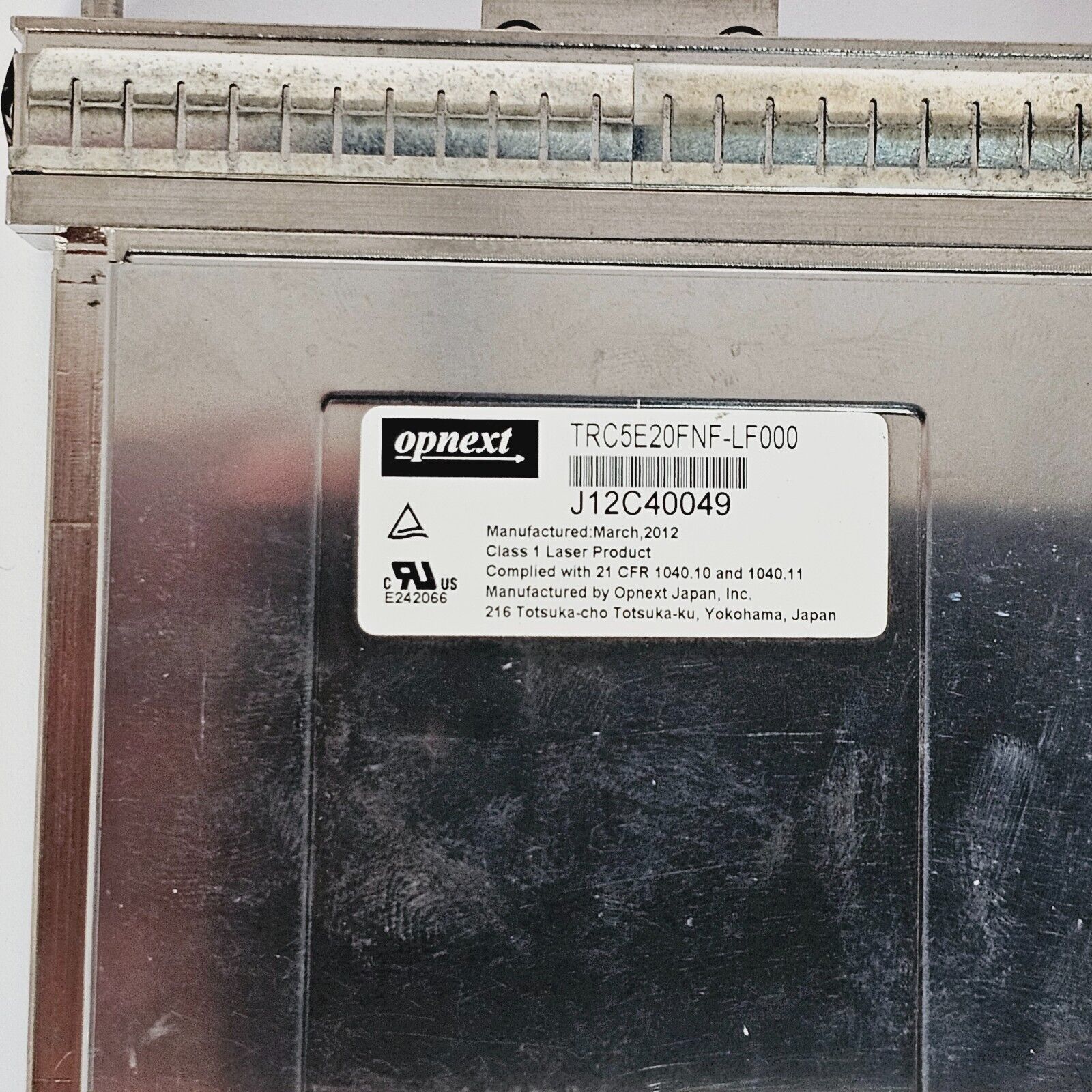

Opnext was a founding member of the CFP MSA (Multi-Source Agreement), which defined the CFP pluggable module form factor for 40 and 100 Gigabit Ethernet. The company was formed from the Fiber Optic Components Business Unit of Hitachi Ltd and built on over 30 years of advanced optical technology expertise.

Key Specifications:
Form Factor: CFP (C Form-Factor Pluggable)
Supported Standards: 100GBASE-LR4 (IEEE 802.3ba), OTU4 (ITU-T G.709)
Data Rate (100GbE): 103.125 Gbps (4 x 25.78125 Gbps lanes)
Data Rate (OTU4): 111.8 Gbps (4 x 27.952 Gbps lanes)
Laser Technology: EA-DFB (Electro-absorption modulated DFB)
Transmit Wavelengths: 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm (LAN-WDM)
Fibre Type: Single-Mode Fibre (SMF, OS1/OS2)
Maximum Reach: 10km

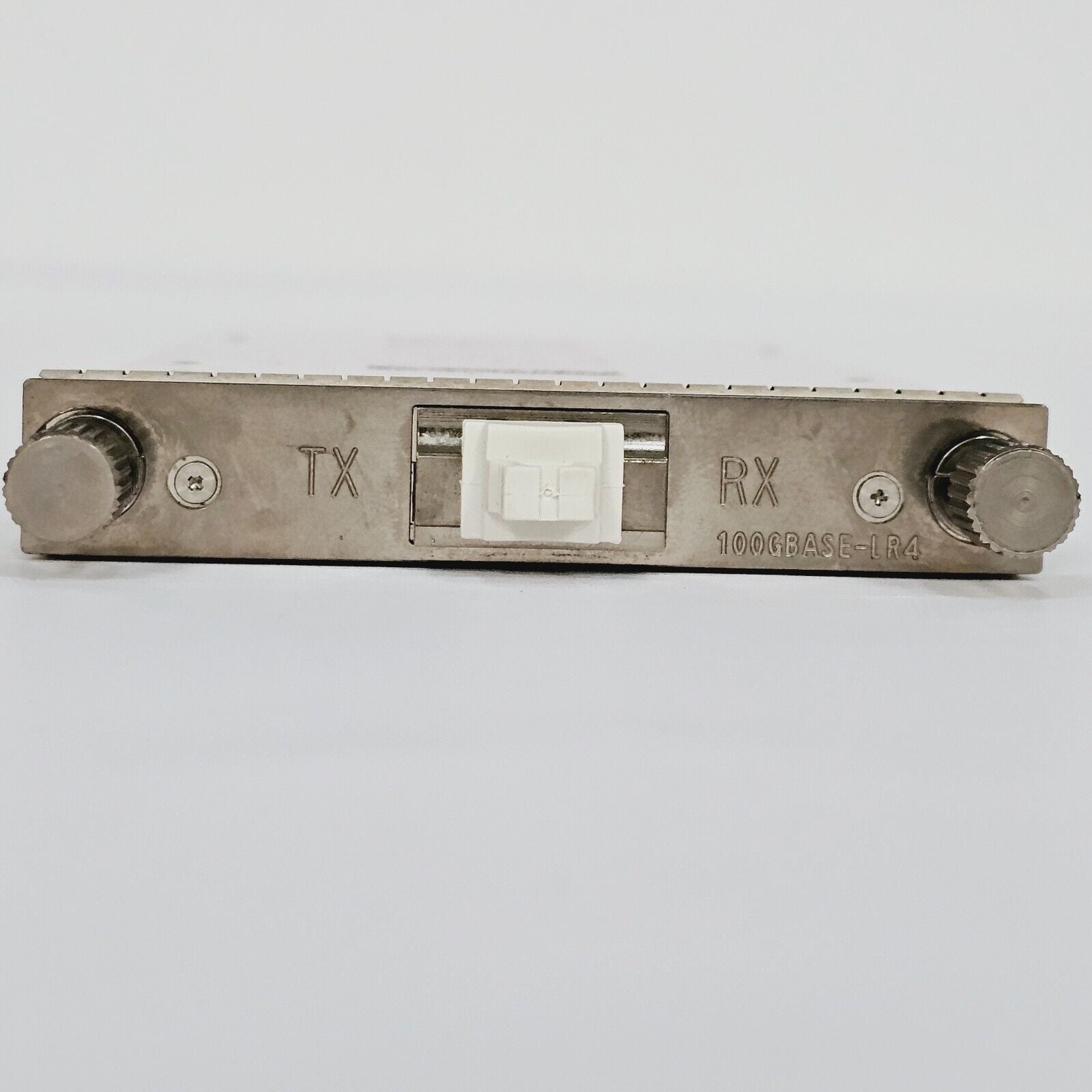

Optical Connector: Duplex LC

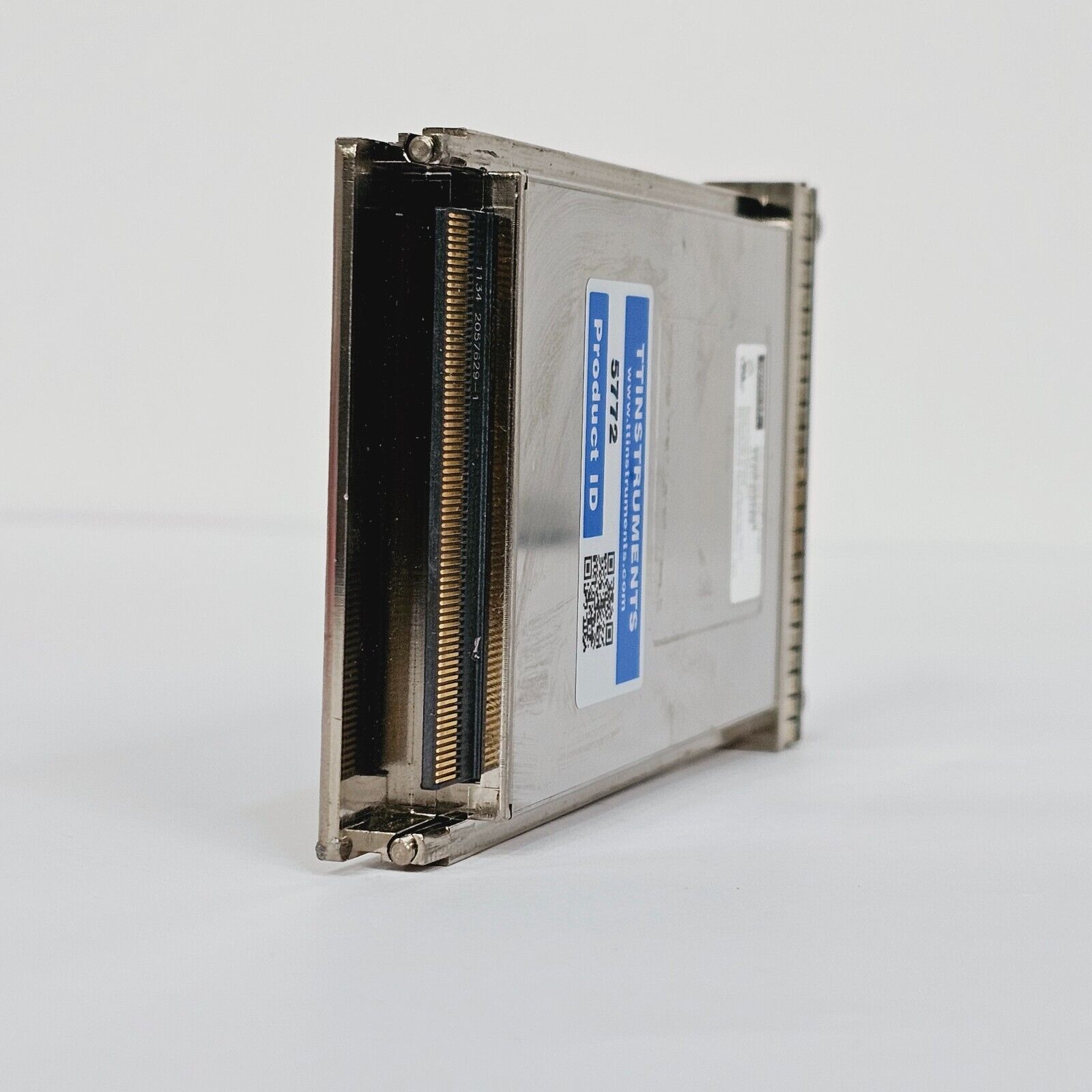

Electrical Interface: 148-pin CFP MSA edge connector (CAUI)
Hot-Swappable: Yes
Operating Case Temperature: 0°C to +70°C
Power Supply: 3.3V
Compliance: CFP MSA, IEEE 802.3ba, ITU-T G.709 OTU4, RoHS
