Condition: Used — Good

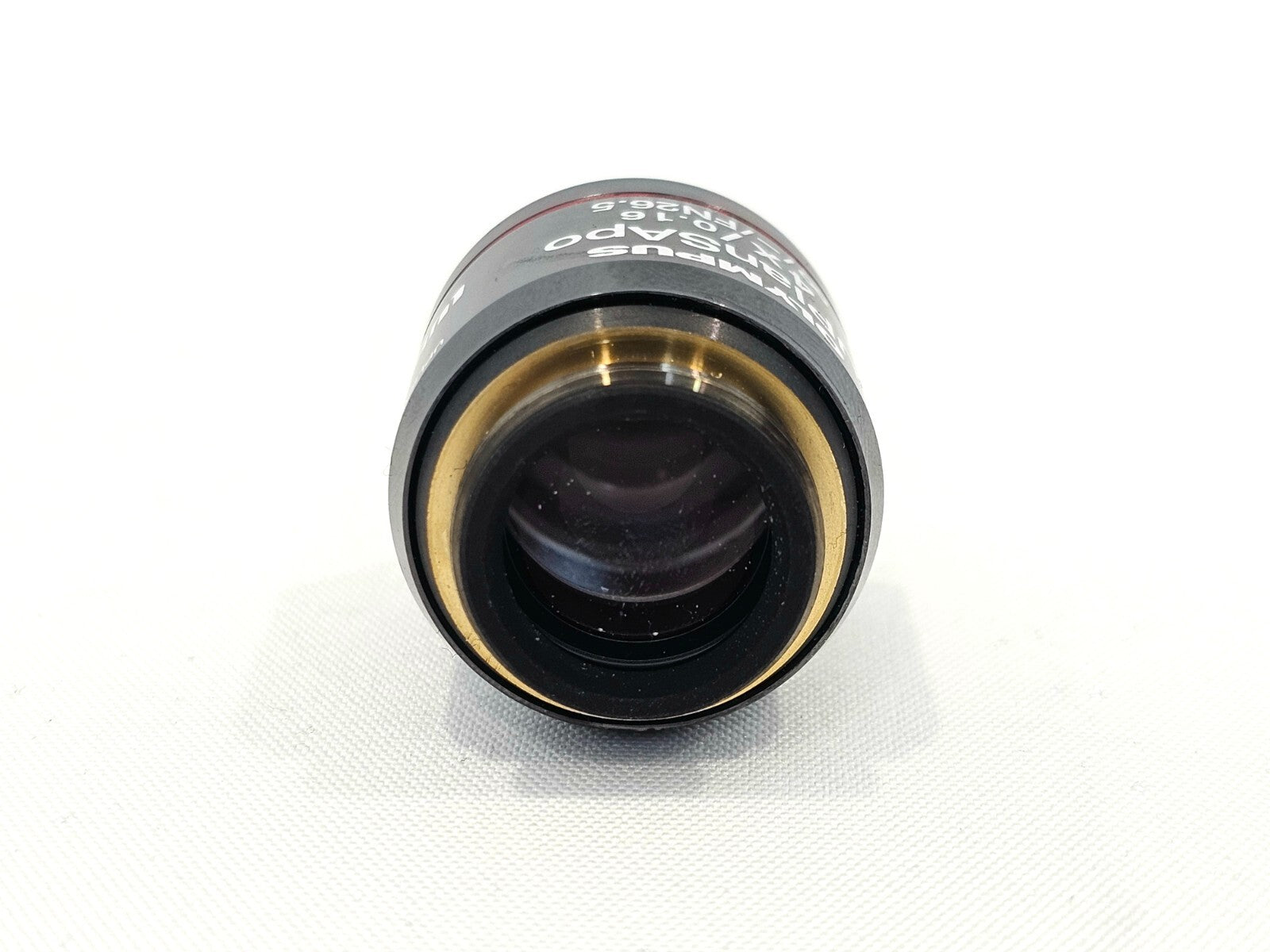

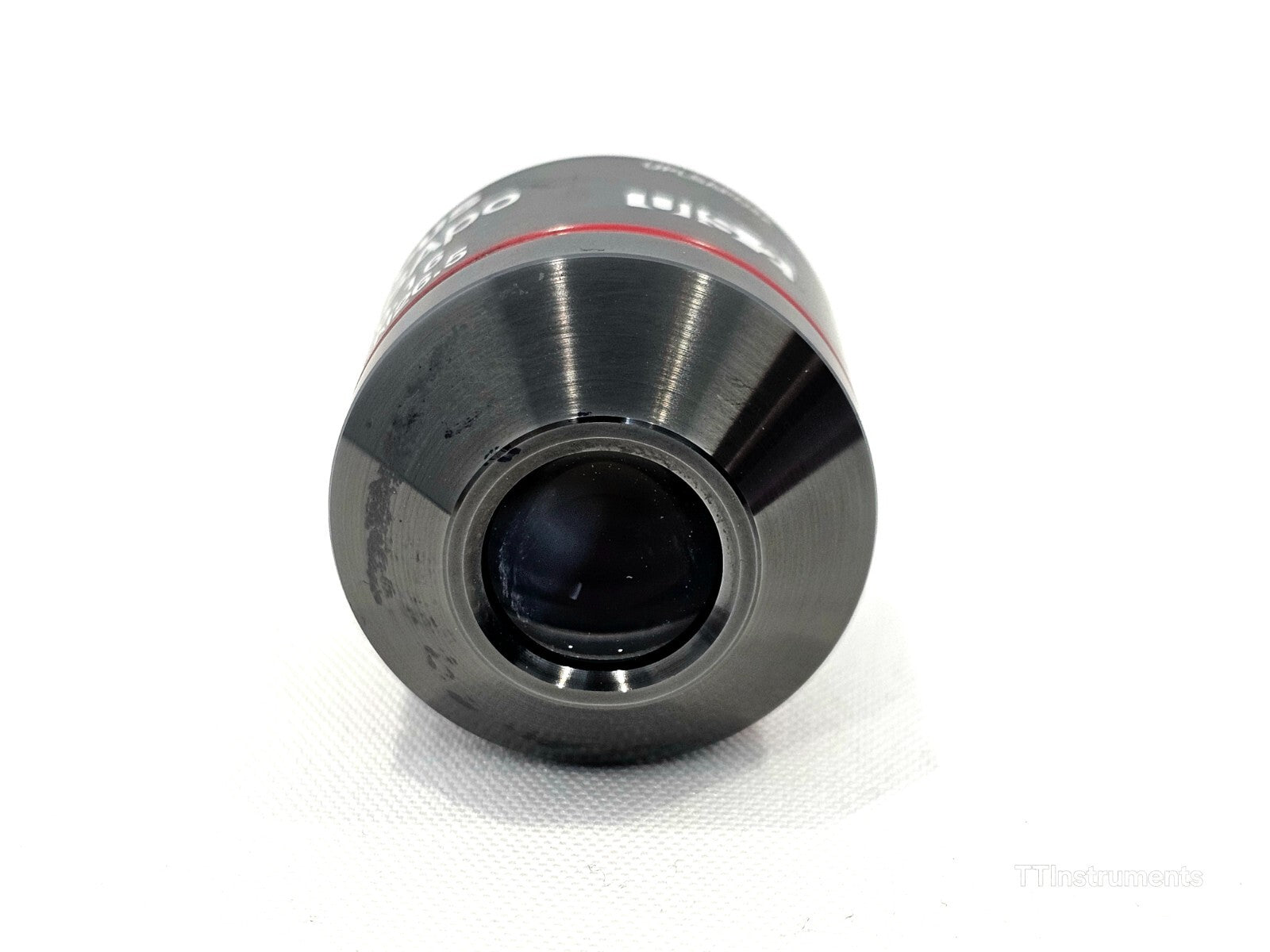

The Olympus UPlanSApo 4x/0.16 UPLSAPO4X ∞/-/FN26.5 is a used infinity-corrected super apochromat objective in good condition. Part number 1-U2B822, it features RMS (W20.32×0.706) thread, 45 mm parfocalising distance, and a 13 mm working distance suitable for dry imaging without a coverslip.

Typically includes:
• Olympus UPLSAPO4X objective lens

The Olympus UPlanSApo (UPLSAPO) series represents Olympus's super apochromat objective range, engineered for the UIS2 optical system. Super apochromat correction compensates for both spherical and chromatic aberrations simultaneously, delivering outstanding colour fidelity and resolution across the visible spectrum into the near-infrared region. These objectives are optimised for demanding life science applications including fluorescence, UV fluorescence, and transmitted brightfield microscopy.

The UPLSAPO4X is designed for use with Olympus BX and IX series research microscopes and is compatible with BX40, BX41, BX43, BX45, BX50, BX51, BX53, BX61, and BX63 model families.

Key Specifications:
Product Name: UPLSAPO4X
Magnification: 4x
Numerical Aperture (NA): 0.16
Working Distance (WD): 13 mm
Field Number (FN): 26.5 mm
Immersion Medium: Air / Dry
Cover Glass Thickness: – (no coverslip)
Infinity Corrected: Yes (∞)
Chromatic Aberration Correction: Super Apochromat (SAPO)
Screw Thread Type: W20.32×0.706 (RMS)
Parfocalising Distance: 45 mm
Back Focal Plane (BFP) Position: –1.9 mm
Spring Loaded: No
Correction Collar: No
Iris: No
Major Application: Life Science
Brightfield (Transmitted): Excellent
Fluorescence (B, G Excitation): Excellent
UV Fluorescence (365 nm): Excellent
DIC (Transmitted): No
Phase Contrast: No
Polarisation: Limitation
Multiphoton: No
TIRF: No
Part Number: 1-U2B822

Olympus Objectives Brochure — full range overview including UPLSAPO series specifications (Janelia/Olympus America PDF): Download PDF
