Condition: Used

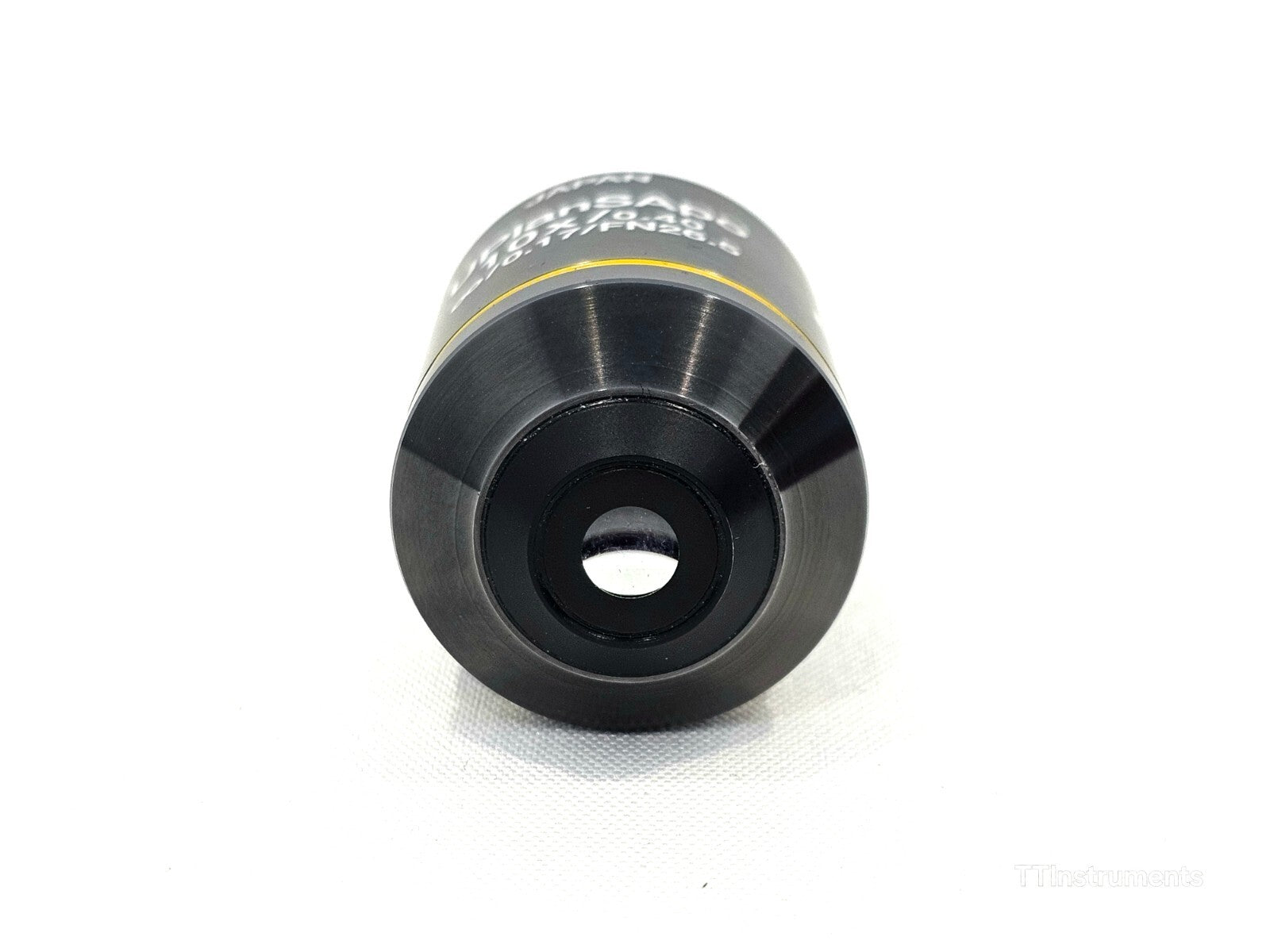

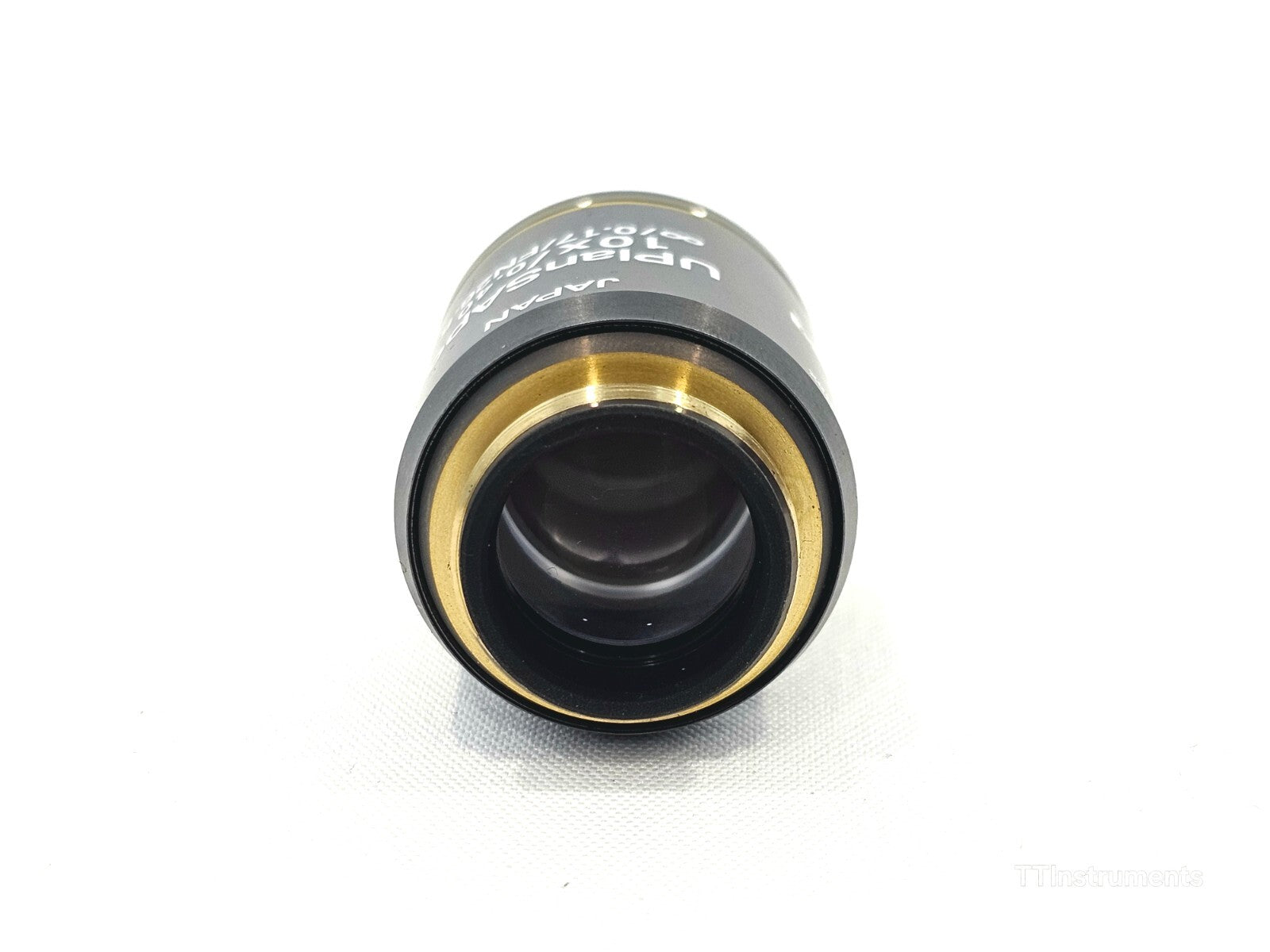

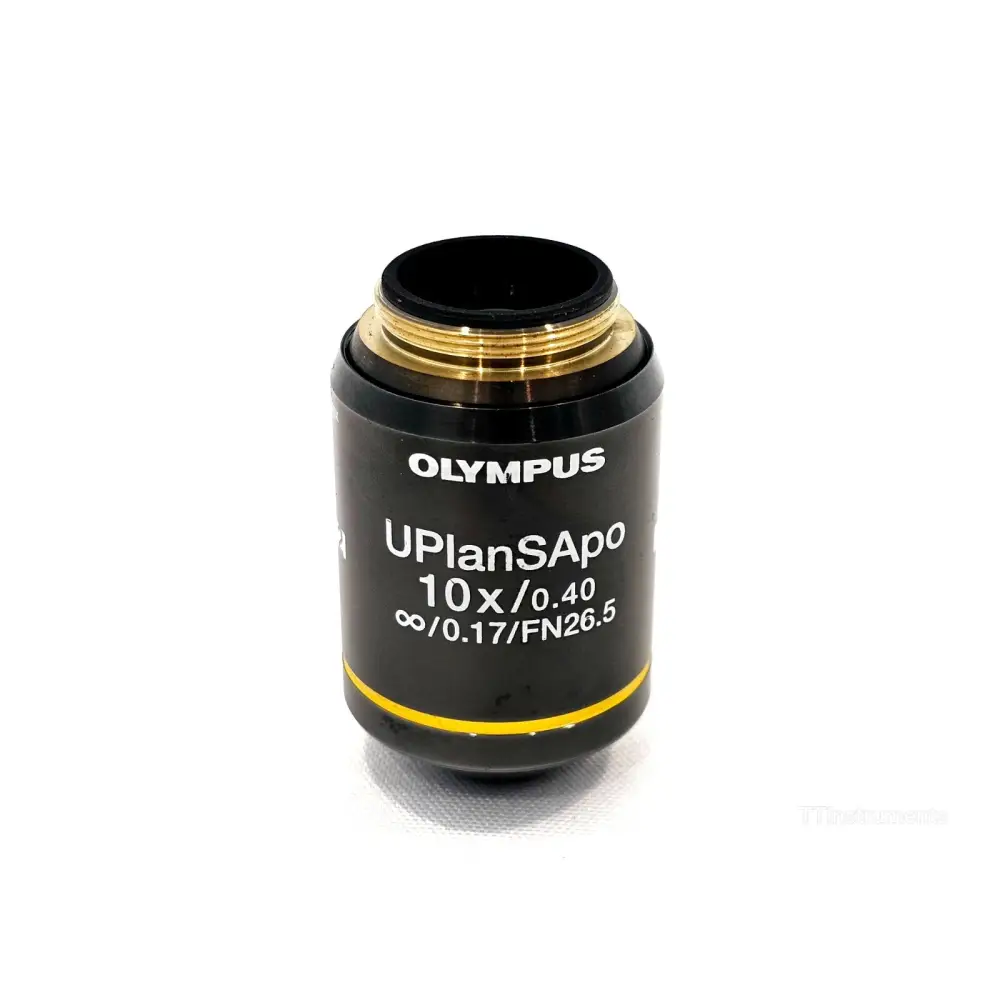

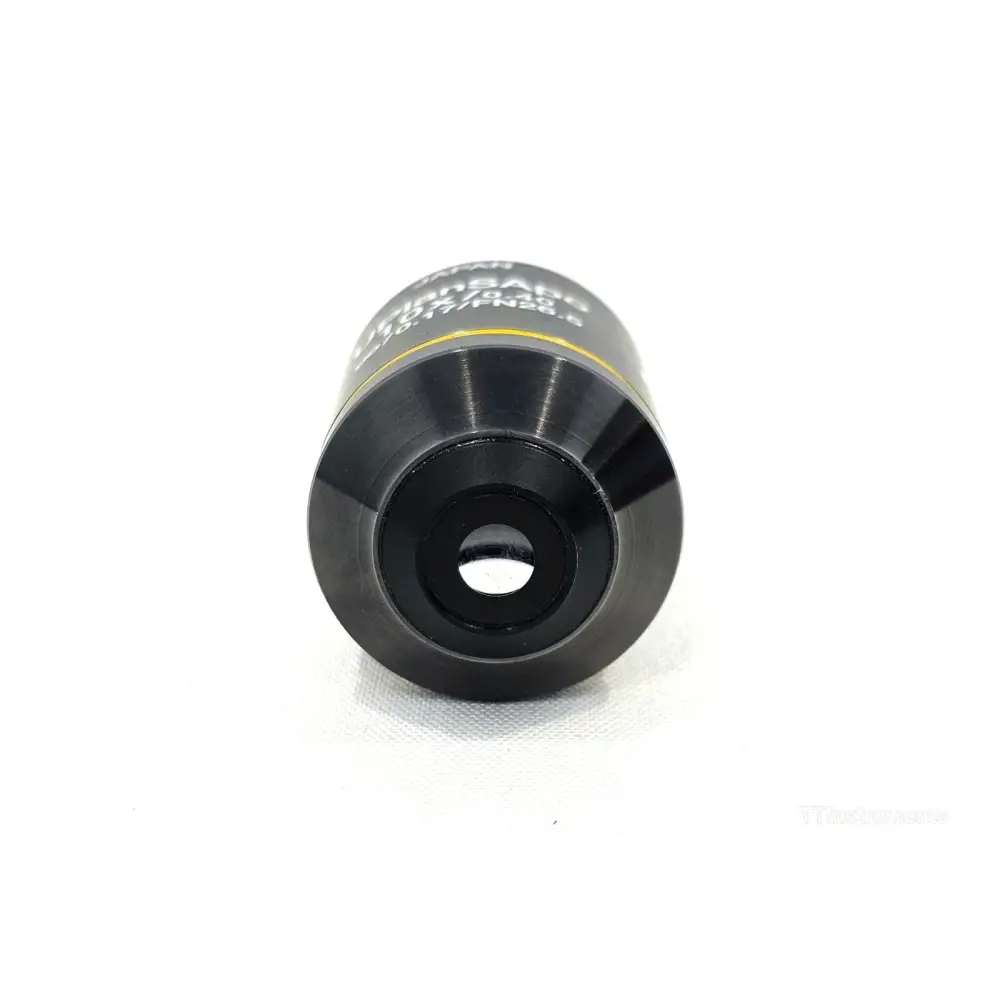

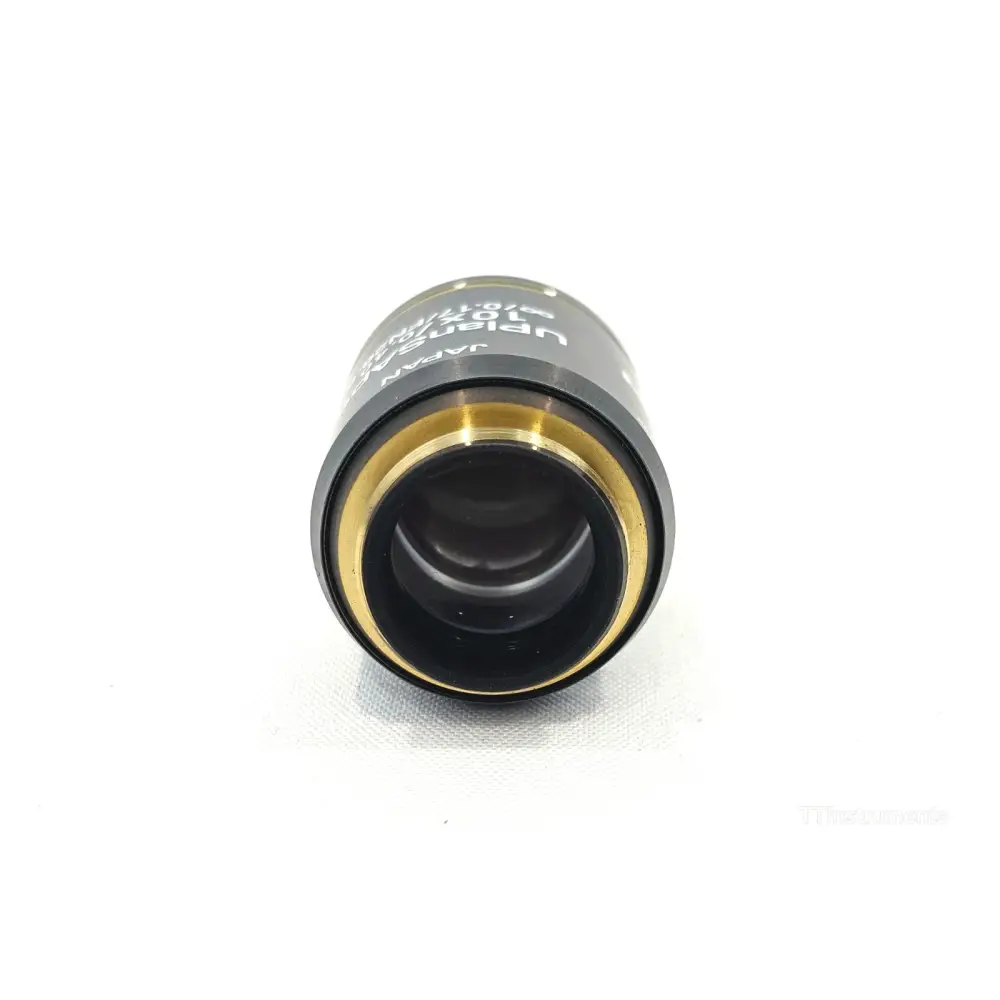

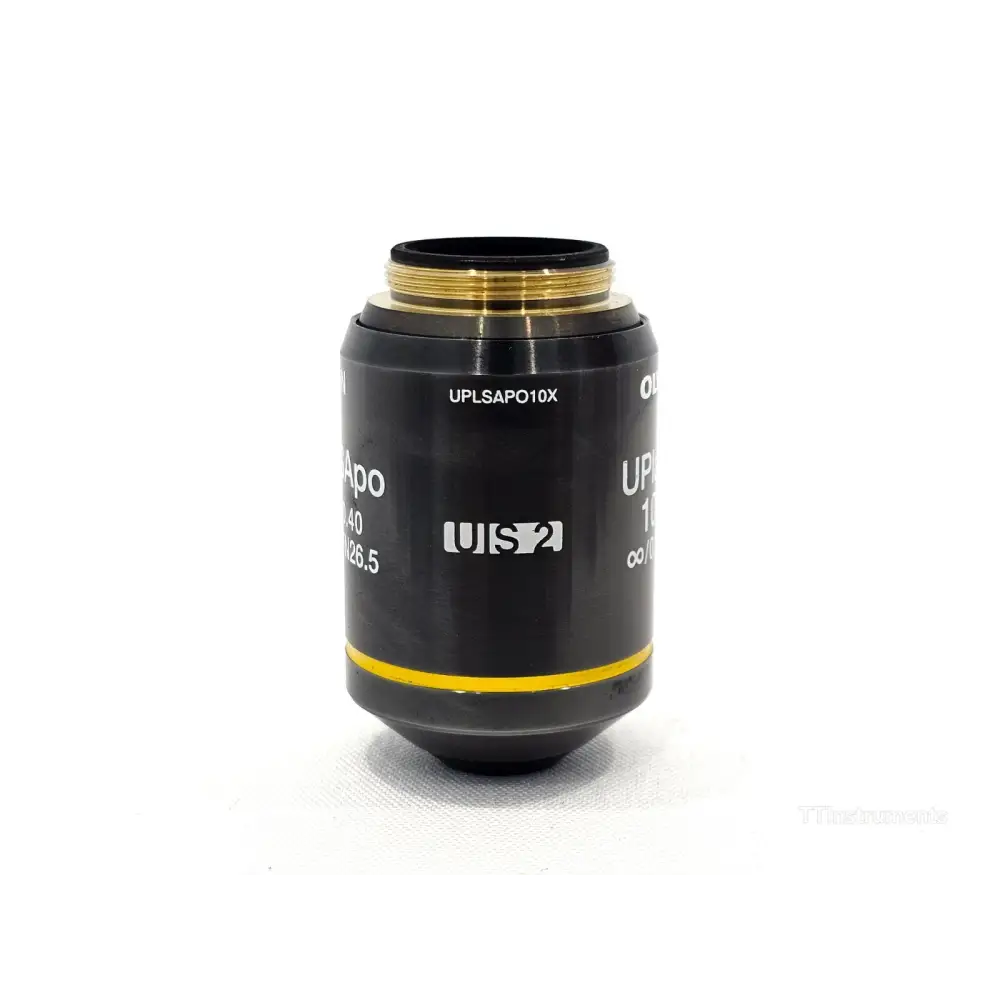

The Olympus UPlanSApo 10x/0.40 UPLSAPO10X is a UIS2-system plan super apochromat objective in good used condition. Part number 1-U2B824, this dry infinity-corrected lens offers a 3.1 mm working distance, 0.40 NA, and FN26.5 field number for wide-field, high-resolution imaging across biological and scientific disciplines.

No specific accessories are listed in the description for this unit.

The Olympus UPLSAPO (UPlanSApo) series are Super Apochromat plan objectives forming part of the Olympus UIS2 (Universal Infinity System 2) optical platform. Designed for research-grade upright and inverted microscopes, the UPLSAPO10X fully compensates for both spherical and chromatic aberrations from the visible to the near-infrared spectral region. Olympus's proprietary UW multicoating ensures high light transmission across a broad wavelength range, making these objectives especially effective for multi-colour fluorescence imaging, Nomarski differential interference contrast (DIC), and brightfield observation. The infinity-corrected design allows optical components to be inserted into the parallel beam path without introducing focus shift, and the RMS-threaded barrel is compatible with all Olympus BX40, BX41, BX43, BX45, BX50, BX51, BX53, BX61, BX63, and IX2-series microscopes.

Product Name: Olympus UPlanSApo 10x Super Apochromat Objective
Part Number / Model: UPLSAPO10X / 1-U2B824
Optical System: UIS2 (Universal Infinity System 2)
Magnification: 10x
Numerical Aperture (NA): 0.40
Working Distance (WD): 3.1 mm
Field Number (FN): 26.5
Tube Length: Infinity-corrected (∞)
Cover Glass Thickness: 0.17 mm
Immersion Medium: Air (dry objective)
Thread Standard: RMS (20 mm diameter)
Correction: Super Apochromat — full spherical and chromatic aberration correction, UV to near-infrared
Observation Methods: Brightfield, fluorescence, DIC (Nomarski), phase contrast
Manufacture: Japan

Olympus UPLSAPO Series super apochromat objective datasheet (100x Oil example showing series specs and features): Download PDF

Olympus America UIS2 objectives overview brochure (Janelia Research Campus hosted PDF): Download PDF

Olympus BX51/BX61 microscope system brochure including UPLSAPO objective transmittance data: Download PDF
