Condition: Used

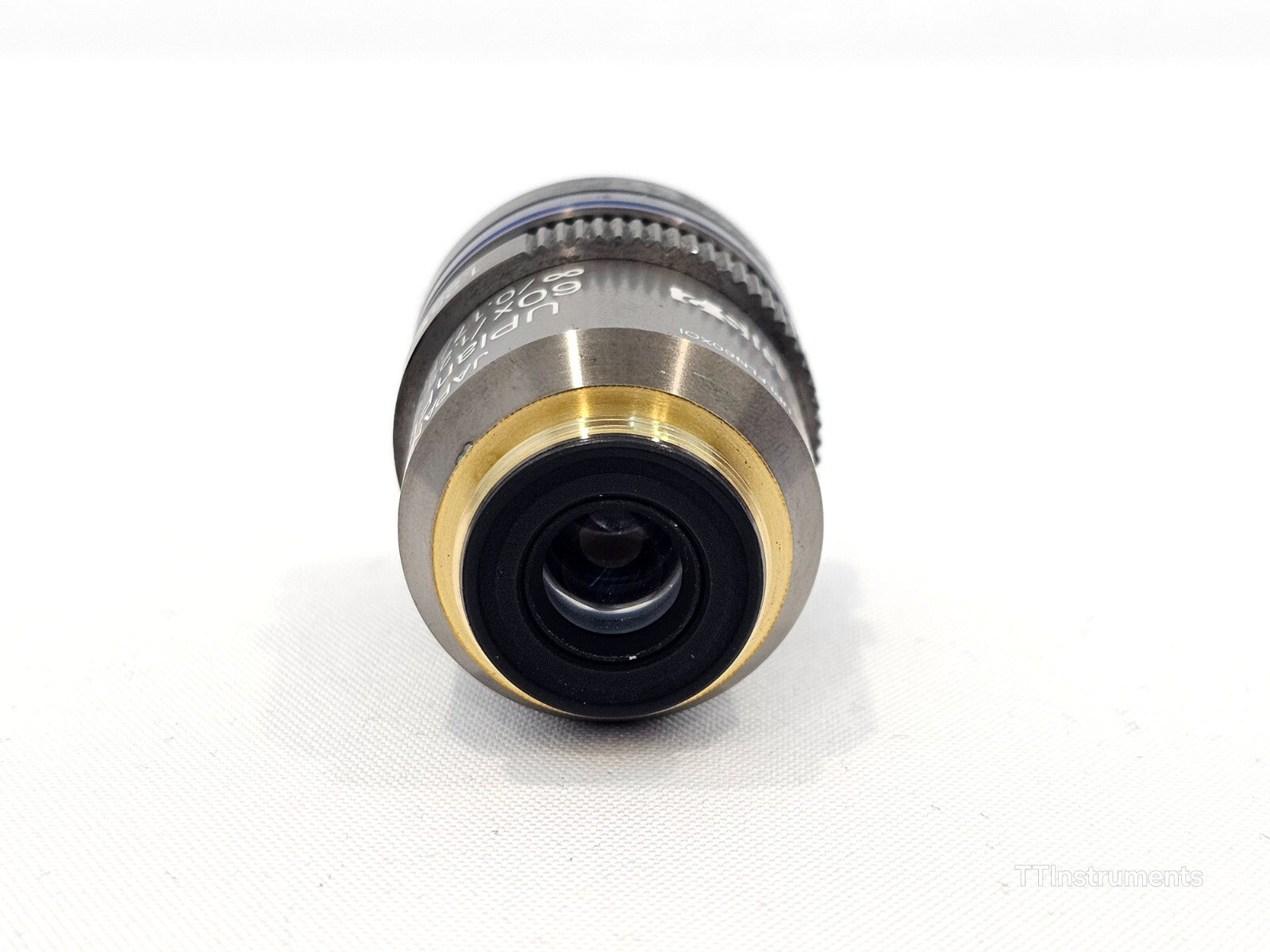

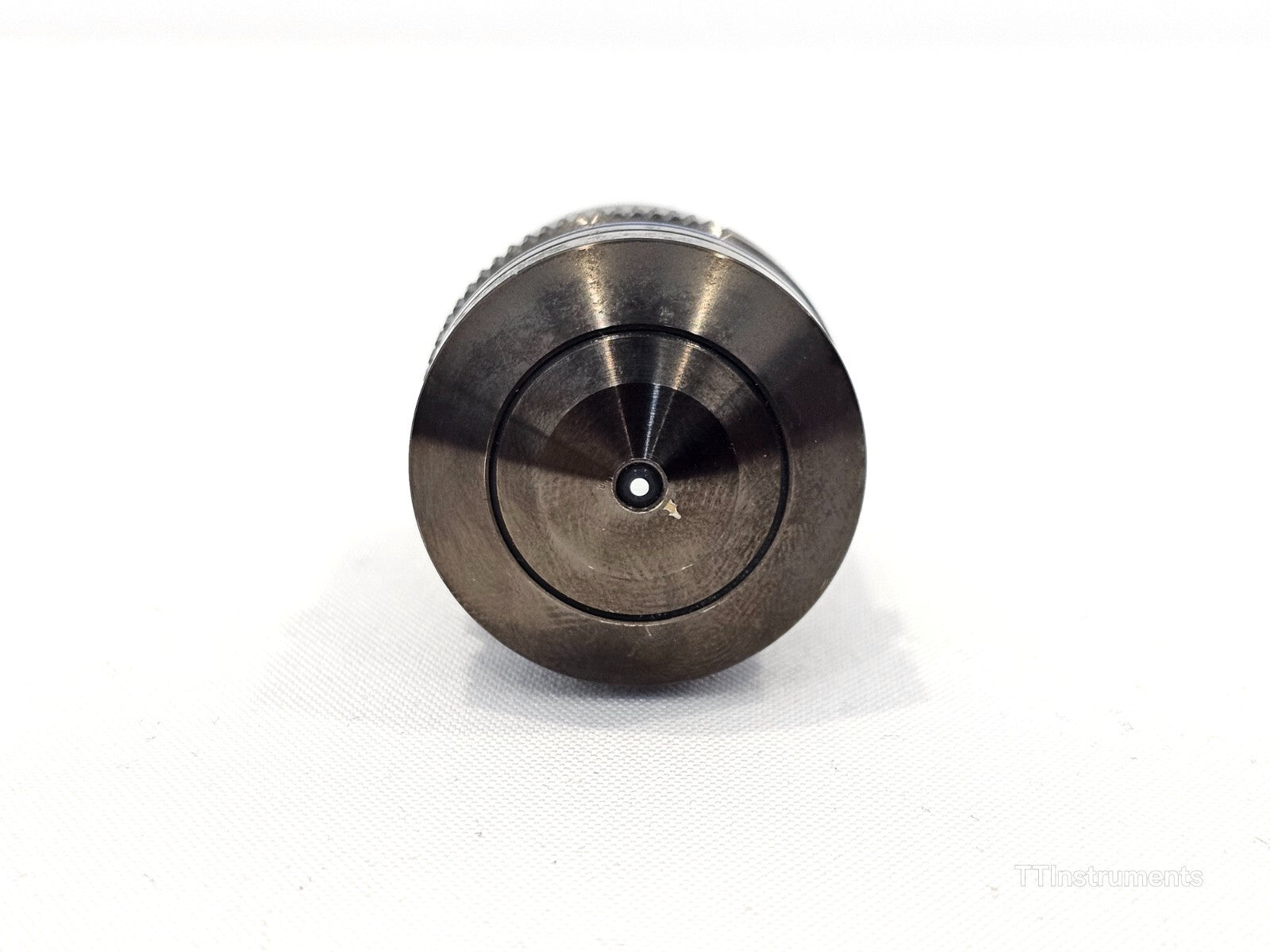

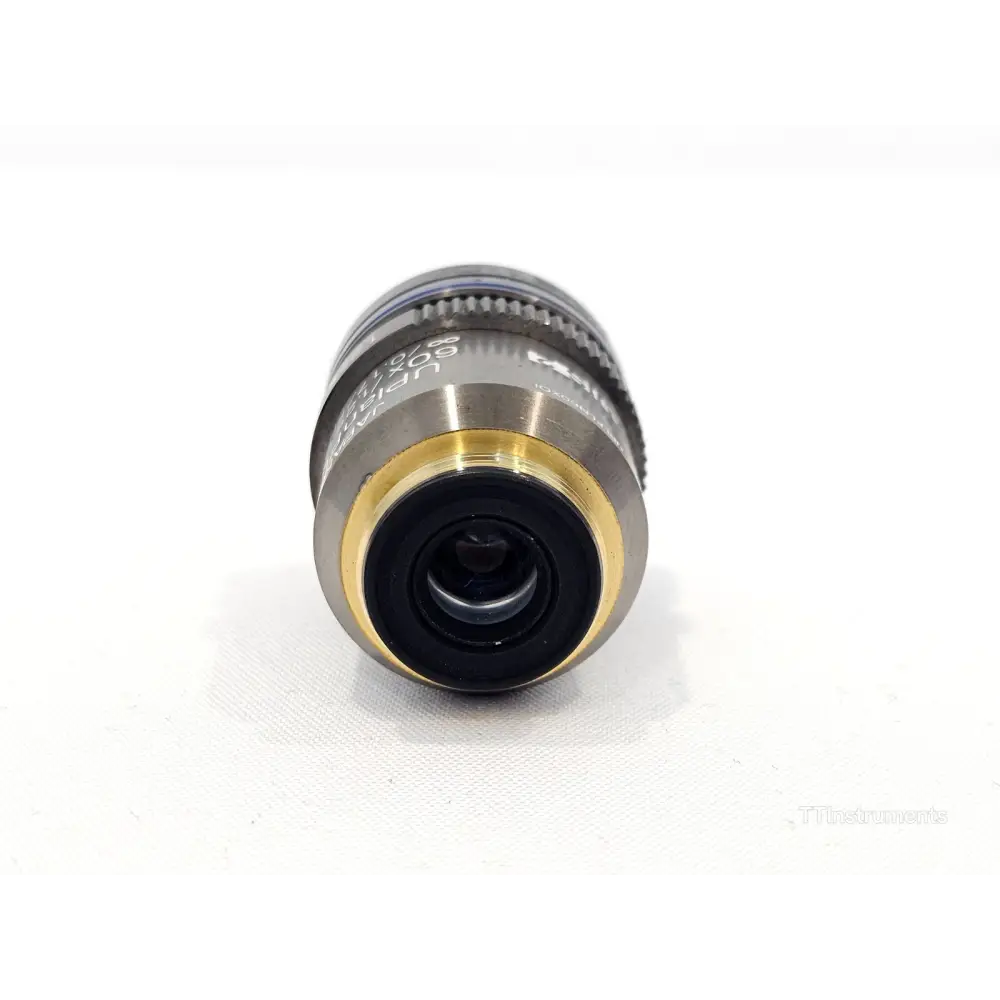

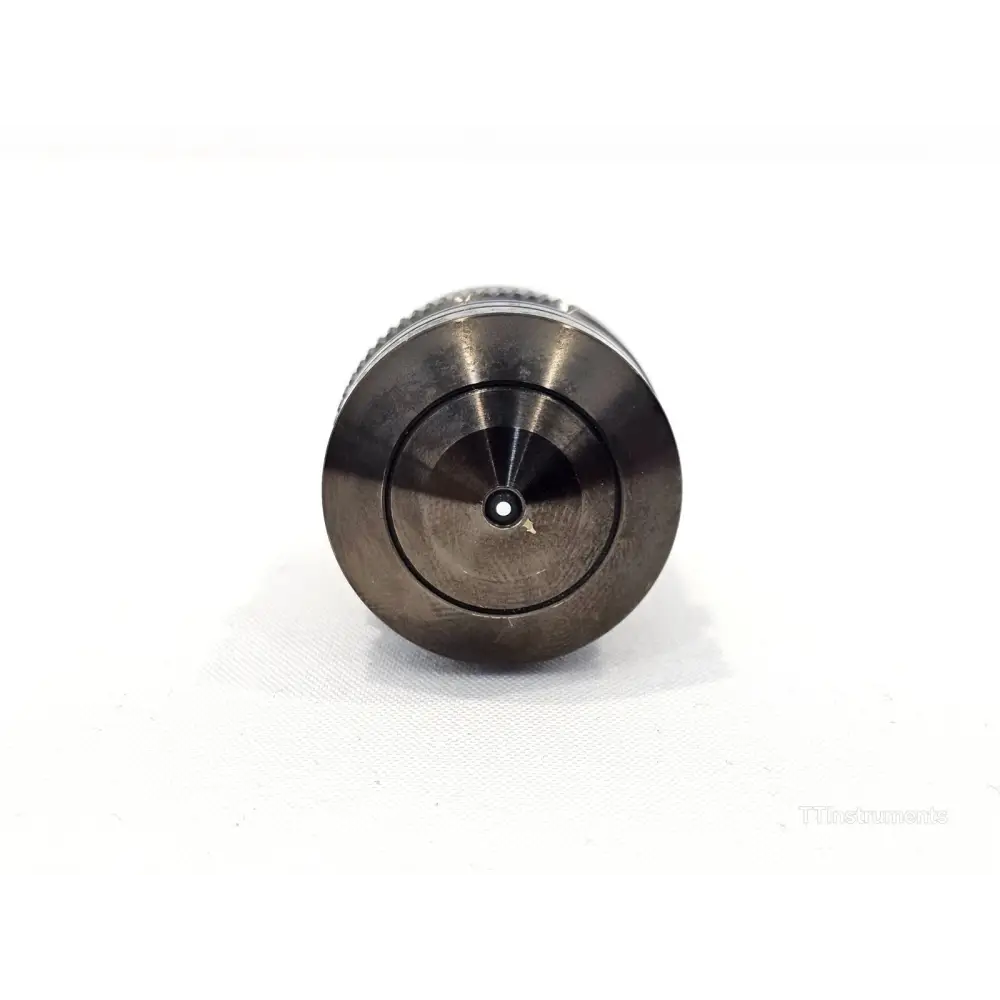

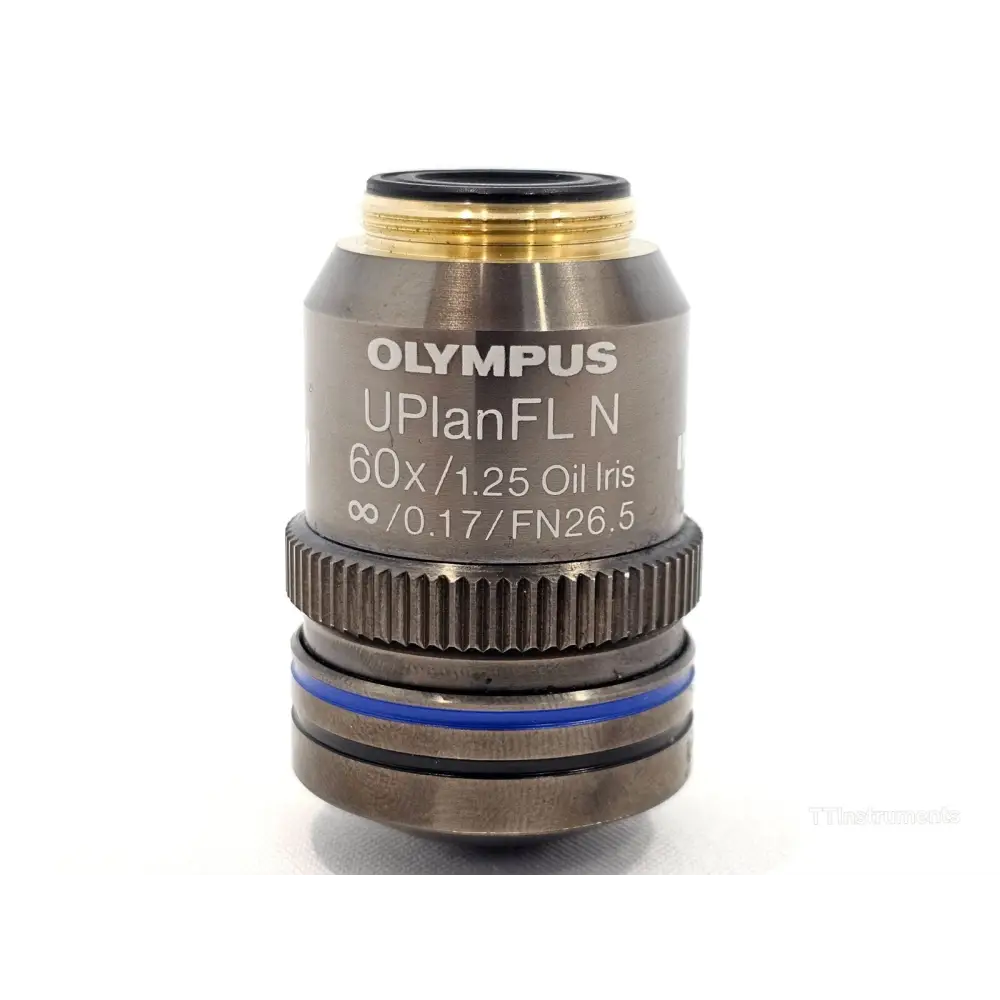

Used Olympus UPlanFL N 60x/1.25 Oil Iris microscope objective (UPLFLN60XOI), in good condition. Features infinity correction, a 0.17 mm cover glass specification, FN26.5 field number, and a 45 mm parfocalising distance. Suitable for high-resolution fluorescence, DIC, and brightfield microscopy on compatible Olympus BX, CX, and IX series platforms.

Typically includes:
• Olympus UPLFLN60XOI objective lens

The Olympus UPLFLN60XOI is part of the UPlanFL N (U Plan Fluorite N) semi-apochromat objective series within Olympus' UIS2 optical system. These plan fluorite objectives utilise advanced multi-coatings to deliver excellent flat-field images from the UV through to the near-infrared region of the spectrum, with high signal-to-noise ratios, high resolution, and high contrast imaging capability. They are well-suited for brightfield, Nomarski differential interference contrast (DIC), darkfield, fluorescence, and polarisation microscopy techniques.

Product Name: UPlanFL N 60x/1.25 Oil Iris
Part Number: UPLFLN60XOI
Olympus Product Code: 1-U2B532
Magnification: 60x
Numerical Aperture (NA): 0.65–1.25 (variable via iris diaphragm)
Immersion Medium: Normal Oil
Working Distance (WD): 0.12 mm
Cover Glass Thickness: 0.17 mm
Field Number (FN): 26.5 mm
Correction Level: Semi-Apochromat (Fluorite)
Infinity Correction: Yes (∞)
Optical System: UIS2
Thread Type: W20.32×0.706 (RMS)
Parfocalising Distance: 45 mm
Back Focal Plane (BFP) Position: -19.1 mm
Spring Loaded: Yes
Iris Diaphragm: Yes
Brightfield (Transmitted): Excellent
DIC (Transmitted): Excellent
Darkfield (Transmitted): Good
Fluorescence (B, G excitation): Excellent
UV Fluorescence (365 nm): Excellent
Polarisation: Good
Auto Focus Compatible: Yes
Major Application: Life Science

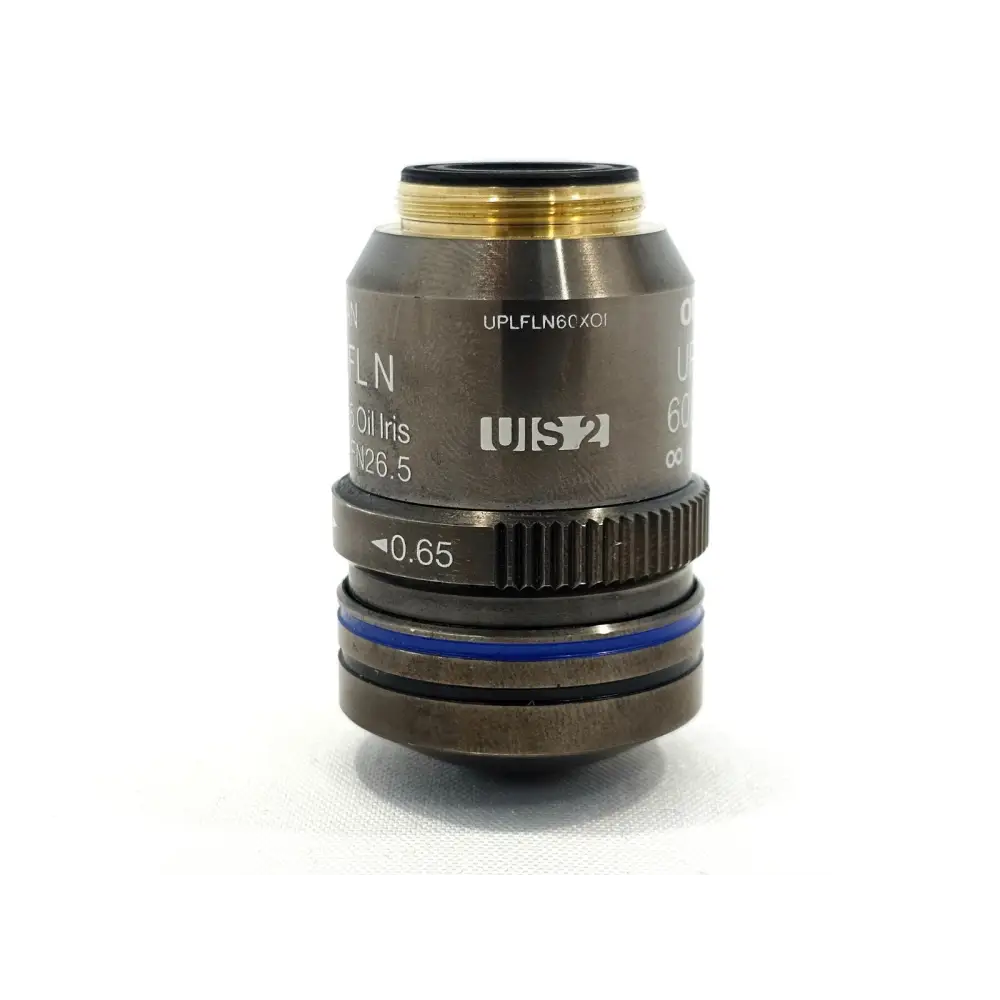

The iris diaphragm allows the numerical aperture to be adjusted between 0.65 and 1.25, making it versatile for controlling depth of field and background suppression. The objective is compatible with Olympus BX, CX, and IX series upright and inverted research microscopes.

Olympus UIS Objectives for Life Science — official objectives brochure PDF: Download PDF
