Condition: Used

The Olympus FLUOVIEW FV10i Confocal Laser Scanning Microscope System (model FV10C-W, water-immersion variant) is offered here in used condition. The unit powers on and warms up successfully; no further functional testing has been carried out beyond power-on.

Included in the sale:

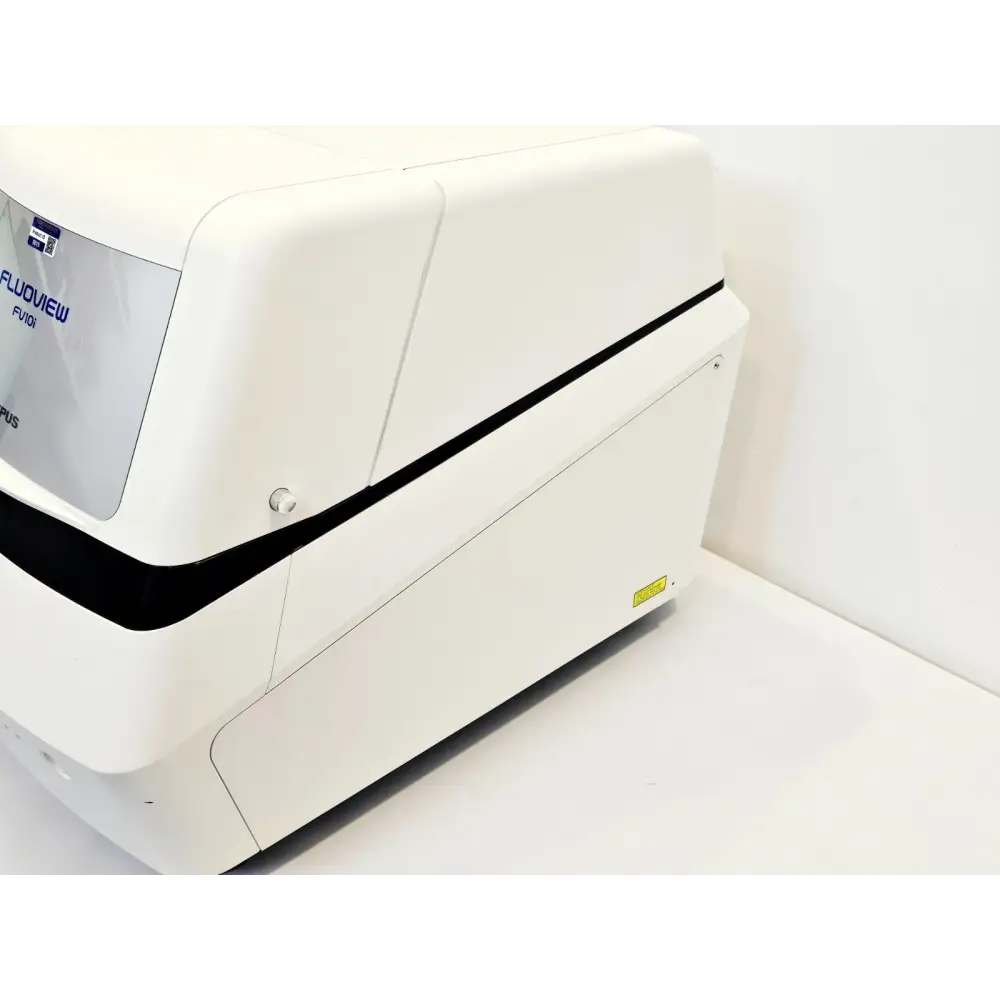

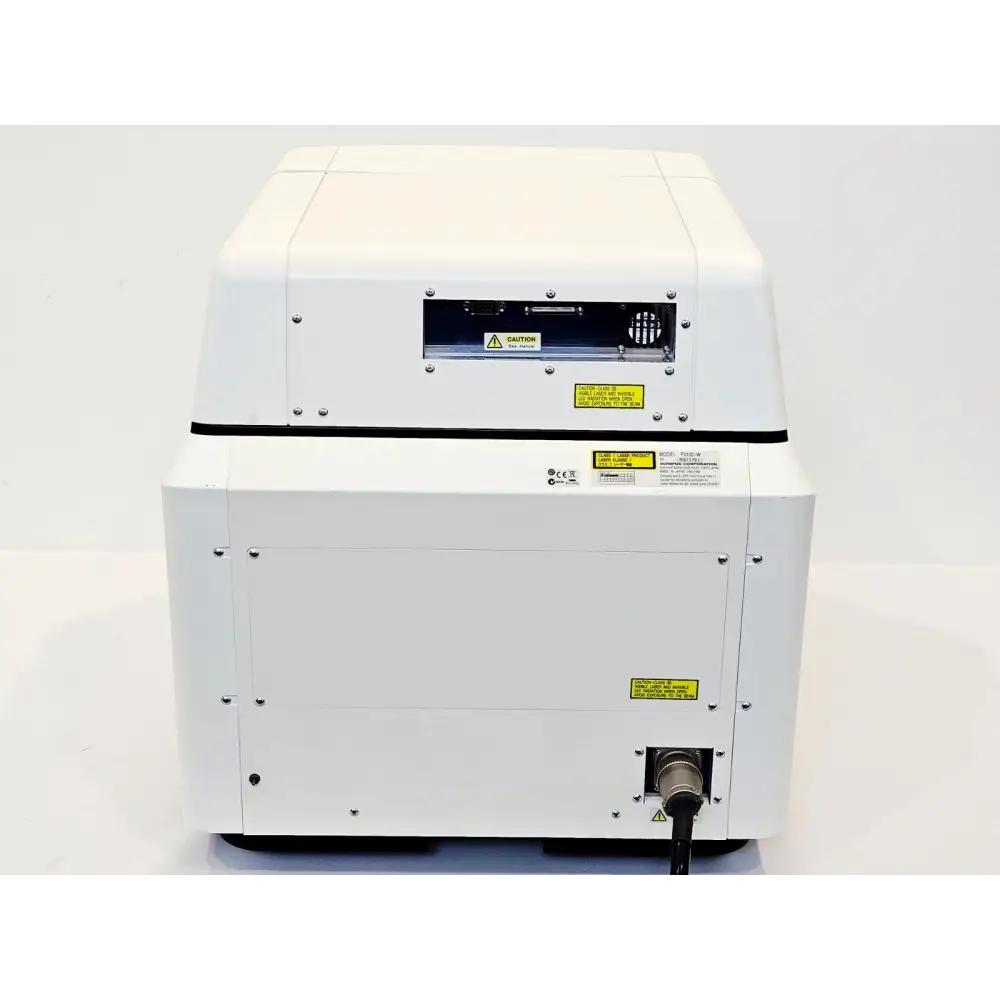

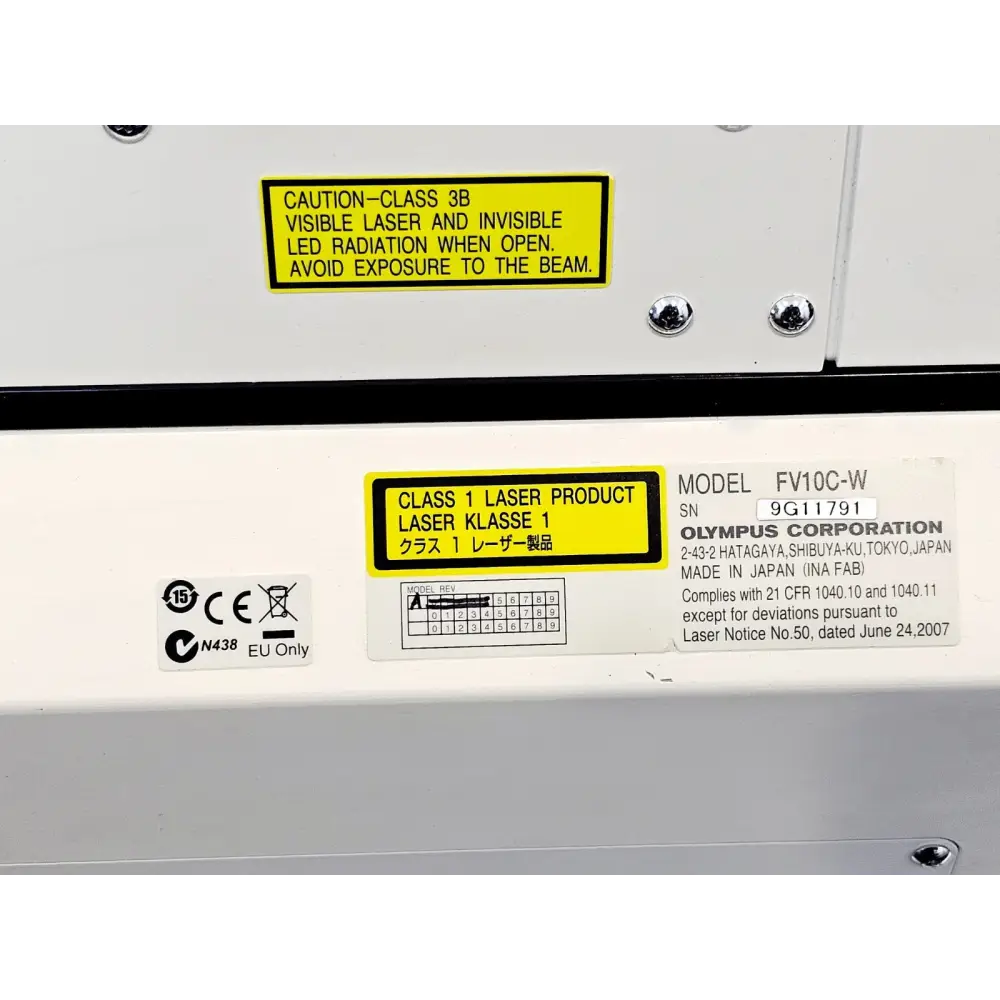

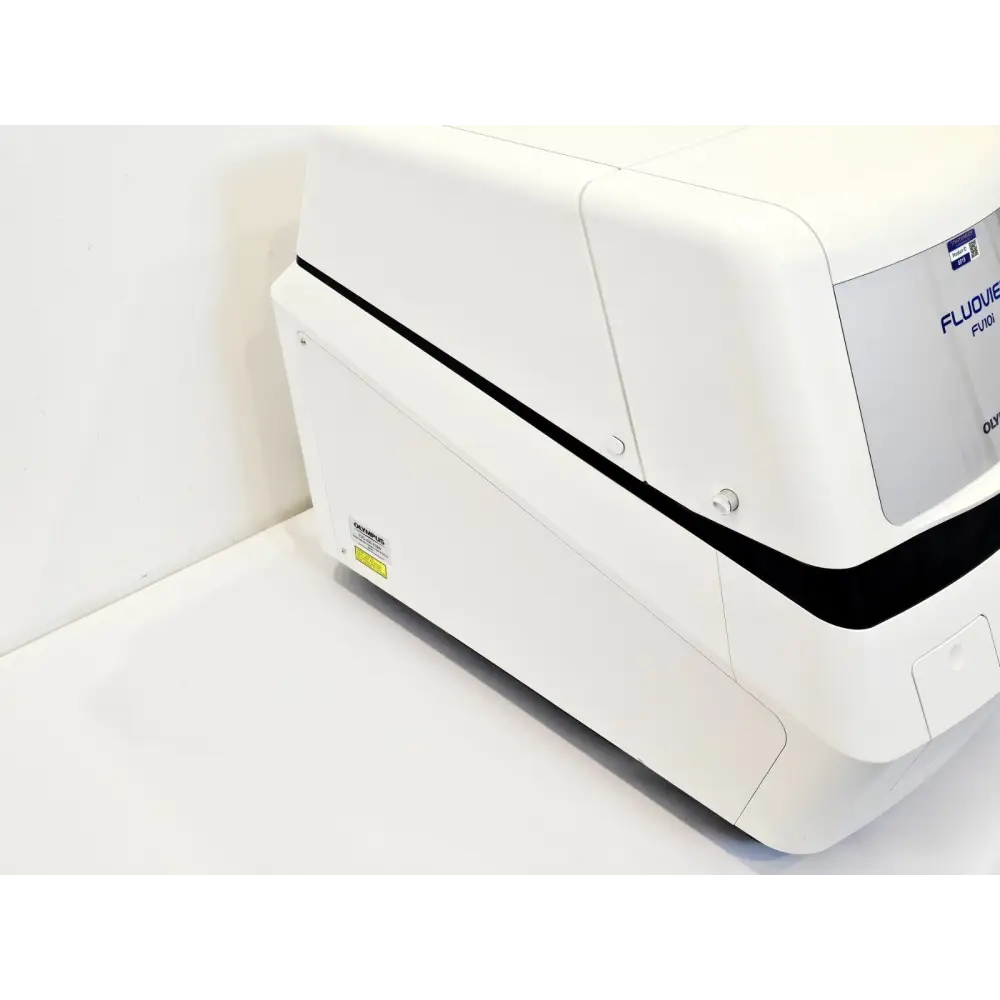

• Olympus FLUOVIEW FV10i main unit (FV10C-W)

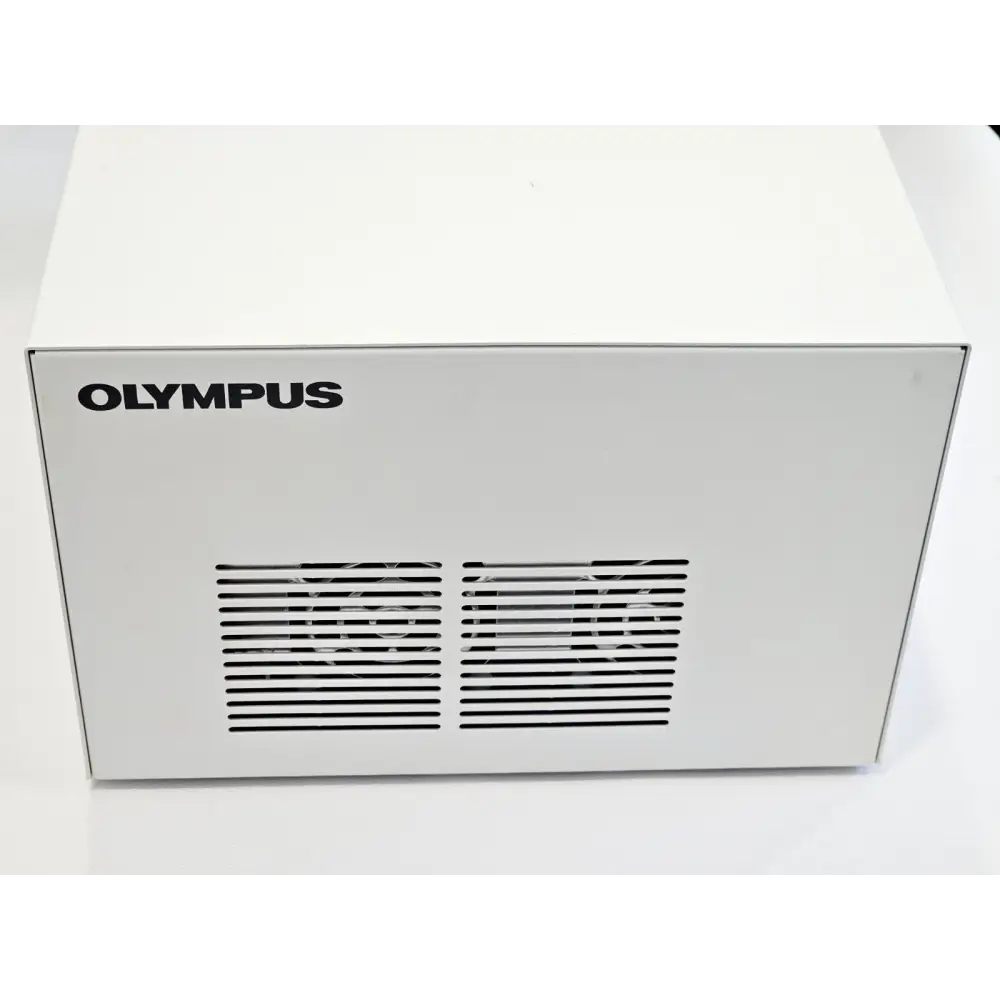

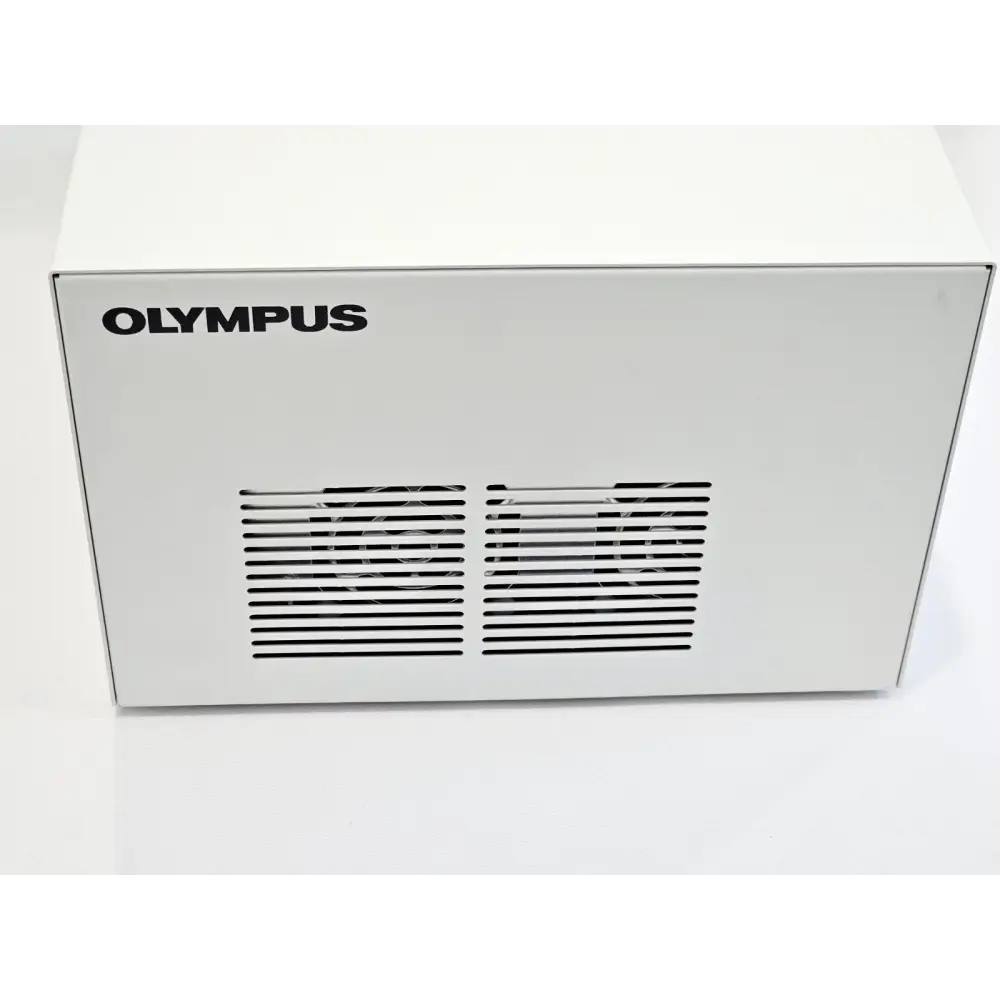

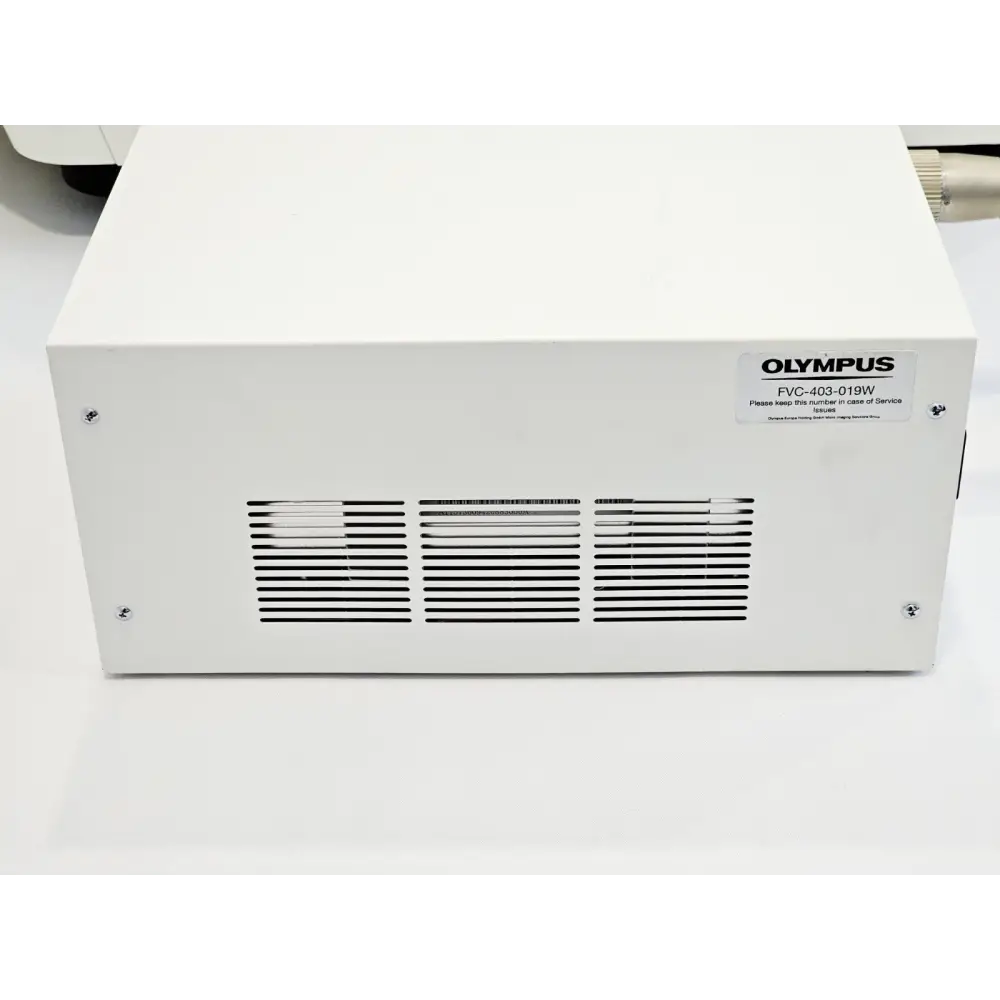

• Olympus external laser combiner/module box (FVC-403-019W)

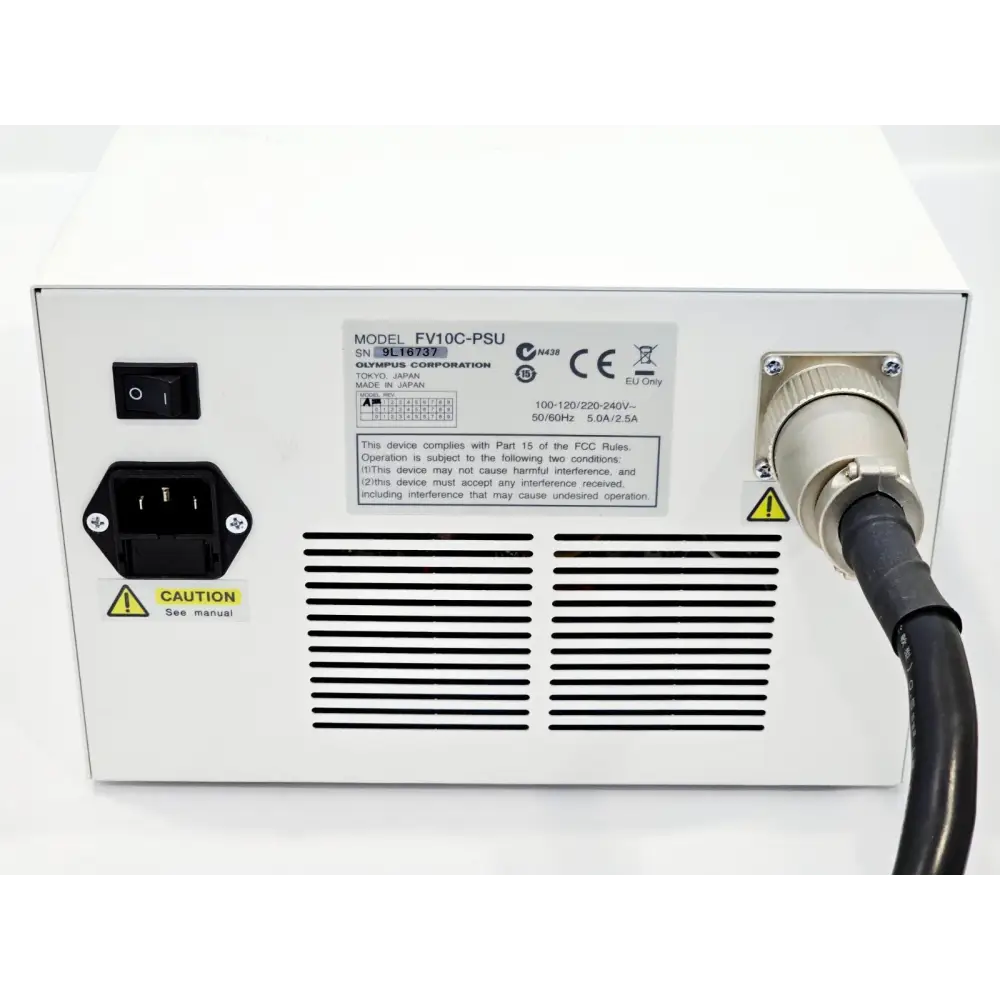

• Olympus FV10C-PSU power supply unit (SN: 9L16737)

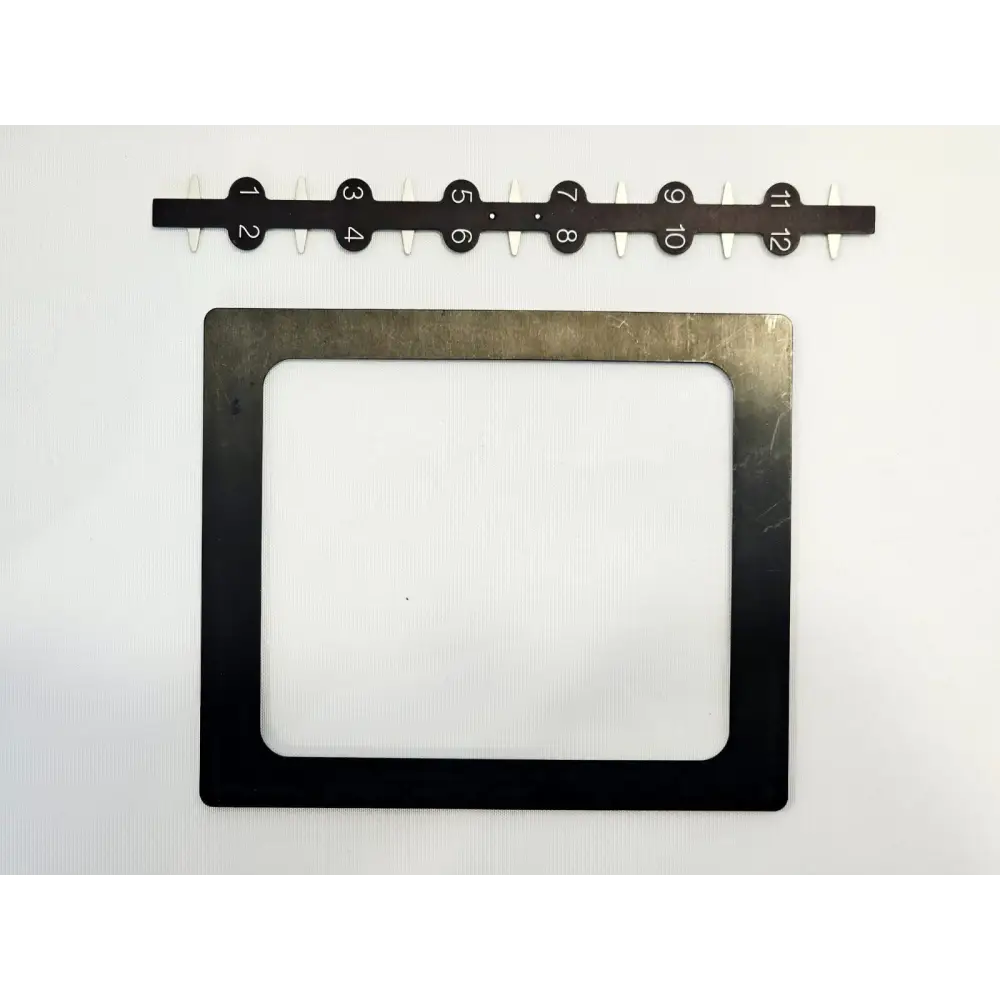

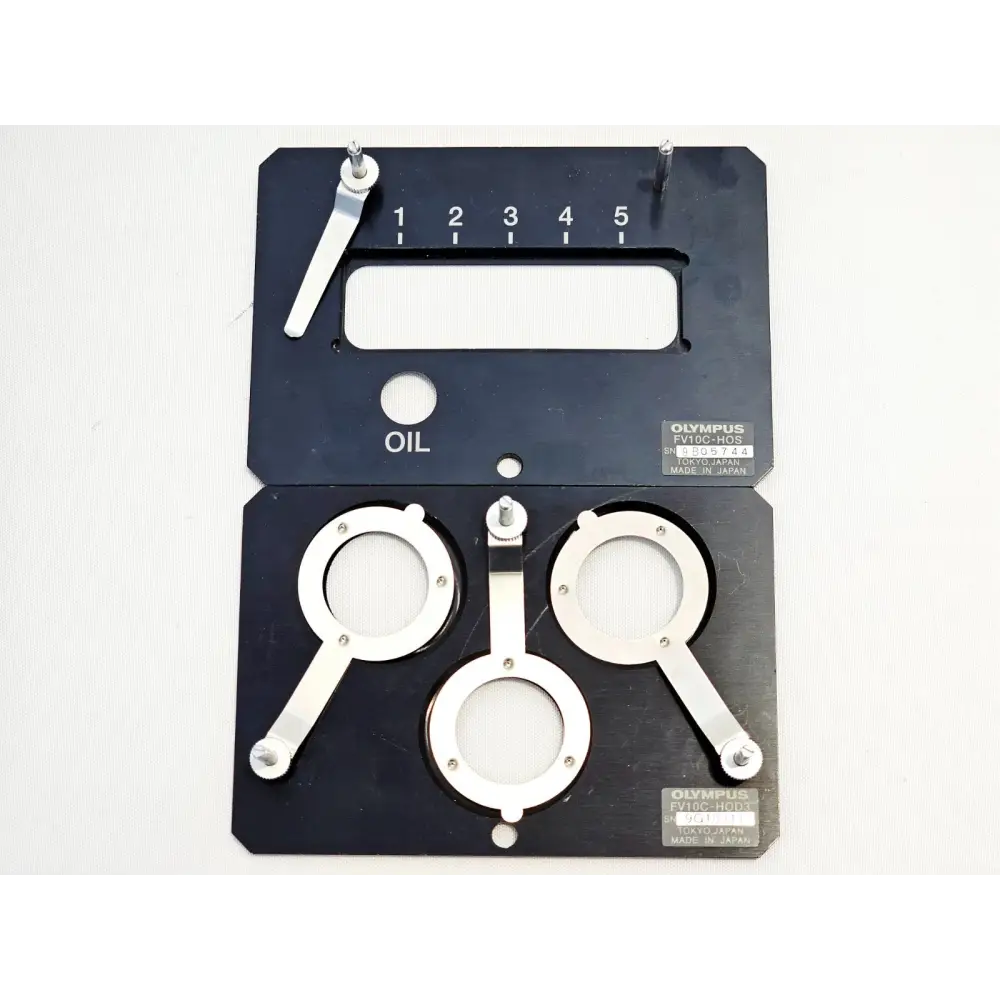

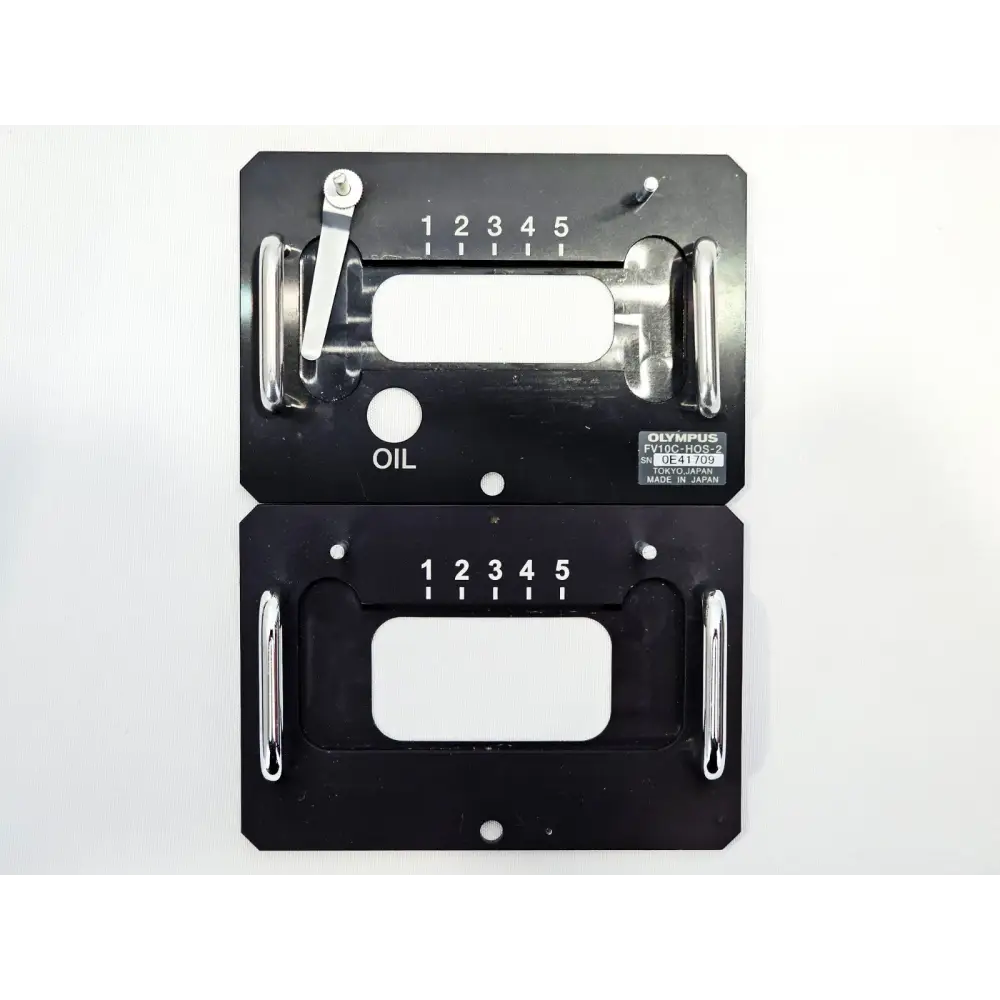

• Olympus FV10C-HOS specimen plate/holder
• Olympus FV10C-HOD3 specimen plate/holder

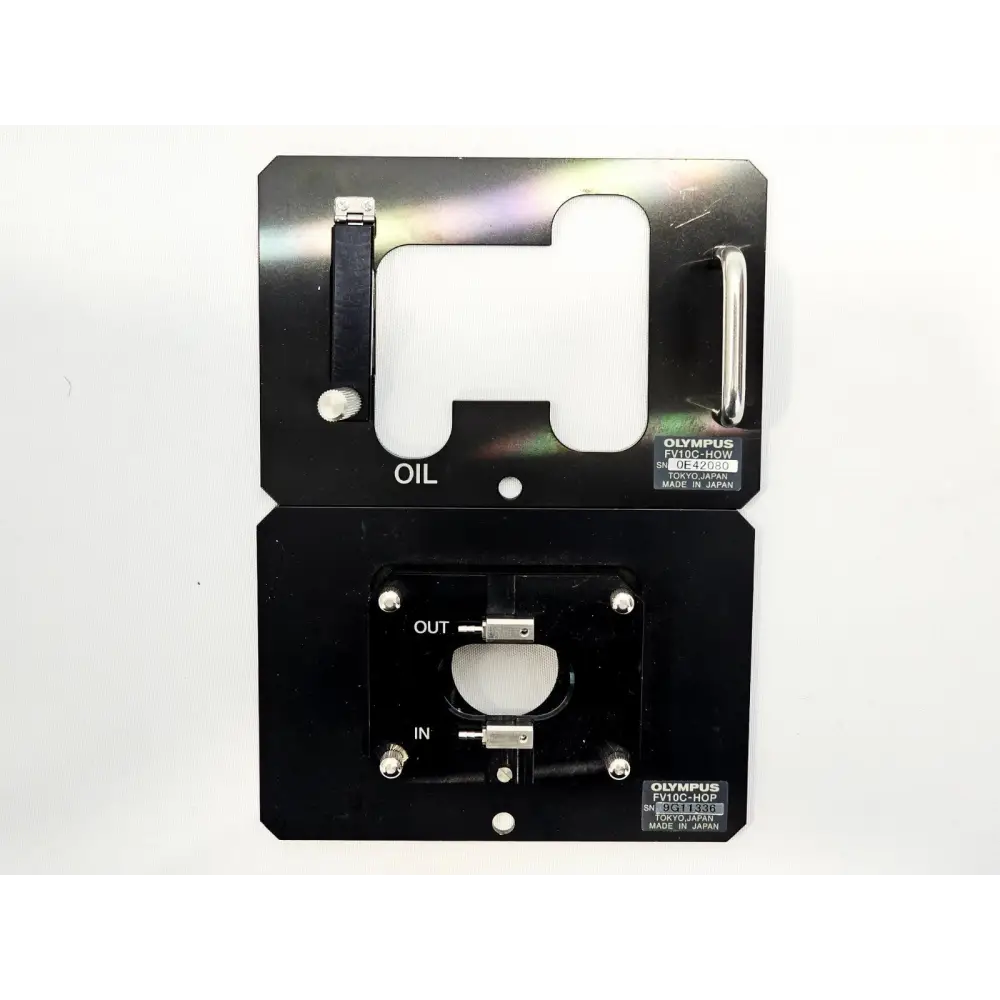

• Olympus FV10C-HOW specimen plate/holder
• Olympus FV10C-HOP specimen plate/holder
• Olympus FV10C-HOS-2 specimen plate/holder

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

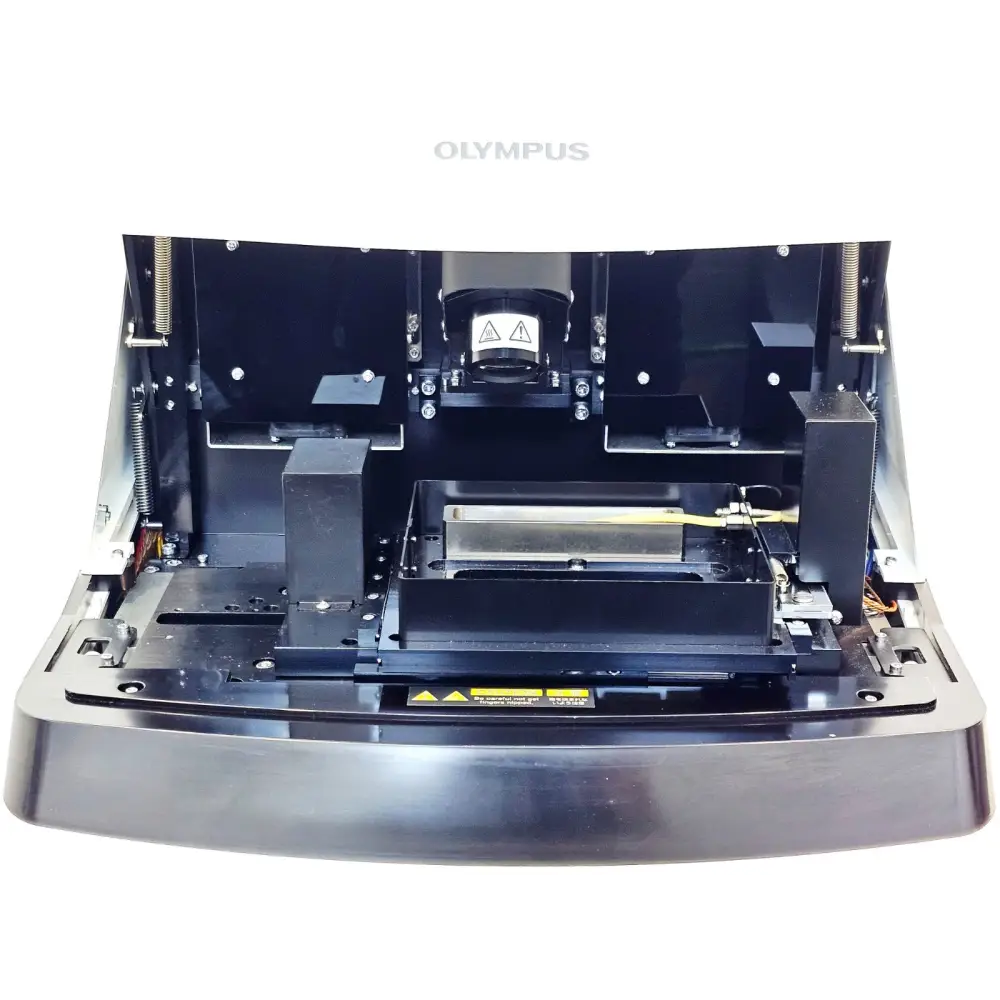

The Olympus FLUOVIEW FV10i is the world's first self-contained confocal laser scanning microscope (CLSM). Its completely re-engineered, all-in-one design integrates all key components — including a laser combiner, built-in incubator (FV10i-W model), vibration isolation system, and light-tight cover — into a single compact enclosure, eliminating the need for a dedicated darkroom or complex installation. The system is available in two variants: oil-immersion (FV10i-O) and water-immersion (FV10i-W).

All components are fully motorised and software-controlled, including focus, fluorescence wavelength selection, and coverslip thickness correction. The intuitive FluoView software guides users through a simple Set–Select–Capture workflow, making high-quality confocal imaging accessible to users of all experience levels.

Key Features:
- Self-contained design with built-in vibration isolation and light-tight darkroom cover
- Fully motorised and software-automated operation
- Supports Z-stack, time-lapse, multi-area, and multi-colour imaging
- Spectral detection using grating, beam splitter, and slit arrangement with automatic variable barrier filter
- HDD recording for large-volume data storage including long-term time-lapse datasets

Technical Specifications:
Laser Light Sources: Four diode lasers — 405 nm (17.1 mW), 473 nm (11.9 mW), 559 nm (15 mW), 635 nm (9.5 mW)

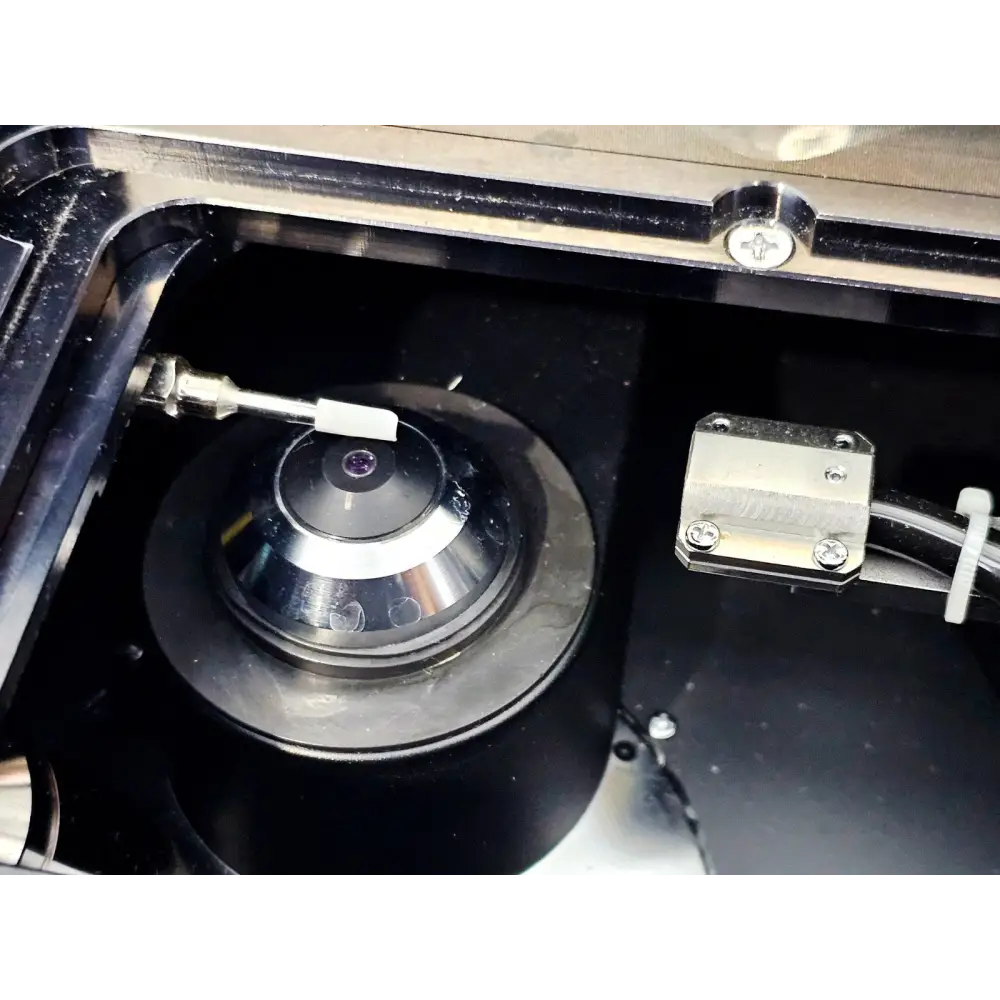

Objectives: 10× phase contrast / NA 0.4 (equiv. UPLSAPO 10×); 60× phase contrast water immersion / NA 1.2 (equiv. UPLSAPO 60× W) with motorised correction collar
Magnification Range: 10× to 600× (via optical zoom combined with objectives)
Detection Channels: 2 fluorescence channels (spectral) + 1 phase contrast channel simultaneously (line sequence); up to 4 fluorescence channels + phase contrast (frame sequence)
Pinhole: Single motorised pinhole, diameter ø50–800 µm; automatic setting (×1.0, ×1.5, ×2.0, ×2.5)
Pixel Resolution: 256 × 256, 512 × 512, 1024 × 1024
Scanning Speed: 1.1 s/frame (512 × 512, High Speed mode)
Imaging Modes: X, Y, Z (optical sectioning), T (time-lapse), Tiling
Specimen Holders: Glass bottom dishes (35 mm), glass slides, 8-well chamber covers, well slides

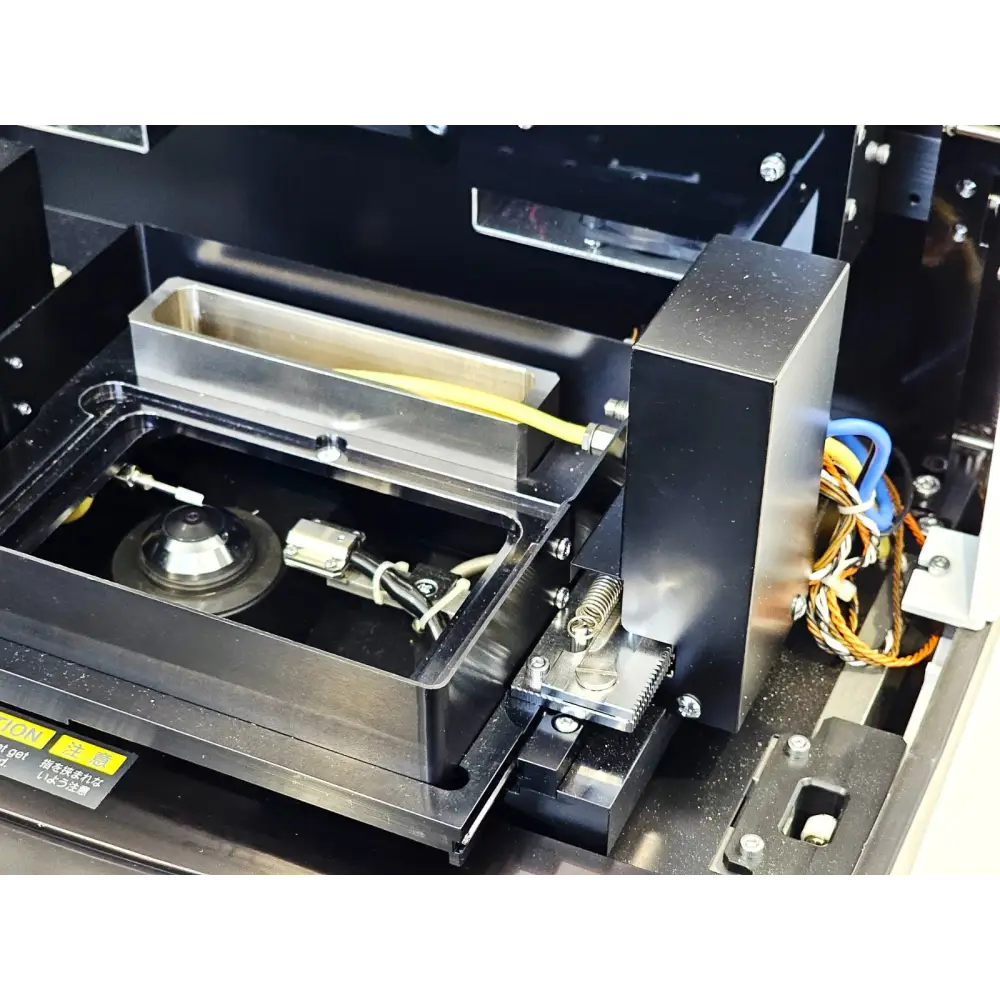

Incubator (FV10i-W): Temperature 37 ± 0.1°C / 0.5°C; Humidity >90%; CO₂ 5% (recommended)
Power Supply (FV10C-PSU): 100–120 V / 220–240 V~, 50/60 Hz, 5.0 A / 2.5 A
Applications: Live-cell imaging, neuroscience, cell biology, developmental biology, cancer research, stem cell research, fluorescence co-localisation analysis
