Condition: Used

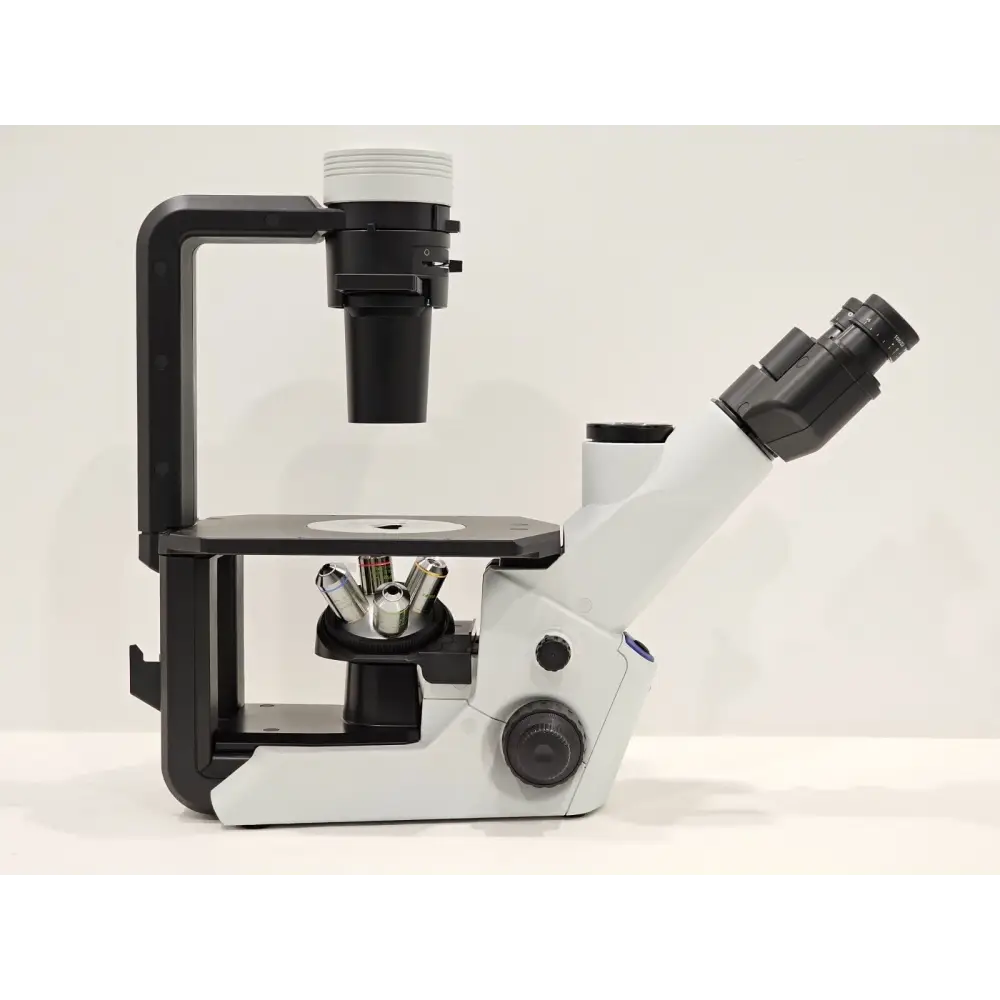

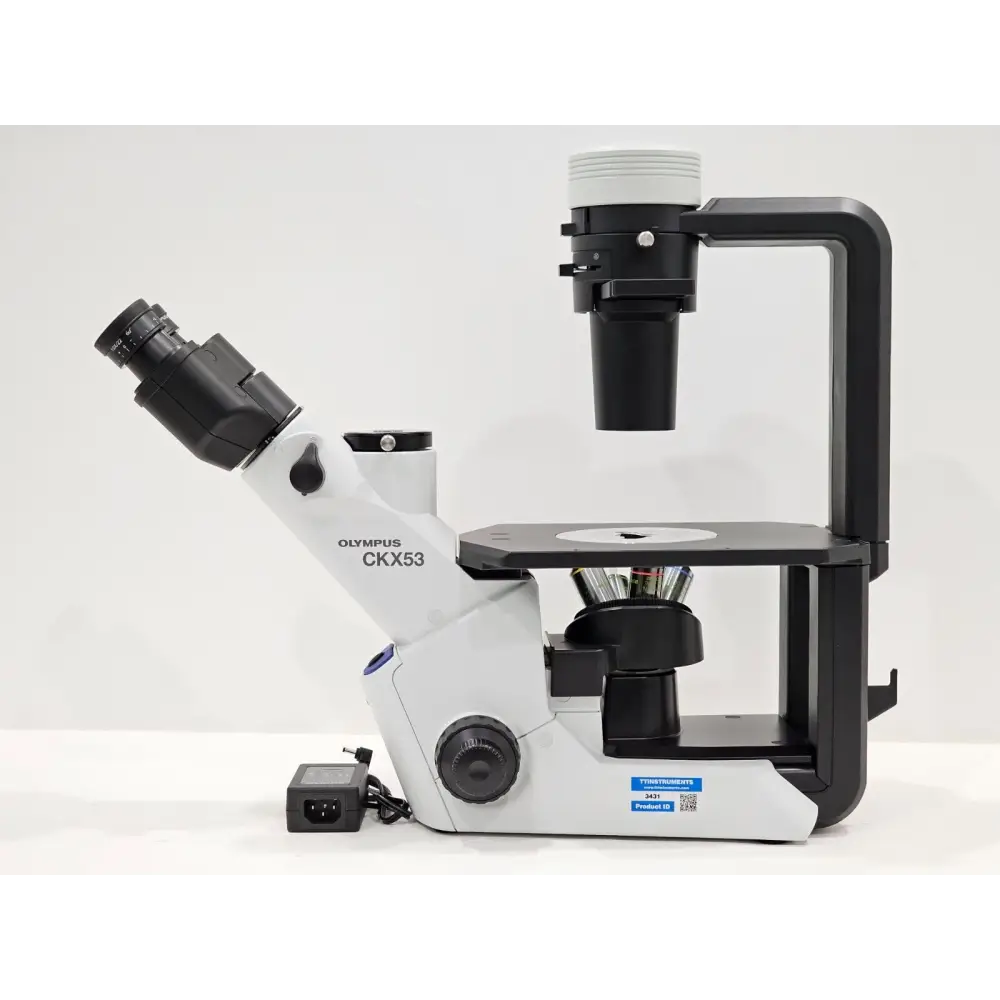

This Olympus CKX53 inverted tissue culture microscope is in good working condition and is configured with a full set of four iPC phase contrast-compatible objectives covering 4x through 40x magnification, making it suitable for a comprehensive range of cell culture observation tasks.

Included in the sale:

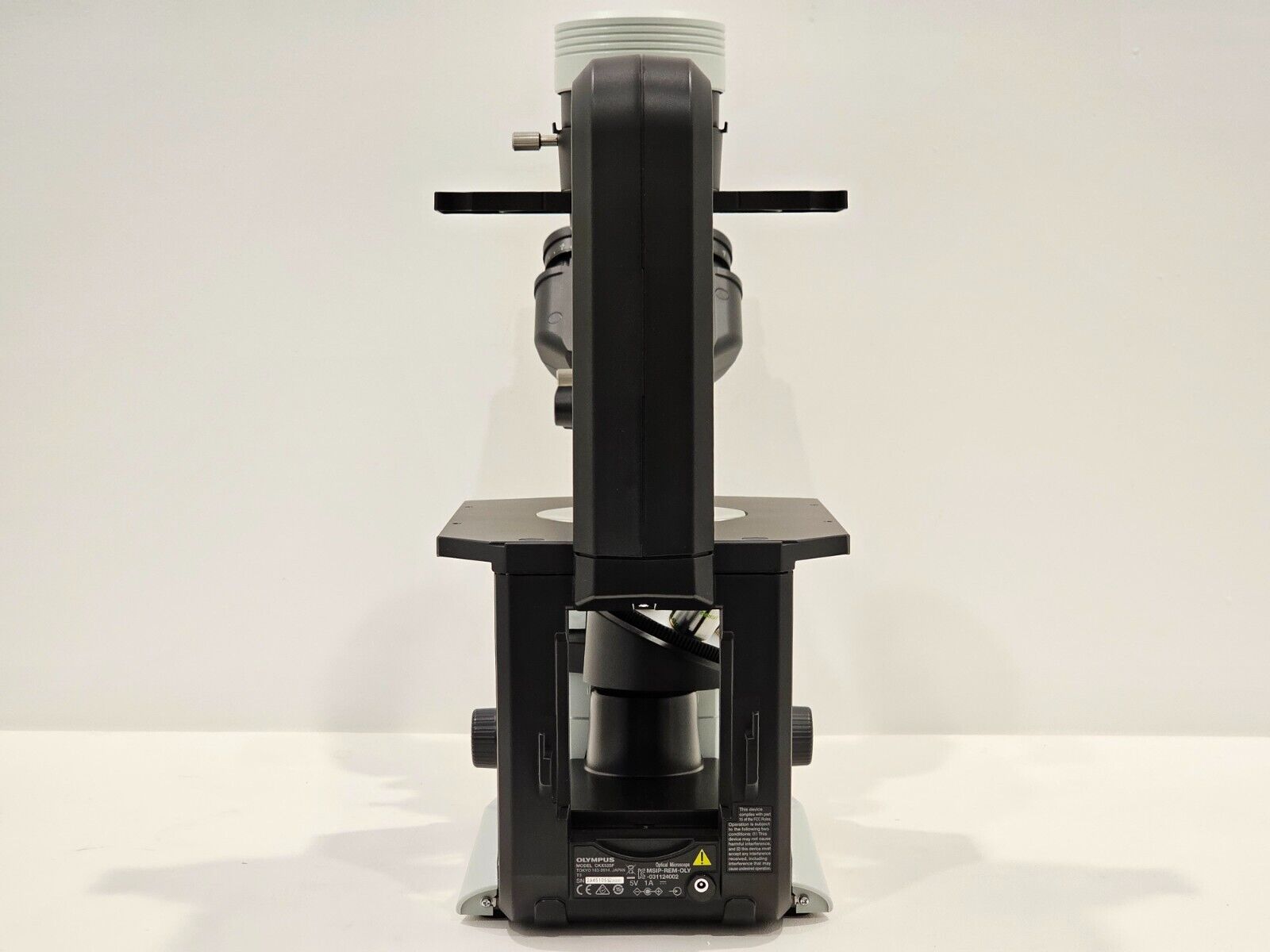

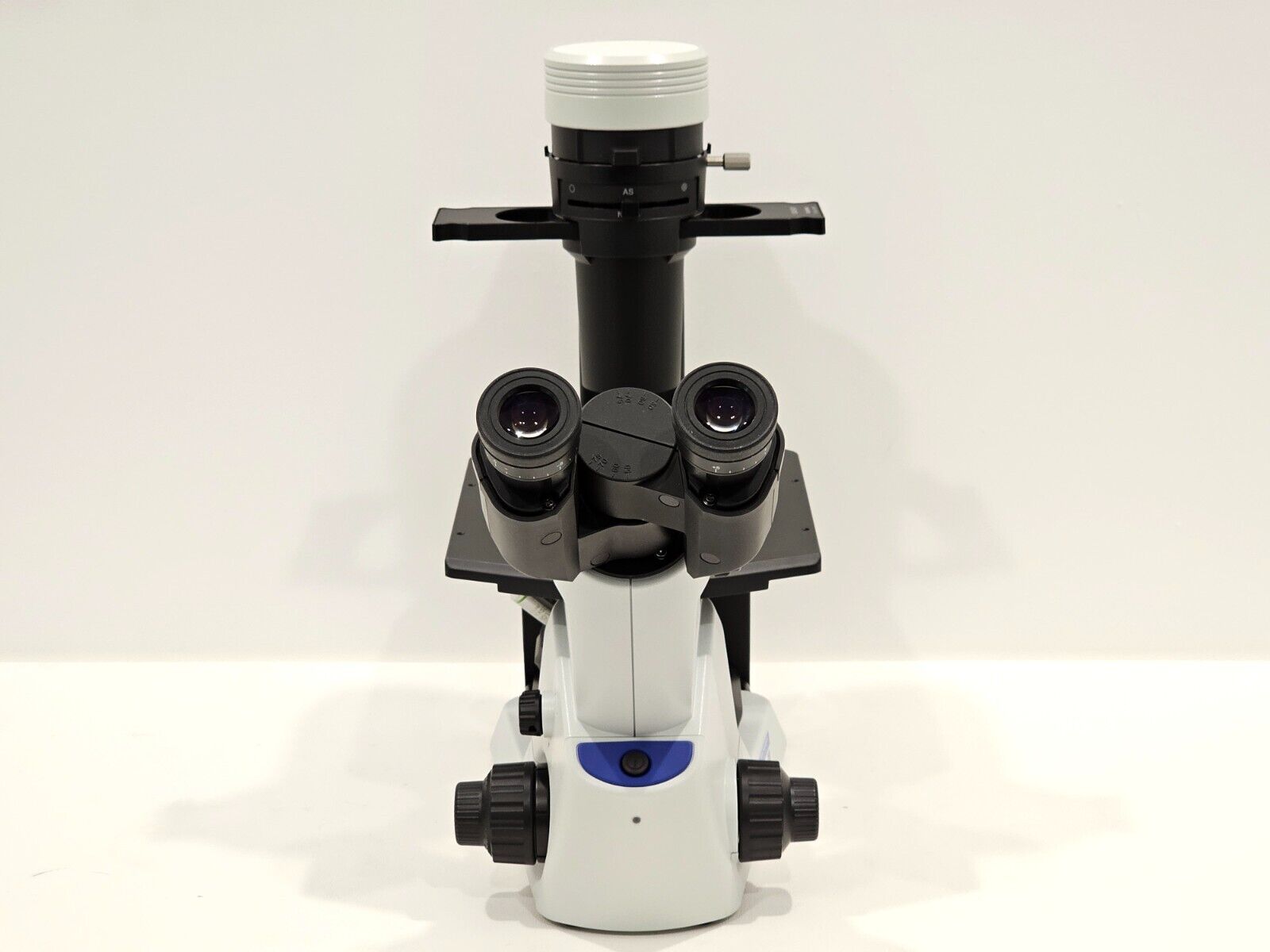

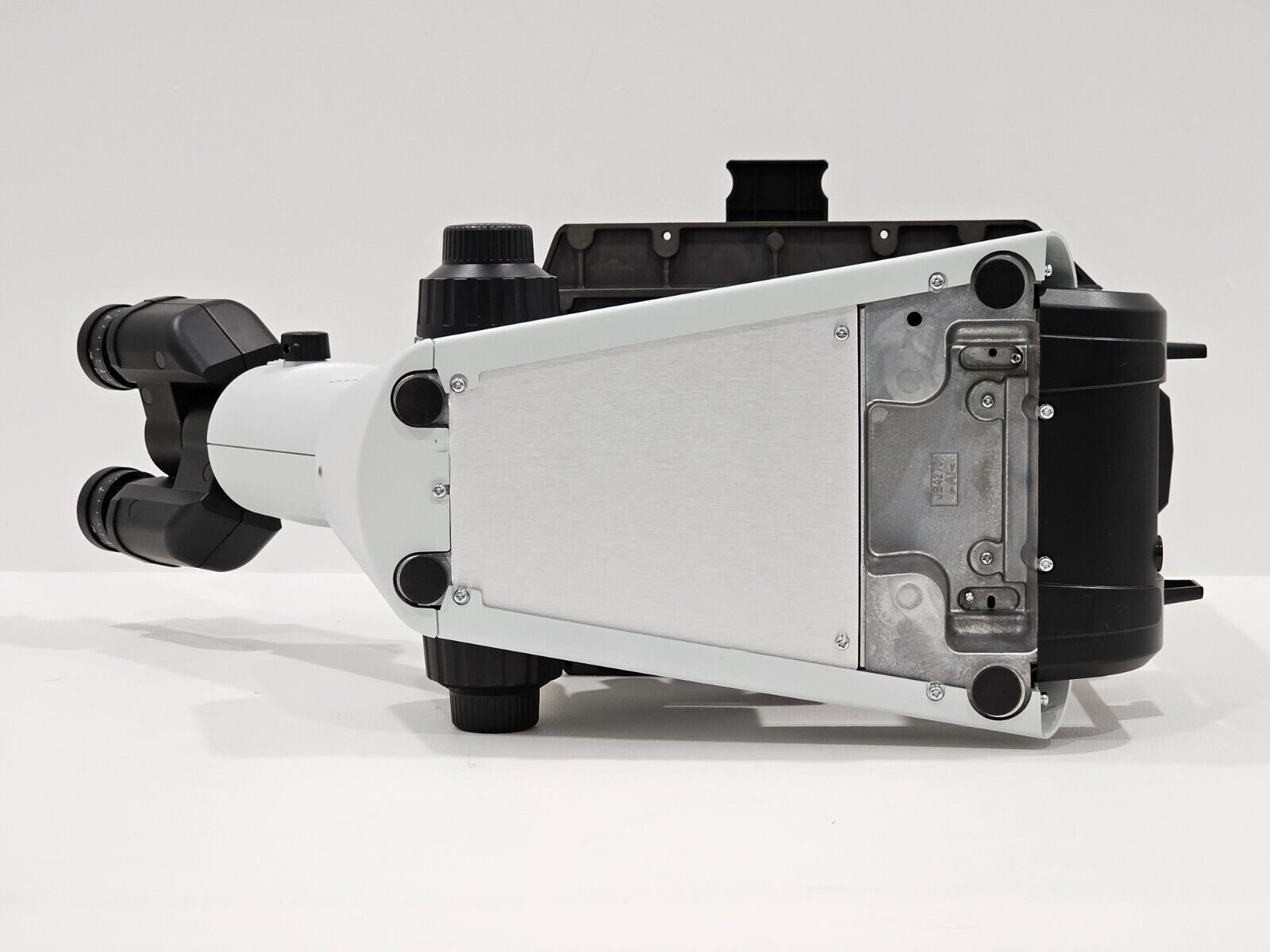

• Olympus CKX53 microscope

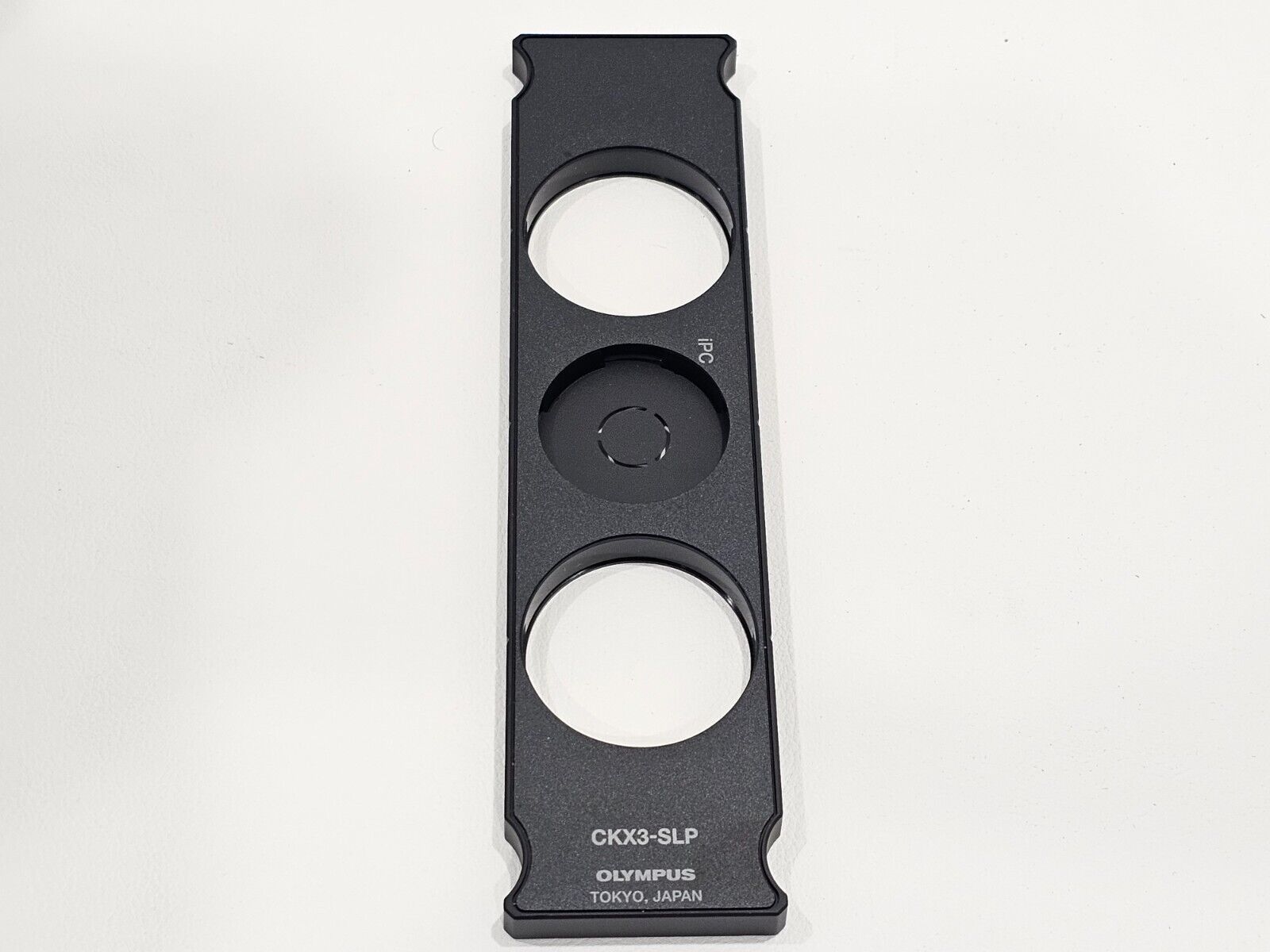

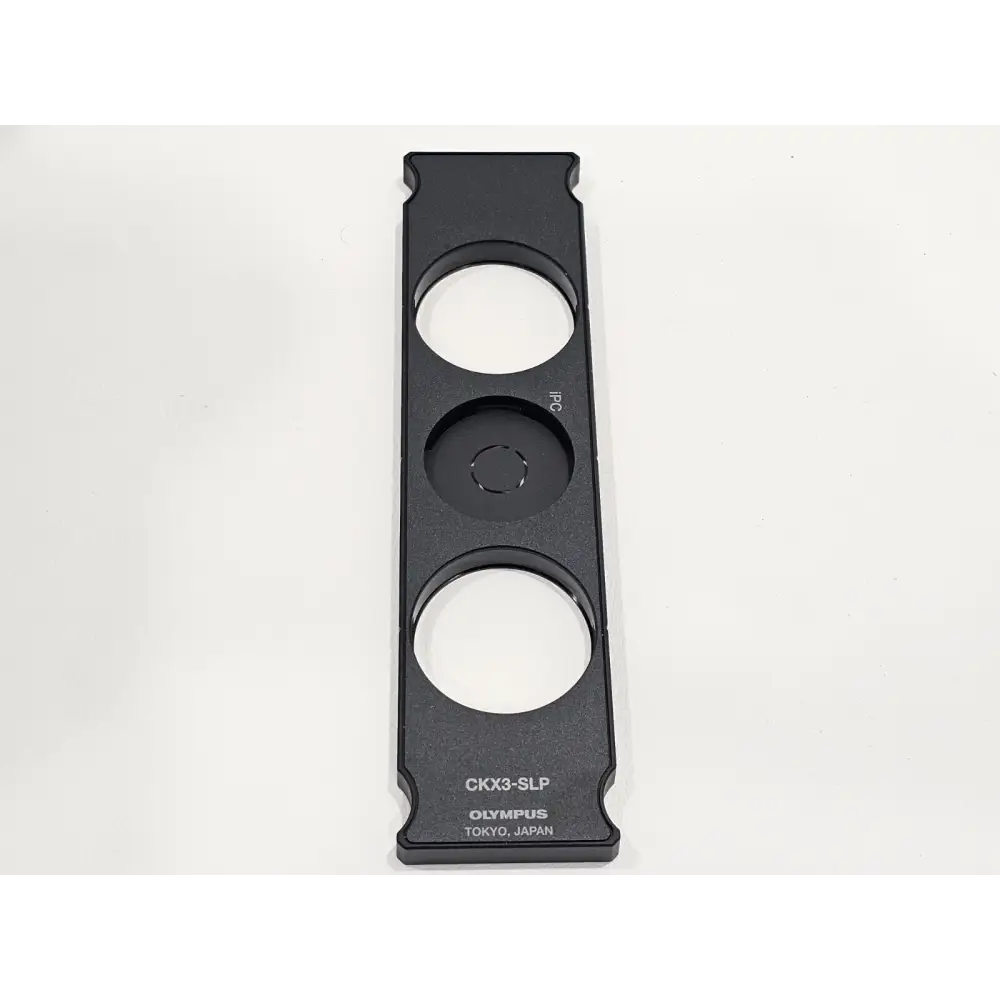

• Phase slider pocket
• Centre stage plate
• Power supply
• Manual

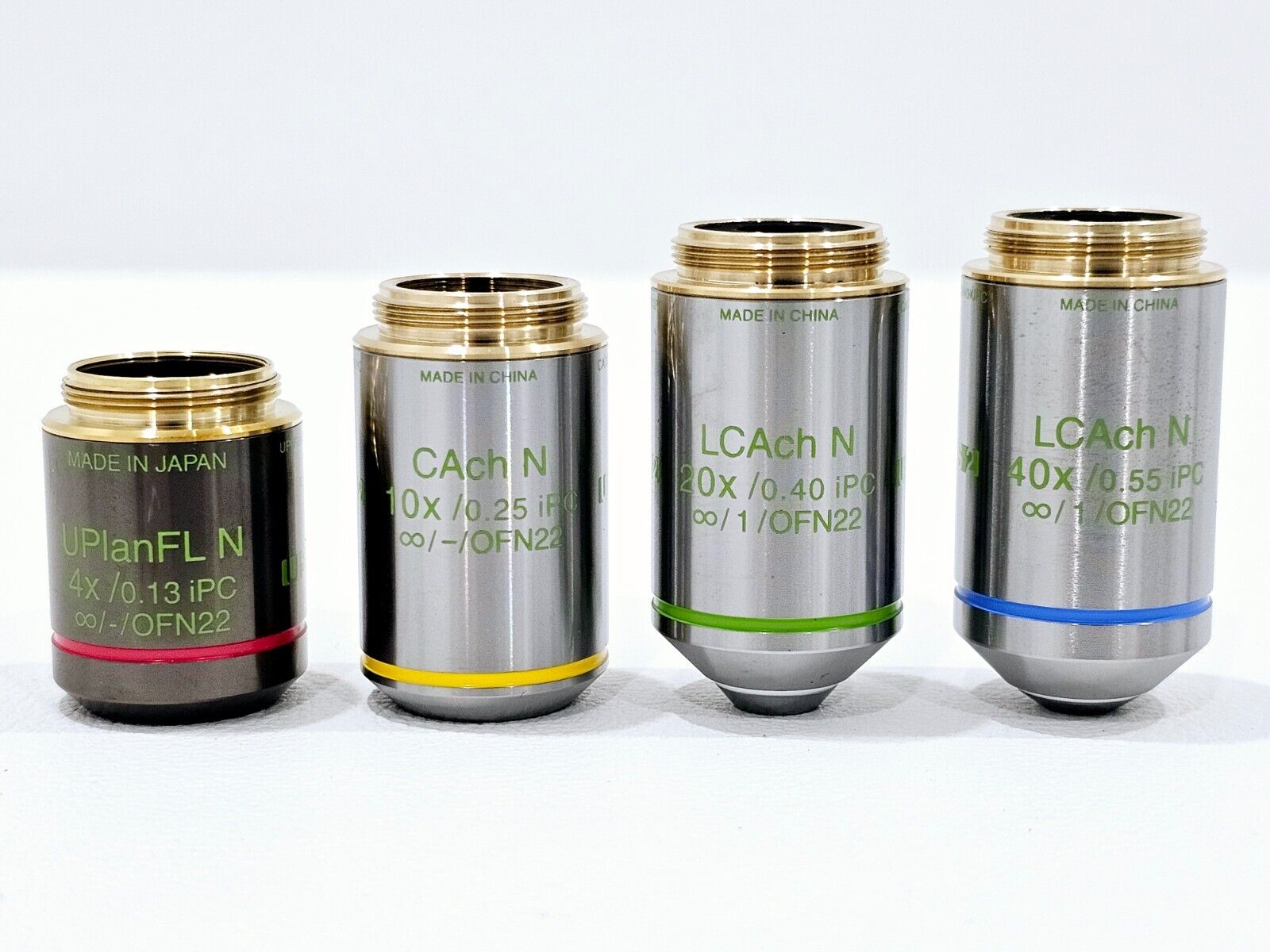

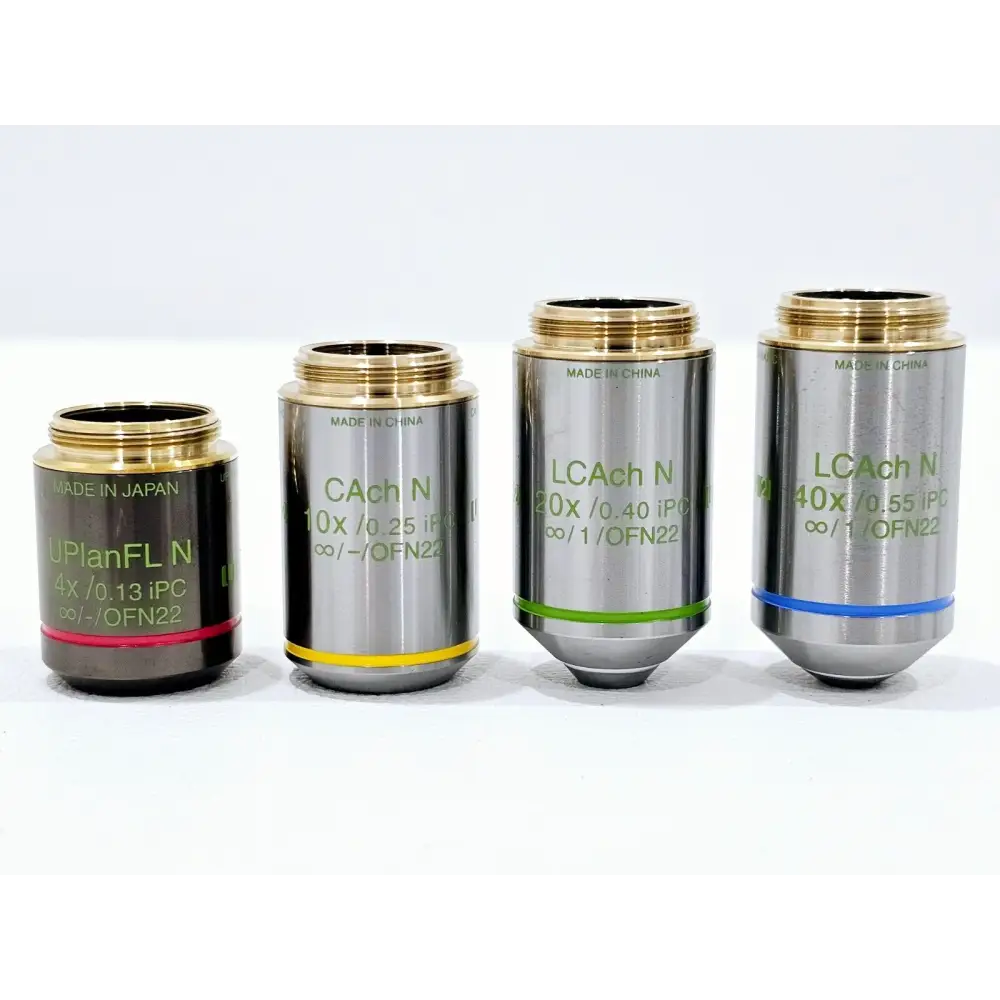

• 4x objective — UPLFN4XIPC (UPlanFL N 4x/0.13 iPC ∞/-/OFN22)
• 10x objective — CACHN10XIPC (CAch N 10x/0.25 iPC ∞/-/OFN22)
• 20x objective — LCACHN20XIPC (LCAch N 20x/0.40 iPC ∞/1/OFN22)
• 40x objective — LCACHN40XIPC (LCAch N 40x/0.55 iPC ∞/1/OFN22)

The Olympus CKX53 is a compact inverted culture microscope from Olympus (now Evident Scientific), designed to ease cell and tissue culture workflows in life science and biomedical research laboratories. It delivers stable, high-contrast imaging for live cell observation, cell sampling and handling, image capture, and fluorescence observation.

The integrated phase contrast (iPC) system provides clear, high-contrast views across 4x to 40x magnification without the need to exchange or re-centre the ring slit, simplifying the observation process. The inversion contrast (IVC) technique additionally provides clear three-dimensional views of transparent specimens. The microscope supports brightfield, phase contrast, inversion contrast, and fluorescence observation methods.

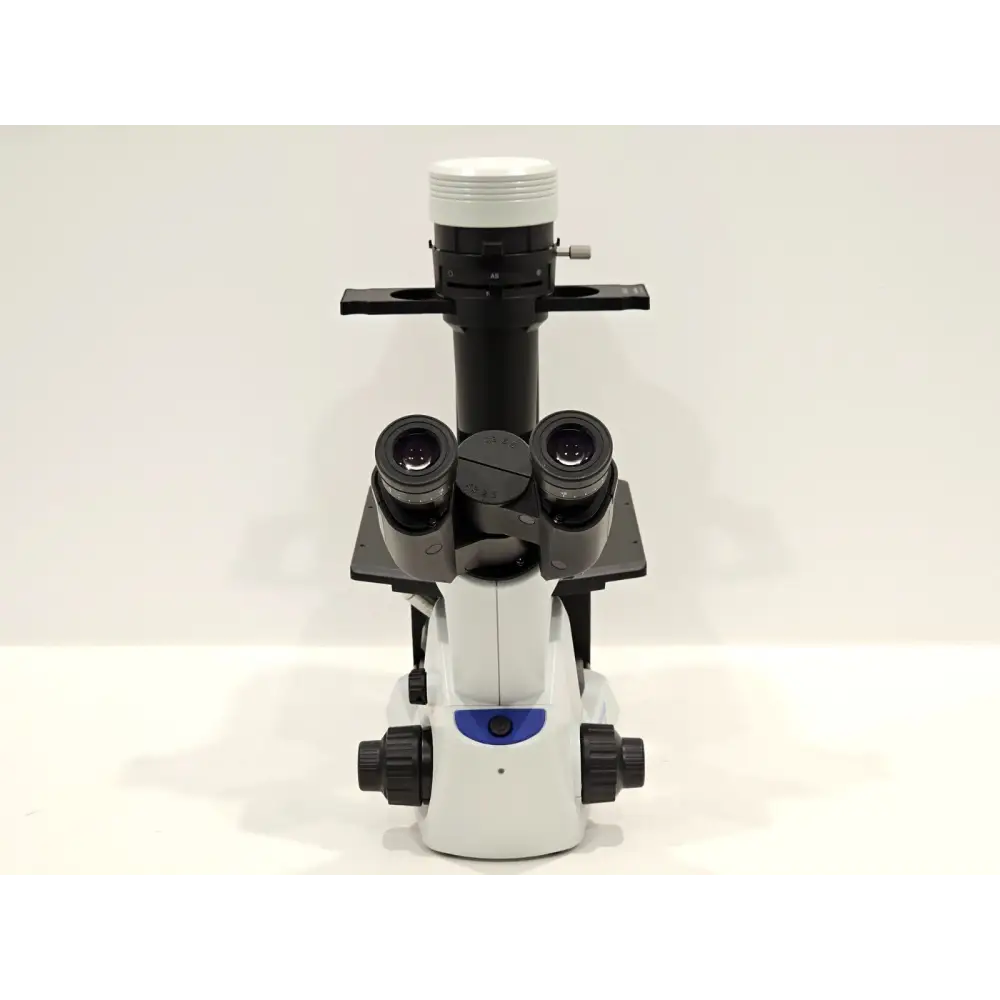

The CKX53 features a UV-resistant coating, allowing it to remain on a clean bench during UV sterilisation cycles. Weighing approximately 7 kg with a compact footprint, it can be carried with one hand. The 45-degree inclined fixed trinocular observation tube with FN22 eyepieces provides ergonomic viewing whether seated or standing. A standard camera port (Olympus camera adapter interface) supports digital imaging with compatible cameras.

Key Specifications:
Optical System: UIS2 (Universal Infinity-Corrected)
Observation Methods: Brightfield, Phase Contrast, Inversion Contrast (IVC), Fluorescence

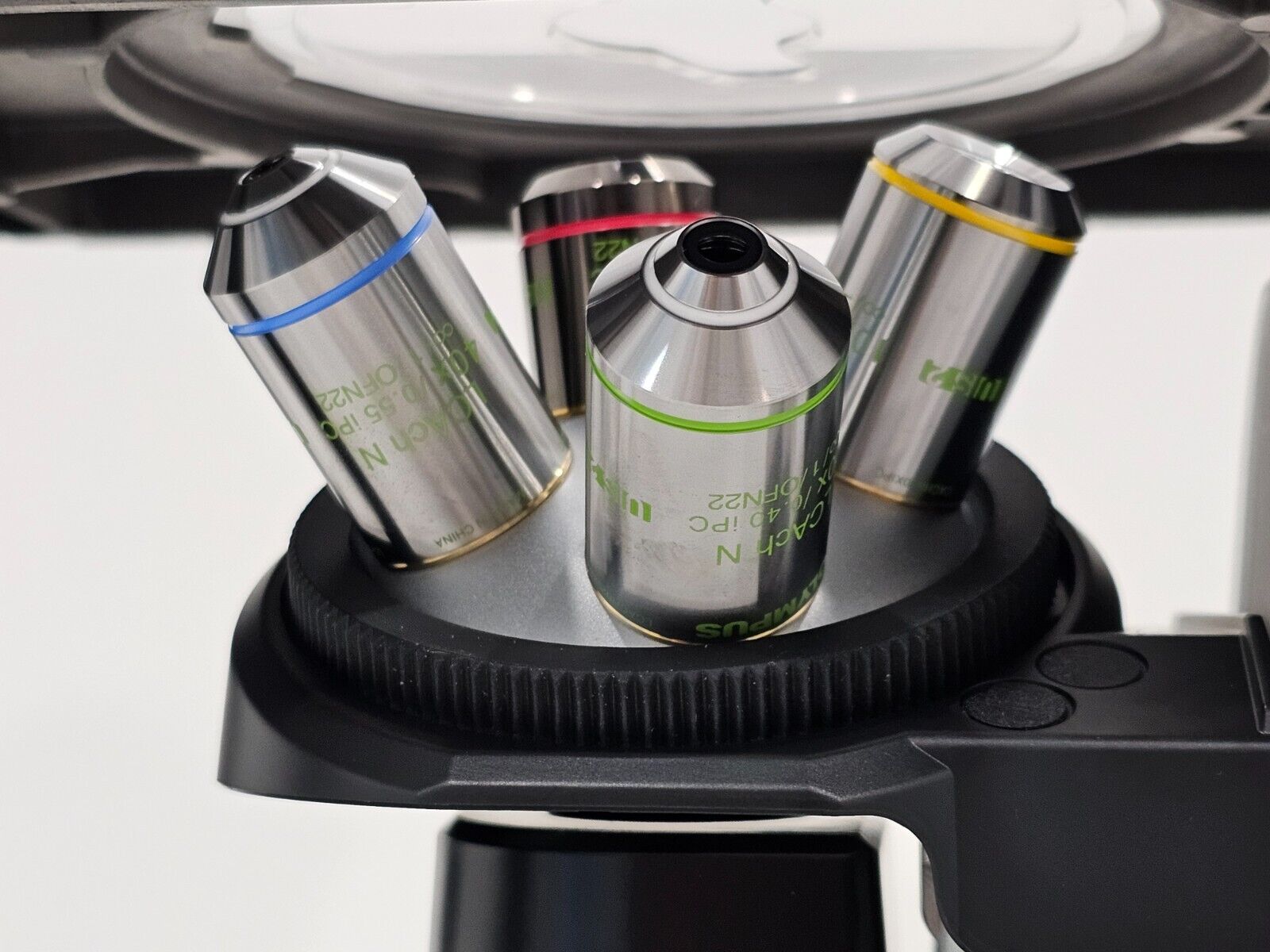

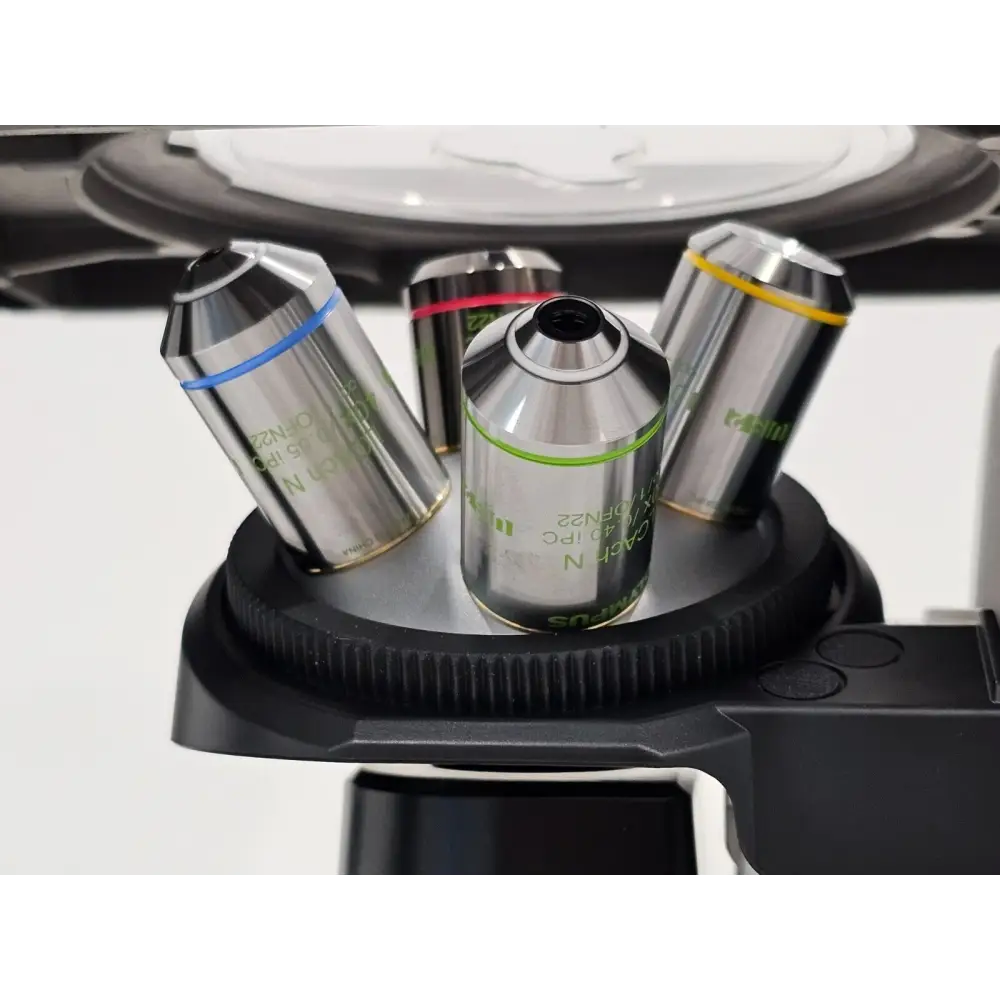

Objective Nosepiece: 4-position revolving, built-in
Observation Tube: Fixed trinocular, inclined 45 degrees
Eyepiece: 10x, FN 22
Interpupillary Distance: 48–75 mm
Condenser: Ultra Long Working Distance, NA 0.3, WD 72 mm (built-in)
Applicable Objective Magnifications: 2x, 4x, 10x, 20x, 40x
Max Sample Container Height (without detachable condenser): Up to 190 mm
Focus Mechanism: Revolving nosepiece vertical movement (coarse and fine knobs)
Focus Stroke: 20 mm; Coarse per rotation: 36.8 mm; Fine per rotation: 0.2 mm
Transmitted Illumination: Long-life LED
Fluorescence Illumination: 100 W mercury lamp (U-LH100HG) or light guide illumination system (U-LGPS) — optional
Mirror Unit Slots: 3 (compatible with IX3/BX3 series mirror units)
Camera Port: Olympus camera adapter interface (C-mount compatible via adapter)

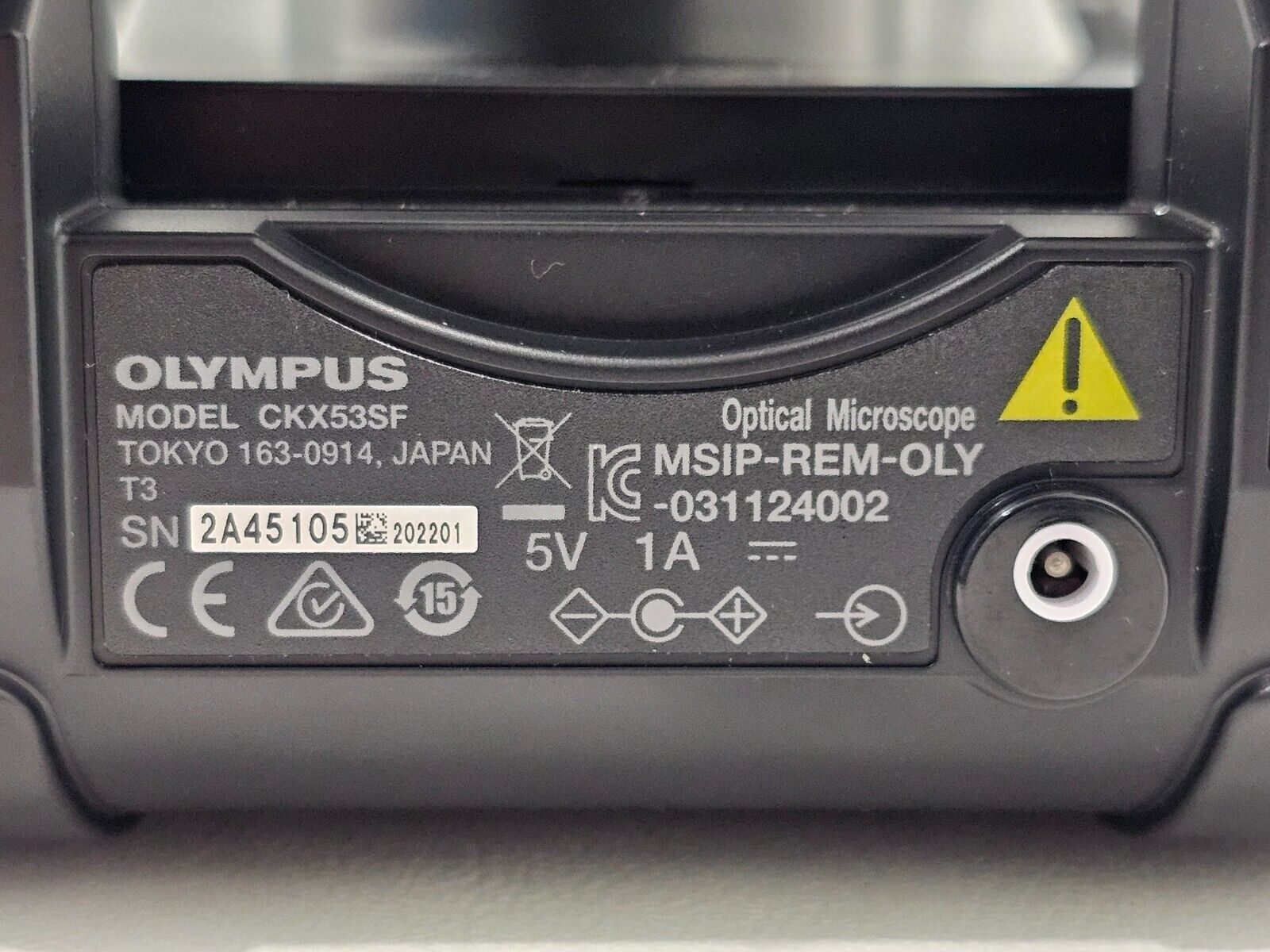

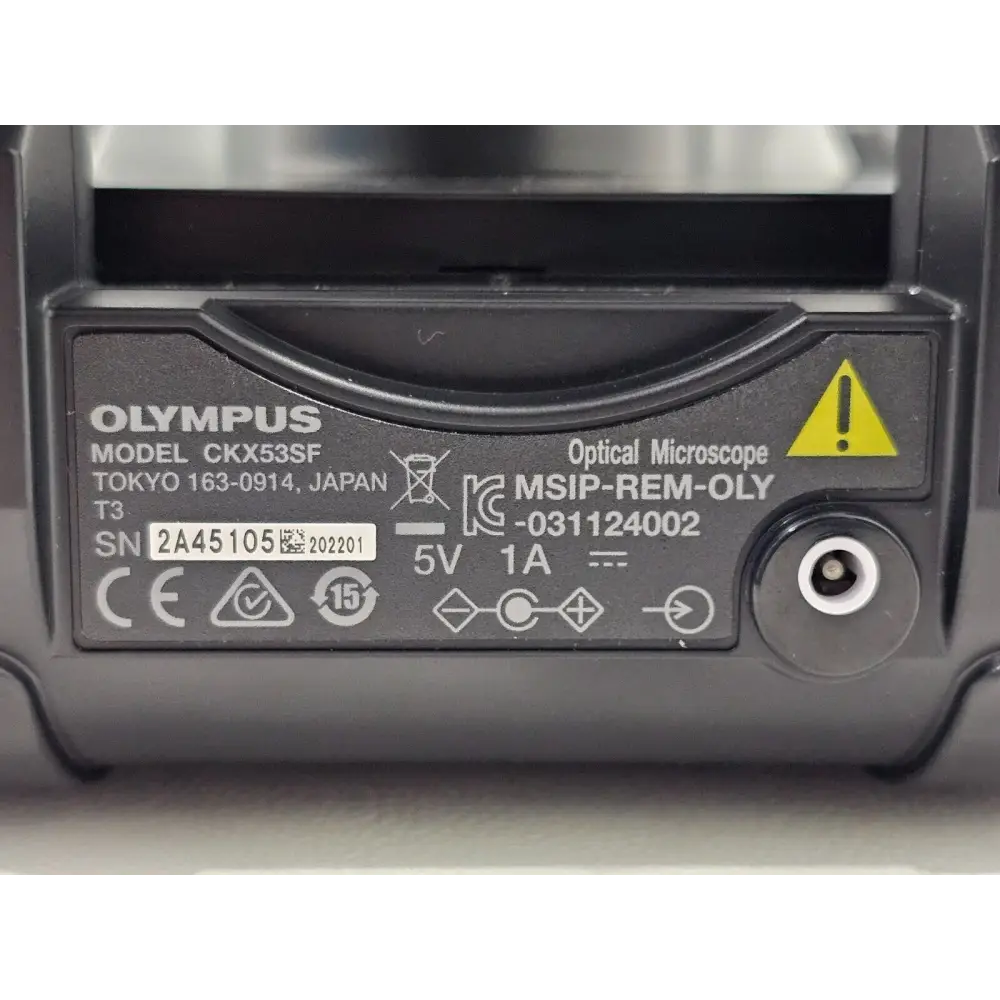

Rated Voltage: AC 100–240 V, 50/60 Hz, 0.4 A
Power Consumption: Less than 4 W (LED configuration)
Dimensions (W × D × H): 200 mm × 498 mm × 454 mm (phase contrast standard configuration)
Weight: Approx. 6.9 kg
Operating Temperature: 5–40°C
Max Relative Humidity: 80% at ≤31°C (decreasing linearly to 50% at 40°C)
Max Altitude: 2,000 m

Olympus CKX53 Instruction Manual (English) — Full user and assembly guide: Download PDF

Olympus CKX53 Product Brochure — Cell Culture Laboratory Solution overview: Download PDF
