Olympus CH20 BIMF200 Microcope + 4 Optics NEA 40X/0.65 100X/1.25 Oil 10/0.25....
Model: CH20
Condition: For parts or not working
In stock: 0
SKU: 3285s 4D03
- Laboratory
- Microscopy
Choose options
Condition: For parts or not working

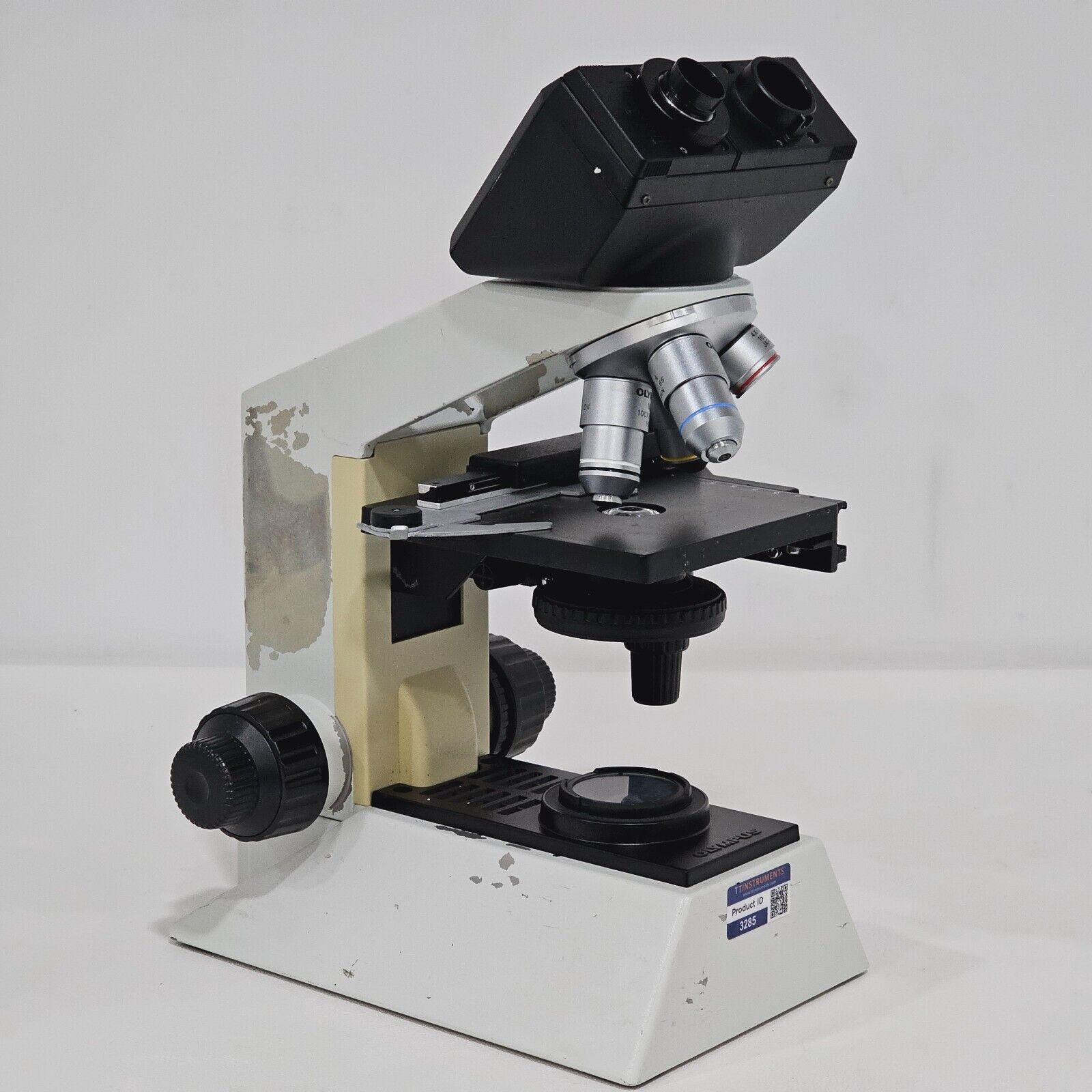

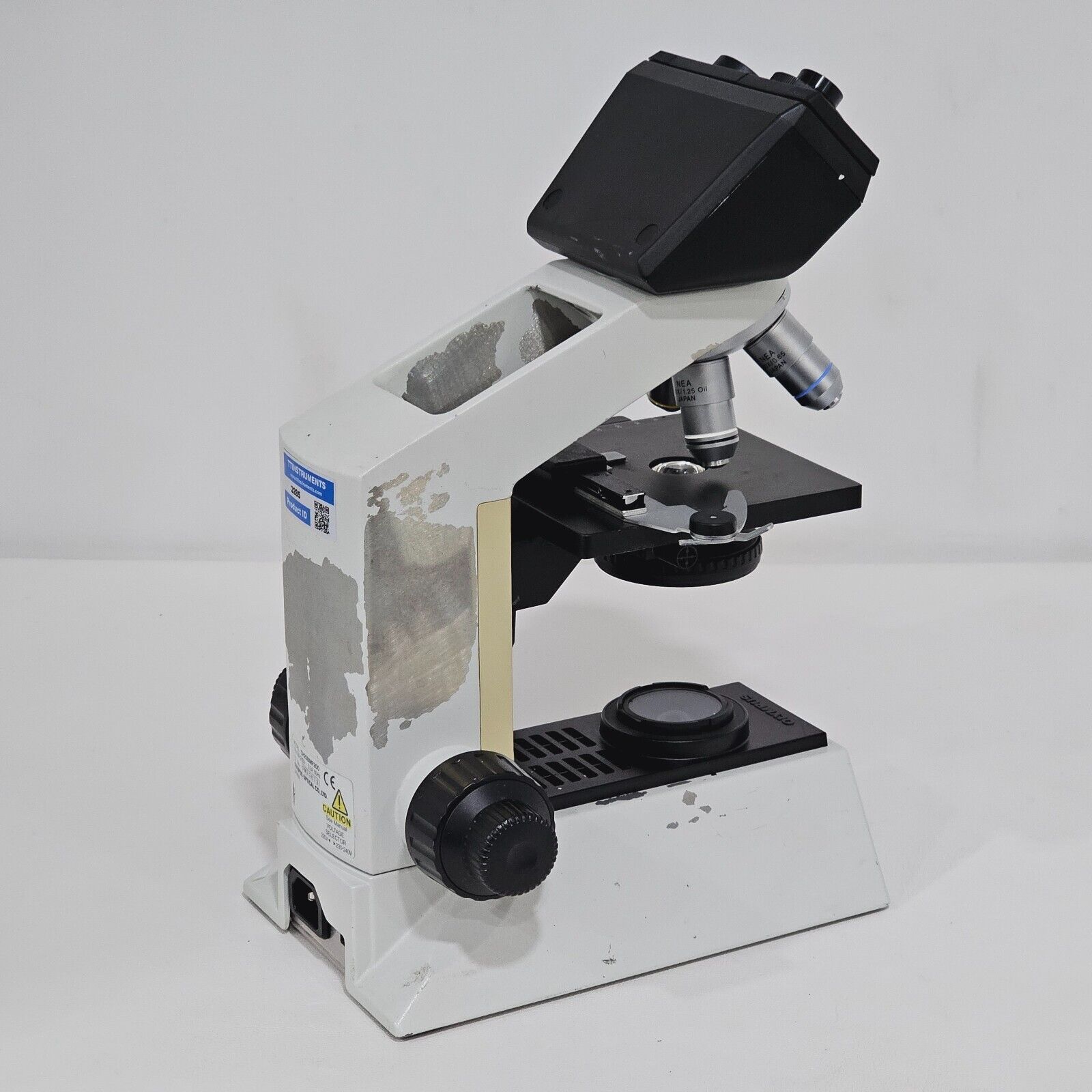

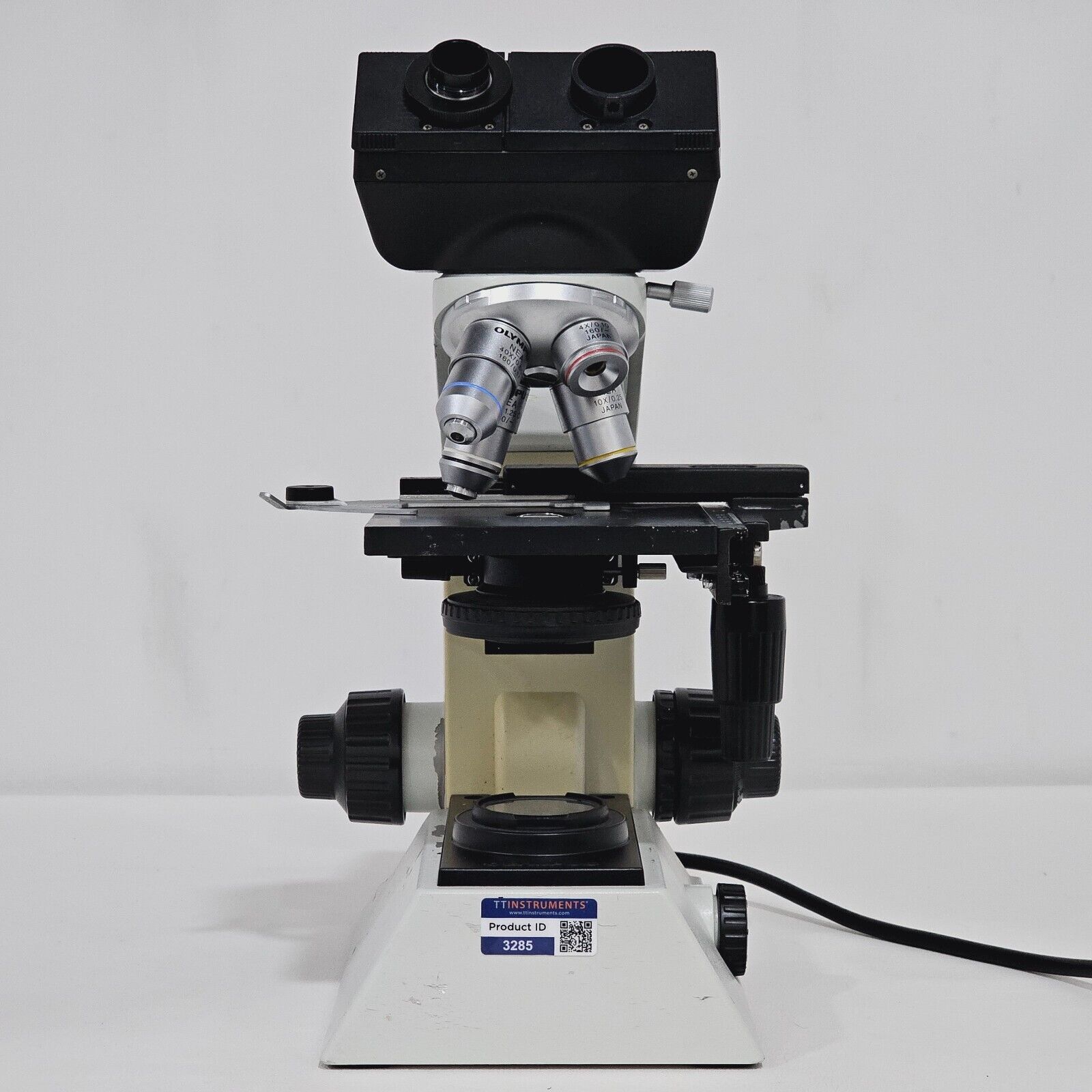

This Olympus CH20 BIMF200 binocular biological microscope is described as tested and working. It is supplied with one WF10X widefield eyepiece and three Olympus NEA achromatic objectives covering low, medium, and high-power observation including an oil immersion objective.
Included with this unit:
• 1 x WF10X Eyepiece
• 1 x Objective: NEA 4/0.1 (160/-)
• 1 x Objective: NEA 40/0.65 (160/0.17)
• 1 x Objective: NEA 100/0.25 (160/0.17)

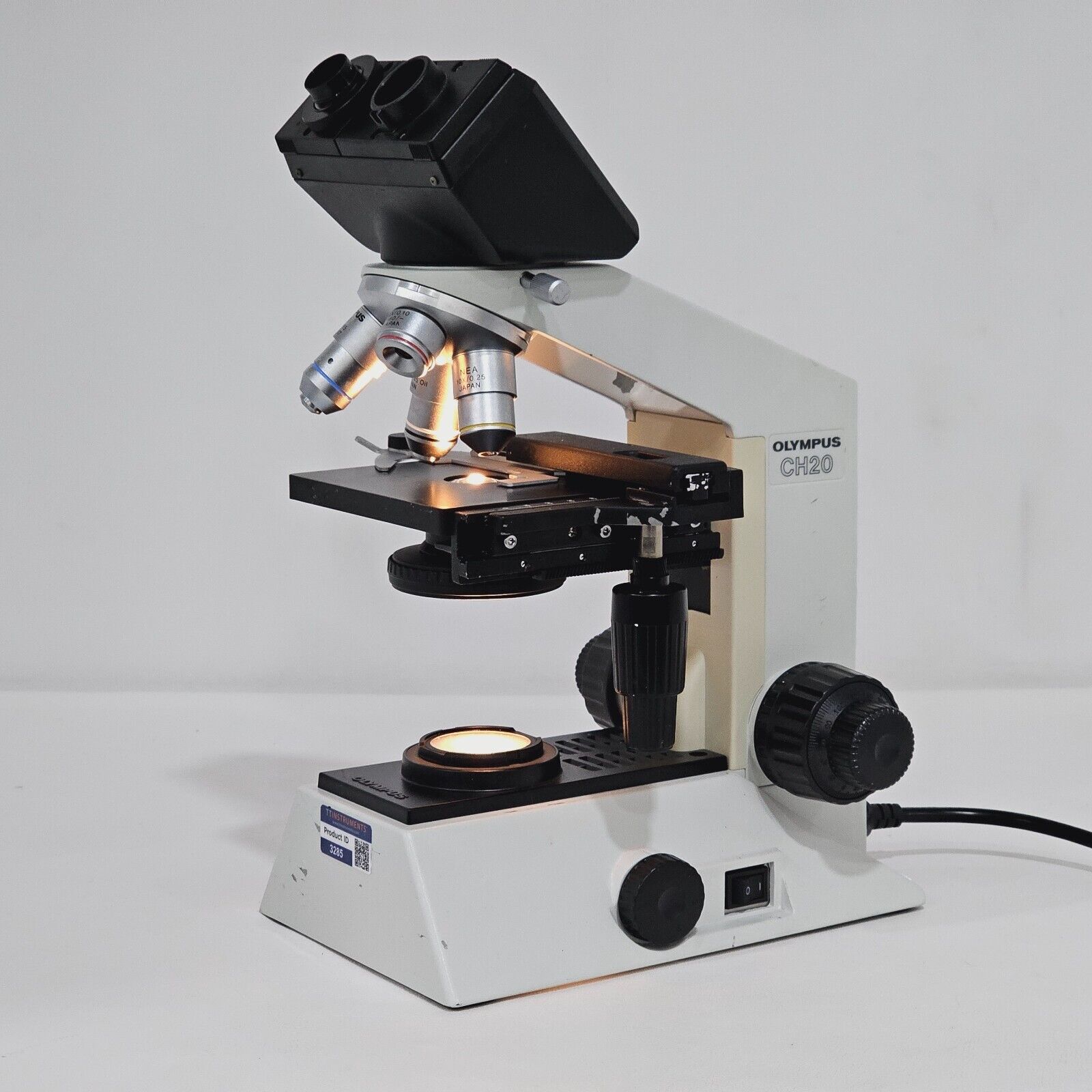

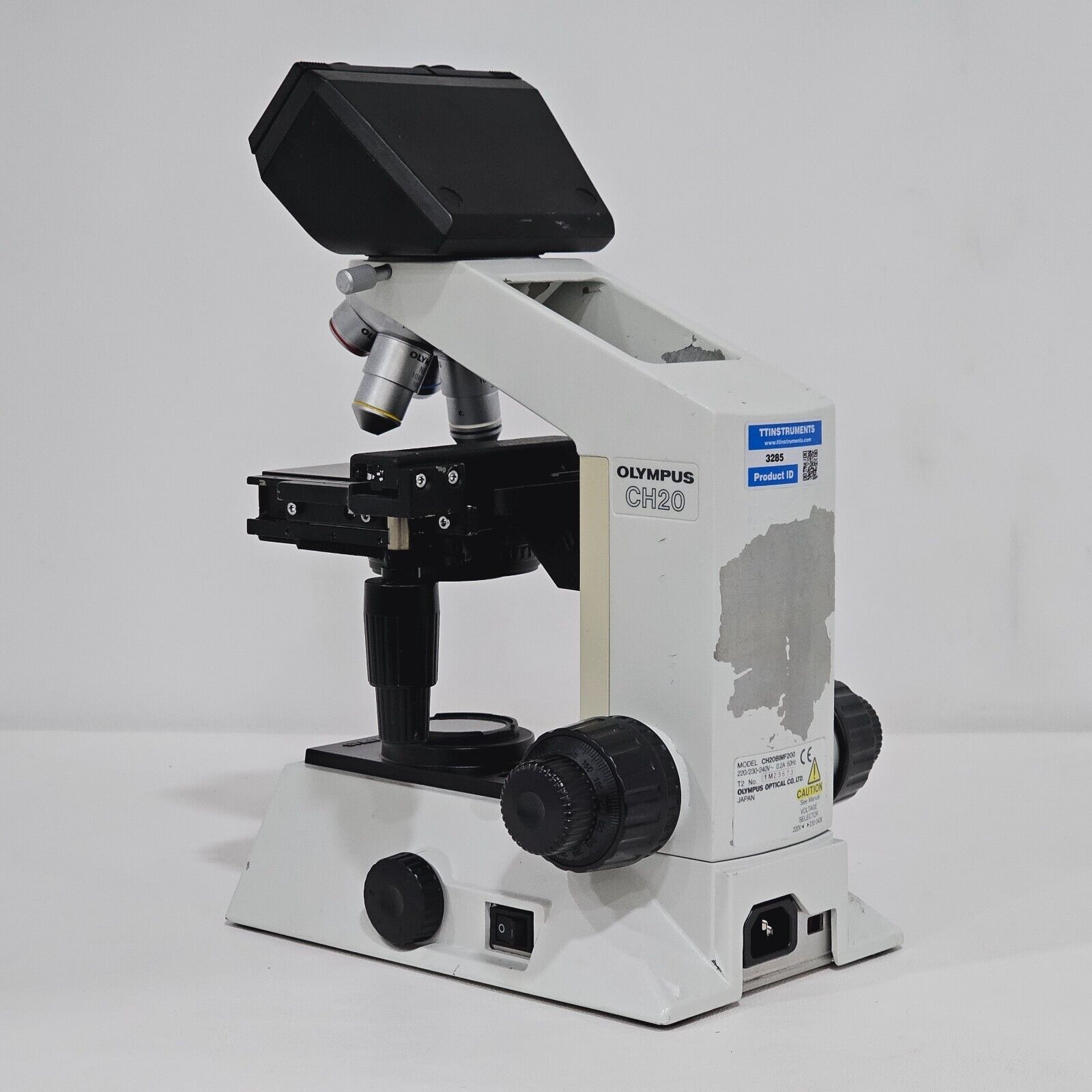

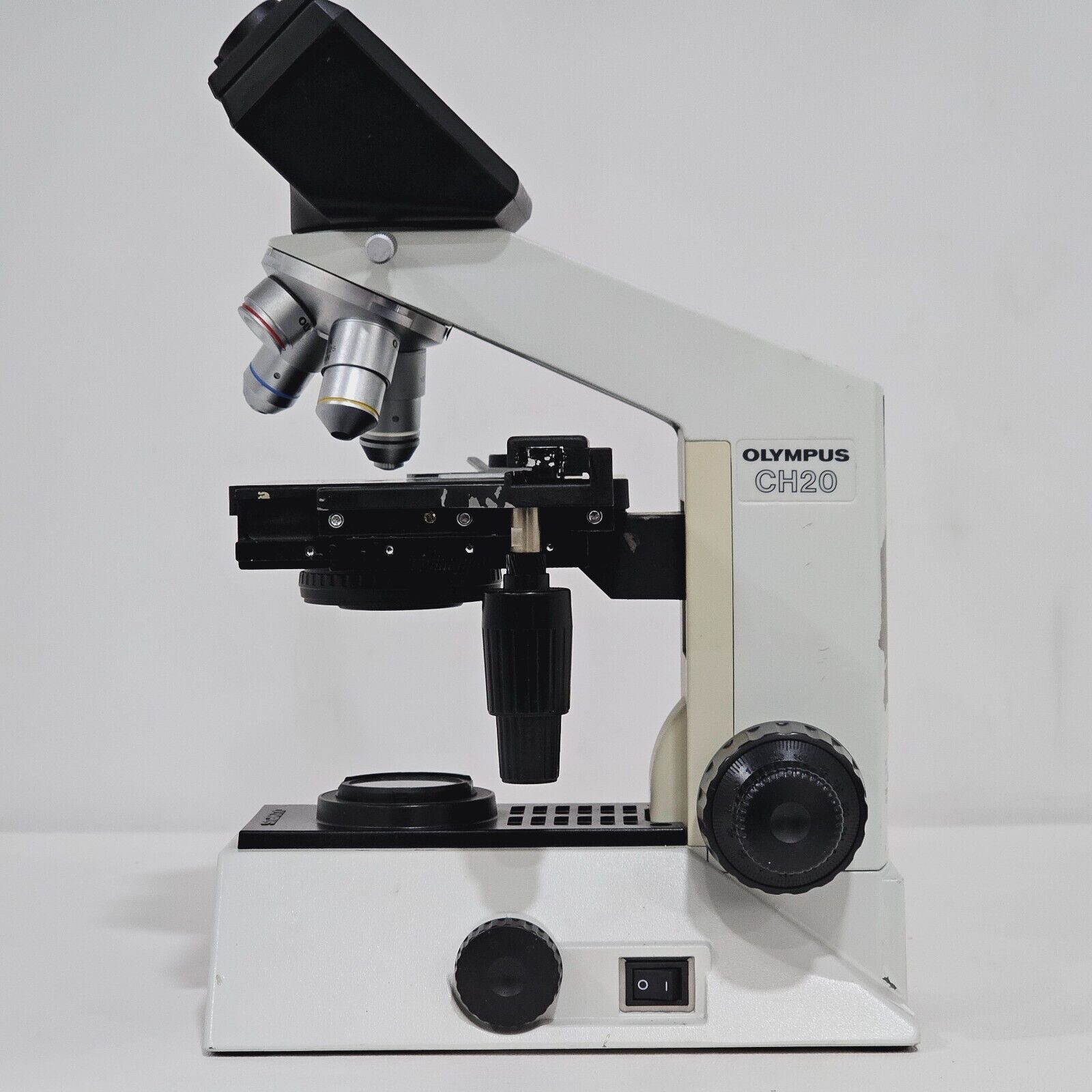

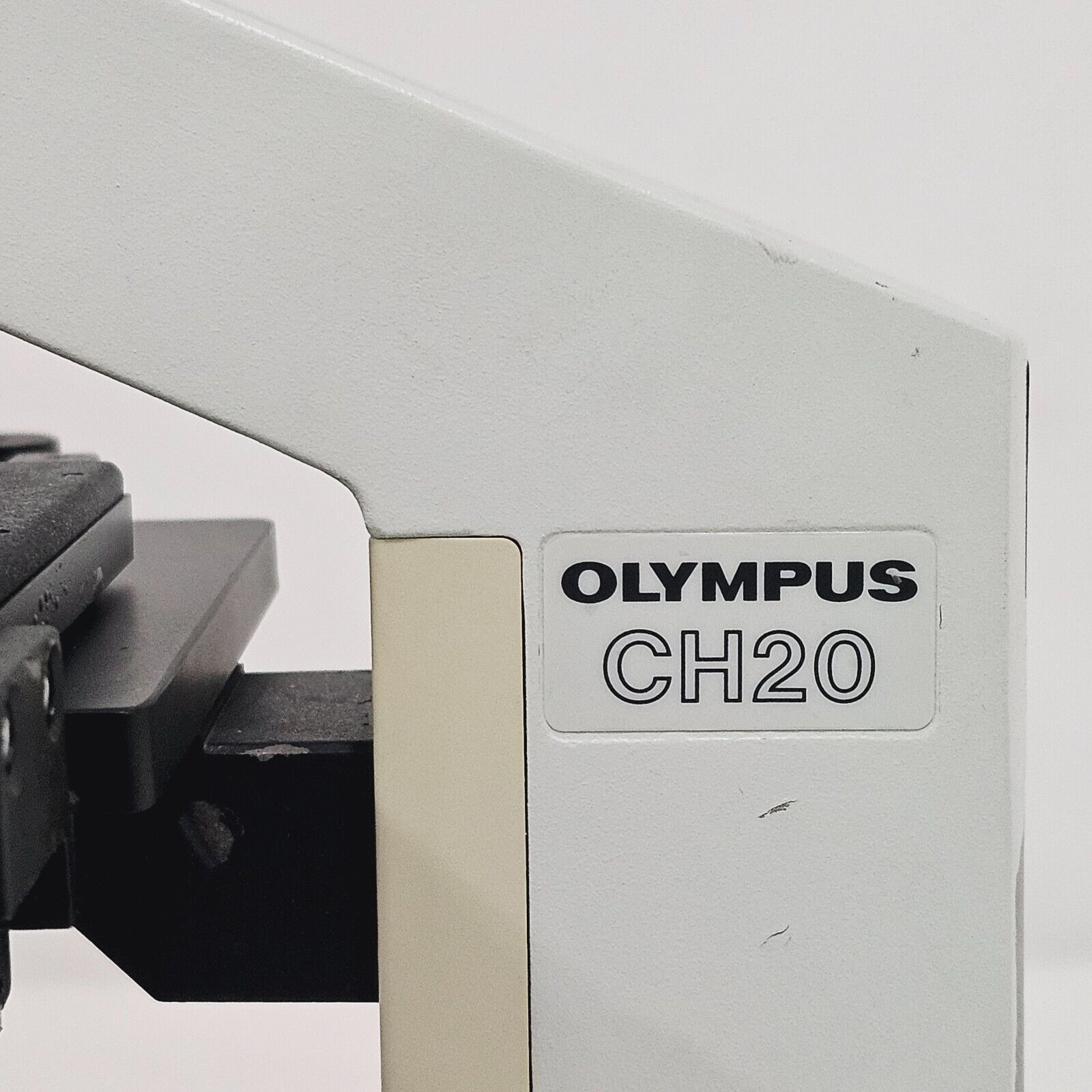

The Olympus CH20 (model CH20BIMF200) is an economically priced biological microscope that achieves a high standard of optical and mechanical quality, designed for educational, entry-level clinical, and routine laboratory applications. It features a slim, ergonomic stand with coaxial coarse and fine focus controls, allowing comfortable operation with hands resting on the desk.

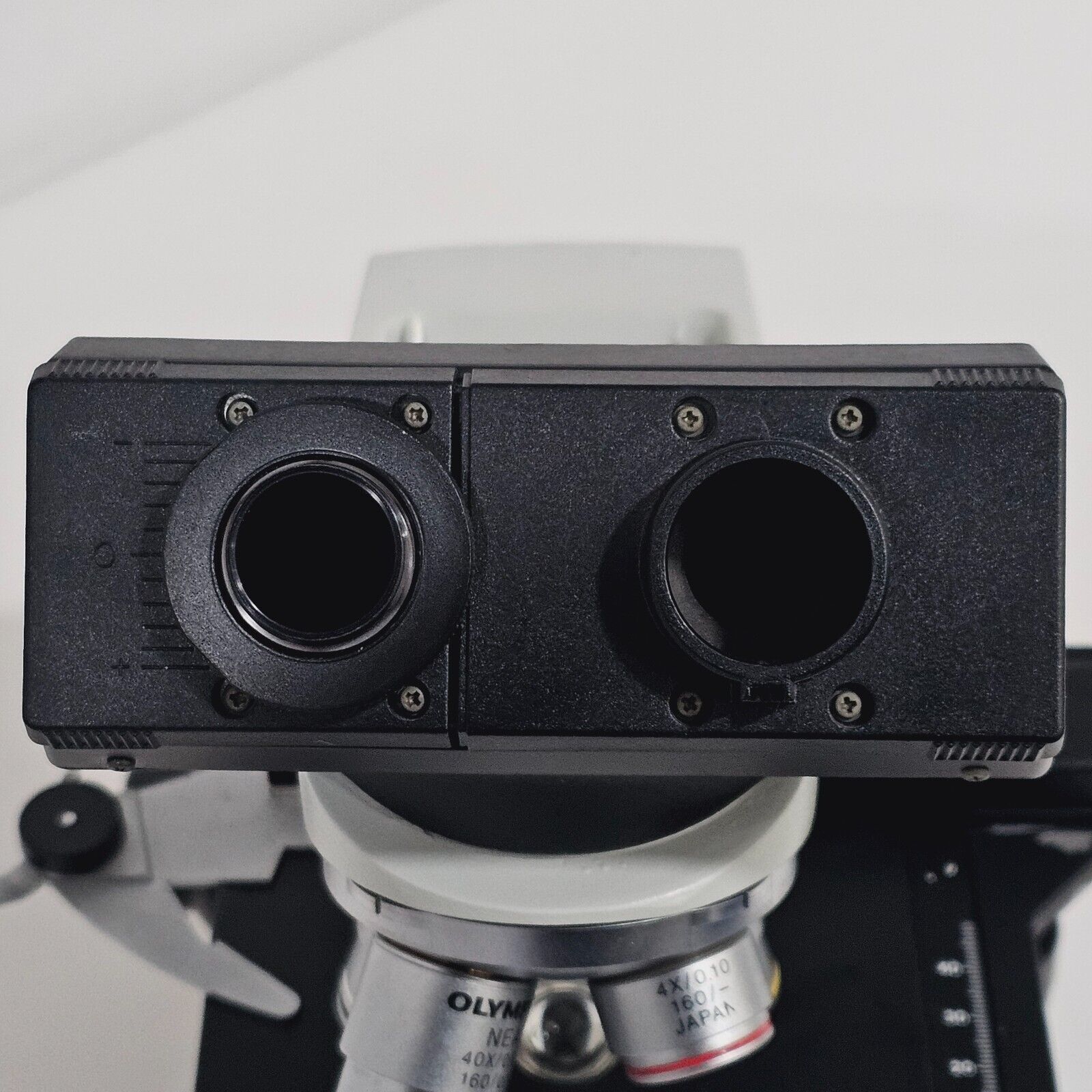

The CH20 is supplied with Olympus NEA series achromatic objectives corrected for a 160mm mechanical tube length and 0.17mm coverslip thickness, and is fitted with a quadruple revolving nosepiece. The binocular observation head is inclined at 45° with interpupillary distance adjustment from 53–75mm and diopter correction on the left eyepiece.
Specifications:

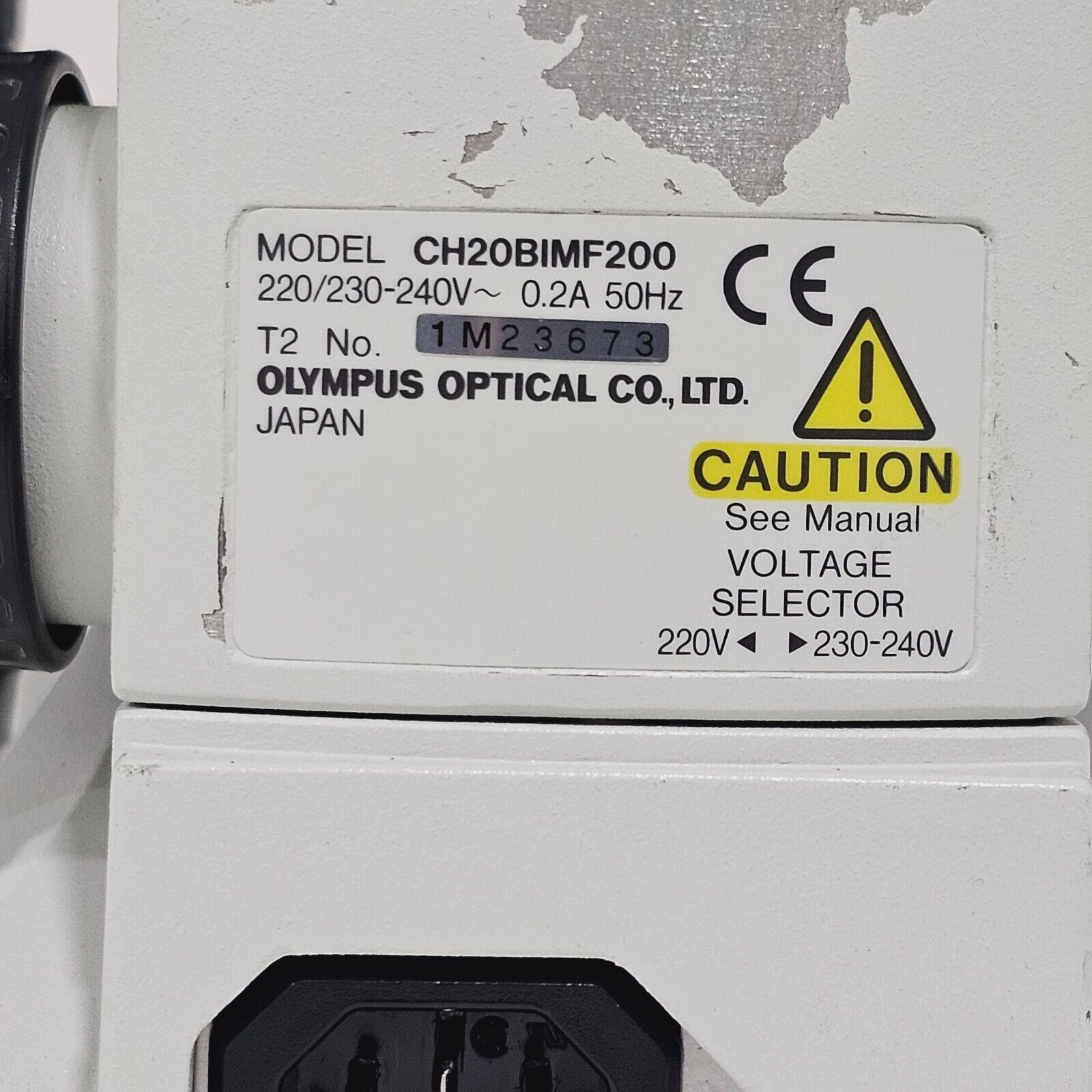

Model: CH20BIMF200
Optical System: Fixed 160mm tube length
Observation Head: Binocular, 45° inclination
Interpupillary Distance: 53–75 mm
Diopter Adjustment: Left eyepiece
Eyepiece: WF10X (widefield)

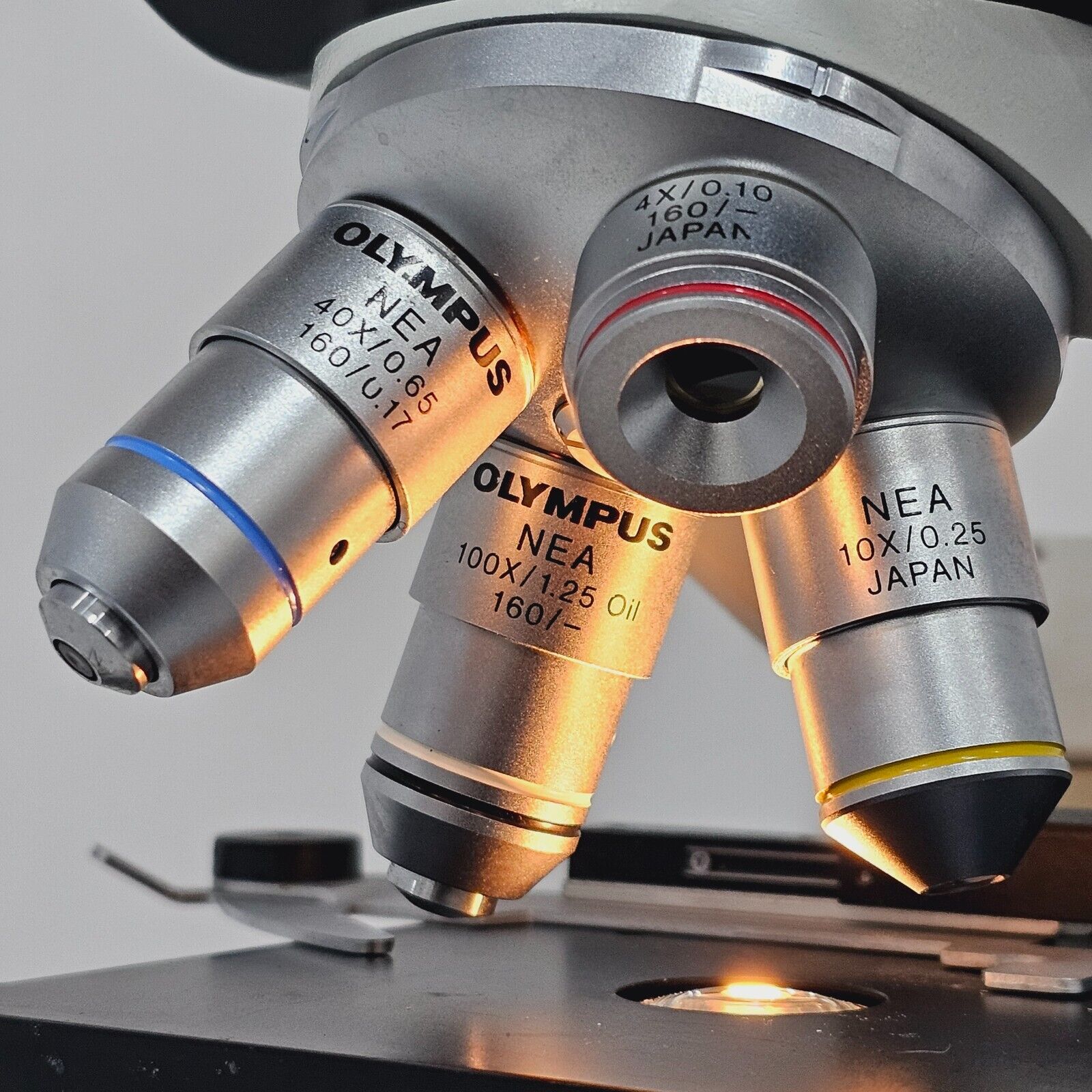

Objectives: Olympus NEA achromatic series — 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil
Nosepiece: Quadruple revolving (fixed)

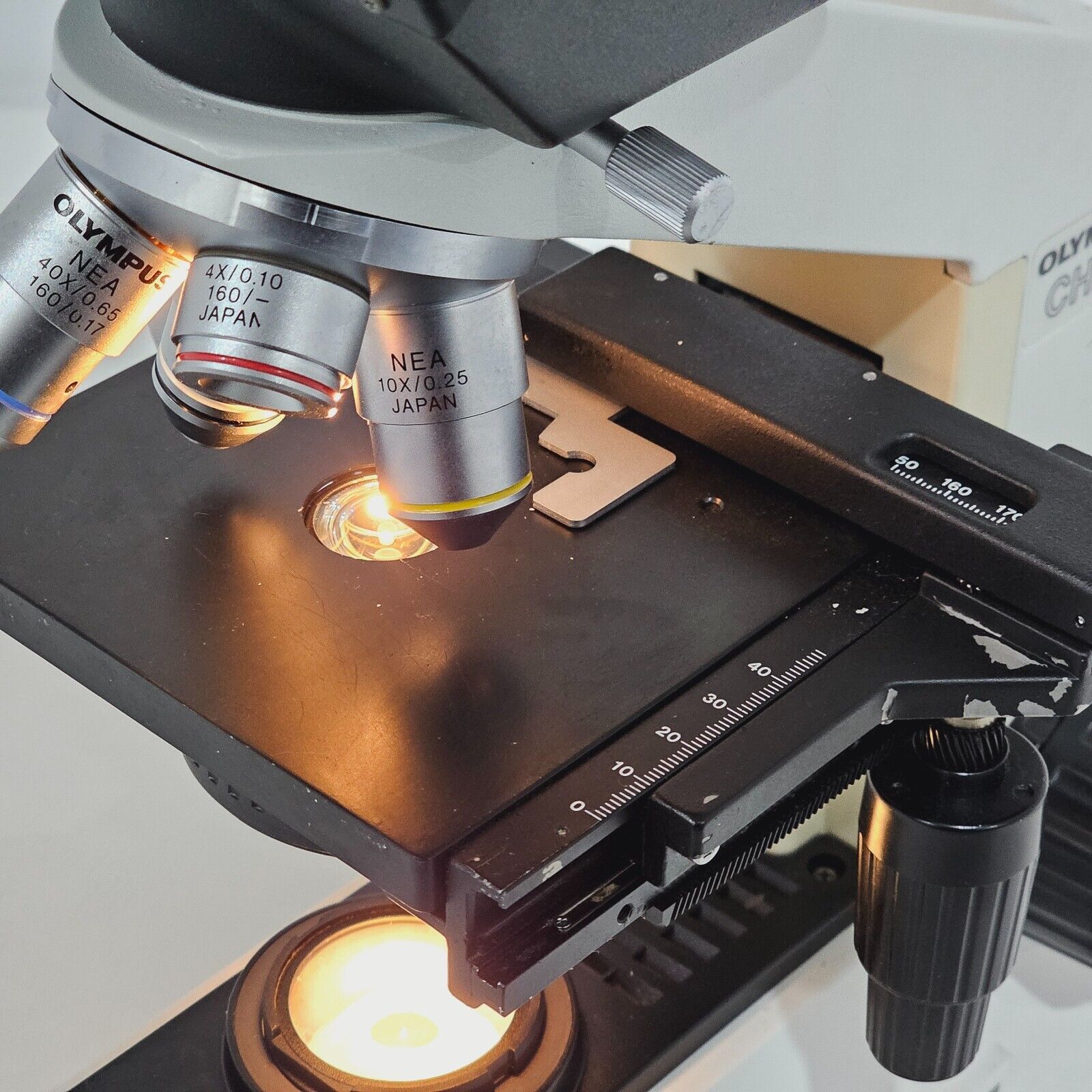

Stage: Plane stage 120 x 132 mm with right-hand mechanical coaxial drive
Focus: Coaxial coarse and fine rack-and-pinion; coarse stroke 20mm, tension adjustment on right
Condenser: Abbe NA 1.25 (oil immersion), vertical adjustment range 10mm, with aperture iris diaphragm

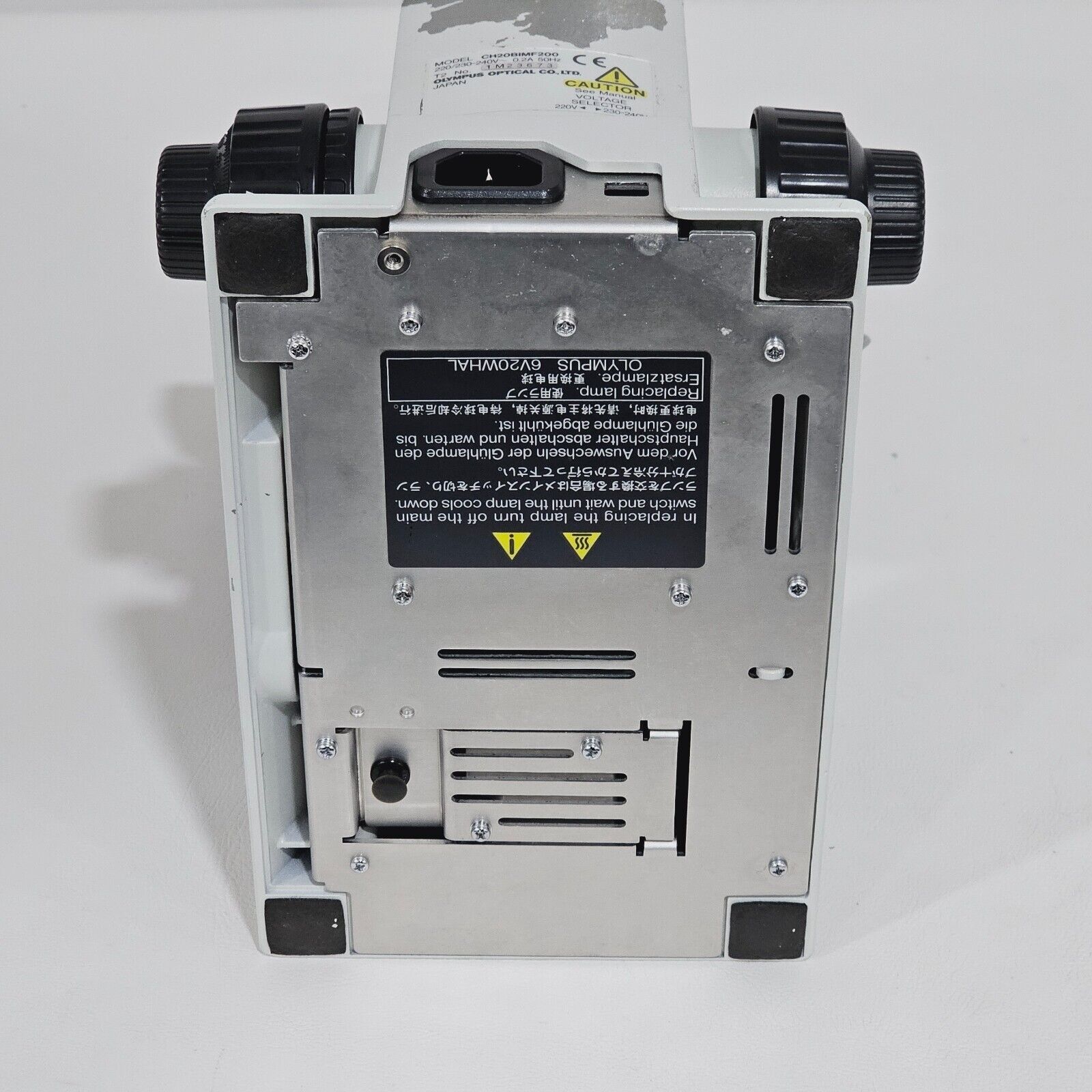

Illumination: Built-in 6V 20W halogen lamp
Filter: Blue filter included
Magnification Range: 40x to 1000x (with standard eyepiece and objective combinations)
Objective Tube Length Correction: 160mm
Coverslip Correction: 0.17mm
Power Supply: Universal (100–240V AC)
Olympus CH10/CH20 Biological Microscope Repair Manual (PDF): Download PDF
Olympus CH20i Biological Microscope Brochure (PDF): Download PDF
Product Overview
Condition: For parts or not working
This Olympus CH20 BIMF200 binocular biological microscope is described as tested and working. It is supplied with one WF10X widefield eyepiece and three Olympus NEA achromatic objectives covering low, medium, and high-power observation including an oil immersion objective.
Included with this unit:
• 1 x WF10X Eyepiece
• 1 x Objective: NEA 4/0.1 (160/-)
• 1 x Objective: NEA 40/0.65 (160/0.17)
• 1 x Objective: NEA 100/0.25 (160/0.17)
Manufacturer's Description
The Olympus CH20 (model CH20BIMF200) is an economically priced biological microscope that achieves a high standard of optical and mechanical quality, designed for educational, entry-level clinical, and routine laboratory applications. It features a slim, ergonomic stand with coaxial coarse and fine focus controls, allowing comfortable operation with hands resting on the desk.
The CH20 is supplied with Olympus NEA series achromatic objectives corrected for a 160mm mechanical tube length and 0.17mm coverslip thickness, and is fitted with a quadruple revolving nosepiece. The binocular observation head is inclined at 45° with interpupillary distance adjustment from 53–75mm and diopter correction on the left eyepiece.
Specifications:
Model: CH20BIMF200
Optical System: Fixed 160mm tube length
Observation Head: Binocular, 45° inclination
Interpupillary Distance: 53–75 mm
Diopter Adjustment: Left eyepiece
Eyepiece: WF10X (widefield)
Objectives: Olympus NEA achromatic series — 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil
Nosepiece: Quadruple revolving (fixed)
Stage: Plane stage 120 x 132 mm with right-hand mechanical coaxial drive
Focus: Coaxial coarse and fine rack-and-pinion; coarse stroke 20mm, tension adjustment on right
Condenser: Abbe NA 1.25 (oil immersion), vertical adjustment range 10mm, with aperture iris diaphragm
Illumination: Built-in 6V 20W halogen lamp
Filter: Blue filter included
Magnification Range: 40x to 1000x (with standard eyepiece and objective combinations)
Objective Tube Length Correction: 160mm
Coverslip Correction: 0.17mm
Power Supply: Universal (100–240V AC)
Resources
Olympus CH10/CH20 Biological Microscope Repair Manual (PDF): Download PDF
Olympus CH20i Biological Microscope Brochure (PDF): Download PDF
