Condition: Used

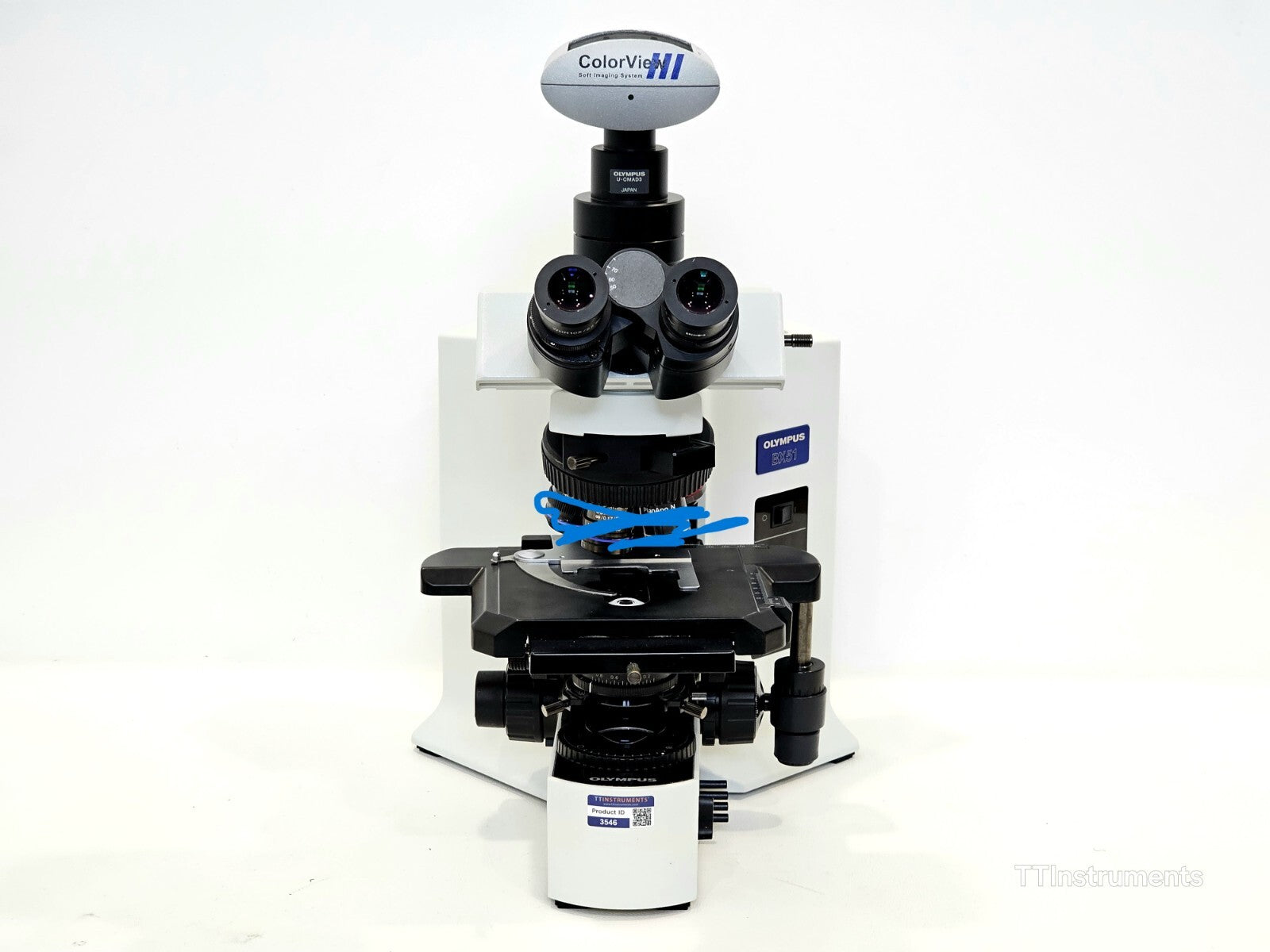

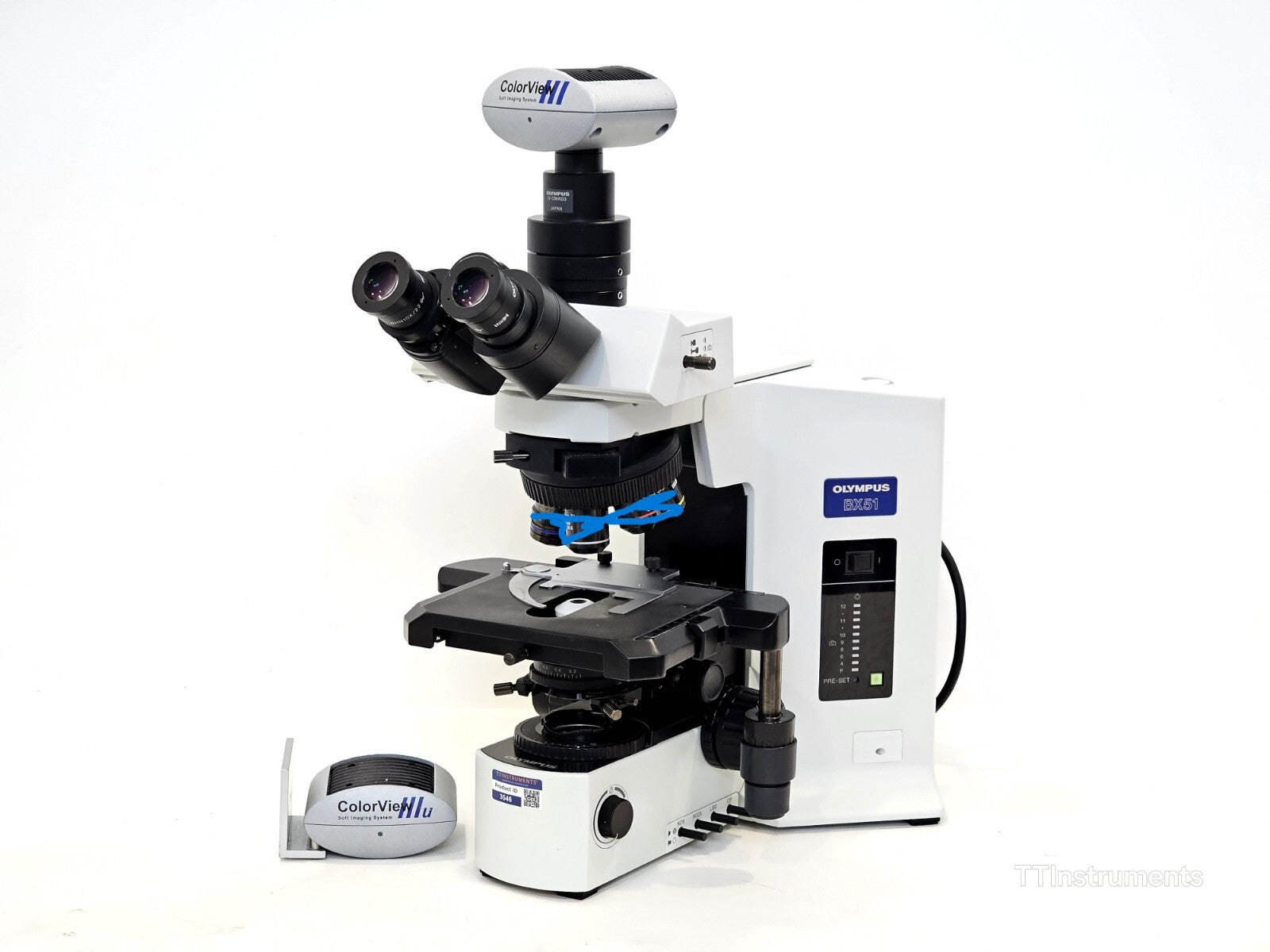

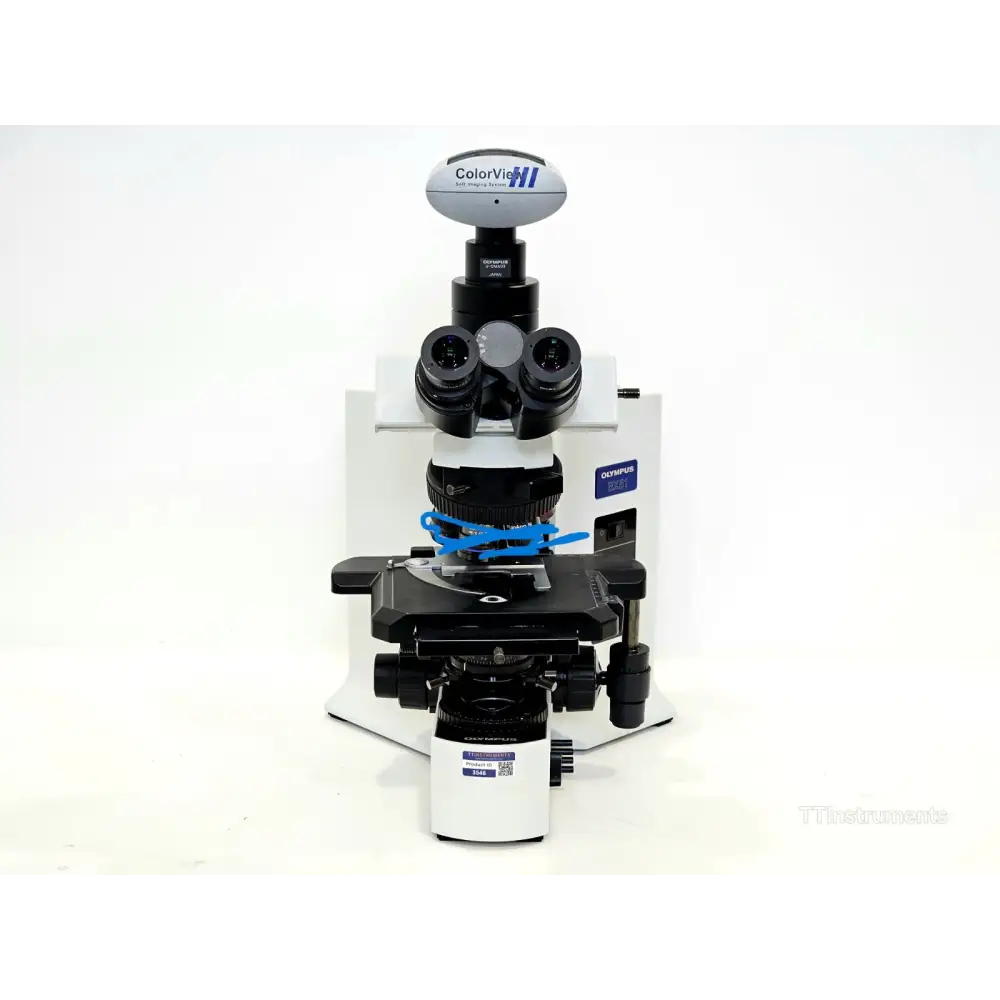

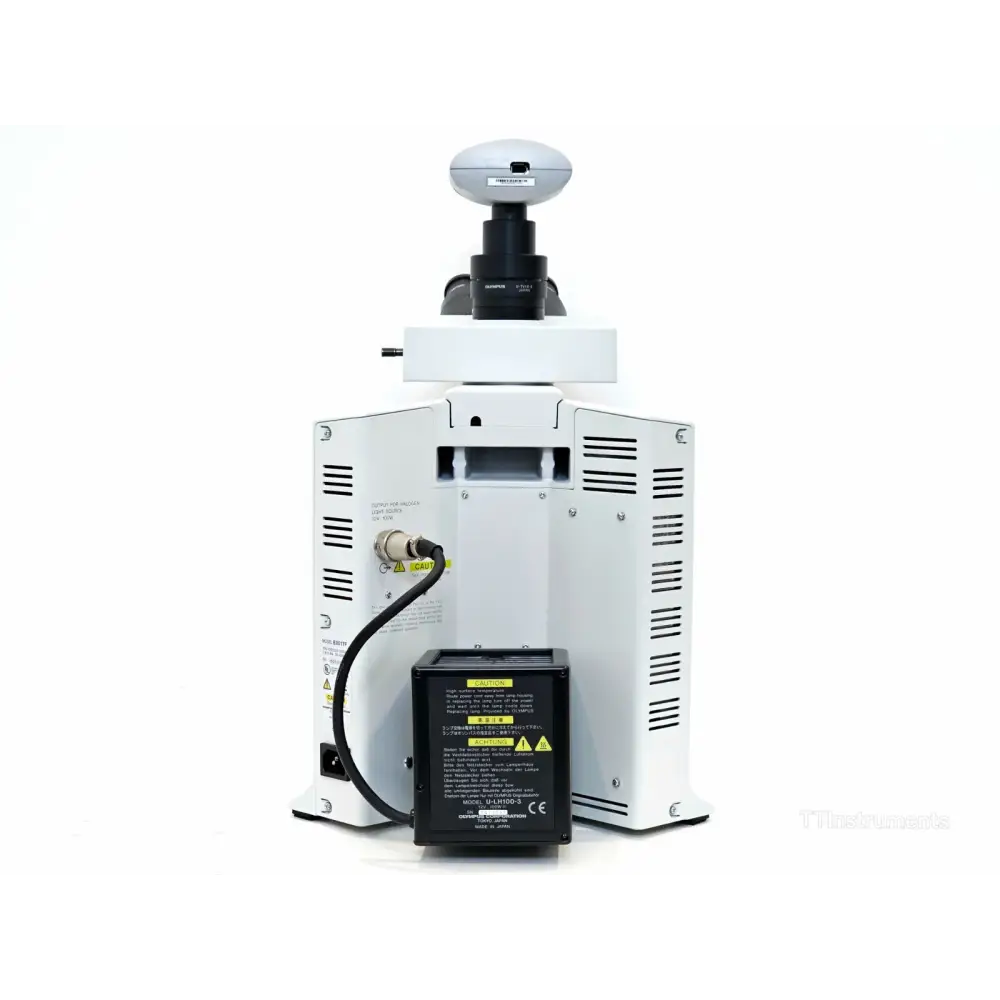

This Olympus BX51TF transmitted-light upright microscope powers up with a good working bulb and has been tested as operational. Objectives are NOT included. The ColorView camera is present but has not been tested — imaging software may be required to operate it.

Included with this system:

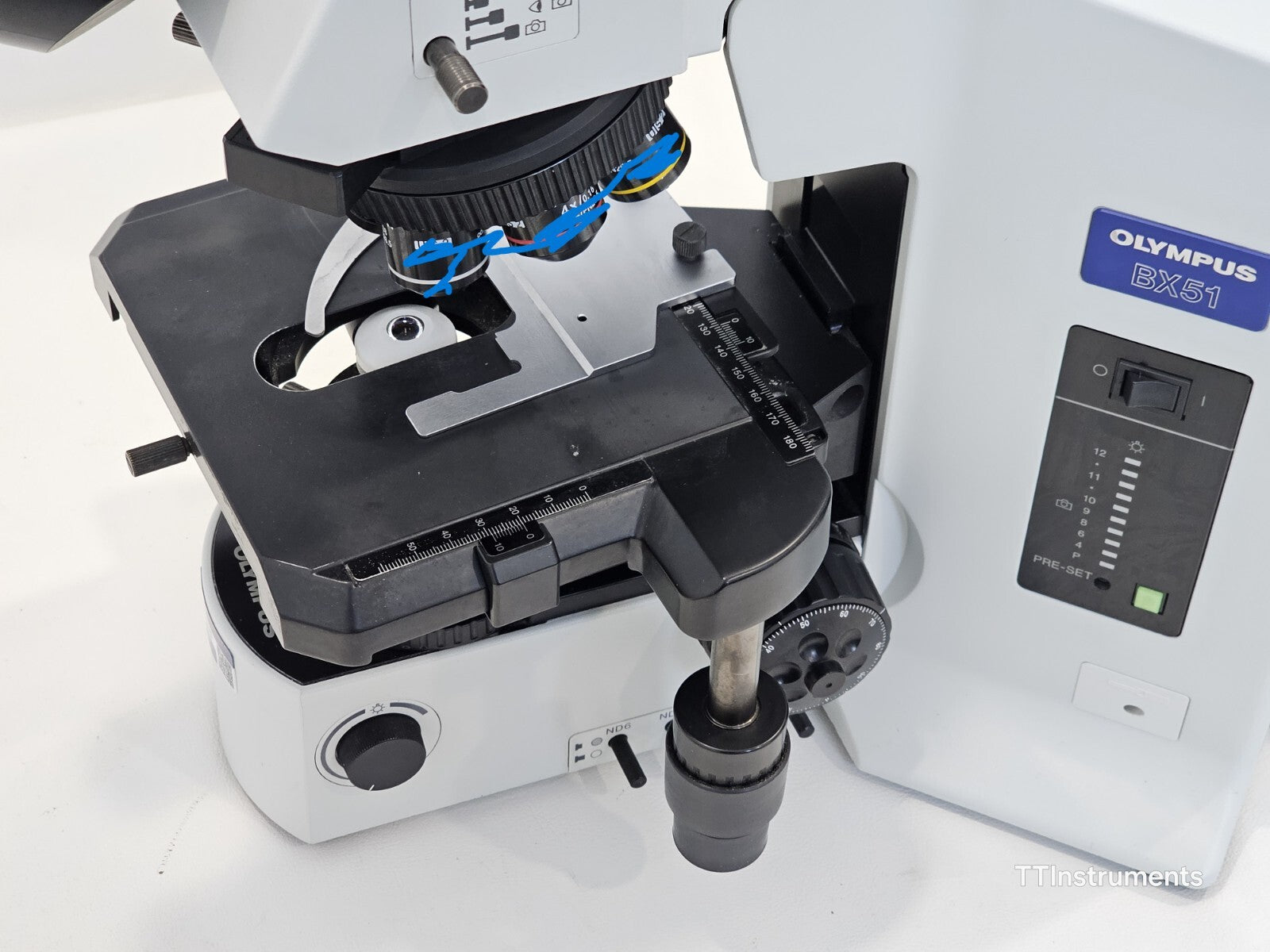

• Olympus BX51TF microscope body (transmitted light configuration)
• WHN10X/22 high-eyepoint eyepieces
• Olympus ColorView digital camera

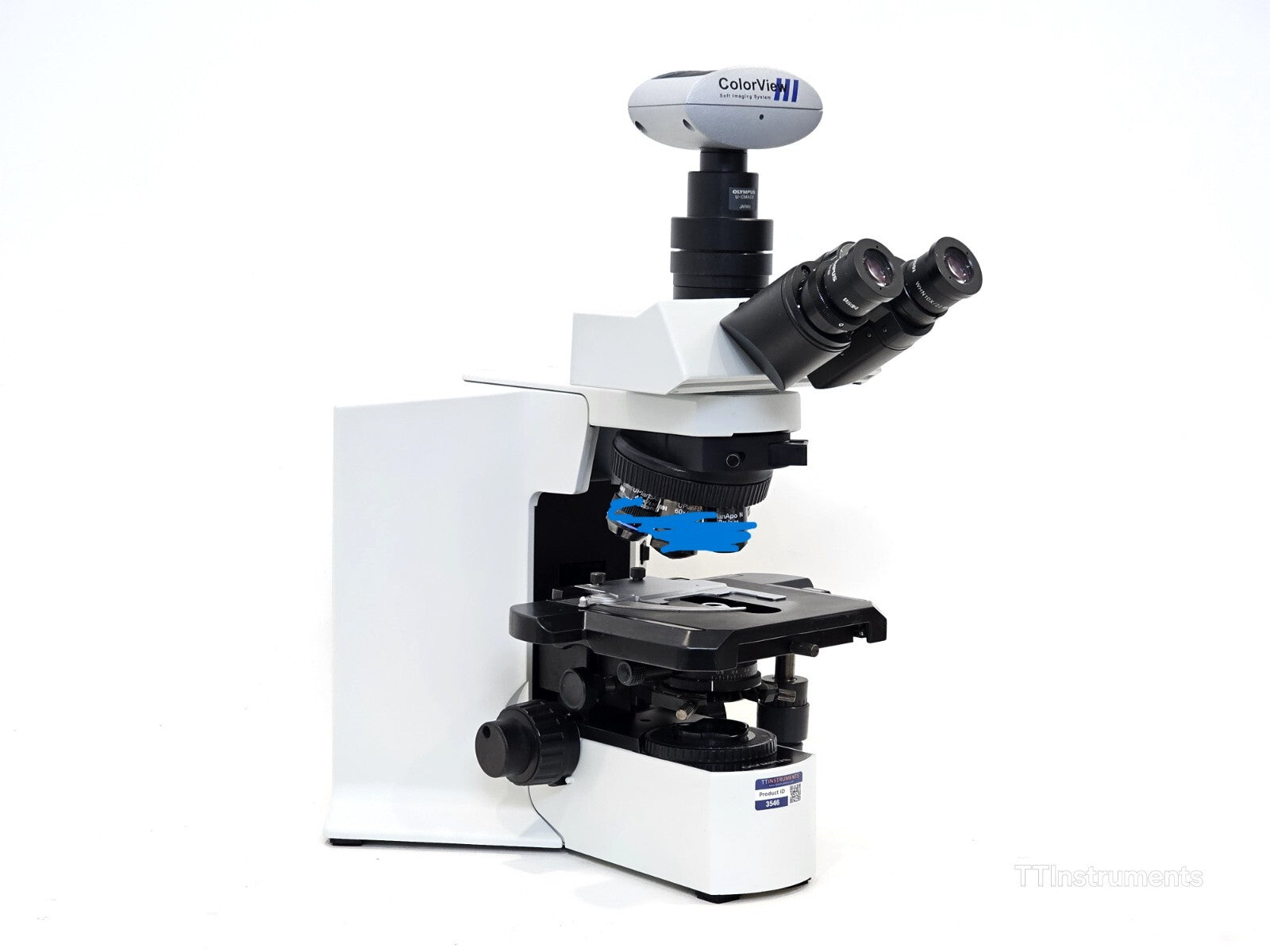

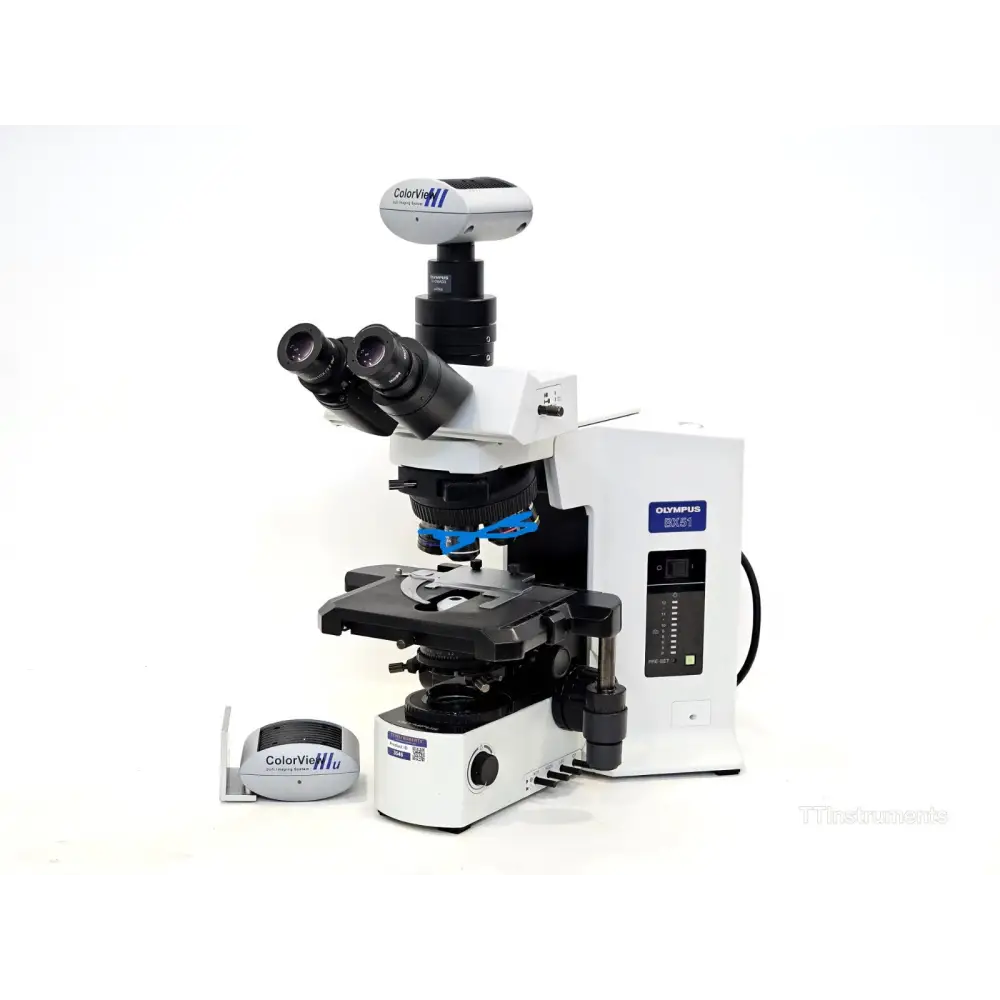

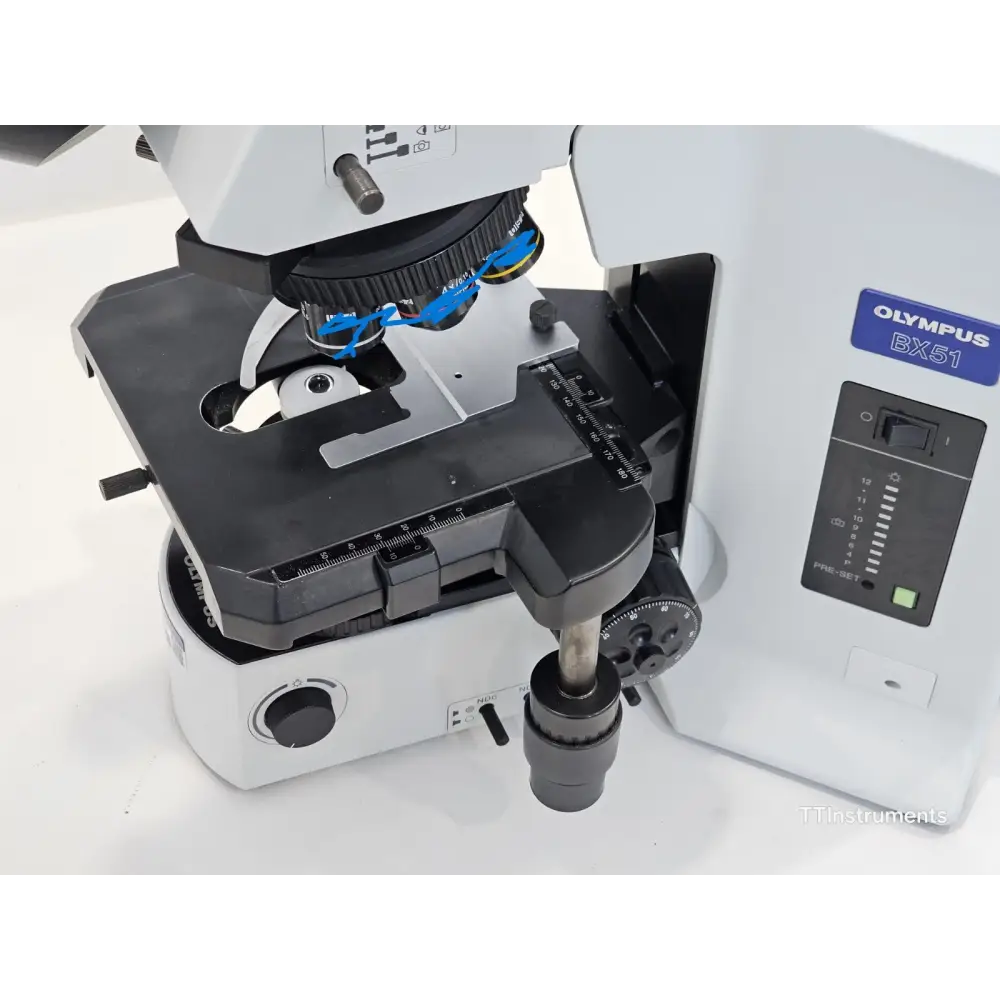

The Olympus BX51TF is a transmitted-light specification model from the BX2 series of research system microscopes, designed to meet demanding life science, clinical, and materials science imaging requirements. The BX51TF designation denotes a transmitted fluorescence configuration built around Olympus's advanced UIS2 (Universal Infinity System 2) optical platform.

The UIS2 optical system provides a high signal-to-noise ratio and extended wavelength performance from UV through to the near-infrared, delivering world-class fluorescence performance alongside the image quality needed for fast-developing research programmes. The infinity-corrected optical design allows for greater depth of field and improved resolution at all magnifications.

The microscope supports multiple imaging modalities including brightfield, darkfield, phase contrast, fluorescence, and DIC (differential interference contrast), making it a highly versatile platform for a broad range of laboratory applications.

The BX51TF is configured specifically for transmitted light observation and features a trinocular observation tube with a light path selector enabling 100% light to eyepieces or split routing to an attached camera port, supporting digital imaging and photomicrography. WHN10X/22 high-eyepoint eyepieces are compatible with users wearing glasses.

Key Specifications:
Optical System: UIS2/UIS (Universal Infinity System) infinity-corrected
Microscope Configuration: BX51TF — transmitted light specification

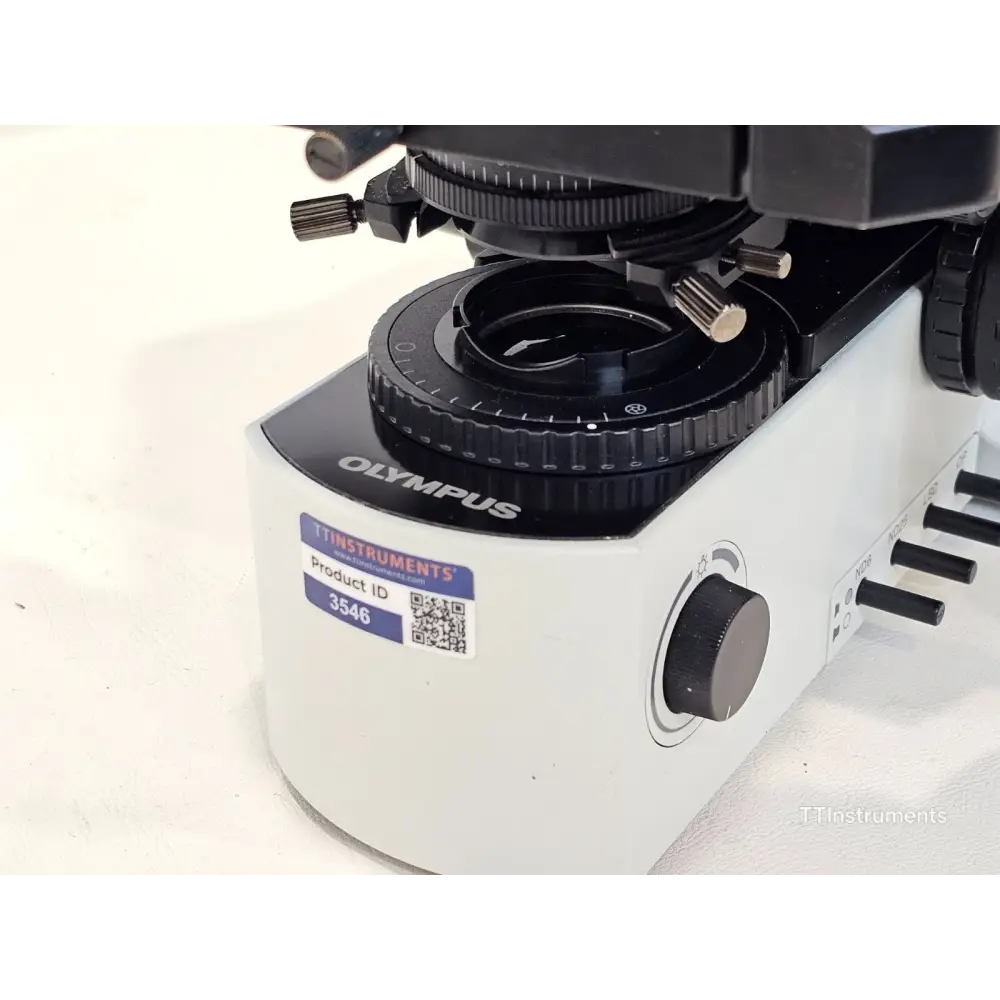

Observation Tube: Trinocular with light path selector knob

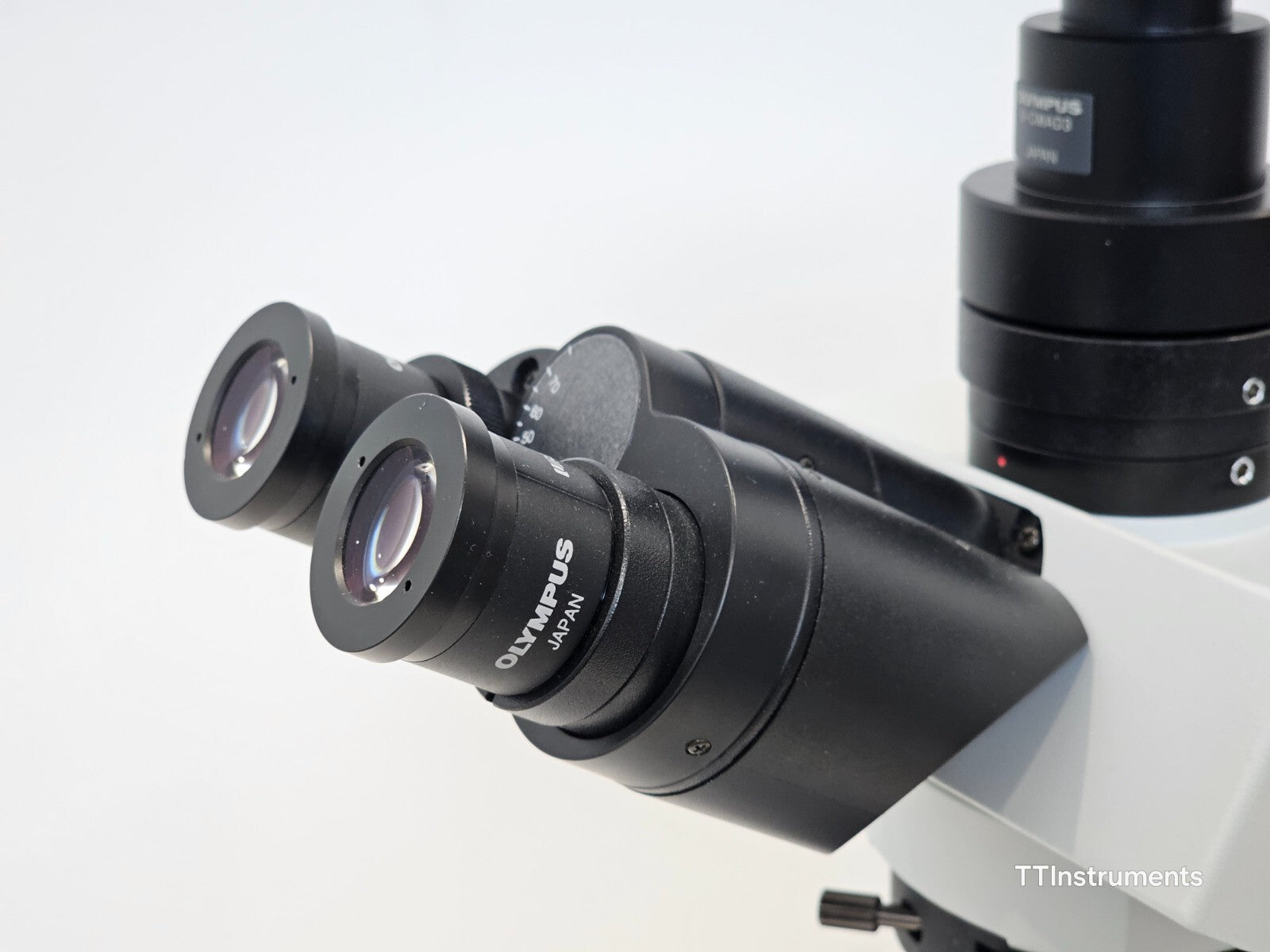

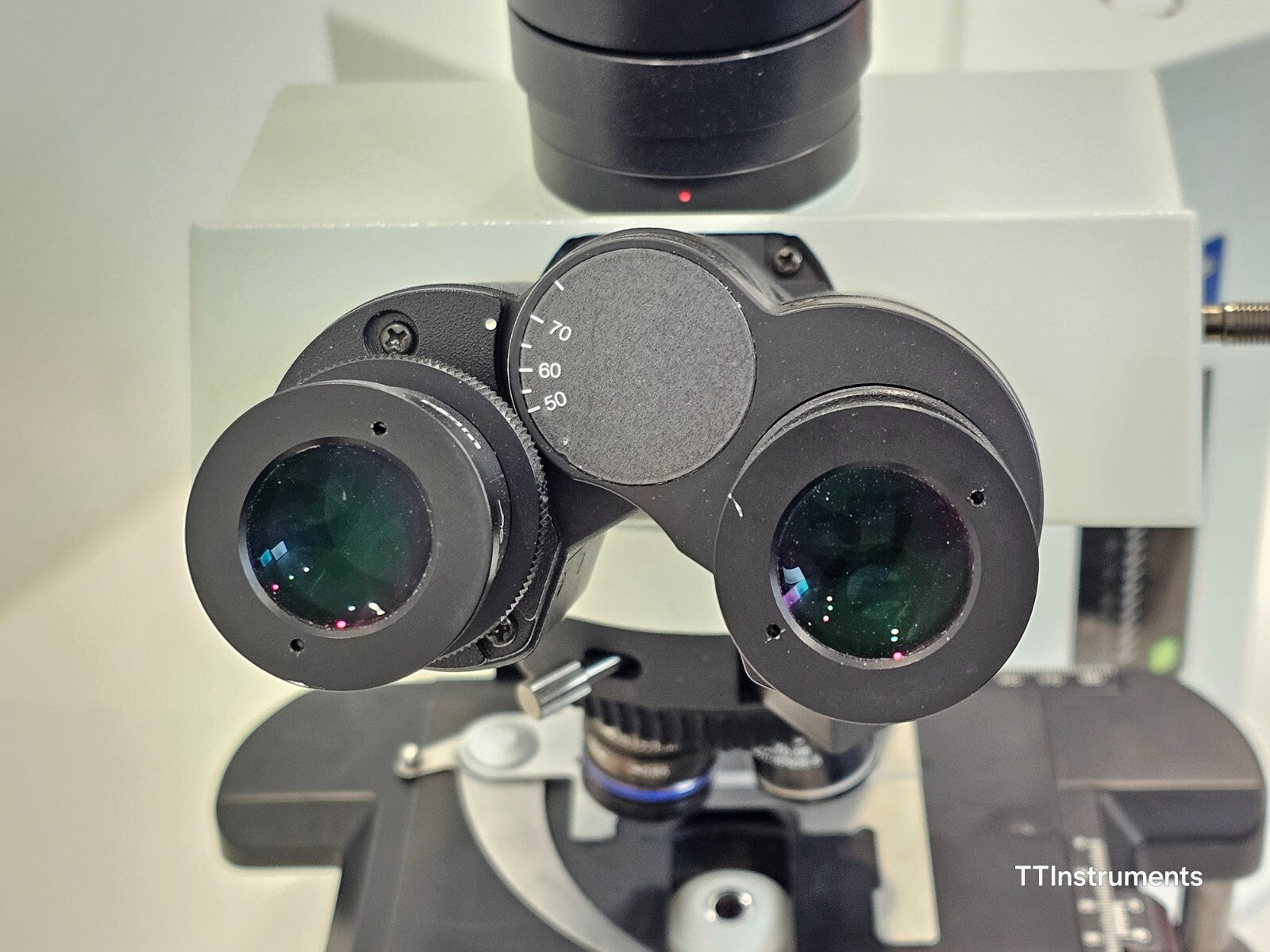

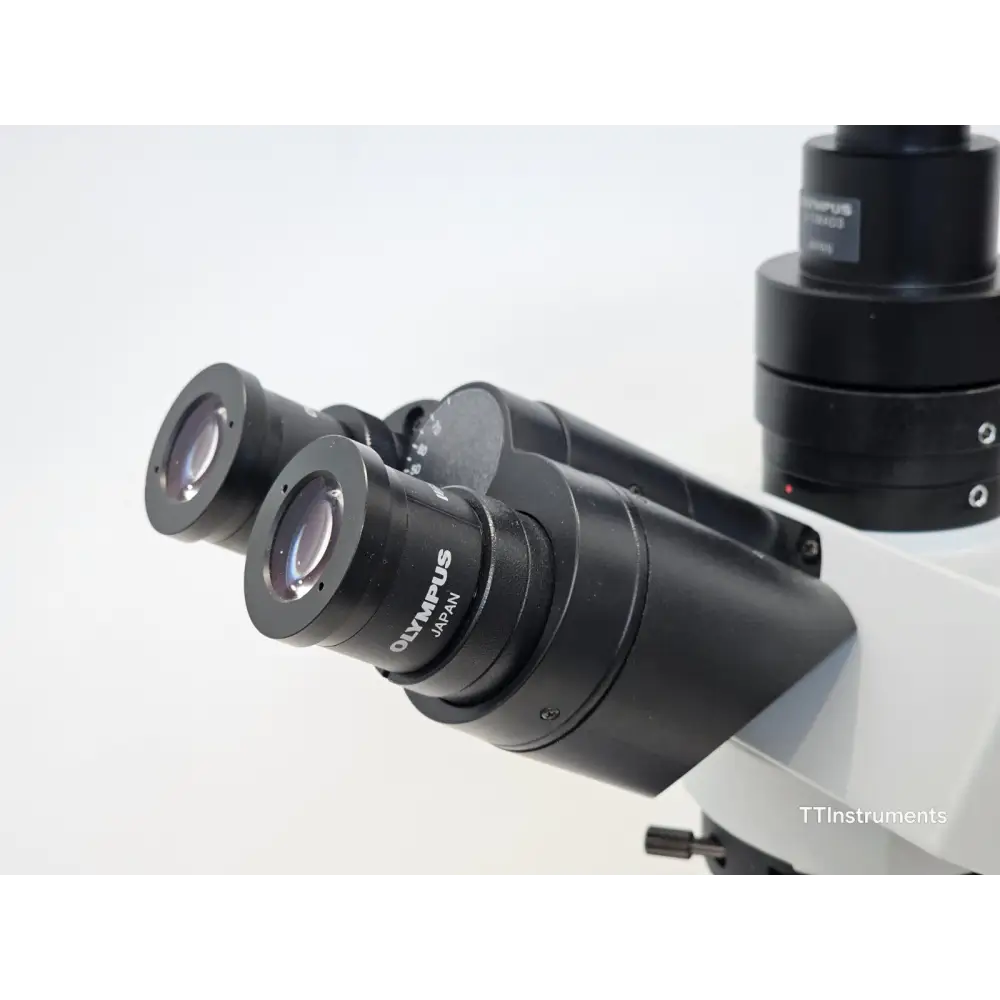

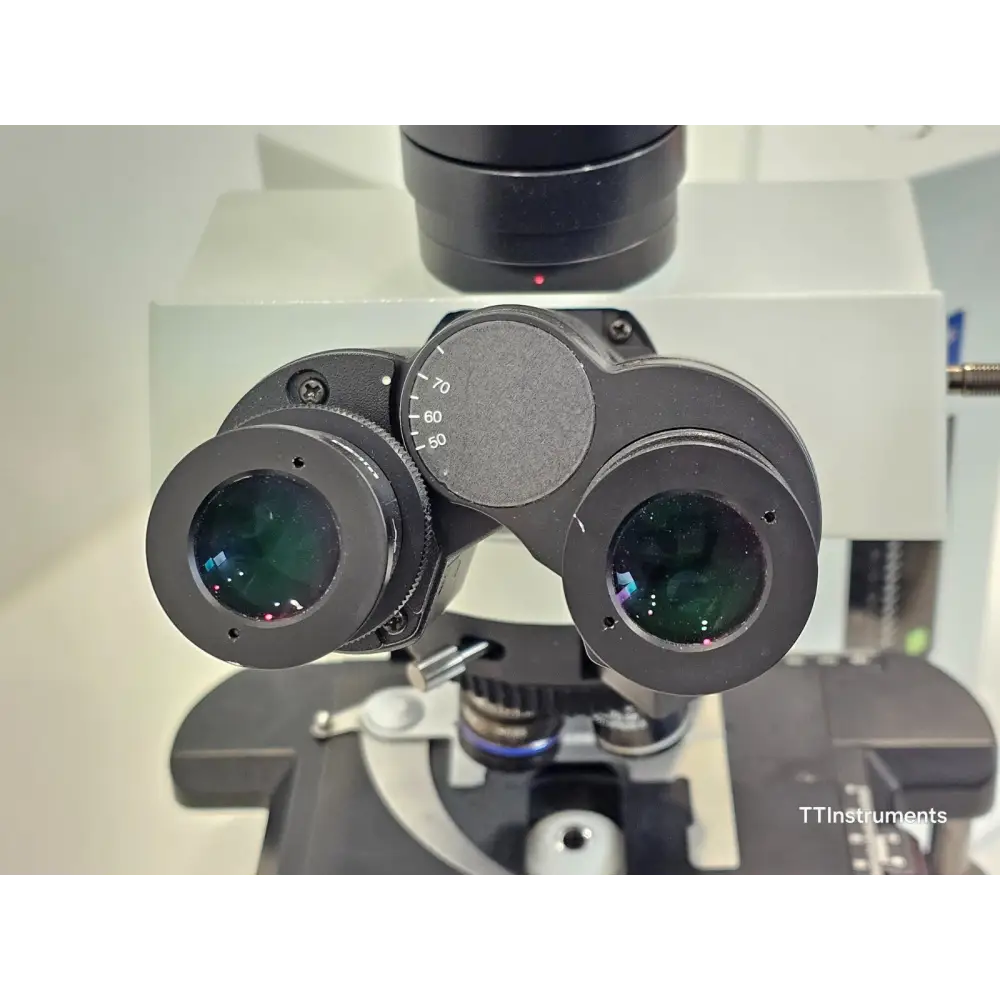

Eyepieces: WHN10X/22 (Field Number 22, high-eyepoint)

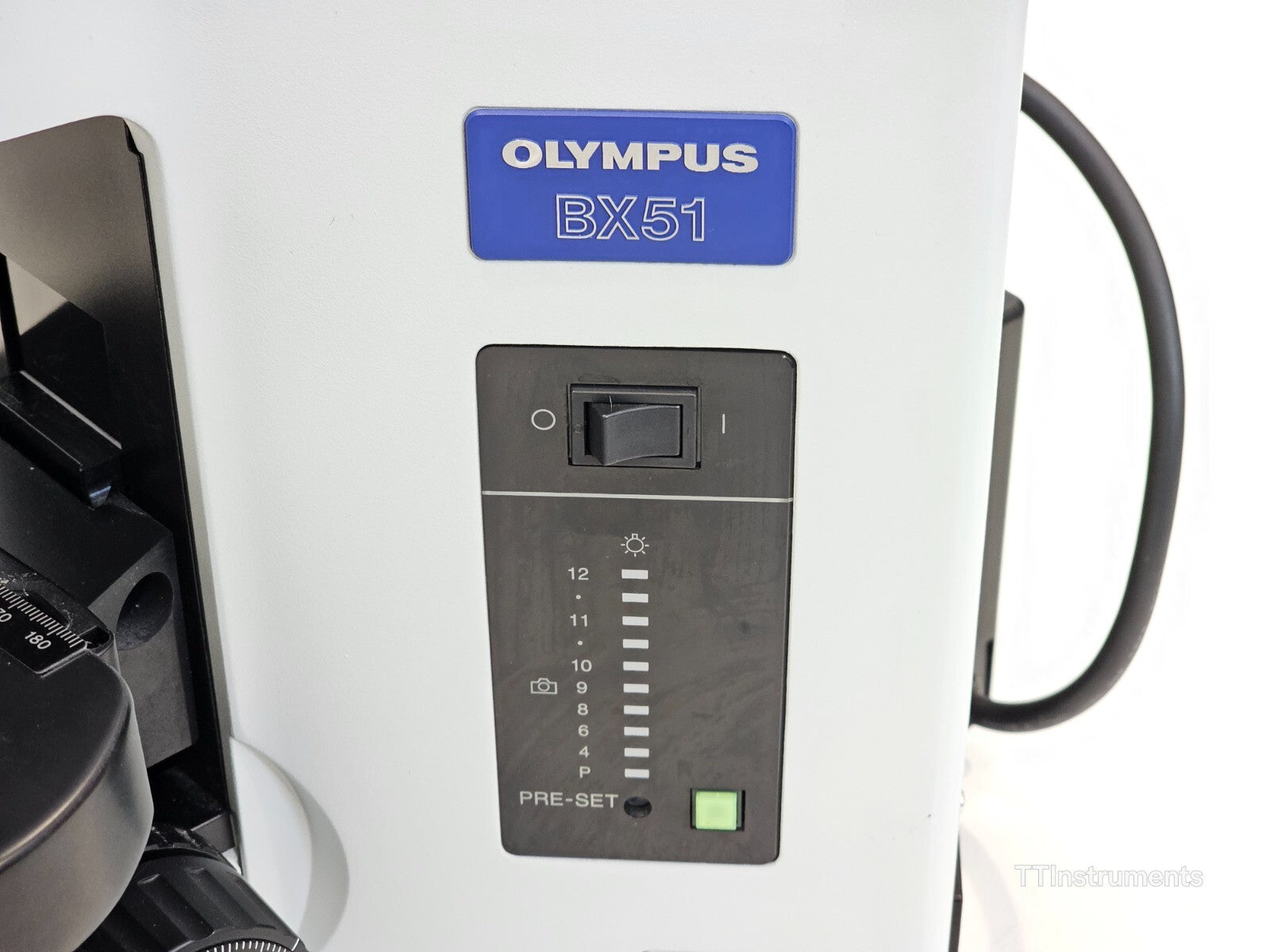

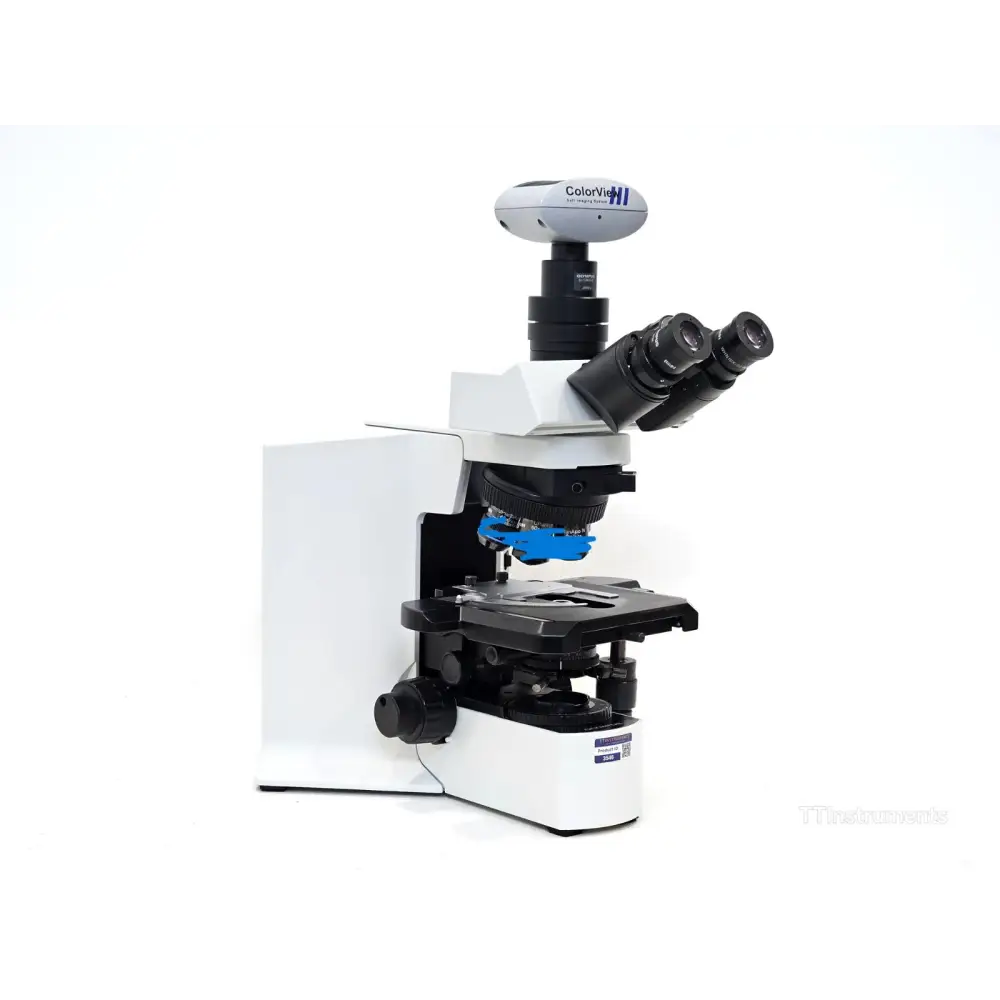

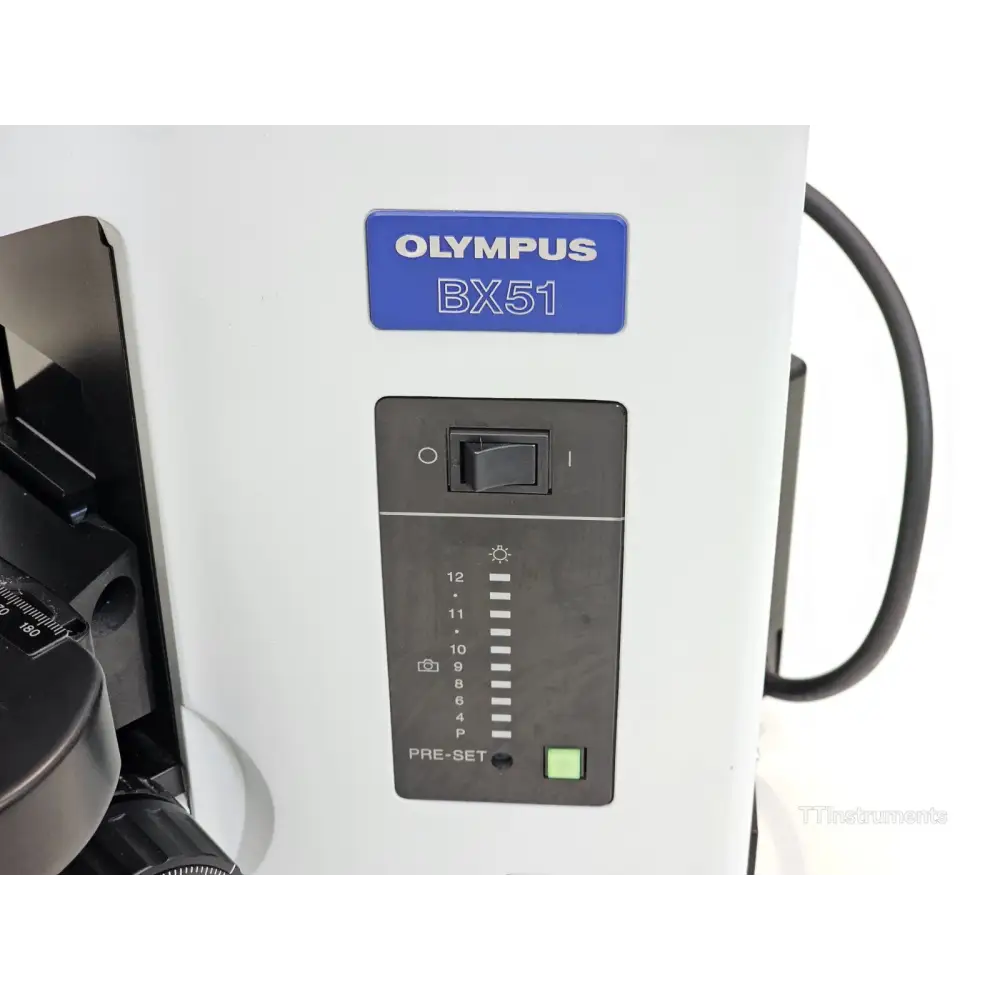

Illumination: Built-in transmitted Koehler illumination

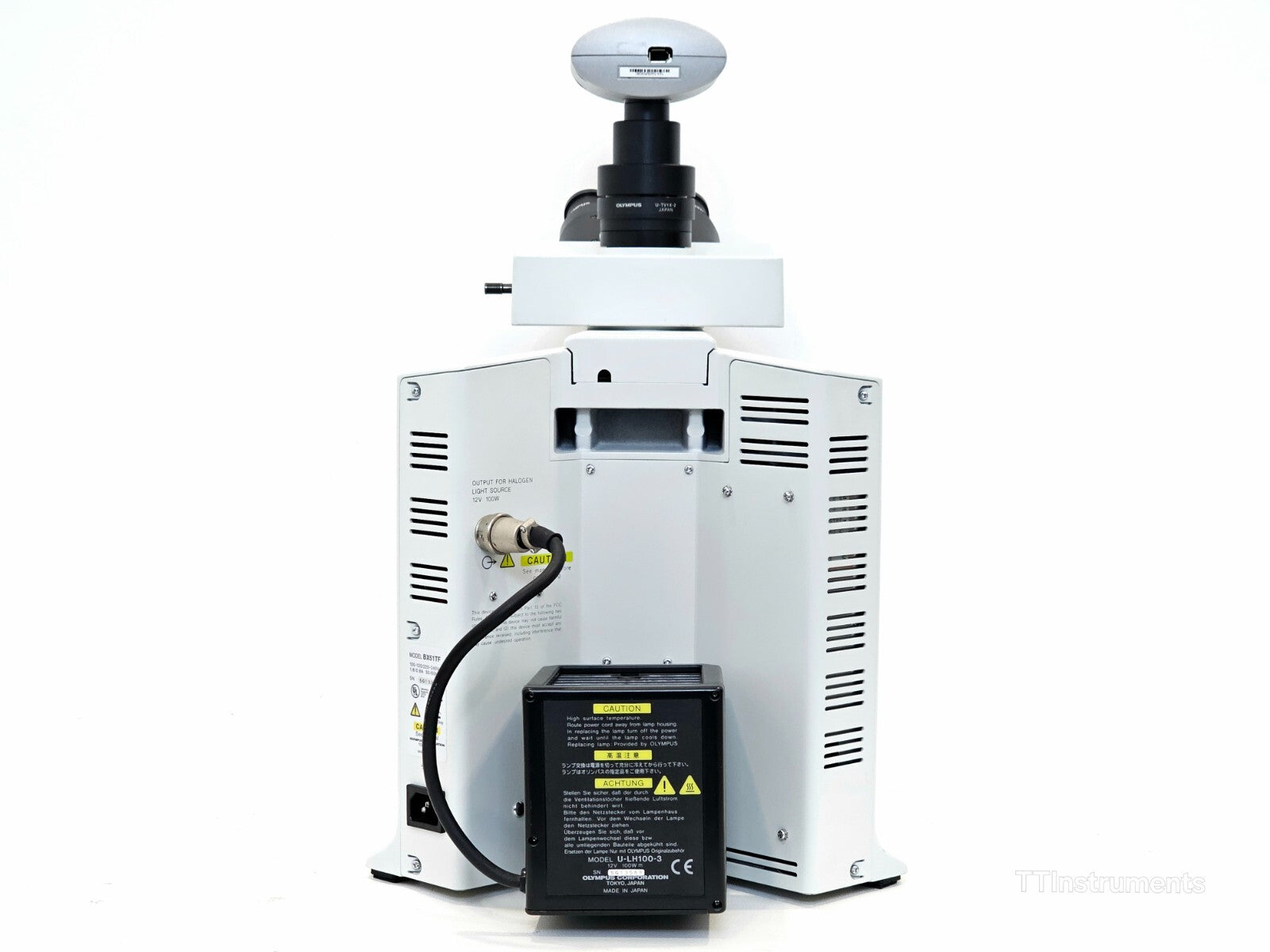

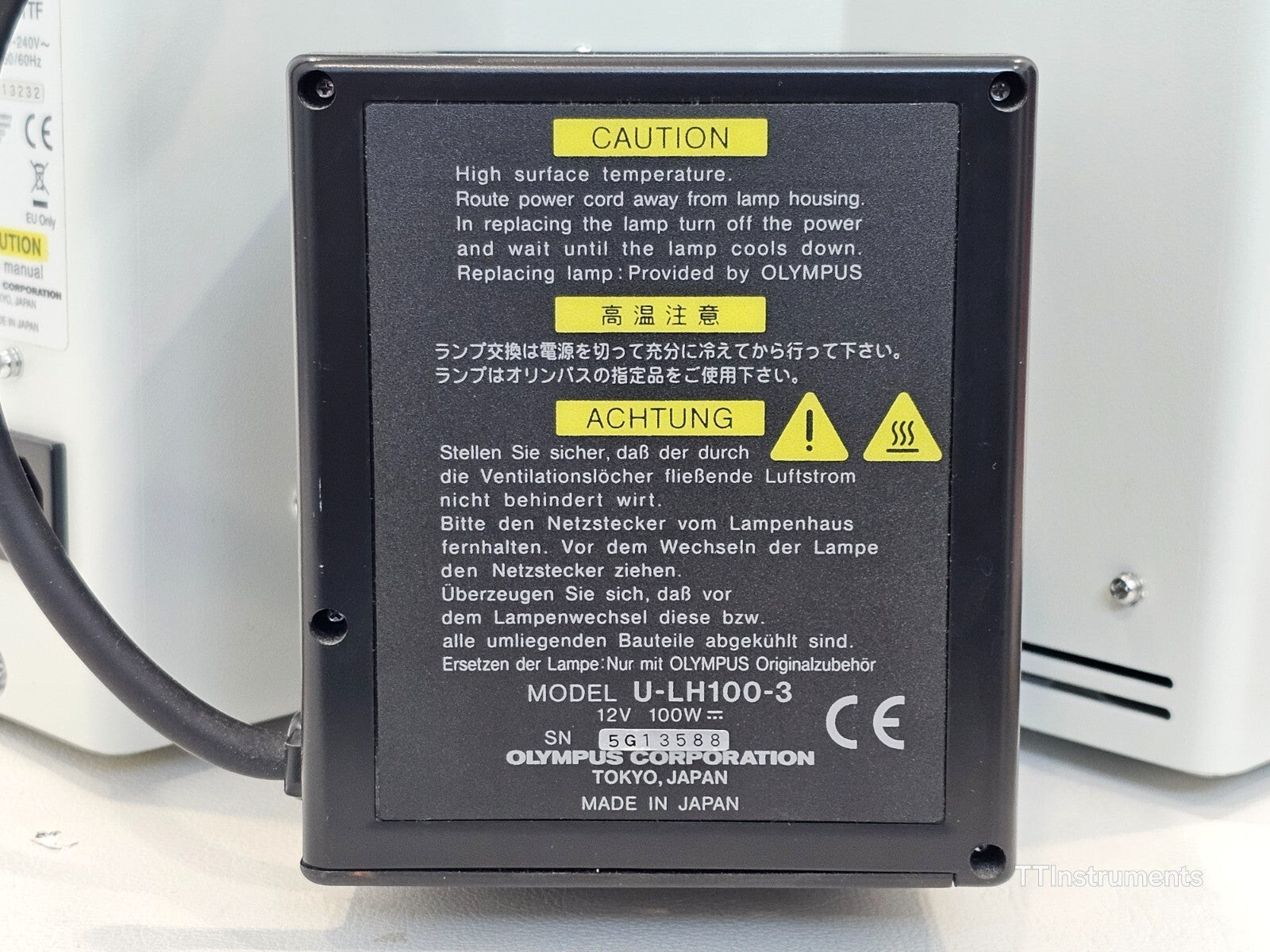

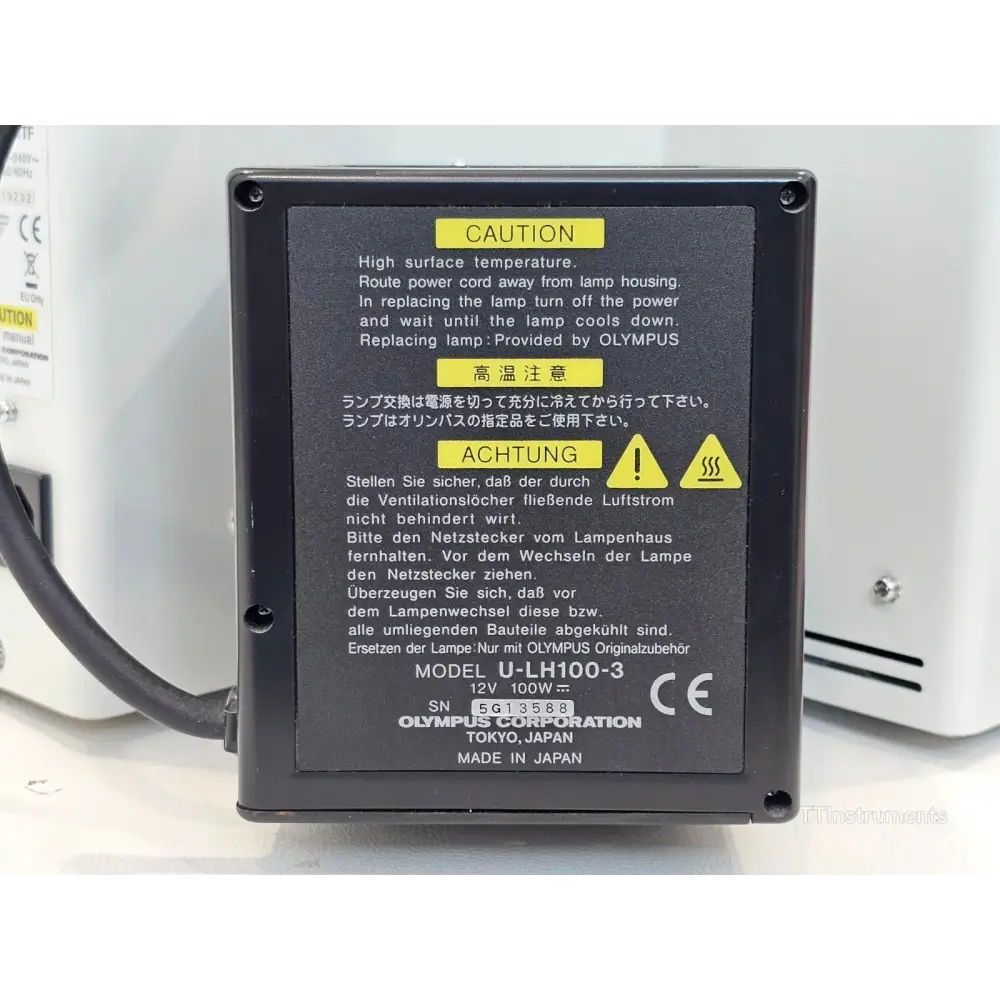

Lamp: 12V, 100W pre-centred long-life halogen (U-LH100)

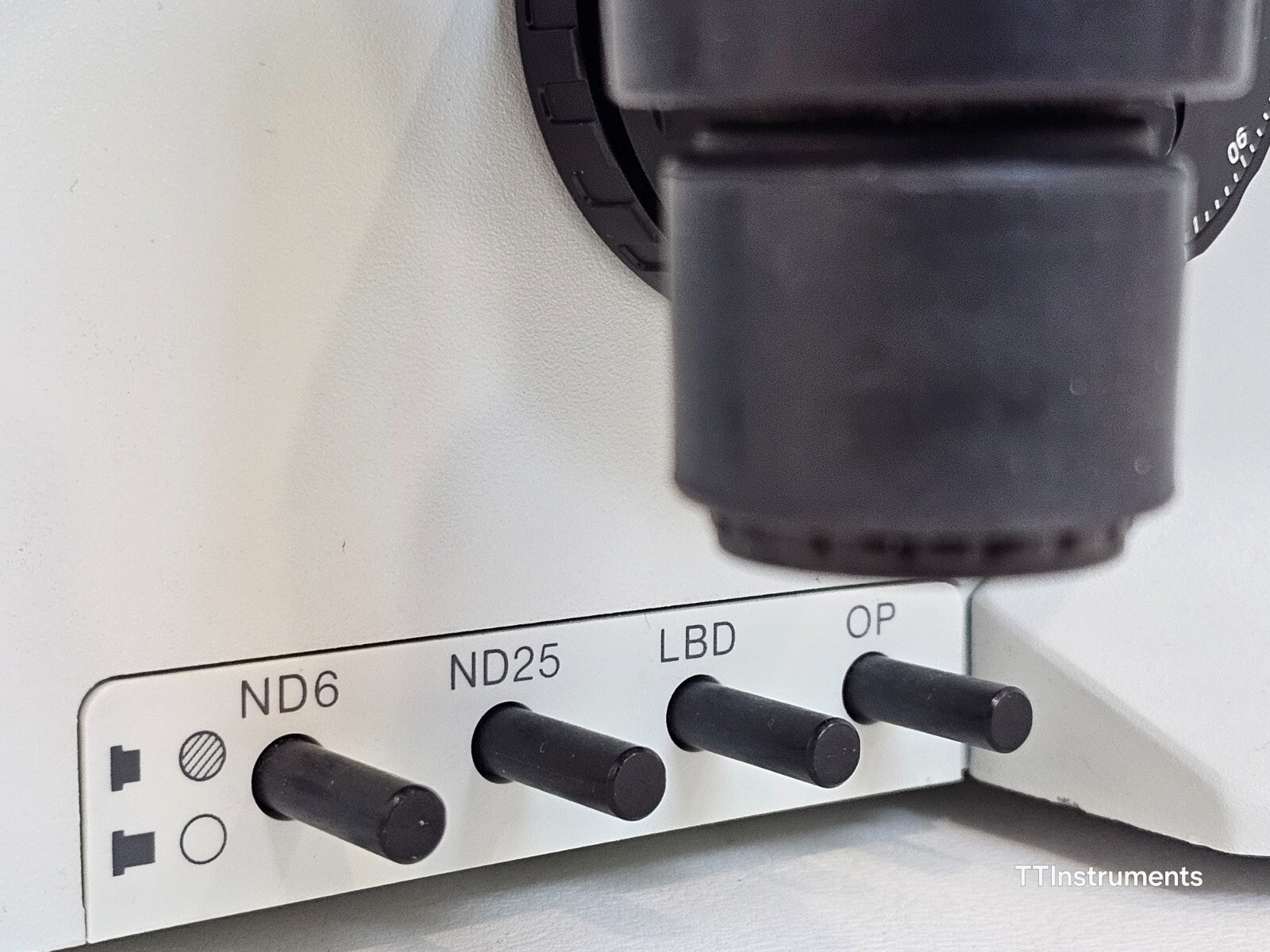

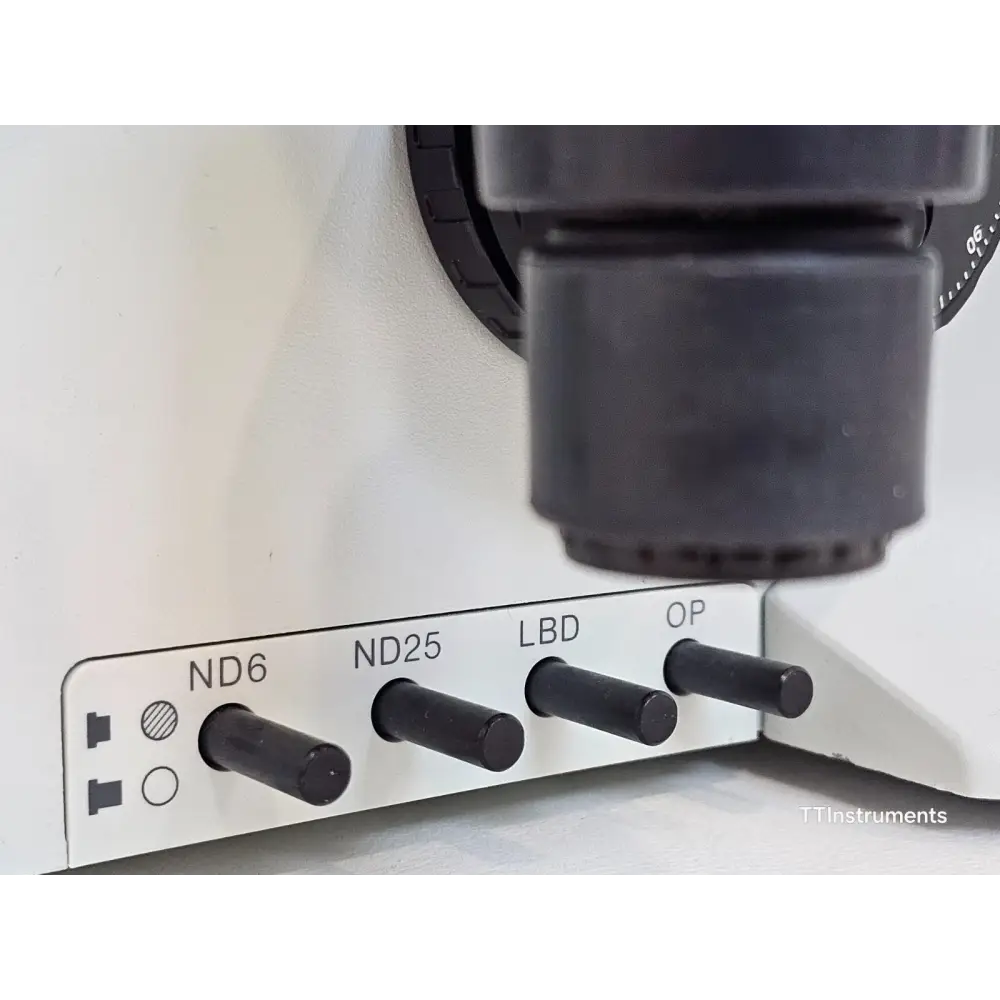

Built-in Filters: LBD-IF daylight interference filter, ND6, ND25 neutral density filters

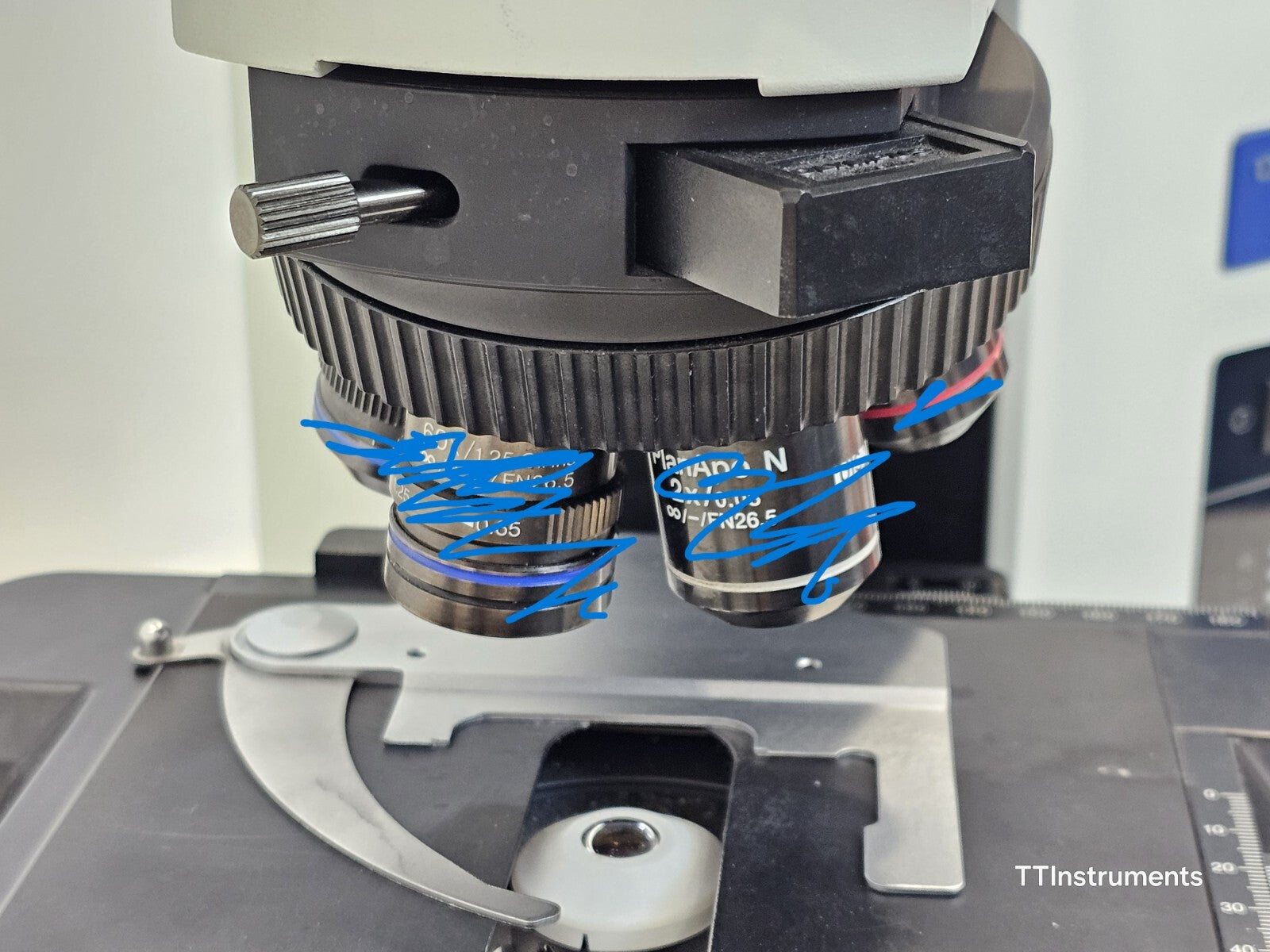

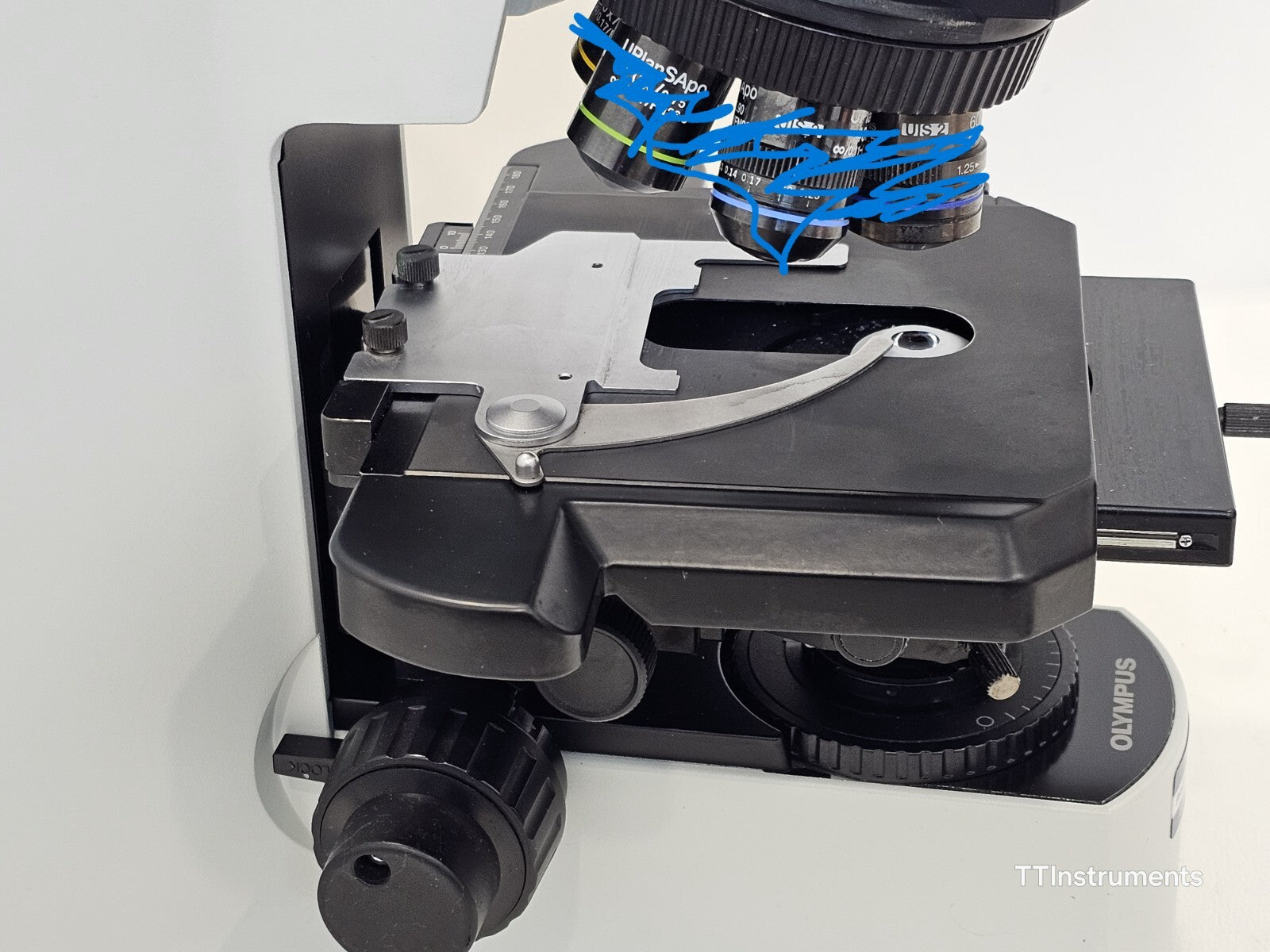

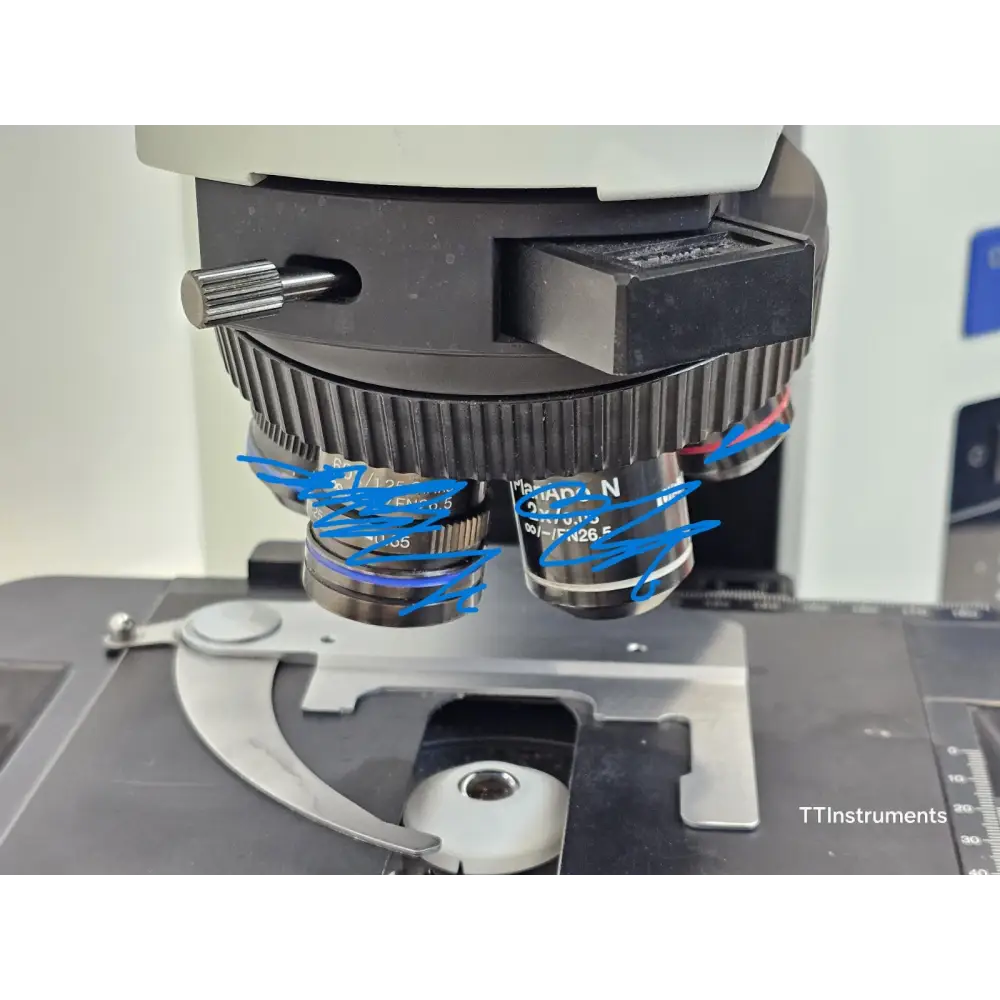

Nosepiece: 6-position revolving nosepiece (DIC-capable)

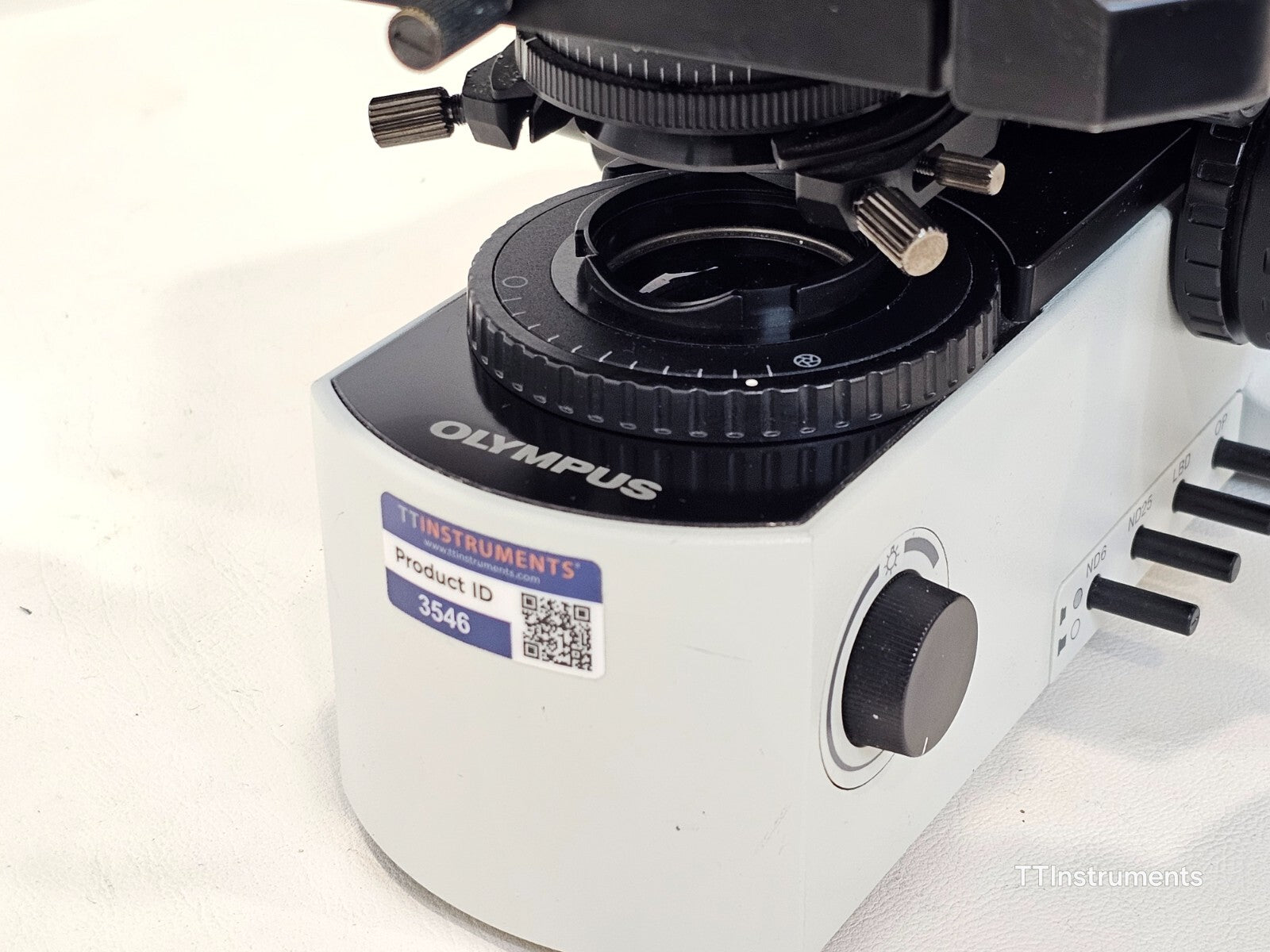

Condenser: Abbe type, N.A. 1.10 (U-AC2) or swing-out achromat/aplanat N.A. 1.40 (U-SC3)
Objective Compatibility: UIS2/UIS series, 1.25X to 100X

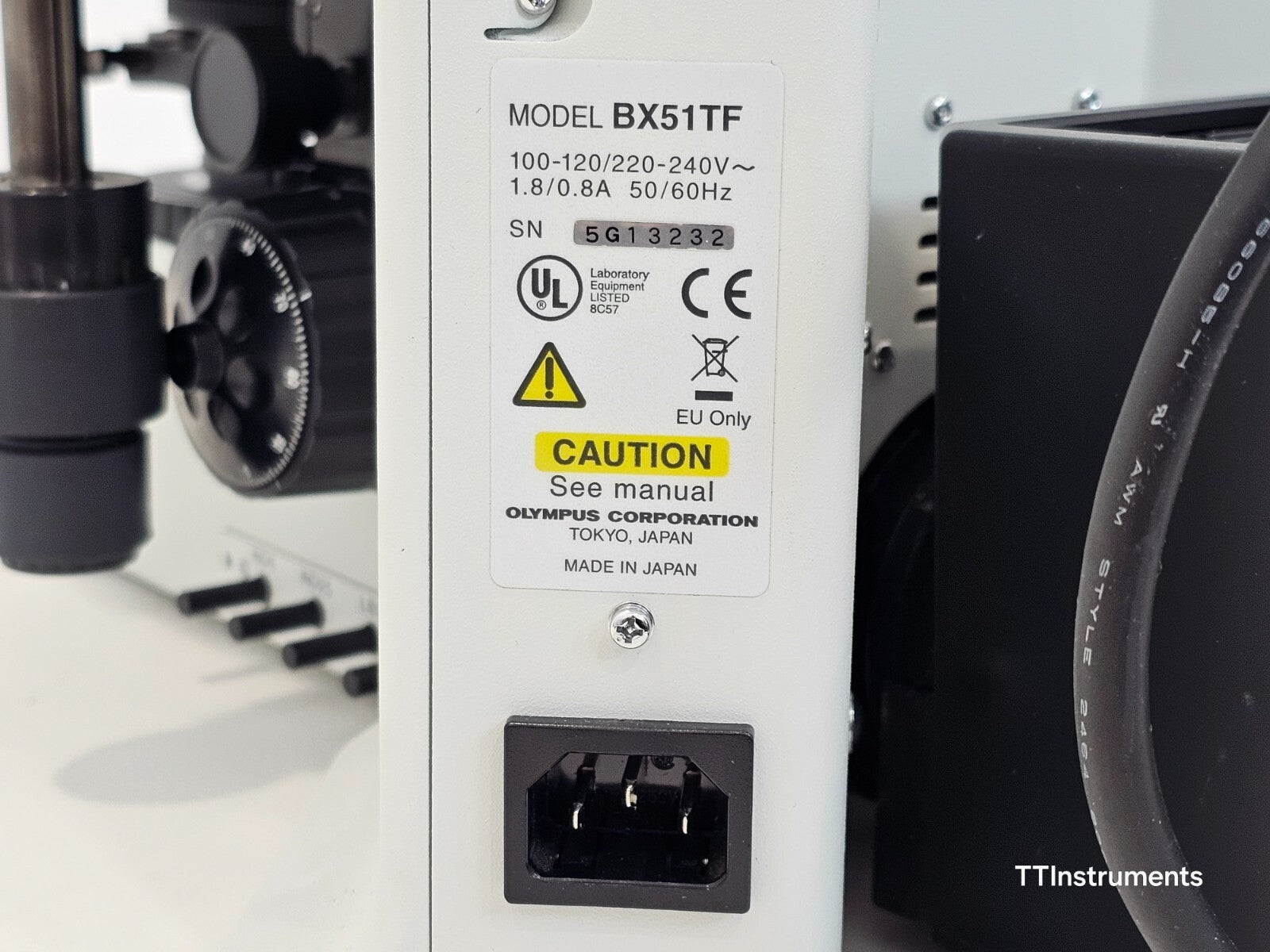

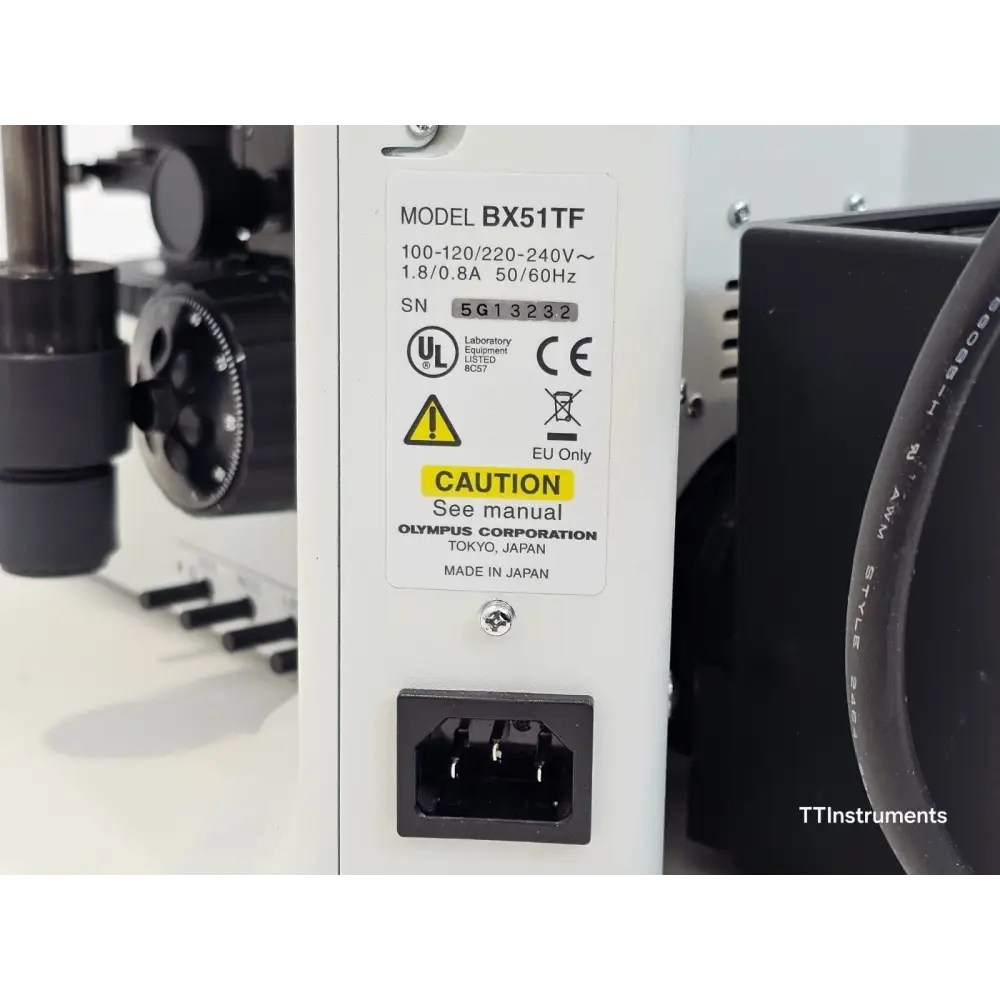

Power Supply: 100V–120V / 220V–240V, 50/60 Hz
Certifications: CE

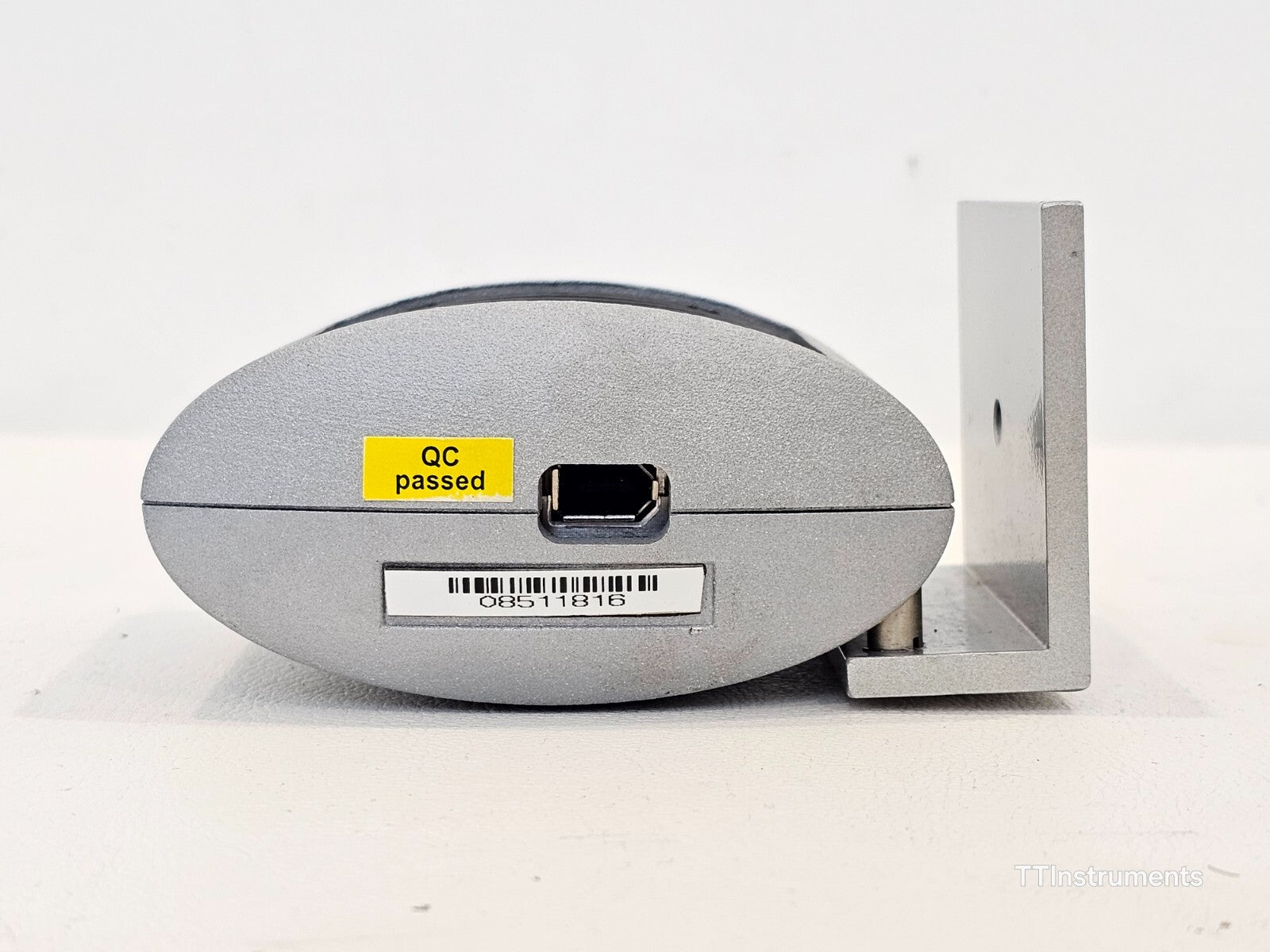

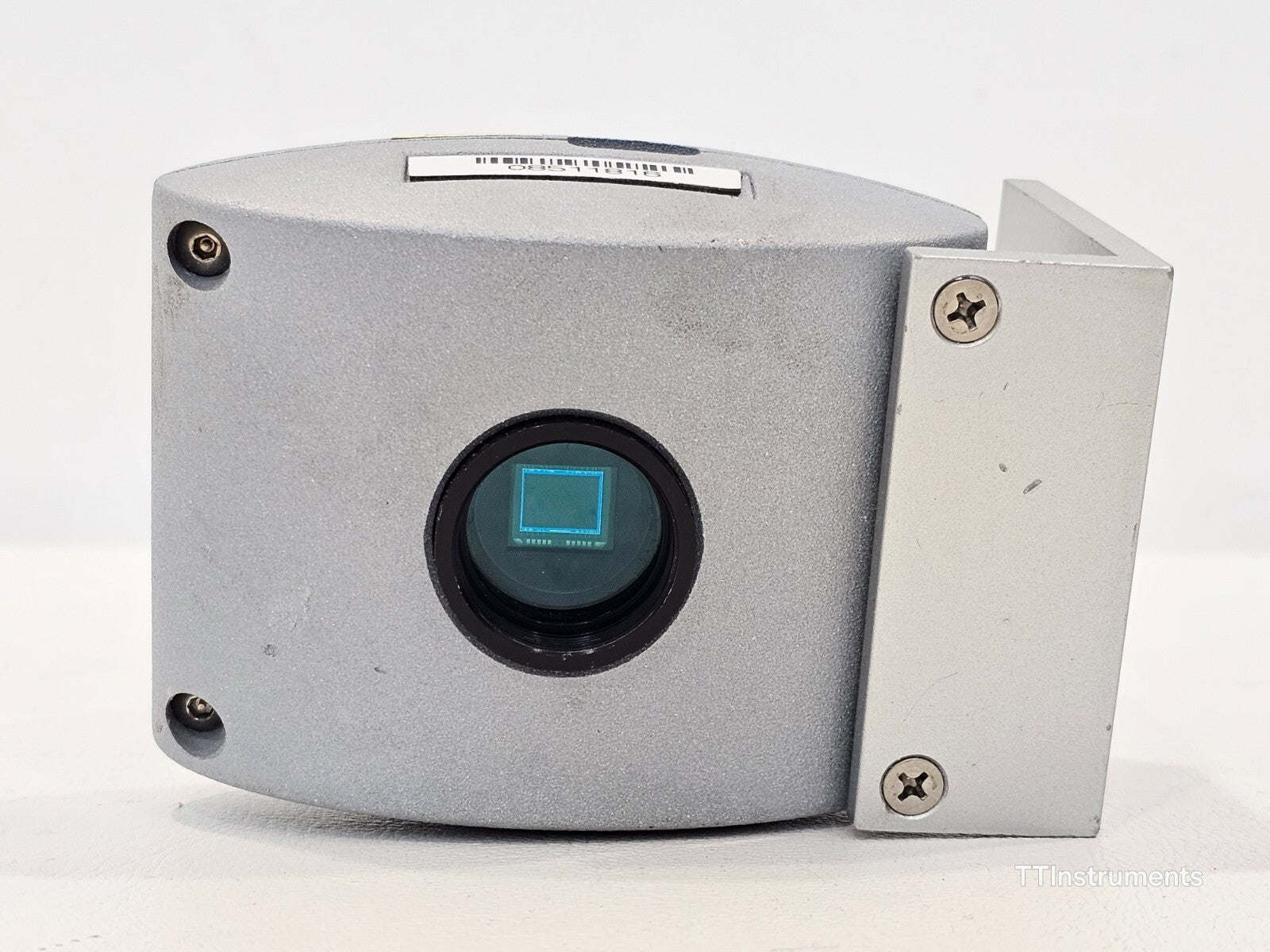

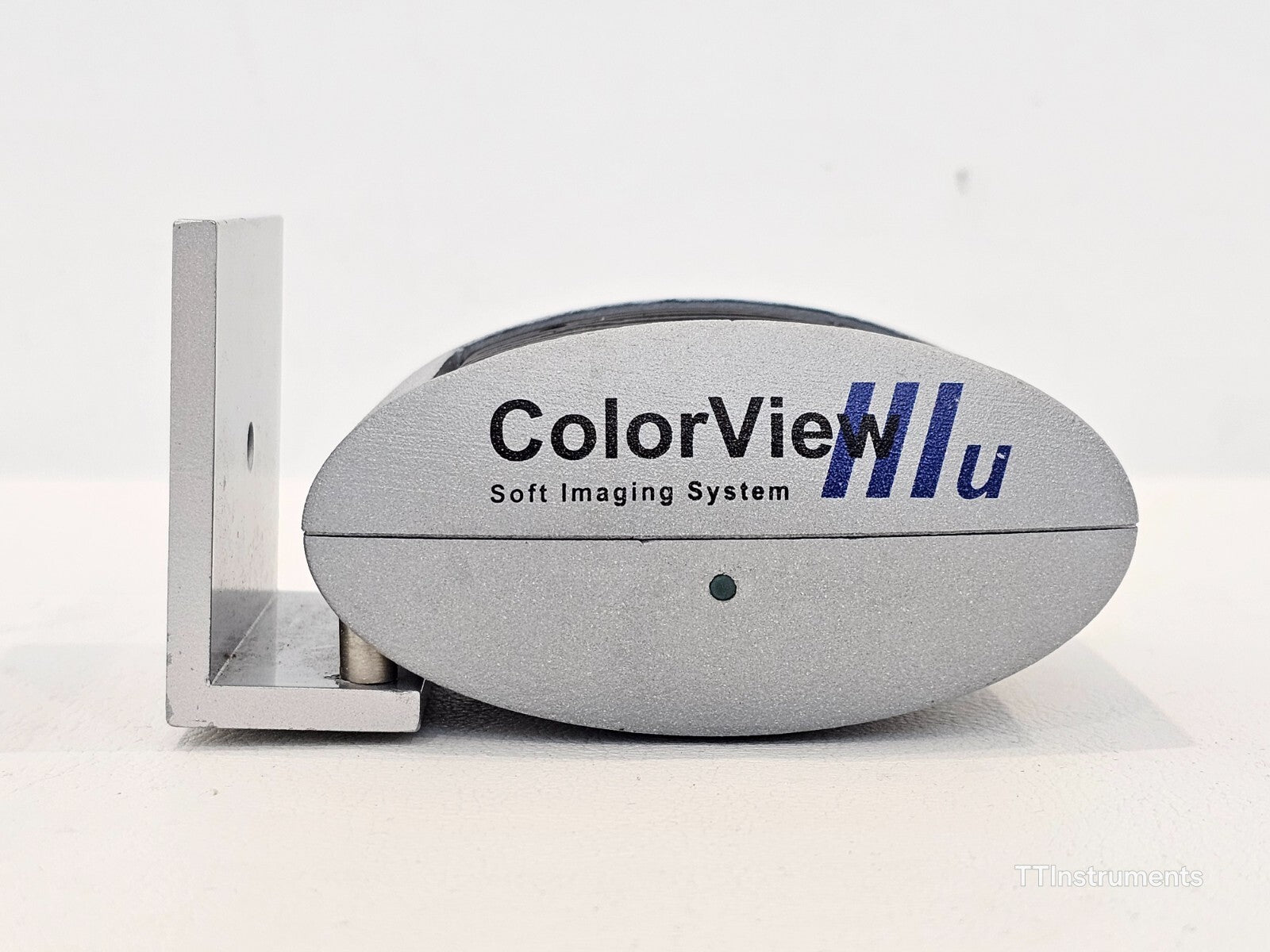

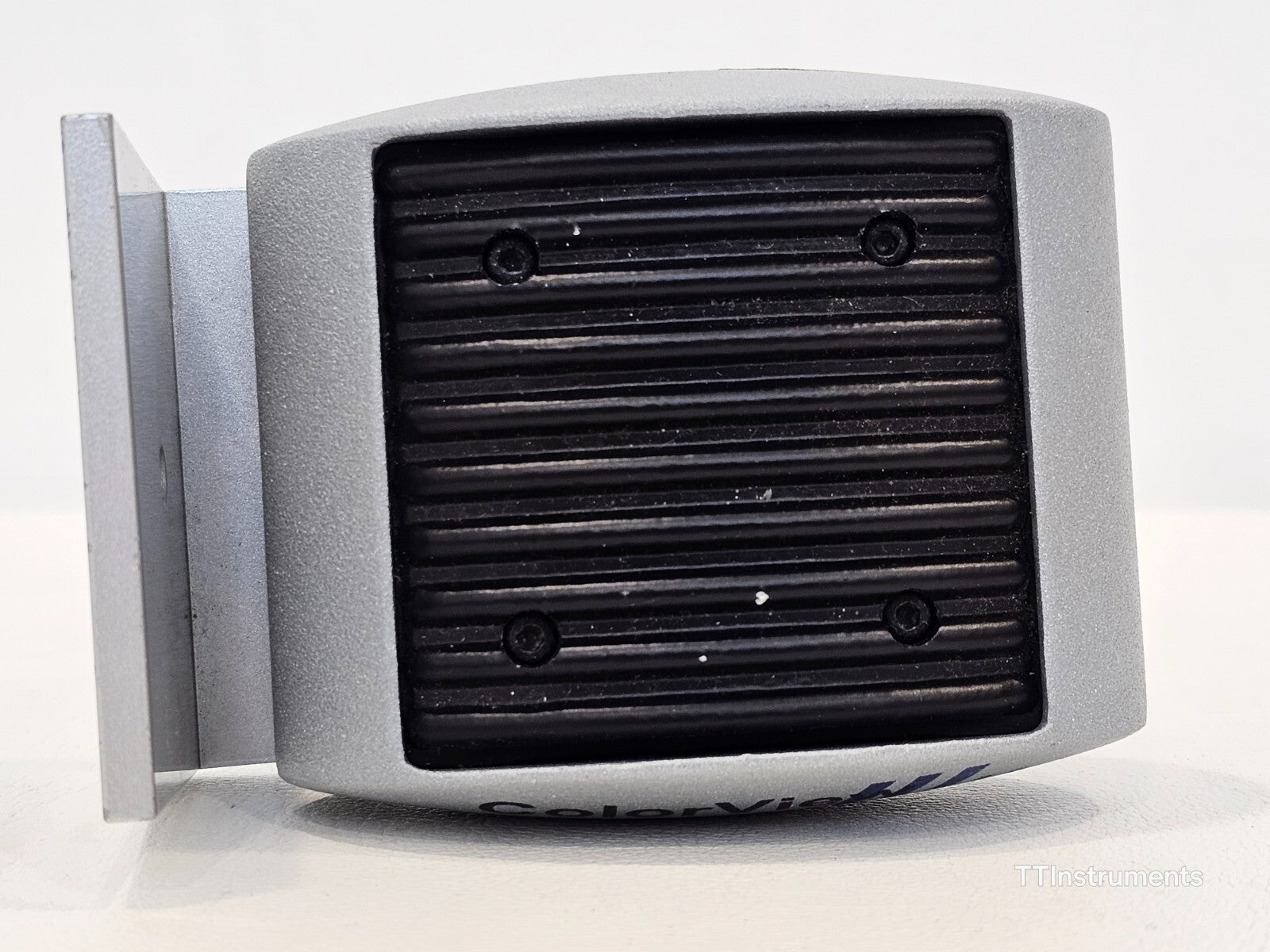

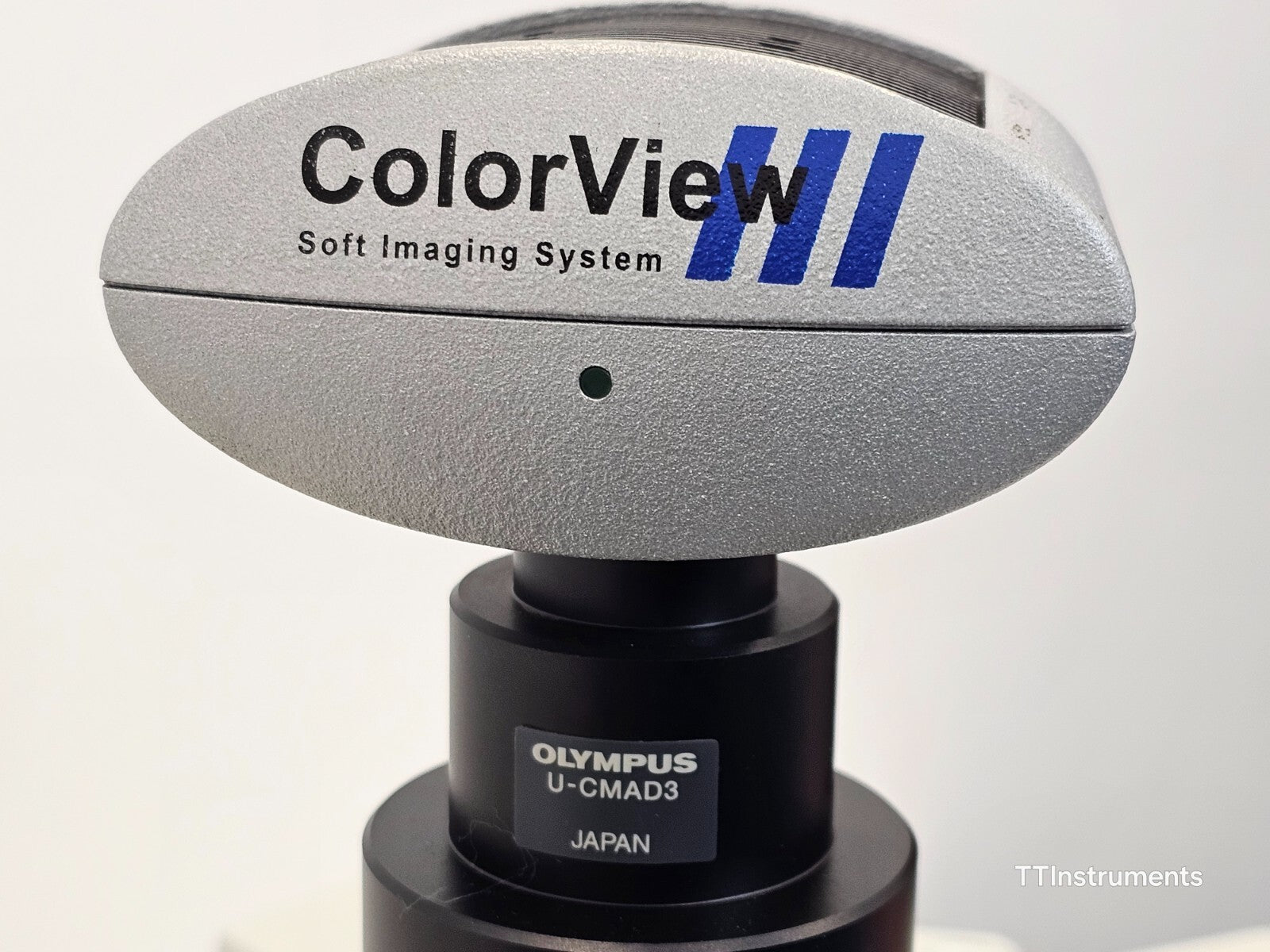

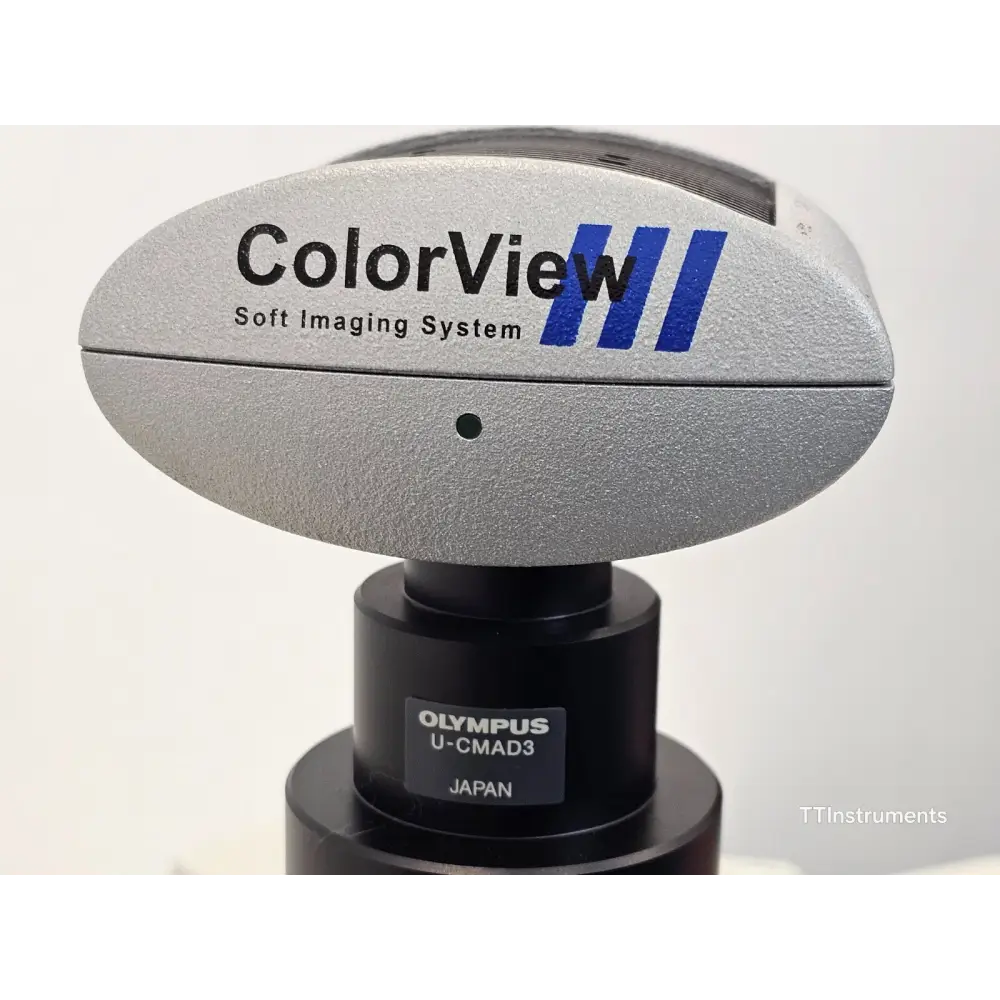

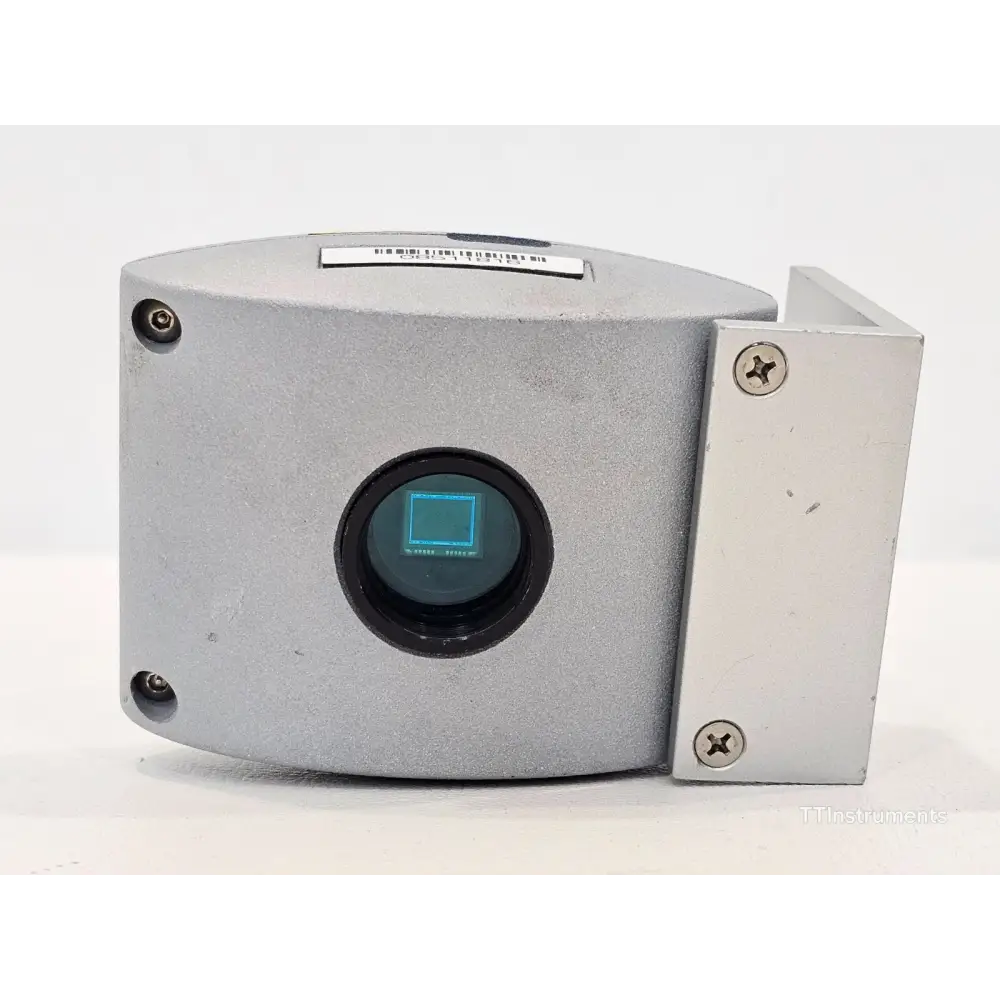

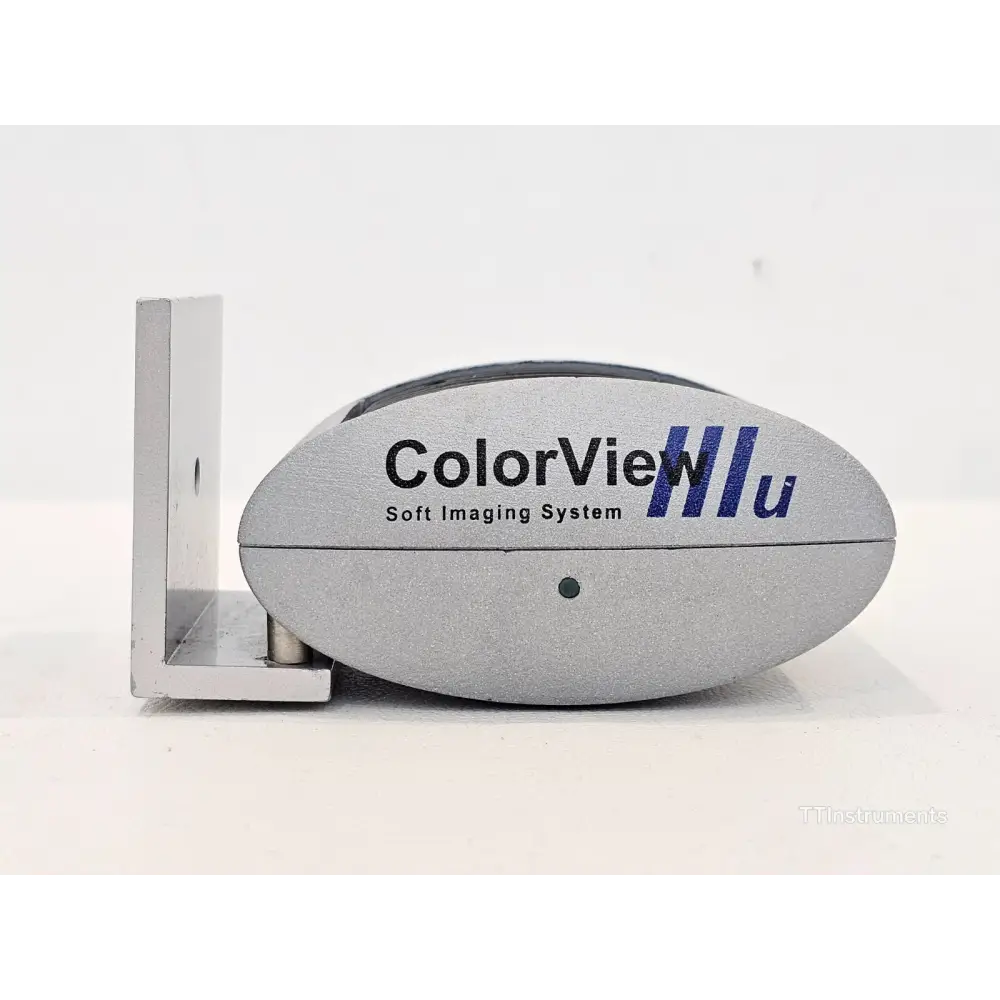

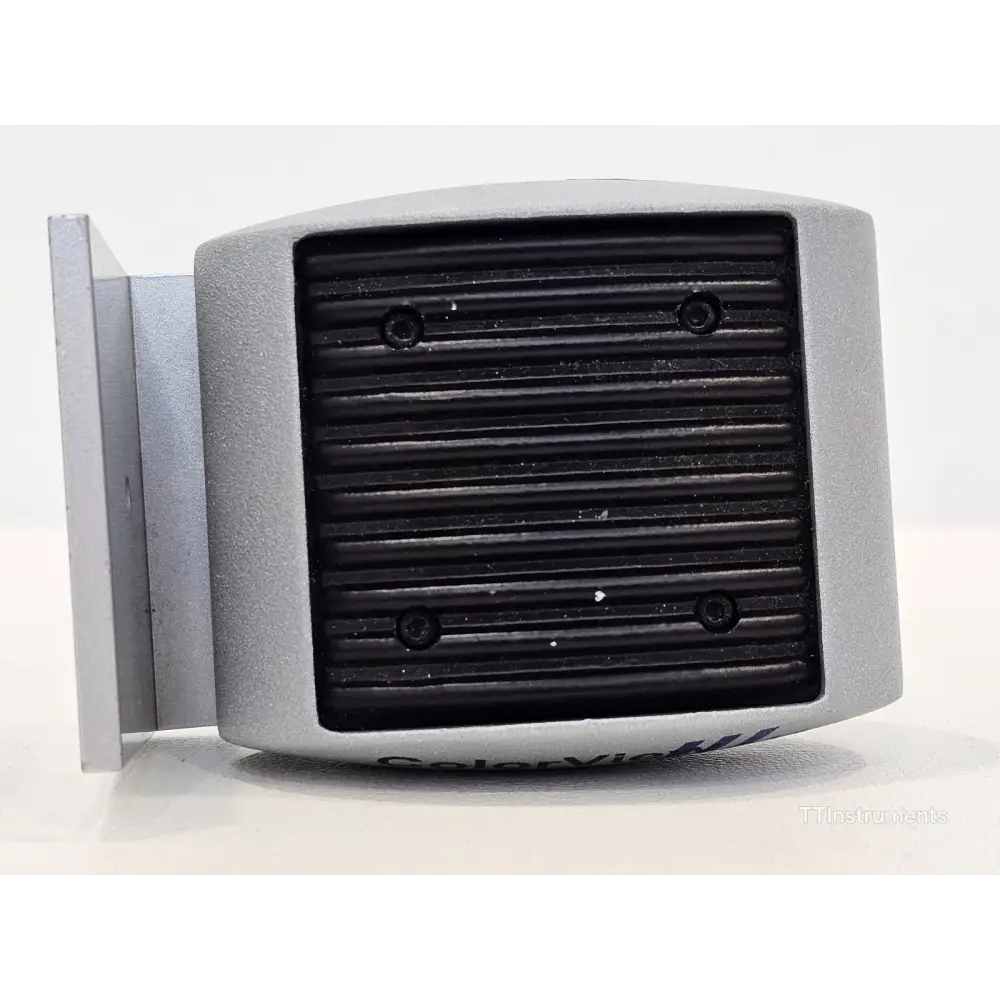

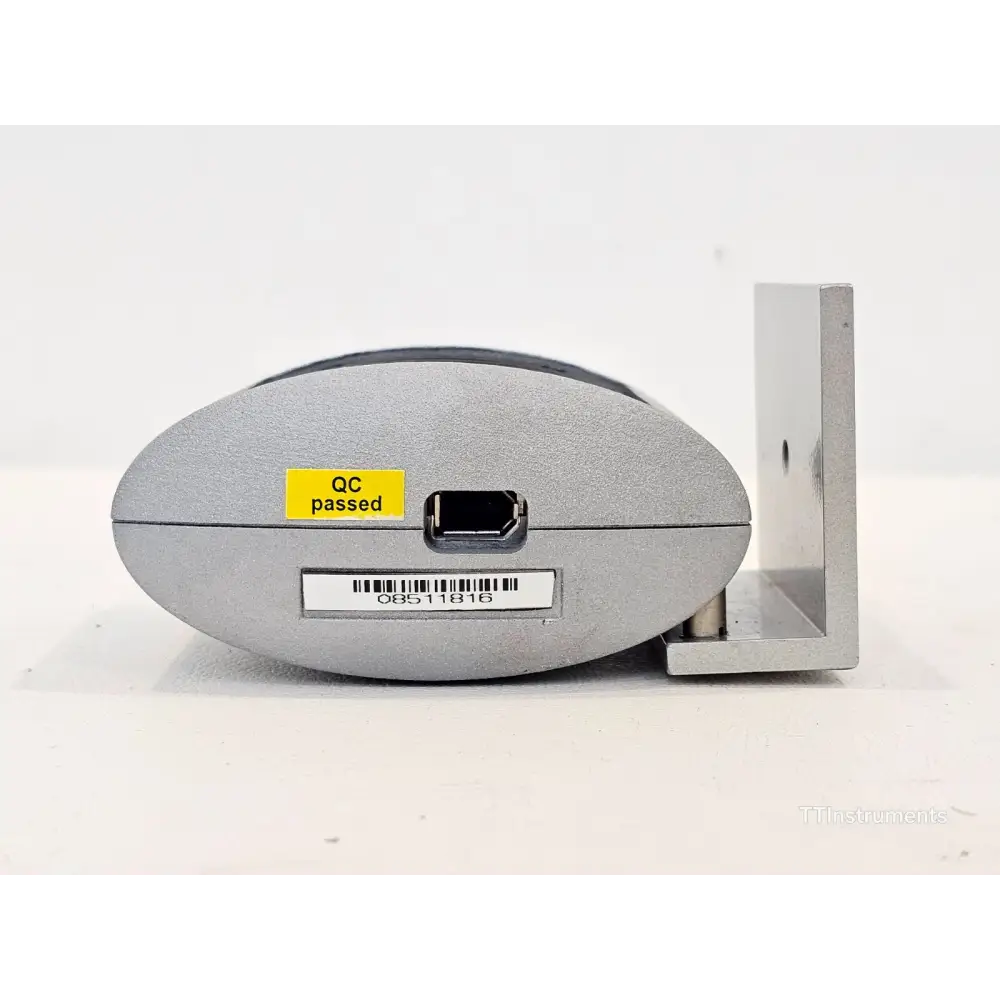

The Olympus ColorView series of digital cameras (available as ColorView I, II, and III variants) are CCD-based cameras designed specifically for microscopy imaging. The ColorView cameras offer high dynamic range, fast frame refresh rates, and superior colour fidelity, and integrate seamlessly with Olympus imaging and analysis software.

Typical applications for the BX51TF system include histology and pathology, fluorescence imaging, cell biology, life science research, materials analysis, and academic research microscopy.

Olympus BX51 System Microscope Official Instruction Manual (PDF): Download PDF

Olympus BX51/BX61 BX2 Series Research System Microscope Brochure (PDF): Download PDF

Olympus BX51/BX61 BX2 Series Brochure — Everything for Digital Imaging (PDF): Download PDF

Olympus BX51 Reflected Fluorescence System Instruction Manual (PDF): Download PDF
