Condition: Used

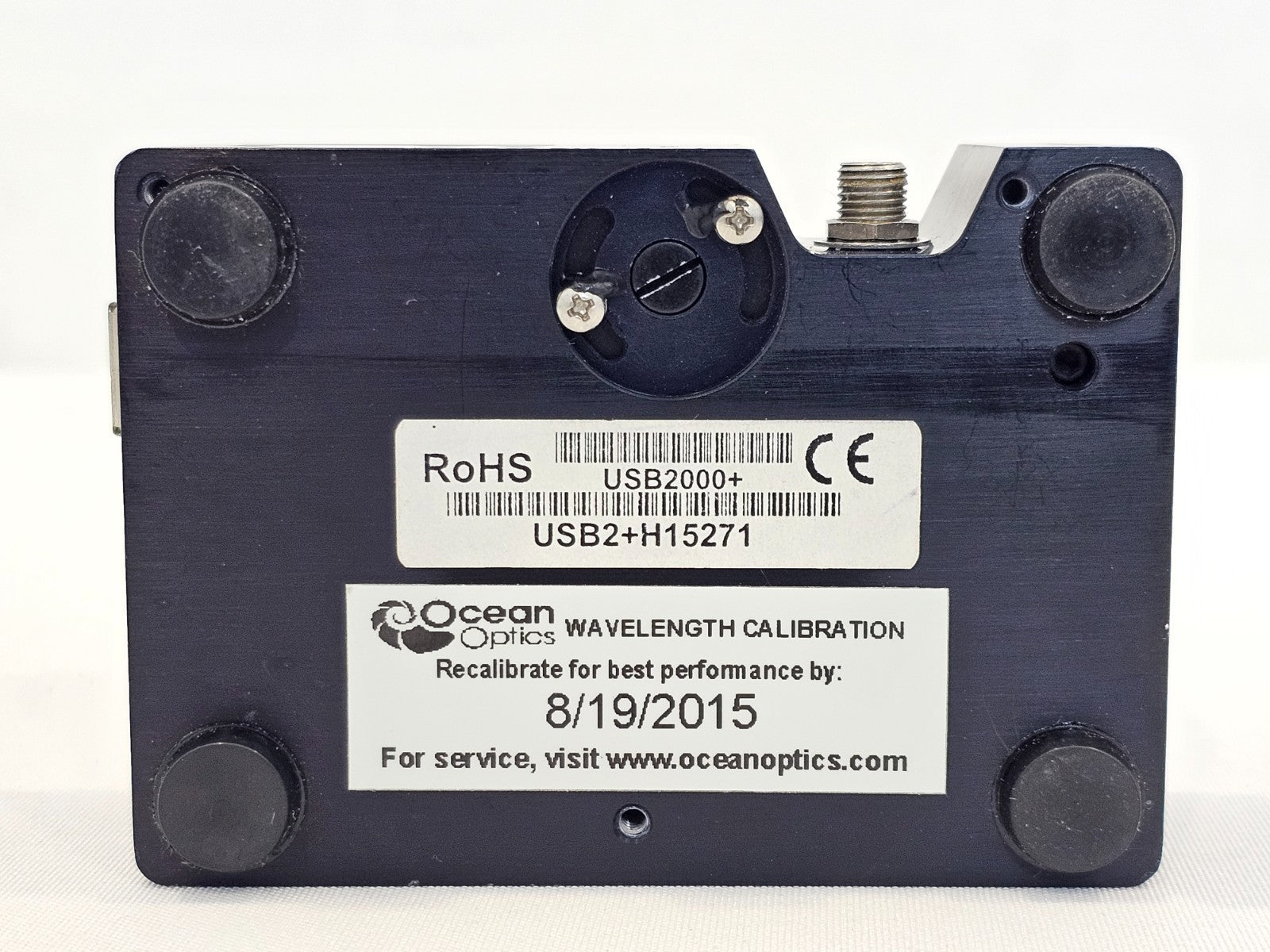

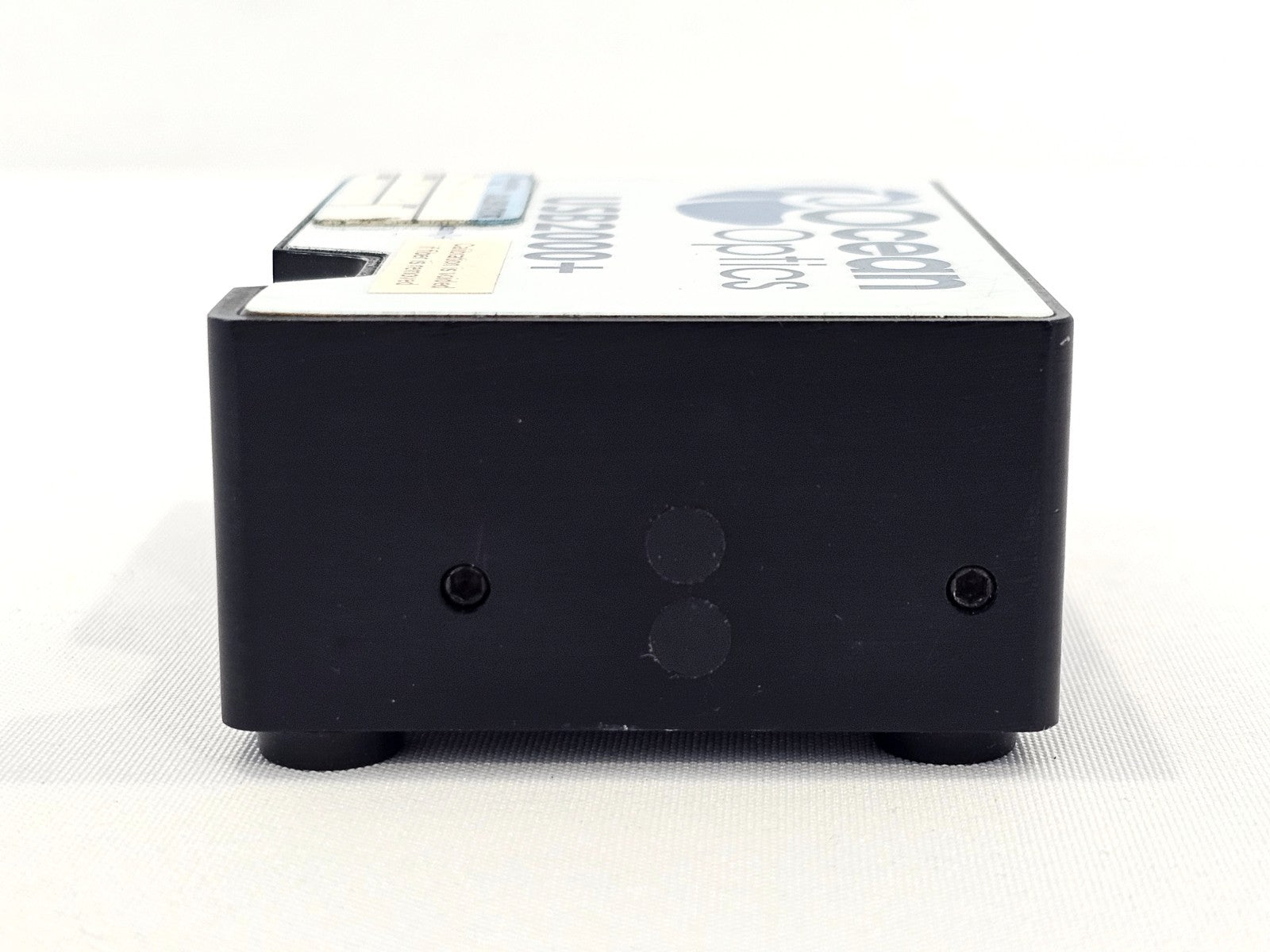

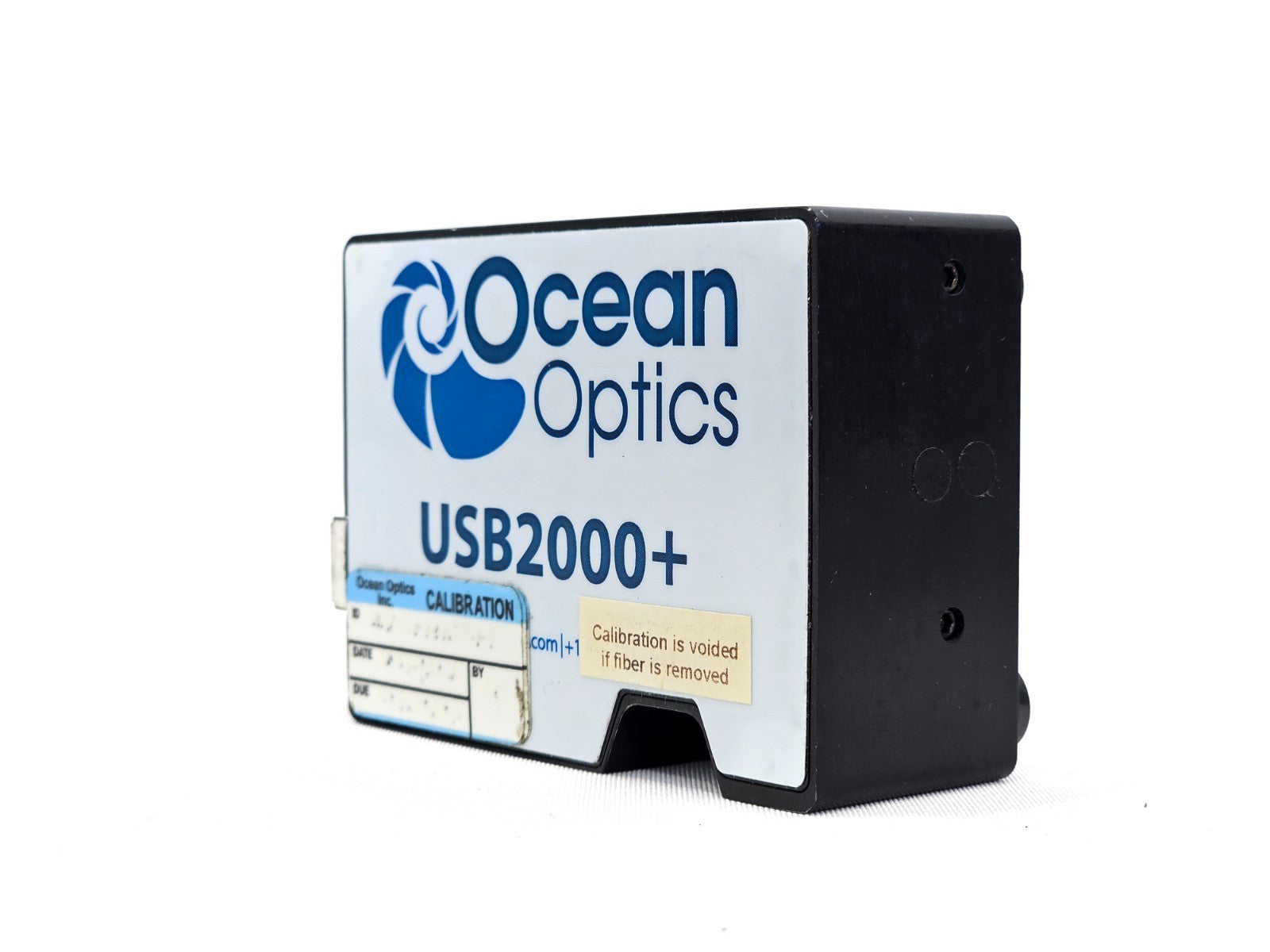

This Ocean Optics USB2000+ Miniature Fibre Optic Spectrometer has been tested and is fully functional. It covers a spectral range of 199–884nm and is fitted with a 600 lines/mm grating blazed at 300nm. Active options include DET2B-200-850 (order-sorting filter for the 200–850nm range), L2 (detector collection lens for improved low-light performance), and option 010.

Included in the sale:

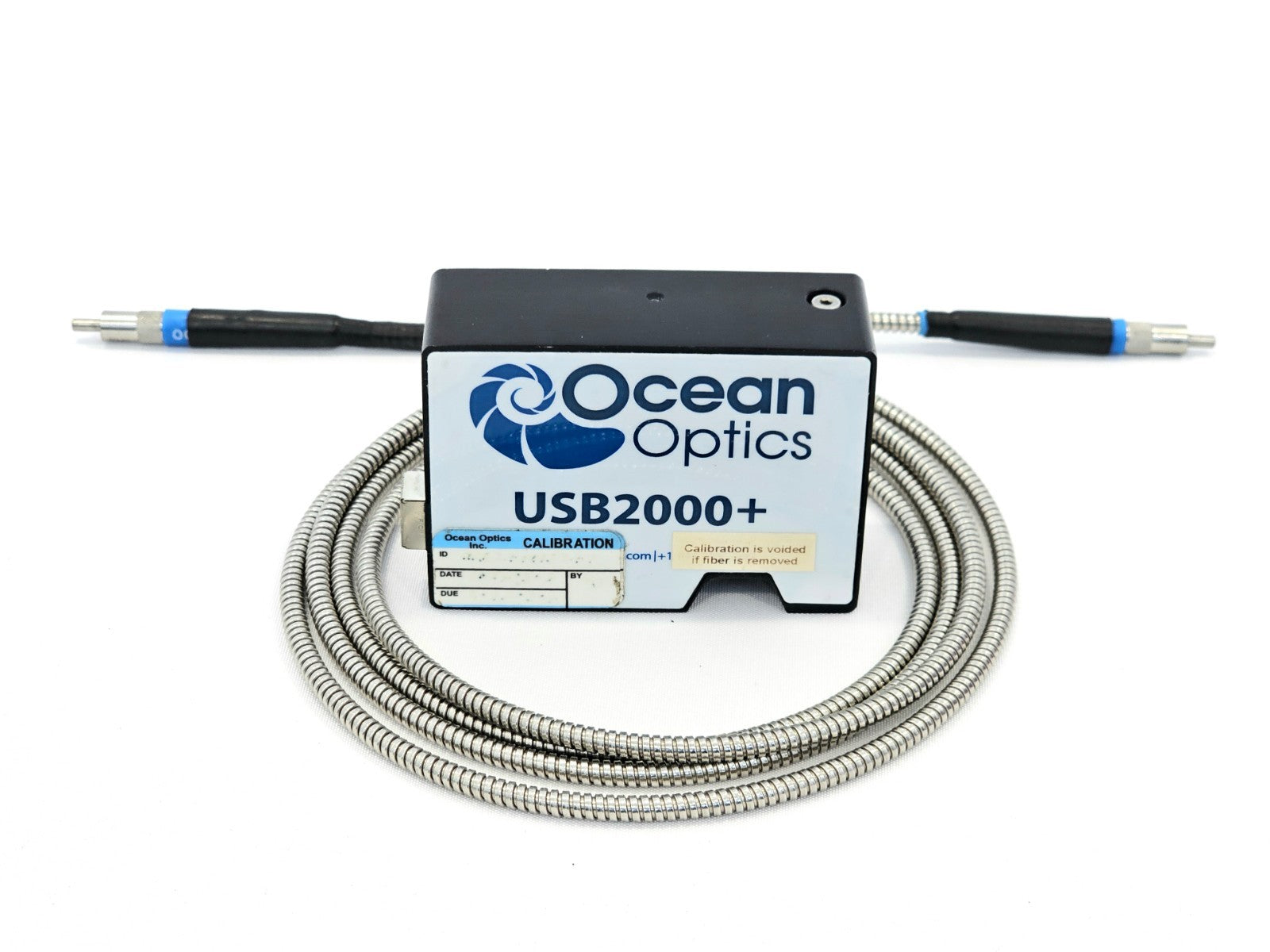

• Ocean Optics USB2000+ Spectrometer (199–884nm, options DET2B-200-850, L2, 010)
• All other pictured accessories

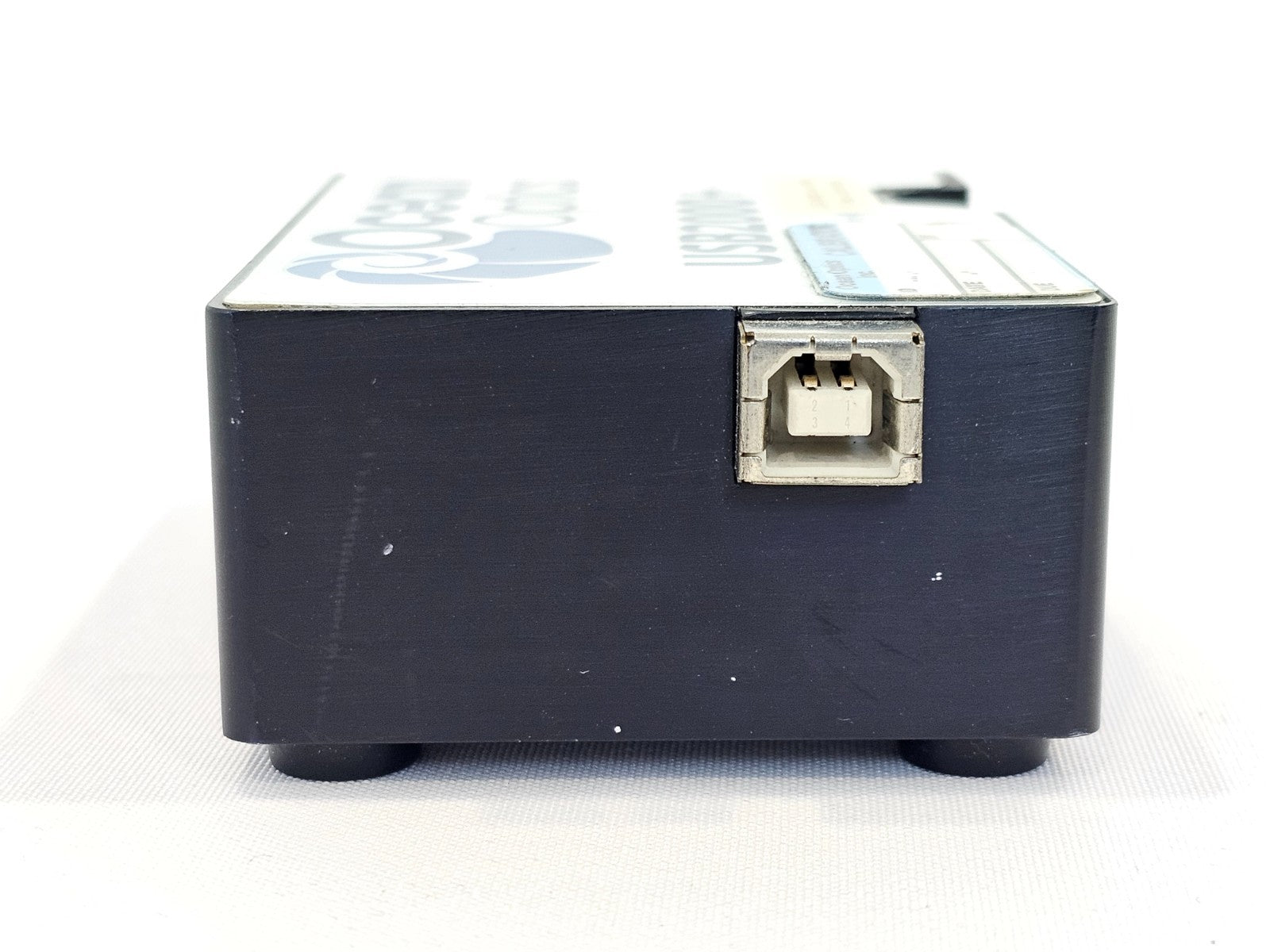

The Ocean Optics USB2000+ Miniature Fibre Optic Spectrometer is a compact, USB-powered instrument combining a 2048-element linear silicon CCD-array detector with a 2 MHz analogue-to-digital converter, programmable electronics, and a high-speed USB 2.0 interface. It delivers fast, repeatable spectral acquisition and can capture a full 2048-pixel spectrum in as little as 1 millisecond. The optical bench uses a symmetrical crossed Czerny-Turner design with no moving parts, and wavelength calibration coefficients are stored in on-board EEPROM for plug-and-play hot-swap capability between computers. The spectrometer is controlled via OceanView software on Windows, macOS, and Linux, and can also communicate via RS-232.

The L2 Detector Collection Lens option focuses light from a tall entrance slit onto the shorter CCD detector elements, improving efficiency in low-light applications or when using large-diameter slits. The OFLV/DET2B-200-850 order-sorting filter suppresses second-order effects across the 200–850nm range.

Key Specifications:
Detector: Sony ILX511B 2048-element linear silicon CCD array
Detector Range: 200–1100 nm
Pixels: 2048
Pixel Size: 14 µm x 200 µm
Pixel Well Depth: ~62,500 electrons
Optical Bench: f/4 symmetrical crossed Czerny-Turner
Focal Length (Input): 42 mm
Focal Length (Output): 68 mm
Grating Options: 14 gratings, UV through shortwave NIR
Entrance Aperture: 5, 10, 25, 50, 100, or 200 µm wide slits, or fibre (no slit)
Optical Resolution: 0.1–10.0 nm FWHM (configuration dependent)
Signal-to-Noise Ratio: 250:1 (at full signal)
Dynamic Range: 2 x 10^8 (system); 1300:1 single acquisition
A/D Resolution: 16 bit
Dark Noise: 50 RMS counts
Integration Time: 1 ms to 65 seconds
Trigger Modes: 4 modes
Power Consumption: 250 mA at 5 VDC (USB bus powered)
Computer Interface: USB 2.0 at 480 Mbps; RS-232 (2-wire) at 57.6 K baud
Operating Systems: Windows 32/64-bit, Mac OS X, Linux (USB); 32-bit Windows (serial)
Fibre Optic Connector: SMA 905 to 0.22 NA single-strand optical fibre
Accessory Connector: 22-pin
Dimensions: 89.1 mm x 63.3 mm x 34.4 mm
Weight: 190 g
Certifications: CE, RoHS compliant
Software: OceanView (Windows, macOS, Linux)

Ocean Optics USB2000+ Fibre Optic Spectrometer Installation and Operation Manual (Official, hosted by Ocean Optics): Download PDF

Ocean Optics USB2000+ Fibre Optic Spectrometer Installation and Operation Manual (Mirror, Caltech): Download PDF

Ocean Optics USB2000+ OEM Data Sheet (document 270-00000-000-05-201502): Download PDF

Ocean Optics USB2000+ Data Sheet (hosted by Spectrecology): Download PDF
