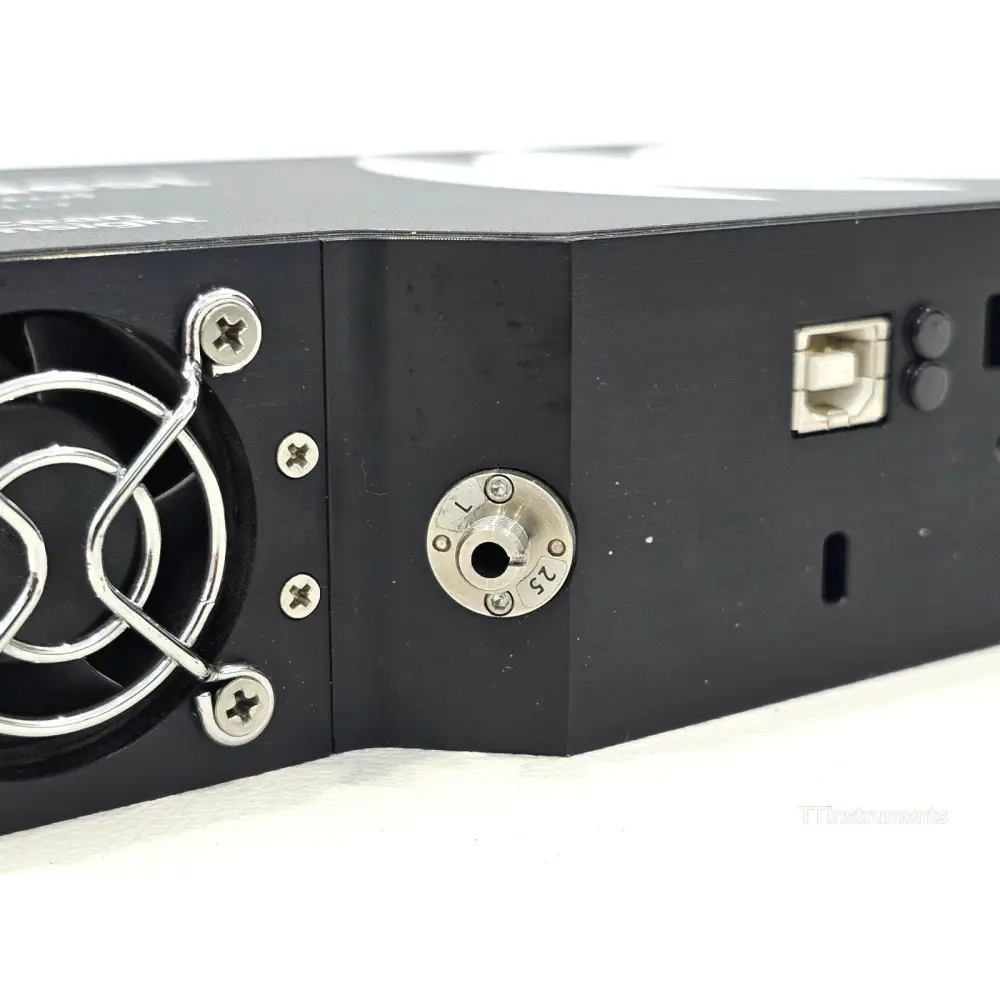

Condition: Used

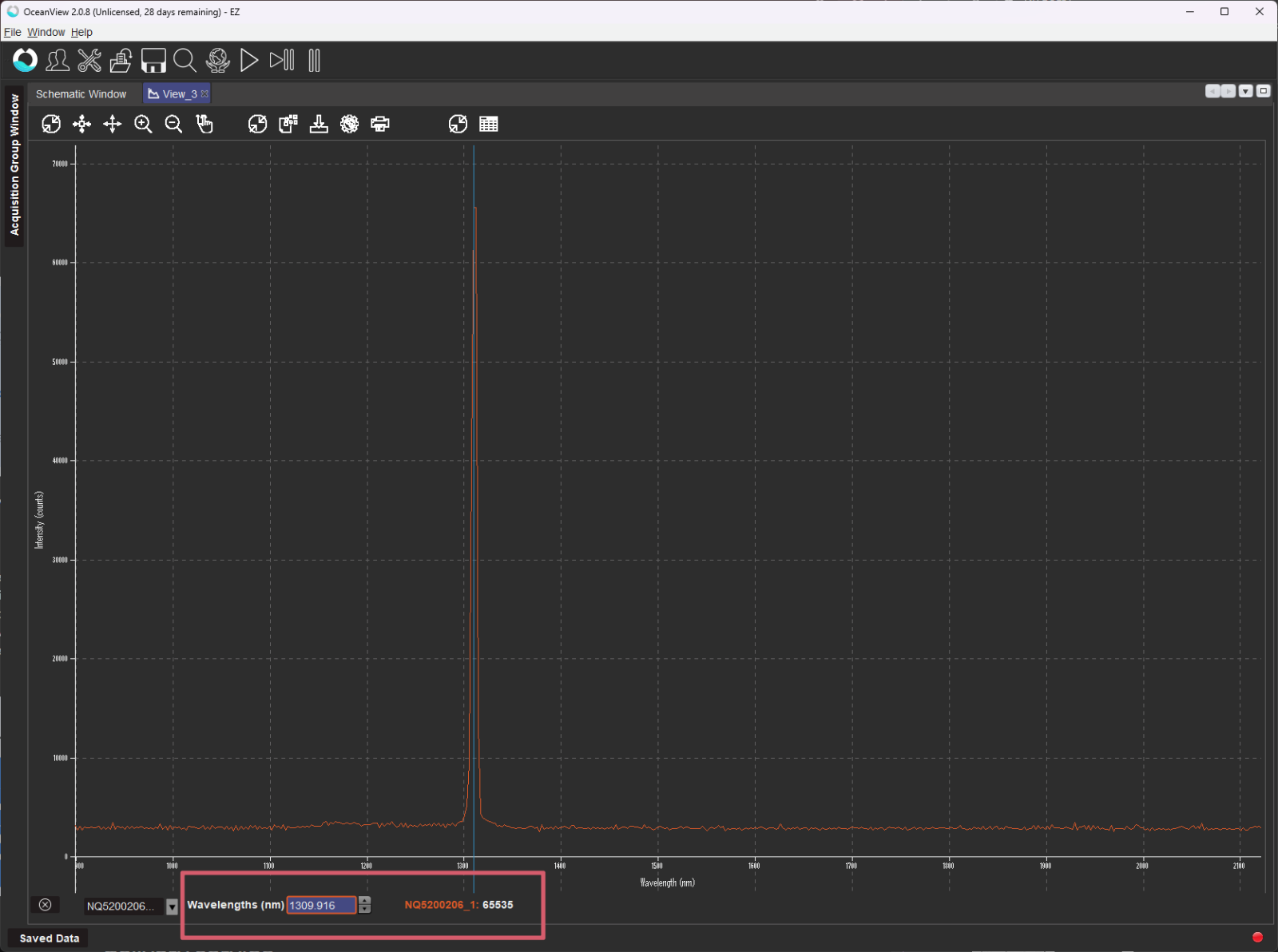

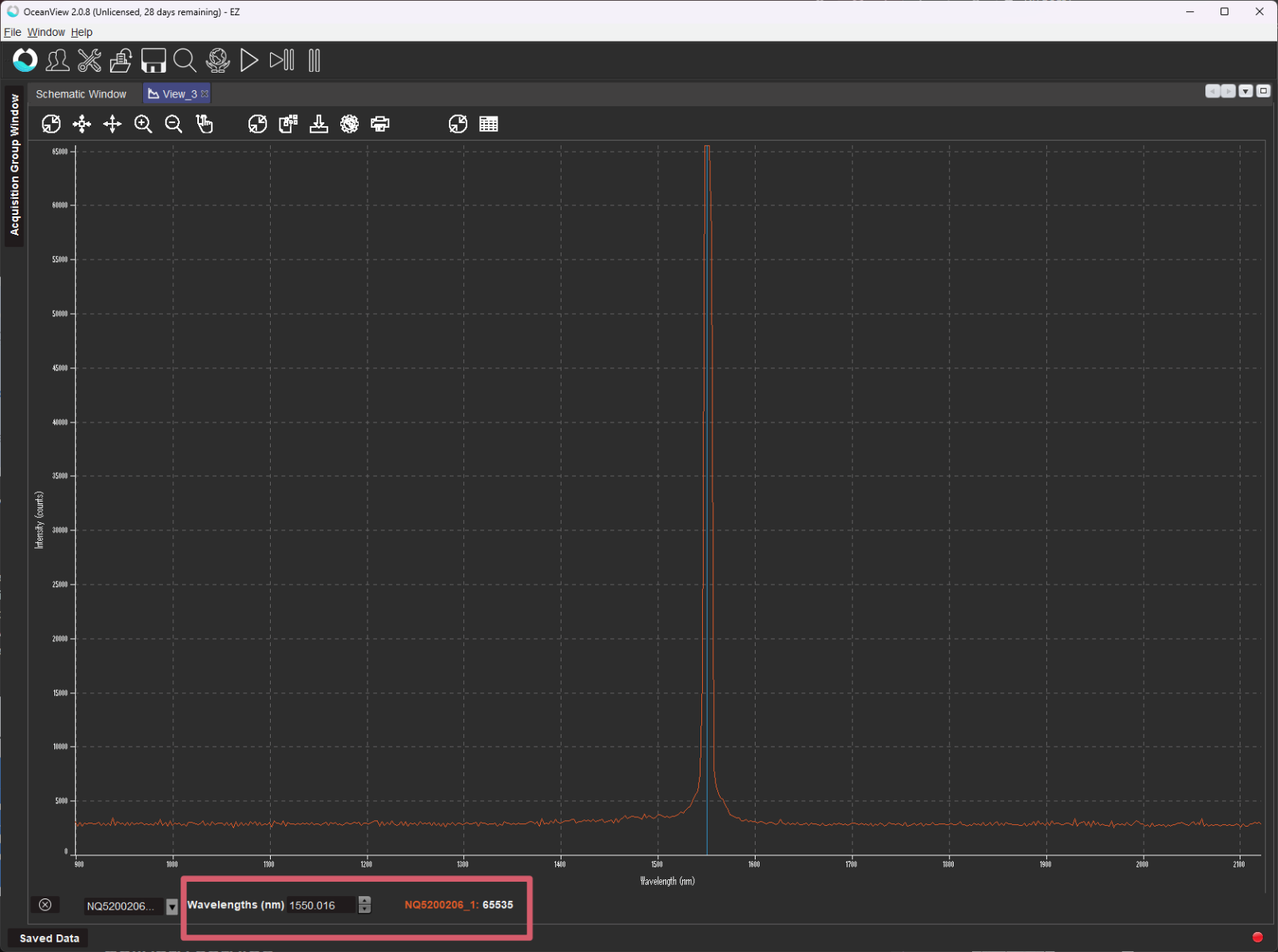

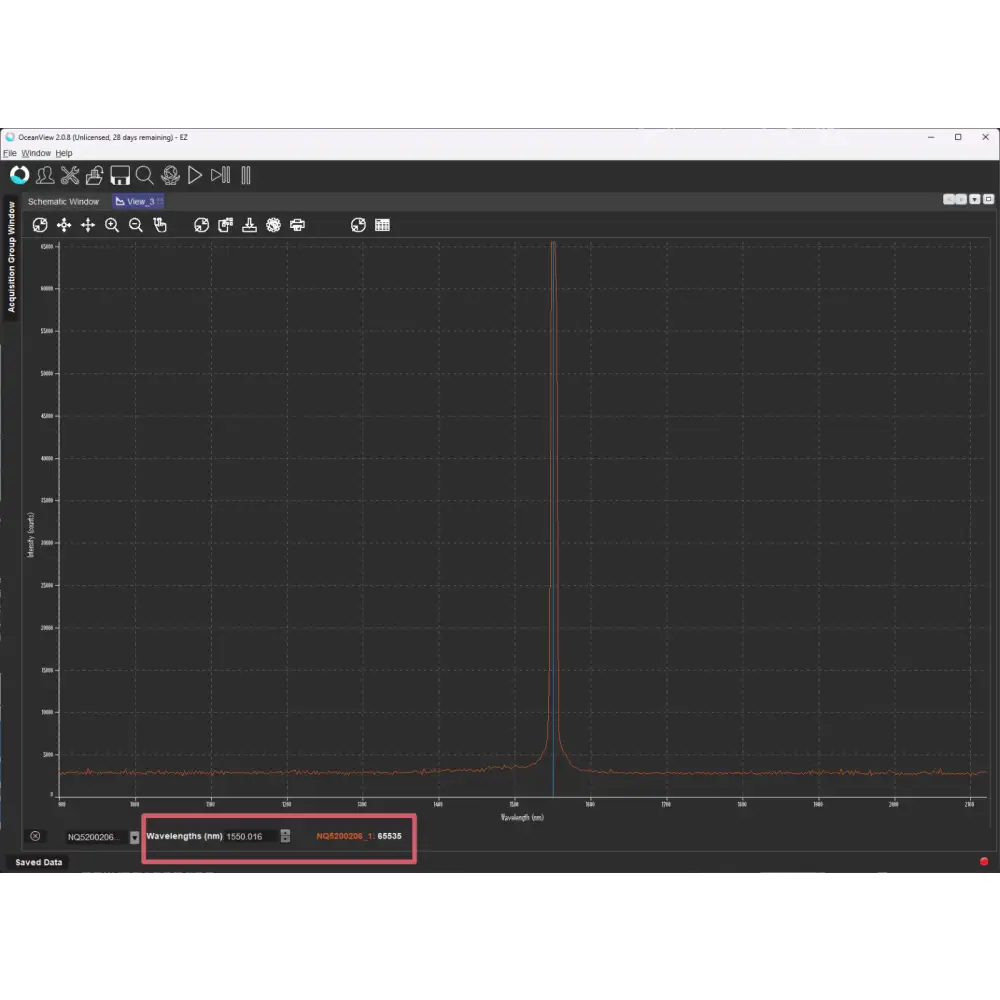

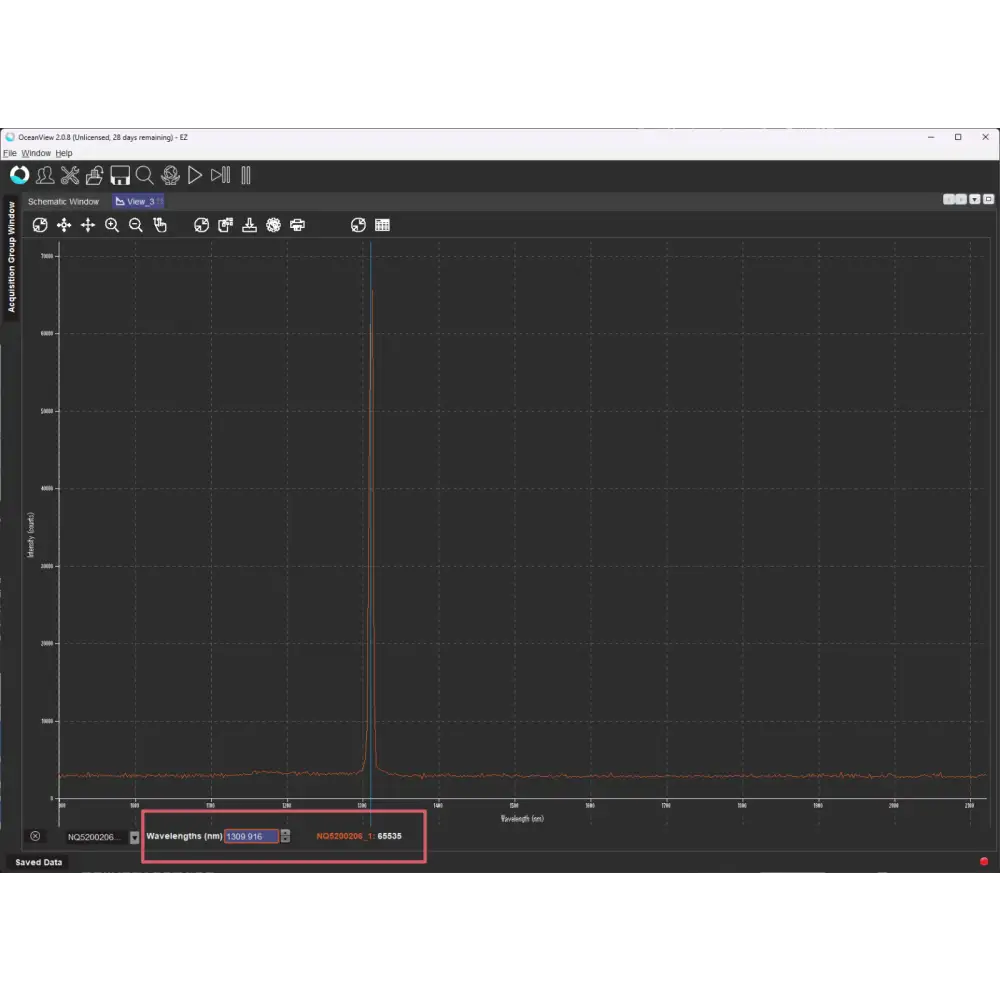

Tested and fully functional. Cosmetic imperfections are present but do not affect performance. Verified operational with both 1310 nm and 1550 nm laser sources, producing clean, well-defined spectral peaks at each wavelength. Fitted with standard Grating NIR2 for the 900–2200 nm range.

Included in the sale:

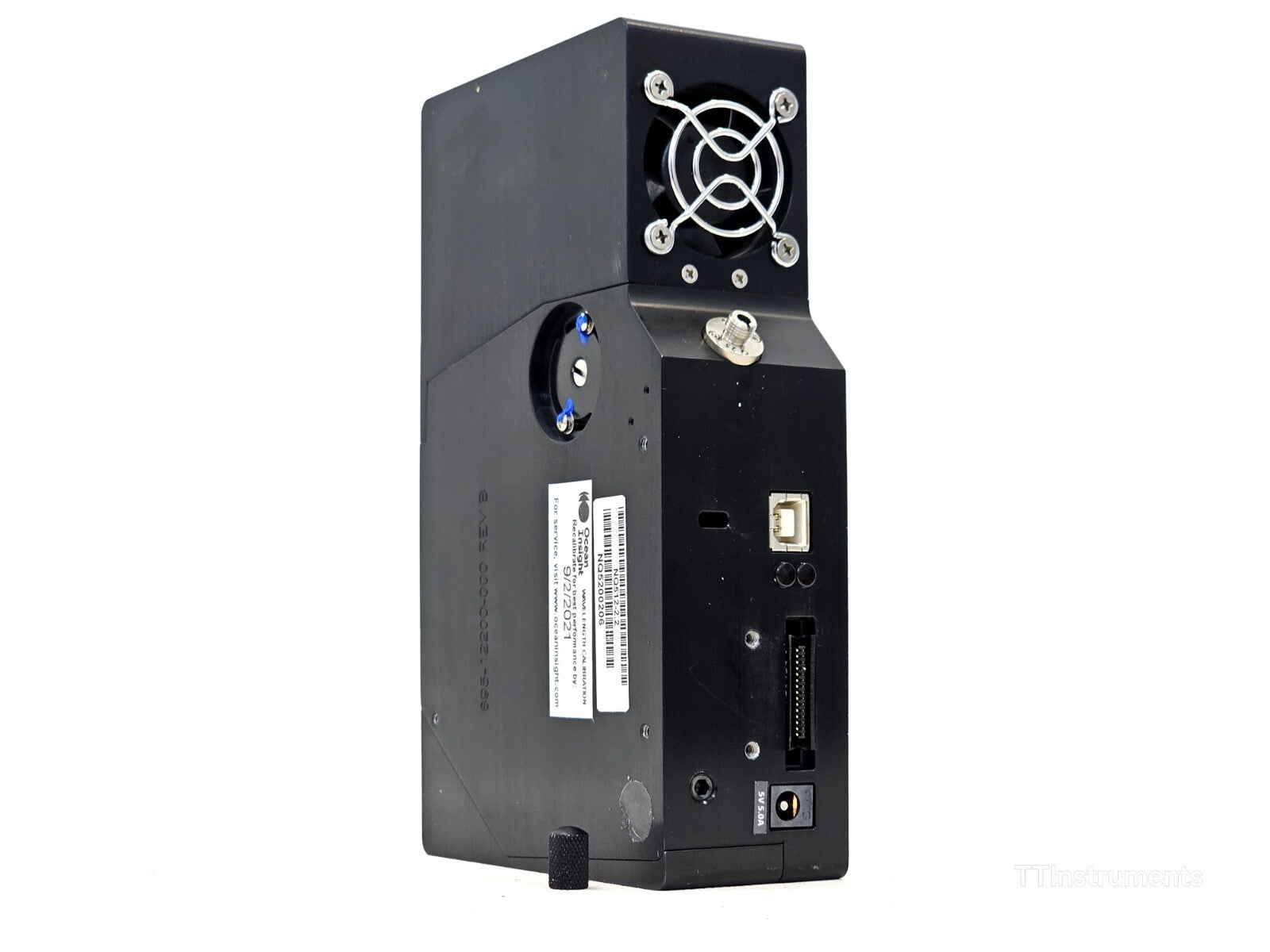

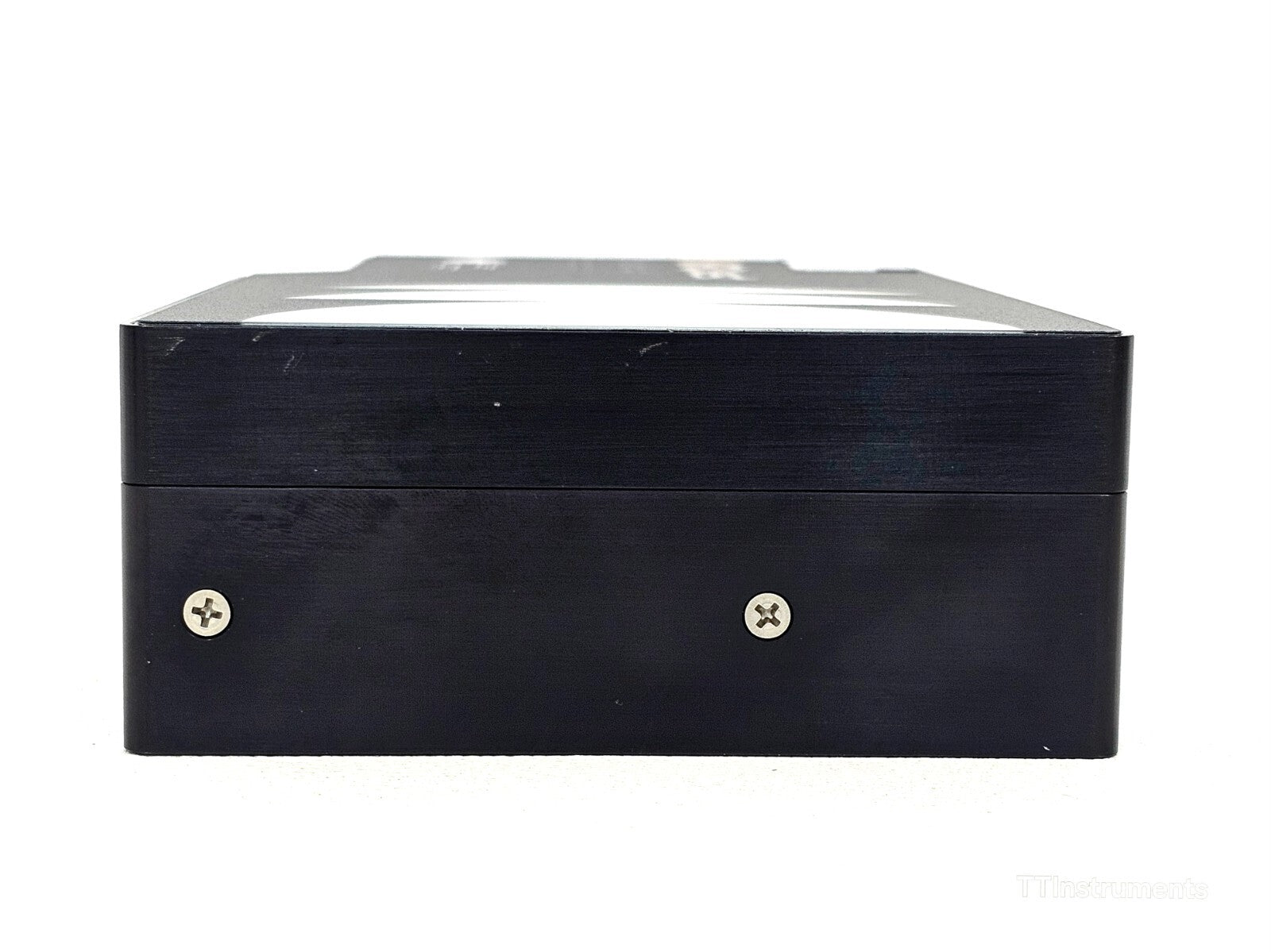

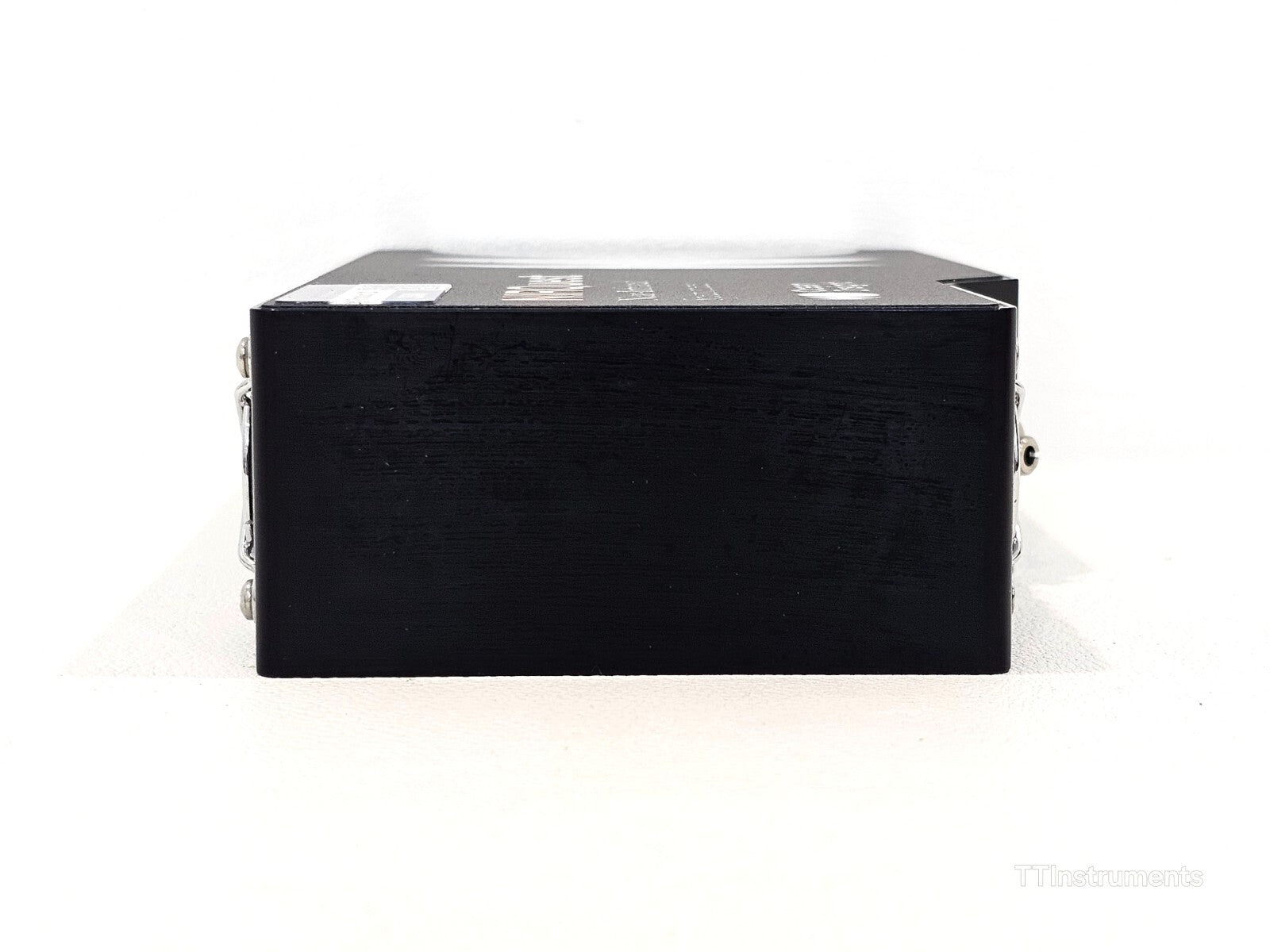

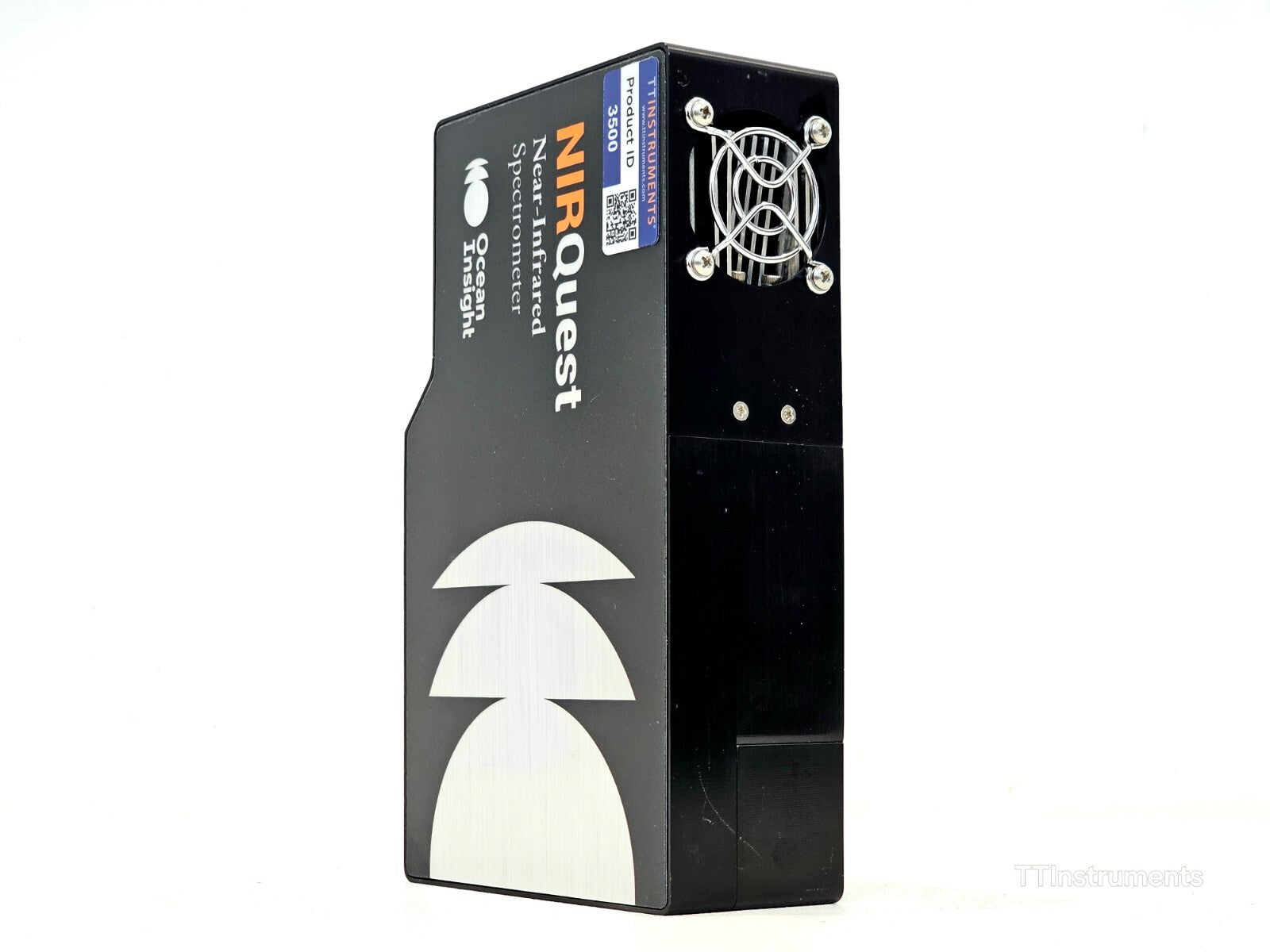

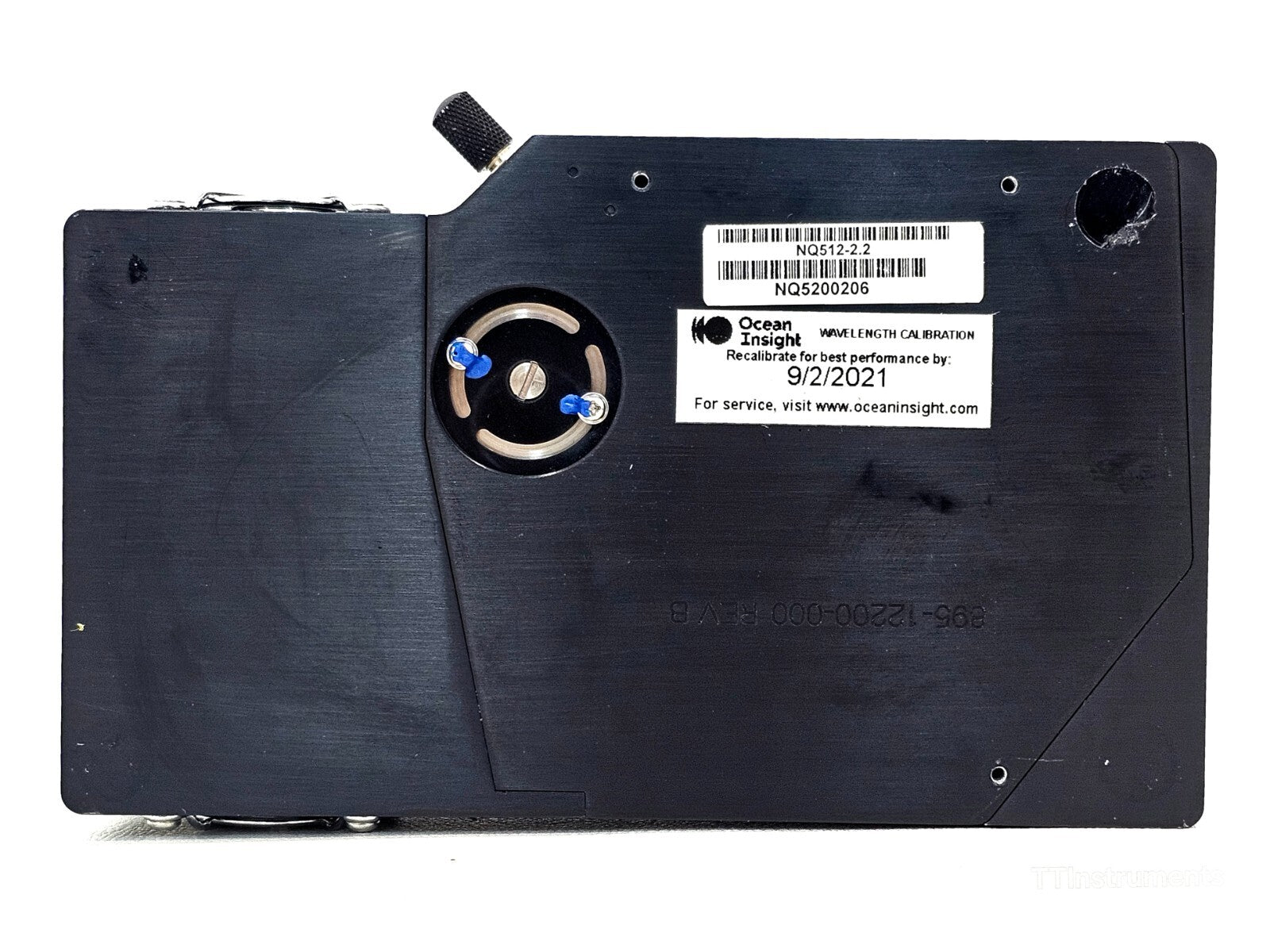

• Ocean Optics NIRQuest NQ512-2.2 spectrometer
• USB Serial Cable
• Power Adapter (25 W)

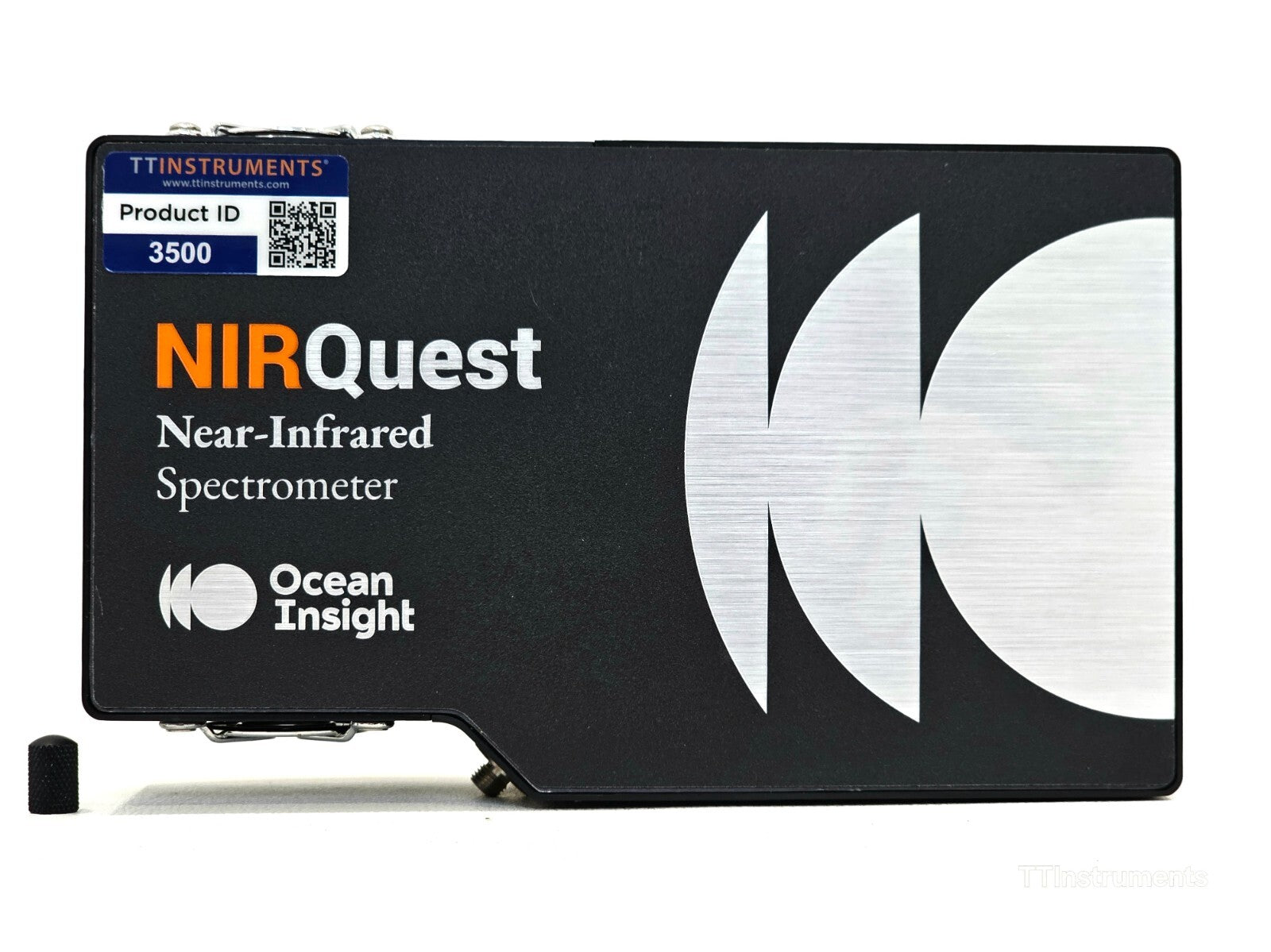

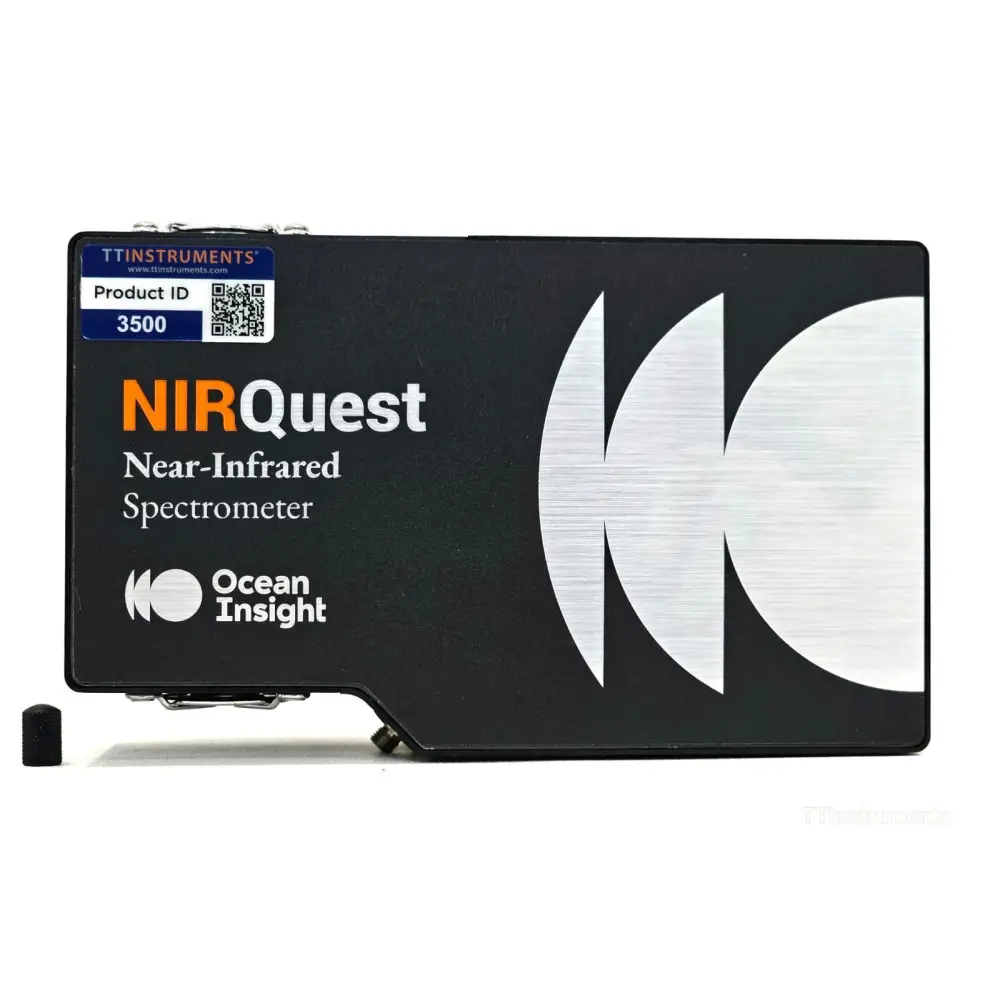

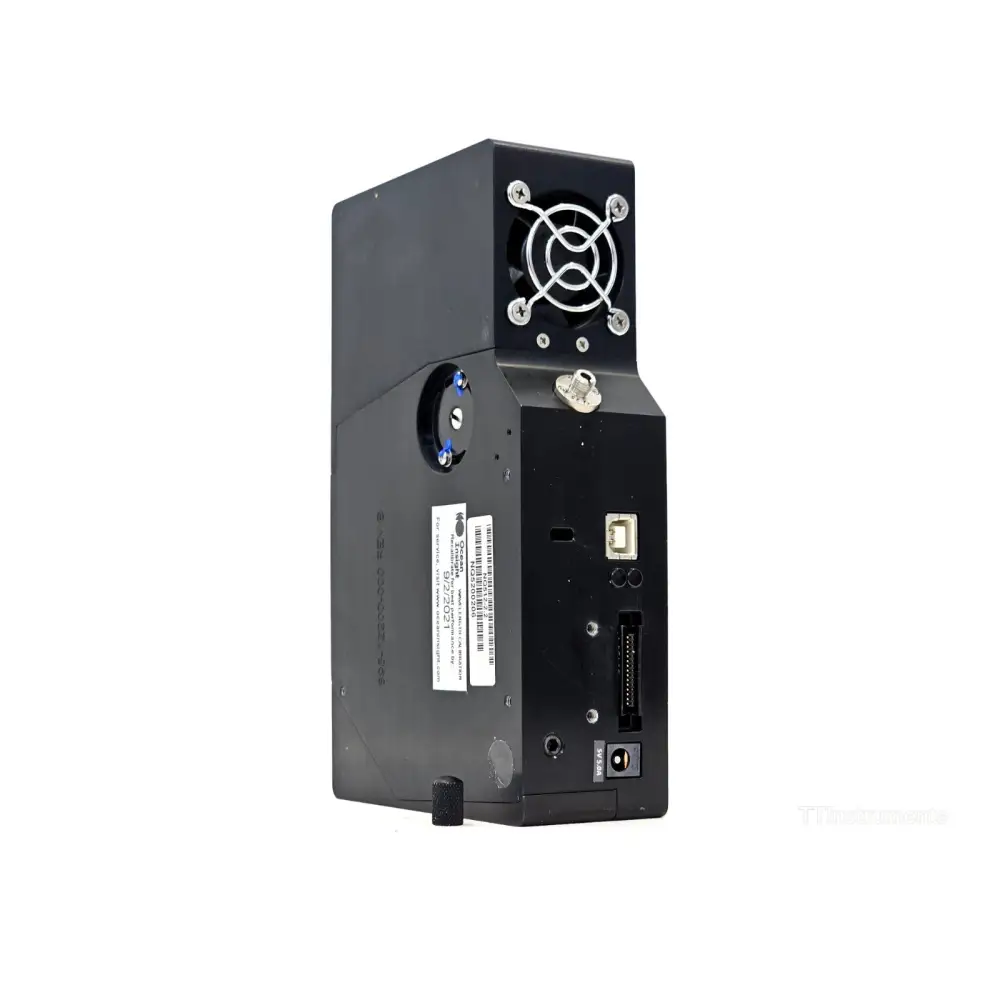

The Ocean Optics (Ocean Insight) NIRQuest512-2.2 is a scientific-grade, small-footprint fibre-optic near-infrared spectrometer designed for demanding NIR spectroscopy applications in the 900–2200 nm wavelength range. It features a high-stability Hamamatsu G9206-512W 512-element InGaAs linear array detector mounted on a high-performance f/4 crossed Czerny-Turner optical bench with low-noise electronics. Deep two-stage thermoelectric cooling reduces dark current and stabilises the detector, making the instrument well suited to applications such as moisture content analysis in food and beverages, pharmaceutical QA/QC, chemical identification, polymer and hydrocarbon analysis, tunable laser wavelength characterisation, and optical fibre characterisation.

Model: NIRQuest512-2.2 (NQ512-2.2)
Wavelength Range: 900–2200 nm
Detector: Hamamatsu G9206-512W InGaAs linear array, 512 elements
Pixel Size: 25 µm x 500 µm
Optical Bench: f/4 symmetrical crossed Czerny-Turner
Optical Resolution: ~5 nm FWHM (typical, with 25 µm slit); ~4.6 nm FWHM in standard configuration
Grating (Standard): NIR2, 100 l/mm, 900–2050 nm
Grating Options (Custom): NIR2, NIR3, NIR10, NIR11, NIR12, NIR13
Entrance Slit (Standard): 25 µm
Interchangeable Slits: 10 µm, 50 µm, 100 µm, 200 µm (or no slit)
Order-Sorting Filter: OF1-RG830 longpass NIR filter (optional)
Integration Time: 1 ms – 1 s
Dynamic Range: 7.5 x 10^6 (system); 10,000:1 single acquisition
Signal-to-Noise Ratio: 10,000:1 @ 100 ms integration
Dark Noise: 6 RMS counts @ 100 ms; 12 RMS counts @ 250 ms
Thermoelectric Cooling: Down to -20 °C below ambient; stabilises within 1 minute

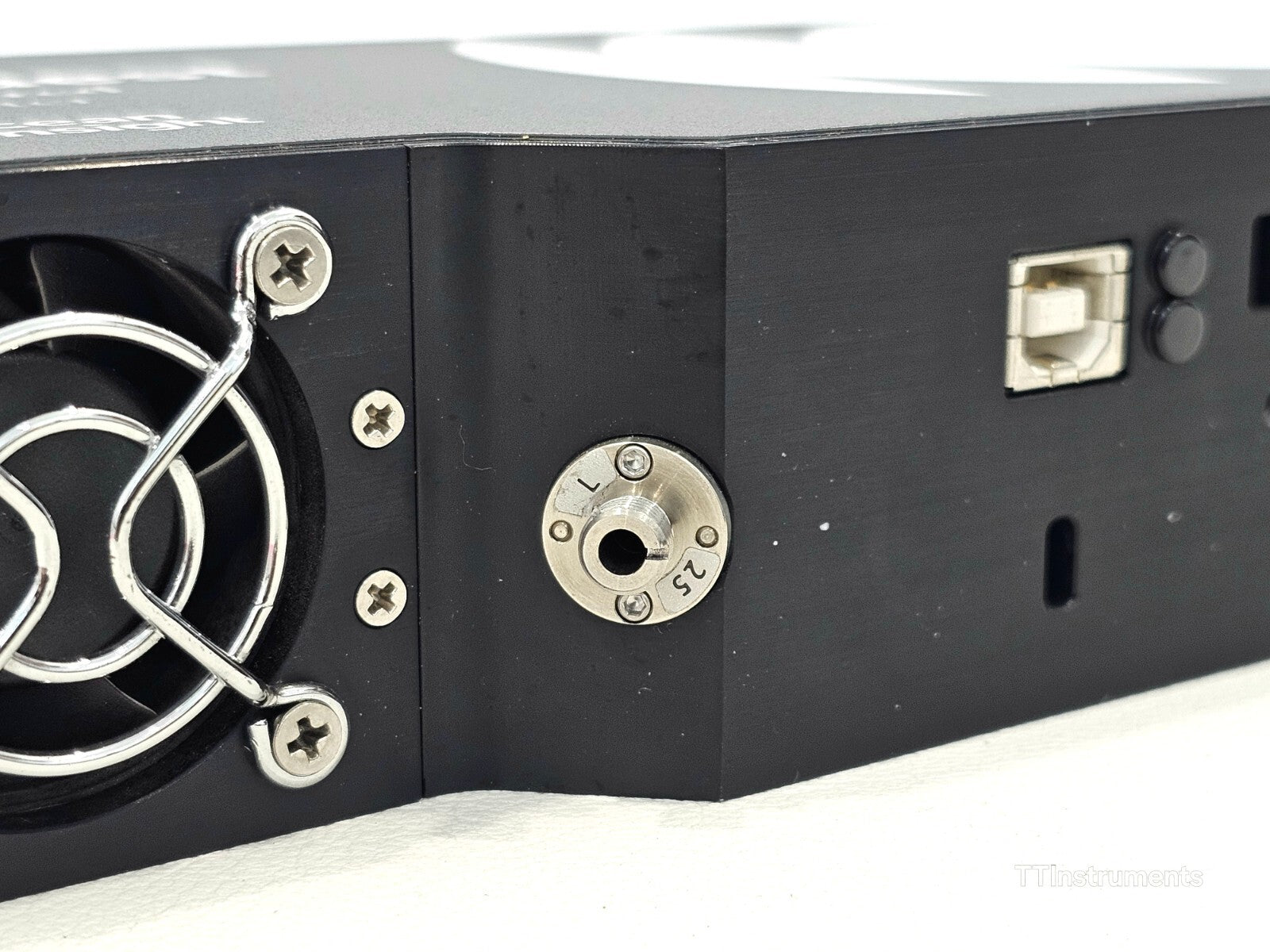

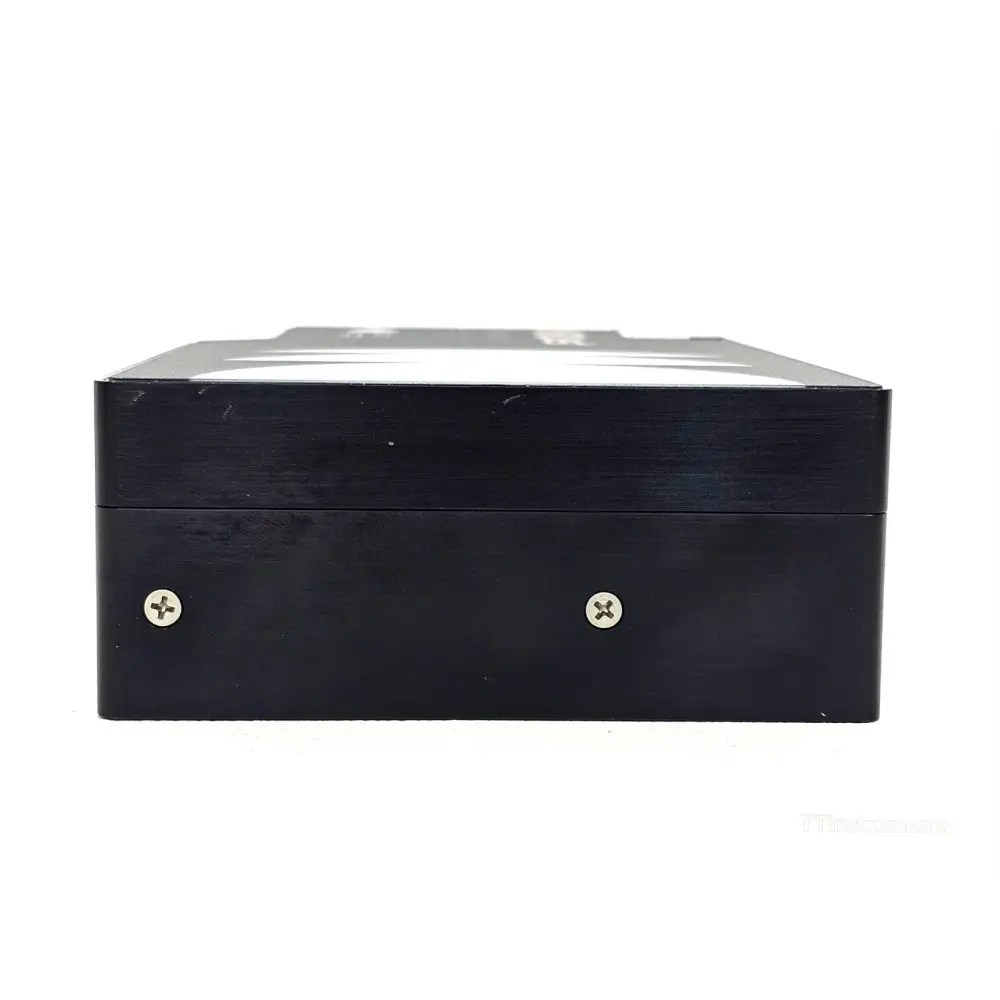

Fibre Optic Connector: SMA 905

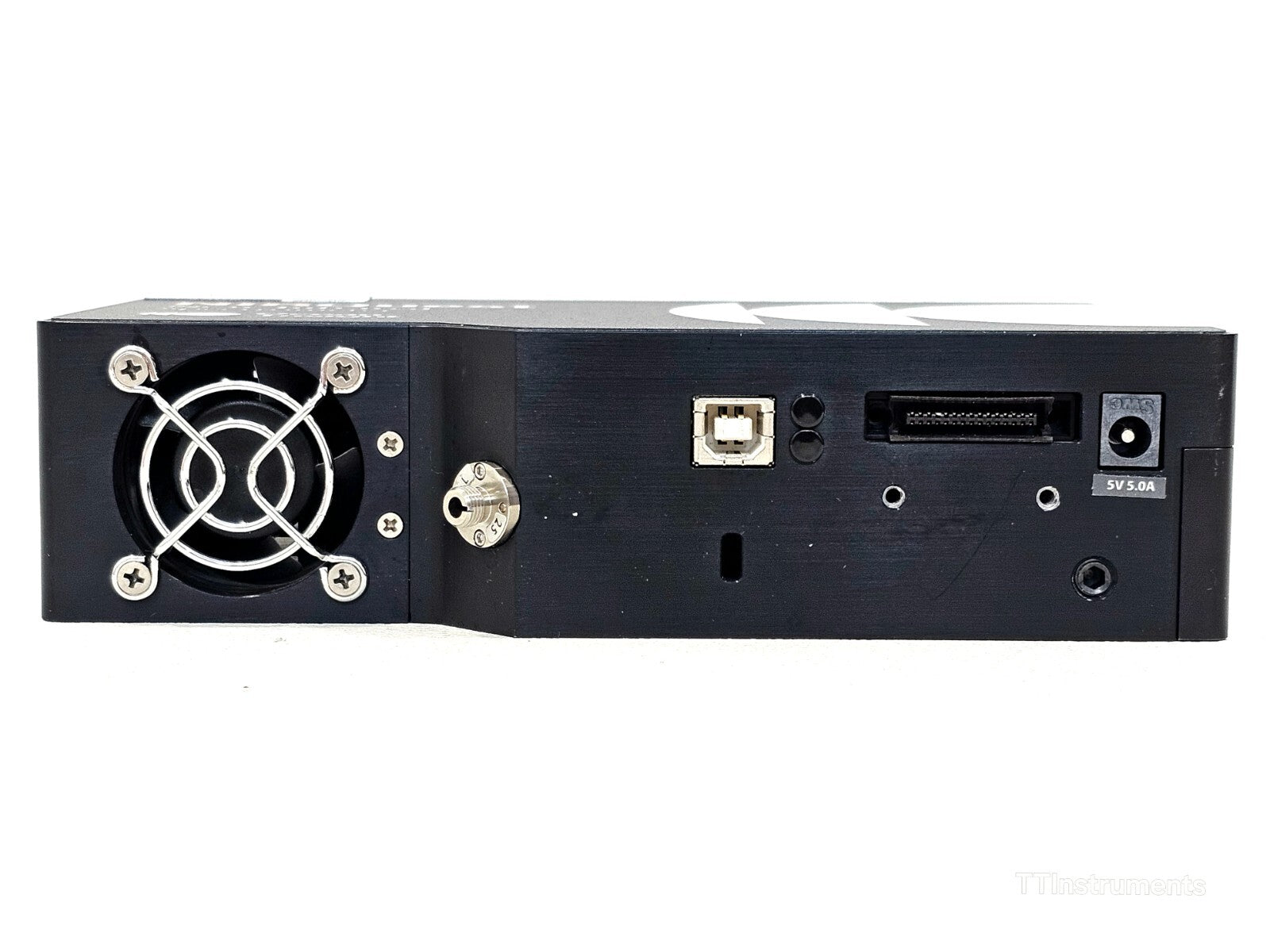

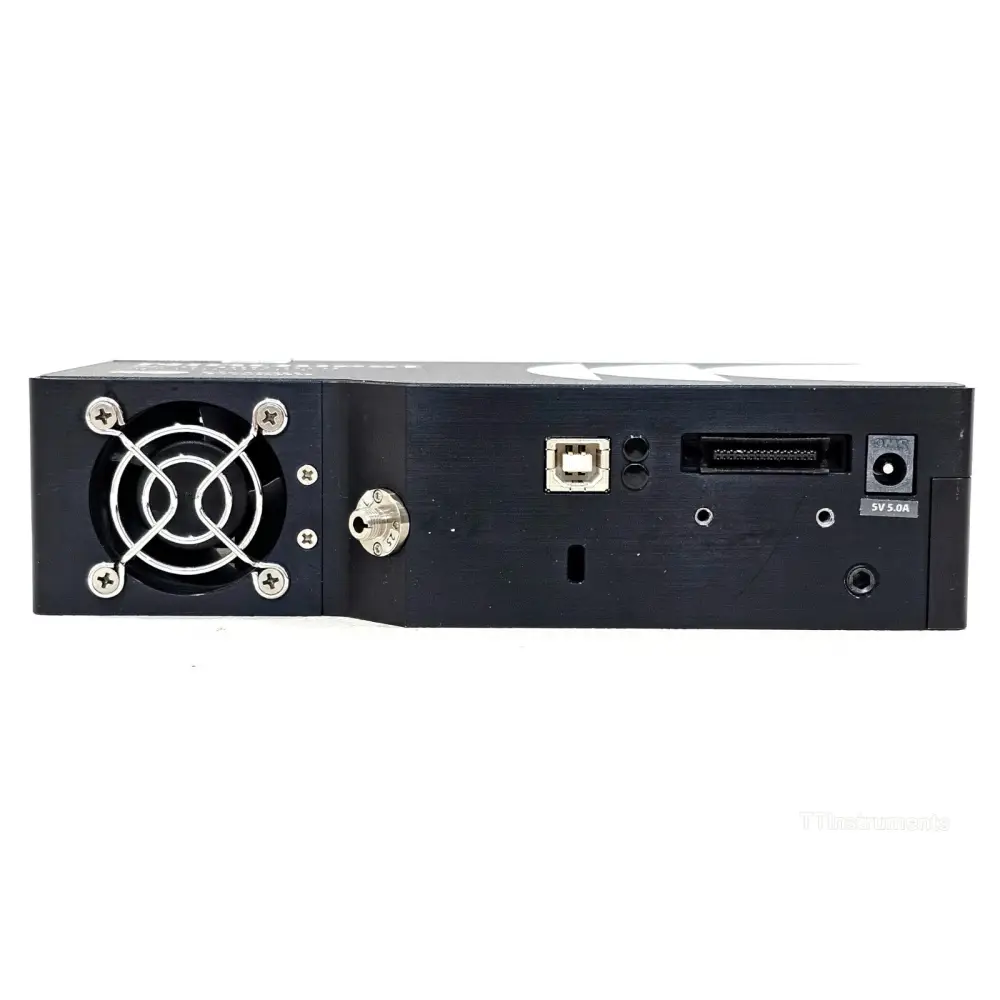

Connectivity: USB 2.0; serial port (via adapter)

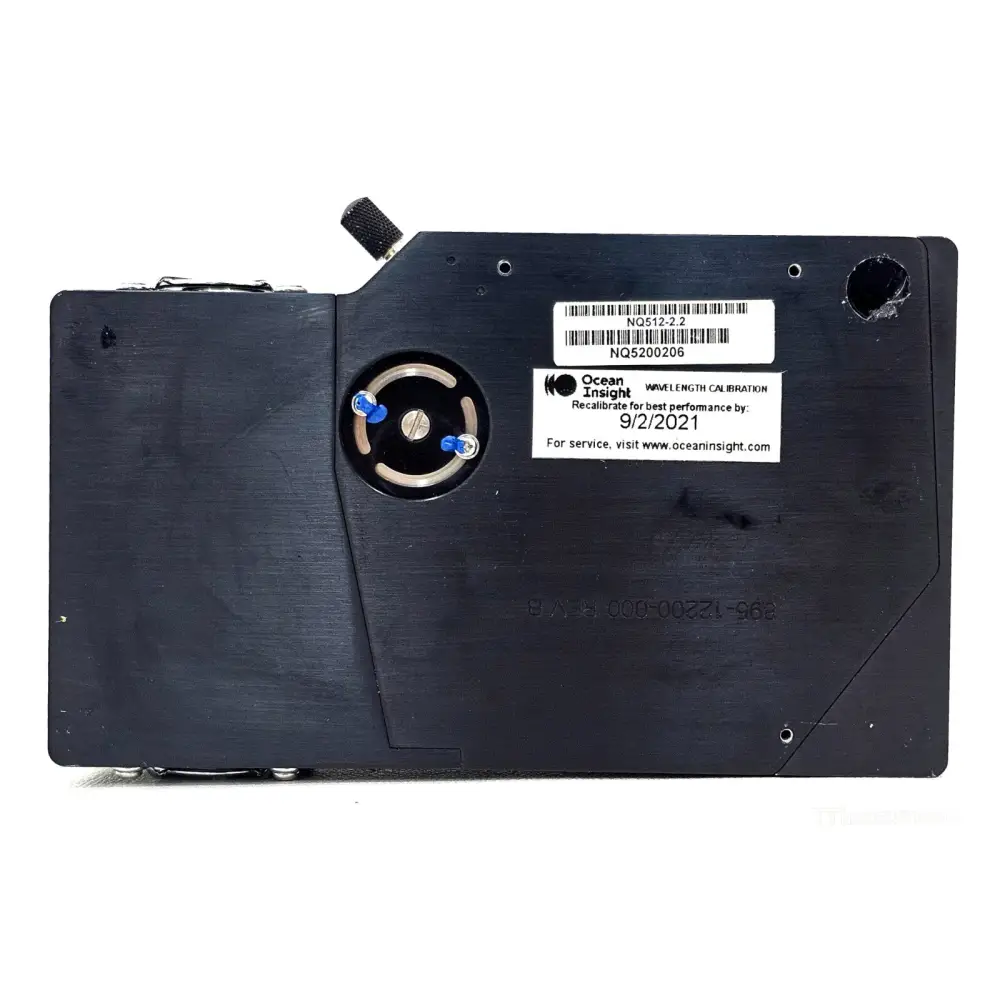

Dimensions: 182 x 110 x 47 mm
Weight: 1.18 kg (without power supply)
Power Supply: External +5 VDC (25 W adapter)
Software: OceanView; LabVIEW SDK compatible
Triggering: External hardware trigger supported
Compliance: FCC Class A; ISO 9001:2015 (Ocean Insight)

Ocean Insight NIRQuest Scientific-grade Spectrometer Installation and Operation Manual (Rev C): Download PDF

Ocean Optics NIRQuest NIR Spectrometers Data Sheet (016-70000-000-05-201603): Download PDF

Ocean Optics NIRQuest OEM Data Sheet – NIRQuest spectrometer family specifications: Download PDF

NIRQuest NIR Spectrometers OEM Data Sheet – full model specifications and grating options: Download PDF

NIRQuest Installation and Operation Manual – earlier edition with full hardware and grating tables: Download PDF
