Condition: Seller refurbished

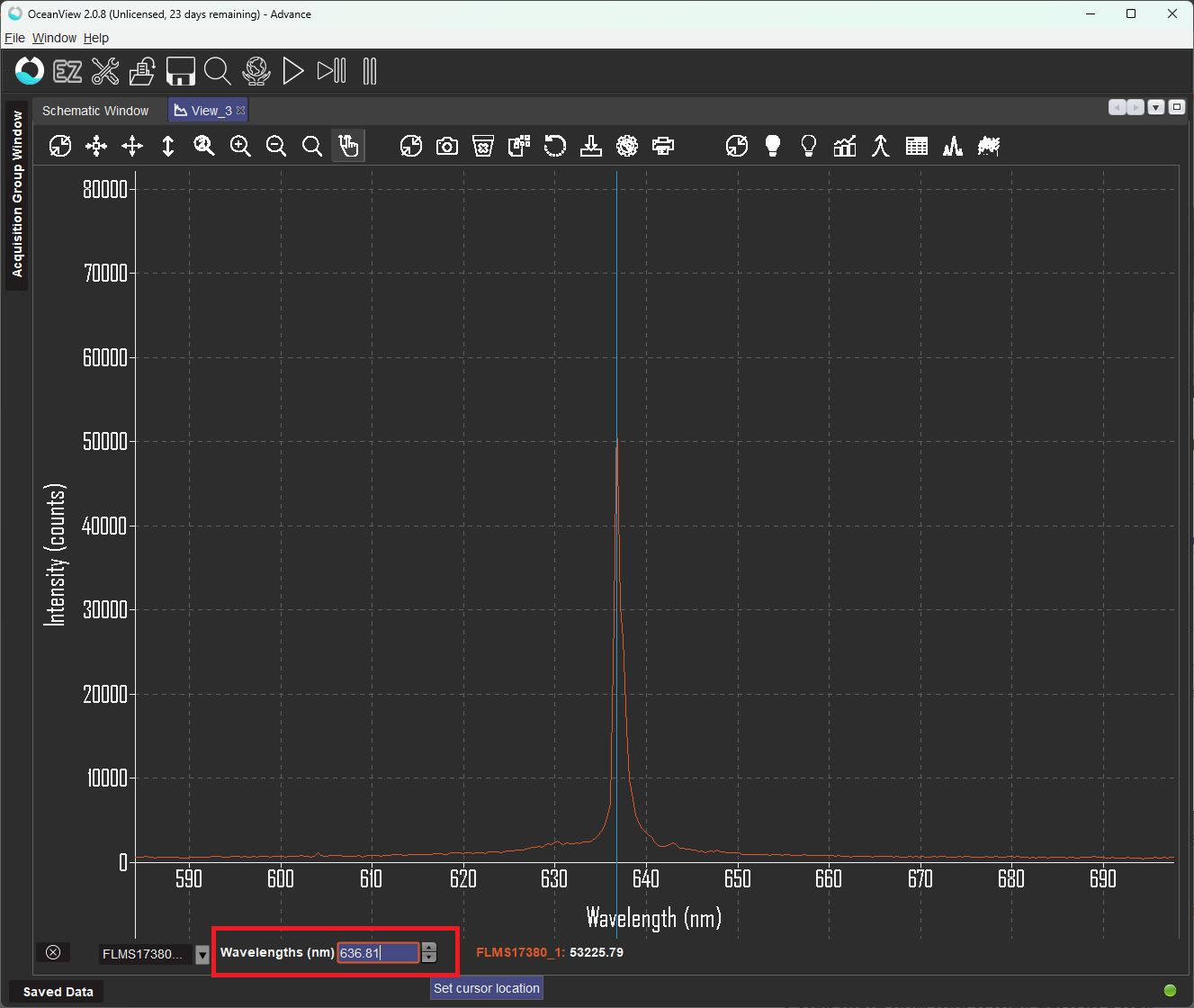

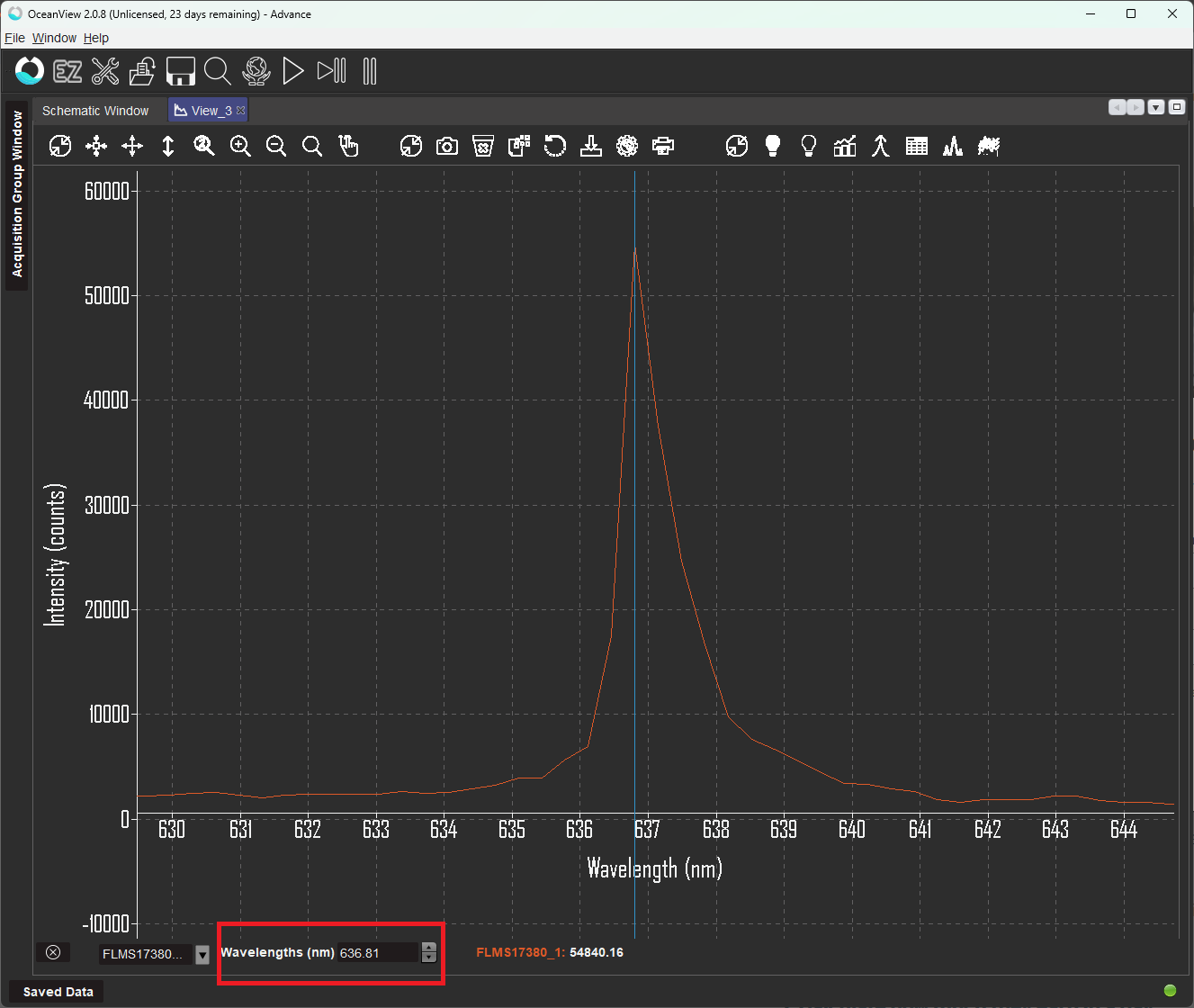

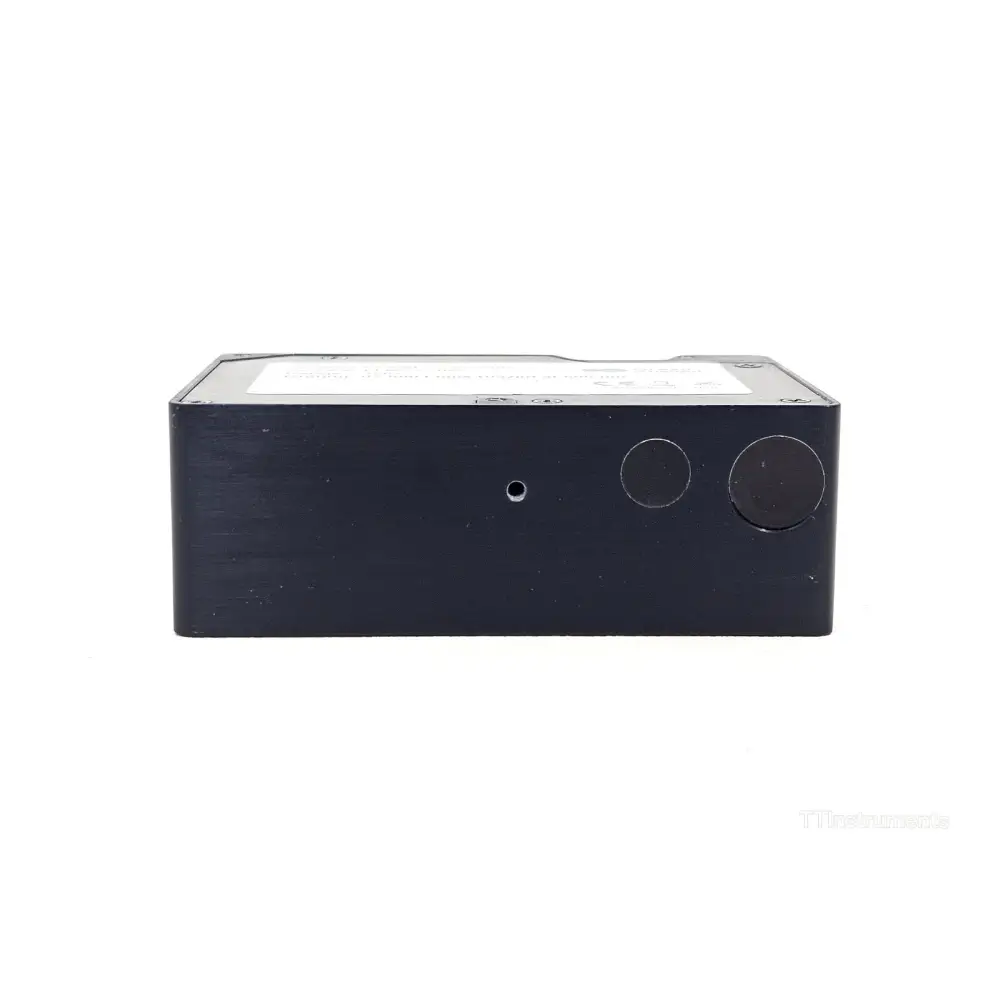

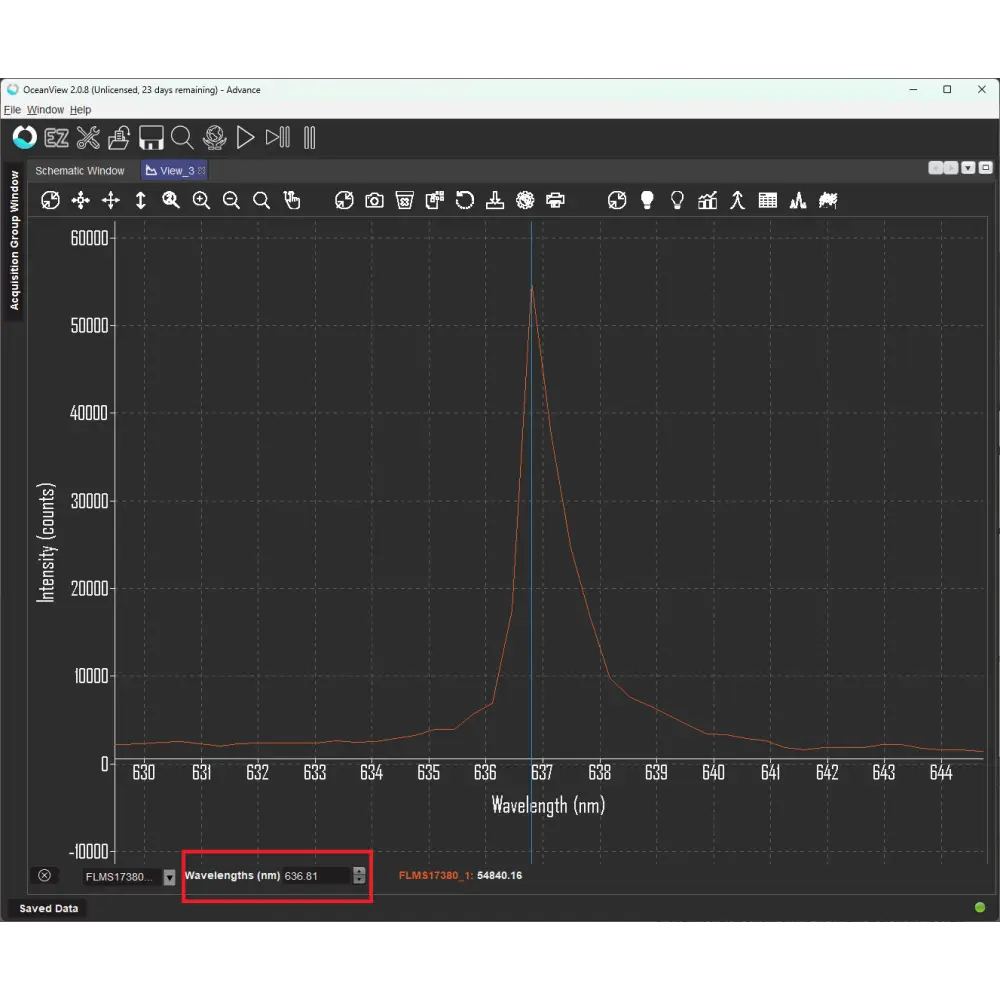

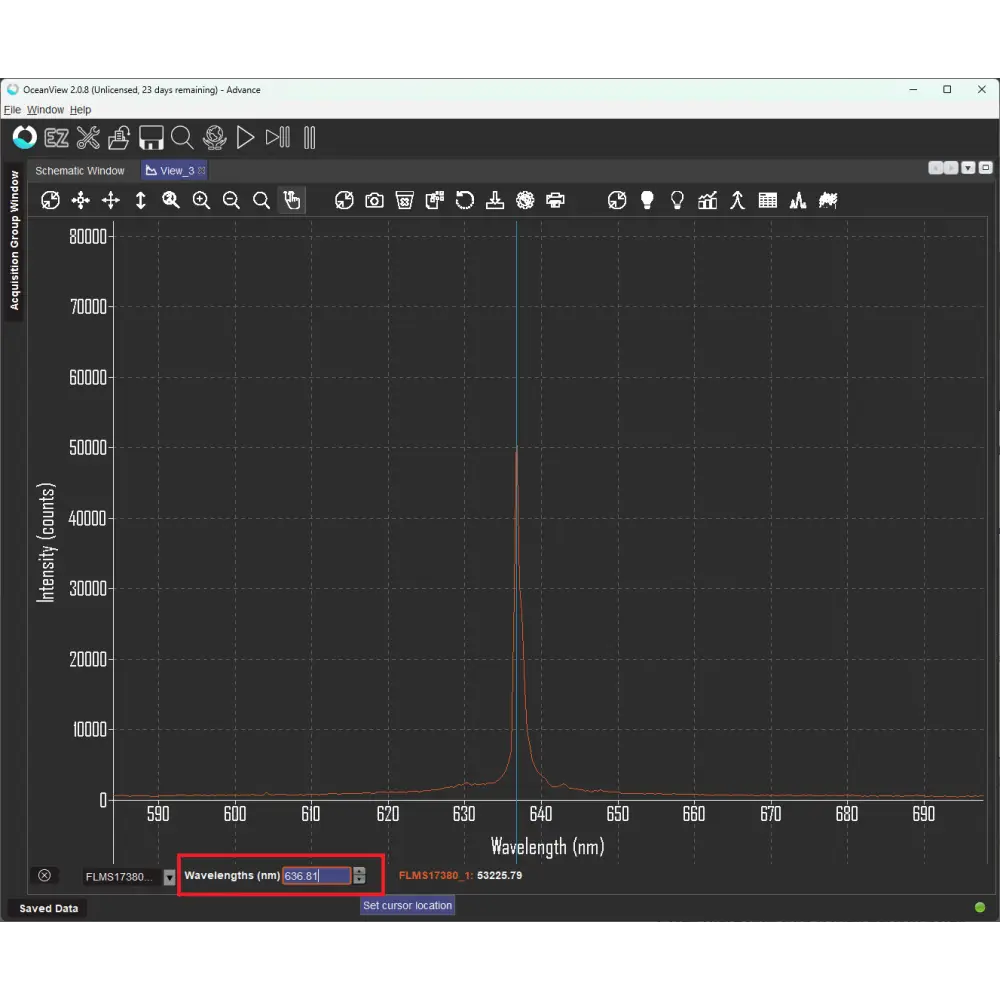

This Ocean Optics Flame-S-VIS-NIR spectrometer has been tested and is fully functional, verified using a 635 nm laser source with confirmed spectral peak response. Cosmetic imperfections are present but do not affect instrument performance. Compatible with the LabVIEW SDK and other development platforms for bespoke applications.

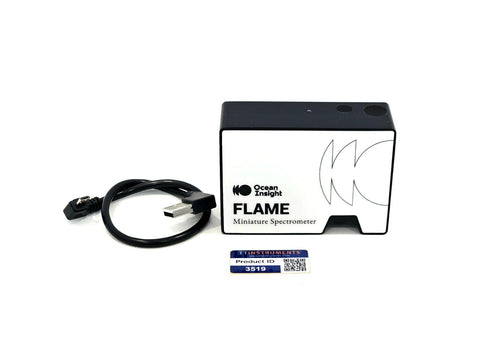

Included in the sale:

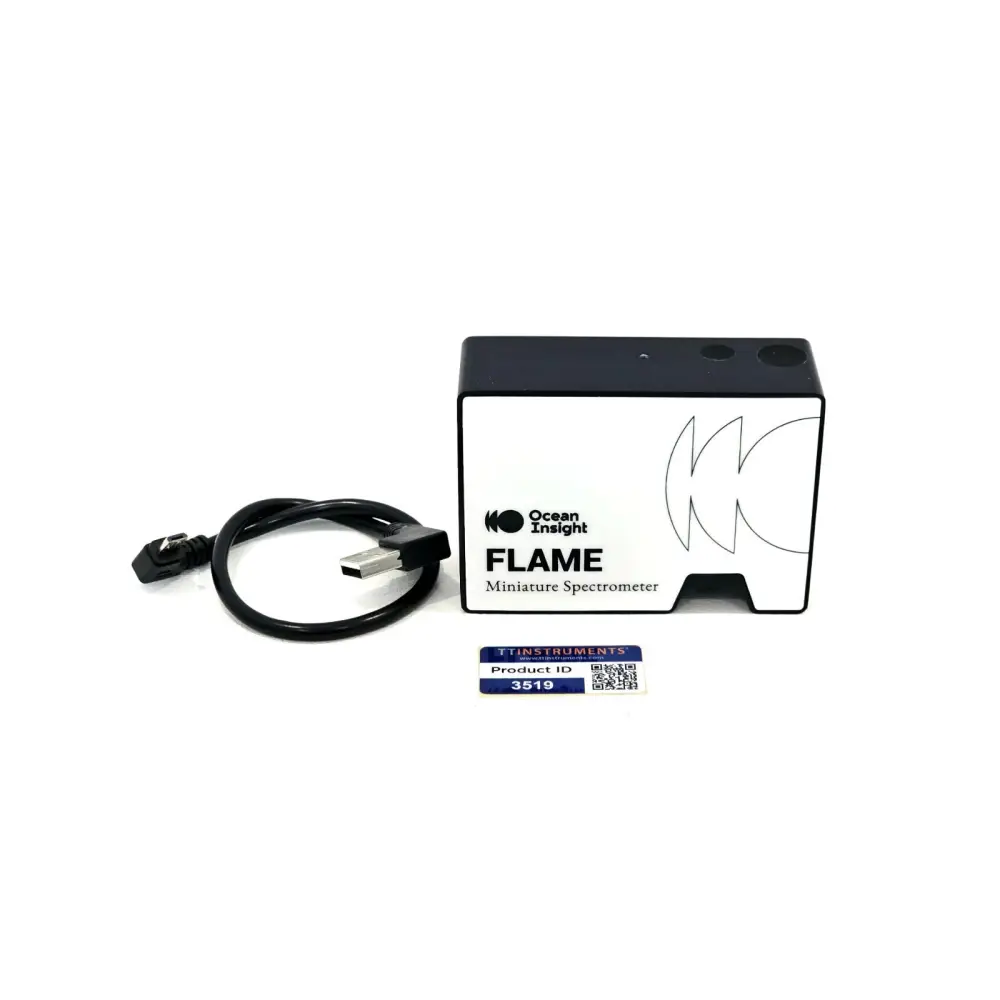

• Flame-S-VIS-NIR Spectrometer
• USB Serial Cable

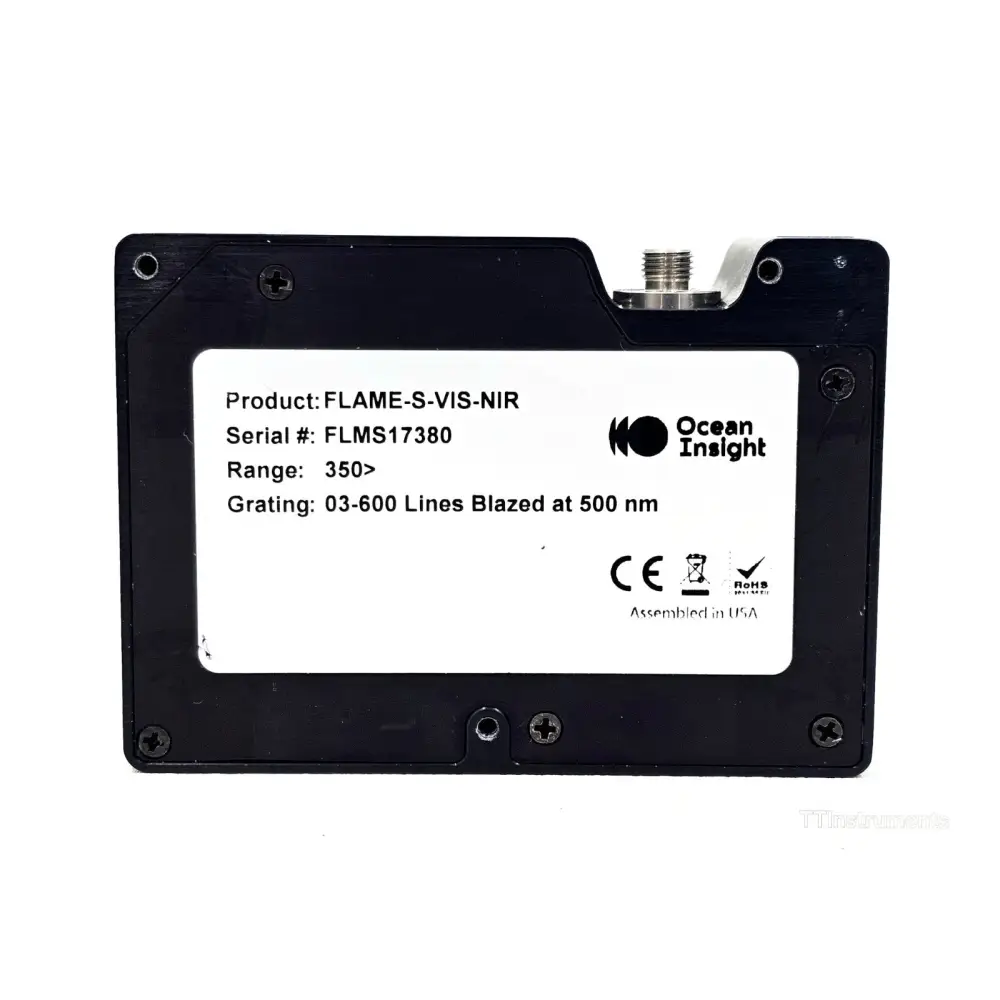

The Ocean Optics Flame-S-VIS-NIR is a preconfigured, compact fibre-optic spectrometer designed for applications spanning the visible to near-infrared spectral range. Based on a proven Czerny-Turner optical design and the Sony ILX511B linear CCD detector, the Flame-S-VIS-NIR delivers reliable spectroscopic performance in both laboratory and field environments. Its thermally stable construction, user-interchangeable slits, and broad accessory ecosystem make it a versatile platform for researchers, educators, and system integrators.

The spectrometer connects to a host computer via USB 2.0 or RS-232, drawing power directly from the USB bus with no external supply required. It is fully supported by OceanView spectroscopy software and the LabVIEW SDK, enabling rapid integration into custom measurement workflows. Four hardware-supported triggering modes — including external edge and level triggering — allow precise synchronisation with external devices.

Technical Specifications:

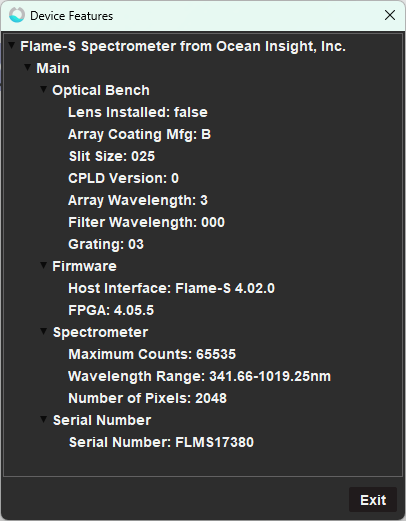

Wavelength Range: 340–1019 nm (Flame-S-VIS-NIR preconfigured)
Detector: 2048-element Sony ILX511B linear silicon CCD
Optical Bench: f/4, Czerny-Turner, 42 mm focal length
Optical Resolution: ~1.5 nm FWHM (with 25 µm slit)
Slit Options: Tool-free interchangeable slits, 5–200 µm
Integration Time: 10 µs – 65 seconds
Signal-to-Noise Ratio: 250:1 (single acquisition)
Dynamic Range (single acquisition): 2 x 10^8
Connectivity: USB 2.0 and RS-232
Trigger Modes: 4 hardware-supported modes (normal, software, external edge, external level)

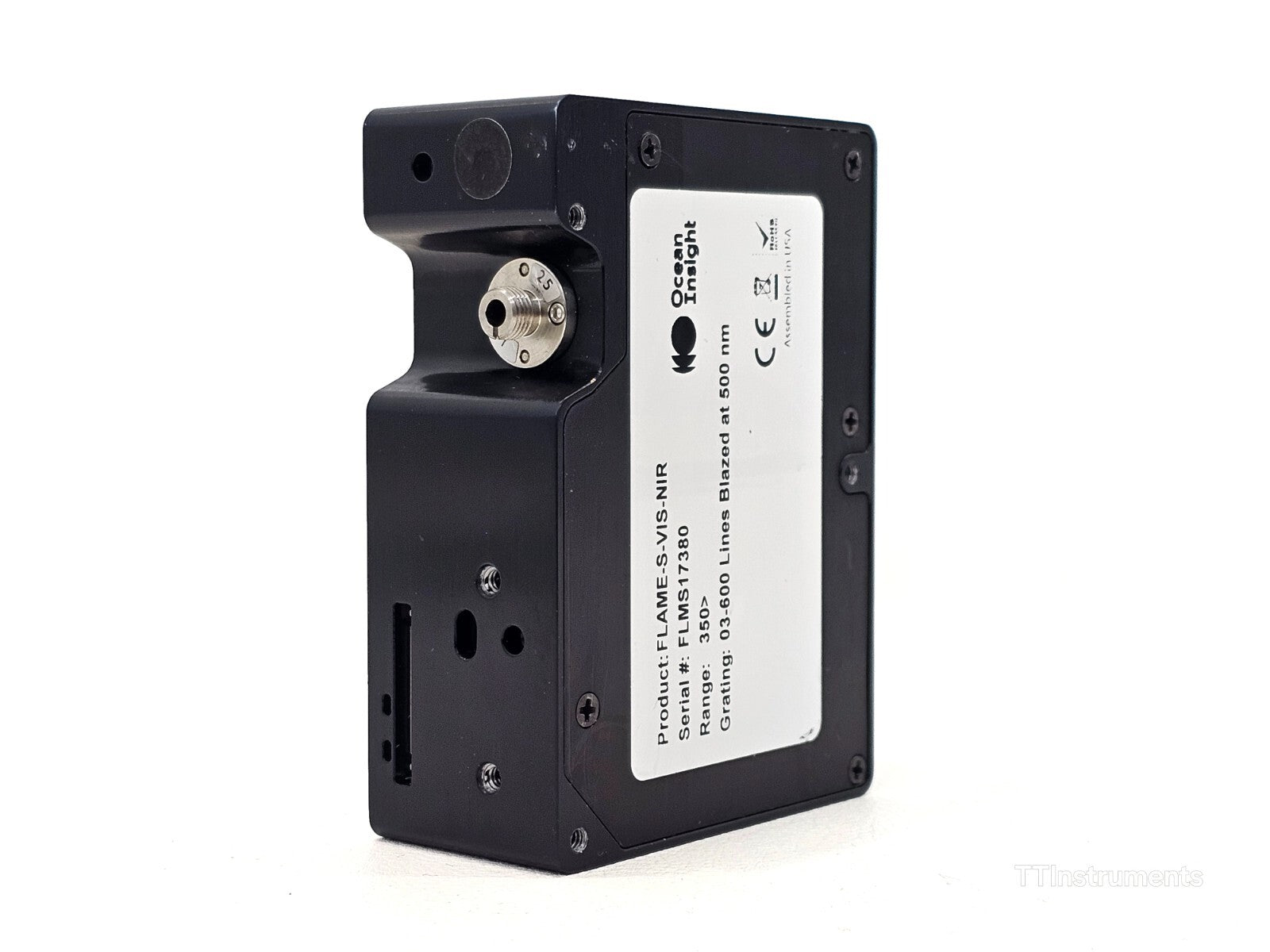

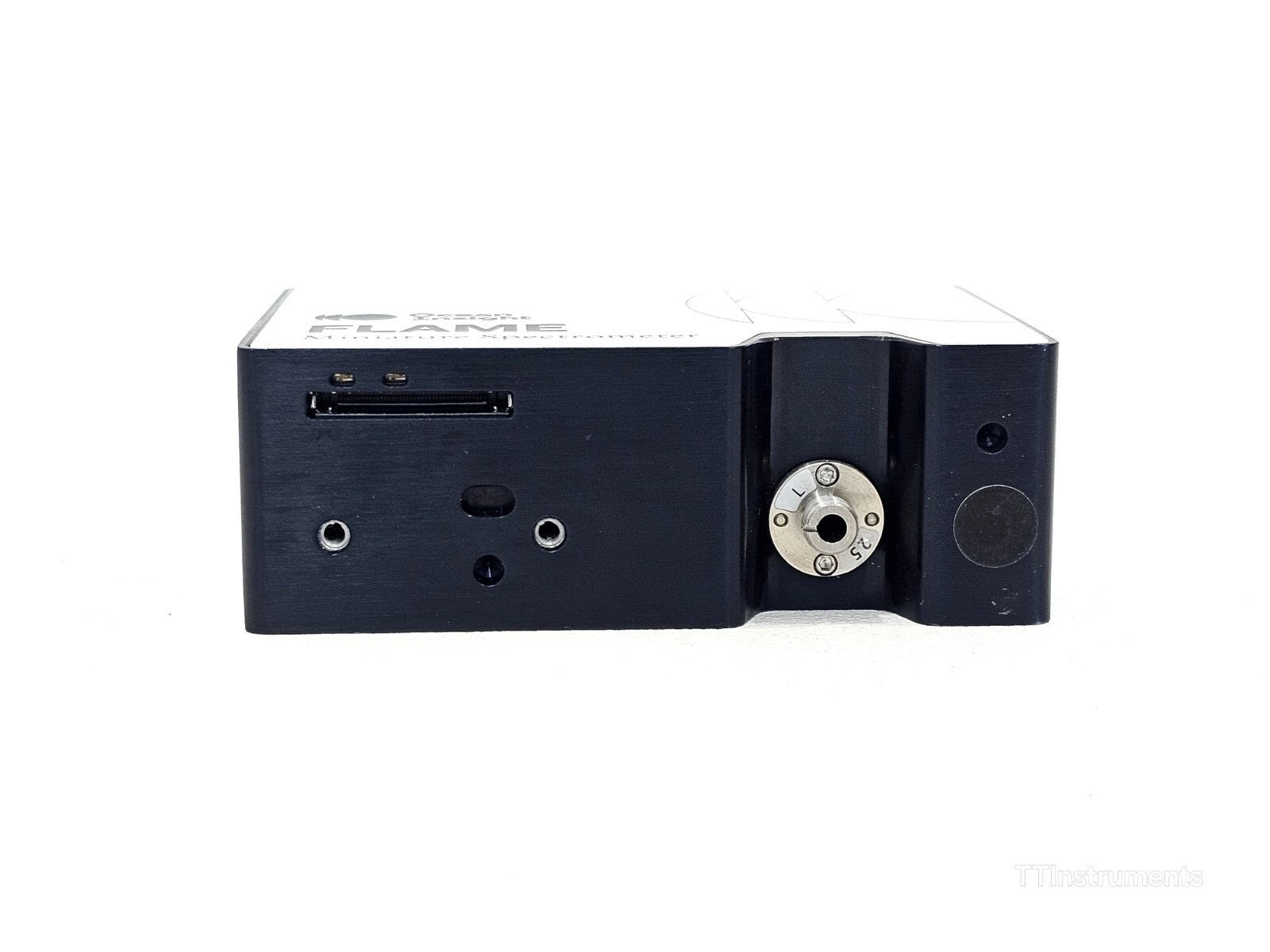

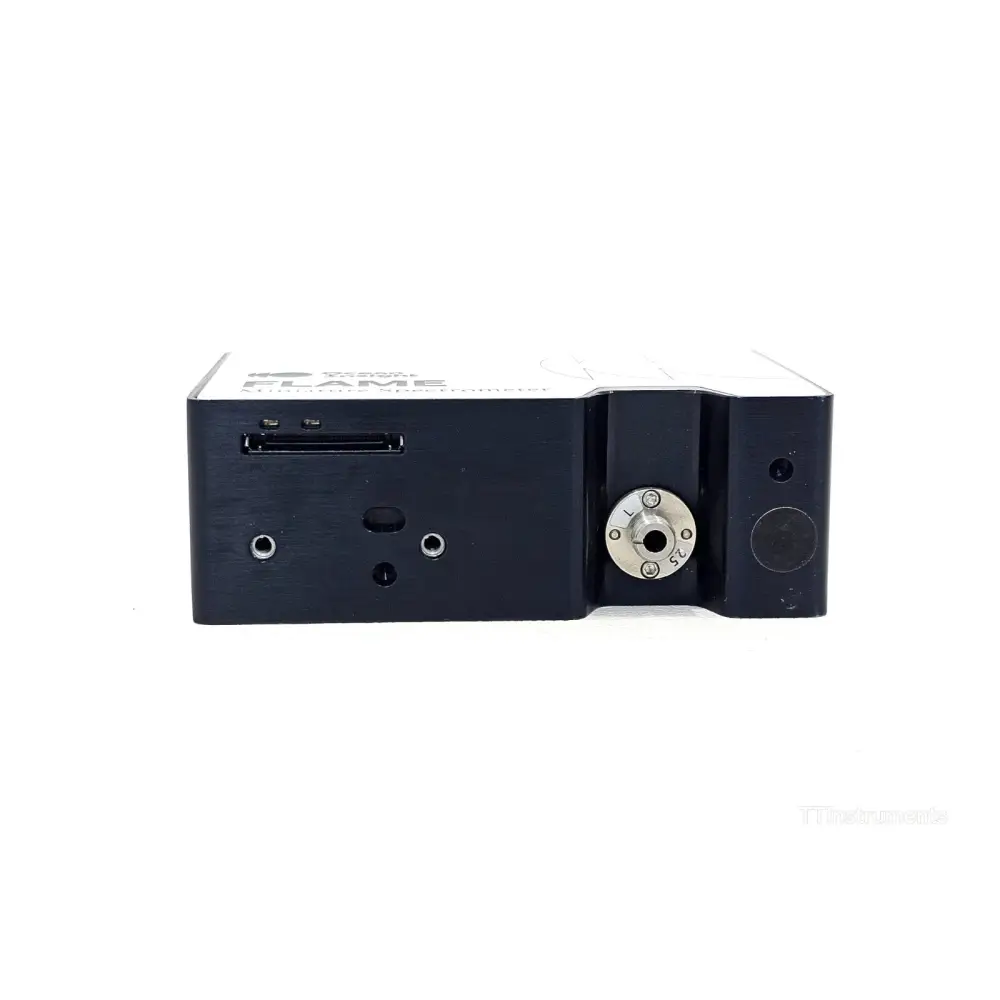

Input Connector: SMA 905 fibre-optic

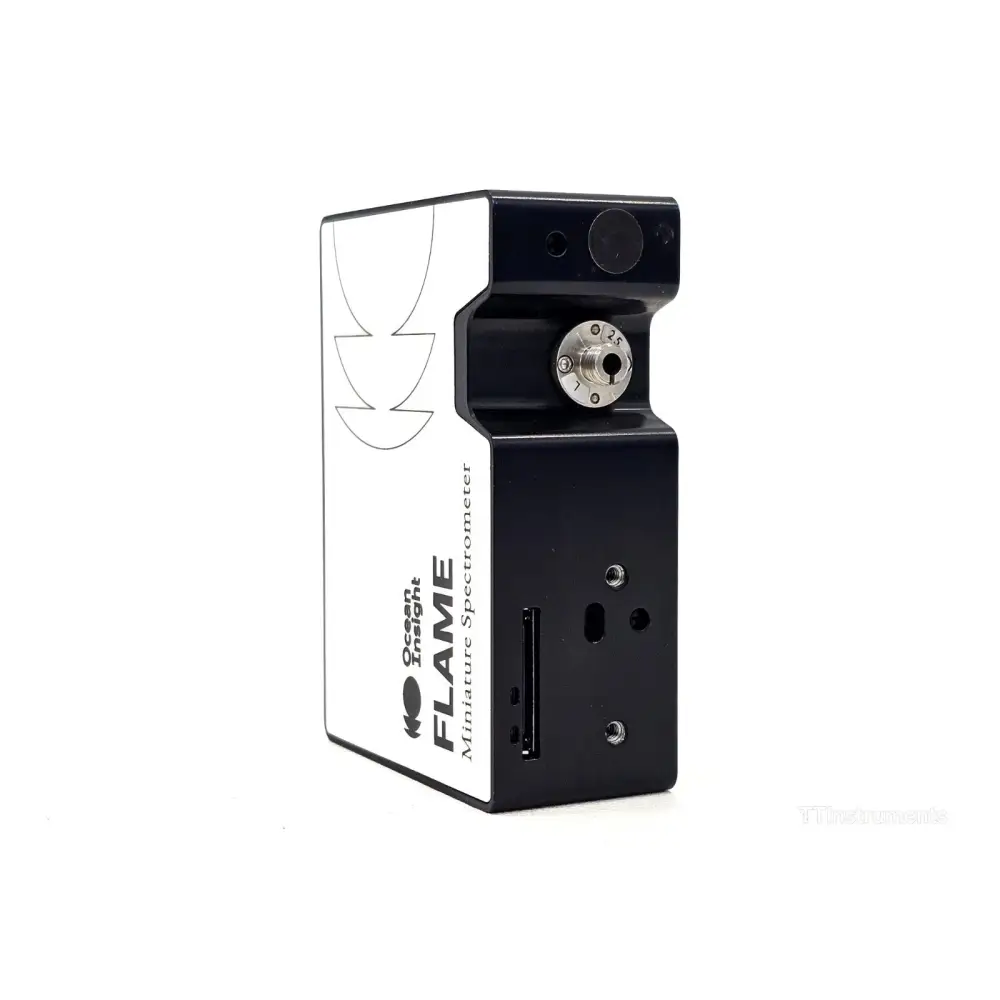

Accessory Connector: 40-pin JAE DD4
Status Indicators: Dual LEDs (power and acquisition)
Dimensions: 88.9 x 63.5 x 31.9 mm
Weight: 265 g
Software: OceanView, LabVIEW SDK, SpectraSuite compatible
Operating Systems: Windows, macOS, Linux

Typical Applications:
Laser and LED characterisation, light metrology, colour measurement, absorbance and reflectance spectroscopy, environmental analysis, fluorescence, process monitoring, remote sensing, and OEM integration.

Ocean Optics Flame Miniature Spectrometer User Manual (Ocean Optics official, hosted on oceanoptics.com): Download PDF

Ocean Optics Flame Miniature Spectrometer User Manual (mirror copy hosted at egr.msu.edu): Download PDF

Ocean Optics Flame Technical Specifications document (preconfigured Flame-S and Flame-T): Download PDF

Ocean Optics Flame-S Preconfigured Series brochure / IO specification sheet: Download PDF

Ocean Insight Flame User Manual (re-branded edition, MNL-1012 Rev B): Download PDF
