Condition: Seller refurbished

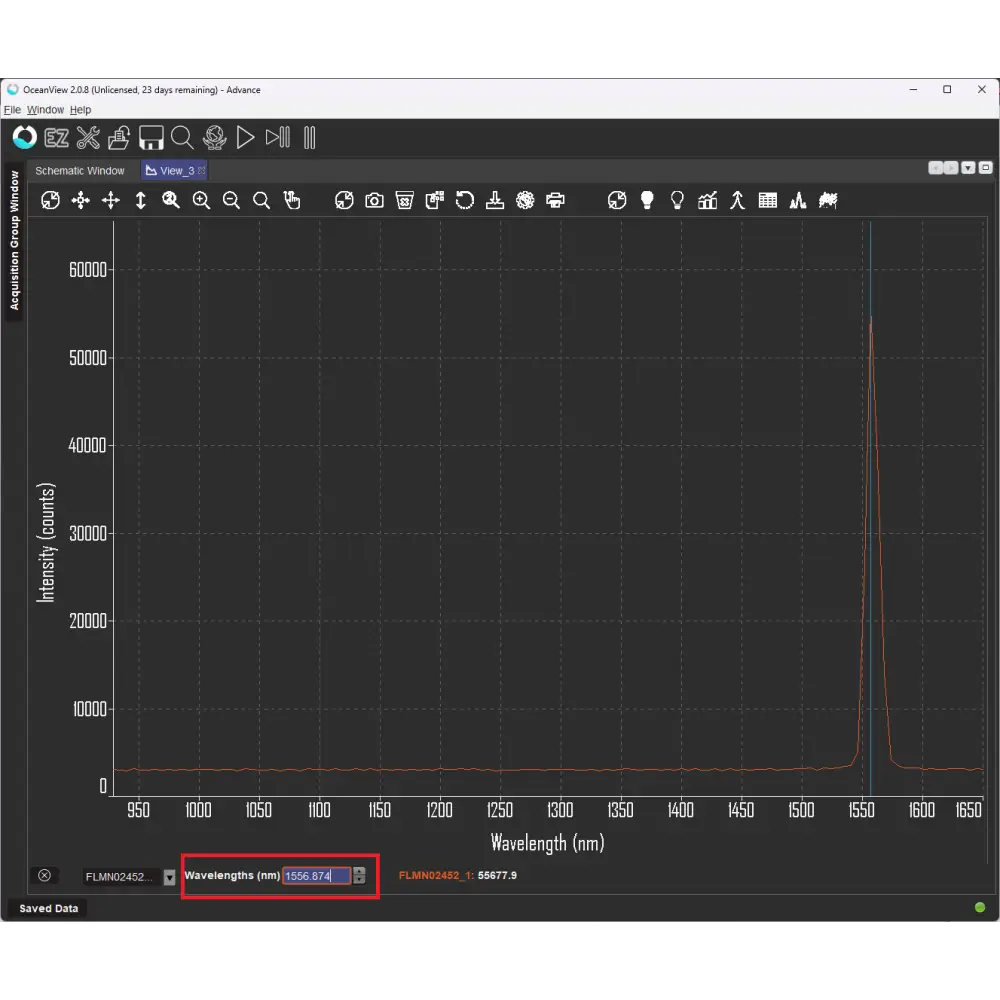

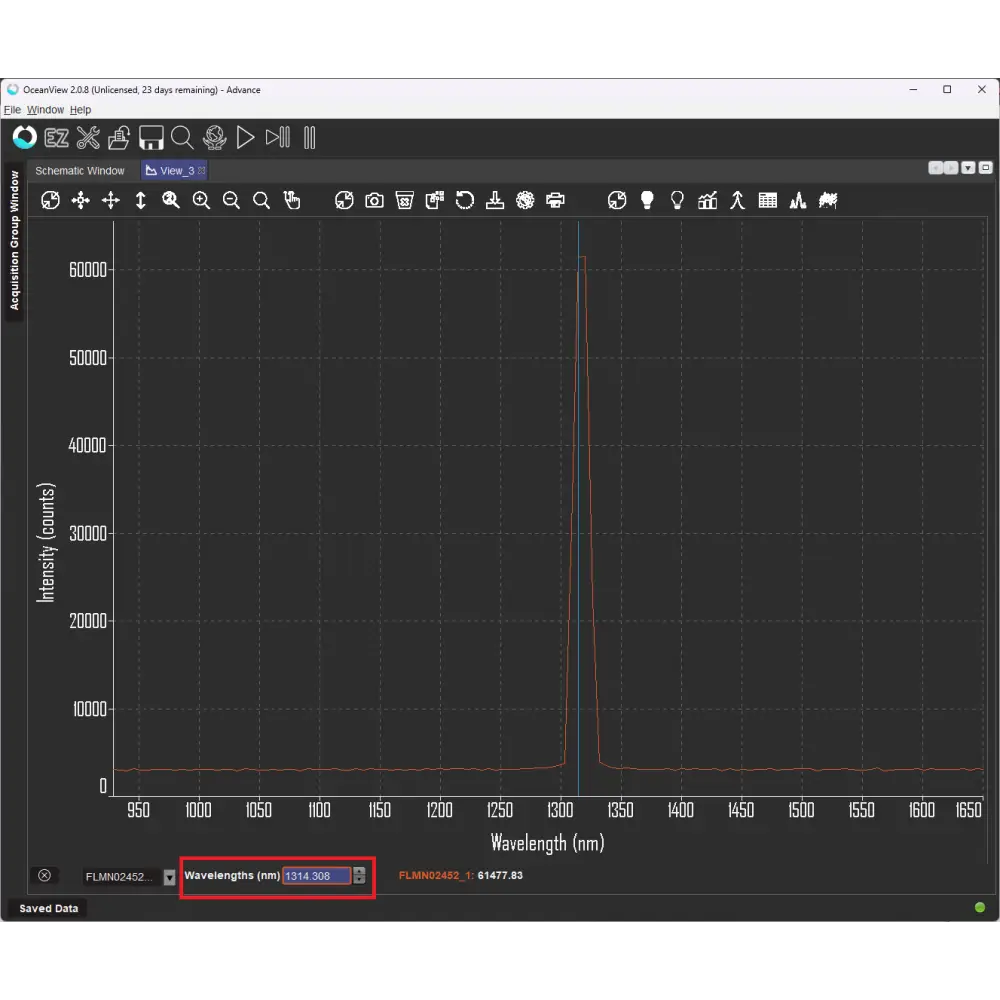

This Flame-NIR NIR128B has been tested and confirmed fully functional using both 1310 nm and 1550 nm laser sources, with spectral peaks verified at each wavelength. Cosmetic imperfections are present but do not affect performance. OceanView trial software (30-day licence, extendable) and a datasheet are included on a USB drive. The LabVIEW SDK and other third-party platforms are also supported for custom integrations.

Included in the sale:
• Flame-NIR NIR128B Spectrometer
• USB serial cable
• USB drive with OceanView trial software and datasheet

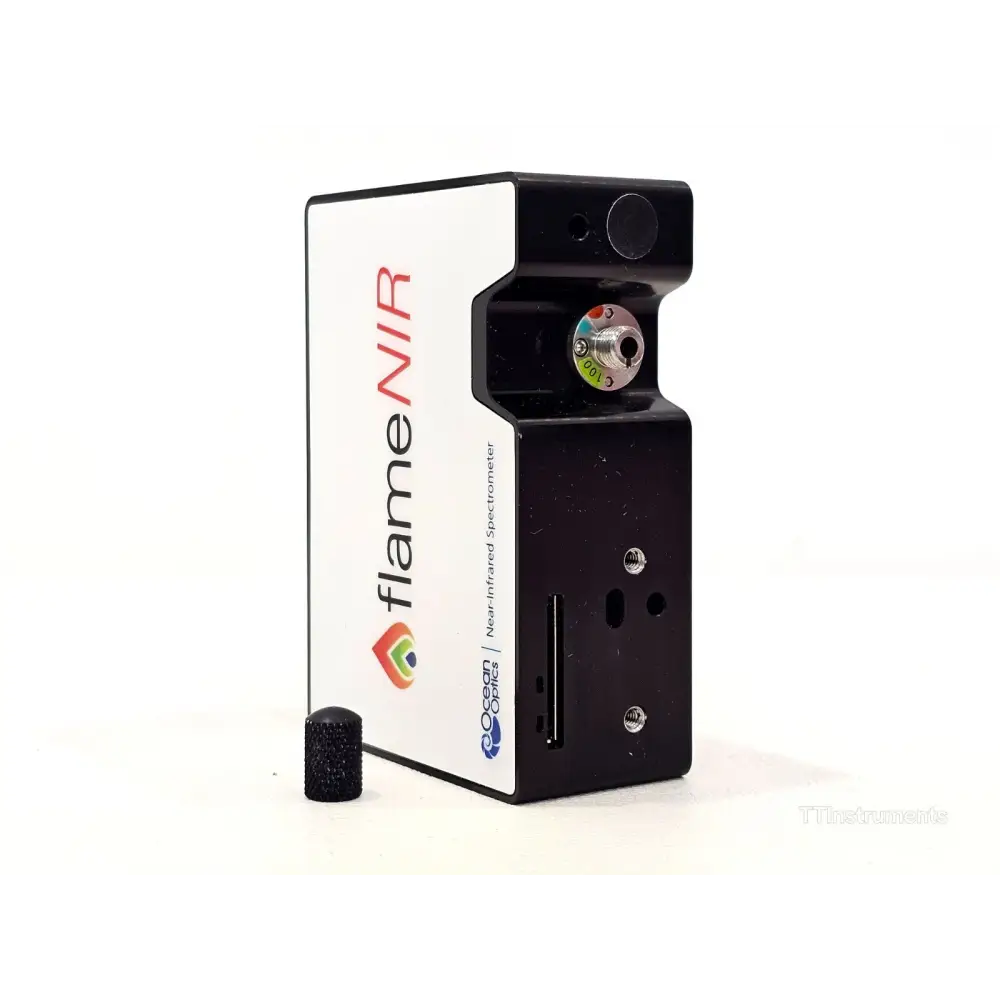

The Ocean Optics Flame-NIR is a miniature near-infrared spectrometer that combines a compact Crossed Czerny-Turner optical bench with a high-sensitivity uncooled InGaAs array detector. Designed for both laboratory and field deployment, it delivers reliable NIR spectroscopy in an affordable, rugged, and portable form factor with no moving parts. The Flame-NIR is well-suited for OEM integration, process monitoring, food quality analysis, pharmaceutical ingredient identification, polymer sorting, and NIR laser characterisation. It is USB plug-and-play compatible and supported by OceanView software (v1.5.2 and above), the LabVIEW SDK, and other third-party development platforms.

Detector: Uncooled InGaAs array (NIR128B)
Wavelength Range (Detector): ~900–1700 nm
Wavelength Range (Preconfigured): 950–1650 nm
Optical Resolution: ~10.0 nm FWHM (typical, with 25 µm slit)
Signal-to-Noise Ratio: 6000:1
Dynamic Range: 6000:1 (single acquisition)
Integration Time: 1 ms – 65 s
Scan Rate: Up to 400 Hz (standard non-real-time OS)
Thermal Stability: 0.08 nm/°C over 670 nm range

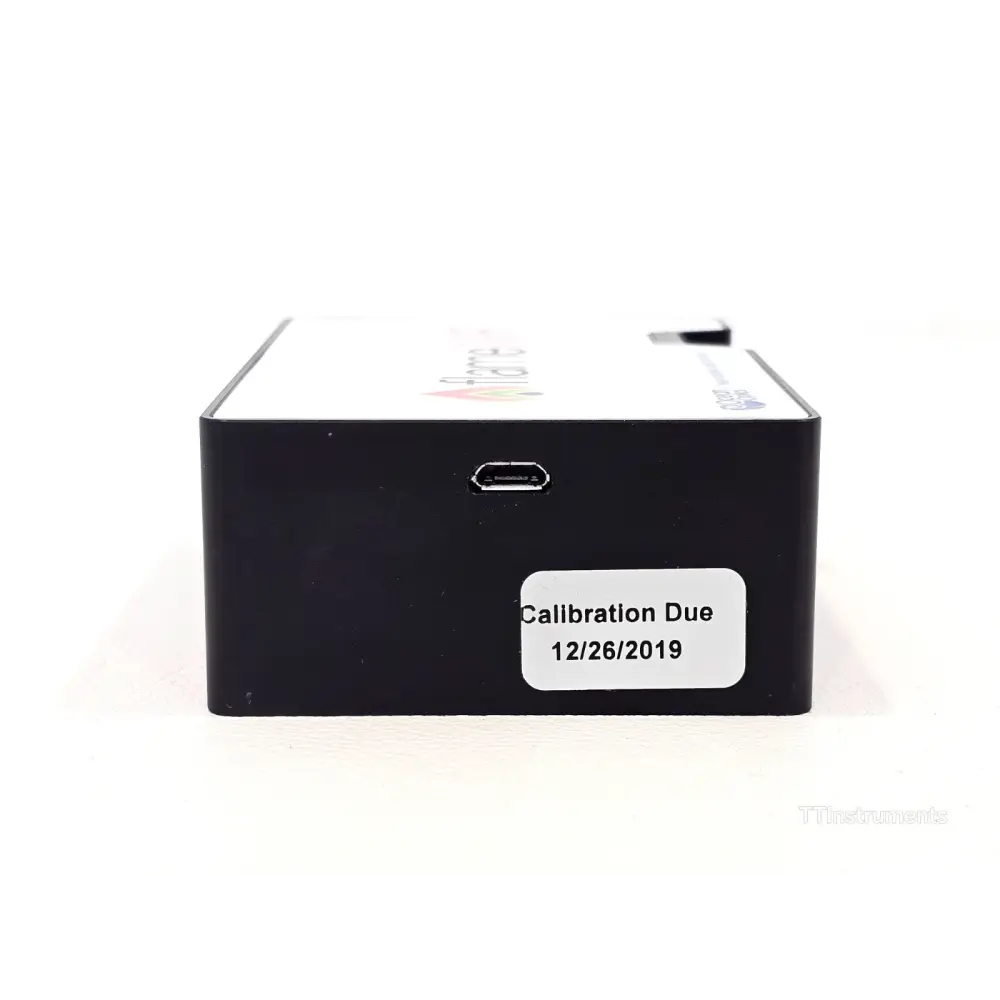

Connectivity: Micro-USB (USB-powered, 5V, <250 mA)

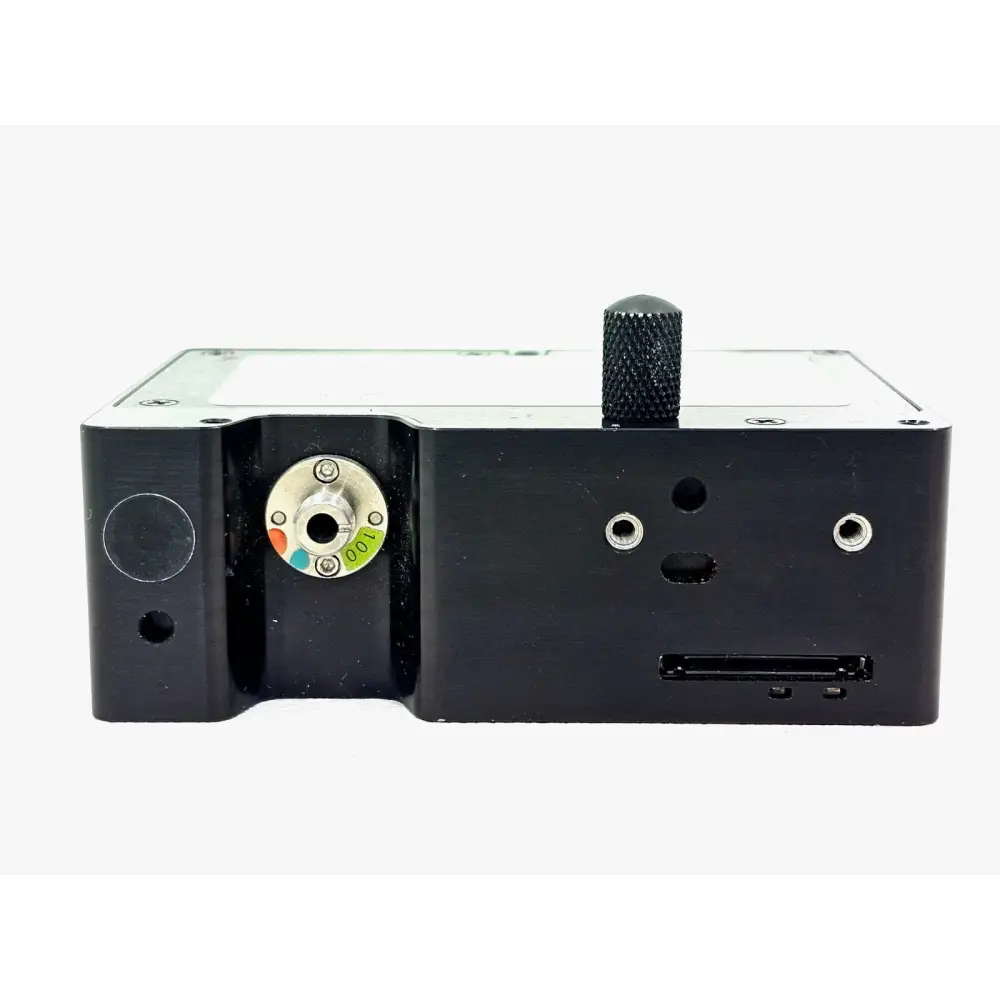

Slit Design: User-interchangeable (SMA and FC type compatible)

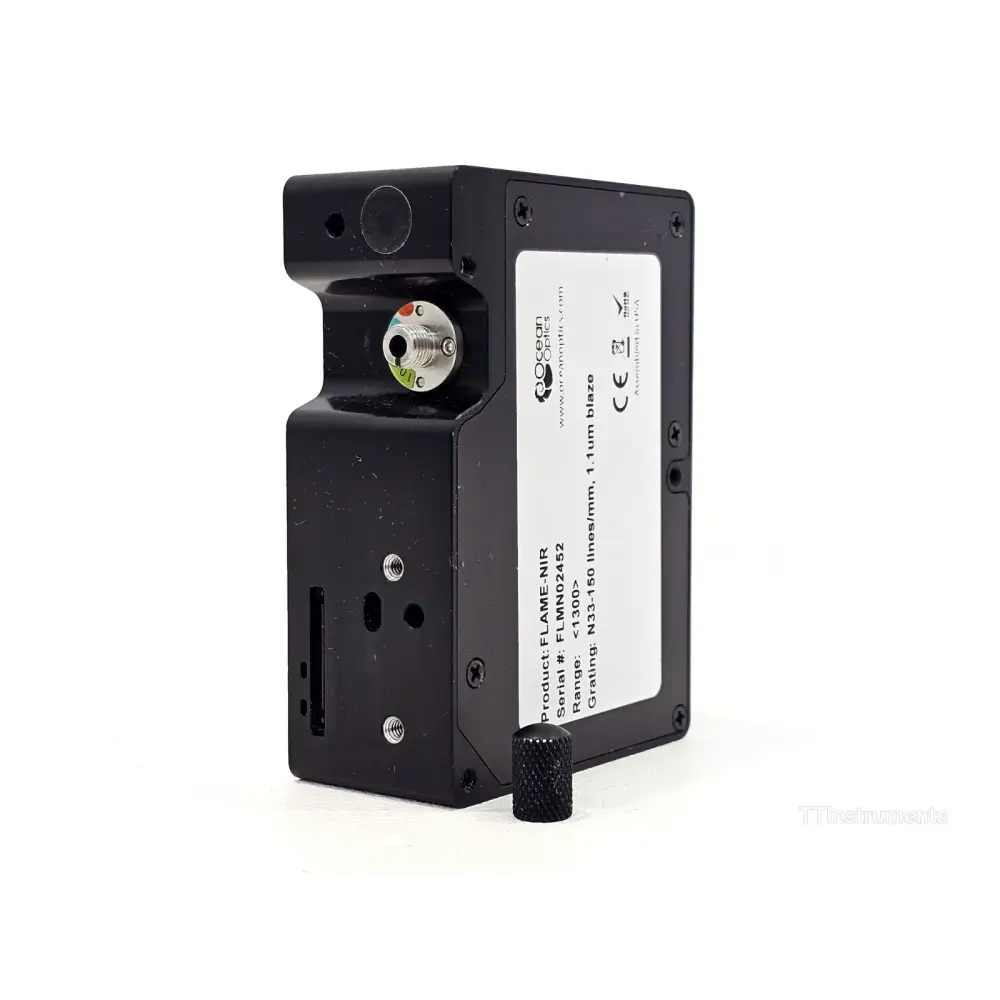

Dimensions: 89.1 mm x 63.3 mm x 31.9 mm
Weight: 265 g
Operating Software: OceanView v1.5.2+, LabVIEW SDK, third-party platforms
Typical Applications: Food quality (sweetness, fat content), pharmaceutical API identification, NIR laser analysis, chemical process control, polymer sorting, material characterisation

Ocean Optics Flame-NIR Miniature Spectrometer User Manual (official, hosted by Ocean Optics): Download PDF

Ocean Optics Flame-NIR Miniature Spectrometer User Manual (mirror copy via Spectrecology): Download PDF

Ocean Optics Flame-NIR Product Sheet / Brochure (PDF): Download PDF

Ocean Optics Flame-NIR Preconfigured Models Product Sheet (PDF via oceanoptics.com): Download PDF
