Condition: Seller refurbished

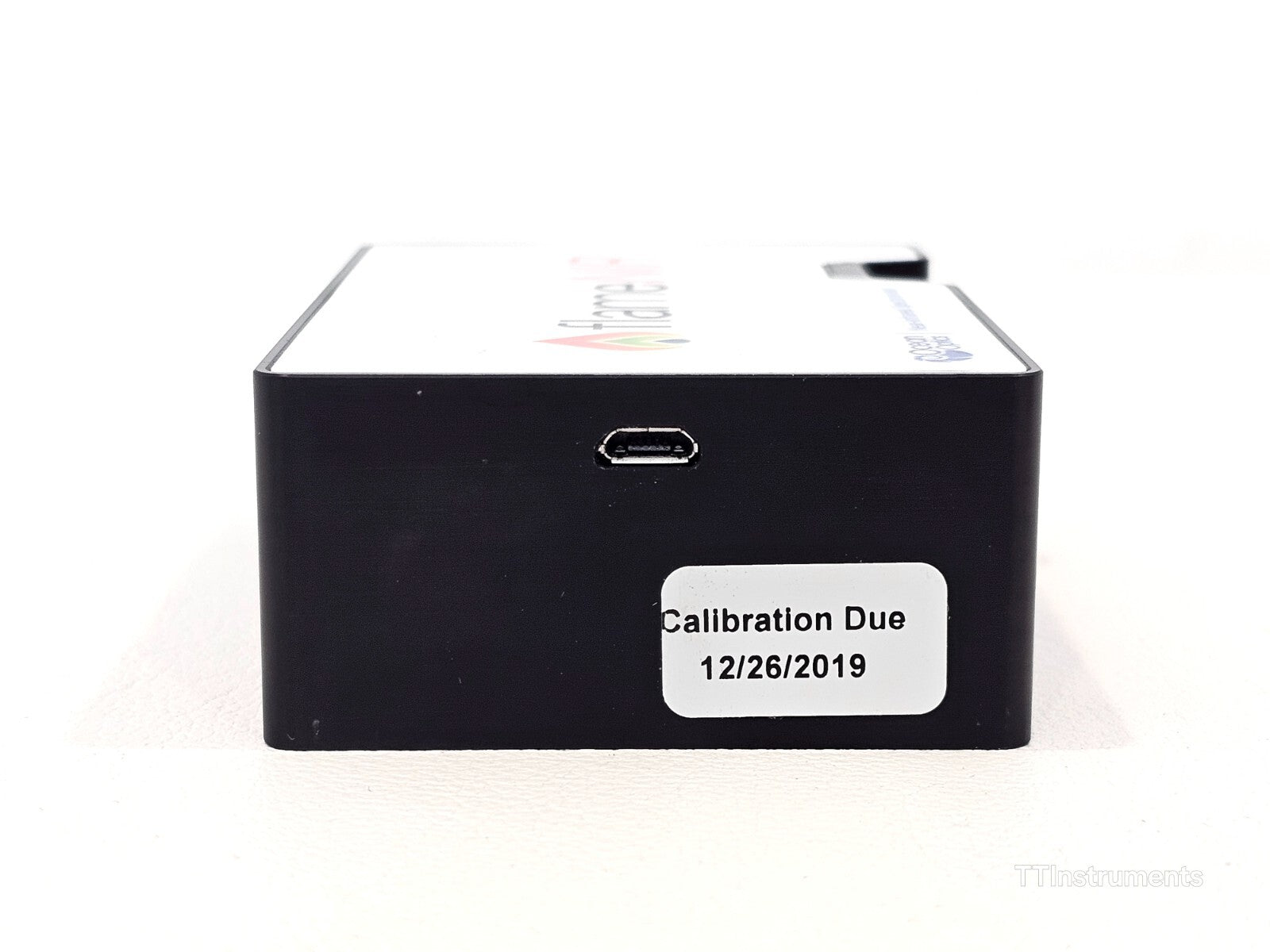

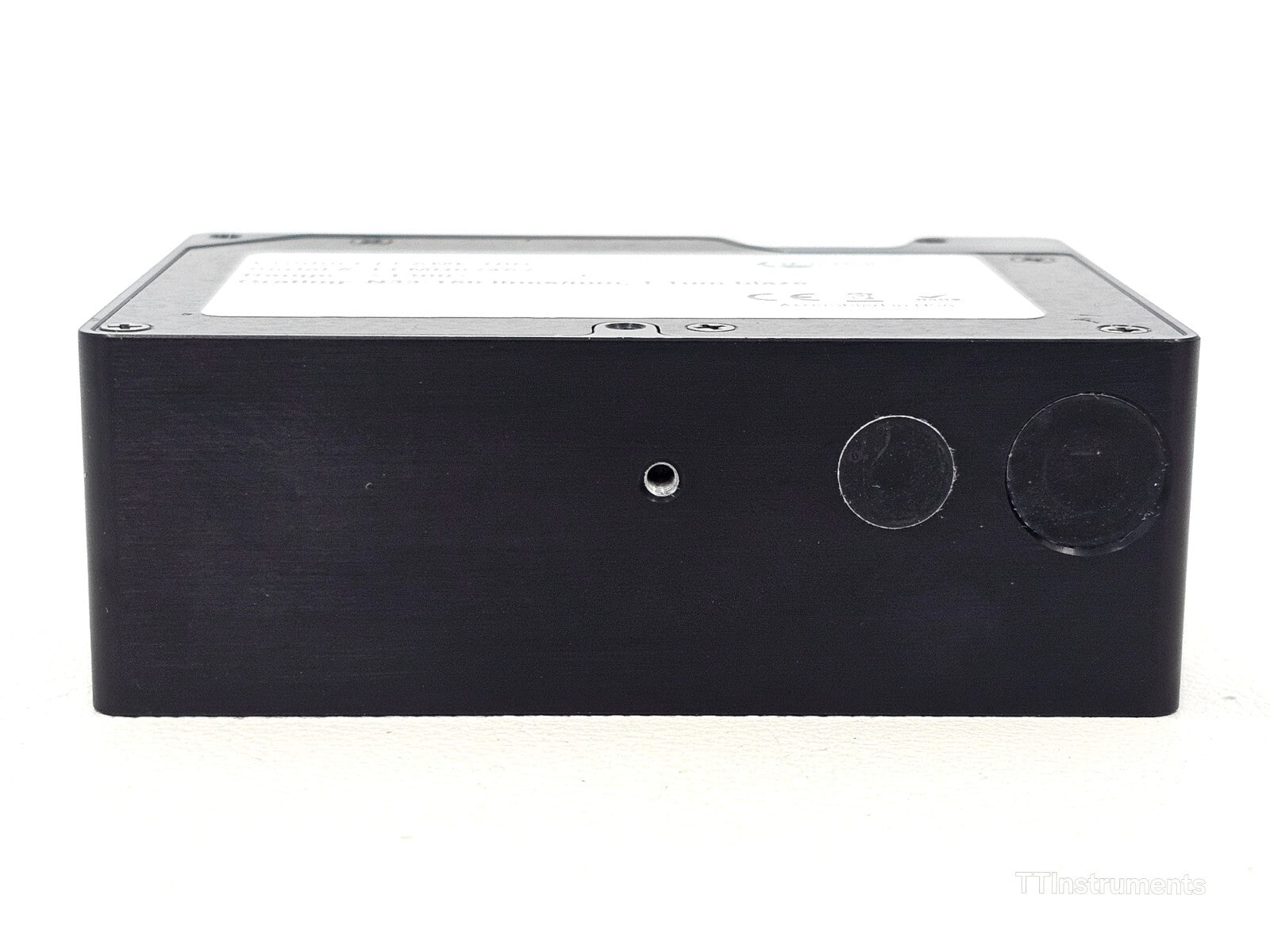

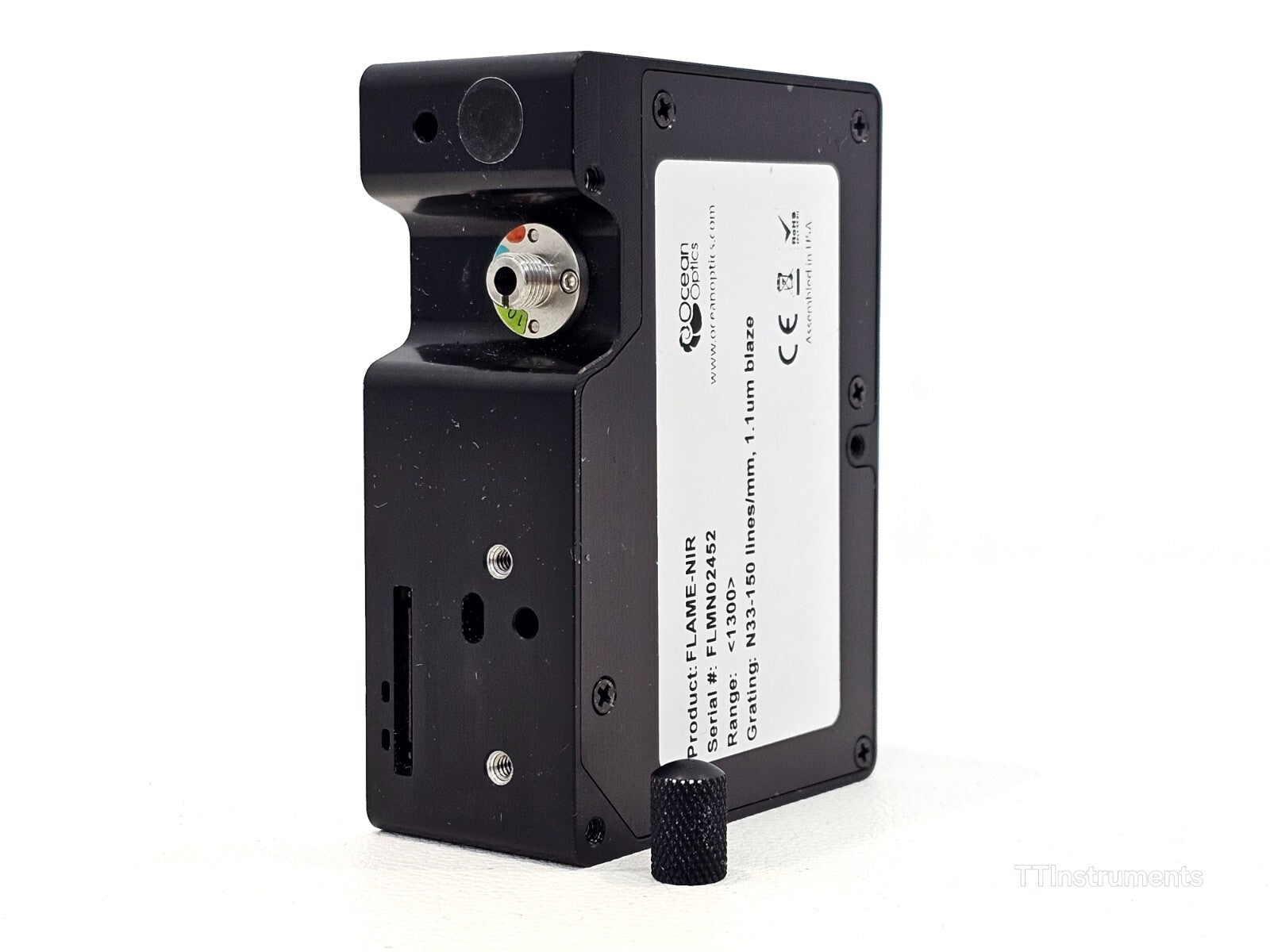

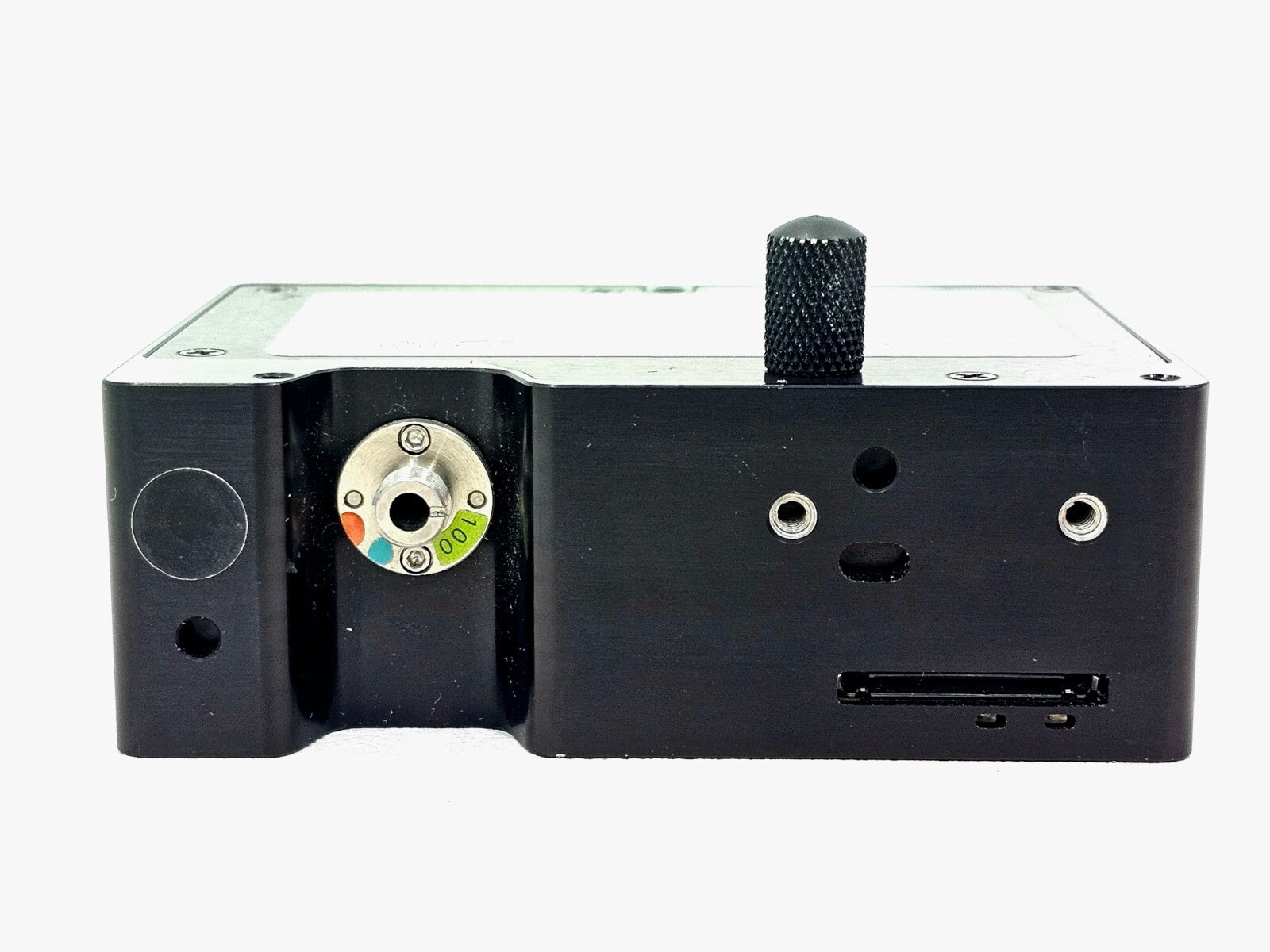

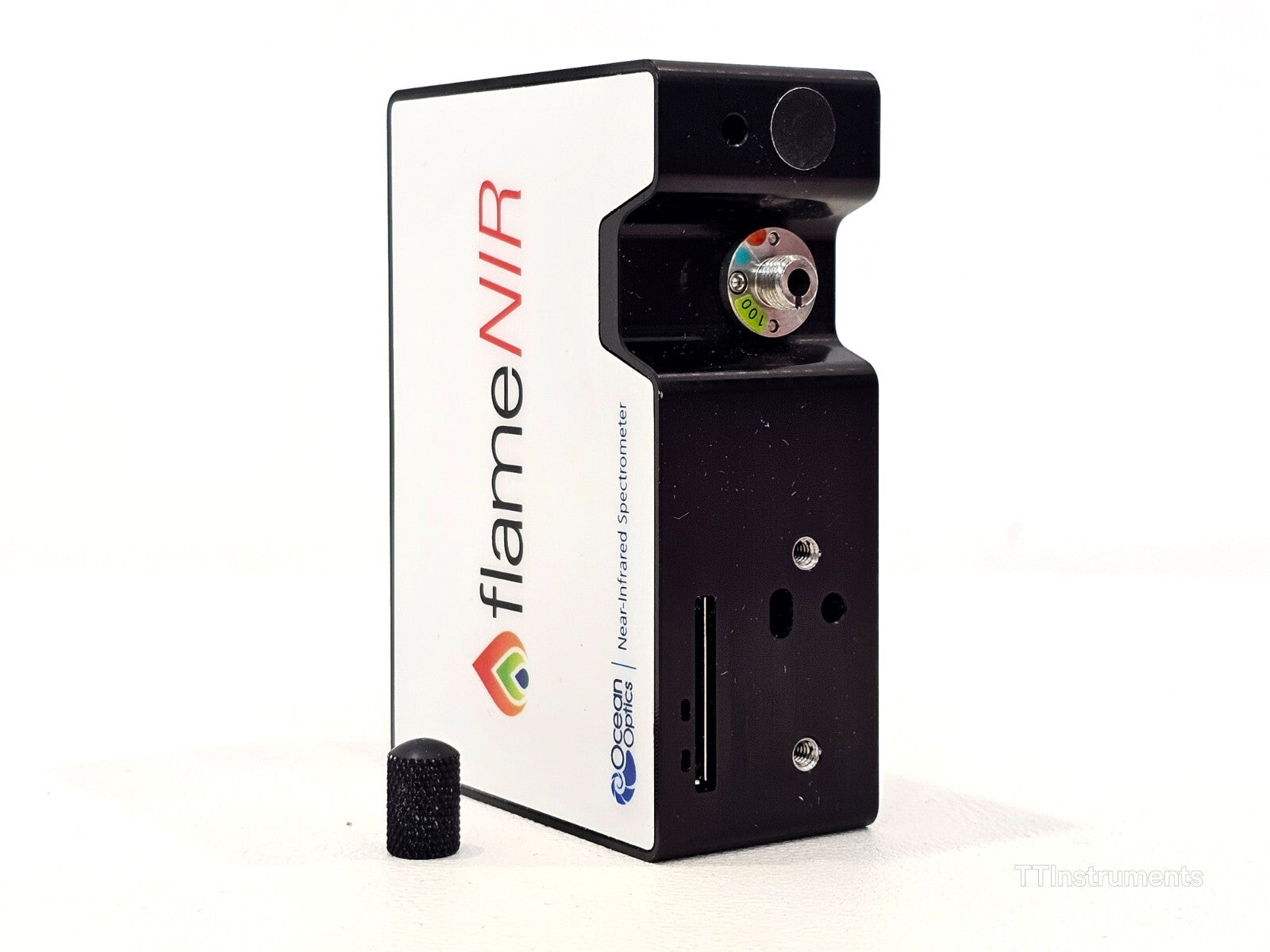

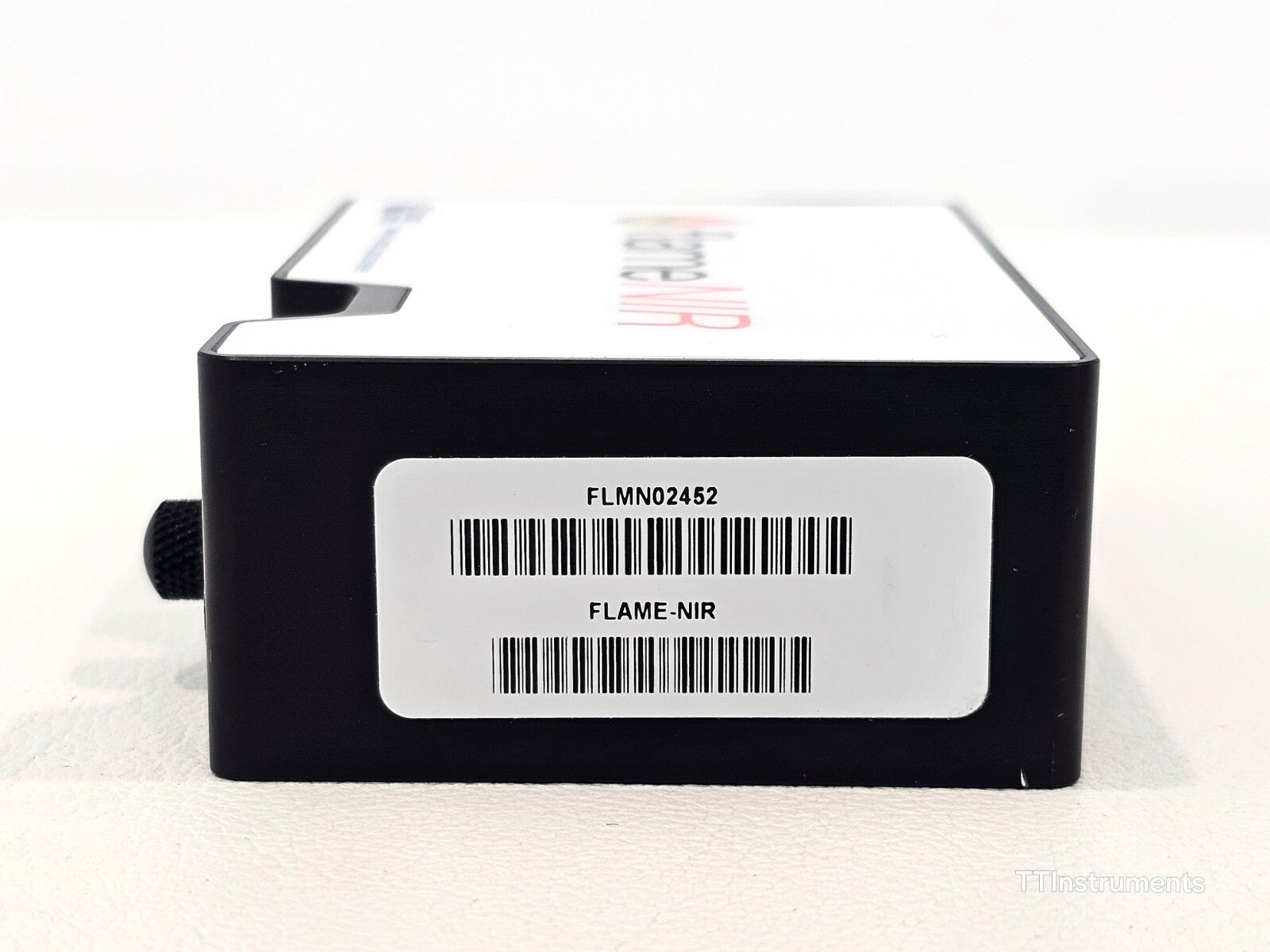

Tested and fully functional. Cosmetic imperfections are present but do not affect performance. See photos for details of the cosmetic condition.

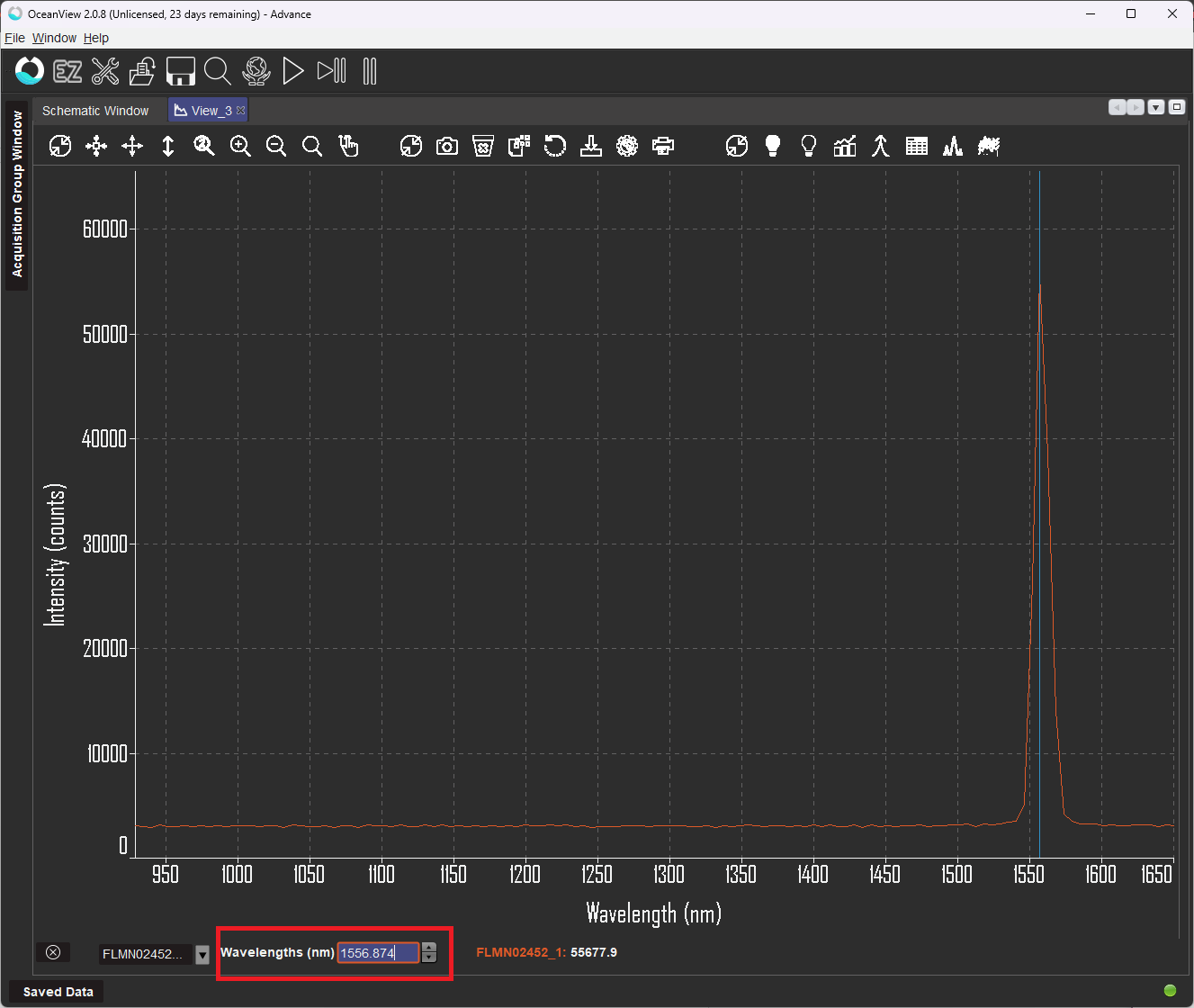

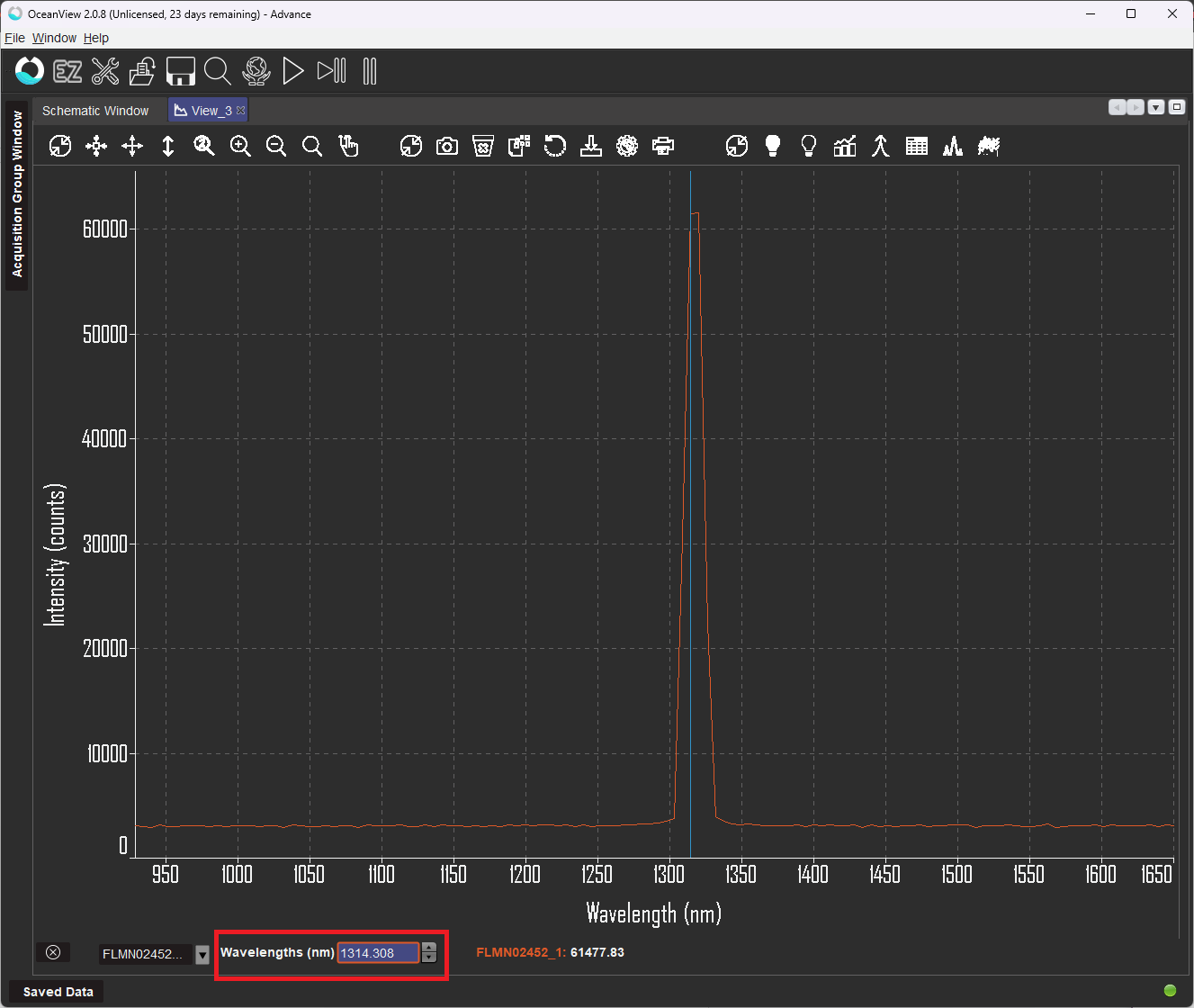

This item has been tested with a 1310 and 1550nm laser source. Please refer to images 8 and 9, showing peaks at the respective wavelengths.

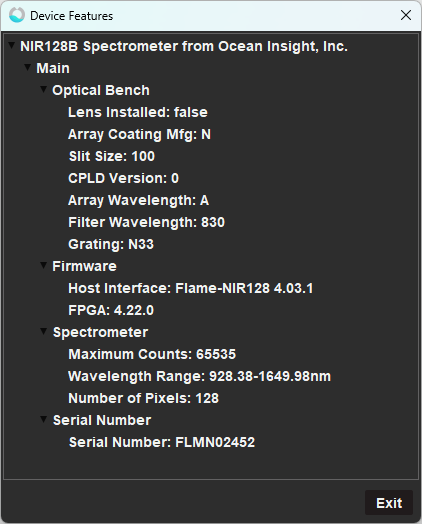

Please also refer to image 10 for the device features.

Ocean View trial software and datasheet are included on a USB stick.

The software can be used for 30 days thereafter a license can be obtained from Ocean Optics.

Alternatively, the LabView SDK or other supporting platforms can be used for bespoke applications.

Included in the sale:

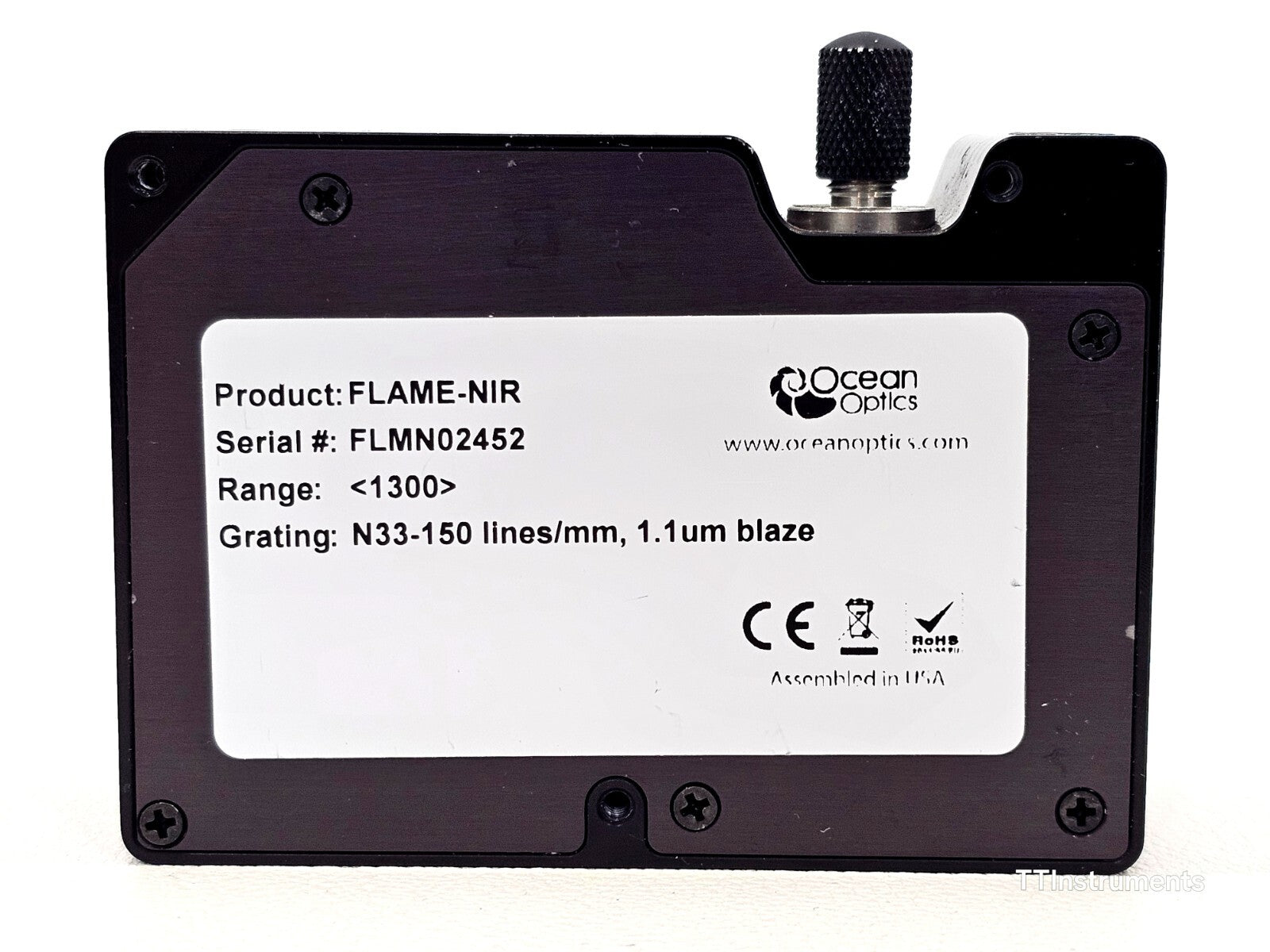

Flame-NIR NIR128B Spectrometer

USB serial cable

USB drive with software and datasheet

The Ocean Optics Flame-NIR is a high-performance miniature near-infrared spectrometer engineered to bring the power of NIR spectroscopy to the field and the factory floor. Designed for applications in the 900–1700 nm range, the Flame-NIR integrates a robust uncooled InGaAs detector into a compact, rugged optical bench, delivering exceptional performance in an affordable, portable form factor.

Its precision alignment, high thermal stability, and user-interchangeable slit design make it a versatile tool for material characterisation, process monitoring, and portable diagnostics. Whether in food quality analysis, pharmaceutical verification, or polymer sorting, the Flame-NIR offers reliable results with minimal sample preparation.

Key Features:

900–1700 nm (detector), 950–1650 nm (preconfigured)

High-sensitivity uncooled InGaAs array

~10.0 nm FWHM (with 25 µm slit)

6000:1

6000:1 (single acquisition)

0.08 nm/°C over a 670 nm range

Up to 400 Hz (with standard non-real-time OS)

USB-powered via micro-USB (5V, <250 mA)

89.1 mm x 63.3 mm x 31.9 mm; weight 265 g

User-replaceable slit design for on-the-fly resolution and throughput adjustment

Compact, rugged, and free of moving parts for field and OEM integration

Ideal for food quality (sweetness, fat content), pharmaceuticals (API ID), NIR laser analysis, and chemical process control
