Condition: Used

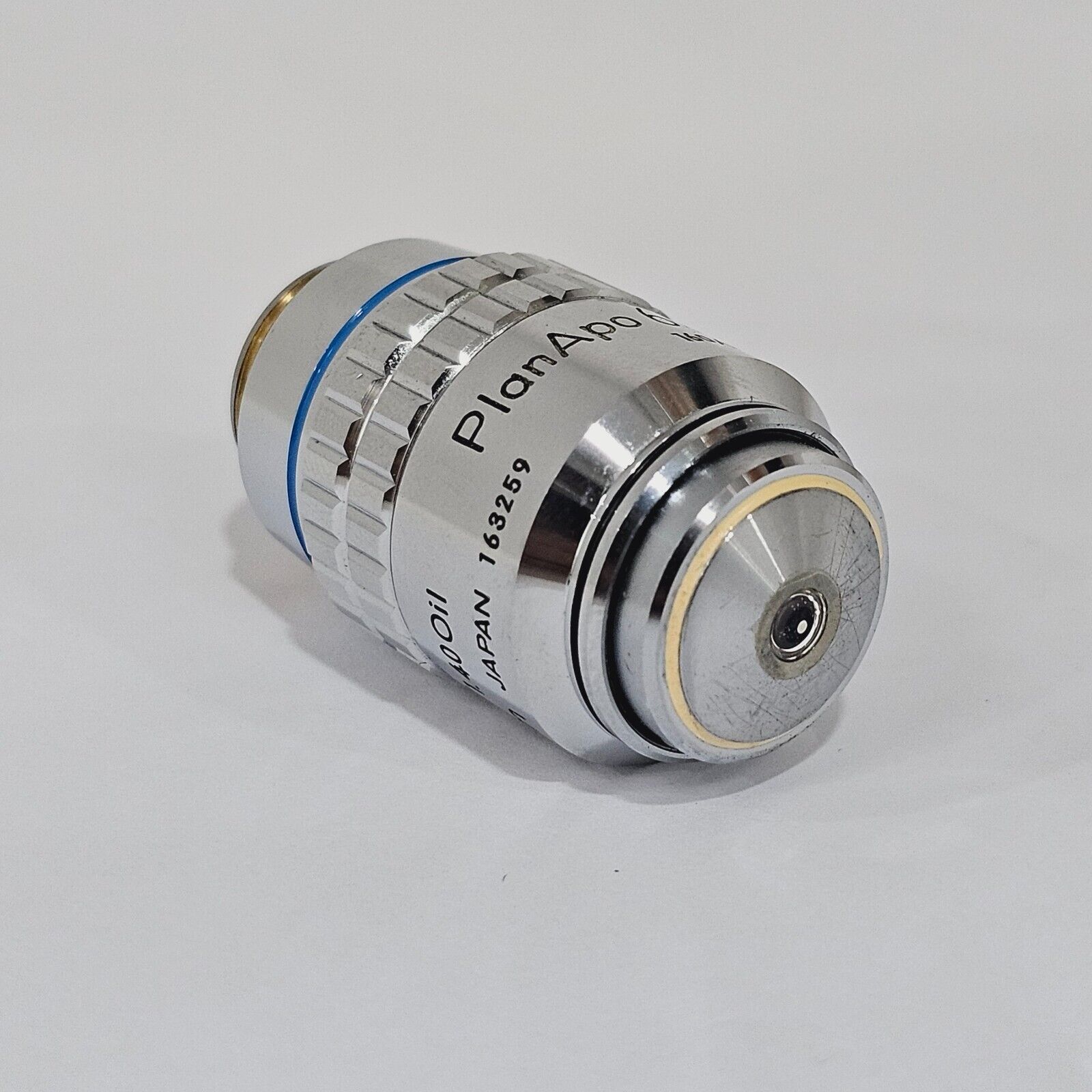

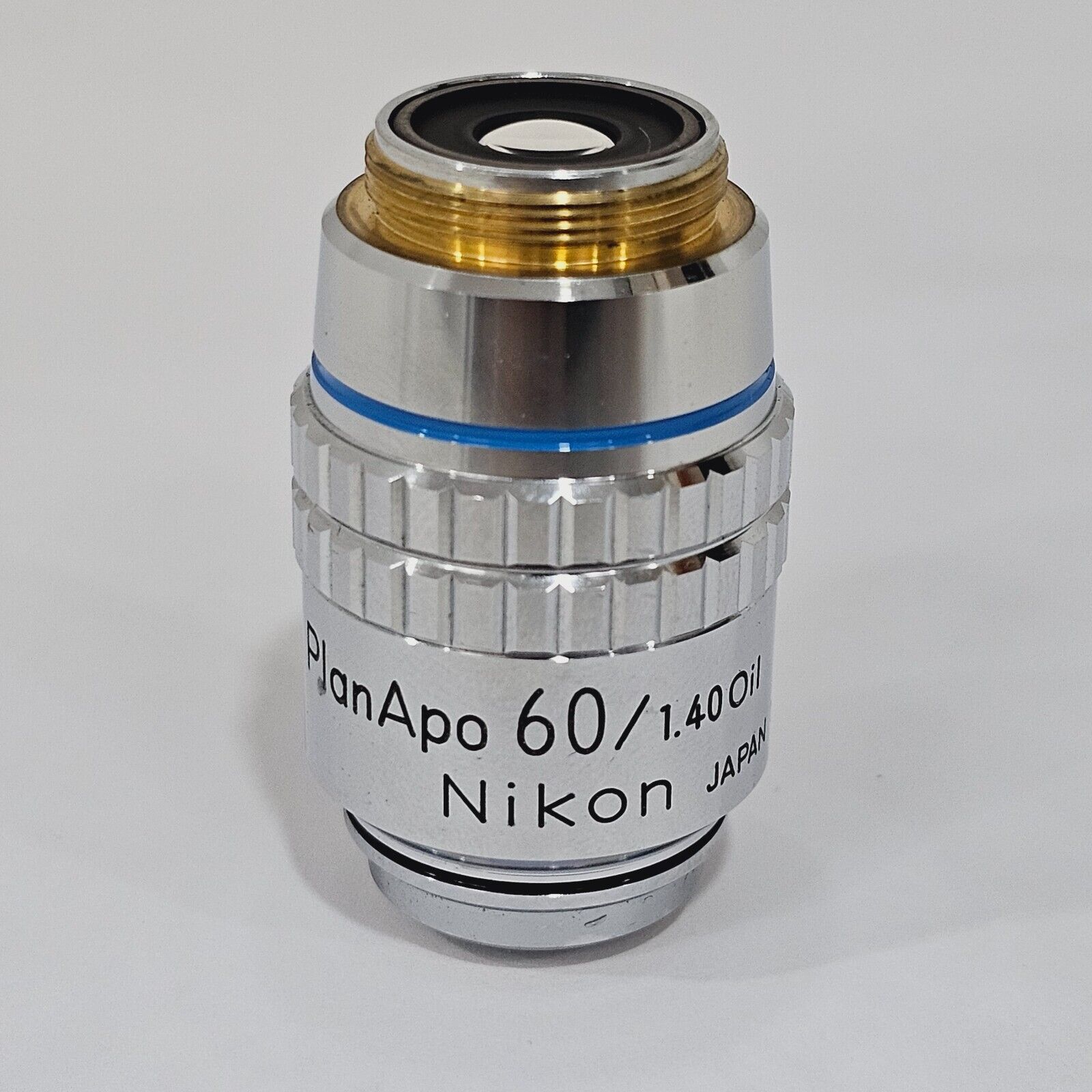

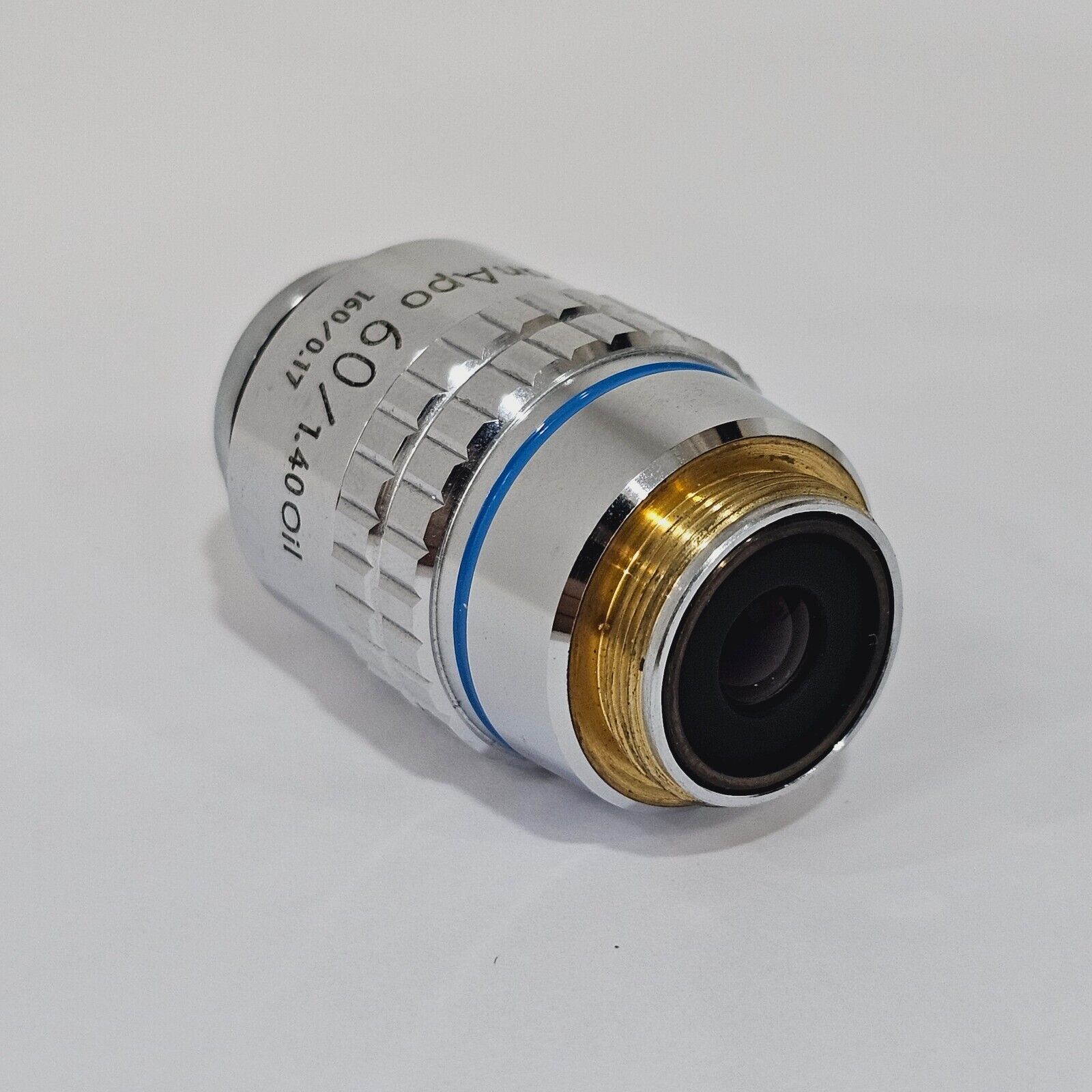

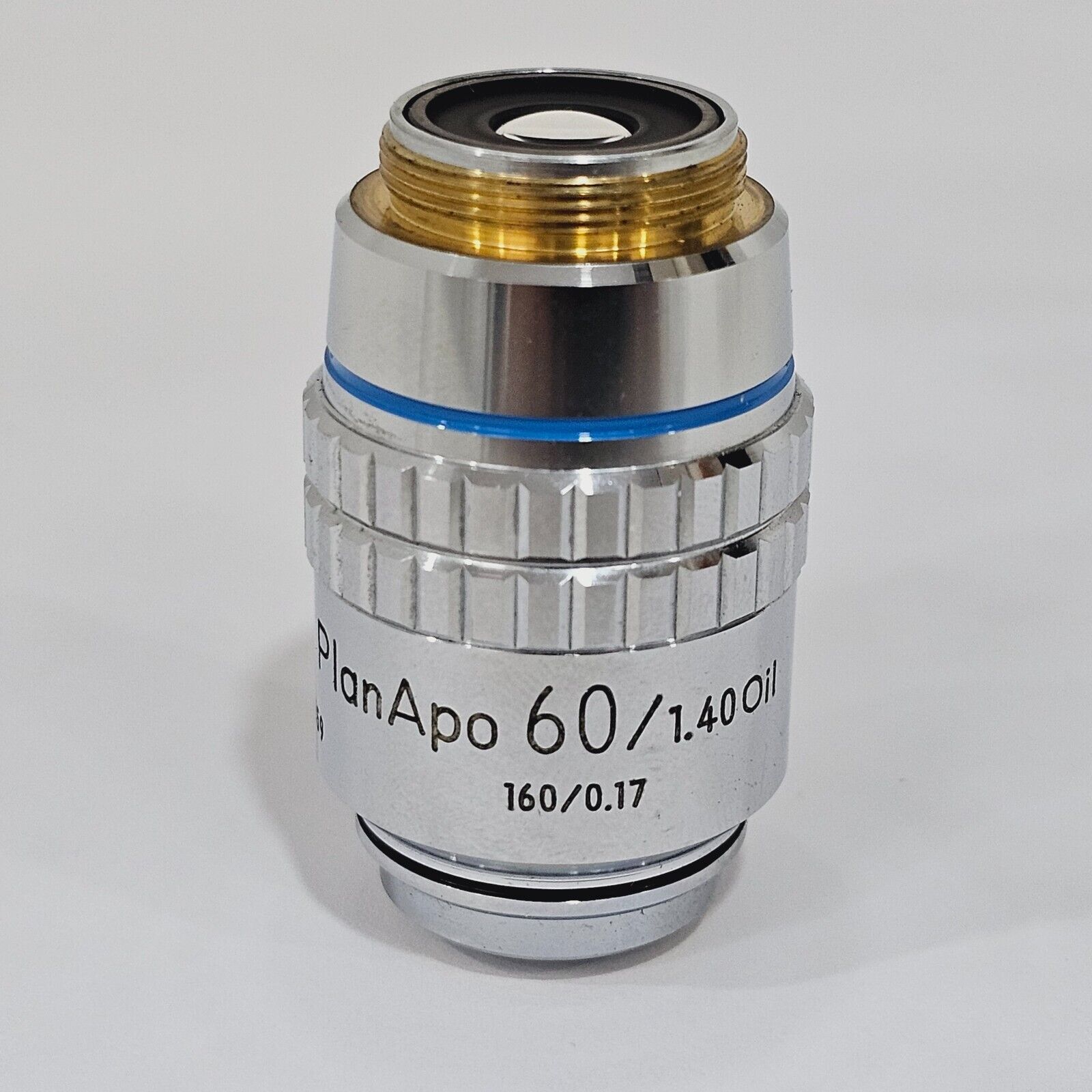

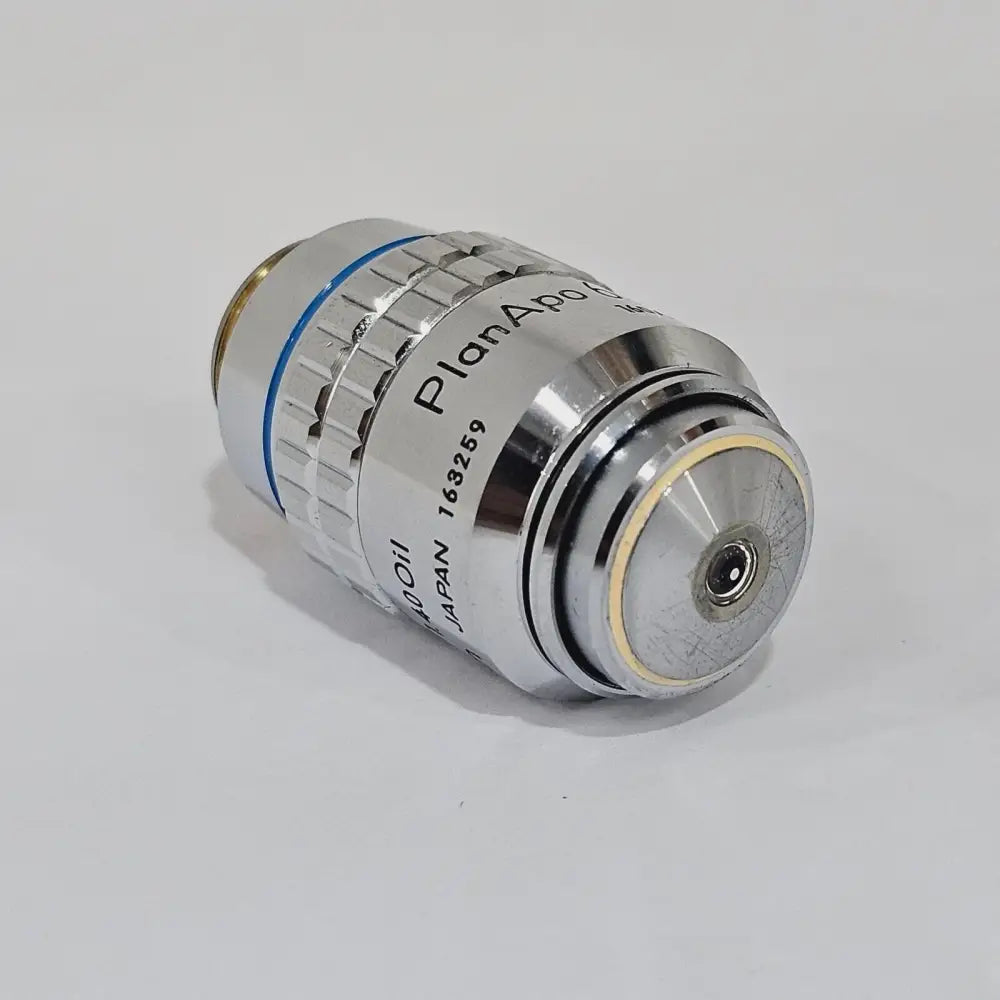

The Nikon PlanAPO 60/1.40 Oil 160/0.17 is a high-performance finite tube-length oil immersion objective featuring full plan apochromatic correction, 60x magnification, and a numerical aperture of 1.40. Designed for 160mm tube-length microscopes with a standard RMS thread, it is suited to brightfield, fluorescence, and DIC microscopy applications.

Typically supplied with:
• Nikon PlanAPO 60/1.40 Oil 160/0.17 microscope objective

The Nikon Plan Apochromat (PlanAPO) 60x 1.40 Oil is a finite tube-length objective representing the highest class of optical correction available in light microscopy. Plan Apochromat objectives provide full correction for both chromatic (colour) and spherical aberrations across the visible wavelength range, as well as flat-field (plan) correction to ensure sharp focus from the centre to the edge of the image field.

This objective uses oil immersion with a refractive index of 1.51, enabling it to achieve a numerical aperture of 1.40 — one of the highest attainable in modern compound microscopy. The high NA delivers exceptional resolving power, making it highly suitable for sub-cellular imaging, fluorescence microscopy, and differential interference contrast (DIC) applications.

Designed for the 160mm mechanical tube length standard (historically used by Nikon, Olympus, and Zeiss), the objective uses a standard Royal Microscopical Society (RMS) thread mount. It is corrected for use with a 0.17mm coverslip (No. 1.5).

Specification Name: Value
Magnification: 60x
Numerical Aperture (NA): 1.40
Immersion Medium: Oil (refractive index 1.51)
Optical Correction: Plan Apochromat
Tube Length: 160mm (finite)
Cover Glass Thickness: 0.17mm
Thread Type: RMS (Royal Microscopical Society)
Typical Working Distance: ~0.21mm
Applications: Brightfield, fluorescence, DIC, live-cell imaging, subcellular imaging

This objective is compatible with older Nikon finite-tube microscopes such as the Optiphot, Labophot, and Microphot series, as well as any RMS-threaded 160mm tube-length microscope body from other manufacturers. It is not interchangeable with infinity-corrected (CFI) objectives.

Nikon Microscope Objectives for Bioscience — product brochure covering CFI and finite objective series: Download PDF

Nikon Objectives reference PDF — Janelia Research Campus objective specification listing: Download PDF
