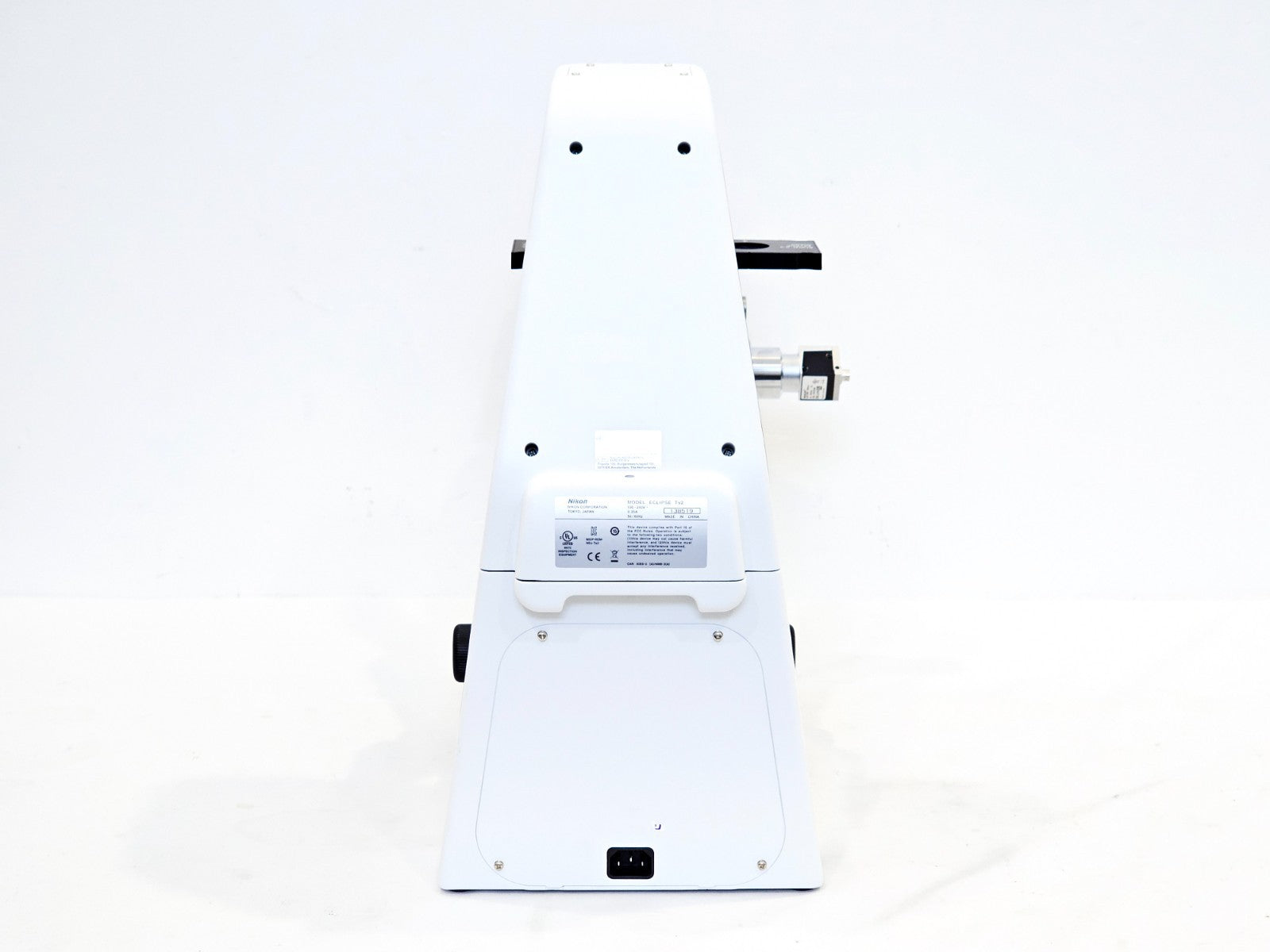

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

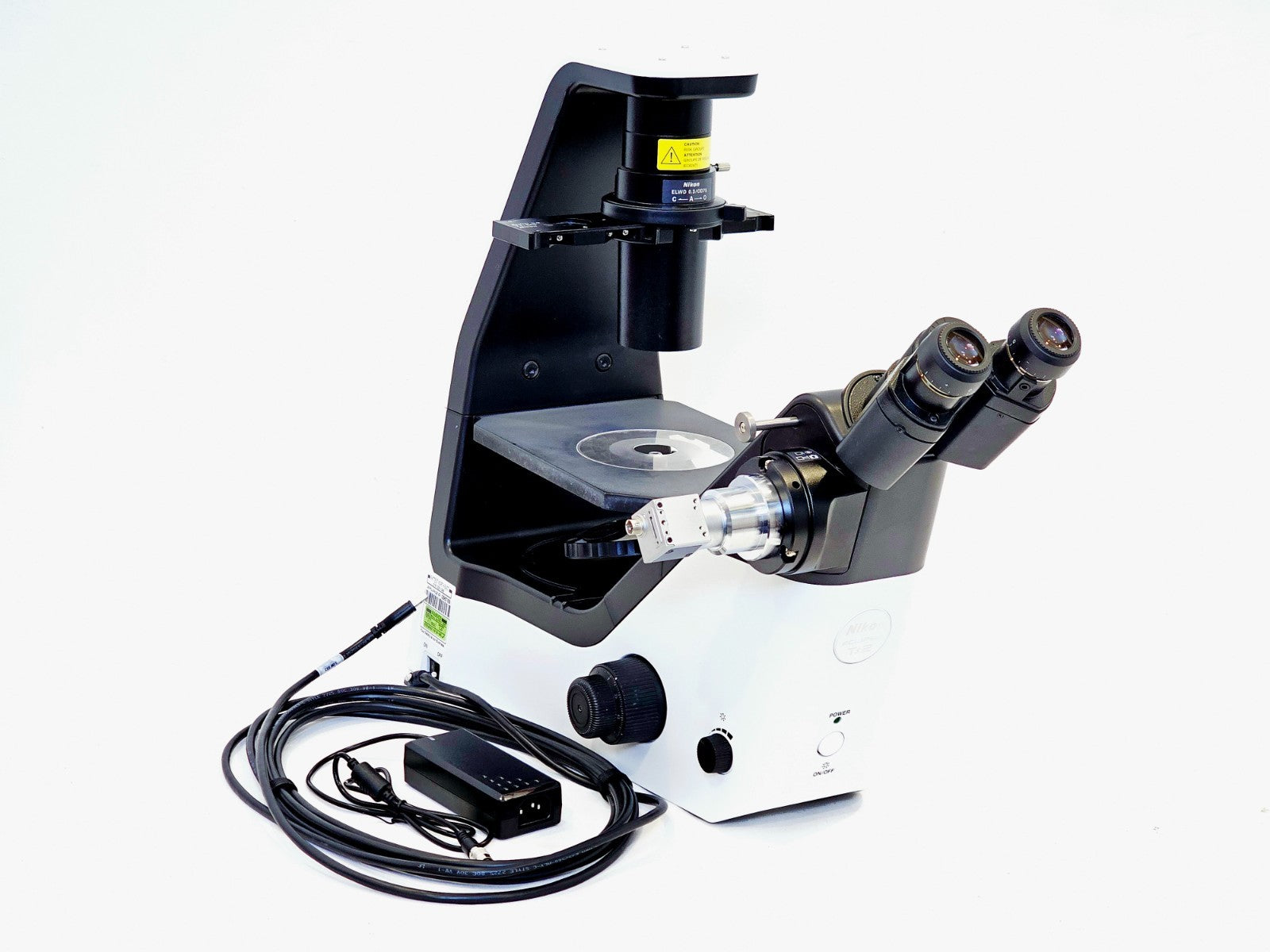

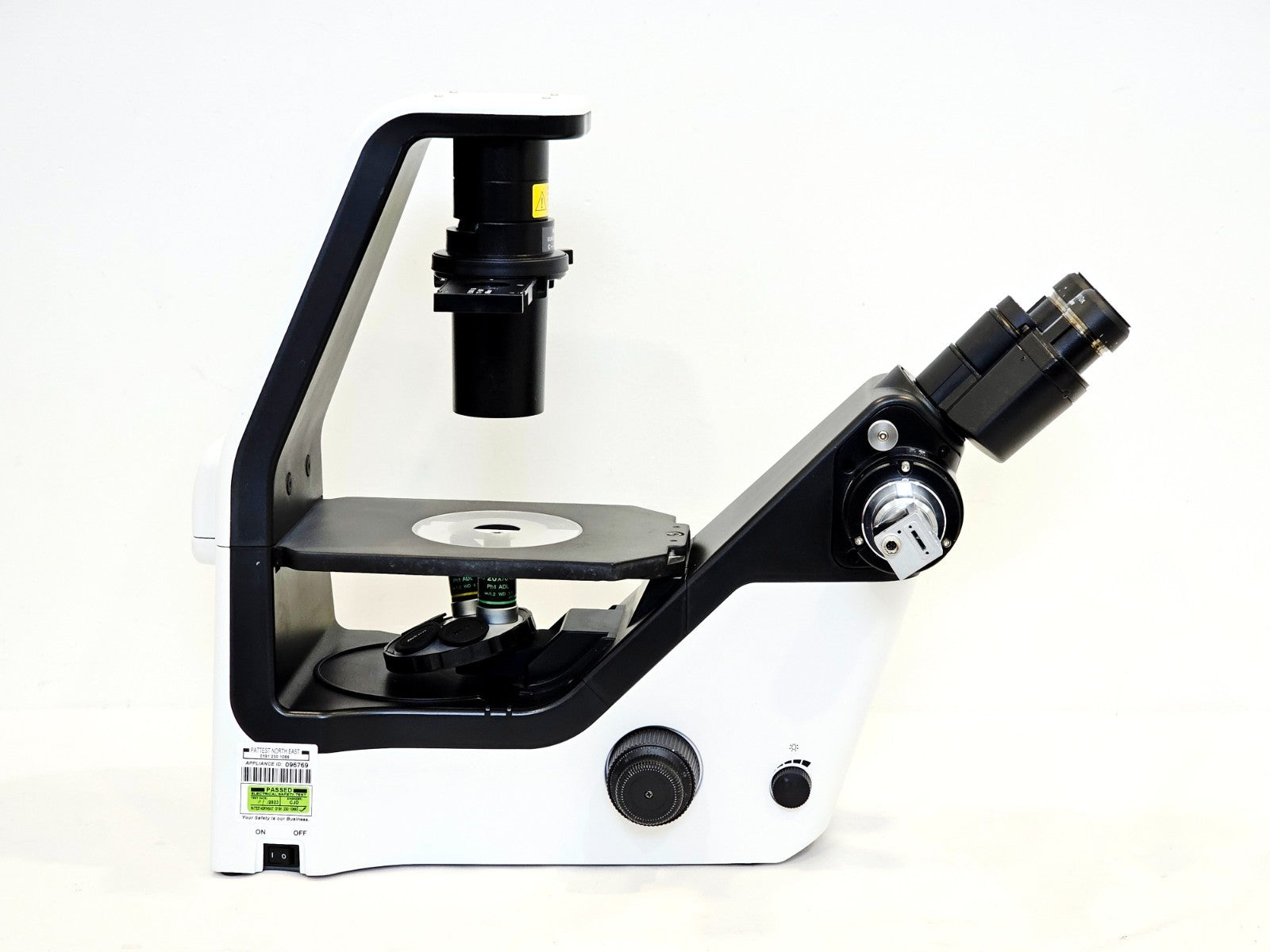

This Nikon Eclipse Ts2 inverted microscope is in used, very good cosmetic condition and has been fully tested and confirmed working. It has also been PAT tested and passed.

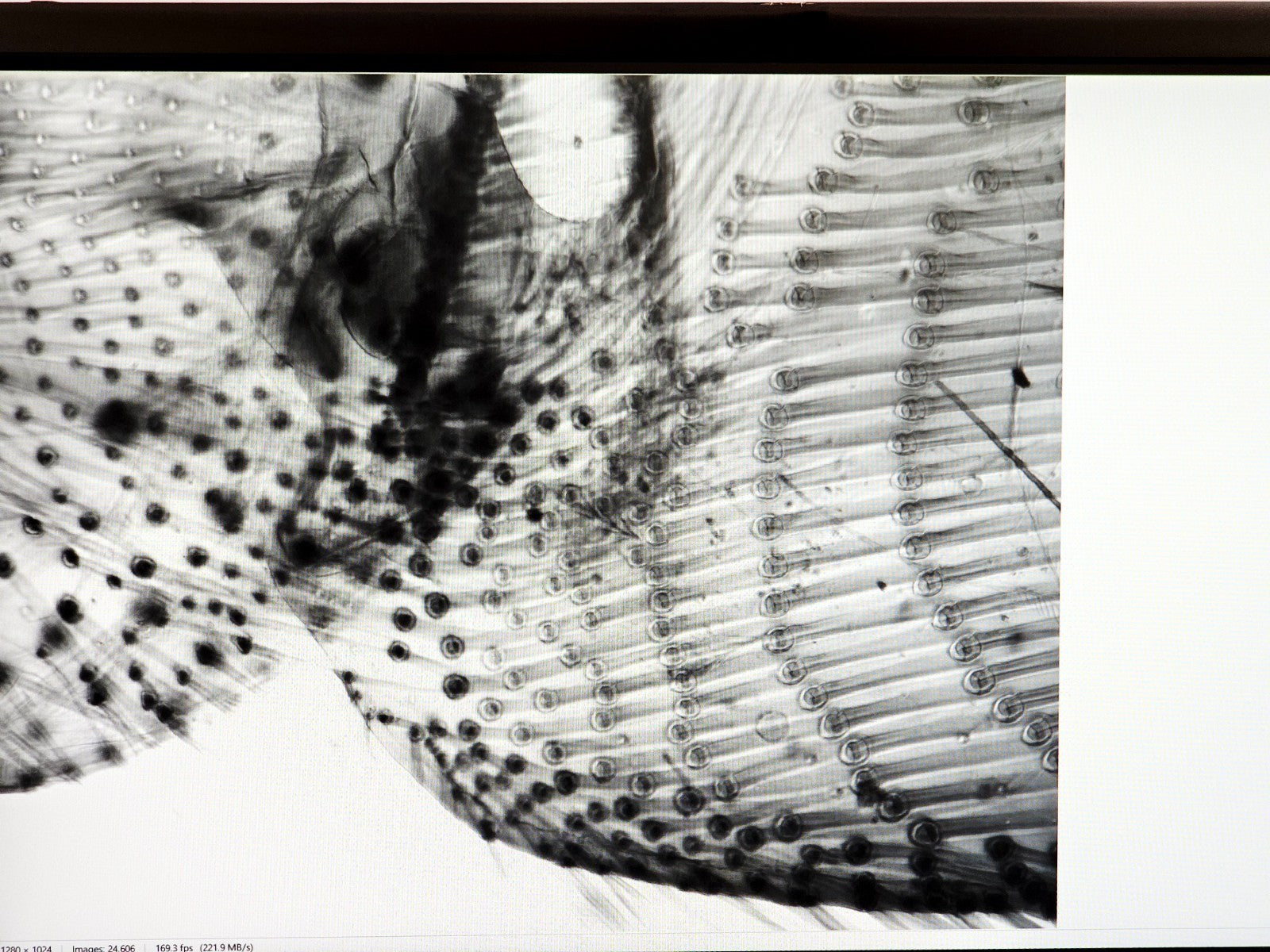

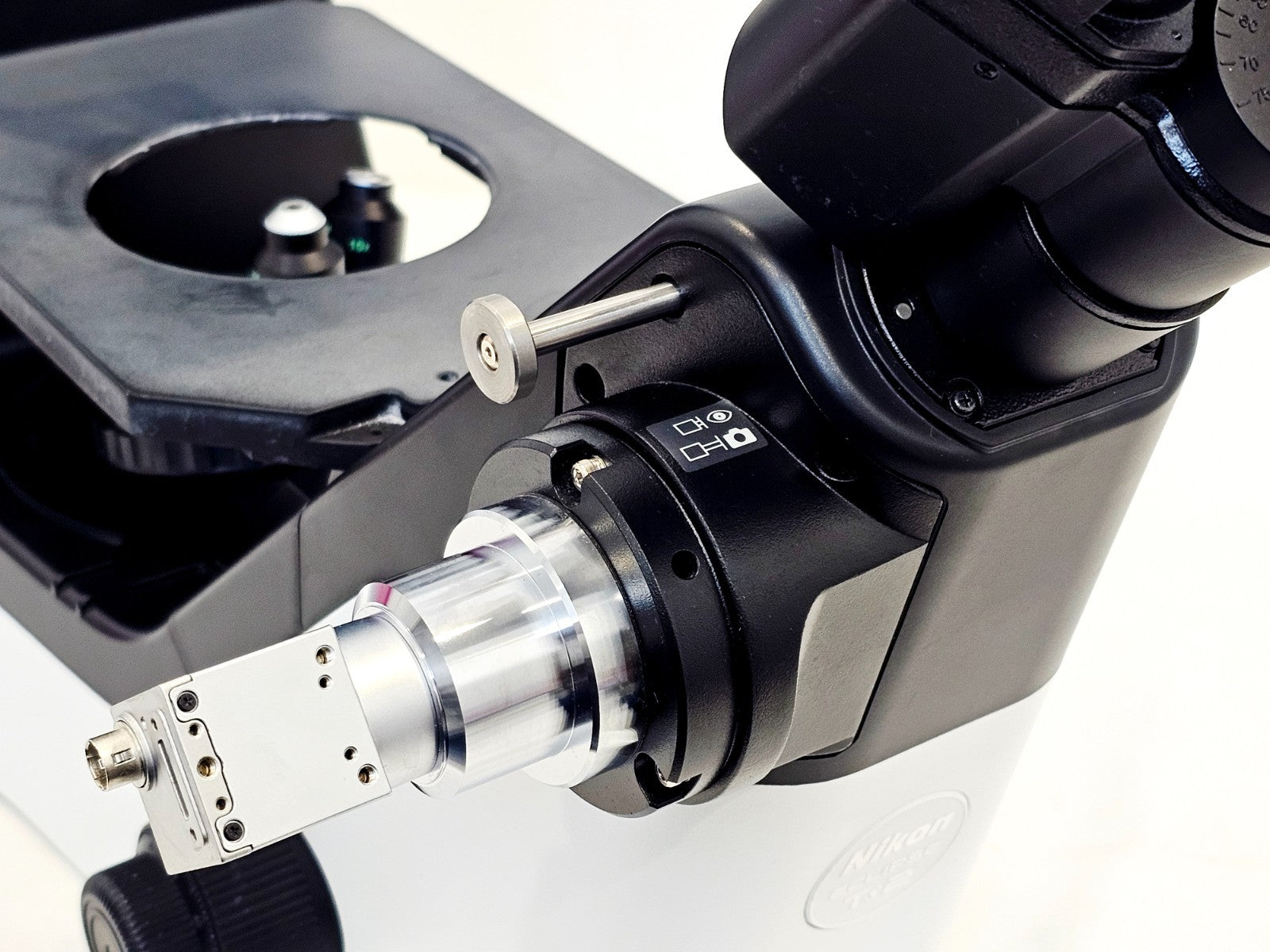

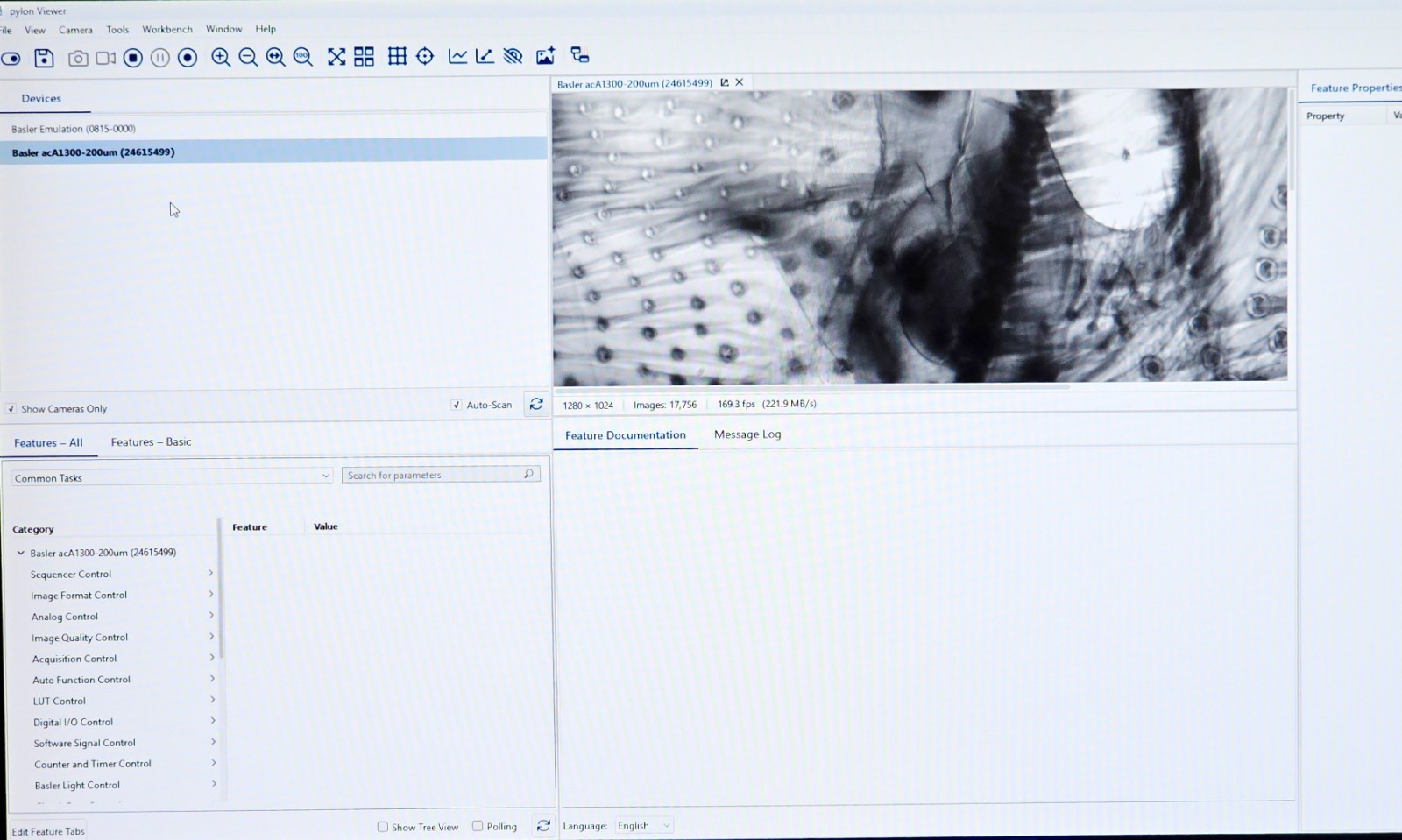

The microscope is configured for phase contrast and brightfield observation using Nikon's CFI60 infinity-corrected optical system with a built-in high-intensity white LED diascopic illuminator. The side camera port is fitted with a Basler acA1300-200um monochrome USB 3.0 camera via a C-mount adapter; live imaging was verified using Basler pylon Viewer software at 1280 × 1024 resolution and 169 fps.

The unit includes the following:

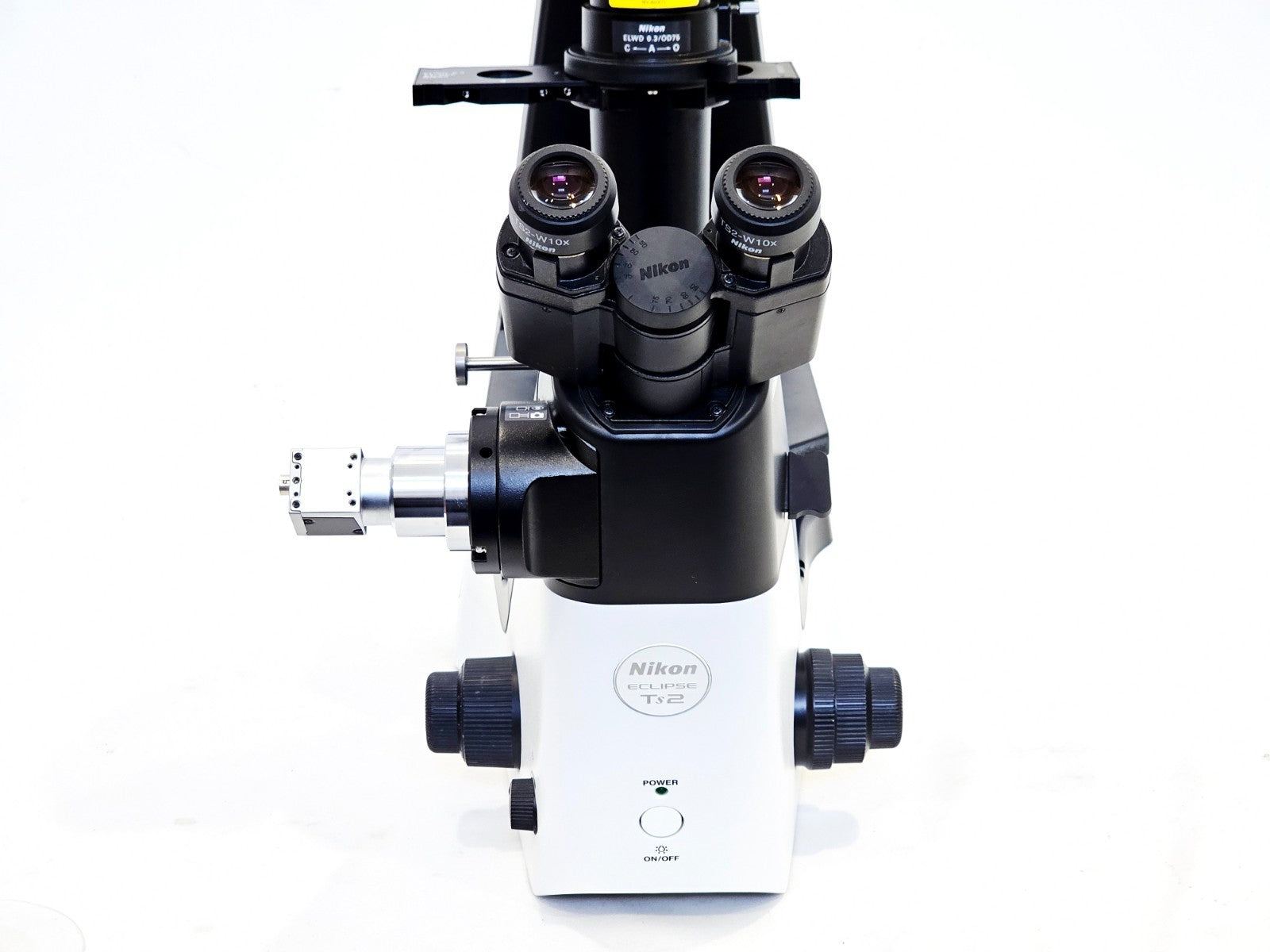

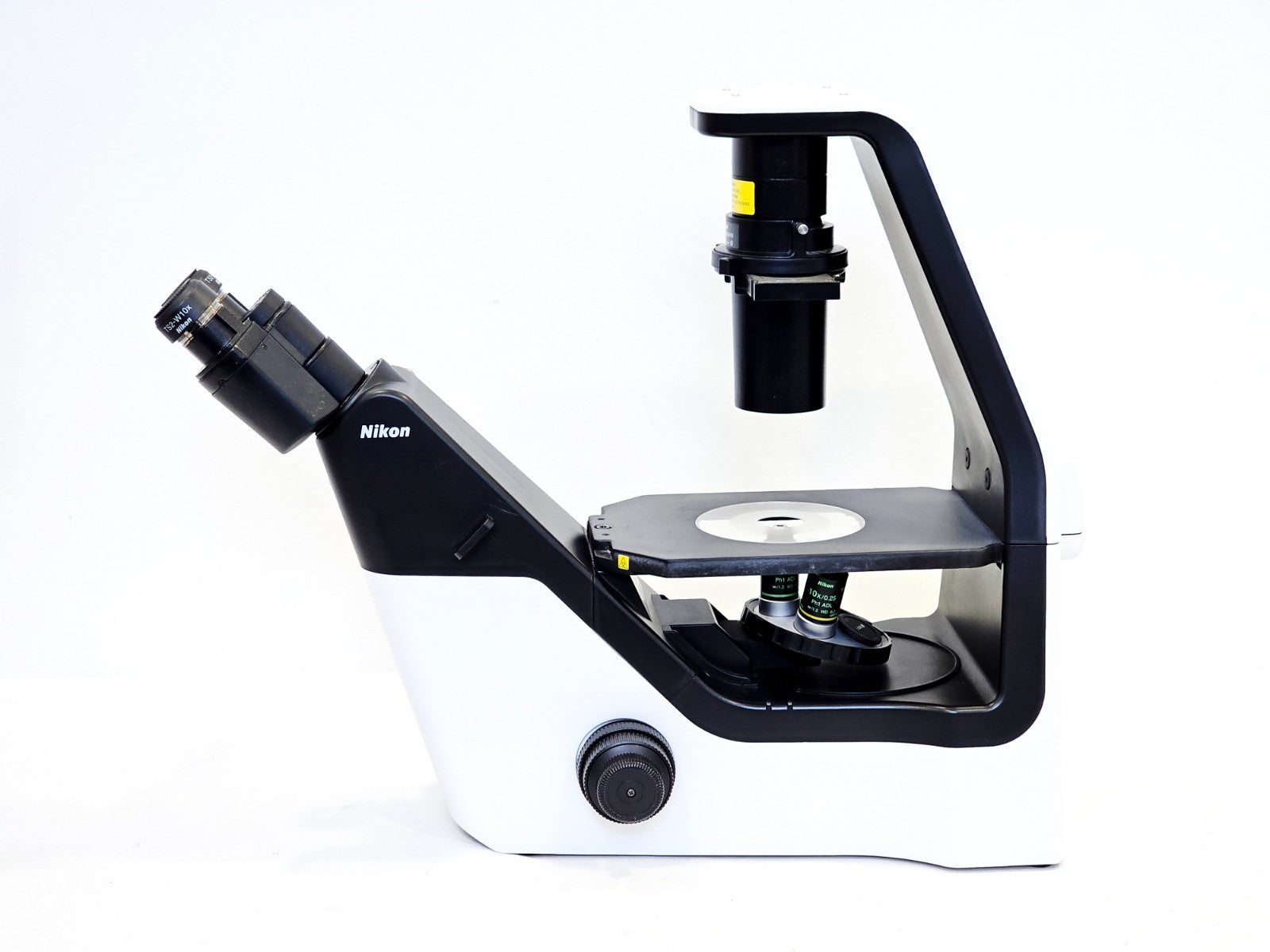

• Nikon Eclipse Ts2 inverted microscope main body

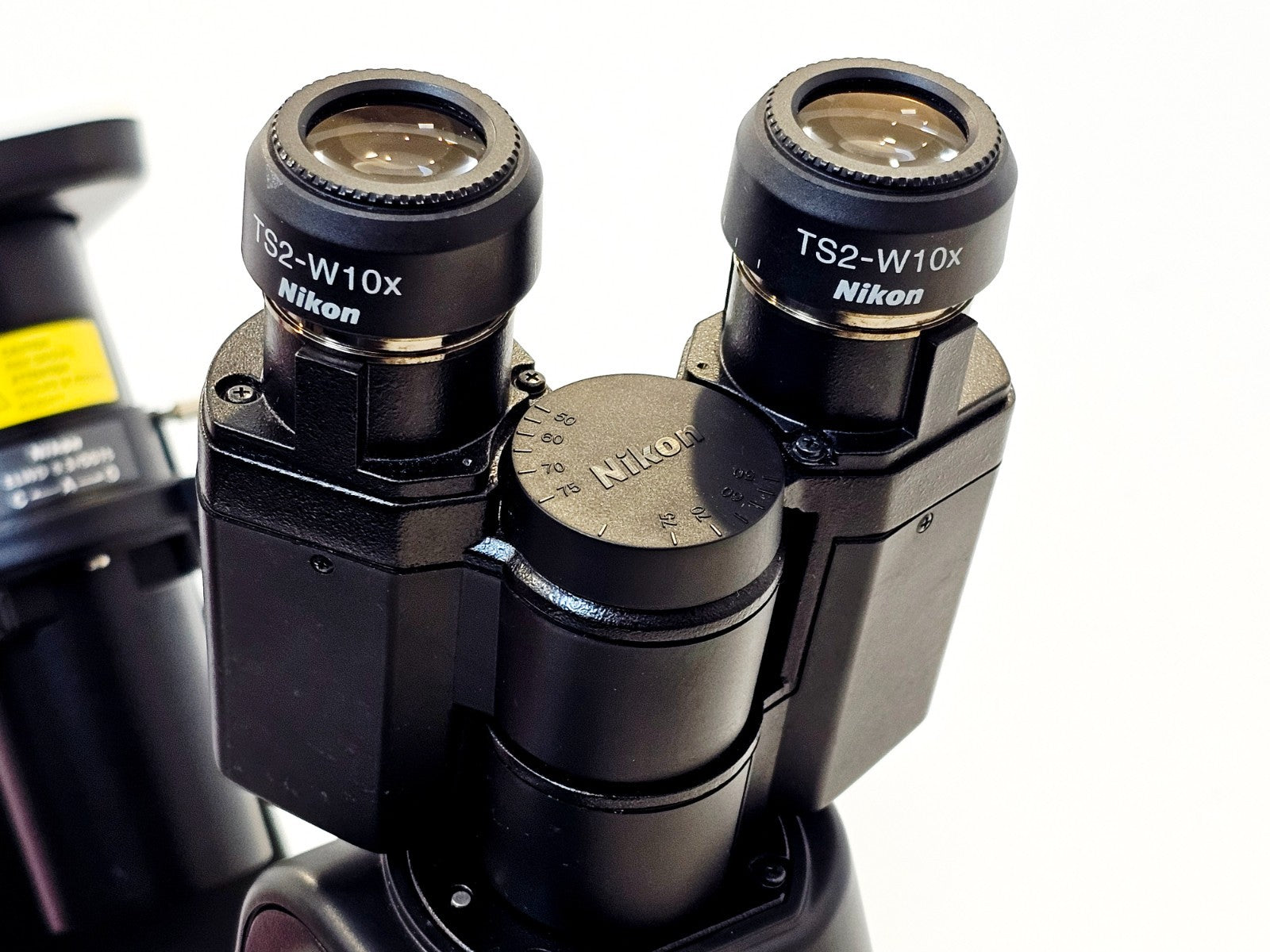

• Nikon TS2-W10x binocular eyepiece pair

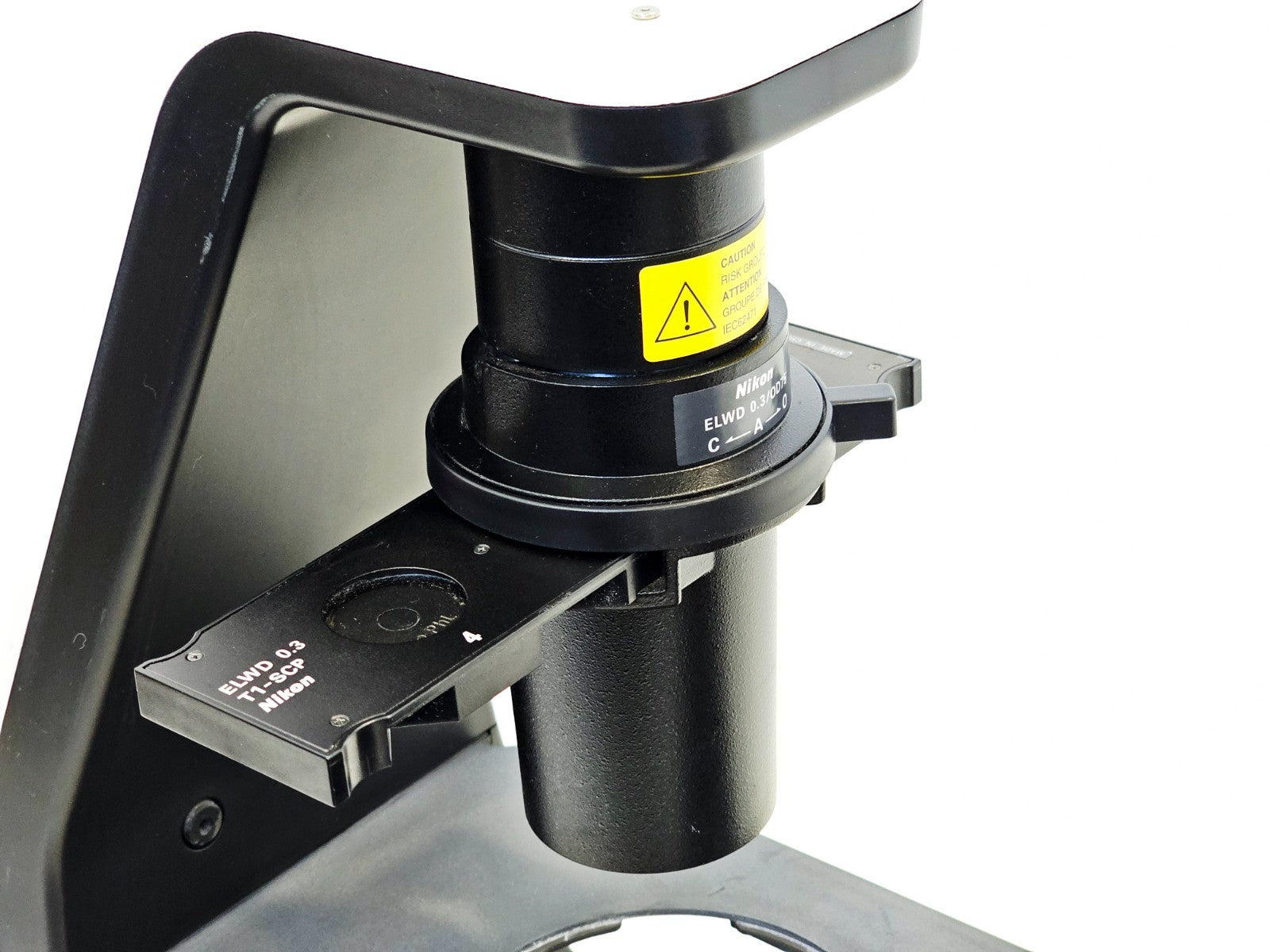

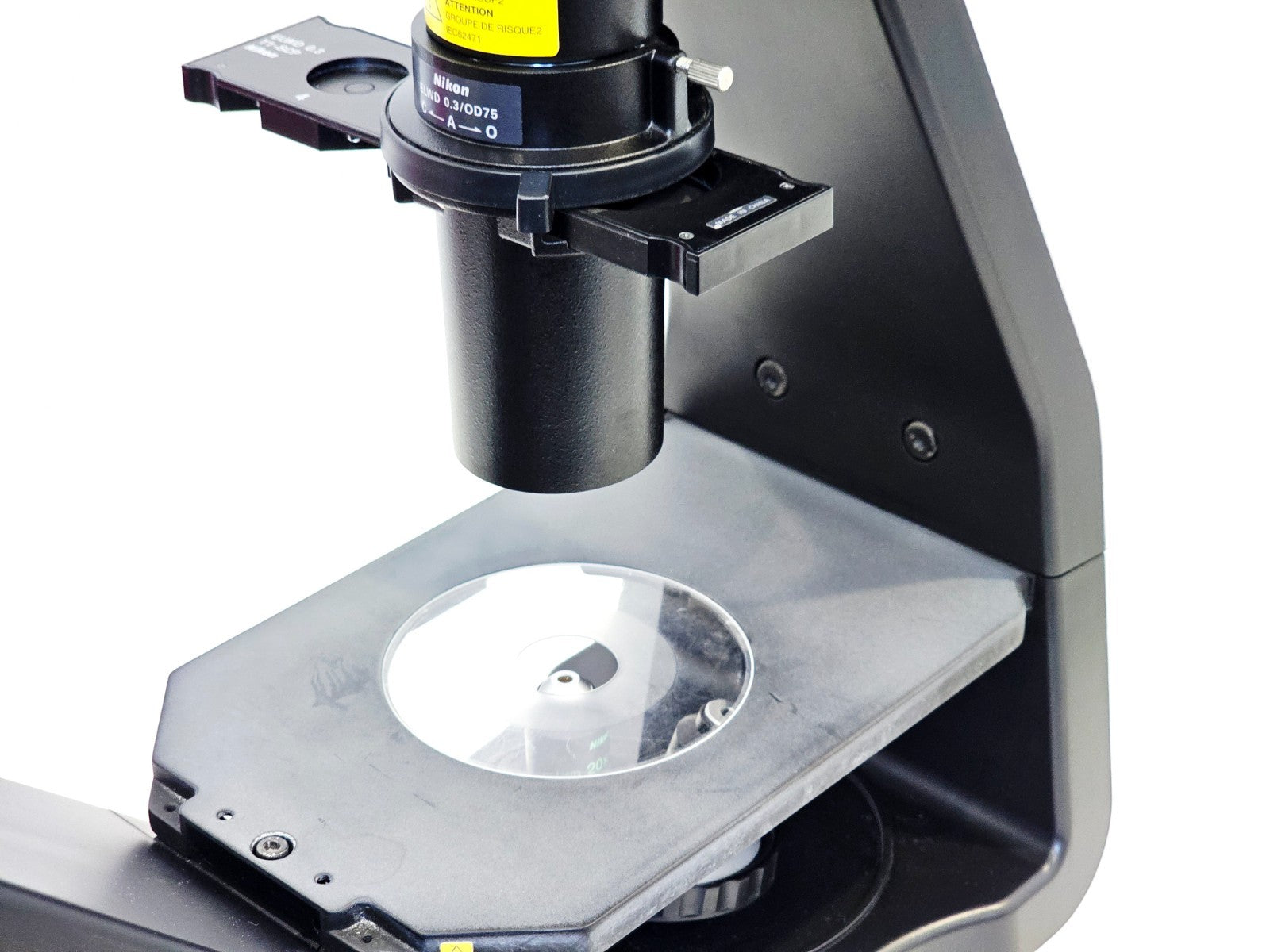

• Nikon ELWD 0.3/OD75 condenser
• Nikon ELWD 0.3 T1-SCP phase contrast slider

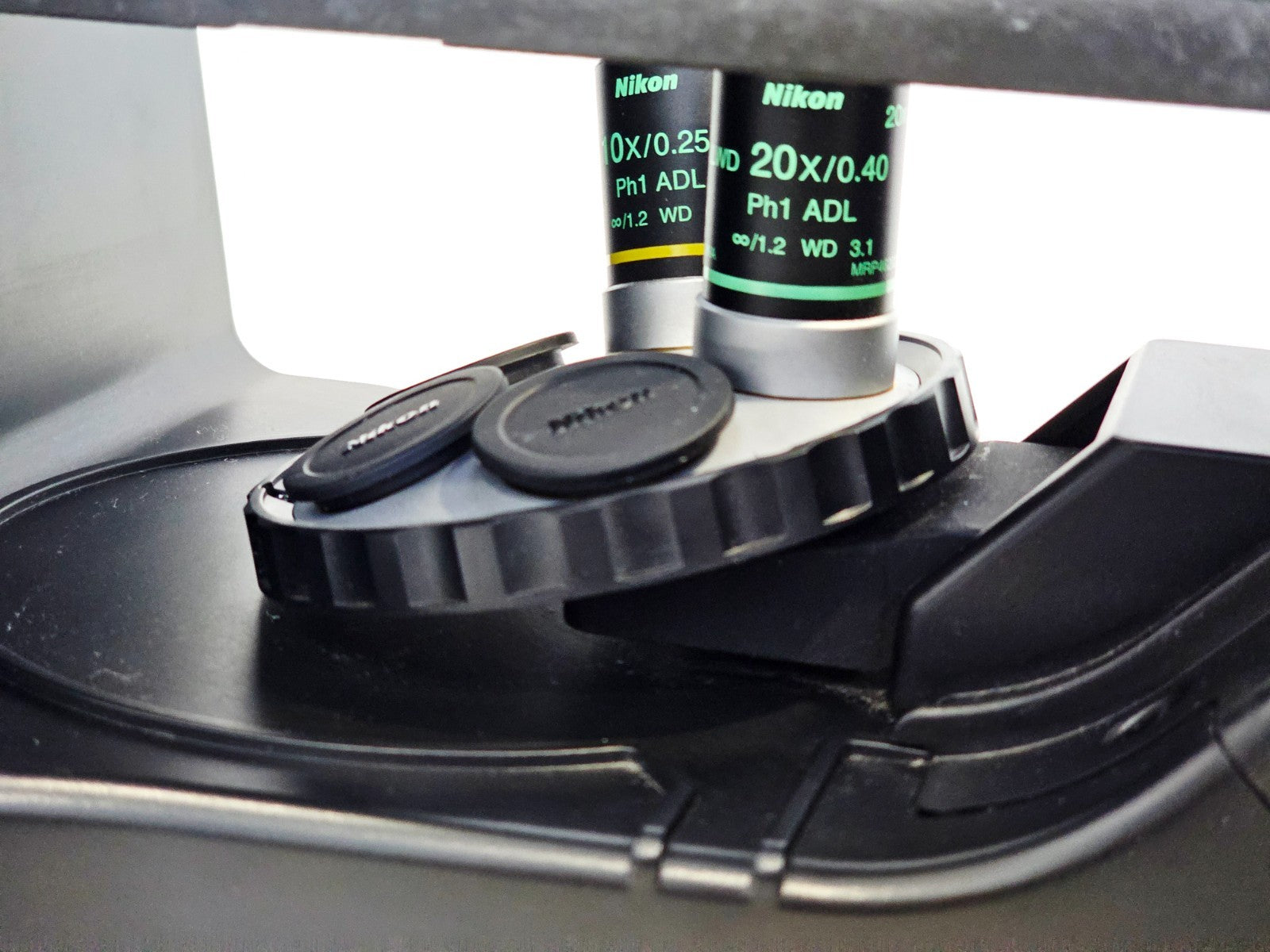

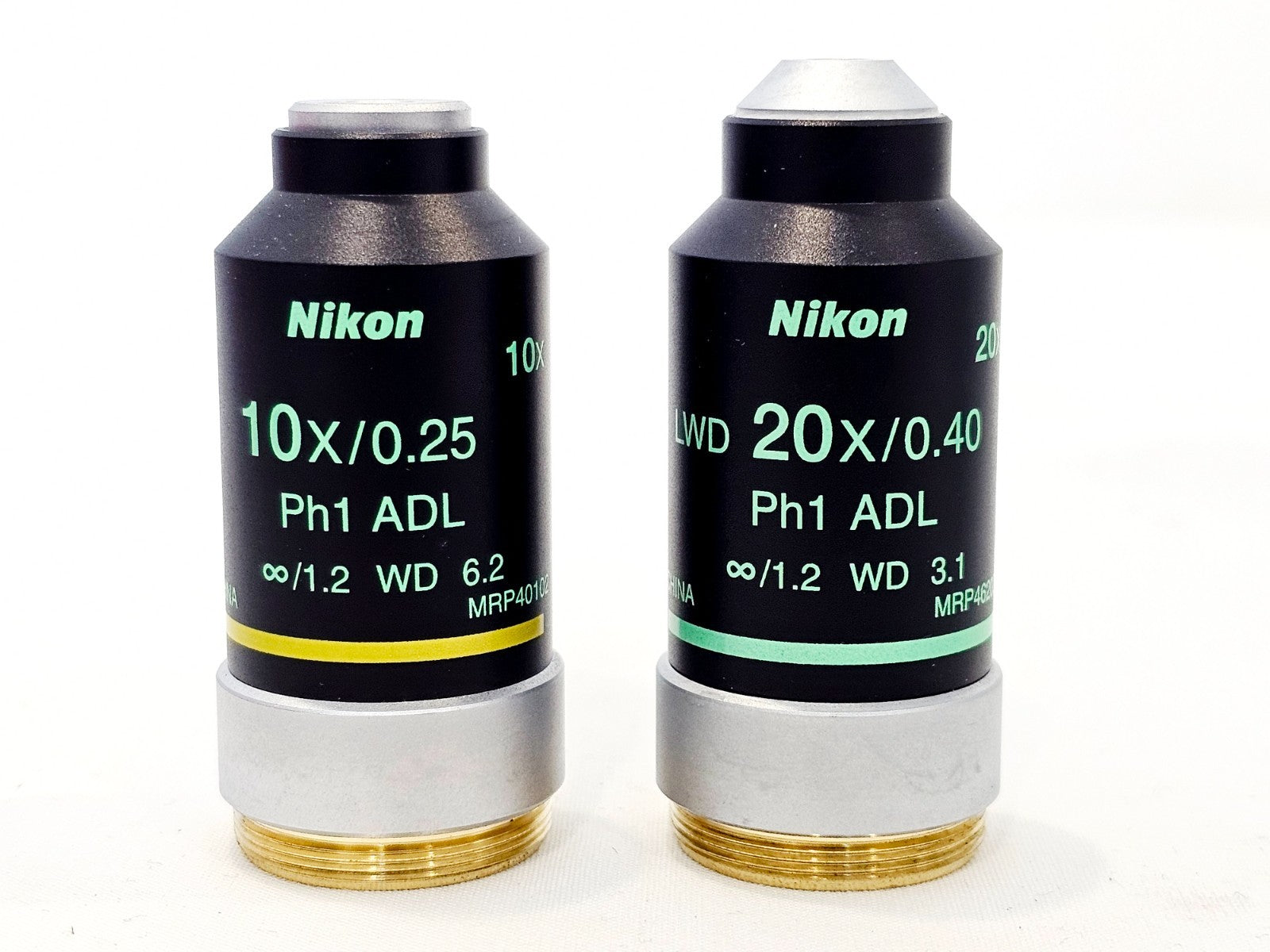

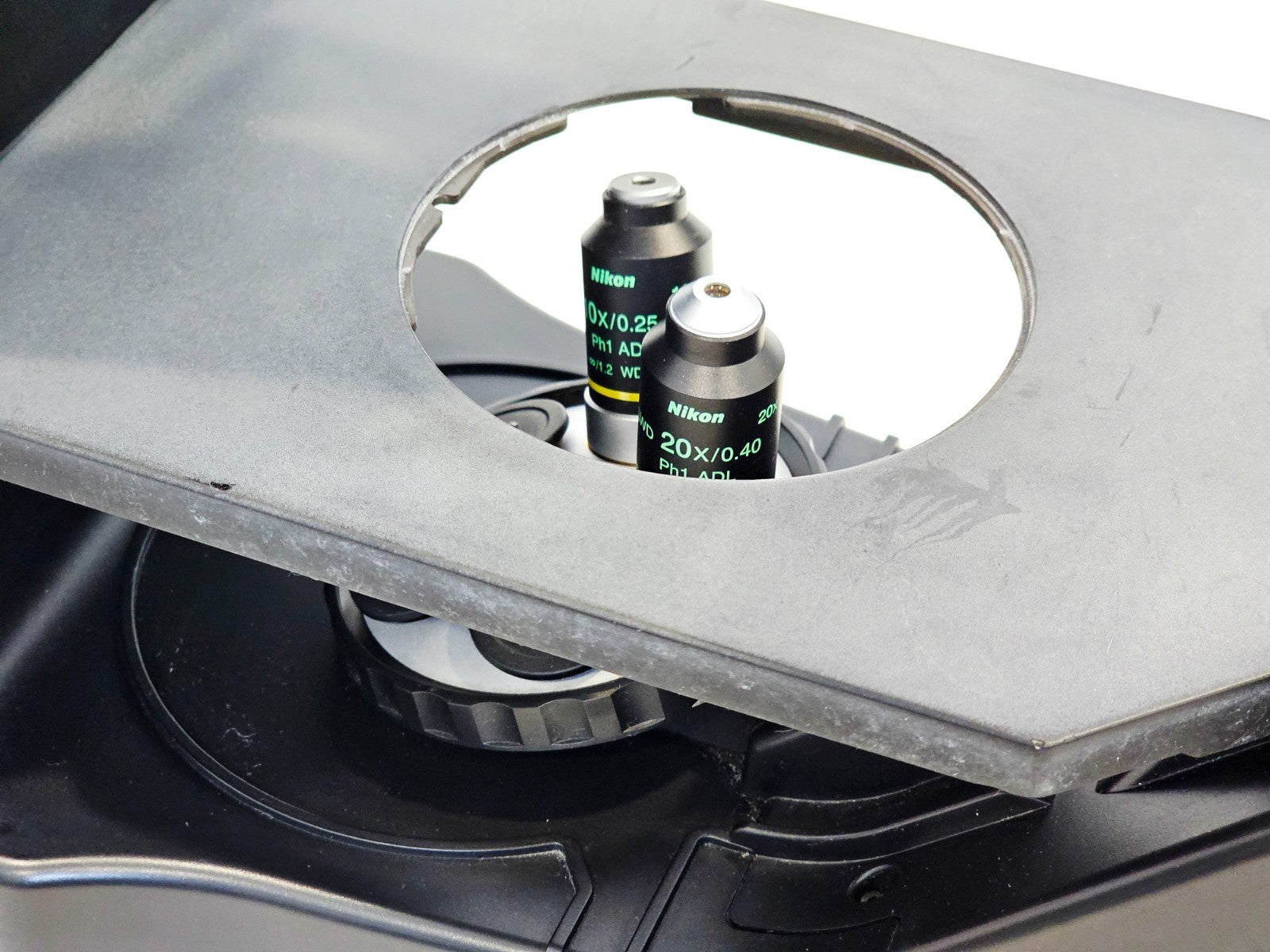

• Nikon CFI 10x/0.25 Ph1 ADL infinity-corrected objective (WD 6.2 mm)
• Nikon CFI LWD 20x/0.40 Ph1 ADL infinity-corrected objective (WD 3.1 mm)

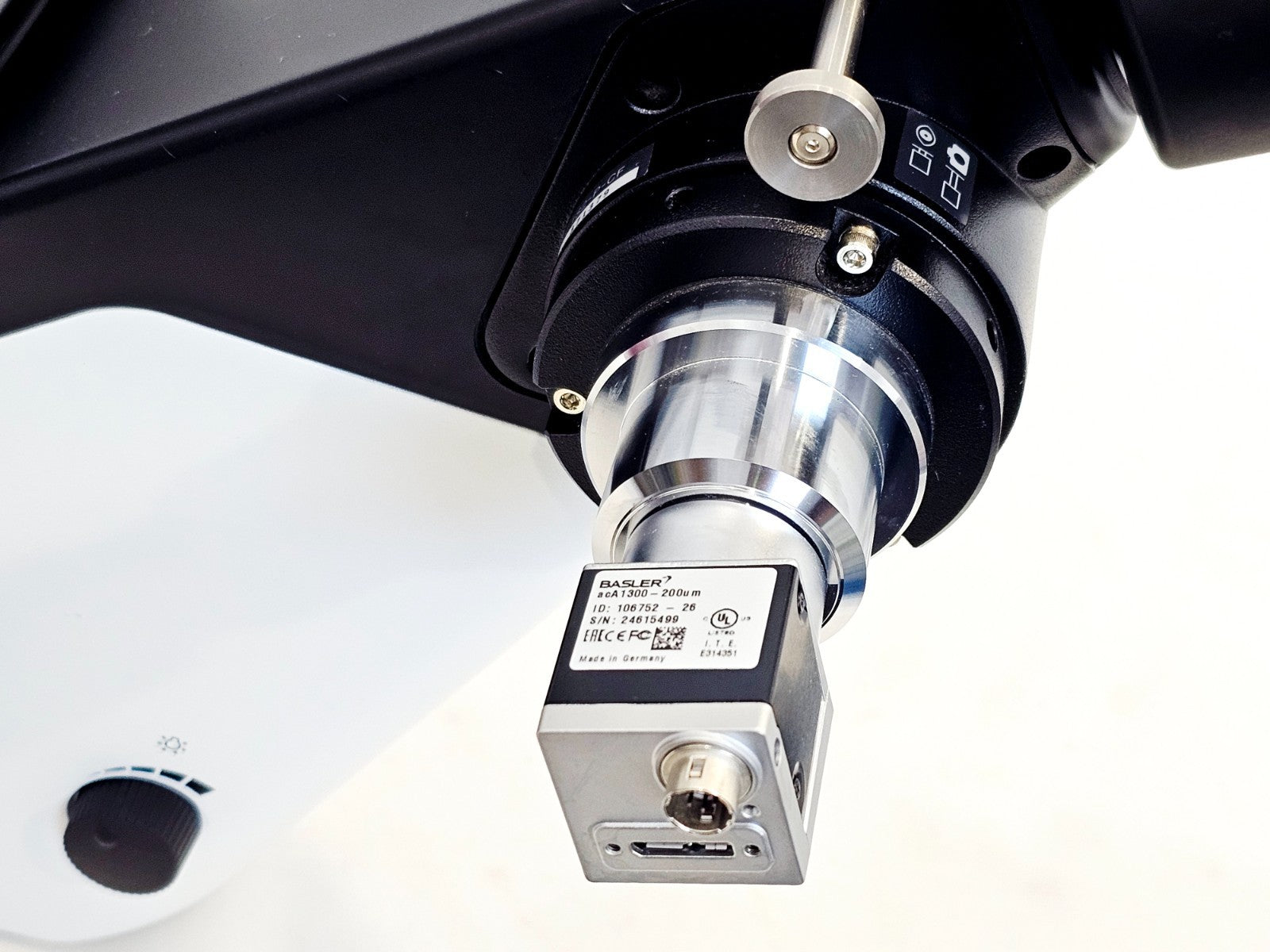

• Basler acA1300-200um USB 3.0 monochrome camera (mounted via C-mount adapter)

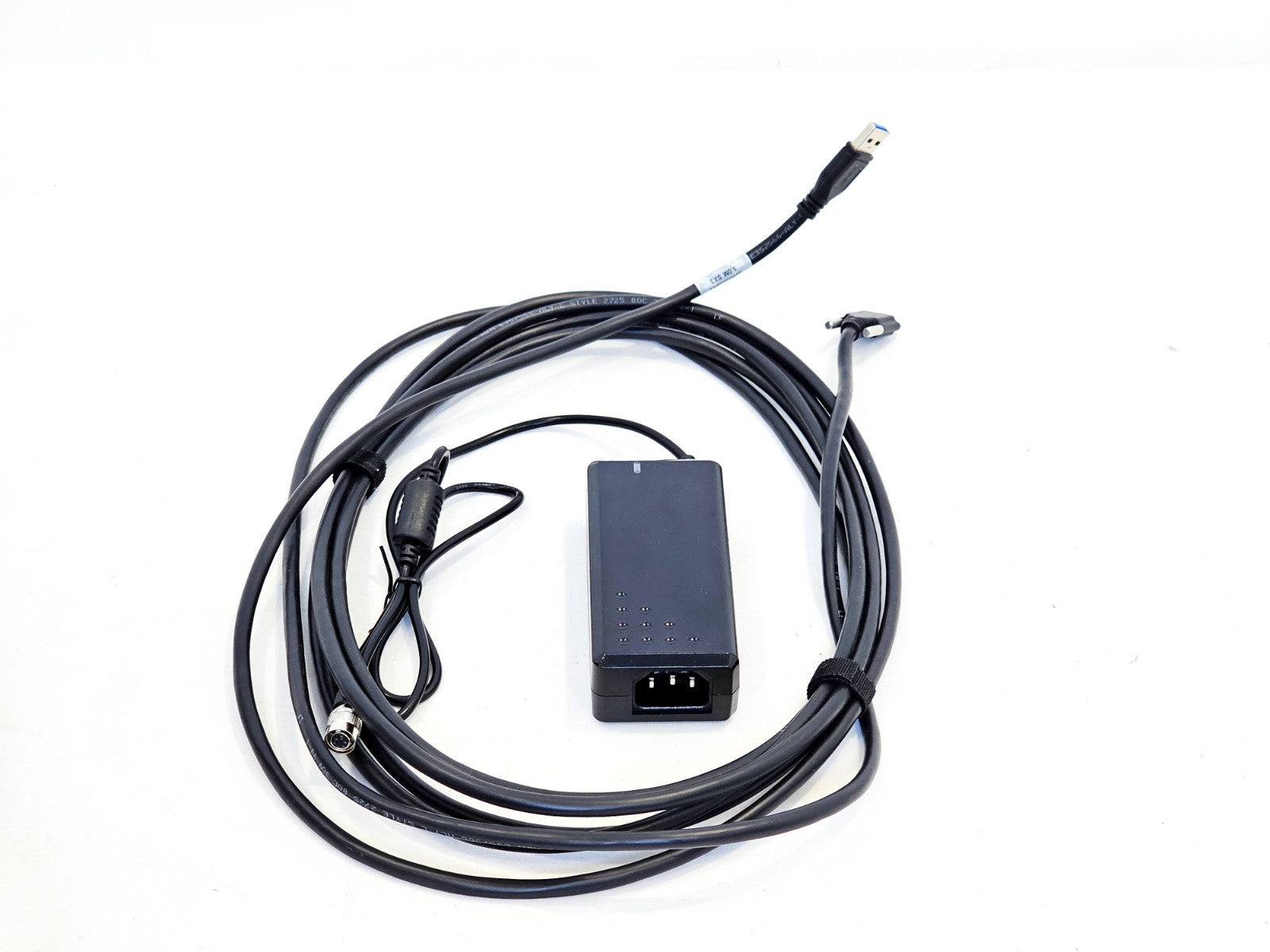

• USB 3.0 camera cable
• Basler camera power/IO cable
• Microscope mains power supply

The Nikon ECLIPSE Ts2 is an inverted routine microscope featuring a compact footprint, a newly developed contrast observation method, and improved operability — ideal for the tissue culture laboratory.

The Ts2 utilises Nikon's industry-leading CFI60 infinity-corrected optical system and a high-intensity white LED diascopic illuminator with a built-in fly-eye lens for uniform field brightness across the entire field of view. The LED light source is alignment-free, delivers consistent results, and has a rated service life of 60,000 hours — eliminating frequent bulb replacements. The compact, streamlined body is vibration-resistant for highly stable sample observations and is sized to fit inside standard tissue culture hoods. The side-positioned camera port provides unimpeded viewing of the stage even when placed in a hood, and accepts cameras via C- or F-mount adapters. Observation methods include brightfield, phase contrast, and Emboss Contrast — a cost-effective technique that produces pseudo-three-dimensional, glare-free images of thick specimens such as iPS cells without requiring specialised objectives.

Optical System: CFI60 Infinity-Corrected
Observation Methods: Brightfield, Phase Contrast, Emboss Contrast
Illumination: High-intensity white LED (Eco-illumination), built-in fly-eye lens, 60,000 h rated life
Eyepieces available: 10x (22 mm FOV), 15x (16 mm FOV), 20x (12.5 mm FOV)
Nosepiece: Quintuple
Condenser: ELWD, NA 0.3, WD 75 mm
Stage (plain): 170 mm (X) × 247 mm (Y)
Power Consumption: 15 W
Power Supply: 100–240 V AC, 50/60 Hz
Dimensions: 236 mm (W) × 548 mm (D) × 471 mm (H)
Weight: Approx. 13 kg

Basler acA1300-200um — USB 3.0 Monochrome Camera
Sensor: onsemi PYTHON 1300, 1/2" progressive scan CMOS, global shutter
Resolution: 1280 × 1024 pixels (1.3 MP)
Frame Rate: 203 fps (fast mode) / 169 fps (normal mode)
Pixel Size: 4.8 × 4.8 µm
Interface: USB 3.0 (USB3 Vision v1.0)
Lens Mount: C-mount
Dynamic Range: 56.3 dB
Power: Bus-powered via USB 3.0, 3.3 W
Dimensions: 29 × 29 × 29 mm
Weight: <80 g
