Condition: Used

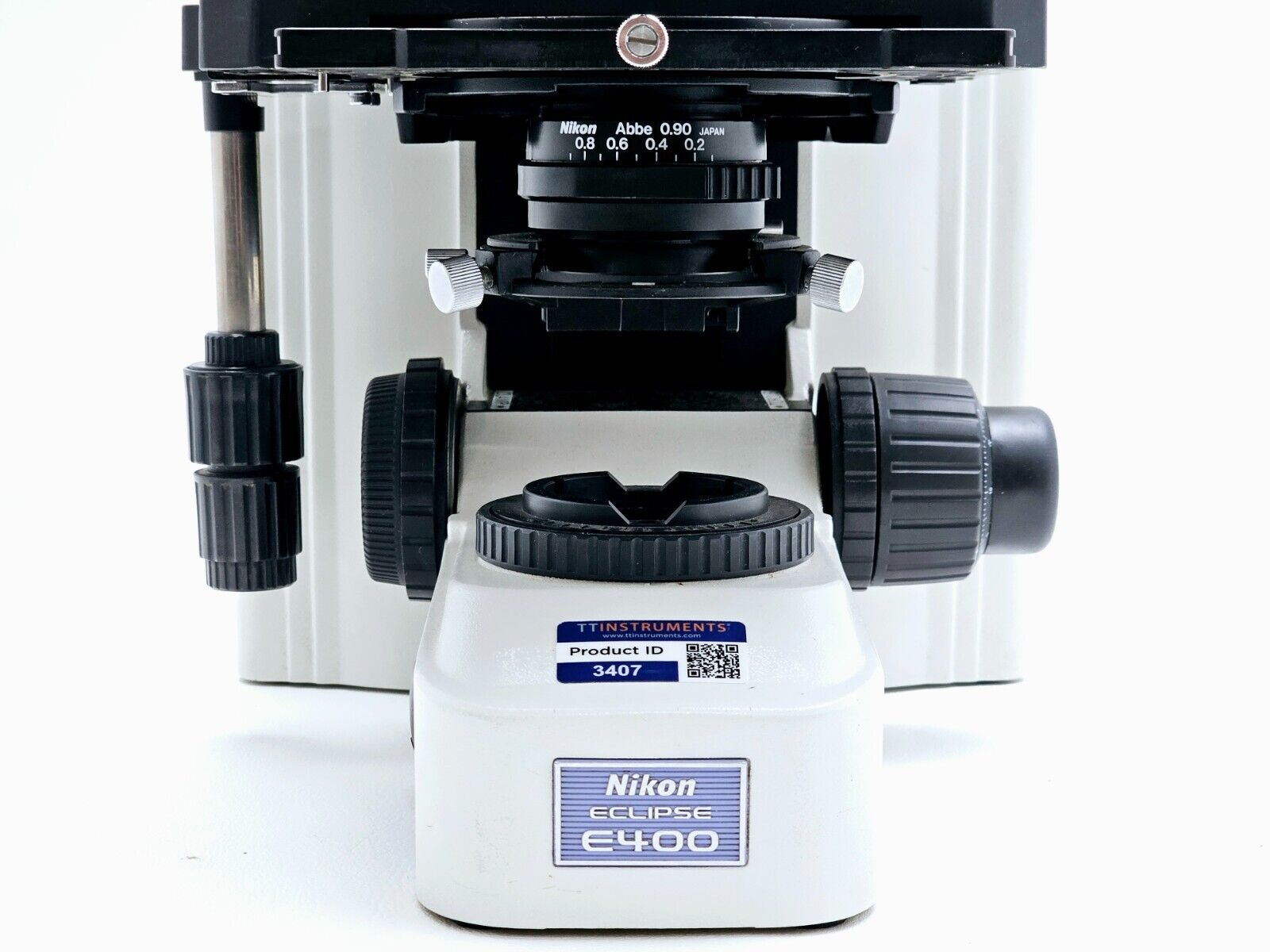

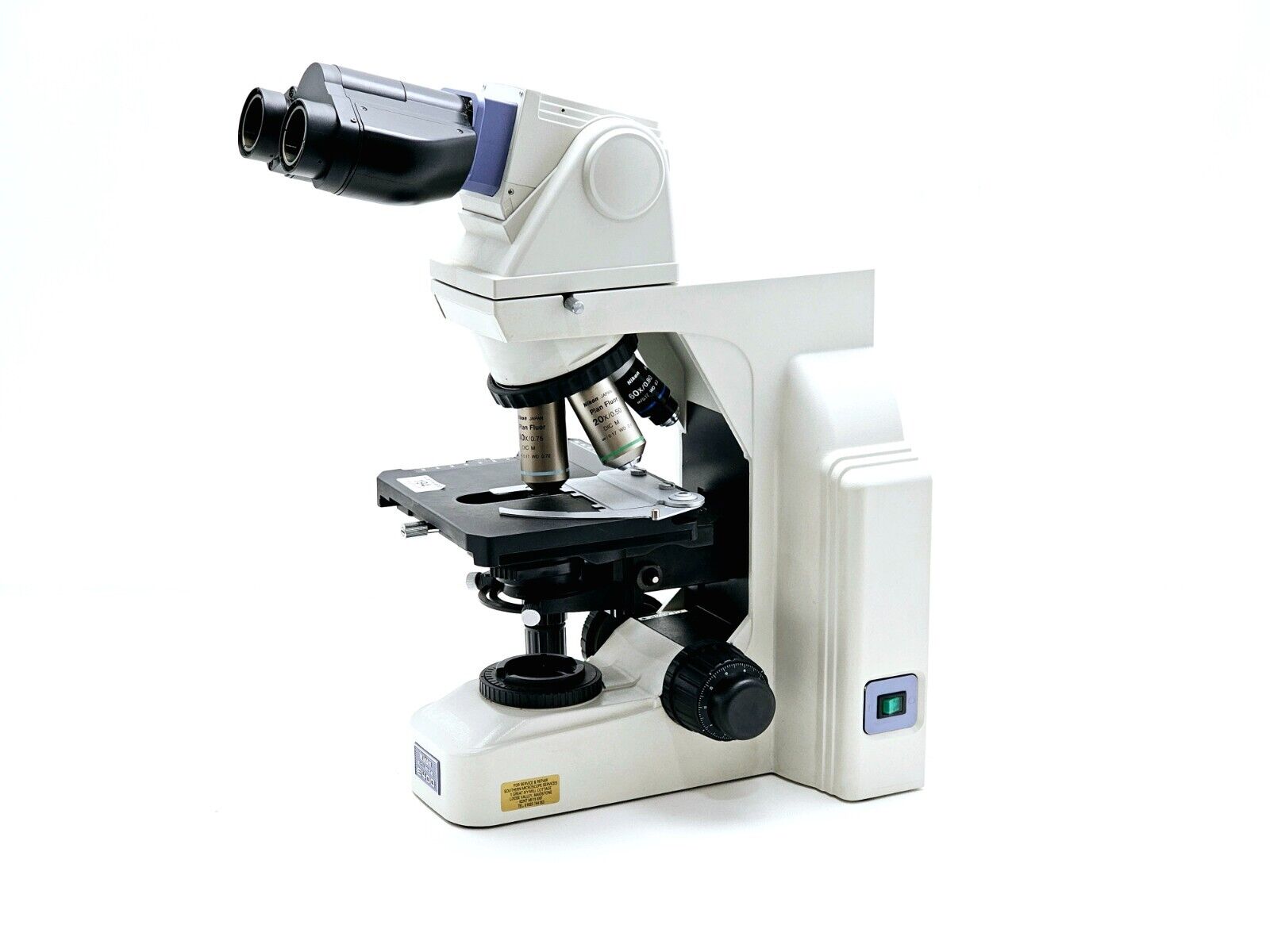

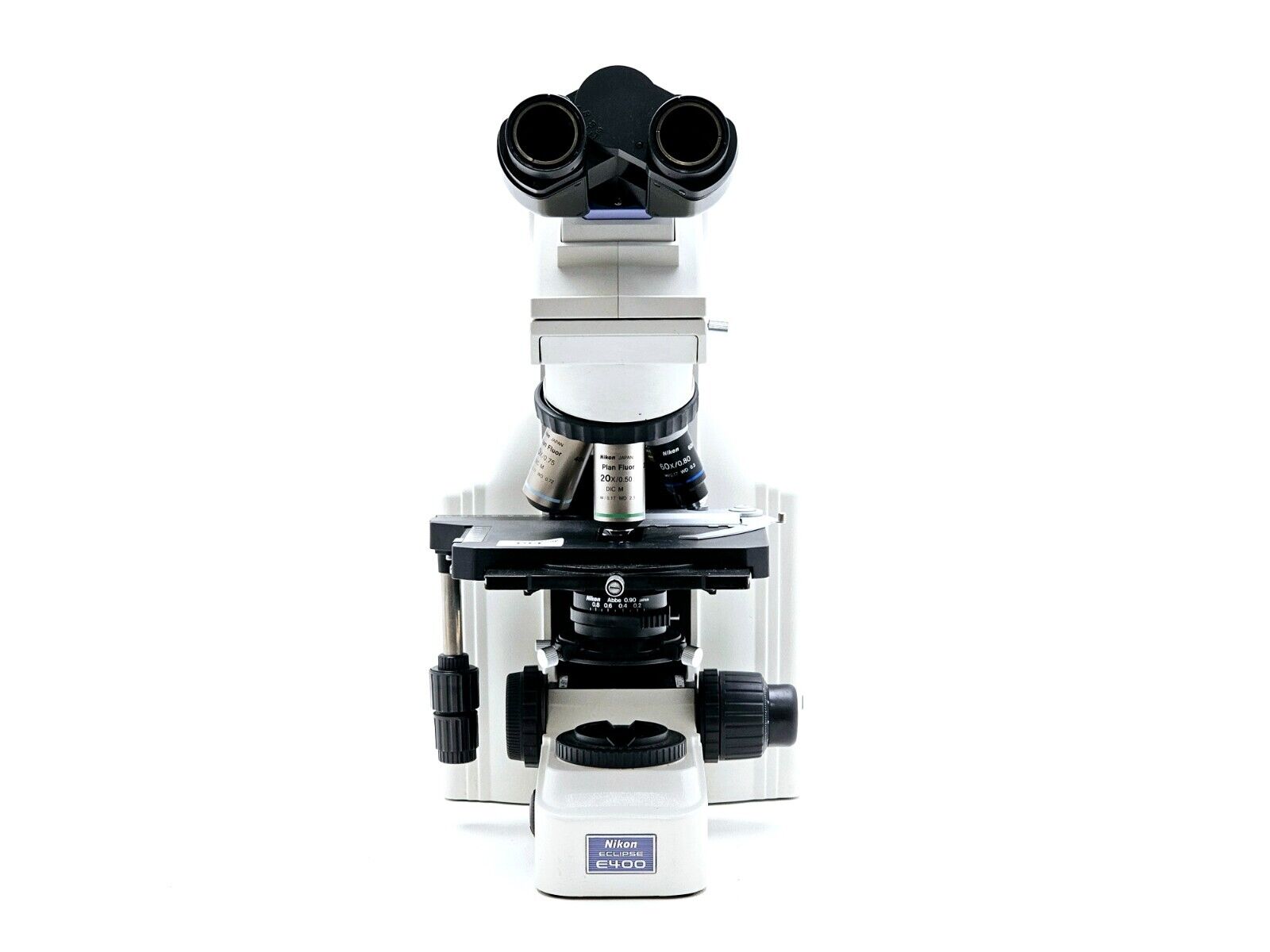

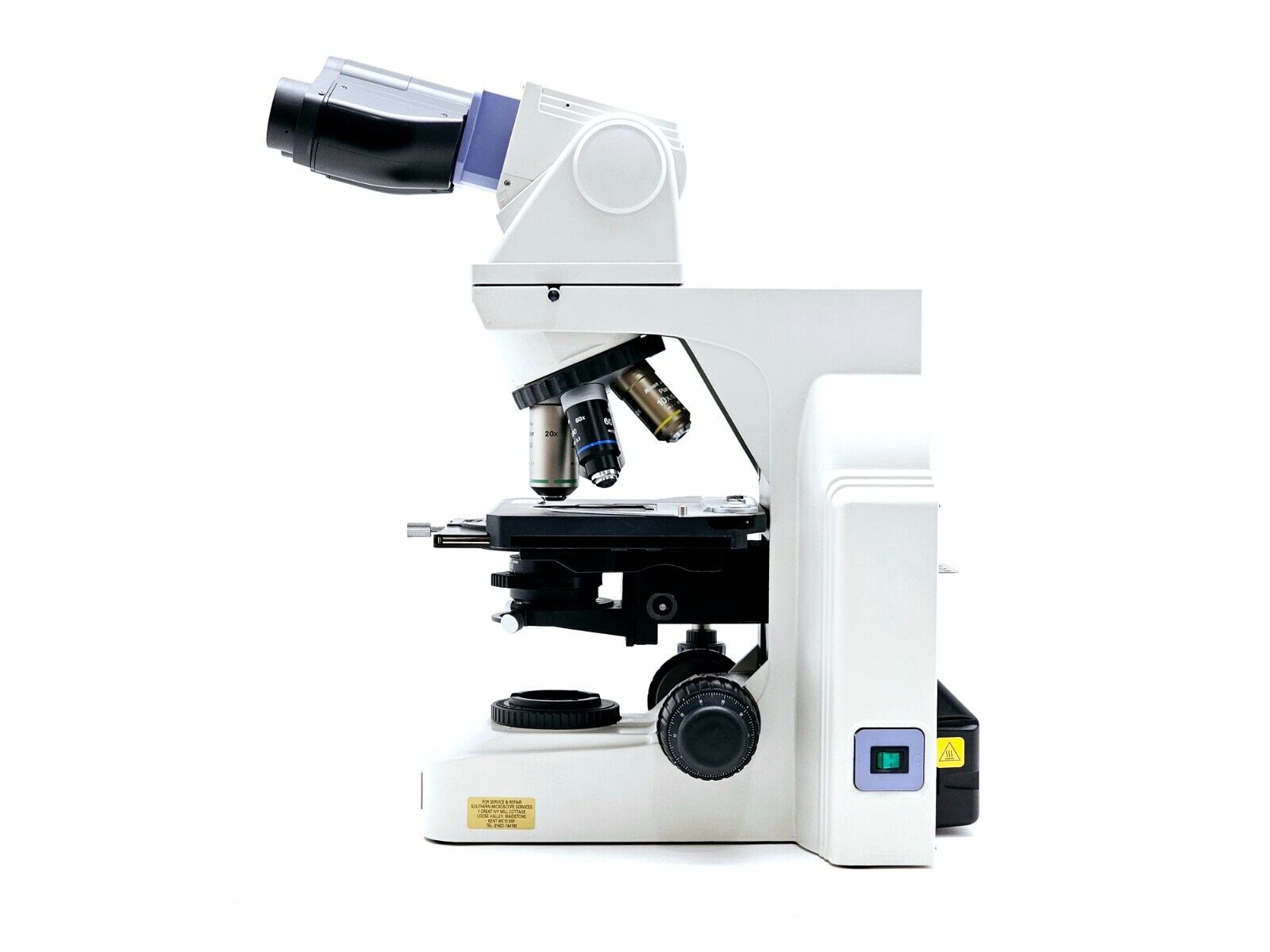

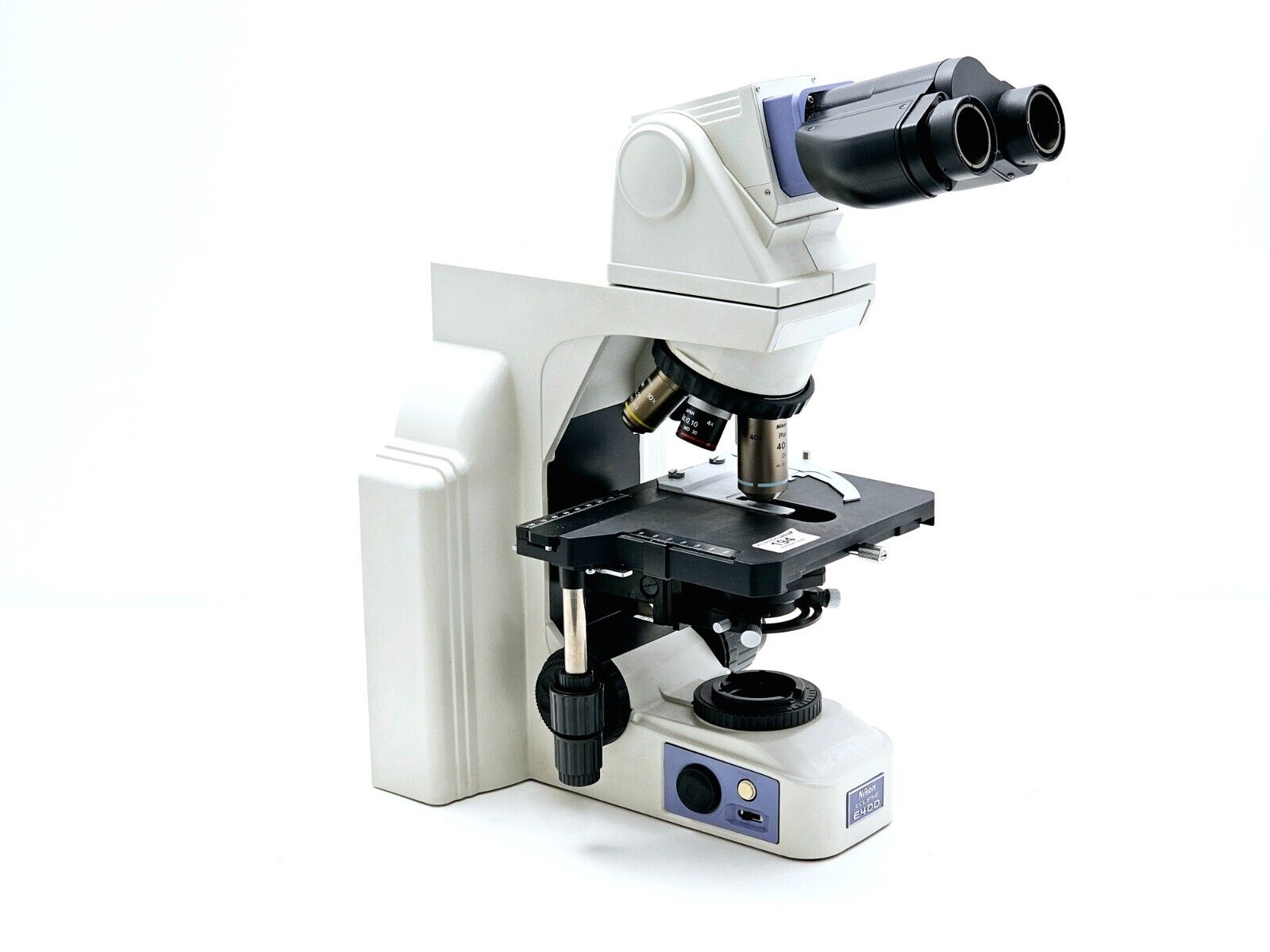

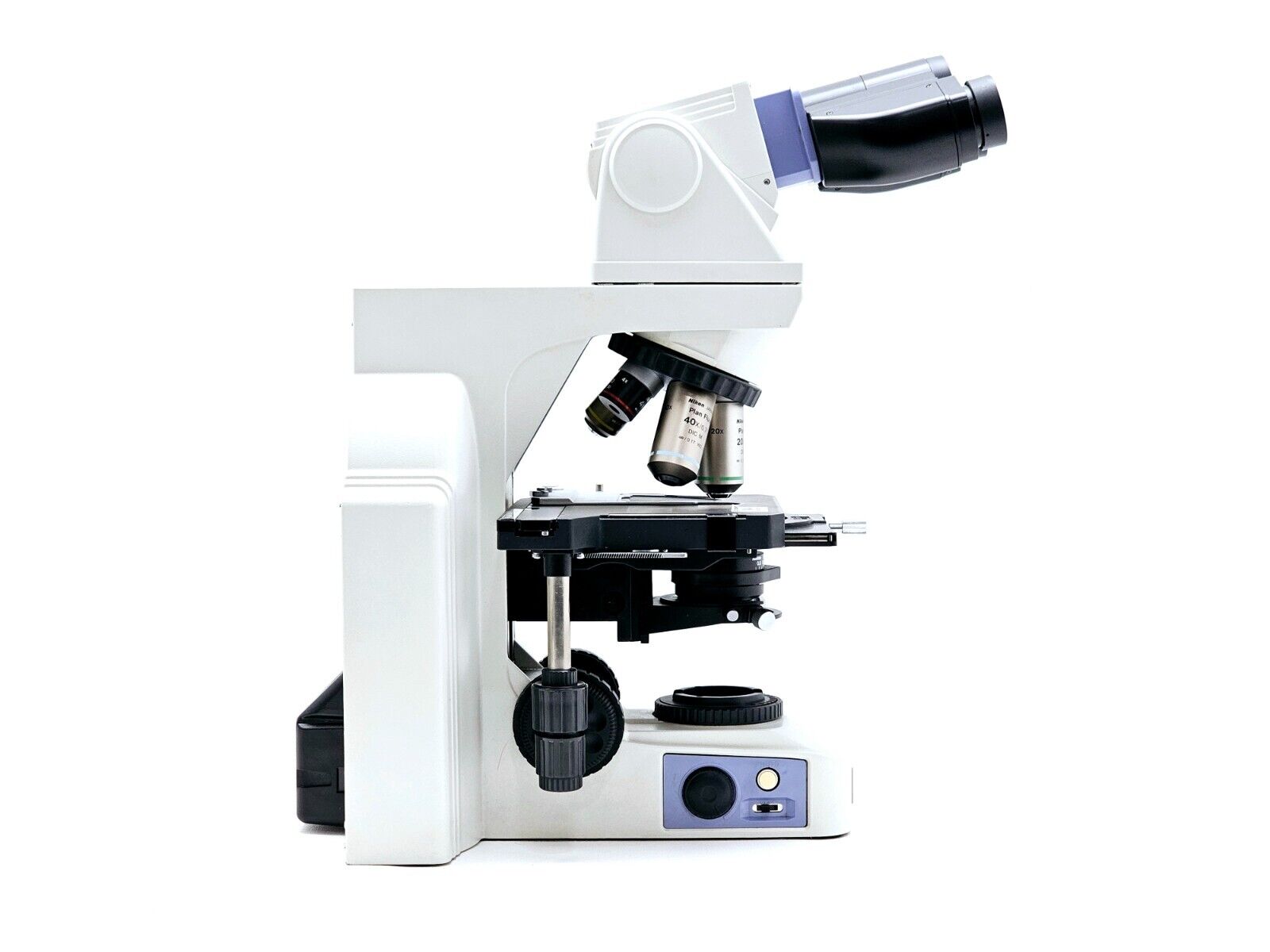

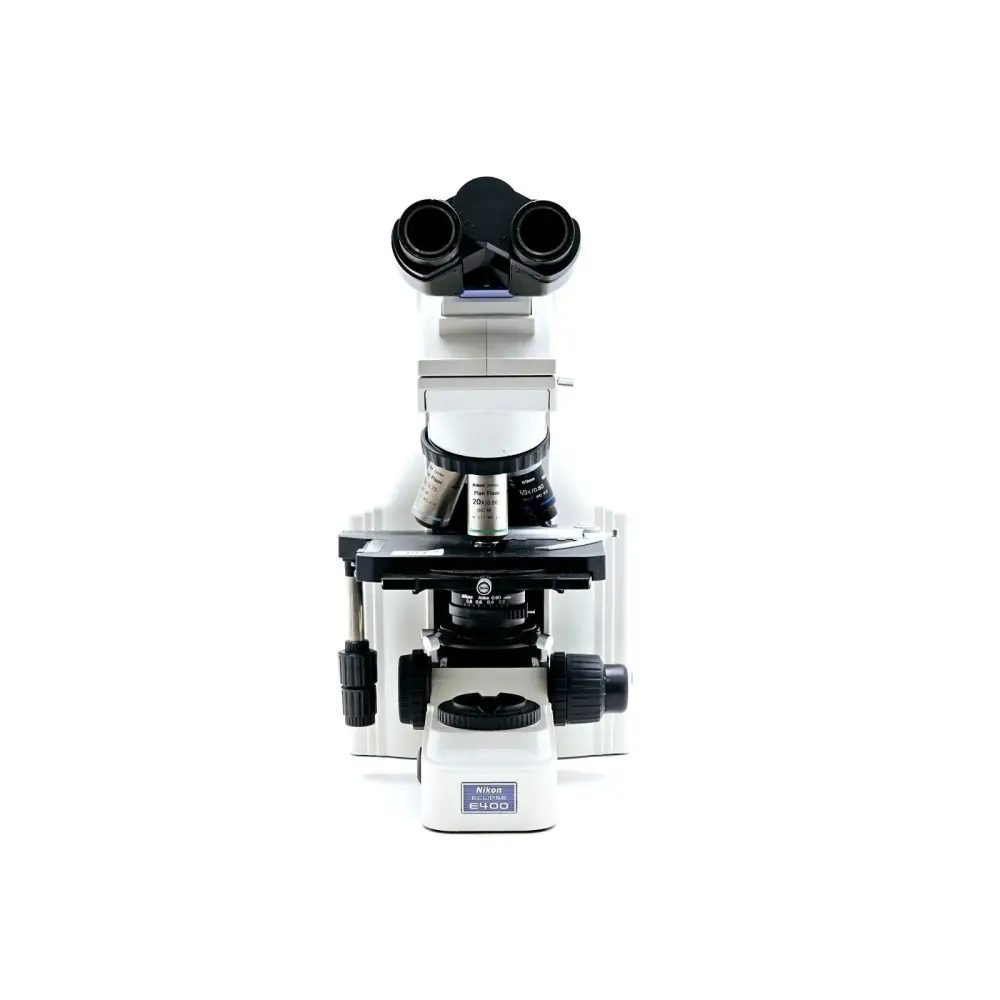

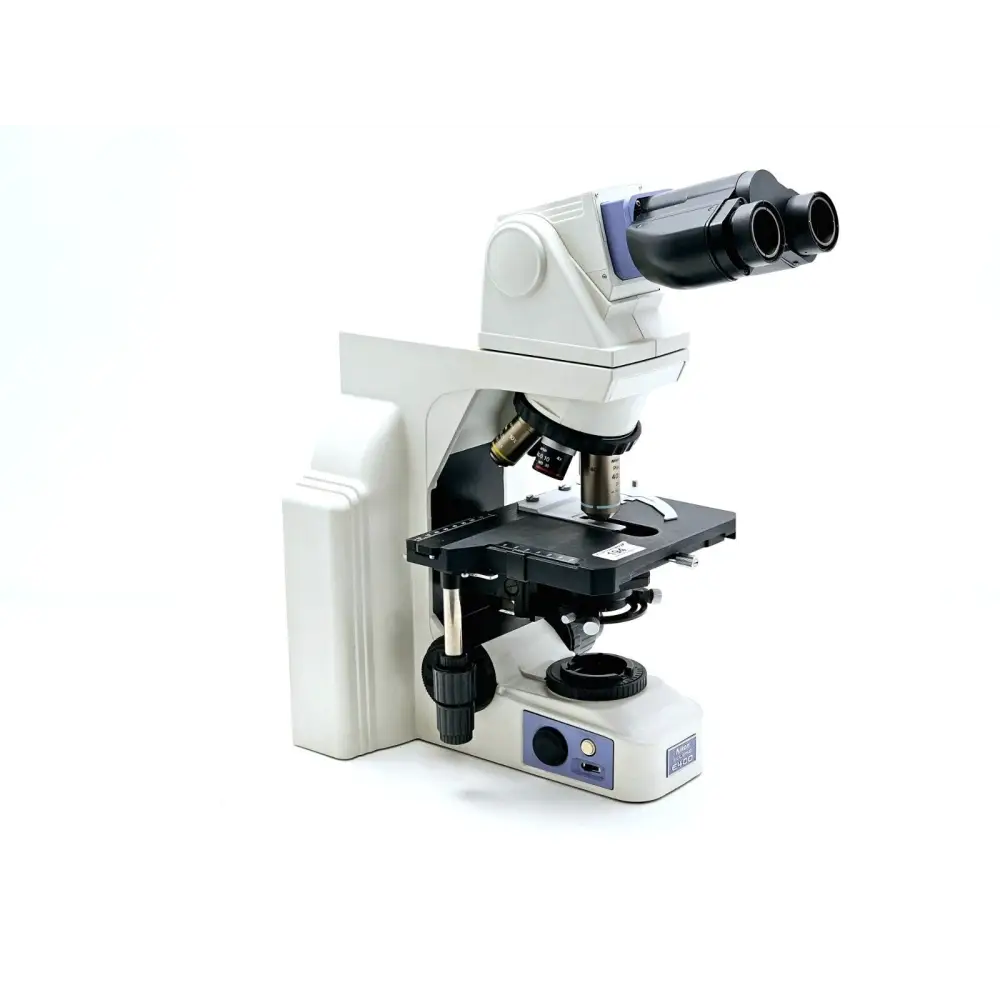

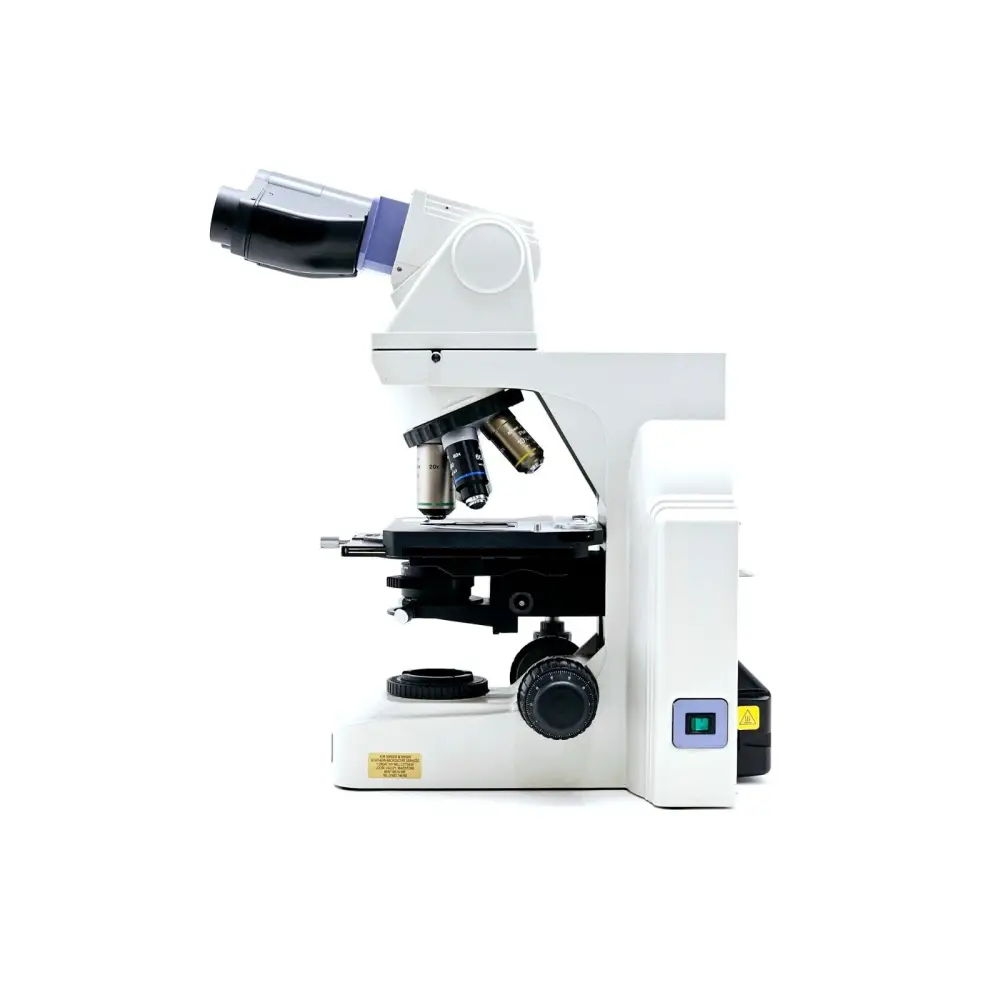

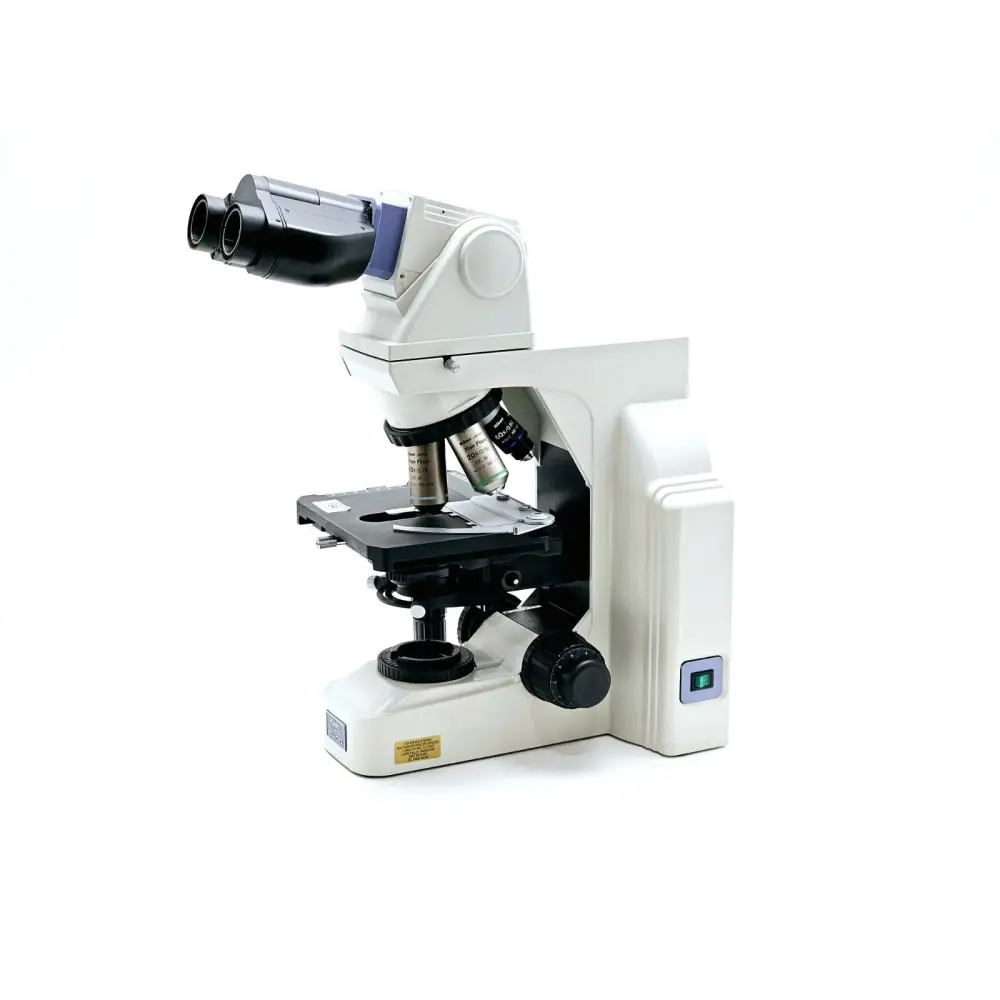

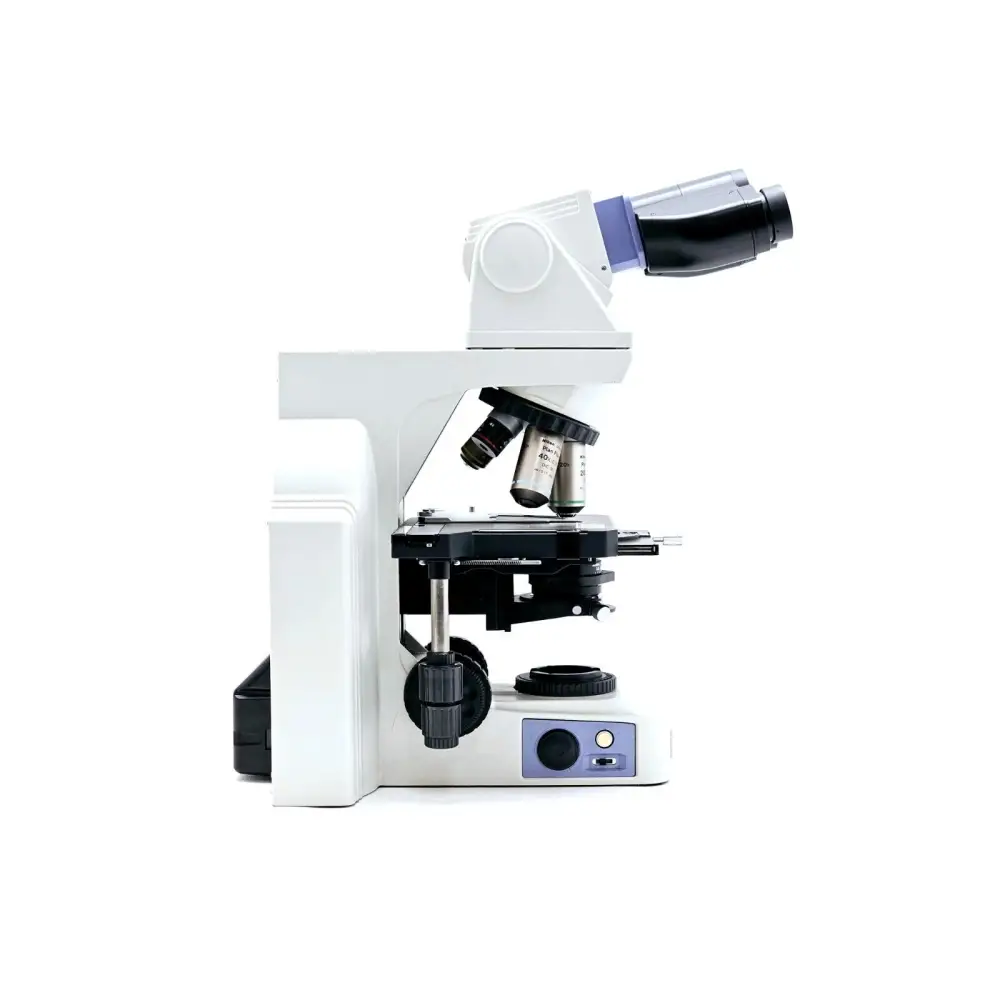

This Nikon Eclipse E400 upright biological microscope powers up with a good bulb and is supplied with five CFI objectives covering a range of magnifications from 4x through to 60x. No eyepiece is included. The microscope body and included accessories are as pictured.

Included with this unit:

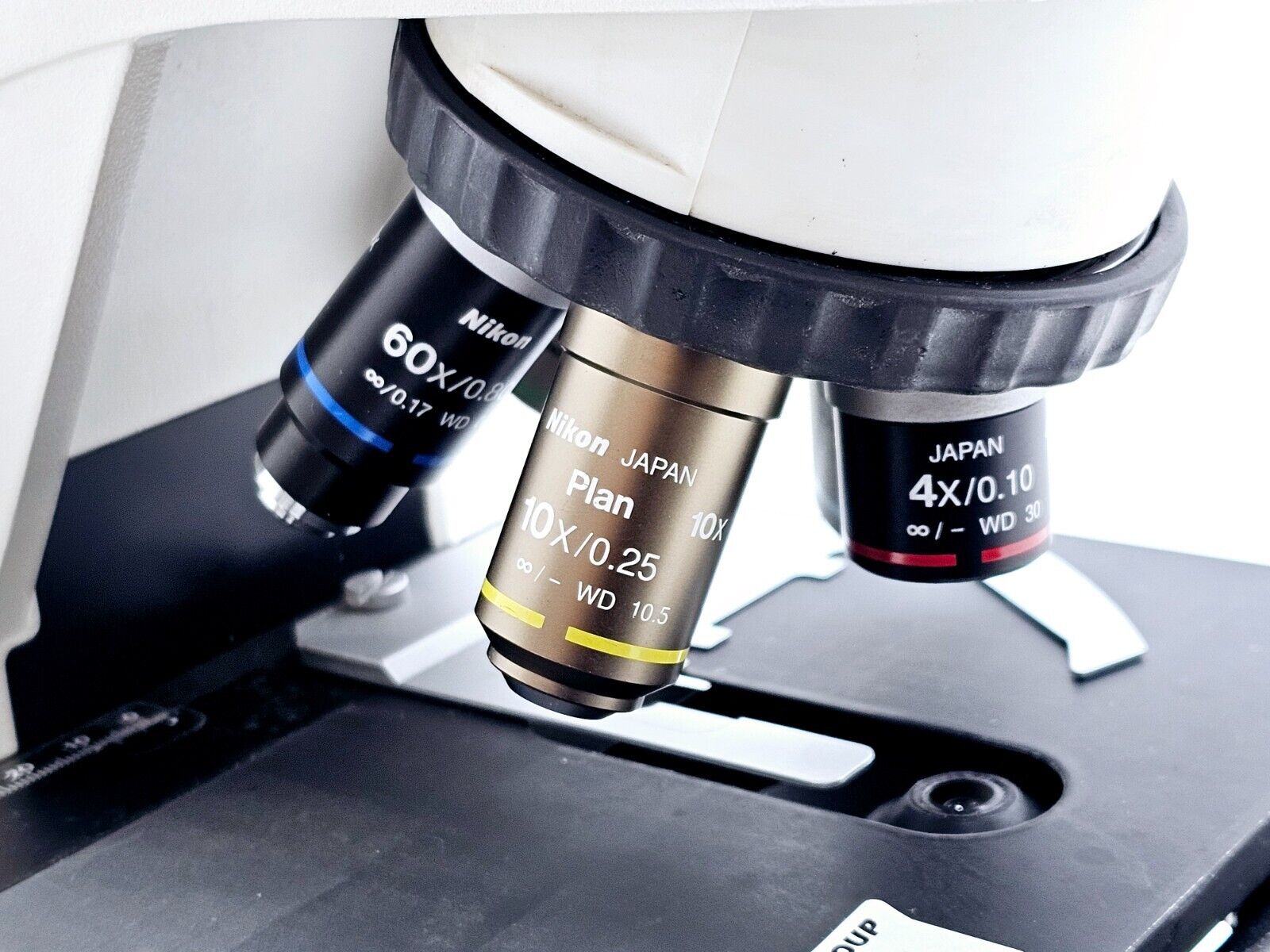

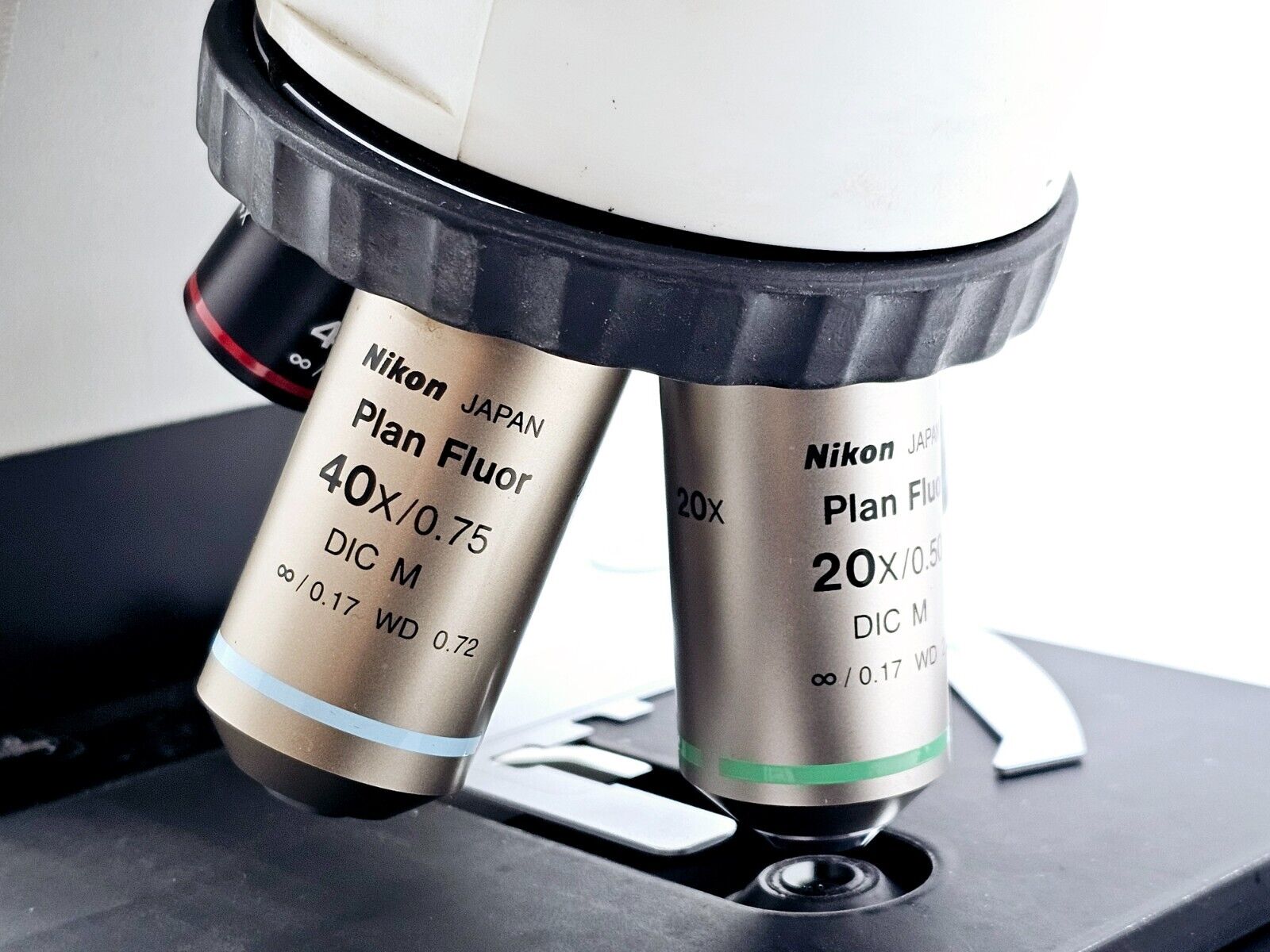

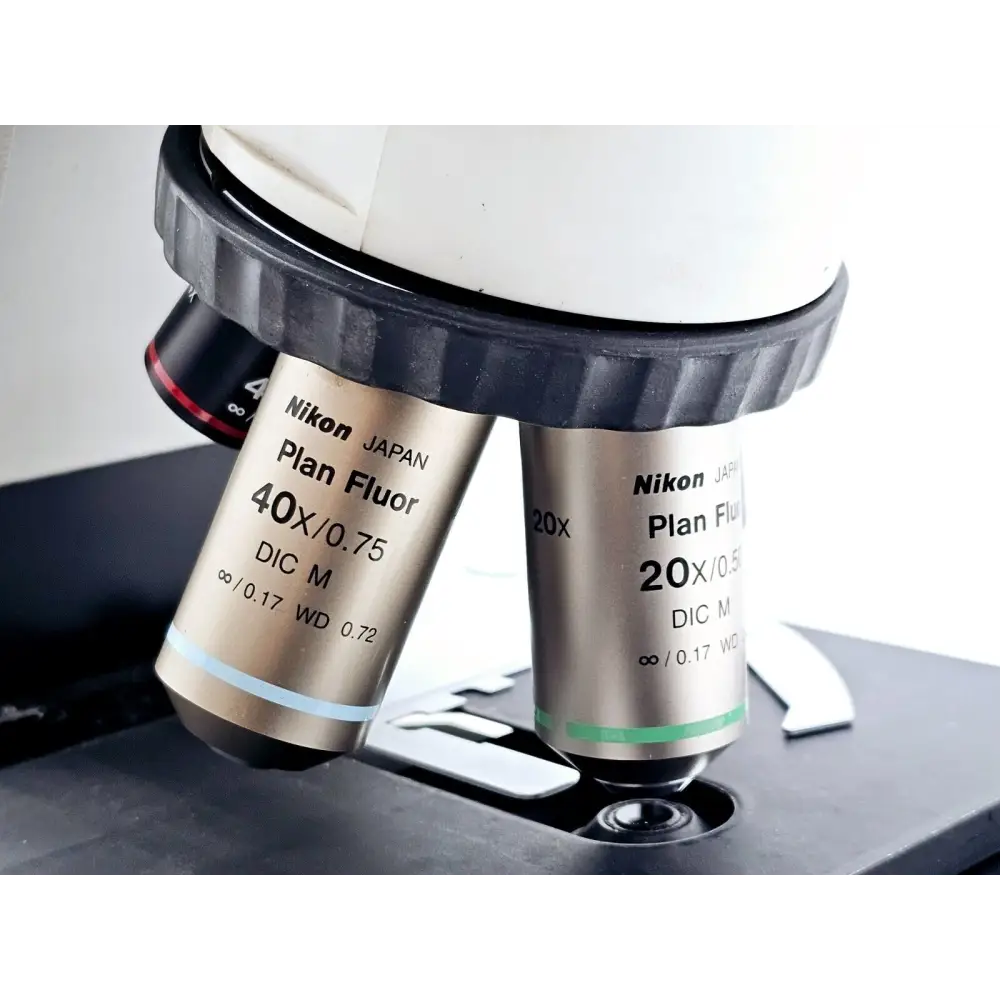

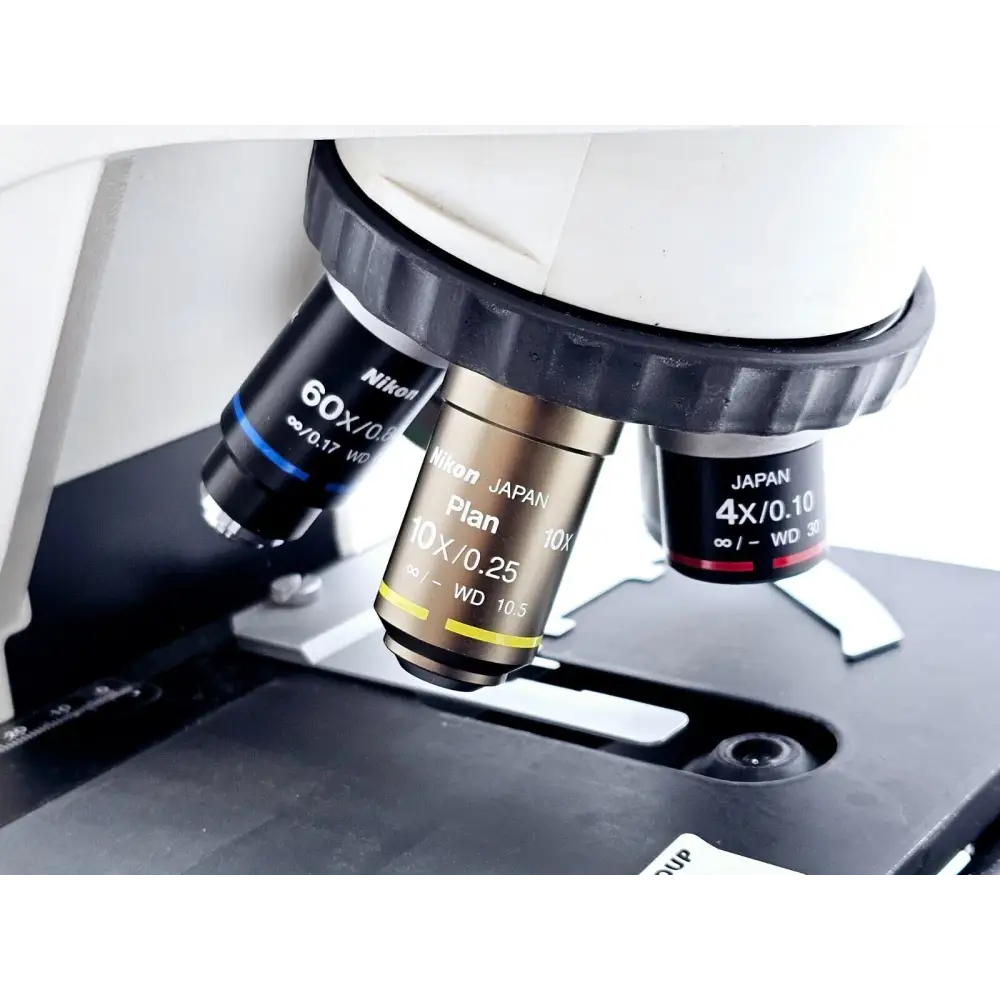

• 5x objectives: 40x/0.75 Plan Fluor, 60x/0.80, 4x/0.10, 10x/0.25 Plan, 20x/0.50 Plan Fluor
• Working halogen bulb
• Pictured accessories

Note: No eyepiece is included.

The Nikon Eclipse E400 is a mid-level upright biological microscope introduced in 1997 and designed for extended clinical and research applications. Built around Nikon's revolutionary CFI60 infinity-corrected optical system, it delivers outstanding image quality across a wide range of observation techniques without the need to change objectives. Nikon marketed the E400 as the 'eight-hour microscope' in recognition of its advanced ergonomic design, which allows operators to work in a natural, relaxed posture over long periods with minimal fatigue.

The E400 features a quintuple reverse-angle revolving nosepiece and supports brightfield, darkfield, Nomarski DIC, phase contrast, and epi-fluorescence observation modes. Its infinity-corrected parallel optical path allows a wide variety of accessories — including epi-fluorescence attachments, drawing tubes, teaching heads, polarising analysers, and eye-level risers — to be inserted between the objective and tube lens without any degradation of image quality.

Key Features:
• Nikon CFI60 infinity-corrected optics with chromatic aberration-free (CF) correction
• High resolution and contrast with top transmission rates
• Universal-type objectives: longer working distances and higher numerical apertures
• Quintuple revolving nosepiece
• Low-profile ergonomic stage with single-hand focus and stage control
• Rigid frame construction to reduce vibrations during photomicrography
• Low-angle eyepiece tube (25 degrees) for comfortable viewing
• Optional eye-level riser and ergonomic binocular tube with tilt adjustment
• Refocusing stopper and coarse focus tension control
• Super-hard stage surface coating

Specifications:
Optical System: Nikon CFI60 infinity-corrected
Nosepiece: Quintuple revolving (reverse angle)
Magnification Range: 10x–1500x (observation); 2x–500x (35mm photomicrography)
Illumination: 6V/30W halogen lamp (built-in Köhler illumination)
Eyepiece Field of View: 22mm (standard); 25mm (with wide-field tube)
Observation Methods: Brightfield, darkfield, phase contrast, Nomarski DIC, epi-fluorescence
Eyepiece Tube Angle: 25 degrees

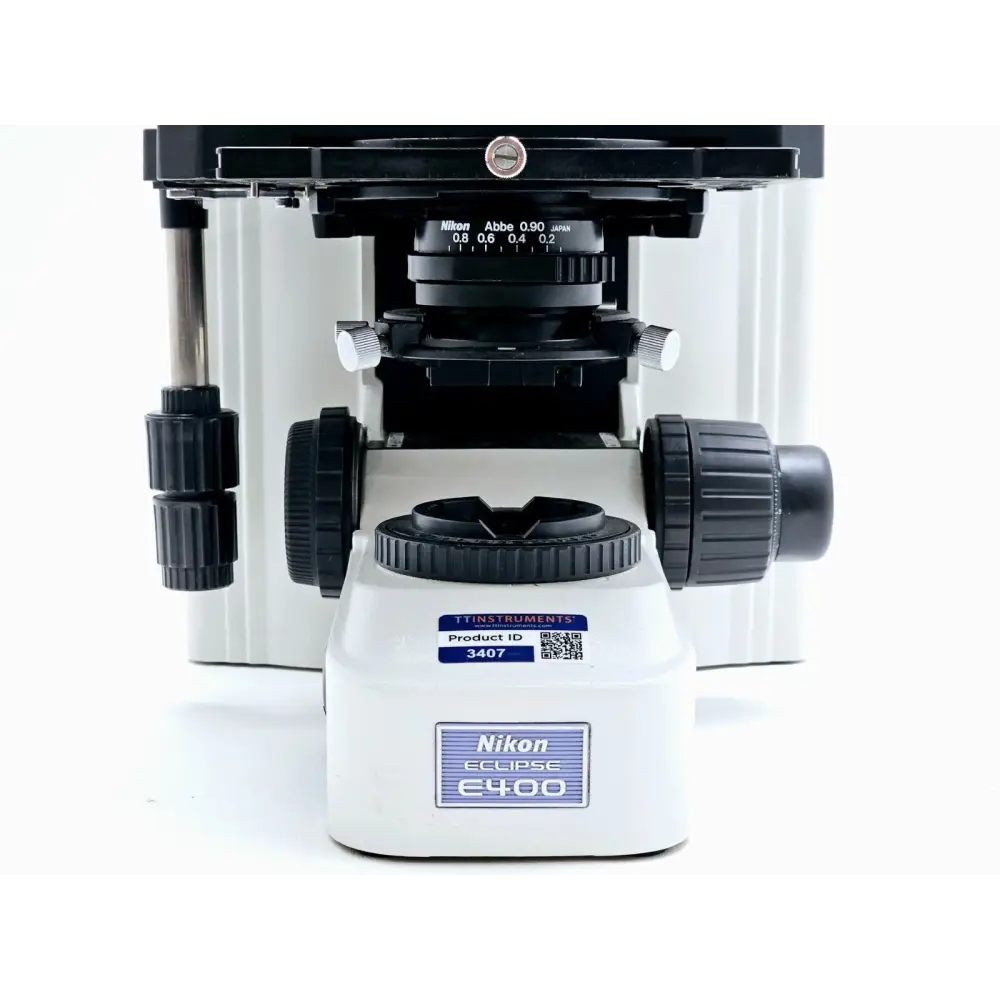

Stage: Low-profile mechanical stage with super-hard surface coating
Focus: Coaxial coarse and fine focus with tension control and refocusing stopper
Accessory Compatibility: Epi-fluorescence module, polarisation set, drawing tube, teaching head, eye-level riser
Successor Models: Eclipse Ni-U, Eclipse Ci Series

Applications: Clinical pathology, histology, MOHS surgery, biological research, phase contrast microscopy, epi-fluorescence, educational and laboratory use.

Nikon Eclipse E400 Instructions Manual (official, via Internet Archive): Download PDF

Nikon Eclipse E400 Repair Manual (via Internet Archive): Download PDF

Nikon Eclipse E600/E400 Biological Microscopes Brochure (PDF): Download PDF

Nikon Eclipse E400 Instructions Manual (via MVI Inc.): Download PDF

Nikon Eclipse E400 Instruction Manual (via iFixit CDN): Download PDF
