The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

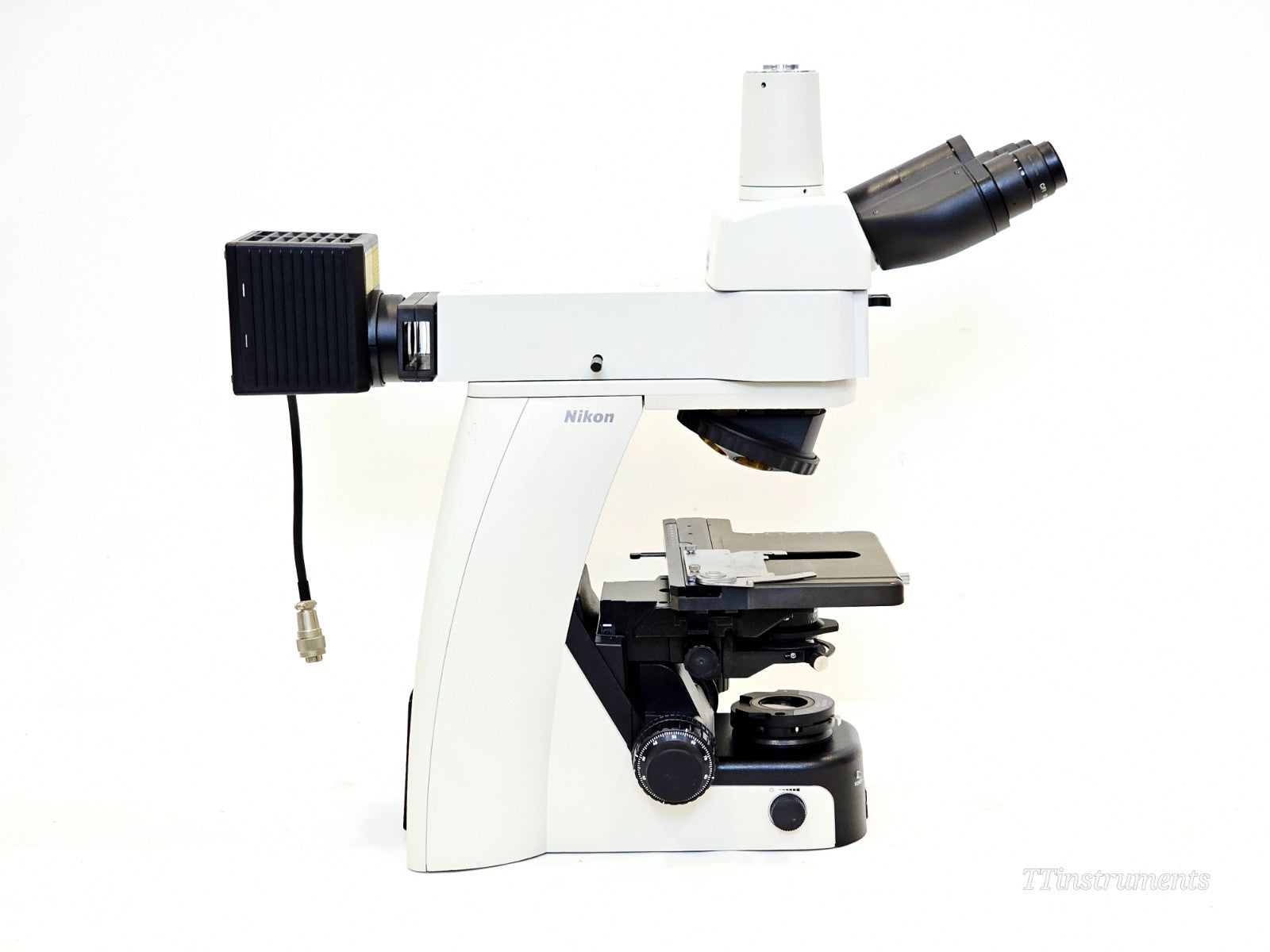

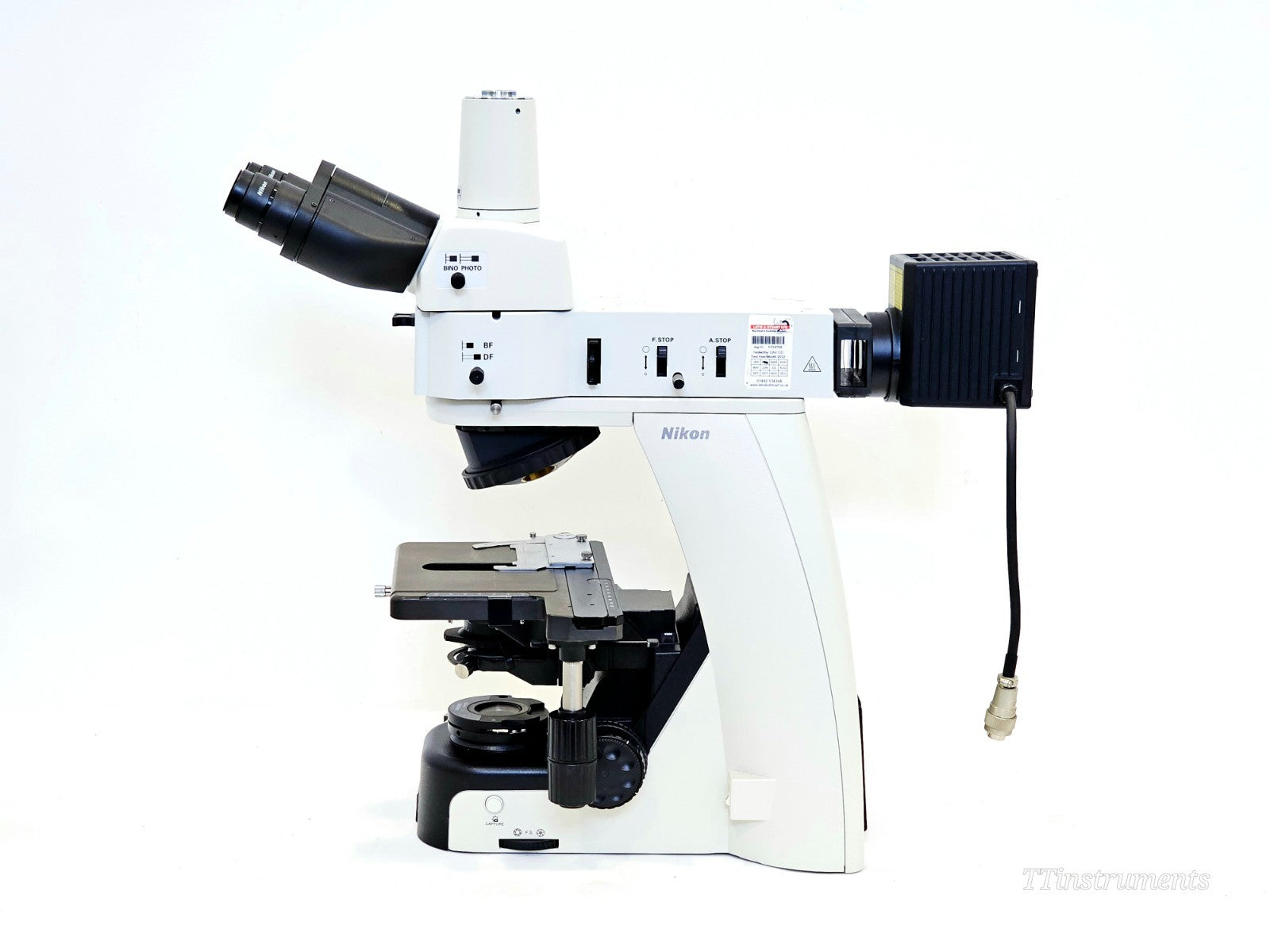

This Nikon ECLIPSE Ci-L upright biological microscope is in very good cosmetic condition and has been fully tested and confirmed working.

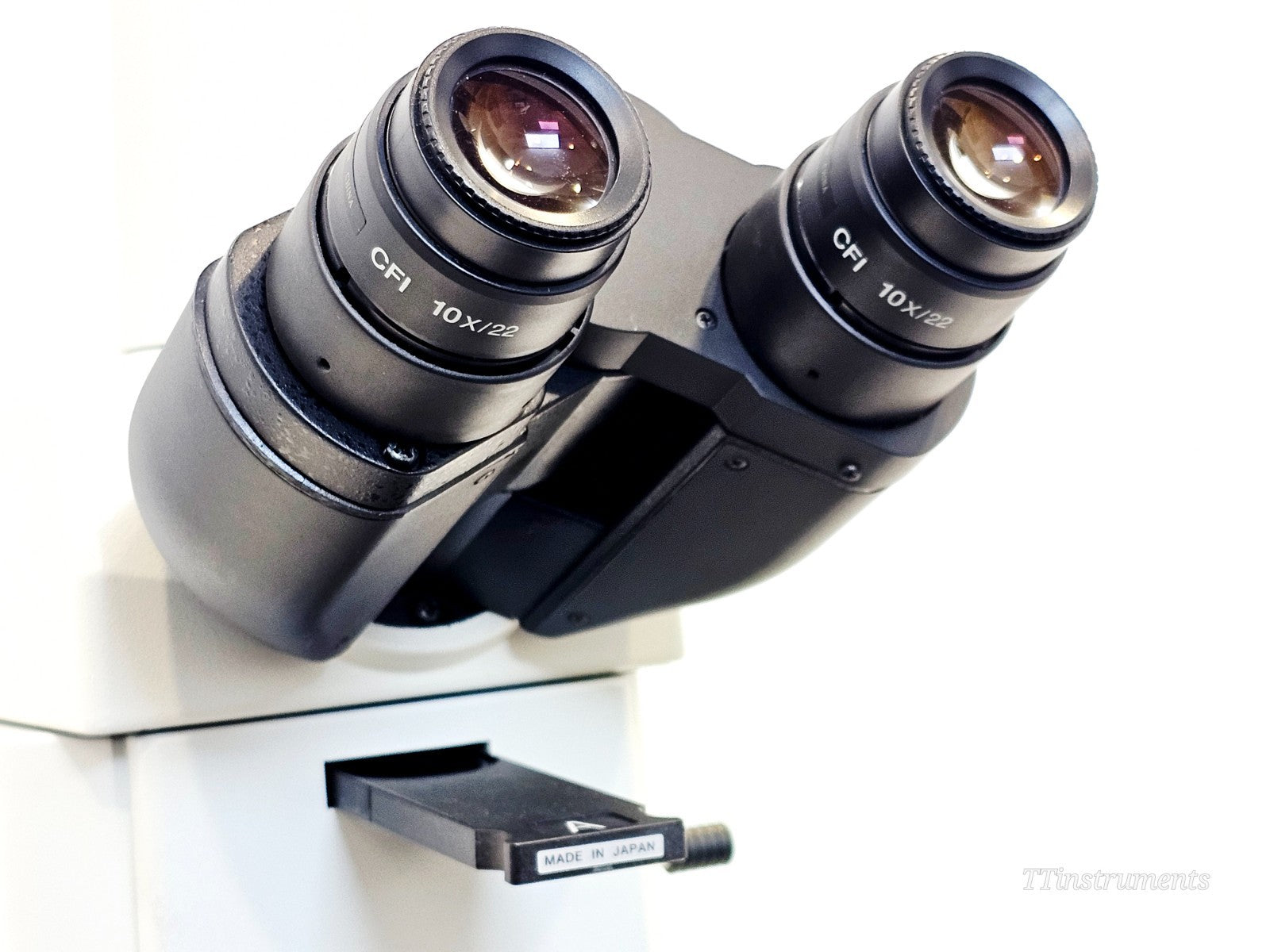

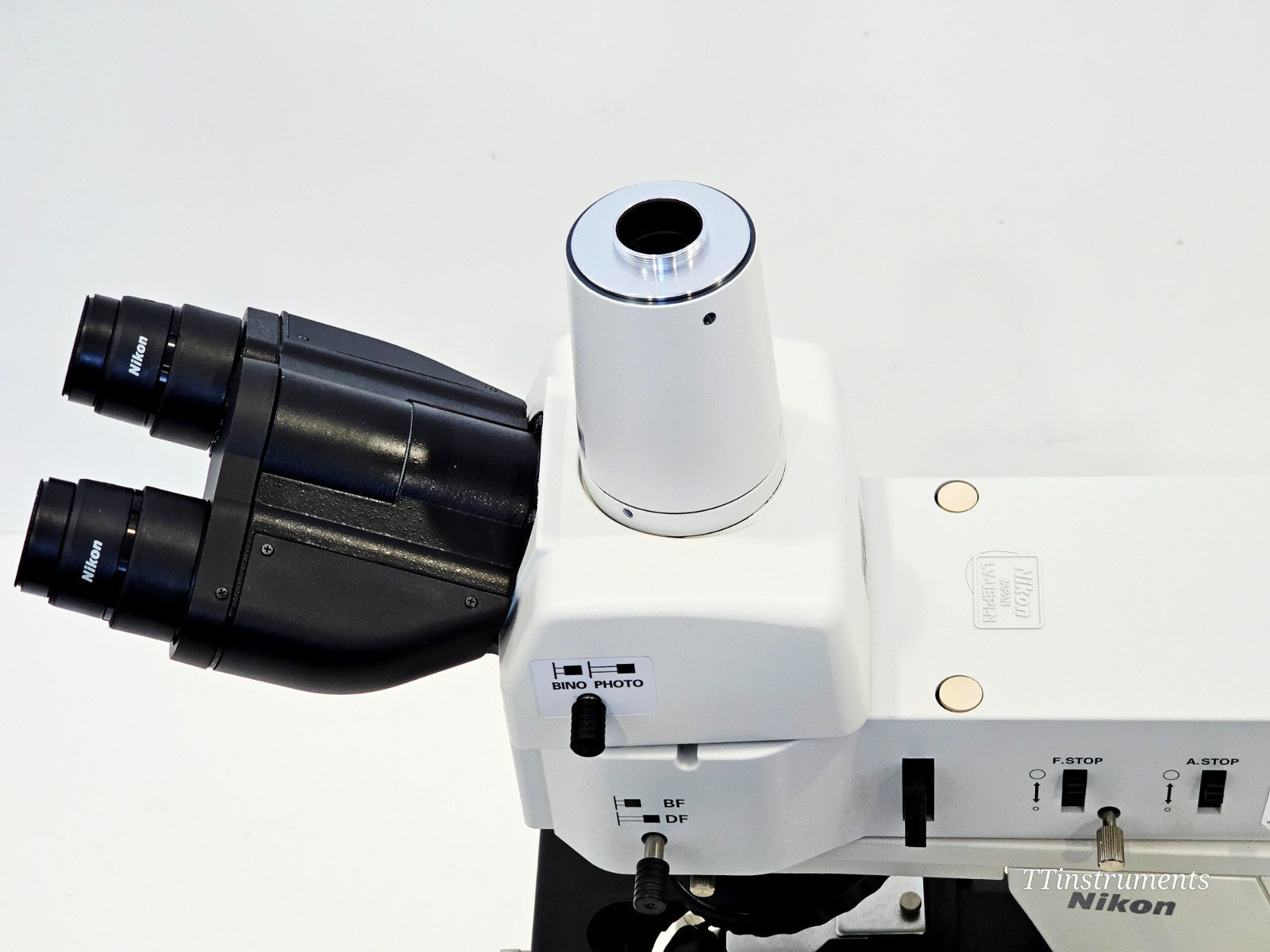

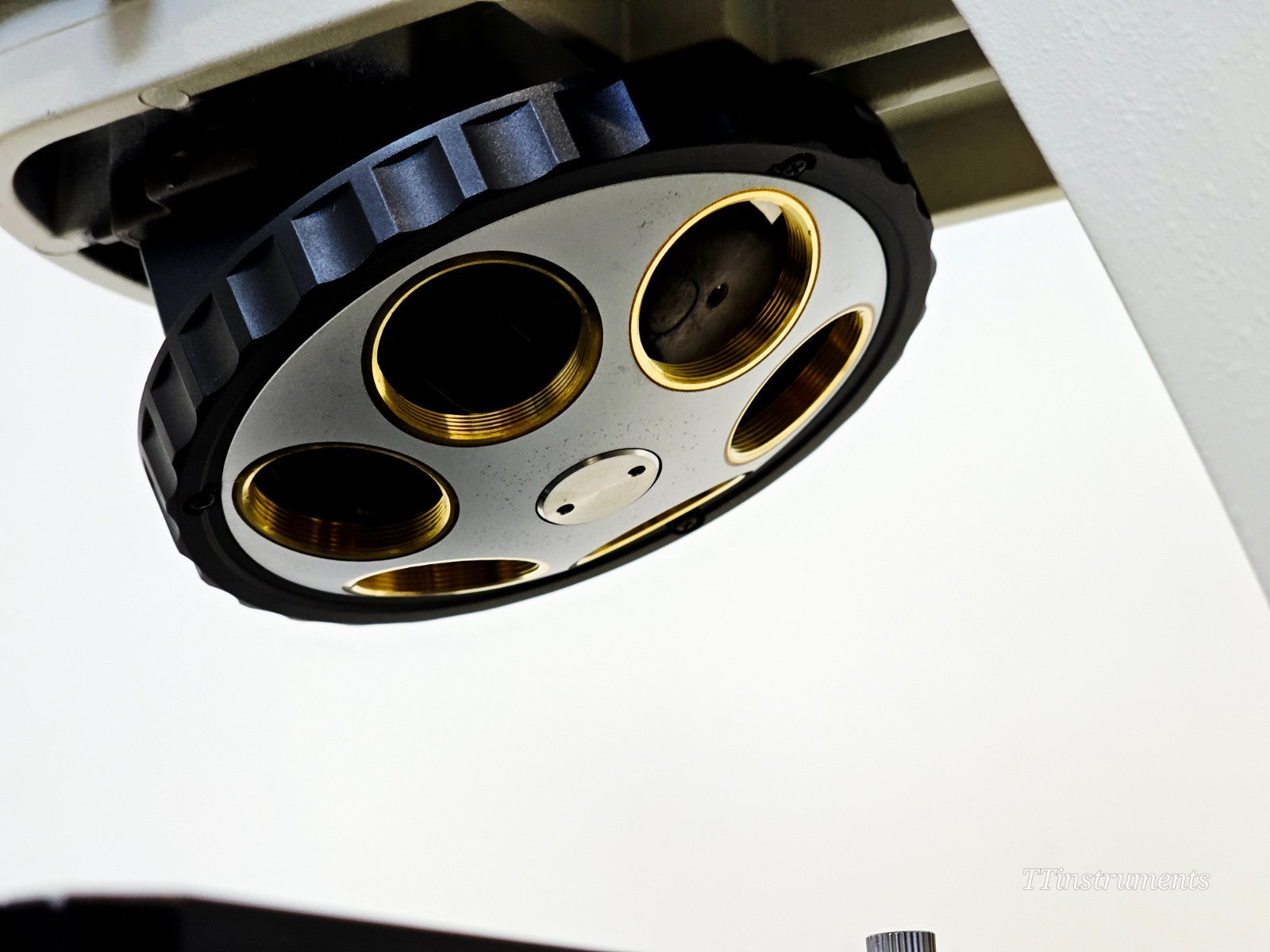

The microscope is configured with the C-TE2 ergonomic tilting/telescoping trinocular head, providing an inclination range of 10° to 30° with up to 40 mm of tube extension for a comfortable working posture. A BINO/PHOTO selector lever enables light to be directed to the eyepieces or the trinocular photo port. Fitted eyepieces are Nikon CFI 10x / FN22 mm (pair, Made in Japan). The 6-position reversed nosepiece is empty — no objectives are included.

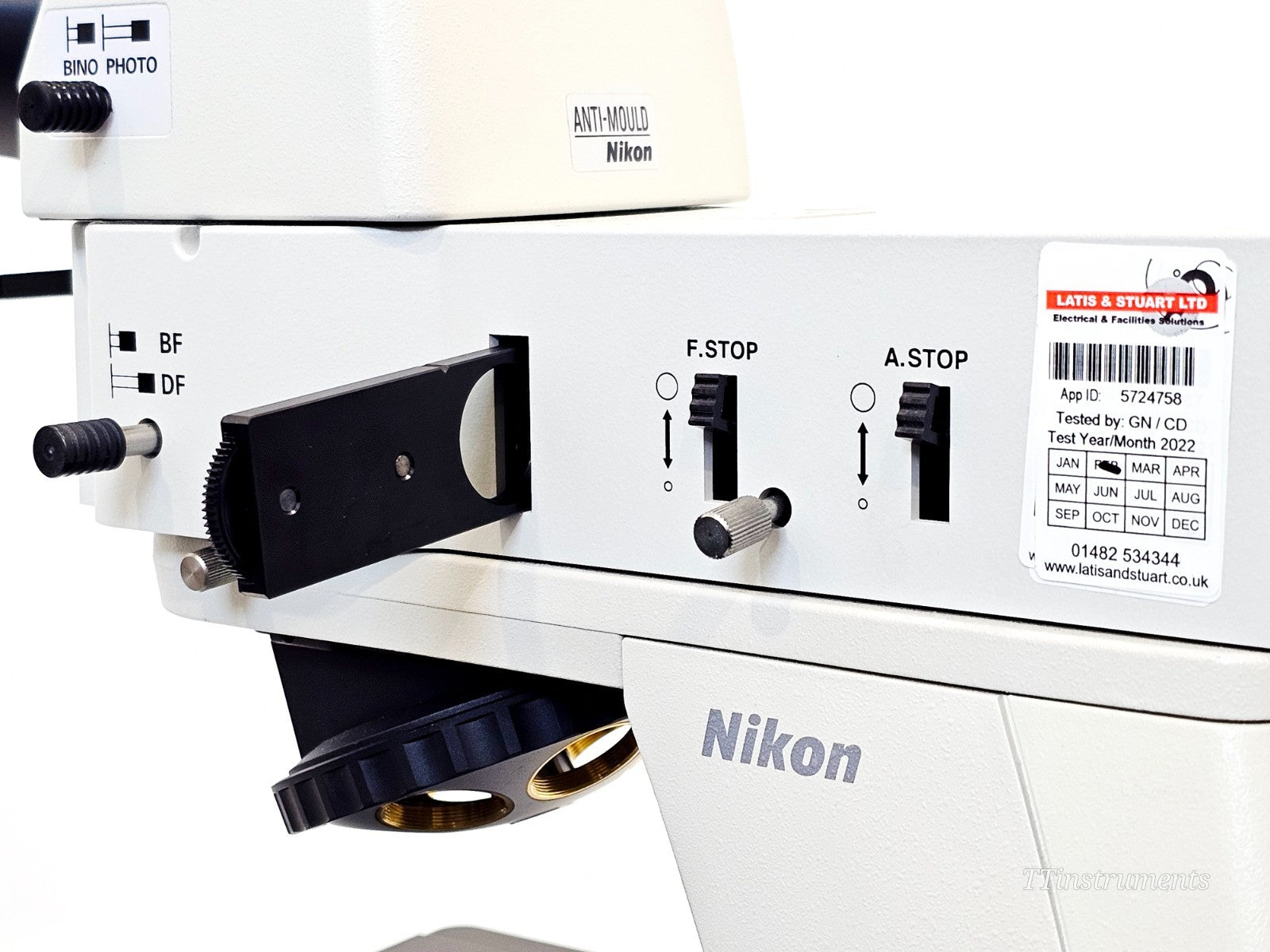

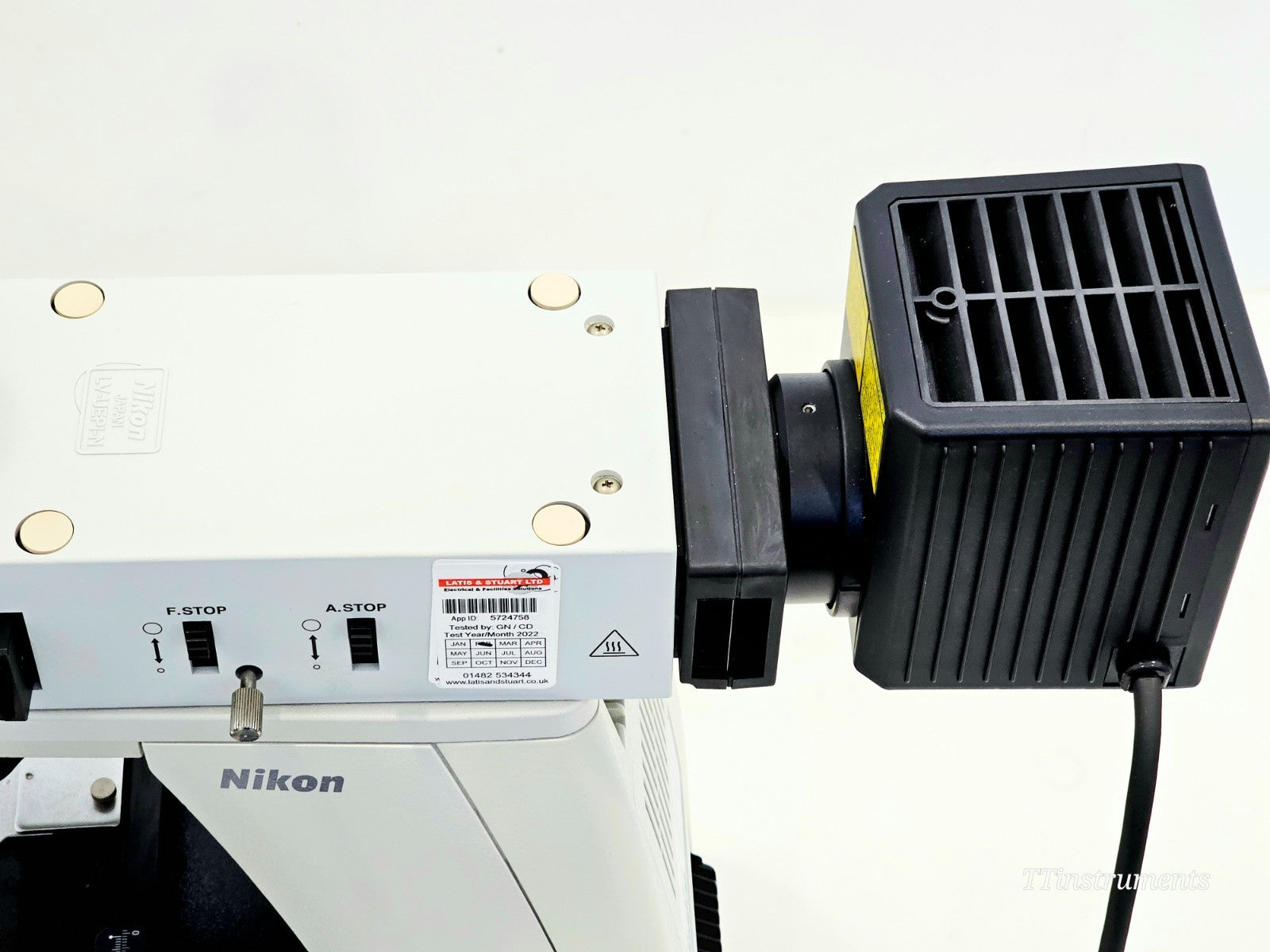

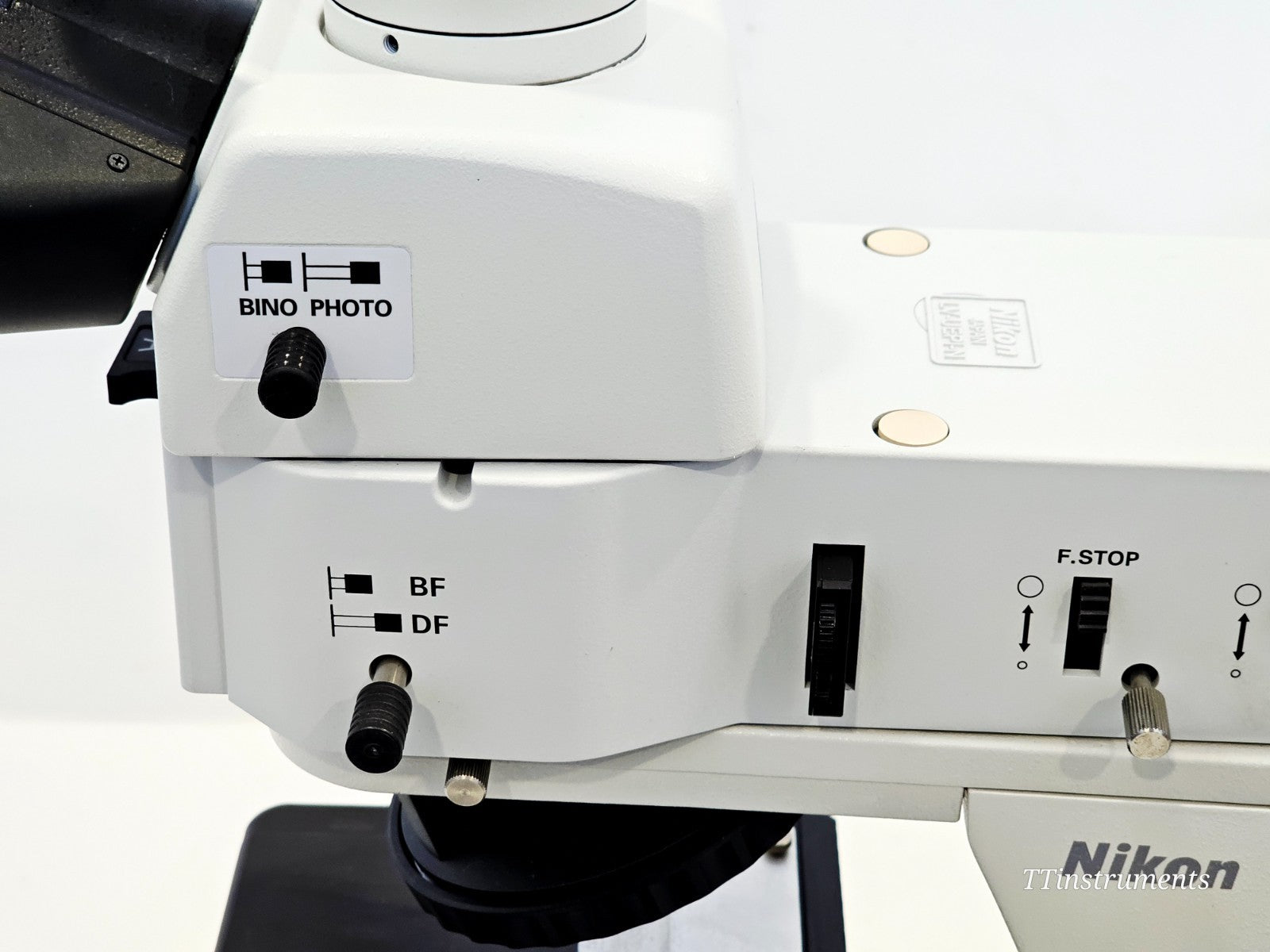

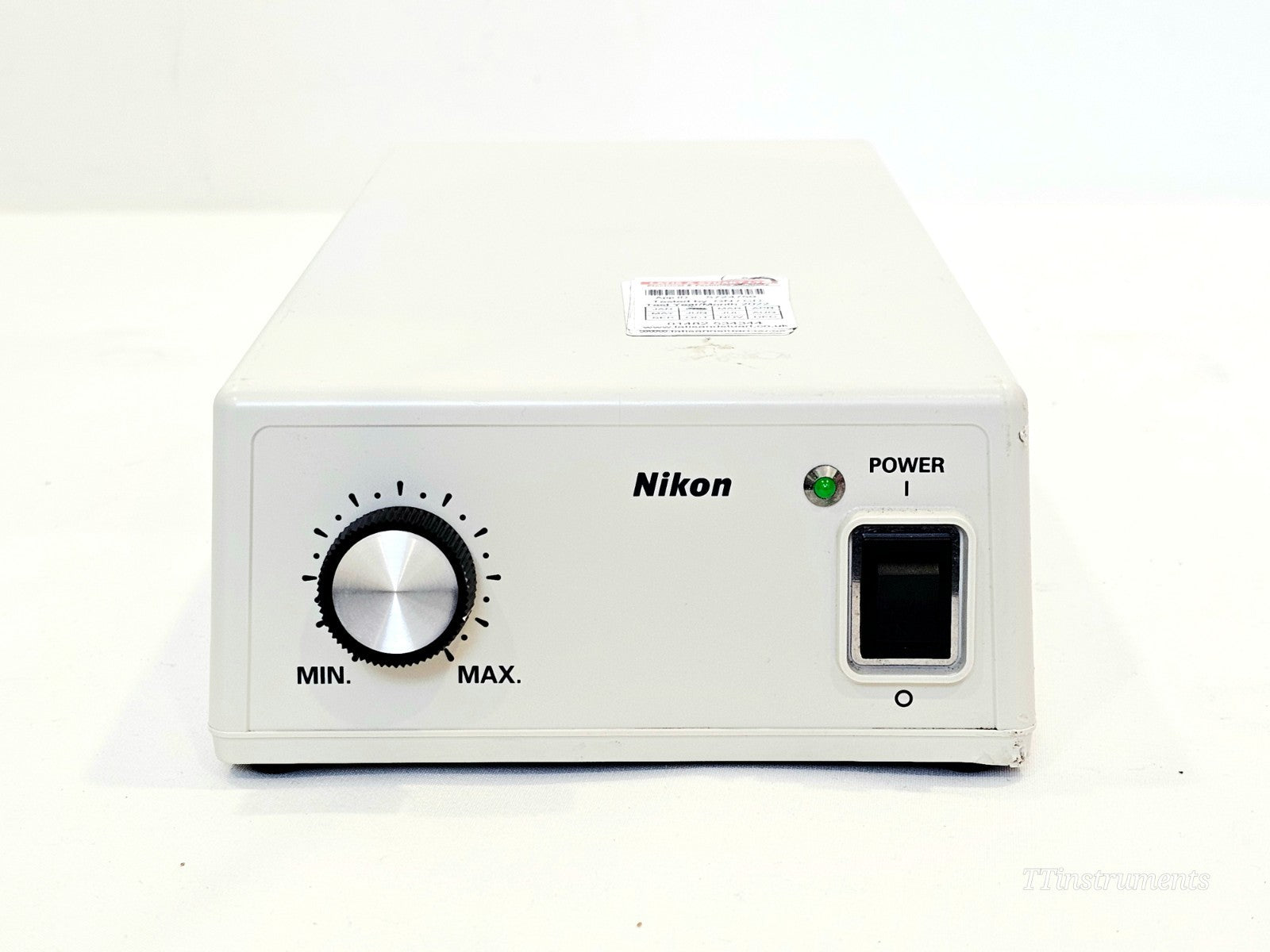

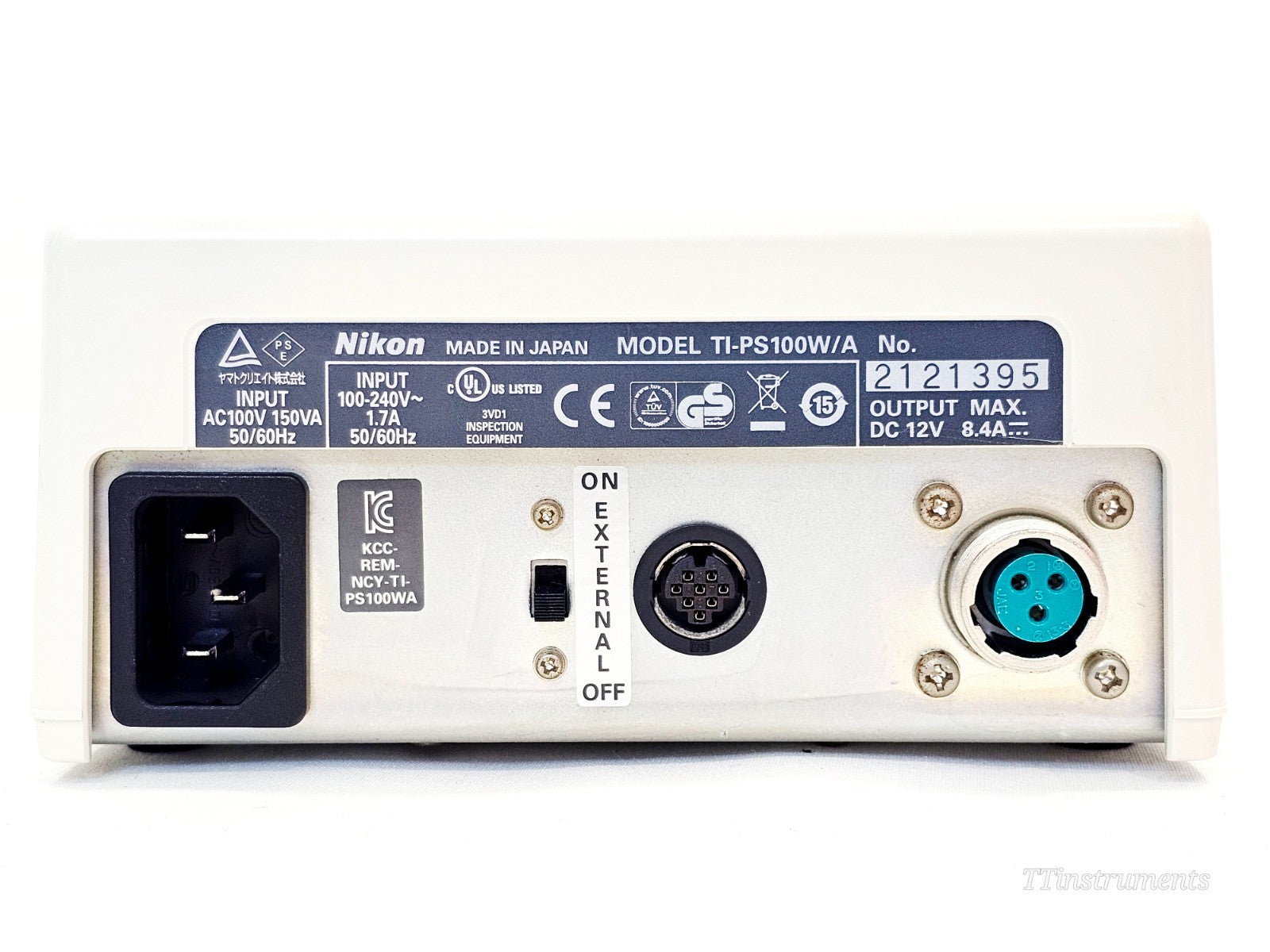

Illumination is provided by the Nikon LV-LH50PC halogen lamphouse (12 V / 50 W) powered via the included Nikon TI-PS100W/A external power supply unit (Input: 100–240 V AC; Output: DC 12 V / 8.4 A). The BF/DF selector slider and F.STOP / A.STOP upper-limit focus stop controls are fitted to the optical body.

The unit is supplied with:
• Nikon ECLIPSE Ci-L microscope stand
• C-TE2 ergonomic trinocular head
• Pair of Nikon CFI 10x/22 eyepieces
• 6-position nosepiece (empty)
• Nikon LV-LH50PC halogen lamphouse
• Nikon TI-PS100W/A external power supply

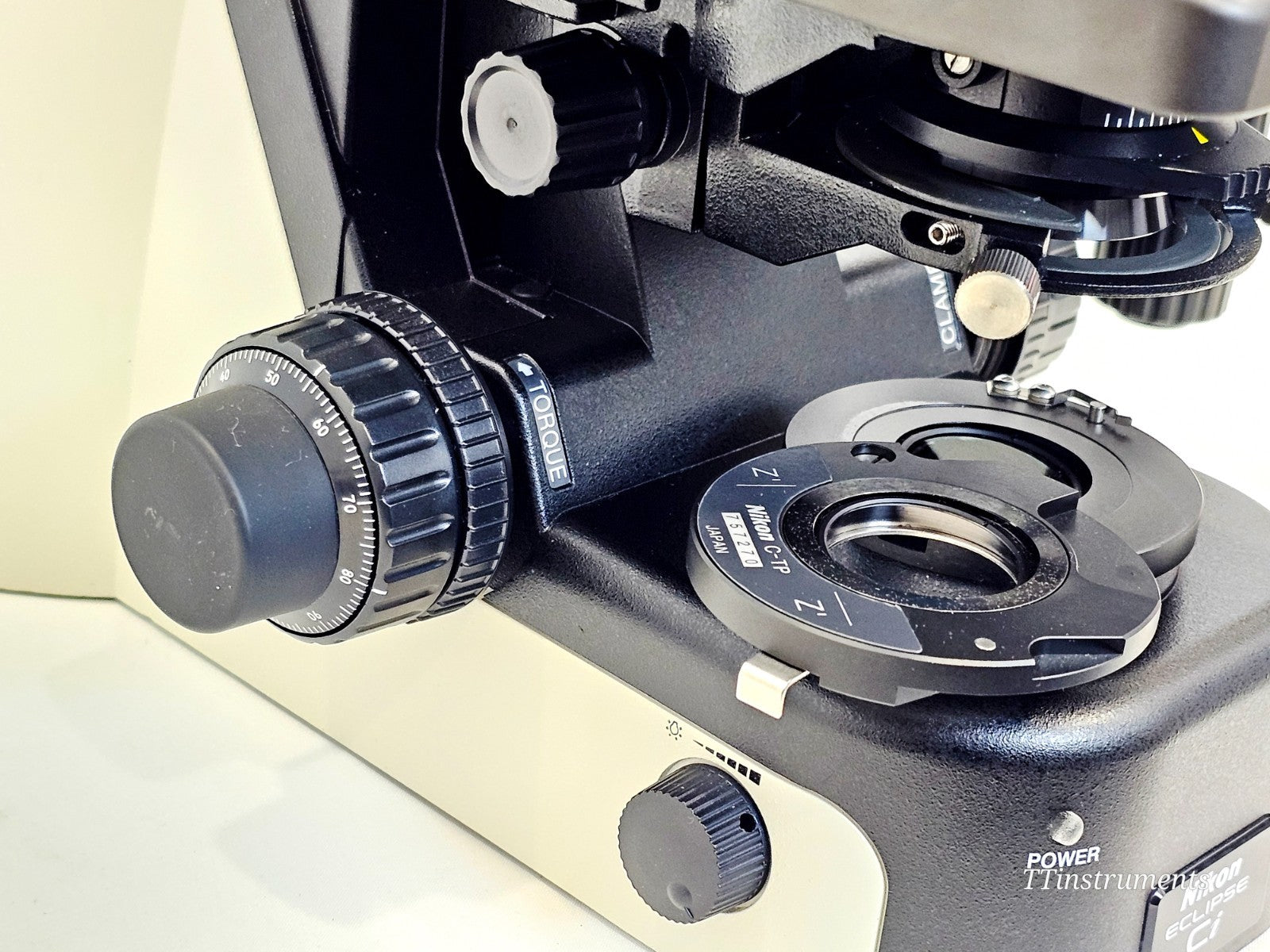

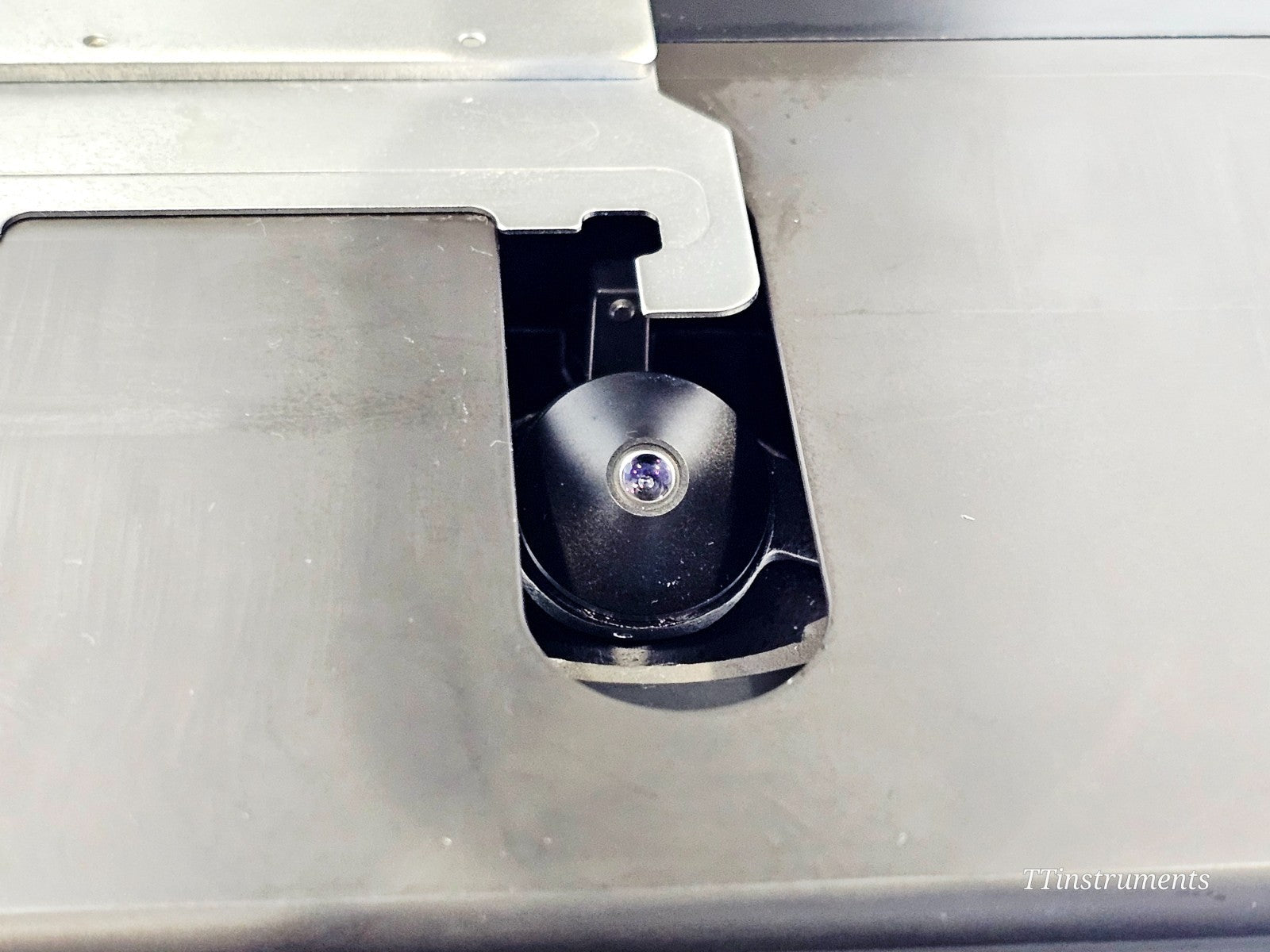

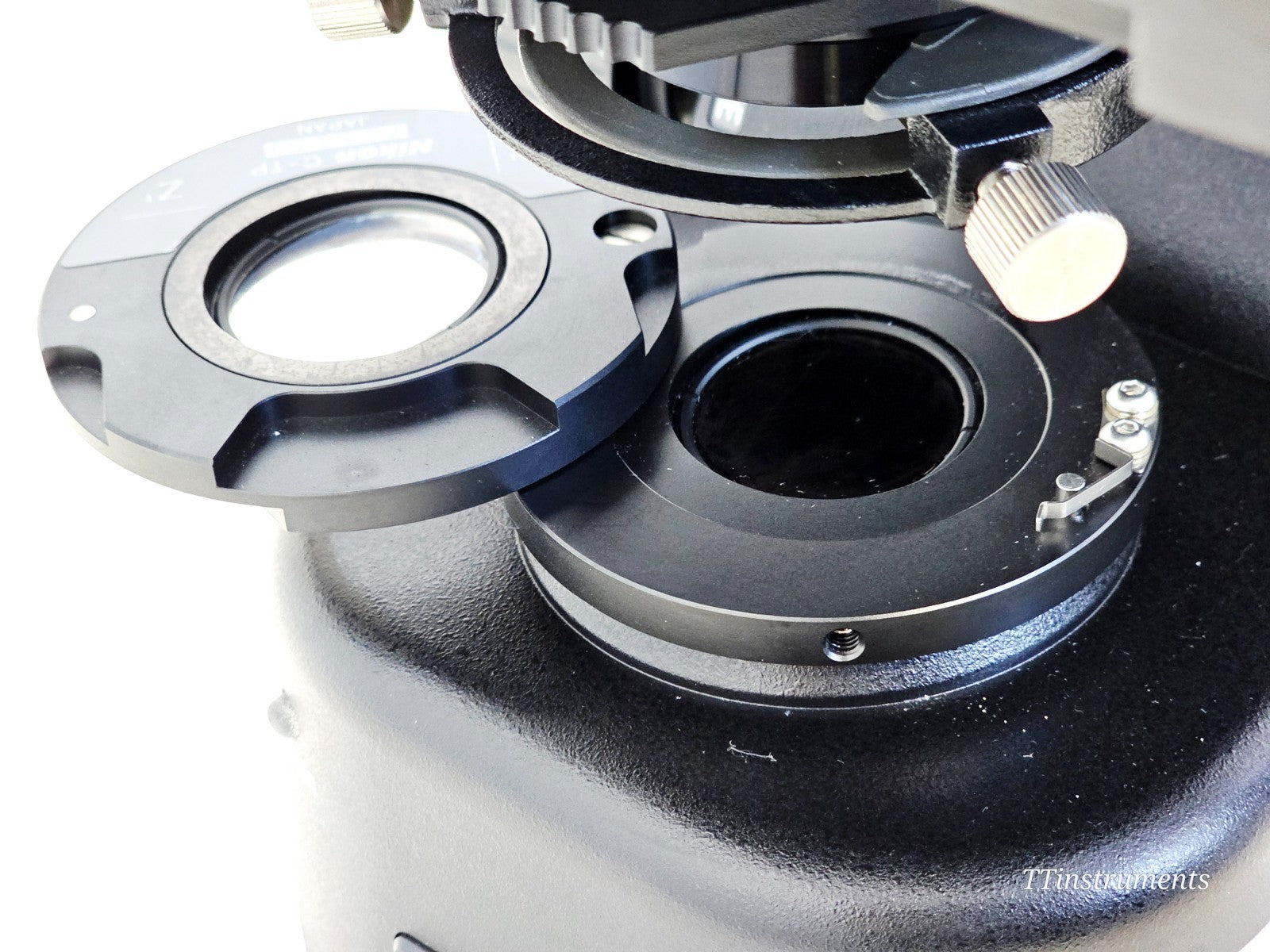

• Abbe condenser with iris diaphragm and swing-out lens

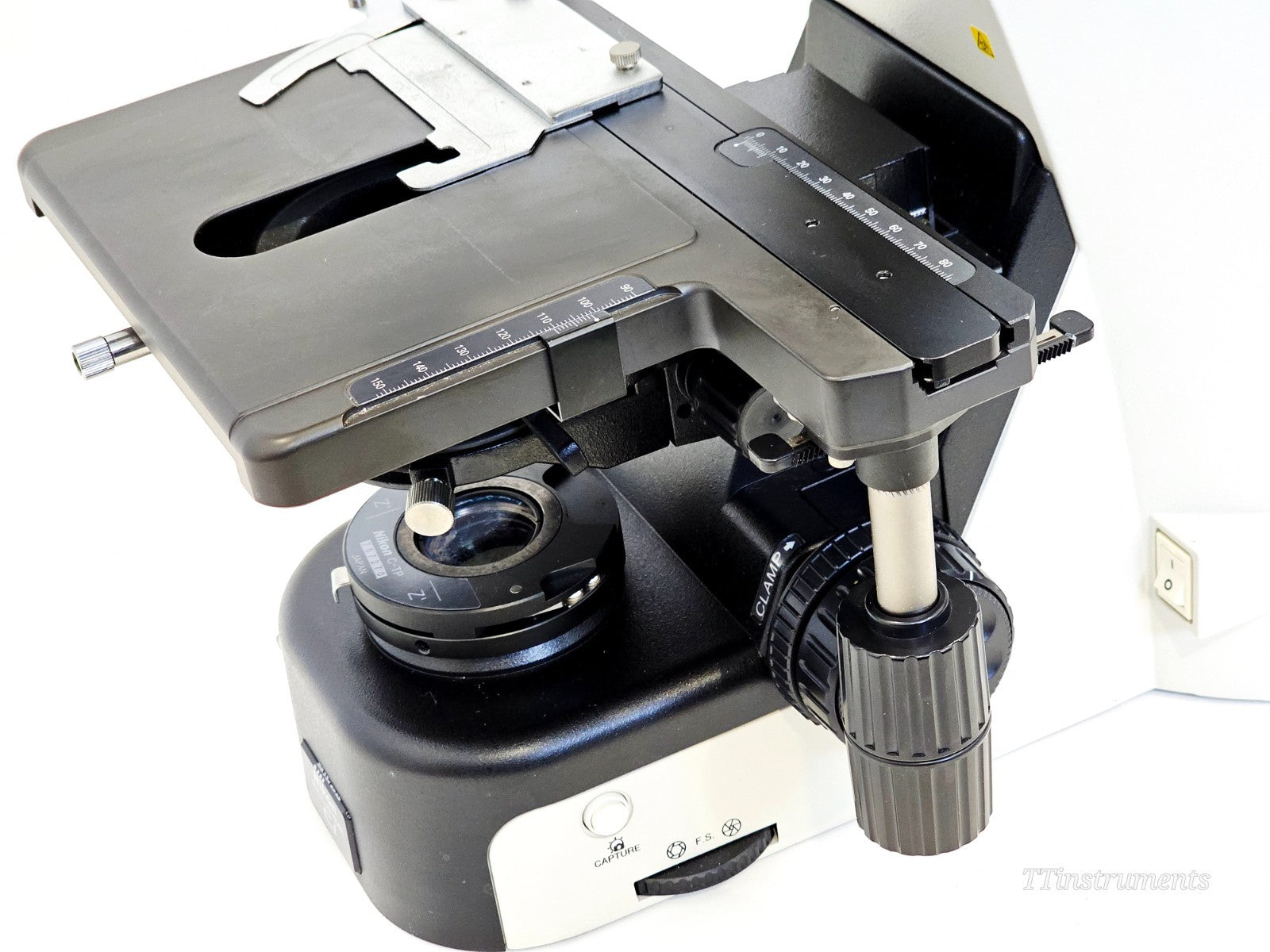

• Ceramic-coated mechanical XY stage with slide holder
• Mains power cable

The Nikon ECLIPSE Ci series is a range of ergonomic upright microscopes developed for clinical laboratory specialists and researchers, combining superior optical performance with operational ease and user comfort. The Ci-L is the halogen-illuminated manual variant, designed for applications requiring warm, traditional tungsten-halogen light output for stained biological specimens.

Built around Nikon's CFI60 infinity-corrected optical system, the ECLIPSE Ci-L delivers high-resolution, flat-field imaging across a wide range of magnifications when paired with CFI60 series objectives. The ergonomic trinocular head tilts from 10° to 30° and telescopes up to 40 mm, reducing neck and shoulder strain during extended sessions. The ceramic-coated mechanical stage resists scratching and allows precise XY positioning with Vernier calibrations. Upper-limit focus stops (F.STOP / A.STOP) protect both objectives and specimens. The reversed 6-position nosepiece provides easy objective access. The system supports brightfield, darkfield, phase contrast, simple polarising, and epi-fluorescence observation (with appropriate accessories).

Optical system: Nikon CFI60 Infinity Optical System

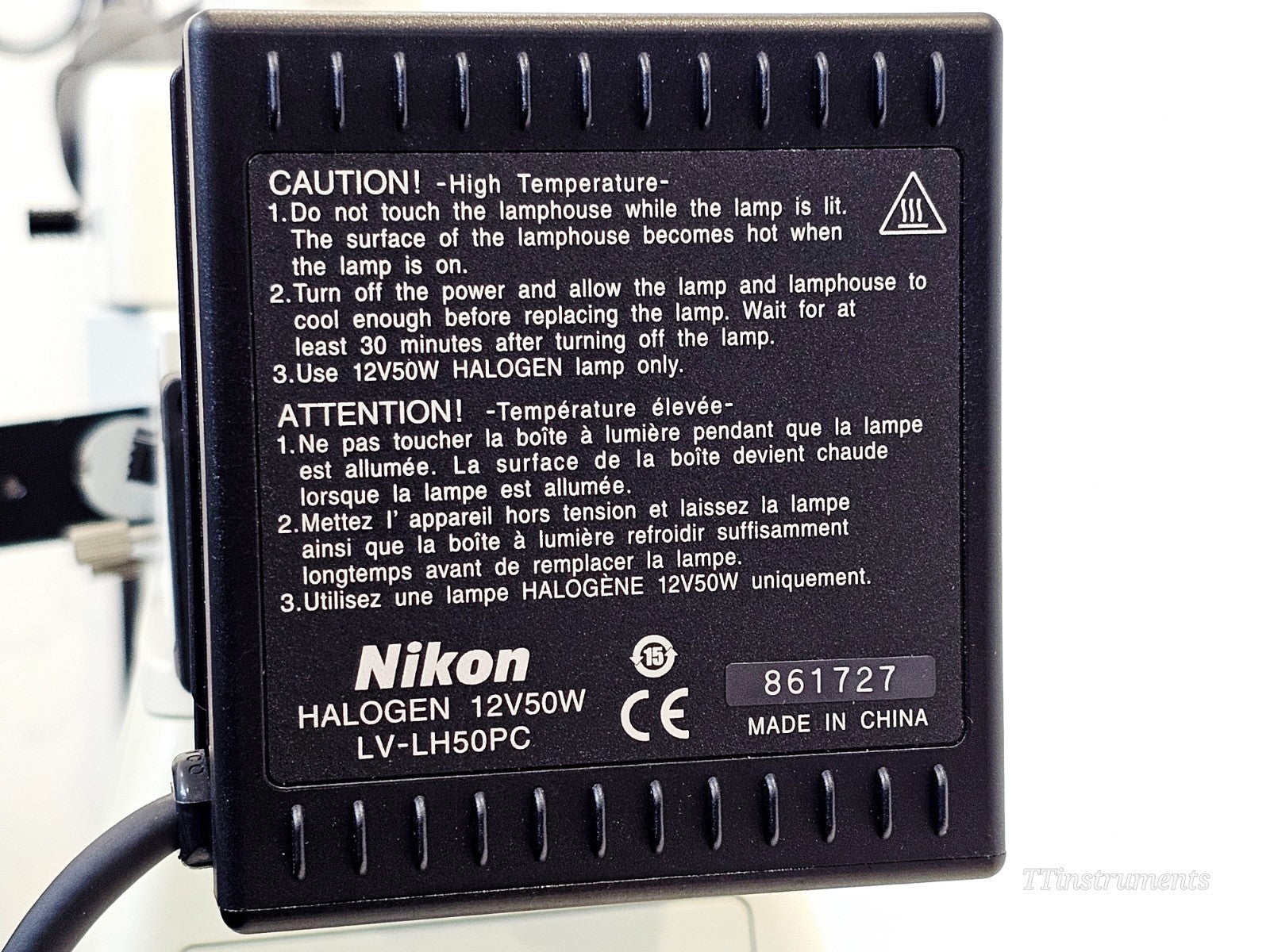

Illumination: Halogen 12 V / 50 W (LV-LH50PC lamphouse)
Eyepiece field of view: 22 mm (CFI 10x)
Nosepiece: 6-position reversed
Stage cross travel: 54 mm (Y) x 78 mm (X)
Head inclination: 10° to 30°, extension up to 40 mm

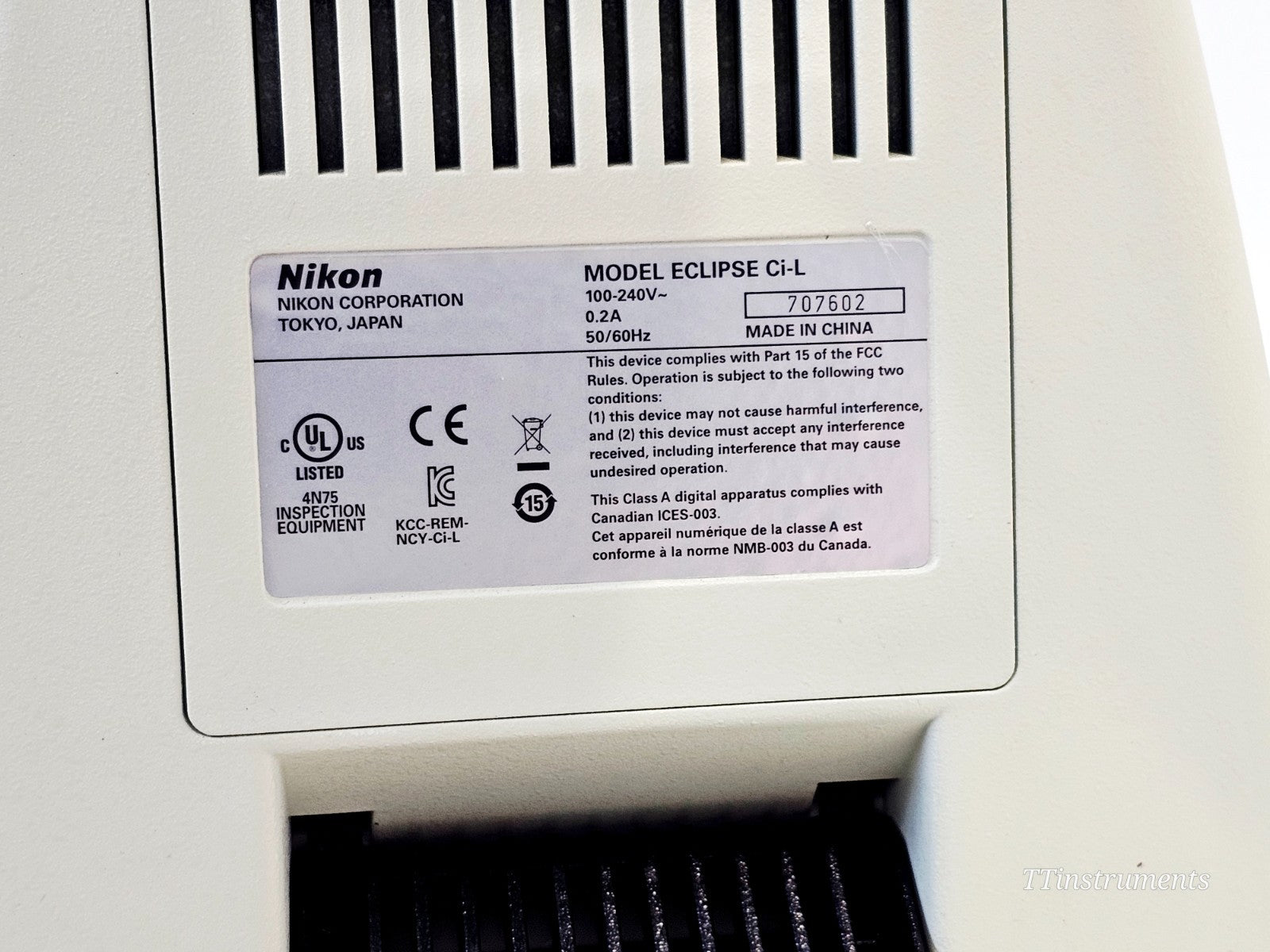

Mains input: 100–240 V AC, 50/60 Hz (universal)
Power supply output: DC 12 V / 8.4 A (TI-PS100W/A)
