Condition: Used

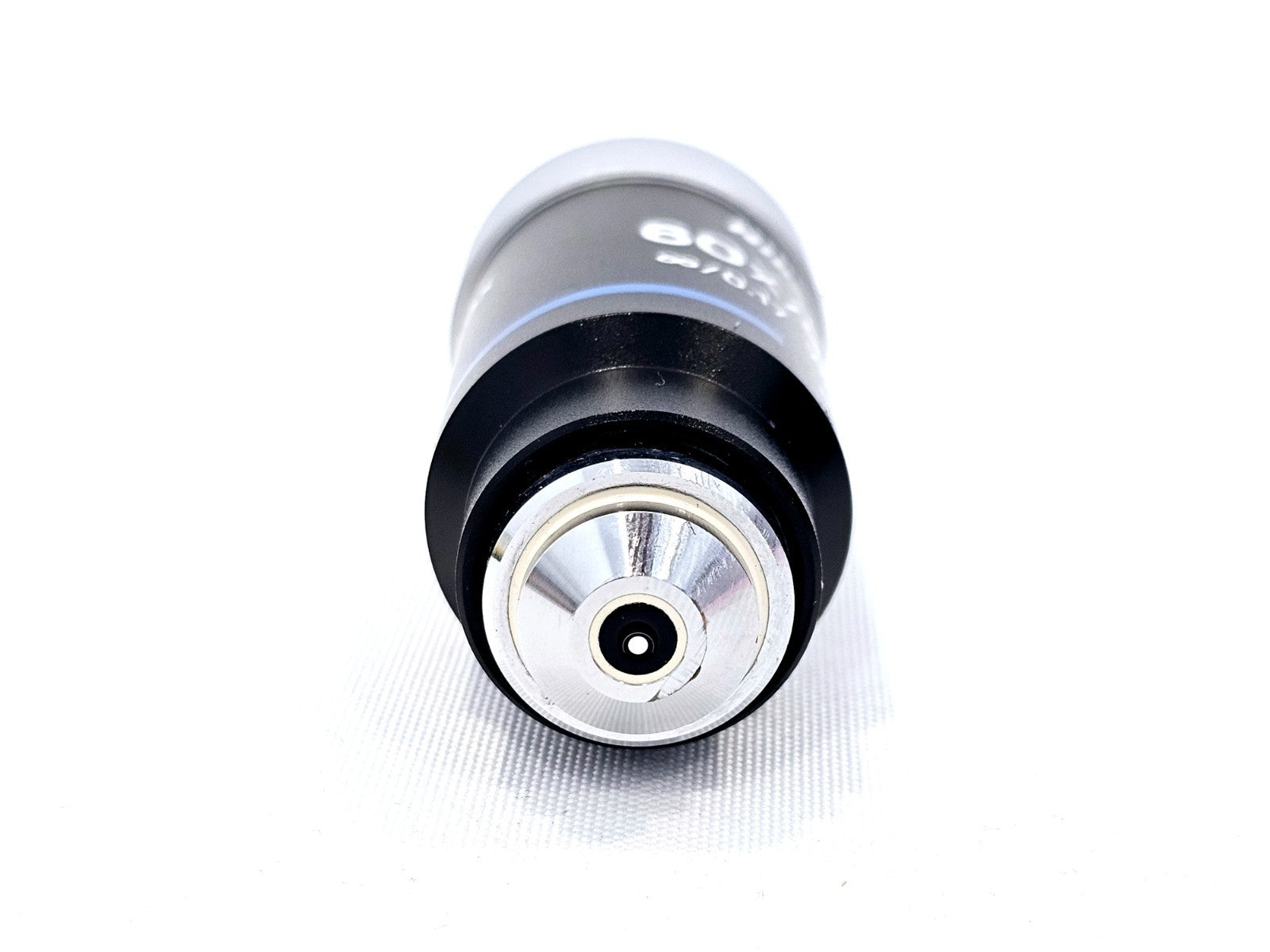

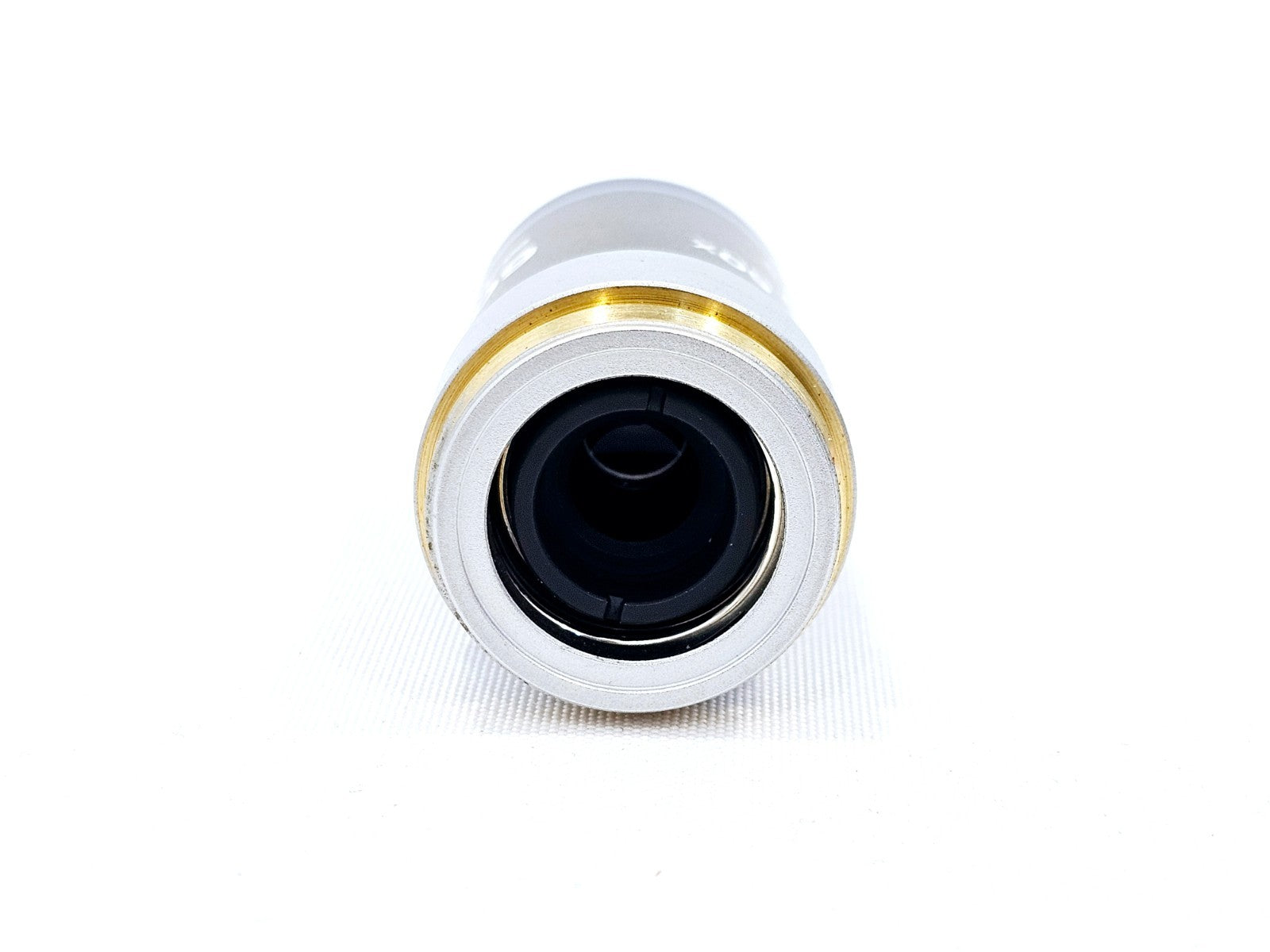

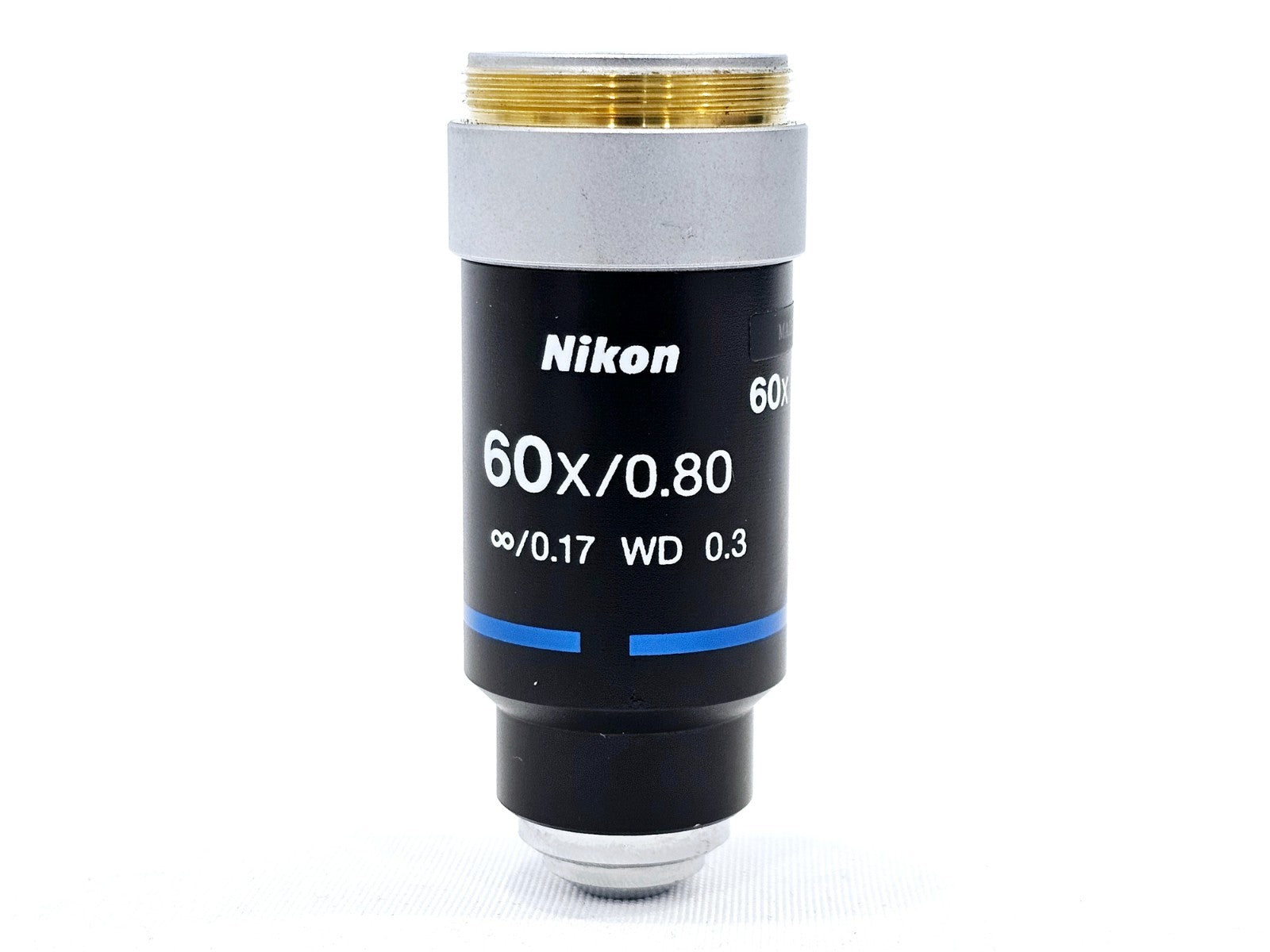

A used Nikon CFI Plan Fluor 60x/0.80 infinity-corrected dry objective, configured for 0.17 mm coverslip use with a 0.3 mm working distance. Part of Nikon's CFI60 optical system with M25 x 0.75 mounting thread, suitable for Eclipse and compatible Nikon research microscopes.

Typically includes:
• Nikon CFI Plan Fluor 60x/0.80 objective

The Nikon CFI Plan Fluor 60x/0.80 is a dry (air immersion) infinity-corrected microscope objective forming part of Nikon's renowned CFI Plan Fluor series. It delivers exceptionally high transmission from the ultraviolet to the infrared and exceptional flatness across the entire field of view, making it ideal for critical fluorescence applications as well as routine brightfield, DIC, polarising, and photomicrography work.

Built to Nikon's CFI60 standard — incorporating a 200 mm tube lens focal length, 60 mm parfocal distance, and M25 x 0.75 thread — this objective offers longer working distances and higher optical performance compared to competing 45 mm parfocal-distance systems. Fluorite (Plan Fluor) optical elements provide superior chromatic and spherical aberration correction, making it a highly capable multipurpose objective for biological research, live cell imaging, and multi-channel fluorescence microscopy.

Key Specifications:
Magnification: 60x
Numerical Aperture (NA): 0.80
Immersion Medium: Dry (air)
Tube Length: Infinity (∞)
Cover Glass Thickness: 0.17 mm
Working Distance (WD): 0.3 mm
Optical System: CFI60 (infinity-corrected)
Thread Size: M25 x 0.75
Parfocal Distance: 60 mm
Tube Lens Focal Length: 200 mm
Objective Class: Plan Fluor (Plan Semi-Apochromat)
Chromatic Correction: Four wavelengths
Field Flatness: Plan (flat field across full field of view)
Compatible Microscopes: Nikon Eclipse series (E200, E400, E600, 50i, 55i, 80i, 90i, Ci, Ni and related models)
Applications: Brightfield, fluorescence, DIC, polarising microscopy, photomicrography, live cell imaging

Nikon CFI60 Objectives for Eclipse Series — official Nikon objectives chart (PDF): Download PDF

Nikon Microscope Objectives for Bioscience — official Nikon brochure (PDF): Download PDF
