Condition: Used

The Nidek DS-20 VersaCam Portable Fundus Camera with DS-20F lens has been fully tested and had its lithium-ion battery replaced with a new one. The device charges via mini USB cable. Actual retinal captures taken from this specific device are available on the product listing.

Included in the sale:

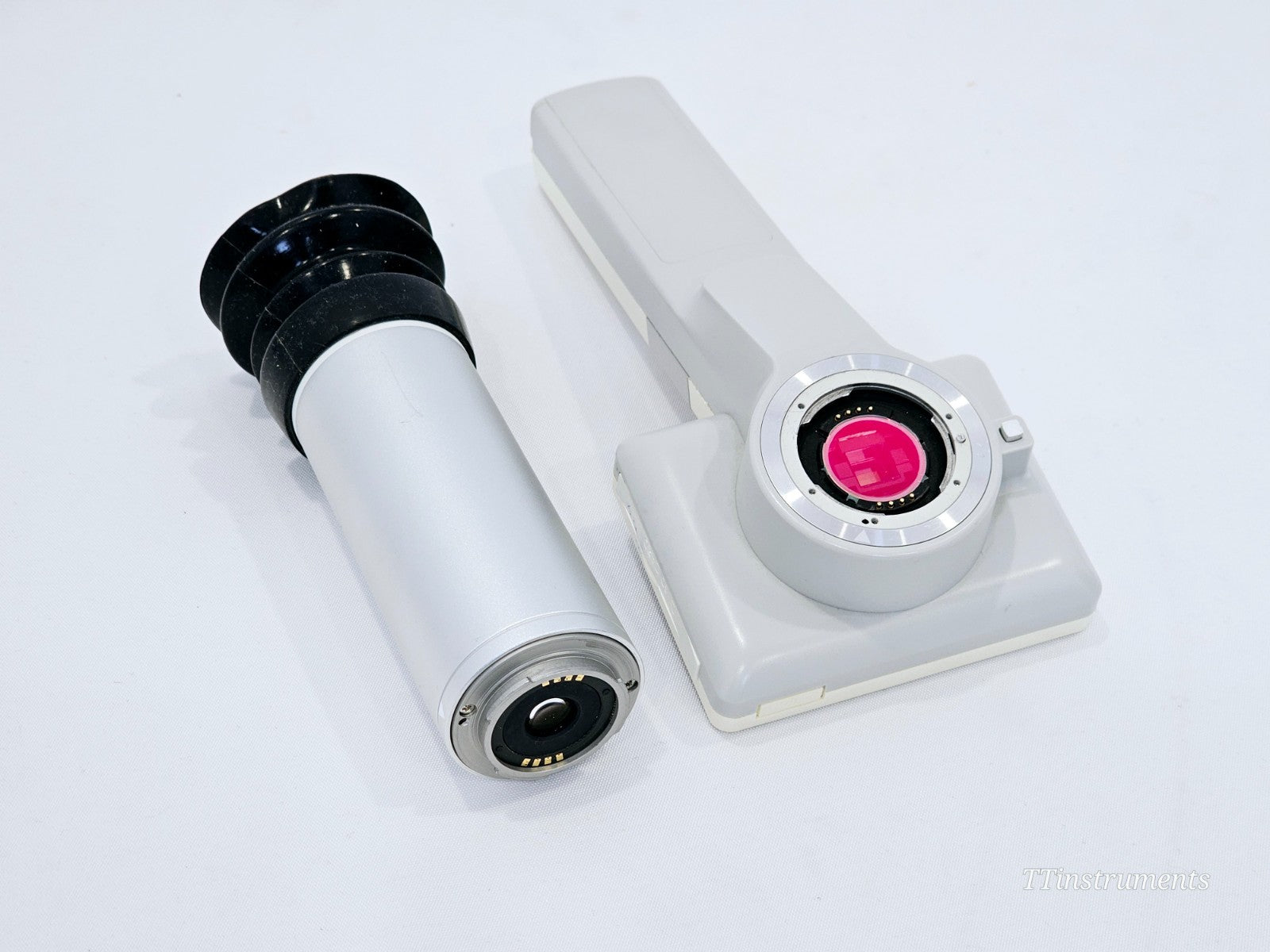

• Nidek DS-20 VersaCam Portable Fundus Camera

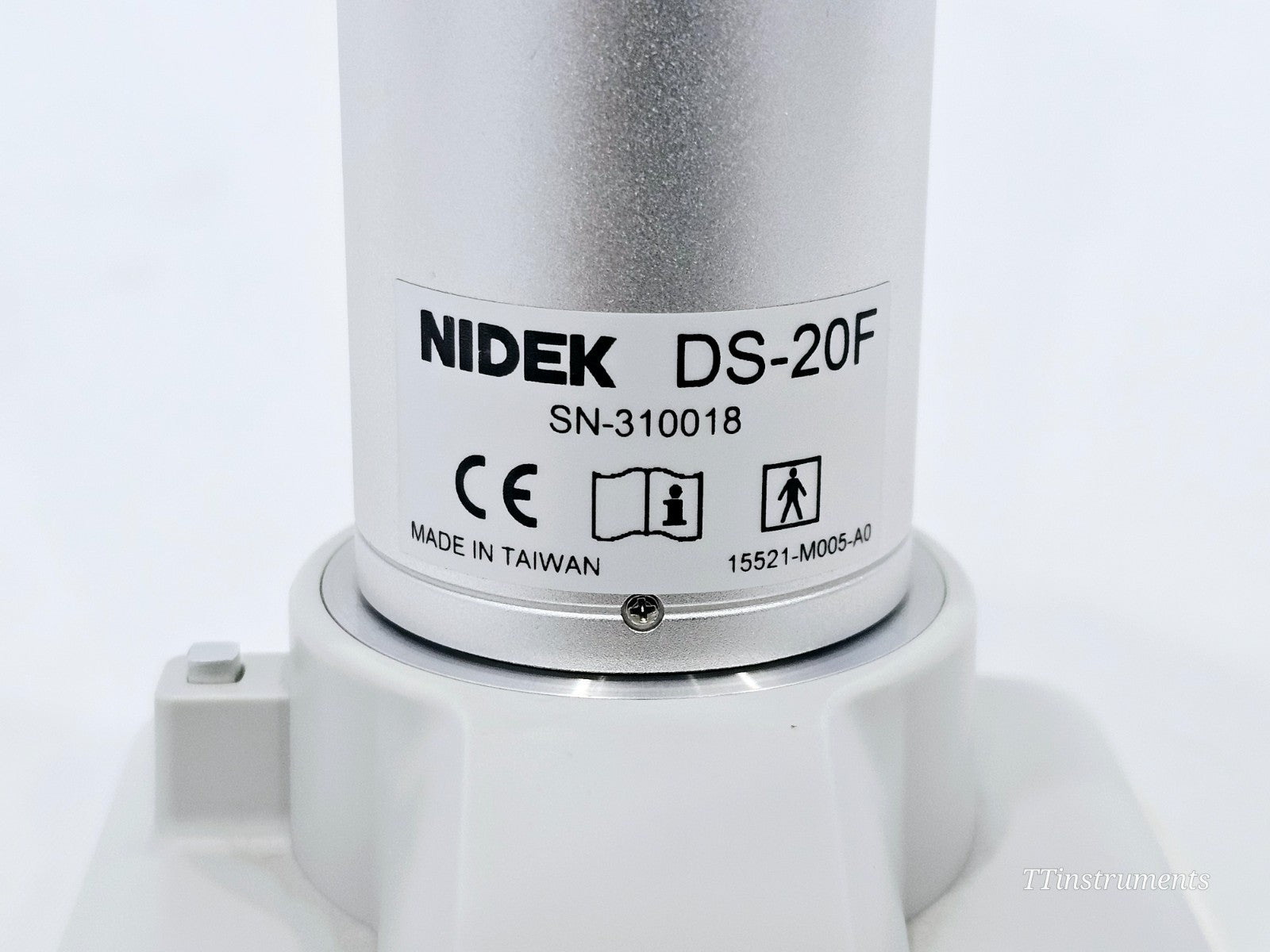

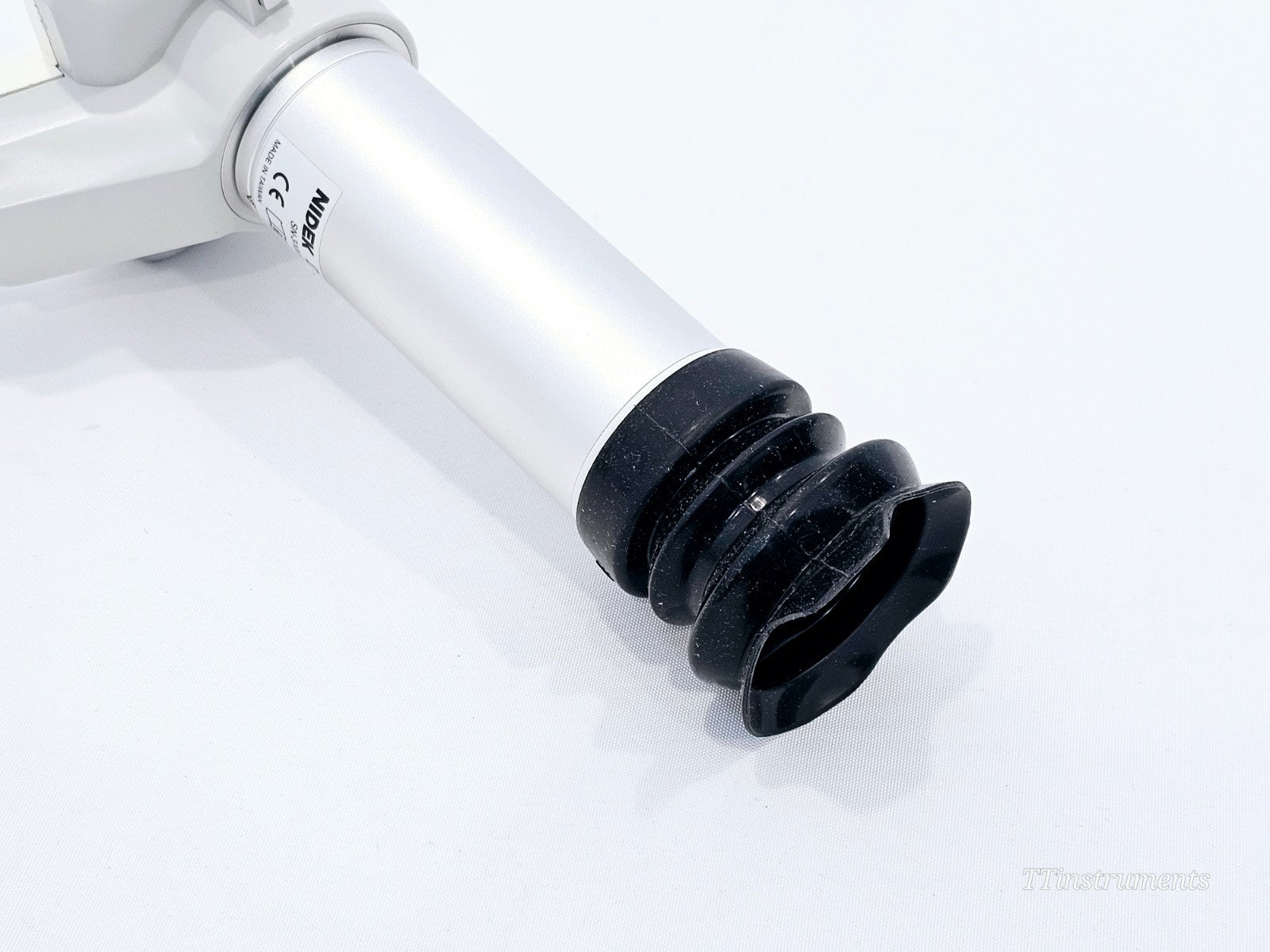

• Nidek DS-20F lens

Please note: the device charger (mini USB cable) is not included.

The Nidek VersaCam Alpha (DS-20) is a portable, non-mydriatic Digital Medical Scope designed specifically for fundus imaging. It delivers high-quality retinal images through a lightweight and compact handheld design, enabling fundus screenings to be performed virtually anywhere — whether the patient is seated or supine. With one-handed operation, an intuitive touchscreen interface, and autofocus with auto shot capability, the DS-20 is suited to clinical practices, outreach programmes, domiciliary visits, and diabetic retinopathy screening services. The unit can be operated continuously for up to 3 hours on a full charge, and images can be transferred via USB cable, SD card, or connected to Nidek's NAVIS-EX image management software.

Device: Digital Medical Scope
Model: VersaCam Alpha DS-20
Type: Non-mydriatic portable fundus camera
Specialty: Retina
Angle of View: 45° (horizontal), 40° (vertical)
Minimum Pupil Diameter: 3.5 mm
Focus Range: -20 to +20 D
Focus: Auto and manual
Camera Resolution: 5 Megapixel CMOS
Fixation: 7 internal fixation lamps (LED)
Display: 3.5-inch LCD touchscreen
File Format: JPEG (still image), H.264 (video)

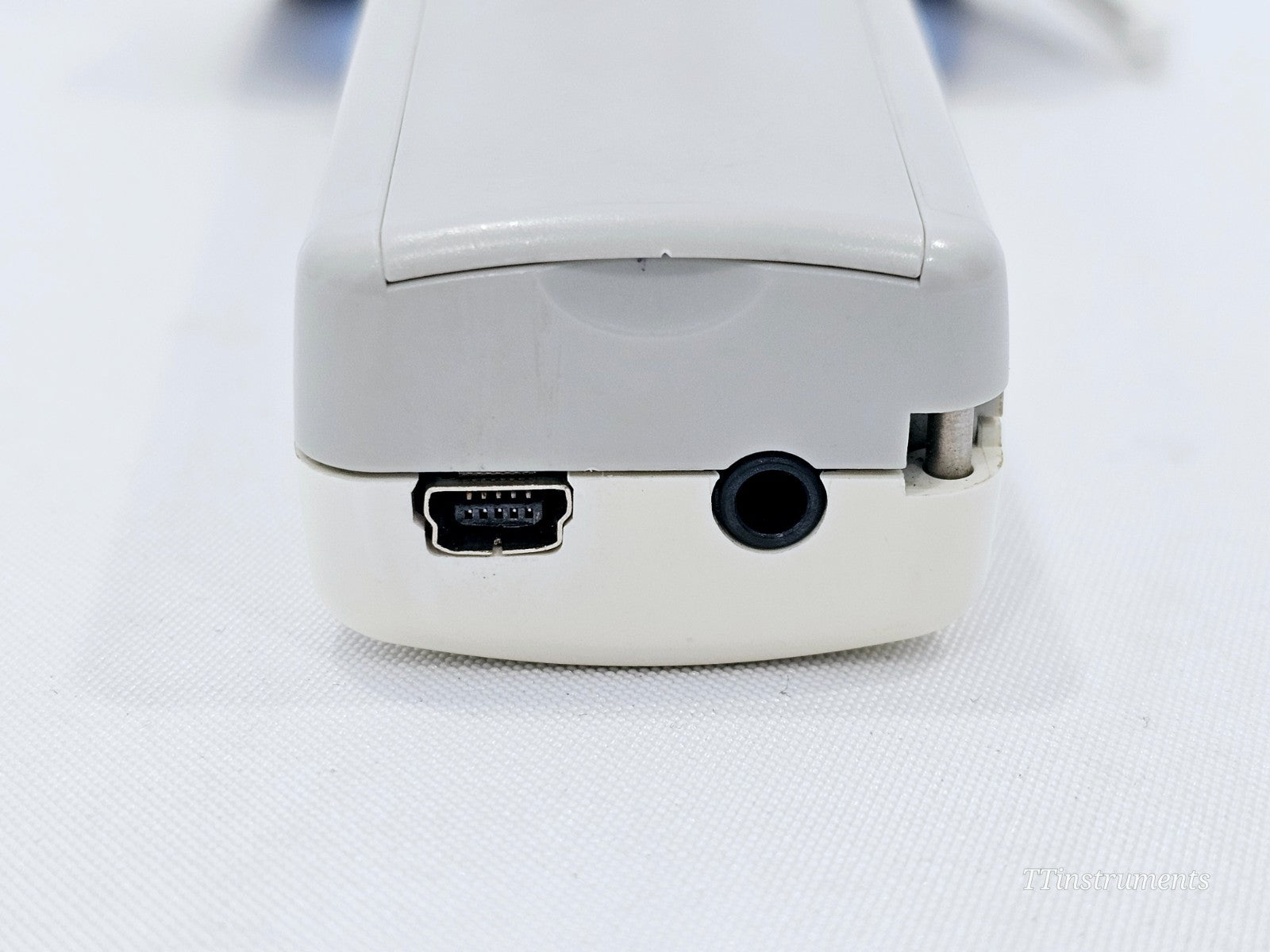

Interface: Mini USB, AV out port

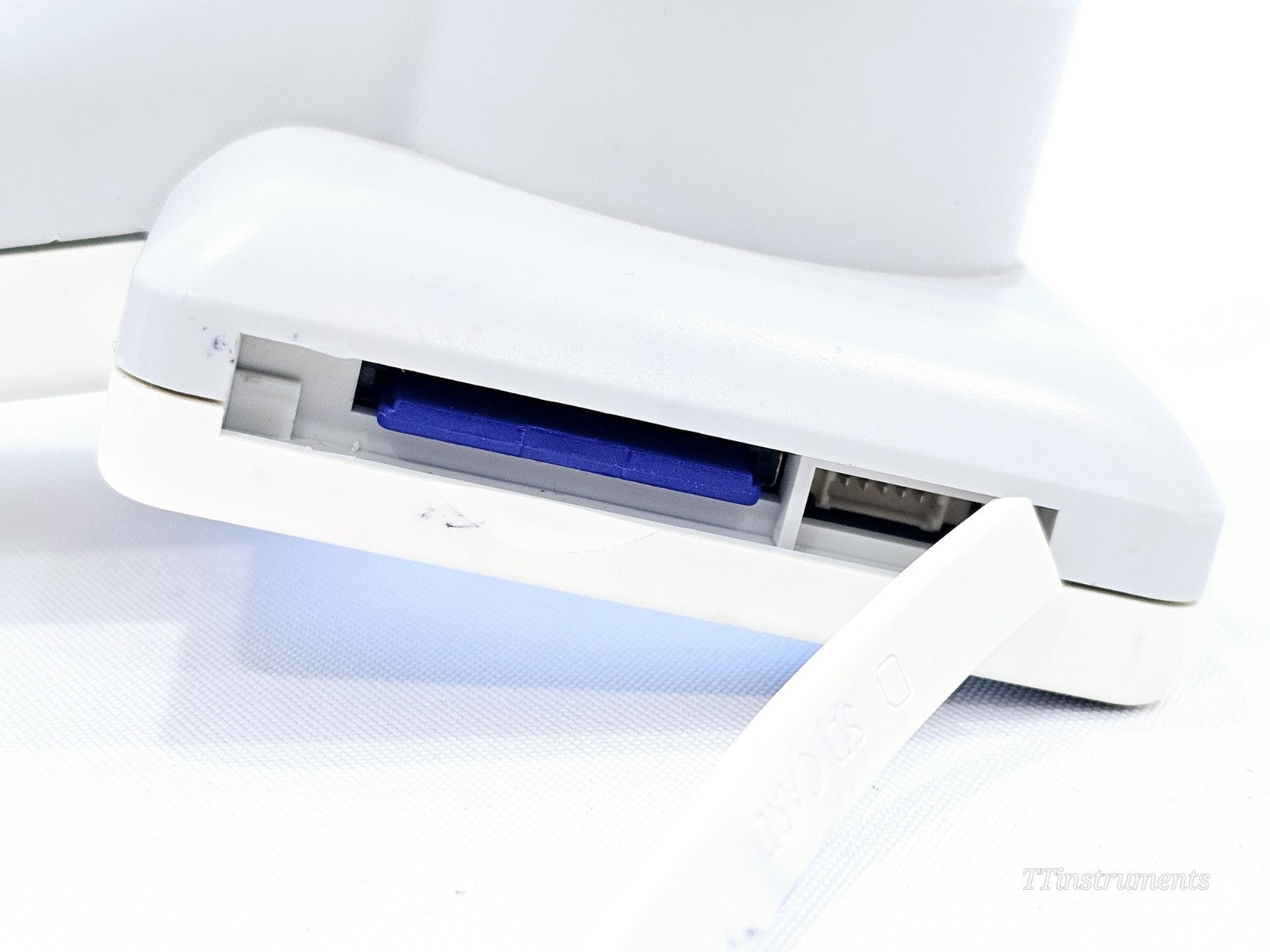

Memory: 8 GB SD card
Power Supply: Lithium-ion rechargeable battery; AC 100–240 V, 50/60 Hz
Battery Life: Up to 3 hours continuous operation
Main Body Dimensions: 89 (W) x 40 (D) x 203 (H) mm
Main Body Weight: 285 g (0.63 lbs)
Ophthalmoscope Dimensions: 118 (L) x 43 (Dia.) mm
Ophthalmoscope Weight: 160 g (0.35 lbs)
Charging Station Dimensions: 56 (W) x 166 (D) x 106 (H) mm
Charging Station Weight: 370 g (0.82 lbs)
Optional Accessories: Carrying case, external fixation lamp, foot switch, slit lamp attachment, NAVIS-EX software

Nidek VersaCam Alpha DS-20 Technical Specifications — NIDEK USA official specifications page: Download PDF

Nidek VersaCam Alpha DS-20 Product Catalogue Page — NIDEK USA official product page: Download PDF
