Newport ESP301 3-Axis Motion Controller with M-433 Stage & URM100APP

Newport ESP301 integrated 3-axis motion controller with E4738A driver cards, supplied complete with a URM100APP motorised rotation stage, M-433 series linear translation stage, and M-MRP3-0.25 riser plate — fully tested and working.

• 3-axis ESP-compatible controller: USB, RS-232, and GPIB interfaces with auto stage detection
• Complete motorised stage assembly: ESP-compatible rotation stage and precision ball-bearing linear stage included
• 100–240 V universal input, bench-top or 2U rack-mountable form factor
Manufacturer
Newport
Model
ESP301
Condition
Used
In stock
1
SKU
8948 3D03
Sale price £1,270.75
  • Electronic T&M
  • Multifunction & Appliance Test
  • Newly-Listed

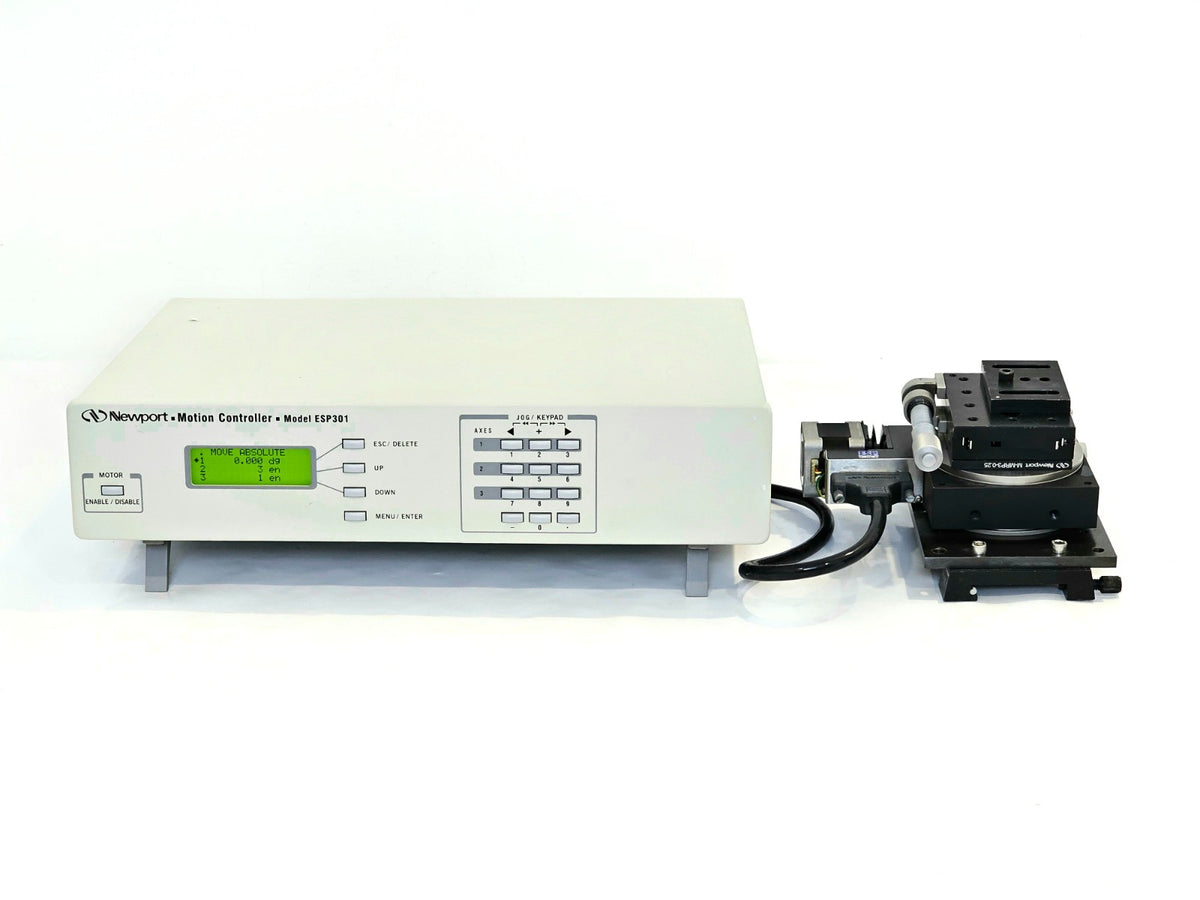

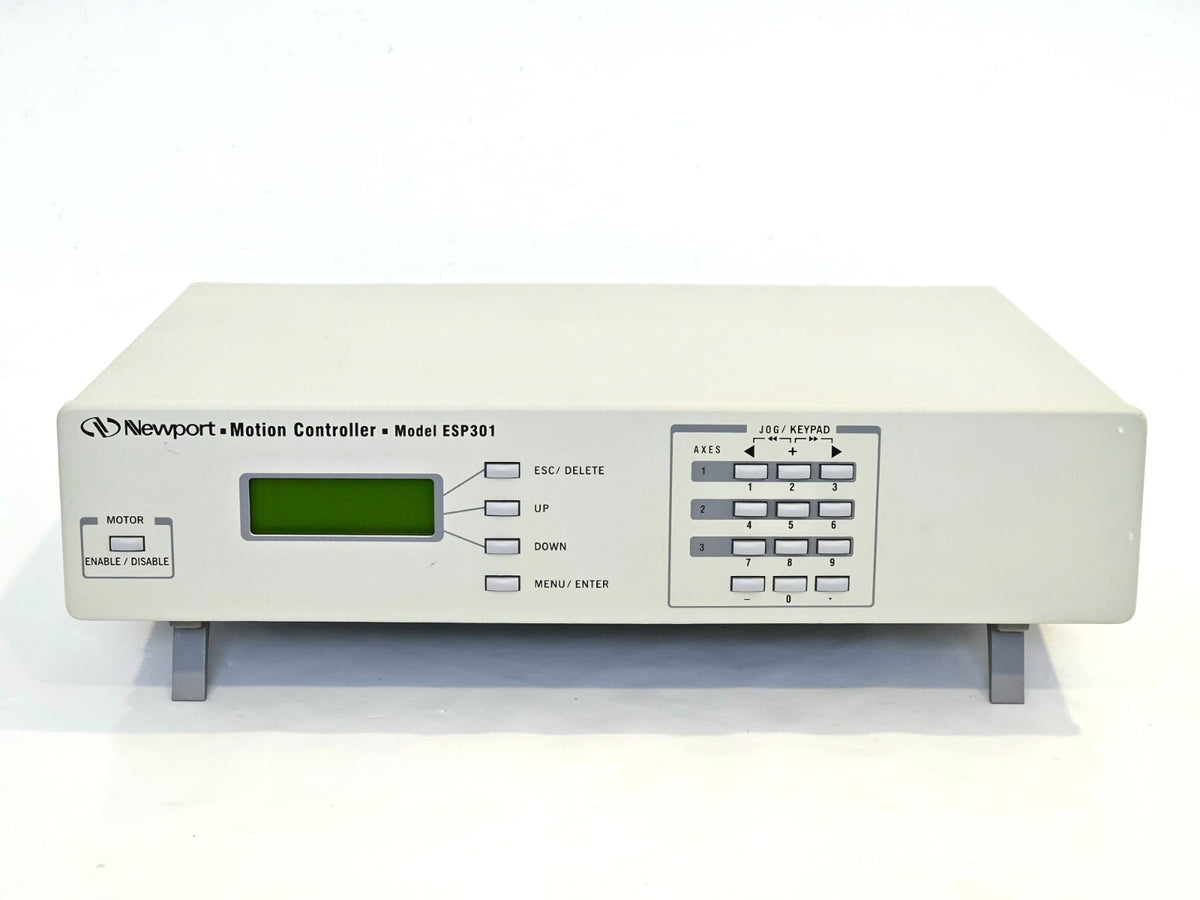

Newport ESP301 used 3-axis motion controller drive motor control unit front panel
Newport ESP301 3-Axis Motion Controller with M-433 Stage & URM100APP Sale price £1,270.75
Product Overview

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

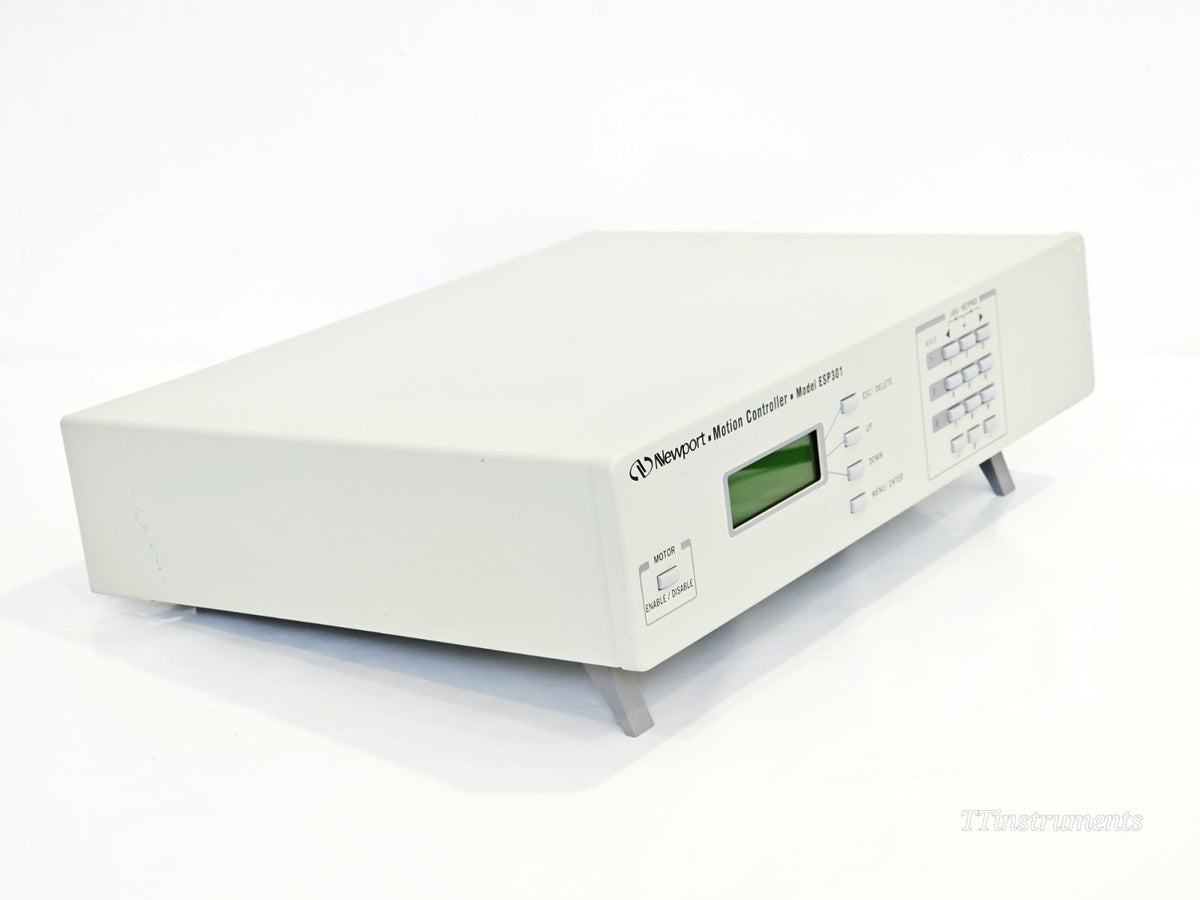

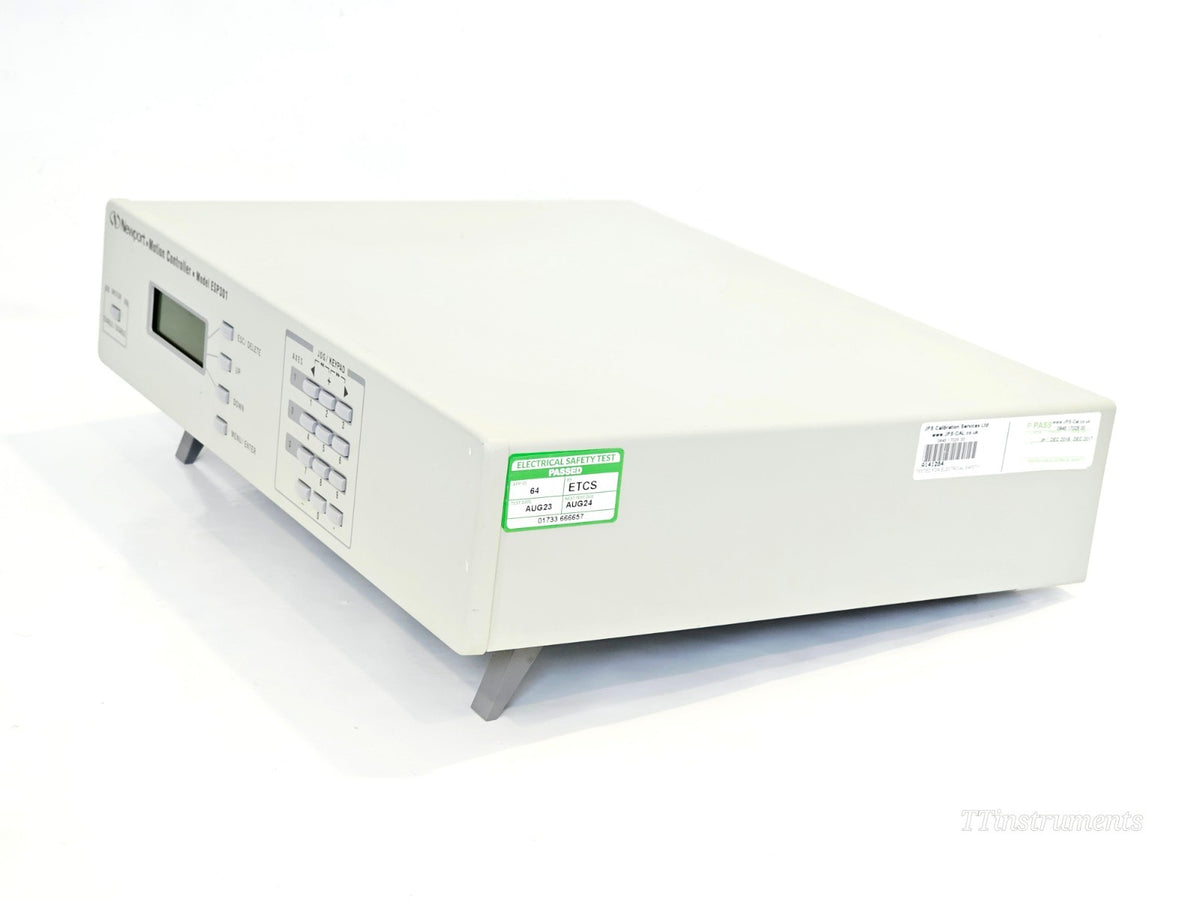

This Newport ESP301 Integrated 3-Axis Motion Controller/Driver is in used, very good condition and has been fully tested and confirmed working. The unit carries a passed electrical safety test (PAT) label.

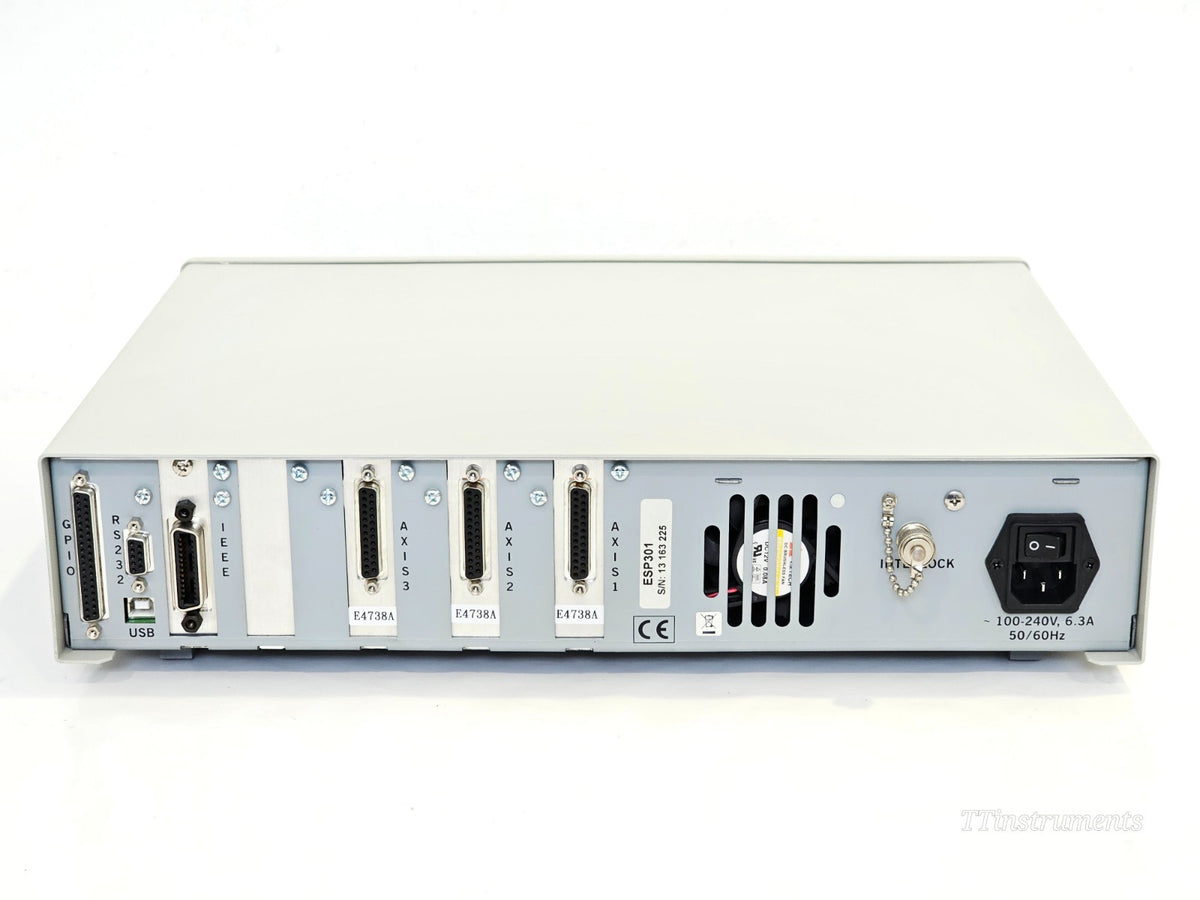

The controller is fitted with three E4738A universal driver cards across all three axis slots (Axis 1, Axis 2, Axis 3), enabling operation with a wide range of Newport ESP-compatible stepper and DC motor stages. The rear panel provides USB, RS-232, IEEE-488 (GPIB), and GPIO interfaces.

The system is supplied as a complete motion assembly. Included items:
• Newport ESP301 Integrated 3-Axis Motion Controller/Driver (with 3 × E4738A cards installed)

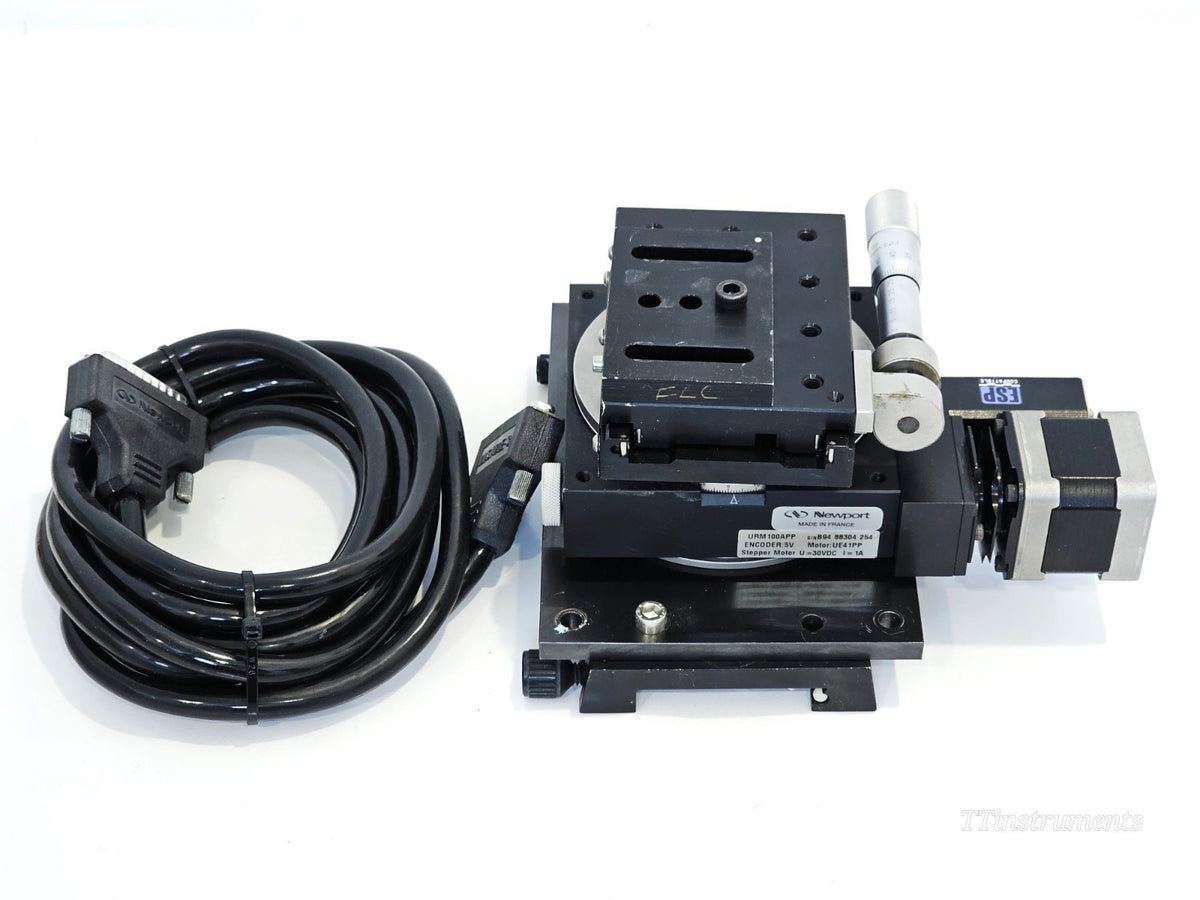

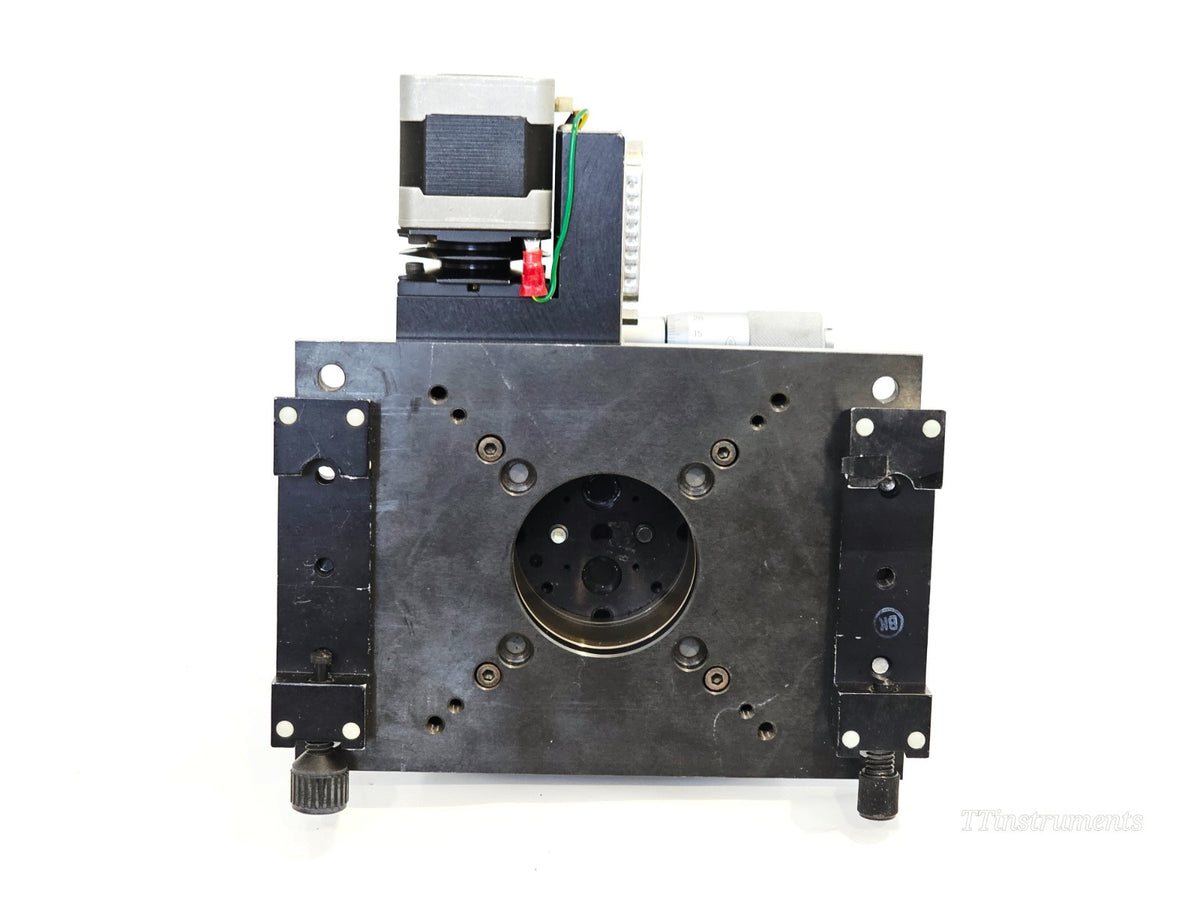

• Newport URM100APP ESP-compatible motorised rotation stage (stepper motor UE41PP, 5 V encoder, 30 V DC / 1 A)

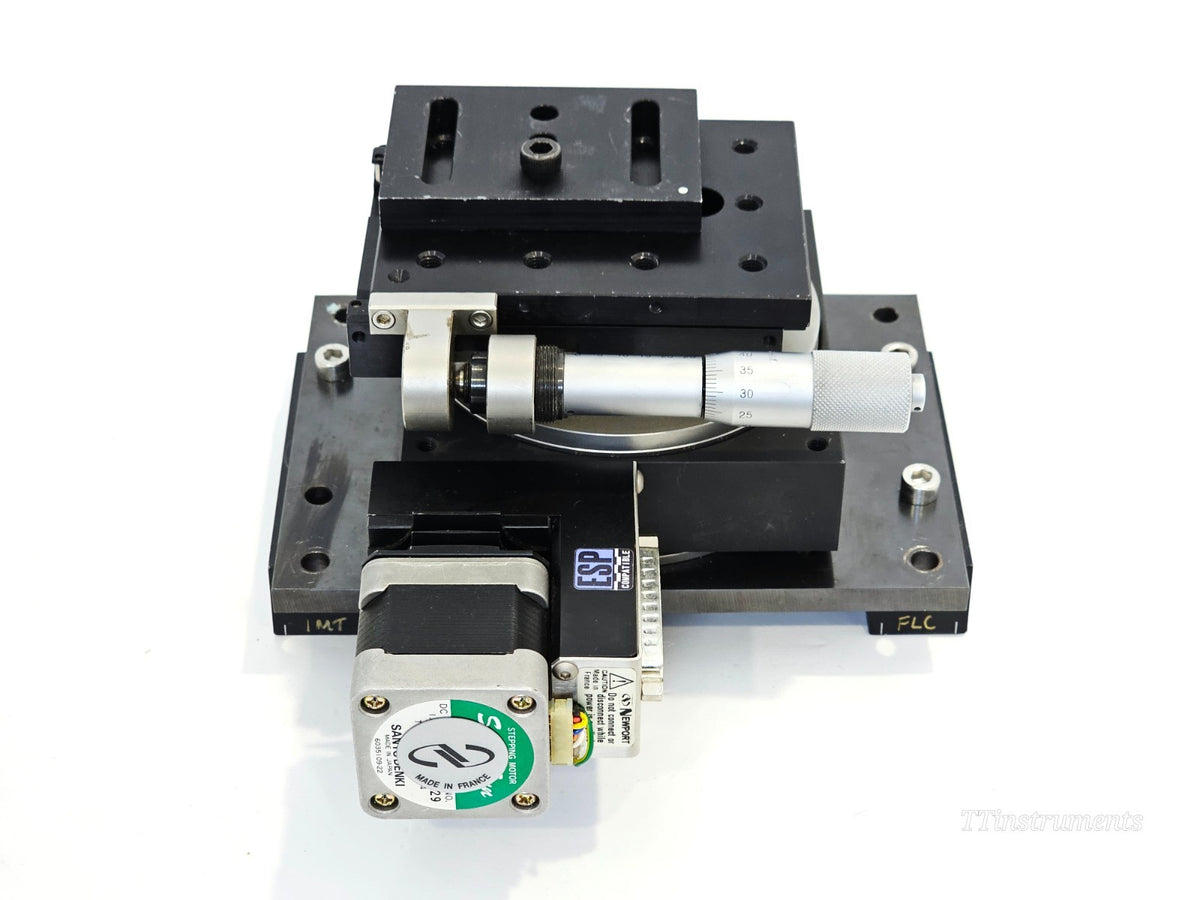

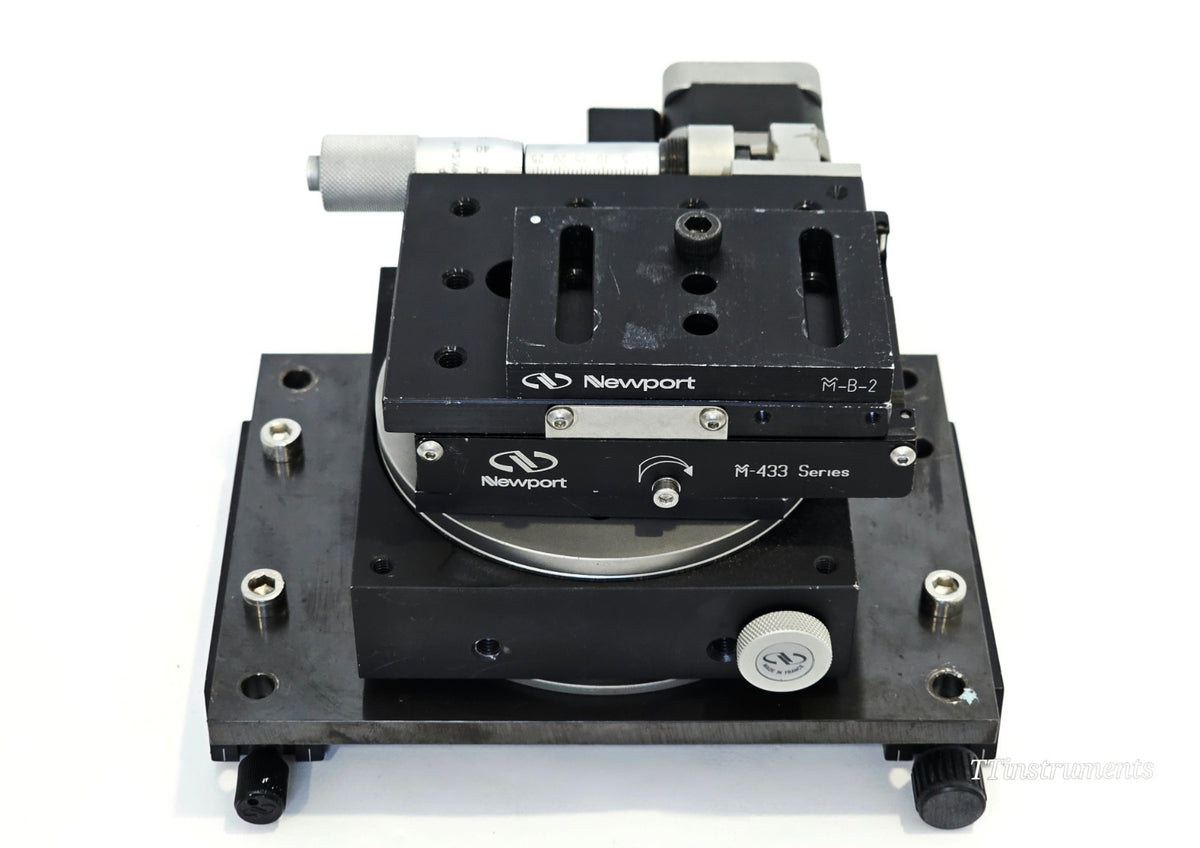

• Newport M-433 Series high-performance low-profile linear translation stage with micrometer actuator (46 mm travel, M6, ball bearings)

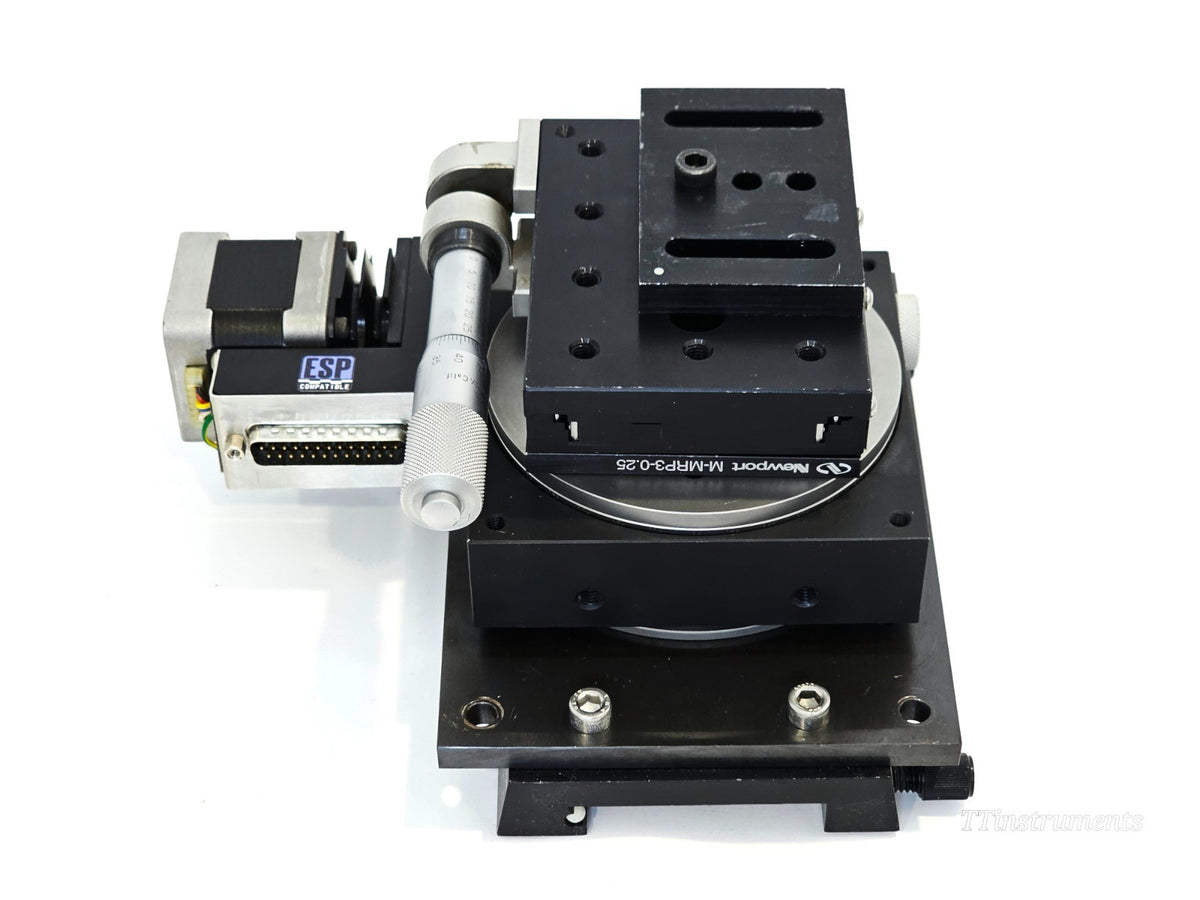

• Newport M-MRP3-0.25 modular metric riser plate (76.2 × 76.2 × 6.35 mm, aluminium)
• Newport M-B-2 mounting base plate
• DB25 motor interface cable
