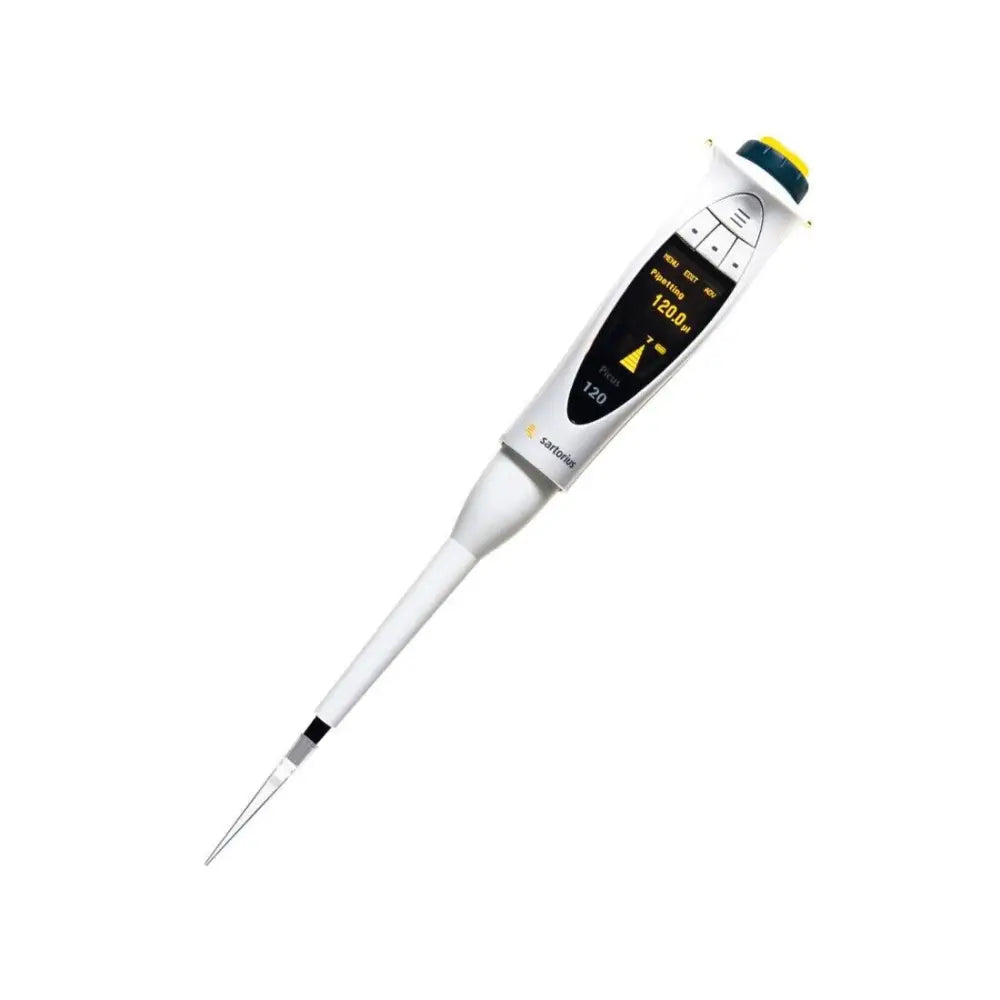

New Picus NXT Sartorius 1-Channel Electronic Pipette 5- 120 μl 735041

Condition: New other (see details)

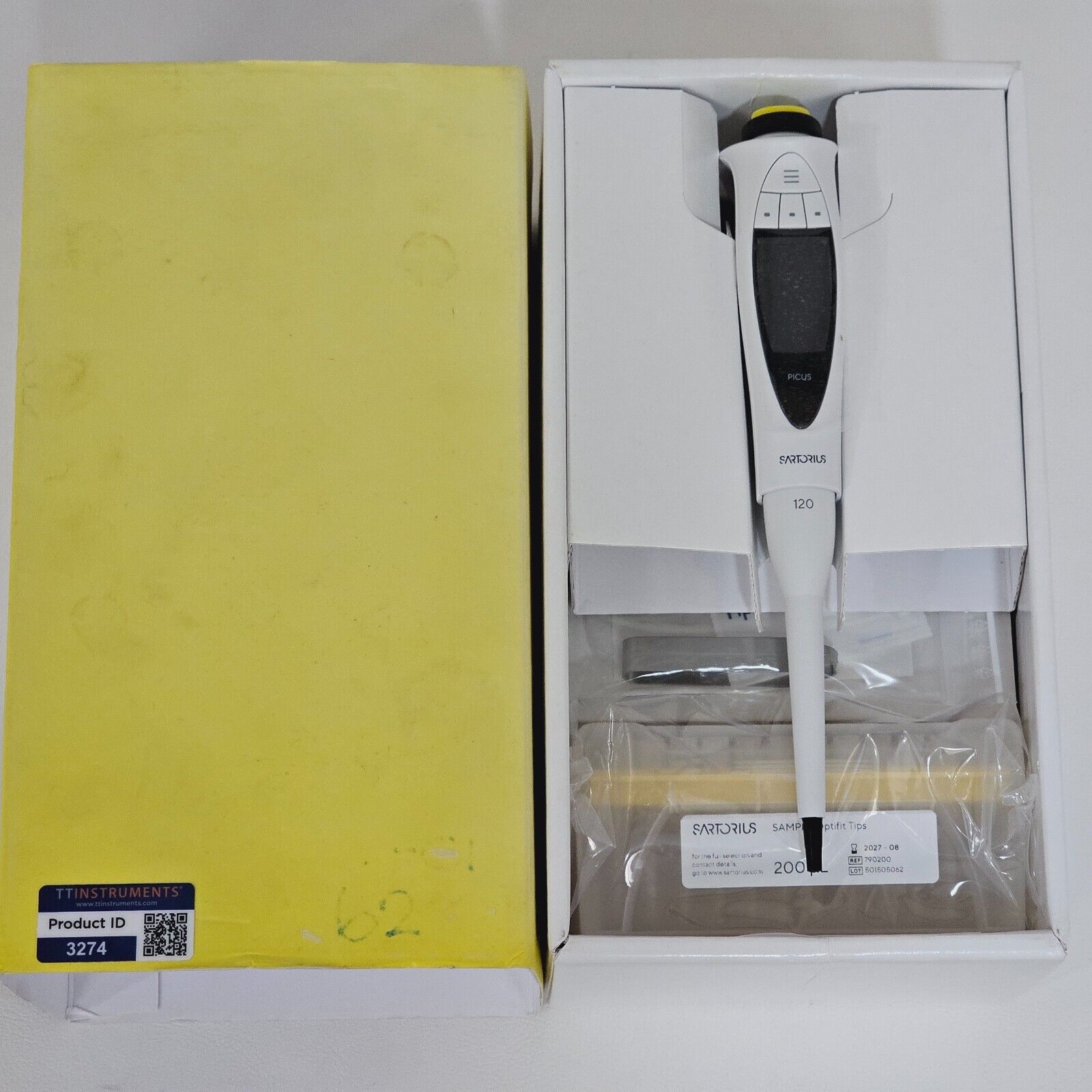

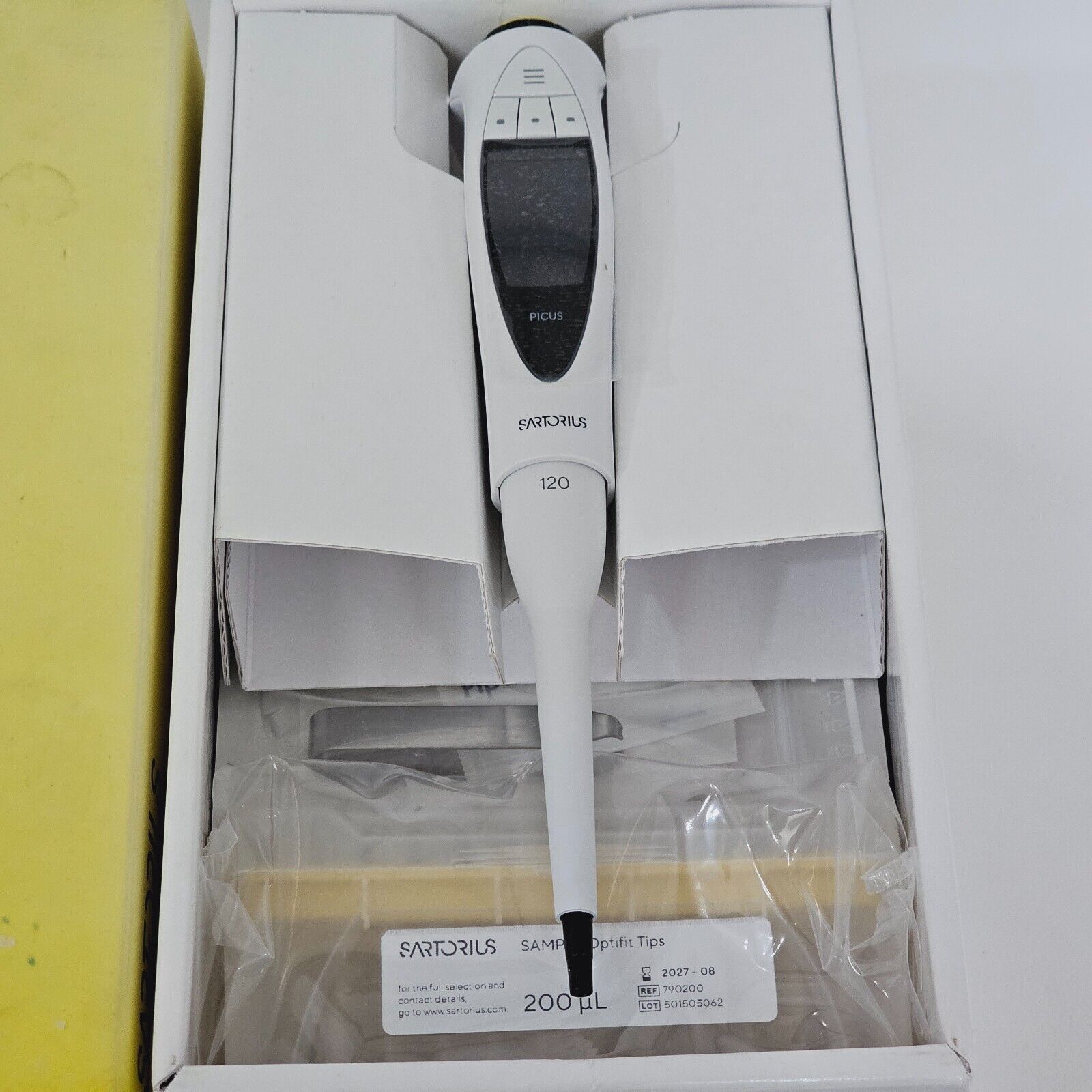

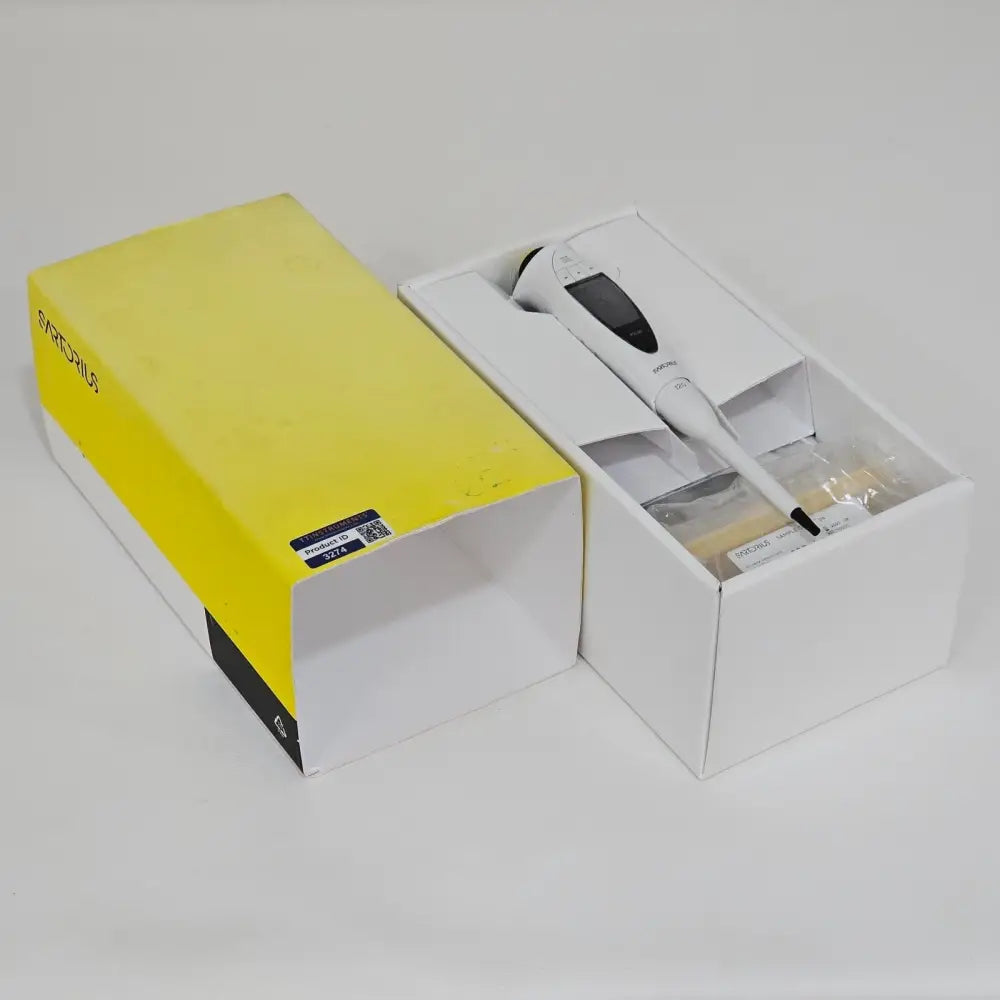

Brand new, boxed, and opened only for photography. The outer box shows minor wear but the pipette itself is completely unused. Order code 735041 corresponds to the single-channel Picus NXT covering the 5–120 µl volume range with 0.10 µl volume increment.

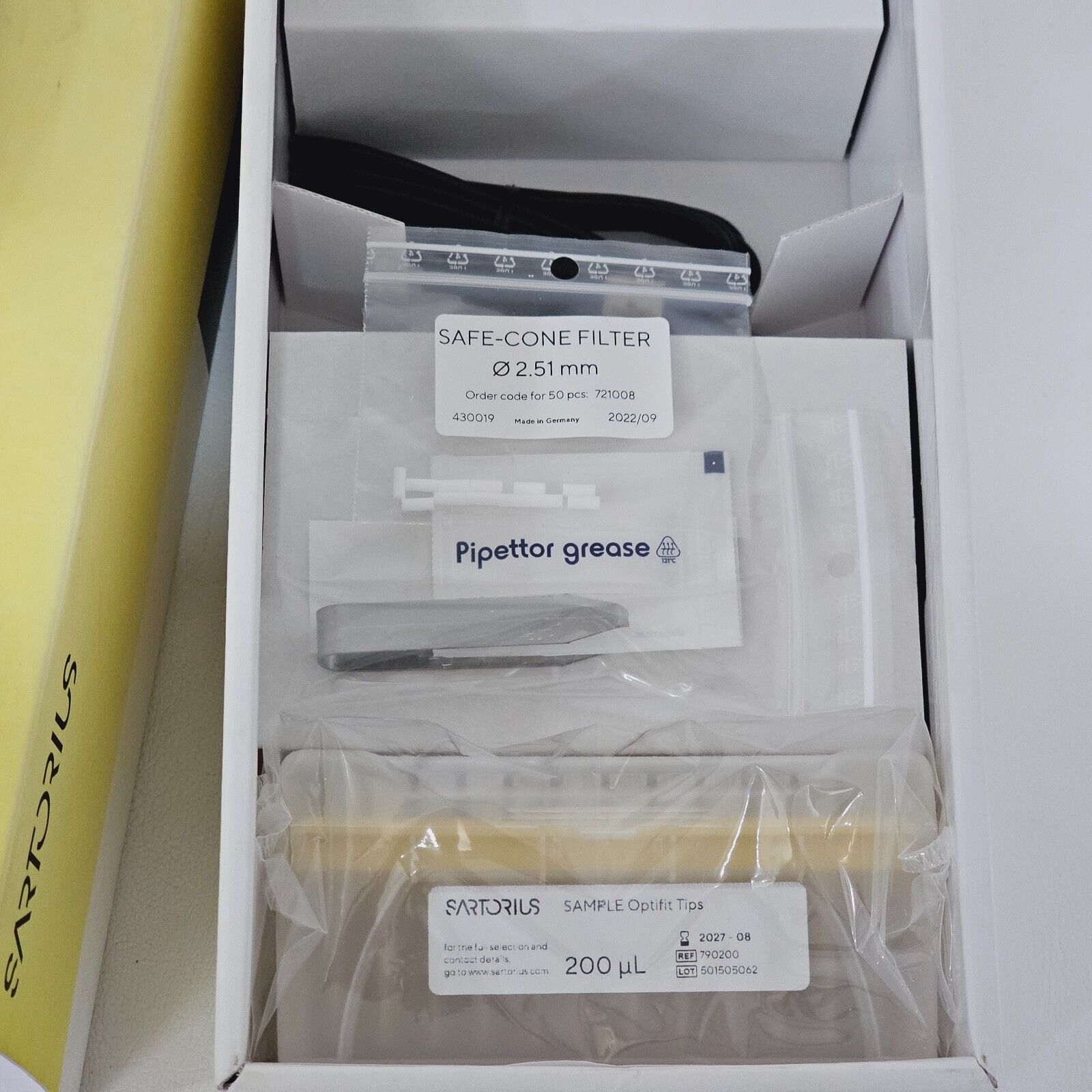

Typically included:
• Sartorius Picus NXT single-channel electronic pipette (5–120 µl)
• Universal USB charger (EU, UK, US, JPN, KOR, AUS and CHN plugs)

The Sartorius Picus NXT is an advanced single-channel electronic pipette designed to meet the demands of strictly regulated laboratories and high-throughput research environments. Building on the award-winning Picus platform, the NXT variant adds enhanced compliance features including an ISO 17025-accredited 3-point calibration certificate, programmable calibration and maintenance reminders, dual-level password protection (admin and user), and a dedicated Protocol pipetting mode not found on the standard Picus.

The fully electronic DC motor with piston control and electronic brake system ensures accurate and repeatable results independent of the operator, reducing inter-user variance significantly. The Optiload tip-loading system and electronic tip ejector minimise physical effort during prolonged use, helping to reduce the risk of repetitive strain injury (RSI).

Key Features:
• 9 pipetting modes (Pipetting, Reverse, Dispensing, Titration, Mixing, Diluting, Sequencing, Manual, Protocol)
• 7 advanced functions including Tracker (microwell plate guidance), Counter, Mixing, and Repeated Blow-out
• Save up to 10 favourite programs under a dedicated hotkey
• Programmable calibration and maintenance reminders with 2-week advance alert
• Admin and user password protection for settings, programs and protocols
• Autoclavable lower parts (piston, cylinder, tip ejection collar) — no tools required for disassembly
• Replaceable Safe-Cone Filters for contamination protection
• Lithium-polymer battery: 3.7 V / 350 mAh; charges in approximately 1 hour; full-day runtime
• Compatible with Sartorius Optifit Tips and SafetySpace Filter Tips
• Intuitive display with multi-language support (English, French, German, Russian, Chinese)

Technical Specifications (Order Code 735041 / LH-745041):
Channels: 1
Volume Range: 5–120 µl
Volume Increment: 0.10 µl
Systematic Error (at 120 µl): ±0.5% / ±0.60 µl
Systematic Error (at 60 µl): ±0.7% / ±0.42 µl
Systematic Error (at 12 µl): ±2.0% / ±0.24 µl
Systematic Error (at 5 µl): ±5.5% / ±0.275 µl
Random Error (at 120 µl): ≤0.15% / ≤0.18 µl
Random Error (at 60 µl): ≤0.2% / ≤0.12 µl
Random Error (at 12 µl): ≤1.0% / ≤0.12 µl
Random Error (at 5 µl): ≤2.5% / ≤0.125 µl
Calibration Standard: ISO 8655 / ISO 17025
Battery Capacity: 3.7 V / 350 mAh (Lithium-polymer)
Charge Time: Approx. 1 hour
Weight: Approx. 100 g
Pipetting Modes: 9 (NXT) + 7 advanced functions
Compatible Tips: Sartorius Optifit Tips (up to 200 µl) / SafetySpace Filter Tips (up to 120 µl)
Safe-Cone Filter: Standard (721008) / Plus (721018)
Charger: Universal USB (EU, UK, US, JPN, KOR, AUS, CHN plugs included)

Typical Applications:
Cell-based assays, filling microtiter plates, DNA extraction, ELISA, handling of foamy, viscous or volatile liquids, cell culture, serial dilutions, high-throughput dispensing.

Specifications subject to change without notice. Values achieved under controlled conditions per ISO 8655 type test using Sartorius Optifit Tips at factory default speed settings.
