Condition: New other (see details)

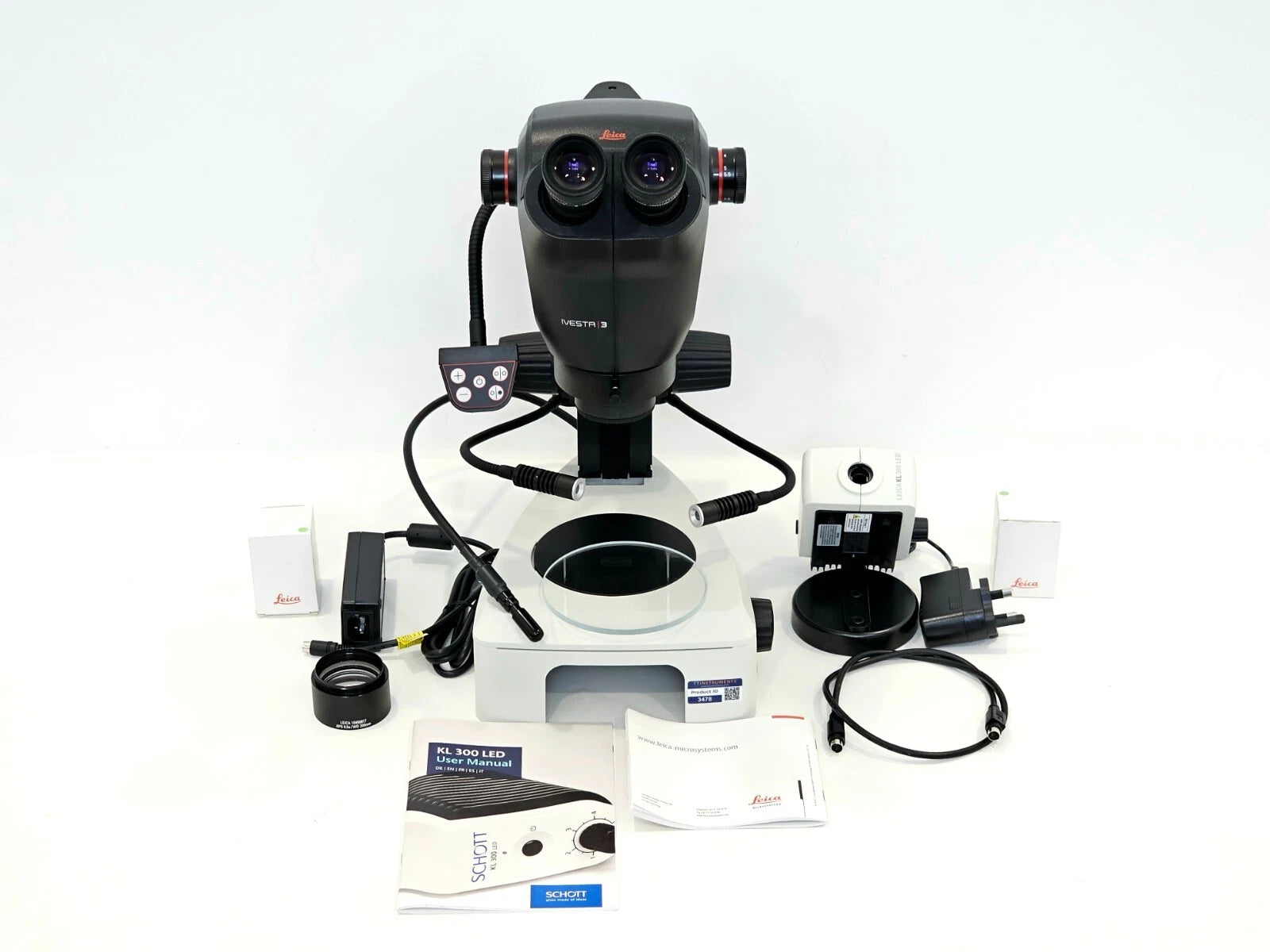

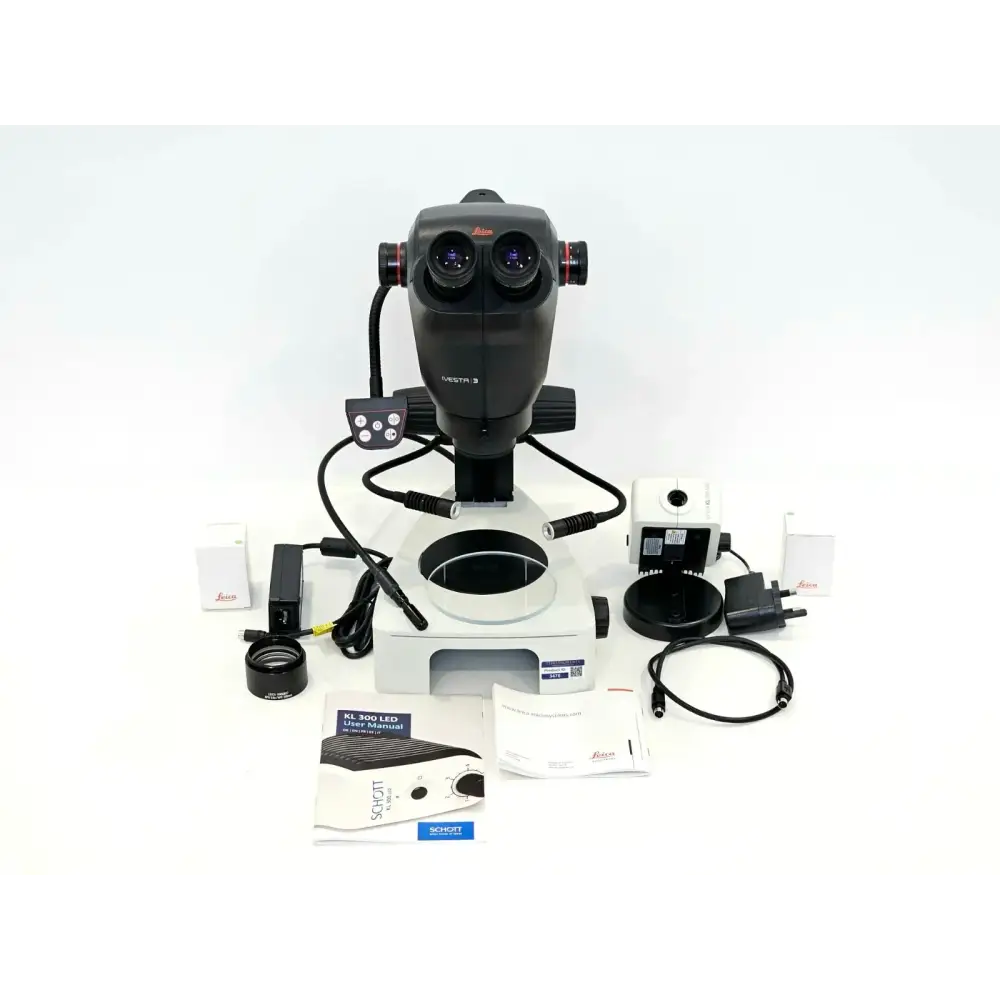

A brand new, boxed Leica Ivesta 3 Greenough stereo microscope supplied as individual parts ready for straightforward assembly. Fitted with the 10450983 head (no integrated camera), this configuration is designed for pure visual inspection and rework tasks, with optional extras included as described.

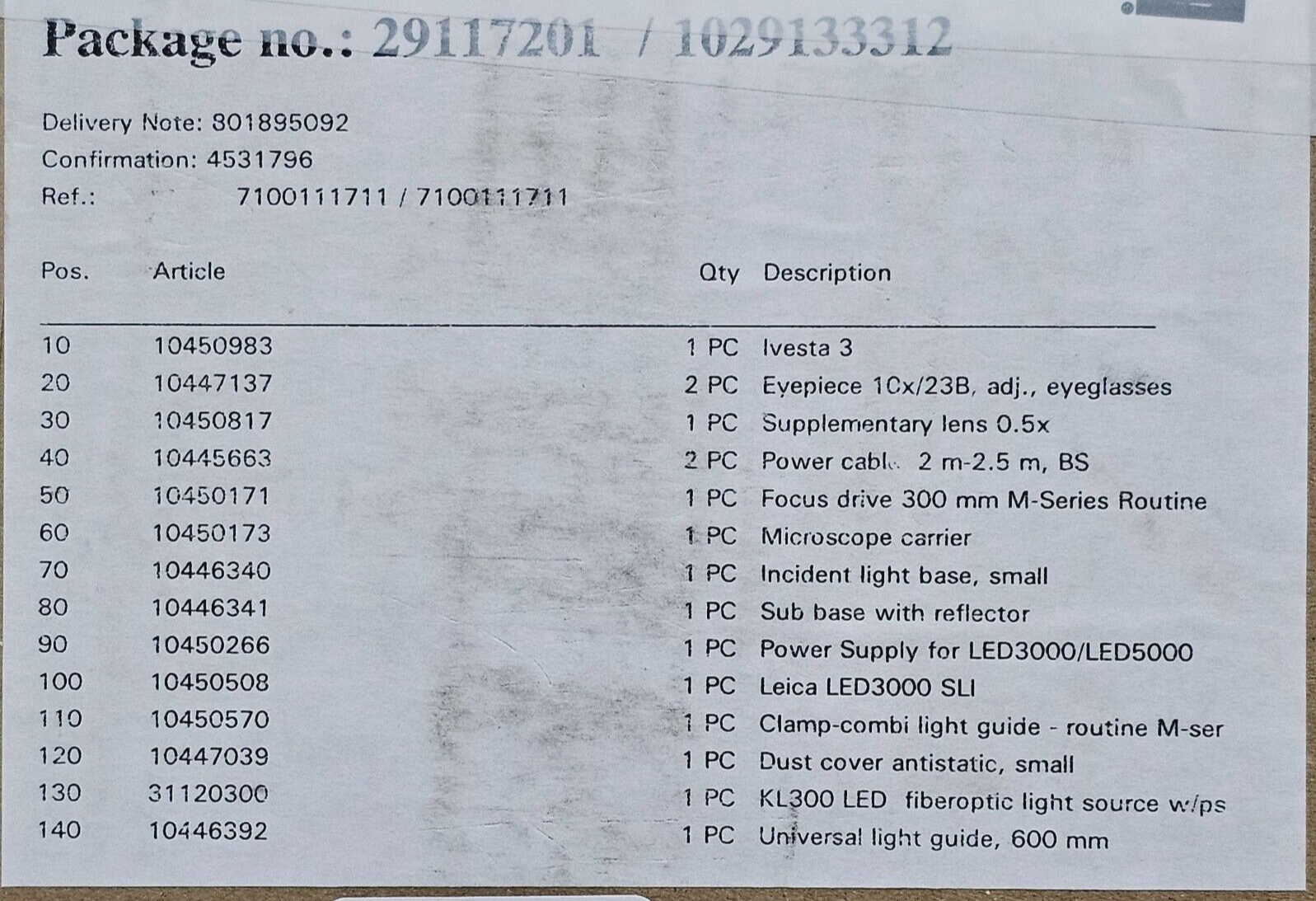

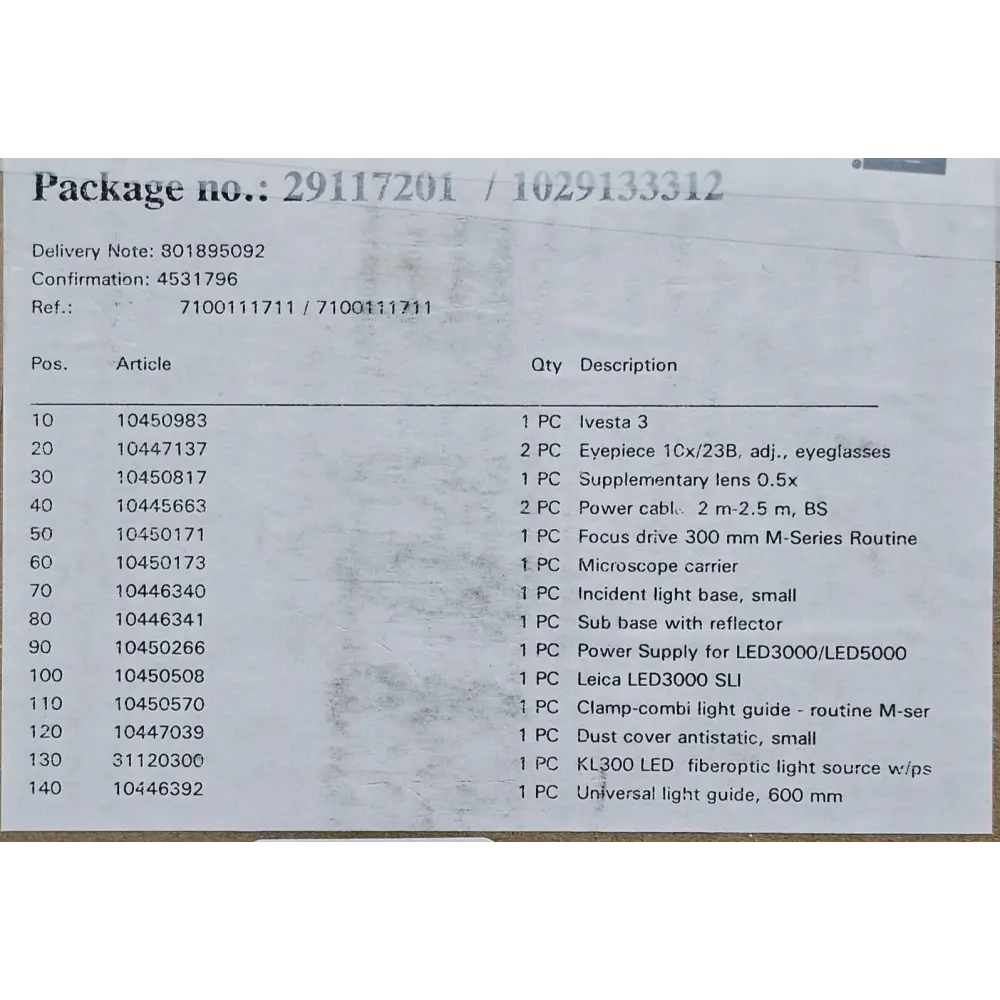

What's included (as described):
• Leica Ivesta 3 Greenough stereo microscope head (part no. 10450983, without integrated camera)

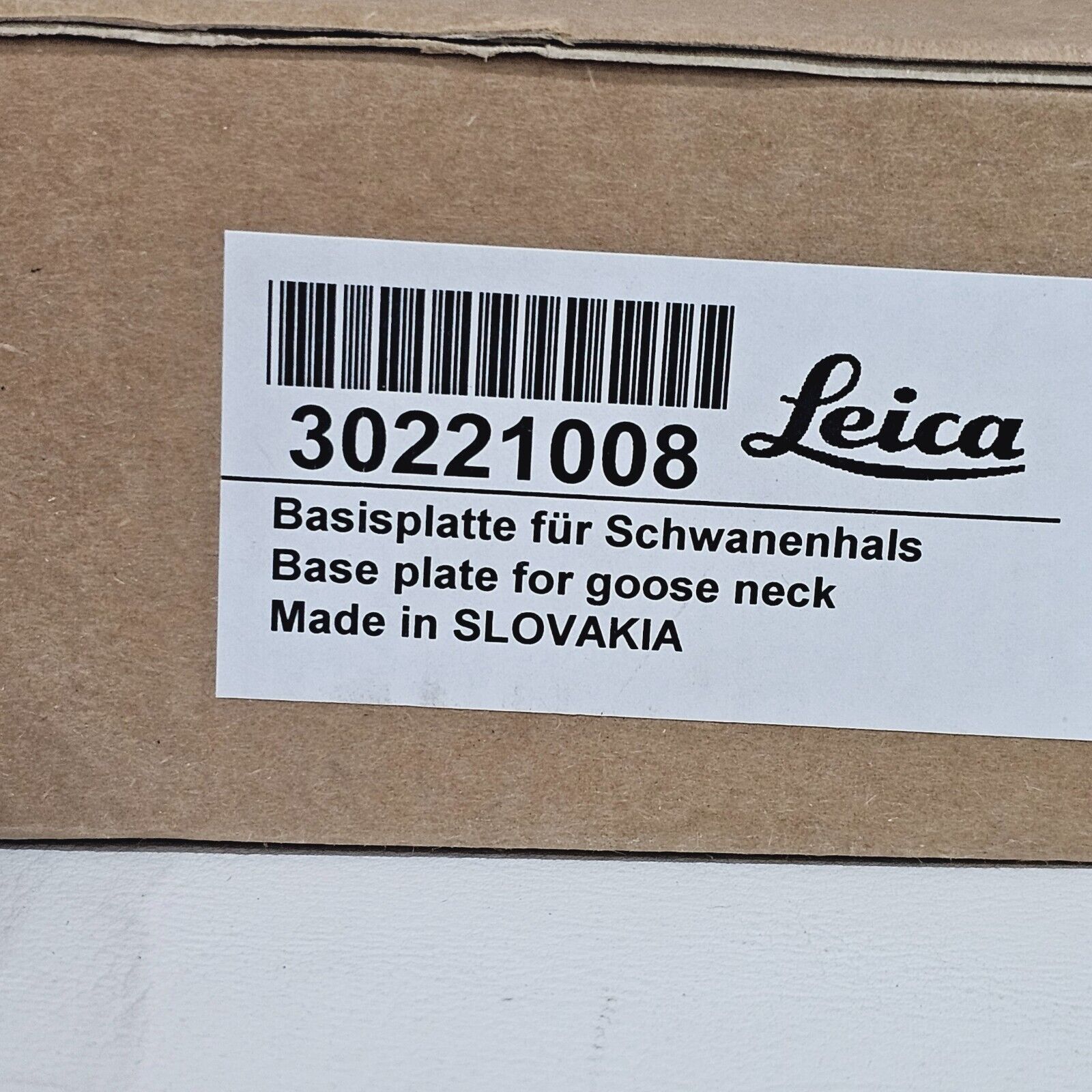

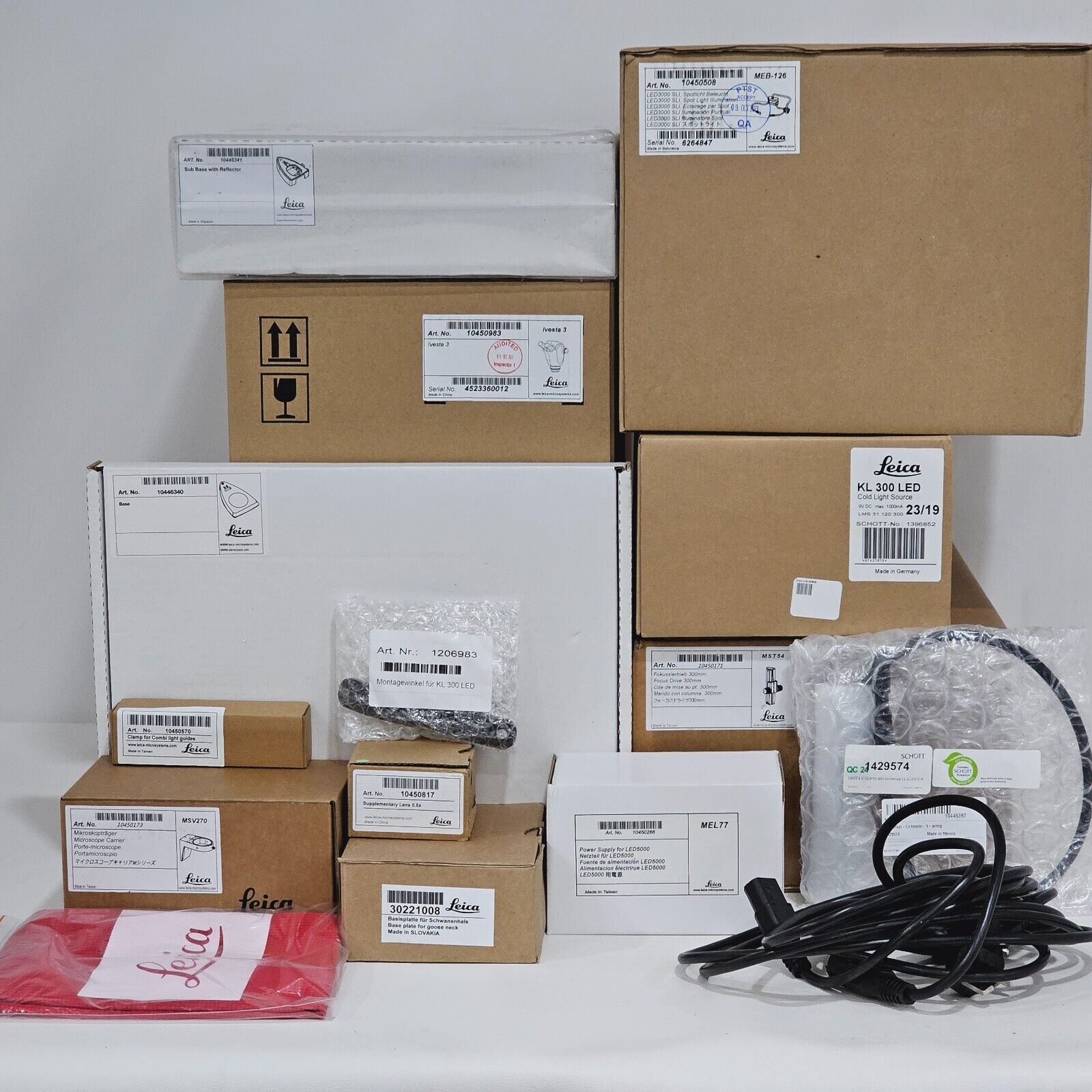

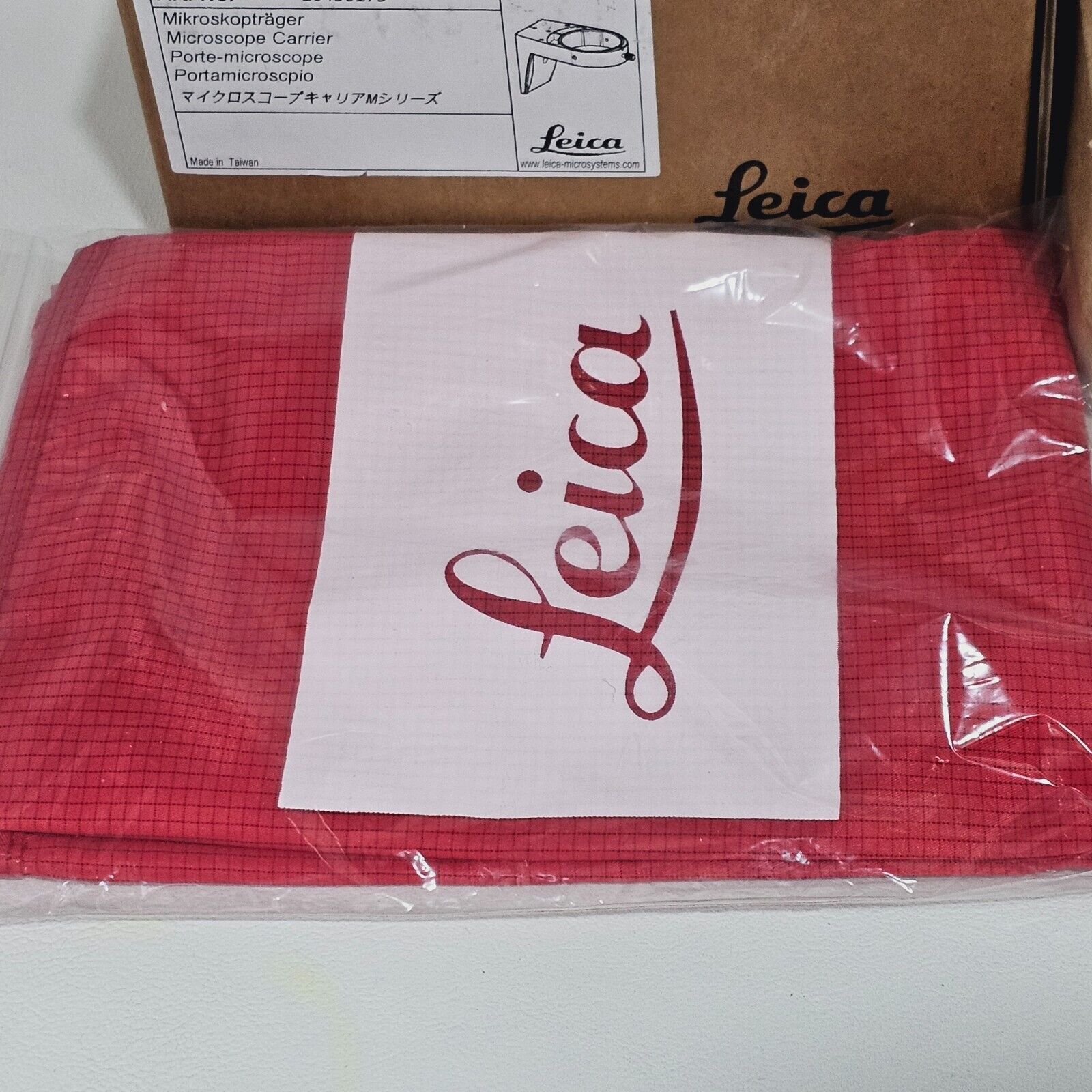

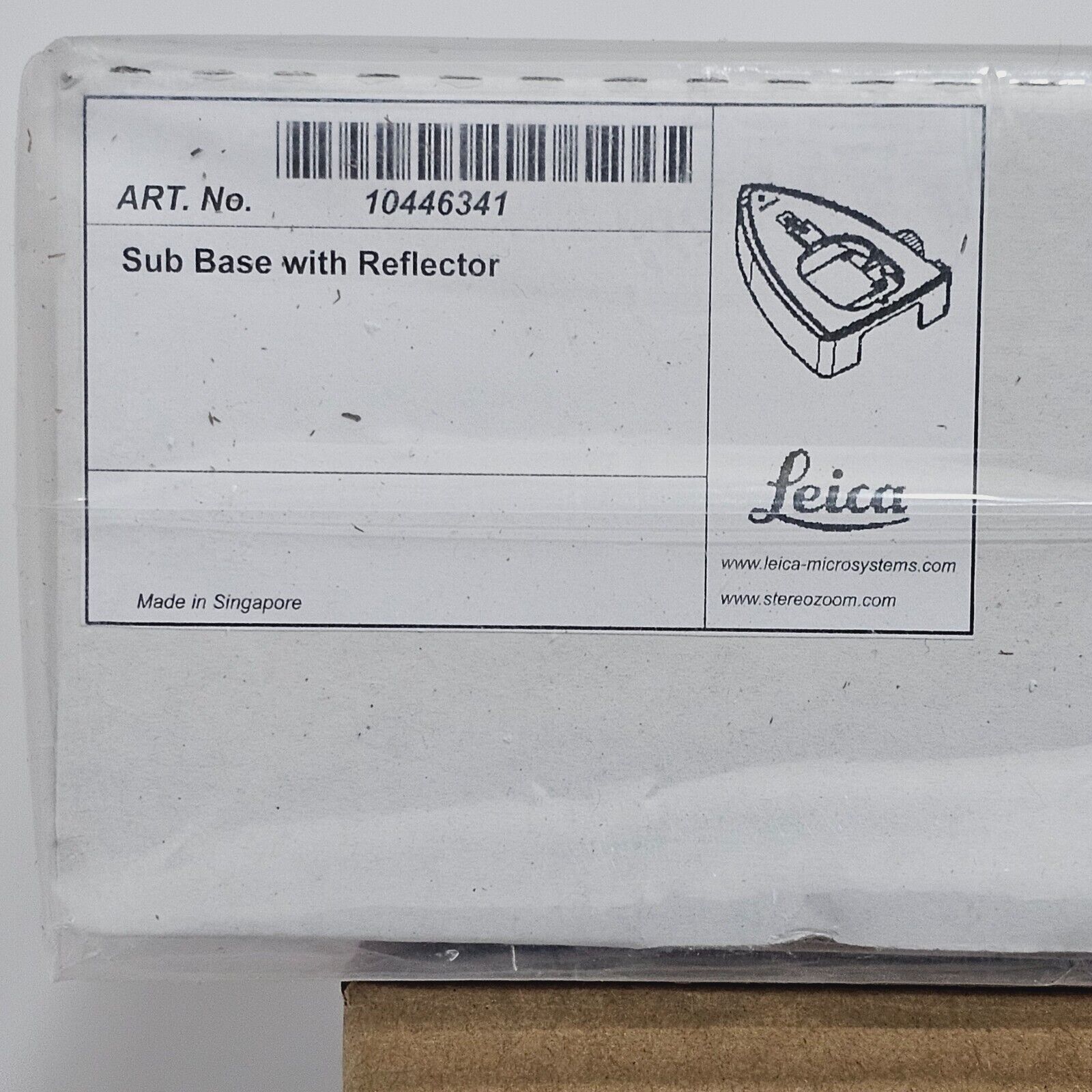

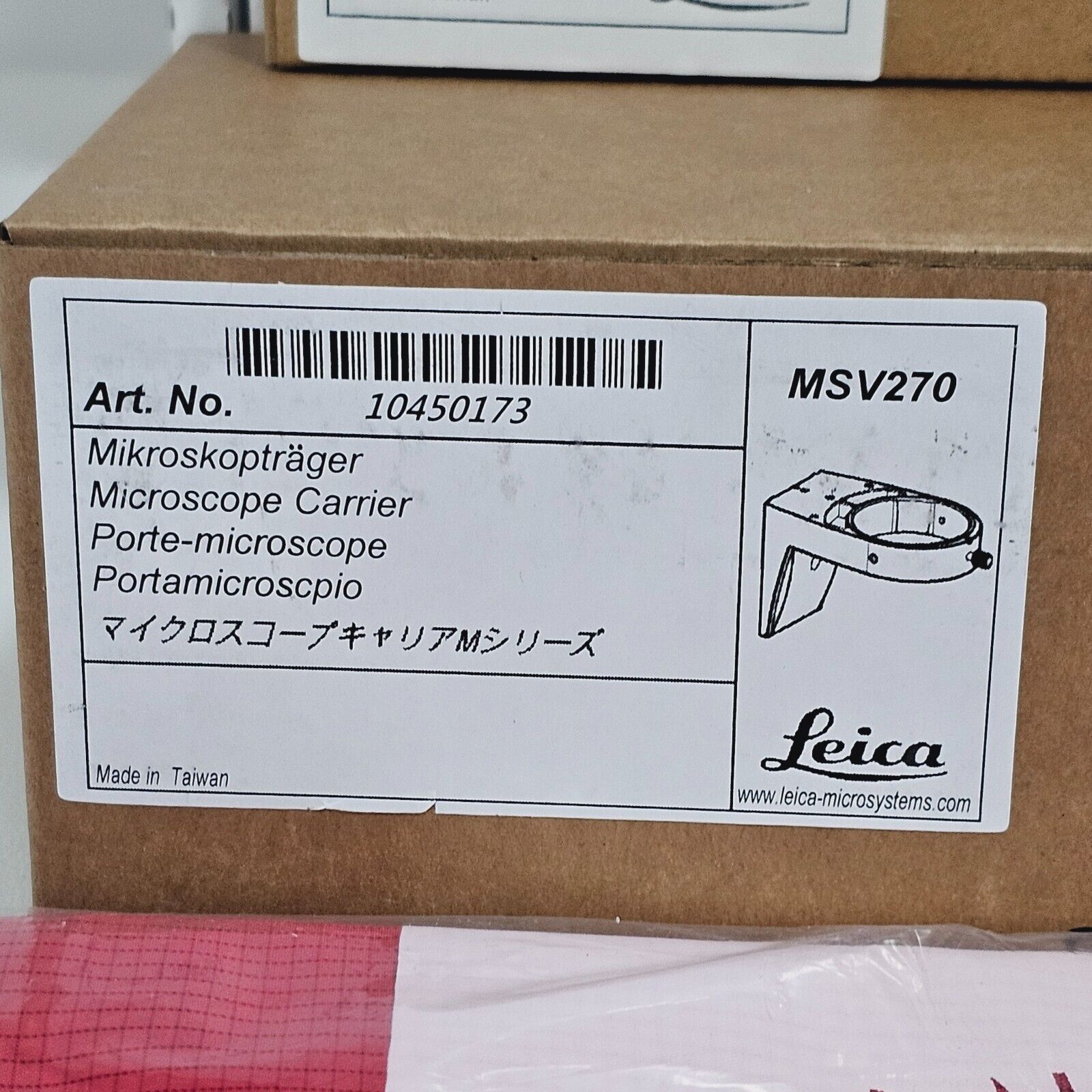

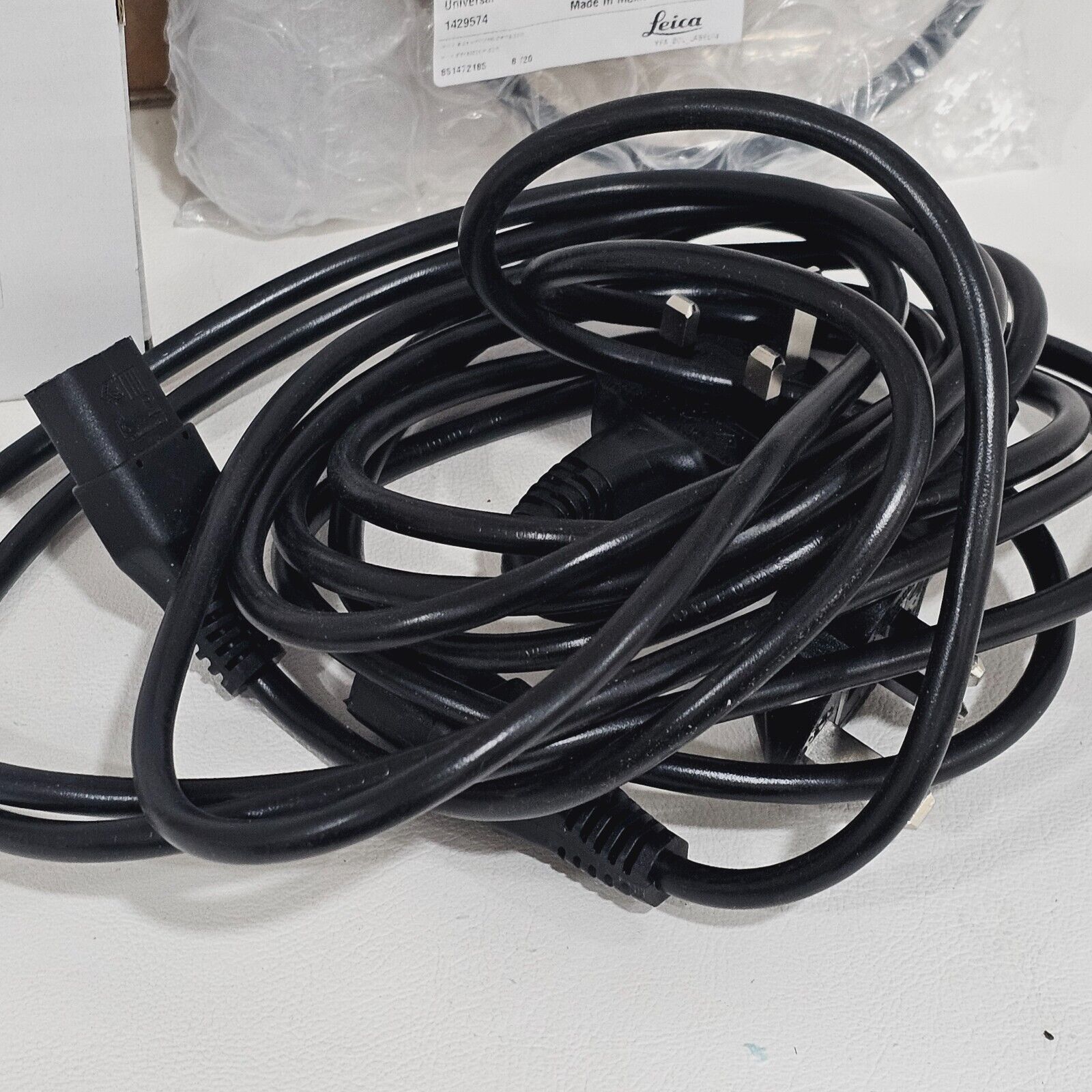

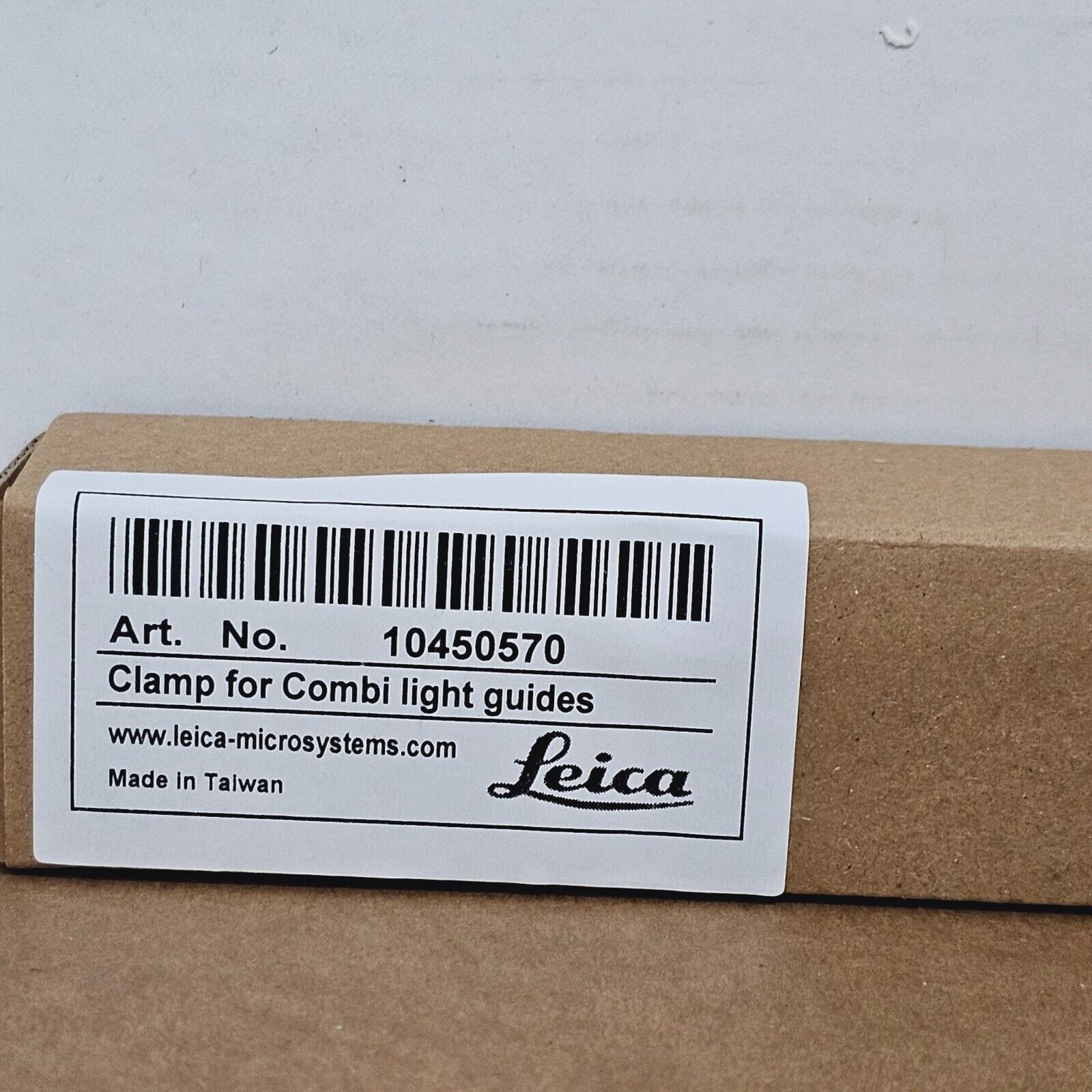

• Accessories as shown
• Optional extras as shown

The Leica Ivesta 3 is a Greenough-design stereo microscope launched by Leica Microsystems in 2023, engineered for professional visual inspection and rework in industrial, laboratory, clinical, and teaching environments. The microscope uses a 10° Greenough optical system with two separate beam paths, creating a precise 3D stereo effect ideal for tool-guided work such as soldering, microinjection, PCB inspection, and component assembly.

FusionOptics technology combines high resolution and large depth of field simultaneously, enabling operators to see every relevant detail at a glance with up to 3x more depth of field than conventional stereo microscopes. The 35° inclined binocular tube and ergonomically positioned focus and zoom knobs reduce operator fatigue during extended use. The fully encoded zoom allows inspection to be repeated at specific magnifications for consistent, standards-compliant results.

Key Specifications:
Optical System: Greenough, 10°, lead-free
Zoom Factor: 9:1
Viewing Angle: 35° inclined binocular
Magnification Range: 6.1x – 55x (10x eyepieces, no supplementary lens)
Maximum Resolution: 500 lp/mm (with 2x supplementary lens, 10x eyepieces)
Resolution (basic outfit): 250 lp/mm
Maximum Numerical Aperture: 0.167
Working Distance: 122 mm (without supplementary lens)
Object Field Diameter: 37.6 mm
Depth of Field (FusionOptics): 12 mm
Adjustable Zoom Click-Stops: 10x, 20x, 30x, 40x, 50x
Pupil Distance: 50 mm – 76 mm
Standard Eyepieces: 10x/23, 16x/16, 20x/12
Eyepieces for Spectacle Wearers: 10x/23, 16x/15, 25x/9.5, 40x/6

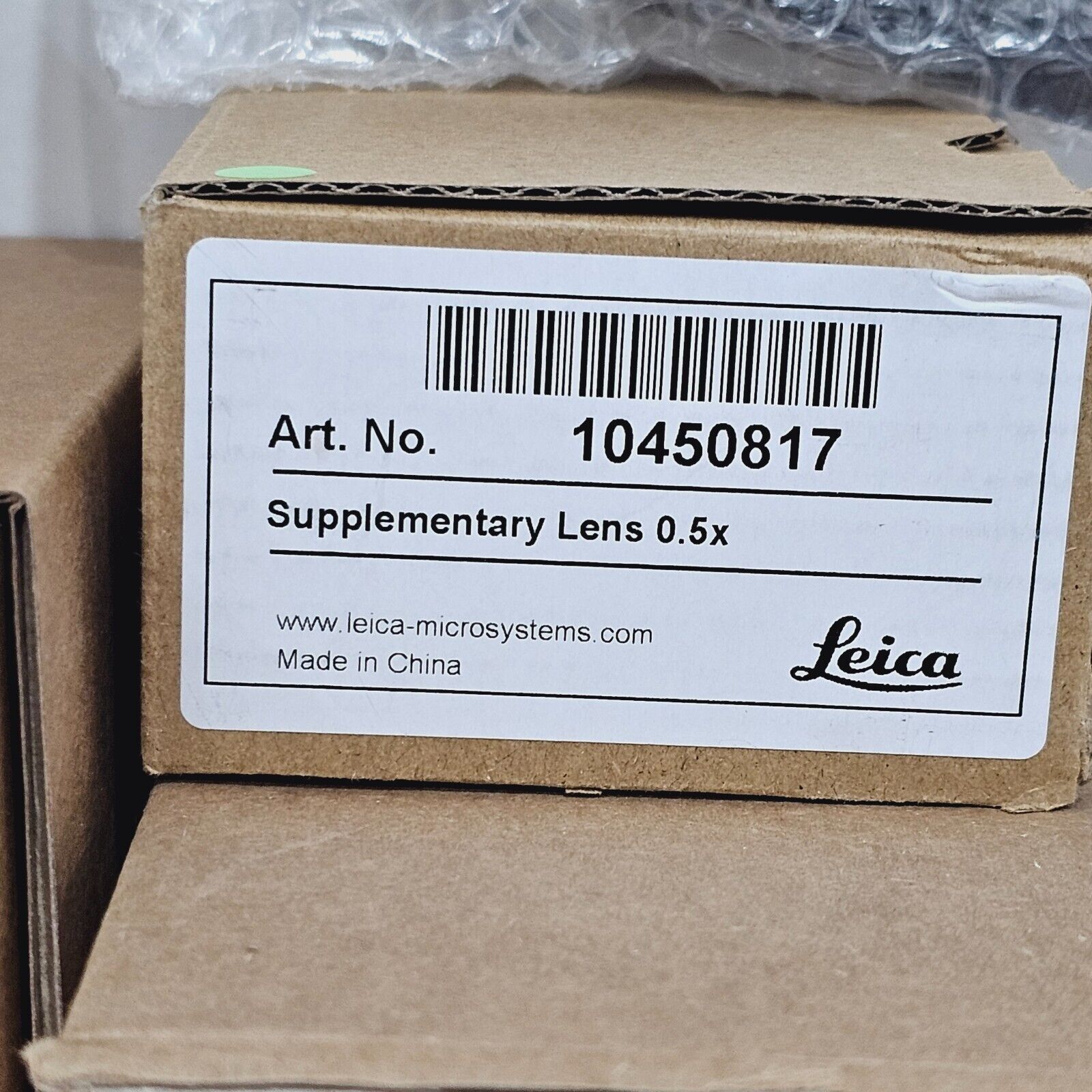

Supplementary Lenses (Apochromats): 0.5x, 0.63x, 0.75x, 1.6x, 2.0x
Operating Temperature: 10 °C to 40 °C
Storage/Transport Temperature: -10 °C to 50 °C
Pollution Degree: 2

Variants available: Ivesta 3 (eyepiece only), Ivesta 3 (Integrated Camera), Ivesta 3 (C-mount)
Typical Applications: PCB and electronics inspection, component rework, quality control, biological sample examination, microinjection, cell sorting, laboratory and industrial inspection tasks.

Leica Ivesta 3 Series User Manual (EN) — hosted by JH Technologies: Download PDF

Leica Ivesta 3 Industry Brochure (EN) — official Leica Microsystems download: Download PDF

Leica Ivesta 3 Series Technical Data Sheet (EN): Download PDF
