Condition: New other (see details)

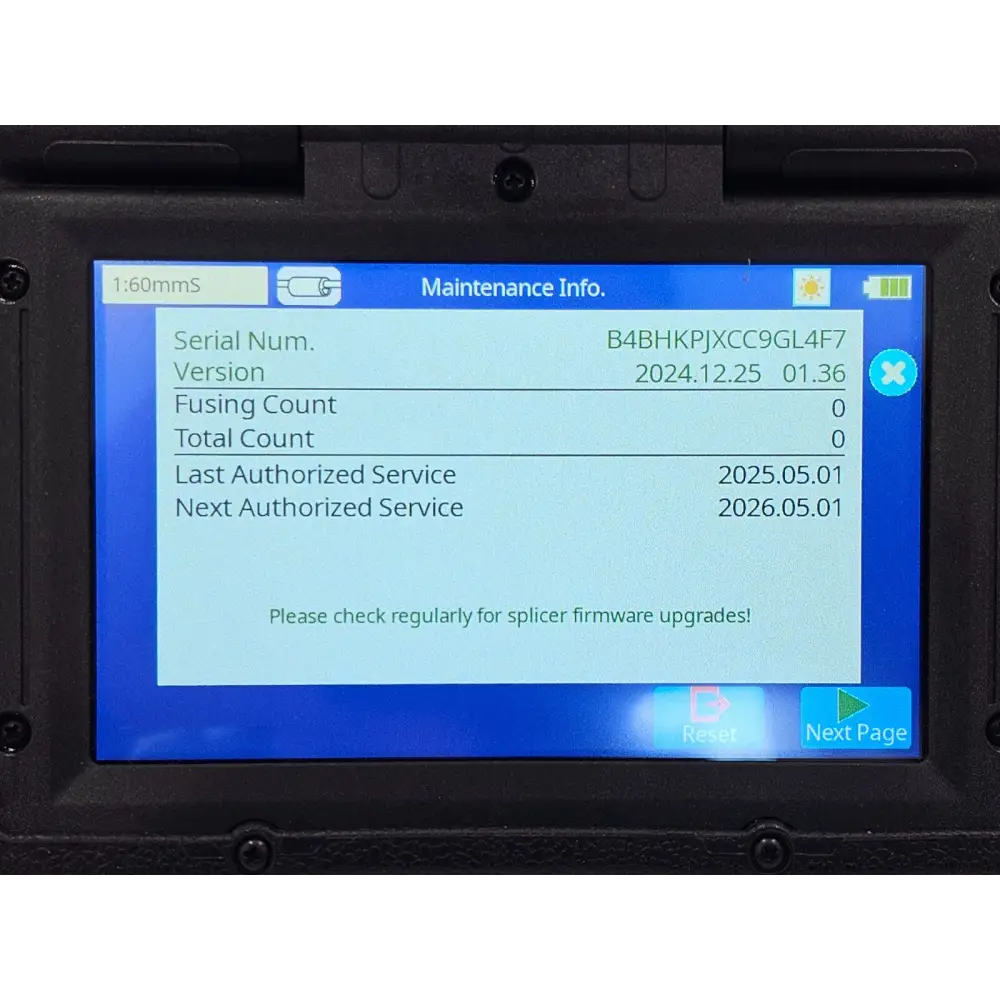

ARC count: 0 — confirming this Fujikura 68S has never been operated. The kit is in brand new condition with all original accessories and packaging intact, and the splicer has been serviced 1st May 2025. The CT50 cleaver included is also unused.

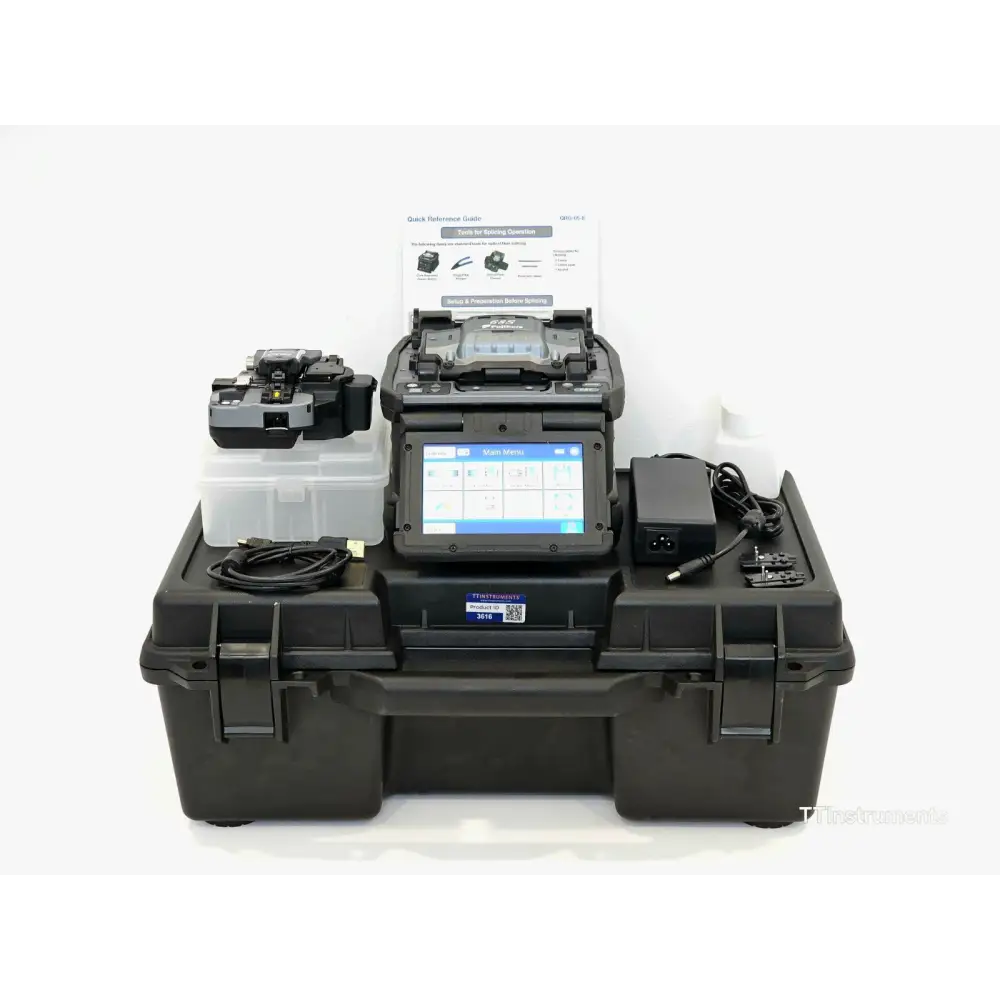

Included in the sale:
• Fujikura 68S Fusion Splicer
• Fujikura CT50 Fibre Cleaver
• AC Adapter
• Battery Pack
• Fibre Holders
• Electrode Set
• Cooling Tray
• Carrying Case
• User Manual

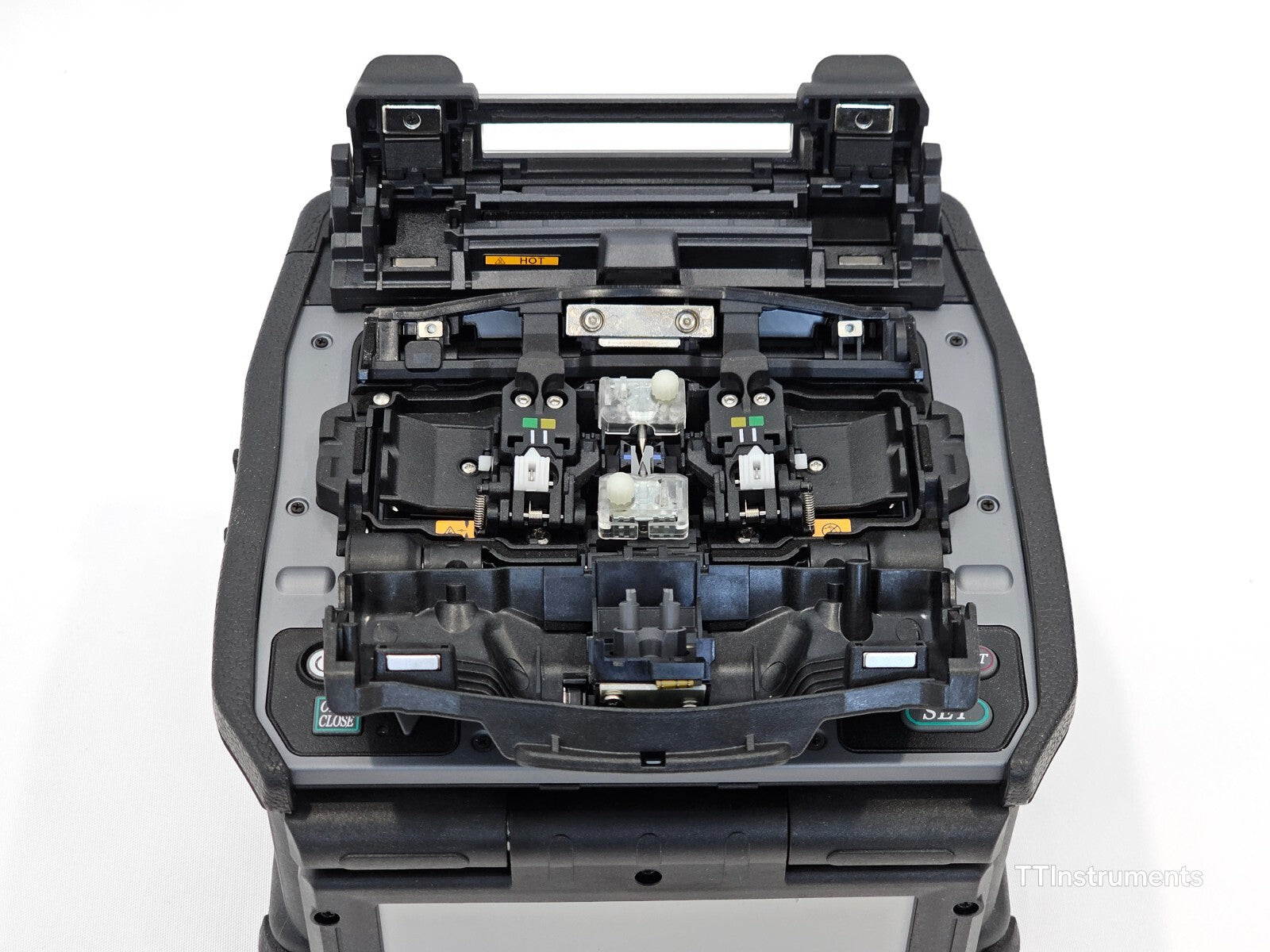

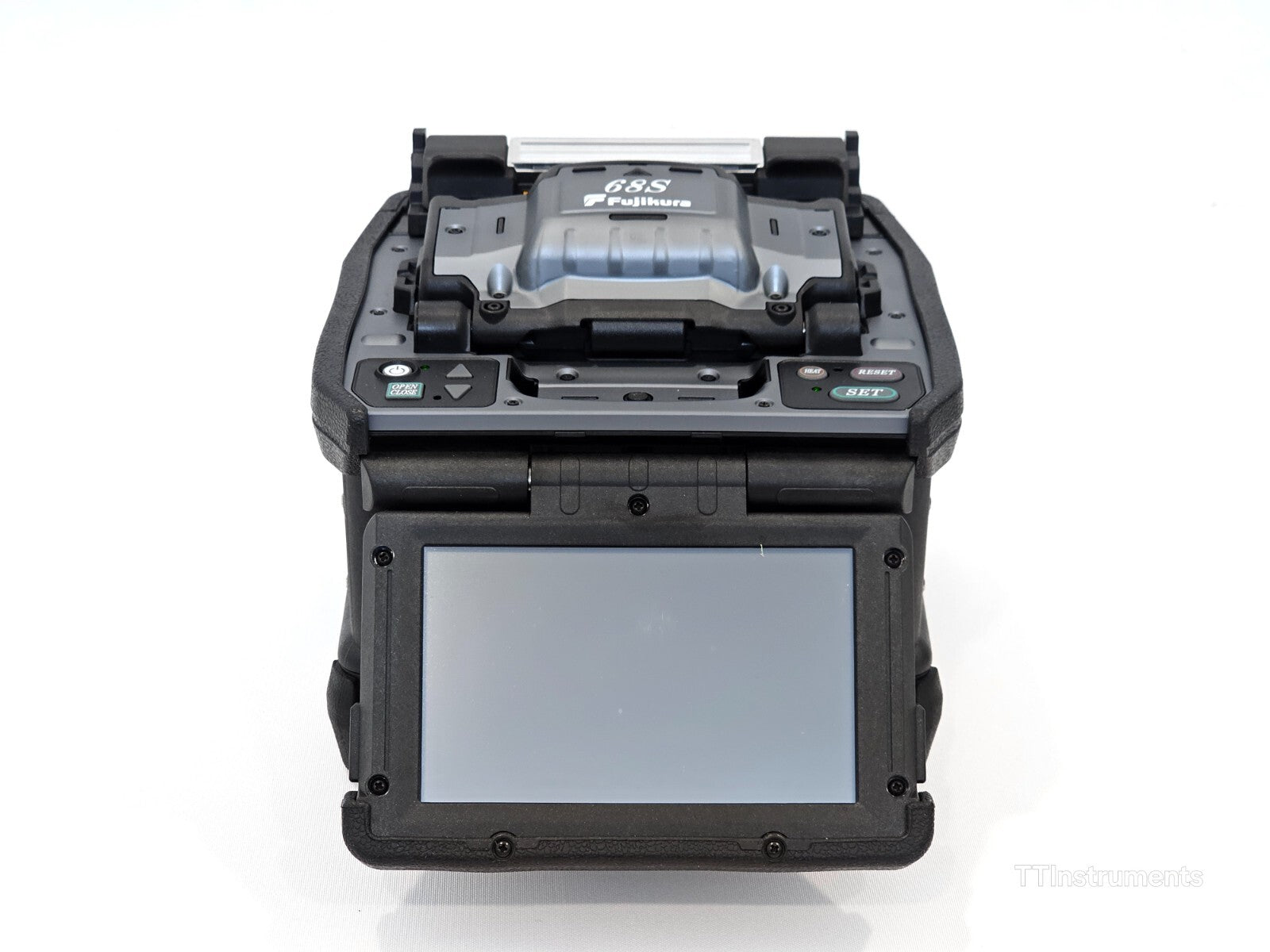

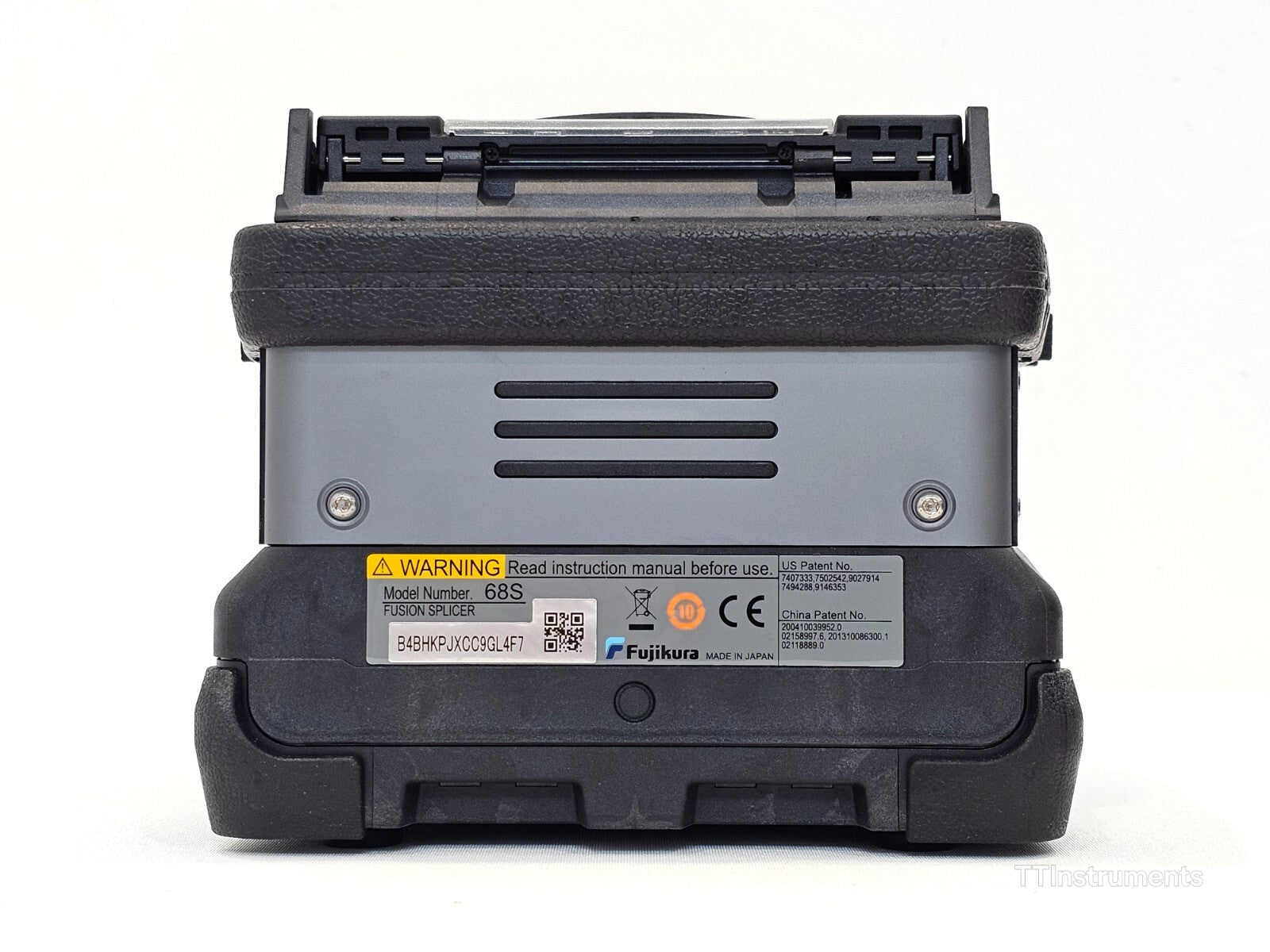

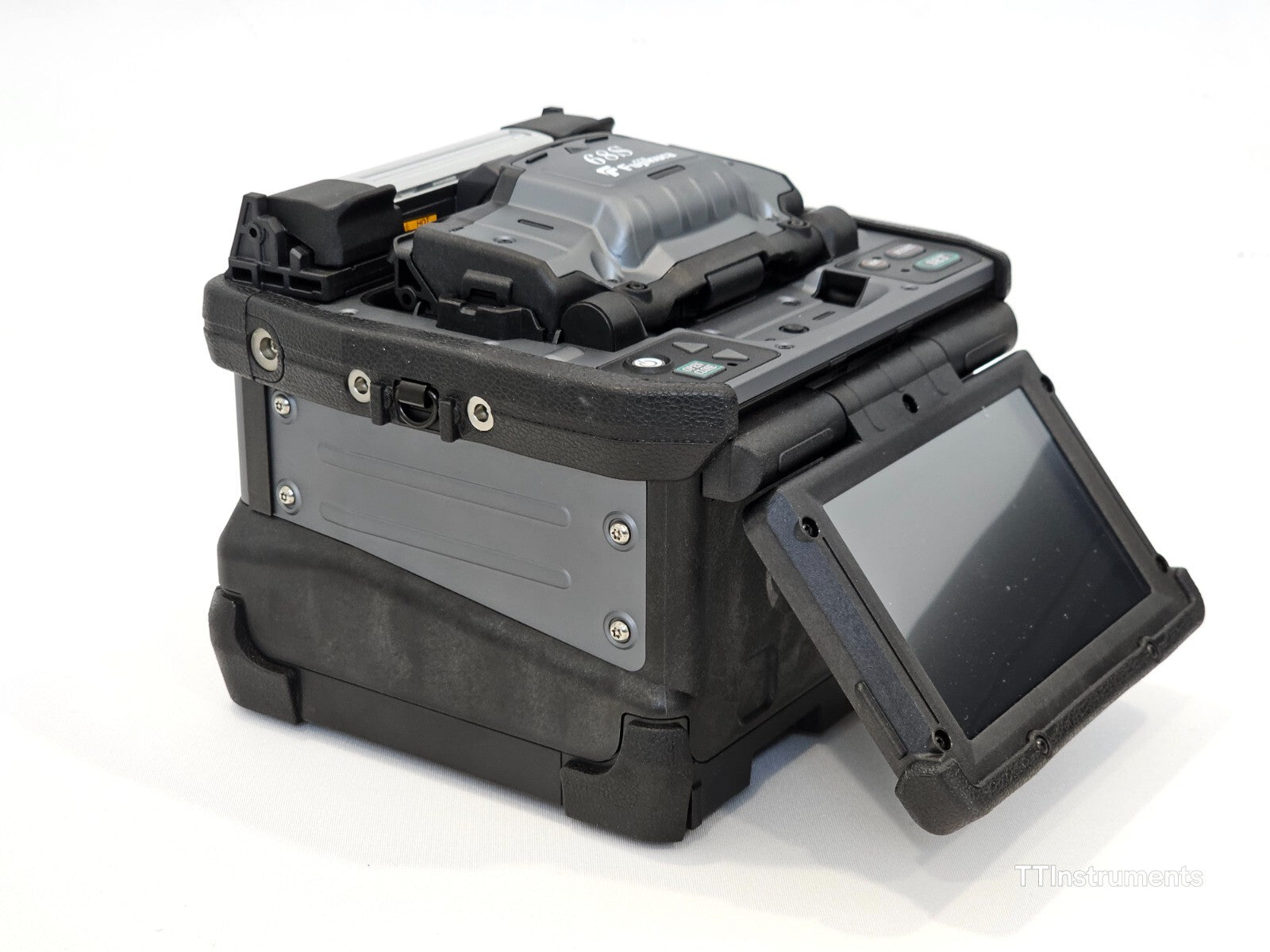

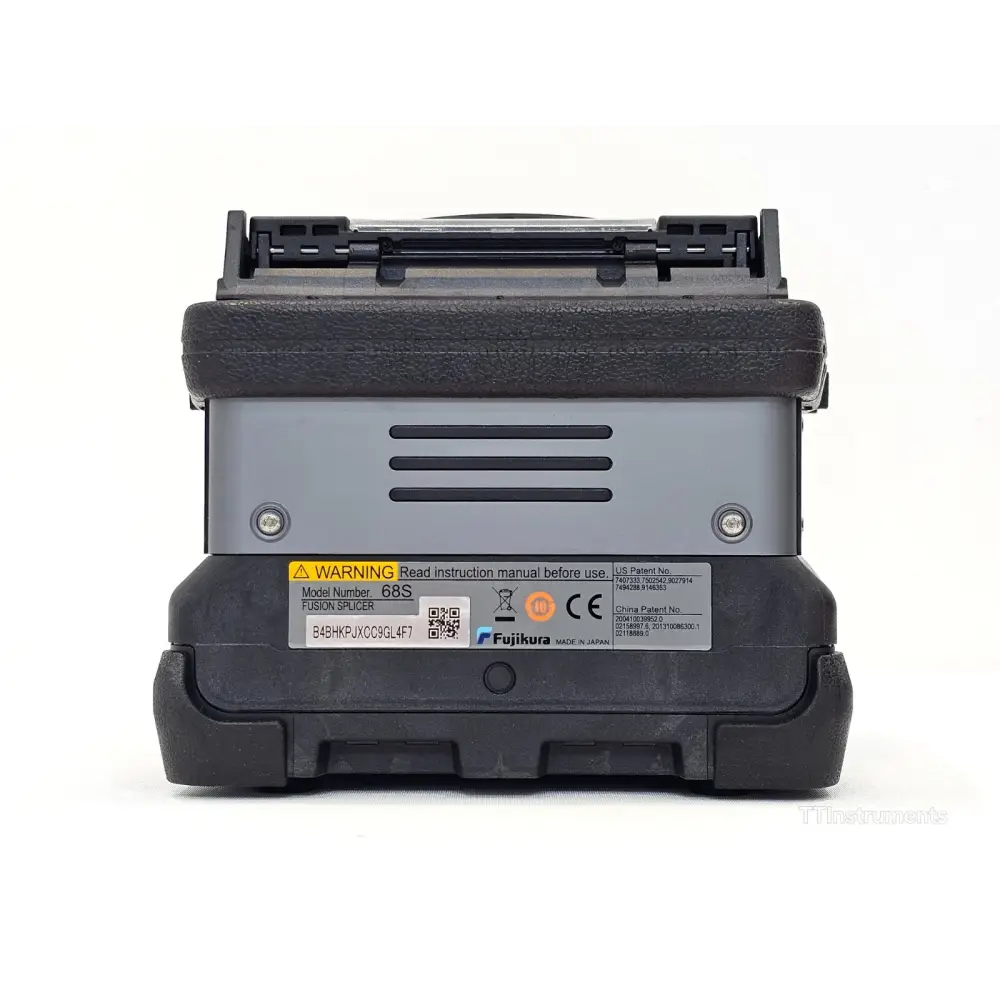

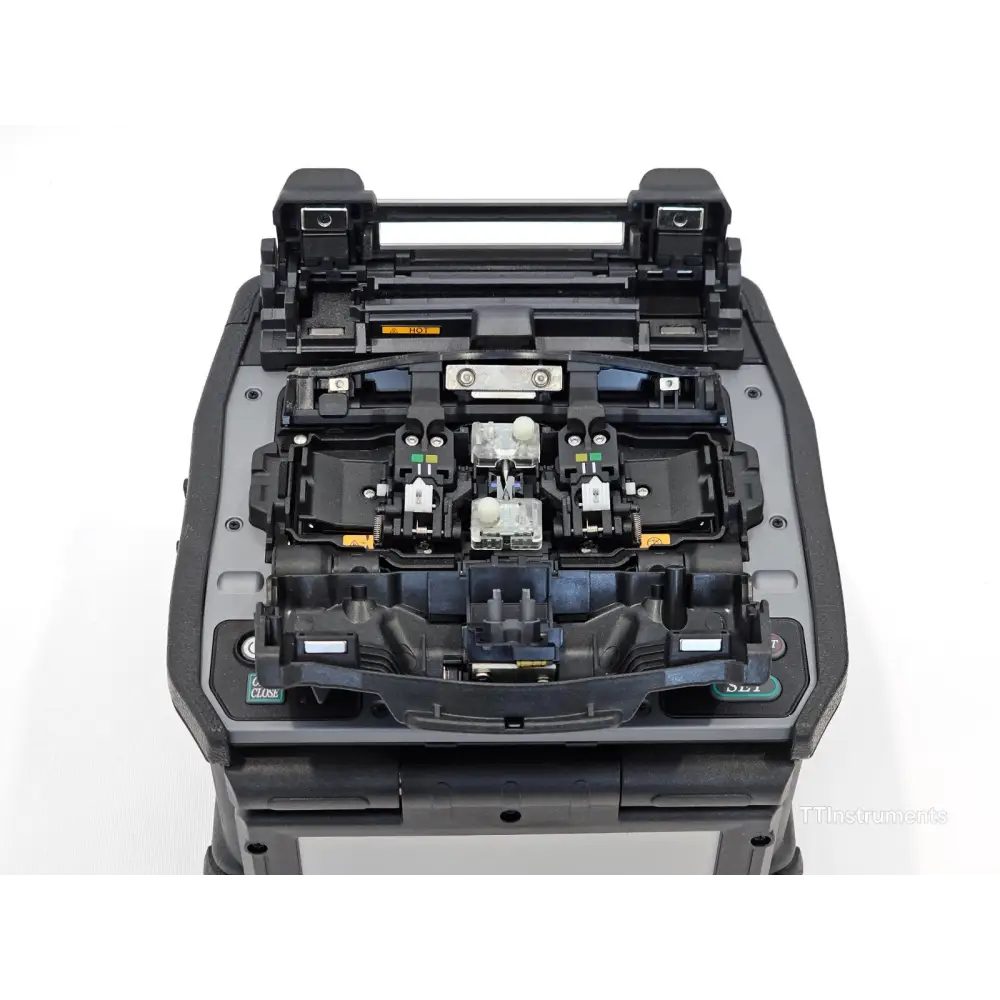

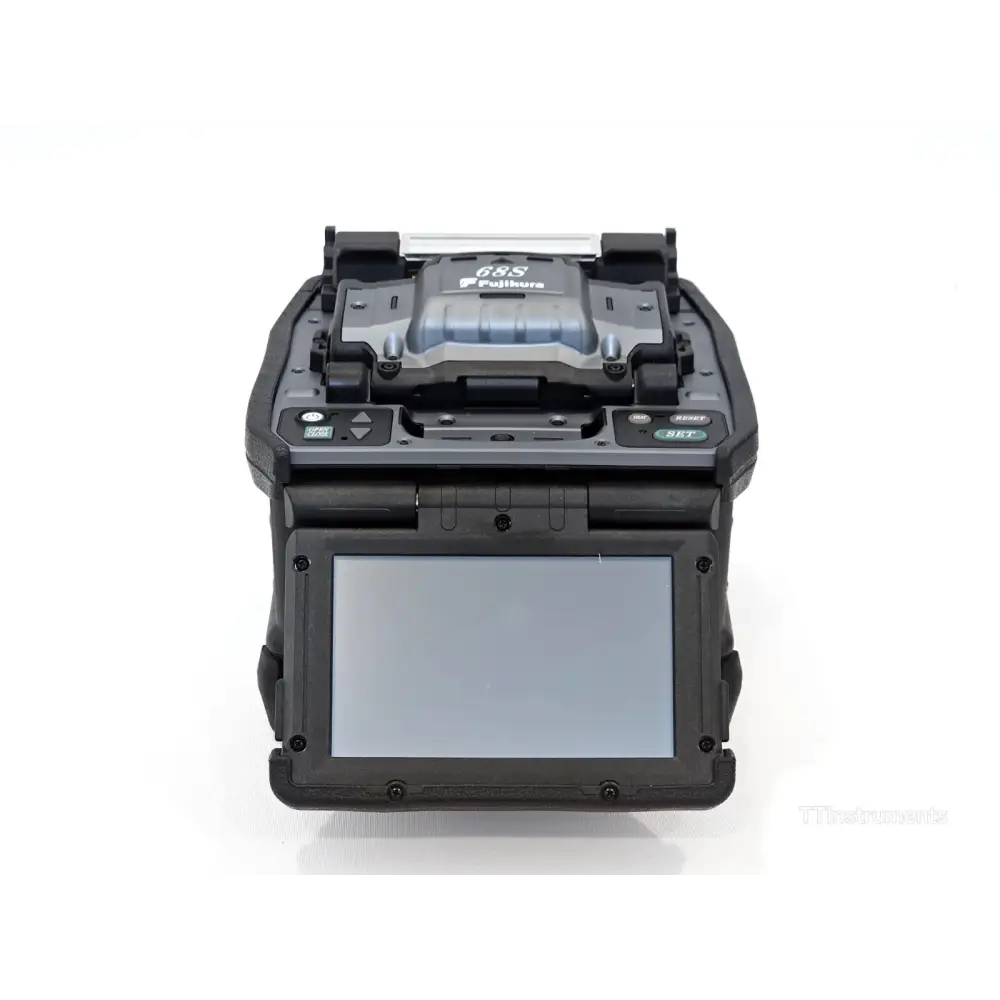

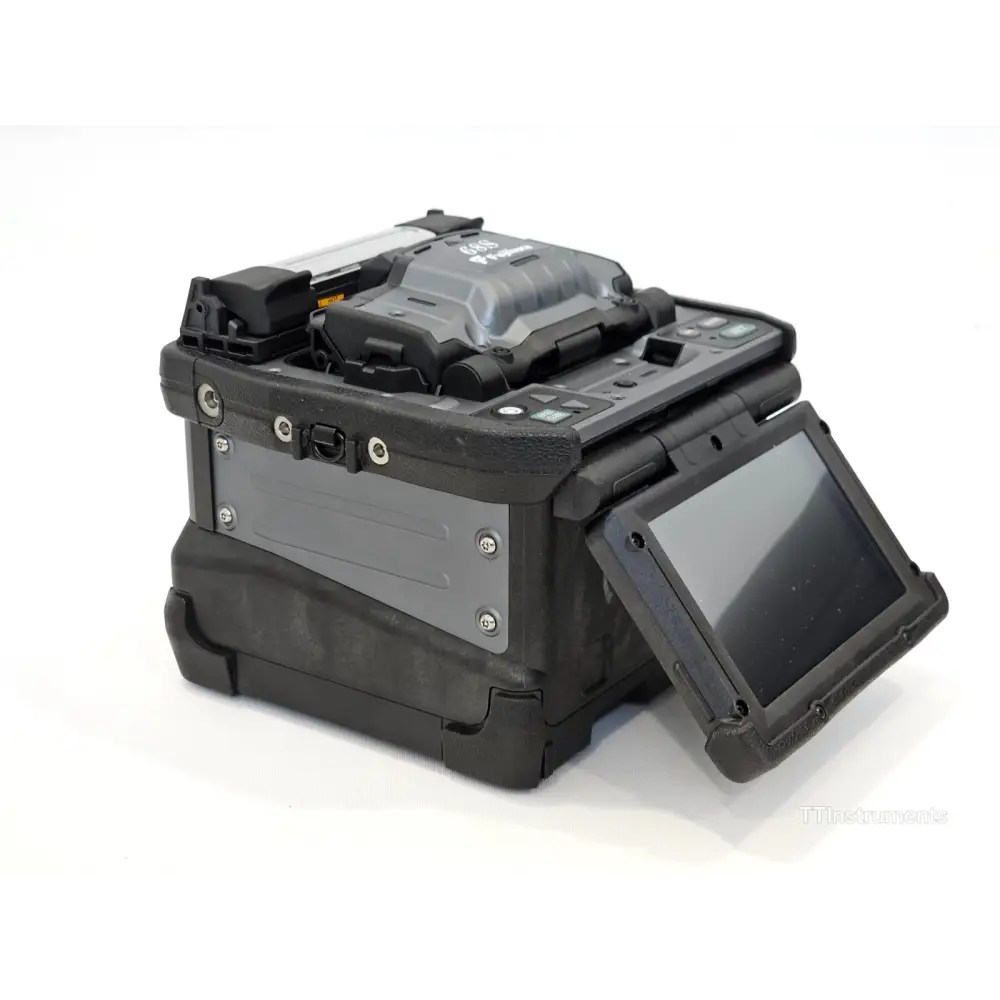

The Fujikura 68S is a core alignment single-fibre fusion splicer engineered for precision field splicing across a wide range of optical fibre types. Utilising a dual-axis CMOS camera observation system, it aligns fibres core-to-core for consistently low splice loss results. The 5-inch colour LCD touchscreen provides an intuitive, easy-to-navigate interface, while Bluetooth 4.1 connectivity enables communication with compatible tools including the CT50 cleaver. Designed for rugged field deployment, the 68S is resistant to dust, moisture and mechanical shock.

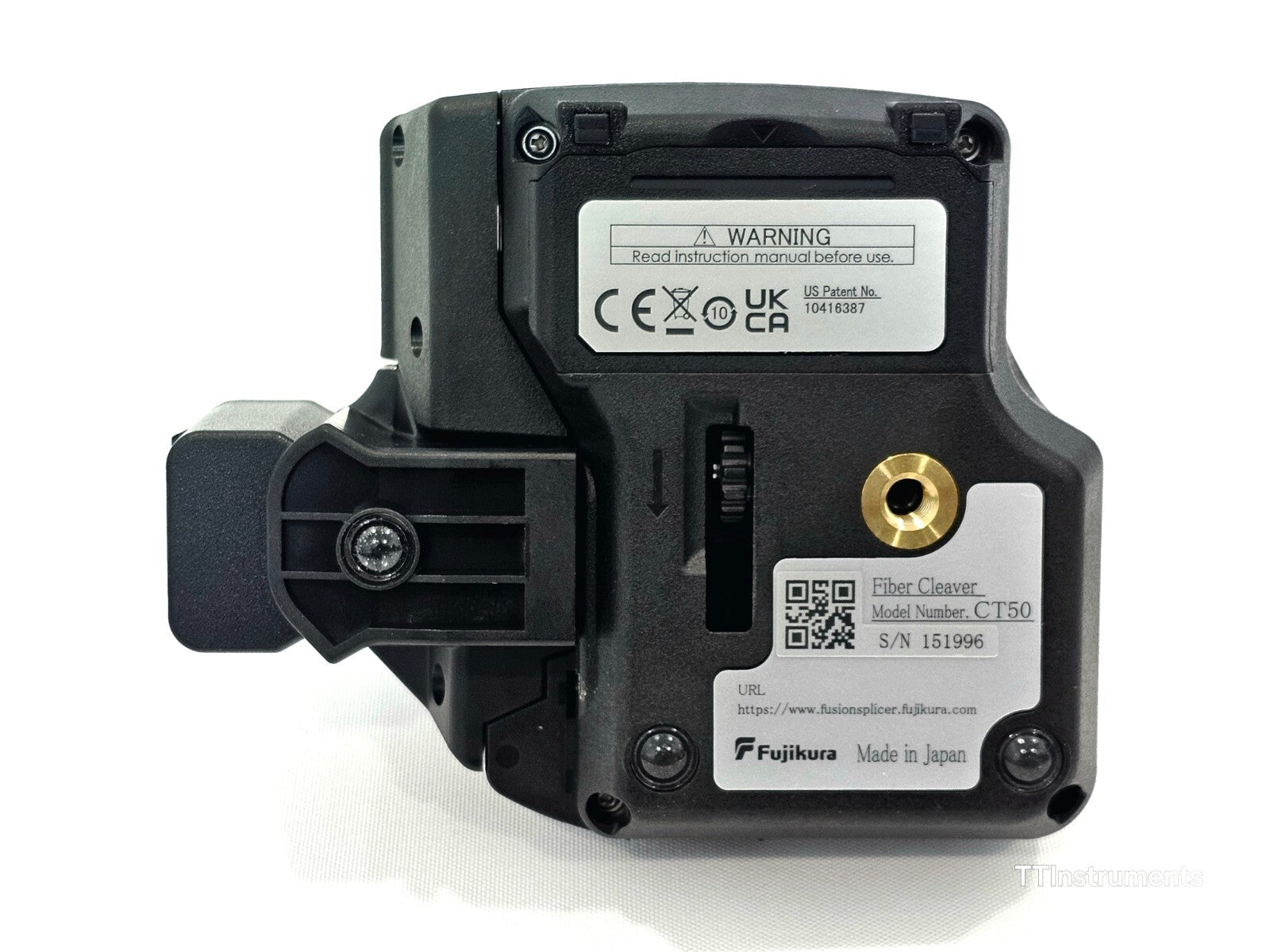

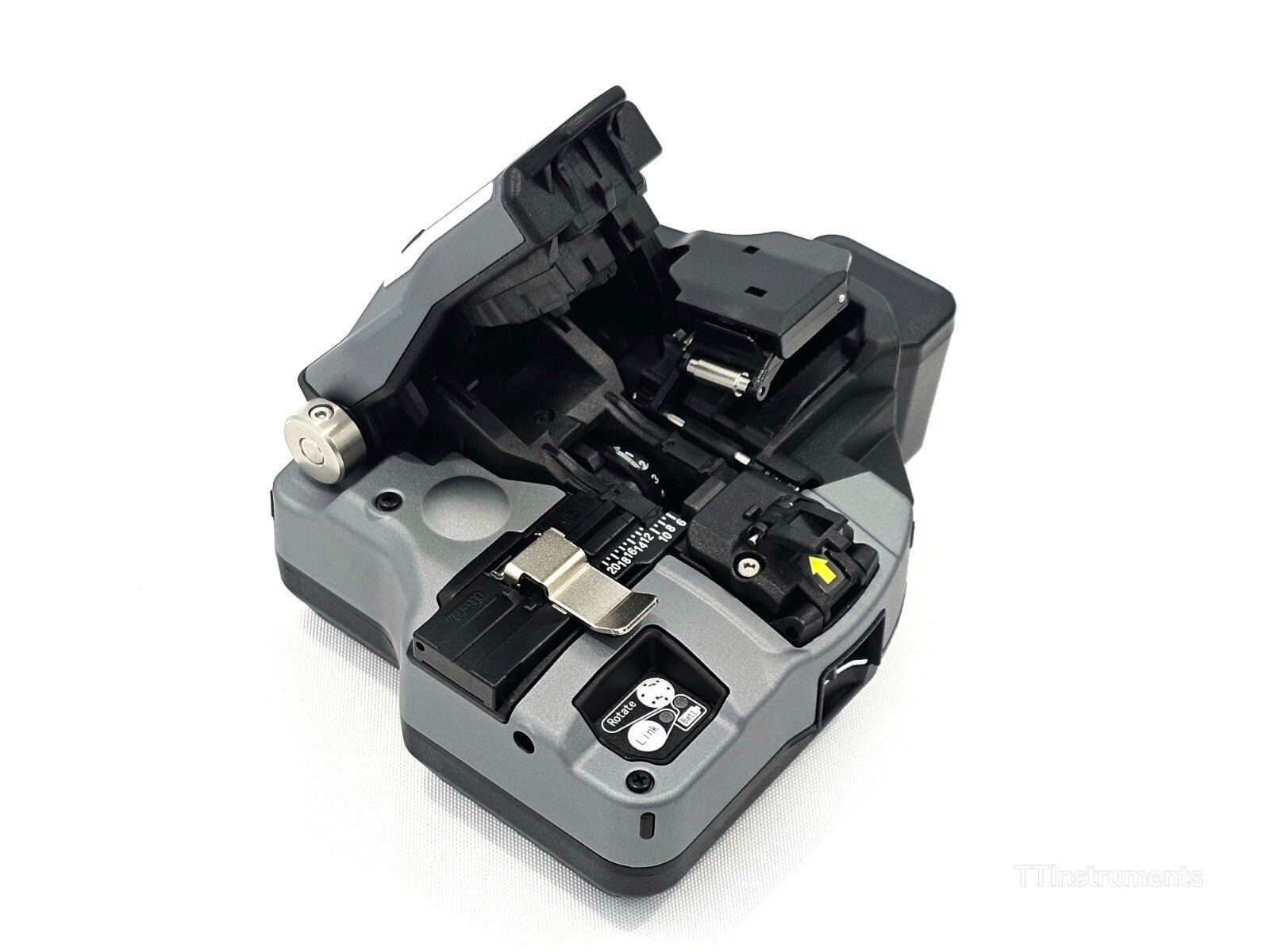

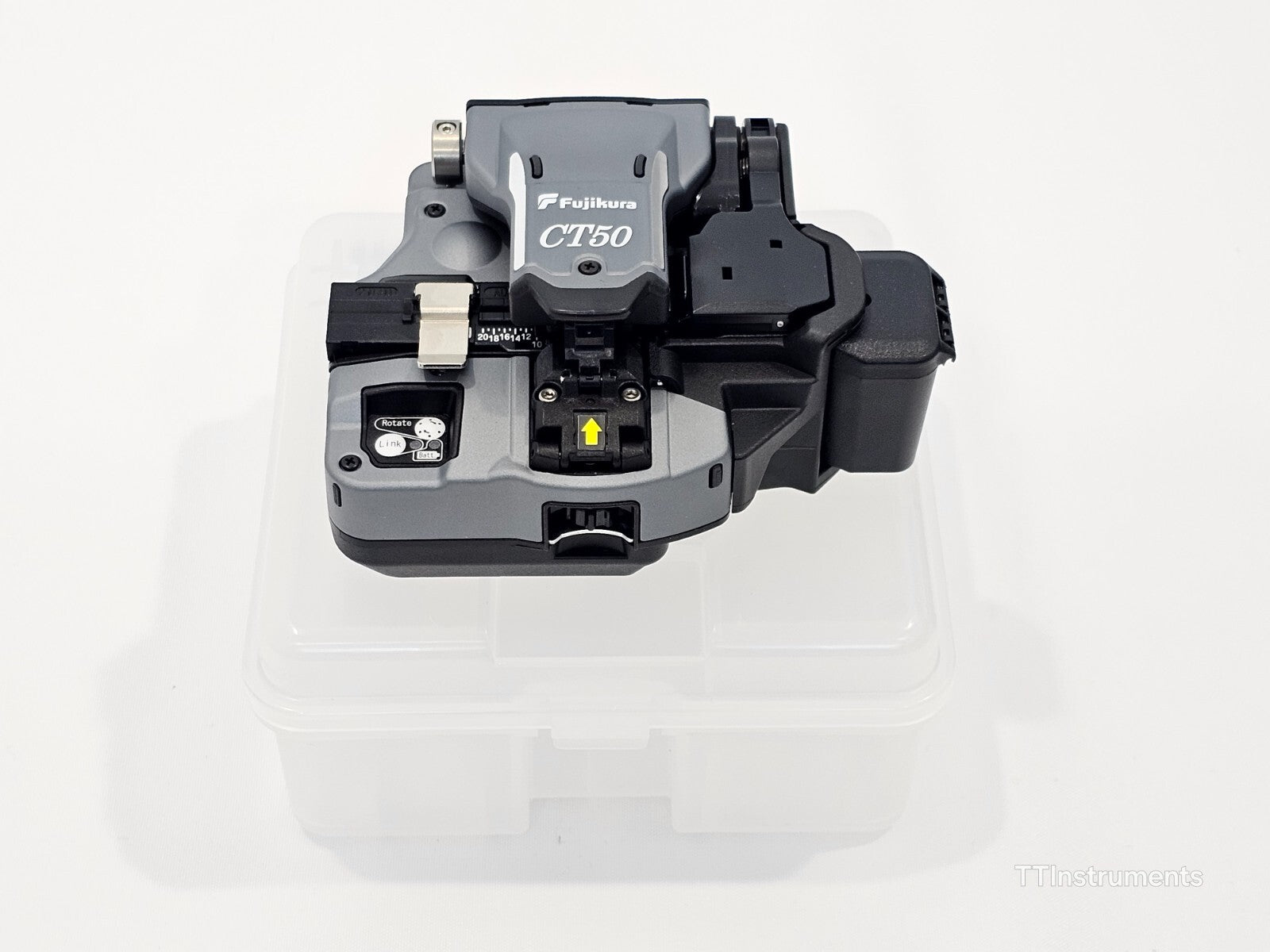

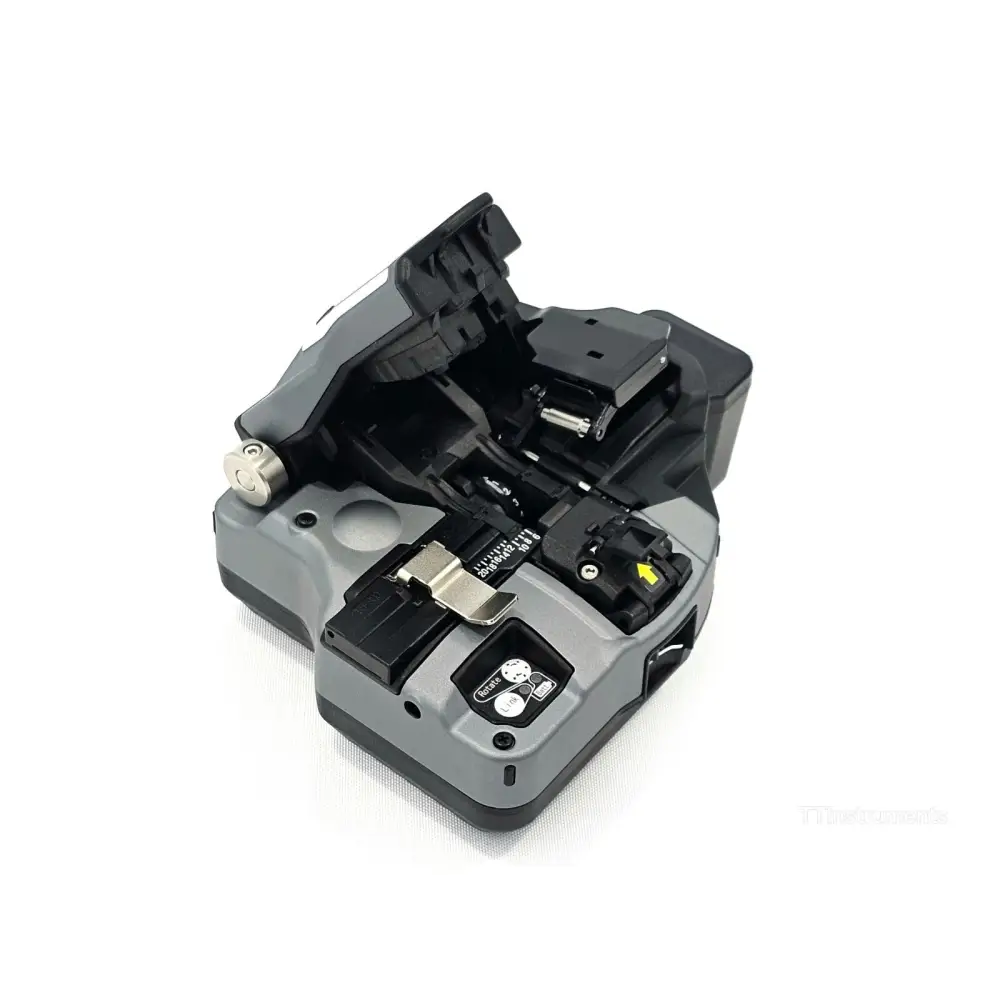

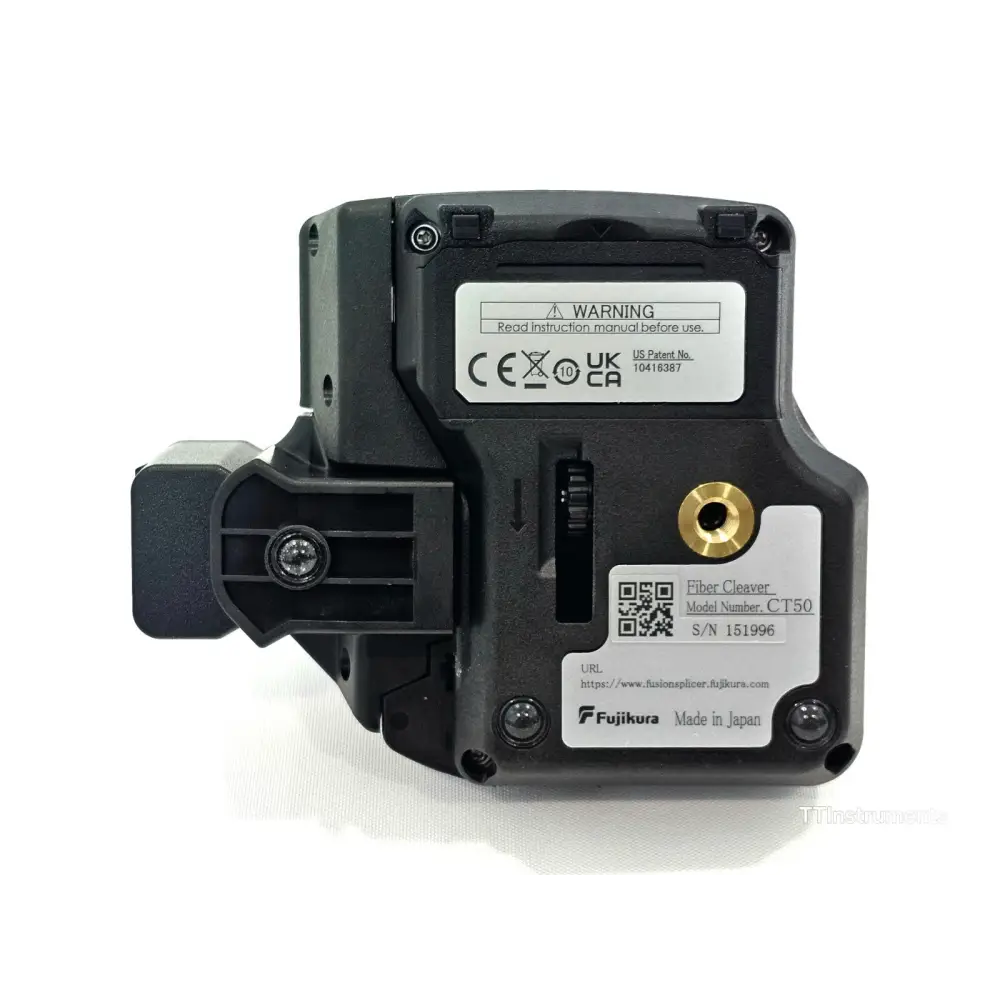

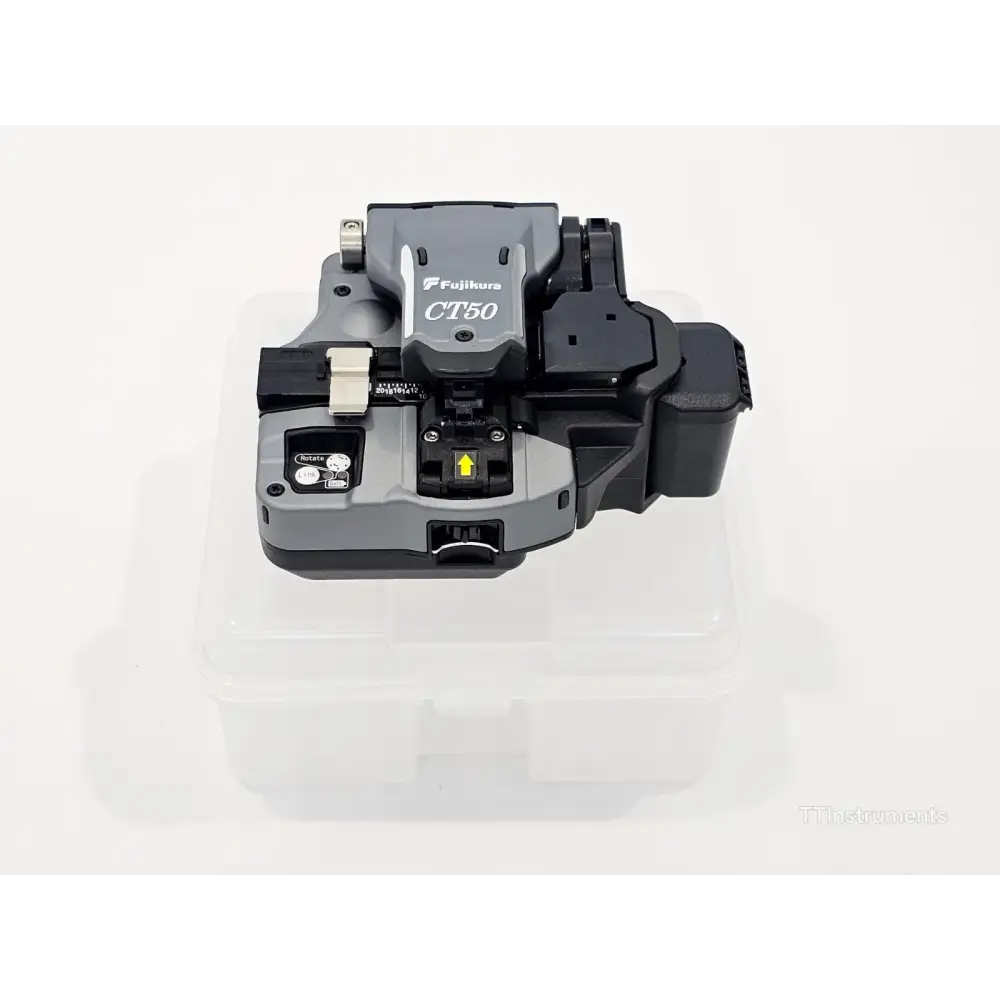

The bundled CT50 fibre cleaver is a high-precision, Bluetooth-enabled cleaver with automated motorised blade rotation. When paired with a compatible Fujikura splicer, blade positions are advanced automatically based on cleave count or cleave quality. The 16-position blade delivers up to 60,000 single-fibre cleaves before requiring replacement, and all precision components are field-serviceable. Its lever opens beyond 90 degrees, integrating fibre clamping and blade readying into one motion for single-step operation.

Fujikura 68S Specifications:
Alignment Method: Core-to-core (dual-axis)
Fibre Observation: 2-axis dual CMOS camera
Display: 5-inch colour LCD touchscreen
Magnification: 320x (pre-splice), 400x (post-splice)
Typical Splice Loss: 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS)
Typical Splicing Time: 7–9 seconds (SM FAST mode)
Typical Heating Time: 23 sec (FP-03, 250 µm coating), 25 sec (FP-03, 900 µm coating)
Compatible Fibre Types: SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cladding Diameter Range: 80–150 µm
Sheath Diameter Range: 100–3,000 µm
Cleave Length: 5–16 mm (with coating clamp)
Splicing Modes: Up to 100
Heating Modes: Up to 30
Return Loss: >60 dB
Tension Test: 1.96–2.25 N
Results Storage: Last 15,000 splices
Wireless: Bluetooth 4.1
Applicable Protection Sleeve: Max. 66 mm
Electrode Life: ~5,000 splices
Power Supply: 100–240 V AC (AC adapter) / Battery pack

Fujikura CT50 Cleaver Specifications:
Applicable Fibre: Conventional silica optical fibre
Fibre Count: Single and up to 12-fibre ribbon
Coating Diameter: 250 µm to 900 µm (with AD-10-M24)
Cladding Diameter: 125 µm
Cleave Length: 5–20 mm (with AD-50 adapter plate)
Cleave Angle: Typically <0.5°
Blade Lifetime: 60,000 single-fibre cleaves / 5,000 12-fibre ribbon cleaves
Blade Positions: 16
Connectivity: Bluetooth (automatic blade rotation via splicer)
Shock Resistance: Drops up to 30 inches
Dimensions (W x D x H): 120 mm x 95 mm x 58 mm
Weight: Approx. 300 g

Fujikura CT50 Fibre Cleaver official datasheet (AFL): Download PDF

Fujikura CT50 Fibre Cleaver specifications sheet (Fiber Instrument Sales): Download PDF
