Condition: New other (see details)

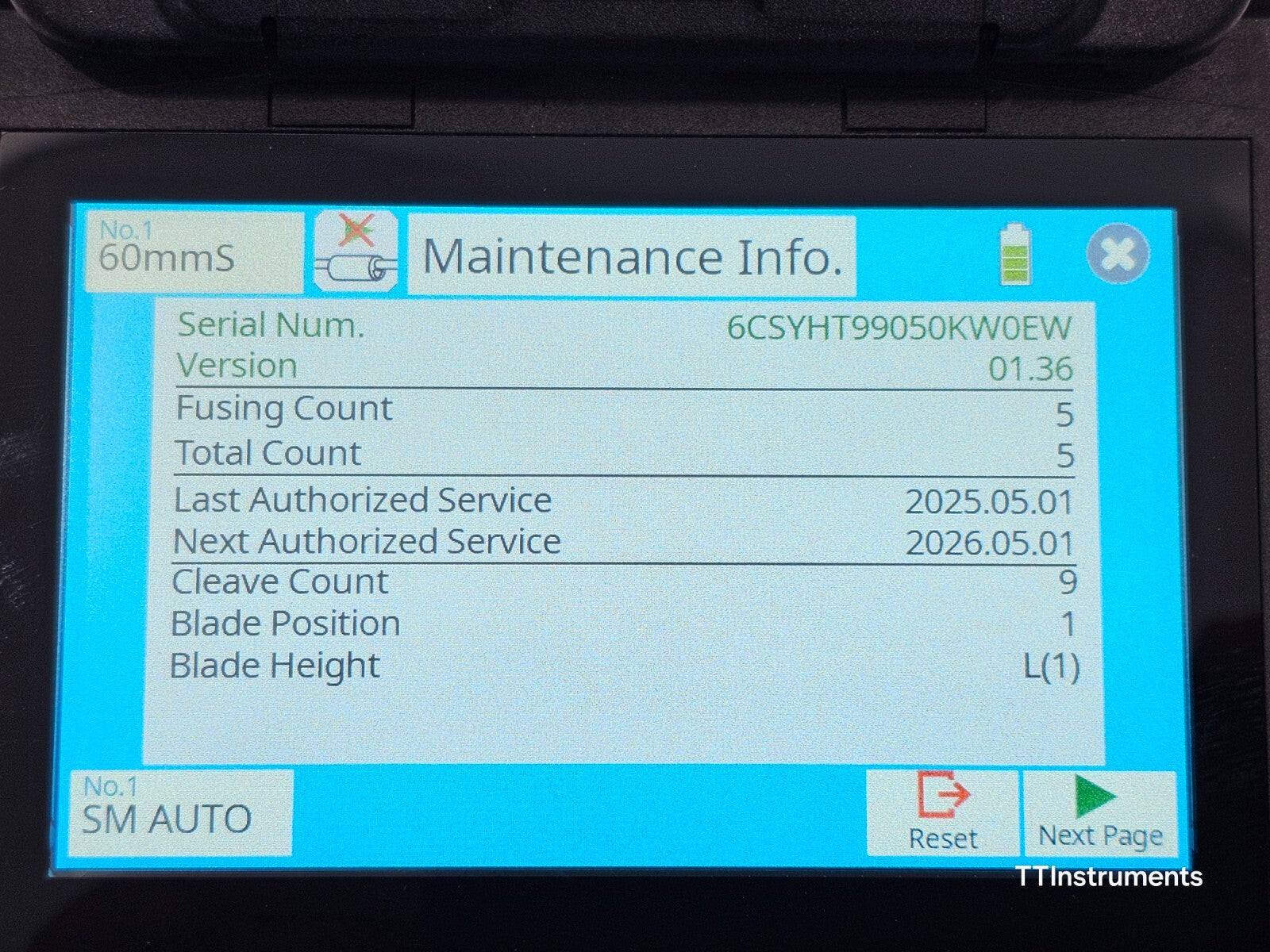

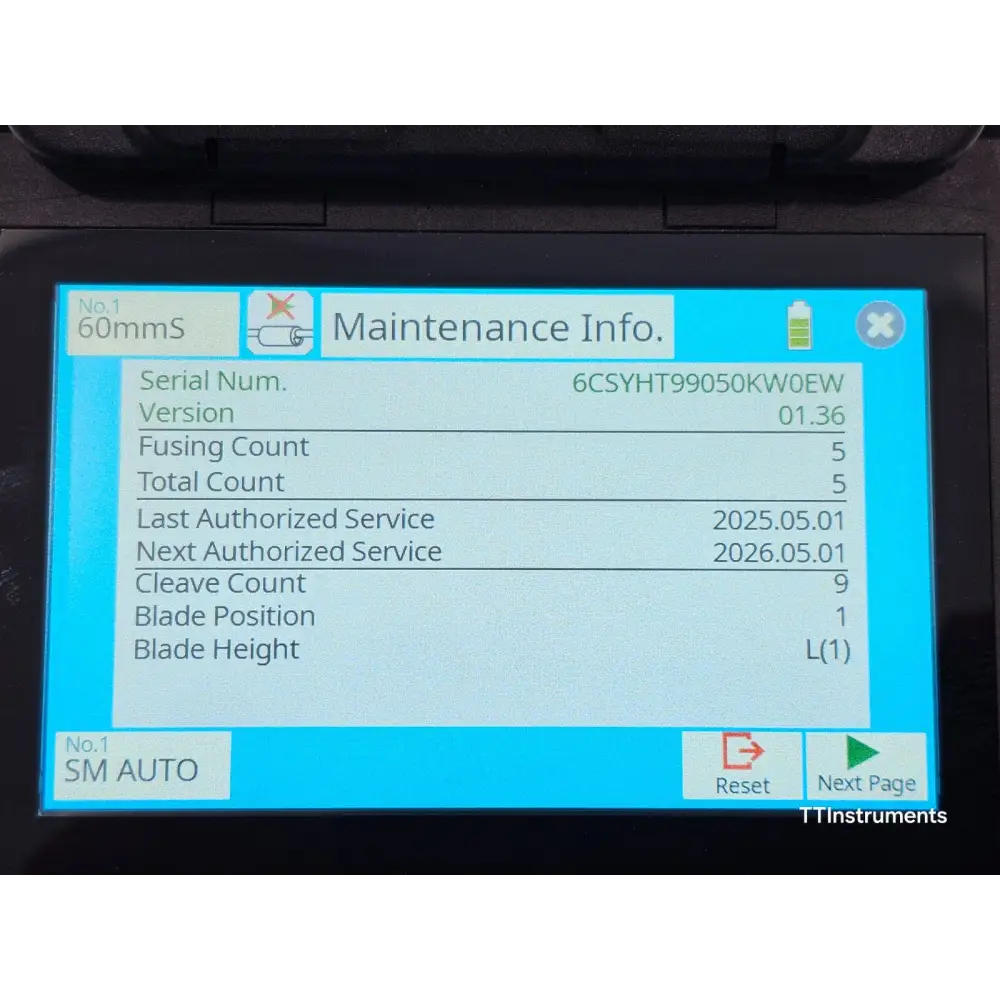

This Fujikura 31S fusion splicer is essentially in brand new condition, having undergone only five arc discharges during internal quality testing. The included CT08 cleaver is in pristine, unused condition. All components have been inspected, verified, and are ready for immediate field deployment.

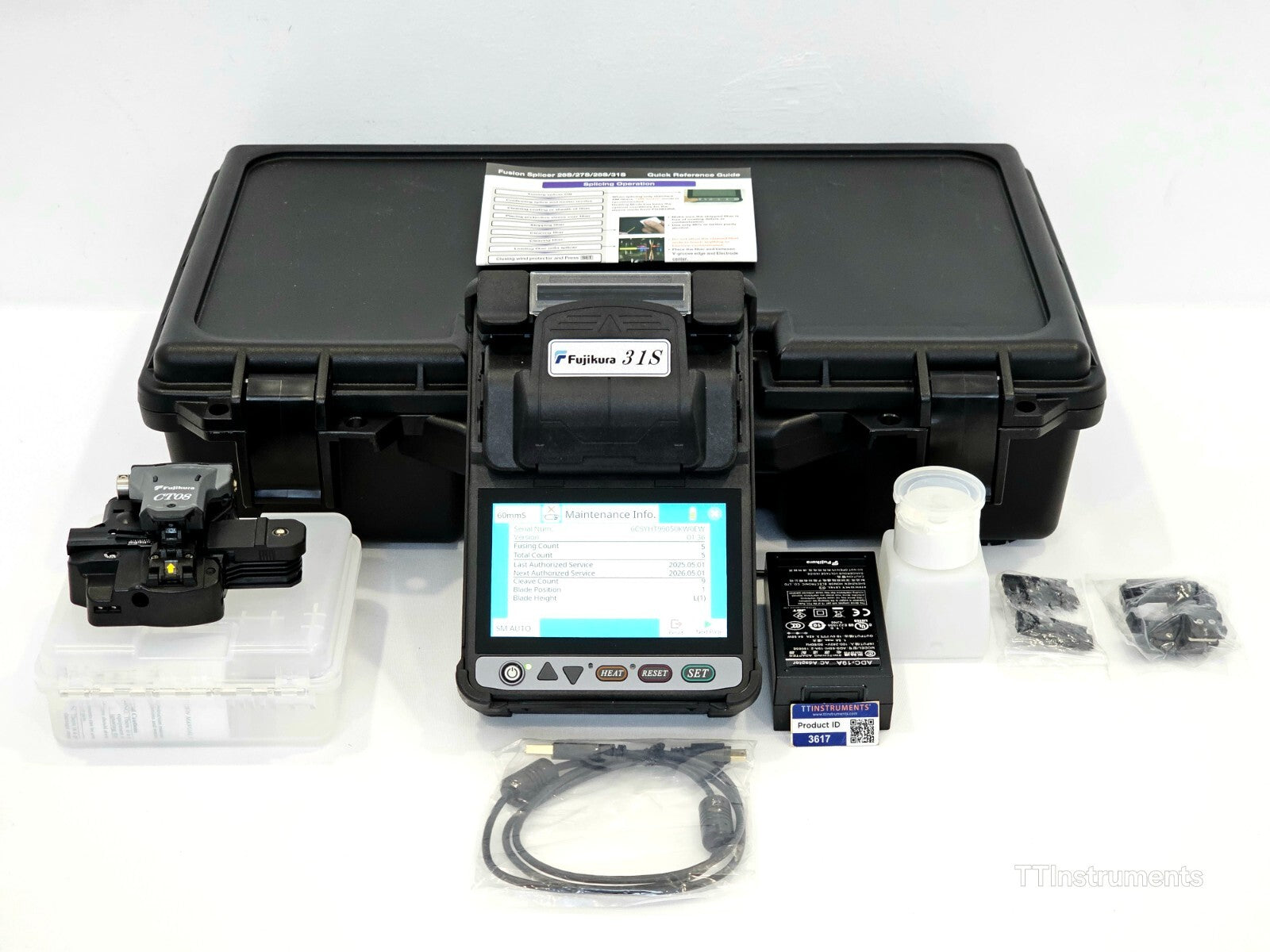

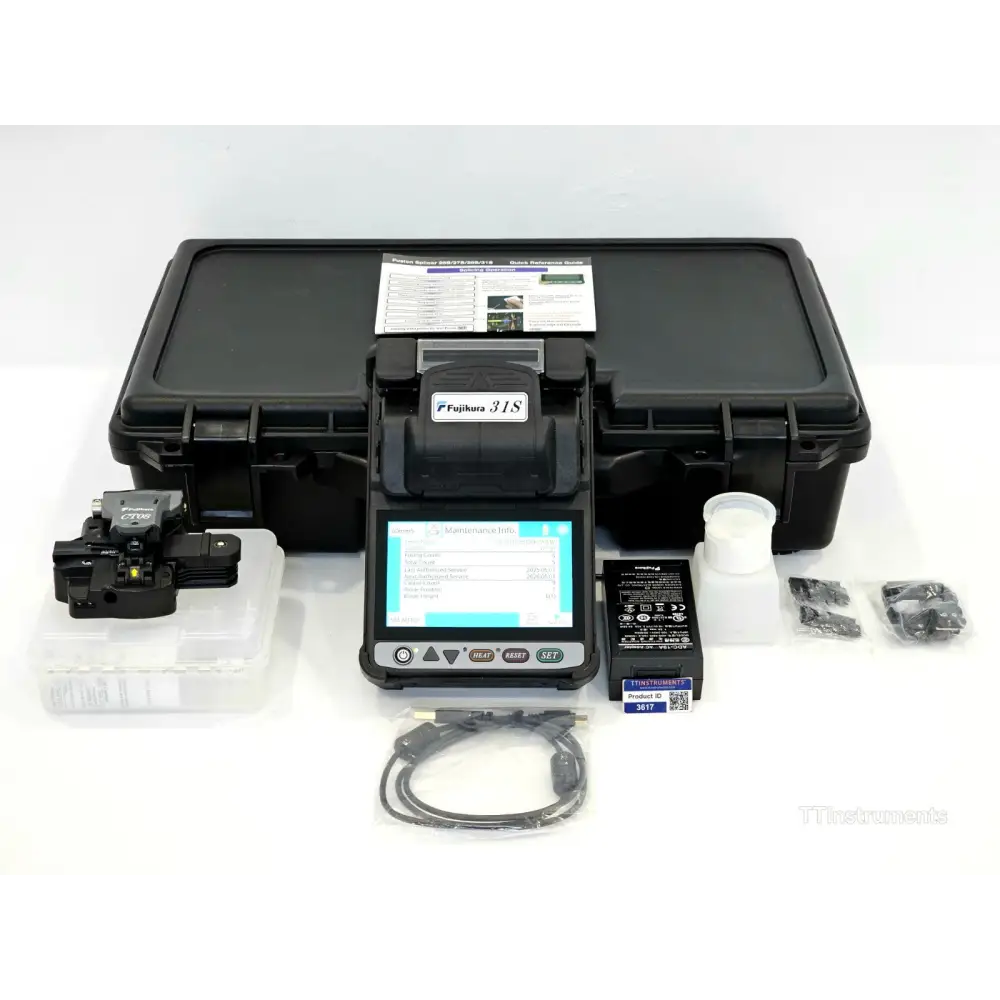

Included in the sale:
• Fujikura 31S Fusion Splicer
• Fujikura CT08 Cleaver
• Battery Pack
• Hard Carry Case
• Fiber Holder Set
• AC Adapter
• Alcohol Bottle
• Strap Kit
• USB Charging Cable
• Quick Reference Guide

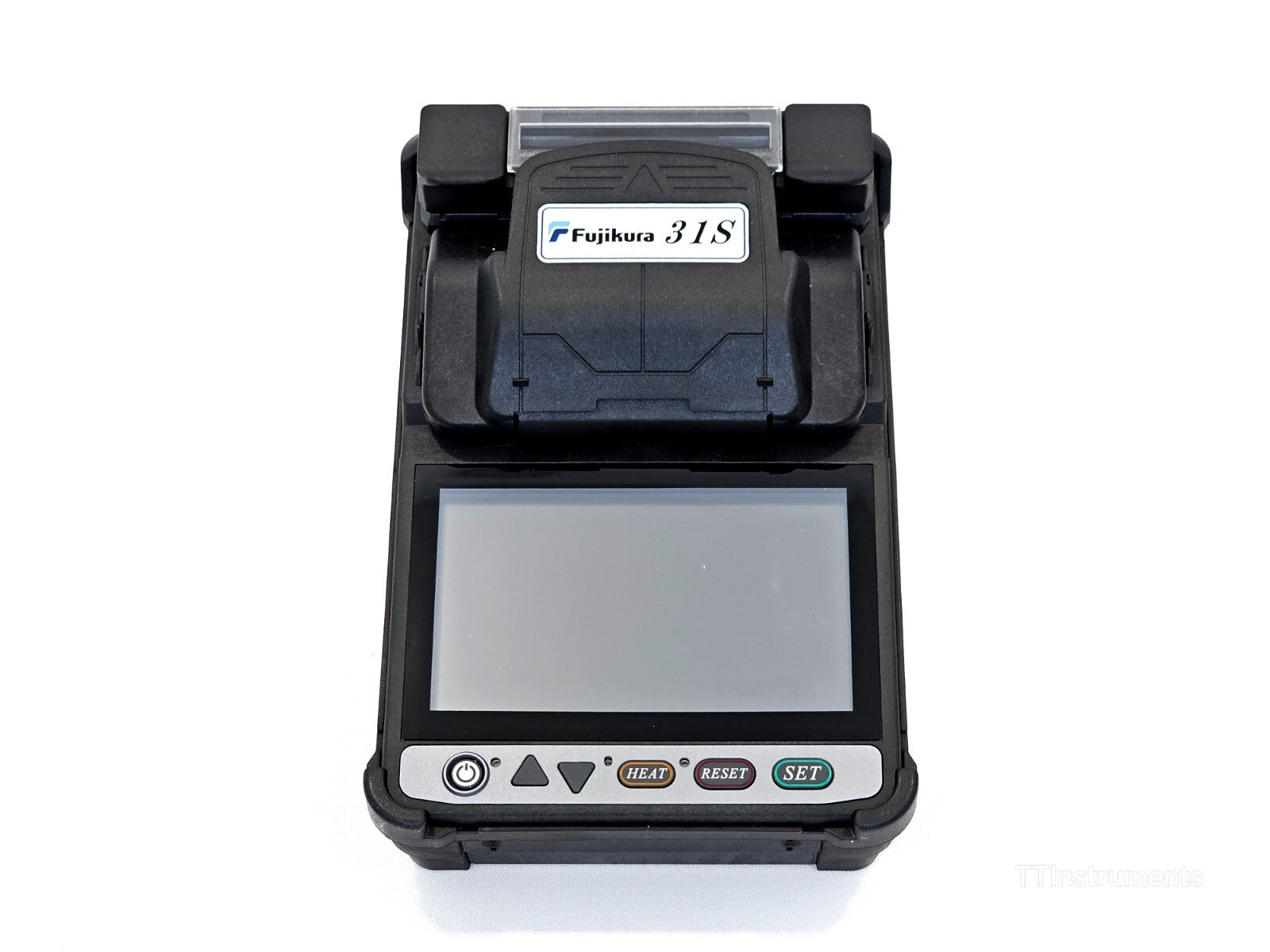

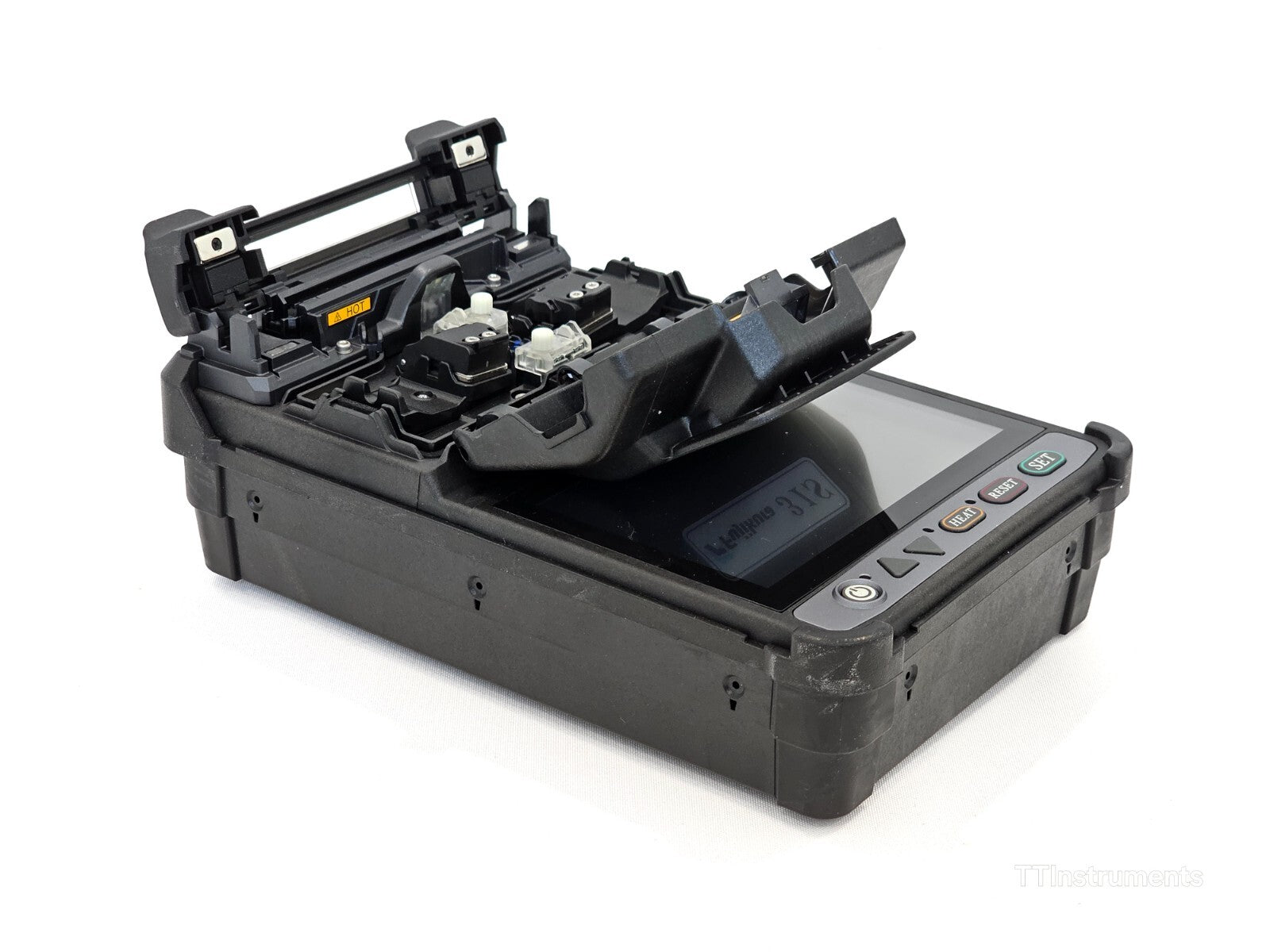

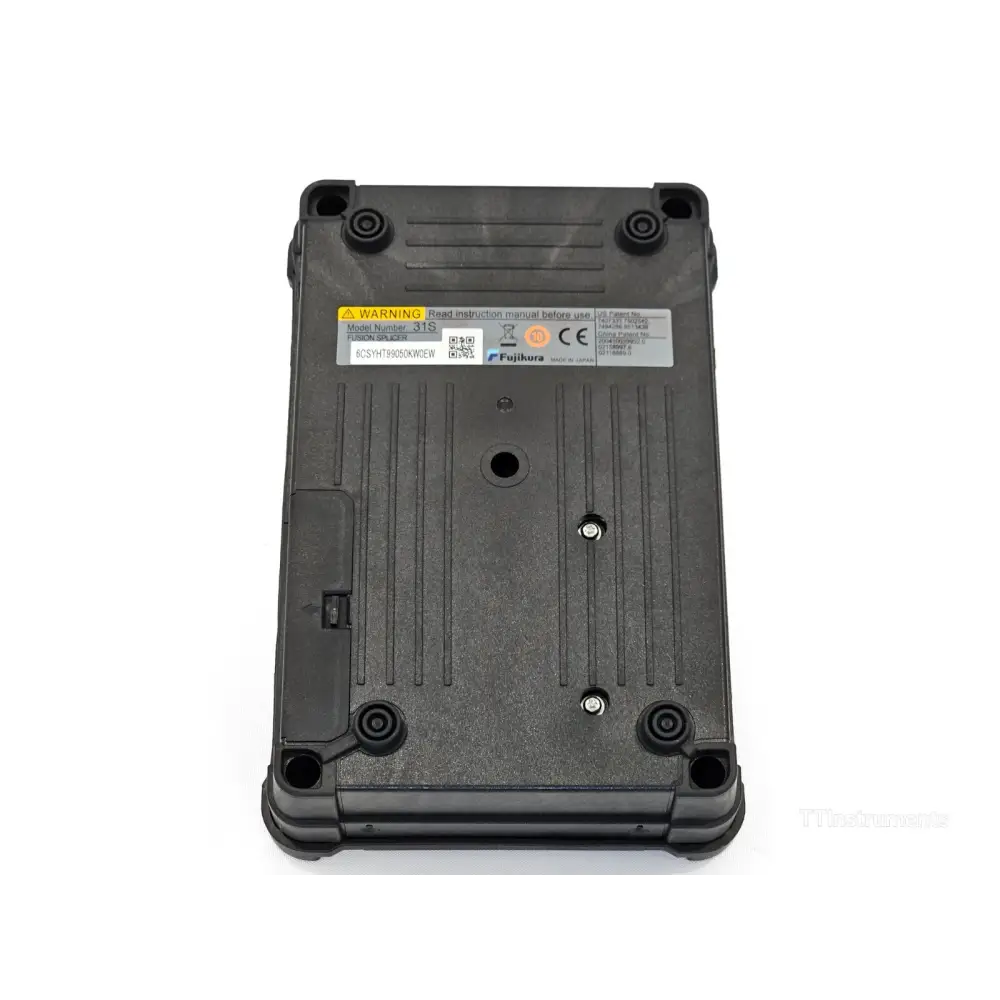

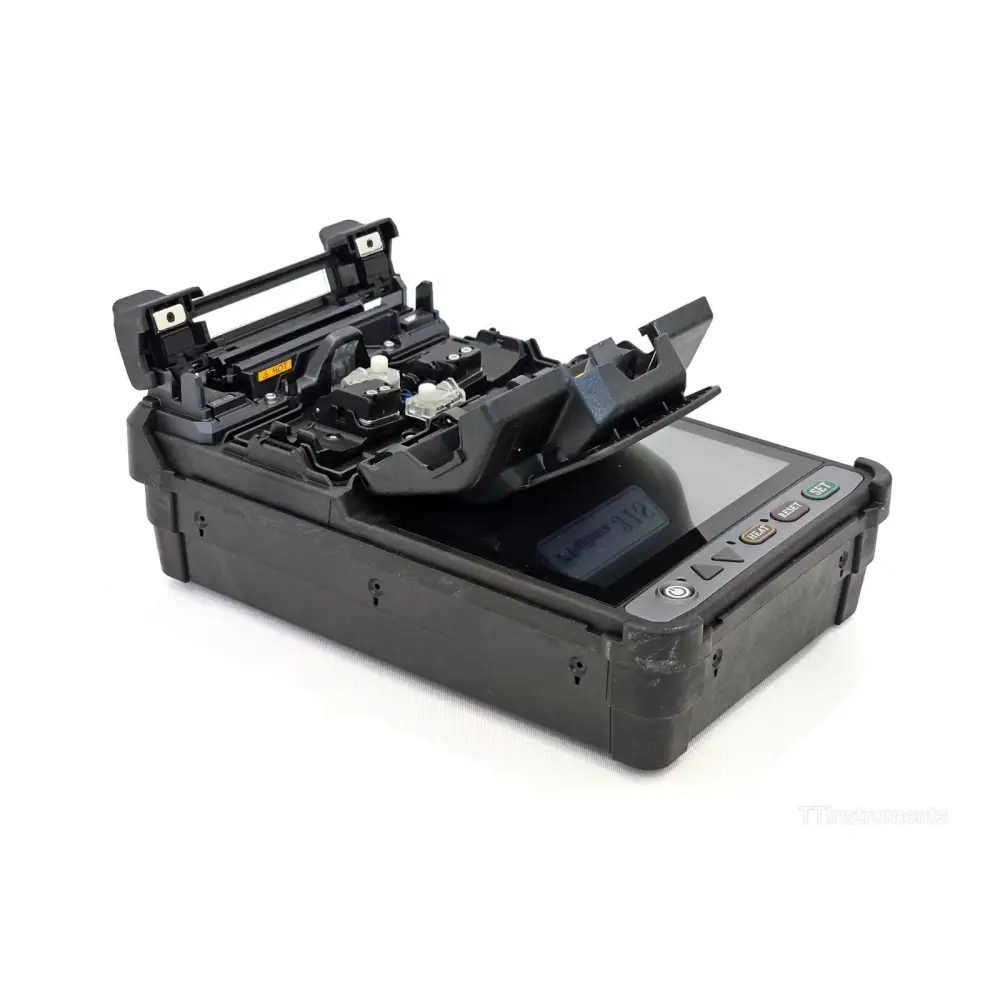

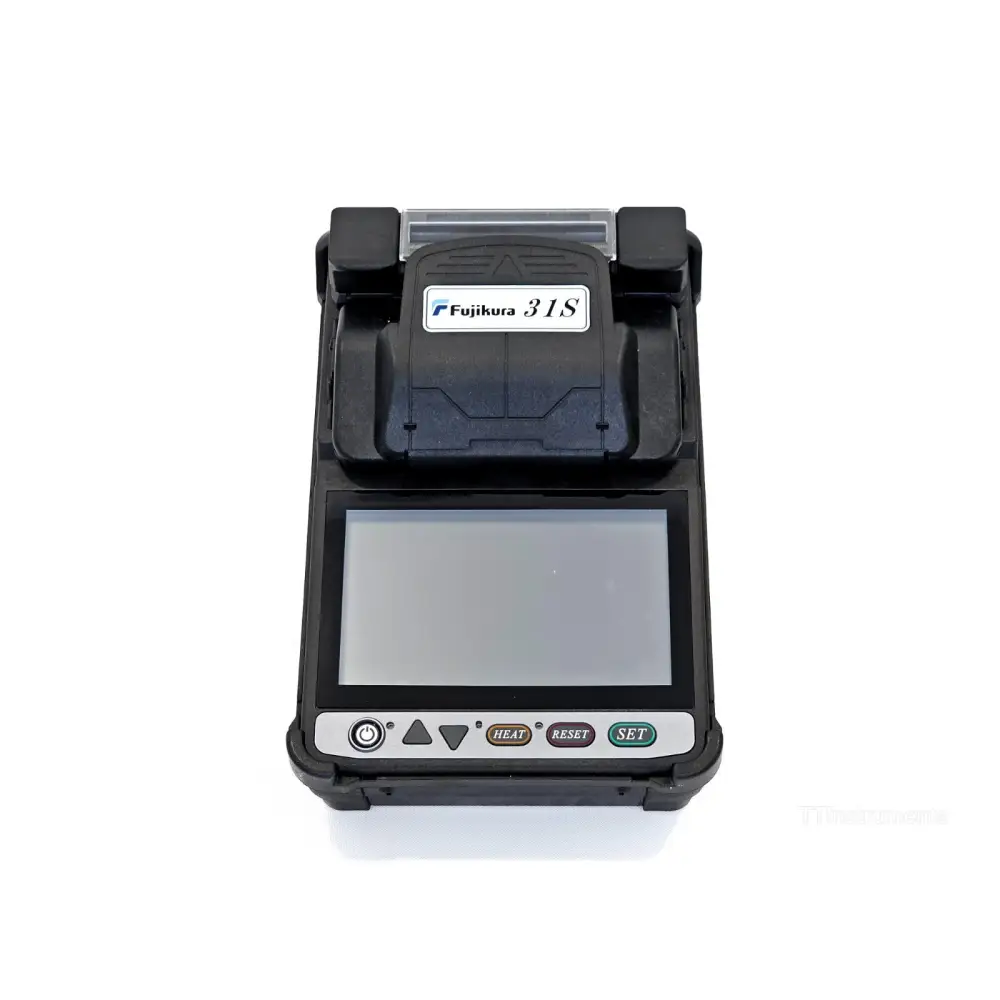

The Fujikura 31S (FSM-31S) is a fully ruggedised, active cladding alignment fusion splicer designed for efficiency, portability, and reliability in FTTx and general field splicing applications. The dual-camera, active V-groove alignment system delivers consistent splice performance in the most challenging conditions. A large 5-inch colour touchscreen provides intuitive menu navigation, remaining clearly visible even in bright sunlight. Software updates are available via the internet, keeping splice programs current.

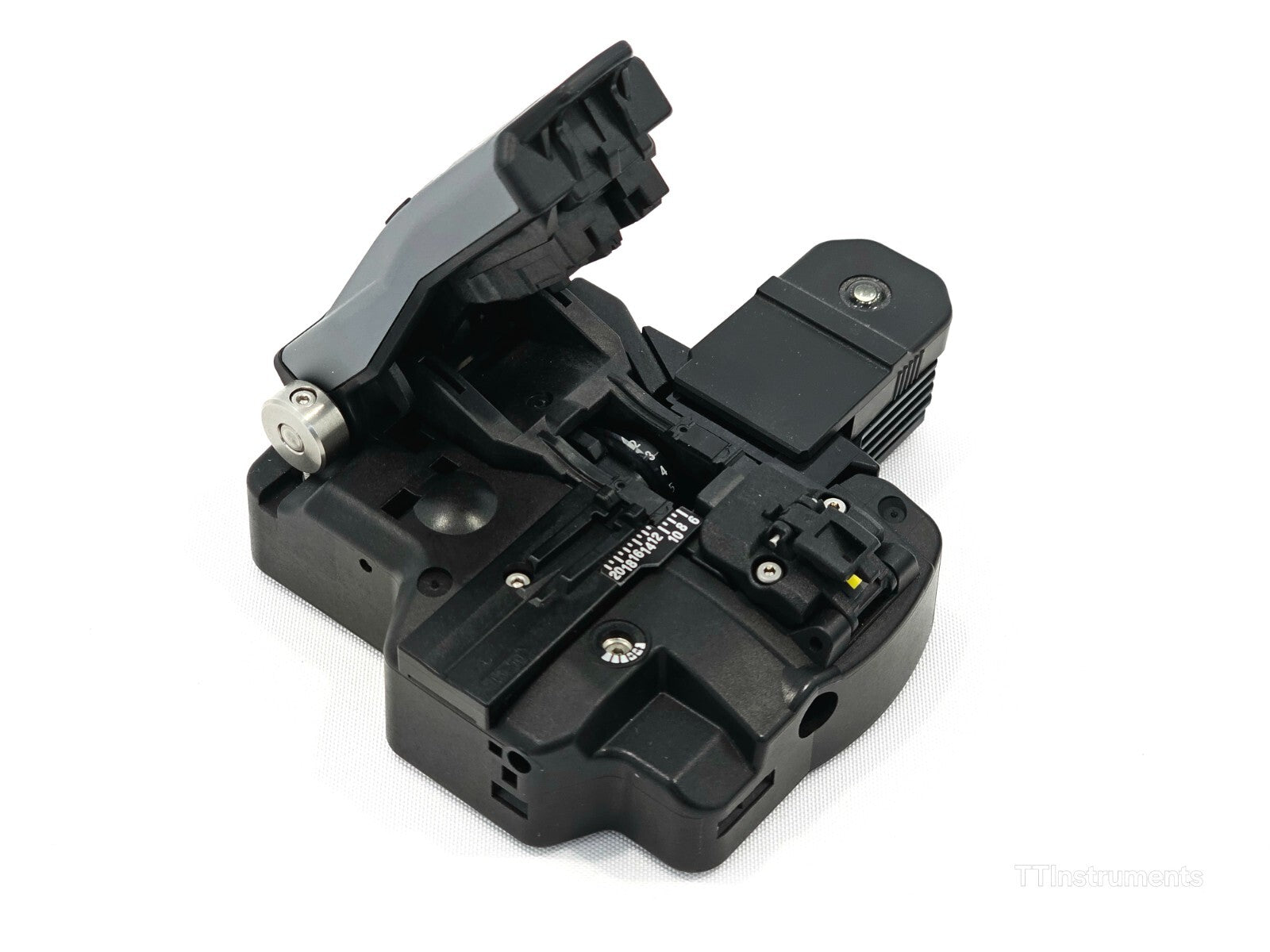

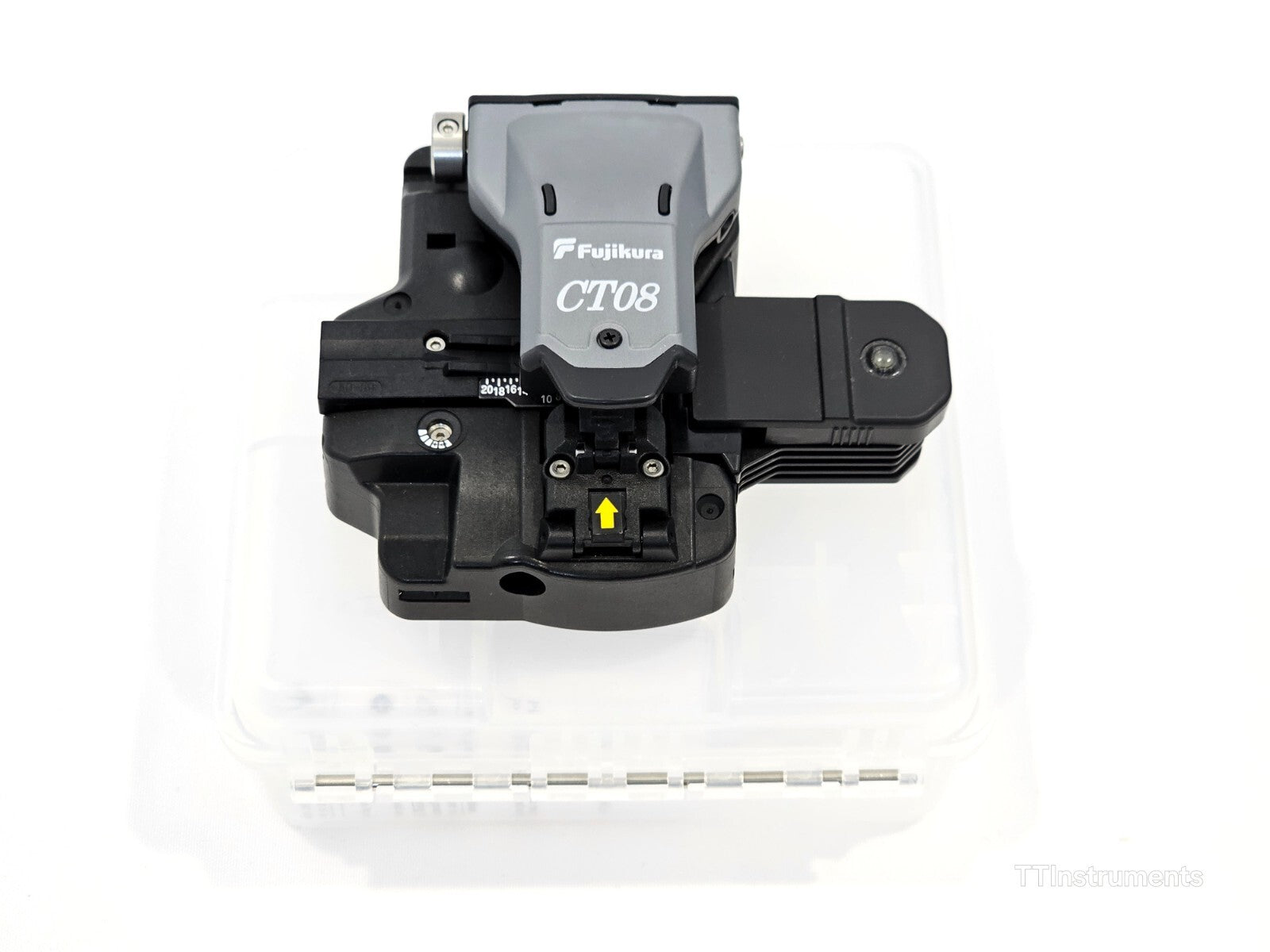

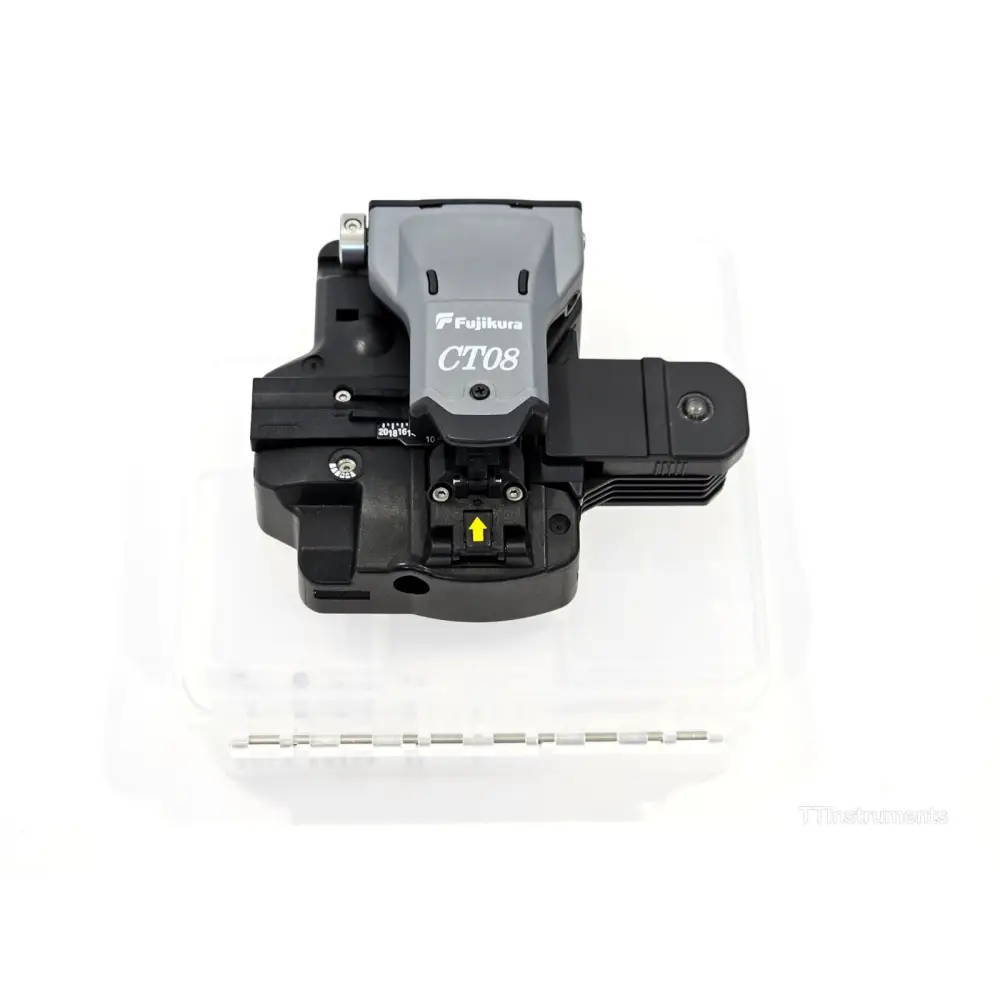

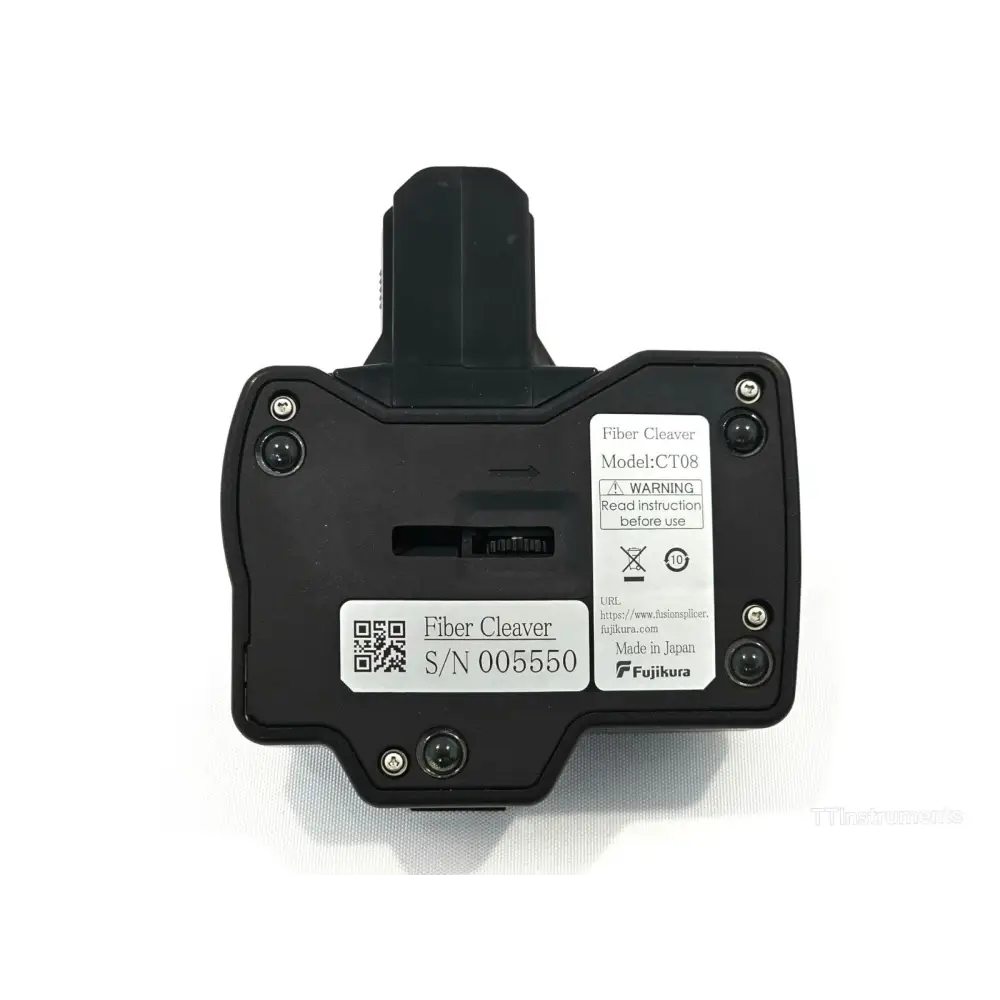

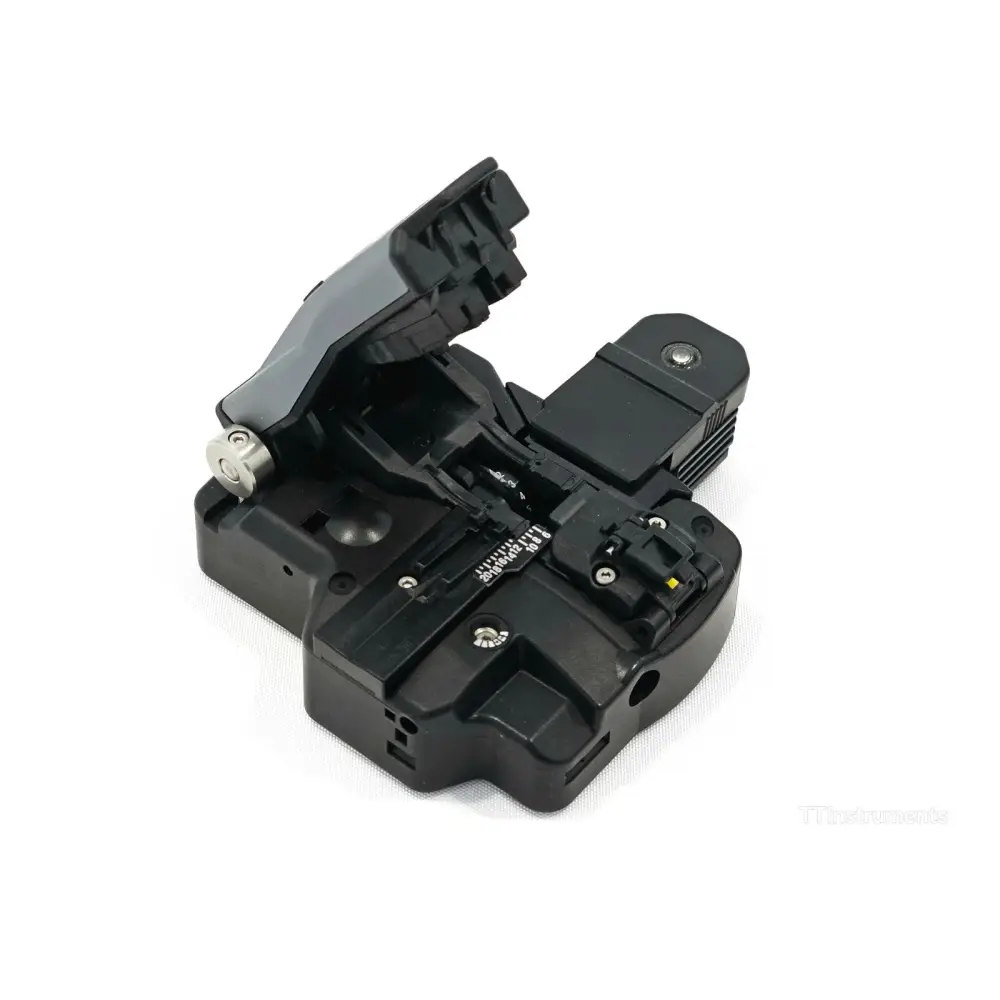

The CT08 is a high-precision, ruggedised single-fibre cleaver designed for one-step cleaving. It features tool-free blade rotation via a thumbwheel and a user-replaceable blade with a lifetime of up to 48,000 cleaves. The top clamp opens past vertical for easy fibre placement and cleaning, and the blade retracts automatically on opening, activating on closing for true single-step operation.

--- Fujikura 31S Specifications ---
Alignment Method: Active cladding alignment (dual-camera, active V-groove)
Applicable Fibre Types: SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cladding Diameter: 125 µm
Coating Diameter: Up to 3 mm
Cleave Length: 5 mm to 16 mm
Splice Modes / Heating Modes: 100 splice modes / 30 heating modes
Typical Splice Loss: 0.03 dB (SM), 0.01 dB (MM), 0.05 dB (DS), 0.05 dB (NZDS)
Return Loss: >60 dB
Typical Splice Time: 6 sec (SM FAST), 9 sec (SM AUTO)
Typical Tube Heating Time: 25 sec (FP-03, 250 µm coating)
Applicable Protection Sleeves: 60 mm, 40 mm, Fujikura micro sleeves
Tension Test: 1.96 to 2.25 N
Splice Result Storage: 10,000 results
Display: 5-inch colour LCD touchscreen
Battery Life: Up to 200 splice and heat cycles per charge
Electrode Life: 5,000 splices
Environmental Resistance: Shock, dust, and rain resistant
PC Connection: USB

--- Fujikura CT08 Cleaver Specifications ---
Applicable Fibre: Silica optical fibre, single fibre
Coating Diameter: 160 to 900 µm (including 2/3 mm cord and drop cable)
Cladding Diameter: 125 µm
Cleave Length: 5–20 mm (with AD-50 adapter plate)
Cleave Angle: Typical 0.5 degrees
Blade Life: Typical 48,000 cleaves
Dimensions: 110 (W) x 95 (D) x 45 (H) mm
Weight: 185 g
Operating Temperature: -10 to 50°C

Fujikura 31S Fusion Splicer product datasheet (AFL Global): Download PDF

Fujikura 31S Fusion Splicer specification sheet (Fiber Instrument Sales): Download PDF
