Condition: New other (see details)

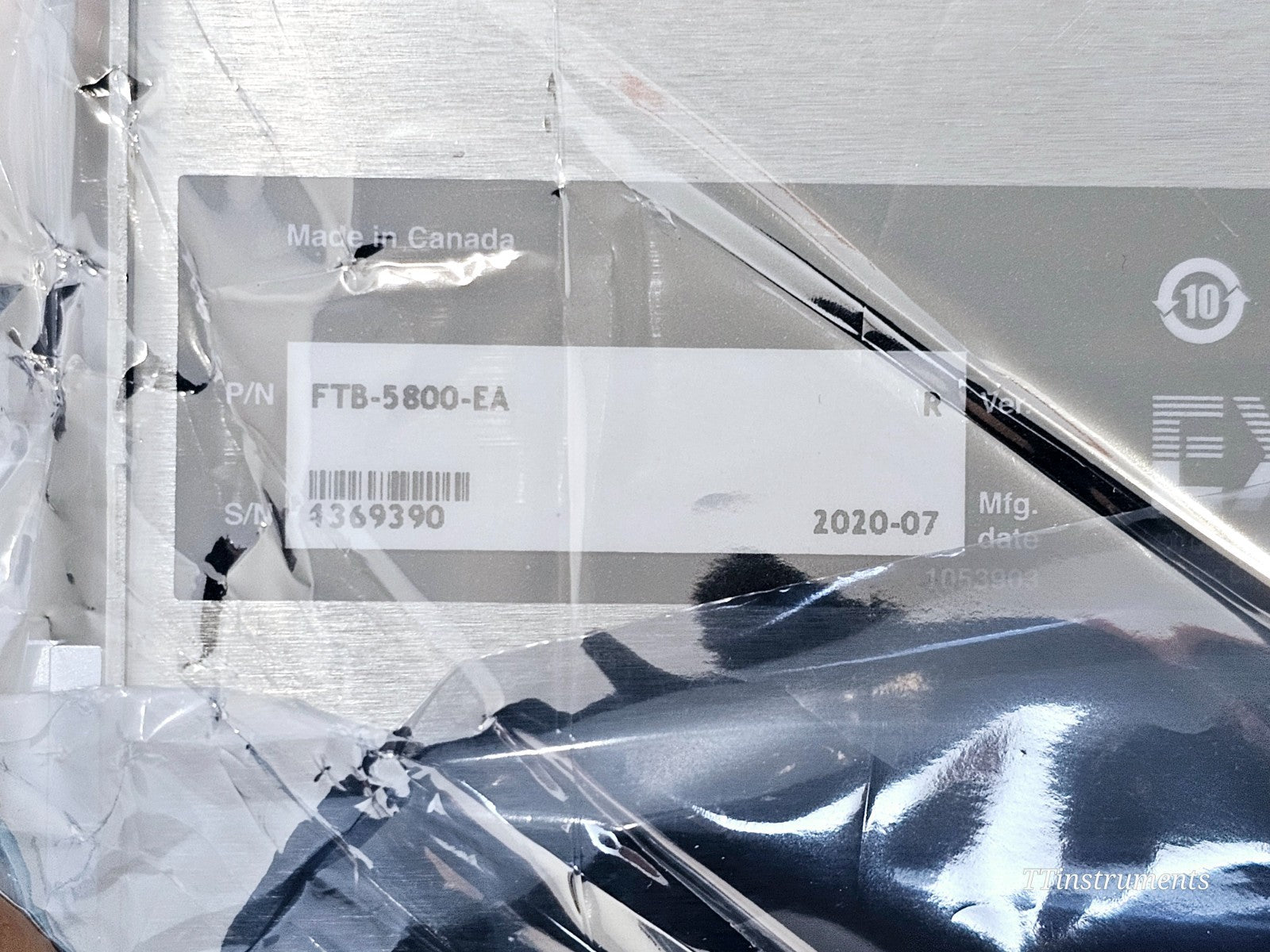

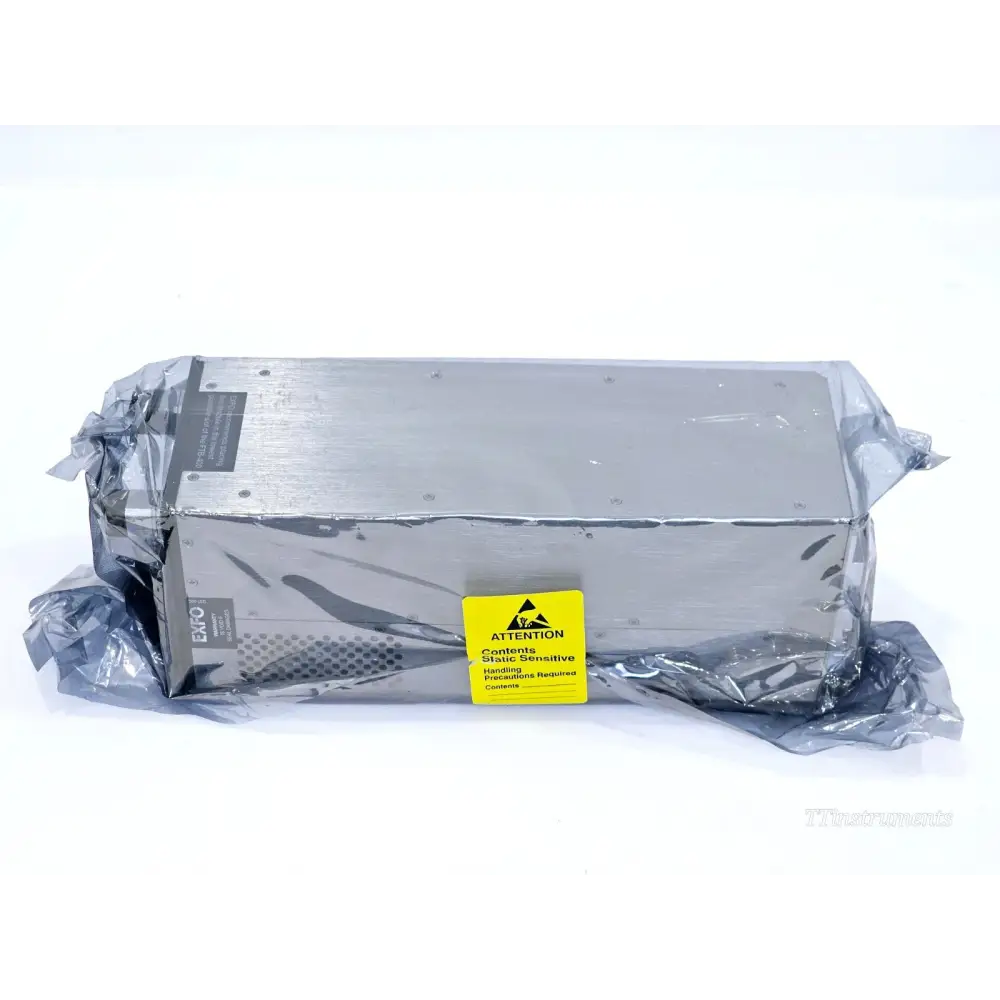

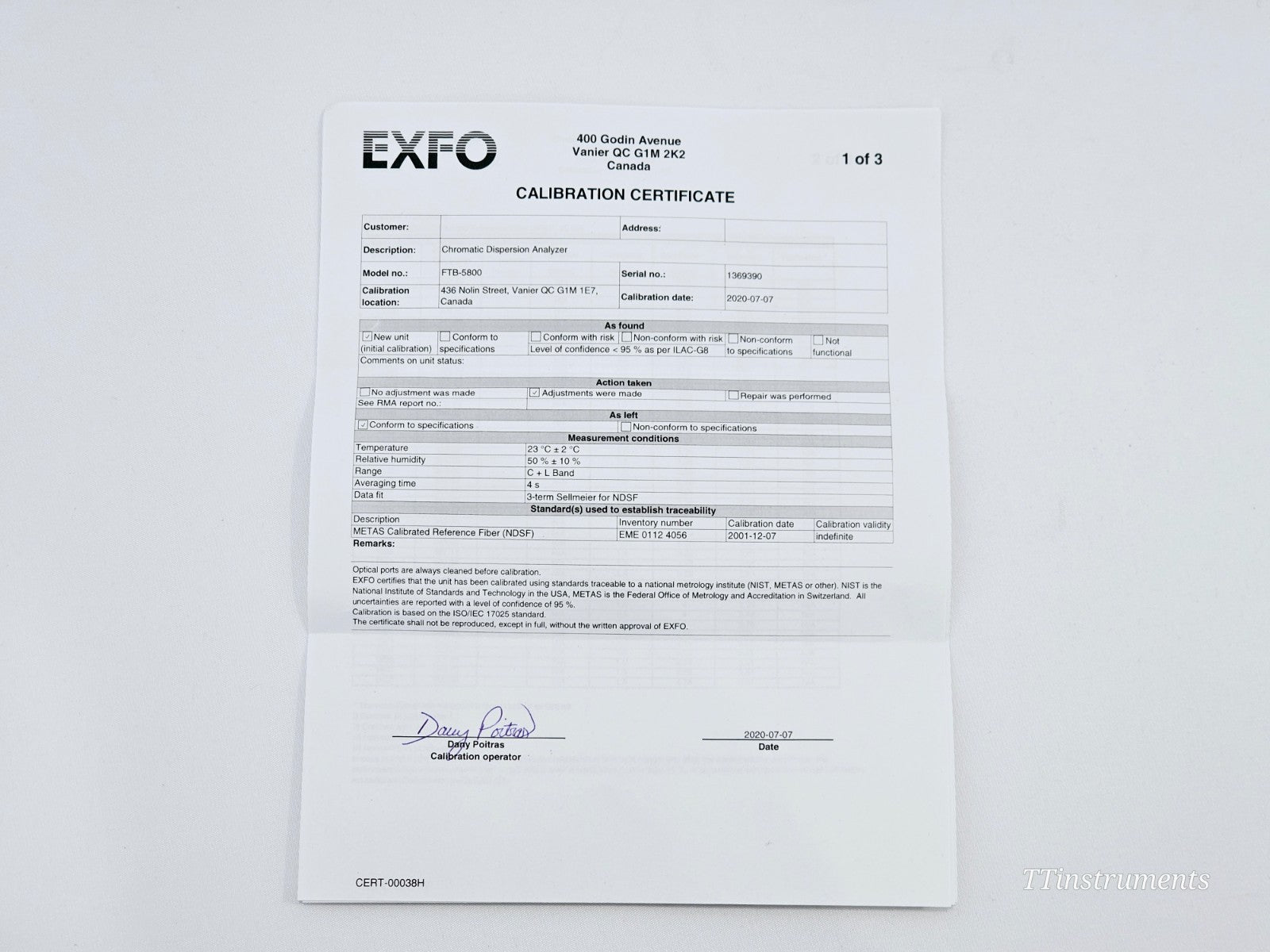

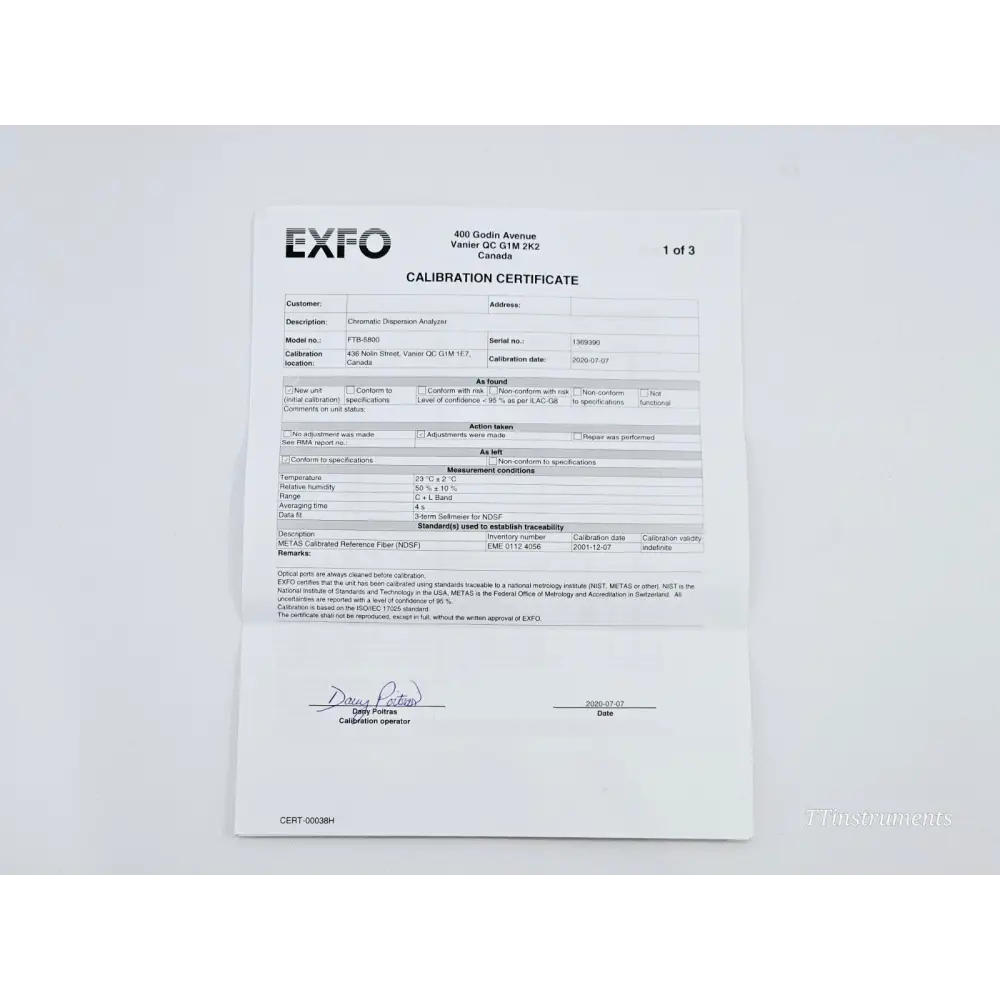

New and sealed EXFO FTB-5800 Chromatic Dispersion Analyser module, manufactured in 2020. Supplied in original unopened packaging, this unit is in excellent condition with no signs of use.

Typically supplied with:

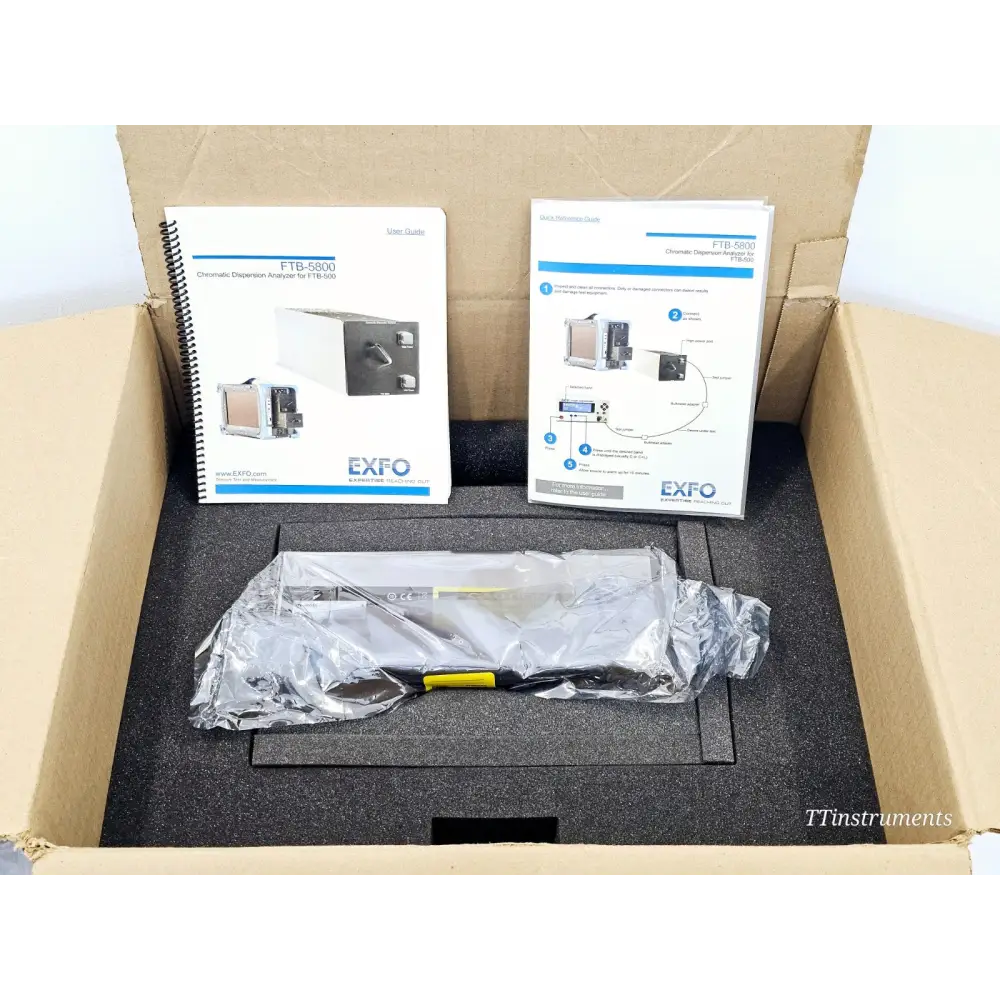

• EXFO FTB-5800 CD Analyser module (new, sealed)
• Original manufacturer packaging

The EXFO FTB-5800 is a Chromatic Dispersion (CD) Analyser module designed for use with the EXFO FTB-400 and FTB-500 Universal Test Platforms. It uses the industry-approved phase-shift measurement method, modulating a broadband light source at a high frequency and injecting it into the fibre under test. At the receive end, group delays across wavelengths are measured, and fitting equations are applied to calculate chromatic dispersion, dispersion slope, and zero-dispersion wavelength.

Designed for DWDM, long-haul and ultra-long-haul network characterisation, the FTB-5800 supports network qualification and CD compensation for systems up to 40/100 Gbit/s. Its patented design allows testing through over 120 cascaded EDFAs without any communication link between source and receiver. Tests have been validated through as many as 250 cascaded amplifiers over links exceeding 12,000 km.

The instrument is operated via EXFO's ToolBox software suite, featuring a user-friendly touchscreen interface, graphical display of dispersion and relative group delay (RGD) curves, threshold detection, statistical analysis, and report generation in PDF, Excel, or HTML via FastReporter software.

Key Features:
• Complete CD characterisation using the highly accurate phase-shift method
• No communication required between source and receiver
• Patented design: test through EDFAs
• 100 Gbit/s-ready
• Compliant with TIA-FOTP-124A standard
• Field-ready, ruggedised module for CO and field use
• Compatible with FLS-5800 / FLS-5800B CD/PMD Analyser Source

FTB-5800 CD Analyser Specifications:
Wavelength Range: 1200 to 1700 nm
Dispersion Sources: 1550 nm and 1625 nm Super LED
Dynamic Range: 42 dB (47 dB typical with FLS-5800 source)
CD Accuracy: < 3 ps/nm
Wavelength Step: 0.1 nm minimum
Measurement Bandwidth: C band (1530–1565 nm) and L band (1565–1625 nm)
EDFA Pass-Through: Yes (tested through 120+ cascaded EDFAs)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: –40 °C to 70 °C (–40 °F to 158 °F)
Relative Humidity: 0% to 93% non-condensing
Module Dimensions (H x W x D): 9.6 cm x 7.6 cm x 26.0 cm
Platform Compatibility: EXFO FTB-400, FTB-500
Standard Compliance: TIA-FOTP-124A
Software: EXFO ToolBox / FastReporter

EXFO FTB-5800 Chromatic Dispersion Analyser User Guide for FTB-500 (English): Download PDF

EXFO FTB-5500B/FTB-5800 PMD and CD Analysers Specification Sheet (ver. 8): Download PDF

EXFO FTB-5500B/FTB-5800 PMD and CD Analysers Specification Sheet v6 (ProFiber mirror): Download PDF
