Condition: New other (see details)

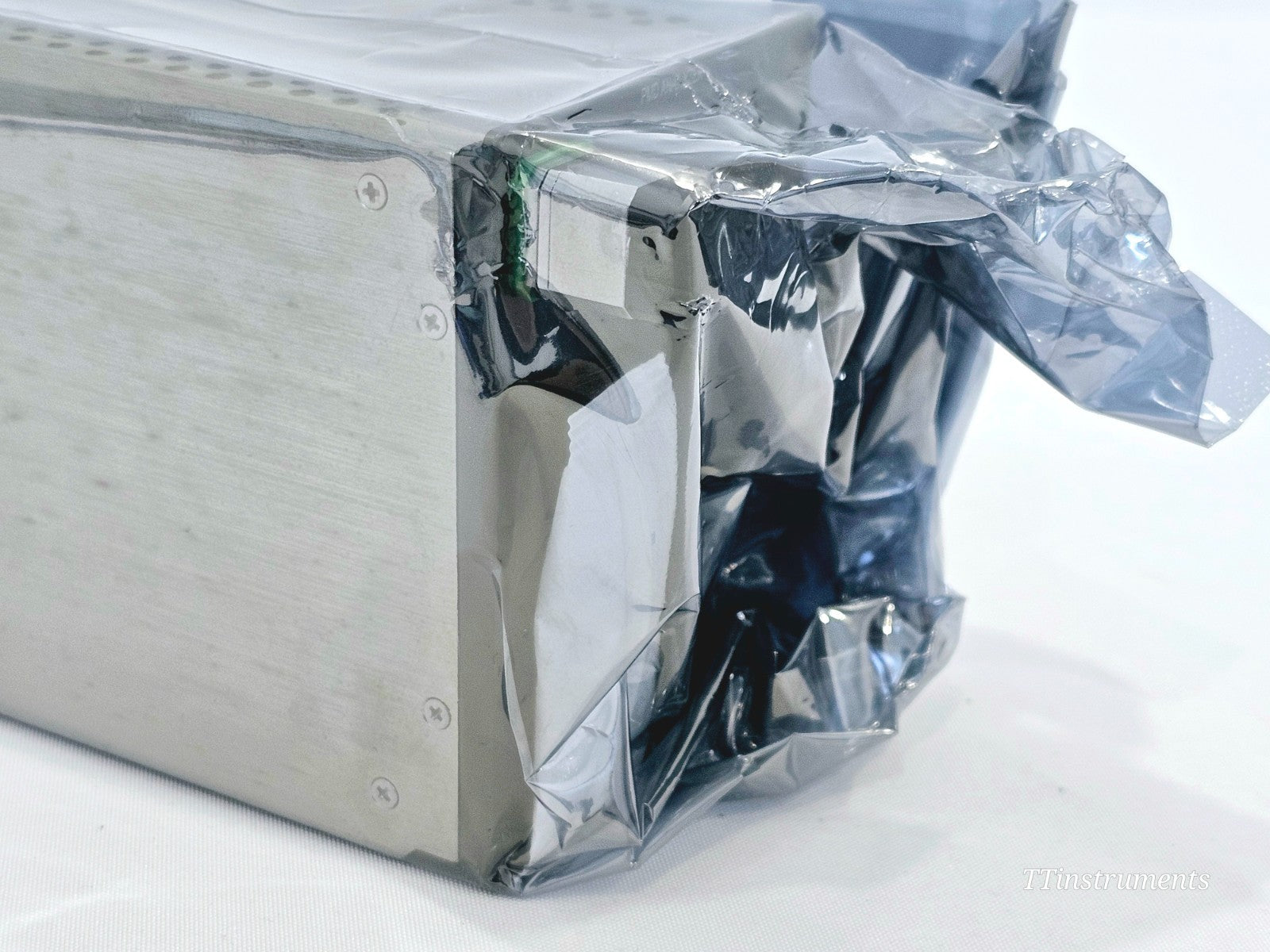

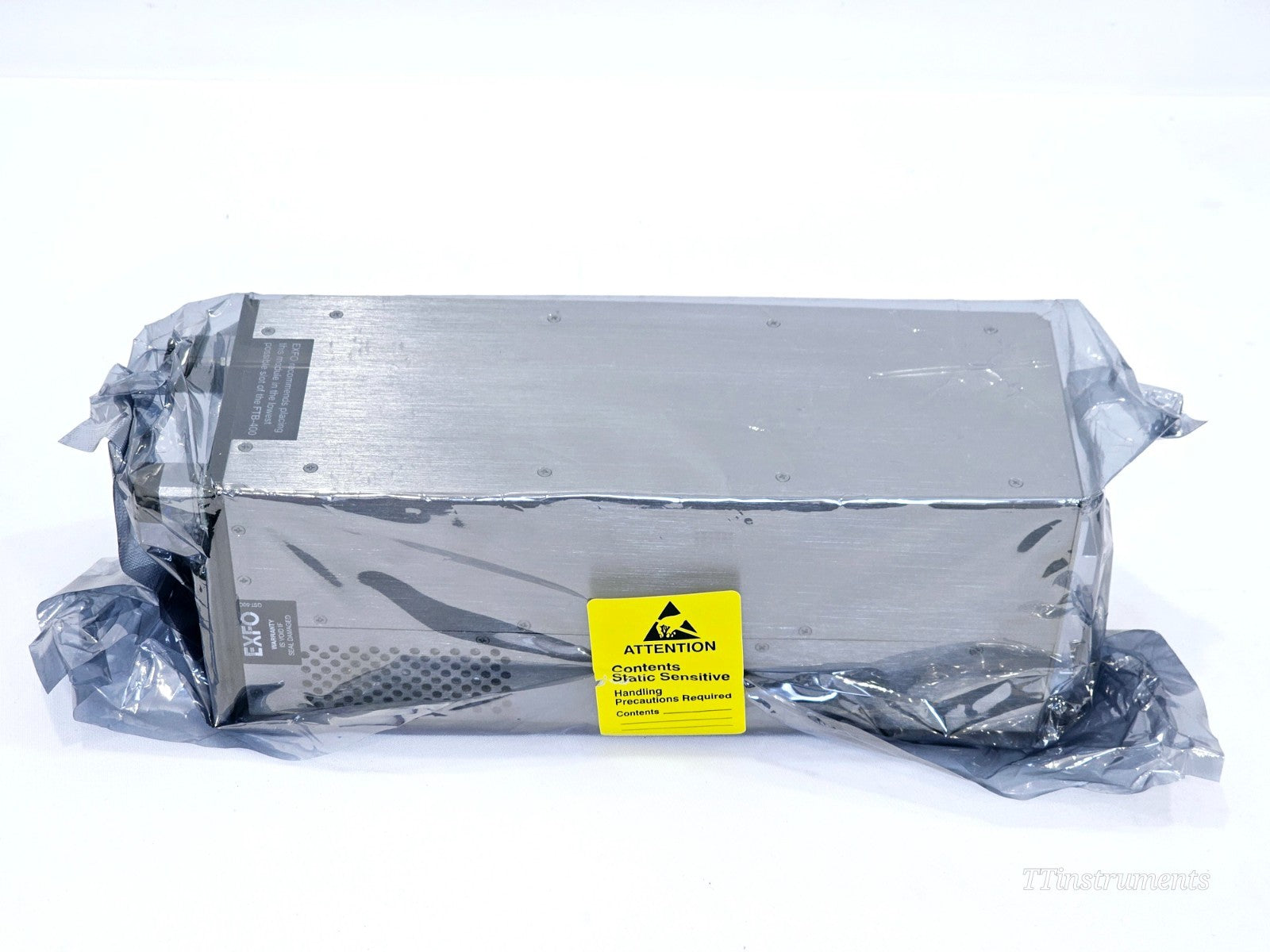

The EXFO FTB-5500B PMD Analyser module is new and sealed, manufactured in 2020. Fitted with an APC (angled physical contact) connector interface (MFD configuration), it is ready for immediate deployment in fibre characterisation and network qualification applications.

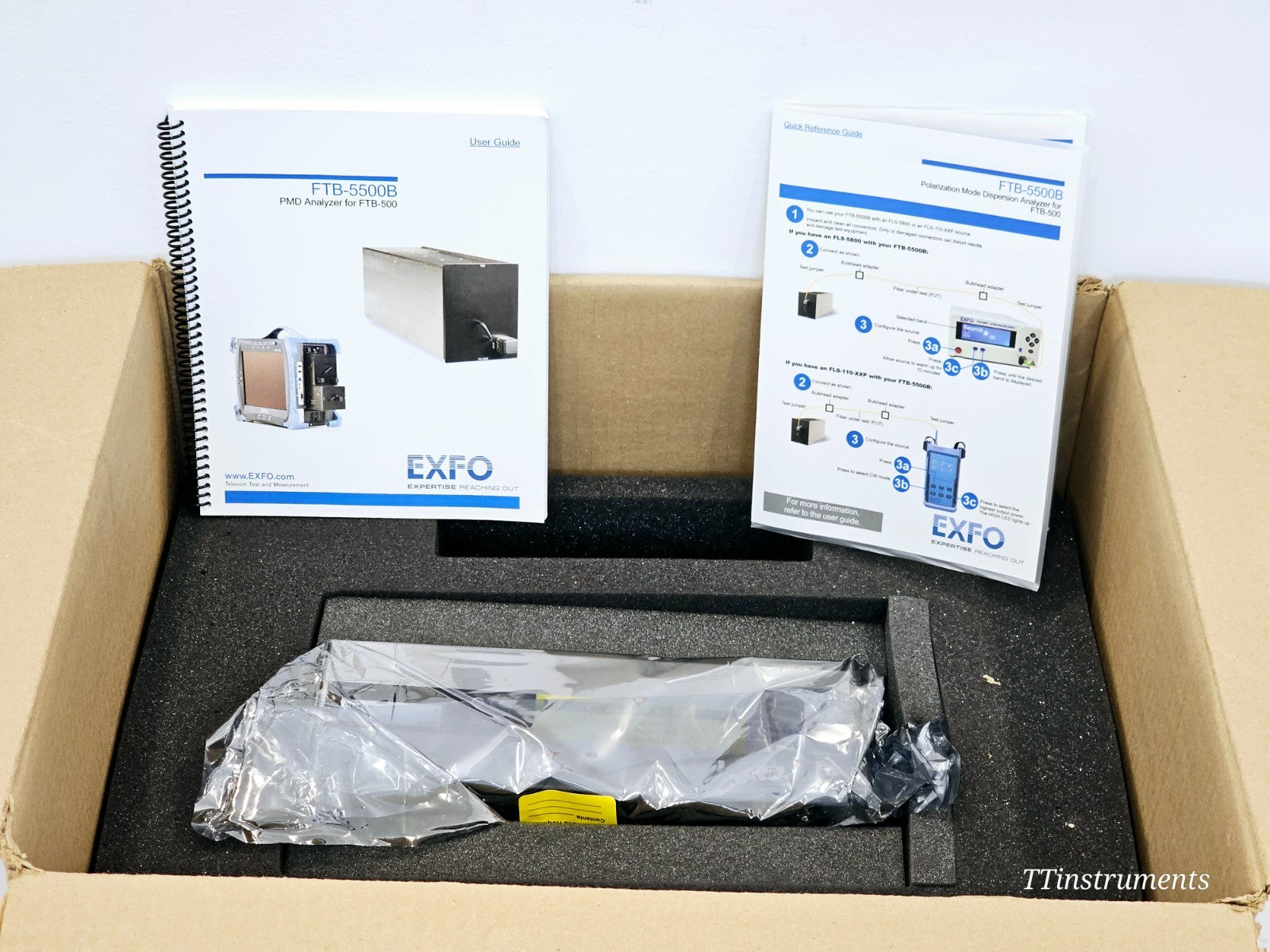

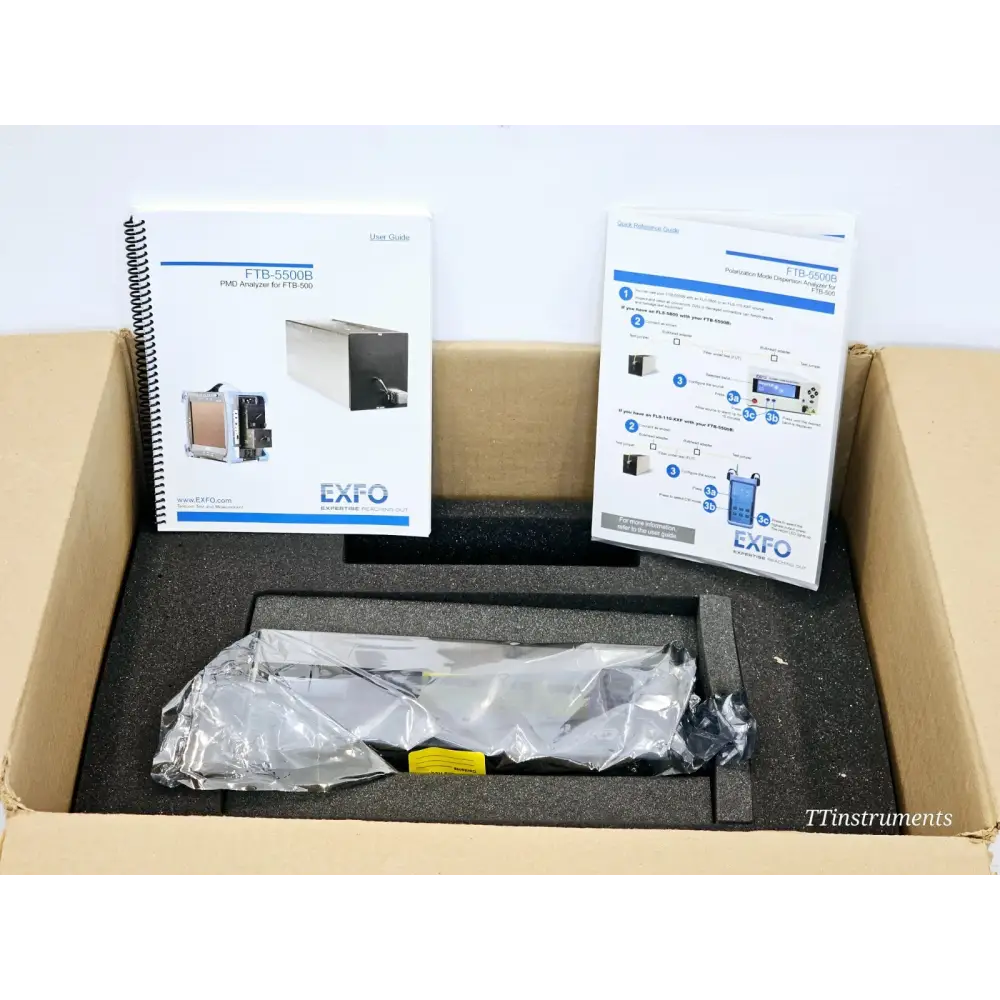

Typically included with this product:
• FTB-5500B PMD Analyser module (new, sealed)
• APC connector interface (MFD)

The EXFO FTB-5500B is a Polarisation Mode Dispersion (PMD) Analyser module designed for use with the EXFO FTB-500 modular platform. It measures PMD using the internationally recognised interferometric method (IEC- and TIA-approved), offering fast, accurate, and field-proven performance for legacy fibre verification and high-speed network qualification up to and beyond 100 Gbit/s.

The FTB-5500B features a unique cross-correlation technology that eliminates the autocorrelation peak, enabling measurement of PMD values down to 0 ps with no lower limit. It averages PMD over the full source wavelength range without filtering, preserving the full dynamic range for long-span testing. Signals transmitted through EDFAs can be analysed, allowing total link PMD to be calculated across whole network links rather than individual sections — validated through more than 250 cascaded amplifiers over links exceeding 12,000 km. Second-order PMD delay and coefficient values are also provided for precise DWDM fibre characterisation. The ToolBox software suite provides a touchscreen interface with threshold detection, statistical analysis, and report generation in PDF, Excel, or HTML formats. Calibration is traceable to NIST.

Key Applications:
• 10 Gbit/s and 40 Gbit/s network qualification
• PMD testing on buried, aerial, and long-haul fibre links
• DWDM system fibre certification
• Coherent 40G/100G/200G network PMD compliance testing
• Testing through in-line amplifiers (EDFAs) and isolators

Technical Specifications:
Measurement Method: Interferometric (IEC- and TIA-approved)
Wavelength Range: 1260 to 1675 nm (O to U band)
Measurement Range: 0 to 115 ps
Sensitivity: –45 dBm
Measuring Time: 4.5 s (for any PMD value)
Absolute Uncertainty (strong mode coupling): ± (0.020 + 2% of PMD) ps
Dynamic Range: >50 dB (typical; 47 dB typical with FLS-5800 source)
EDFA Measurement: Yes — above 120 cascaded EDFAs
Second-Order PMD: Yes
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: –40 °C to 70 °C (–40 °F to 158 °F)
Relative Humidity: 0% to 93% non-condensing
Module Dimensions (H x W x D): 9.6 cm x 7.6 cm x 26.0 cm
Platform Compatibility: EXFO FTB-500

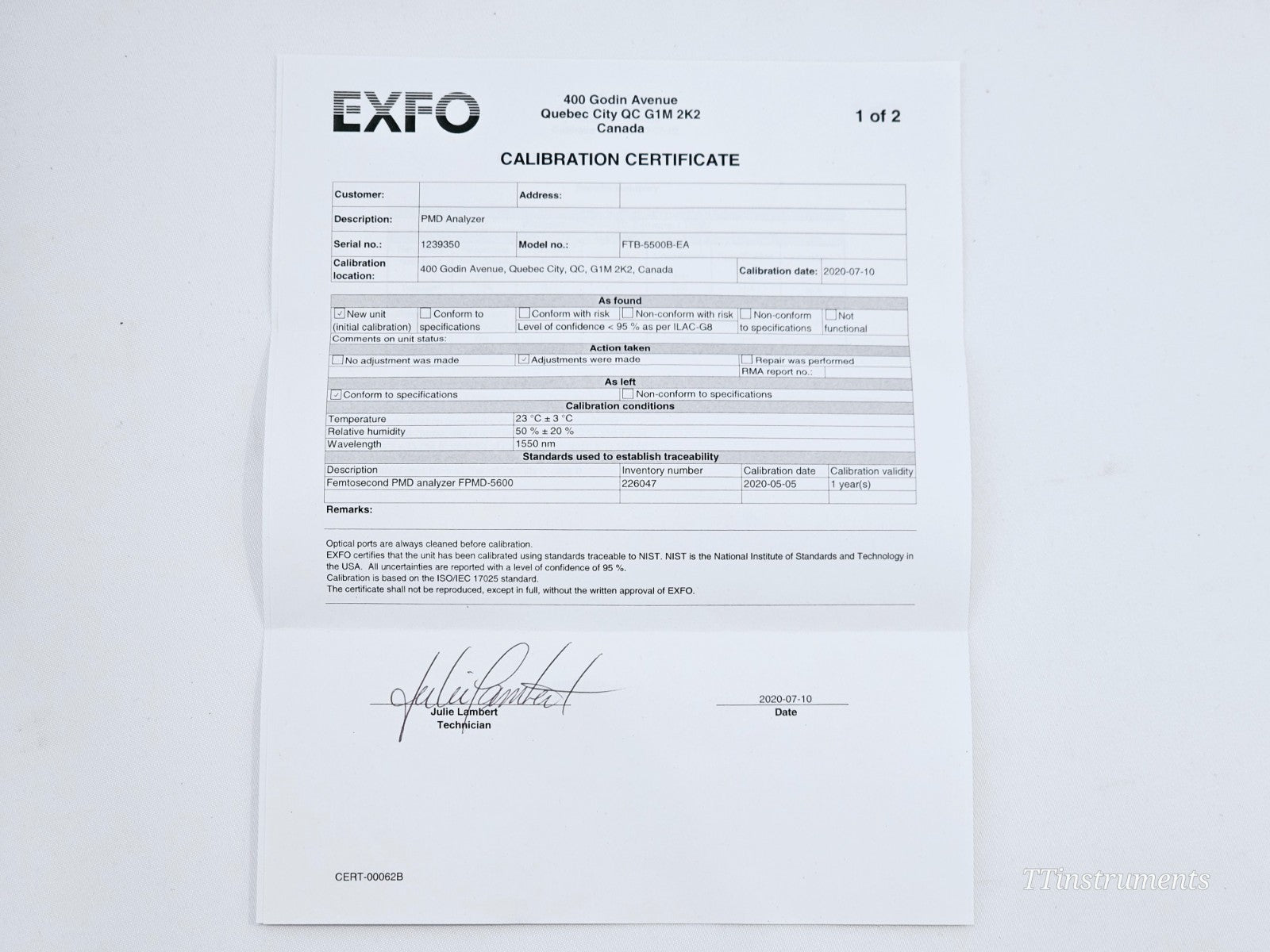

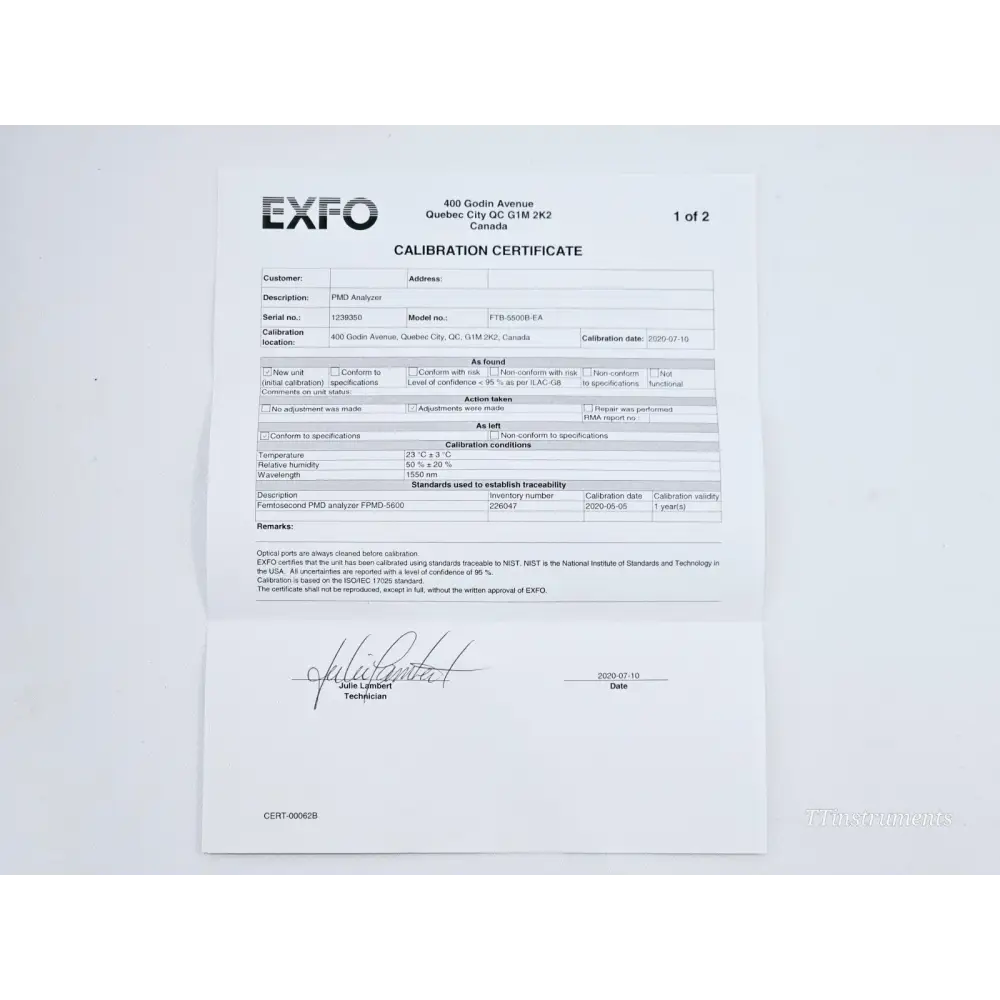

Calibration Traceability: NIST
Certification: ISO 9001, CE
