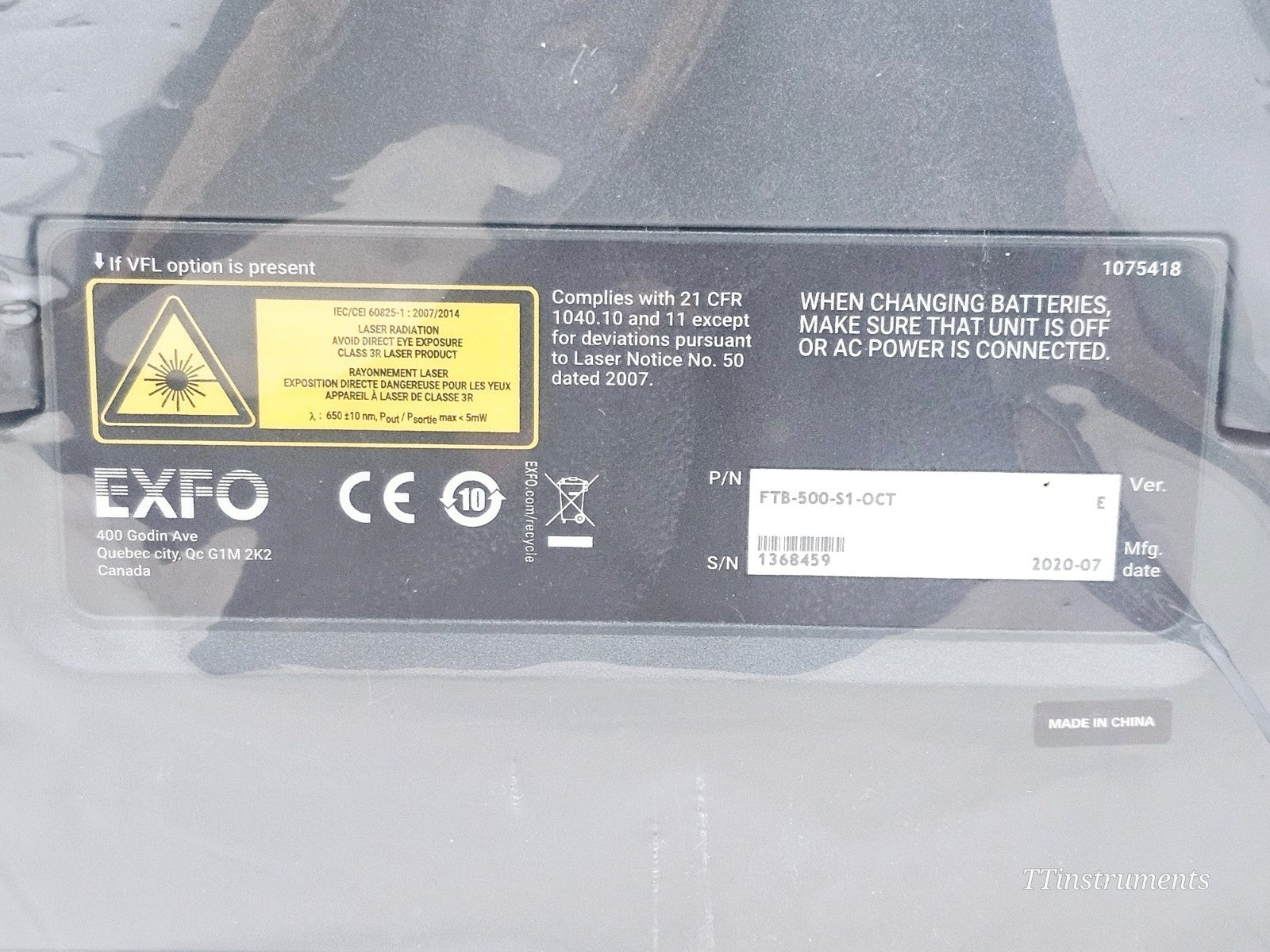

EXFO FTB-500 Platform
The FTB-500 is EXFO's advanced modular test platform, available in four-slot (QTR) and eight-slot (OCT) configurations. It houses any of EXFO's FTB plug-and-play modules, enabling users to combine physical and optical characterisation applications with transport and datacom test modules covering 10G, 40G and 100G network analysis. The platform runs a Windows-based OS on an Intel processor, features a colour touchscreen display, and connects via USB, Wi-Fi, 3G, VPN and Bluetooth. It is compatible with EXFO Connect for cloud-based asset management and GPS-enabled location tracking.
FTB-500 Platform Key Specifications:
Slot Capacity: 4-slot (QTR) or 8-slot (OCT)
Display: Colour touchscreen TFT, 800 x 600, 307 mm (12.1 in)
OS: Windows 8.1 Pro / Windows Embedded Standard
Storage: >80 GB HDD minimum
Interfaces: RJ-45 LAN, USB, Wi-Fi, Bluetooth, 3G, VPN, GPS
Battery: Lithium-Ion (2 batteries for 4-slot; 3 batteries for 8-slot)
Compliance: ISO 9001, CE
---

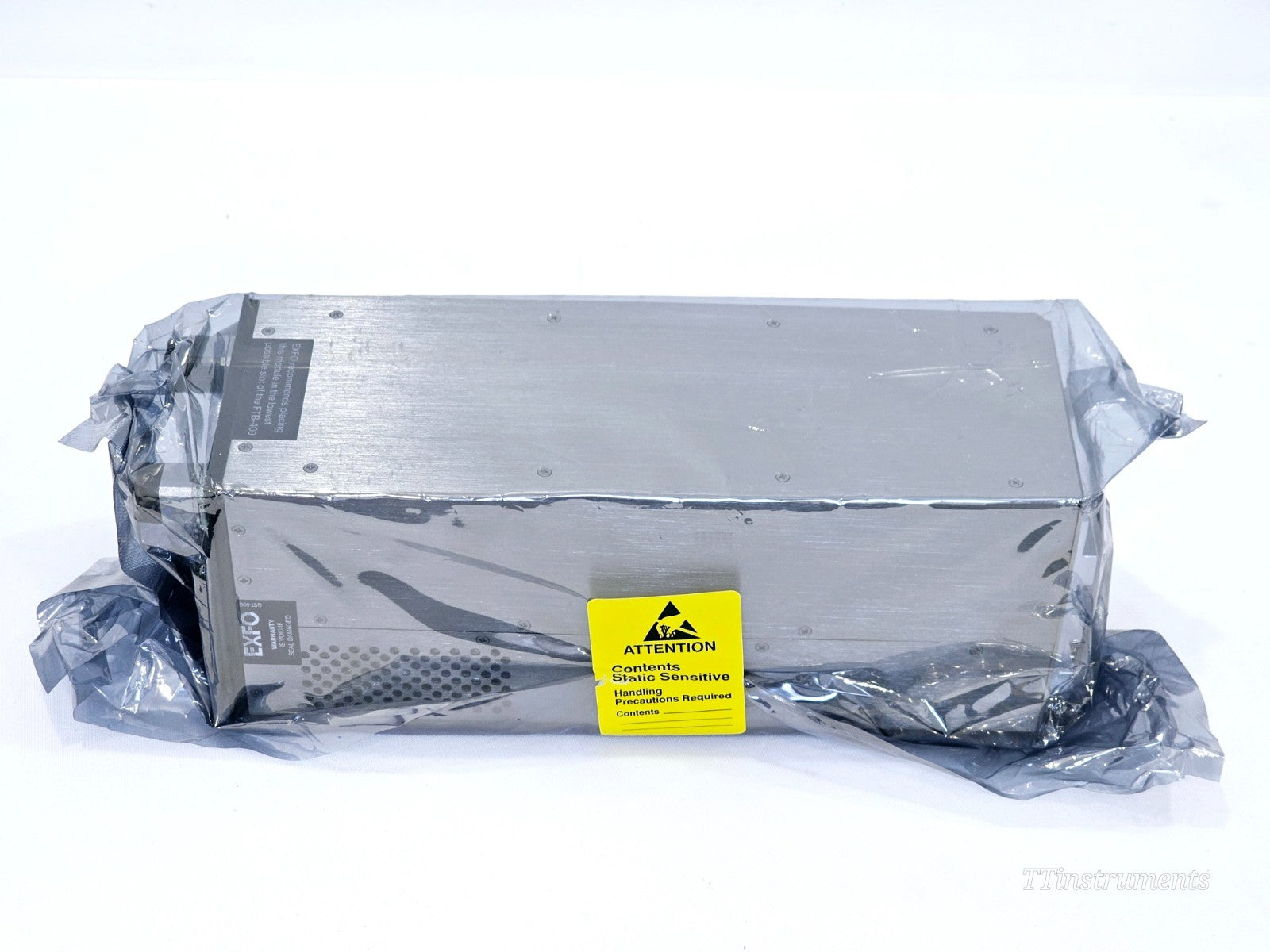

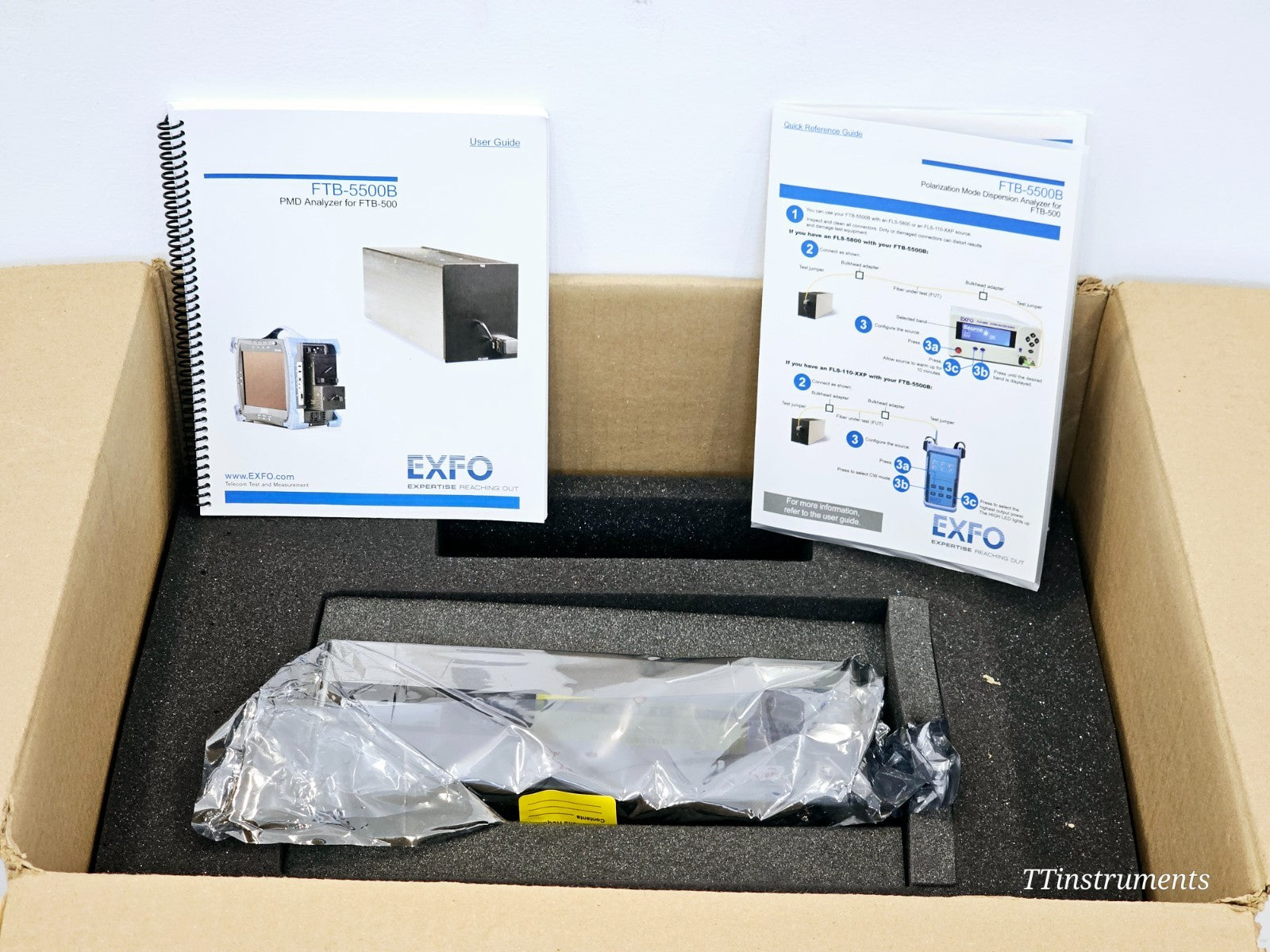

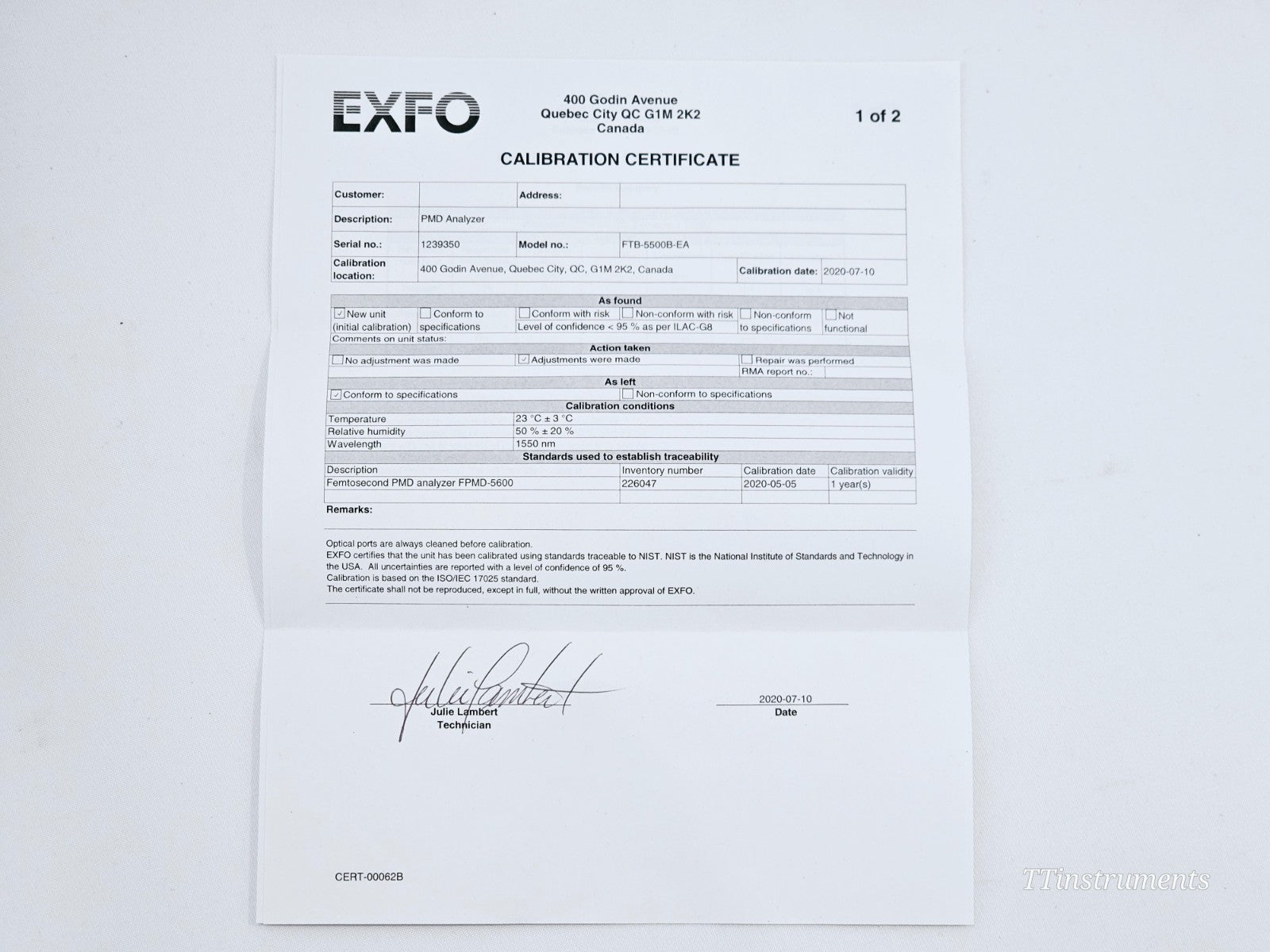

EXFO FTB-5500B PMD Analyzer Module
The FTB-5500B uses the IEC- and TIA-approved interferometric method to deliver fast, field-proven PMD measurements. It features market-leading measurement speed of less than five seconds for any PMD value, with no autocorrelation peak for enhanced accuracy. It supports testing through EDFAs and calculates second-order PMD delay and coefficient values for precise DWDM fibre certification. Suitable for legacy fibre verification and network upgrades to 40/100/200 Gbit/s.
FTB-5500B Specifications:
Wavelength Range: 1260 to 1675 nm (O to U band)
Measurement Range: 0 to 115 ps
Sensitivity: -45 dBm
Measuring Time: 4.5 s (for any PMD value)
Absolute Uncertainty (strong mode coupling): ±(0.020 + 2% of PMD) ps
Measurement through EDFA: Yes (above 120 EDFAs)
Dynamic Range (with FLS-5800 source): 47 dB typical
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -40 °C to 70 °C
Relative Humidity: 0% to 93% non-condensing
Module Size (H x W x D): 9.6 cm x 7.6 cm x 26.0 cm
Compliance: NIST traceable calibration, IEC/TIA approved method
Platform Compatibility: FTB-500
---

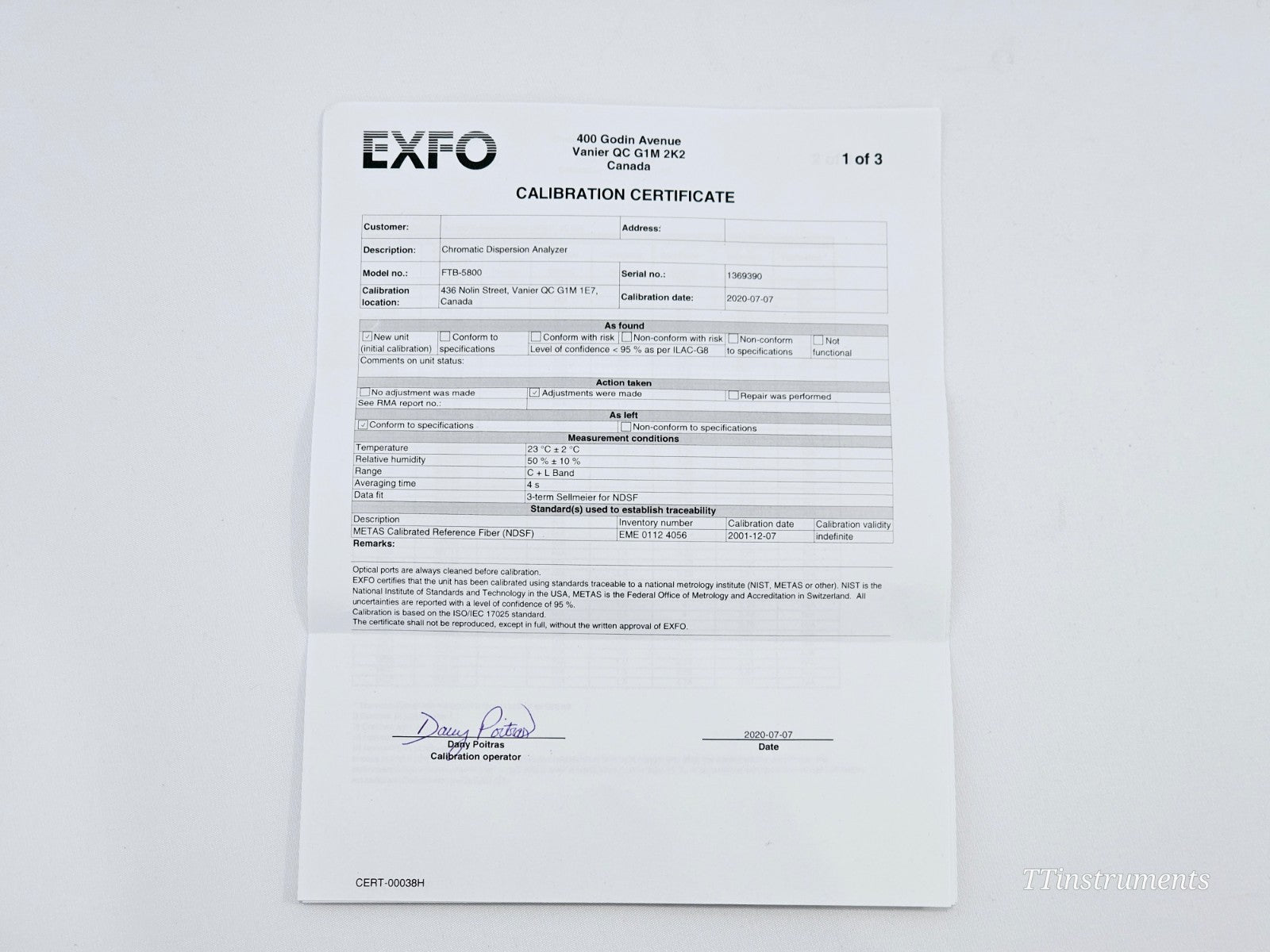

EXFO FTB-5800 Chromatic Dispersion Analyzer Module
The FTB-5800 uses the highly accurate phase-shift method to measure chromatic dispersion (CD) in DWDM, long-haul and ultra-long-haul optical networks. It requires no communication between source and receiver, supports testing through EDFAs, and is compliant with TIA-FOTP-169. The module covers the full C and L bands (1530–1625 nm) and is 100 Gbit/s-ready. It pairs with the FLS-5834A source for maximum dynamic range.
FTB-5800 Specifications:
Wavelength Range: 1530 to 1625 nm (C and L band)
Dynamic Range: 47 dB typical (with FLS-5800/FLS-5834A source)
Measurement Method: Phase-shift
Testing Through EDFAs: Yes (patented design)
Standard Compliance: TIA-FOTP-169
Network Readiness: 100 Gbit/s-ready
Platform Compatibility: FTB-500
---

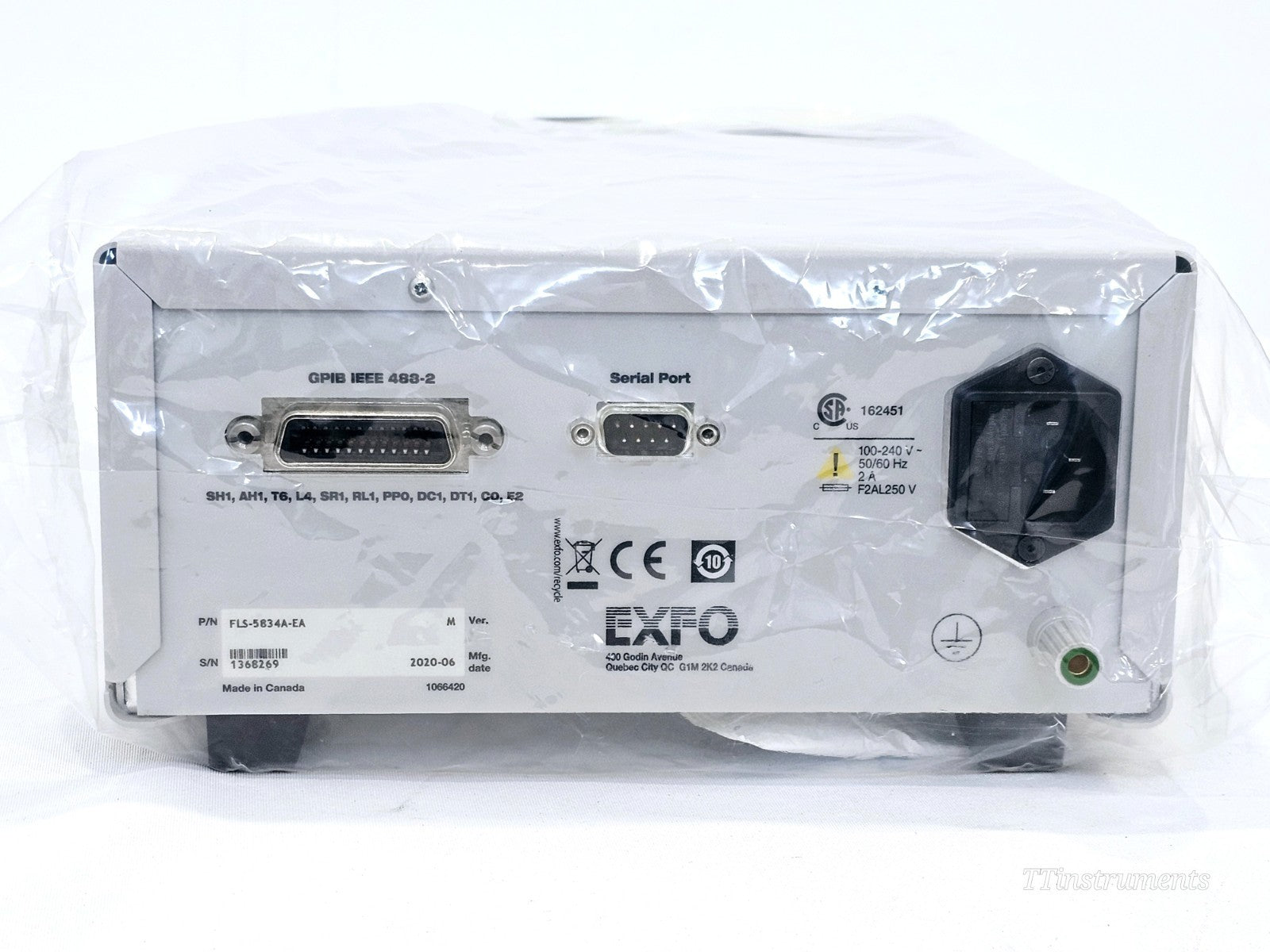

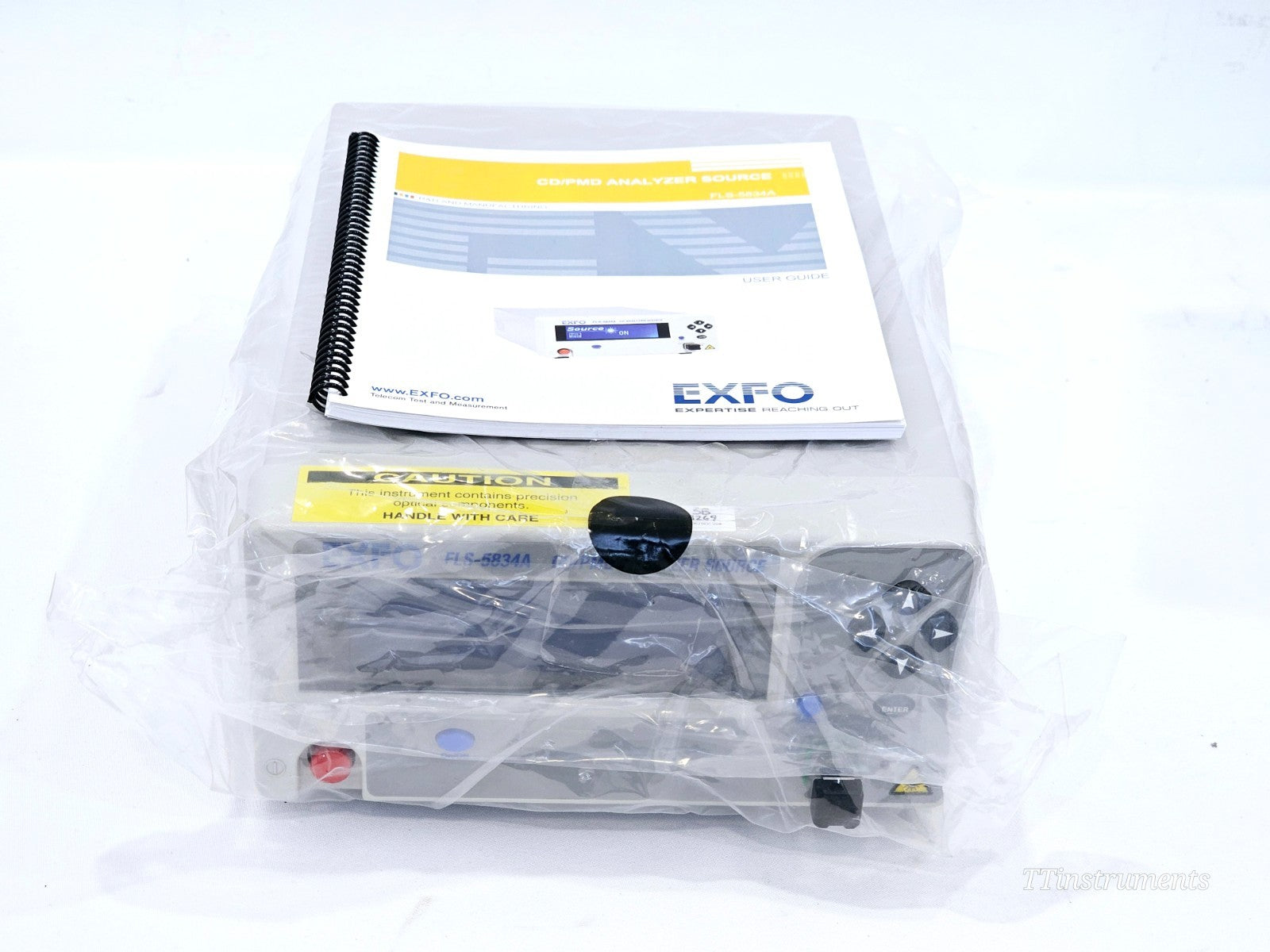

EXFO FLS-5834A CD/PMD Analyzer Source
The FLS-5834A is a modulated, polarised, high-power broadband SLED source designed specifically for use with the FTB-5800 Chromatic Dispersion Analyzer and FTB-5500B PMD Analyzer. Its high modulation depth makes it ideal for the phase-shift CD measurement method, and its high degree of polarisation supports accurate PMD testing through EDFAs. It can also serve as a broadband source for DWDM channel and component testing.
FLS-5834A Specifications:
Bandwidth: C+L band
Centre Wavelength: 1580 ±10 nm
SuperLEDs: 1550 nm and 1625 nm
Output Power: 7 dBm (typical)
Peak Spectral Density: >-12.5 dBm/nm
Power Stability (15 min): <0.075 dB
Modulation Frequency: 100 MHz
Fibre Type: Singlemode 9/125 µm
Optical Interface: APC (FLS-5834A-EA variant)
Compatibility: FTB-5500B PMD Analyzer, FTB-5800 CD Analyzer
