Condition: New other (see details)

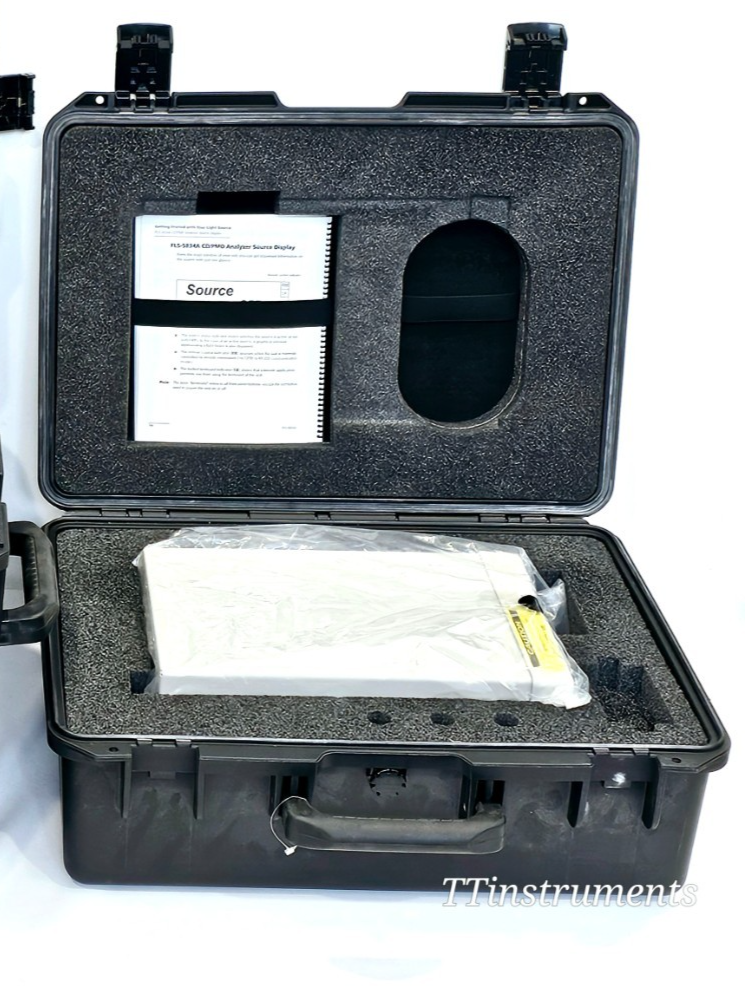

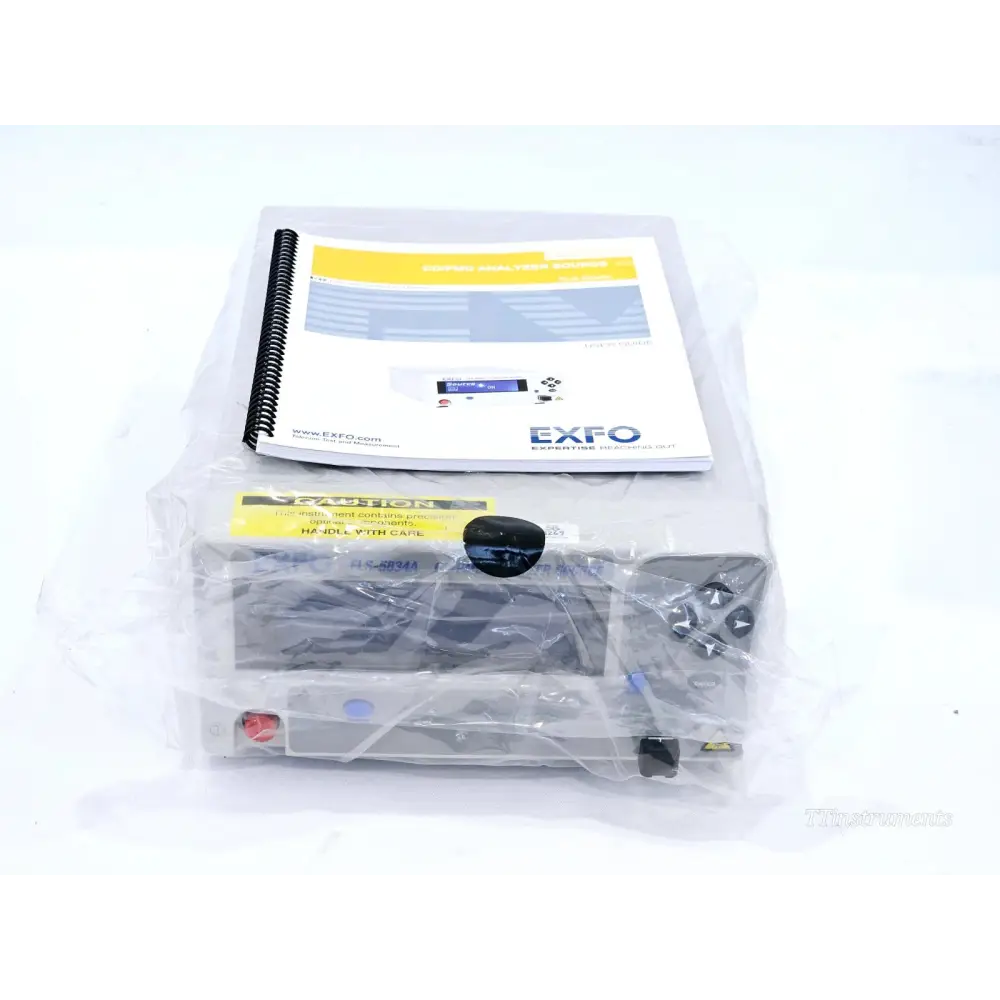

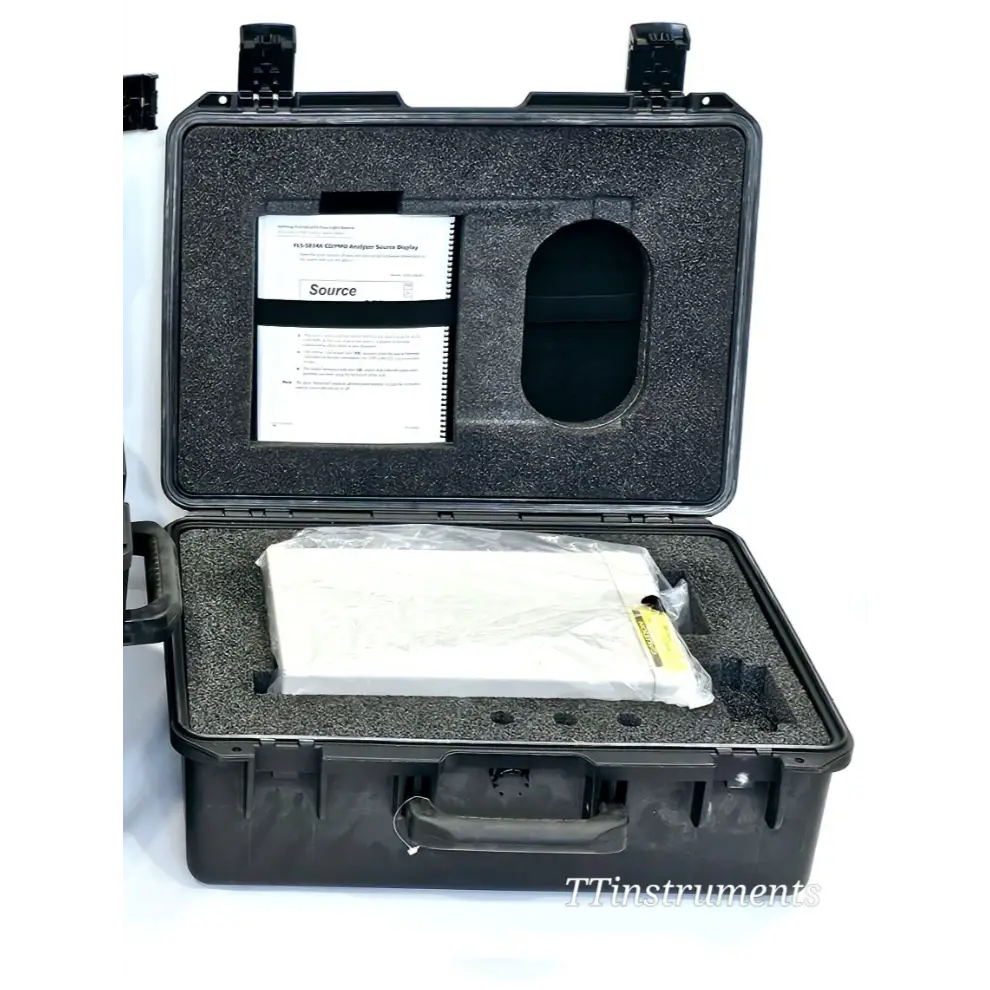

The EXFO FLS-5834A CD/PMD Analyzer Source is in excellent condition, new and sealed, manufactured in 2020. A high-quality broadband fibre-optic source covering the C+L band, suitable for chromatic dispersion and polarisation mode dispersion measurement in singlemode fibre networks.

Typically included:
• Unit (new and sealed)

The EXFO FLS-5834A CD/PMD Analyzer Source is a modulated, polarized, broadband fibre-optic source designed specifically for use with the EXFO FTB-5800 Chromatic Dispersion Analyzer and the FTB-5500B PMD Analyzer. It is part of the FLS-5800 series and serves as a high-power SLED (Super Luminescent LED) capable of covering the full C+L optical band in a single output channel, producing a broad, flat spectrum suited to DWDM channel and component testing.

The instrument's high modulation frequency makes it the preferred source for phase-shift-method chromatic dispersion measurements, enabling CD testing through optical amplifiers such as EDFAs with the highest field accuracy. Its high degree of polarization makes it equally effective as a broadband polarized source for polarization mode dispersion (PMD) measurements, including through-EDFA PMD testing.

The FLS-5834A supports remote control via RS-232 and GPIB interfaces and features a front-panel LCD display with adjustable backlight, contrast, and video mode settings.

Key Specifications:
Source Type: High-power SLED (Super Luminescent LED)
Center Wavelength: 1580 nm ±10 nm
Wavelength Coverage: C+L band (1550 nm and 1625 nm SuperLEDs)
Fibre Type: Singlemode 9/125 µm
Output Power: Typically 7 dBm
Peak Spectral Density: > -12.5 dBm/nm
Power Stability (15 minutes): < 0.075 dB
Modulation Frequency: 100 MHz
Optical Interface: EXFO Universal Interface (EUI) — connector adapter dependent on configuration

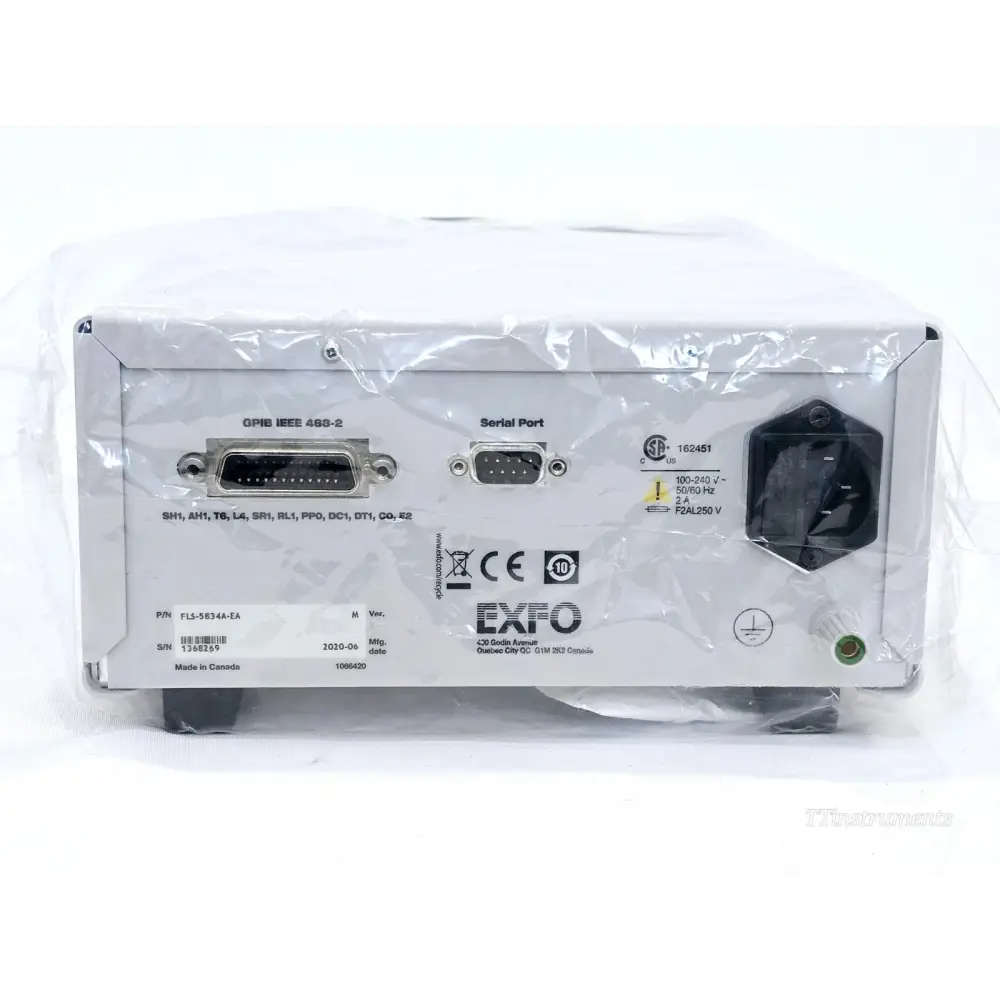

Remote Control: RS-232 and GPIB
Compatibility: EXFO FTB-5800 Chromatic Dispersion Analyzer; EXFO FTB-5500B PMD Analyzer
Required Software: EXFO ToolBox 6.28 or later (for FTB-5800 use)
Fuse Type: F2.0L250V (IEC, 5 mm x 20 mm, fast-acting)
Operating Environment: Light industrial / scientific
Conformance: CE (Low Voltage Directive 73/23/EEC, EMC Directive 89/336/EEC)

EXFO FLS-5834A CD/PMD Analyzer Source User Guide (English) — official EXFO PDF: Download PDF

EXFO FLS-5834 Specifications Sheet — technical spec sheet PDF: Download PDF
