Condition: New

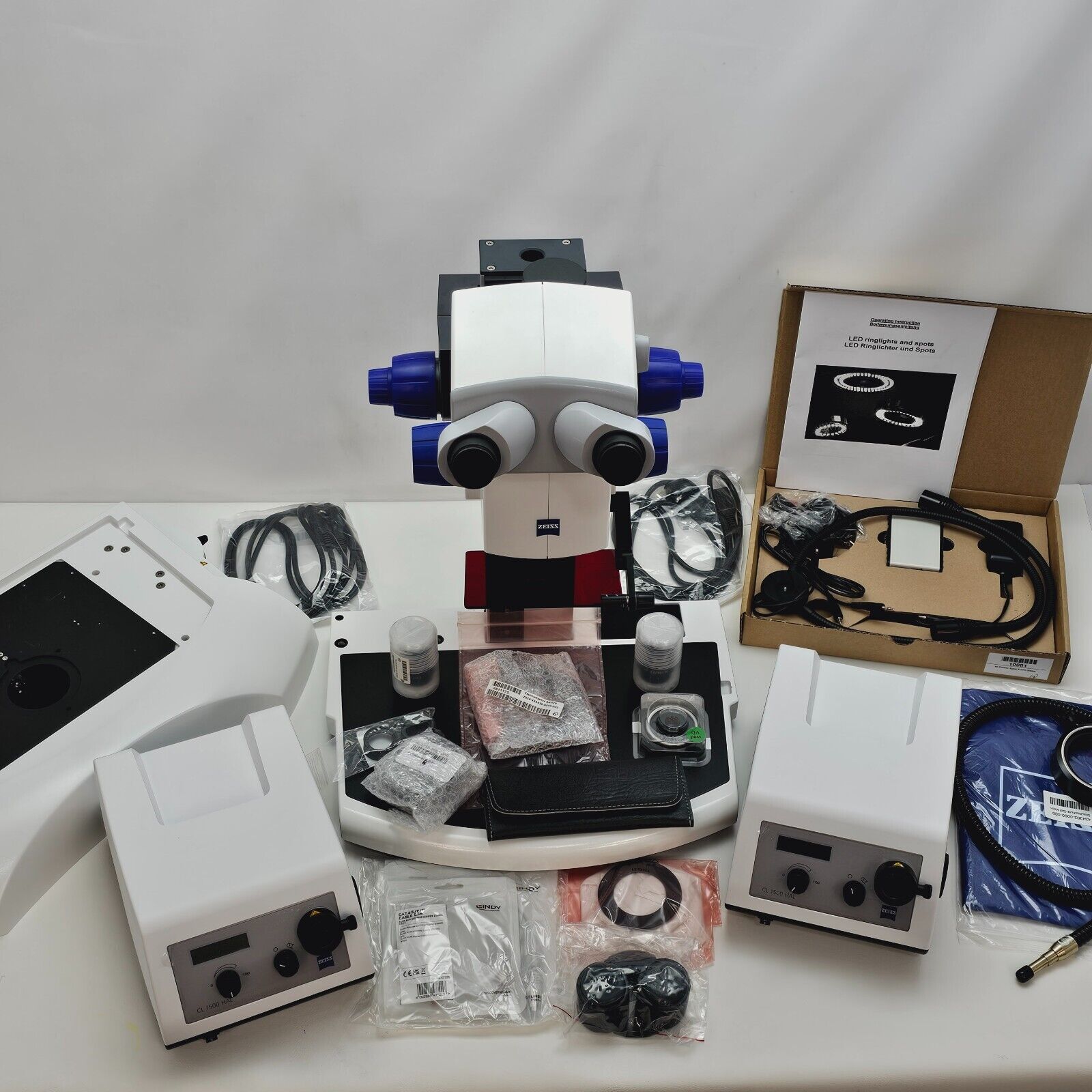

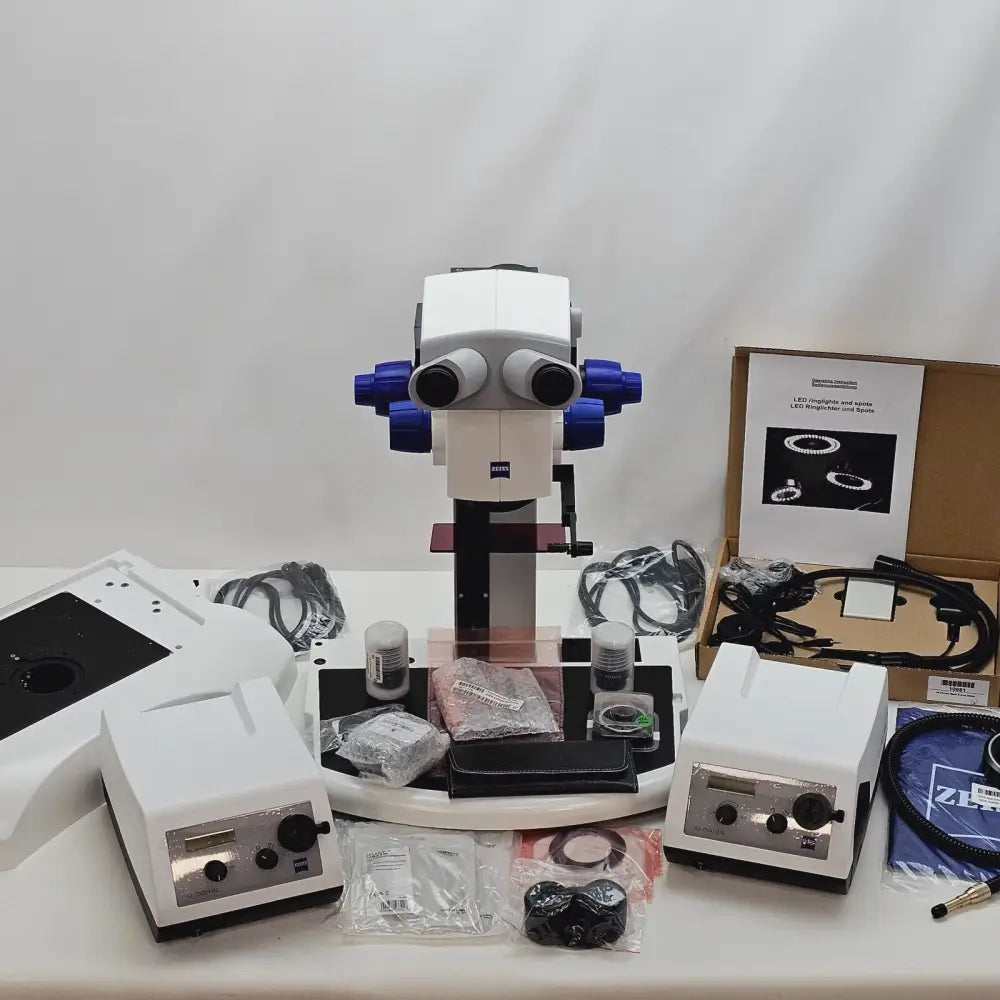

This is a brand new, boxed Carl Zeiss SteREO Discovery.V8 stereo microscope system supplied as individual components requiring assembly. The system includes two CL 1500 HAL cold light sources and an extensive selection of stands, objectives, accessories, and illumination options as listed below.

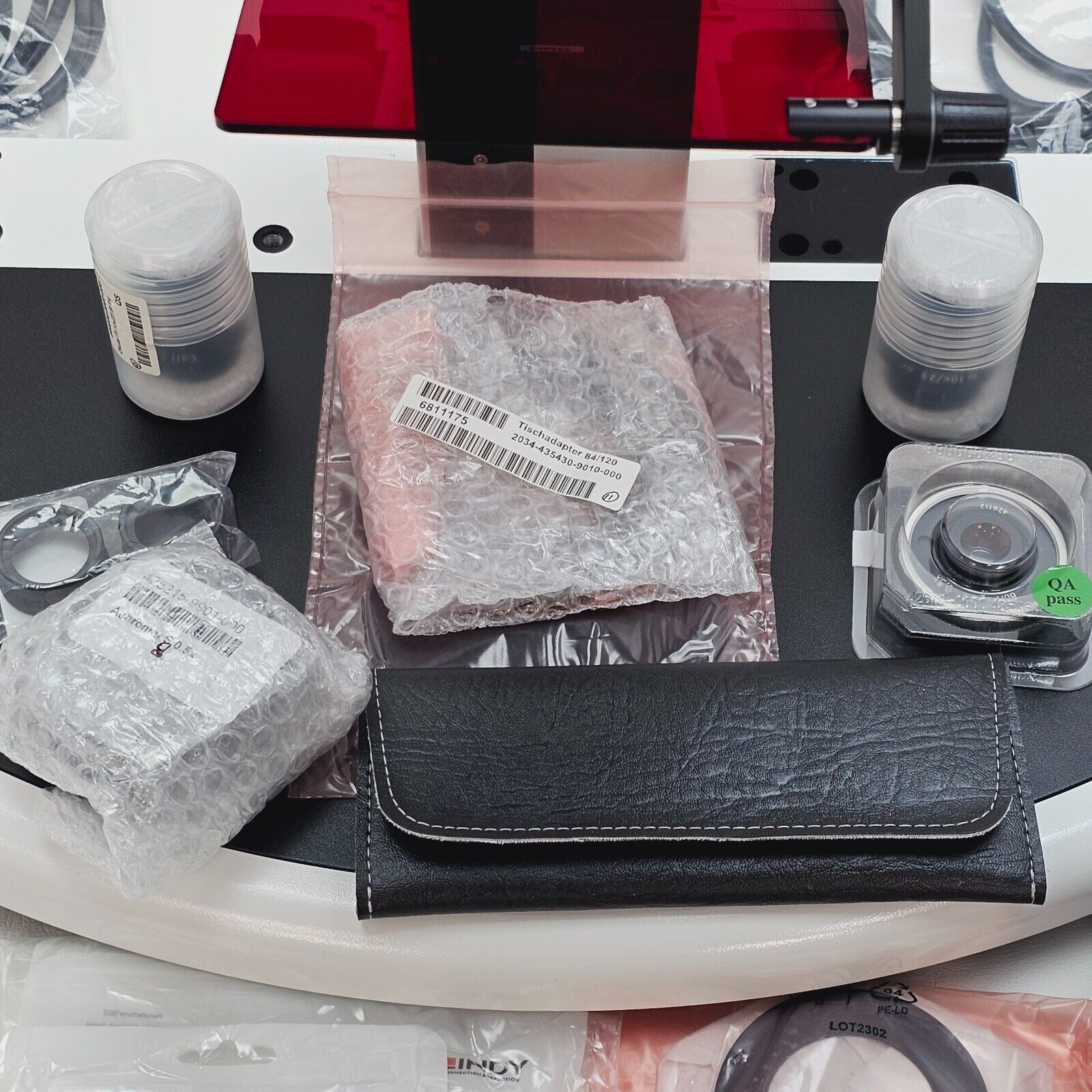

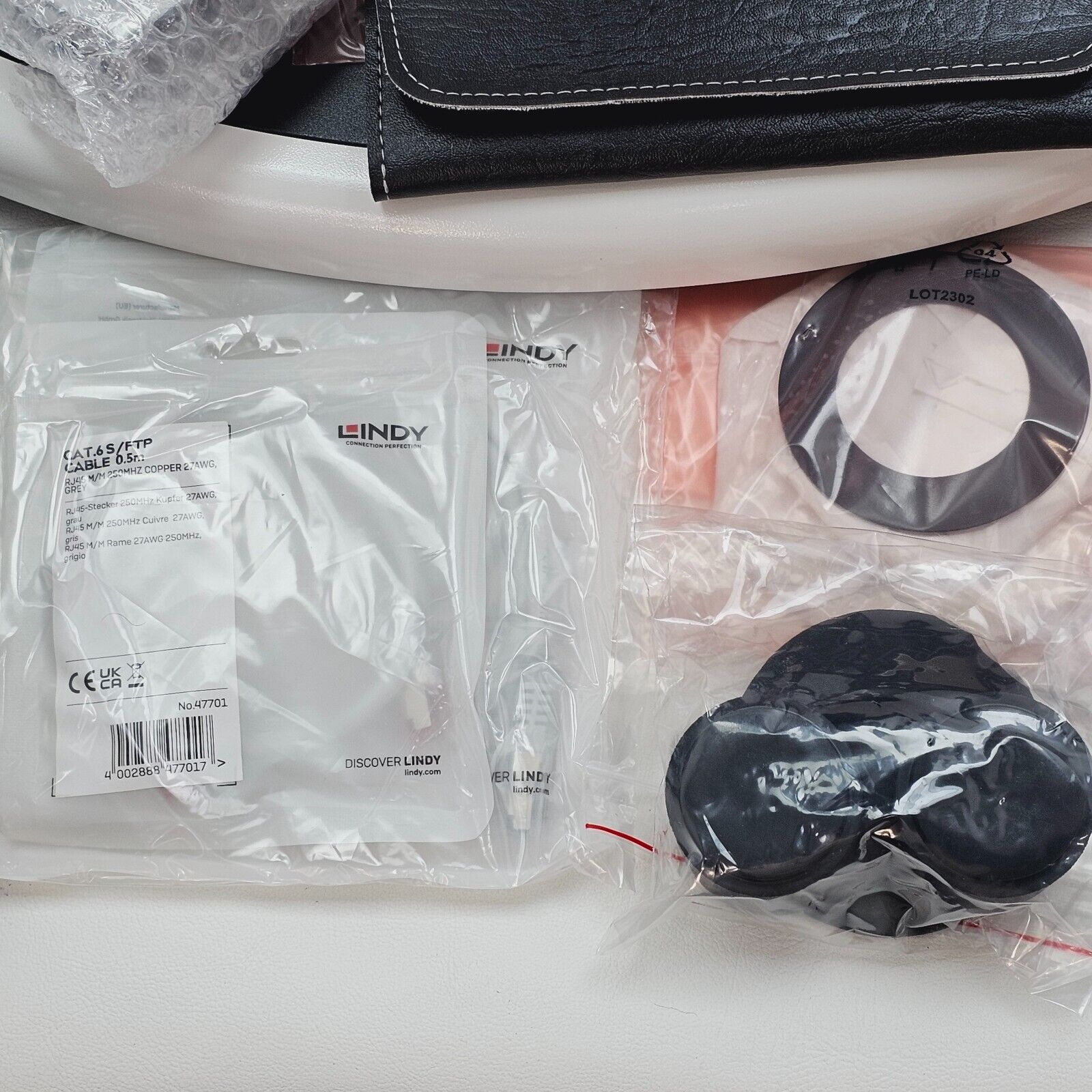

Included components:
• Zeiss binocular phototube S 20° (SKU: 435107-0000-000)
• Cold Light Source CL 1500 HAL x2 (SKU: 435710-9000-000)

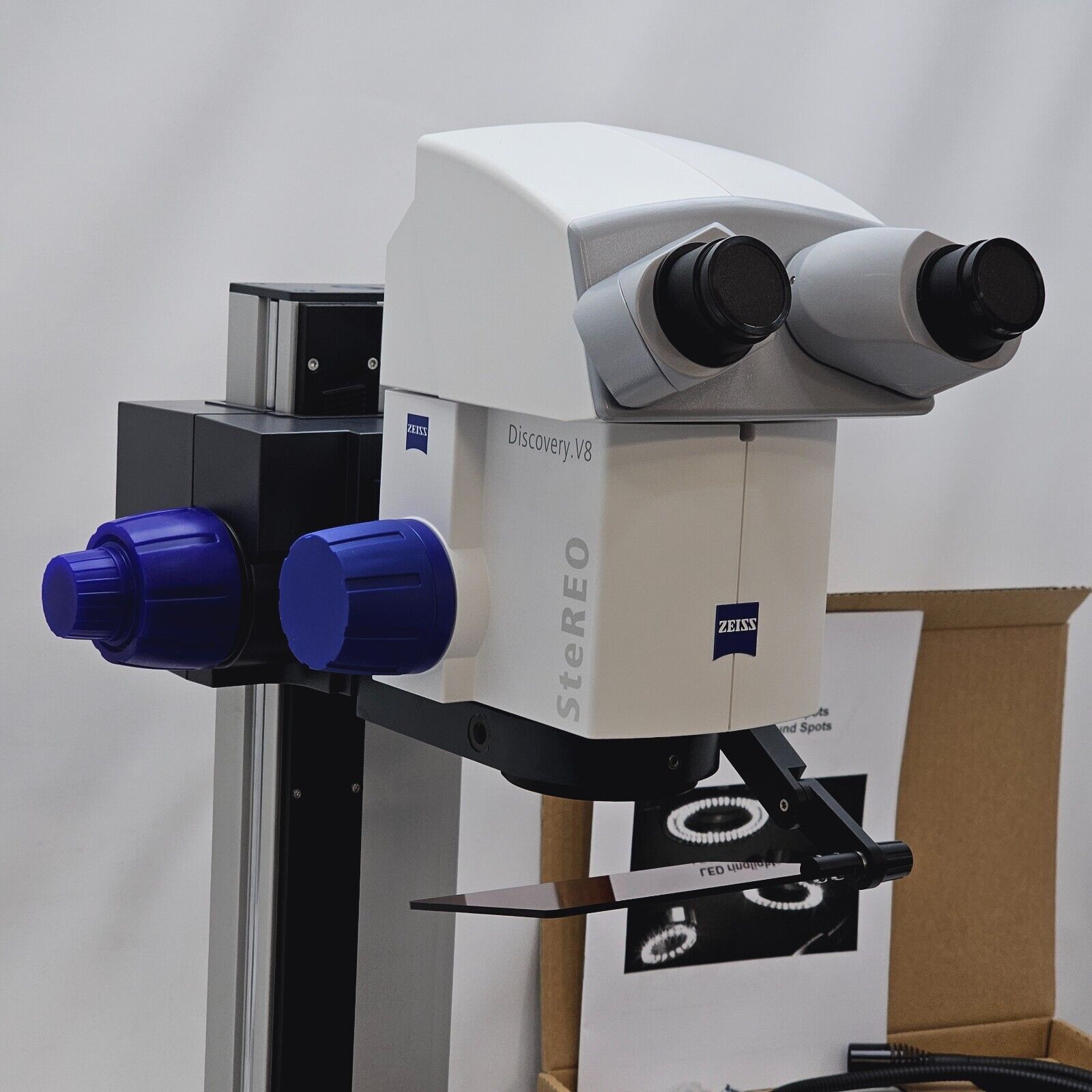

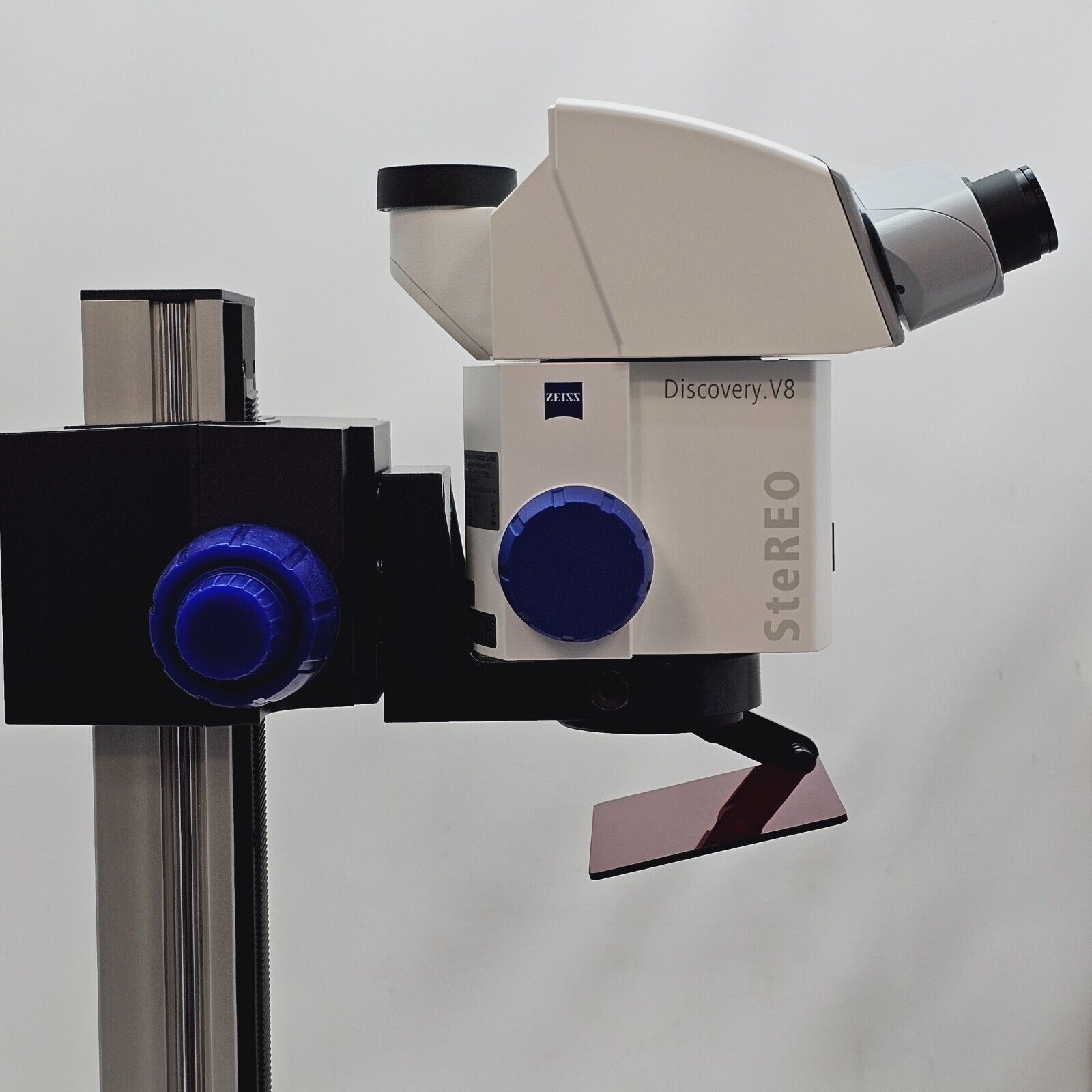

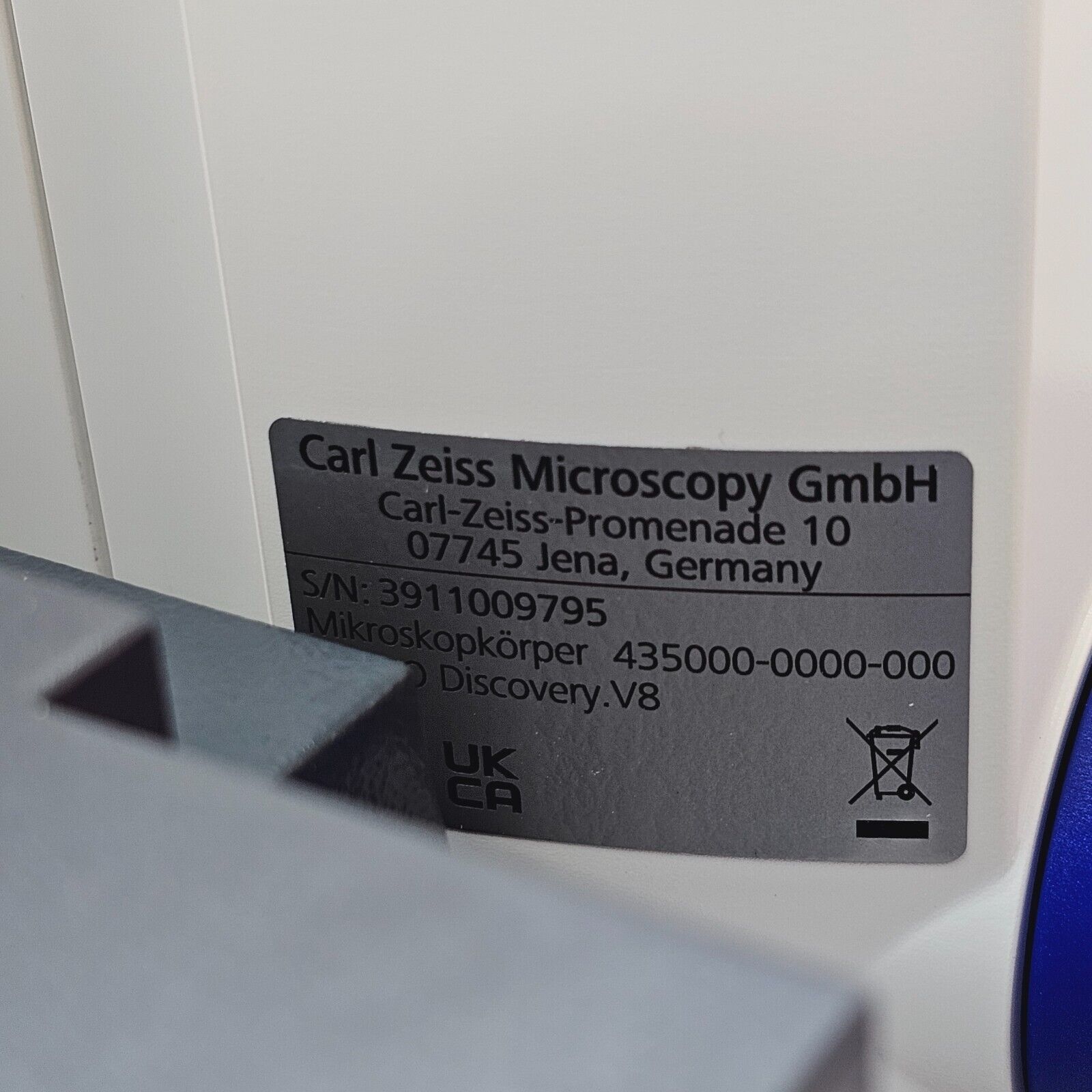

• SteREO Discovery.V8 microscope body (SKU: 435000-0000-000)

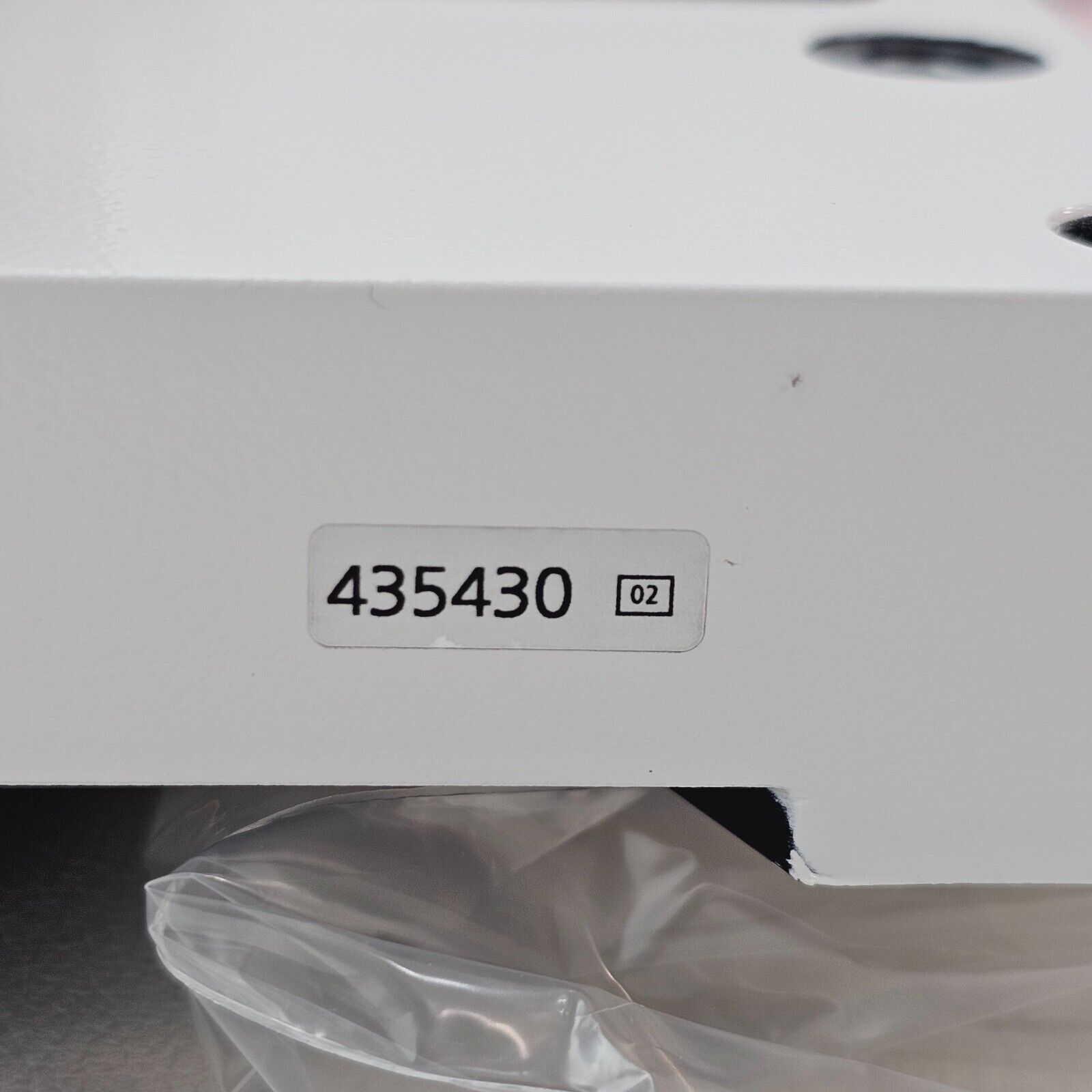

• Stand base 450 (SKU: 435430-9903-000)
• Base 300 for epi-illumination (SKU: 435433-9401-000)

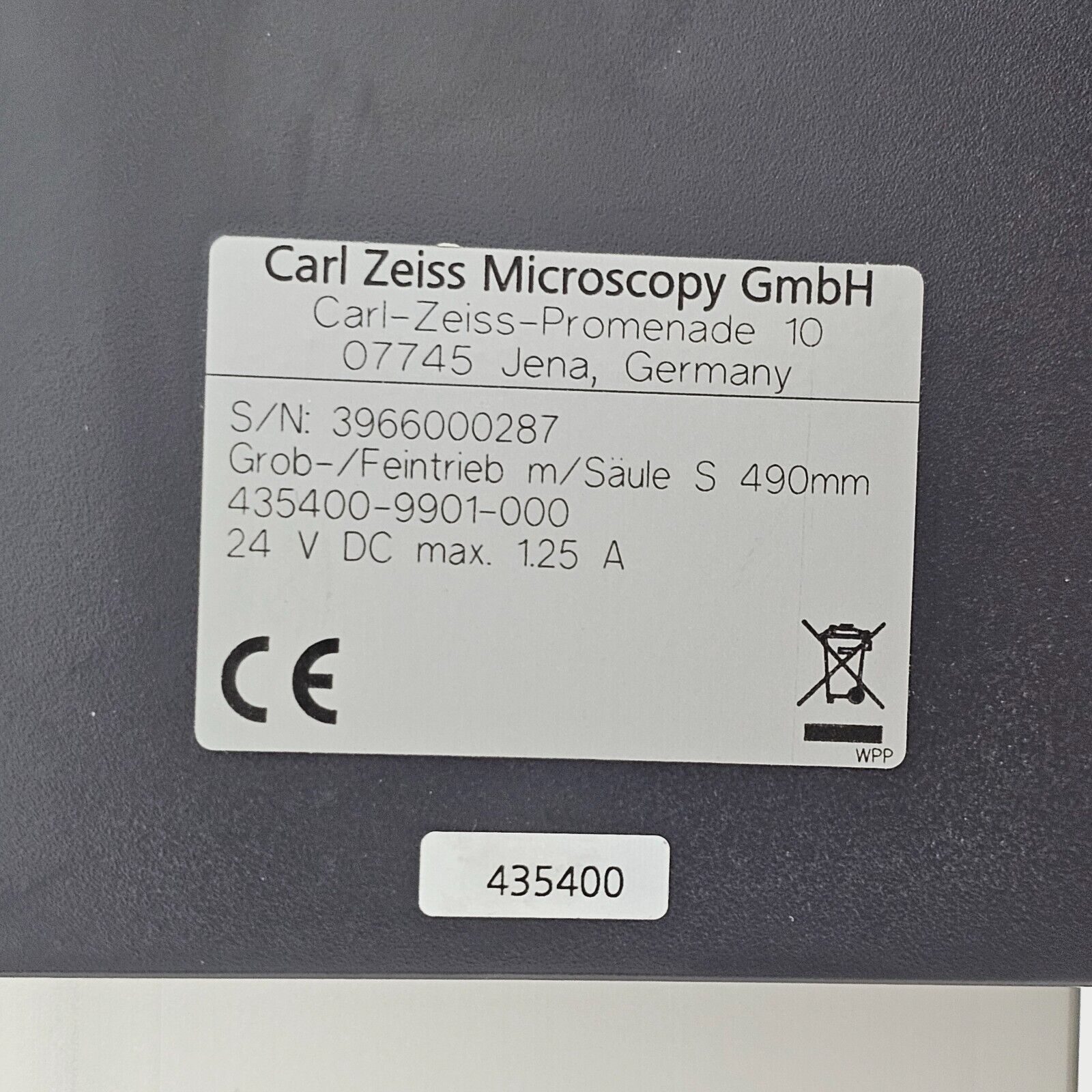

• Coarse/fine drive with column S 490 mm — lifting range 340 mm, load capacity 10 kg (SKU: 435400-9901-000)

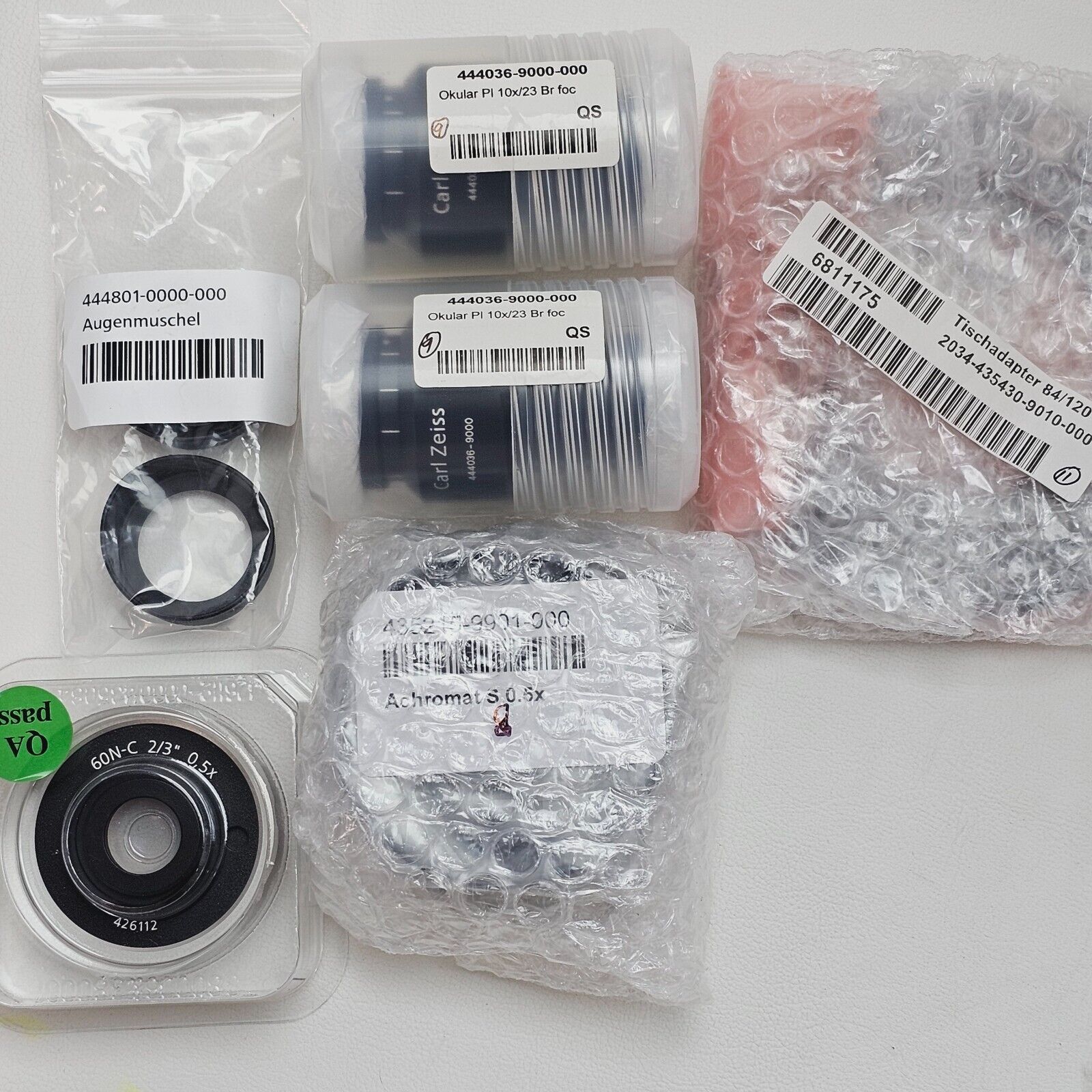

• Objective Achromat S 0.5x FWD 134 mm (SKU: 435215-9901-000)
• Carl Zeiss ocular eyepieces x2 (SKU: 444036-9000-000)
• C-mount camera adapter for Primovert (SKU: 426112-0000-000)
• Table adapter 84/120 (SKU: 435430-9010-000)
• Carl Zeiss eye cup (SKU: 444801-0000-000)
• LED Doppelspot (SKU: 417040-9560-000)
• Carrier S 76 mm (SKU: 435402-0000-000)
• Zeiss dust cover M — L650 x B200 x H570 mm (SKU: 434303-0000-000)
• Fiber optic ring light SCHOTT (ref: 1429066)

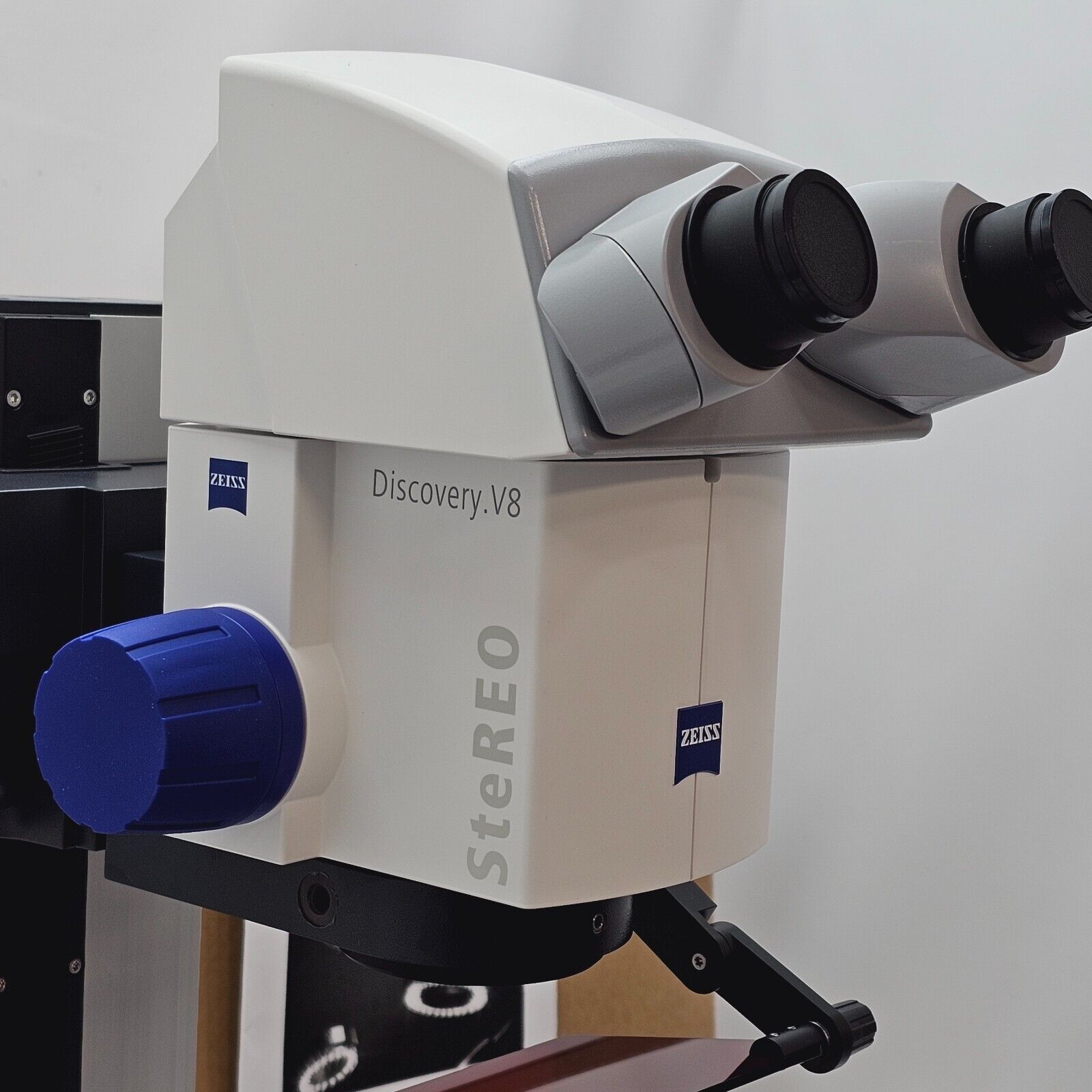

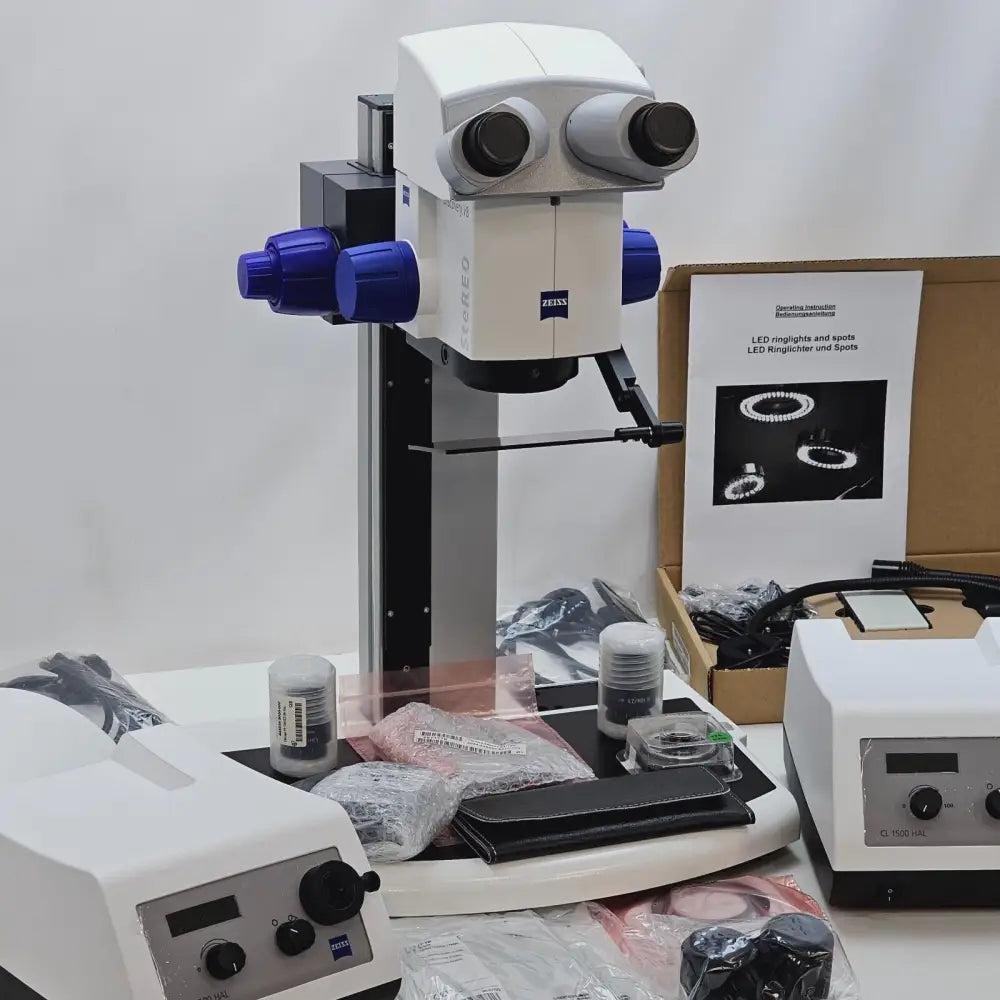

The ZEISS SteREO Discovery.V8 is a modular, common main objective (CMO) stereo microscope designed for enlarged, three-dimensional observation of small objects across research, industrial, and educational settings. The V8 designation denotes a manual zoom optics range variable by a factor of 8, covering 1.0x to 8.0x, operated via a rotary knob on either side of the body. A pancratic magnification changer ensures high-contrast, parfocal images are maintained throughout the entire zoom range — no refocusing is needed when changing magnification. Ten selectable click-stops (1x, 1.25x, 1.6x, 2x, 2.5x, 3.2x, 4x, 5x, 6.3x, 8x) allow discrete, reproducible magnification steps compatible with pixel-size calibration in ZEISS ZEN imaging software.

The microscope body features a 76 mm S-mount diameter and apochromatic stereo telescope optics, delivering outstanding colour fidelity and sharpness across the full field of view. All optical components are anti-fungus treated for long-term reliability. The highly modular design supports a broad range of objectives, tubes, stands, illuminators and camera ports to suit applications from manual dissection to fluorescence screening and digital documentation.

Designed for use in biomedical laboratories, material science institutes, industrial research, development, quality assurance, and manufacturing environments. Suitable for the observation, preparation, sorting, manipulation, and documentation of specimens without the need for special preparation.

Key Specifications — SteREO Discovery.V8 Body:
Zoom Range: 1.0x to 8.0x (8:1 manual zoom)
Zoom Operation: Manual rotary knob, operable from both sides
Click-Stops: 10 positions (1x–1.25x–1.6x–2x–2.5x–3.2x–4x–5x–6.3x–8x)
Optics Type: Apochromatic, parfocal CMO stereo telescope
Mount Diameter: 76 mm (S-mount)
Typical Total Magnification Range: Approx. 5x to 60x (objective and eyepiece dependent)
Maximum Object Field: Up to approx. 30 mm
Maximum Working Distance: Up to approx. 80 mm (objective dependent)
Objective Achromat S 0.5x FWD: 134 mm
Camera Interface: 60N interface for AxioCam and SLR cameras
Bench Area Required: Approx. 800 x 800 mm

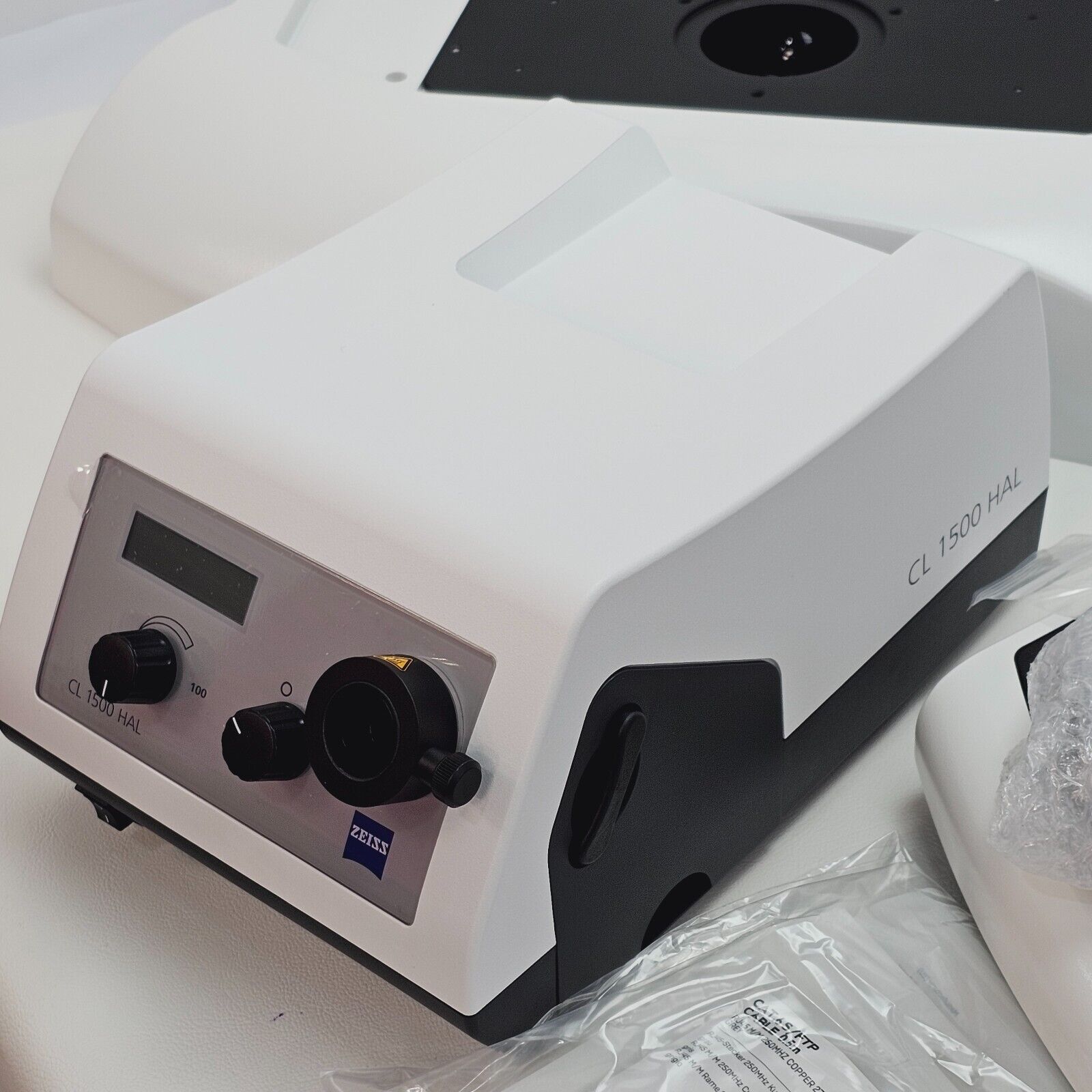

CL 1500 HAL Cold Light Source Specifications:
Luminous Flux: Up to 600 lm at 9 mm optical output diameter
Dimming: Continuously electronically dimmable
Display: LCD — brightness in %, colour temperature in K, or operating hours
Lamp: 15 V / 150 W halogen reflector
Bulb Lifetime: Approx. 150 h at 80% (approx. 450 lm)
Collet Chuck: 10 mm clamping nut with sensor for light guide 1500
Filter: Filter slider for one filter d = 28 mm plus free opening
Power Supply: Max. 180 W wide-range supply for flicker-free light
Cooling: Silent axial fan

Coarse/Fine Drive with Column S 490 mm:
Lifting Range: 340 mm
Load Capacity: 10 kg
Compatibility: For stand bases 300 and 450

Applications: Developmental biology, zebrafish and Drosophila research, material surface inspection, fracture analysis, quality assurance, industrial manufacturing, forensic examination, and educational microscopy.

ZEISS SteREO Discovery Series Official Instruction Manual (EN) — covers V8, V12, V20: Download PDF

ZEISS SteREO Discovery V8 Product Flyer — modular stereo microscope with manual 8:1 zoom: Download PDF

ZEISS SteREO Discovery V8/V12/V20 Profile Brochure — modular stereo and zoom microscope system overview: Download PDF

ZEISS SteREO Discovery Operating Manual (older edition, Aug 2008) — V8, V12, V20 technical data: Download PDF

ZEISS SteREO Discovery Instruction Manual — hosted by Labquip, covers Discovery Series including V8: Download PDF
