Narda SRM-3006 w/ 9 kHz - 6 GHz & E-Field Antenna Three-Axis 27 MHz - 3 GHz
Model: SRM-3006
Condition: Used
In stock: 0
SKU: 2620s 3A01
- Radiation Monitors
- RF & Microwave
Choose options
Condition: Used

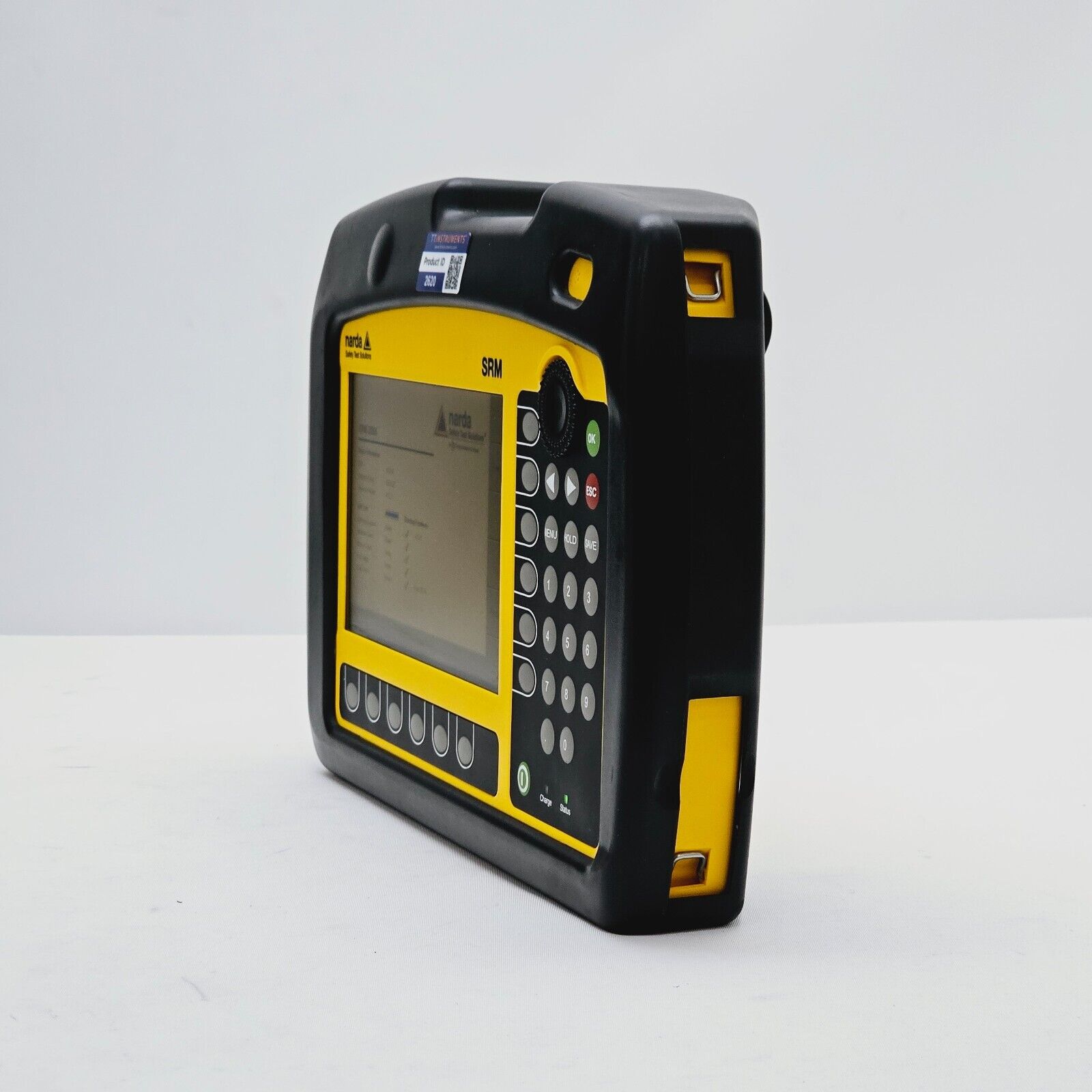

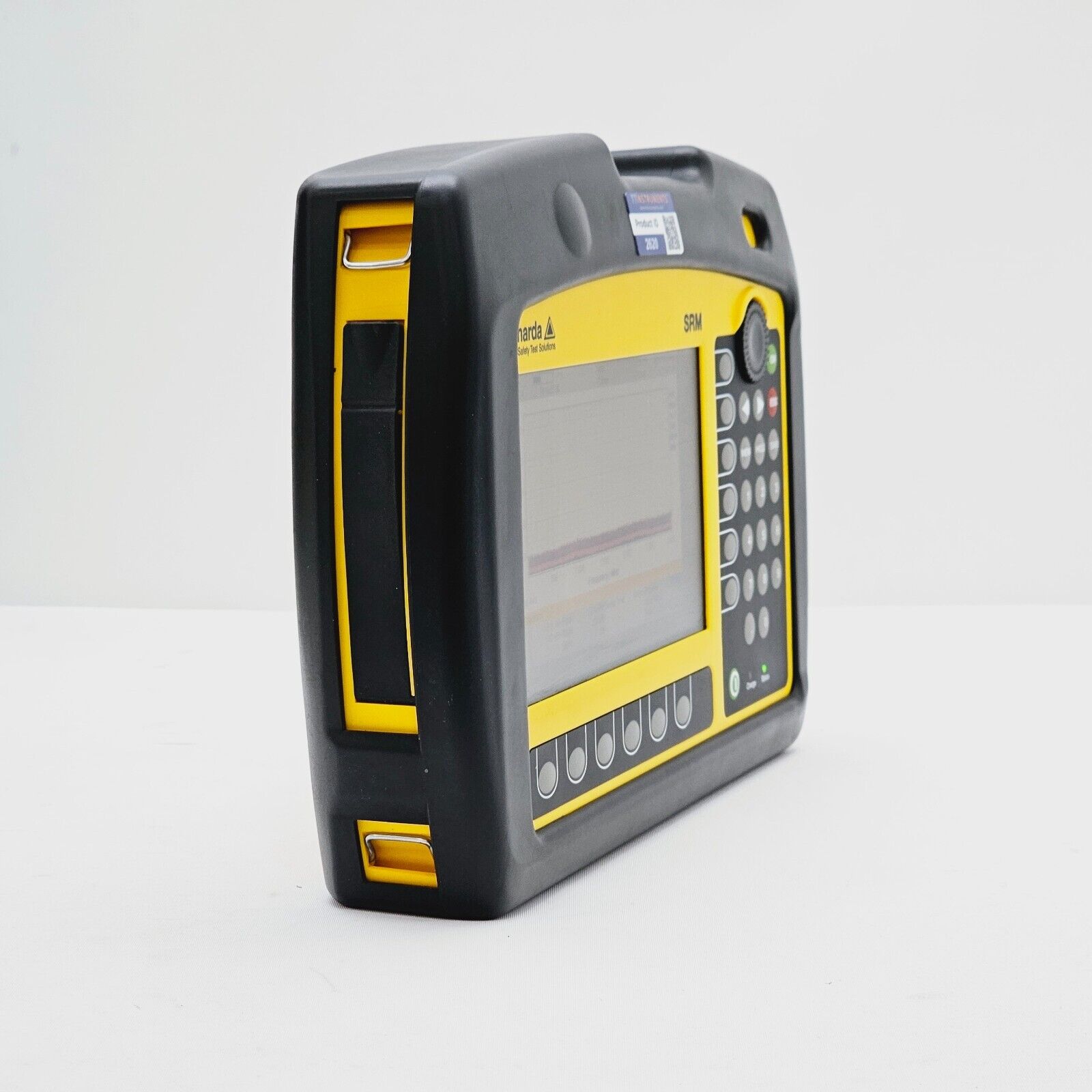

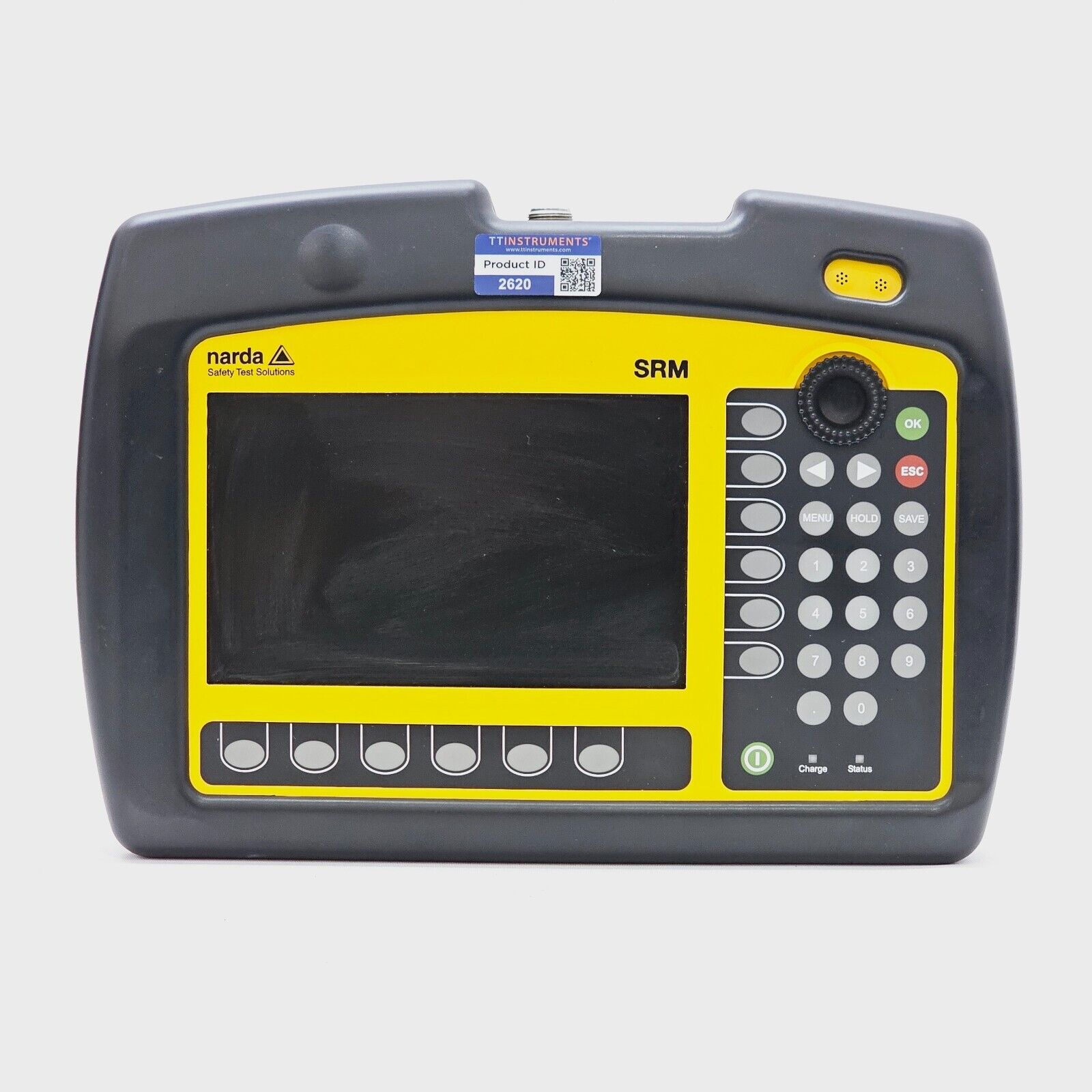

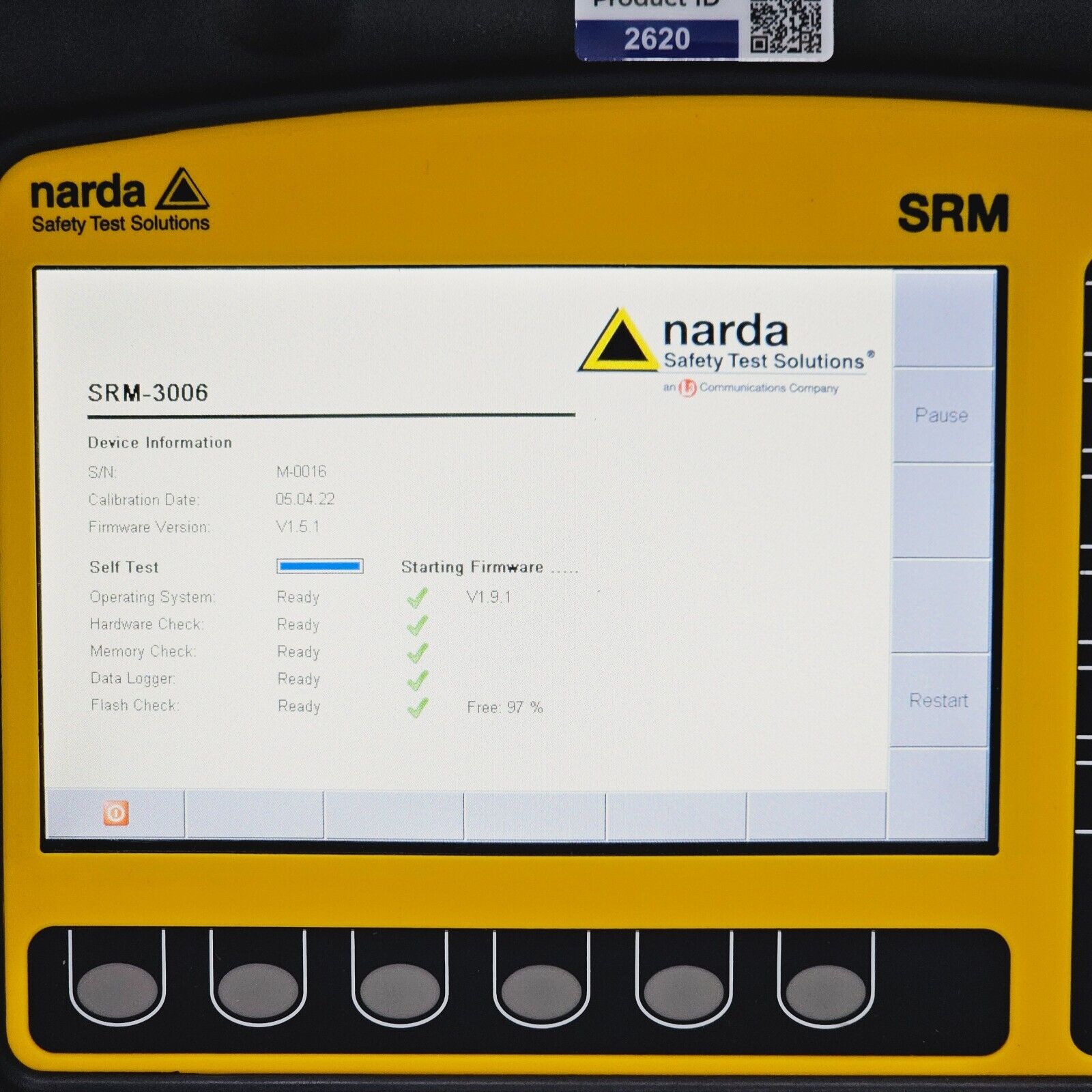

Tested and working Narda SRM-3006 Selective Radiation Meter with Narda calibration expiry March 2024. Supplied as a complete field system comprising the SRM-3006 platform, the three-axis isotropic E-field probe (3501/03, 27 MHz–3 GHz, 0.2 mV/m to 200 V/m), RF cable, carry case, and power adapter.
Included in the sale:

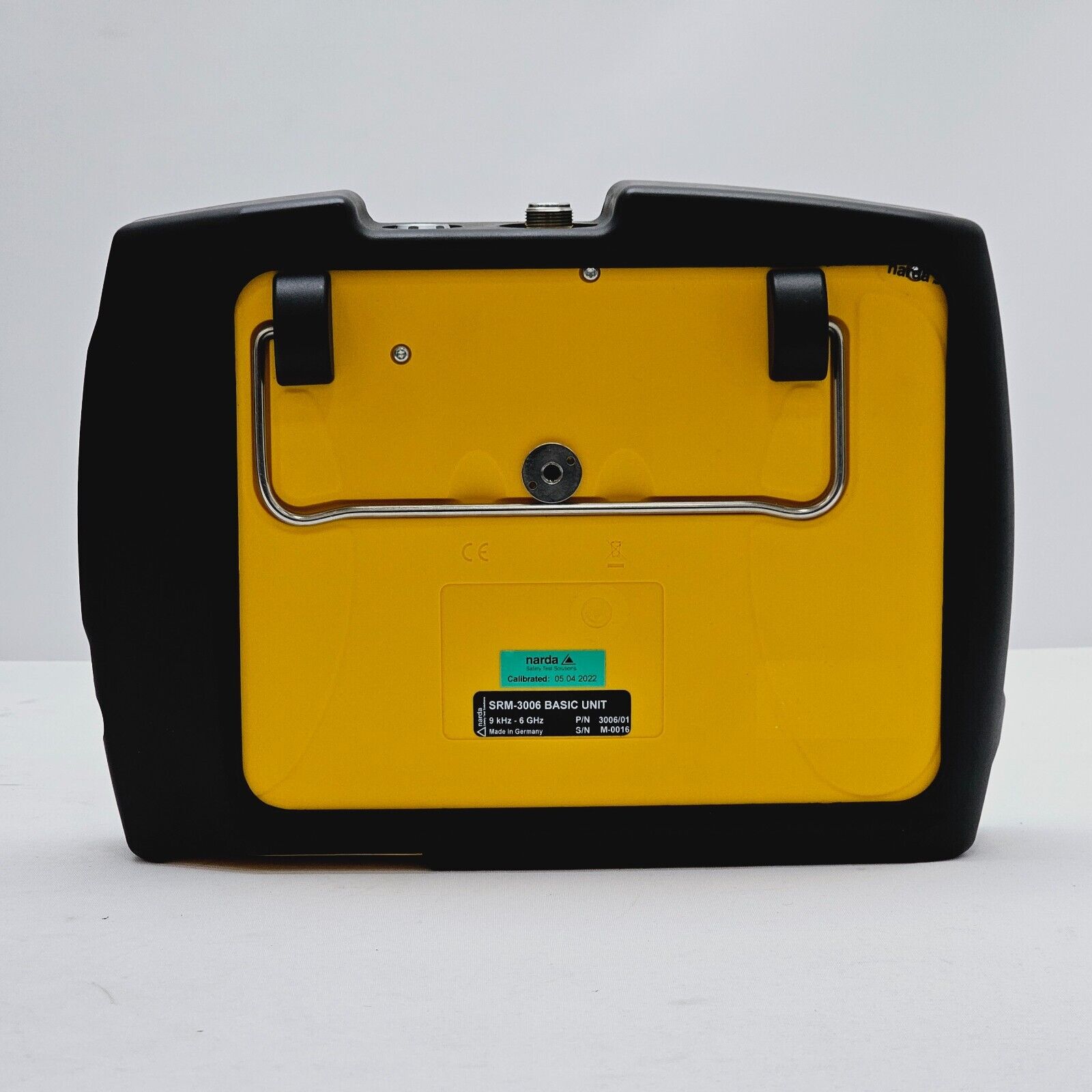

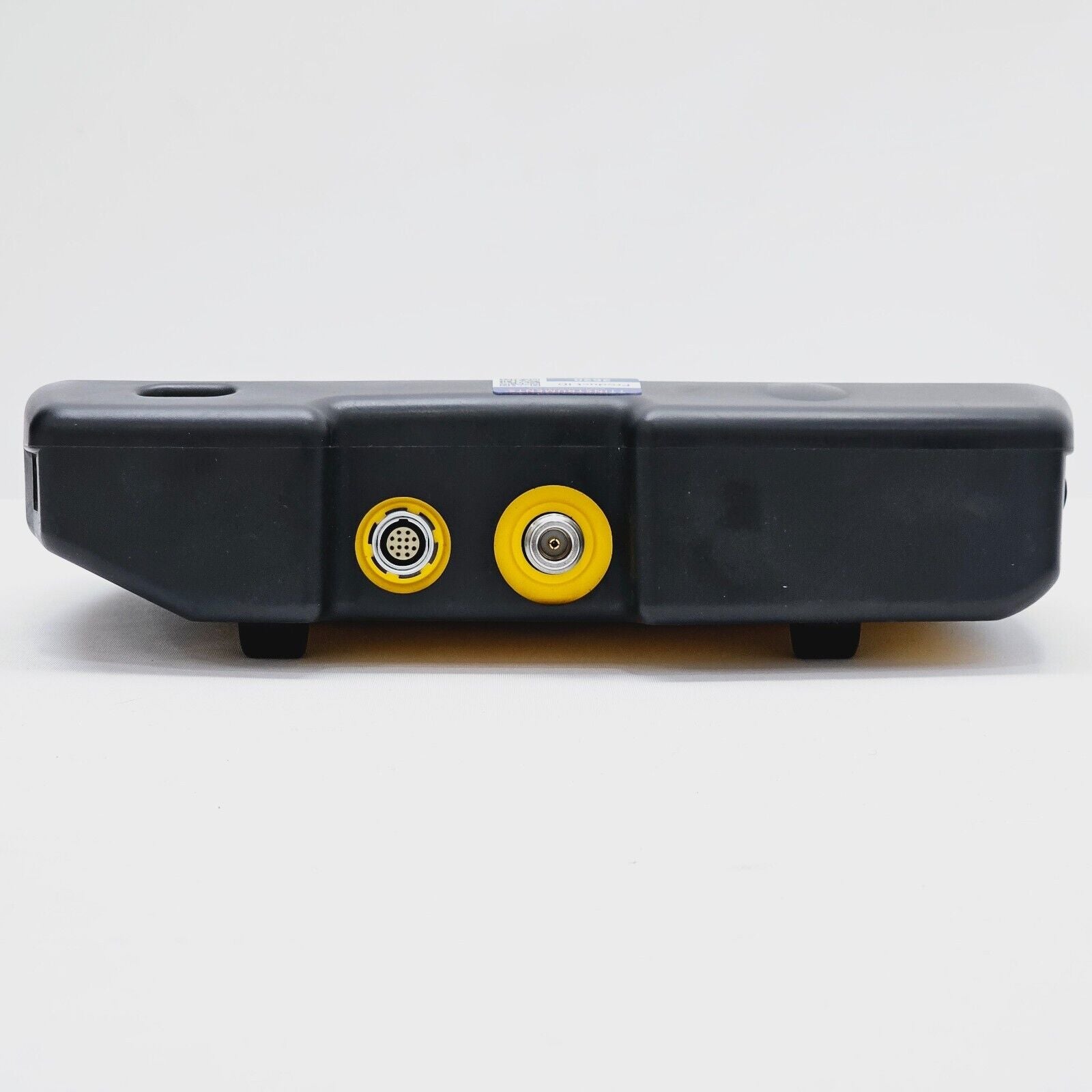

• SRM-3006 Platform (3006/01)

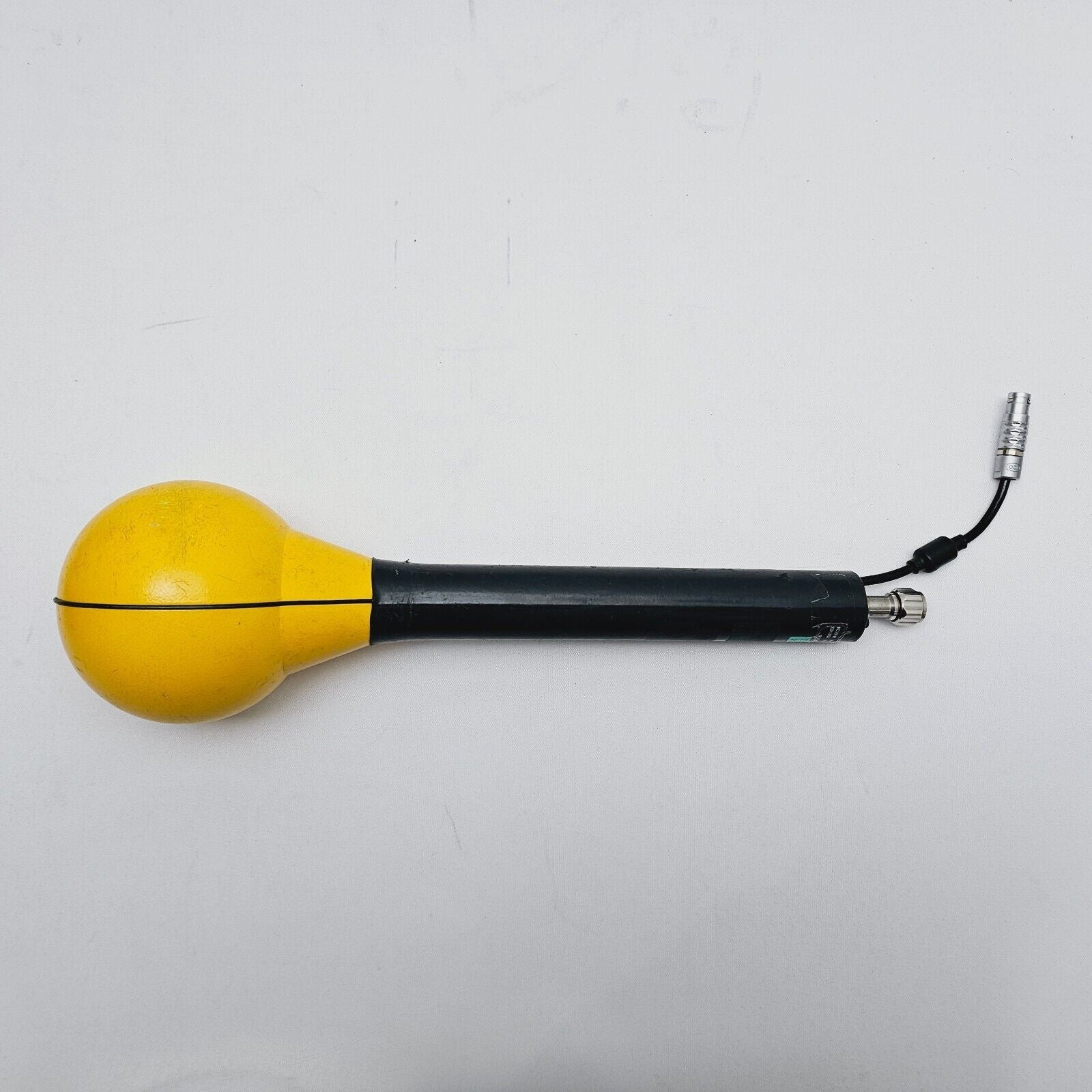

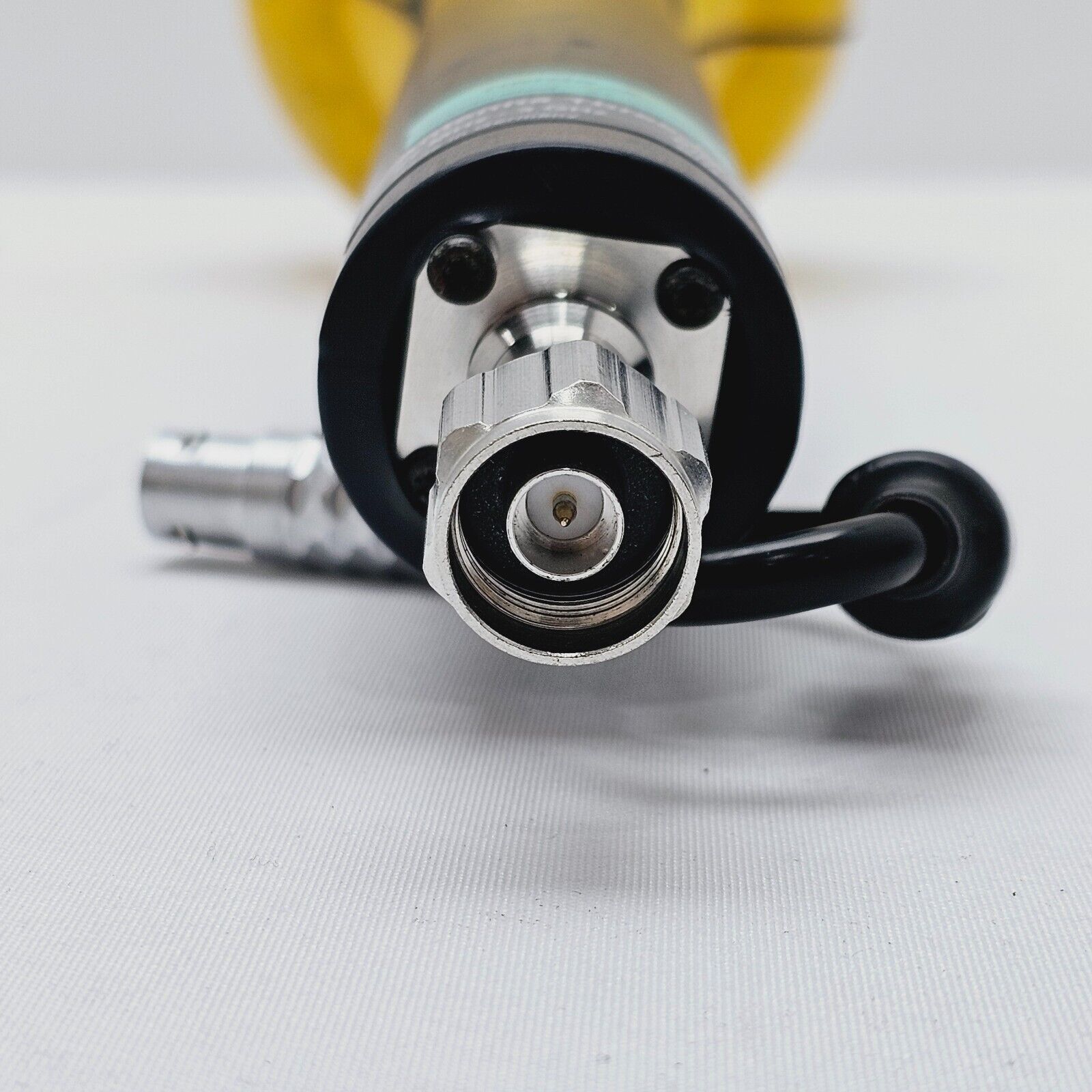

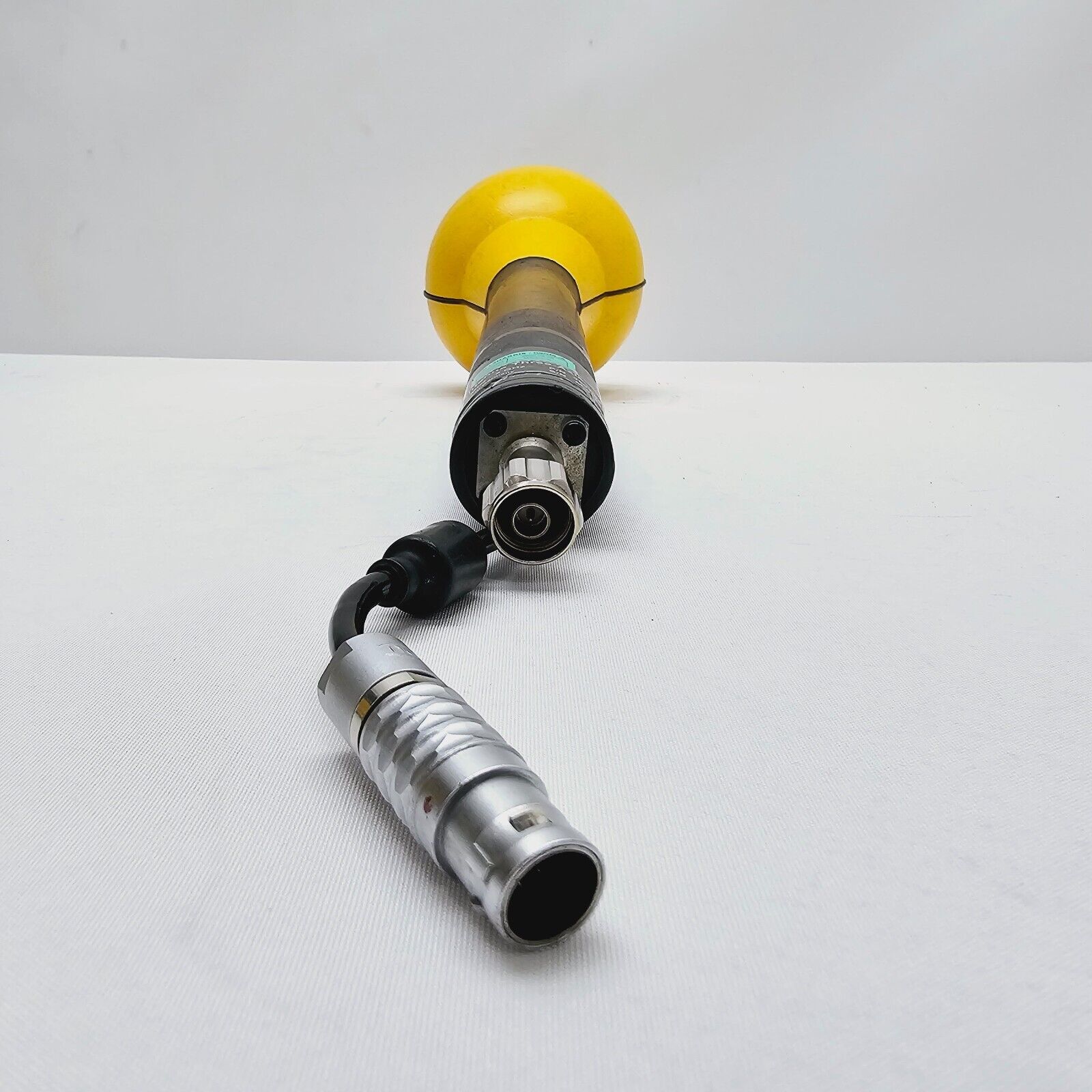

• E-Field Antenna Three-Axis 27 MHz – 3 GHz Probe (3501/03)

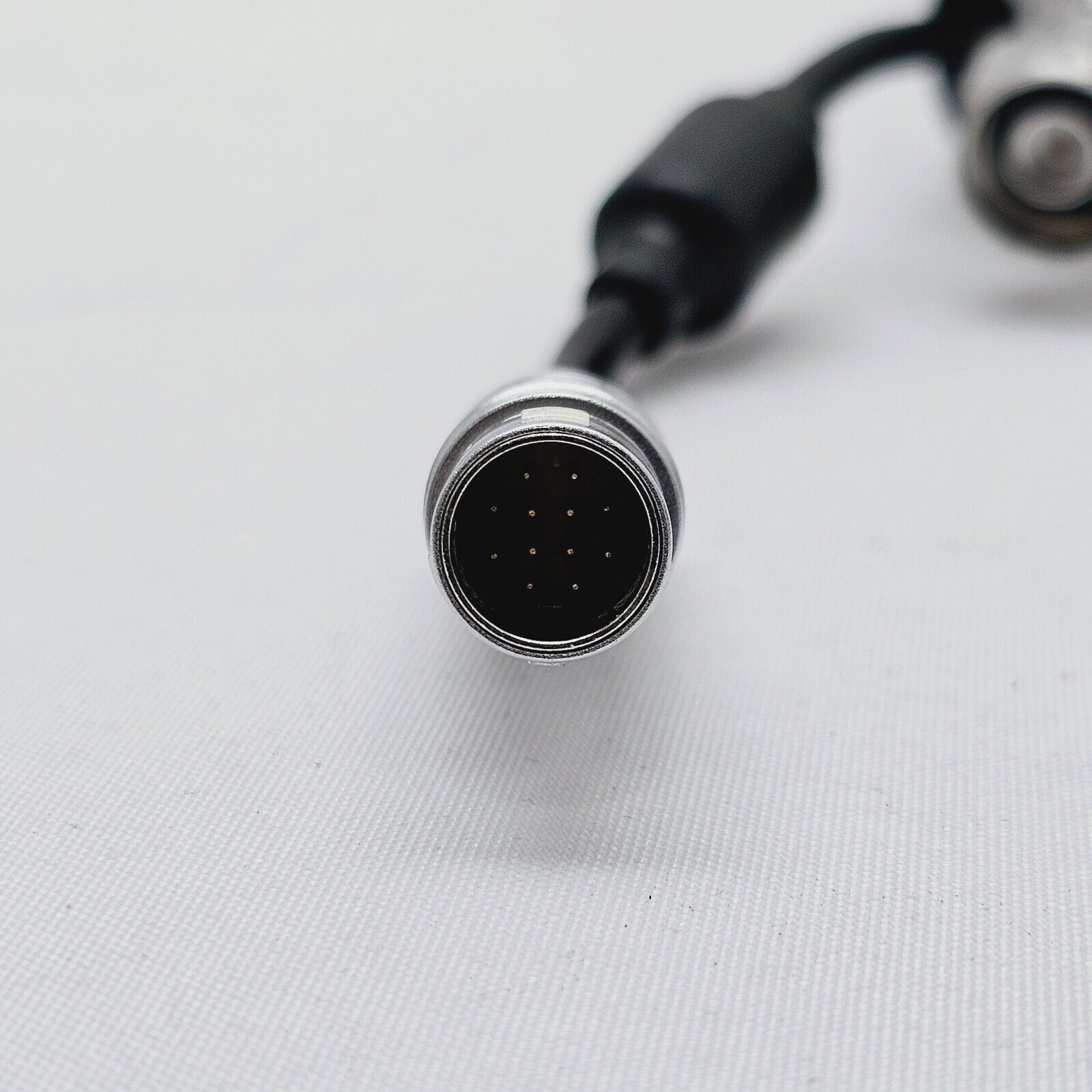

• RF-Cable 9 kHz–6 GHz, 1.5 m (3602/01)
• Carry Case
• Power Adapter 12 VDC, 100 V–240 VAC
The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective, handheld measuring system from Narda Safety Test Solutions, designed for safety analysis and environmental measurements of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and is specially developed for assessing safety in electromagnetic fields. Unlike a conventional adapted spectrum analyser, the SRM-3006 provides operating modes tailored to each application — measuring individual transmission channels and separate services including analogue and digital radio (TV, DVB-T, DAB), cellular radio (GSM, UMTS, LTE), and wireless technologies (WLAN, WiMAX). Results are shown as individual channel values and a total value, displayed in field strength (V/m), power density (W/cm²), or directly as a percentage of the permitted limit value per ICNIRP or national standards.
The SRM-3006 has become established as the standard instrument for EMF safety assessment tasks, providing users with automatic evaluations against human safety standards together with a specified overall measurement uncertainty — eliminating error-prone manual calculations. The three-axis (isotropic) antenna detects fields from all directions simultaneously, summing them with correct phase, making it particularly suitable for rapid, direction-independent measurements in mobile communications environments. Irradiation protection up to 200 V/m, a robust and splash-proof housing, exchangeable rechargeable batteries, integrated GPS, and a voice recorder make it fully suited to demanding on-site fieldwork.
Key Features:
• Wide frequency range from 9 kHz to 6 GHz
• Single and three-axis (isotropic) antennas supported
• Highest physically possible measurement dynamic range
• Fine tuning of measurement range in 1 dB steps
• Irradiation proof up to 200 V/m
• Specified overall measurement uncertainty

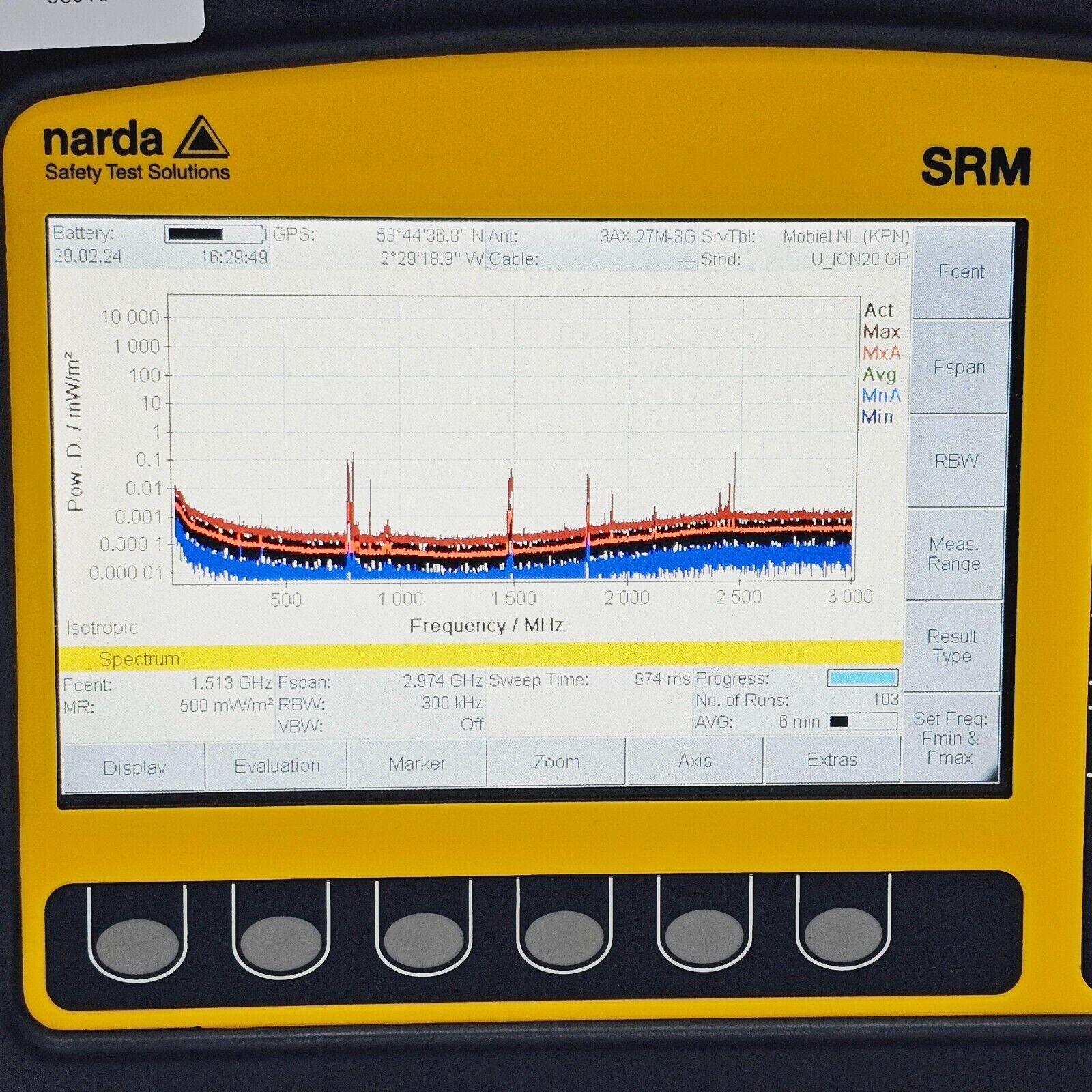

• Built-in evaluation functions (Safety Evaluation, Spectrum Analysis, Scope, Recorder modes)
• Resolution bandwidths (RBW) up to 32 MHz for latest mobile communications technologies
• Stored calibration factors read out automatically from antenna EEPROM
• Long-term monitoring up to 99 hours

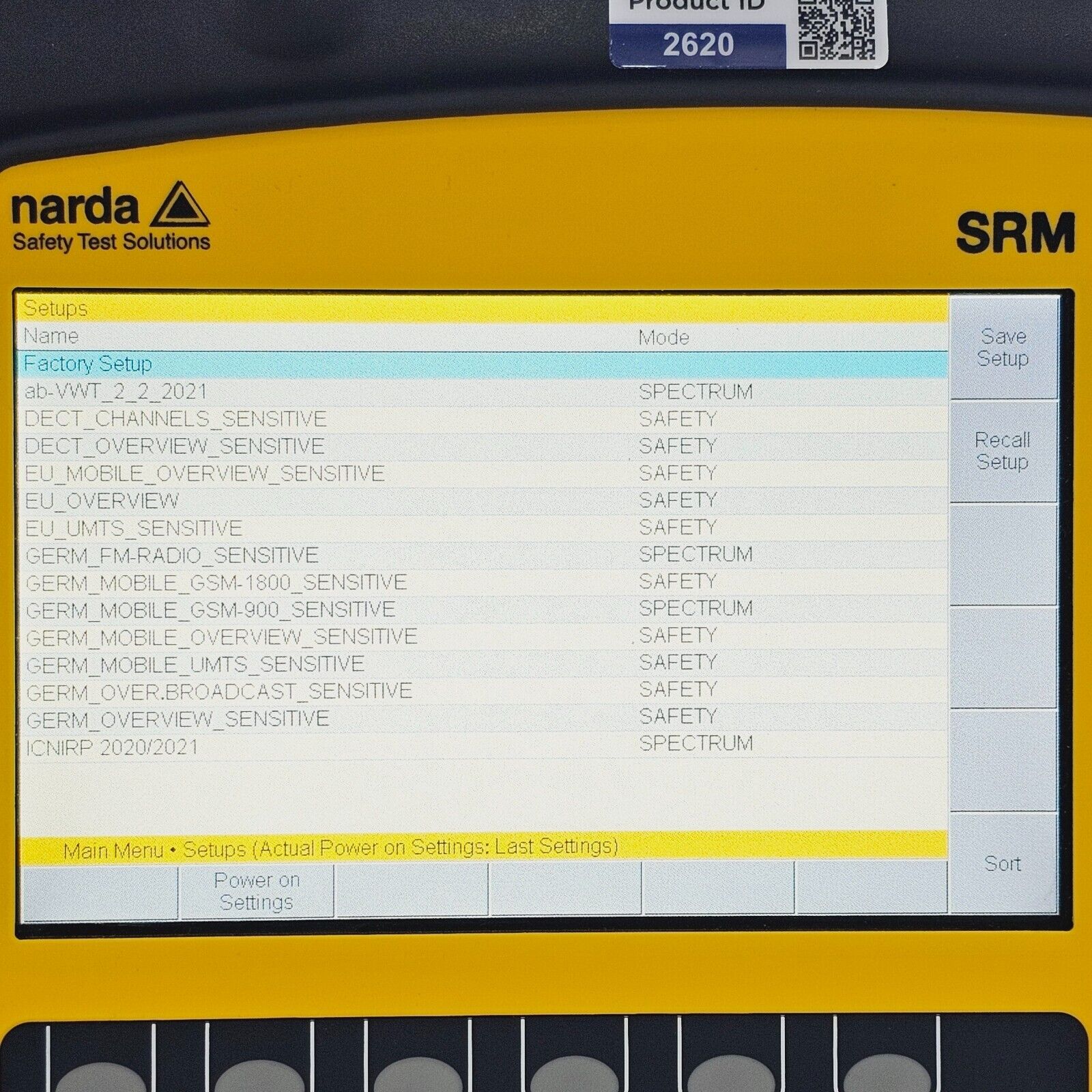

• Programmable measurement routines and setups for reproducible results

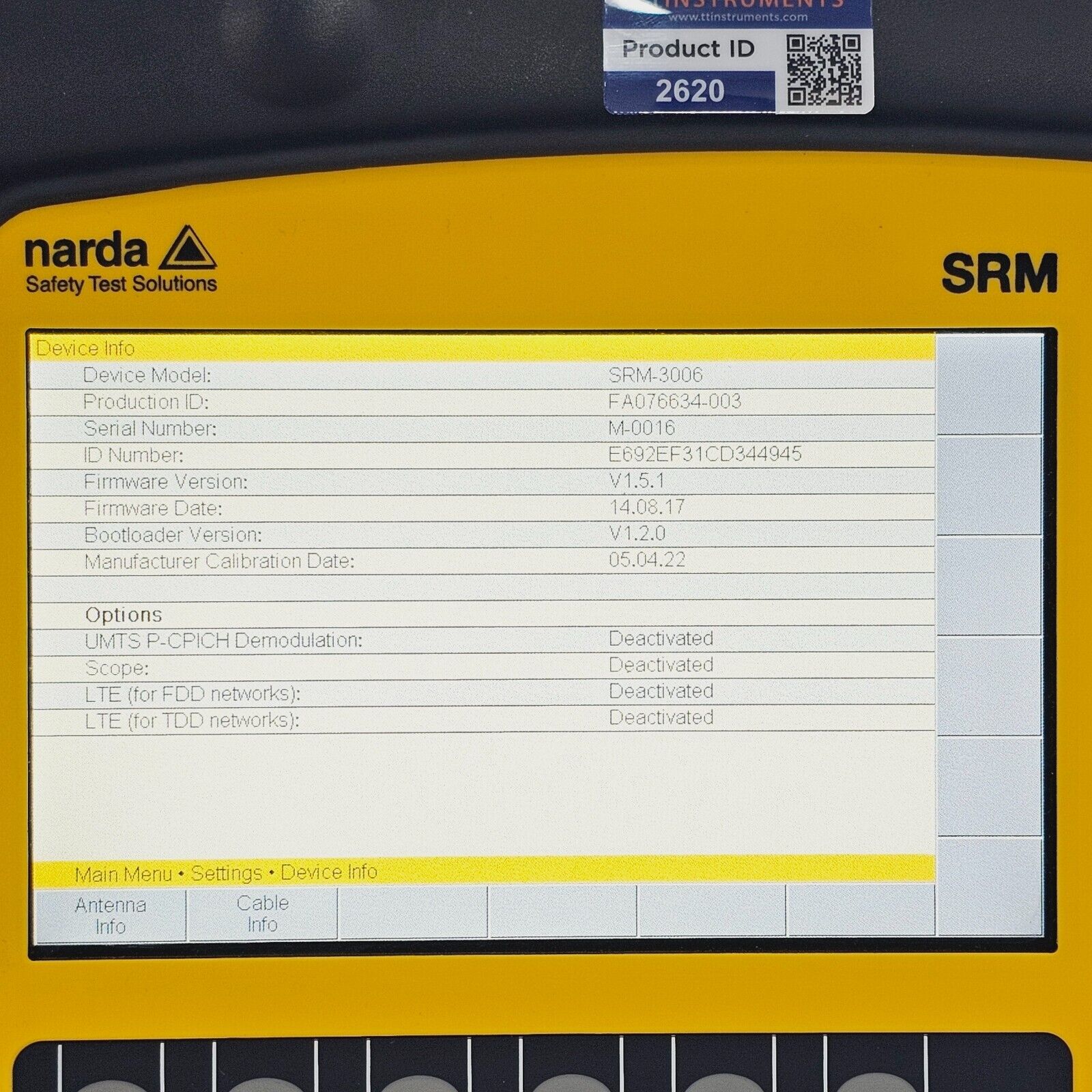

• Optional demodulation modes: LTE-FDD, LTE-TDD, UMTS P-CPICH, 5G NR

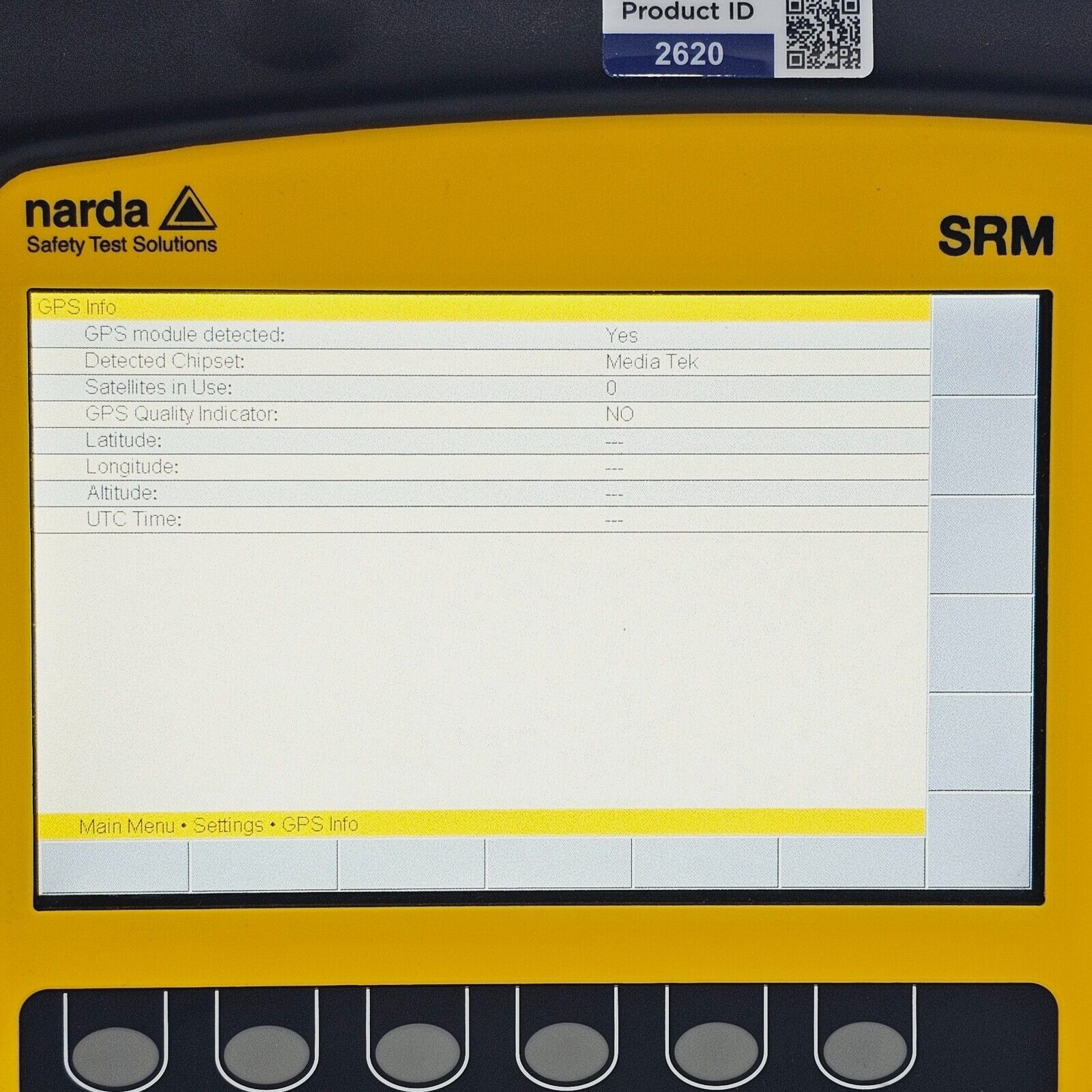

• Integrated GPS and voice recorder
• USB and optical PC interface
SRM-3006 Basic Unit Specifications:
Frequency Range: 9 kHz to 6 GHz
Resolution Bandwidth (RBW): 1 kHz to 32 MHz
Measurement Range Fine Adjustment: 1 dB steps
Irradiation Protection: Up to 200 V/m
Long-term Monitoring: Up to 99 hours
Battery Operation: Approx. 3 hours on fully charged batteries
Power Supply: Exchangeable rechargeable battery pack; external AC adapter (9 V nominal)

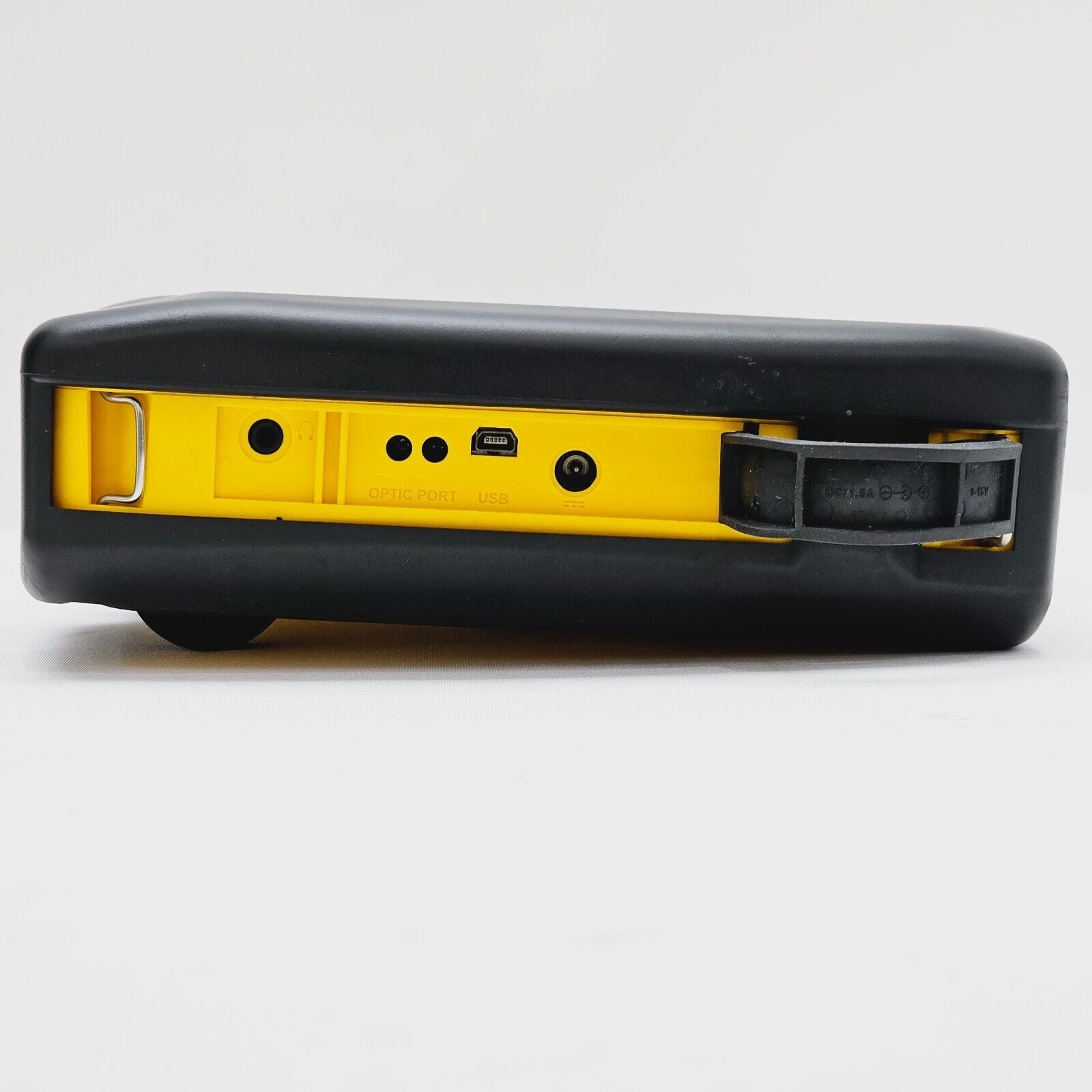

Interfaces: USB, optical
Display: LCD with backlight
Safety Standards Supported: ICNIRP 1998, ICNIRP 2010, FCC, IEEE, EMF Directive 2013/35/EU, national standards
Antenna 3501/03 (Three-Axis E-Field, 27 MHz – 3 GHz) Specifications:
Frequency Range: 27 MHz to 3 GHz
Measurement Dynamic Range: 0.2 mV/m to 200 V/m
Directivity: Isotropic (three-axis)
Weight: 450 g
Length (including shaft): 460 mm
Calibration: Stored correction factors in EEPROM, applied automatically
Typical Applications:
• EMF safety assessments at mobile phone base stations and broadcast transmitters
• Occupational exposure assessments per EU Directive 2013/35/EU
• Frequency-selective field surveys in offices, public spaces, and industrial environments
• Compliance verification against ICNIRP, FCC, and national EMF limits
• On-site measurement of GSM, UMTS, LTE, WLAN, WiMAX, DVB-T, DAB signals
Narda SRM-3006 Selective Radiation Meter Datasheet (testequipmenthq.com): Download PDF
Narda SRM-3006 Selective Radiation Meter Full Datasheet (Narda/KC usercontent): Download PDF
Narda SRM-3006 Product Brochure — Selective Radiation Meter for electromagnetic fields up to 6 GHz: Download PDF
Narda SRM-3006 Full Technical Datasheet (testunlimited.com): Download PDF
Narda SRM-3006 Operating Manual (McGill University hosted PDF): Download PDF
Narda SRM-3006 US Datasheet (McGill University hosted PDF): Download PDF
Product Overview
Condition: Used
Tested and working Narda SRM-3006 Selective Radiation Meter with Narda calibration expiry March 2024. Supplied as a complete field system comprising the SRM-3006 platform, the three-axis isotropic E-field probe (3501/03, 27 MHz–3 GHz, 0.2 mV/m to 200 V/m), RF cable, carry case, and power adapter.
Included in the sale:
• SRM-3006 Platform (3006/01)
• E-Field Antenna Three-Axis 27 MHz – 3 GHz Probe (3501/03)
• RF-Cable 9 kHz–6 GHz, 1.5 m (3602/01)
• Carry Case
• Power Adapter 12 VDC, 100 V–240 VAC
Manufacturer's Description
The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective, handheld measuring system from Narda Safety Test Solutions, designed for safety analysis and environmental measurements of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and is specially developed for assessing safety in electromagnetic fields. Unlike a conventional adapted spectrum analyser, the SRM-3006 provides operating modes tailored to each application — measuring individual transmission channels and separate services including analogue and digital radio (TV, DVB-T, DAB), cellular radio (GSM, UMTS, LTE), and wireless technologies (WLAN, WiMAX). Results are shown as individual channel values and a total value, displayed in field strength (V/m), power density (W/cm²), or directly as a percentage of the permitted limit value per ICNIRP or national standards.
The SRM-3006 has become established as the standard instrument for EMF safety assessment tasks, providing users with automatic evaluations against human safety standards together with a specified overall measurement uncertainty — eliminating error-prone manual calculations. The three-axis (isotropic) antenna detects fields from all directions simultaneously, summing them with correct phase, making it particularly suitable for rapid, direction-independent measurements in mobile communications environments. Irradiation protection up to 200 V/m, a robust and splash-proof housing, exchangeable rechargeable batteries, integrated GPS, and a voice recorder make it fully suited to demanding on-site fieldwork.
Key Features:
• Wide frequency range from 9 kHz to 6 GHz
• Single and three-axis (isotropic) antennas supported
• Highest physically possible measurement dynamic range
• Fine tuning of measurement range in 1 dB steps
• Irradiation proof up to 200 V/m
• Specified overall measurement uncertainty
• Built-in evaluation functions (Safety Evaluation, Spectrum Analysis, Scope, Recorder modes)
• Resolution bandwidths (RBW) up to 32 MHz for latest mobile communications technologies
• Stored calibration factors read out automatically from antenna EEPROM
• Long-term monitoring up to 99 hours
• Programmable measurement routines and setups for reproducible results
• Optional demodulation modes: LTE-FDD, LTE-TDD, UMTS P-CPICH, 5G NR
• Integrated GPS and voice recorder
• USB and optical PC interface
SRM-3006 Basic Unit Specifications:
Frequency Range: 9 kHz to 6 GHz
Resolution Bandwidth (RBW): 1 kHz to 32 MHz
Measurement Range Fine Adjustment: 1 dB steps
Irradiation Protection: Up to 200 V/m
Long-term Monitoring: Up to 99 hours
Battery Operation: Approx. 3 hours on fully charged batteries
Power Supply: Exchangeable rechargeable battery pack; external AC adapter (9 V nominal)
Interfaces: USB, optical
Display: LCD with backlight
Safety Standards Supported: ICNIRP 1998, ICNIRP 2010, FCC, IEEE, EMF Directive 2013/35/EU, national standards
Antenna 3501/03 (Three-Axis E-Field, 27 MHz – 3 GHz) Specifications:
Frequency Range: 27 MHz to 3 GHz
Measurement Dynamic Range: 0.2 mV/m to 200 V/m
Directivity: Isotropic (three-axis)
Weight: 450 g
Length (including shaft): 460 mm
Calibration: Stored correction factors in EEPROM, applied automatically
Typical Applications:
• EMF safety assessments at mobile phone base stations and broadcast transmitters
• Occupational exposure assessments per EU Directive 2013/35/EU
• Frequency-selective field surveys in offices, public spaces, and industrial environments
• Compliance verification against ICNIRP, FCC, and national EMF limits
• On-site measurement of GSM, UMTS, LTE, WLAN, WiMAX, DVB-T, DAB signals
Resources
Narda SRM-3006 Selective Radiation Meter Datasheet (testequipmenthq.com): Download PDF
Narda SRM-3006 Selective Radiation Meter Full Datasheet (Narda/KC usercontent): Download PDF
Narda SRM-3006 Product Brochure — Selective Radiation Meter for electromagnetic fields up to 6 GHz: Download PDF
Narda SRM-3006 Full Technical Datasheet (testunlimited.com): Download PDF
Narda SRM-3006 Operating Manual (McGill University hosted PDF): Download PDF
Narda SRM-3006 US Datasheet (McGill University hosted PDF): Download PDF
