Condition: Used

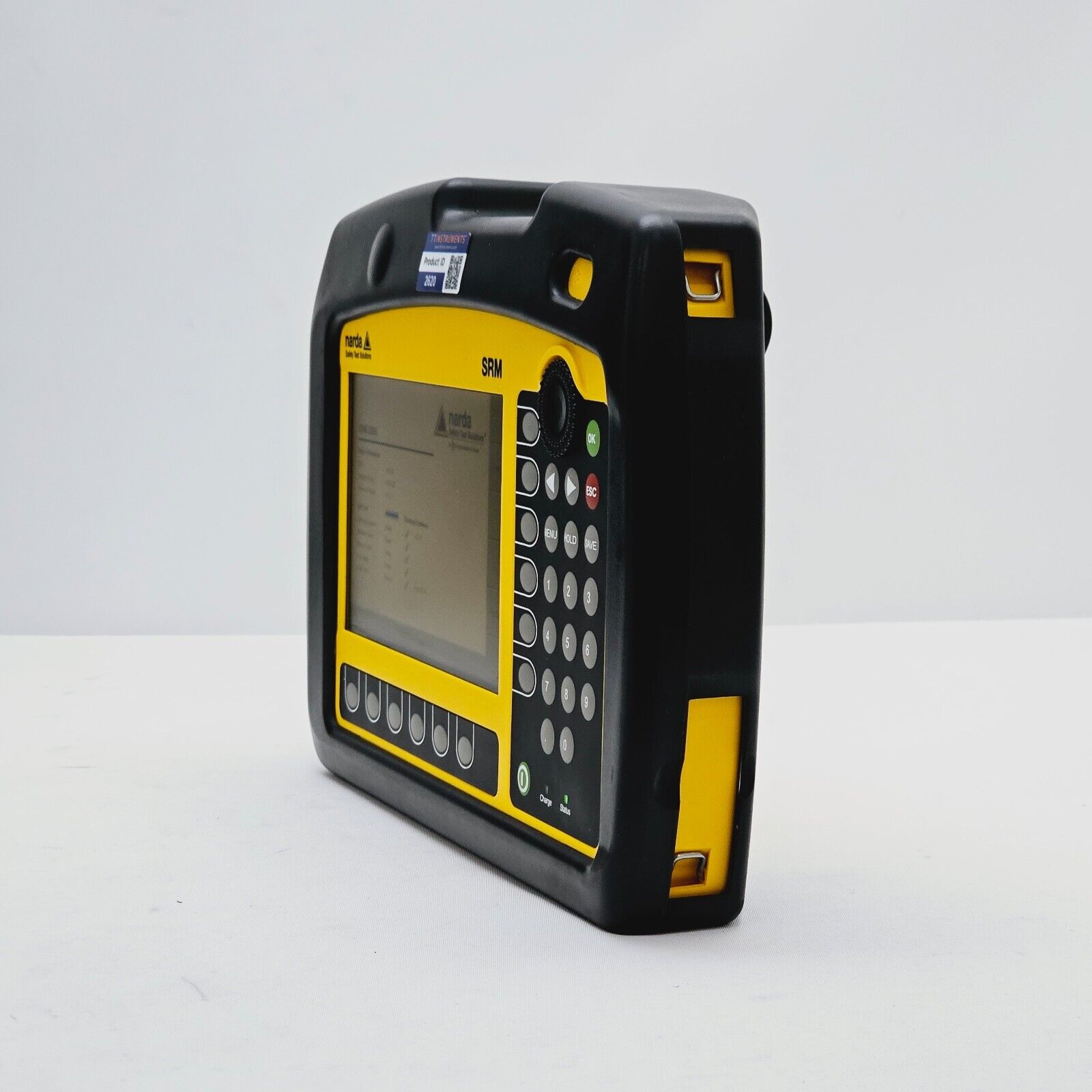

Used Narda SRM-3006 Selective Radiation Meter, tested and working. Supplied with the 3501/03 three-axis E-field probe (27 MHz–3 GHz), 1.5 m RF cable, carry case, and 12 VDC power adapter. Narda calibration has expired. Multiple units are held in stock; cosmetic appearance may vary between units, though all are in good working condition.

Included in the sale:

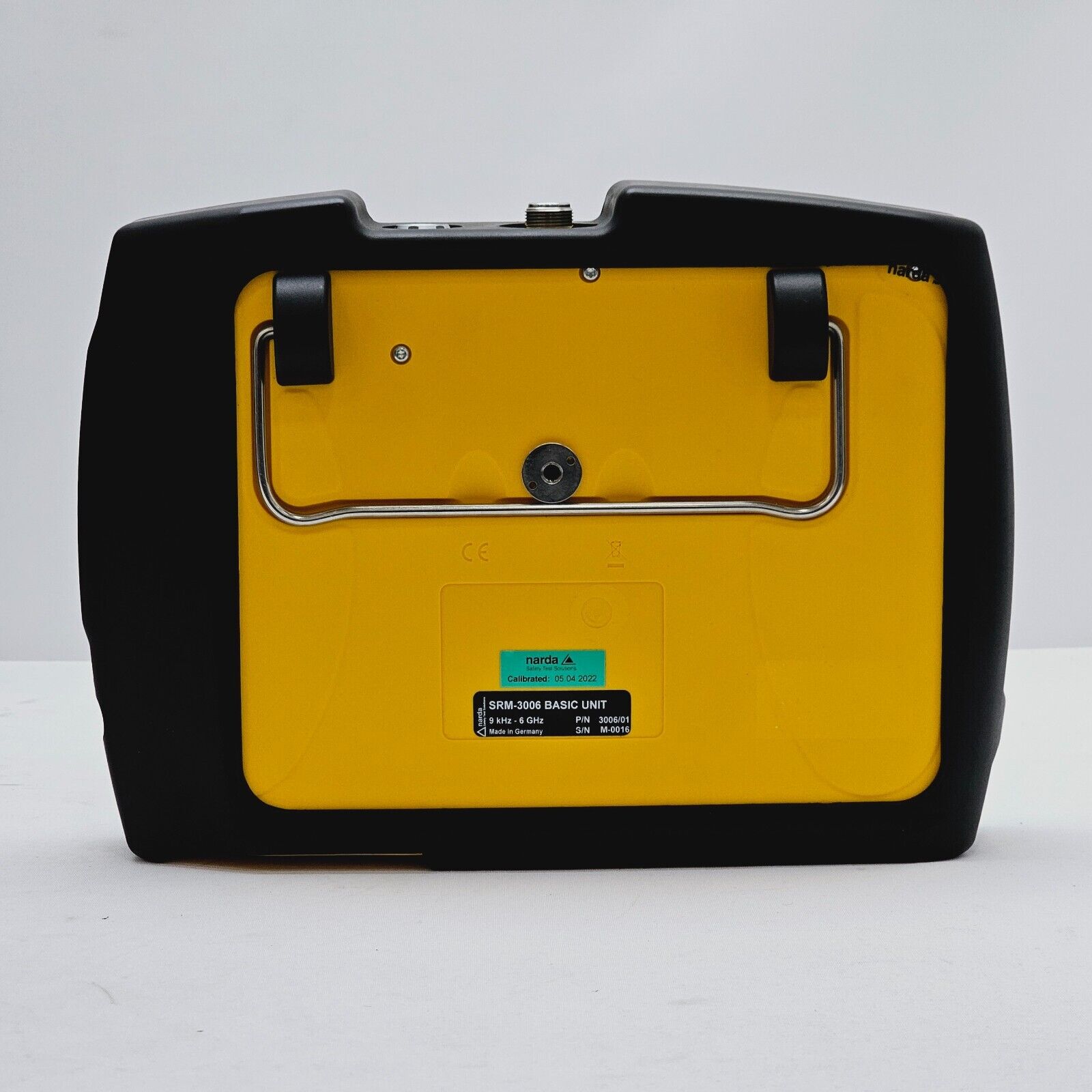

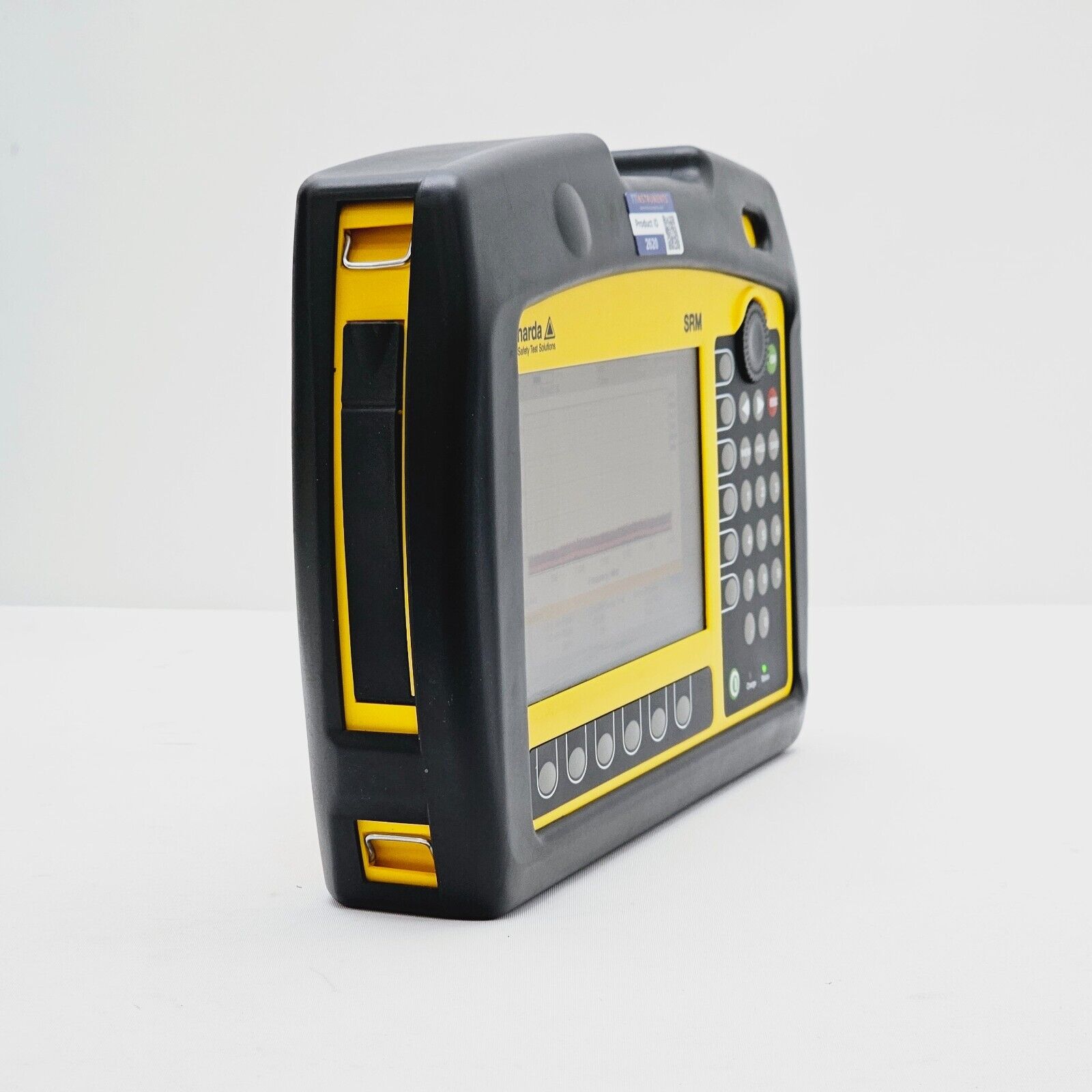

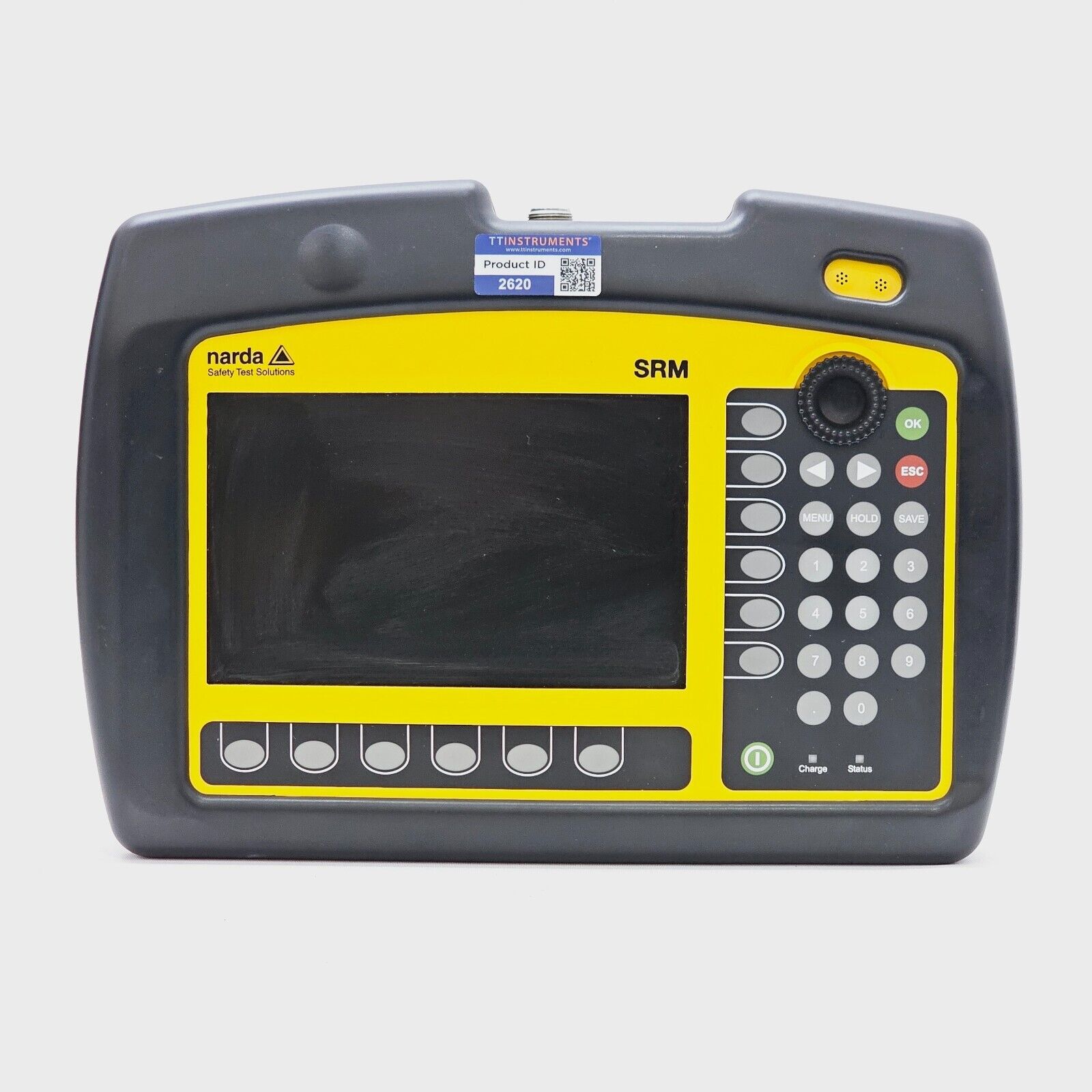

• SRM-3006 Platform (3006/01)
• E-Field Antenna Three-Axis 27 MHz–3 GHz Probe (3501/03)
• RF Cable 9 kHz–6 GHz, 1.5 m (3602/01)
• Carry Case
• Power Adapter 12 VDC, 100 V–240 VAC

The Narda SRM-3006 Selective Radiation Meter from Narda Safety Test Solutions is a compact, frequency-selective measuring system for safety analysis and environmental measurement of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and was specially developed for assessing safety in electromagnetic fields. Unlike a conventional spectrum analyser, the SRM-3006 provides dedicated operating modes tailored to specific applications — covering individual transmission channels and separate services including analogue/digital radio (DAB, DVB-T), cellular radio (GSM, UMTS, LTE), and wireless technologies (WLAN, WiMAX). Results are shown as separate values per service and as a combined total, displayed in field strength (V/m), power density (W/m²), or directly as a percentage of the permitted safety limit value. The SRM-3006 has become established as the standard instrument for EMF safety assessments at mobile communications sites, broadcast transmitters, industrial facilities, offices, and public spaces.

Key Features:
- Wide frequency range from 9 kHz to 6 GHz
- Highest physically possible measurement dynamic range
- Fine adjustment of measurement range in 1 dB steps
- Irradiation-proof up to 200 V/m; robust and splash-proof
- Isotropic (direction-independent) measurement with three-axis antennas
- Stored calibration factors read automatically from antenna EEPROM
- Resolution bandwidths (RBW) up to 32 MHz for latest mobile communications technologies
- Measurements conform to ICNIRP and national standards including EU Directive 2013/35/EU
- Specified overall measurement uncertainty eliminates manual calculations

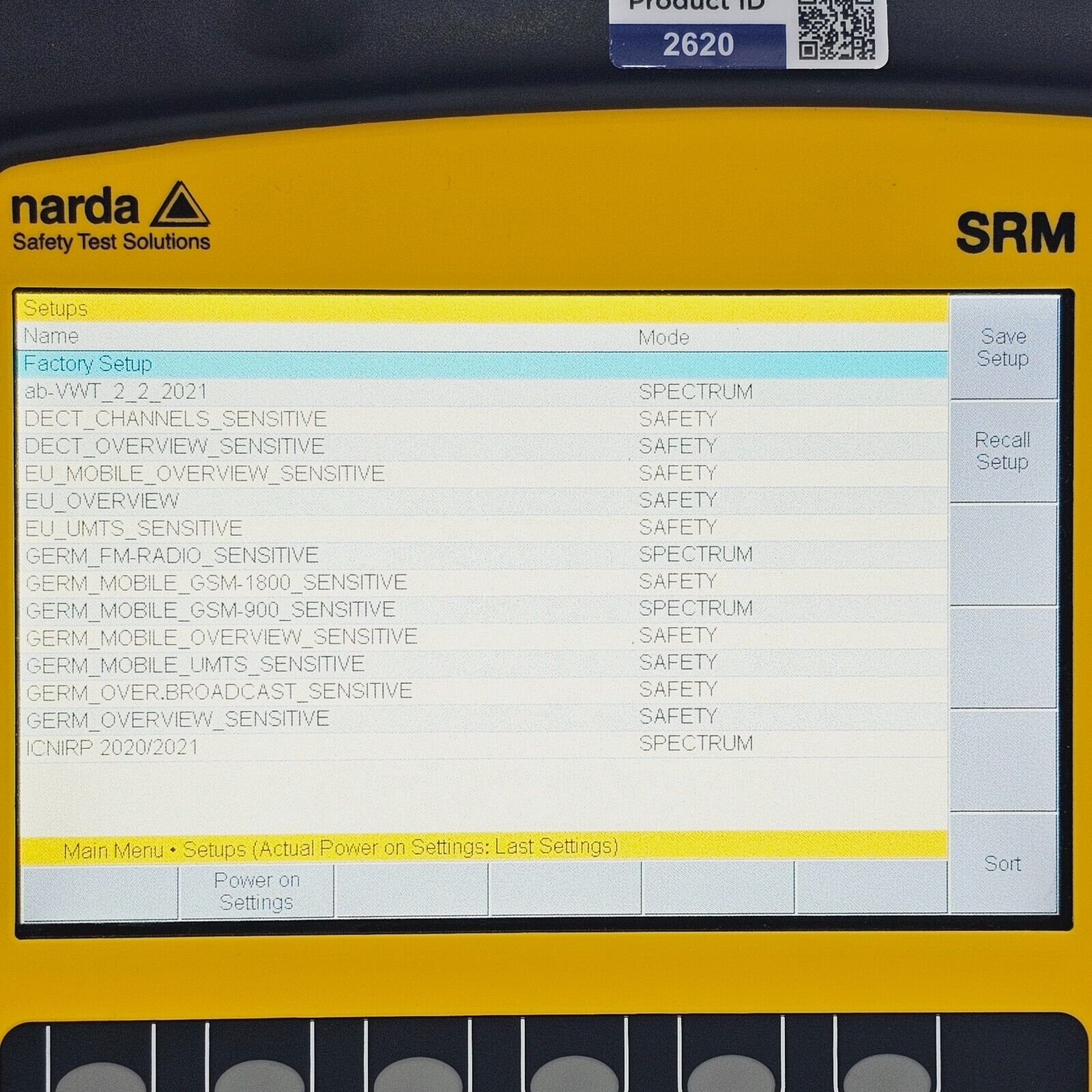

- Built-in evaluation functions, programmable measurement routines and storable setups
- Scope mode for real-time analysis of pulsed signals (microsecond resolution)
- Level Recorder mode for long-term monitoring up to 99 hours

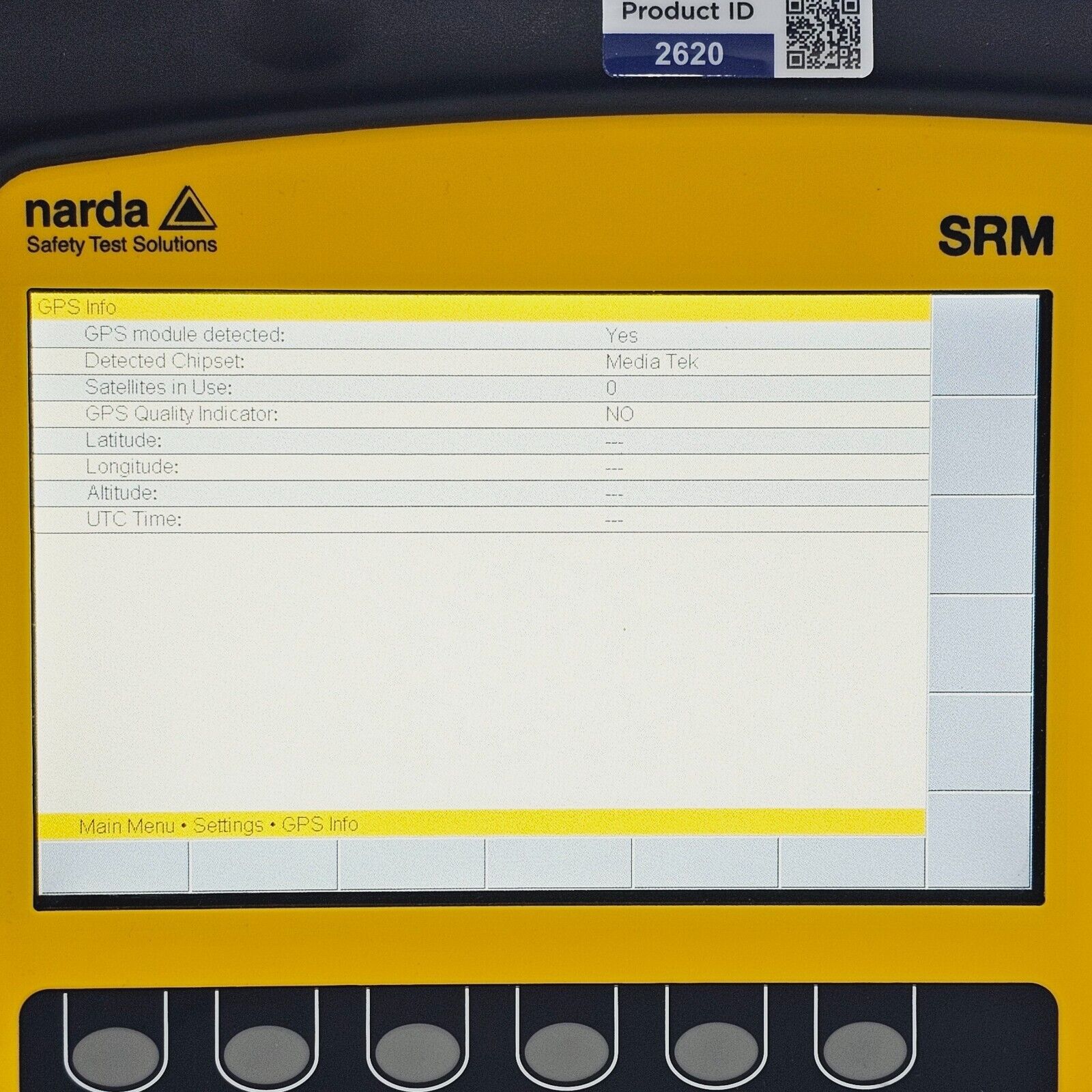

- Integrated GPS and voice recorder; replaceable rechargeable batteries

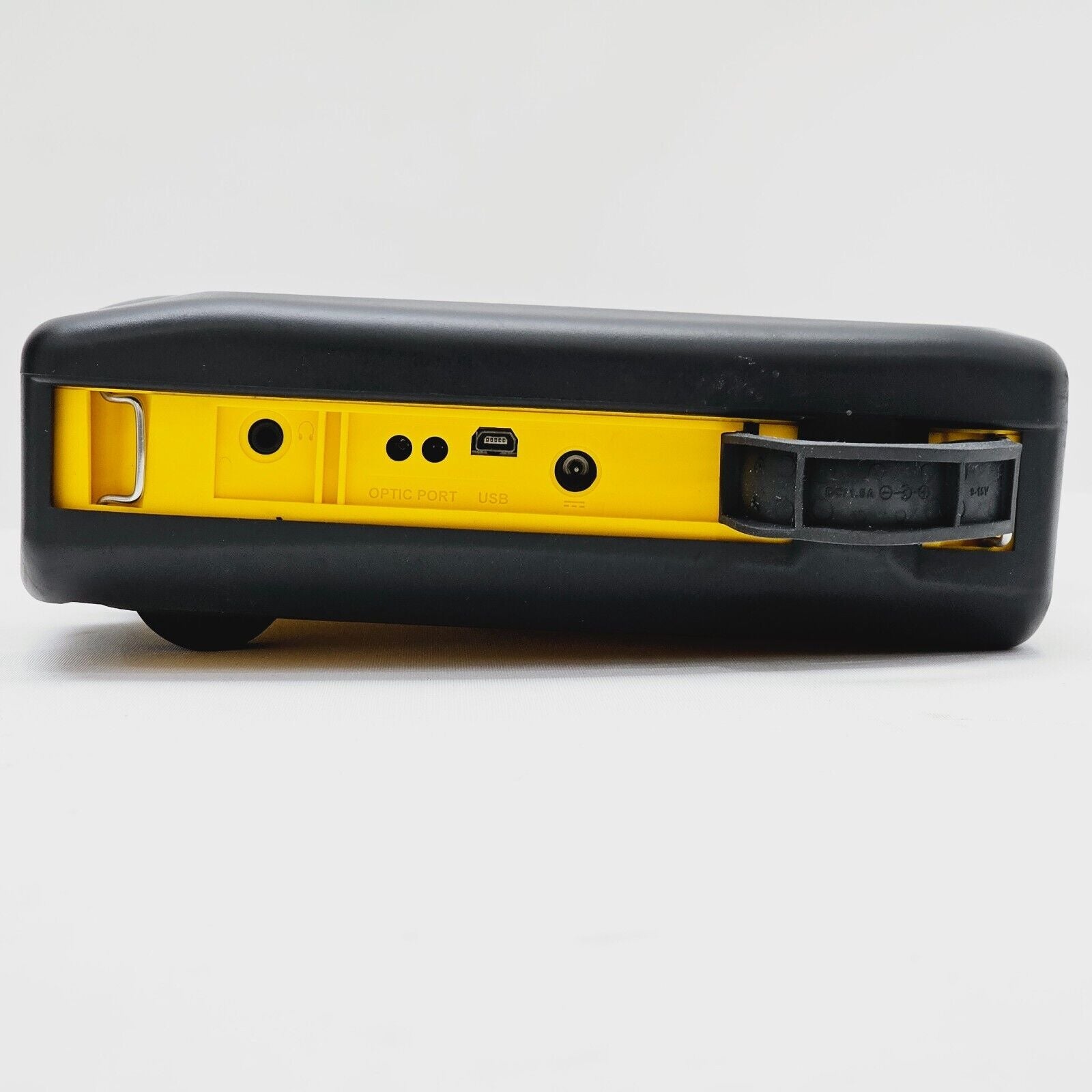

- PC connectivity via USB with SRM-3006 Tools software

Basic Unit — RF Specifications:
Frequency Range: 9 kHz to 6 GHz
Resolution Bandwidth (RBW): Up to 32 MHz
Measurement Range Fine Adjustment: 1 dB steps
Irradiation Proof: Up to 200 V/m
Display Units: V/m, A/m, W/m², % of limit value

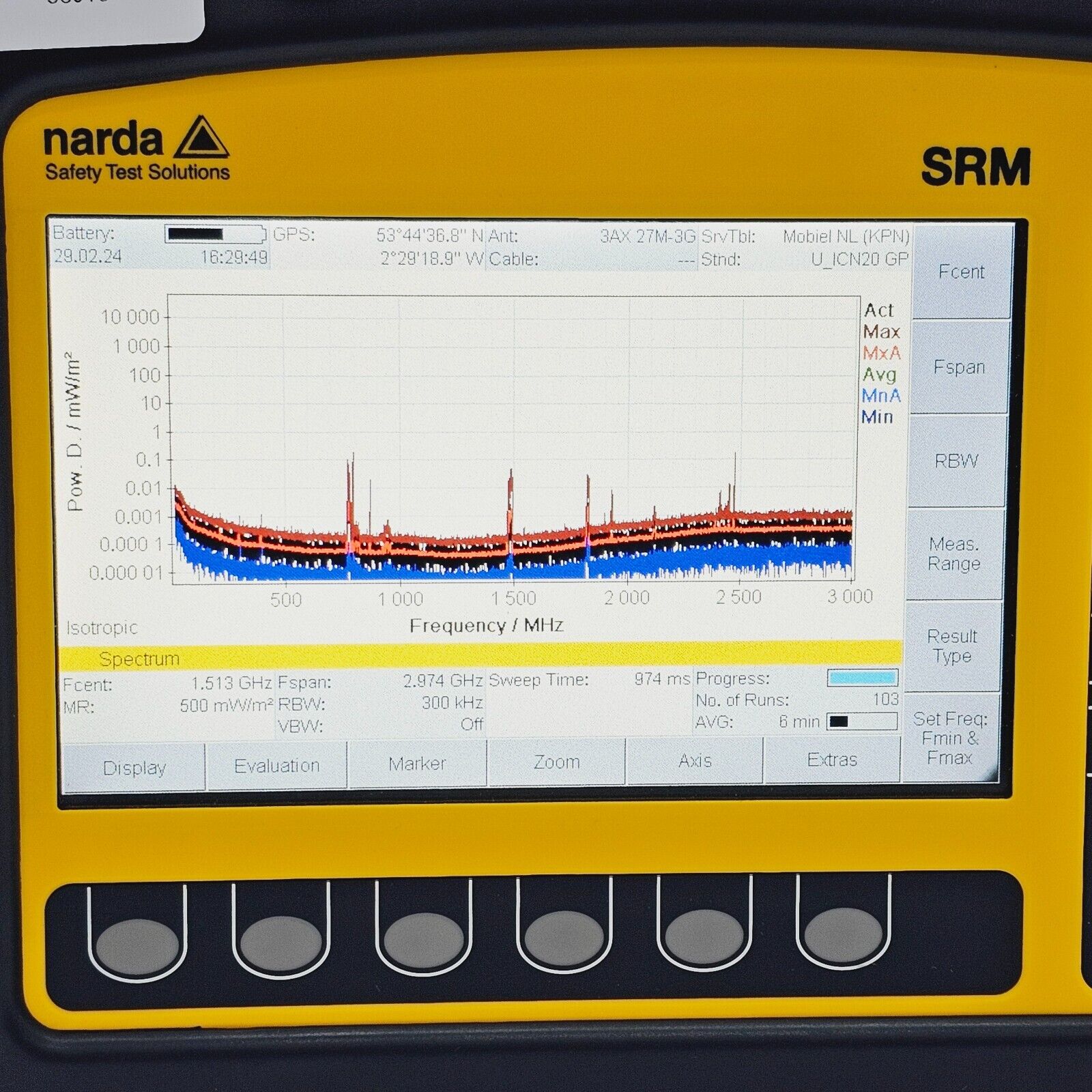

Operating Modes: Safety Evaluation, Spectrum Analysis, Level Recorder, Scope, UMTS, LTE-FDD, LTE-TDD, 5G NR (optional)
Connectivity: USB 2.0, integrated GPS
Power Supply: Rechargeable battery pack / 12 VDC external adapter (100–240 VAC)

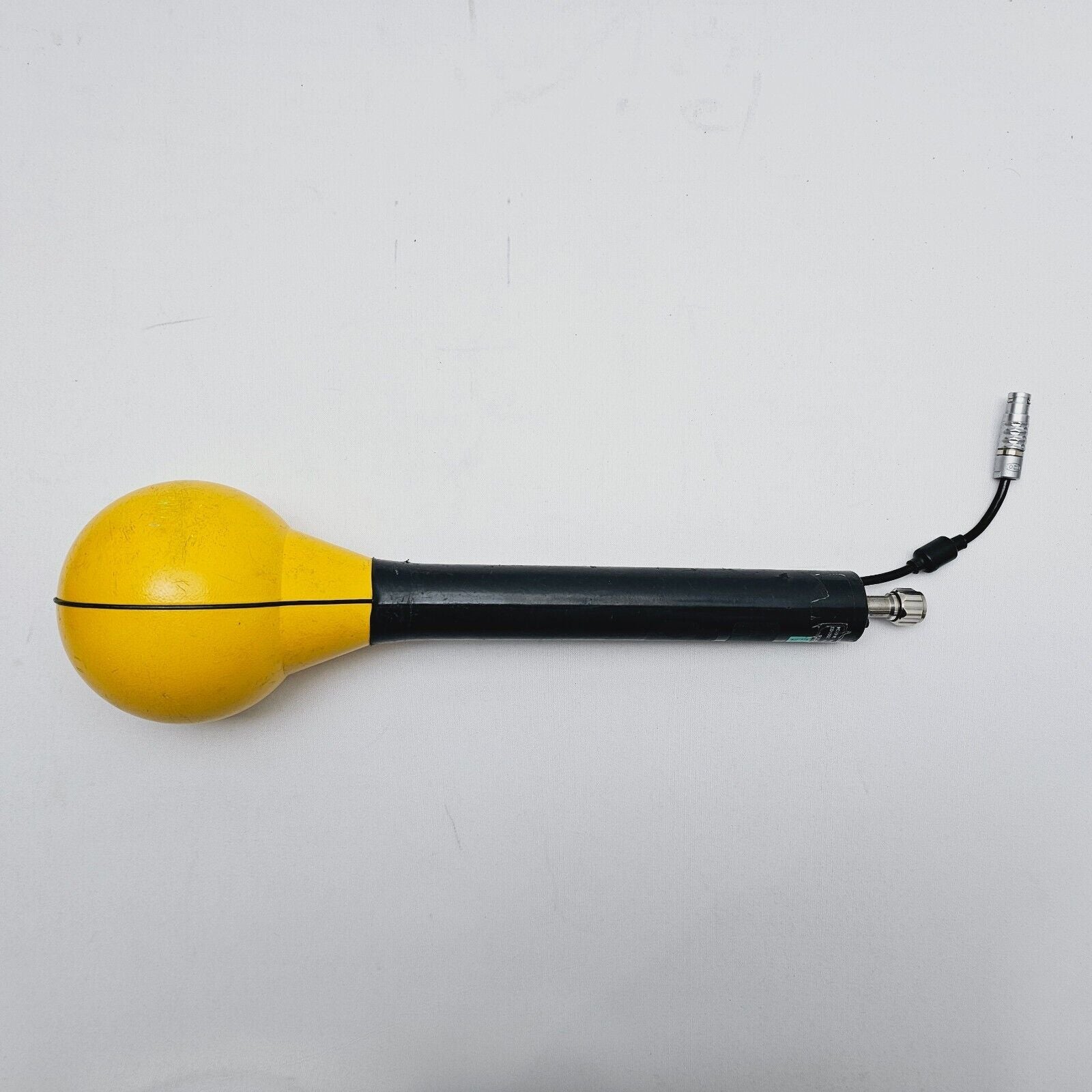

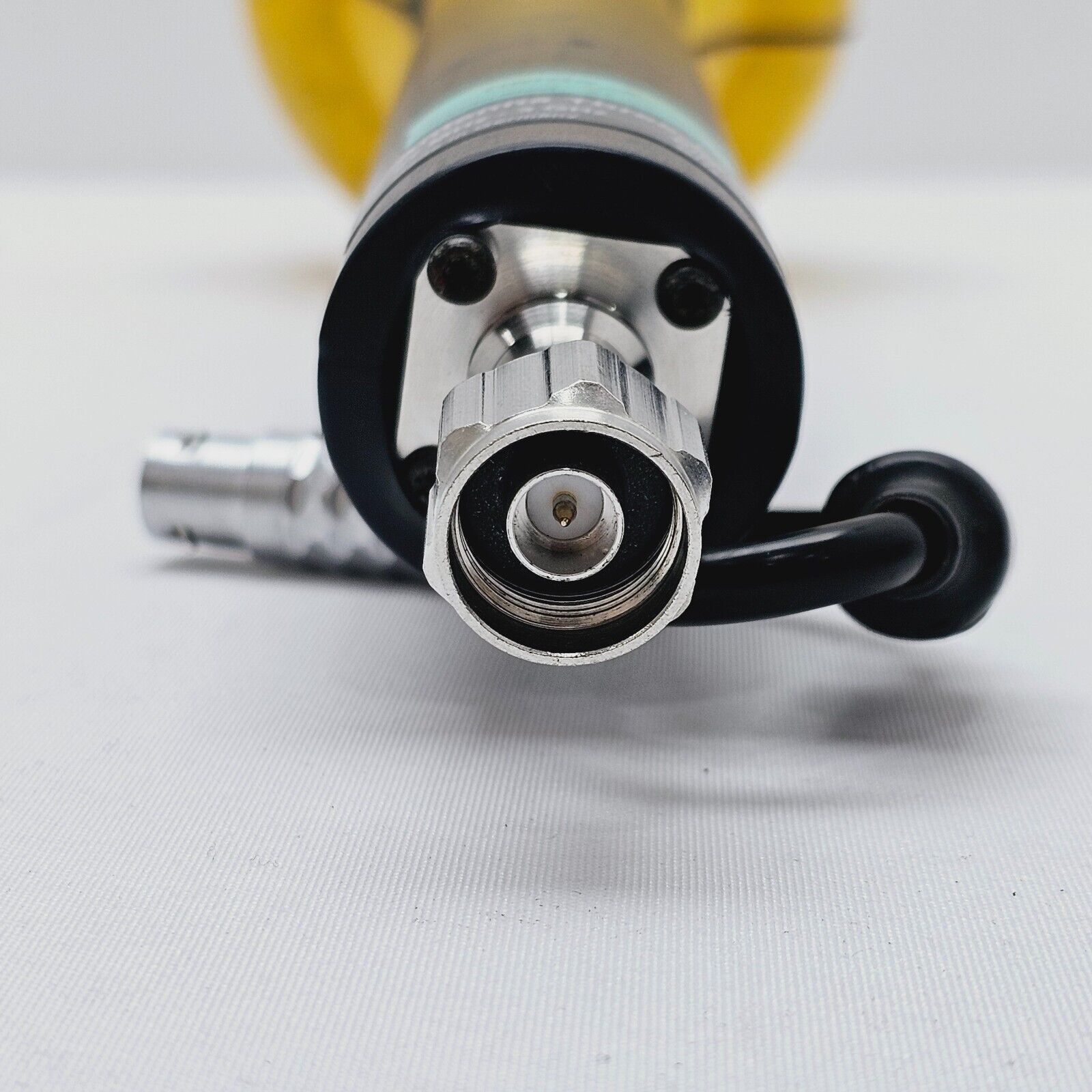

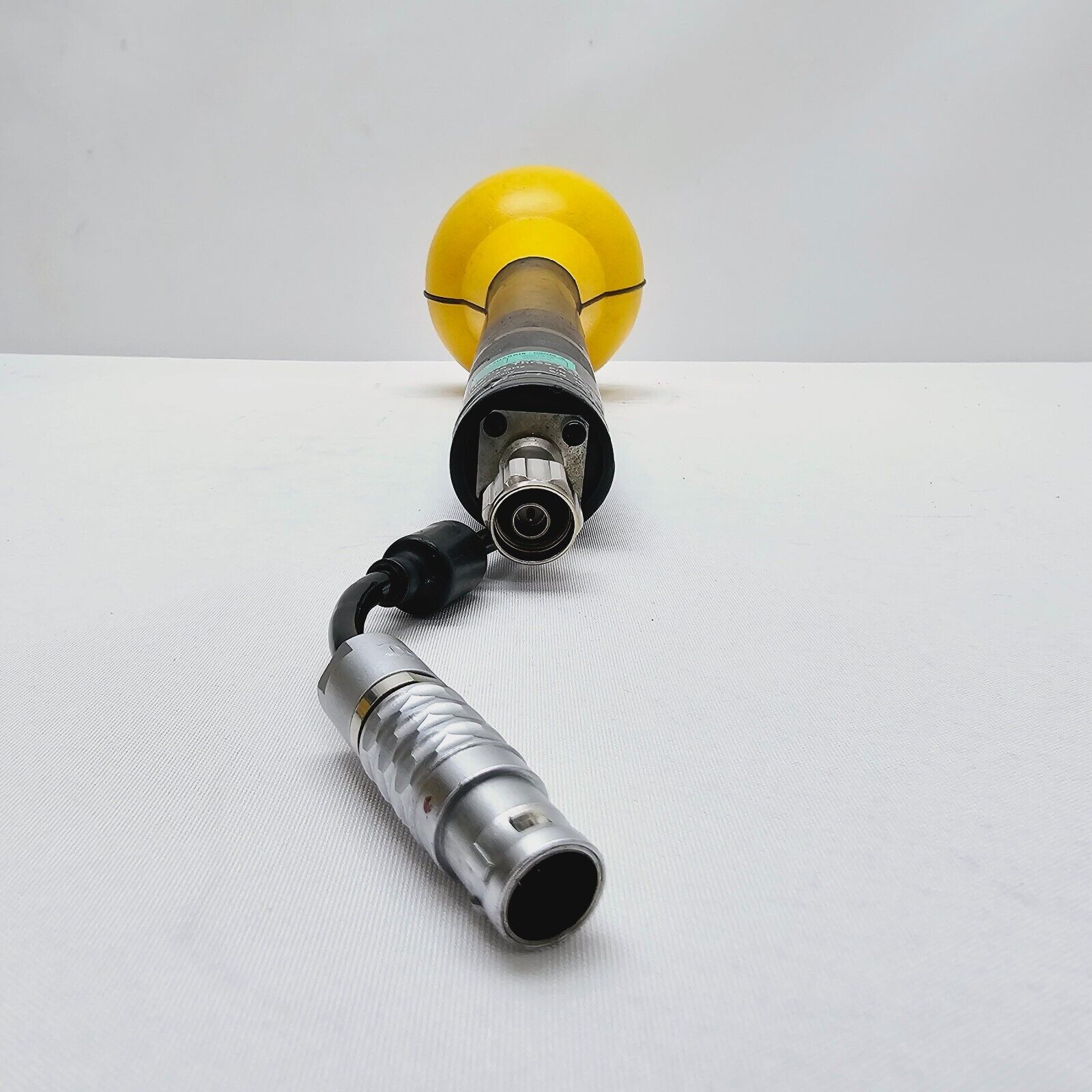

Antenna 3501/03 — Three-Axis E-Field (included):
Antenna Type: E-field, three-axis (isotropic)
Frequency Range: 27 MHz to 3 GHz
Dynamic Range: 0.2 mV/m to 200 V/m (typical)
Maximum Field Strength (destruction limit): 435 V/m or 50 mW/cm² (nominal)
Weight: 450 g
Length (including shaft): 460 mm
Calibration: Individual correction factors stored in EEPROM, applied automatically

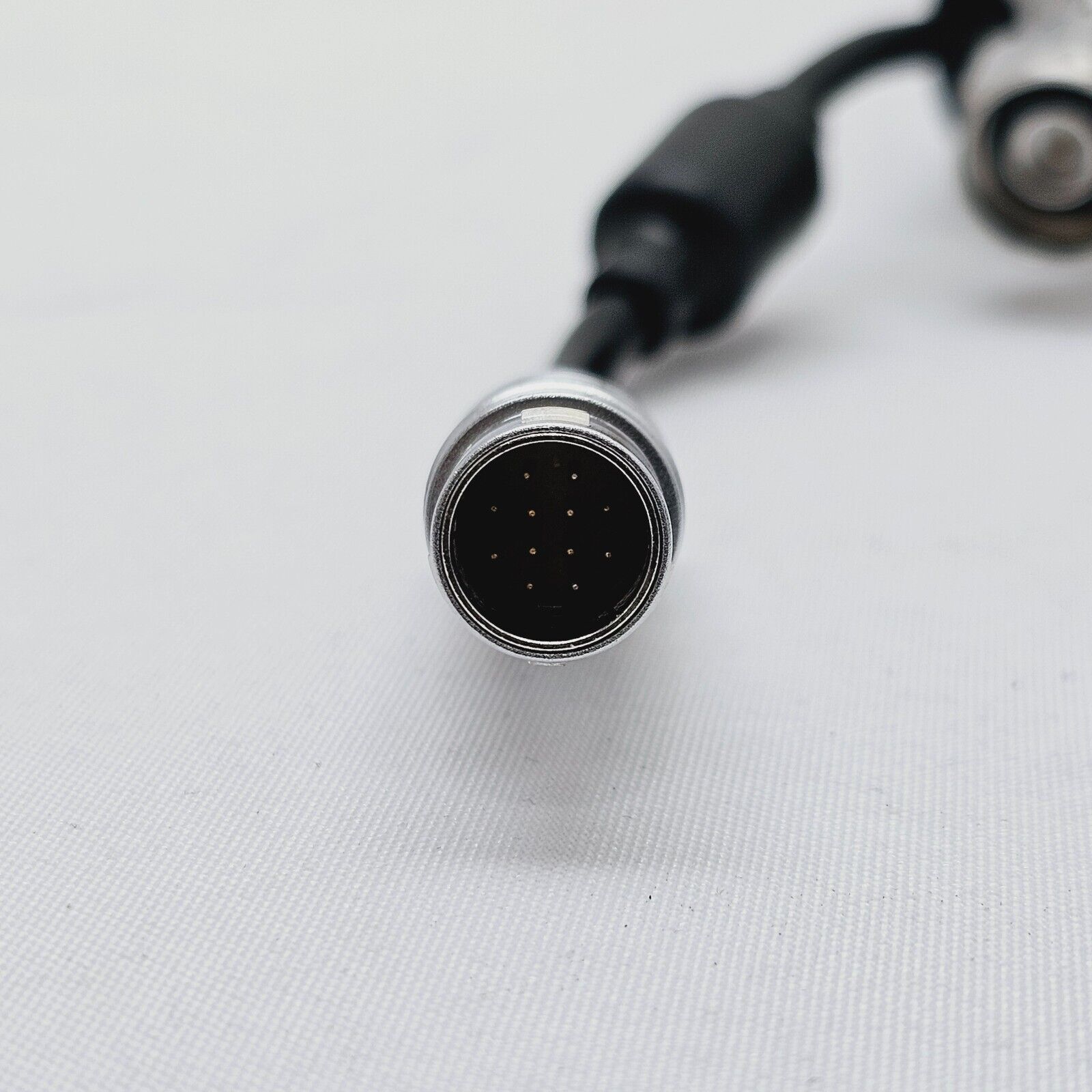

RF Cable 3602/01:
Frequency Range: 9 kHz to 6 GHz
Length: 1.5 m
Impedance: 50 Ω (N-type connector)

Narda SRM-3006 Official Datasheet (Narda Safety Test Solutions): Download PDF

Narda SRM-3006 Datasheet — alternate version (TestEquipmentHQ): Download PDF

Narda SRM-3006 Operating Manual (McGill University hosted PDF): Download PDF

Narda SRM-3006 Product Brochure — When Safety Counts (McGill University hosted PDF): Download PDF

Narda SRM-3006 Command Reference Guide v1.6.2 (Narda STS): Download PDF

Narda SRM-3006 Selective Radiation Meter Brochure (Narda STS): Download PDF
