Condition: Used

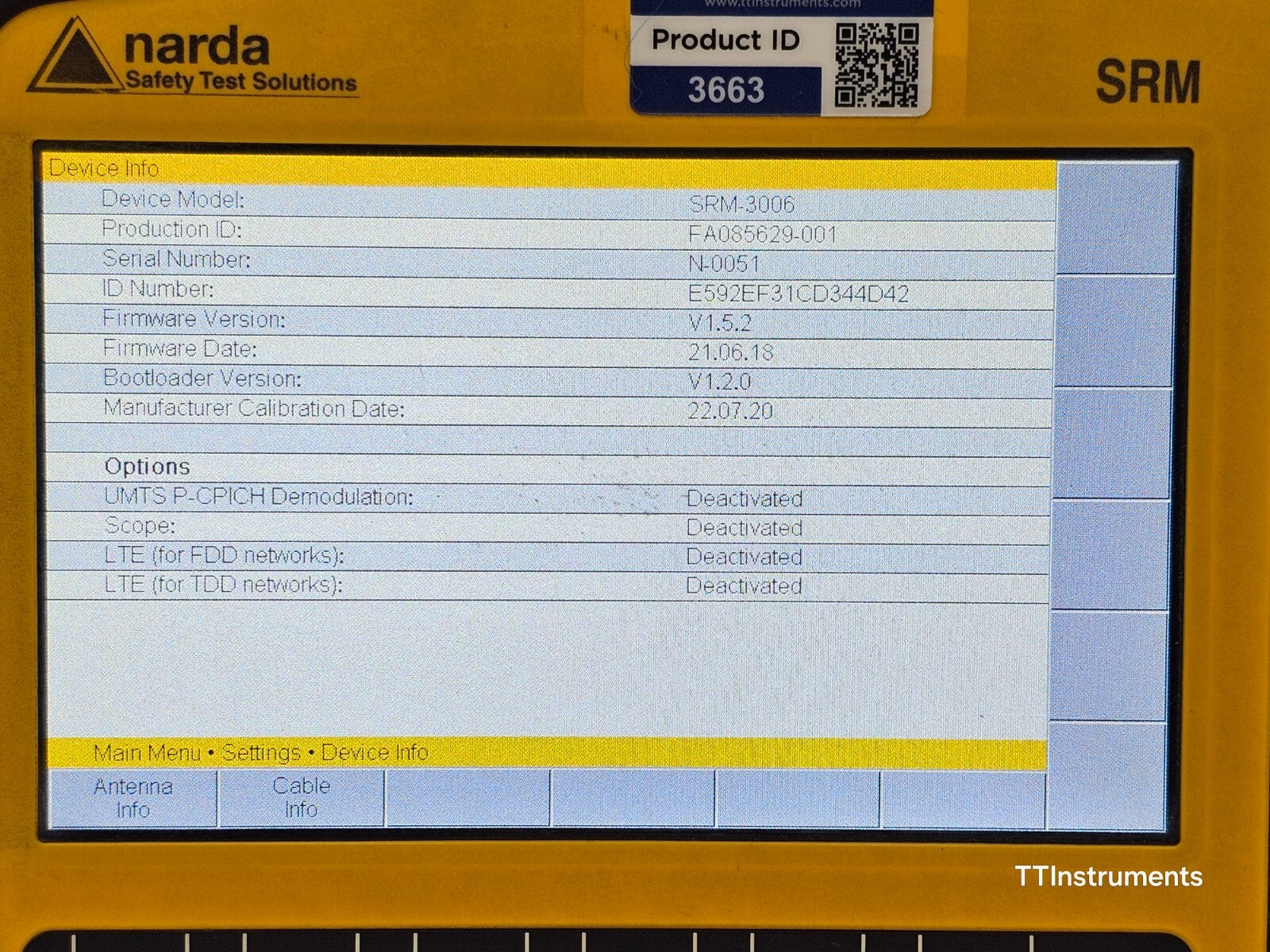

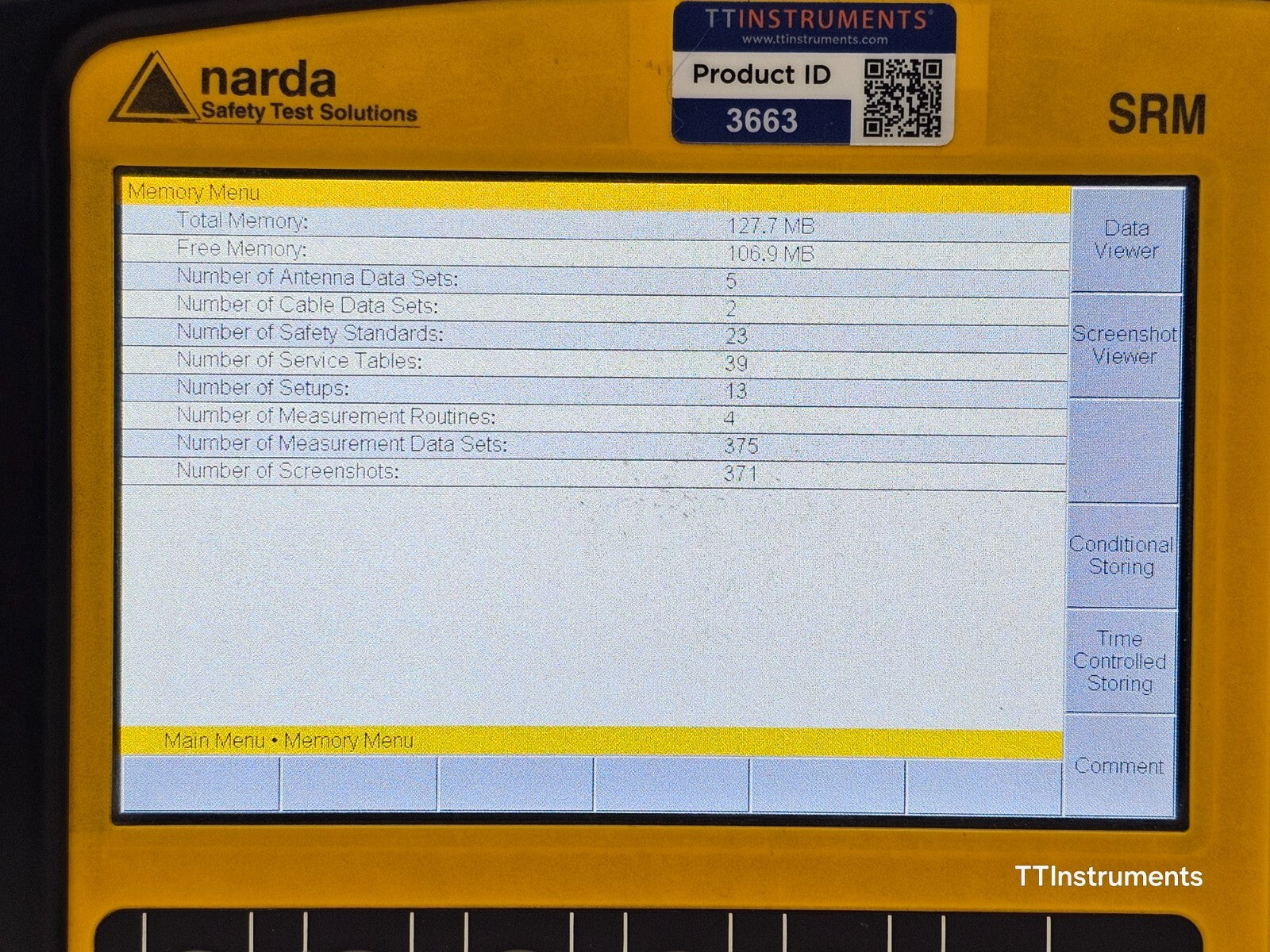

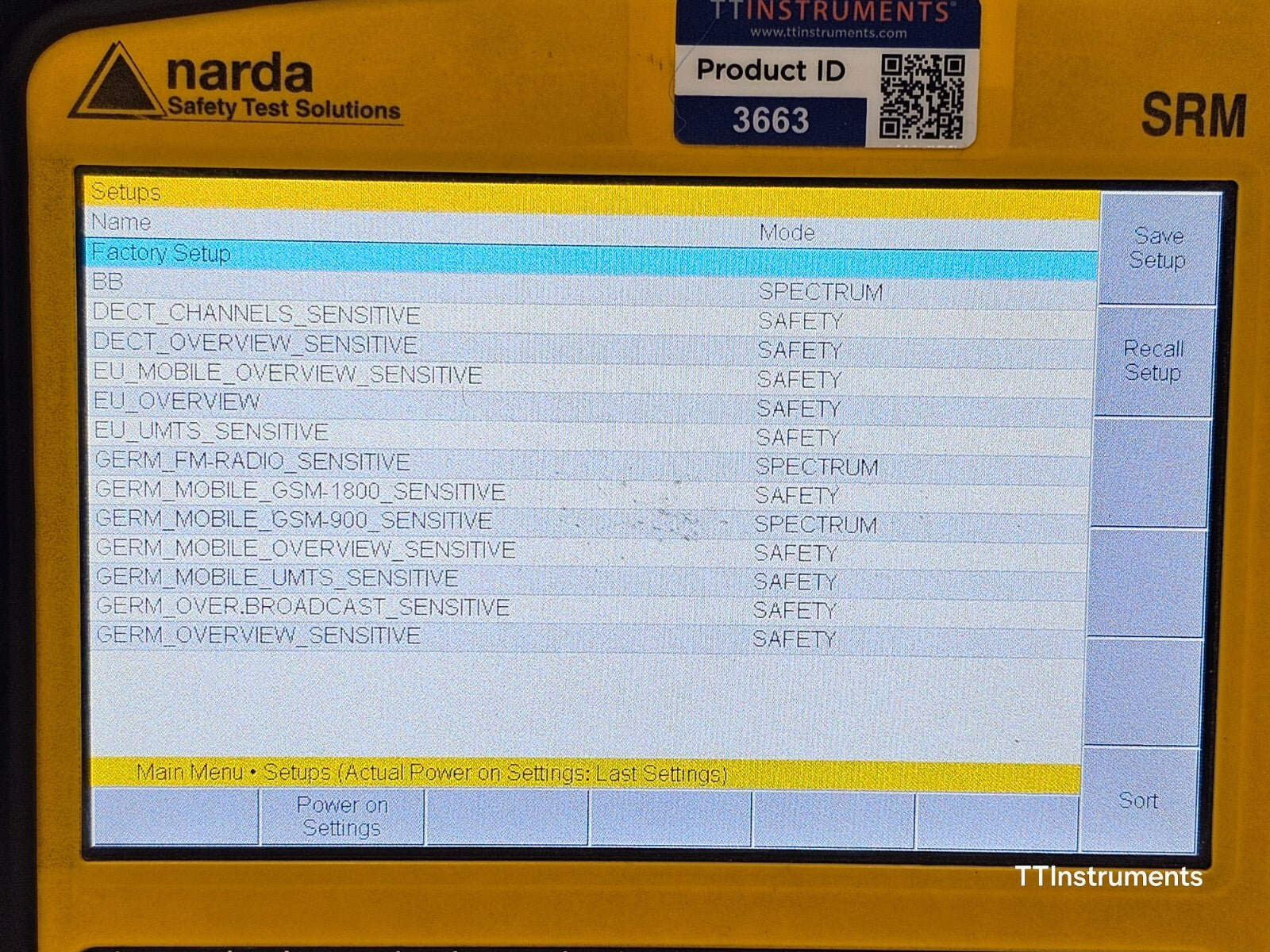

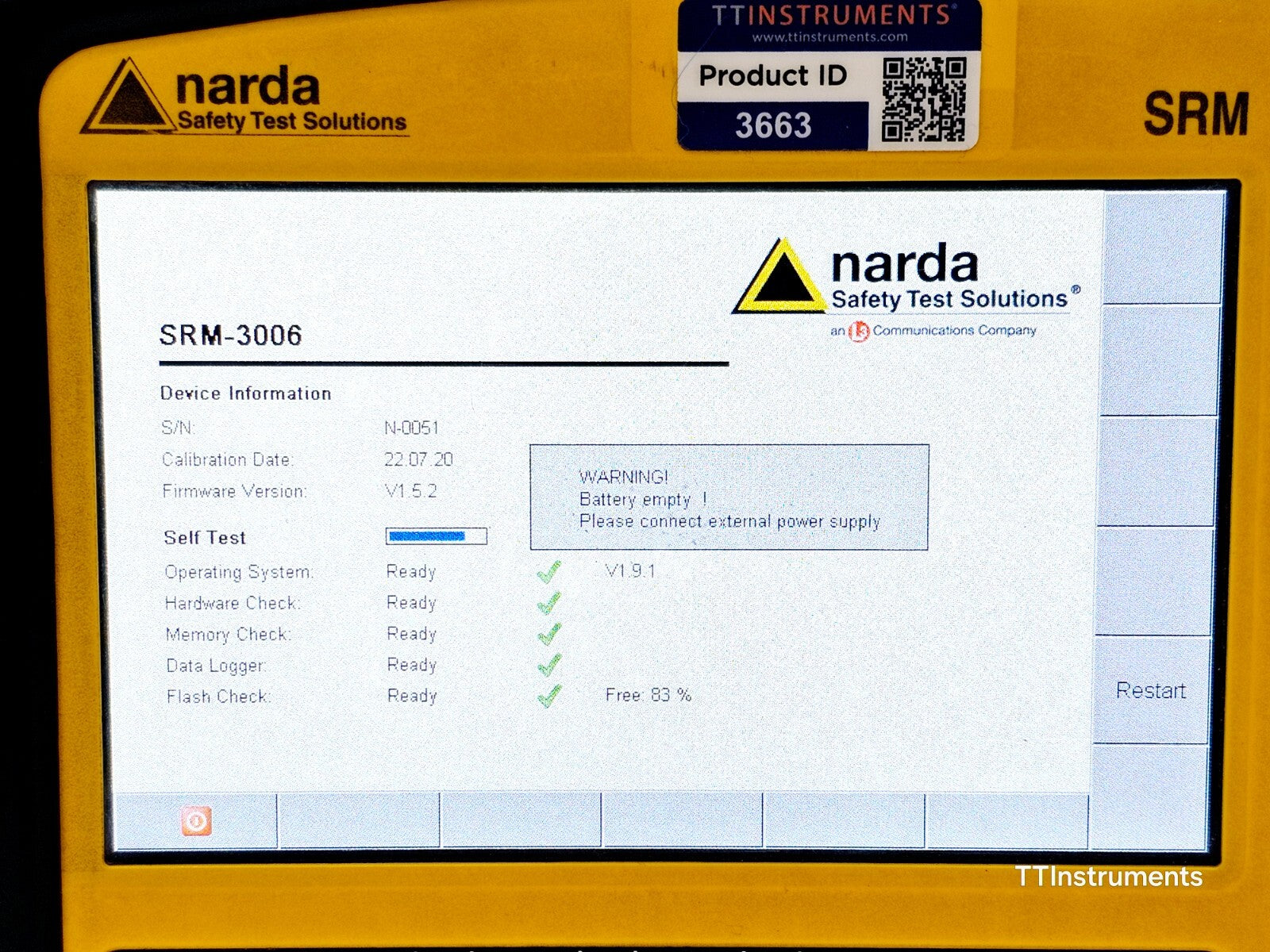

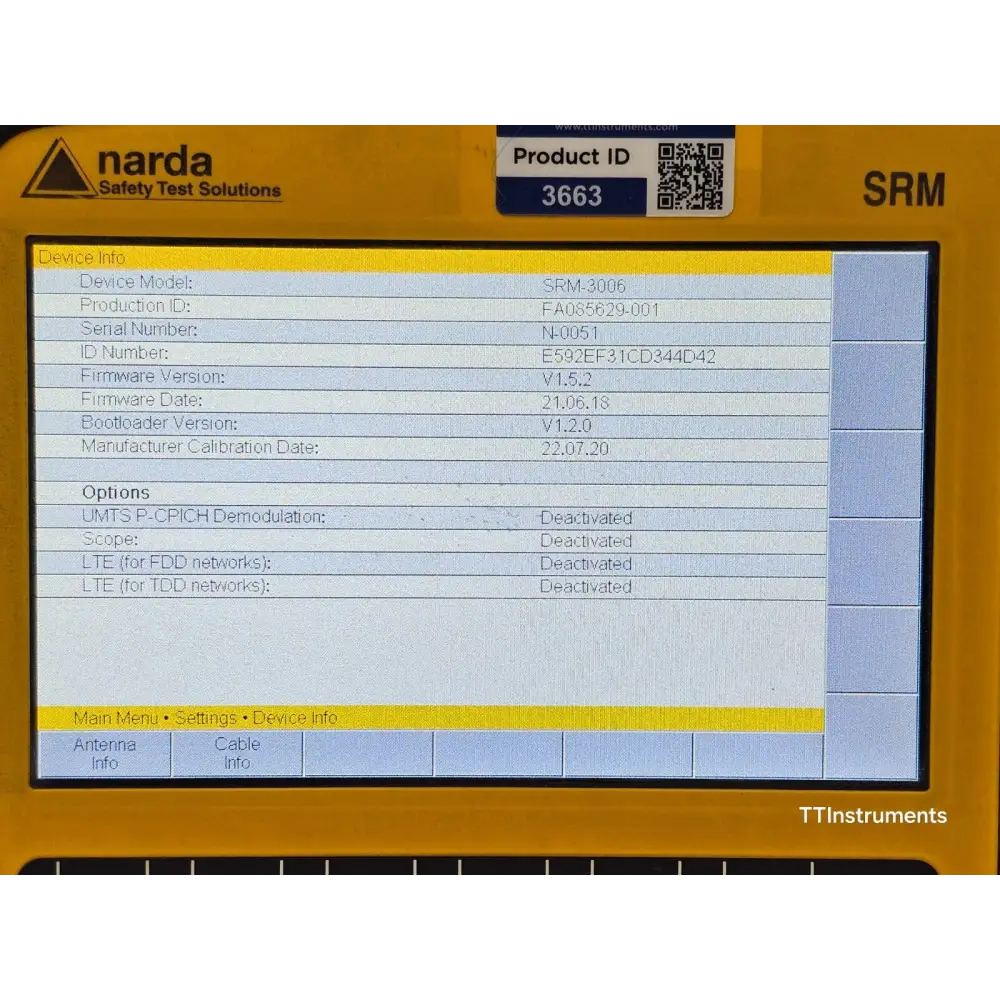

Tested and working Narda SRM-3006 Selective Radiation Meter mainframe (platform 3006/01). Probe is NOT included — mainframe only. Supplied with carry case, RF cable, and power adapter as described below. Please refer to product images for details of active licences on this specific unit.

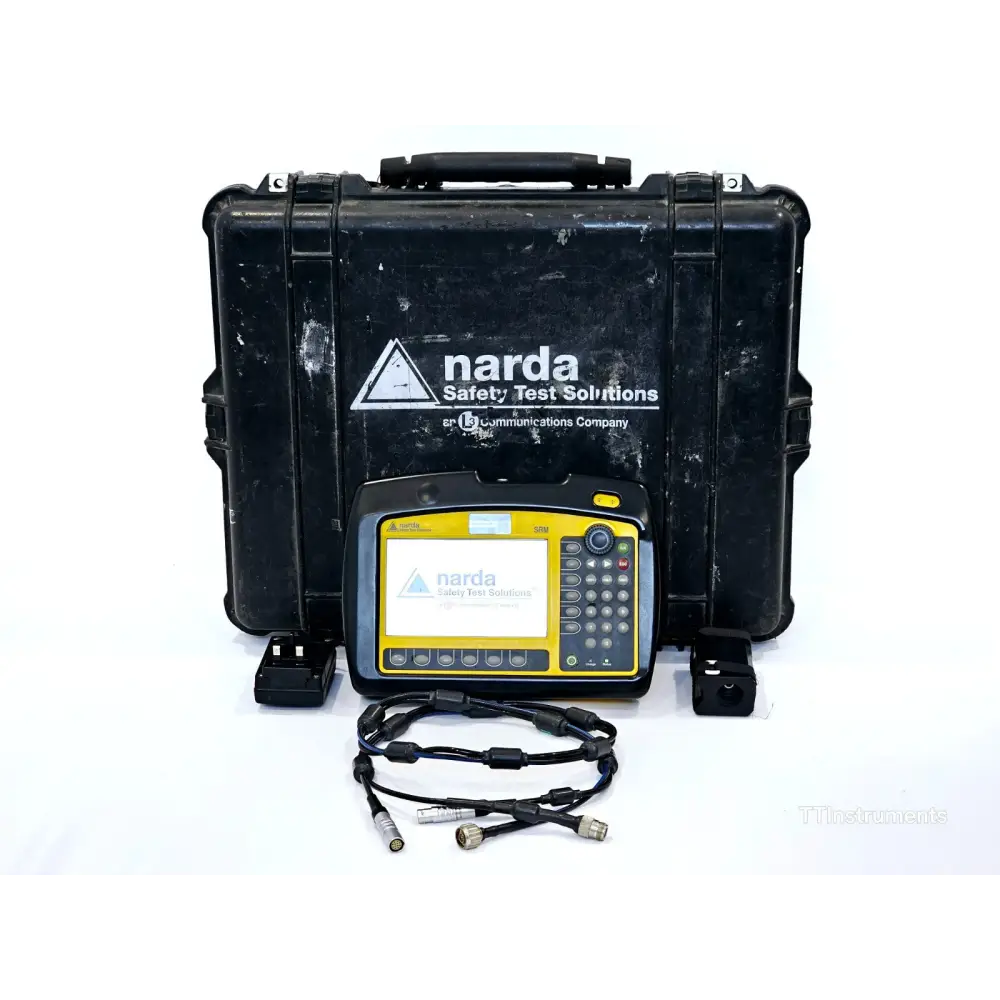

Included in the sale:

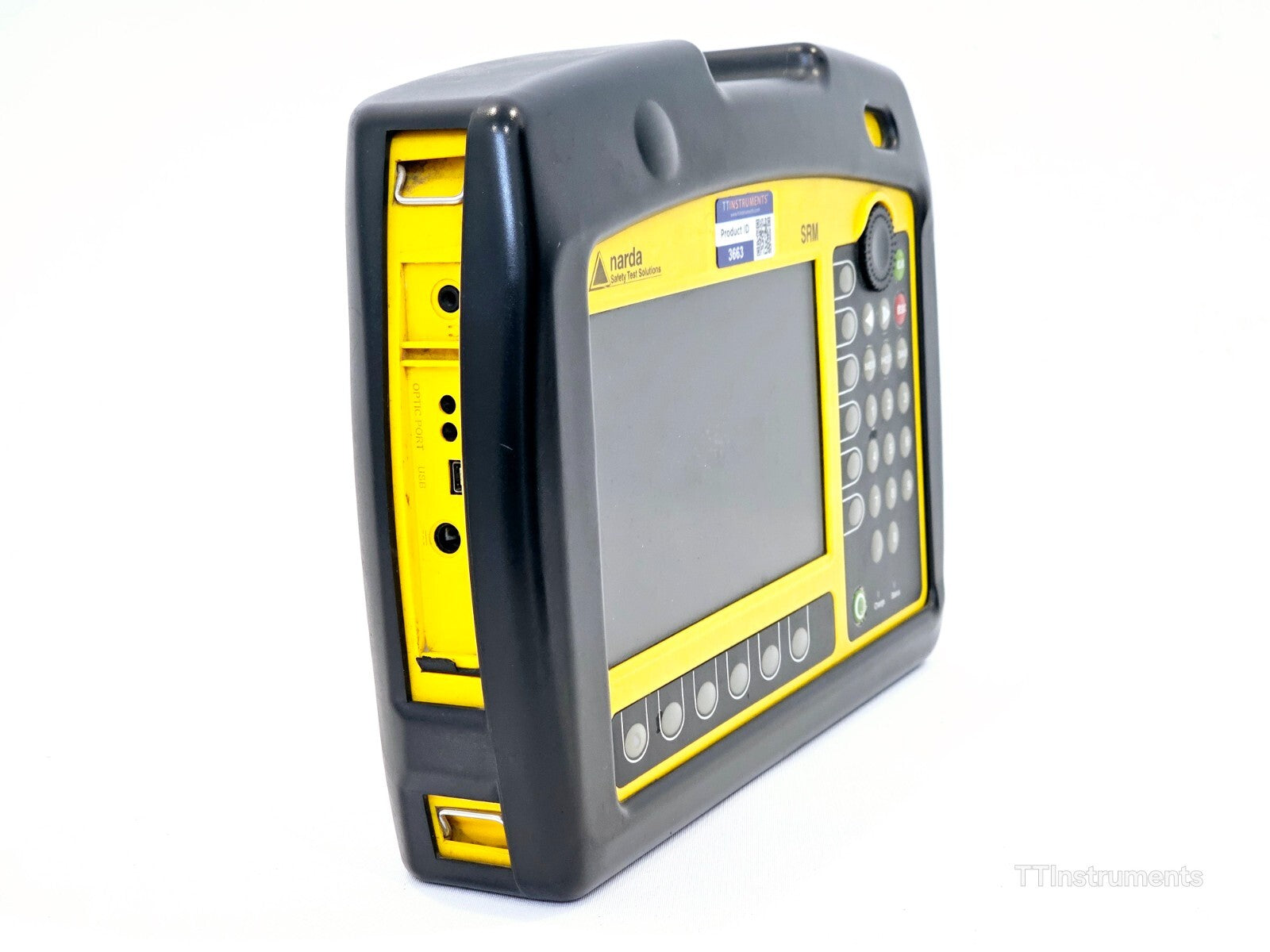

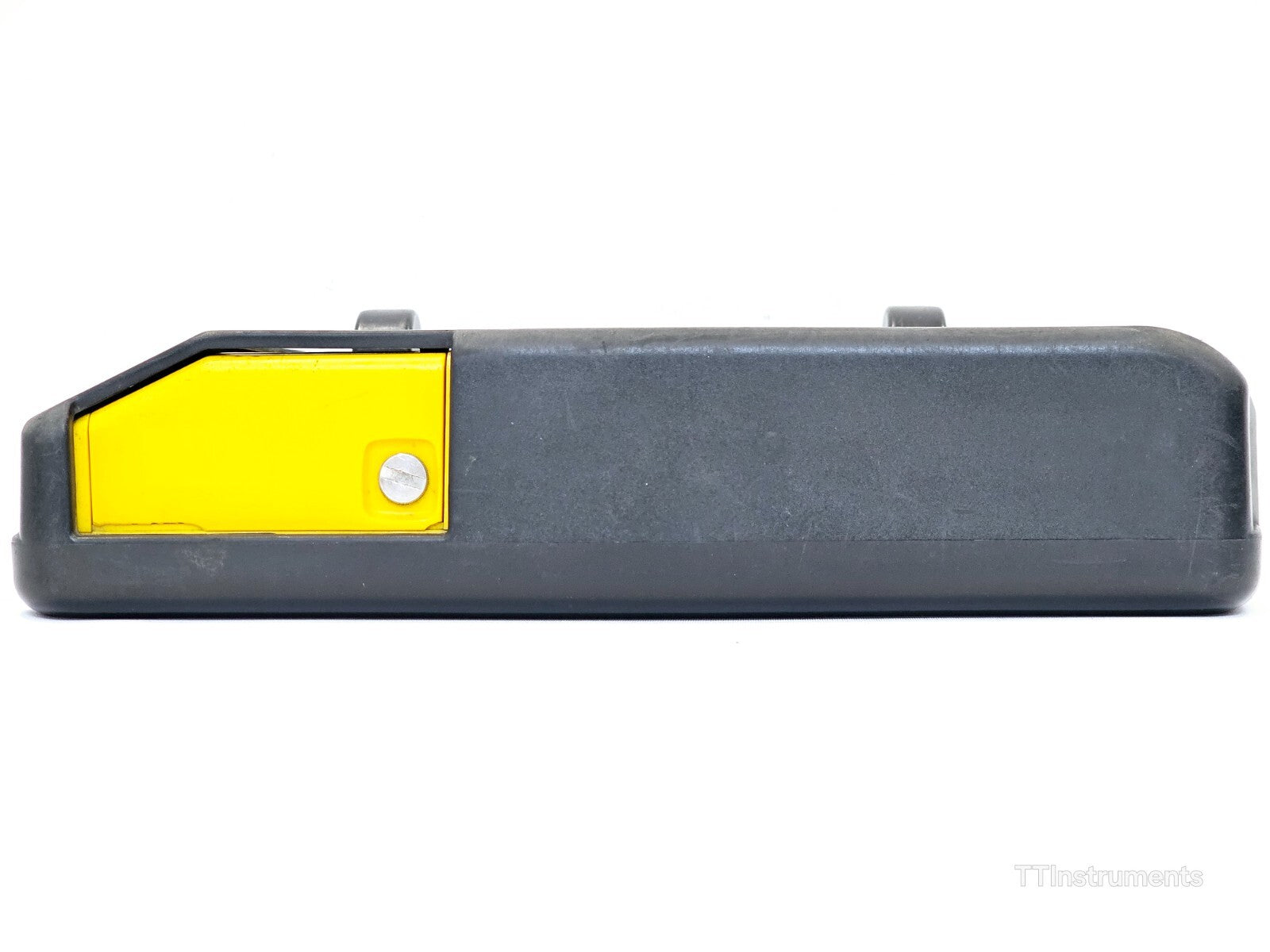

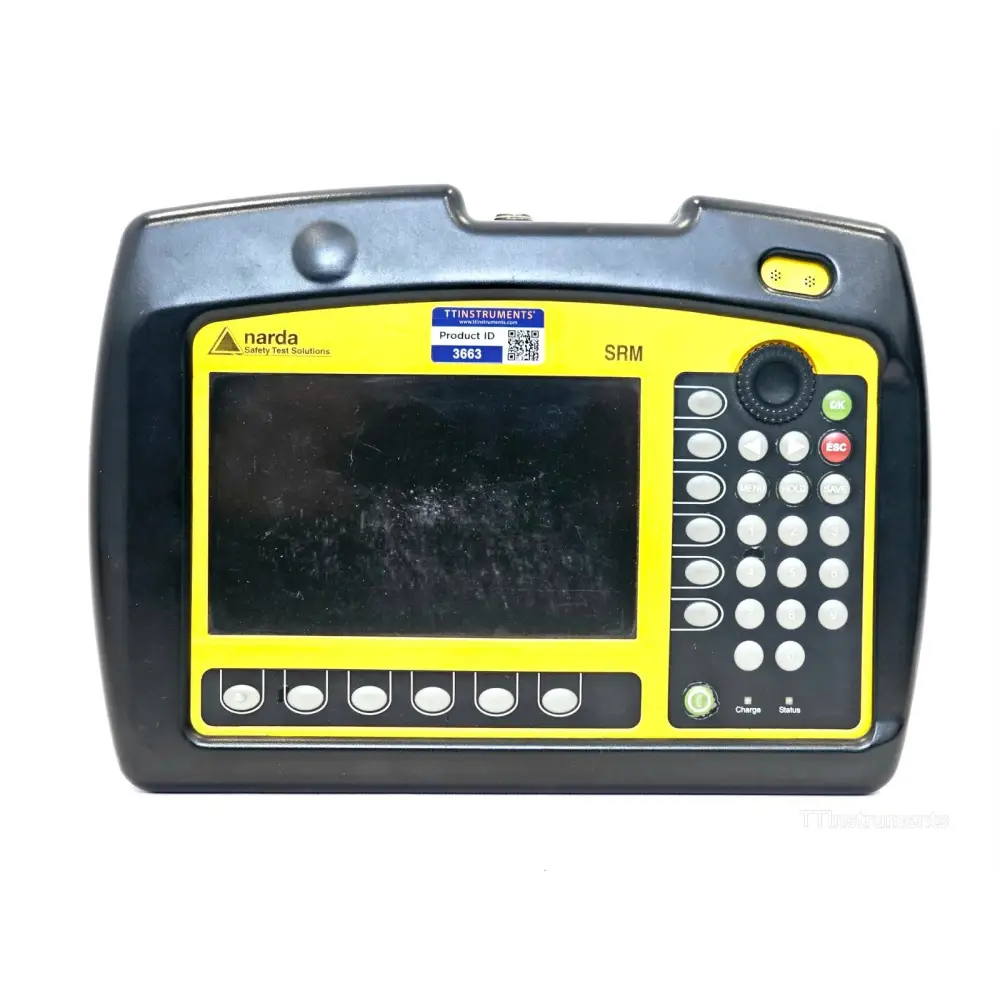

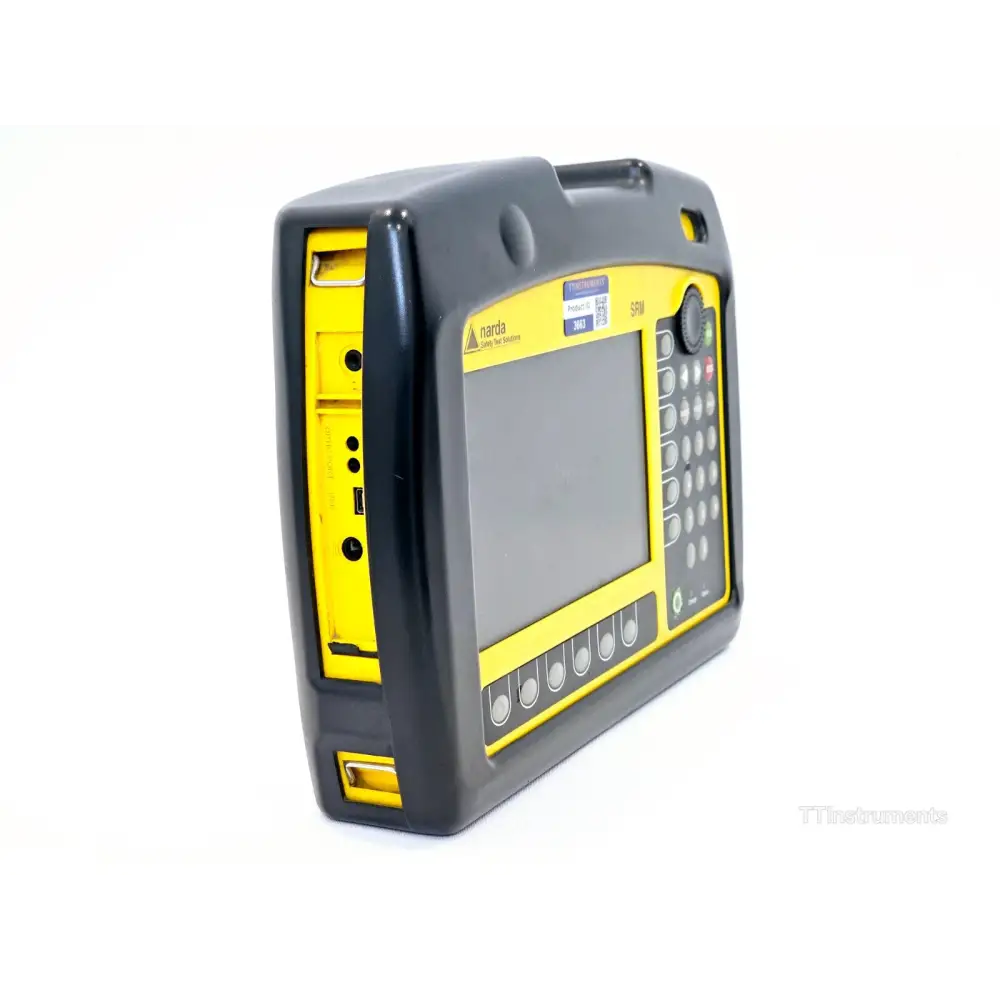

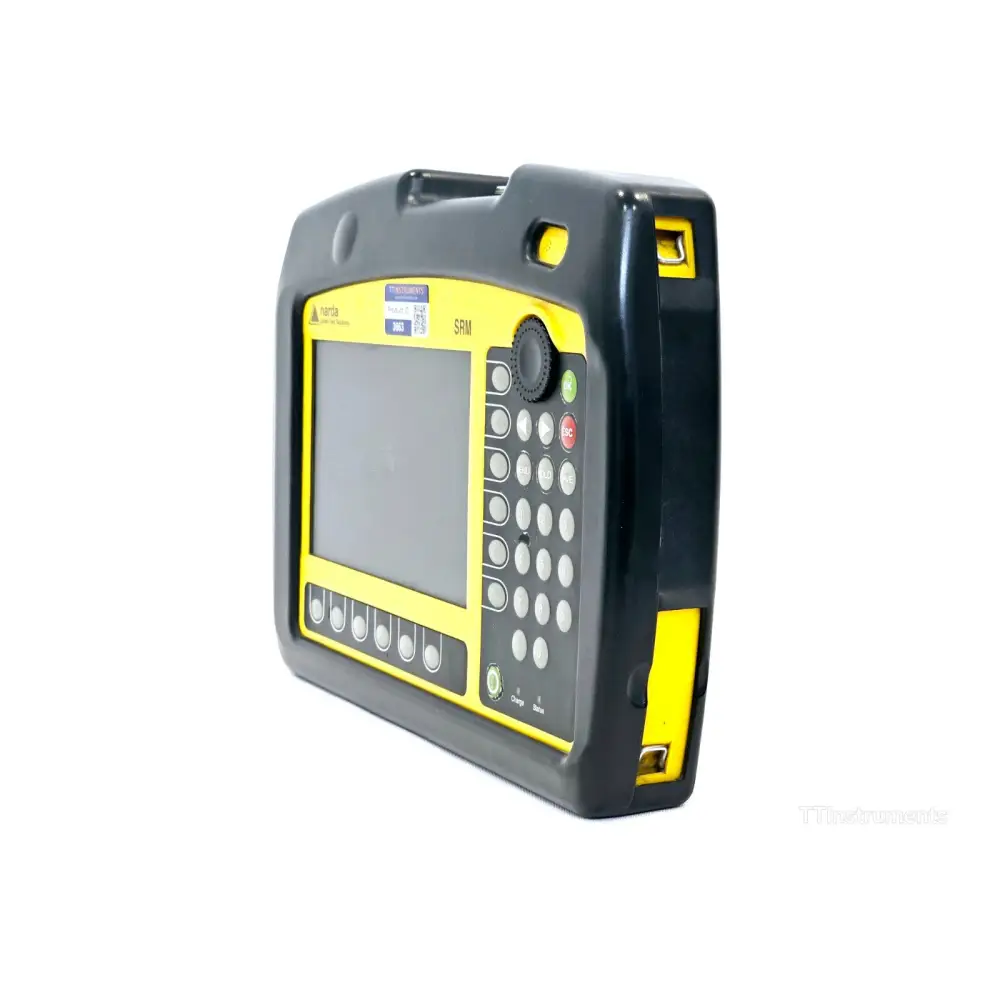

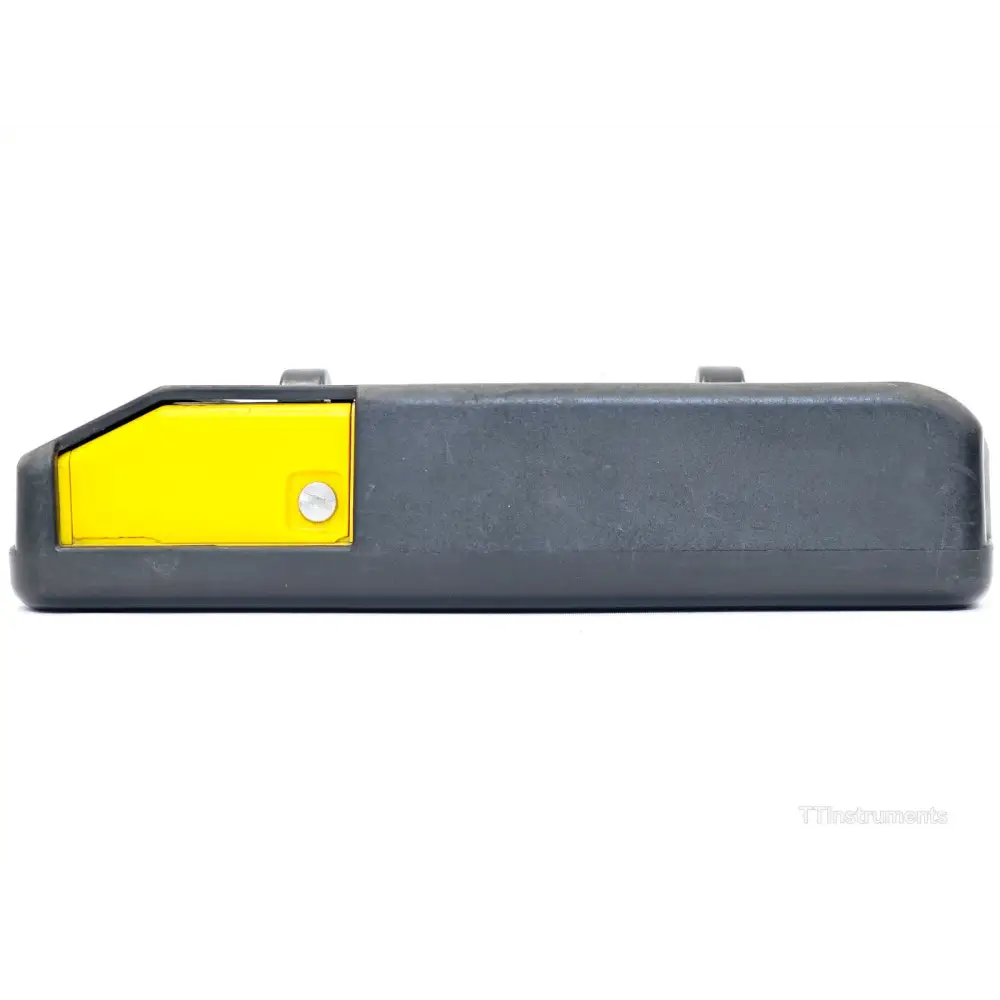

• SRM-3006 Platform (3006/01)

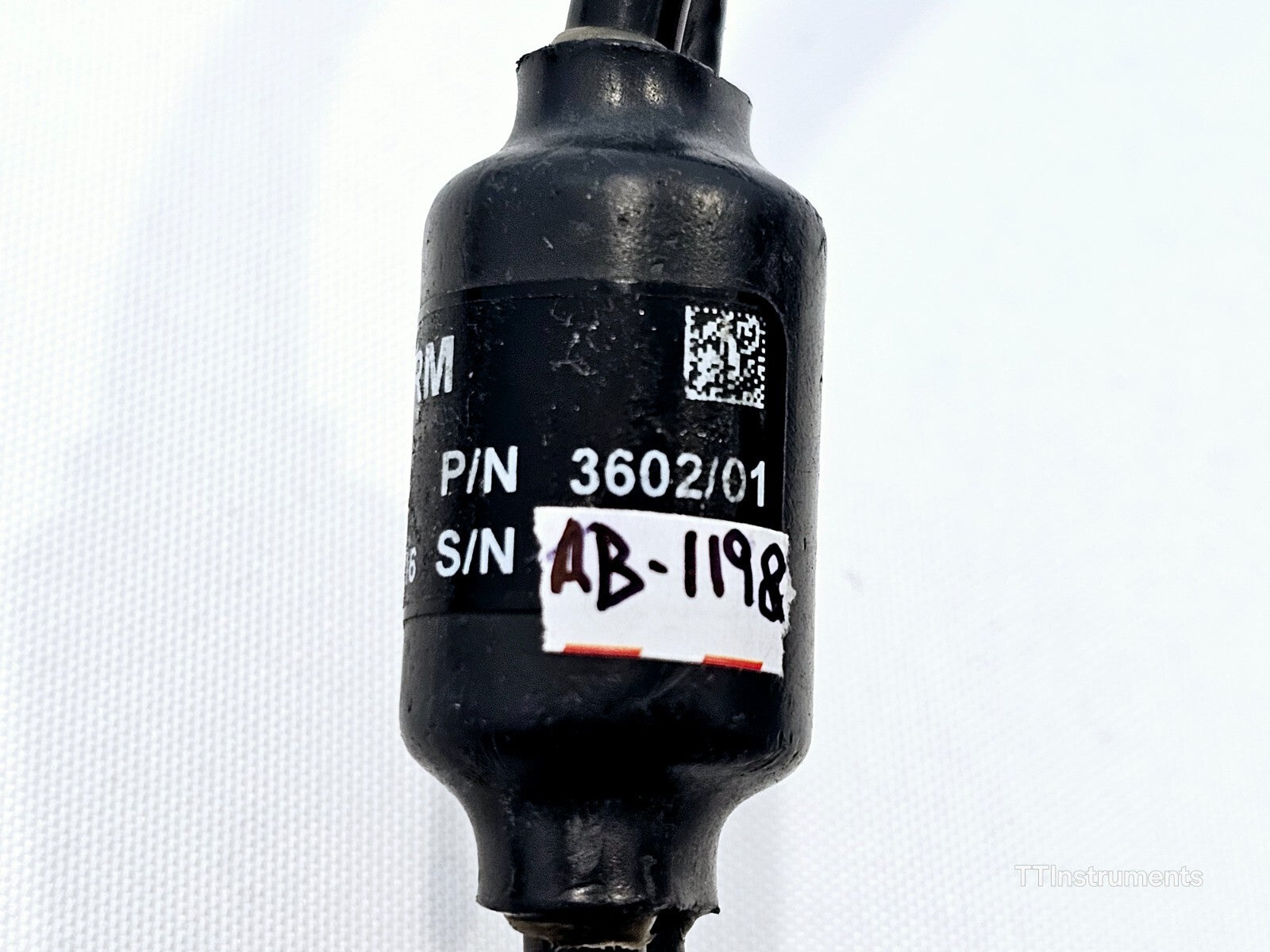

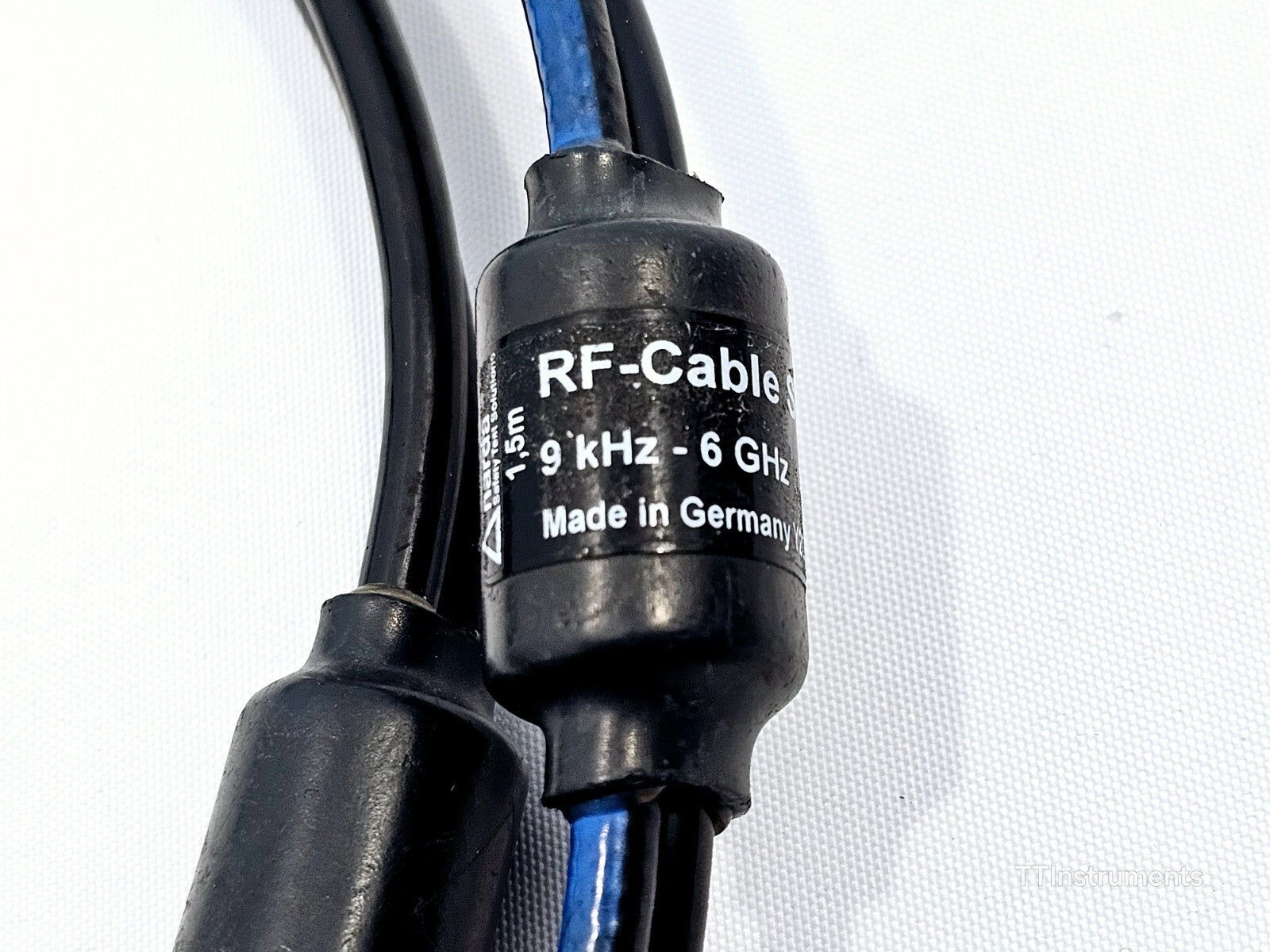

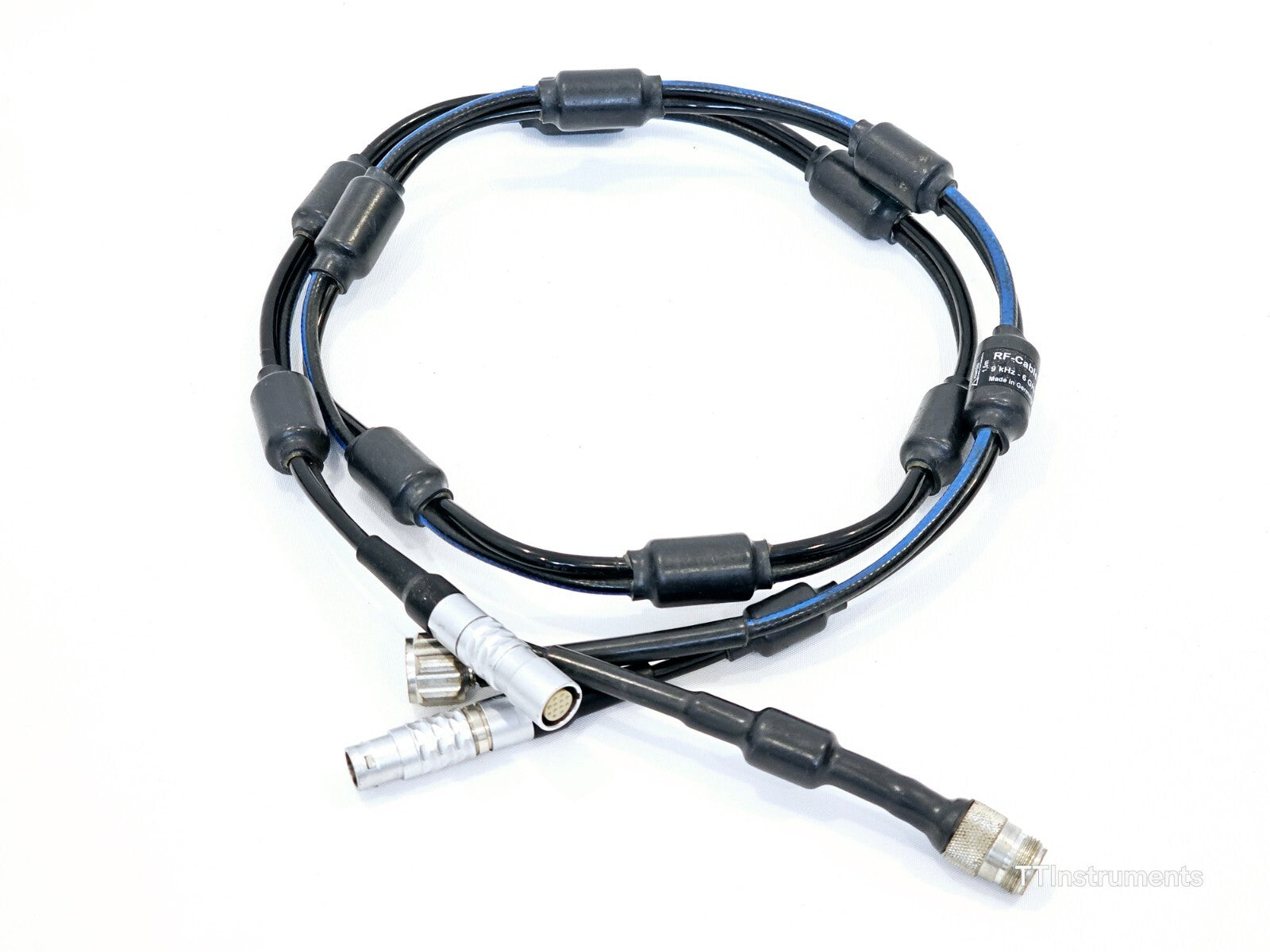

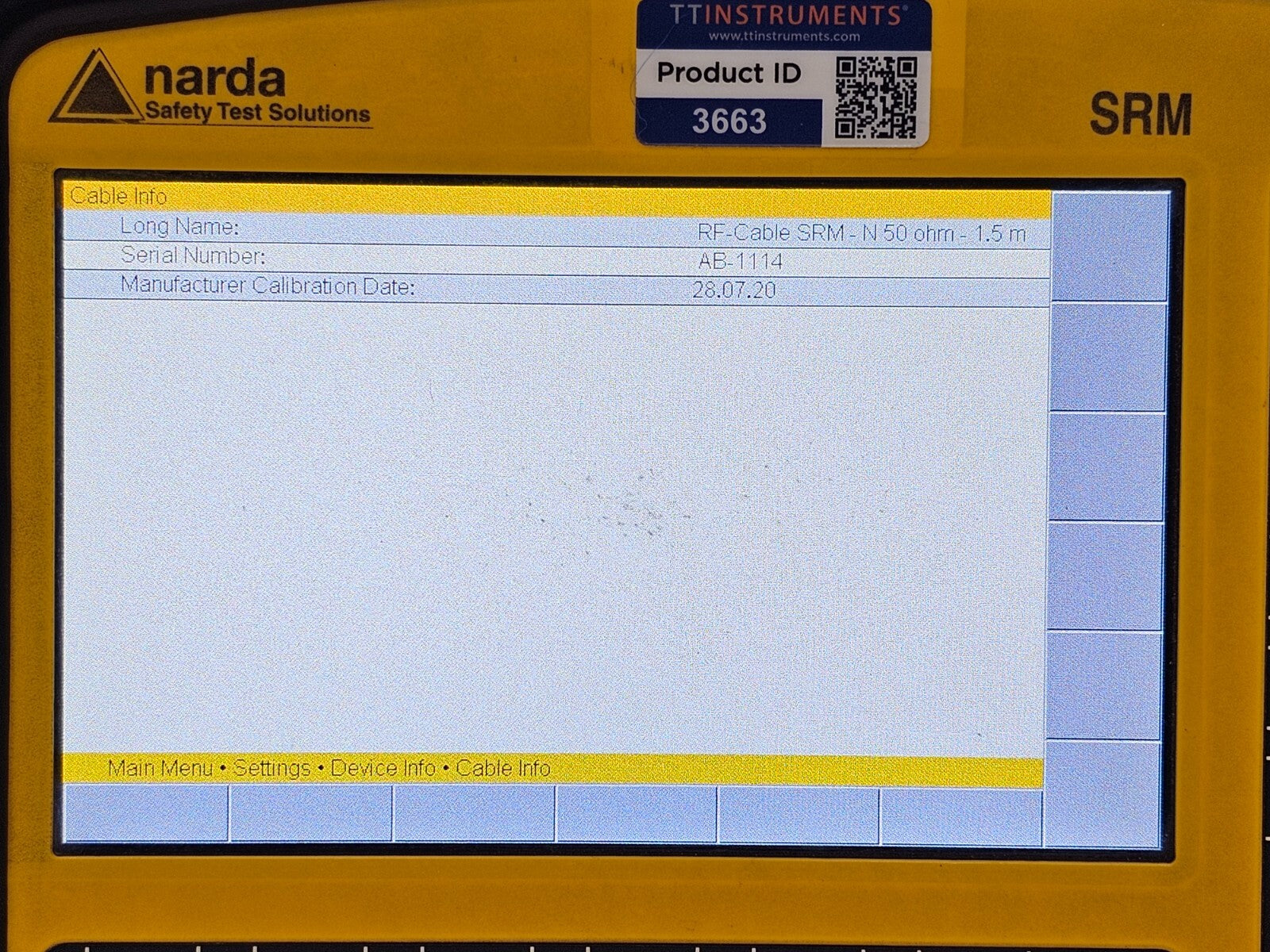

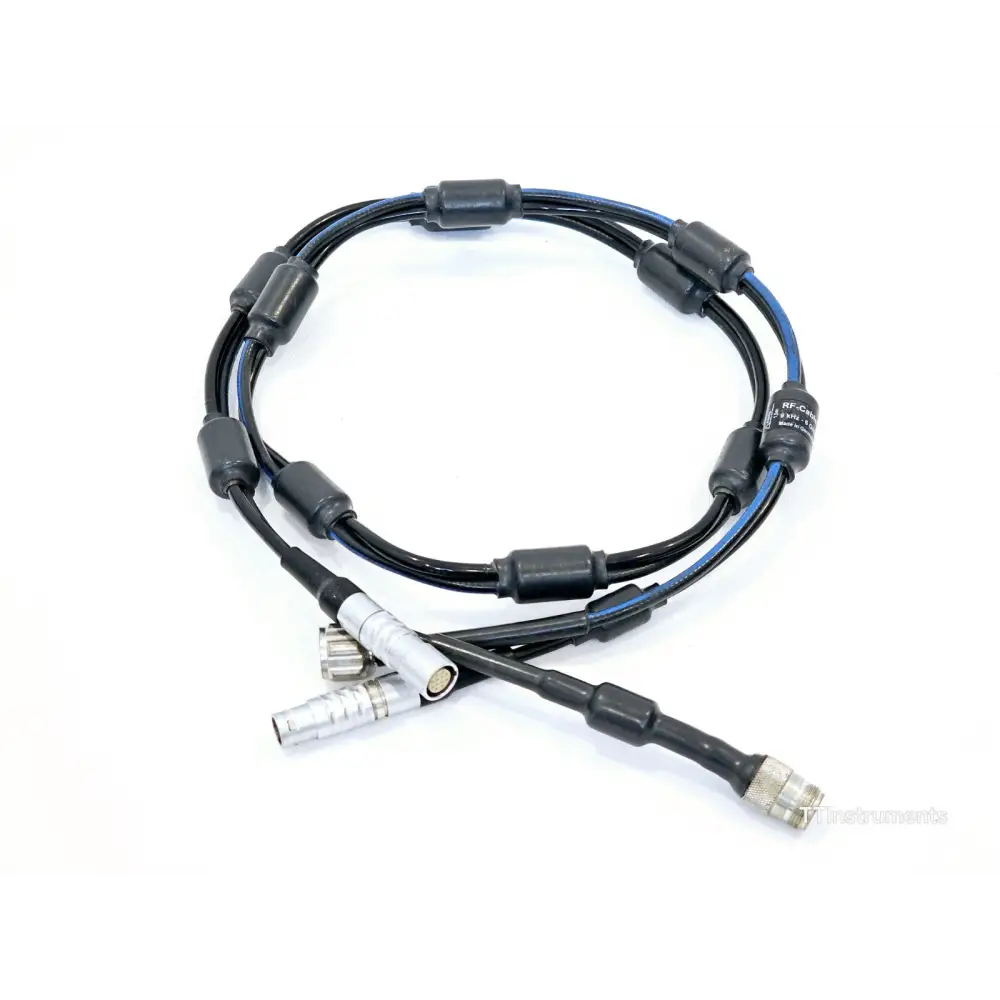

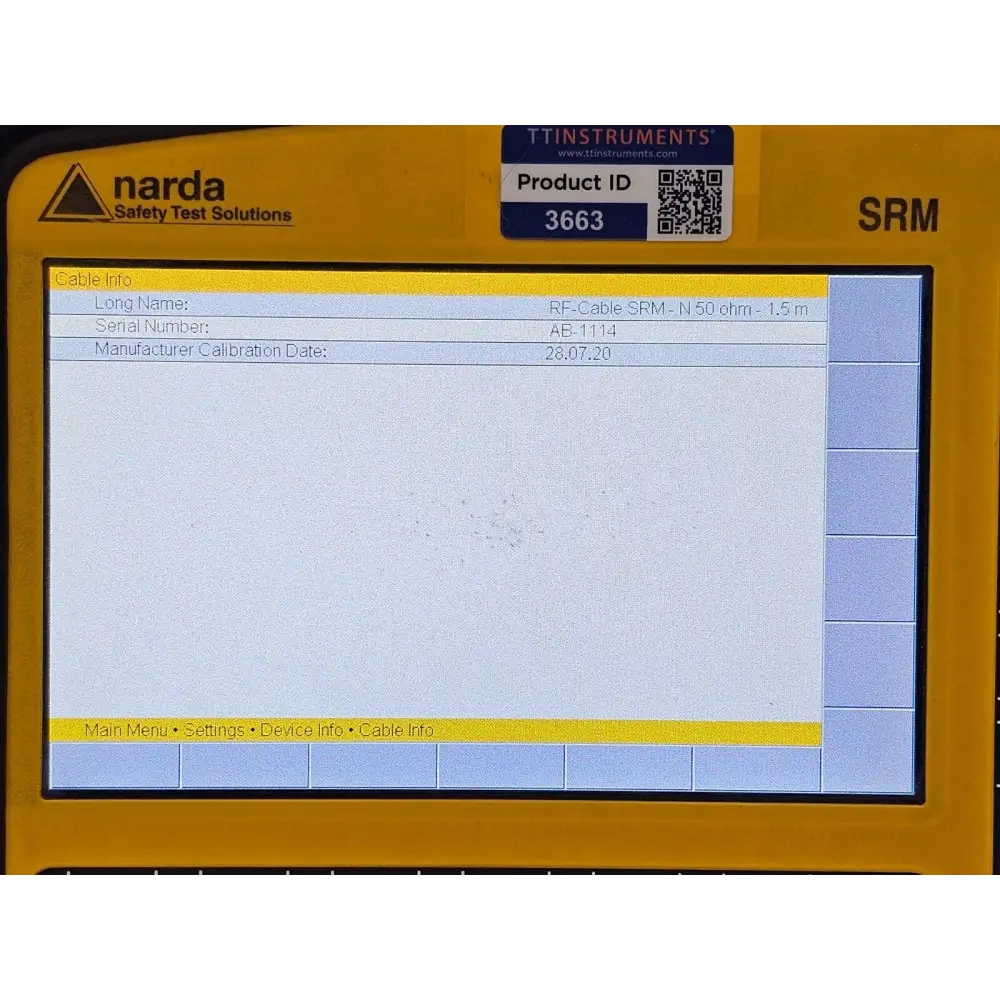

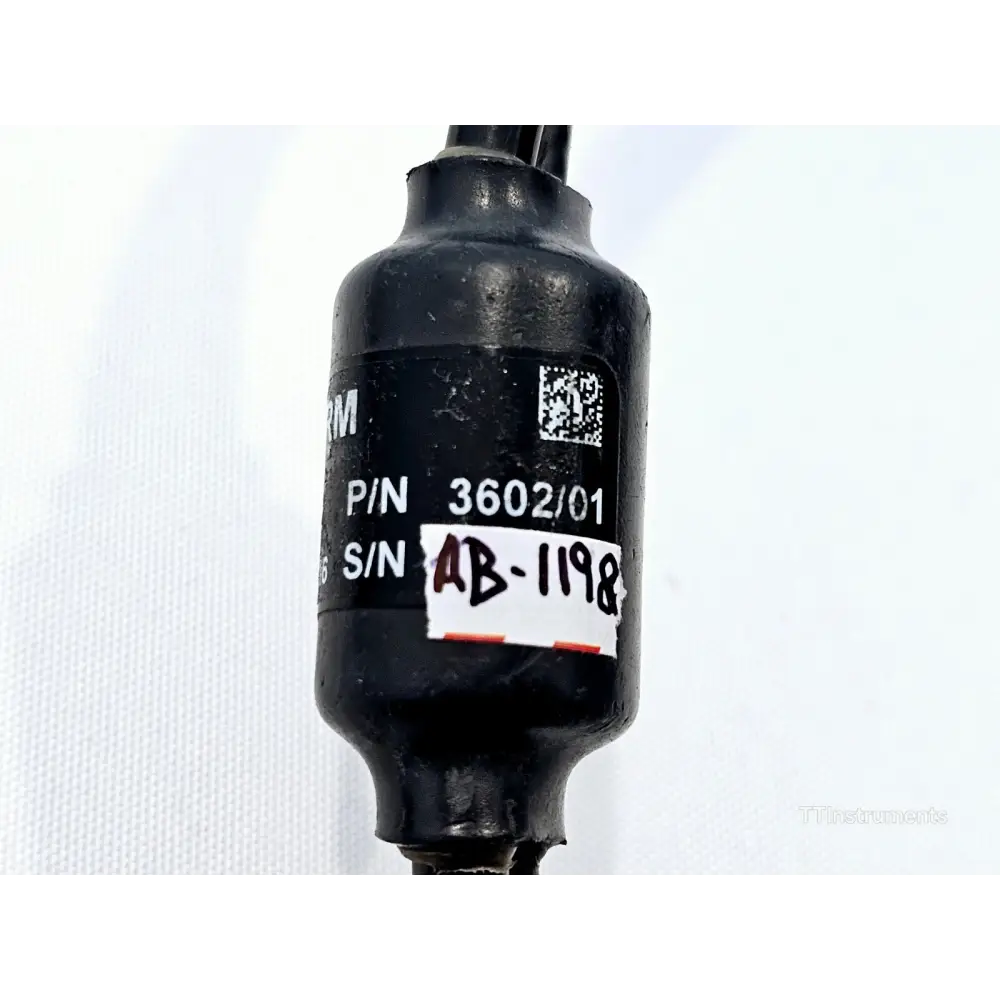

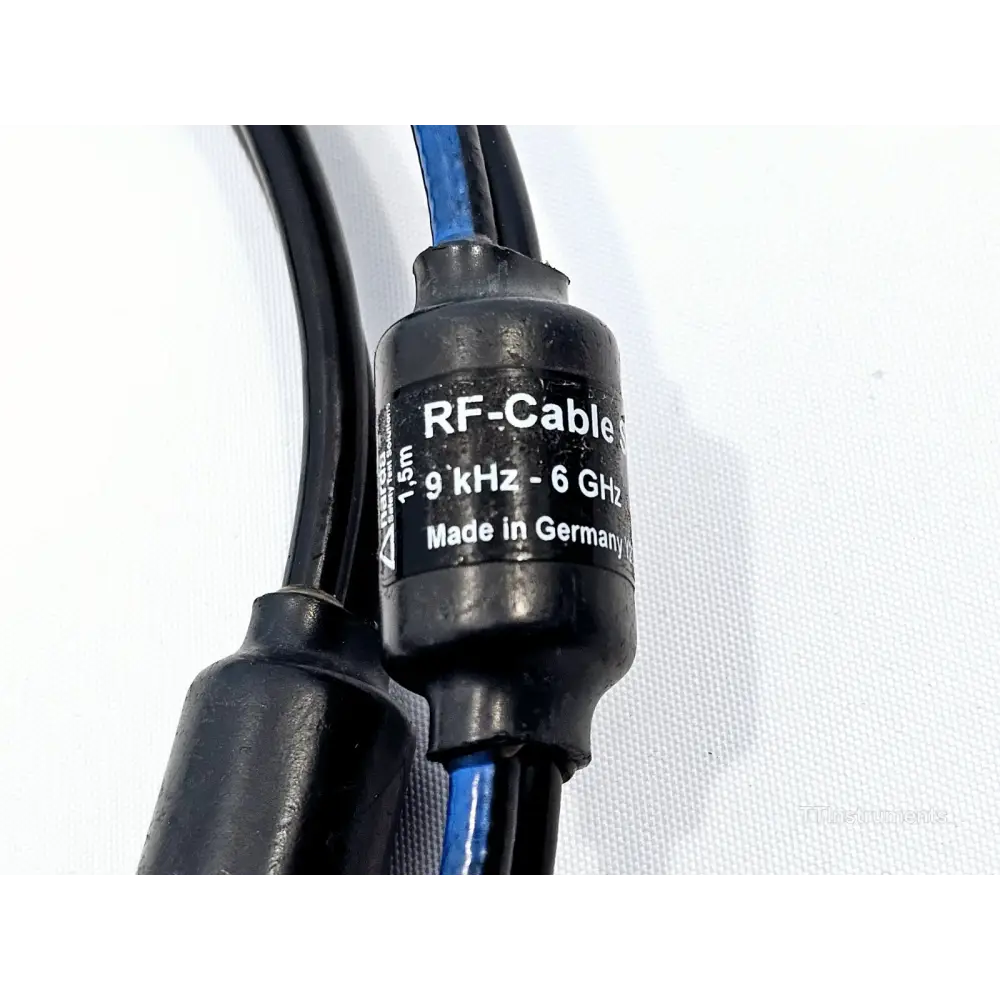

• RF Cable 9 kHz–6 GHz, 1.5 m (3602/01)

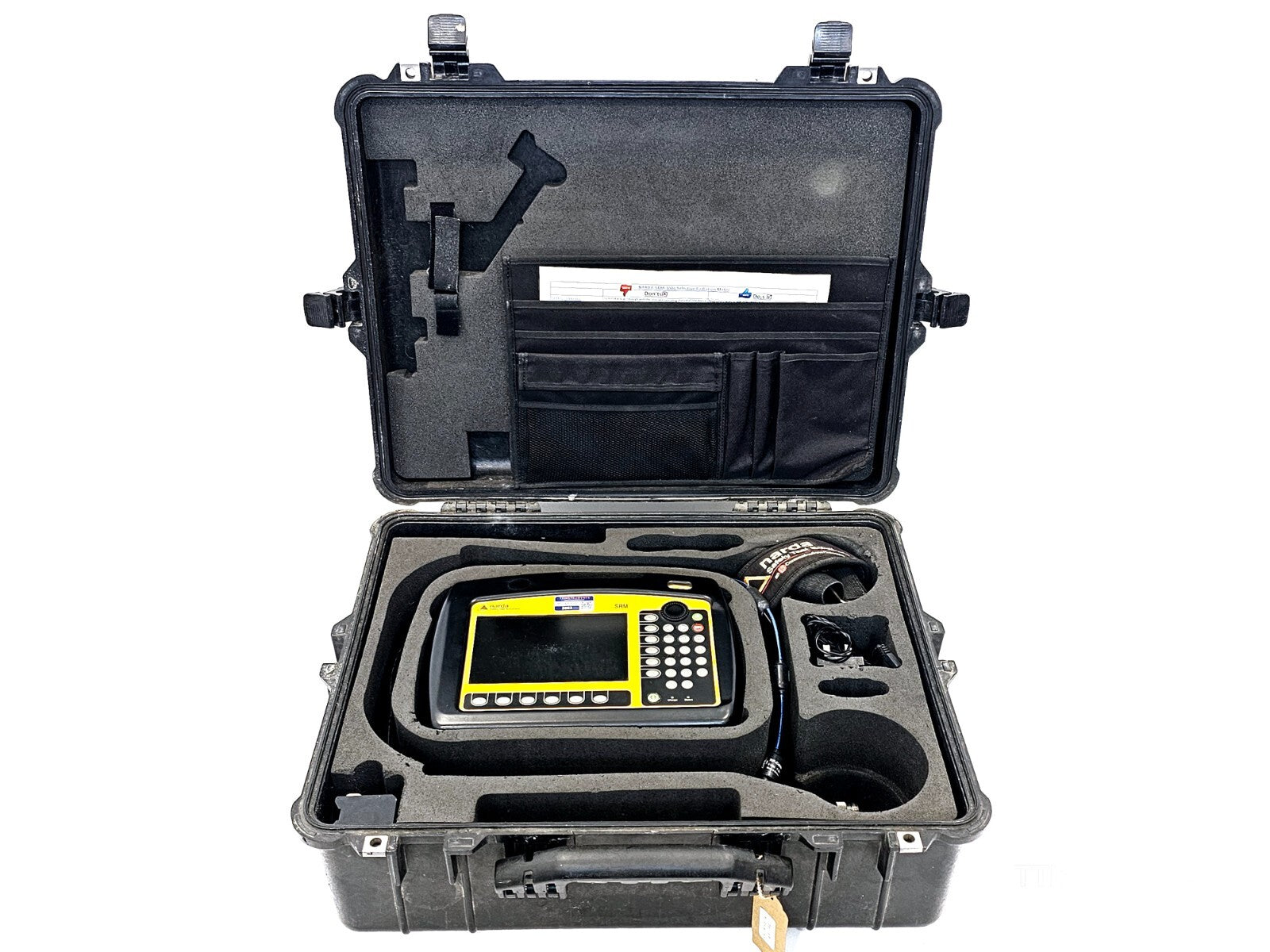

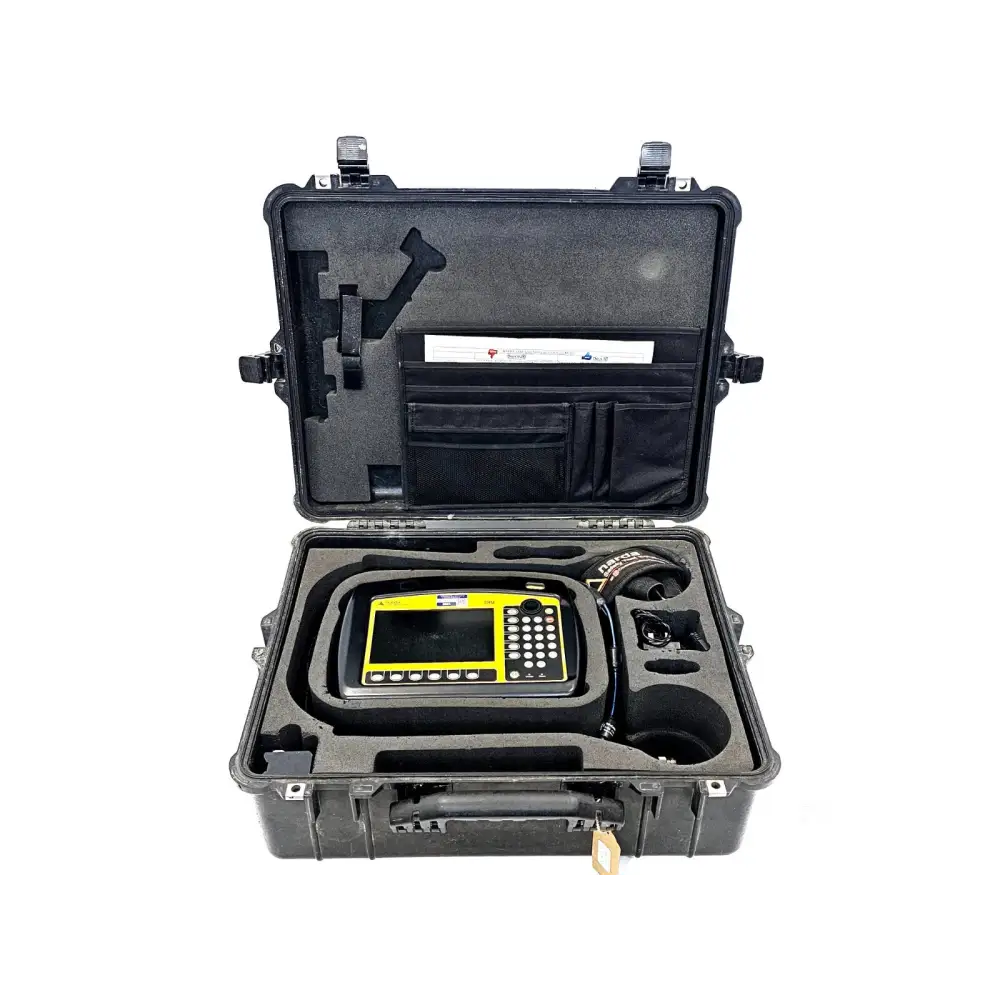

• Carry Case
• Power Adapter 12 VDC, 100 V–240 VAC

The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective measuring system from Narda Safety Test Solutions, designed for safety analysis and environmental measurements of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and has become the established standard instrument for EMF compliance and safety assessment tasks in the field.

The SRM-3006 provides operating modes tailored to each application, covering individual transmission channels and separate services including analogue/digital radio (TV, DVB-T, DAB), cellular radio (GSM, UMTS, LTE), and wireless (WLAN, WiMAX). Results are displayed as field strength, power density, or directly as a percentage of the permitted limit value in accordance with international standards such as ICNIRP and FCC. The instrument automatically evaluates exposure against human safety standards, eliminating error-prone manual calculations.

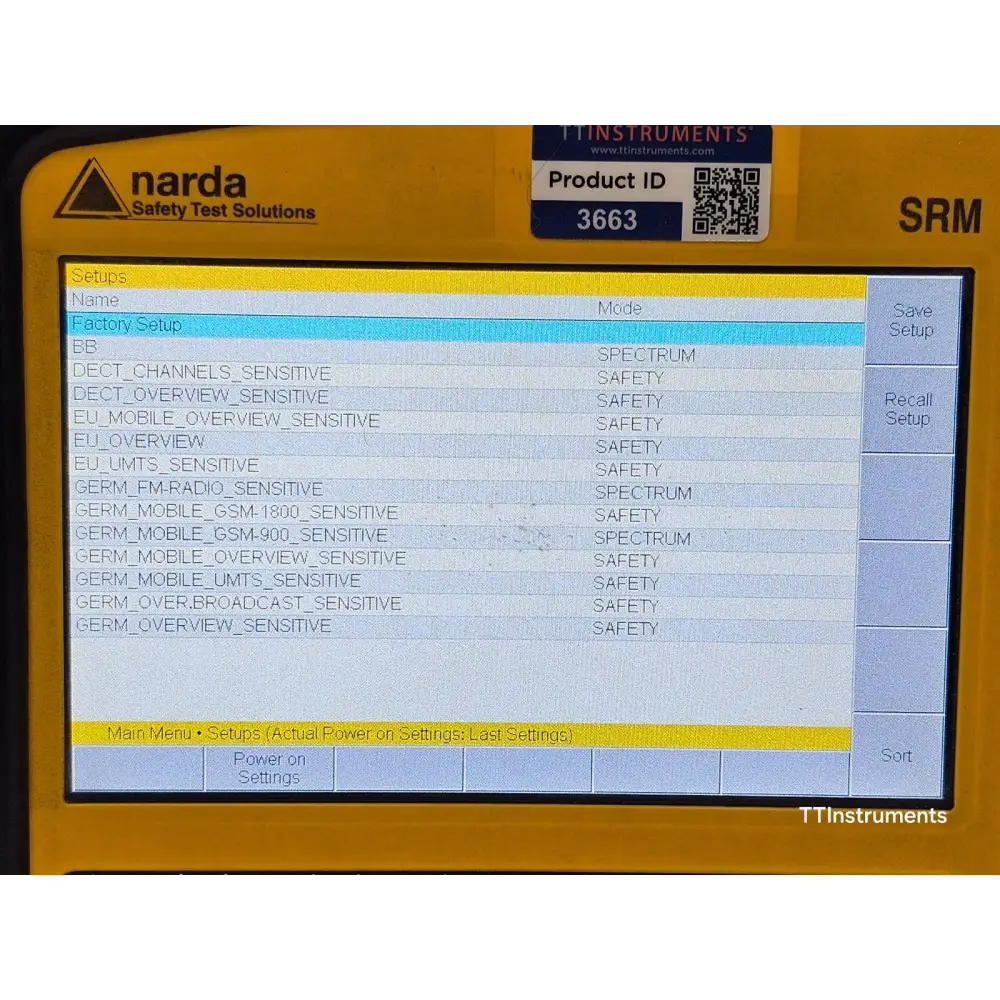

Key features include frequency-selective measurement down to individual radio channels, isotropic (direction-independent) measurement with compatible triaxial antennas, programmable measurement routines for reproducible results, long-term monitoring capability up to 99 hours, and real-time 'Scope' mode with microsecond resolution for capturing pulsed and radar signals. The basic unit is irradiation-proof up to 200 V/m, robust, and splash-proof for demanding outdoor use. Integrated GPS and voice recorder support on-site documentation, and replaceable rechargeable batteries allow all-day operation in the field.

Optional software licences extend functionality to include UMTS P-CPICH demodulation, LTE-FDD, LTE-TDD, 5G NR code-selective measurement (FR1), and oscilloscope-style Scope mode.

Frequency Range: 9 kHz to 6 GHz (basic unit)
Resolution Bandwidth (RBW): Up to 32 MHz

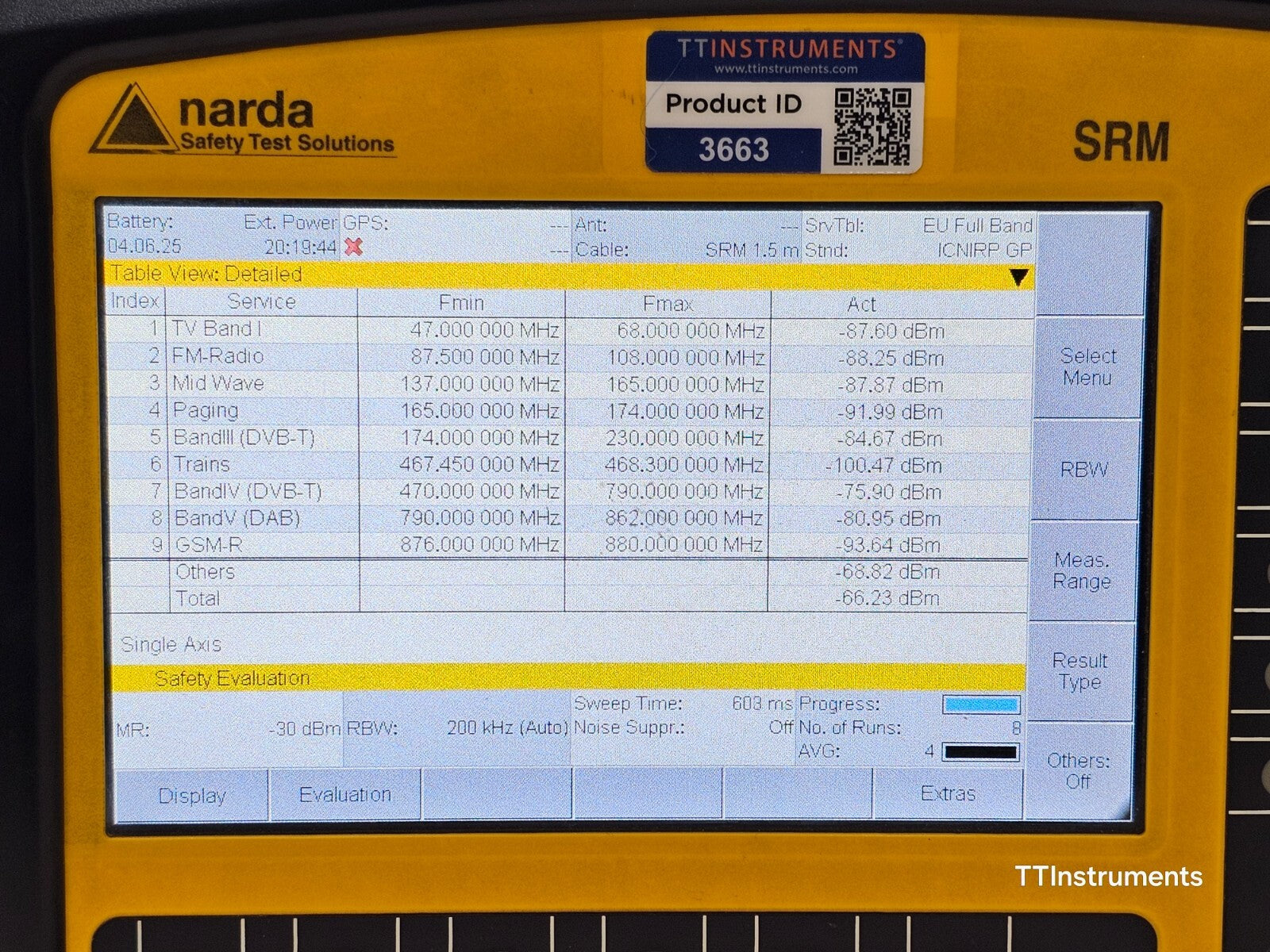

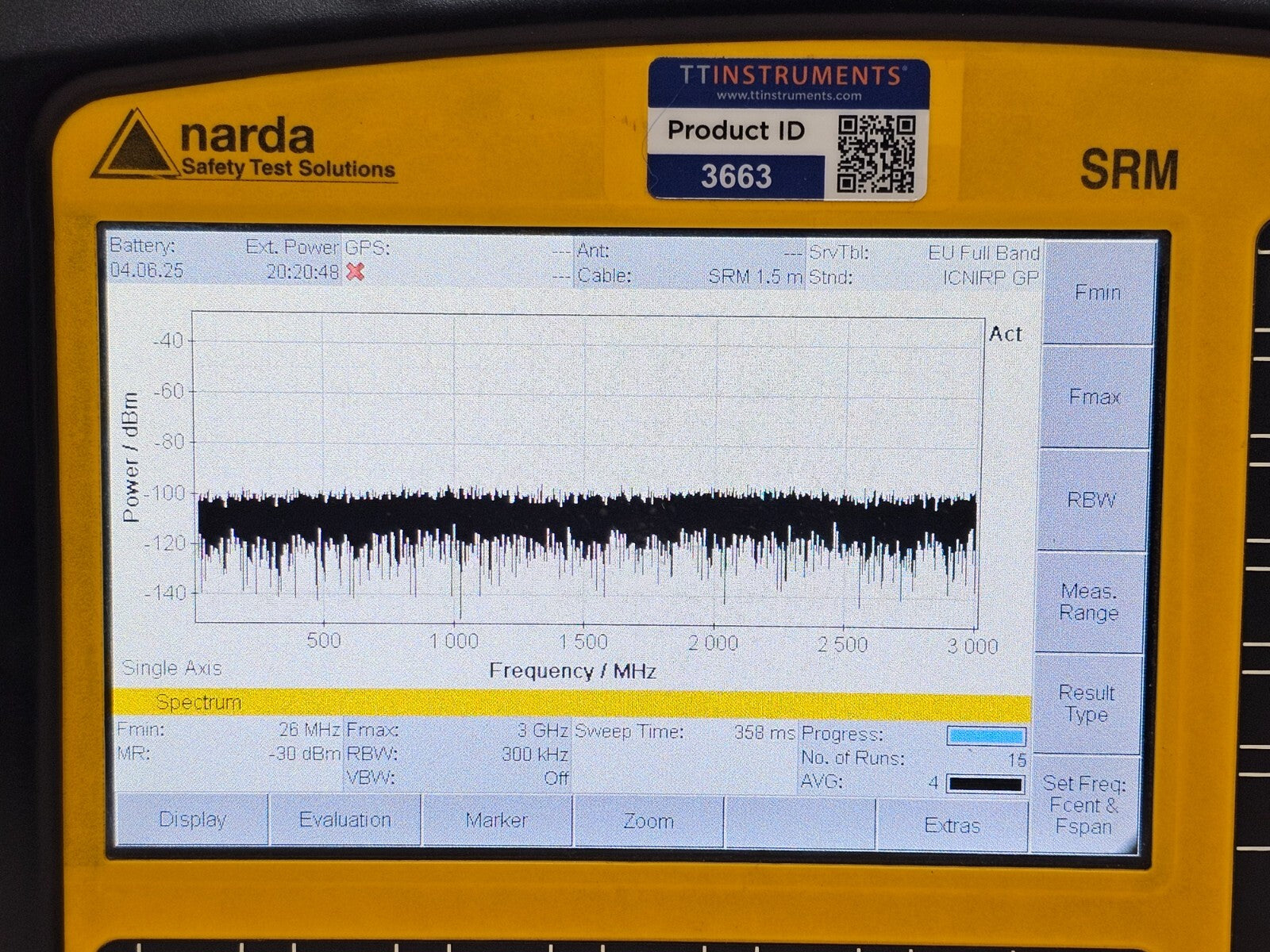

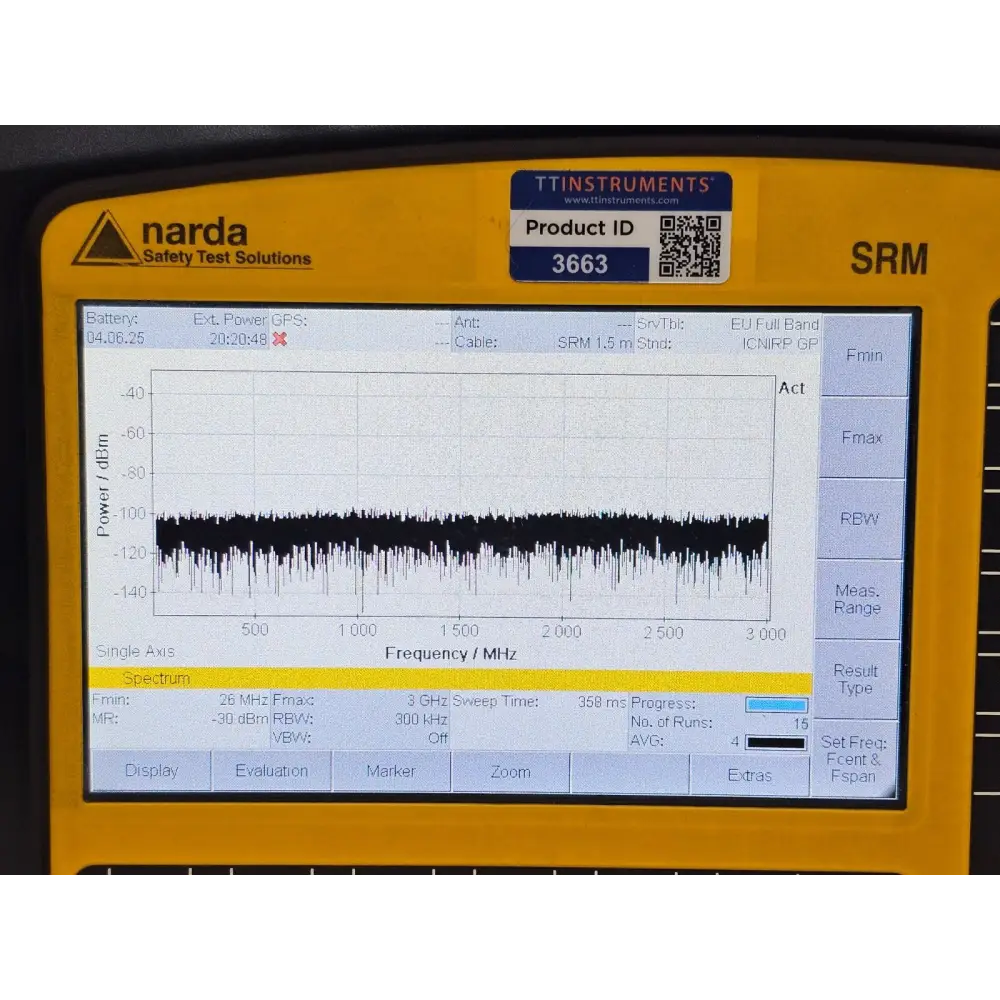

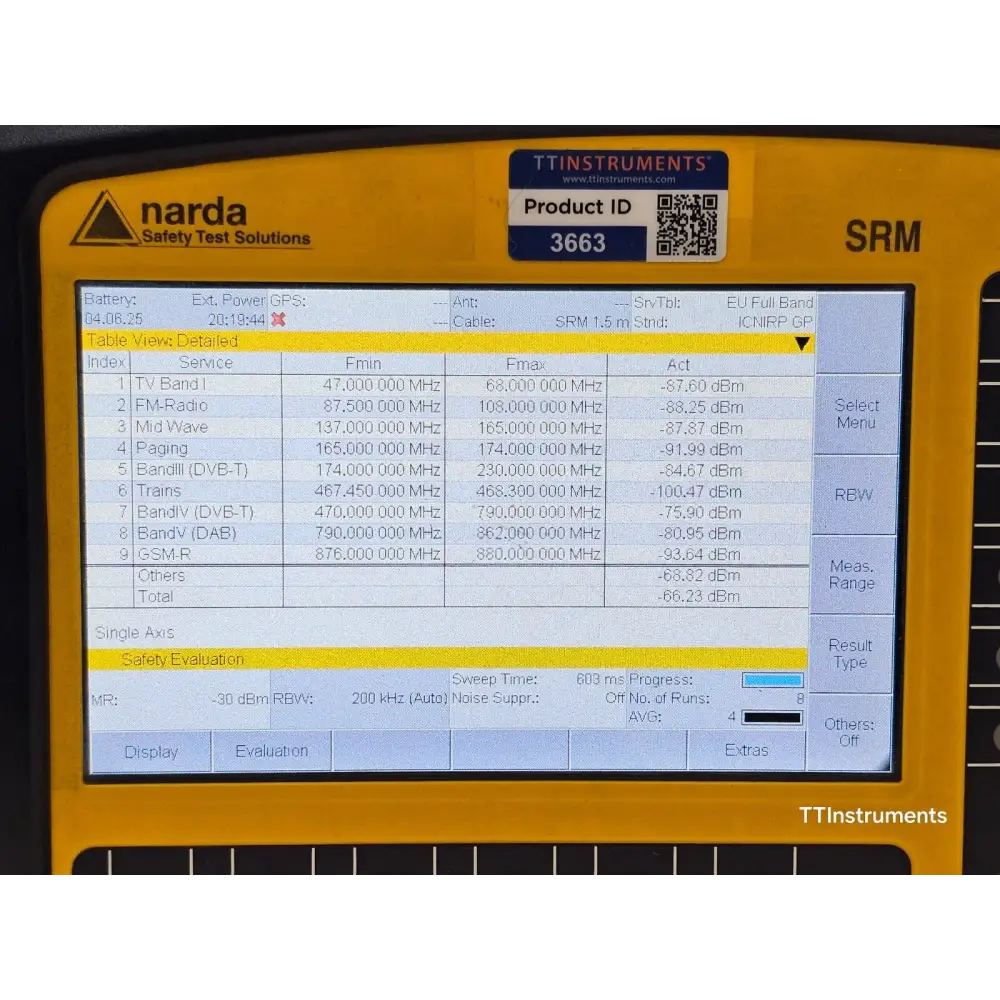

Operating Modes: Safety Evaluation, Spectrum Analysis, Level Recorder, Scope (optional), UMTS (optional), LTE-FDD (optional), LTE-TDD (optional), 5G NR (optional)
Display Units: V/m (E-field), A/m (H-field), W/m², W/cm², % of limit value (ICNIRP, FCC, etc.)
Irradiation Protection: Up to 200 V/m

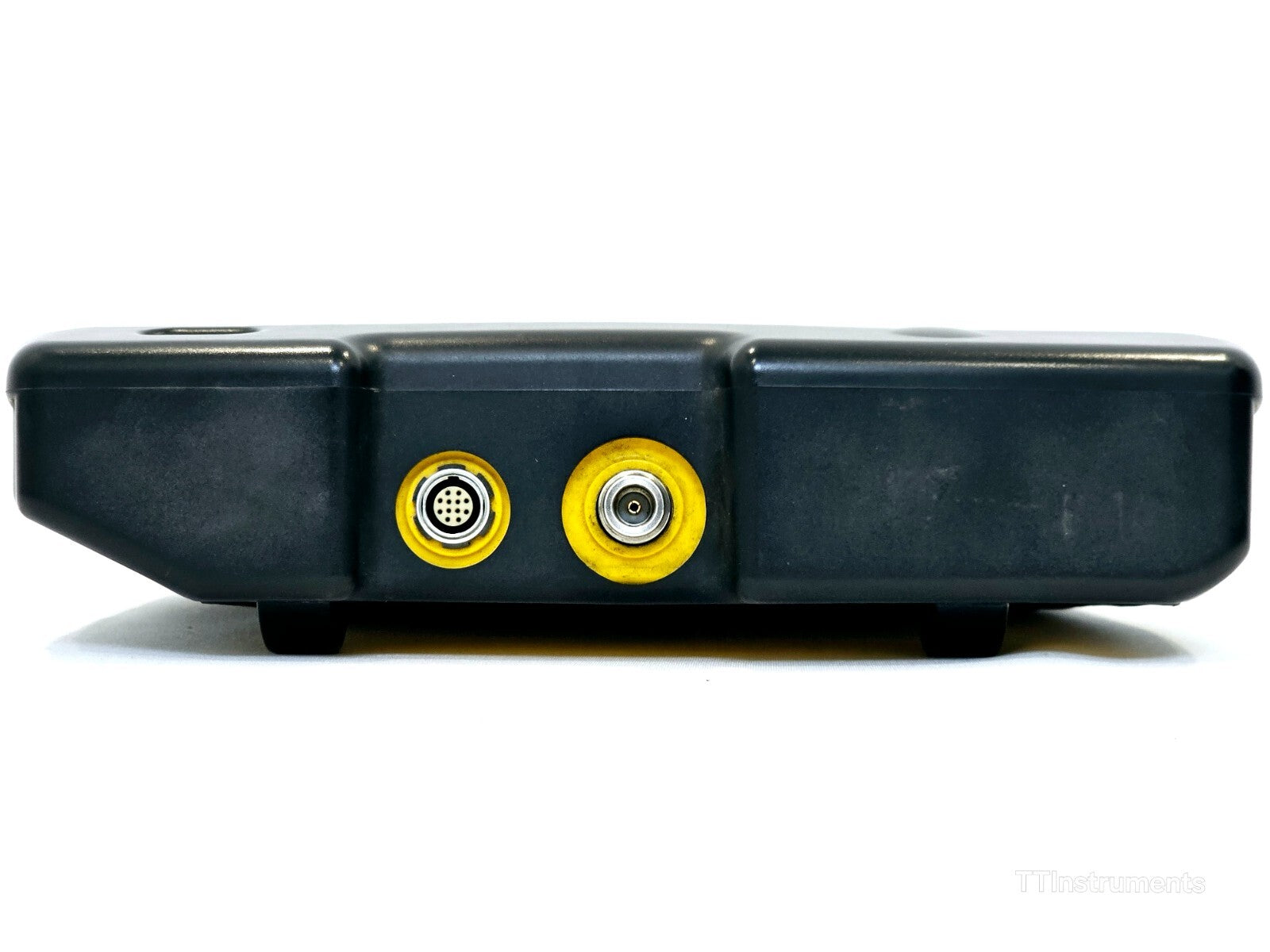

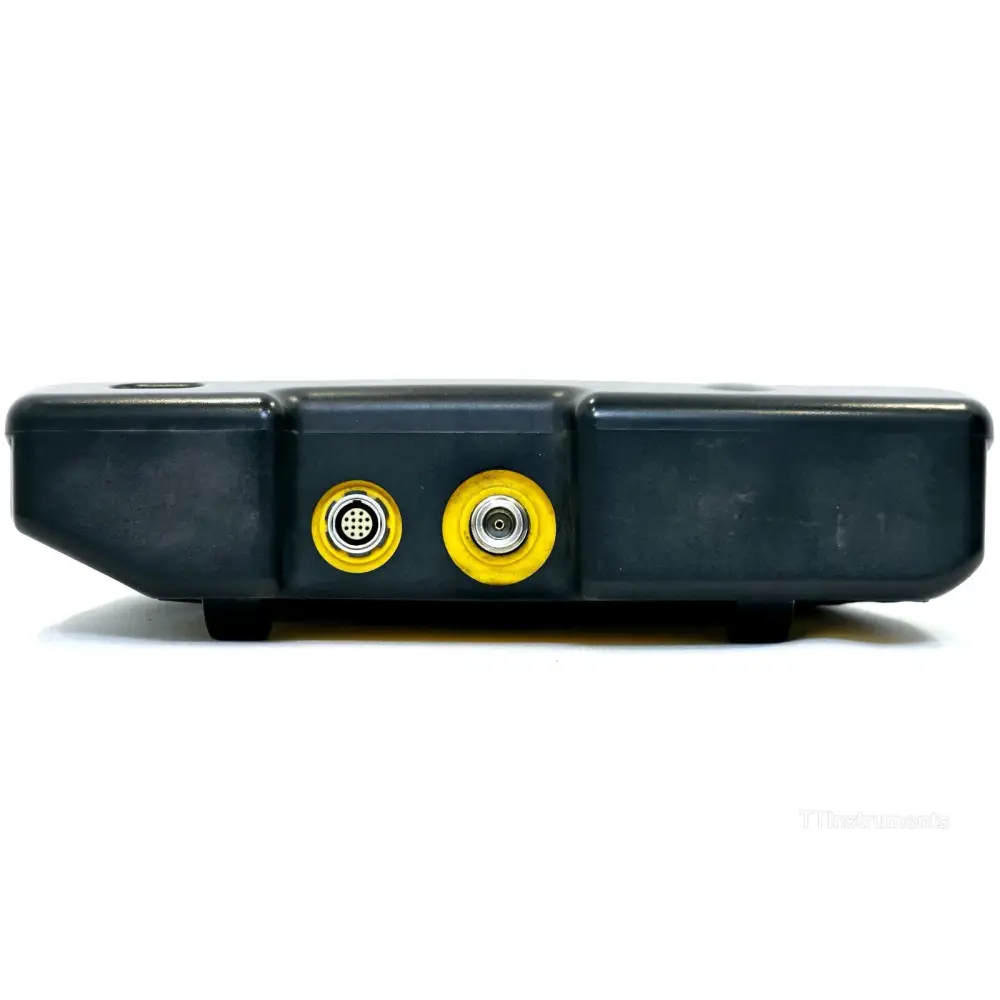

Antenna Interface: Multi-pin connector with automatic antenna recognition; N-type RF connector
Long-term Monitoring: Up to 99 hours (all modes except Scope)
Battery Operation: Approximately 3 hours per charge; exchangeable battery packs

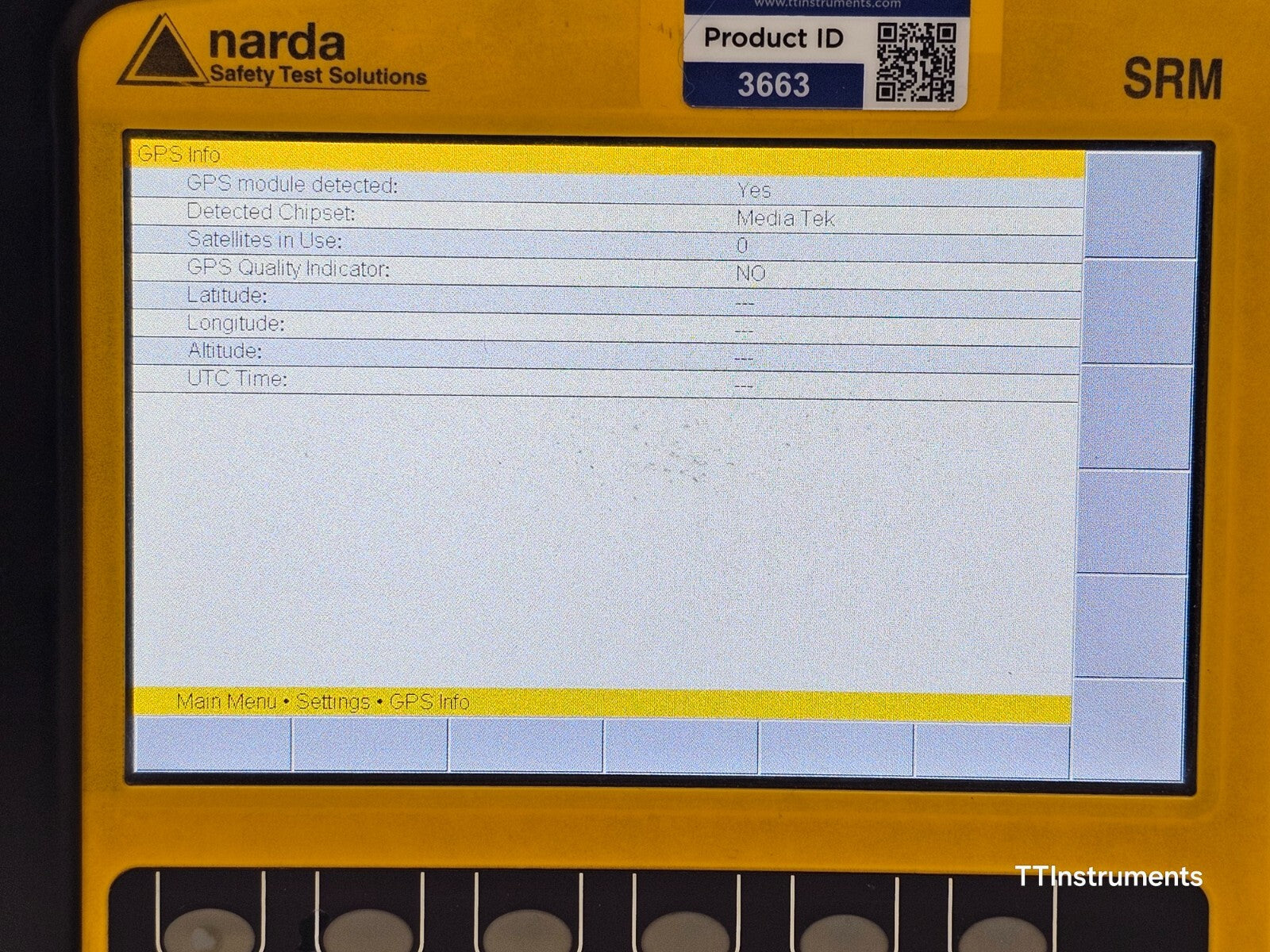

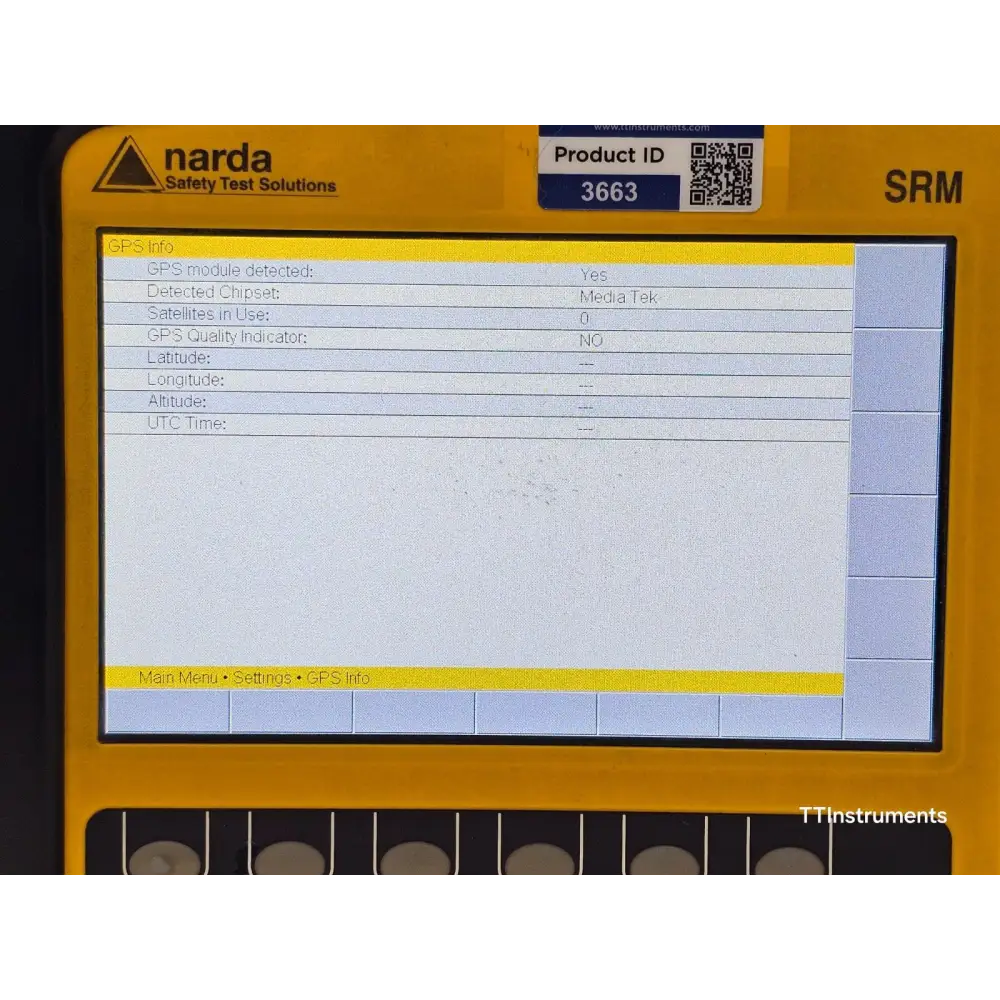

Integrated Features: GPS receiver, voice recorder
PC Software: SRM-3006 TS (data management, custom service tables, measurement routines)

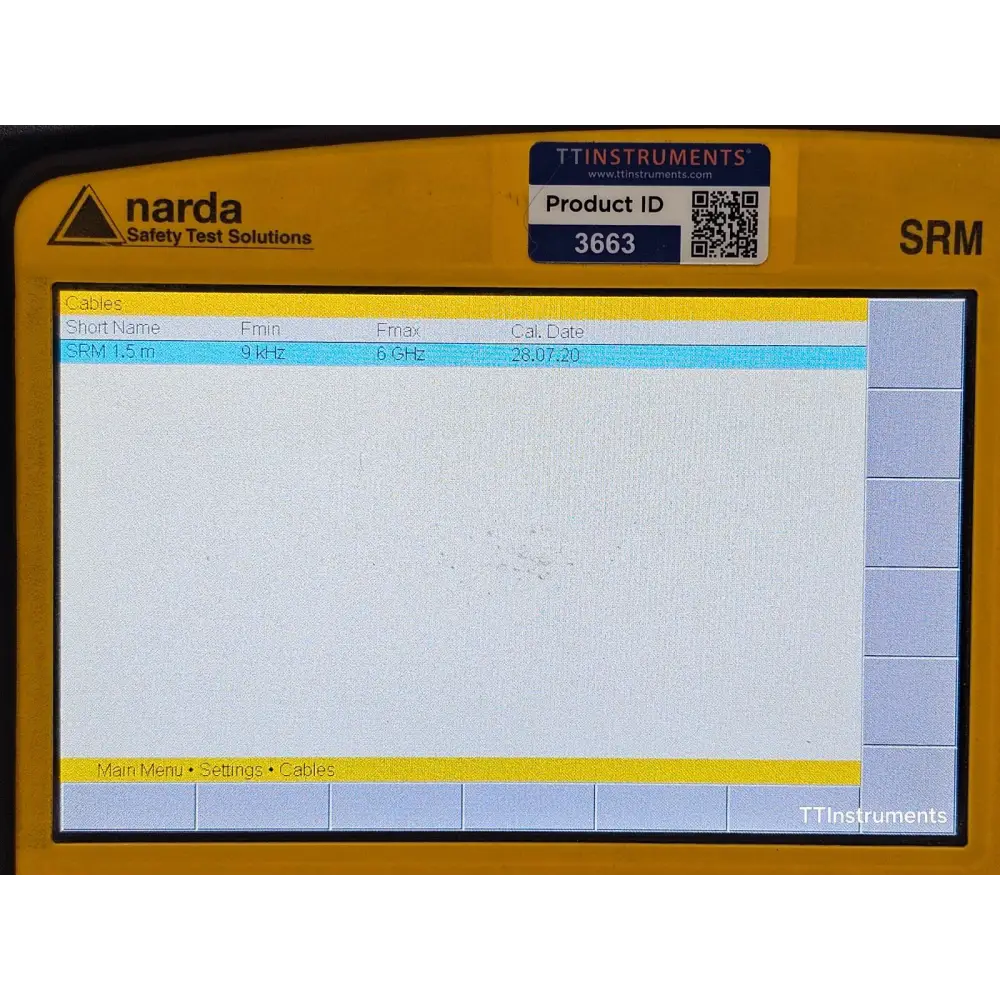

Cable (standard): 1.5 m RF cable (3602/01); optional 5 m cable available

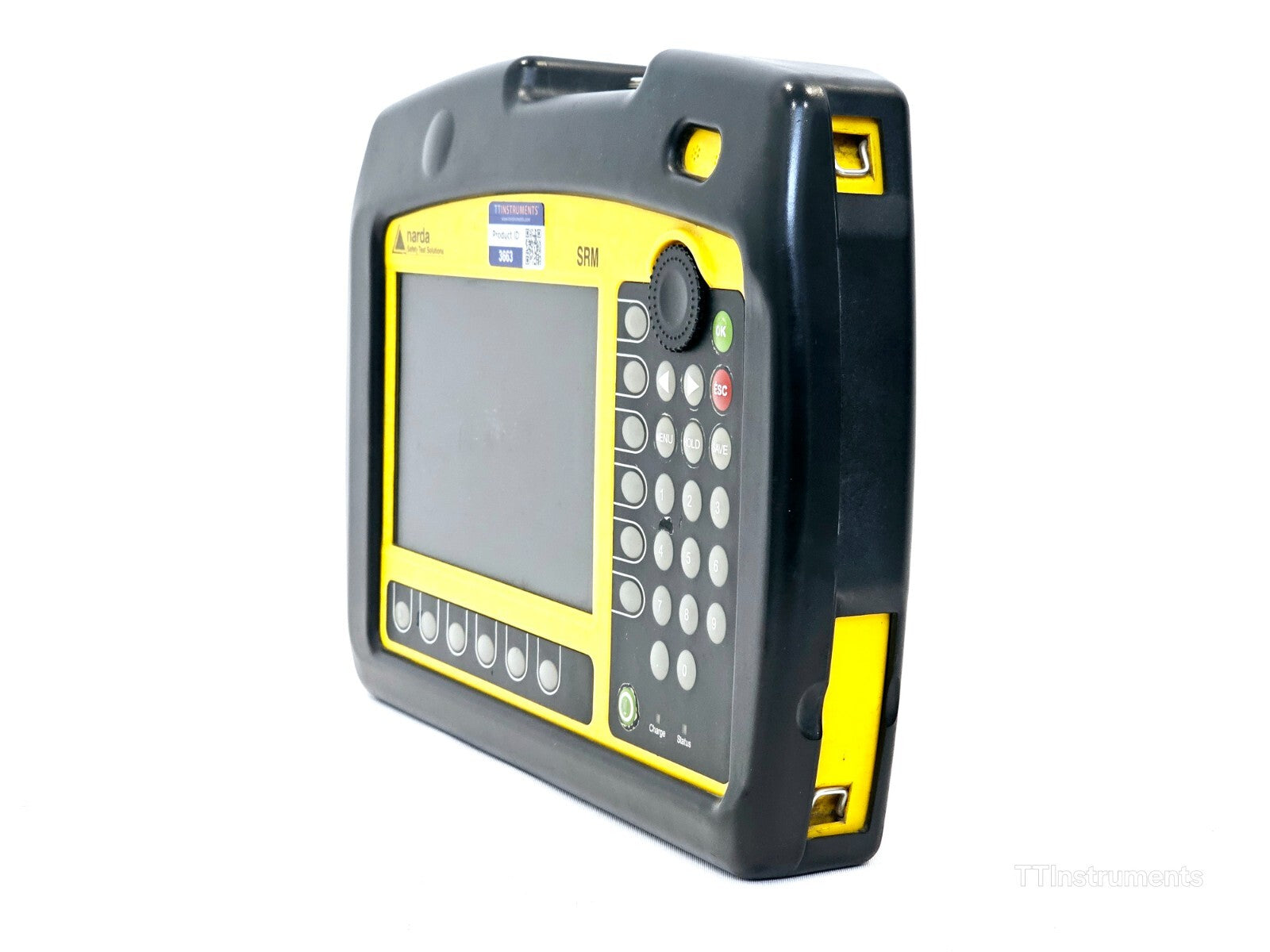

Design: Handheld, splash-proof, suitable for outdoor and field use
Manufacturer: Narda Safety Test Solutions GmbH, Pfullingen, Germany

Narda SRM-3006 Official Datasheet (Narda Safety Test Solutions): Download PDF

Narda SRM-3006 Datasheet — US version (TestEquipmentHQ): Download PDF

Narda SRM-3006 Operating Manual (McGill University hosted PDF): Download PDF

Narda SRM-3006 Datasheet — US version (Electrorent/KC hosted PDF): Download PDF

Narda SRM-3006 Tools PC Software Application Note (PDF): Download PDF
