Condition: Used

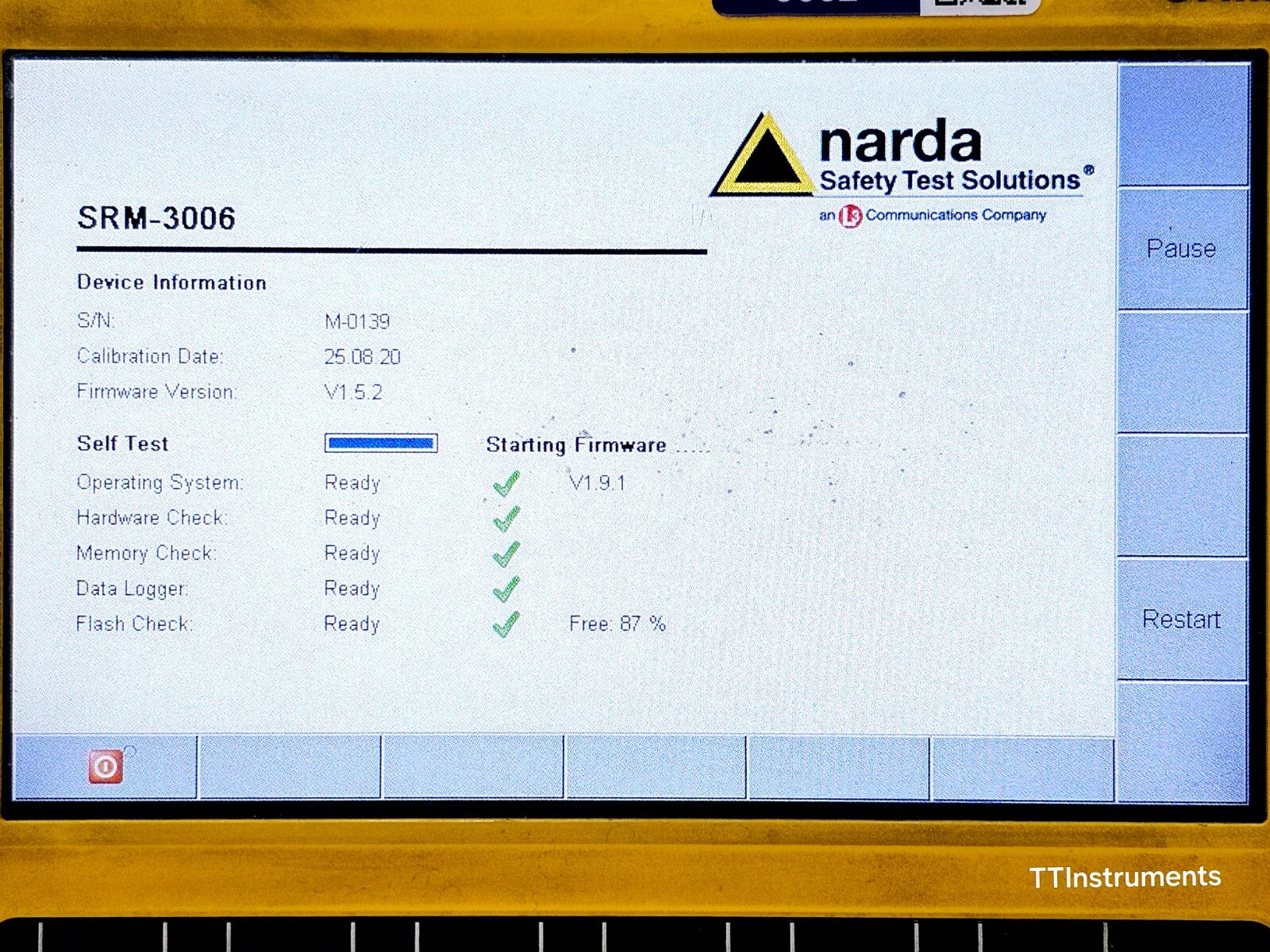

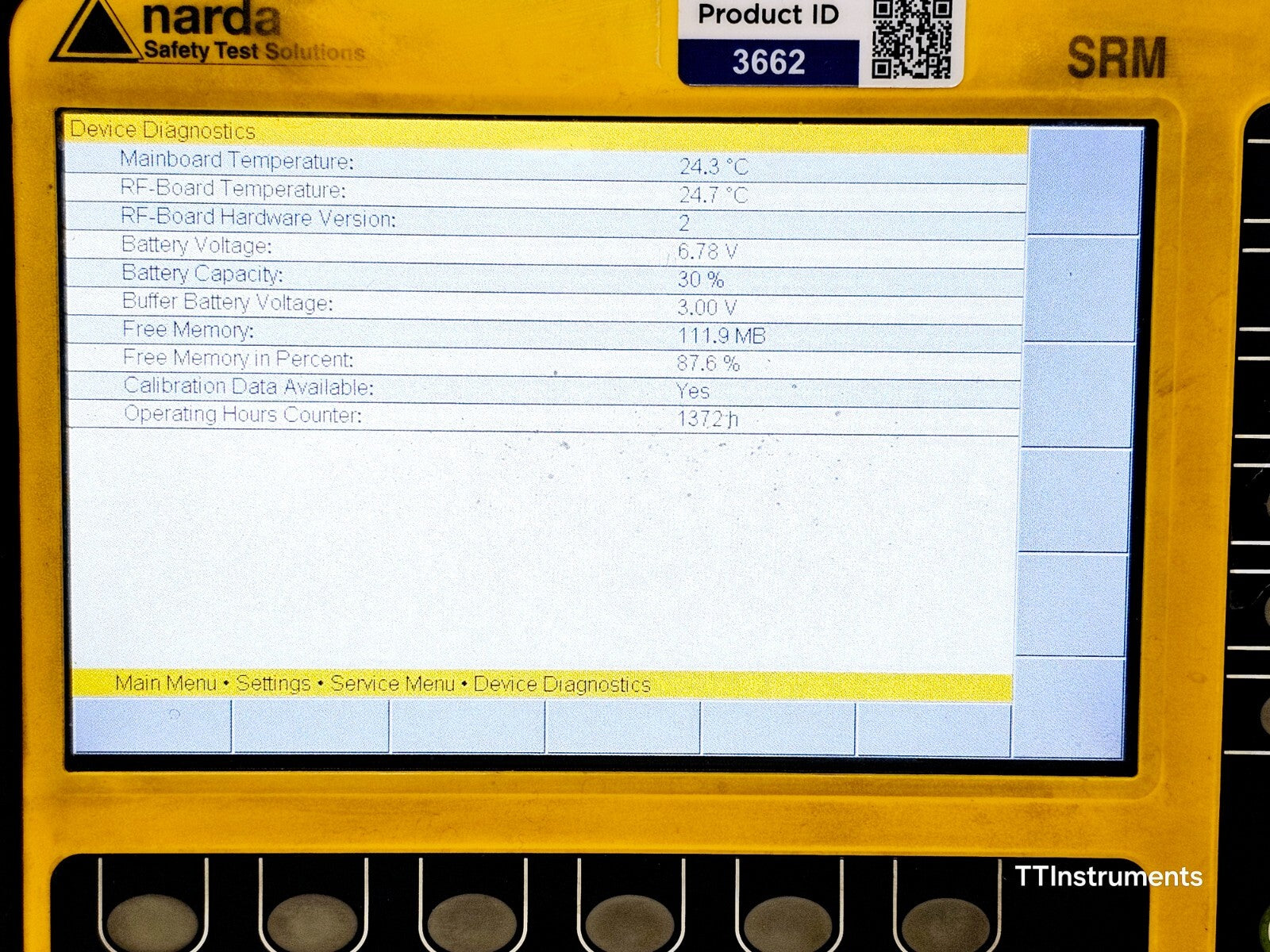

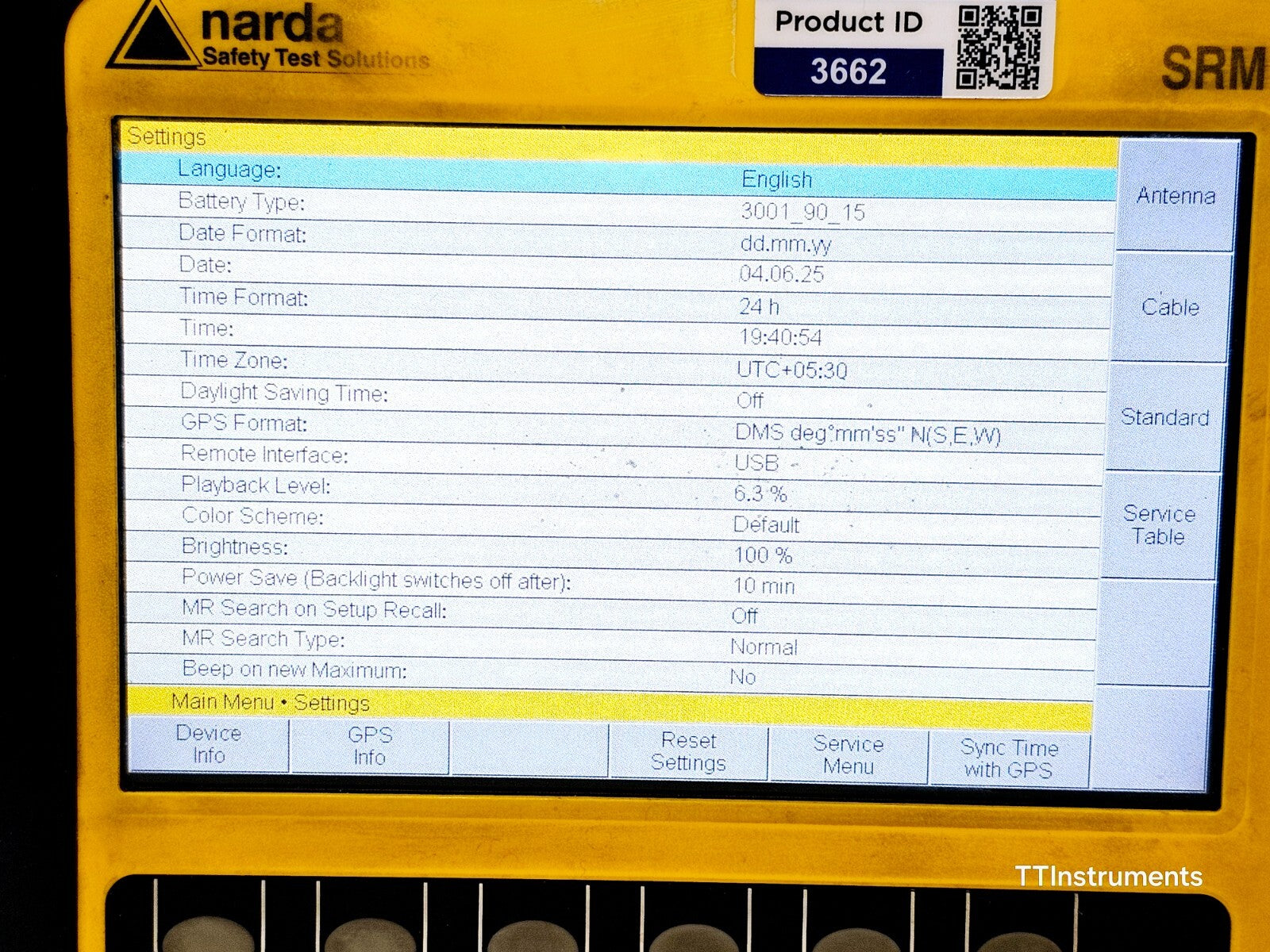

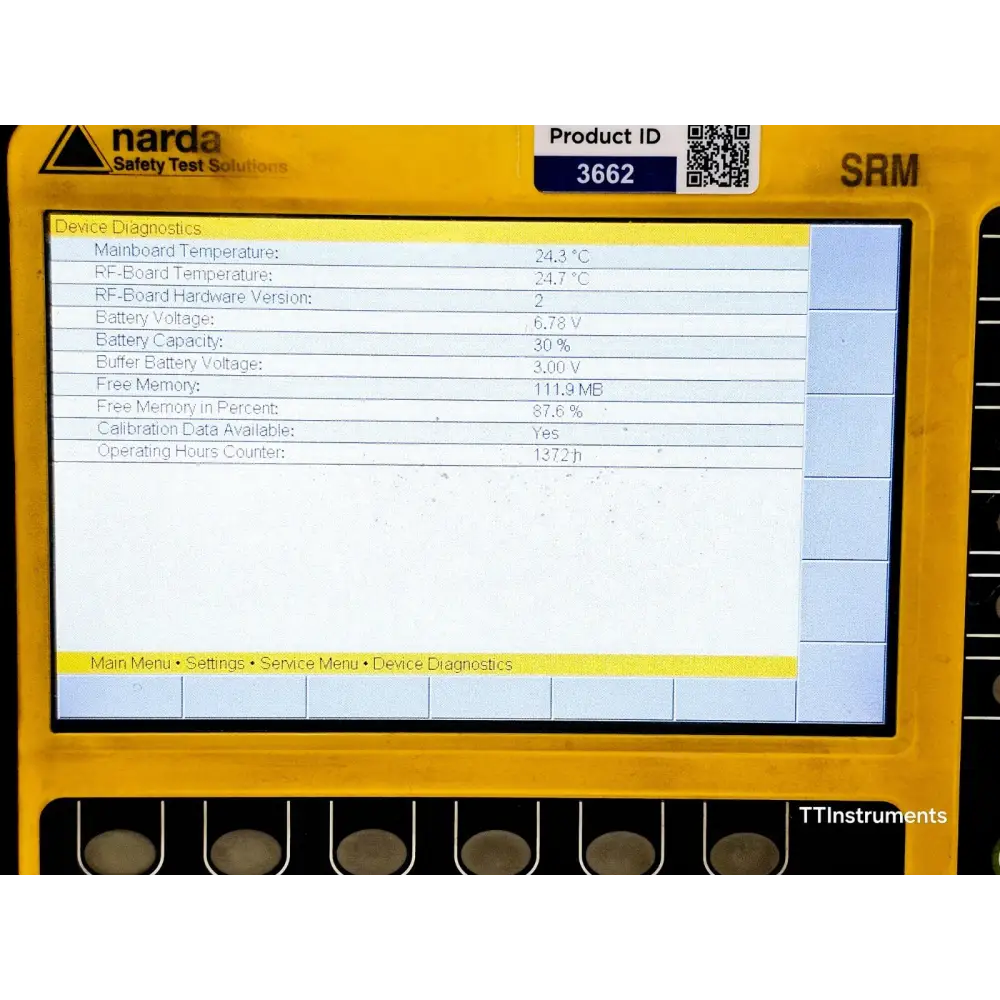

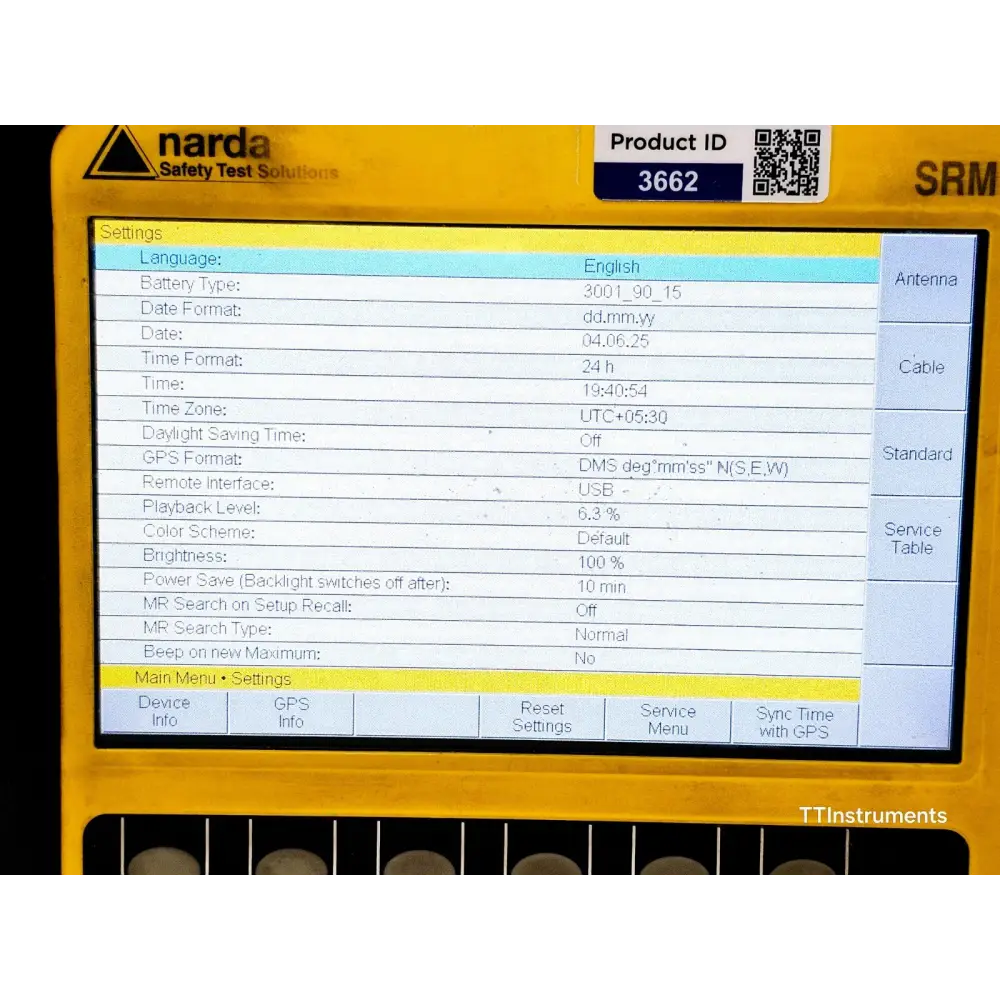

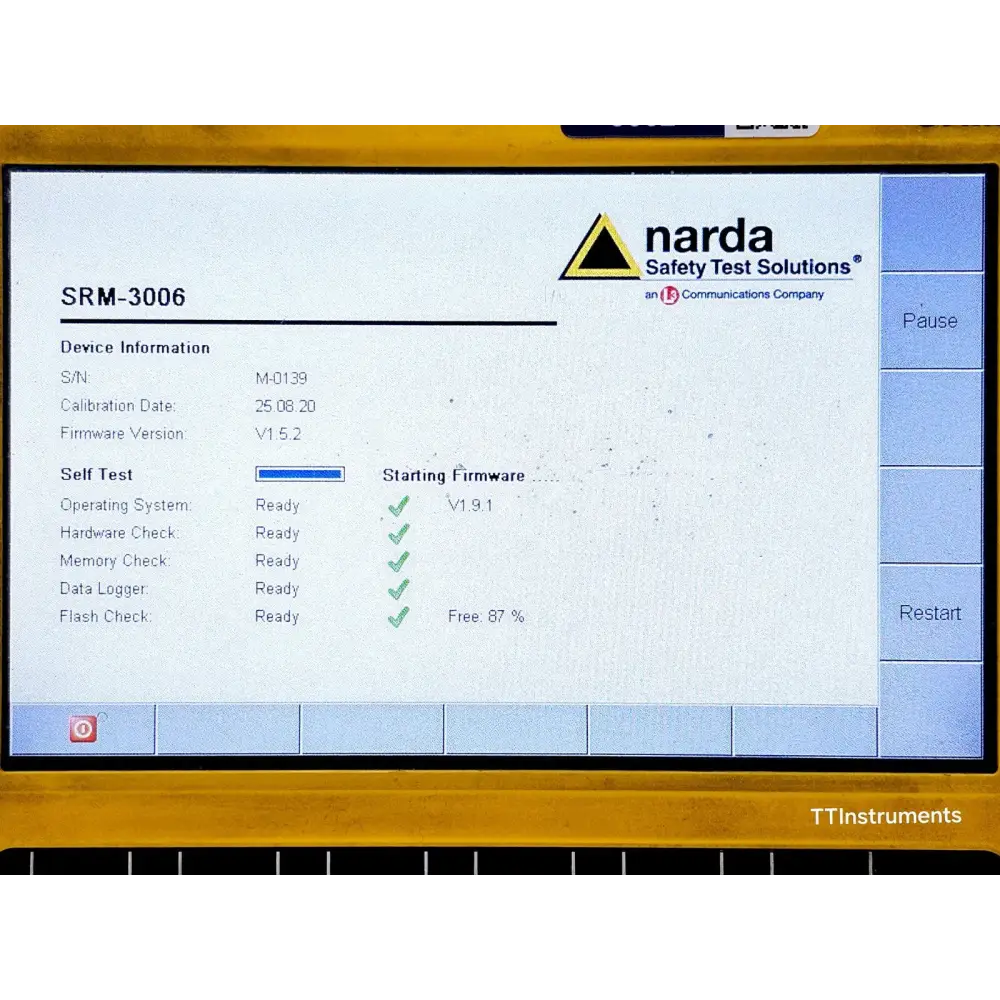

Tested and working. Supplied as a mainframe-only unit with case and pictured accessories — probe is NOT included. Active licence screens are visible in the product images; please refer to these for confirmed activated options.

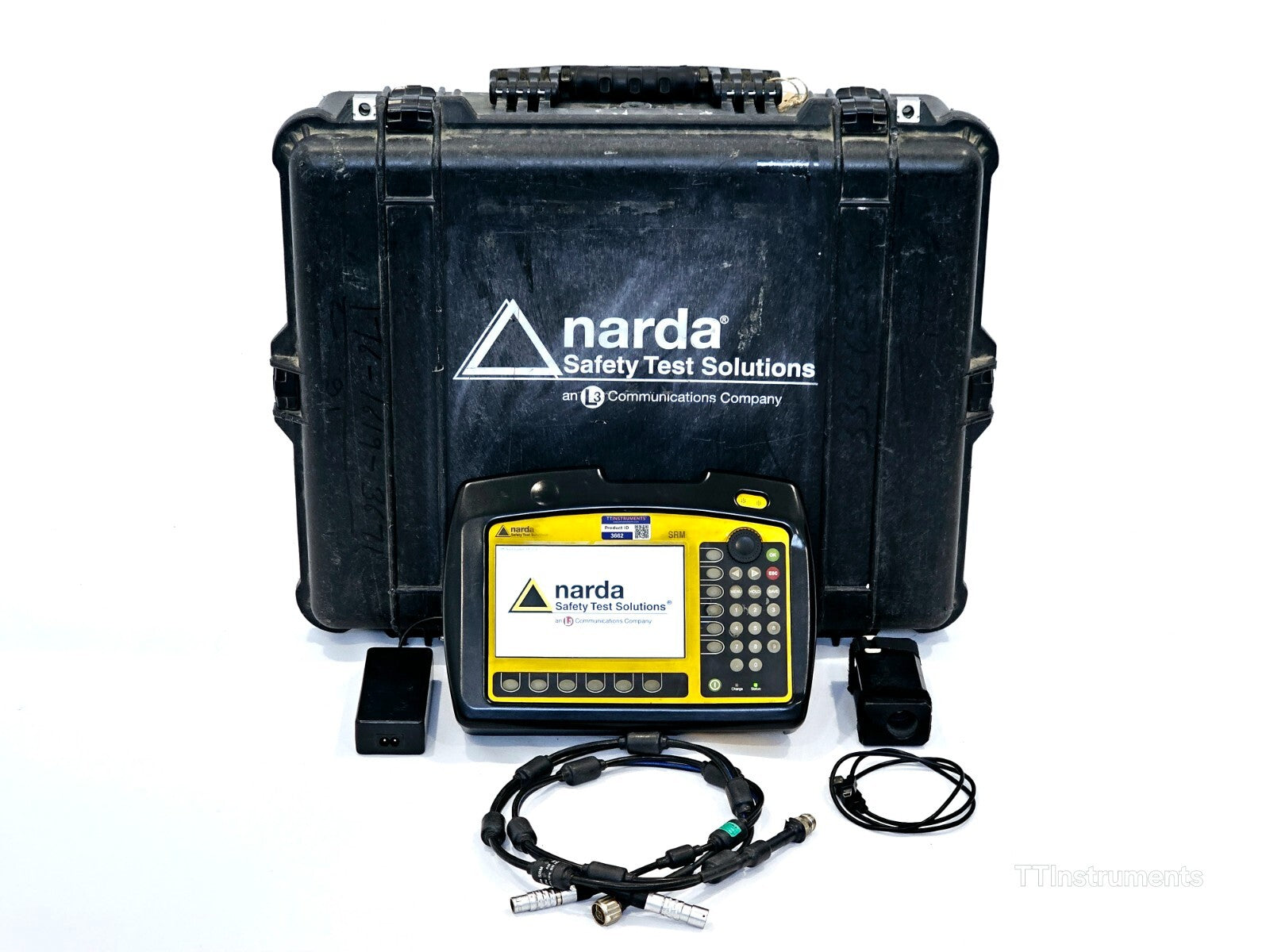

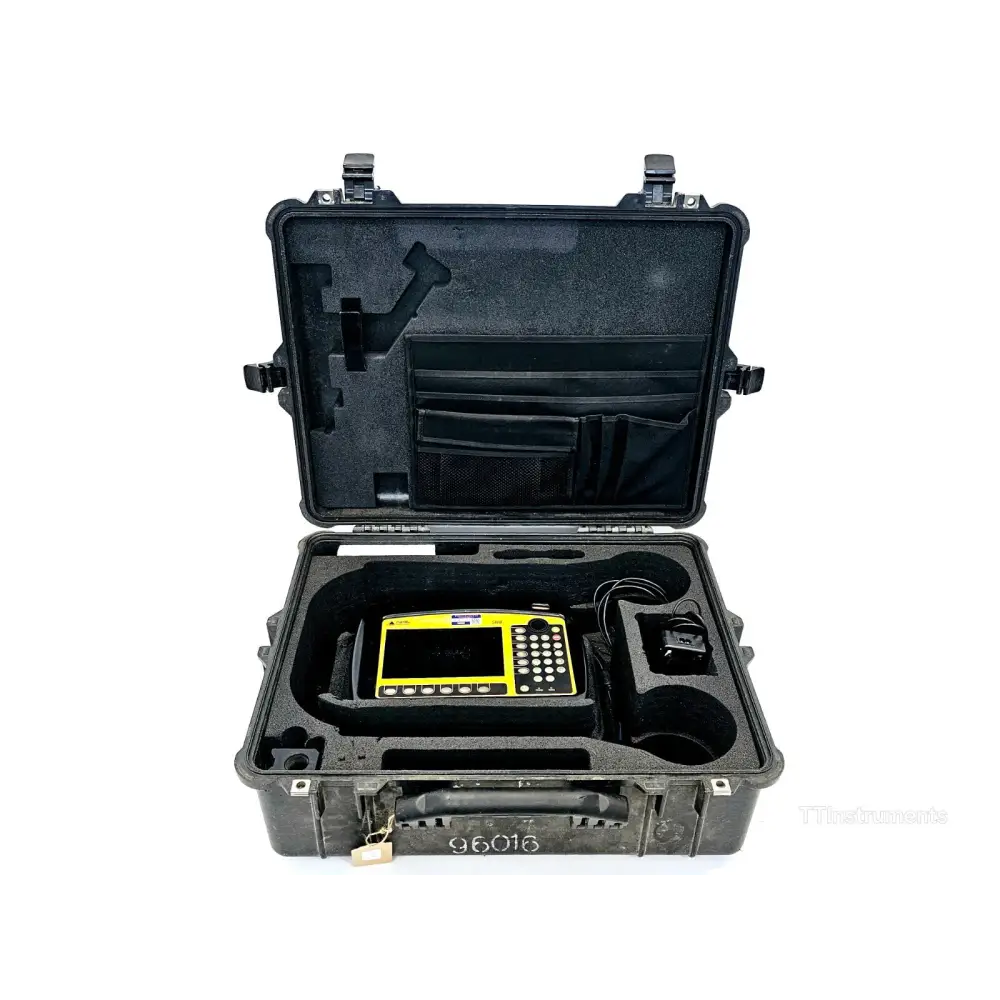

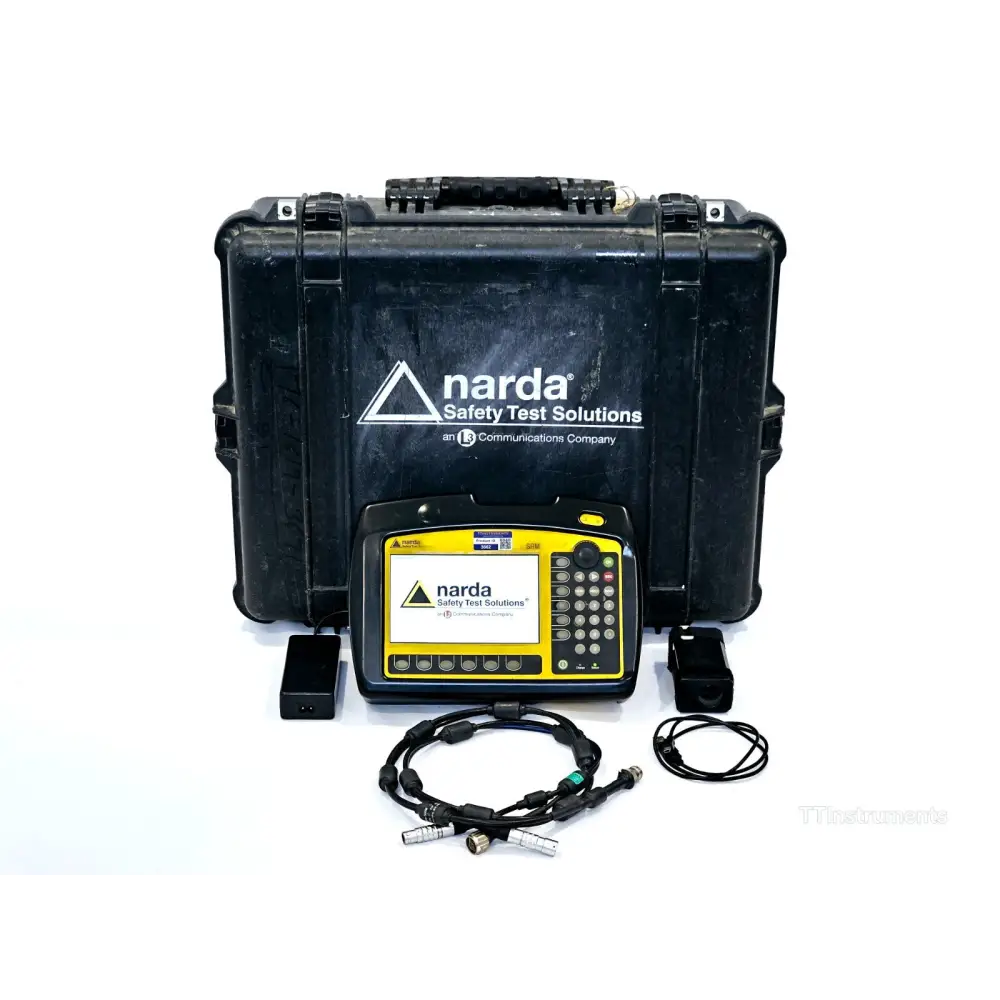

Included in the sale:

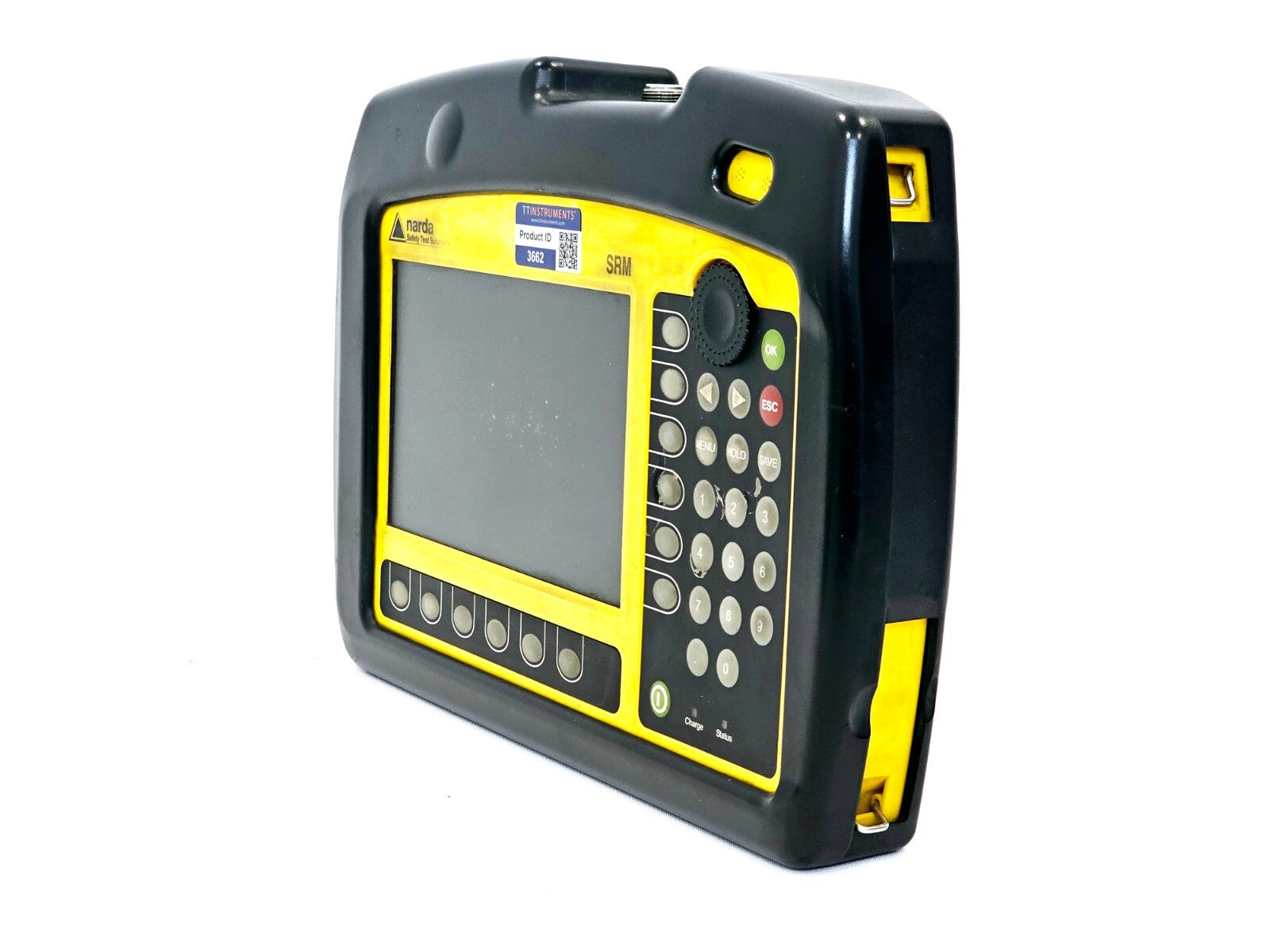

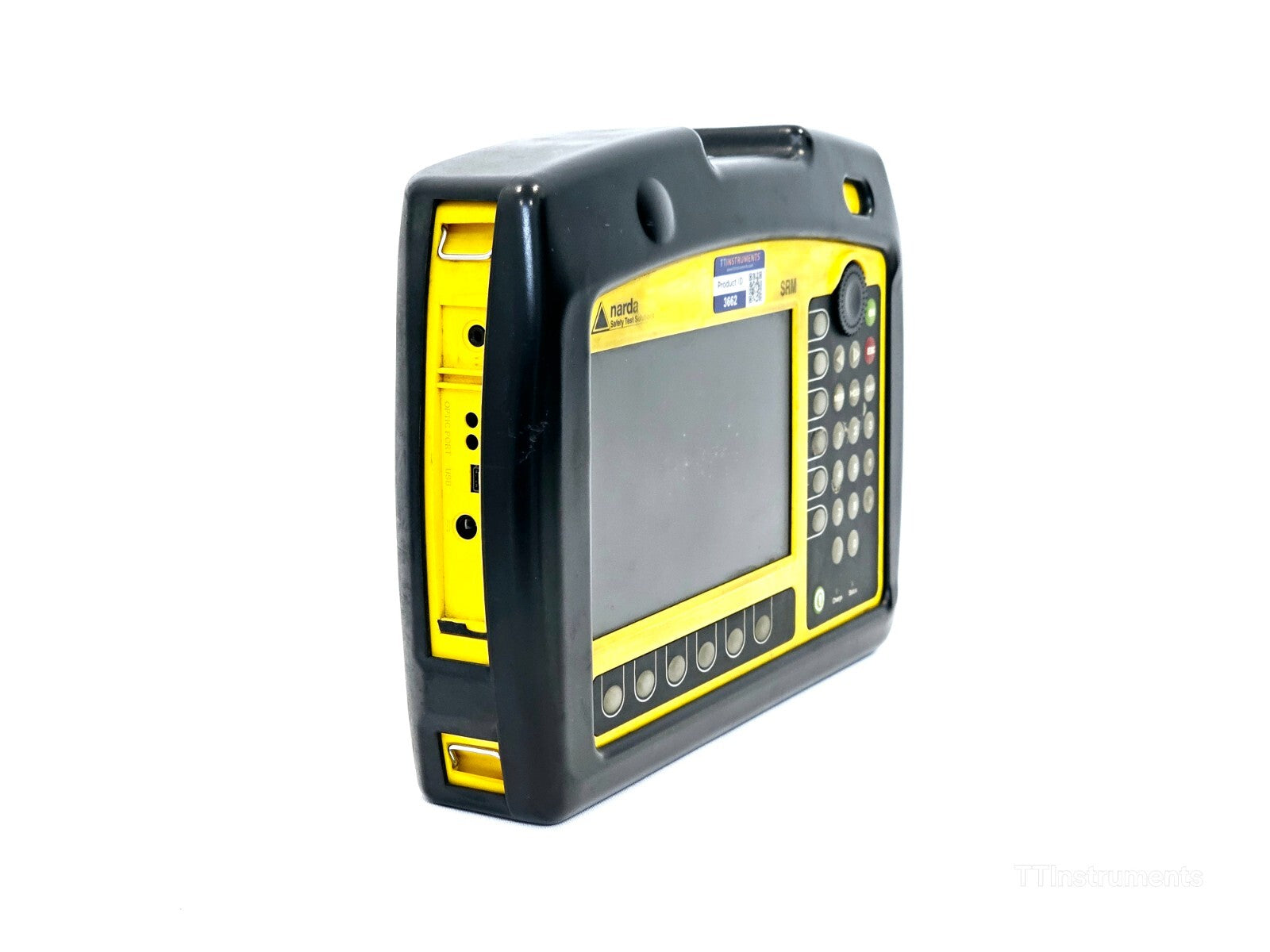

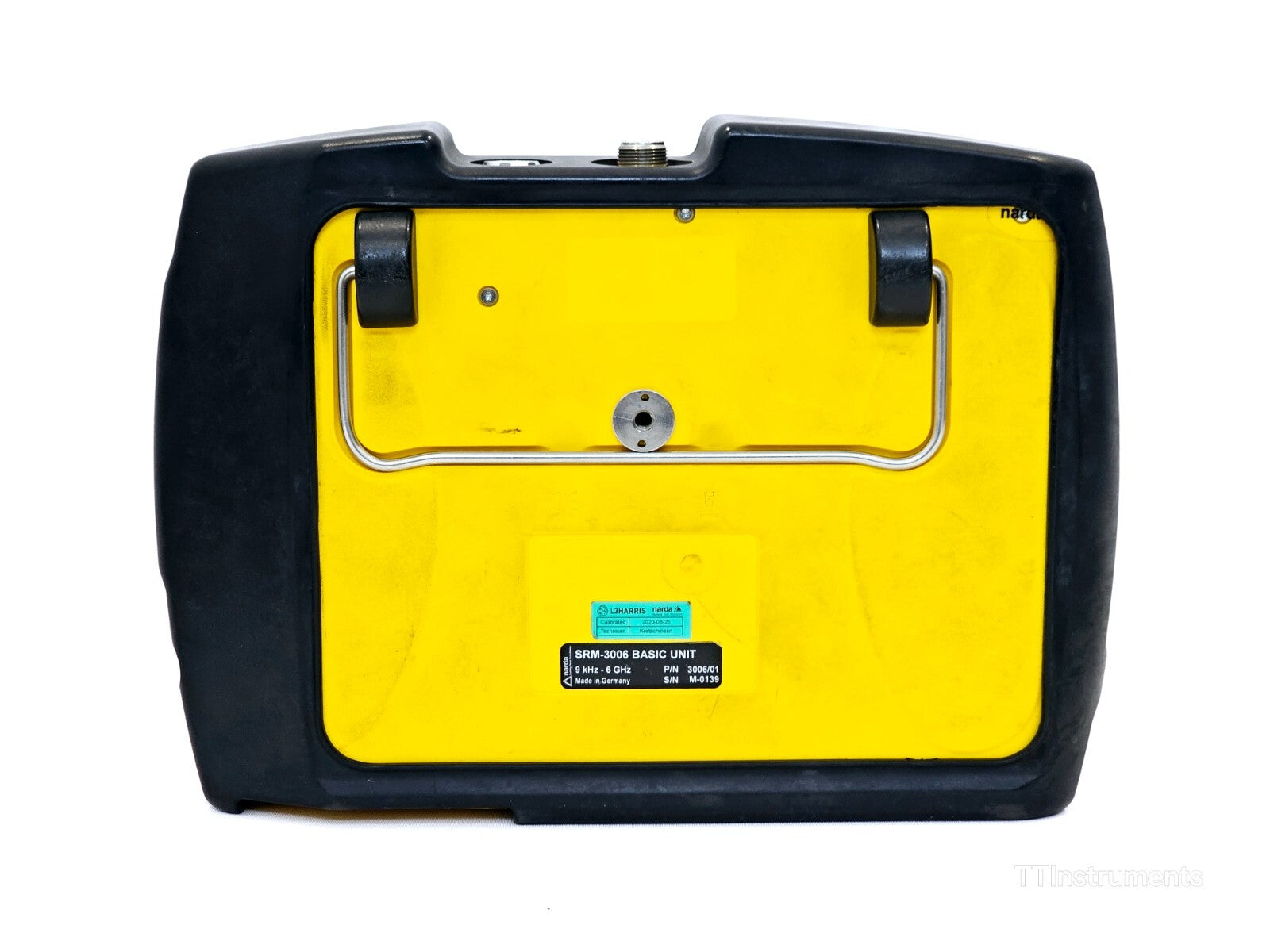

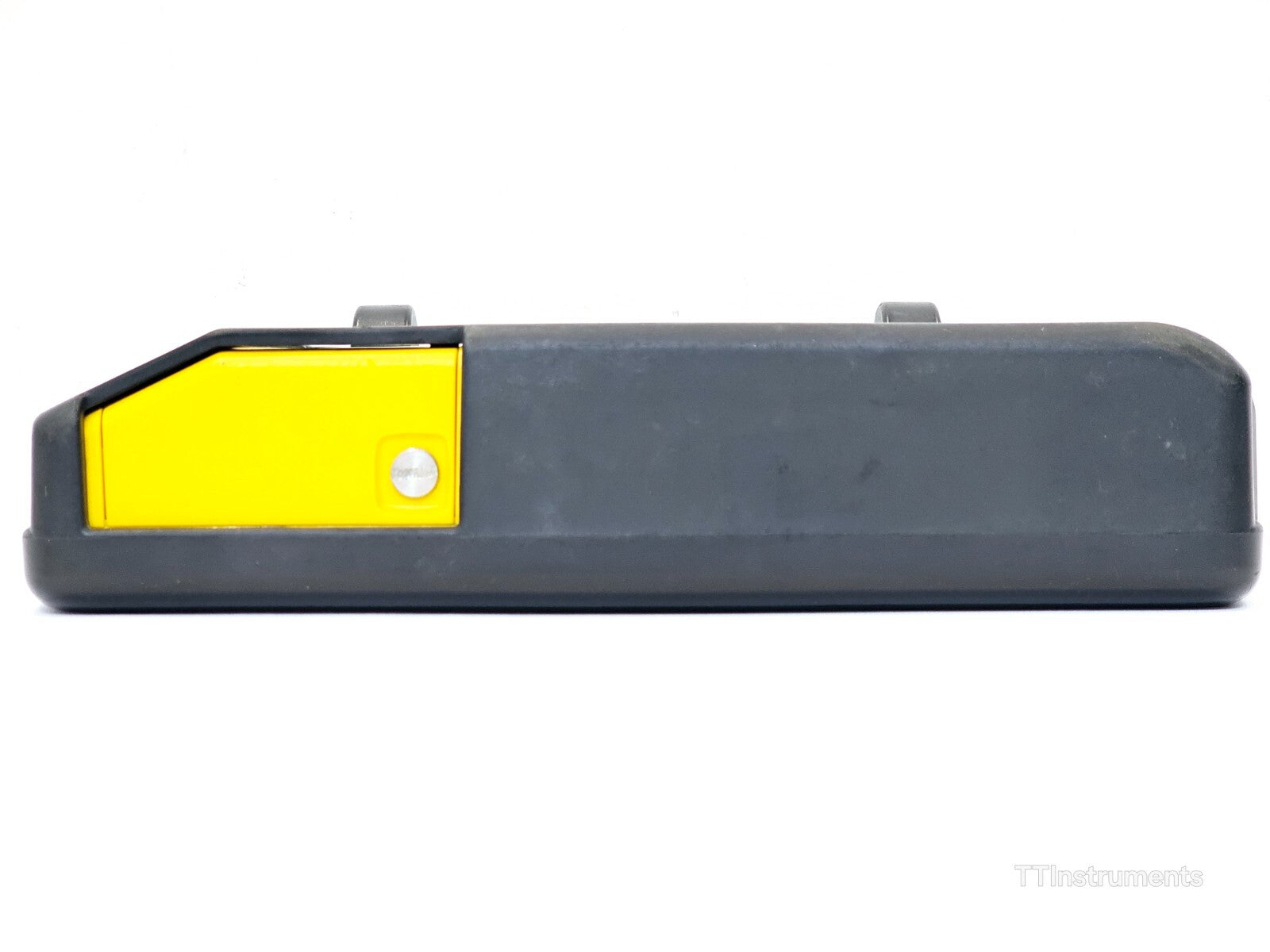

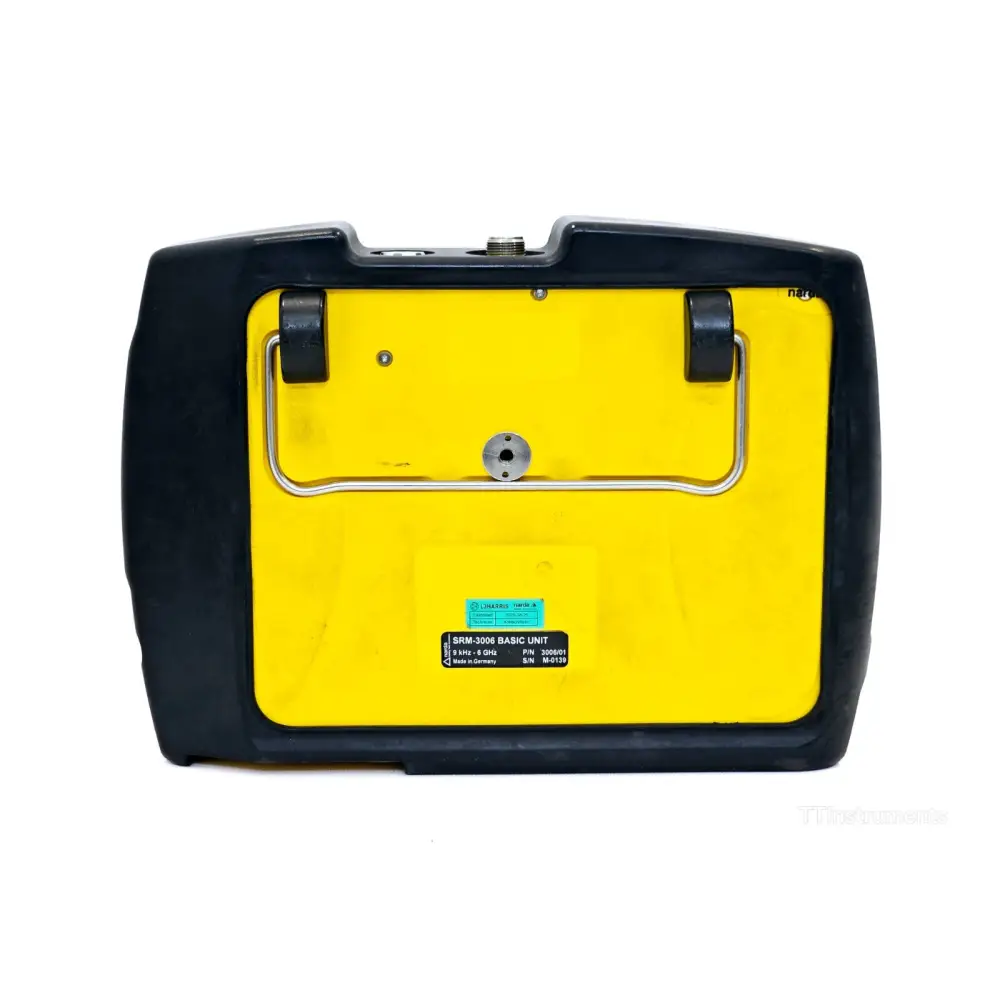

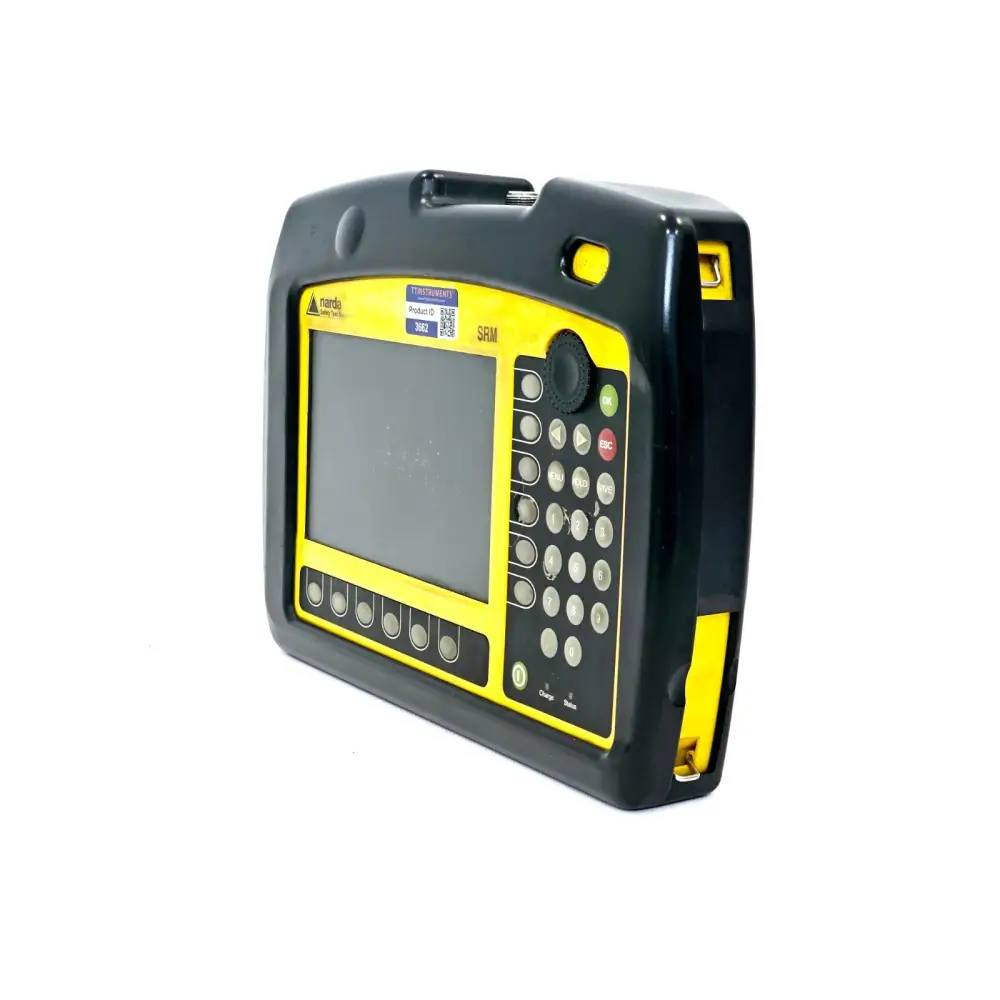

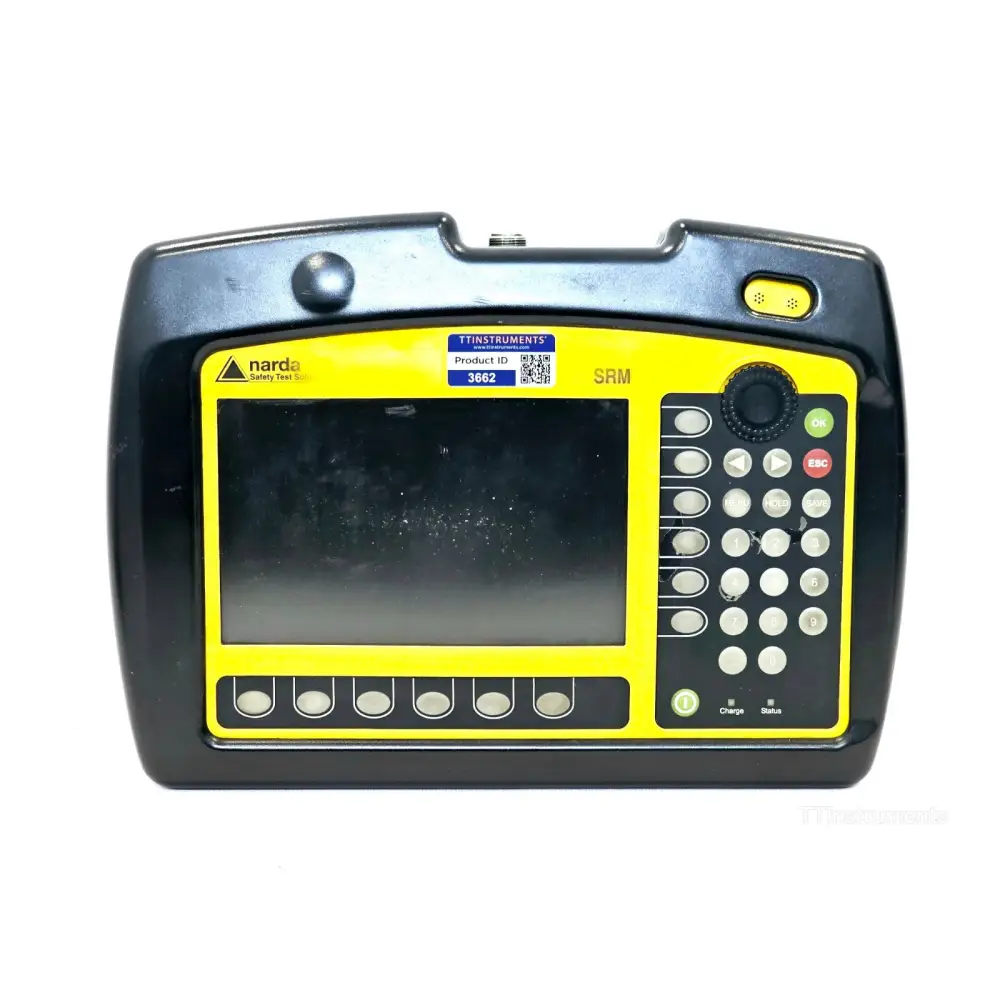

• SRM-3006 Platform (mainframe/basic unit)

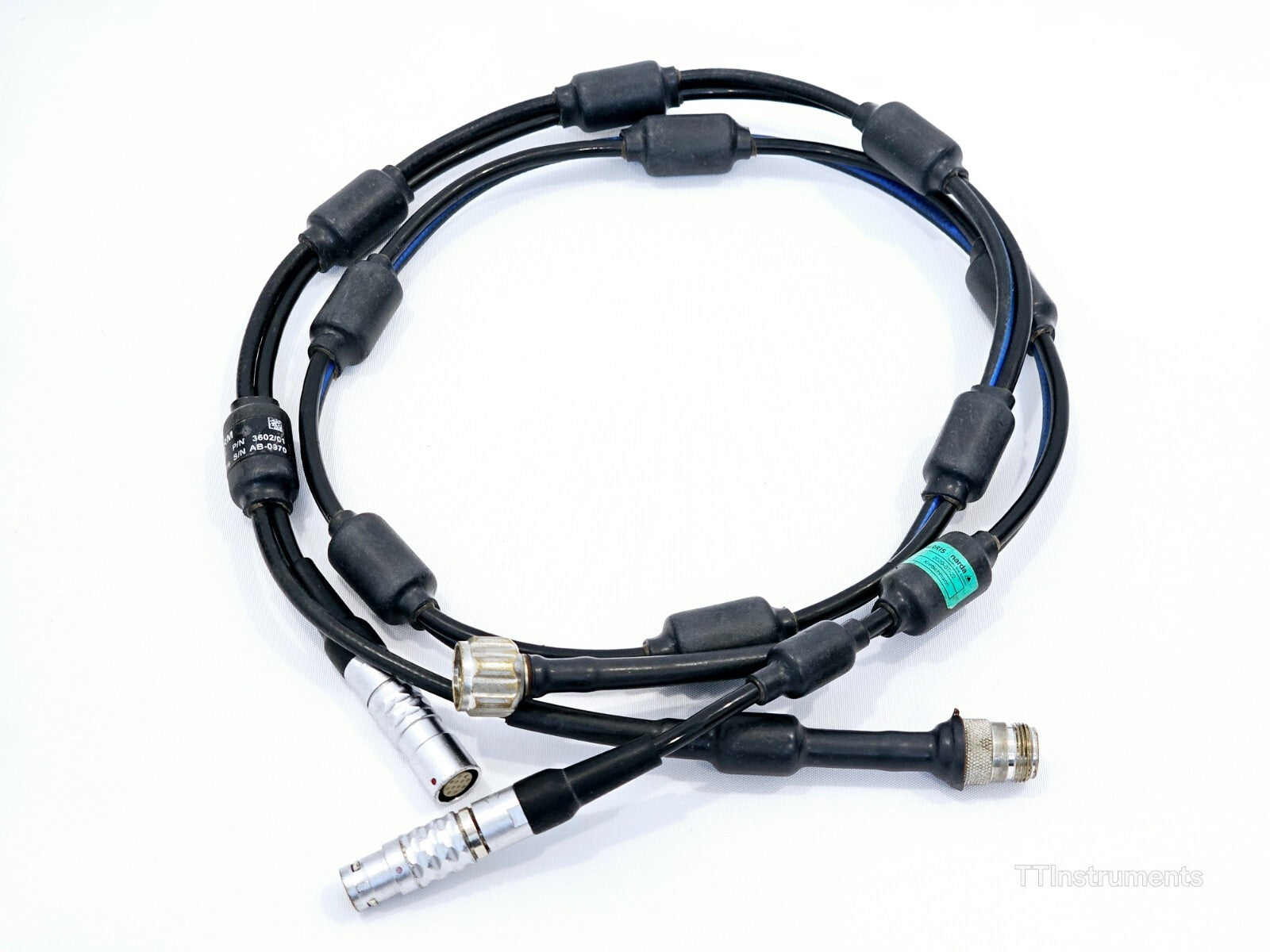

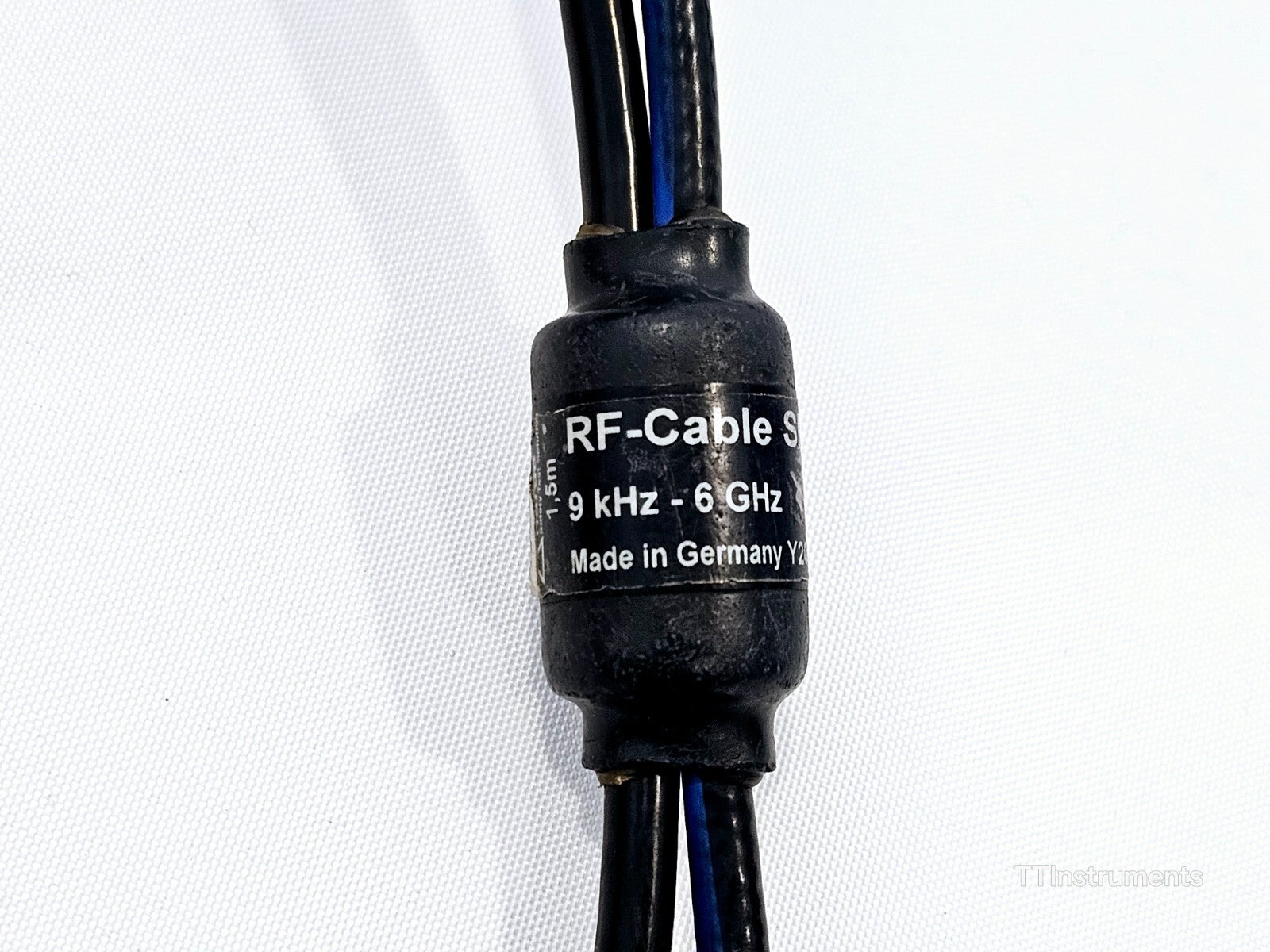

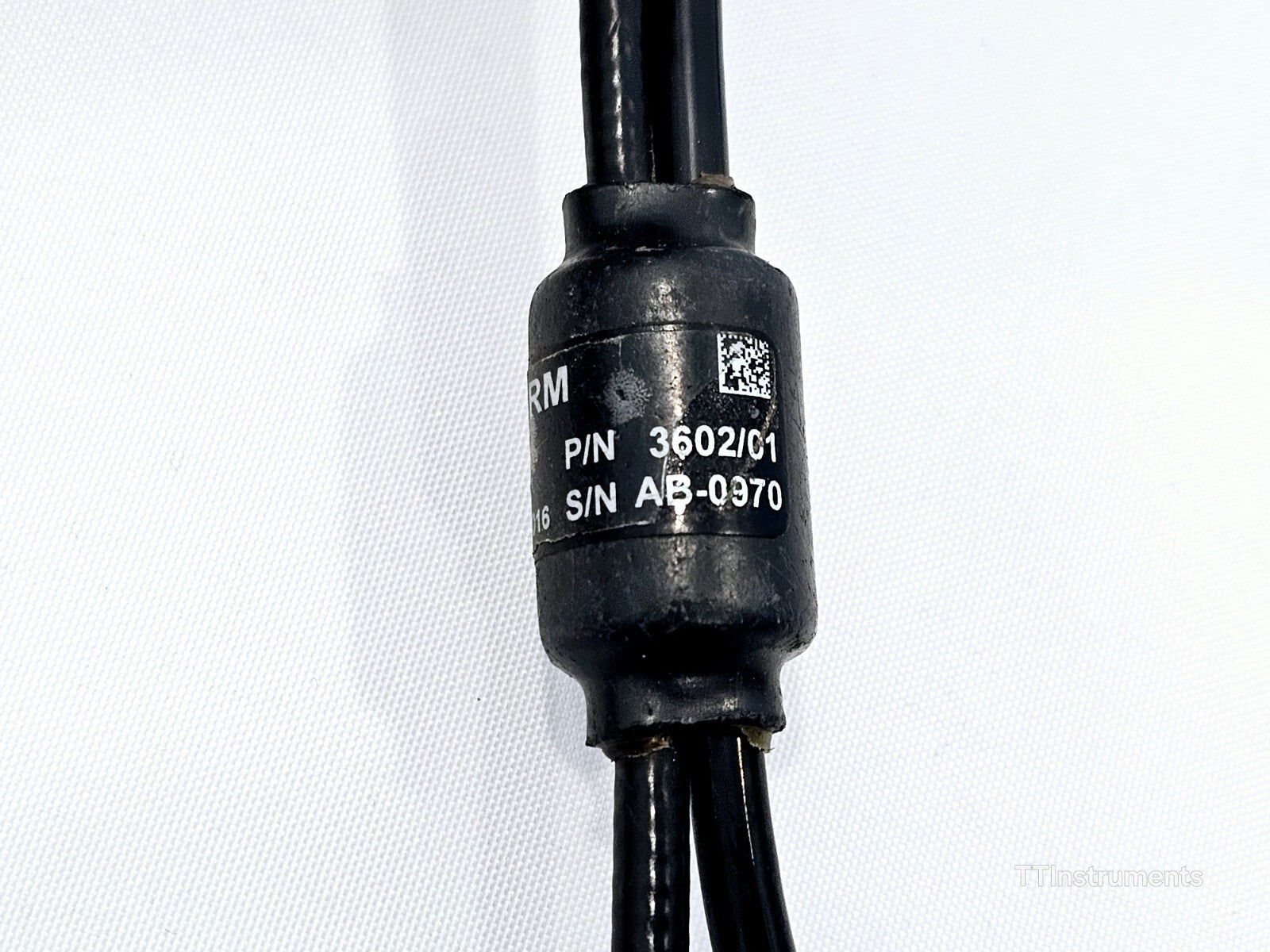

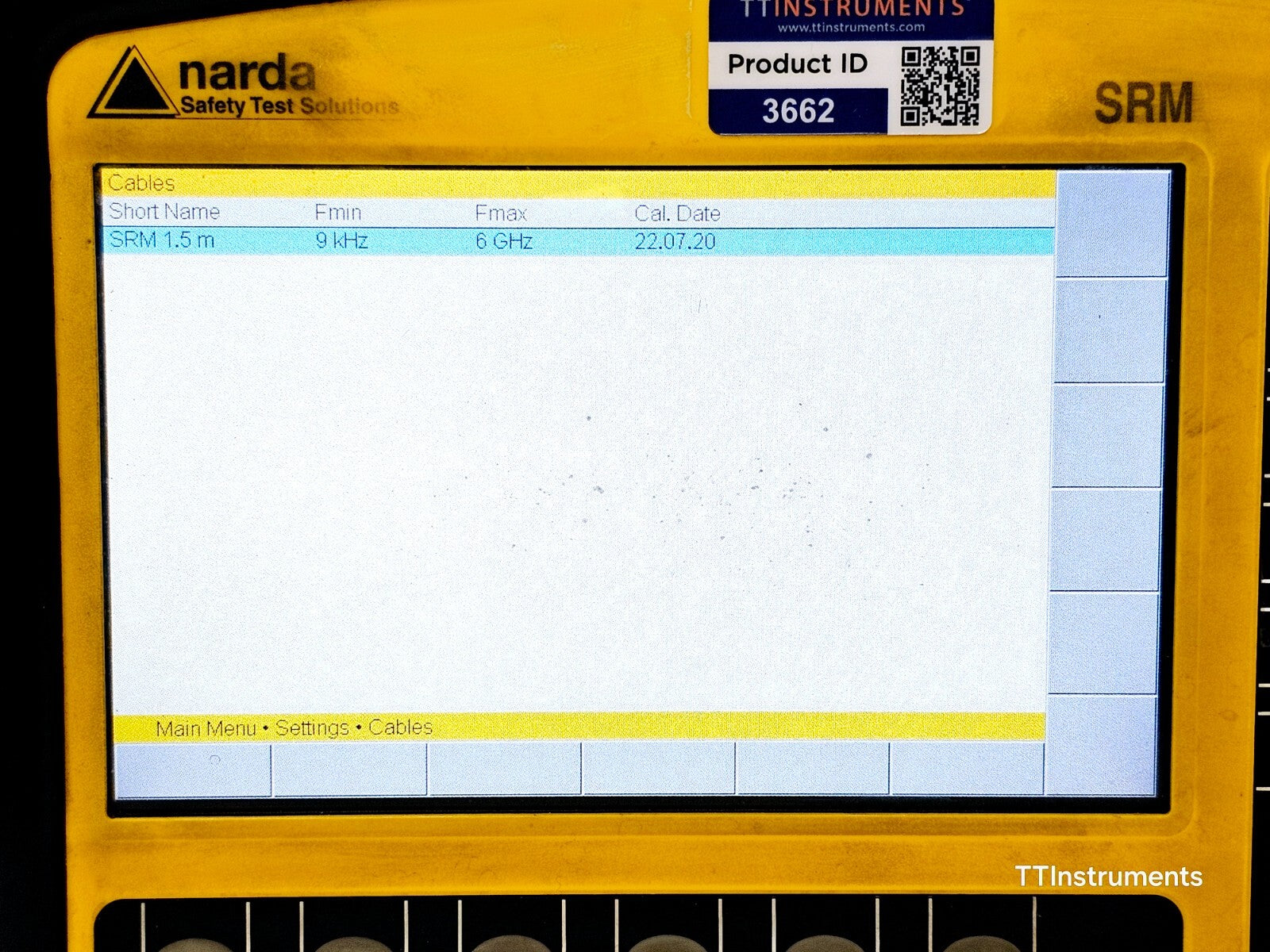

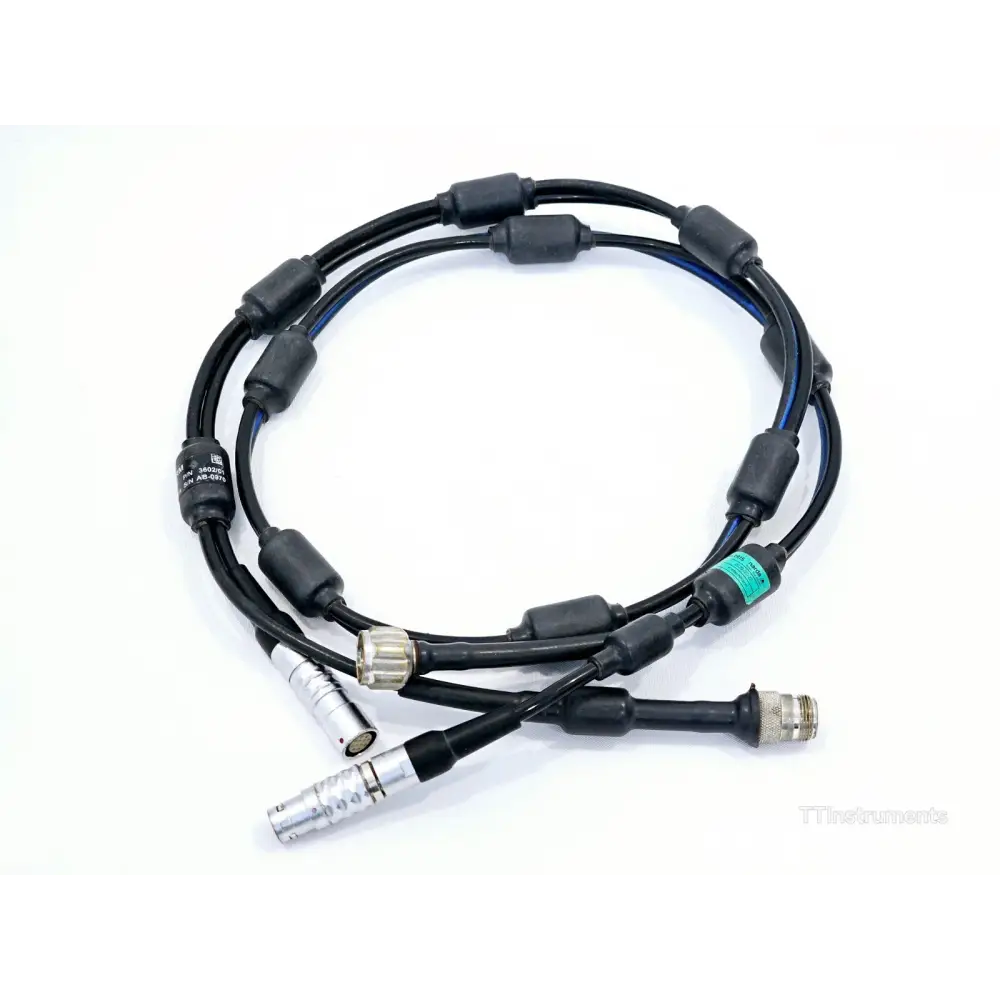

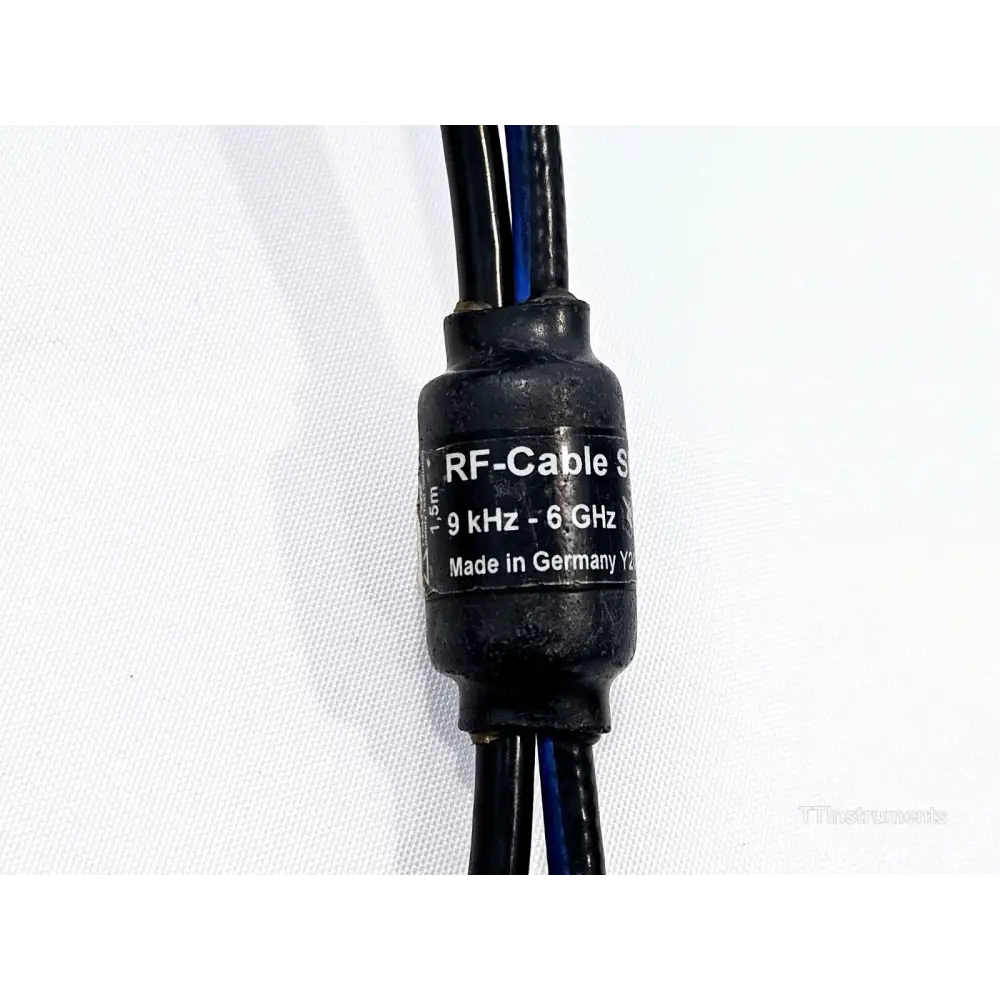

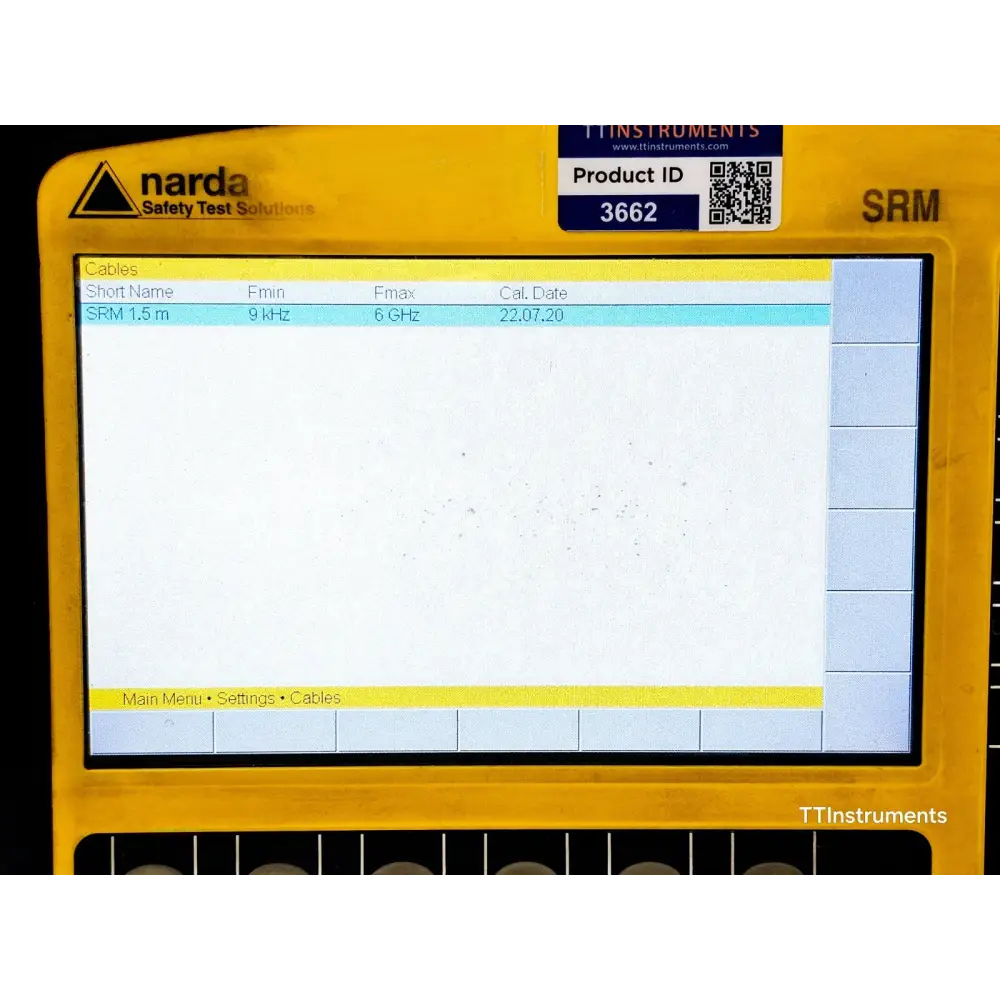

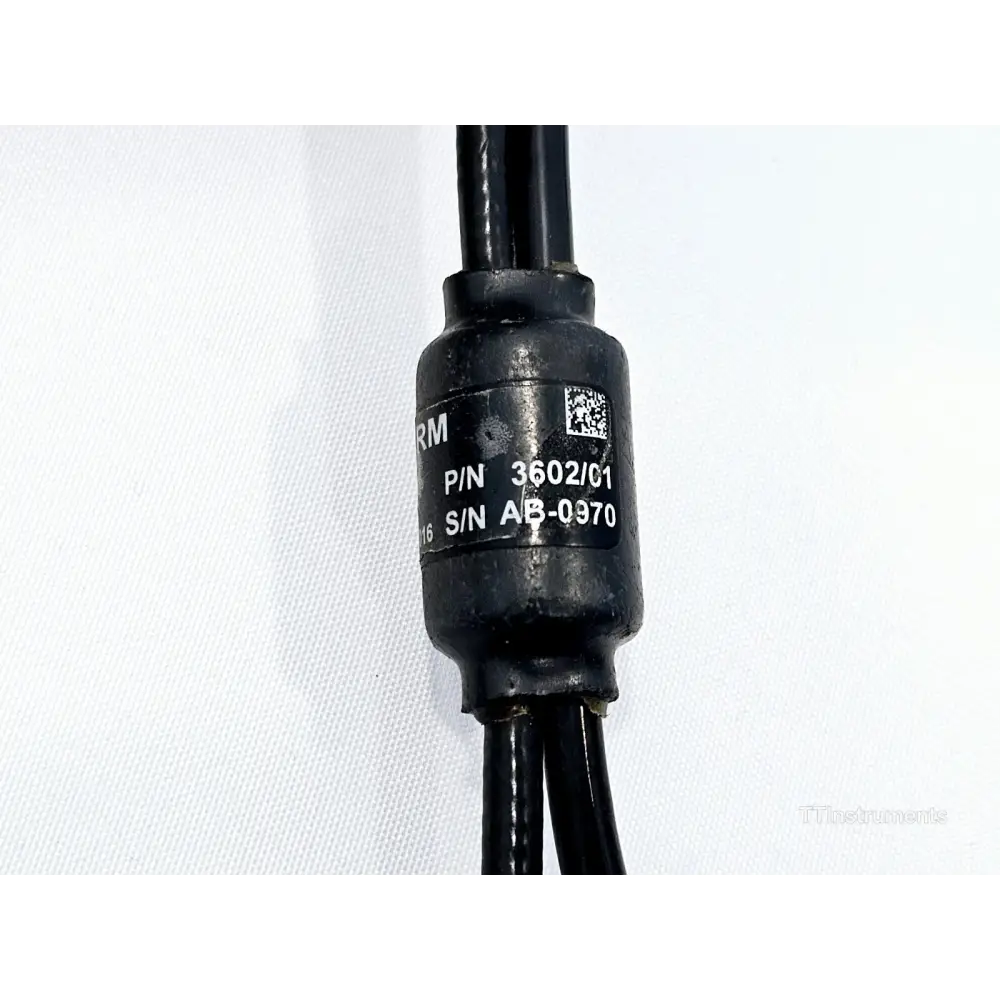

• 3006/01 RF Cable 9 kHz–6 GHz, 1.5 m

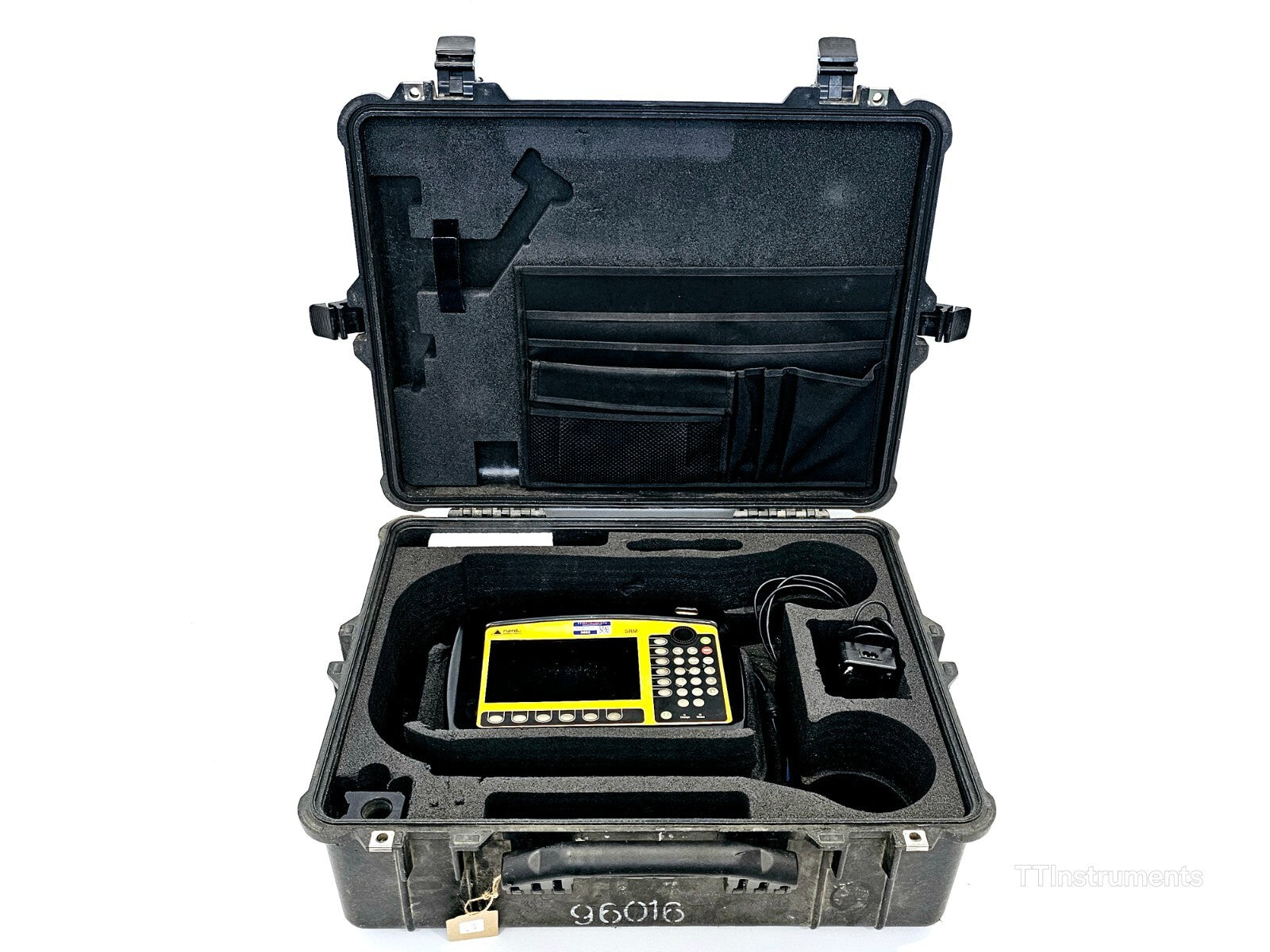

• 3602/01 Carry Case
• Power Adapter 12 V DC, 100 V–240 V AC

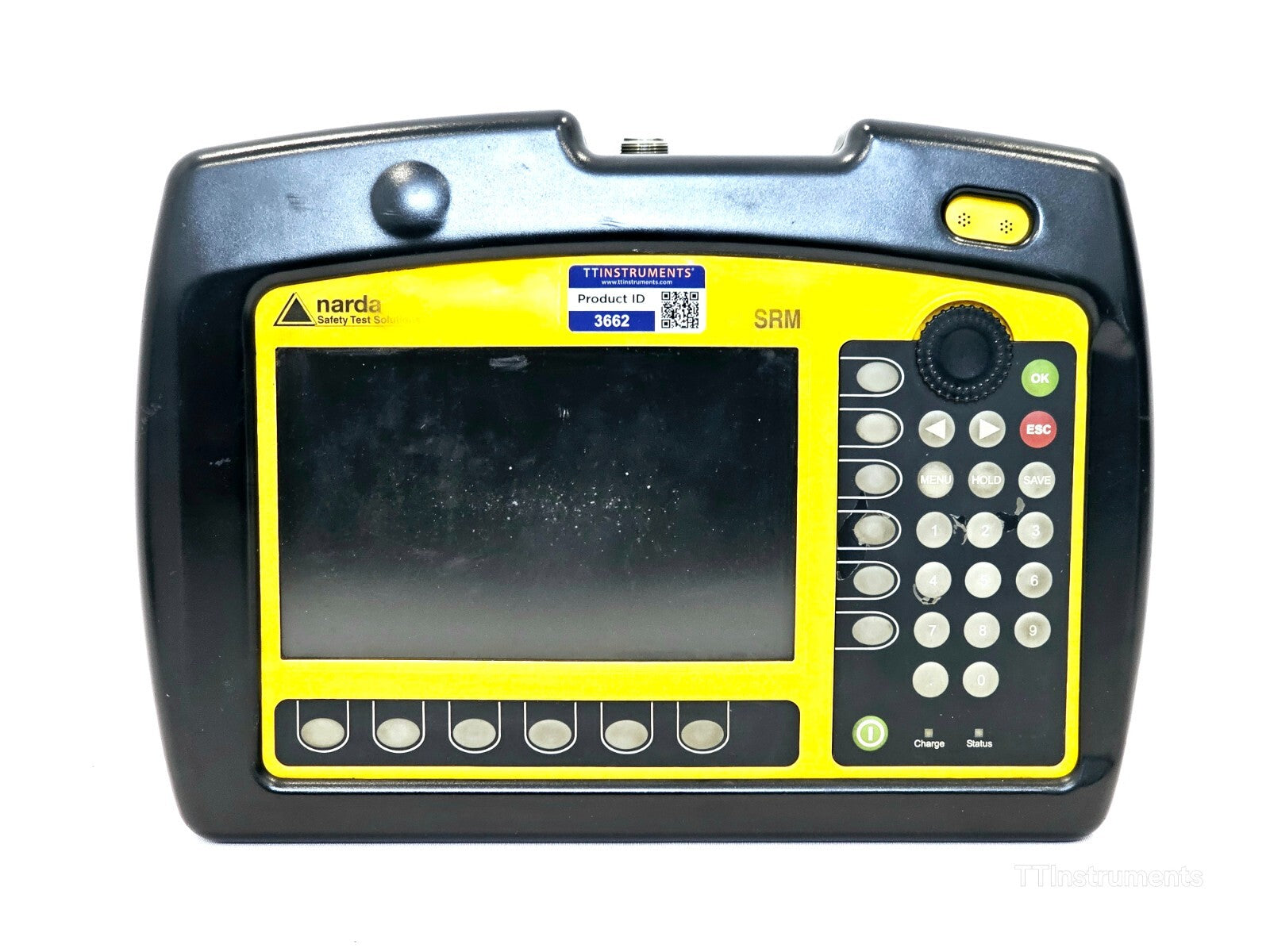

The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective measuring system from Narda Safety Test Solutions, designed for safety analysis and environmental measurements of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and is specially developed for assessing safety in electromagnetic fields.

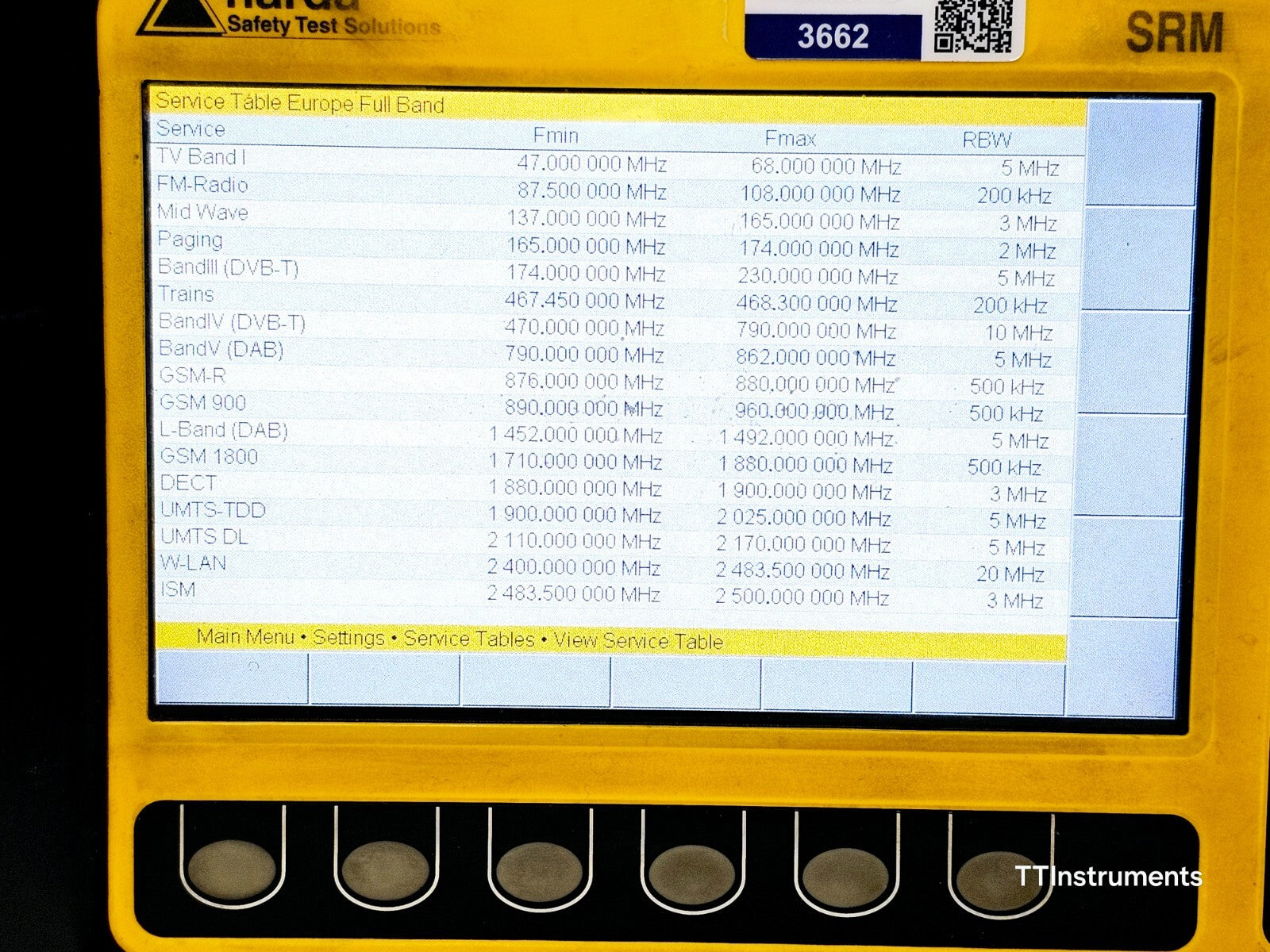

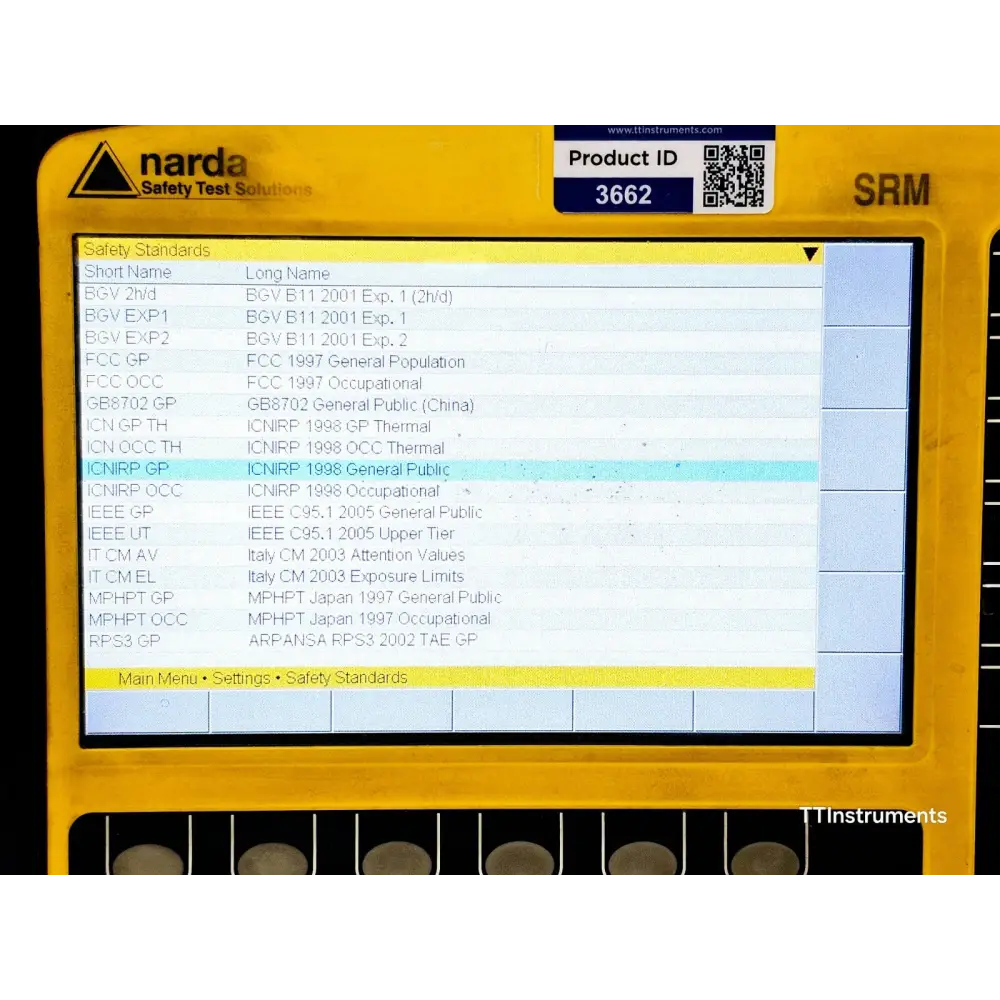

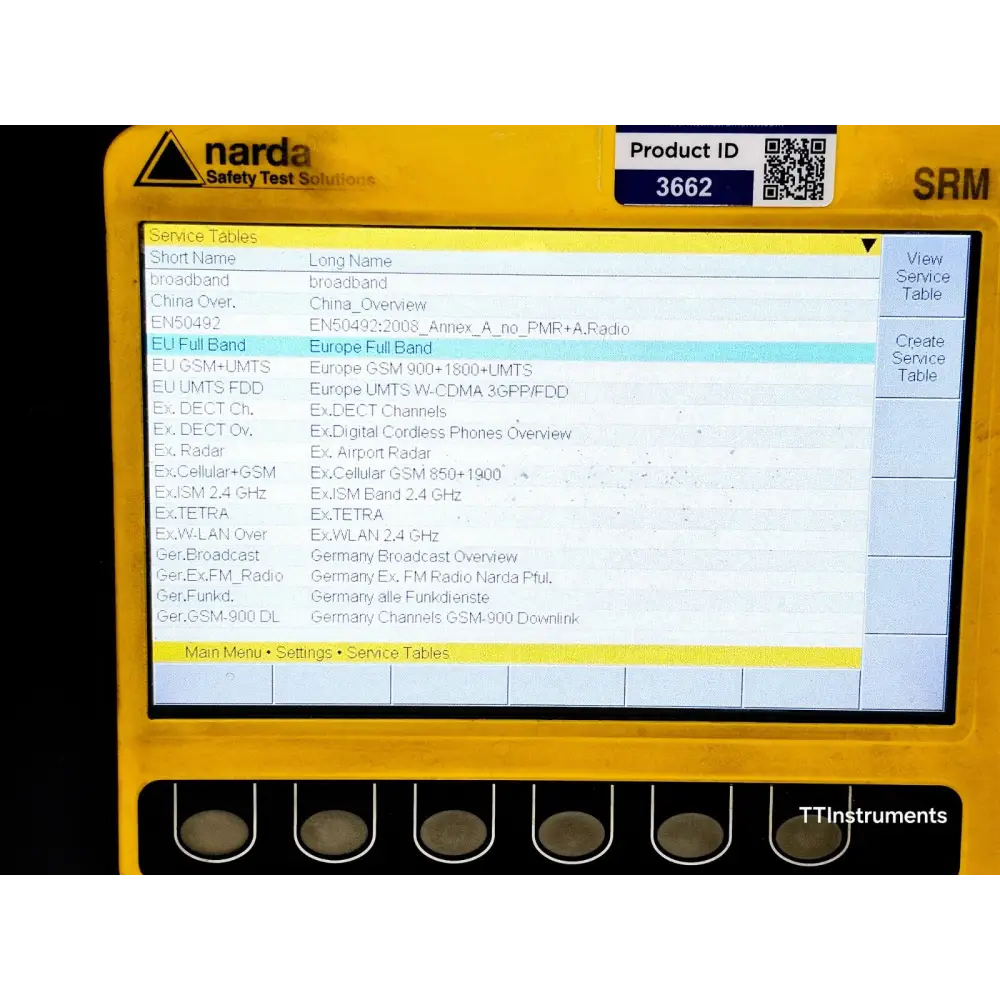

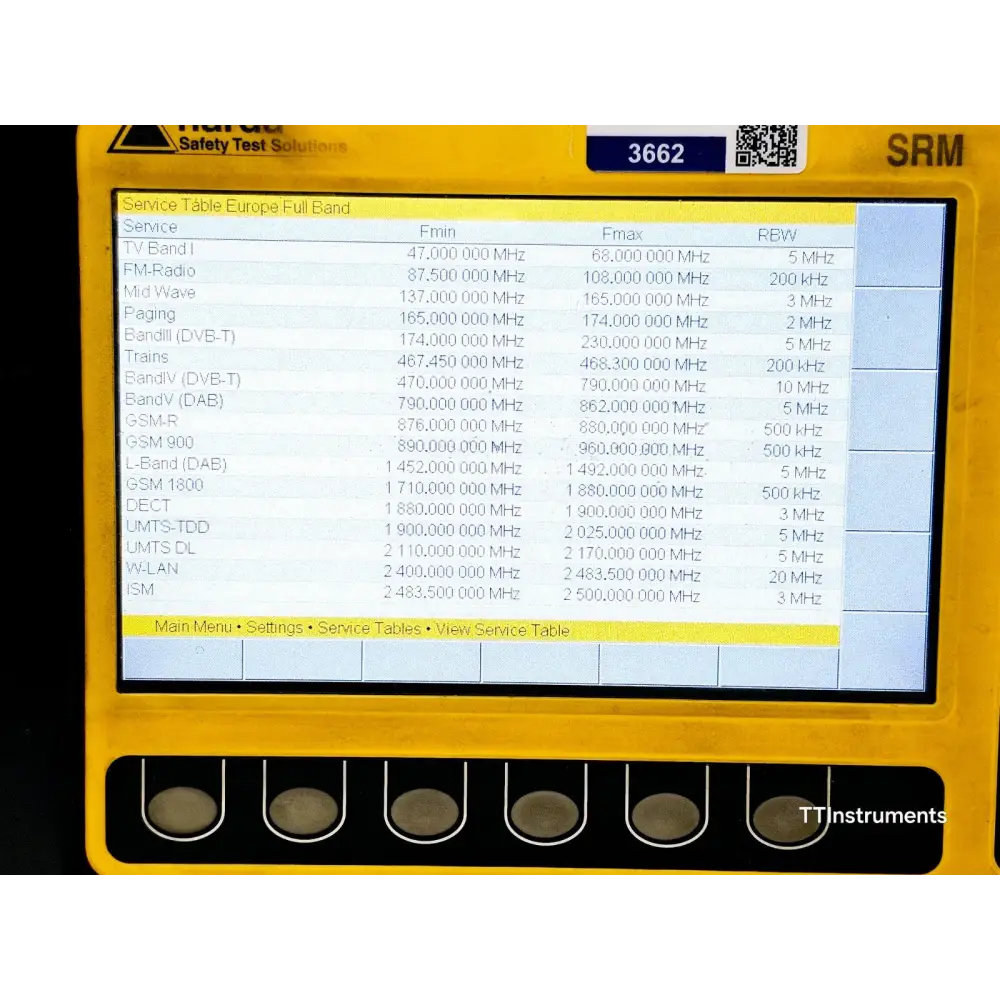

The SRM-3006 provides operating modes tailored to each application, enabling measurement of individual transmission channels and separate services including analog and digital radio (TV, DVB-T, DAB), cellular radio (GSM, UMTS, LTE), and wireless (WLAN, WiMAX). Results are displayed as separate channel values and a total, shown in field strength (V/m), power density (W/cm²), or directly as a percentage of permitted limit values in accordance with ICNIRP, FCC, and other national standards.

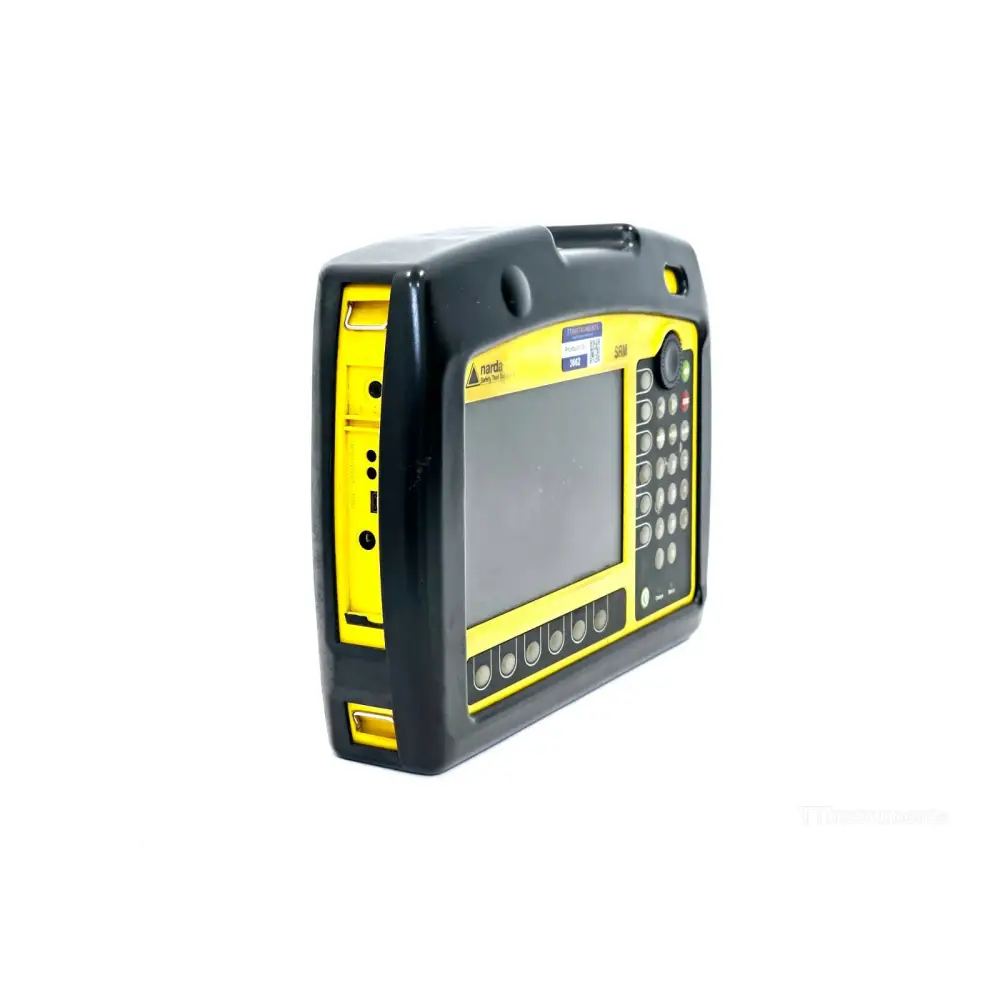

The instrument is irradiation-proof up to 200 V/m, robust, and splash-proof, making it suited to outdoor and on-site use. Exchangeable rechargeable batteries, integrated GPS, and a voice recorder further support field deployment. The basic unit can also function as a laboratory instrument.

Key specifications:
Frequency Range: 9 kHz to 6 GHz
Resolution Bandwidth: Up to 32 MHz

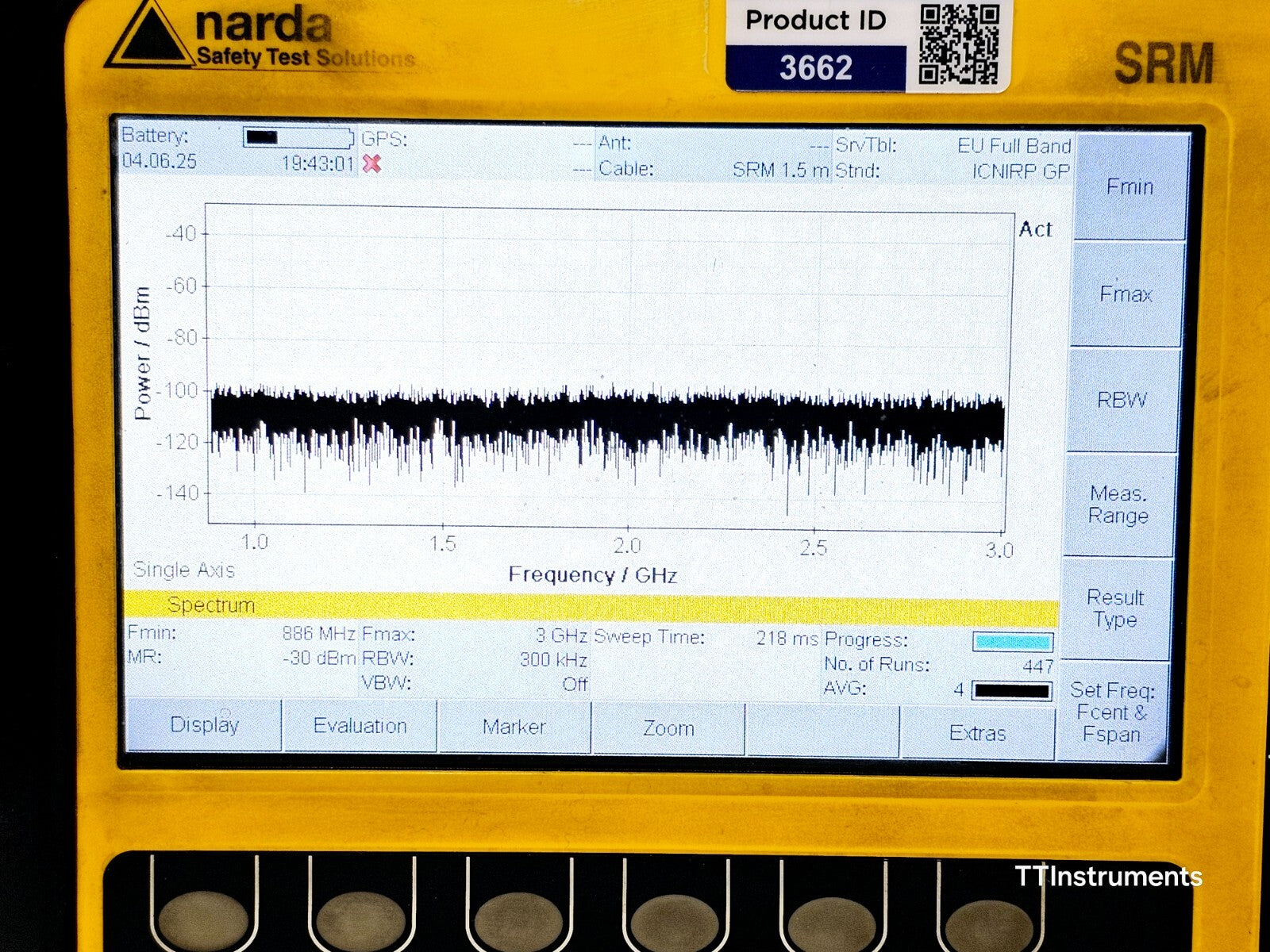

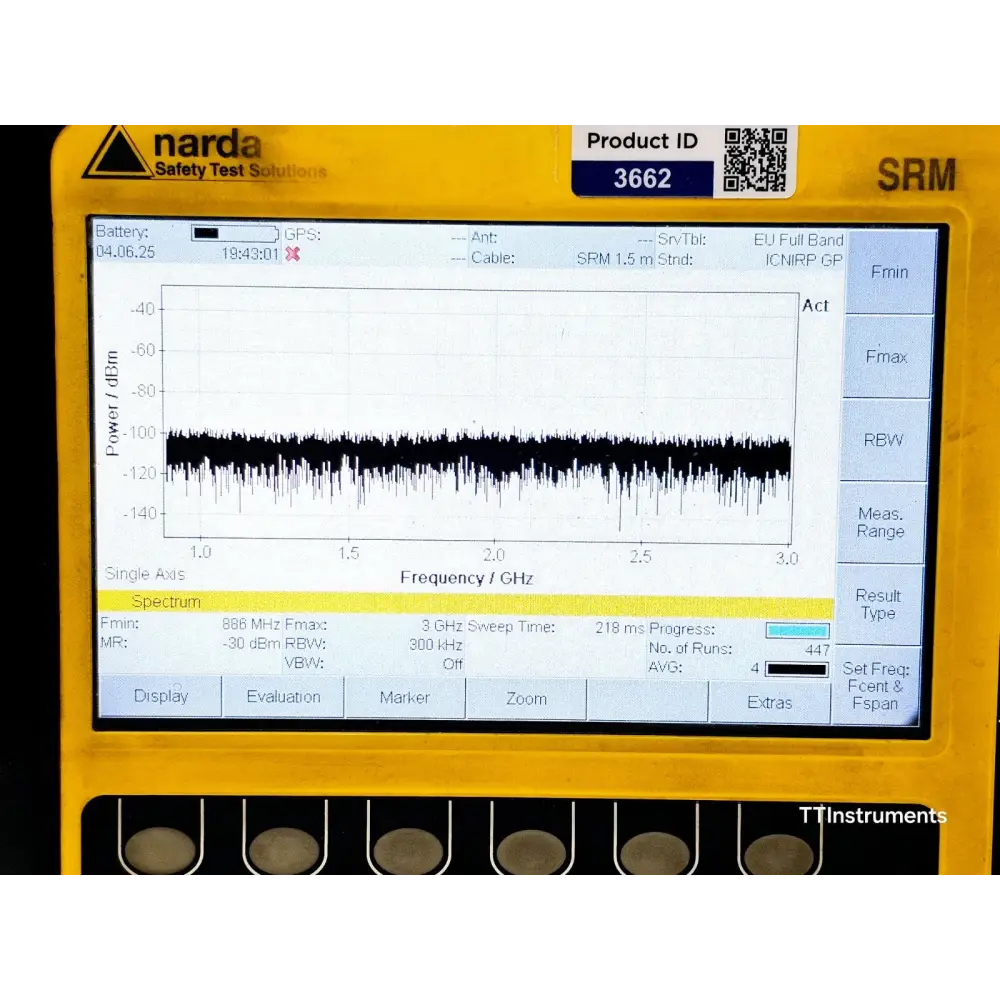

Operating Modes: Safety Evaluation, Spectrum Analysis, Level Recorder, Scope (optional)

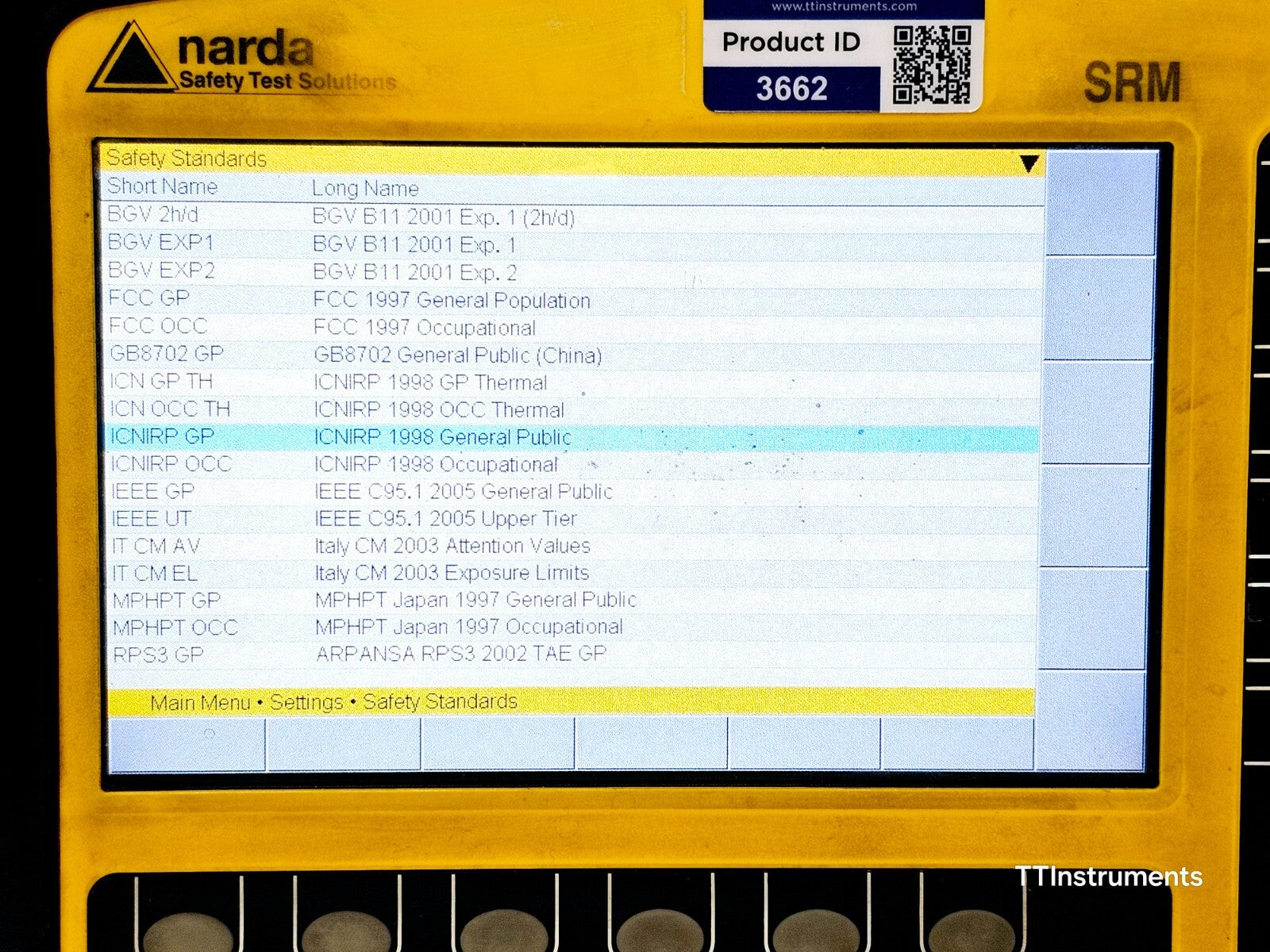

Display Units: V/m, A/m, W/cm², or % of limit value (ICNIRP, FCC, etc.)
Irradiation Protection: Up to 200 V/m
Long-term Monitoring: Up to 99 hours (all modes except Scope)
Power Supply: Rechargeable battery pack (approx. 3 hours operation); AC adapter/charger (100–240 V AC)

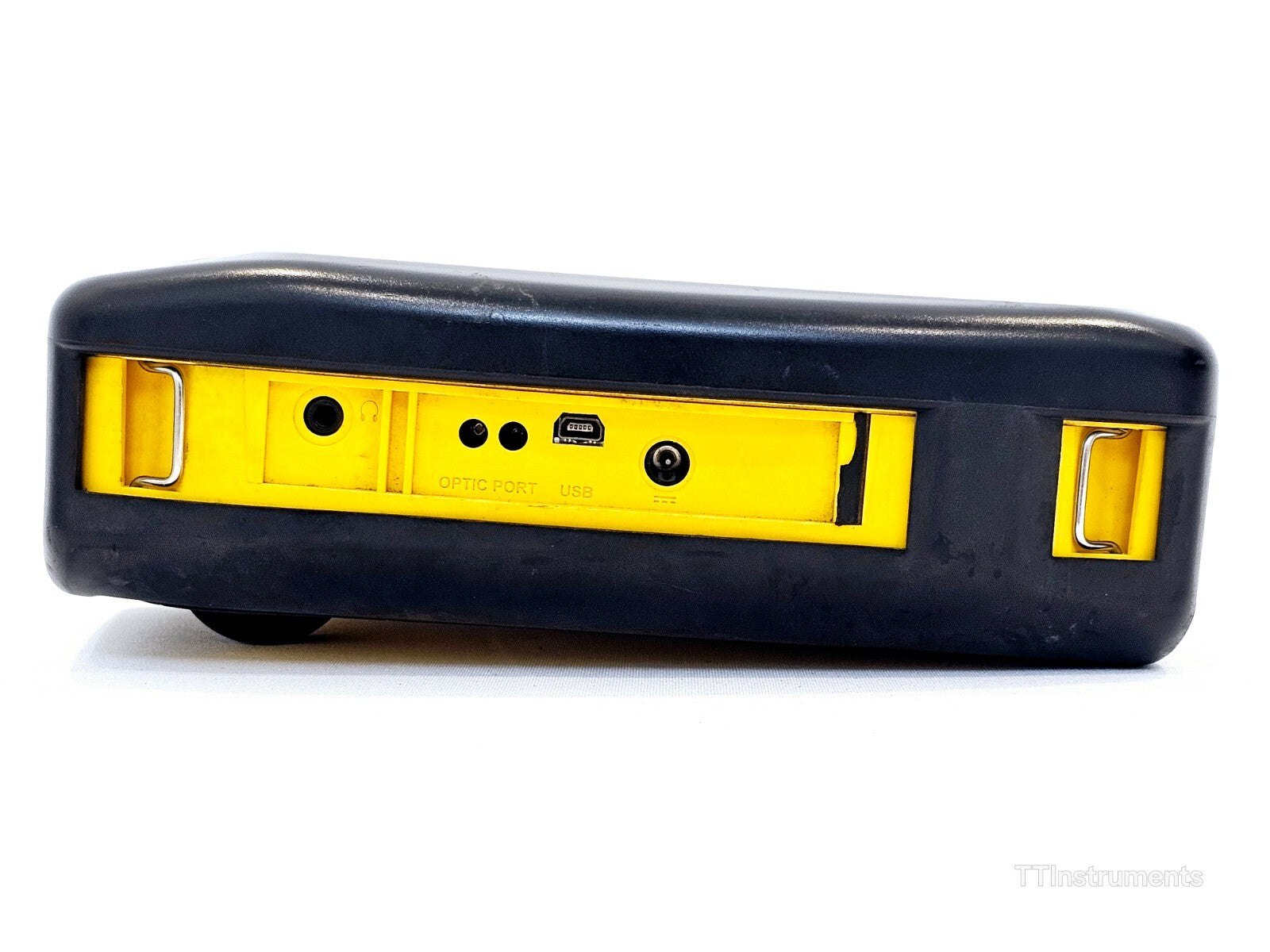

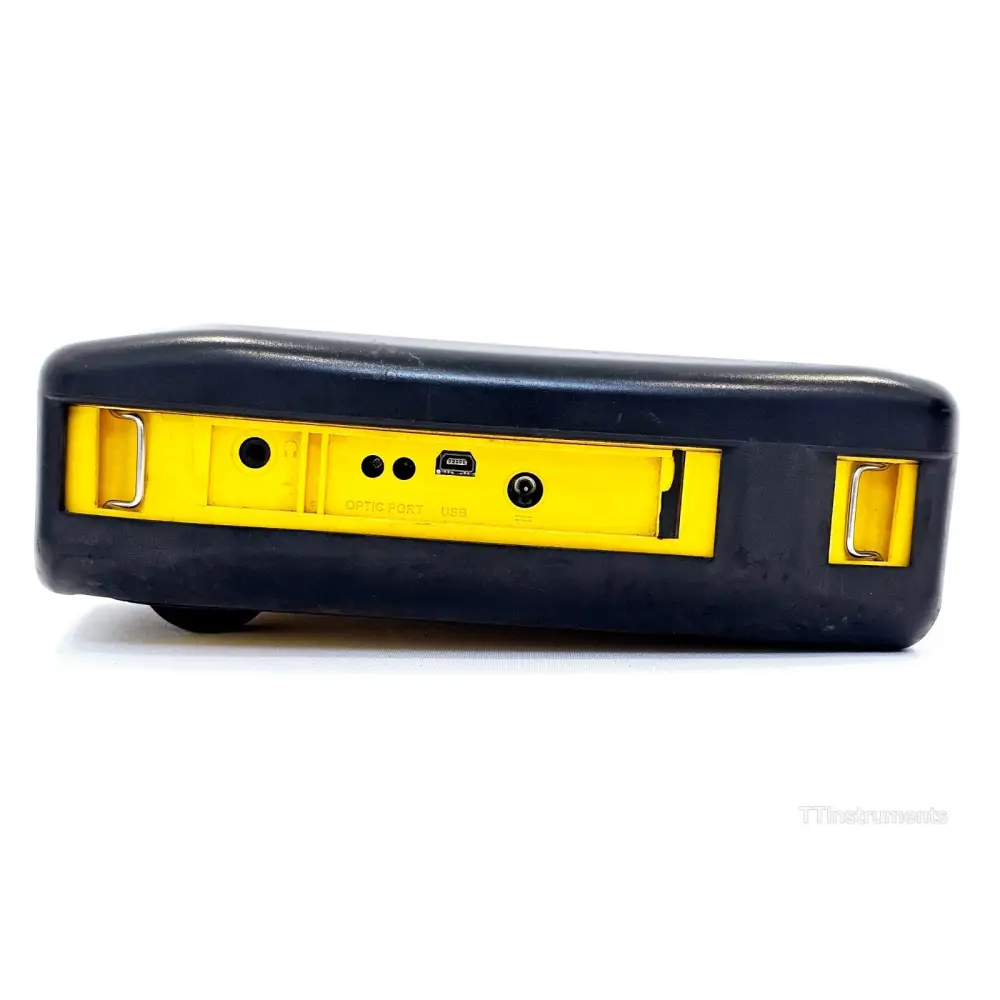

Connectivity: USB, optical interface

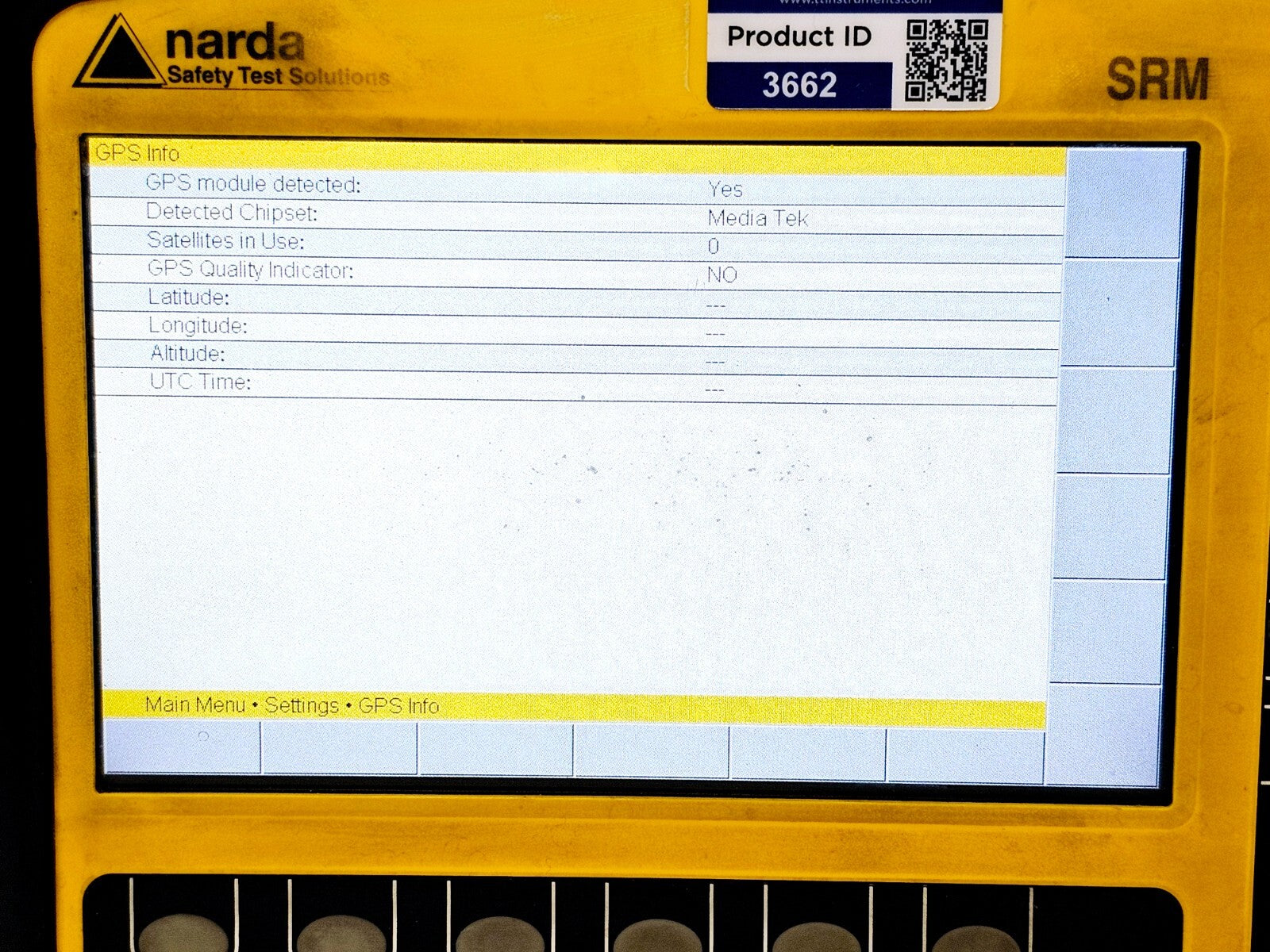

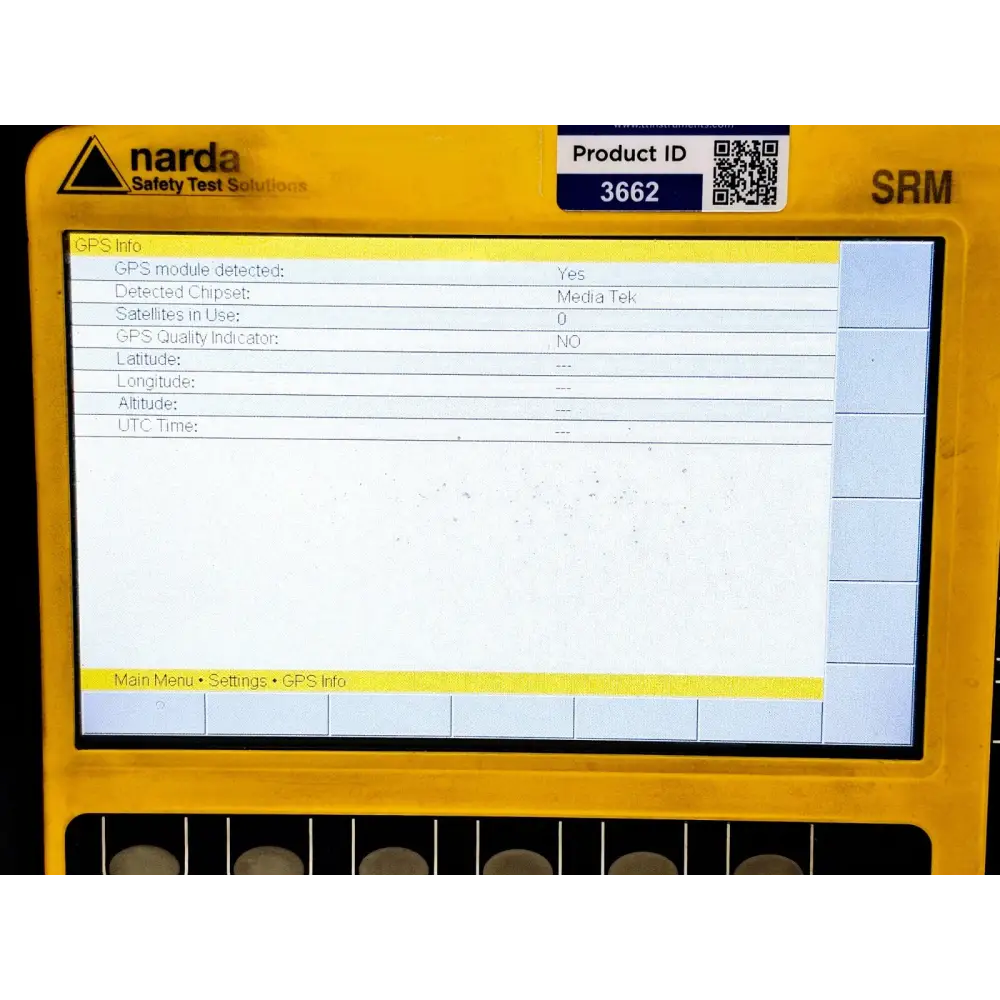

Integrated Features: GPS, voice recorder
Optional Licence Modes: LTE-FDD, LTE-TDD, UMTS P-CPICH demodulation, 5G NR (FR1), Scope

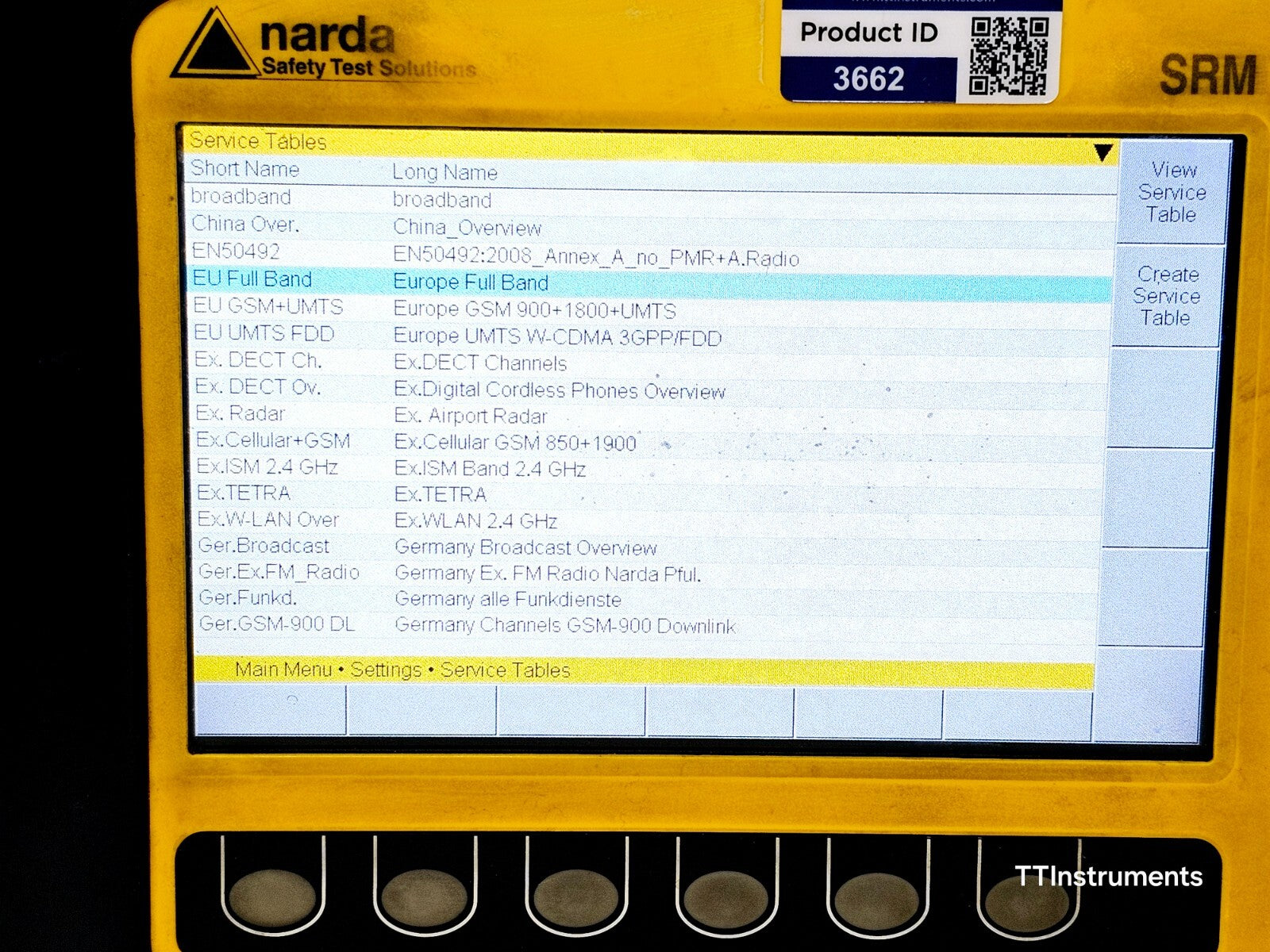

PC Software: SRM-3006 Tools (data management, custom service tables, measurement routines)
Design: Hand-held, ergonomic, splash-proof, suitable for outdoor use

Typical applications include EMF safety assessments at mobile communications base stations, broadcast transmitter sites, workplaces, public spaces, and industrial facilities. The SRM-3006 has become the industry-standard instrument for frequency-selective EMF compliance measurements.

Narda SRM-3006 Datasheet — product overview, features and key specifications (TestEquipmentHQ hosted PDF): Download PDF

Narda SRM-3006 Datasheet — full specifications including antenna options and optional modes (TestUnlimited hosted PDF): Download PDF

Narda SRM-3006 Operating Manual — comprehensive user guide including setup, modes, specifications and PC software (McGill University hosted PDF): Download PDF

Narda SRM-3006 US Datasheet — second generation hand-held narrowband EMF analyser product sheet (Electrorent hosted PDF): Download PDF

Narda SRM-3006 Tools PC Software Application Note — guide to the SRM-3006 Tools PC software for data management and measurement routines: Download PDF
