Condition: Used

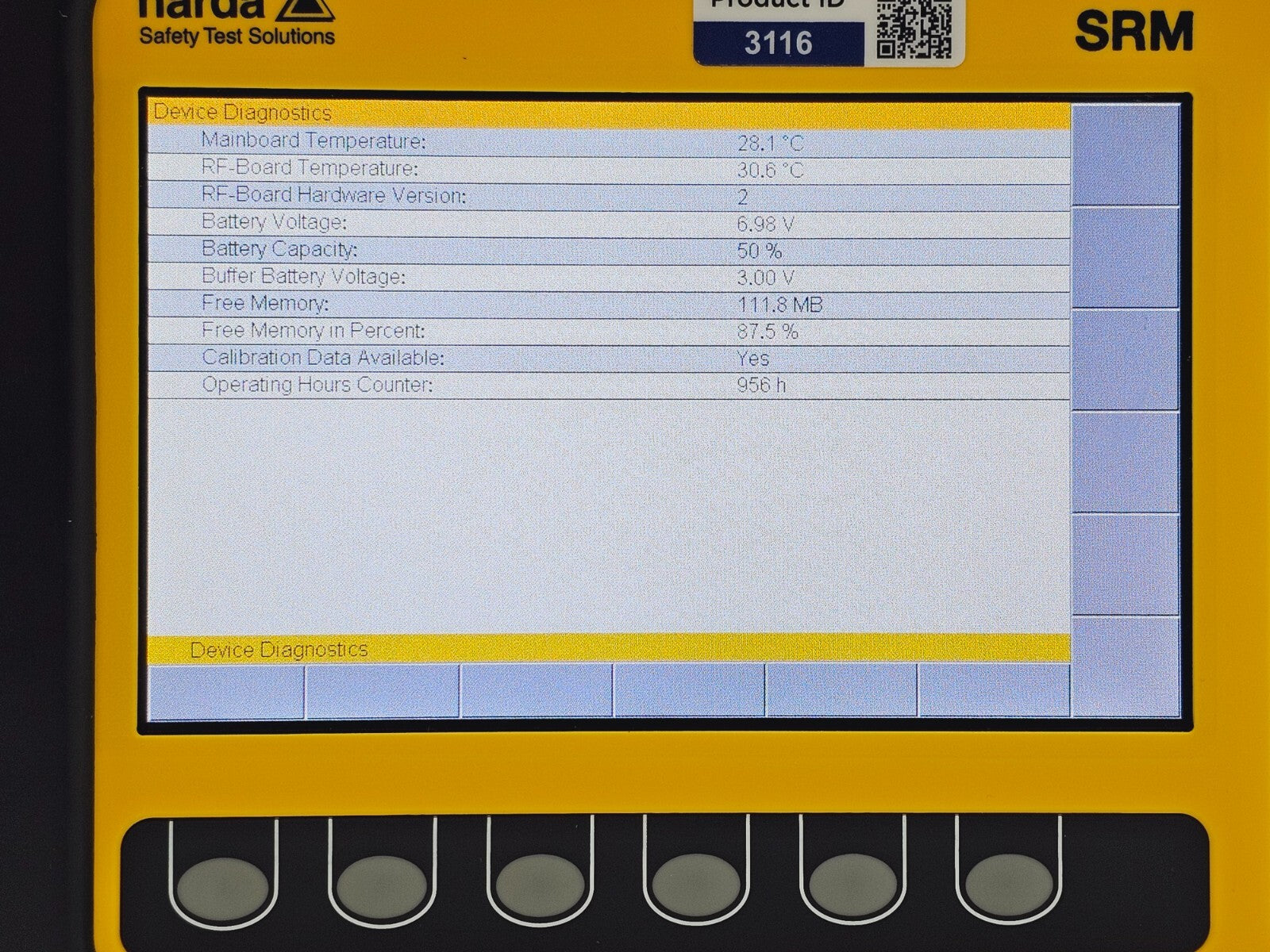

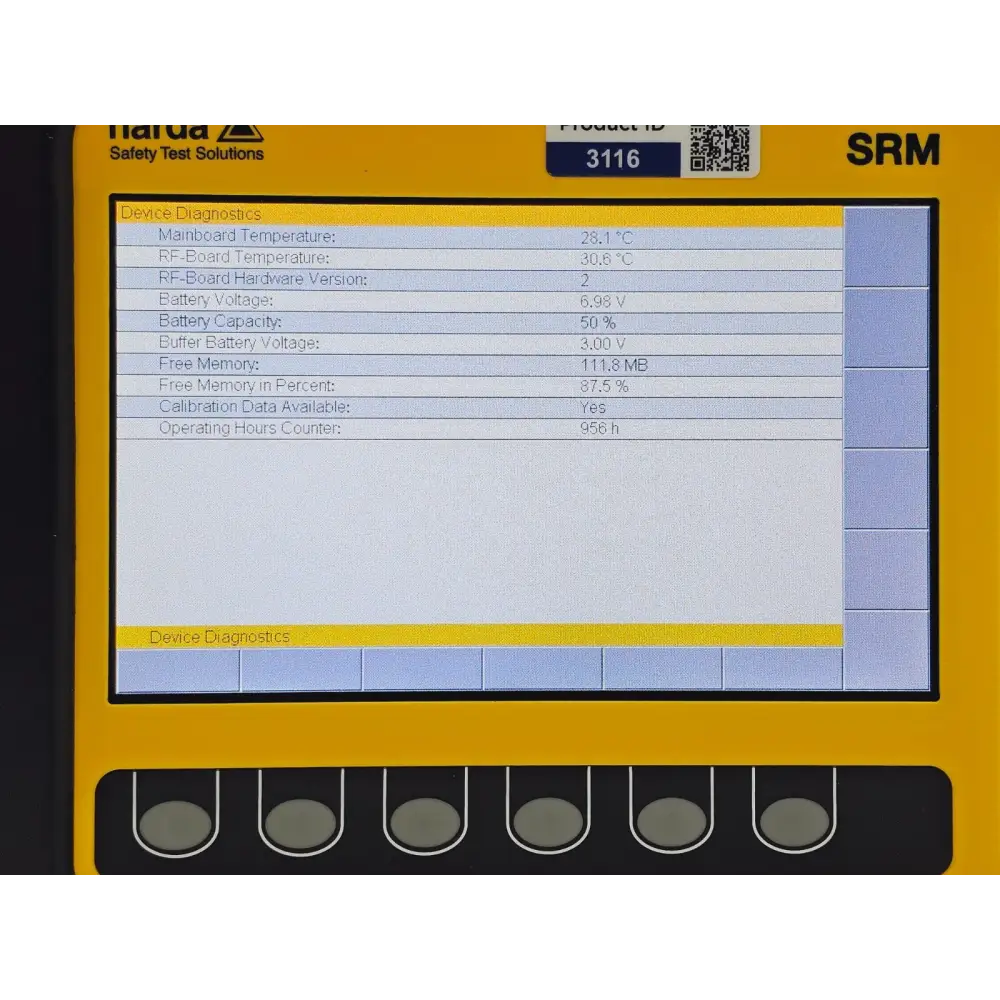

Tested and working. Run time of only 956 hours — a very low-usage example of this professional EMF measurement system. Supplied complete with the 3501/03 three-axis E-field probe (27 MHz – 3 GHz), RF cable, carry case, and power adapter, making this a ready-to-use field safety measurement kit.

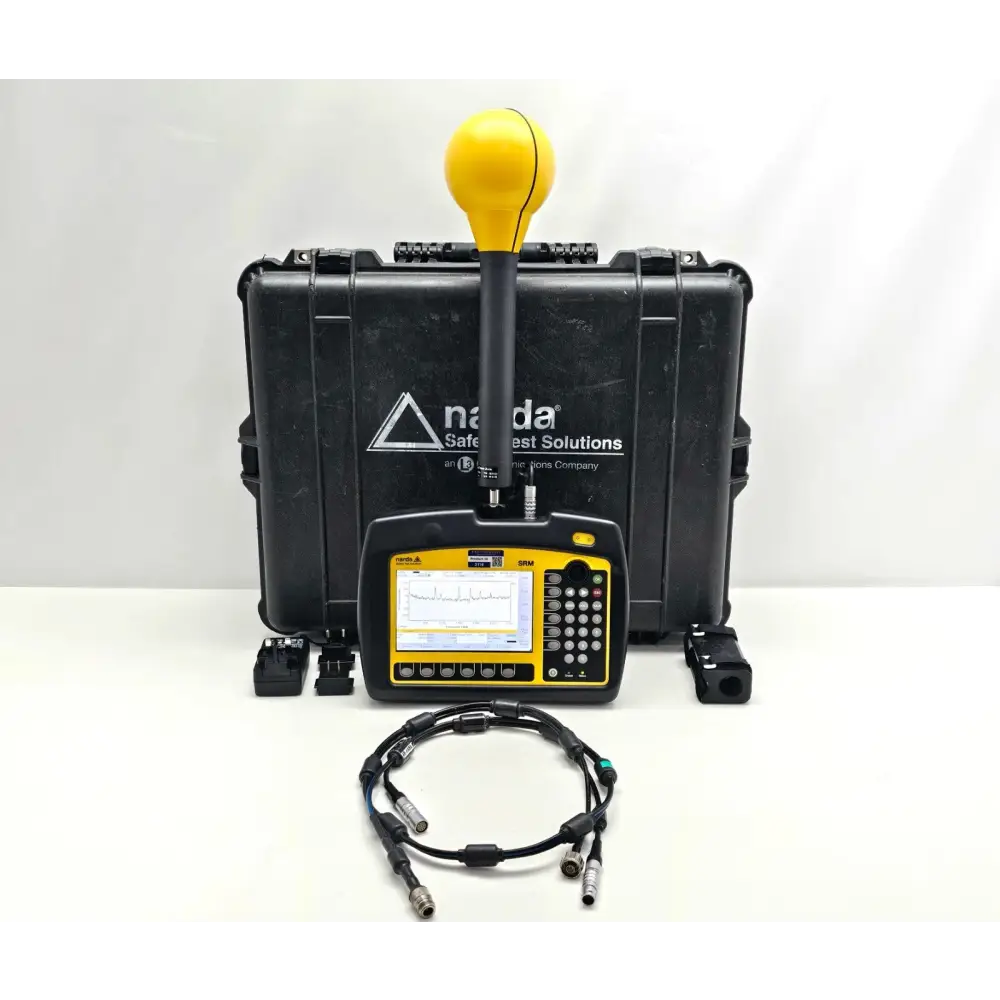

Included in the sale:

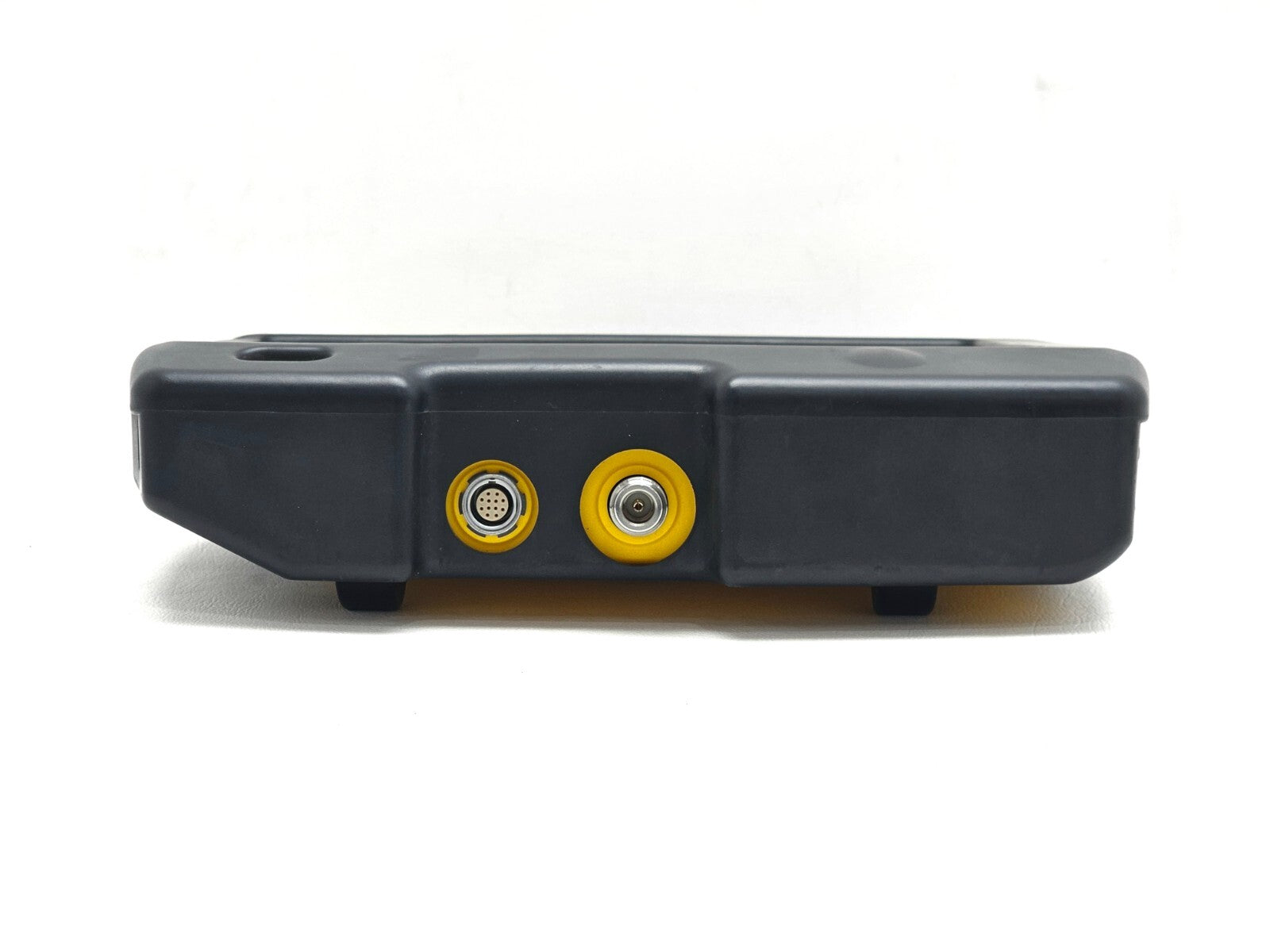

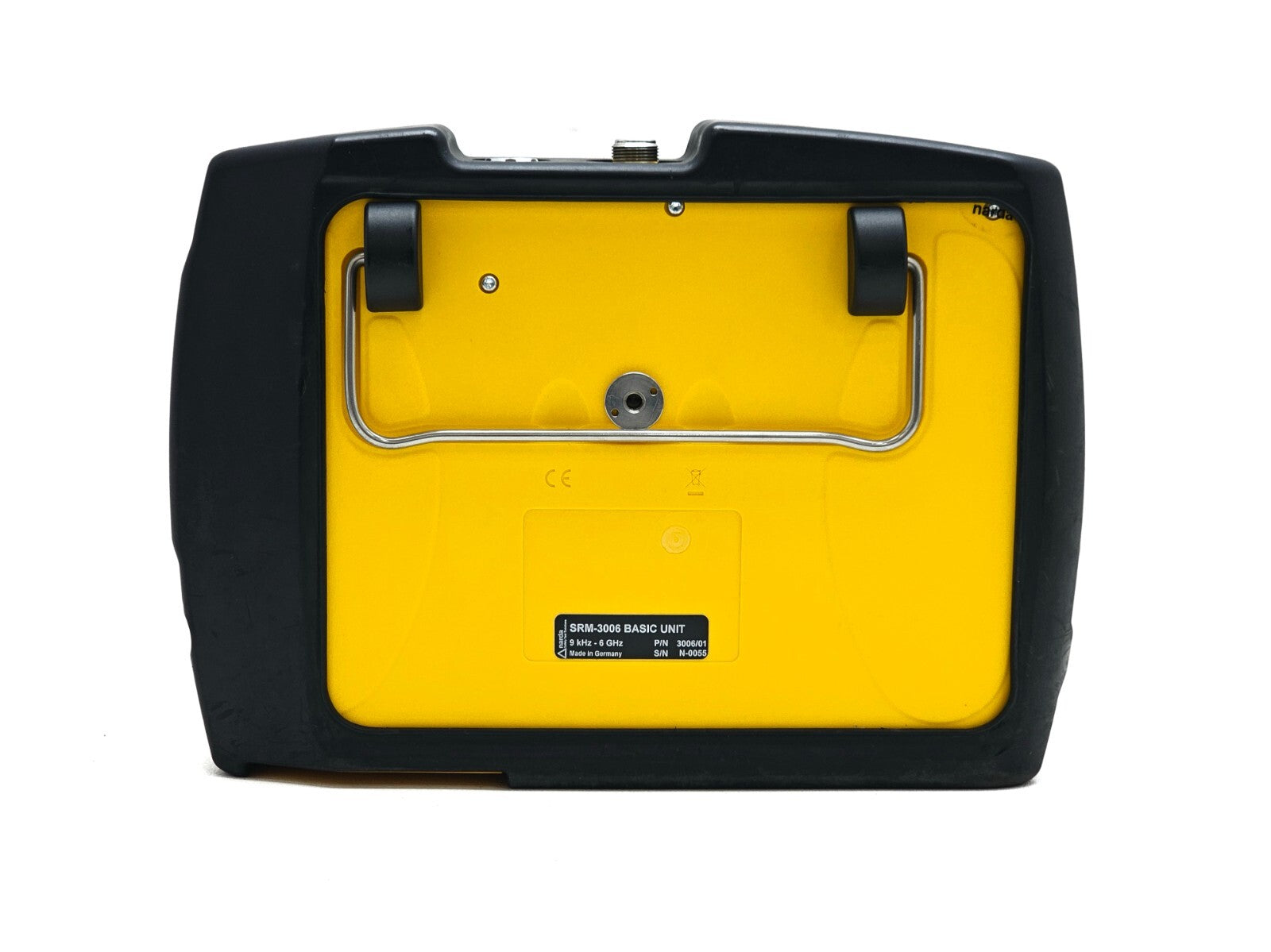

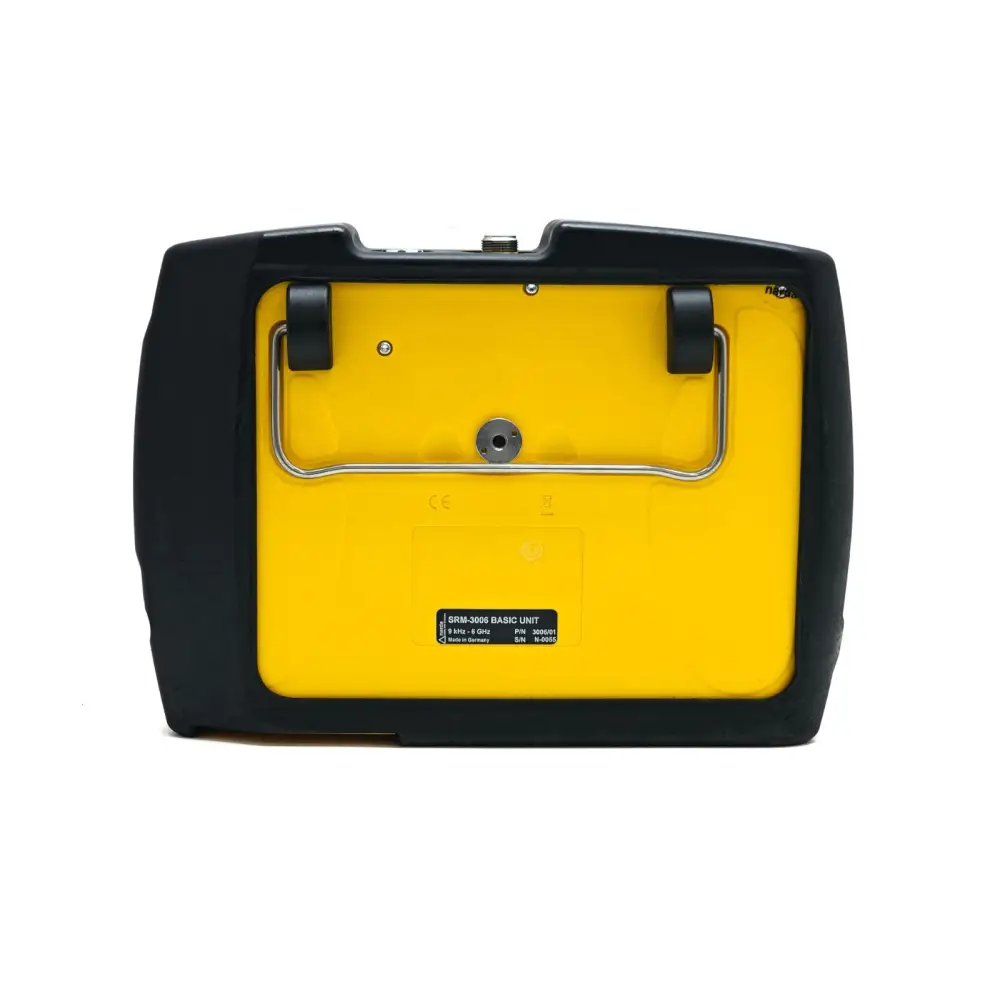

• SRM-3006 Platform (3006/01)

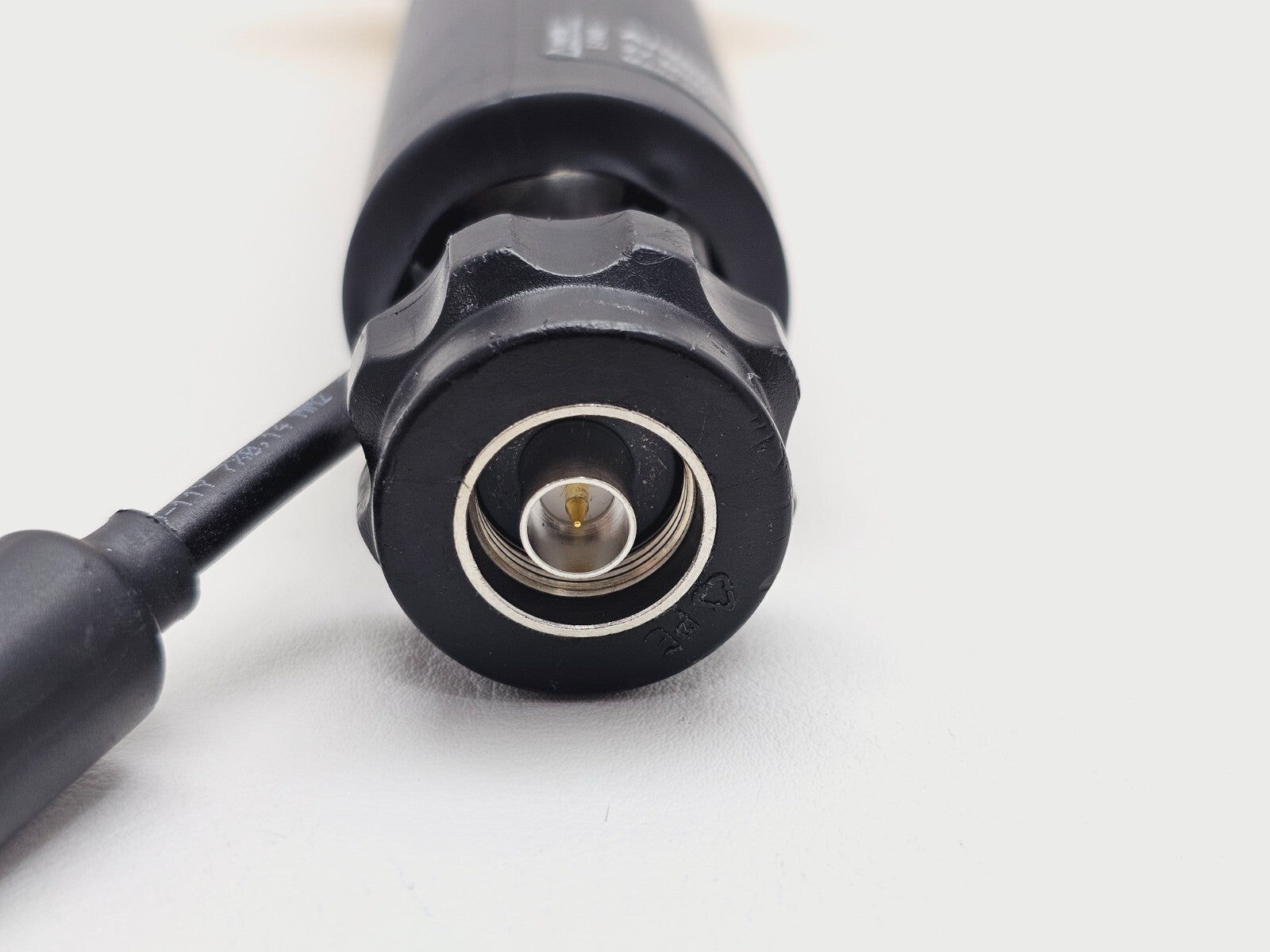

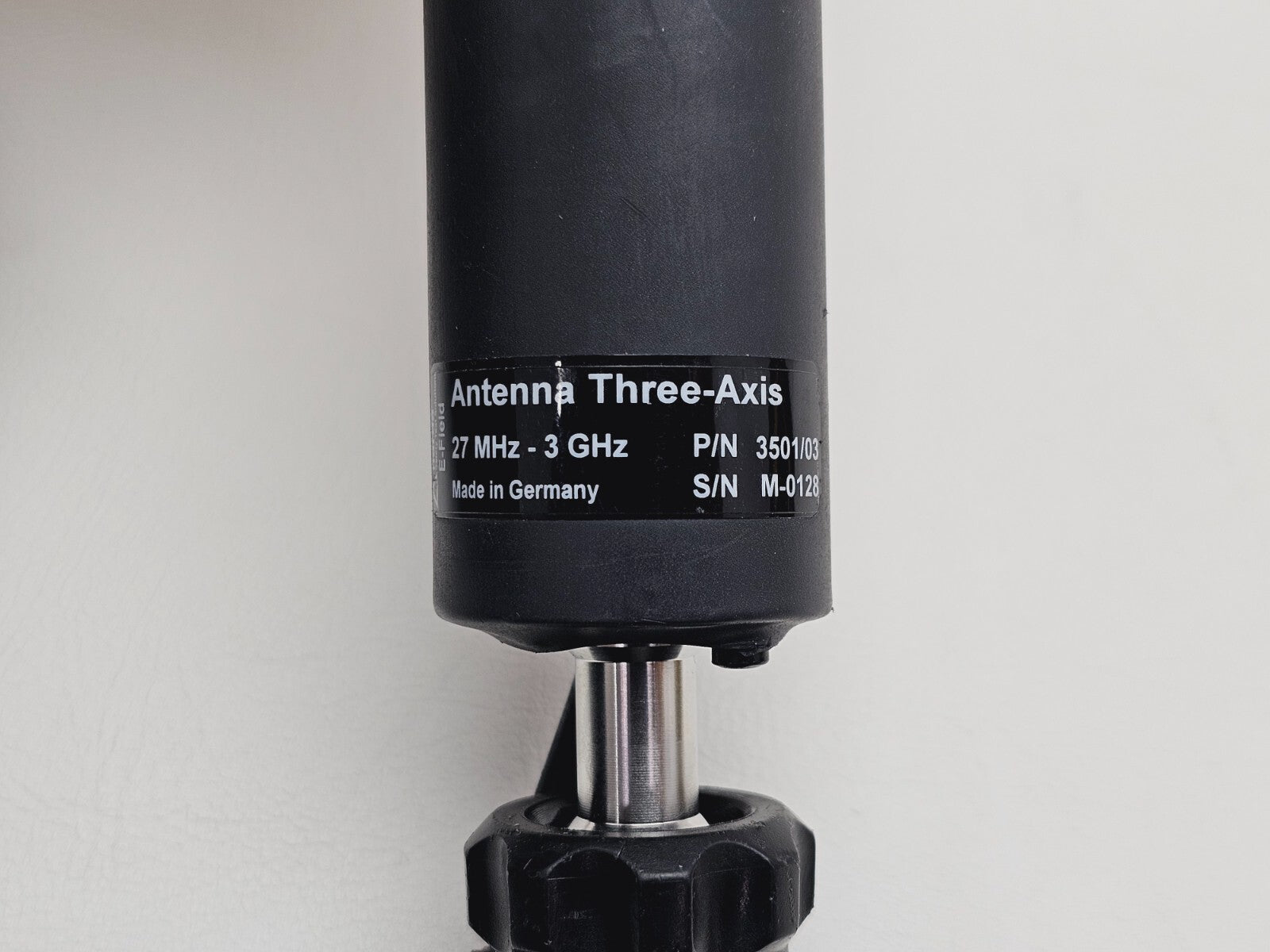

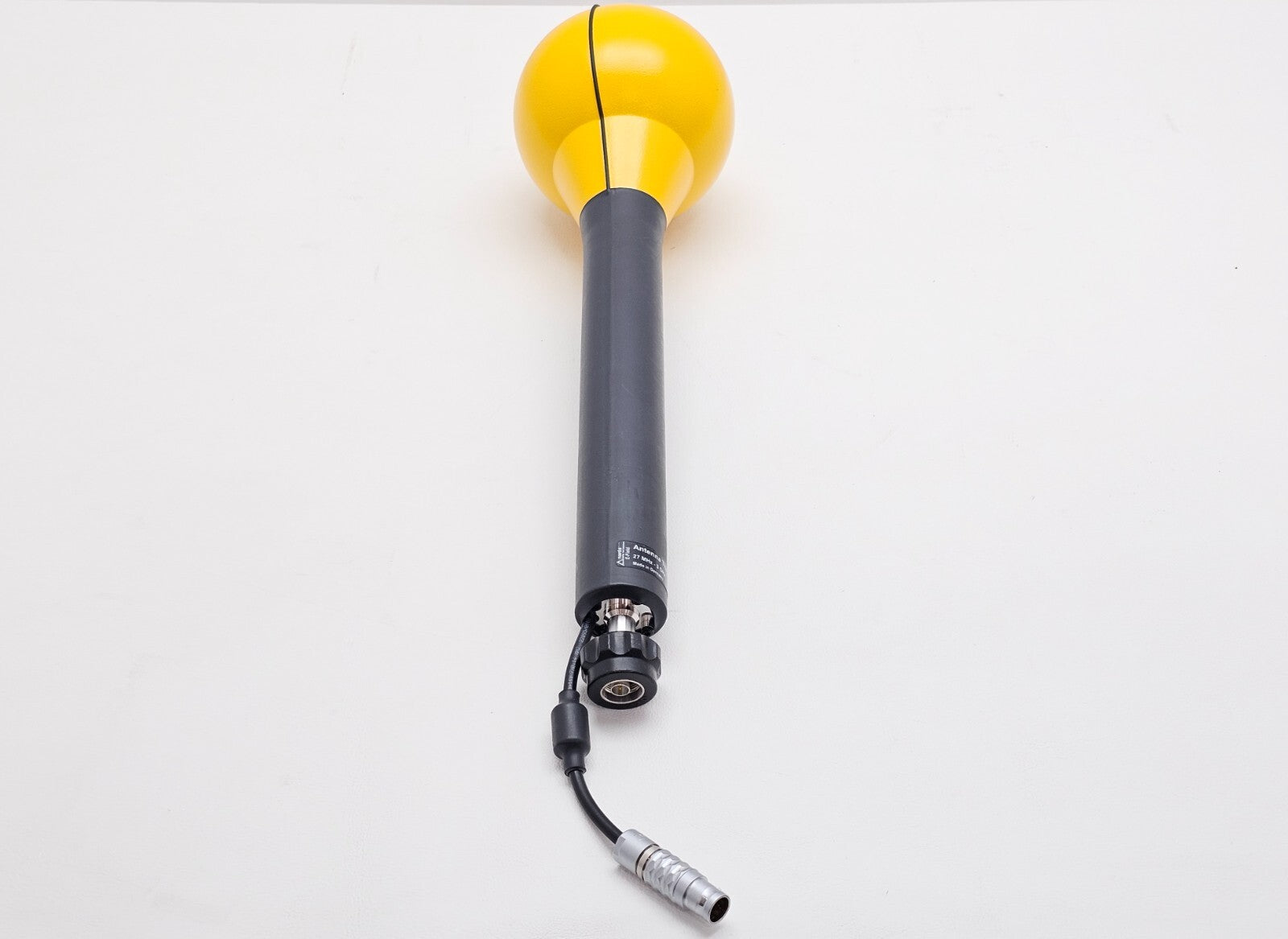

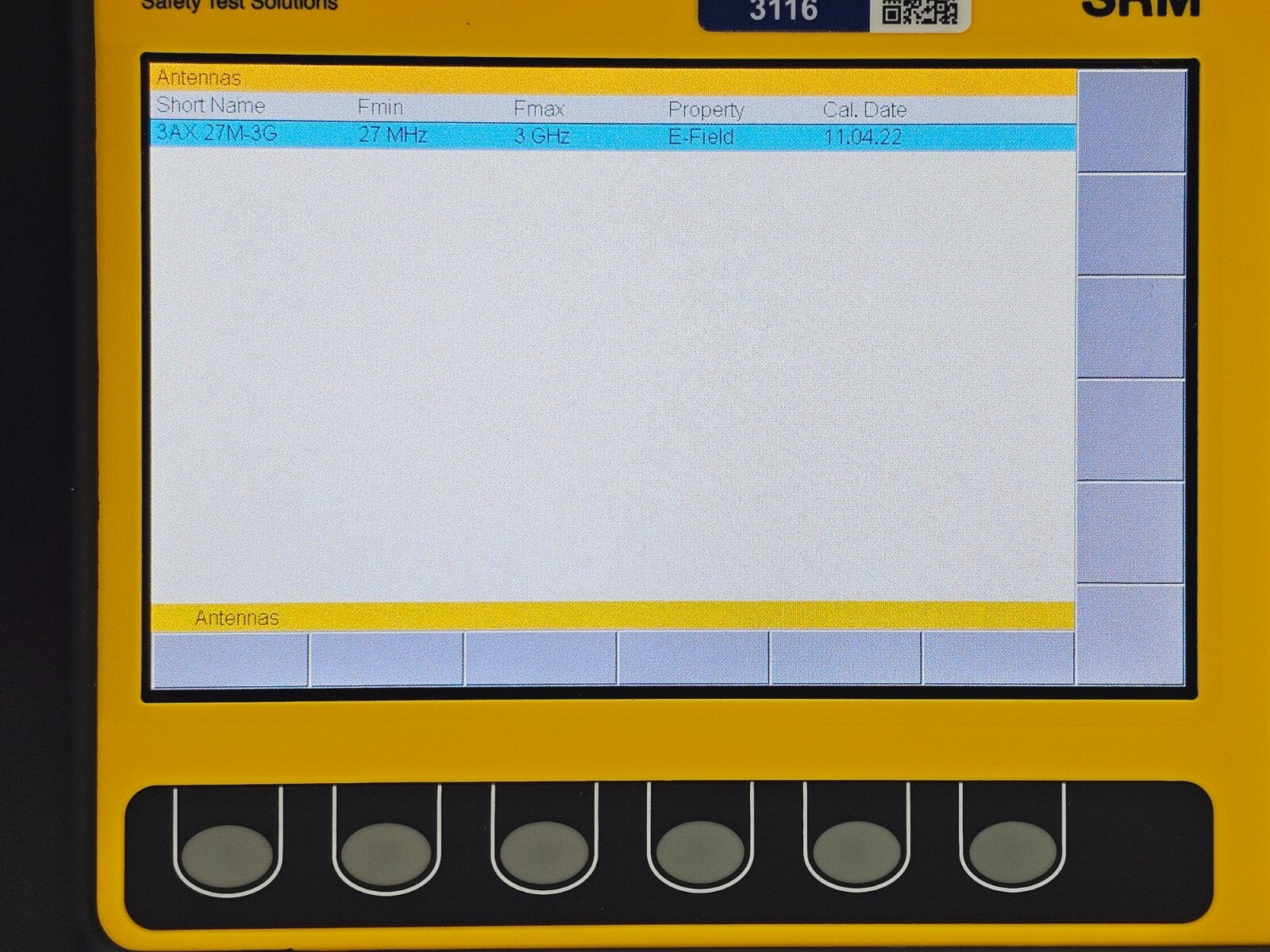

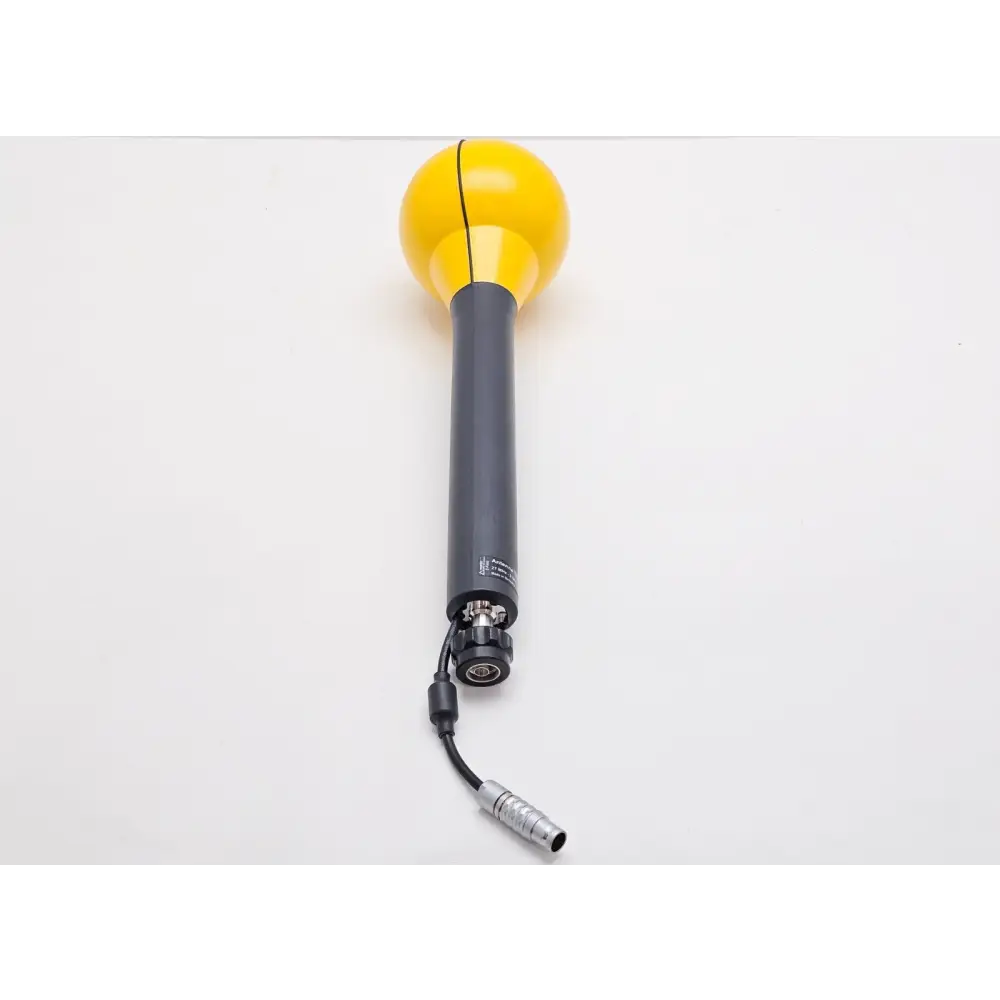

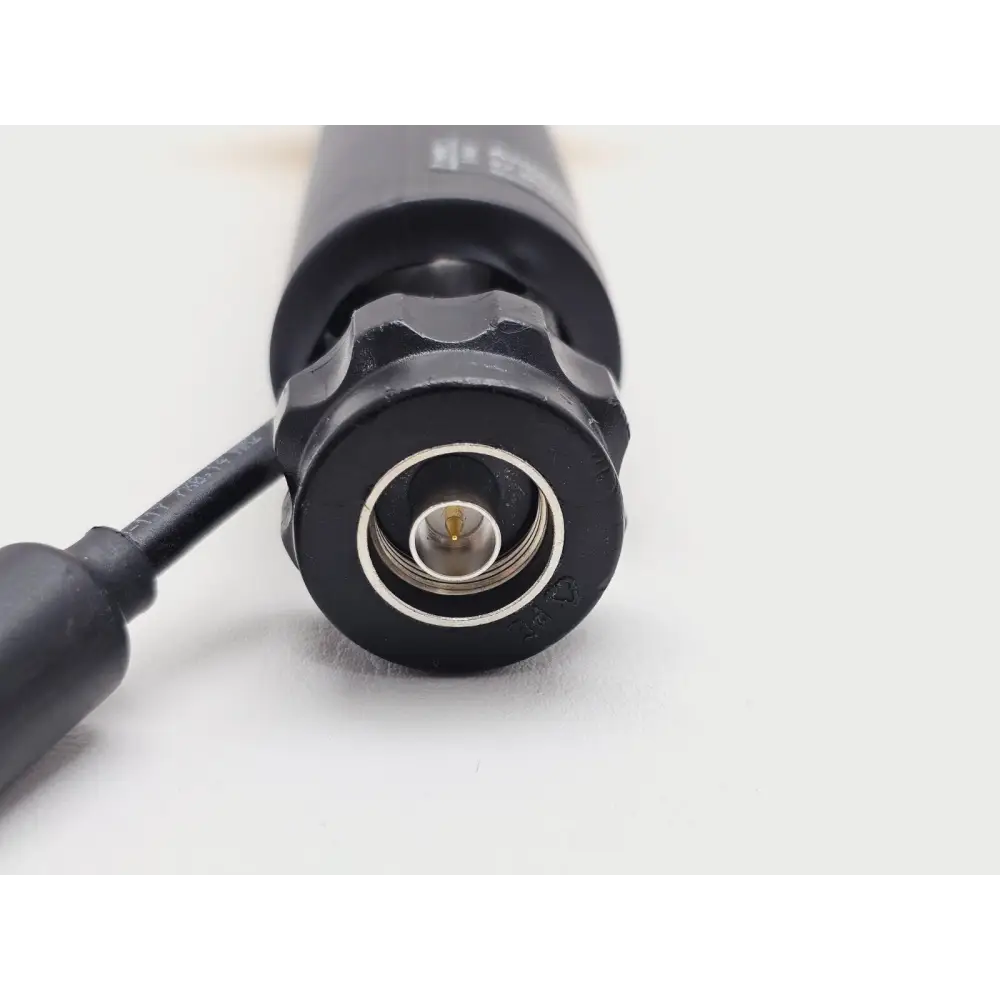

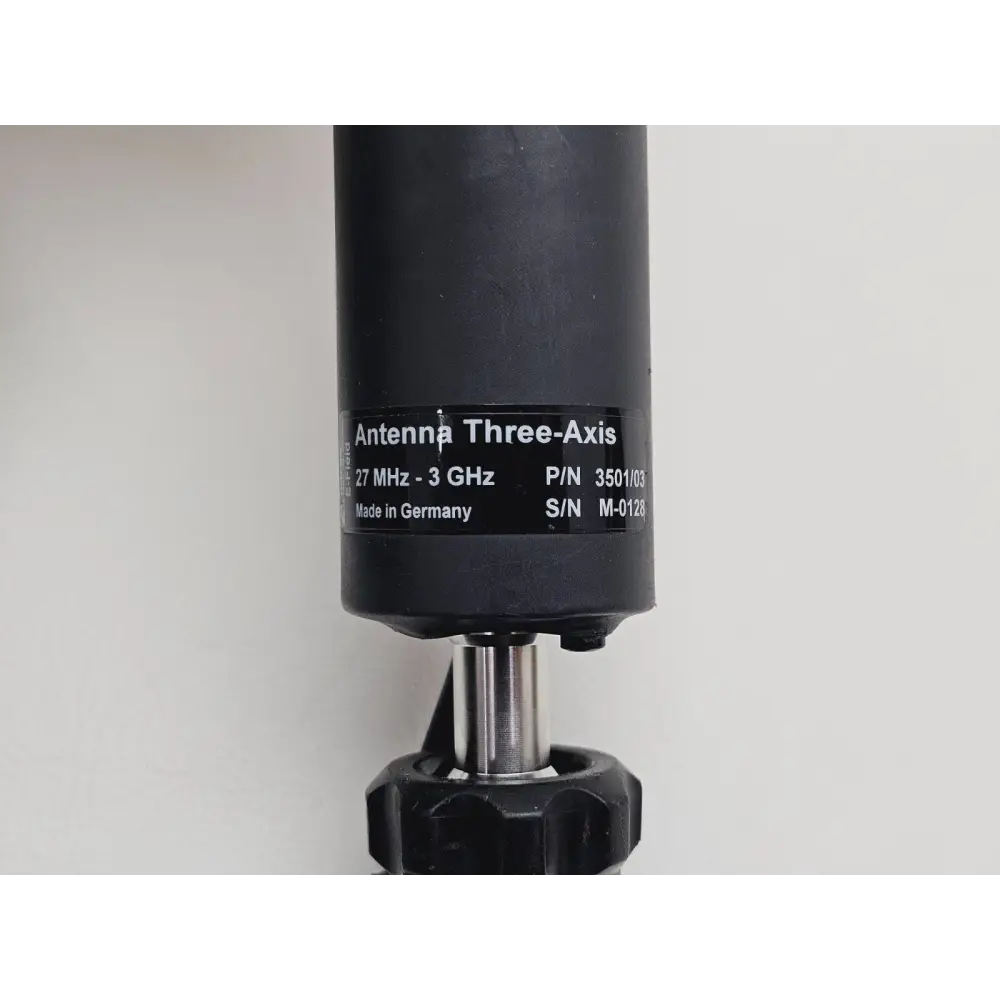

• E-Field Antenna Three-Axis 27 MHz – 3 GHz Probe (3501/03)

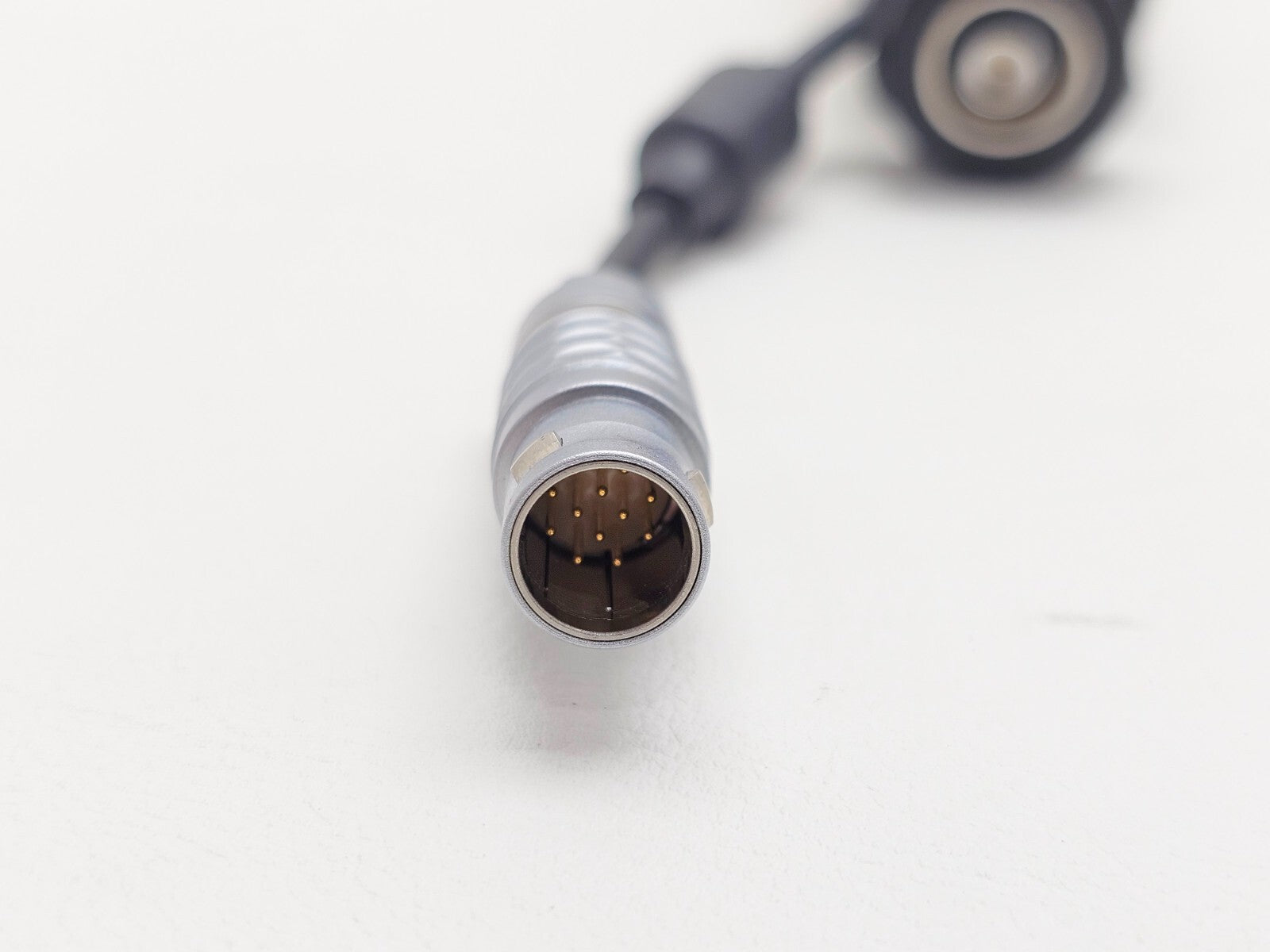

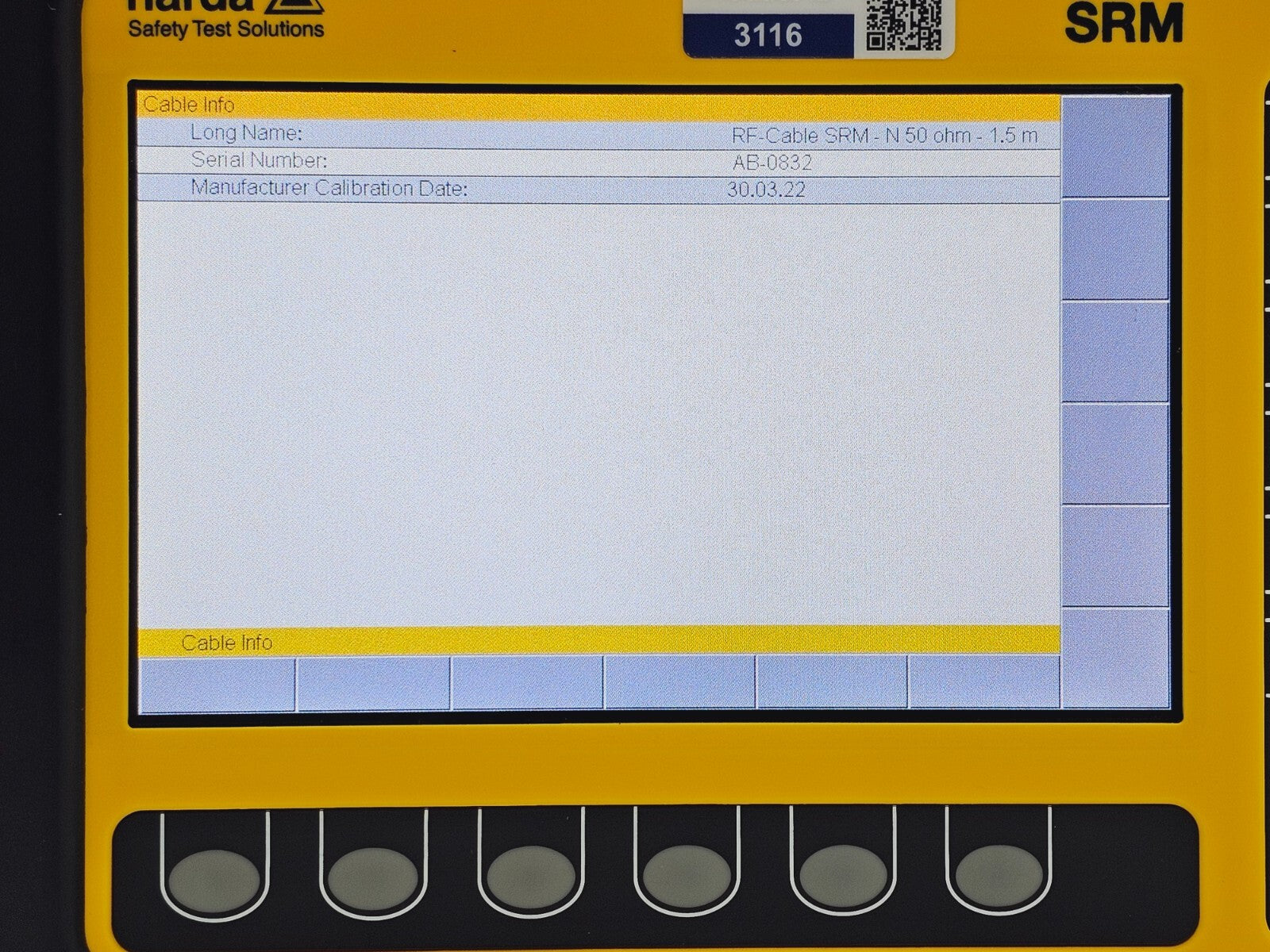

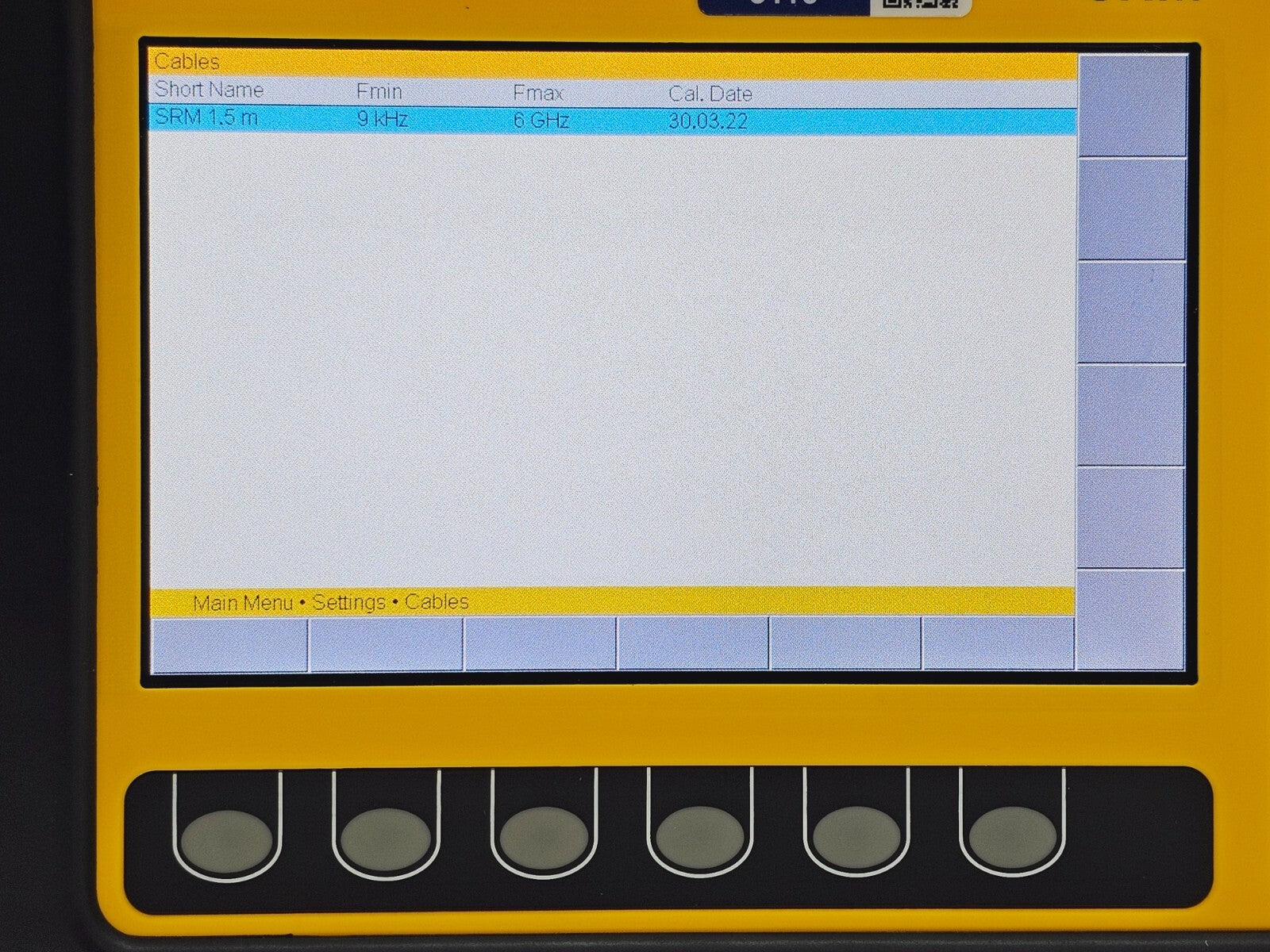

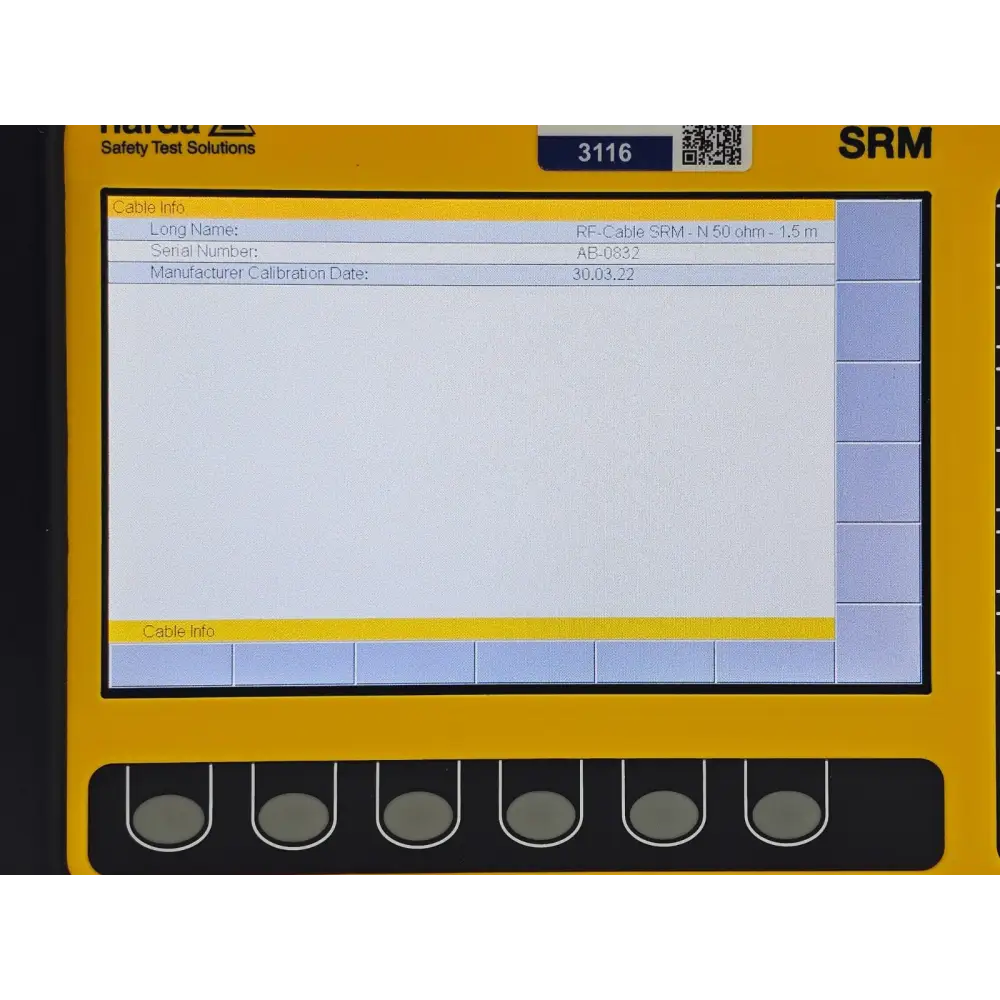

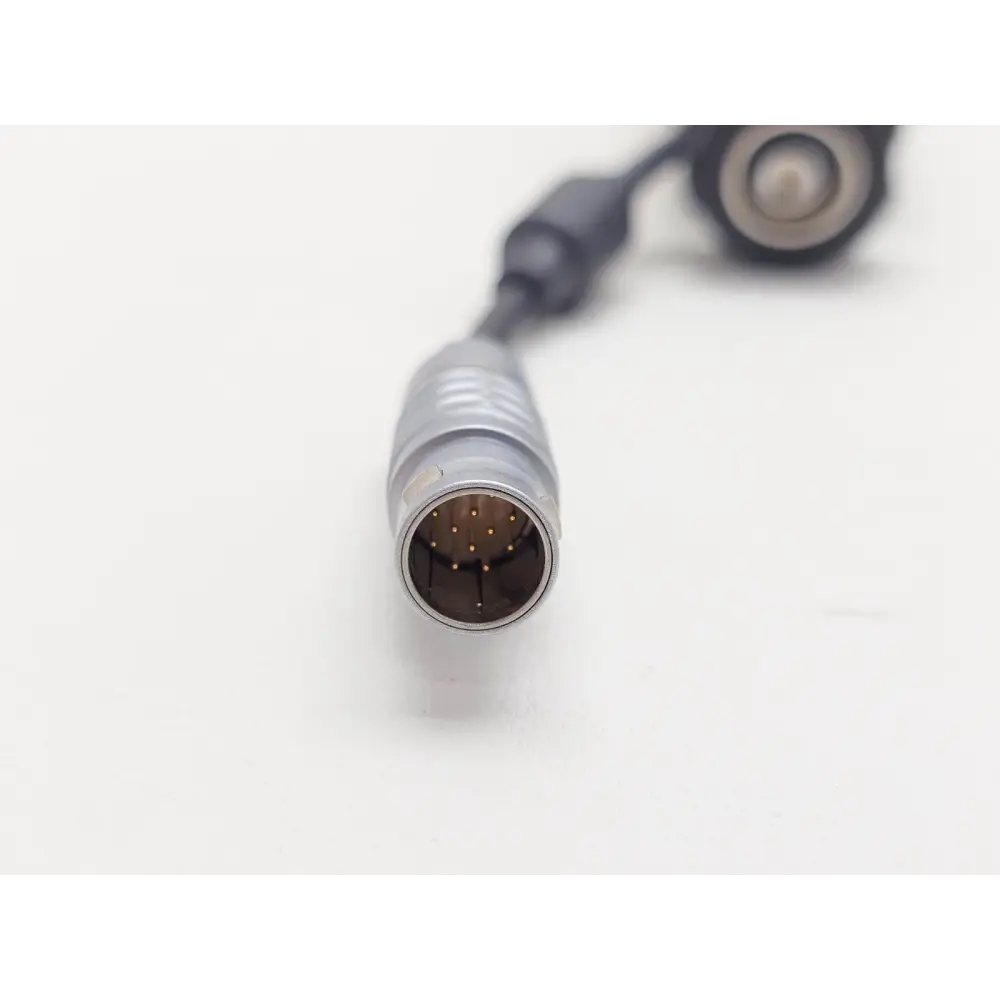

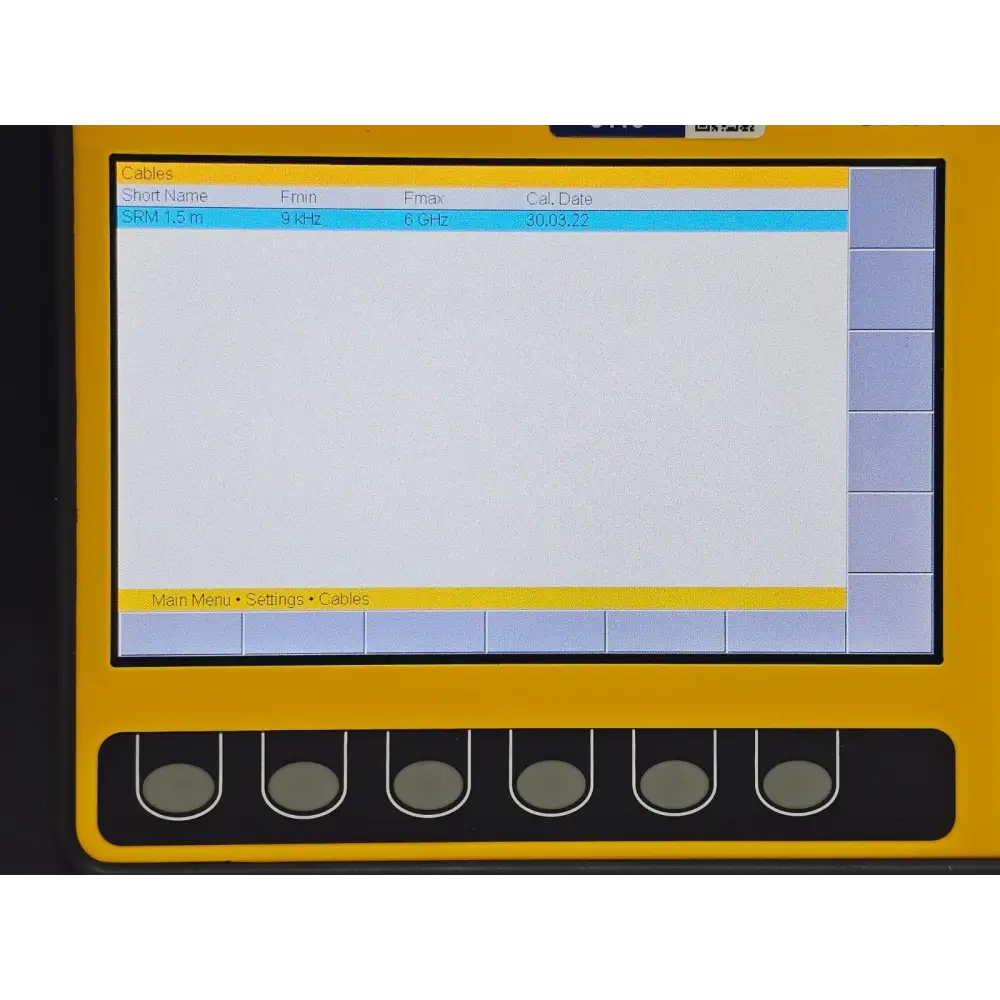

• RF-Cable 9 kHz – 6 GHz, 1.5 m (3602/01)
• Carry Case
• Power Adapter 12 VDC, 100 V–240 VAC

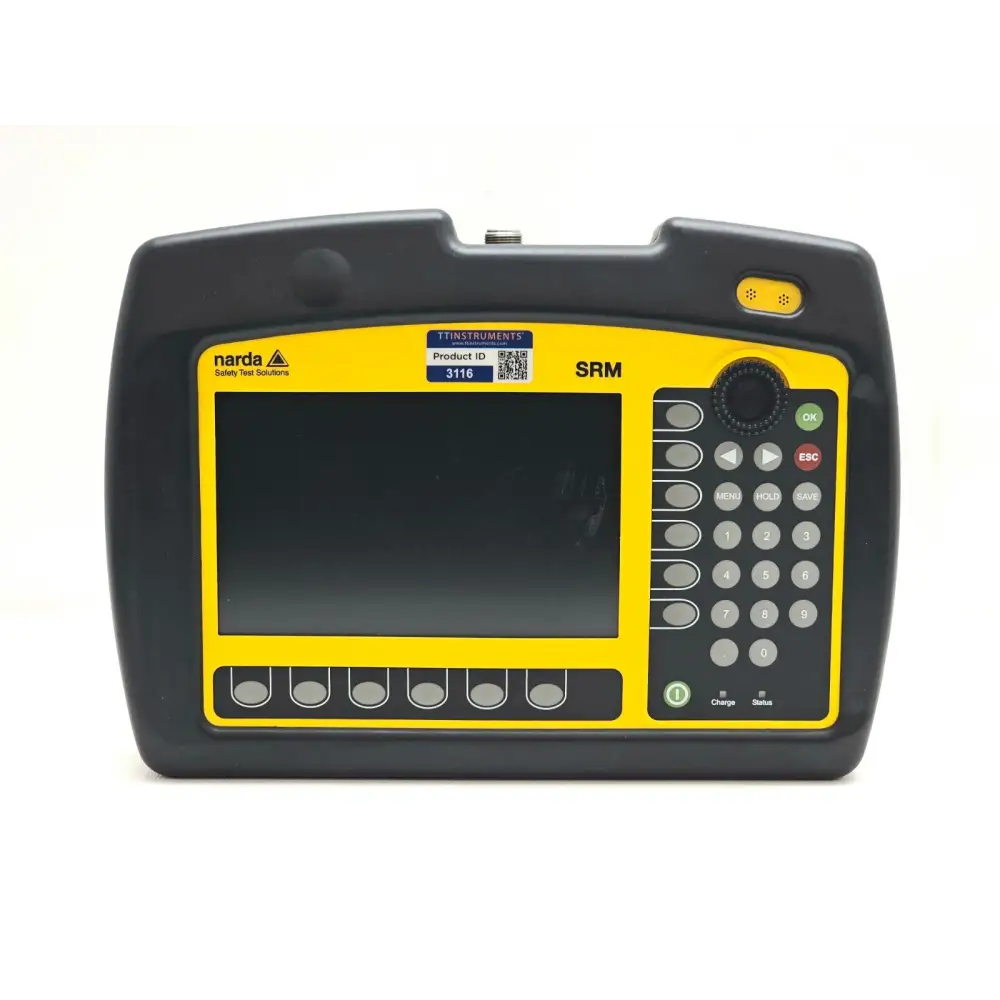

The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective, hand-held measuring system from Narda Safety Test Solutions, developed specifically for safety analysis and environmental measurement of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, covering the full range from 9 kHz to 6 GHz. The SRM-3006 has become the industry standard instrument for non-directional EMF field detection, providing automatic evaluations against multiple human safety standards directly in the instrument — eliminating complex manual calculations.

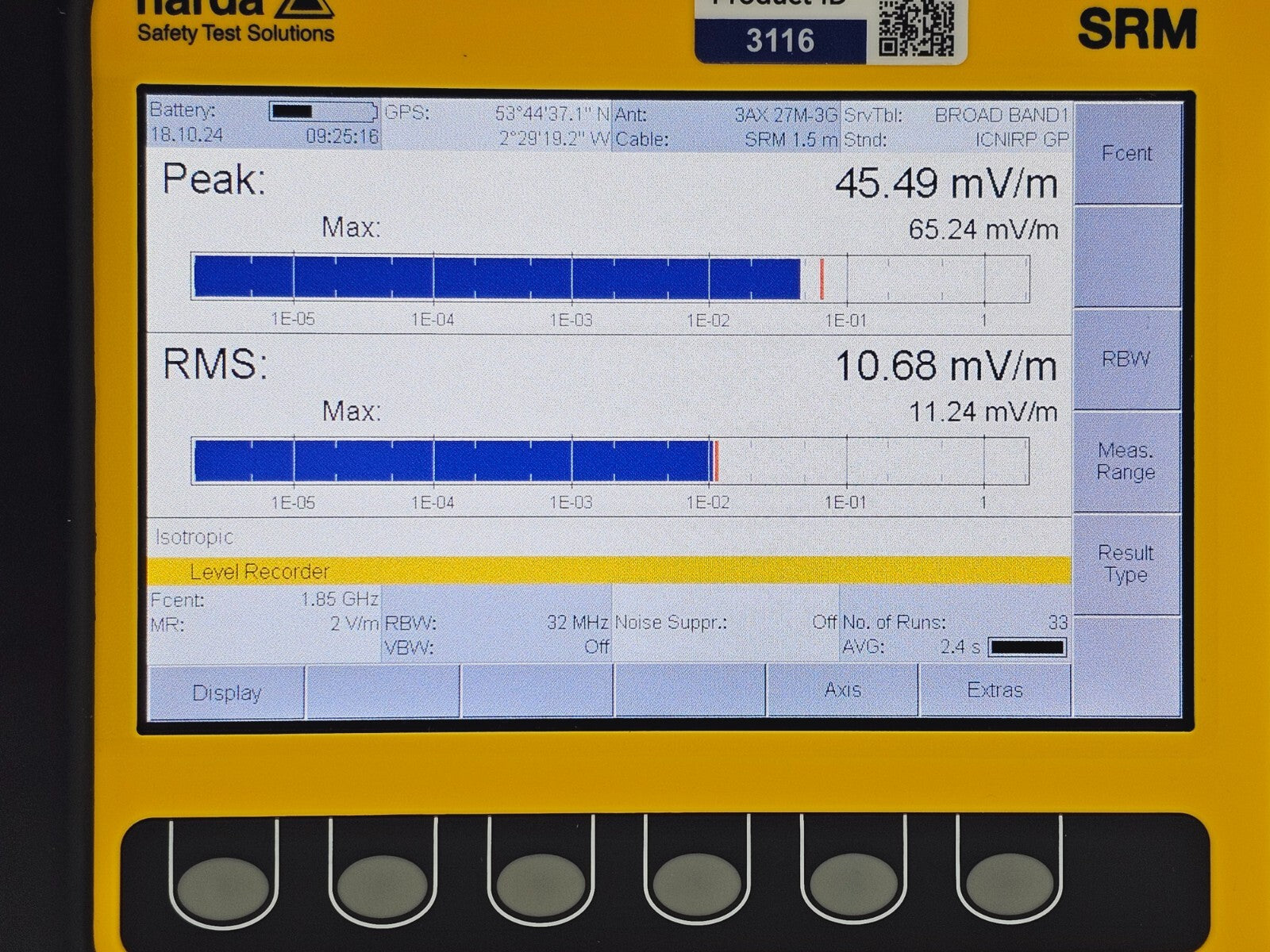

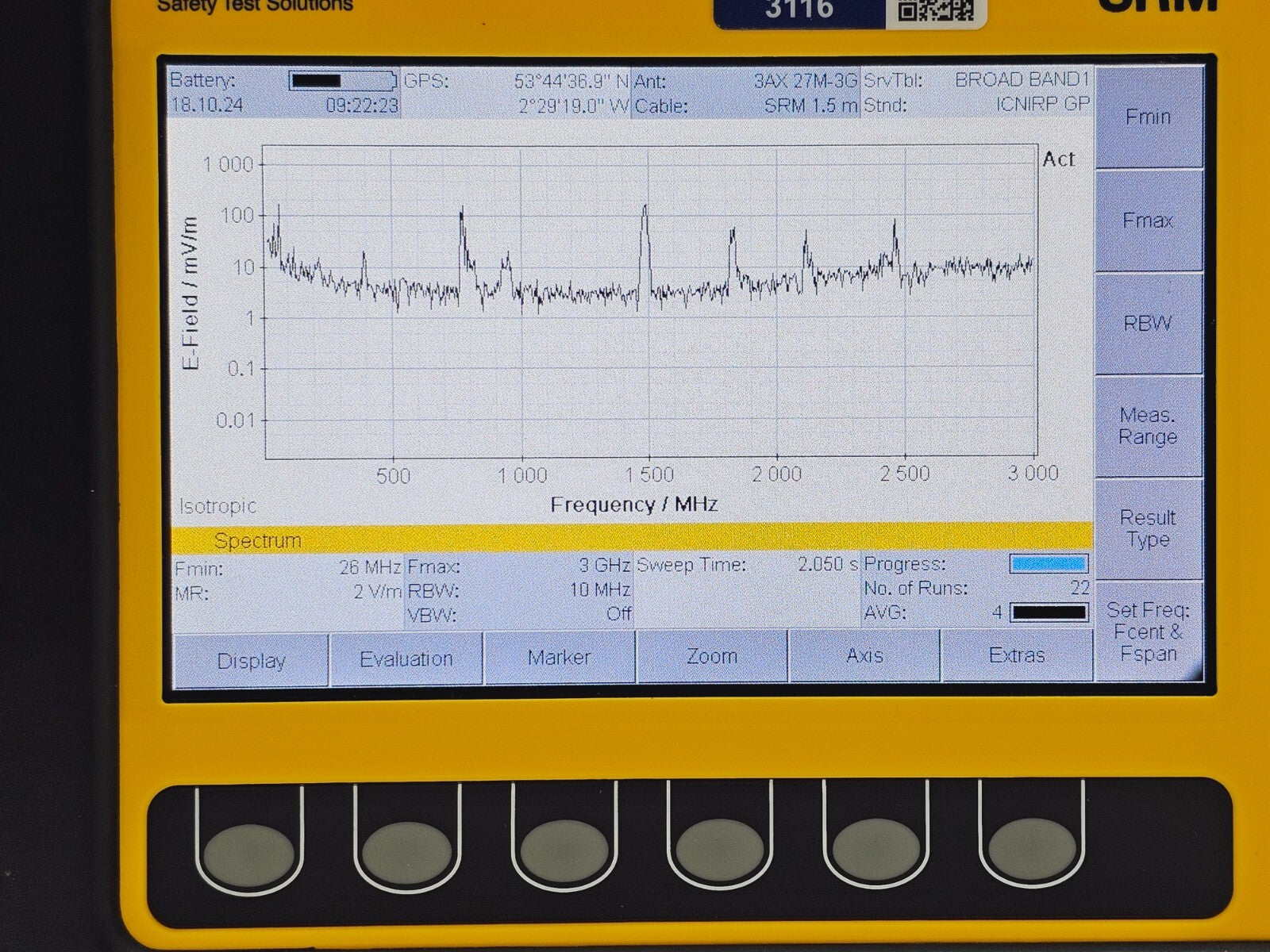

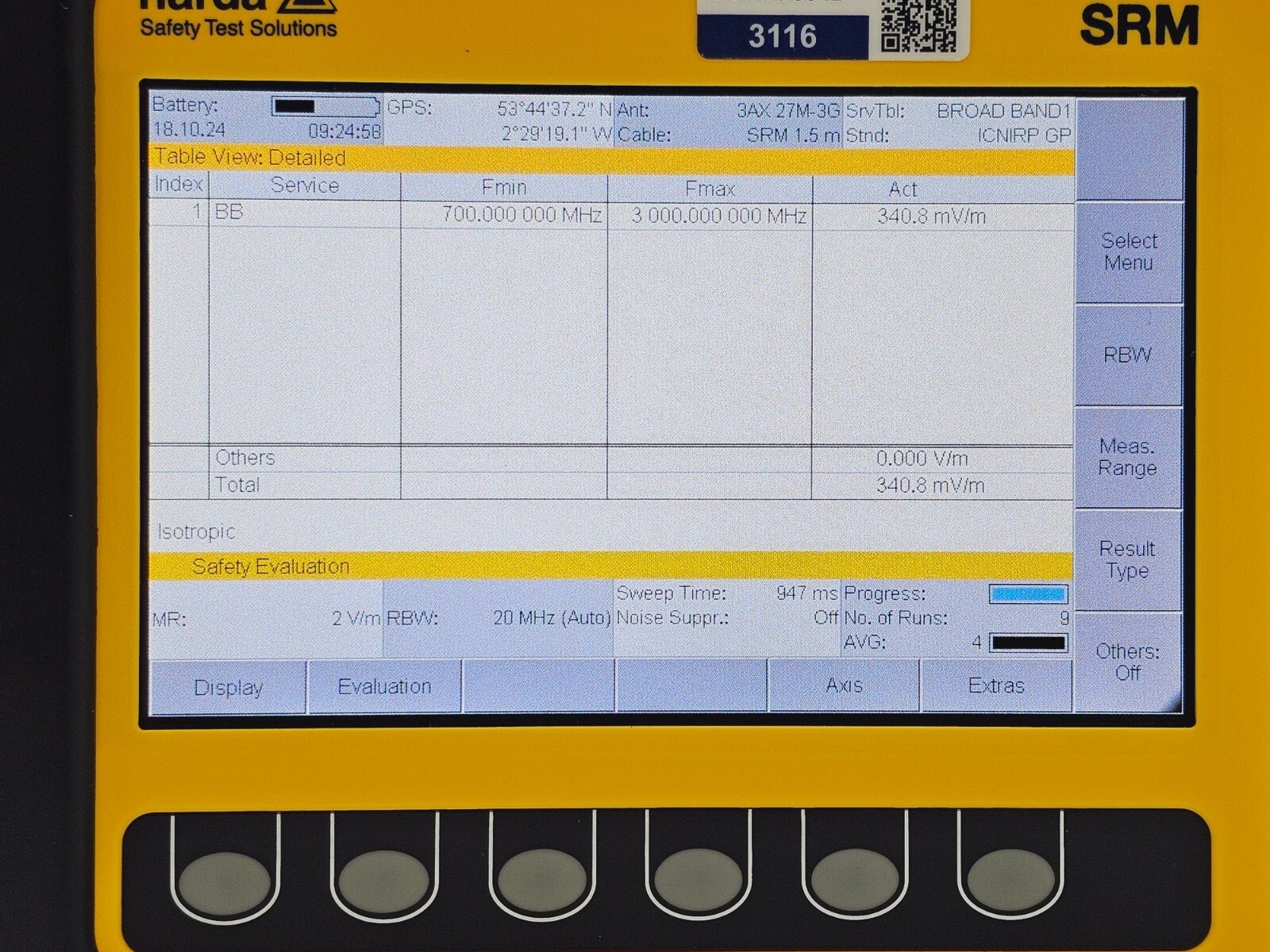

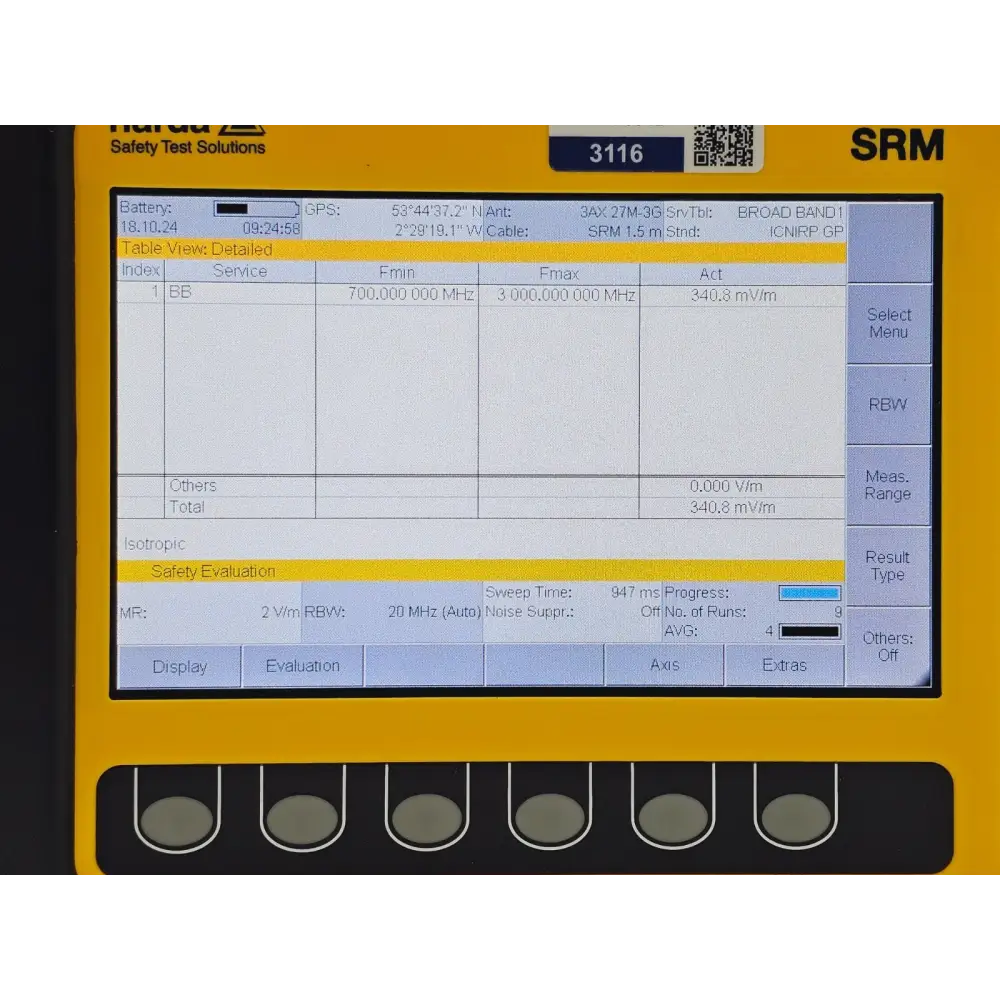

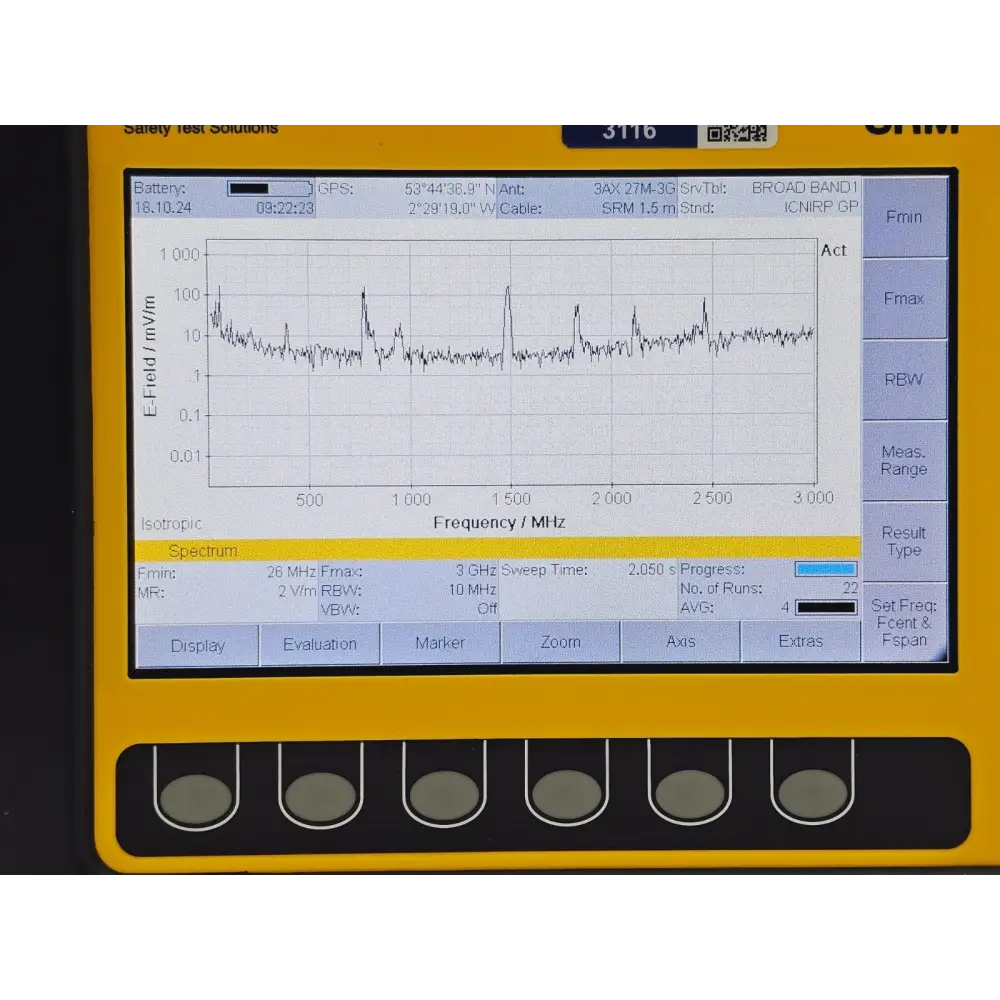

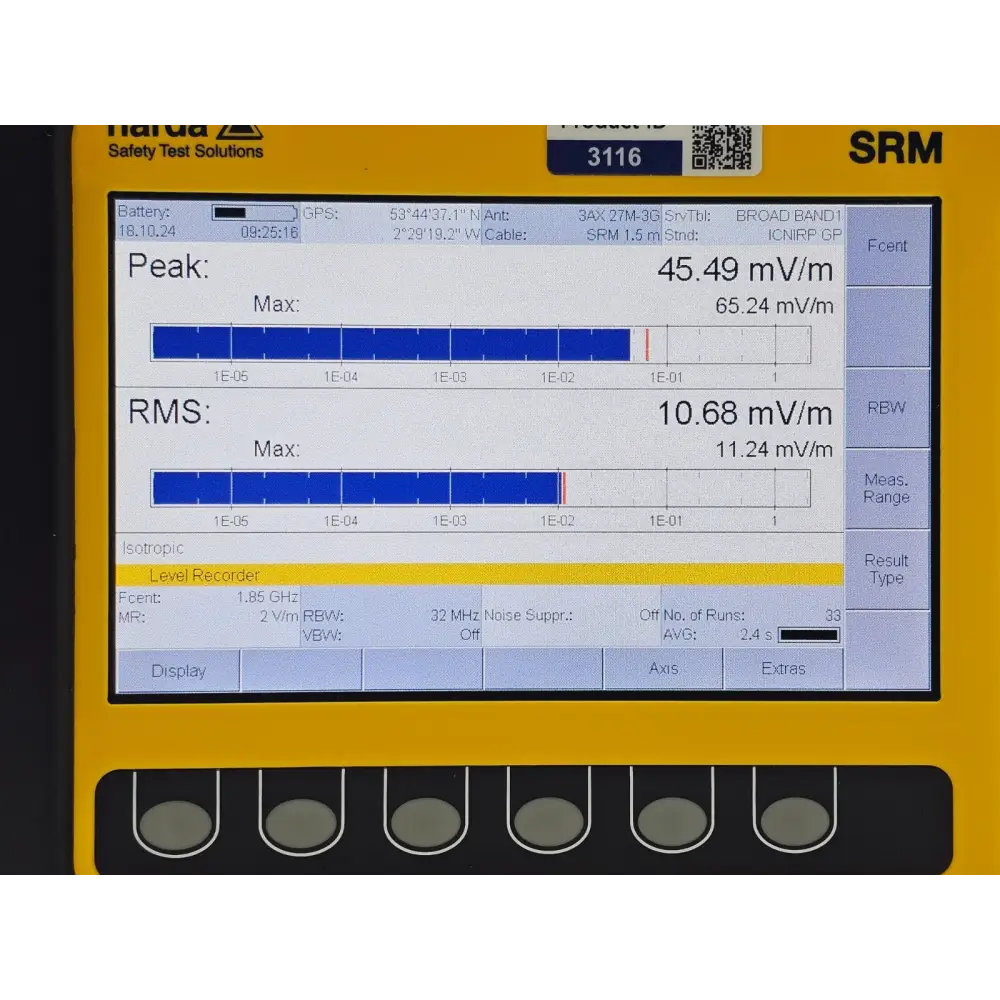

The instrument supports multiple operating modes tailored to different applications: Safety Evaluation mode for rapid limit-value compliance overviews; Spectrum Analysis mode for detailed frequency-domain investigation; and Scope mode for real-time time-domain capture with microsecond resolution (including radar pulse capture). Results can be displayed in V/m, A/m, W/cm², or directly as a percentage of permitted limit values per ICNIRP, FCC, IEEE, and other regional standards.

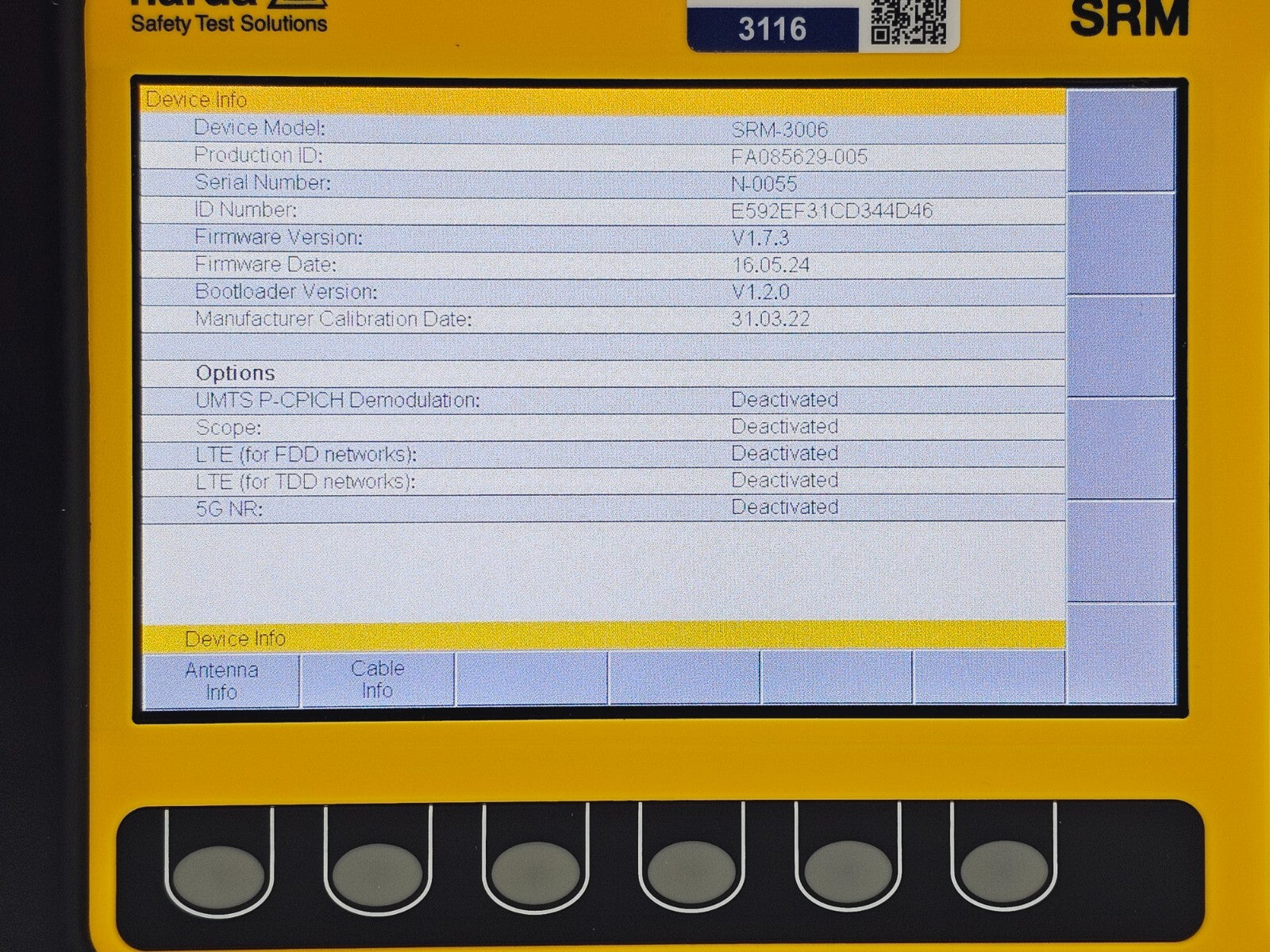

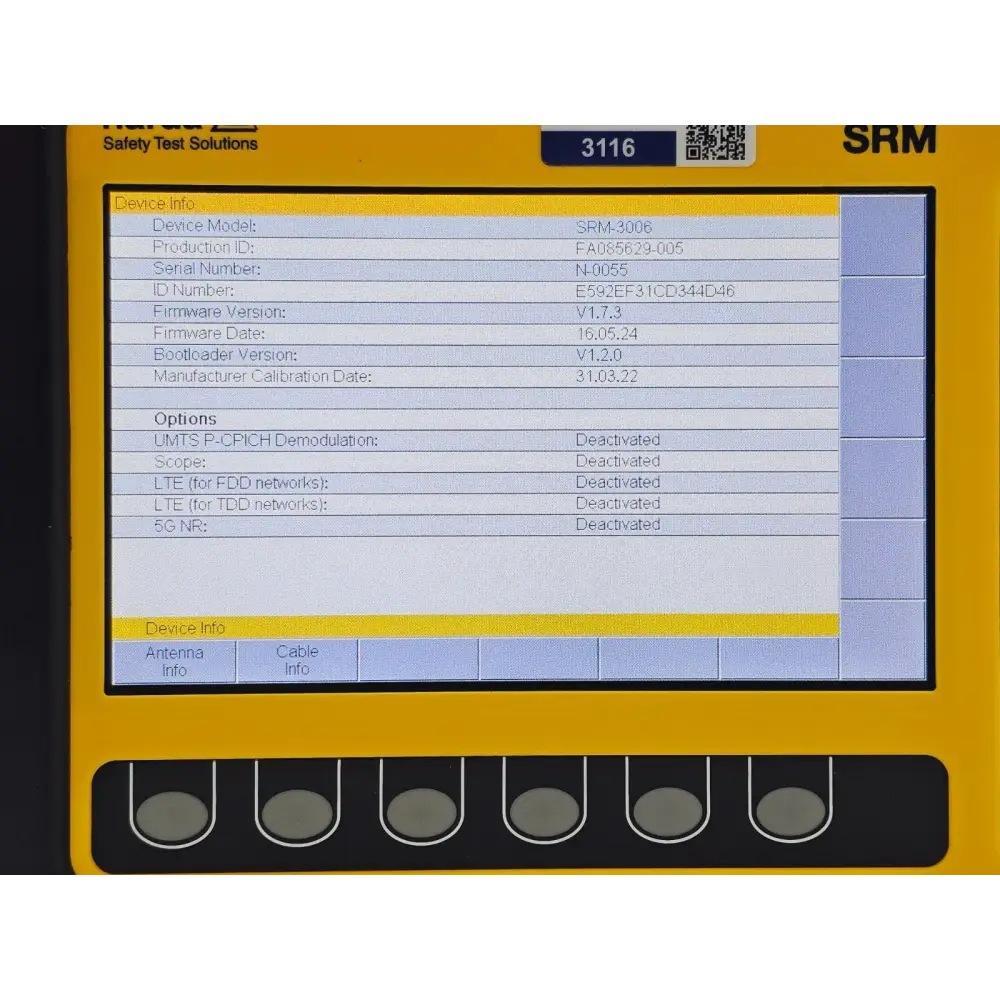

The SRM-3006 measures individual transmission channels and separate wireless services including GSM, UMTS, LTE, DVB-T, DAB, WLAN, and WiMAX. Optional demodulation modes (LTE-FDD, LTE-TDD, UMTS P-CPICH, 5G NR) allow cell-specific signal measurement and extrapolation to maximum field strength at full load.

KEY SPECIFICATIONS

Frequency Range (Basic Unit): 9 kHz to 6 GHz

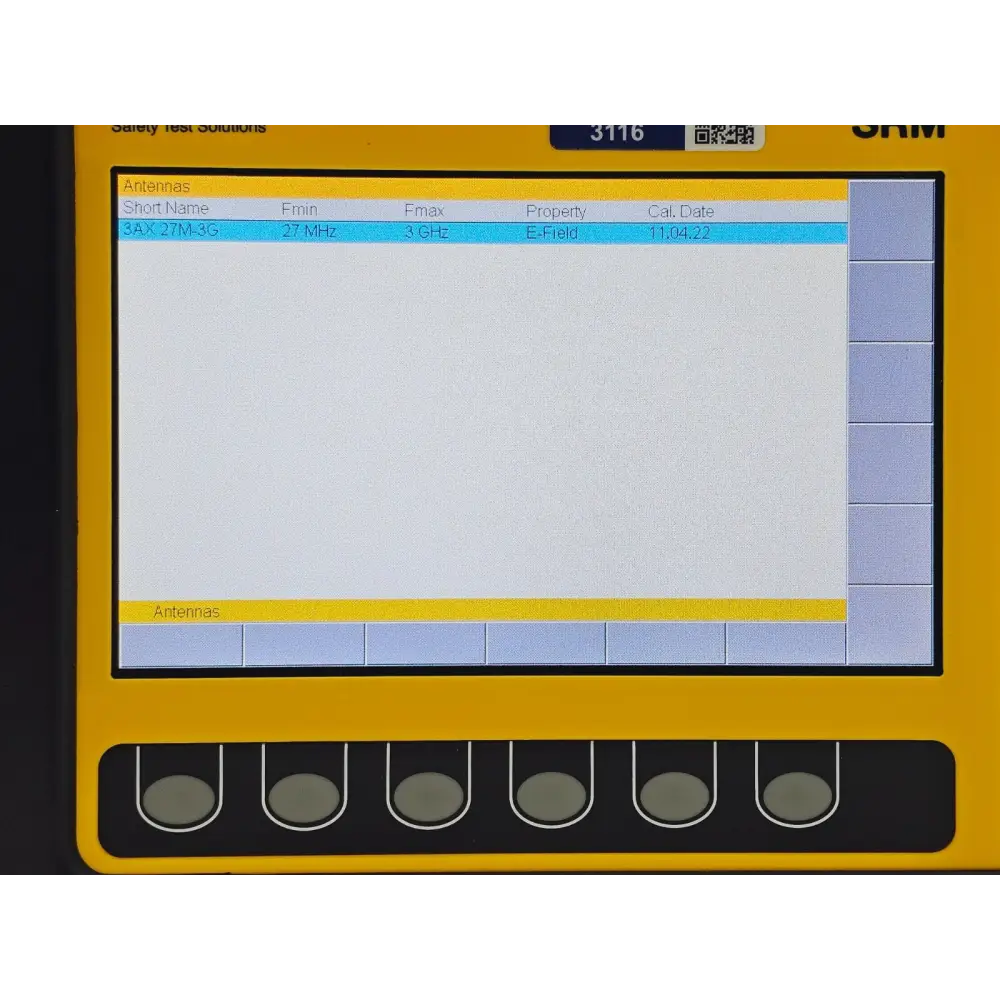

Probe 3501/03 Frequency Range: 27 MHz to 3 GHz
Probe 3501/03 Measurement Dynamic Range: 0.2 mV/m to 200 V/m
Probe 3501/03 Antenna Type: Three-axis (isotropic) E-field
Probe 3501/03 Weight: 450 g
Probe 3501/03 Length (including shaft): 460 mm
Resolution Bandwidth (RBW): Up to 32 MHz
Measurement Range Fine Tuning: 1 dB steps
Irradiation Proof: Up to 200 V/m
Long-term Monitoring: Up to 99 hours (all modes except Scope)

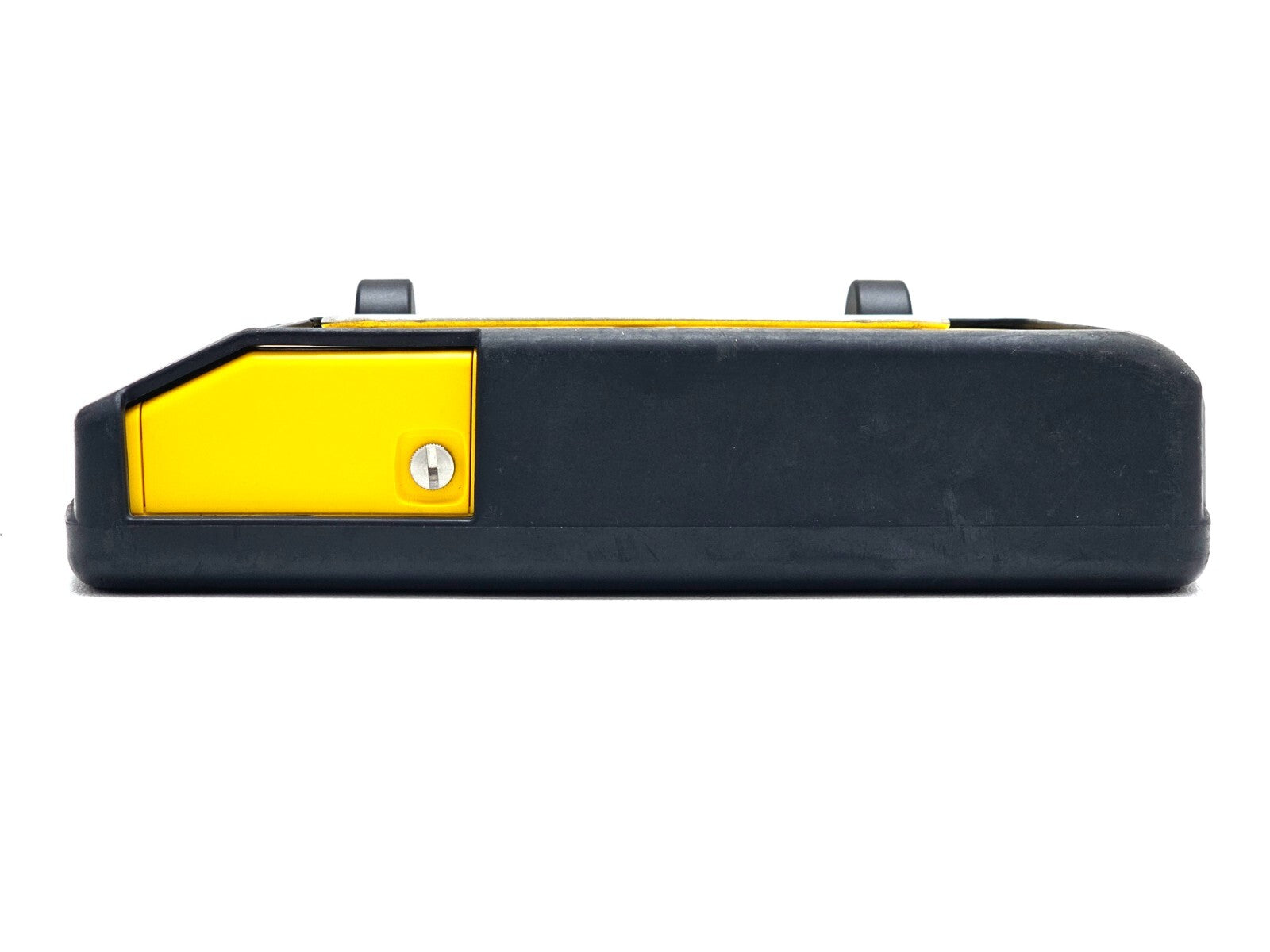

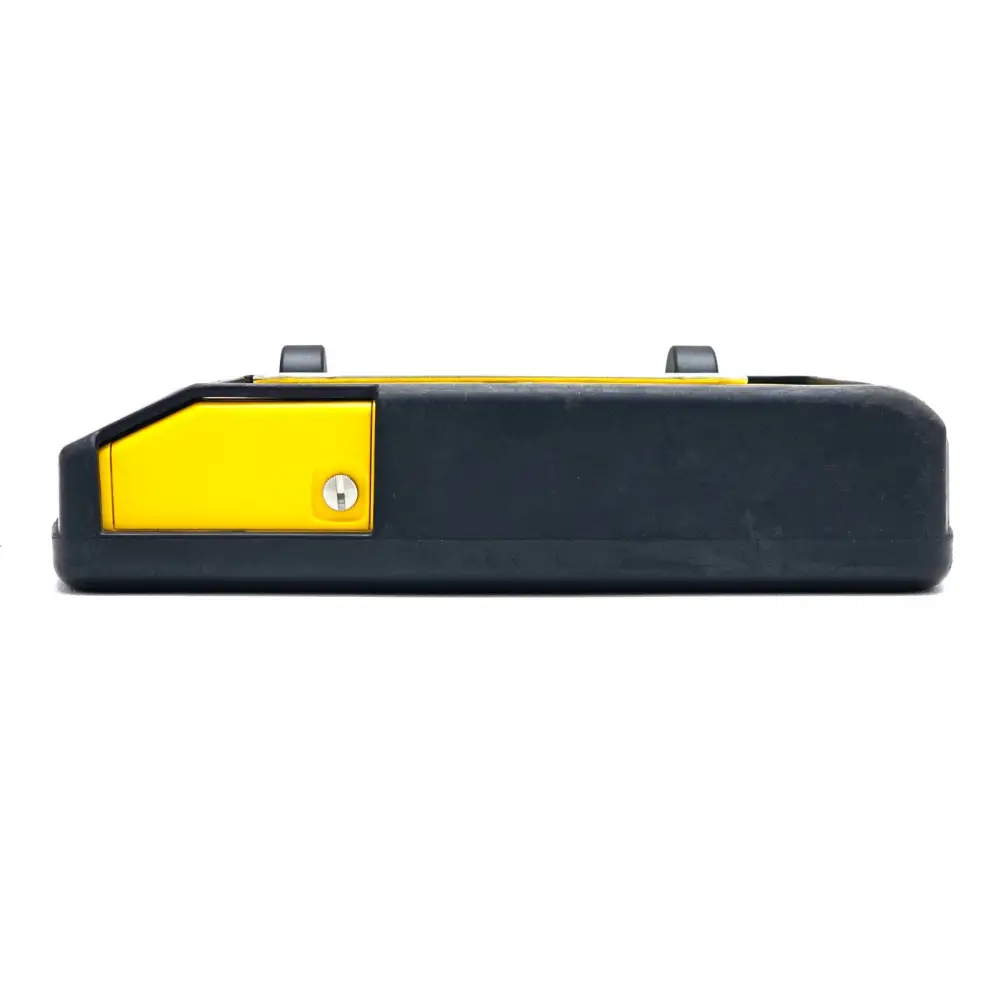

Battery Operation: Approximately 3 hours on a full charge; exchangeable batteries

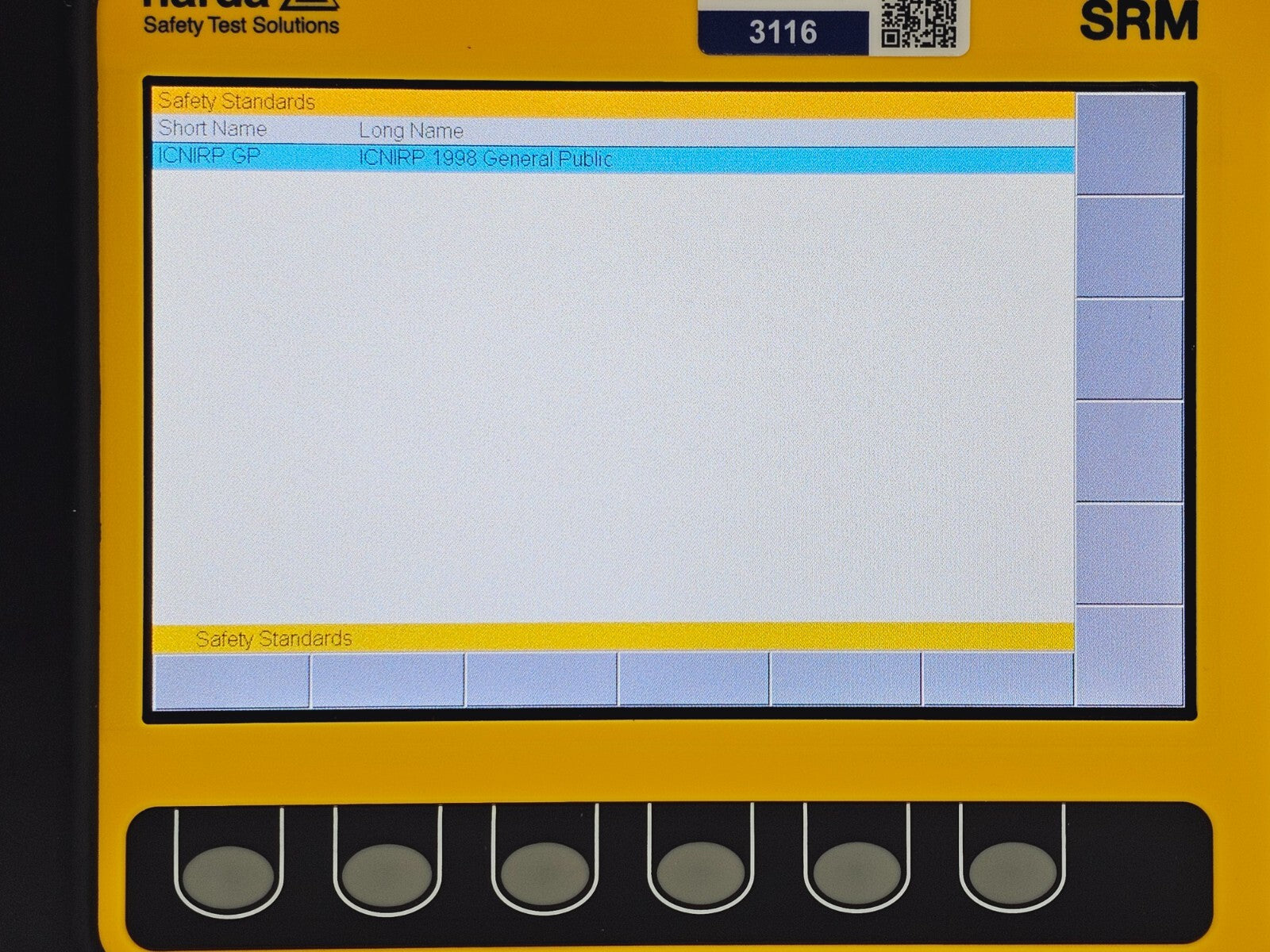

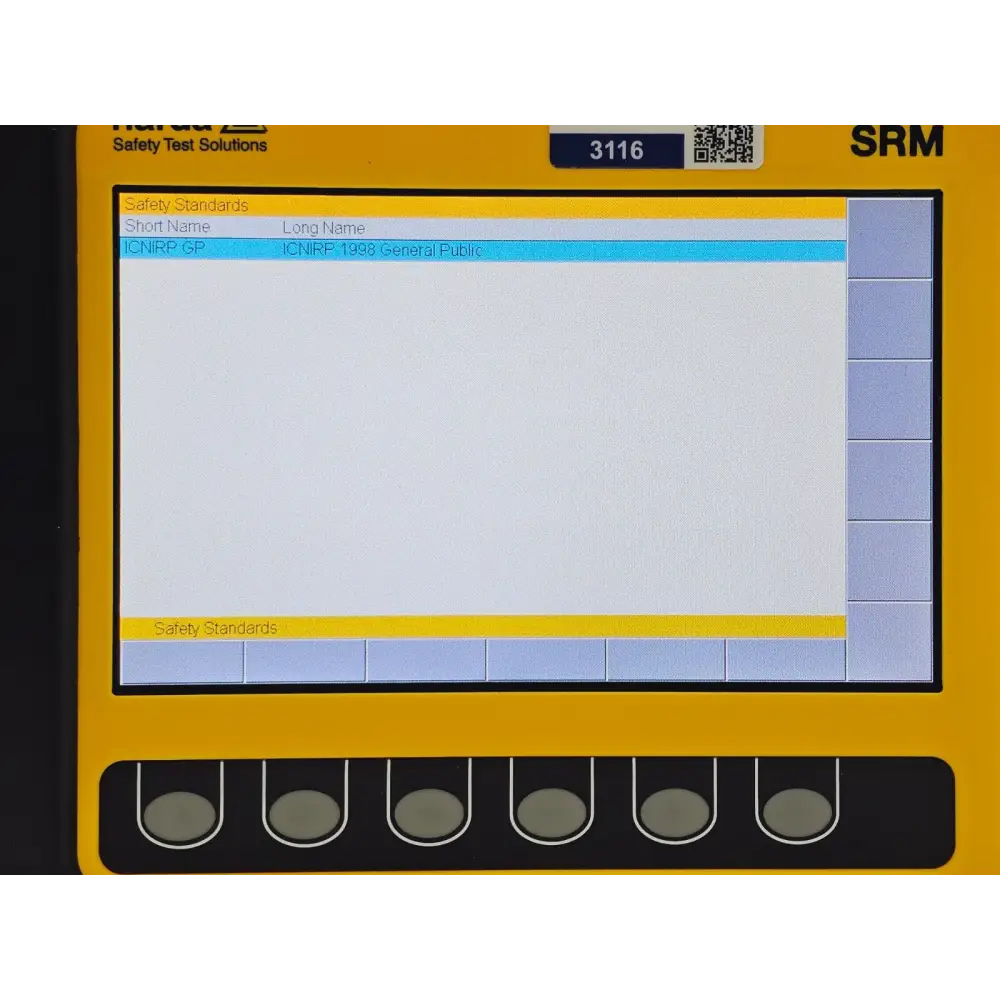

Standards Compliance: ICNIRP 1998/2010, FCC, IEEE, EMF Directive 2013/35/EU

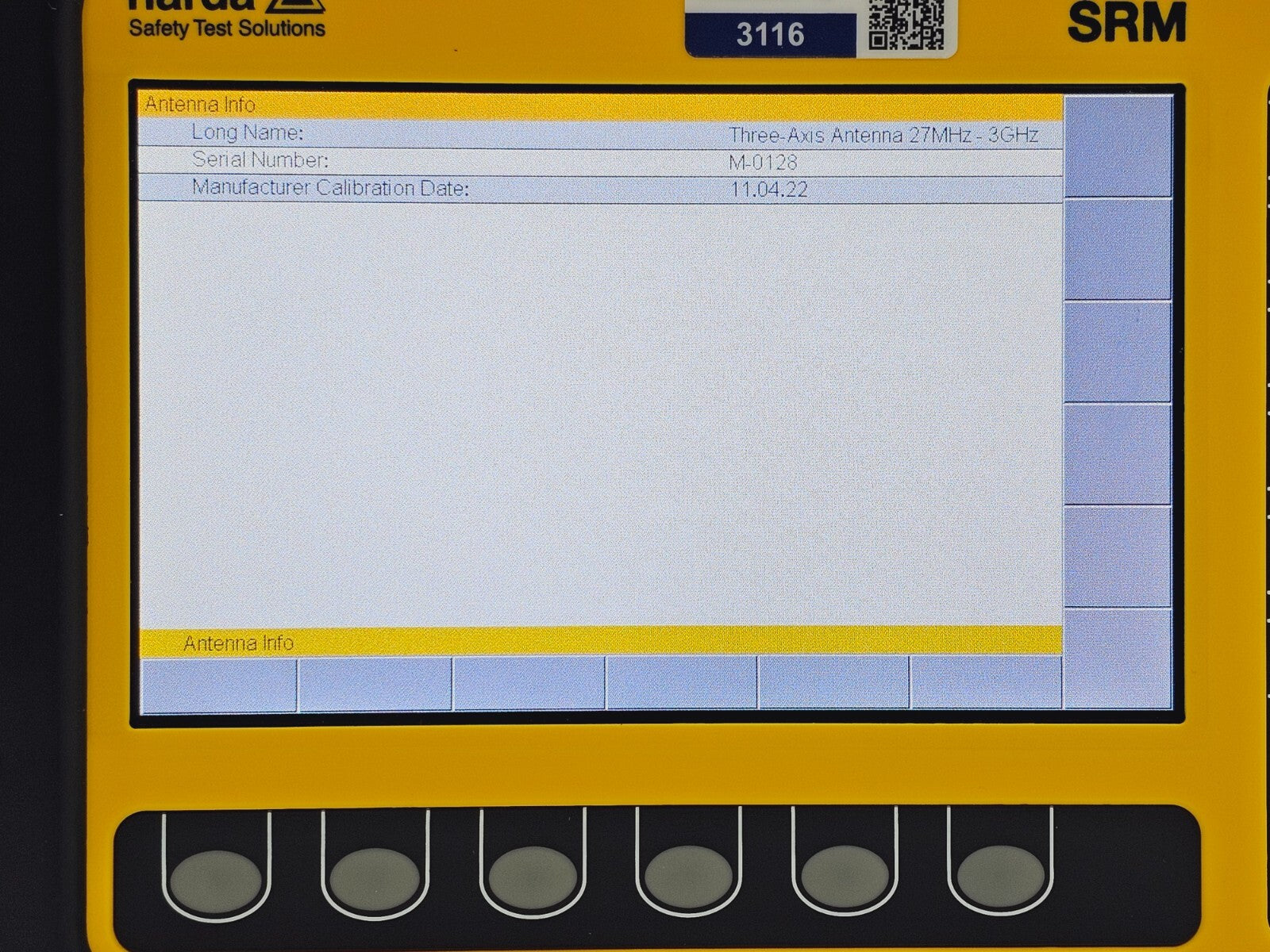

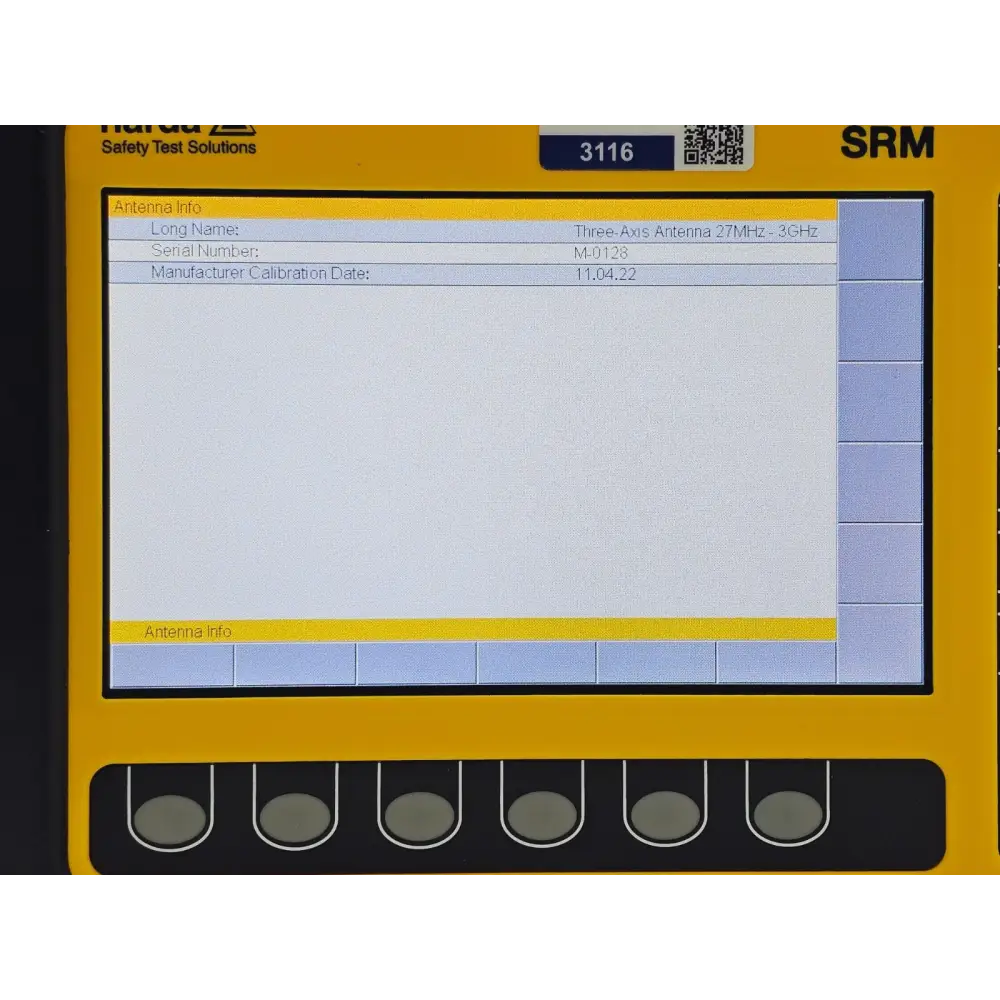

Calibration: Stored calibration factors in probe EEPROM, applied automatically

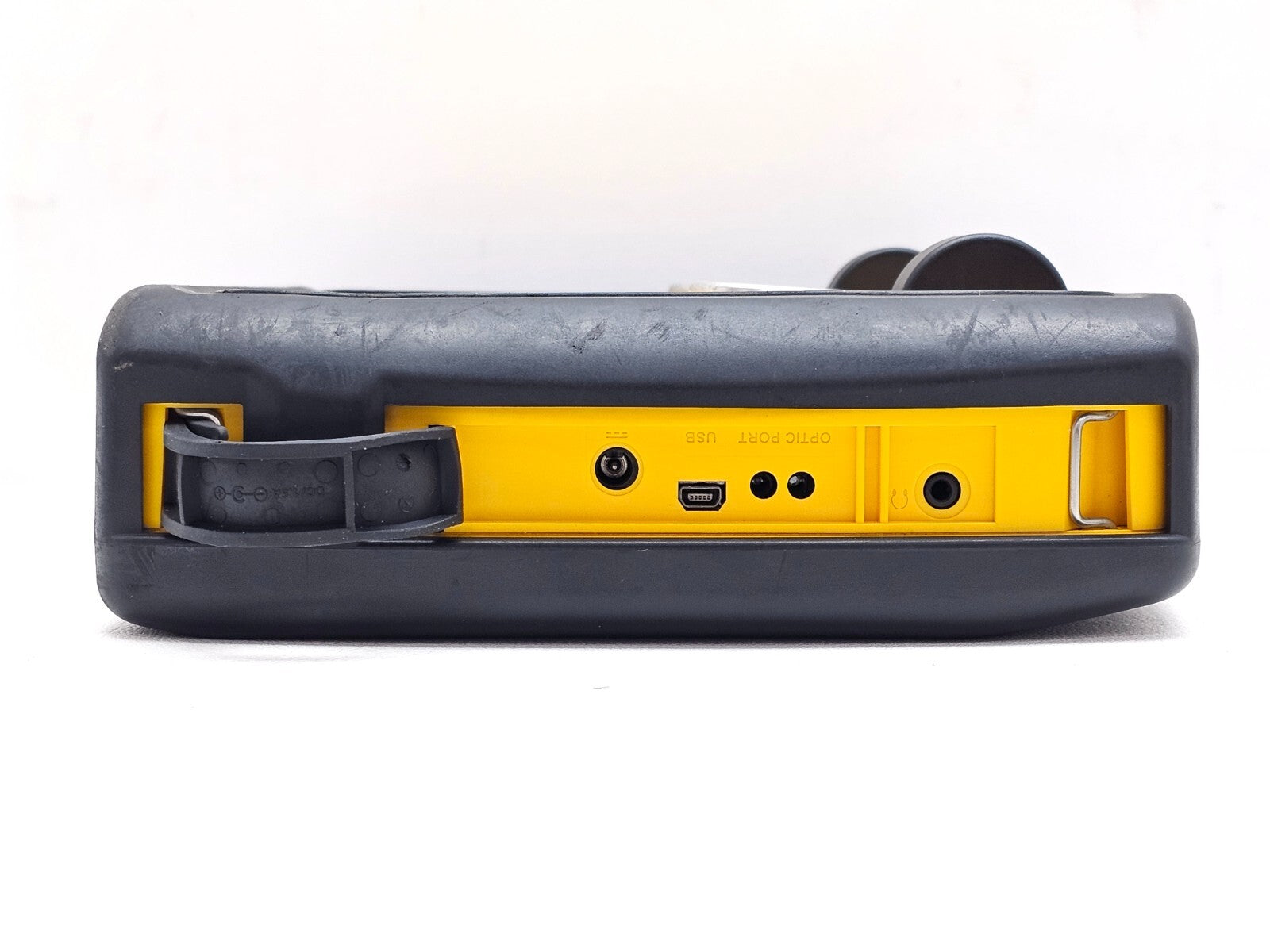

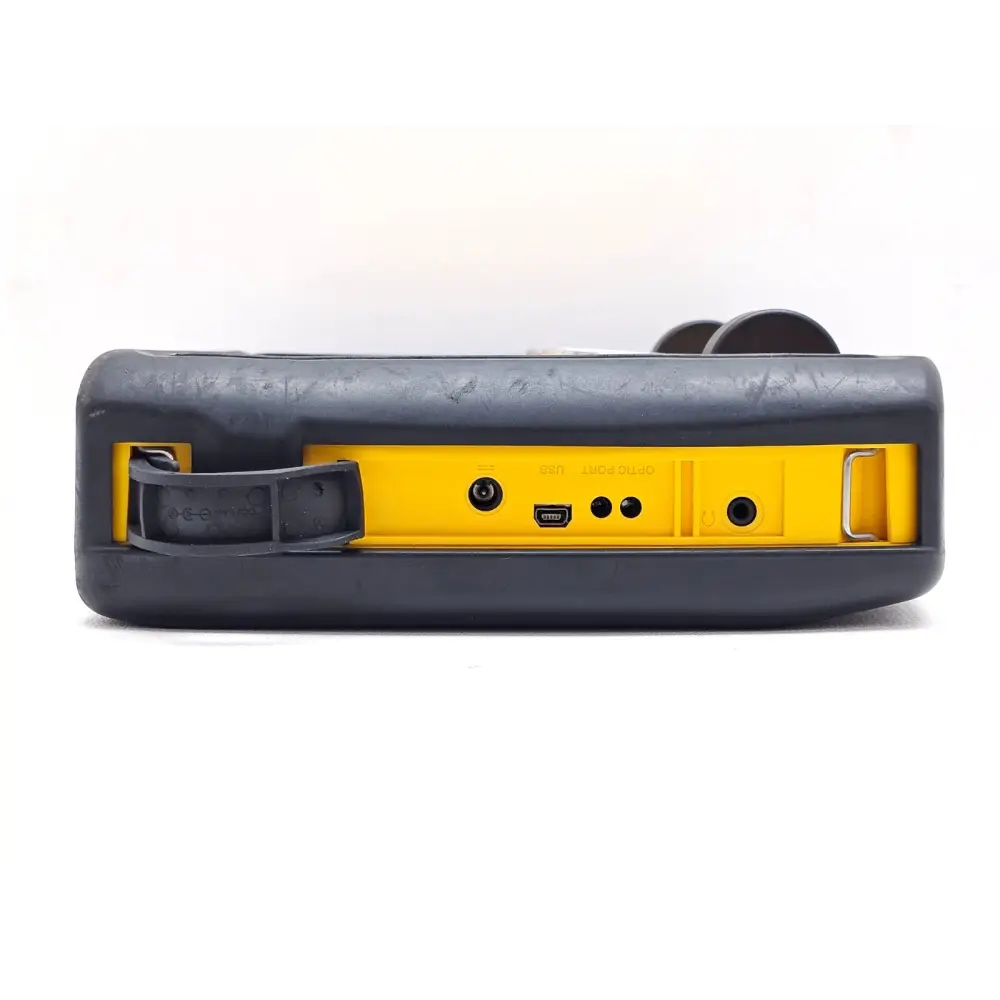

Connectivity: USB, optical interface

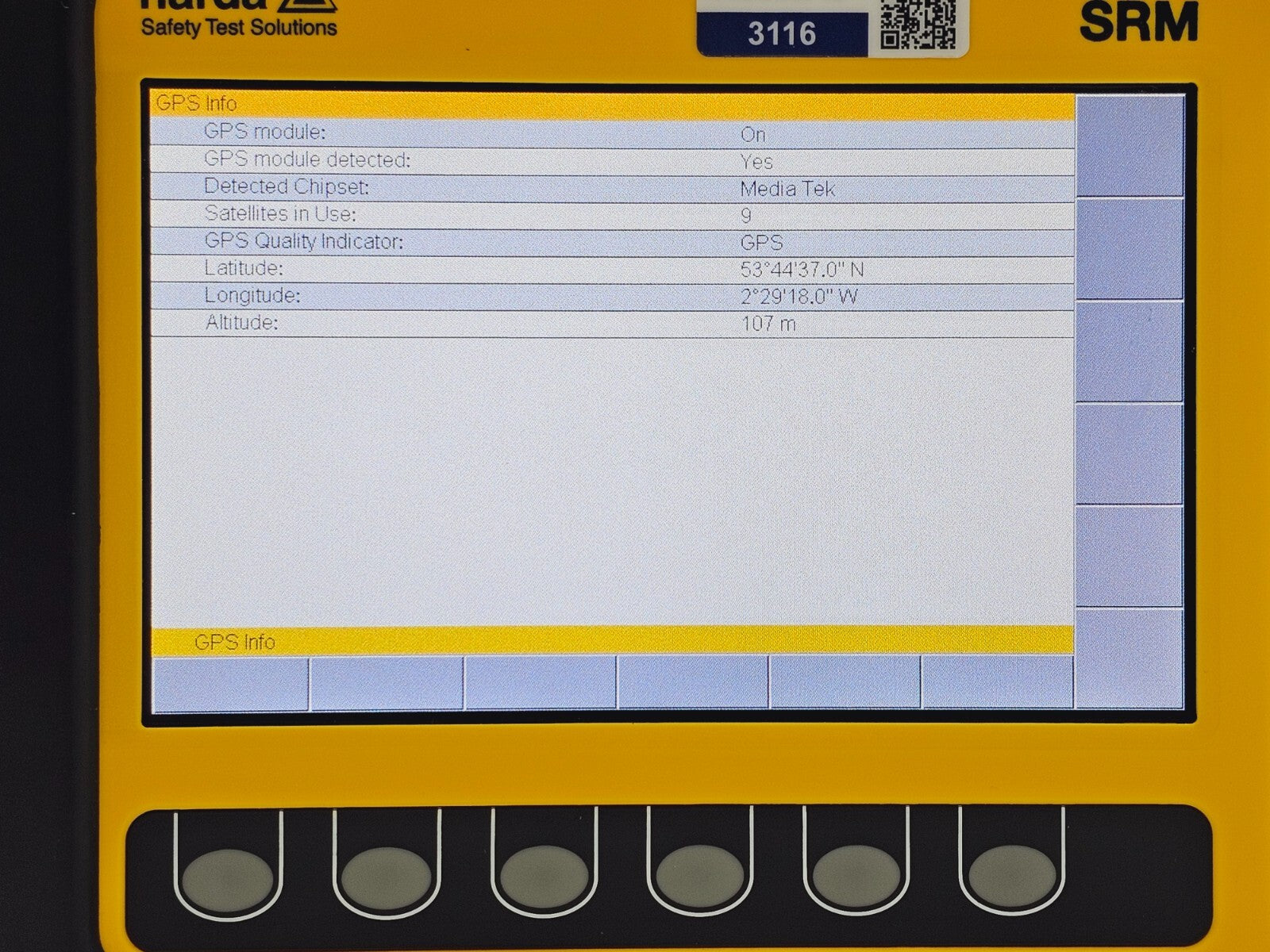

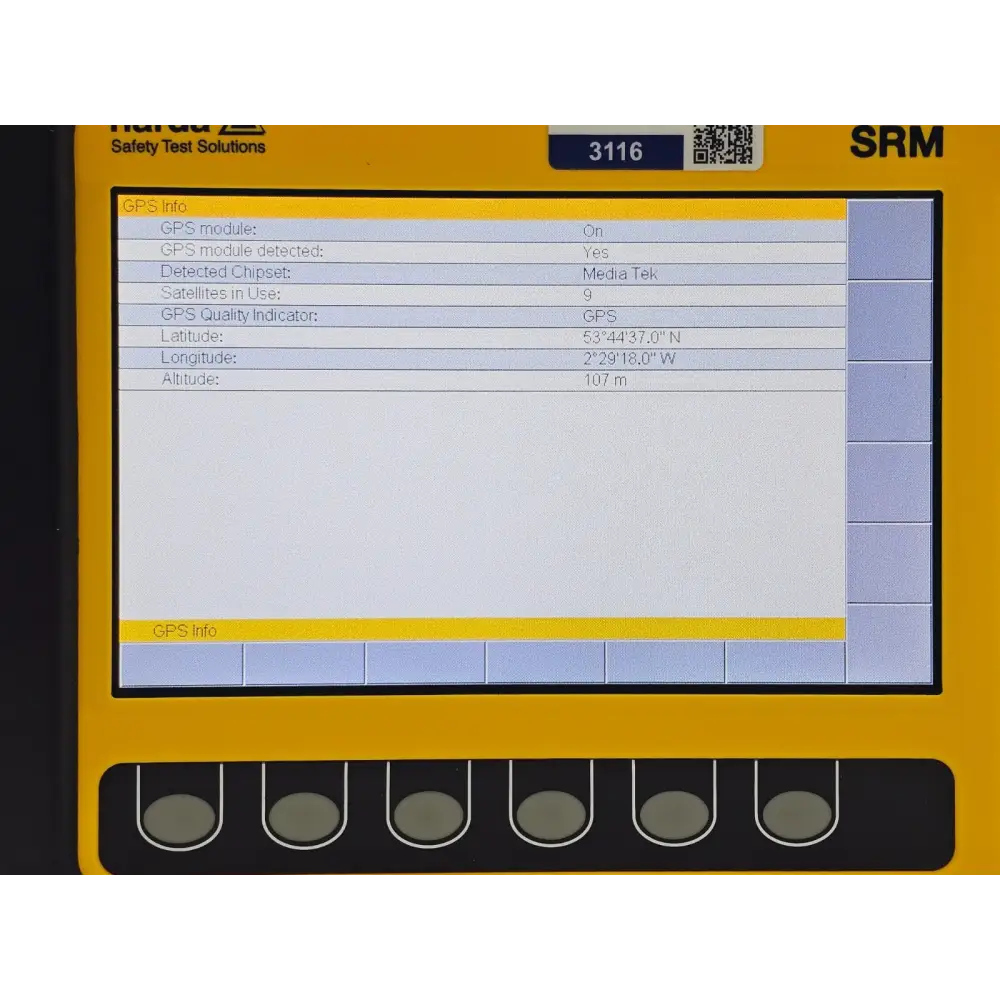

Additional Features: Integrated GPS, voice recorder, programmable measurement routines, on-site report generation, splash-proof and radiation-hardened housing

Narda SRM-3006 Official Datasheet (Narda Safety Test Solutions): Download PDF

Narda SRM-3006 Datasheet — US version (Electrorent/Narda): Download PDF

Narda SRM-3006 Datasheet (TestEquipmentHQ): Download PDF

Narda SRM-3006 Operating Manual (McGill University mirror): Download PDF

Narda SRM-3006 Datasheet — McGill University mirror: Download PDF

Narda SRM-3006 Operating Manual (gruppompb mirror): Download PDF
