Condition: Used

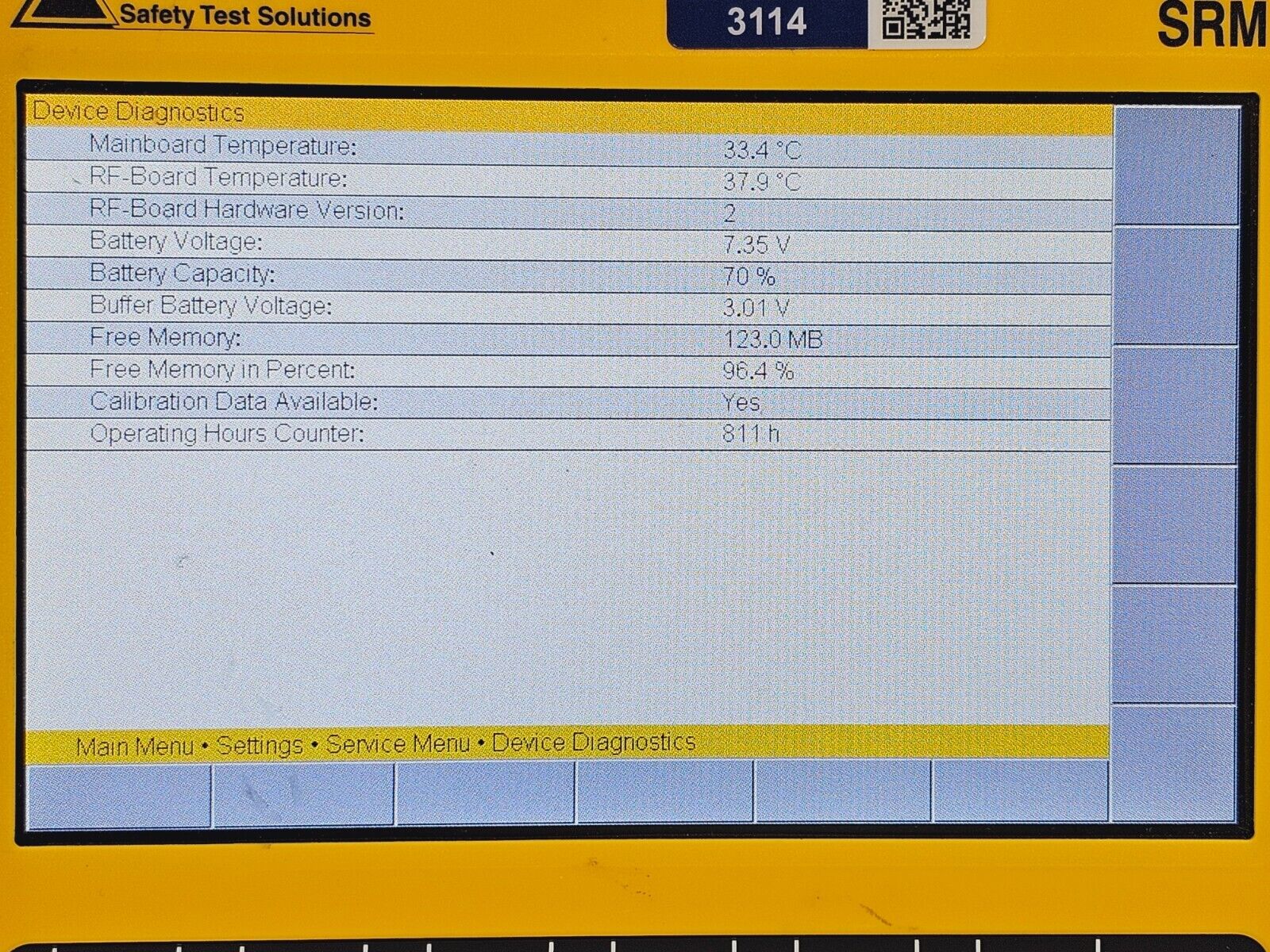

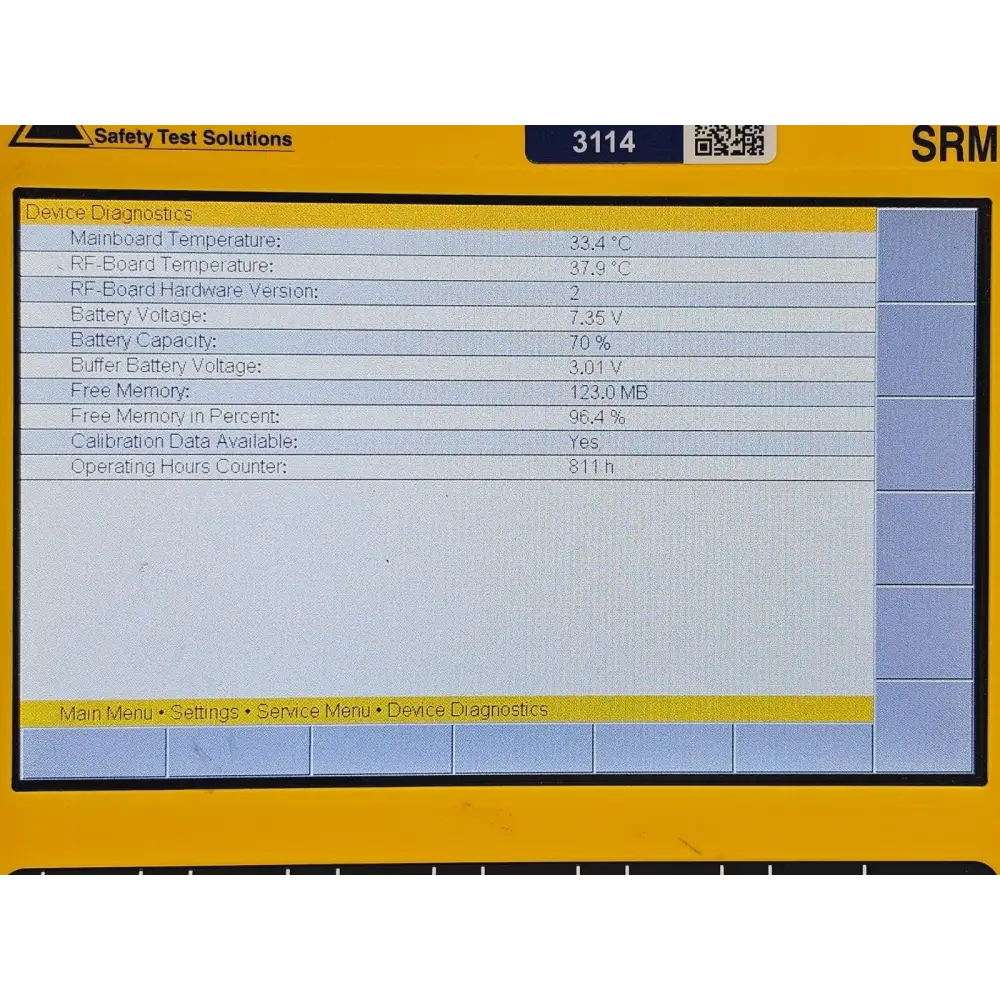

Tested and working with 811 logged run hours. The platform (3006/01) is paired with the 3501/03 three-axis E-field probe covering 27 MHz to 3 GHz, together with all key accessories required for immediate field deployment.

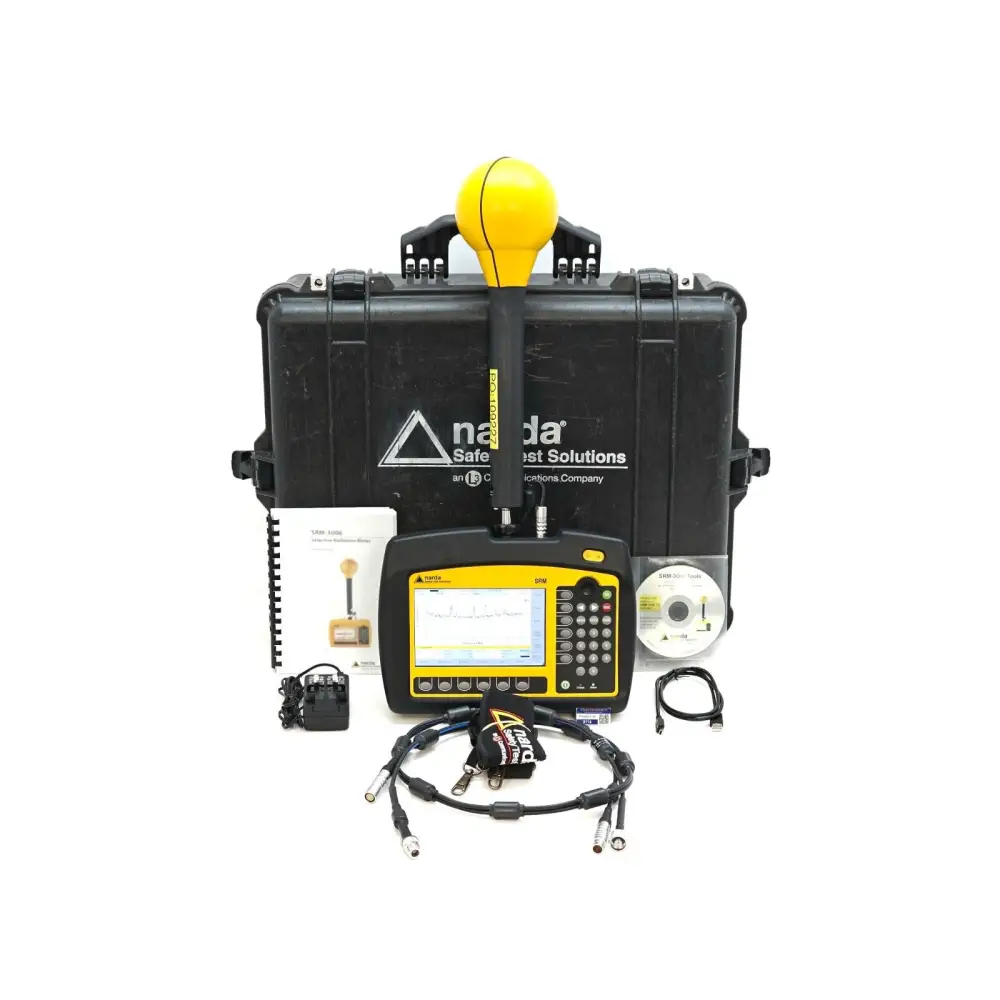

Included in the sale:

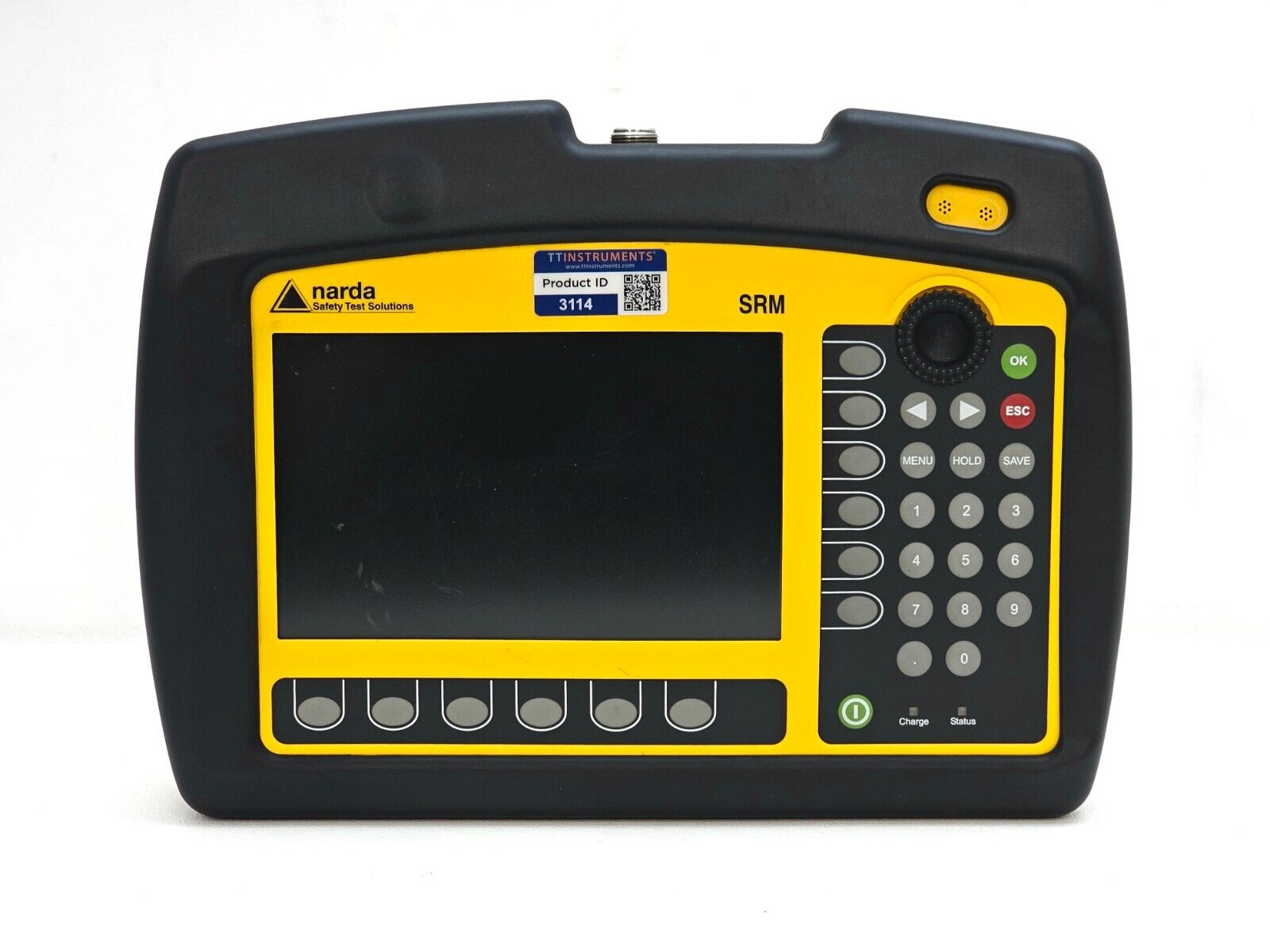

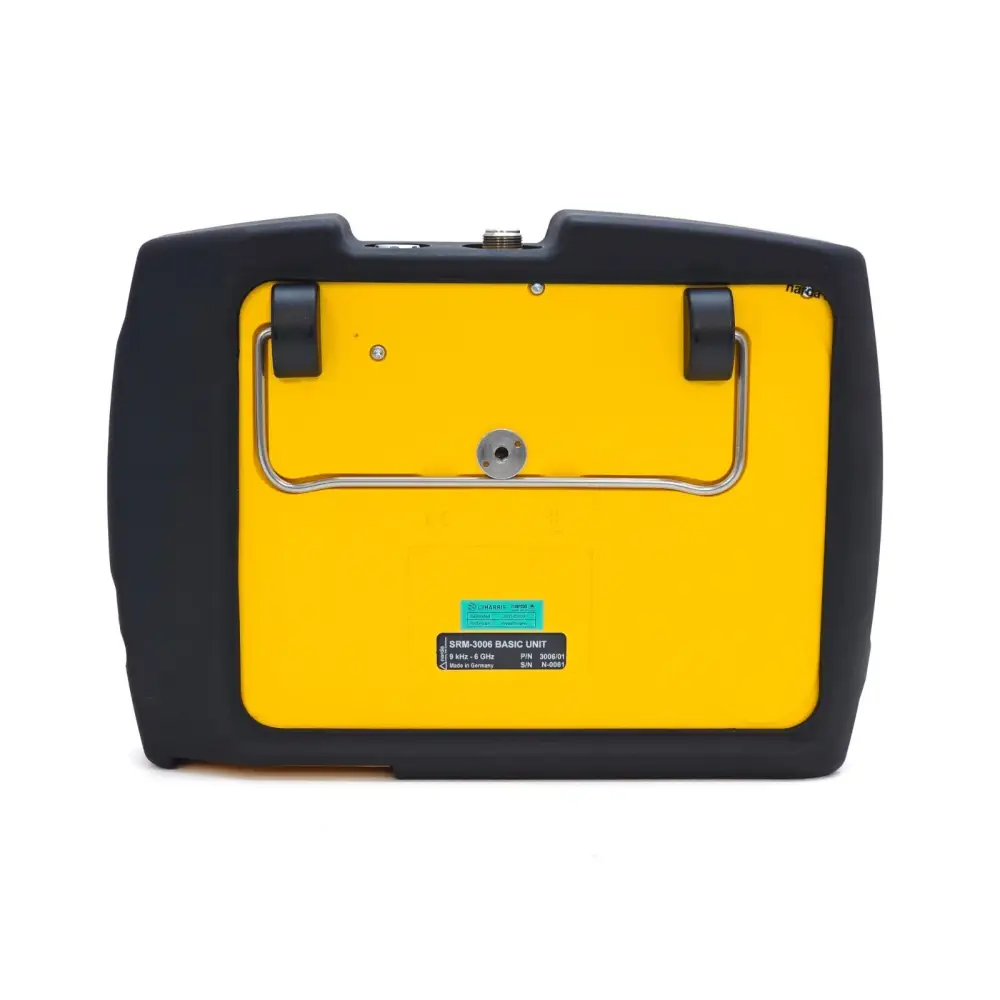

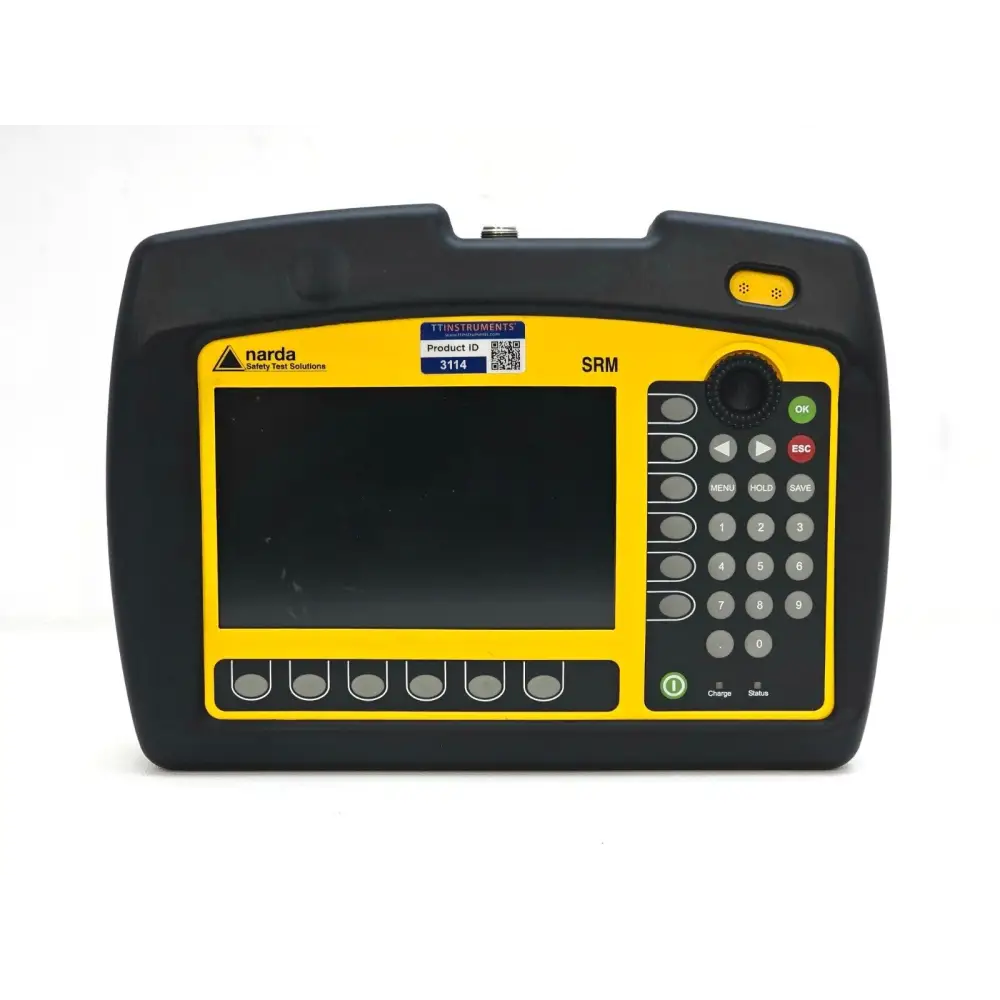

• SRM-3006 Platform (3006/01)
• E-Field Antenna Three-Axis 27 MHz – 3 GHz Probe (3501/03)
• RF Cable 9 kHz – 6 GHz, 1.5 m (3602/01)
• Carry Case
• Power Adapter 12 VDC, 100 V – 240 VAC

The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective measuring system from Narda Safety Test Solutions, designed specifically for safety analysis and environmental measurement of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and has become established as the standard instrument for EMF safety assessments at broadcast, mobile telephony, industrial, and public-area sites.

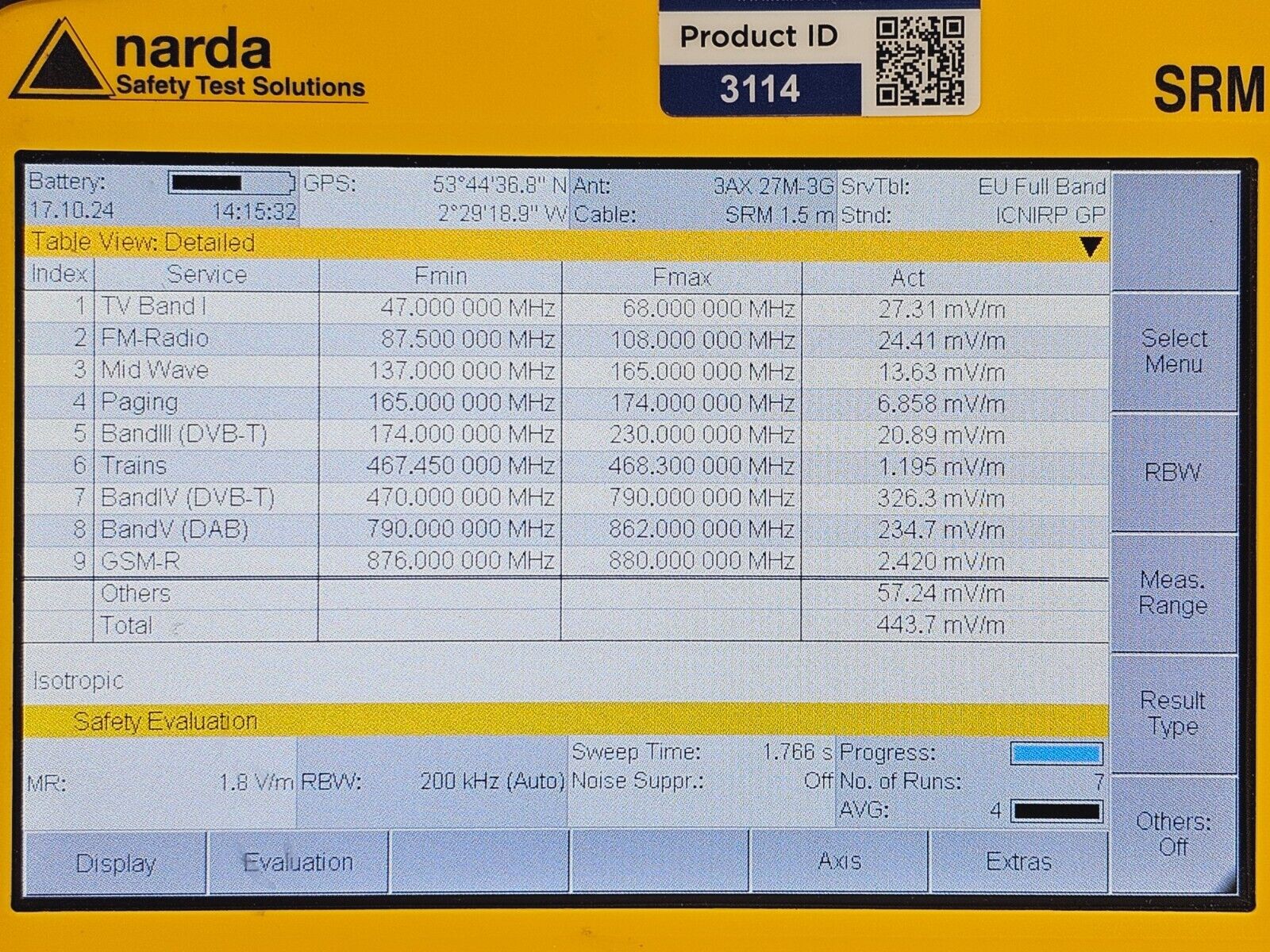

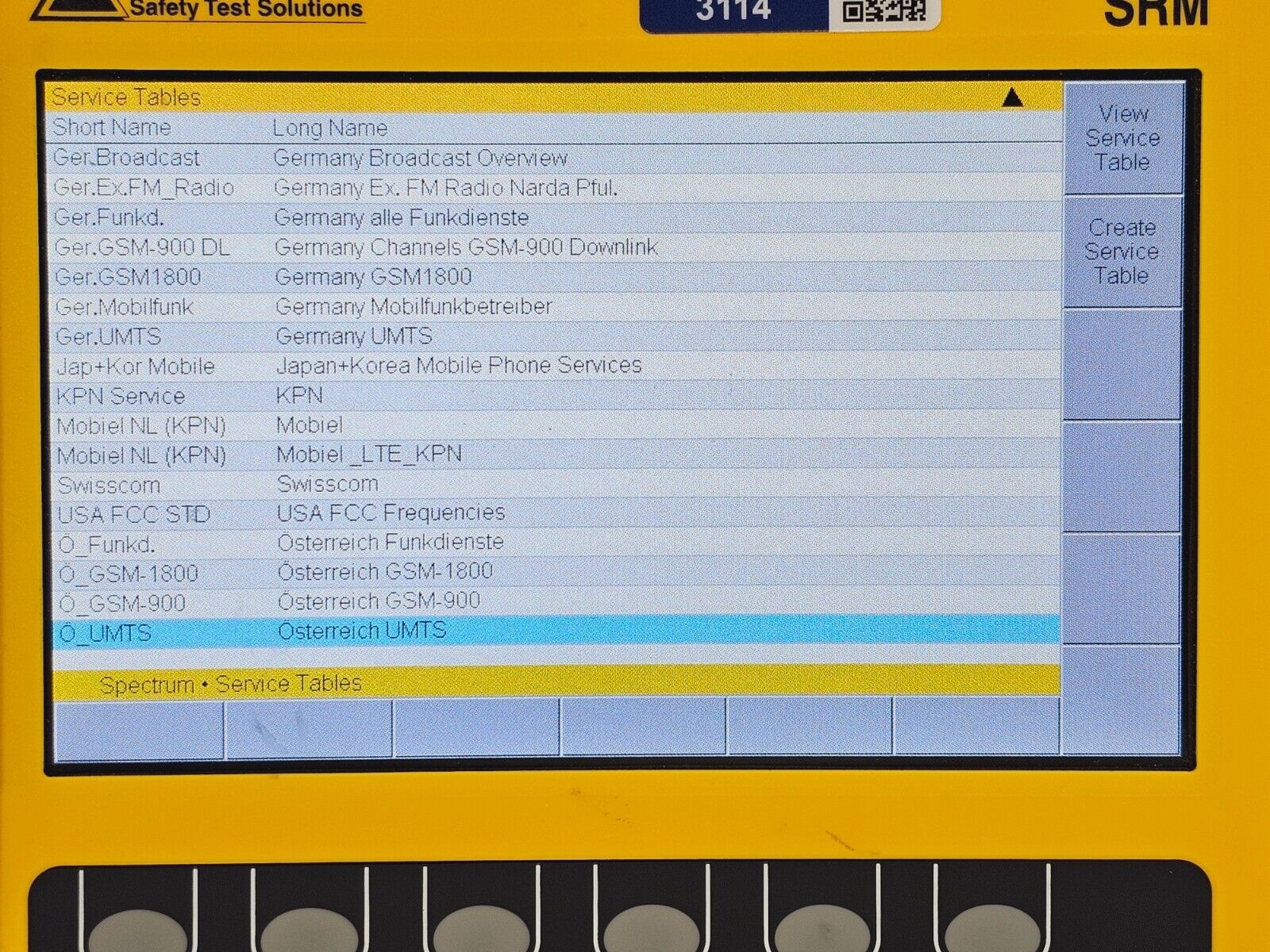

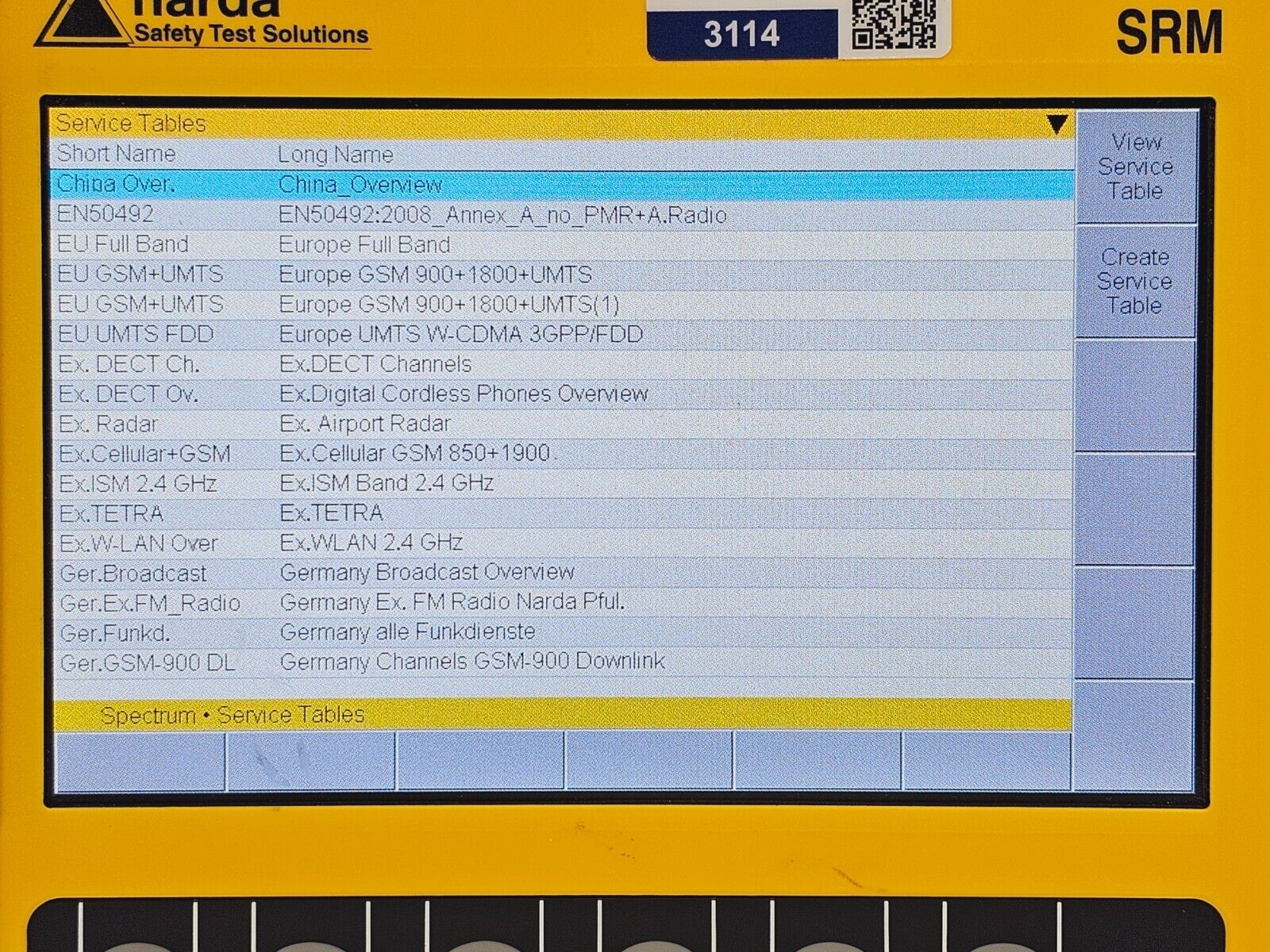

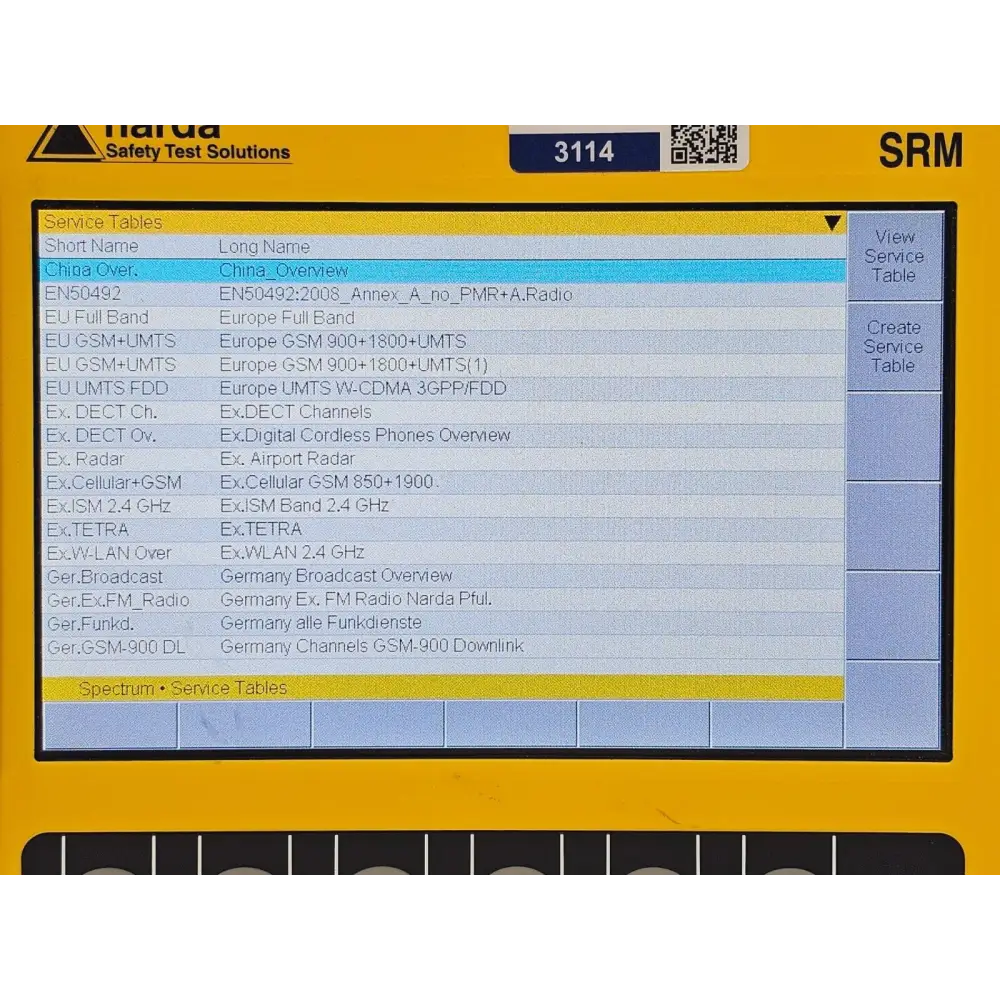

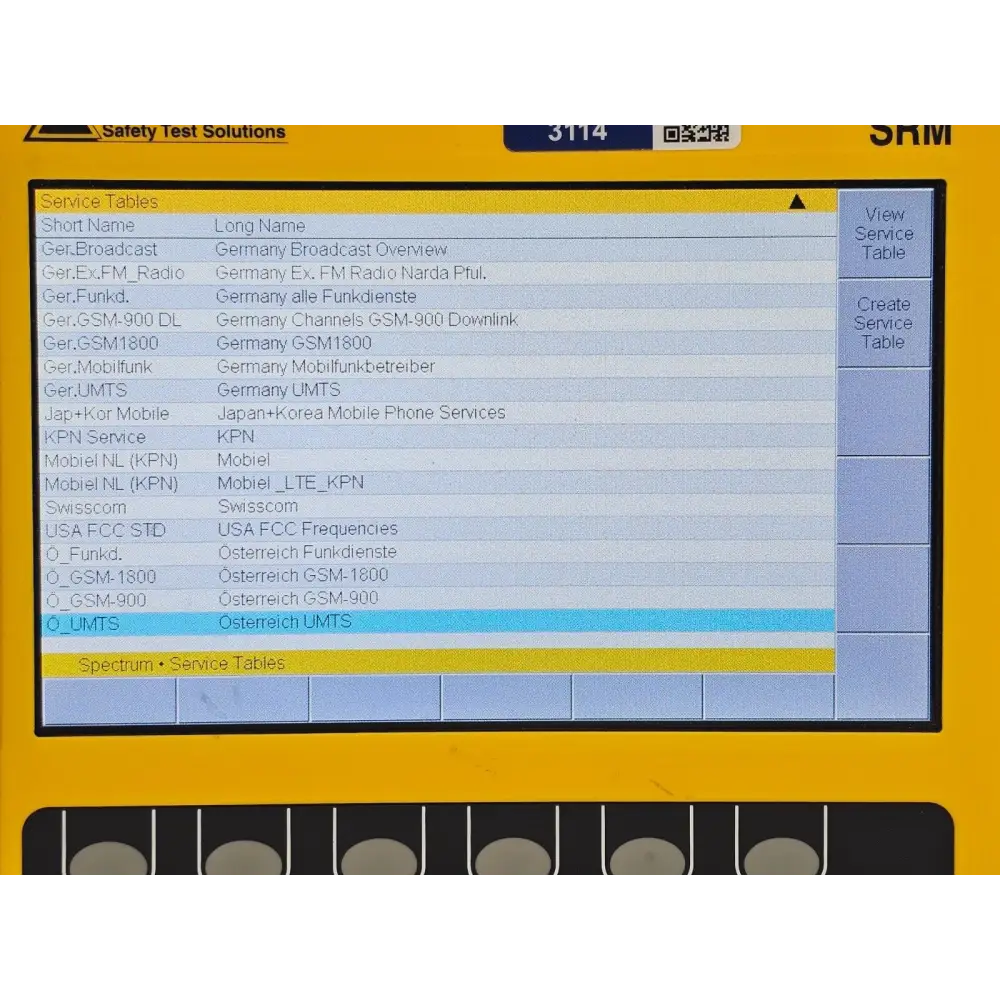

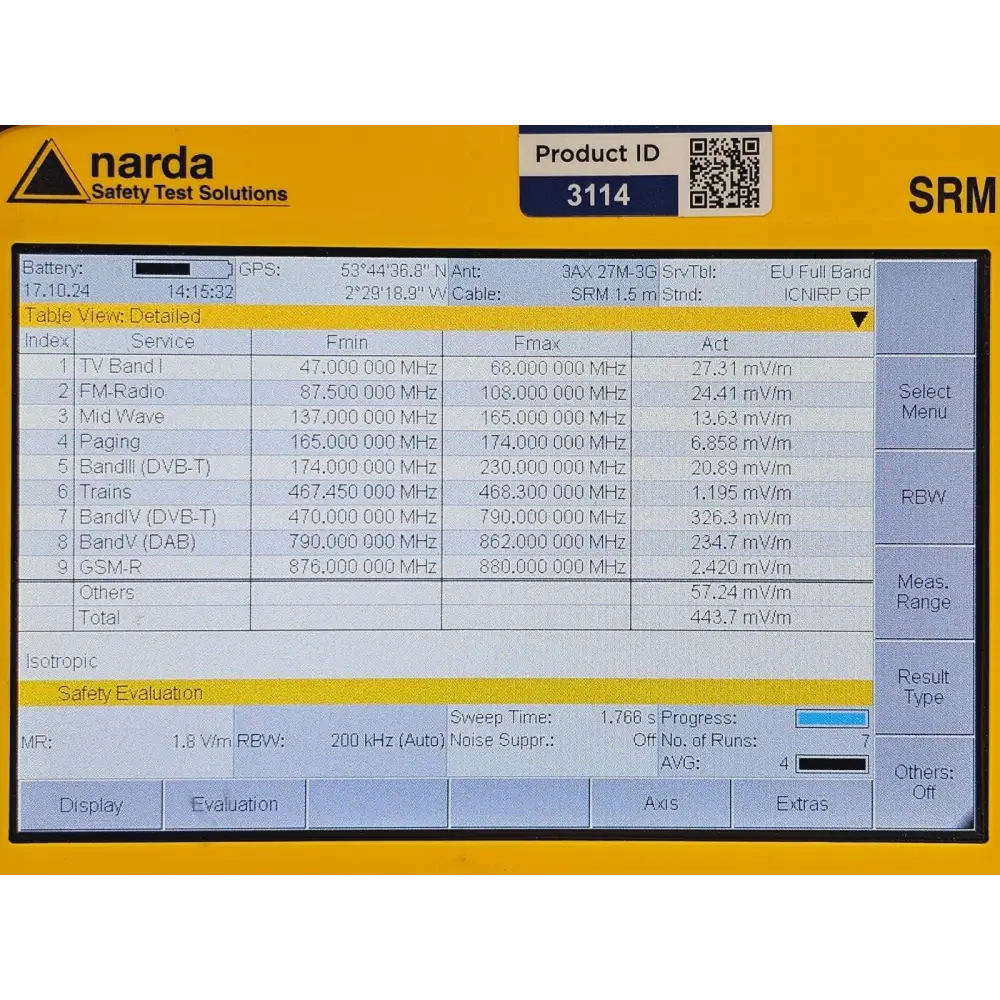

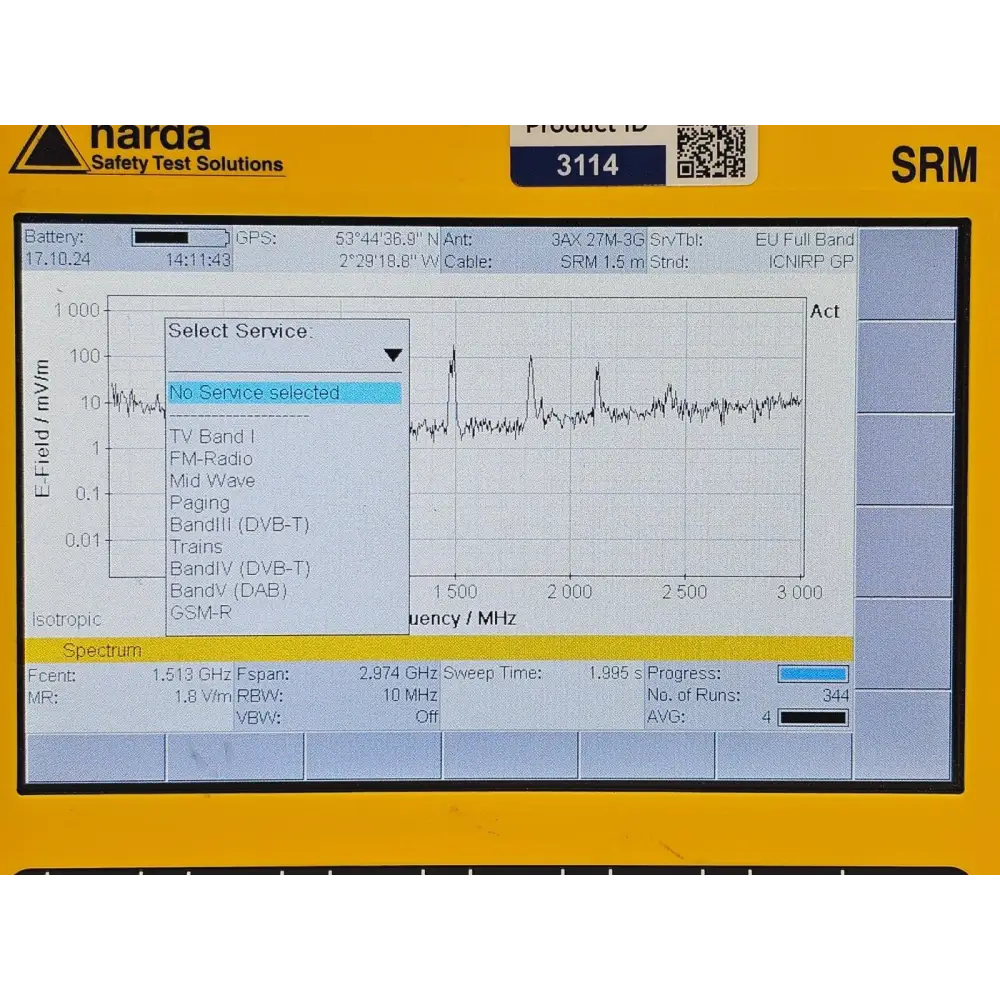

The system consists of a handheld basic unit, RF cable, and interchangeable measuring antennas for isotropic (non-directional) detection of electromagnetic fields and their sources. Operating modes are tailored to individual applications, covering analogue and digital broadcast (TV, DVB-T, DAB), cellular radio (GSM, UMTS, LTE), and wireless services (WLAN, WiMAX). Results are presented as individual service values plus a running total, displayed as field strength (V/m), power density (W/m²), or directly as a percentage of the permitted limit value per ICNIRP, FCC, or national standards.

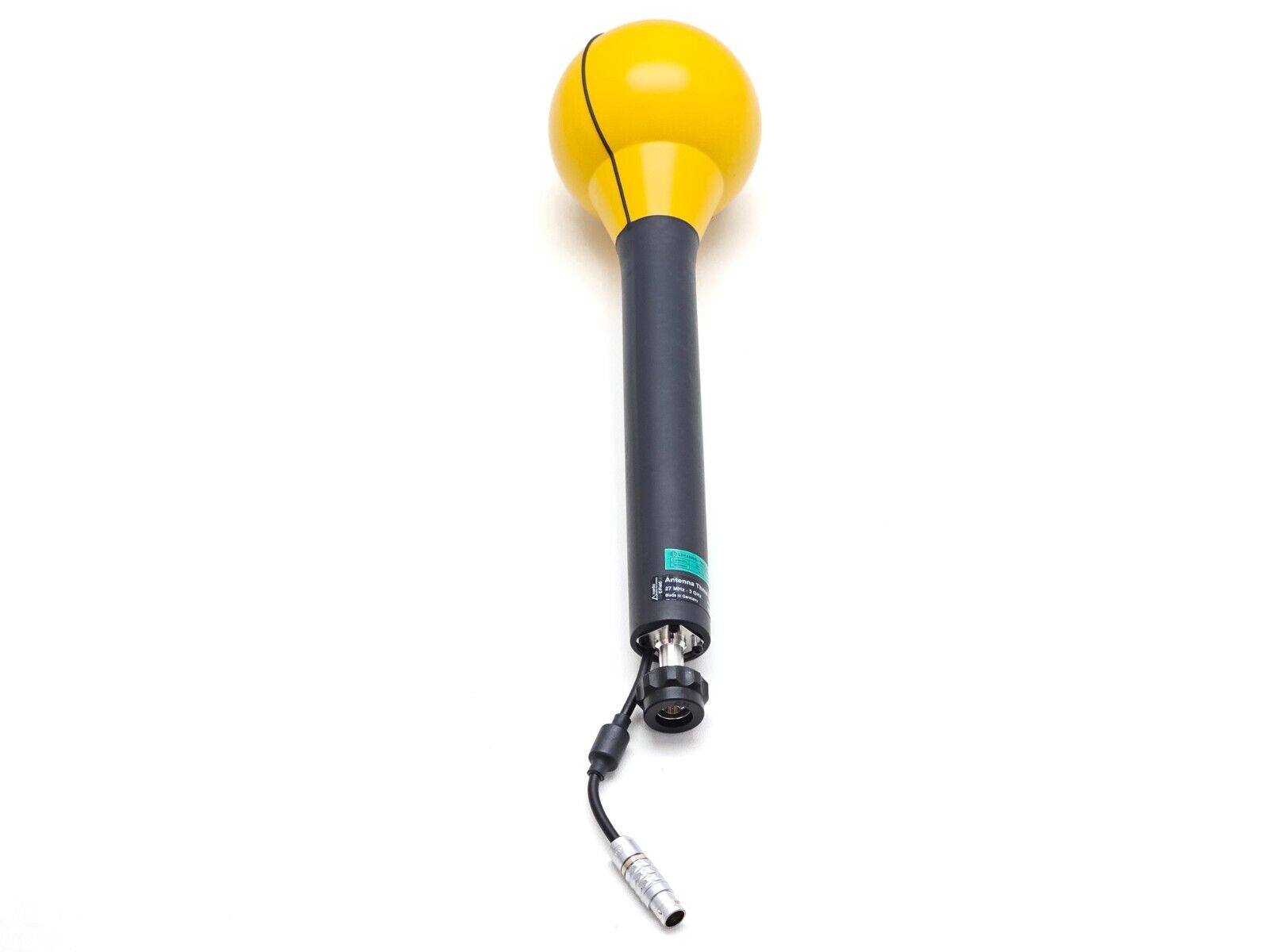

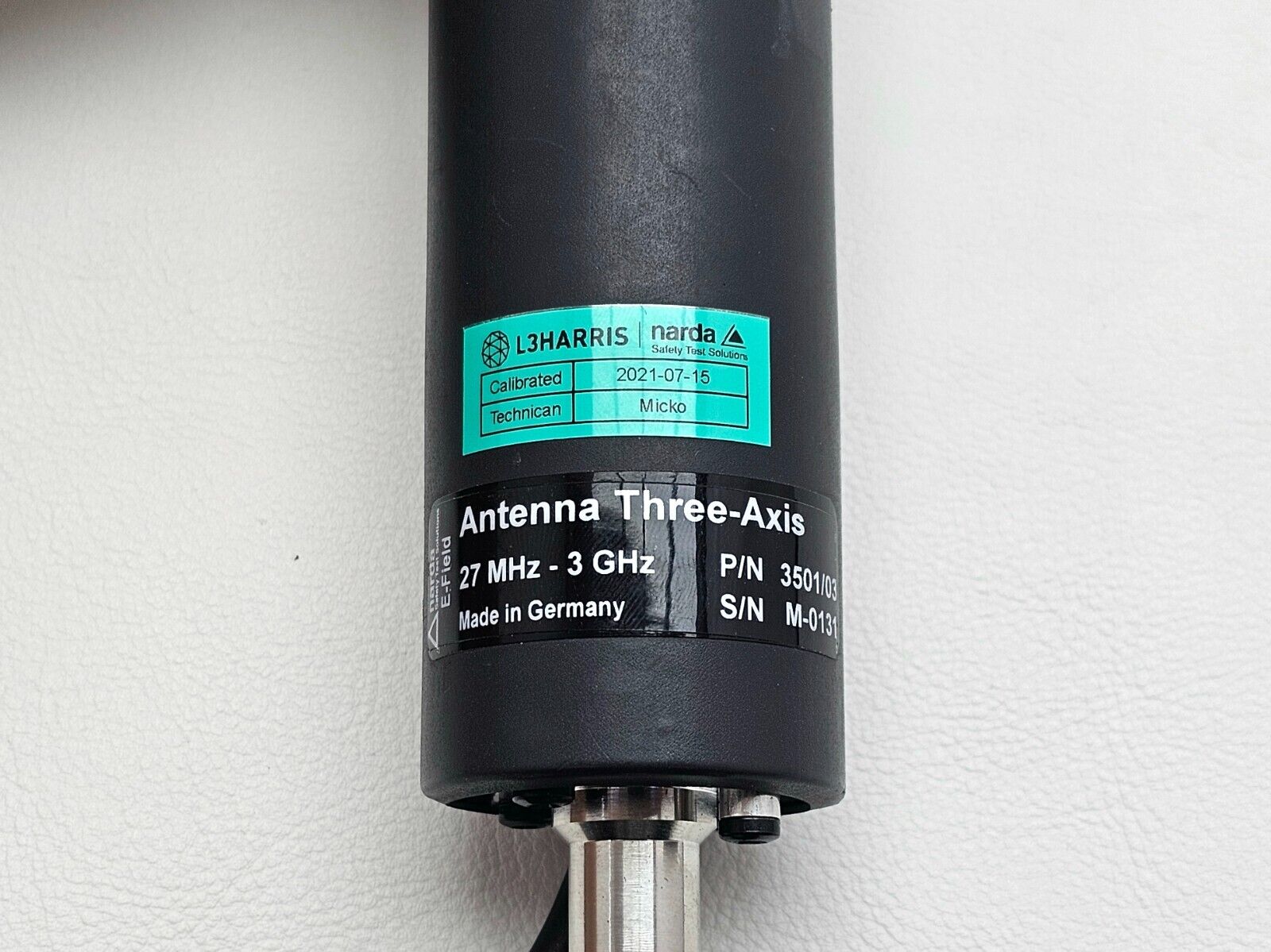

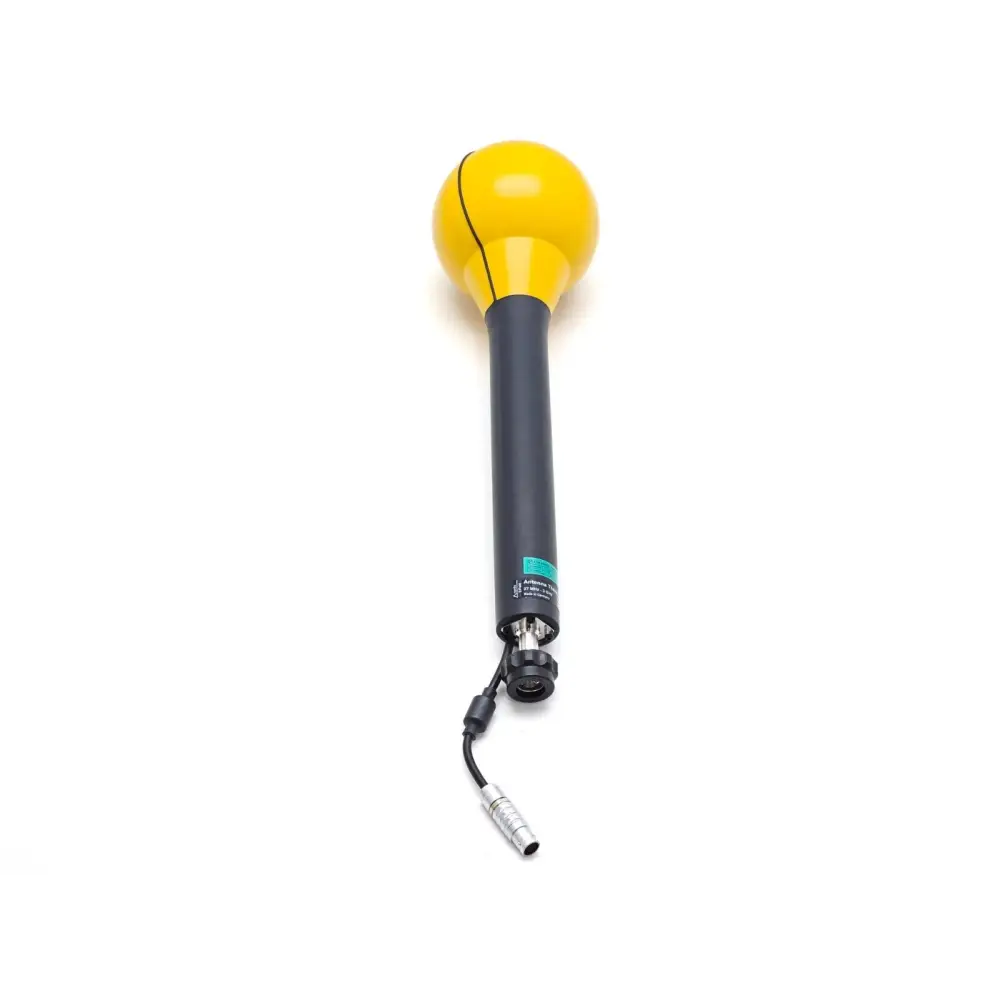

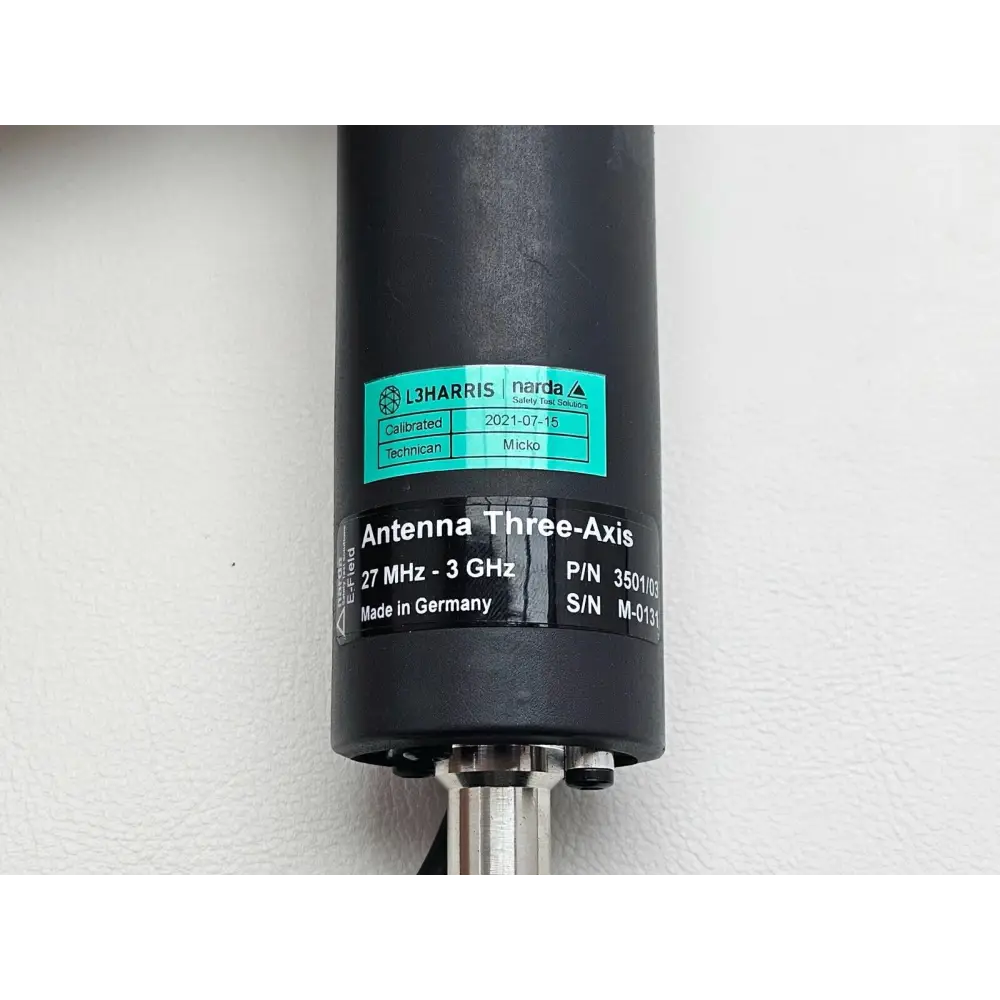

The 3501/03 three-axis (isotropic) E-field probe covers 27 MHz to 3 GHz, detecting fields simultaneously on the X, Y, and Z axes so that direction-independent measurements can be made rapidly without repositioning the antenna. Calibration correction factors are stored in an EEPROM within the probe and are applied automatically when connected to the SRM-3006 basic unit.

Key Features:
• Frequency range (basic unit): 9 kHz to 6 GHz
• Probe 3501/03 frequency range: 27 MHz to 3 GHz
• Probe 3501/03 measurement dynamic range: 0.2 mV/m to 200 V/m
• Probe 3501/03 weight: 450 g; length including shaft: 460 mm

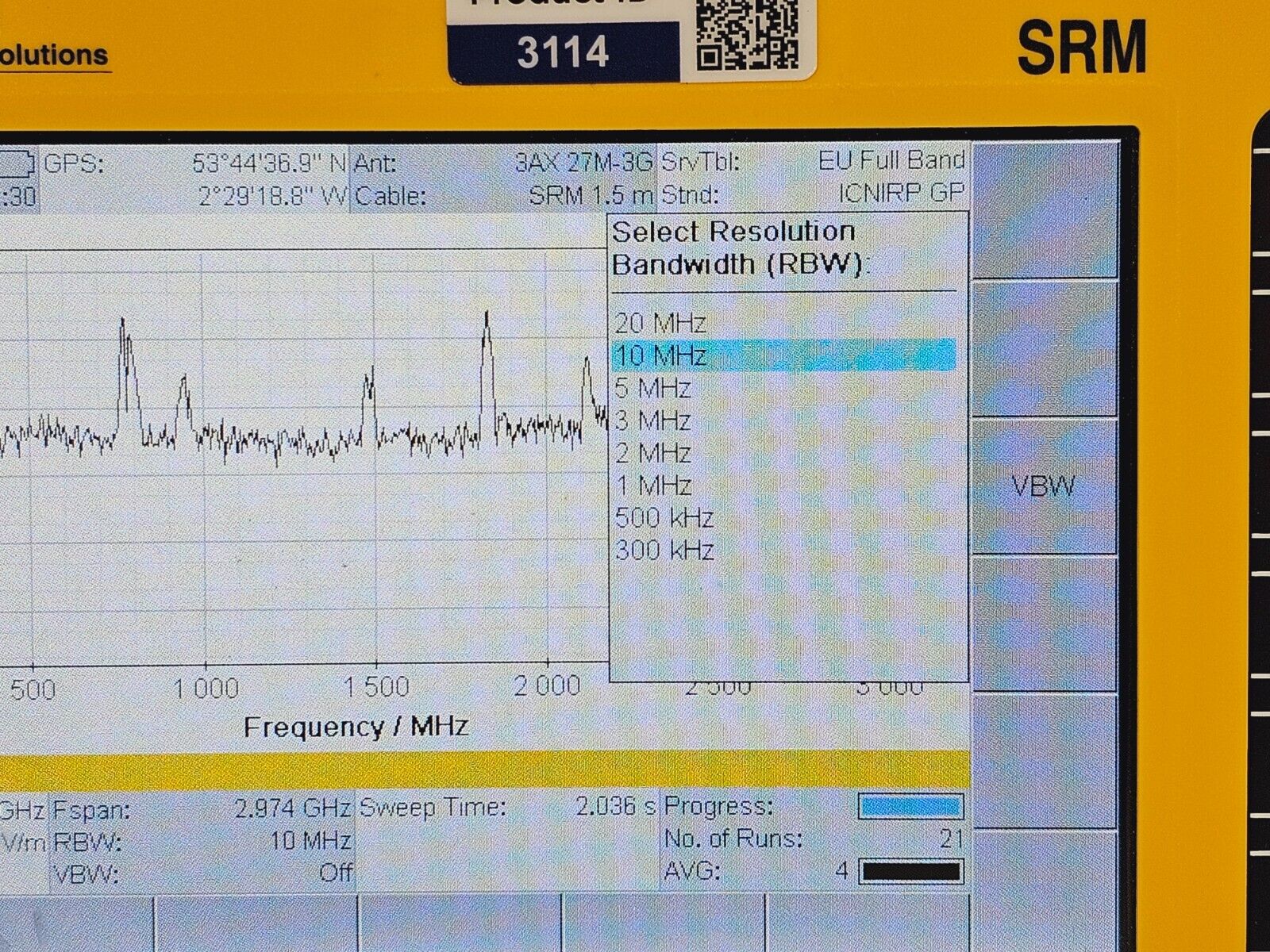

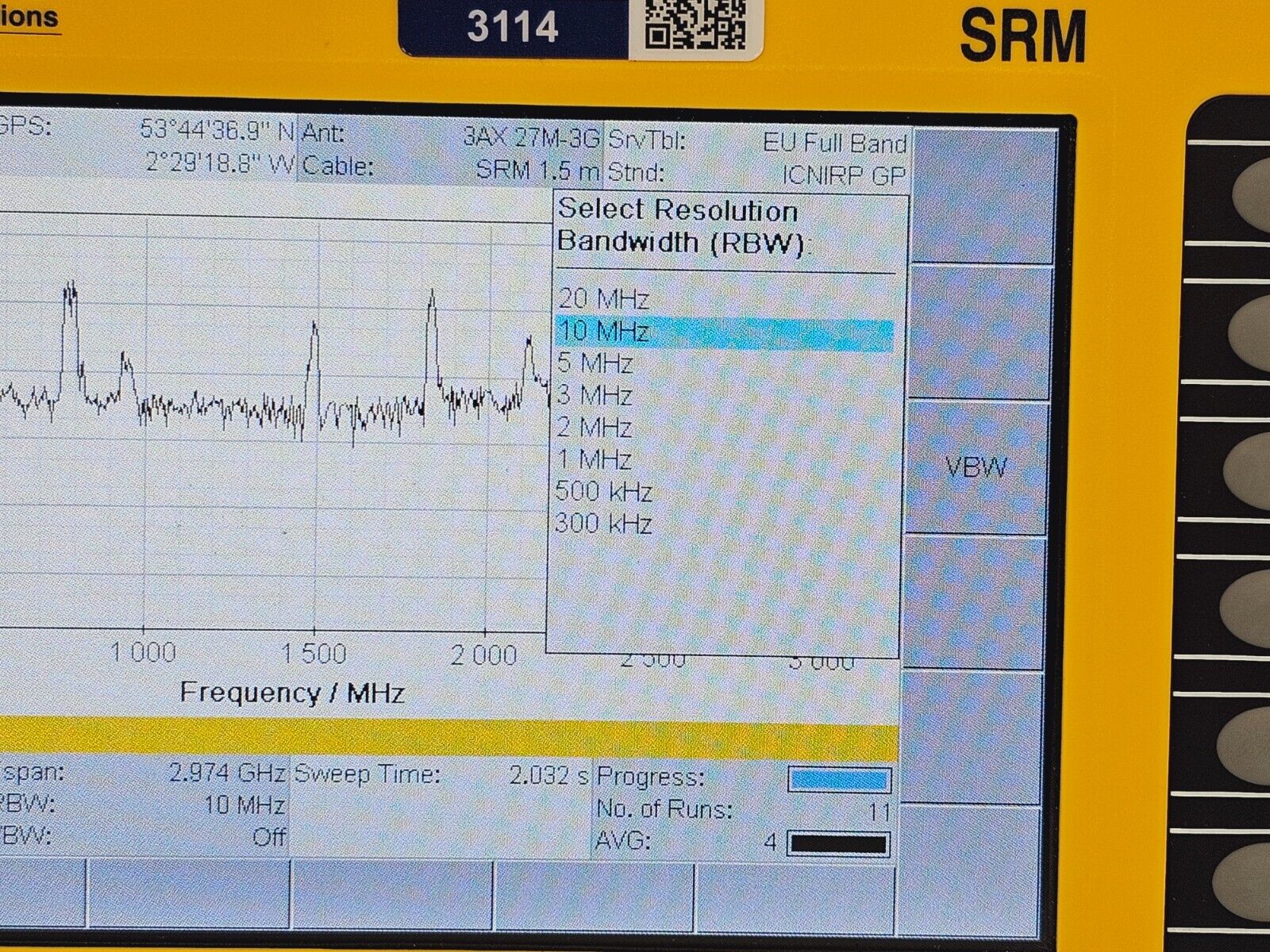

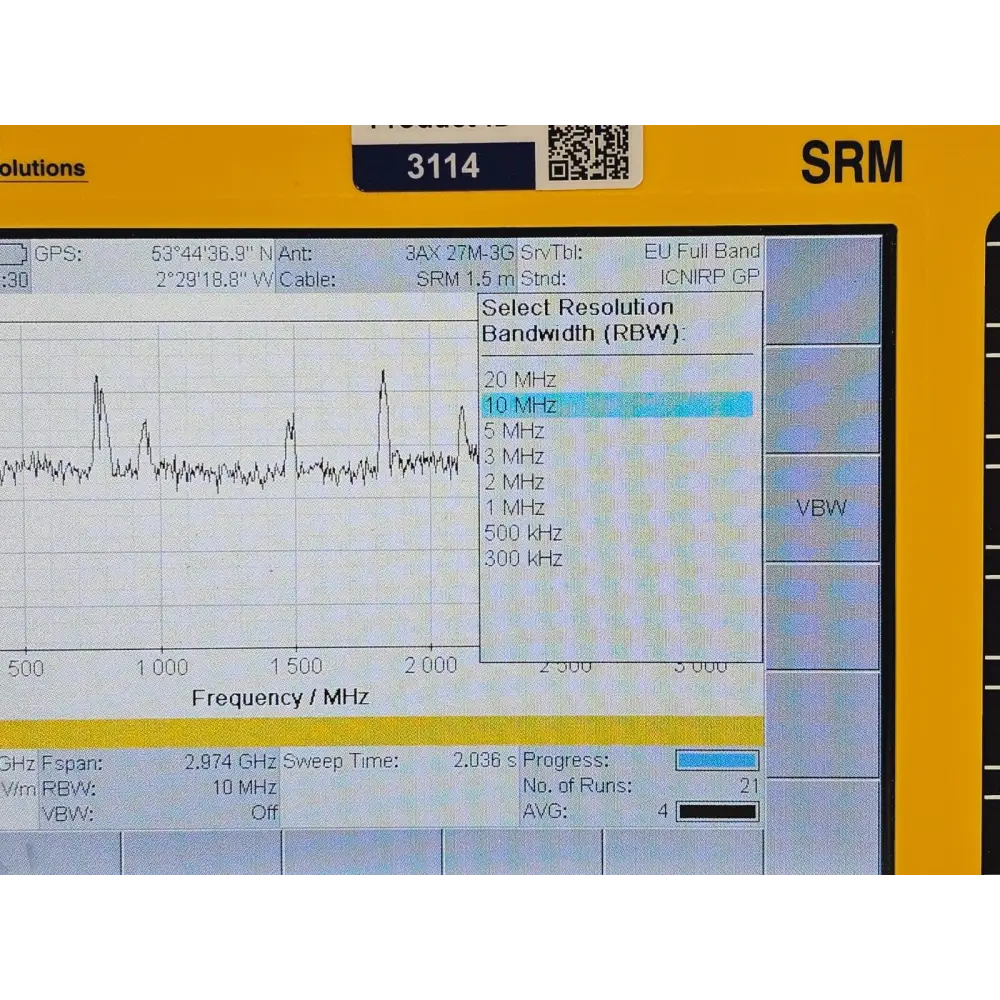

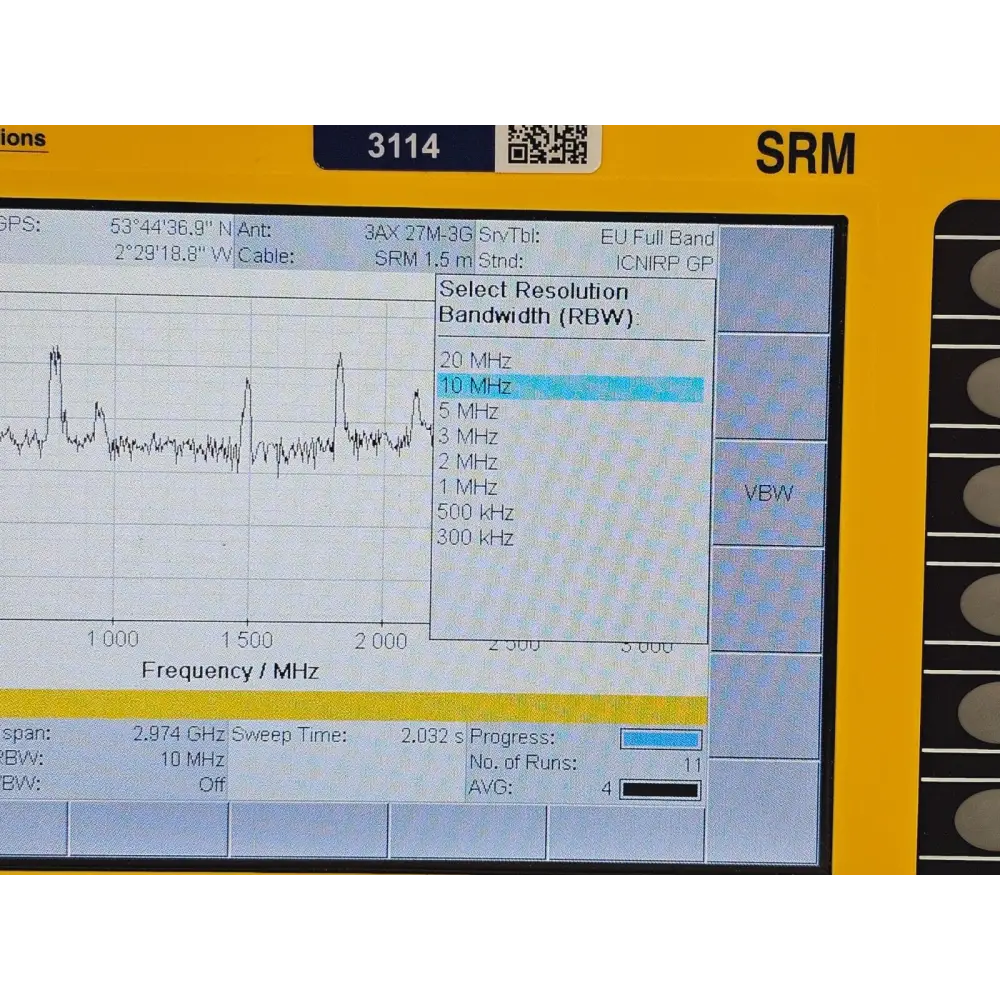

• Resolution bandwidth (RBW): up to 32 MHz

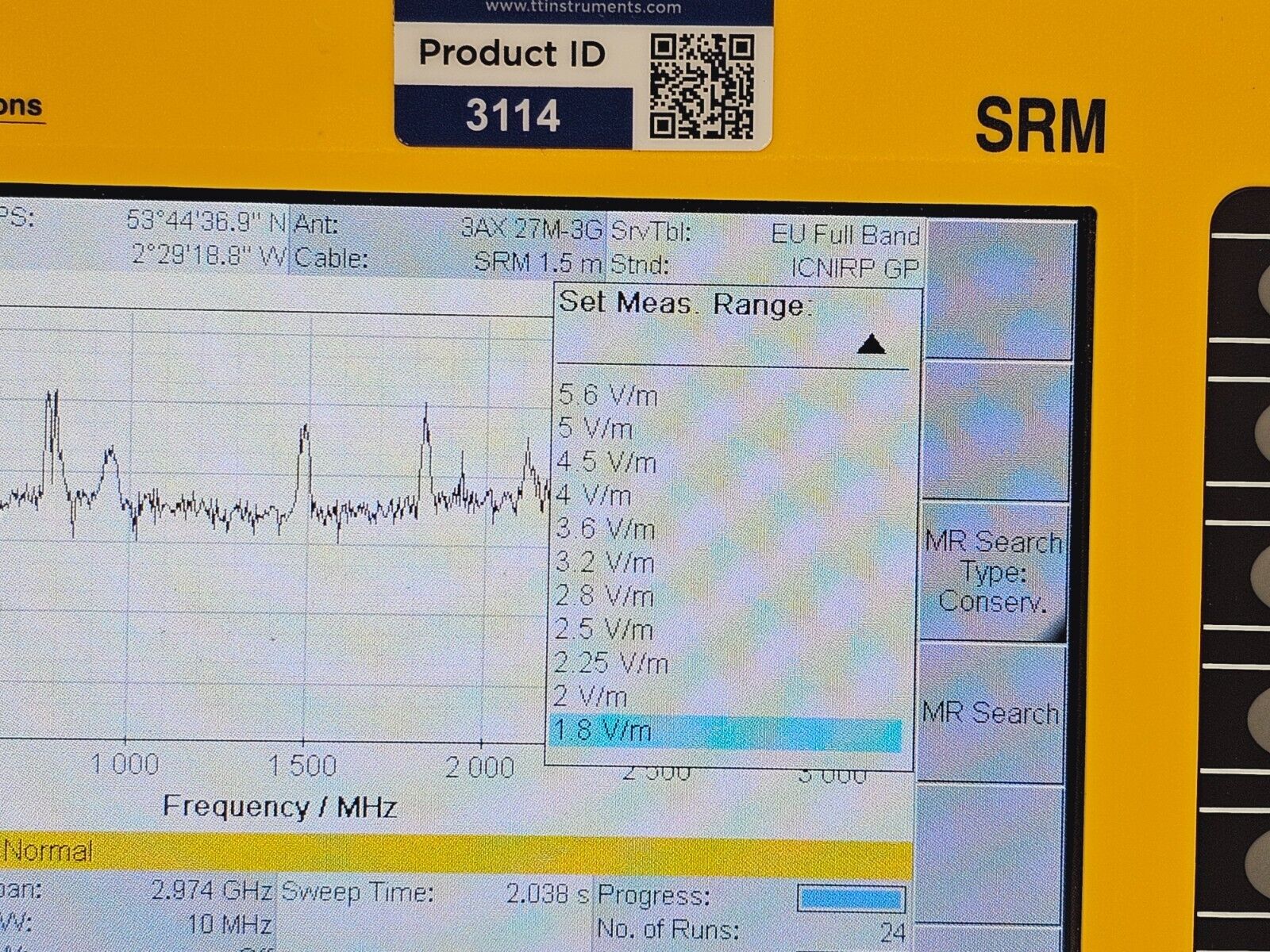

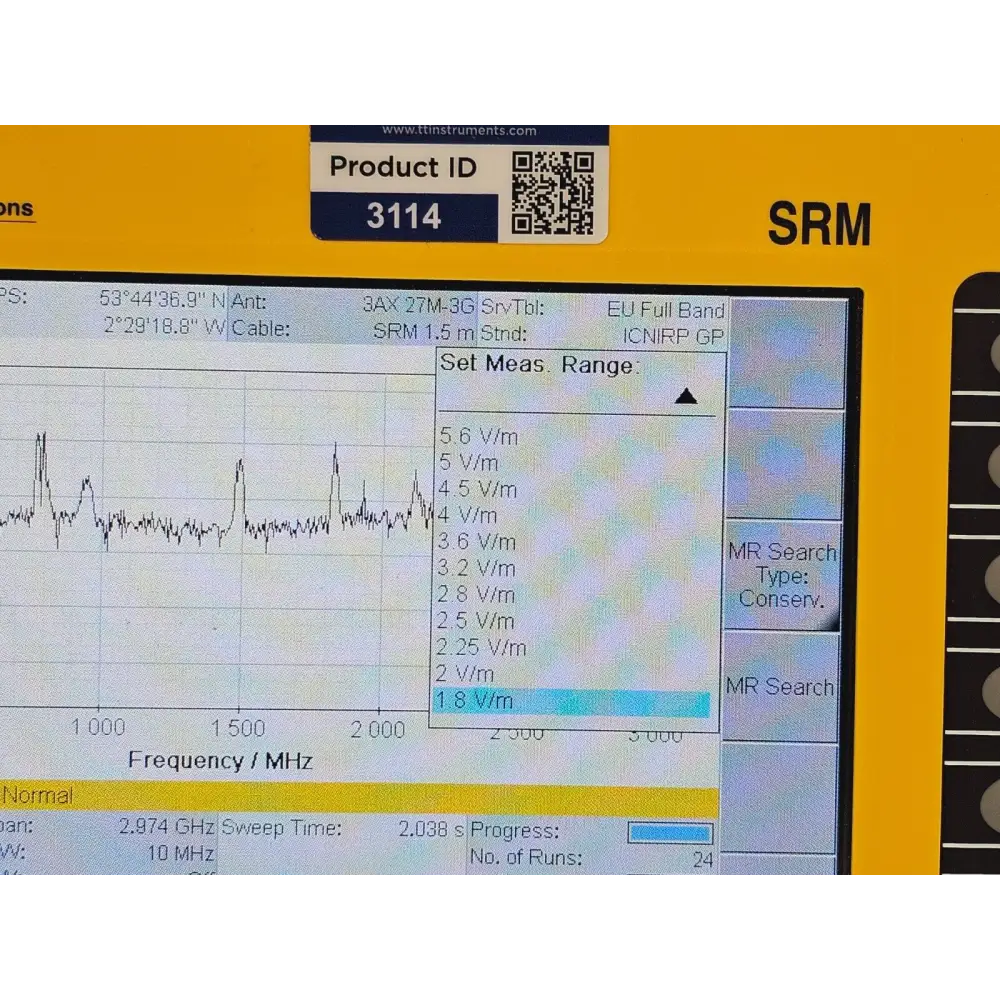

• Measurement range fine-tuning: 1 dB steps
• Irradiation-proof up to 200 V/m

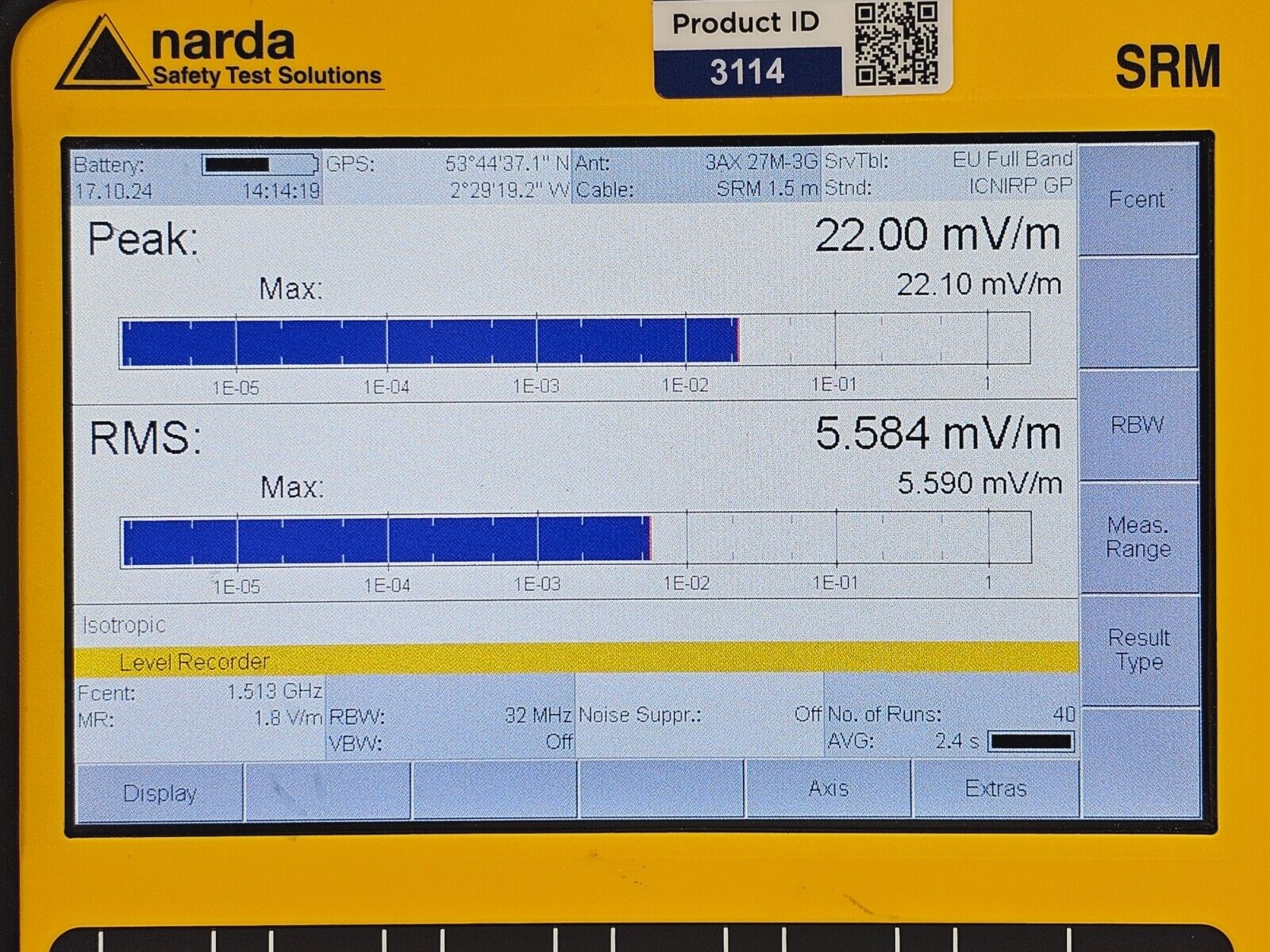

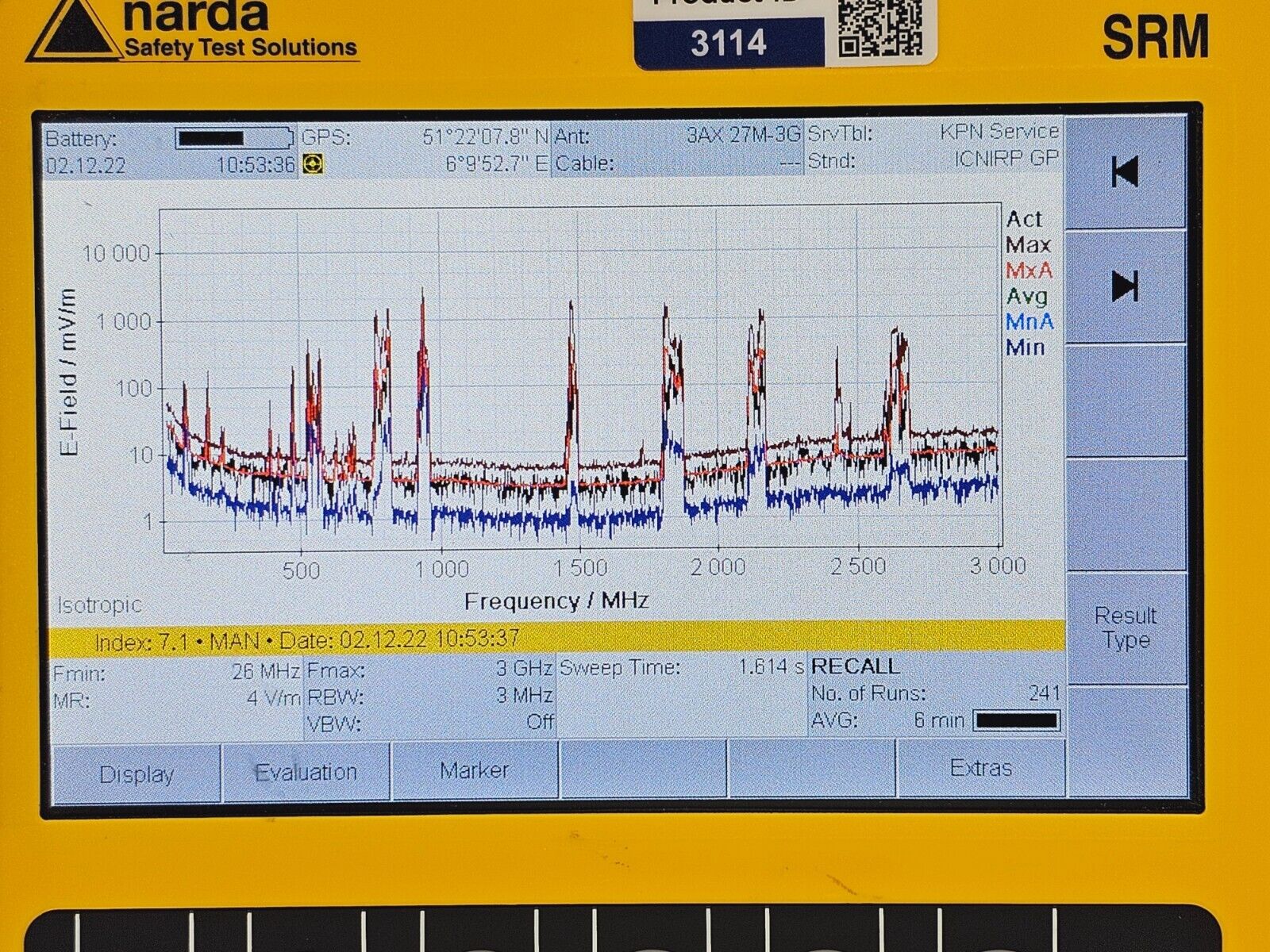

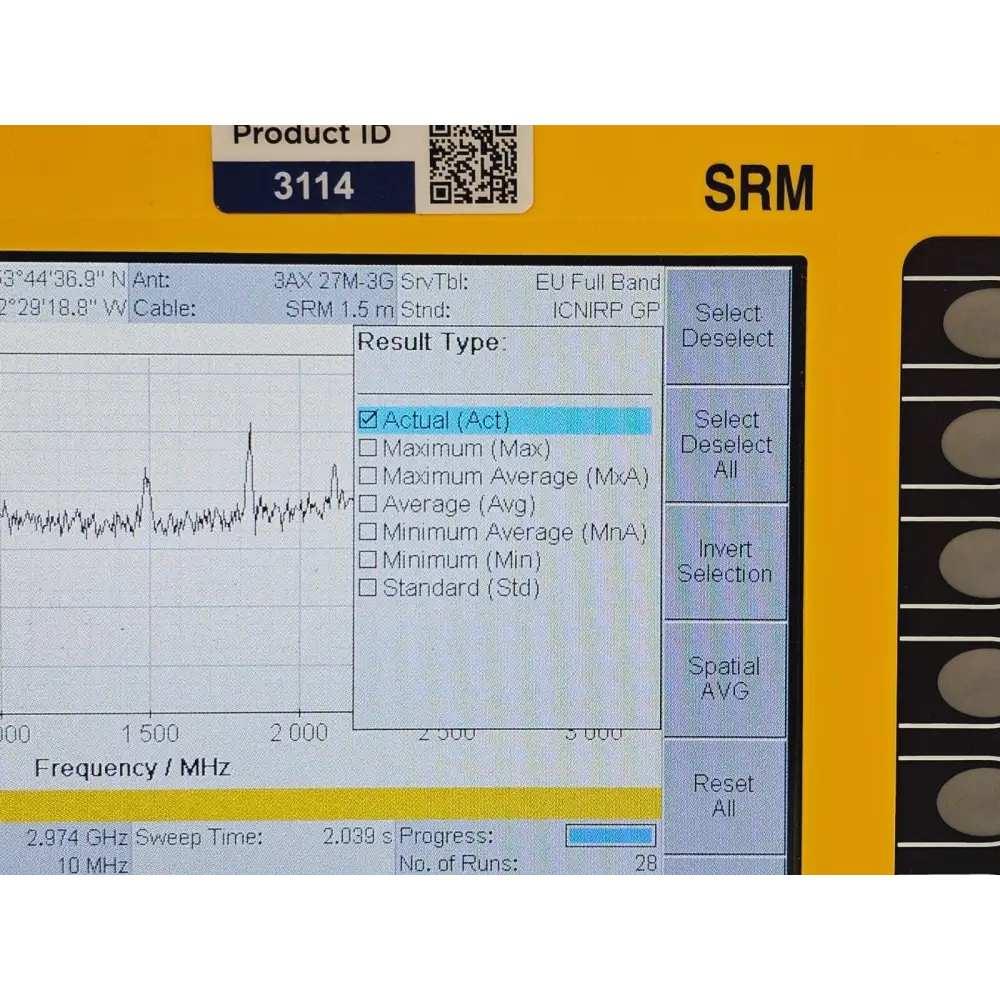

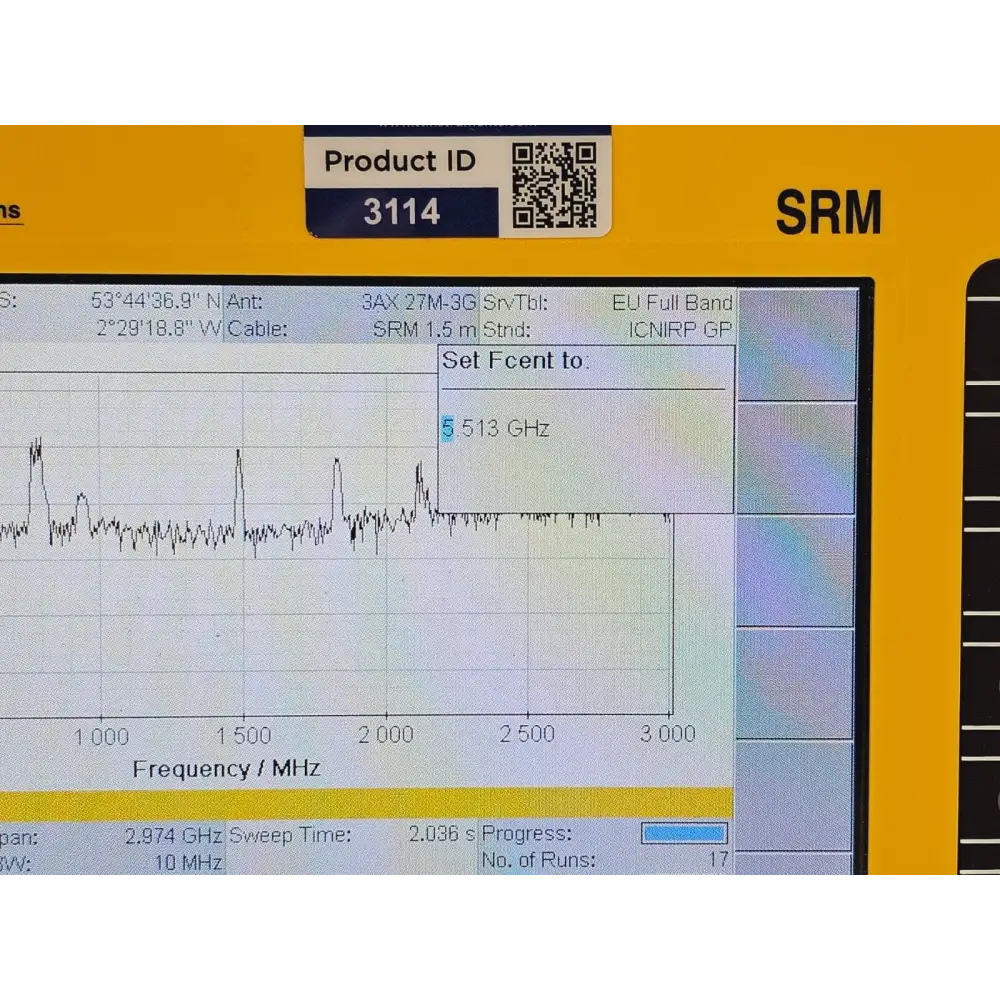

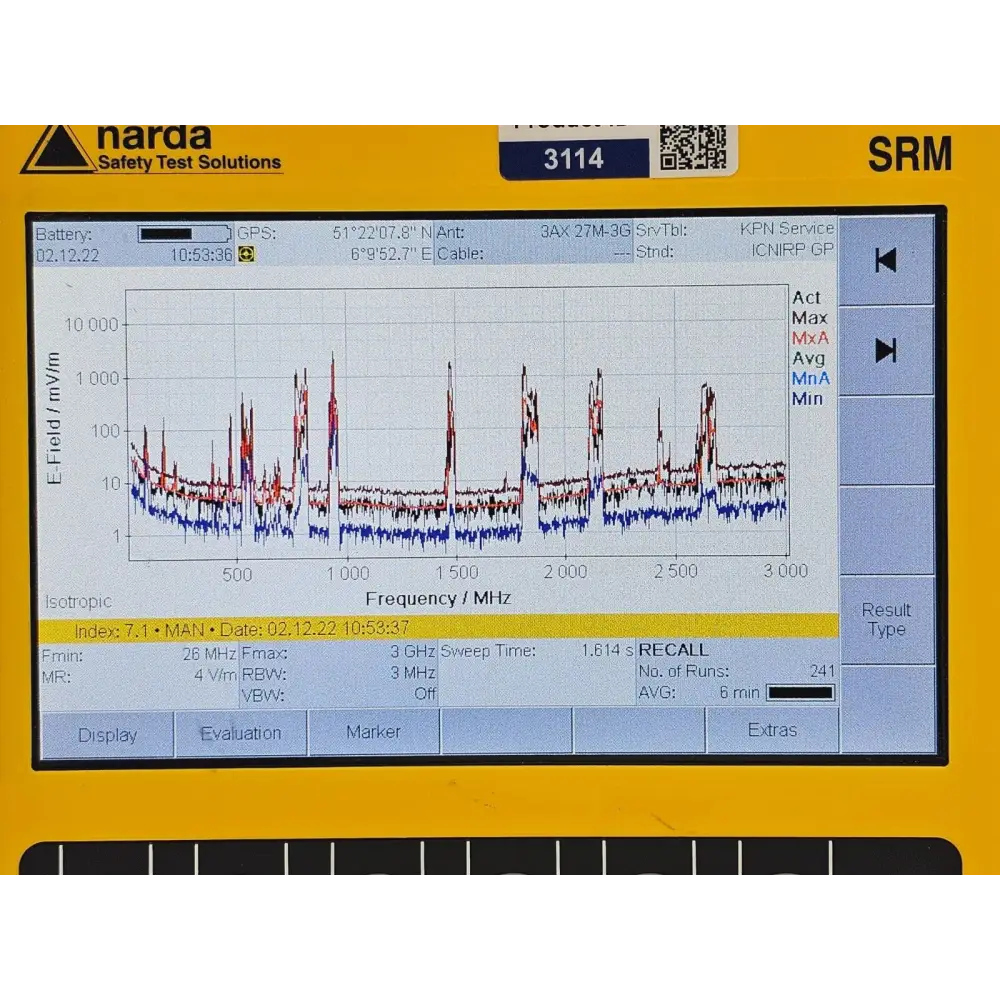

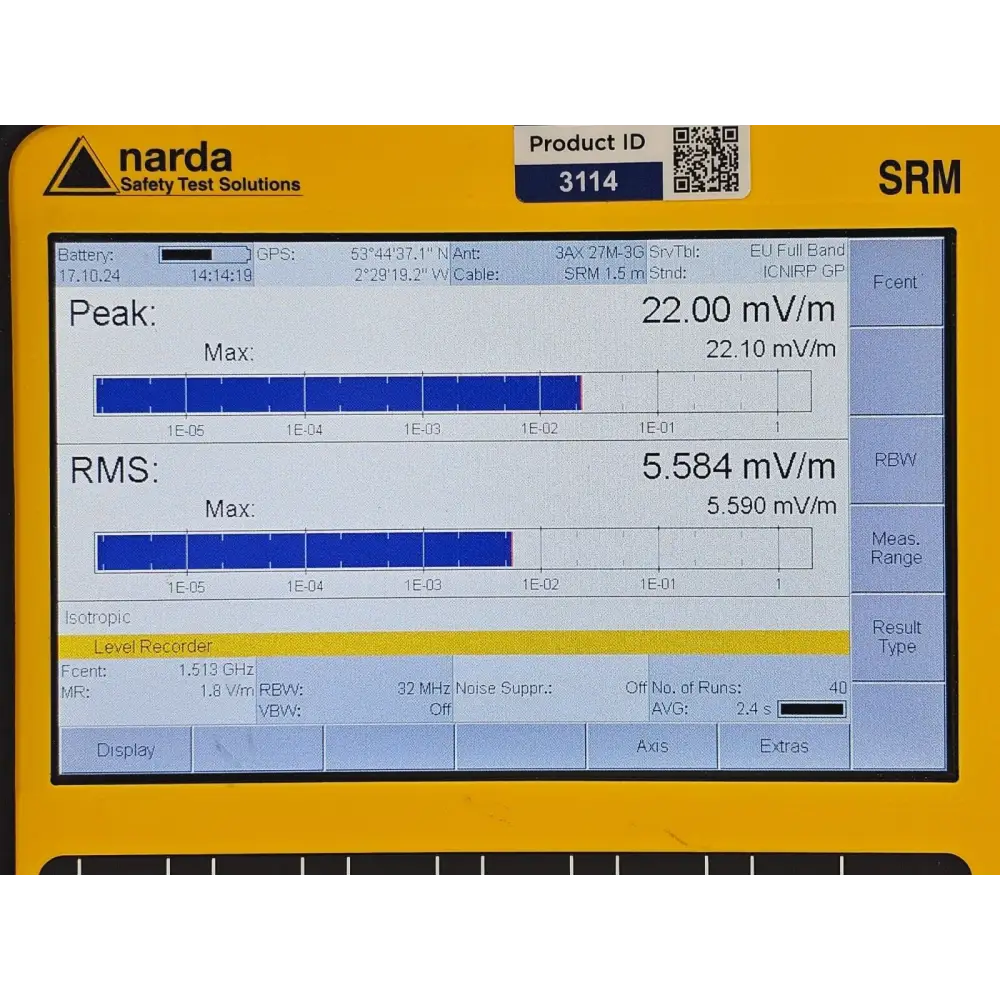

• Operating modes: Safety Evaluation, Spectrum Analysis, Level Recorder, Scope, UMTS, LTE-FDD/TDD (optional), 5G NR (optional)

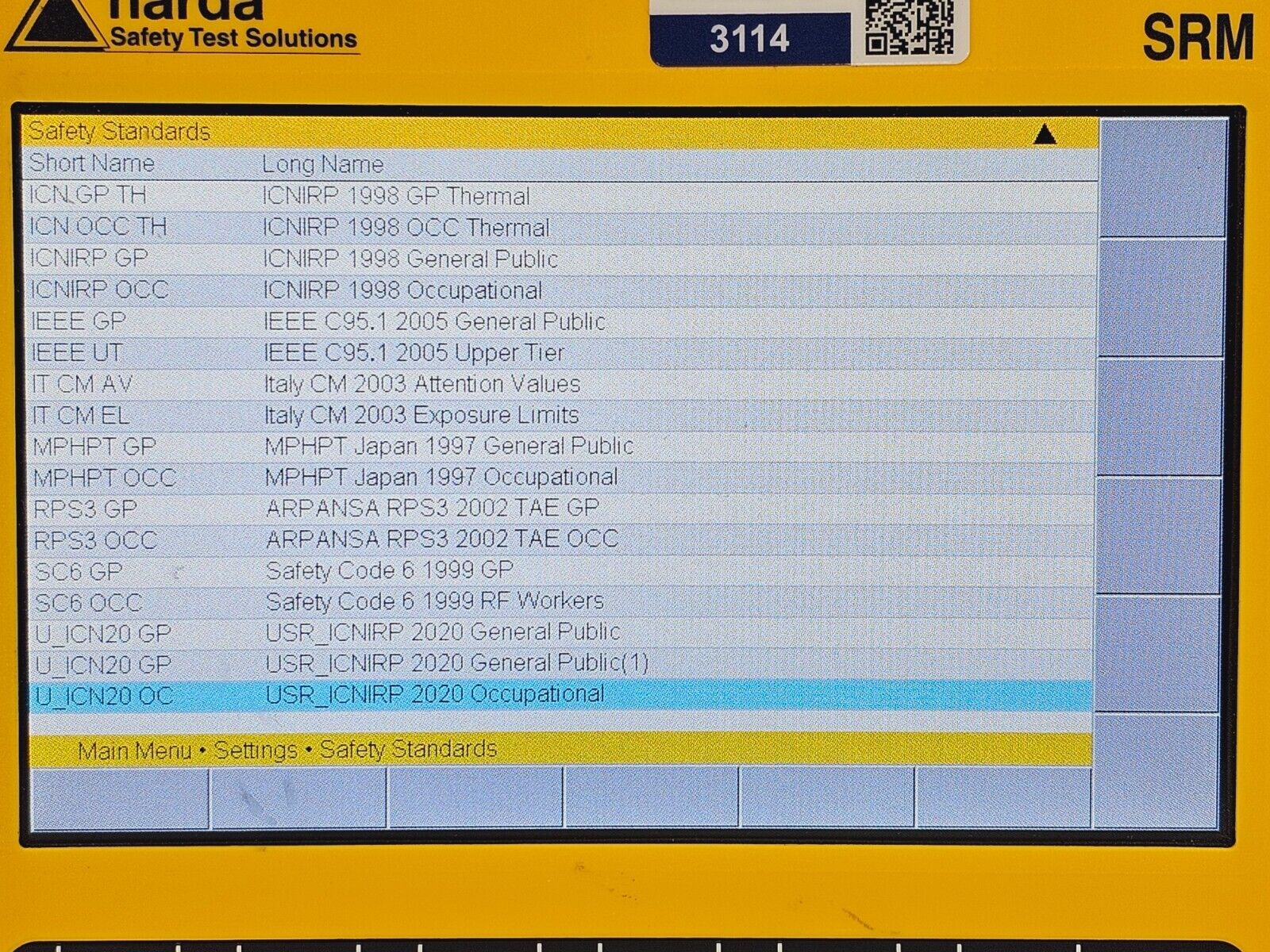

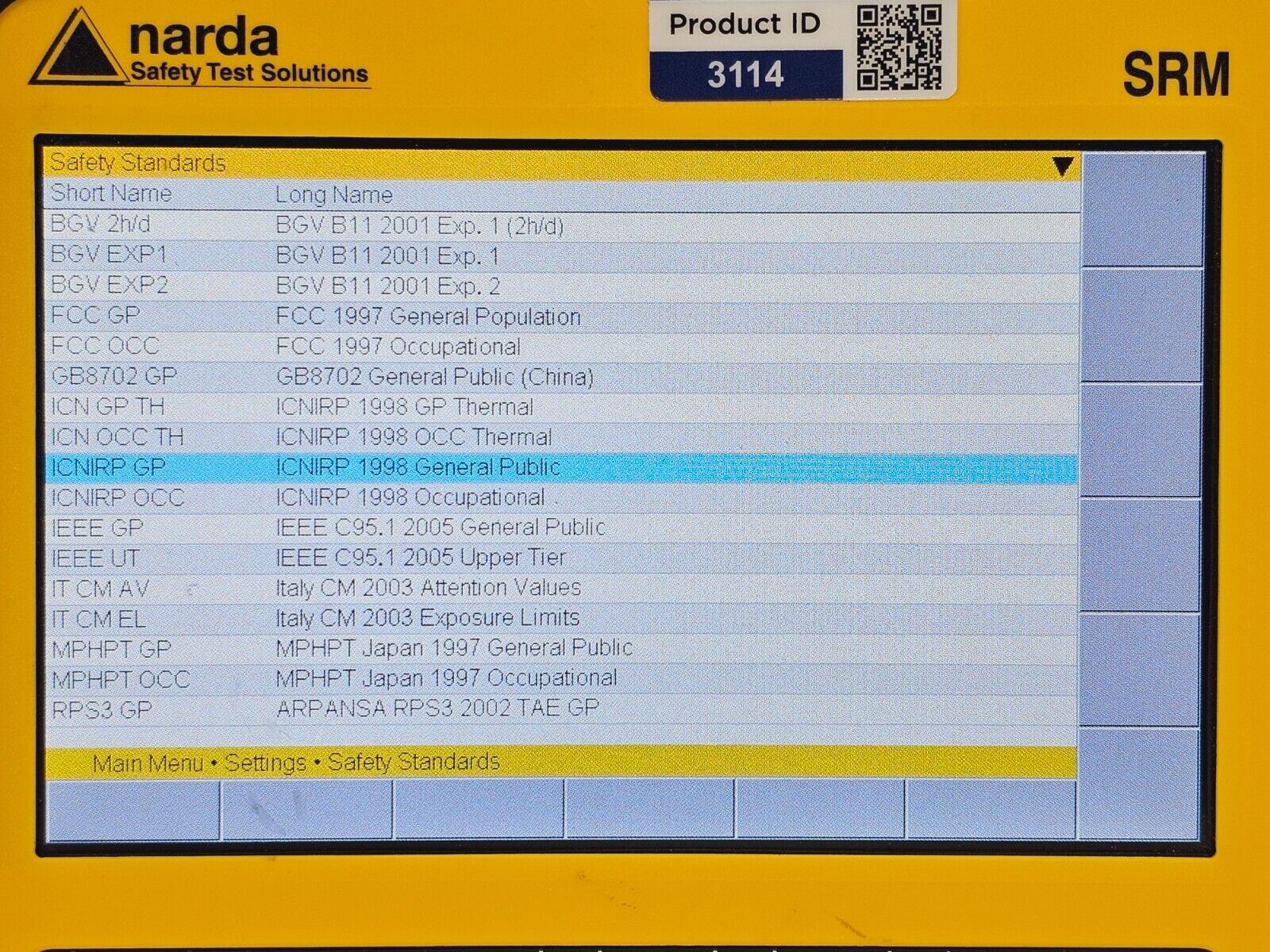

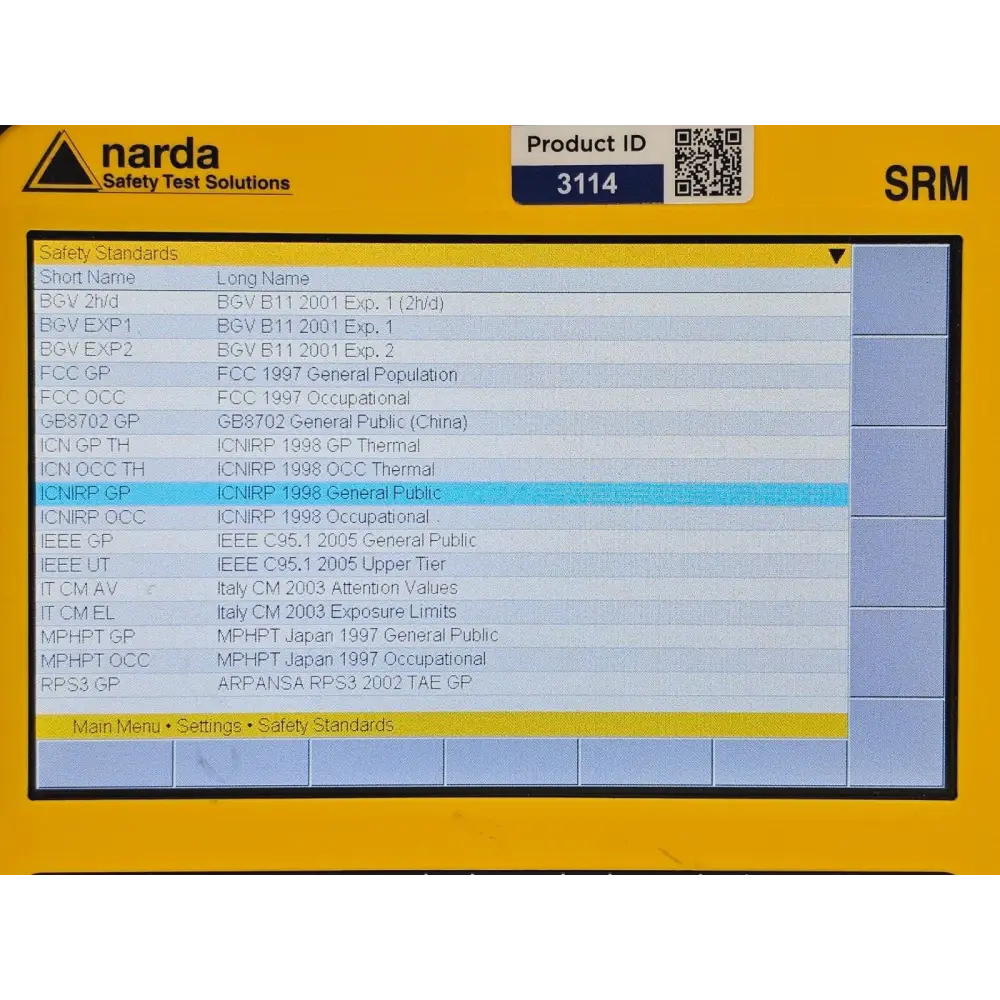

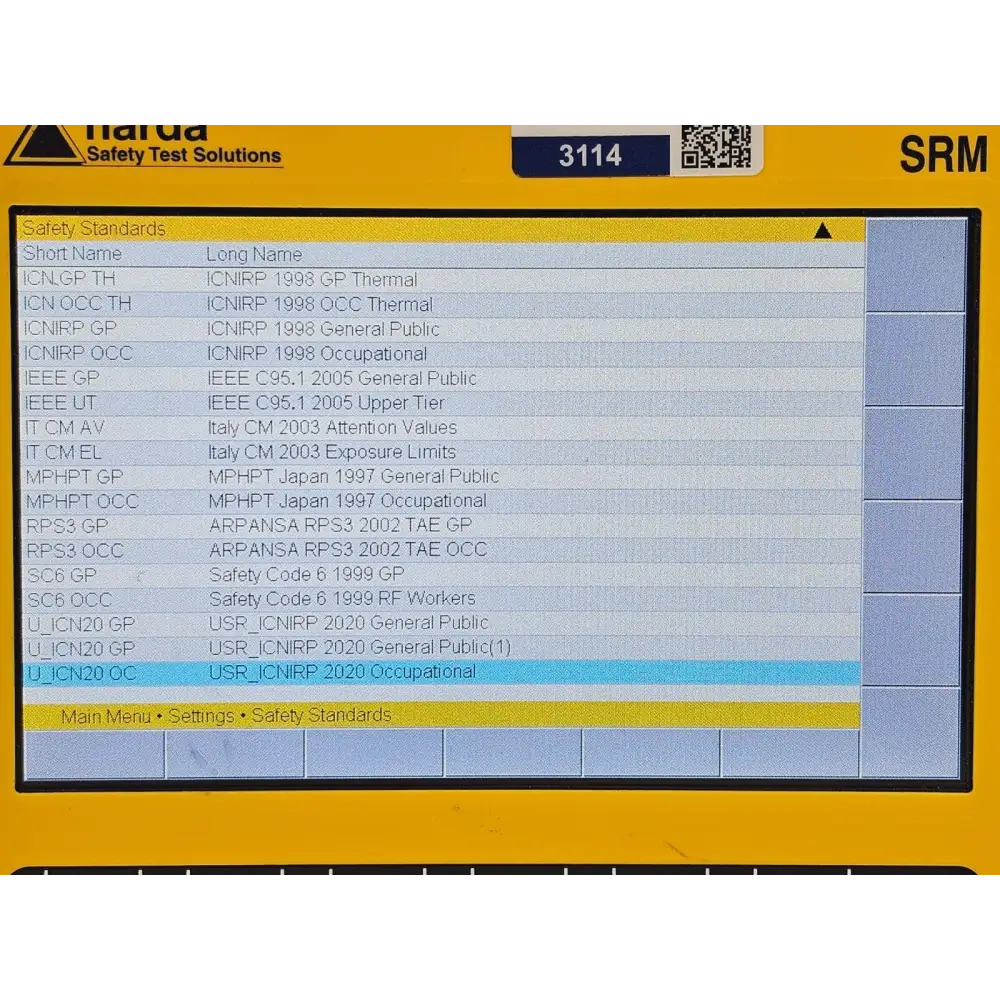

• Display units: V/m, A/m, W/m², % of limit value (ICNIRP, IEEE, FCC, EU Directive 2013/35/EU)
• Scope mode: real-time capture with microsecond time resolution for pulsed/radar signals
• Long-term monitoring: up to 99 hours (all modes except Scope)

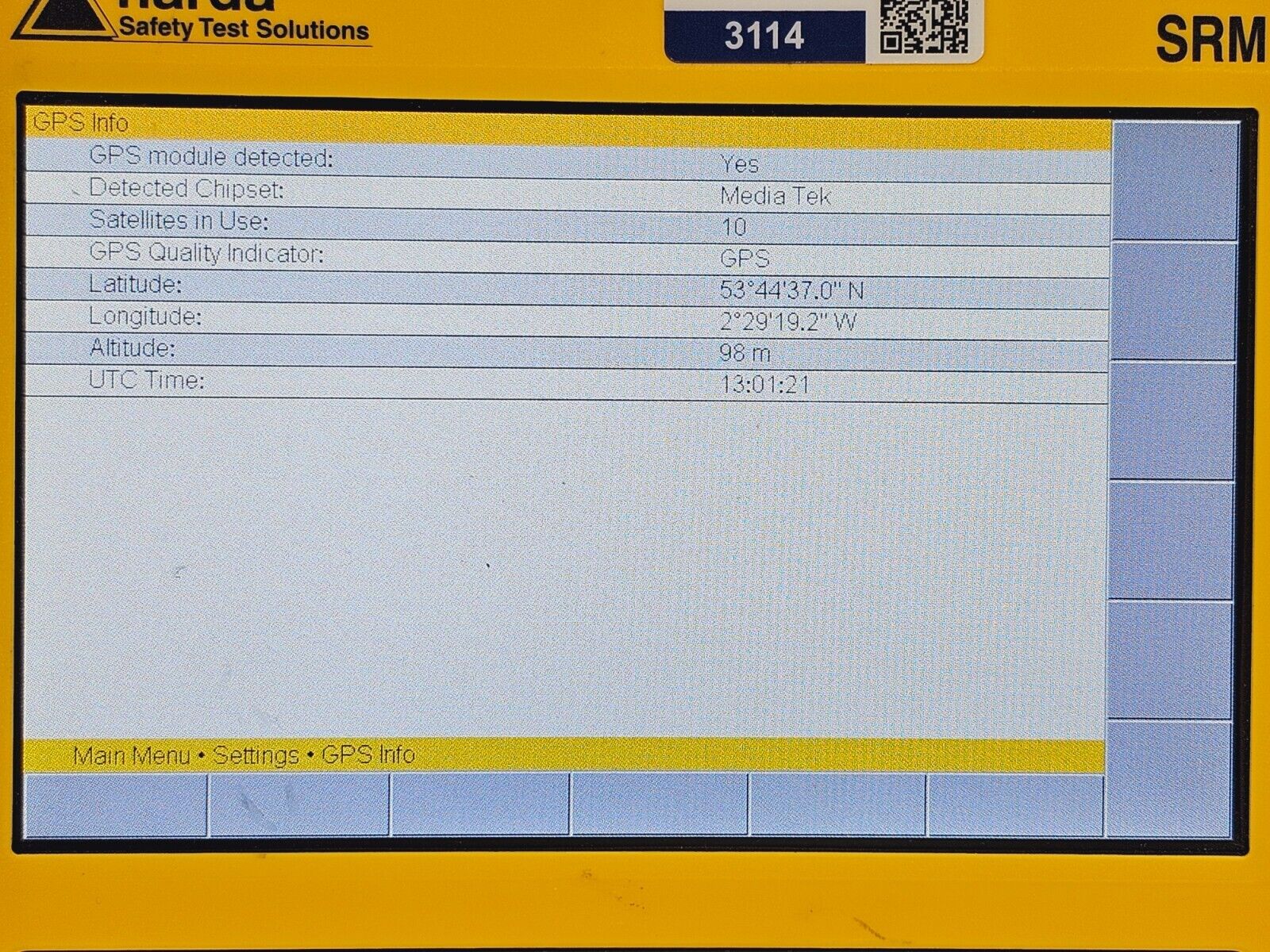

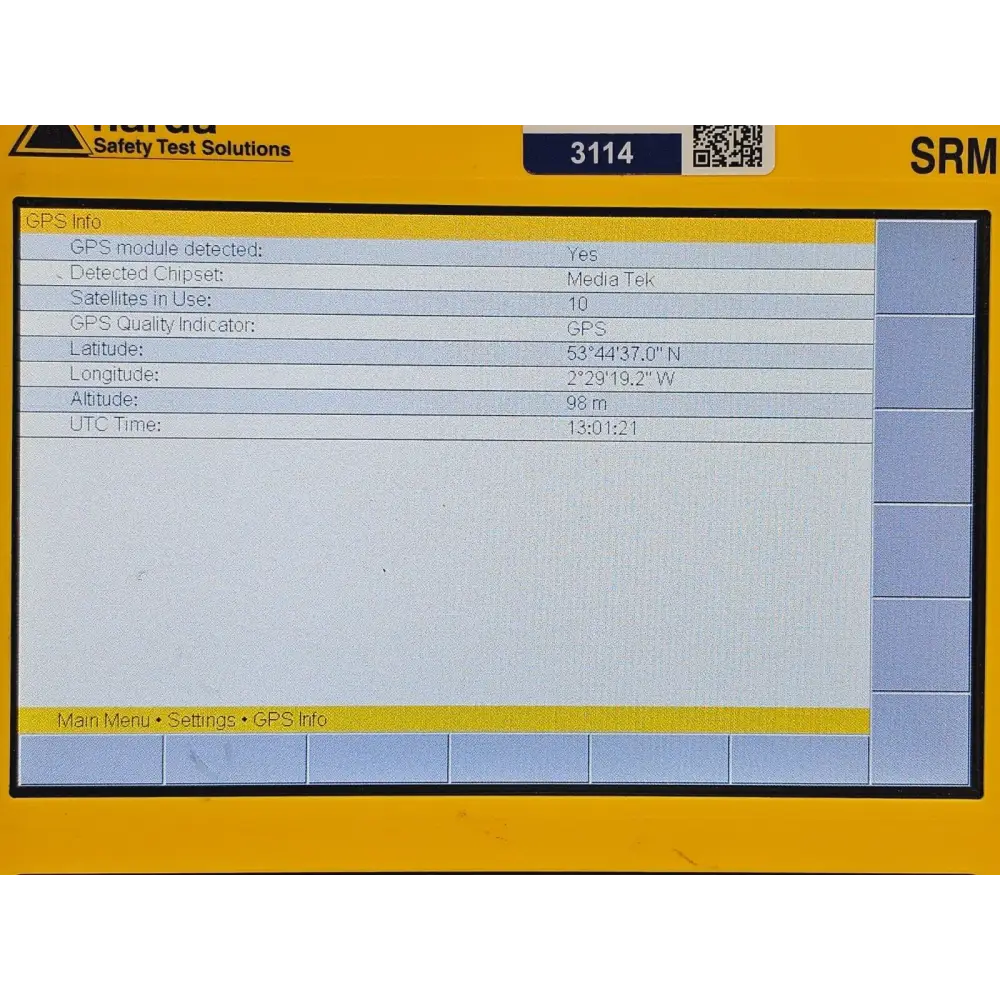

• GPS receiver and voice recorder integrated
• Splash-proof, ruggedised construction with exchangeable rechargeable batteries

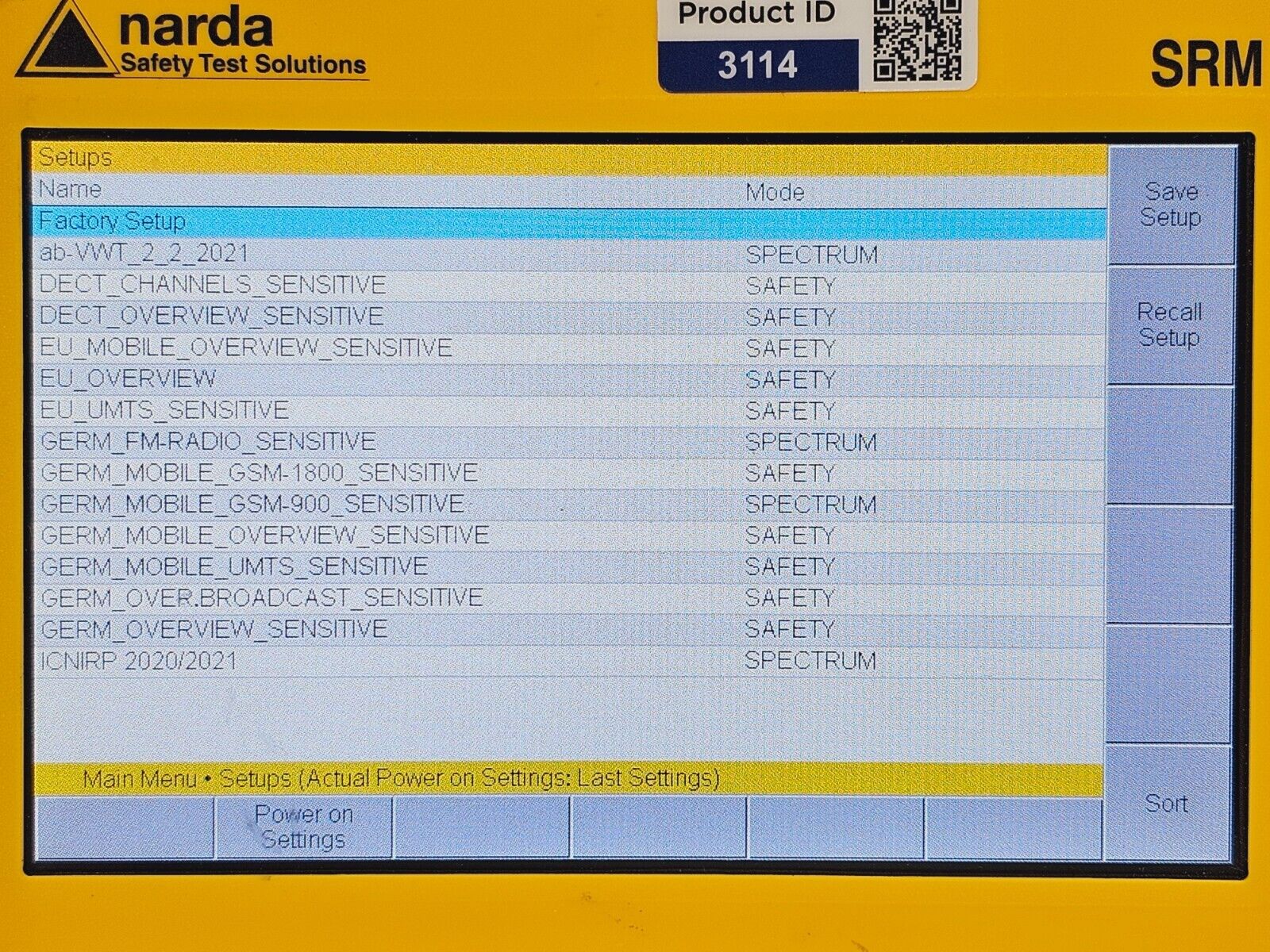

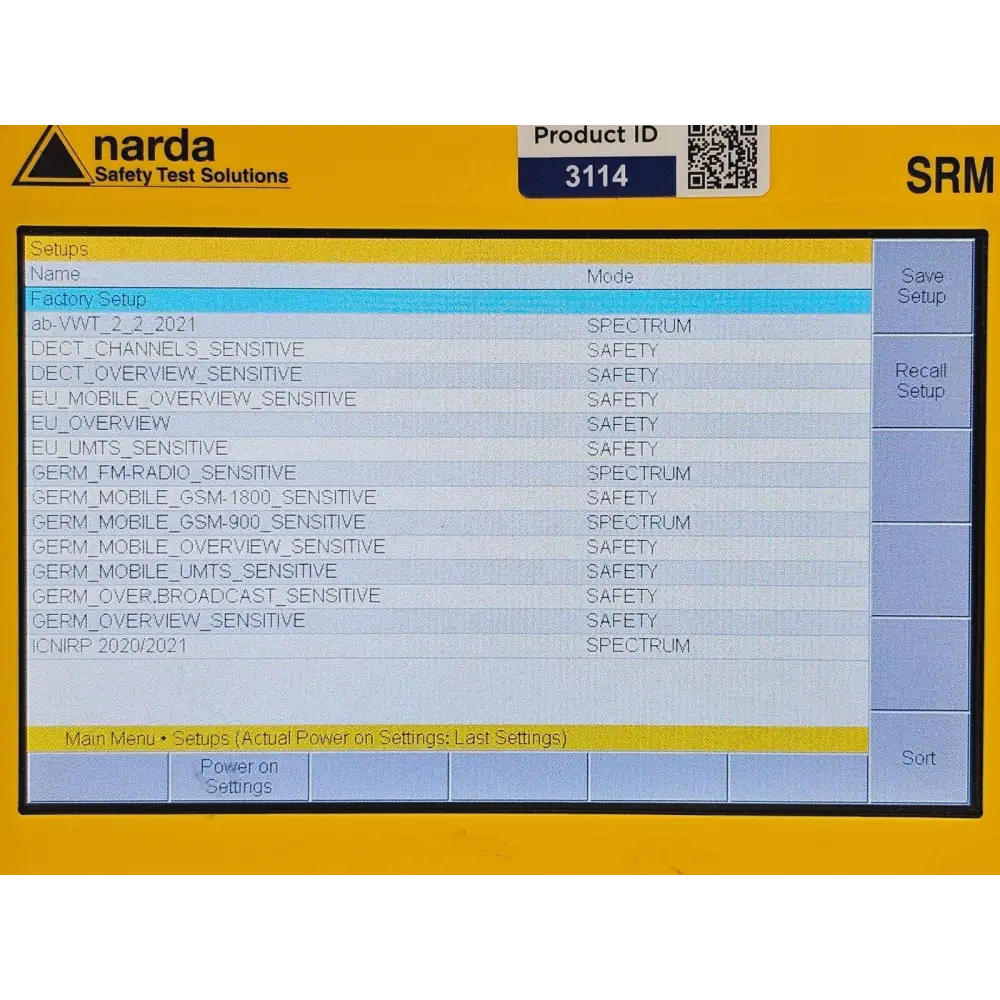

• Programmable measurement routines and storable setups via SRM-3006 TS PC software
• Traceable calibration to national and international standards

Narda SRM-3006 Datasheet – full product specifications and feature overview: Download PDF

Narda SRM-3006 Datasheet (alternate hosted version): Download PDF

Narda SRM-3006 Operating Manual (McGill University hosted PDF): Download PDF

Narda SRM-3006 Product Brochure (McGill University hosted PDF): Download PDF

Narda SRM-3006 Datasheet (McGill University hosted PDF): Download PDF

Narda SRM-3006 Command Reference Guide v1.6.2 (Narda official PDF): Download PDF

Narda SRM-3006 Brochure – When Safety Counts, including 5G NR capability (Narda official PDF): Download PDF
